Numerical Integration Sections 2.8 - 2.9 Example Answers

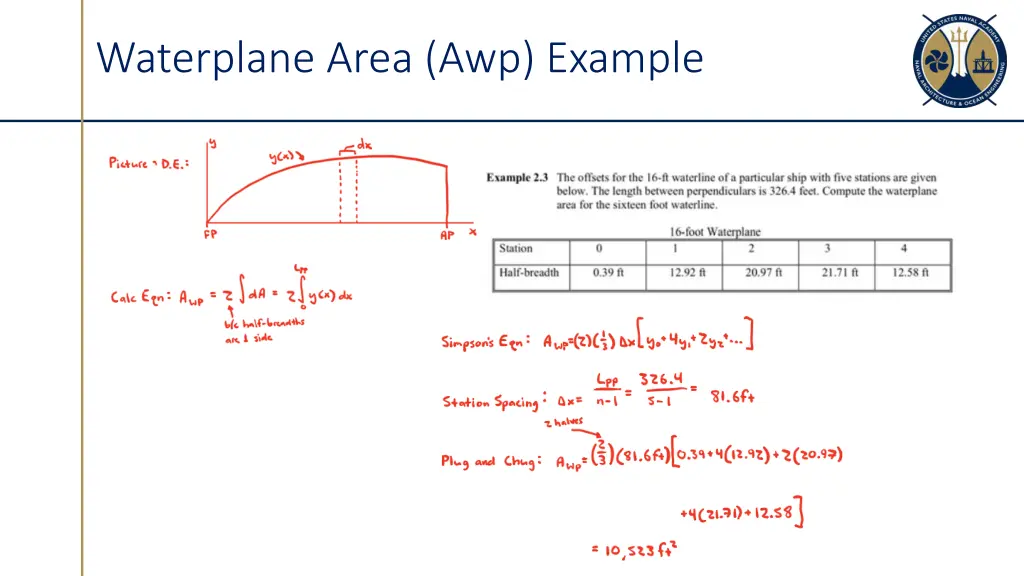

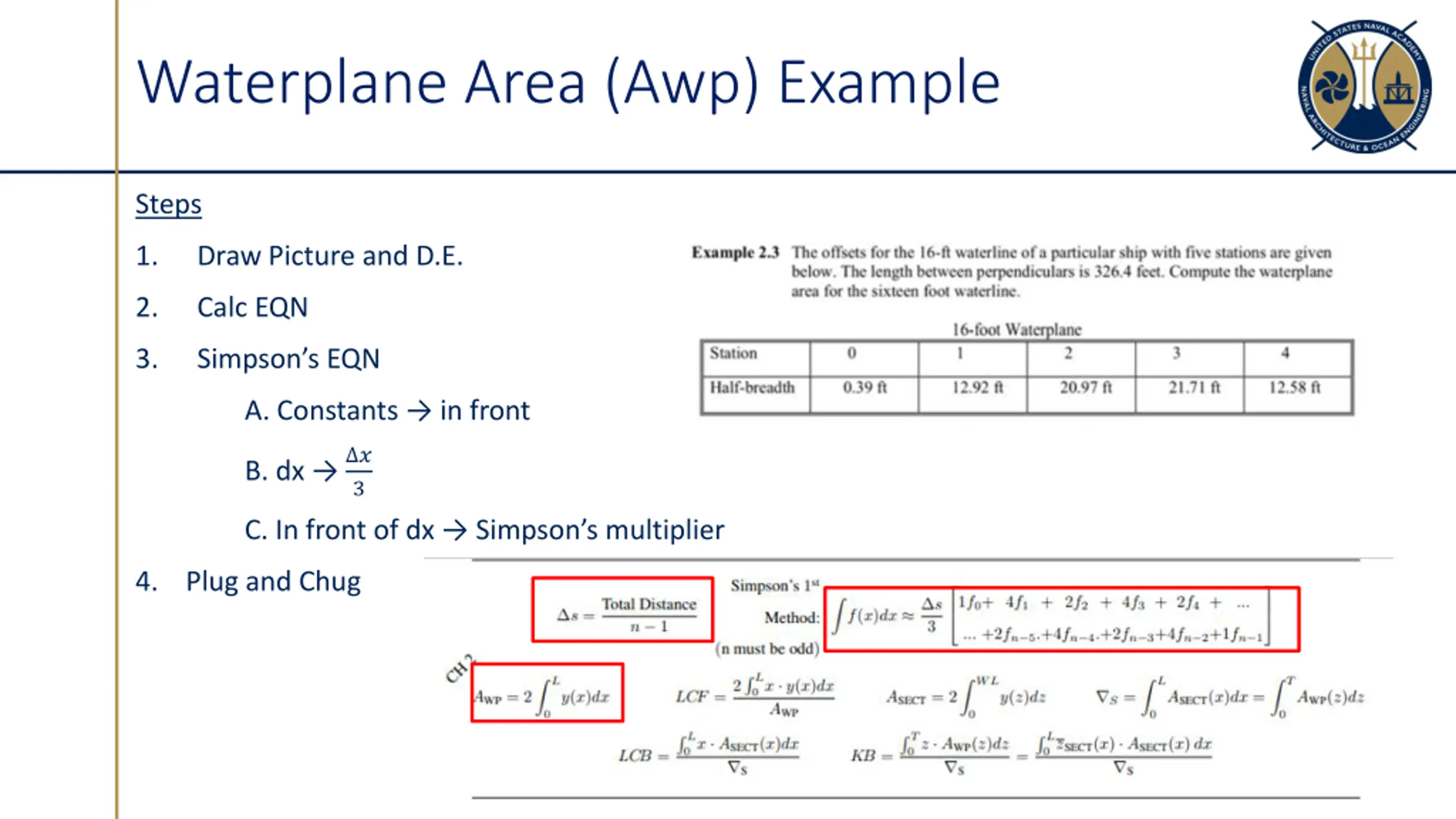

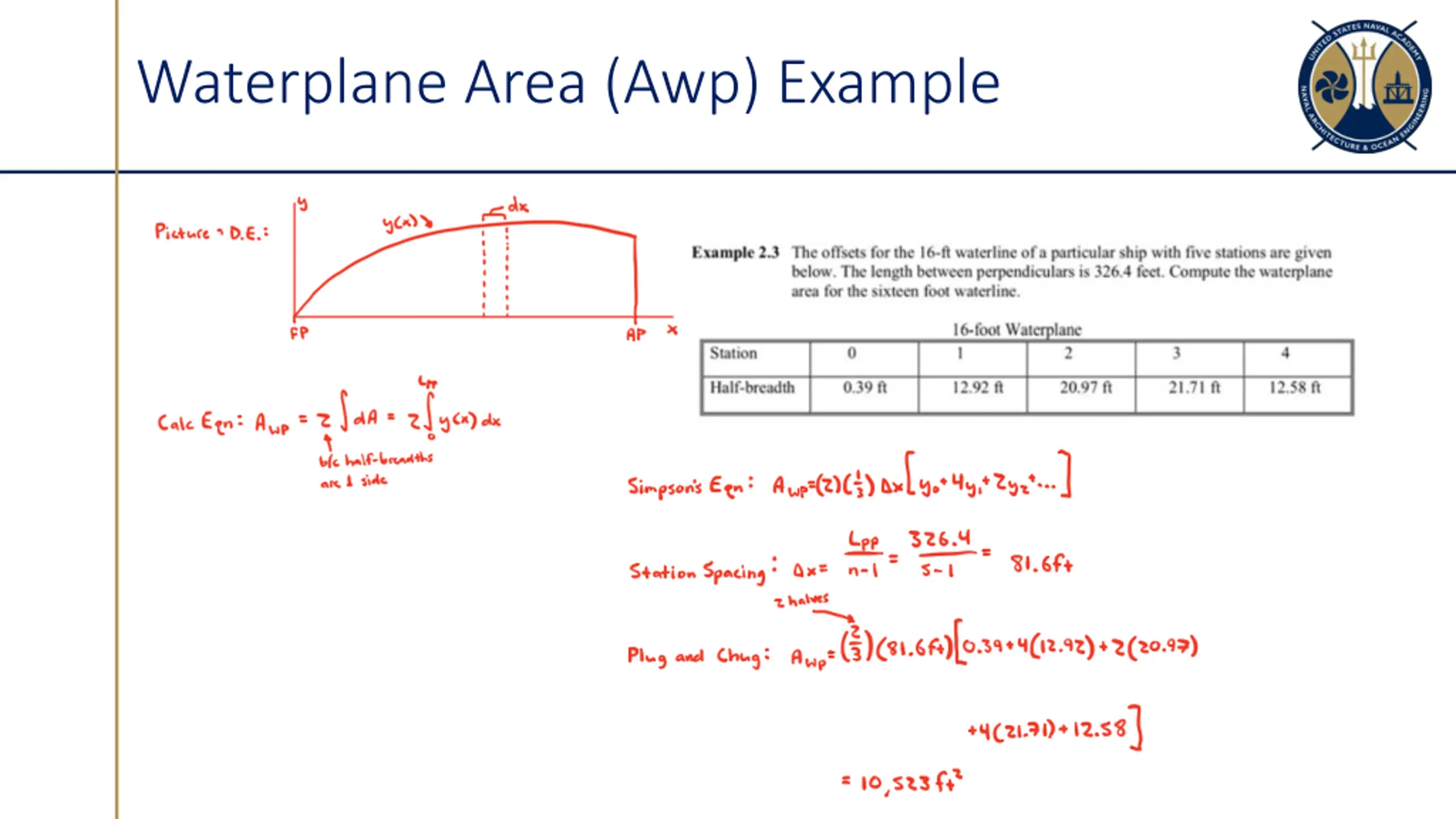

Waterplane Area (Awp) Example Steps 1. Draw Picture and D.E. 2. Calc EQN 3. Simpson s EQN A. Constants in front B. dx ? 3 C. In front of dx Simpson s multiplier 4. Plug and Chug

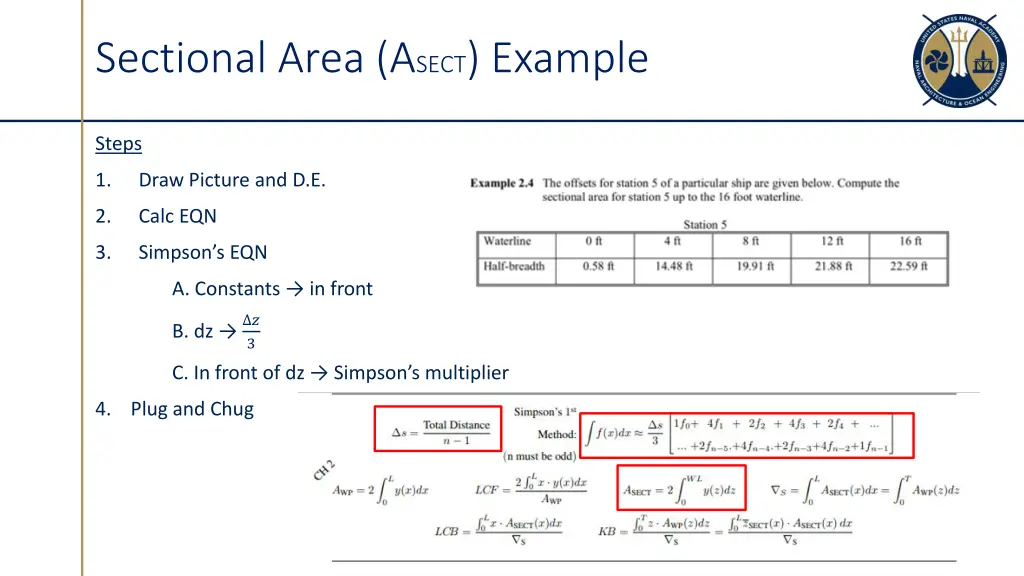

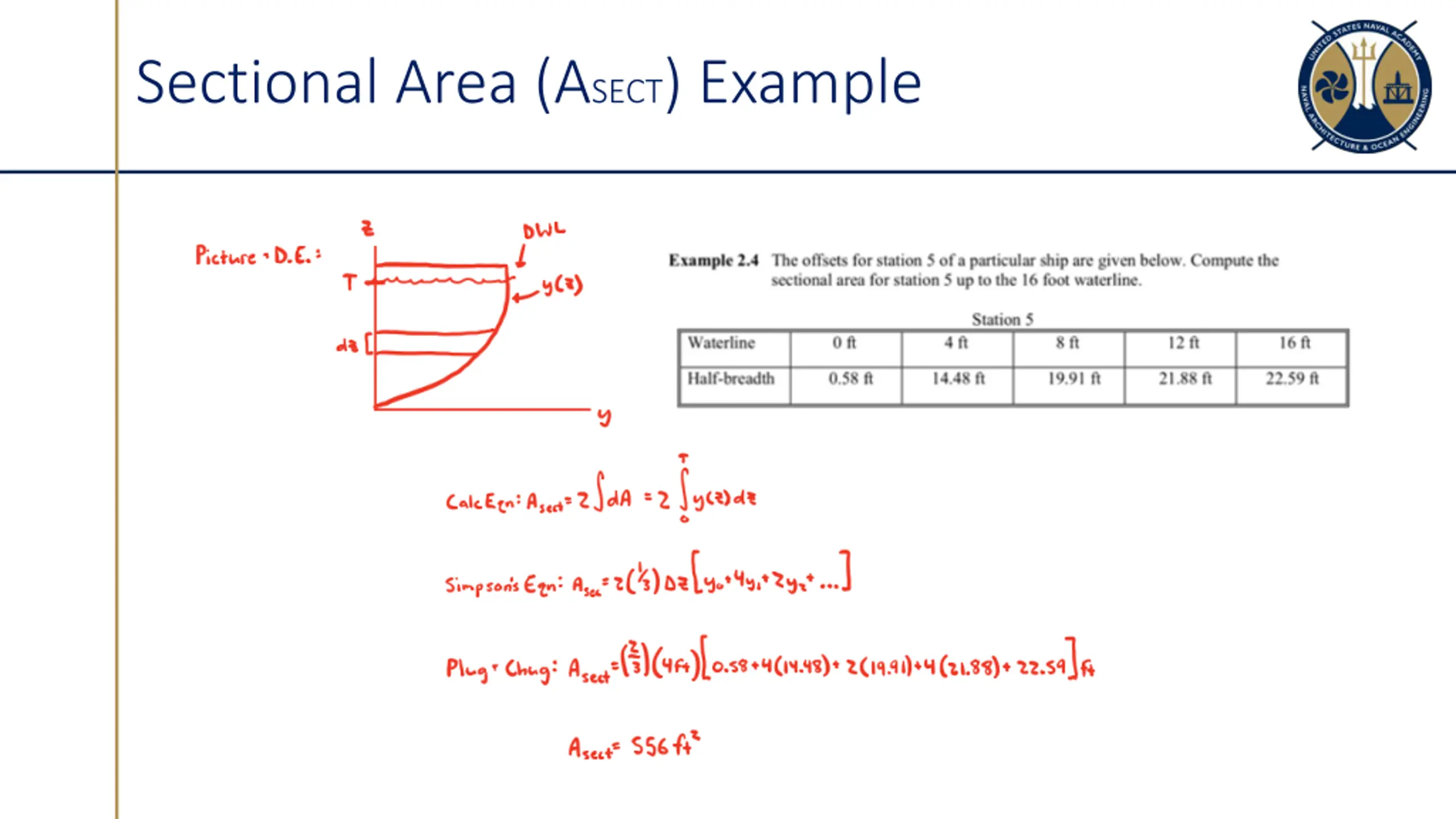

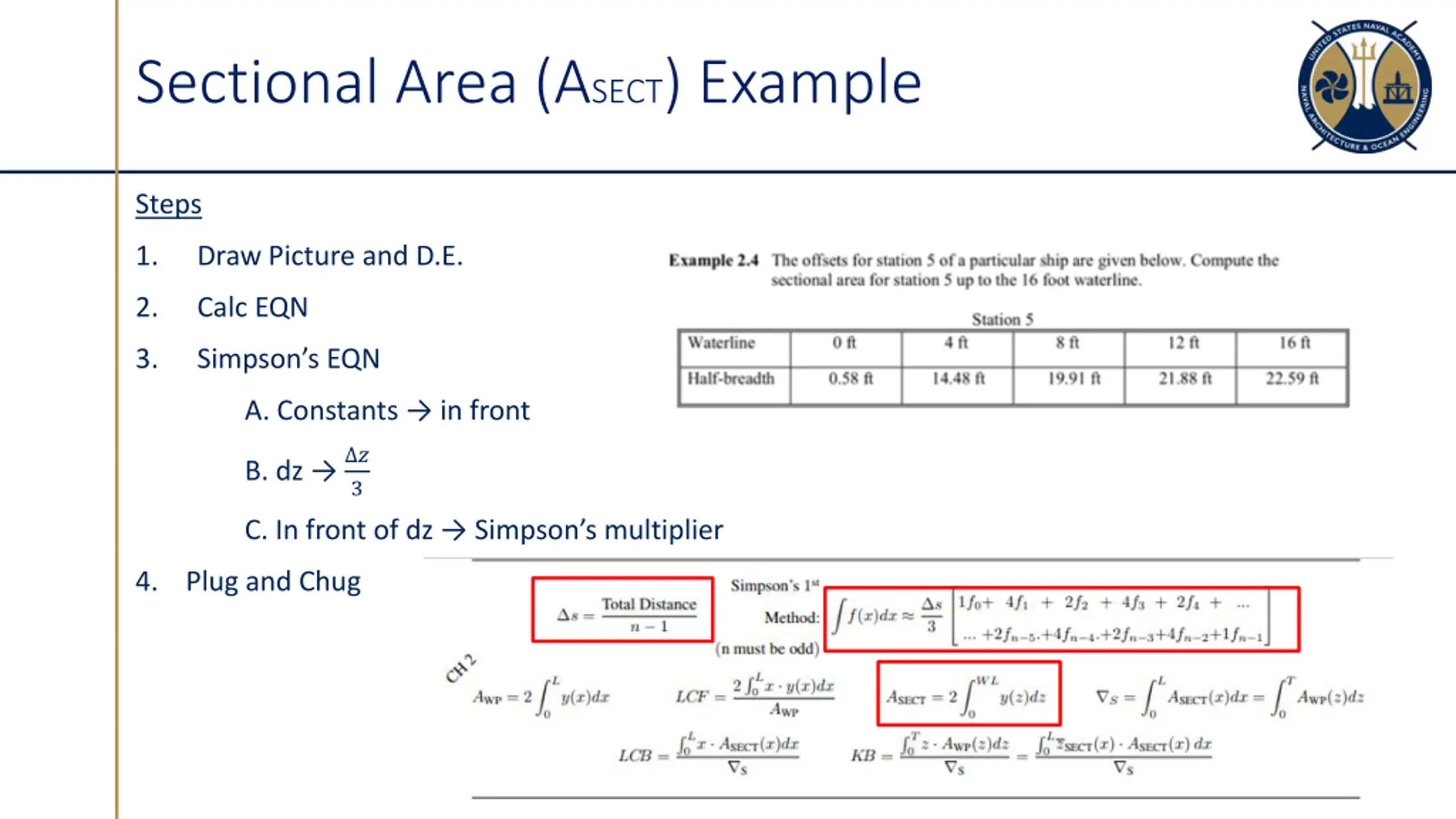

Sectional Area (ASECT) Example Steps 1. Draw Picture and D.E. 2. Calc EQN 3. Simpson s EQN A. Constants in front B. dz ? 3 C. In front of dz Simpson s multiplier 4. Plug and Chug

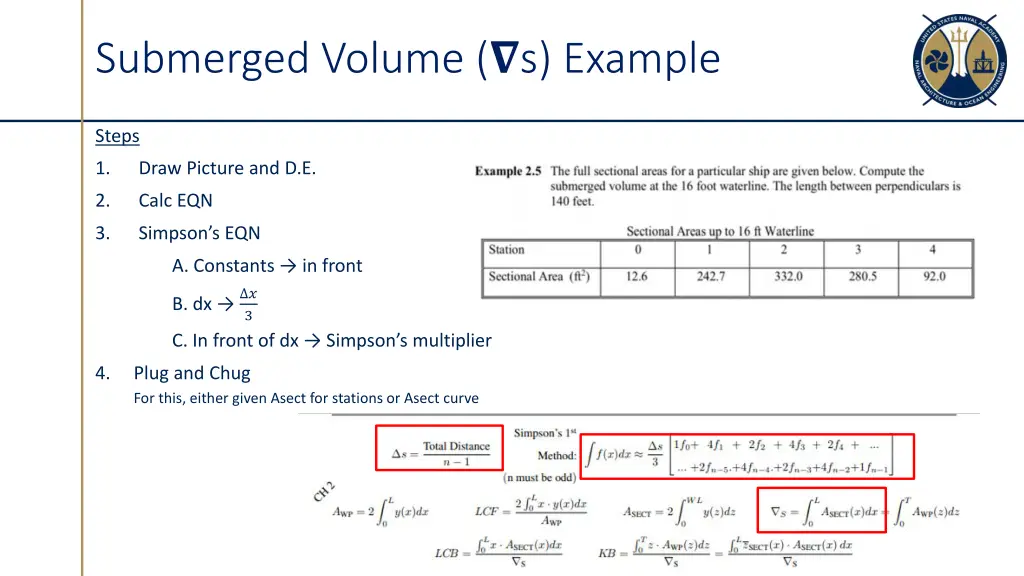

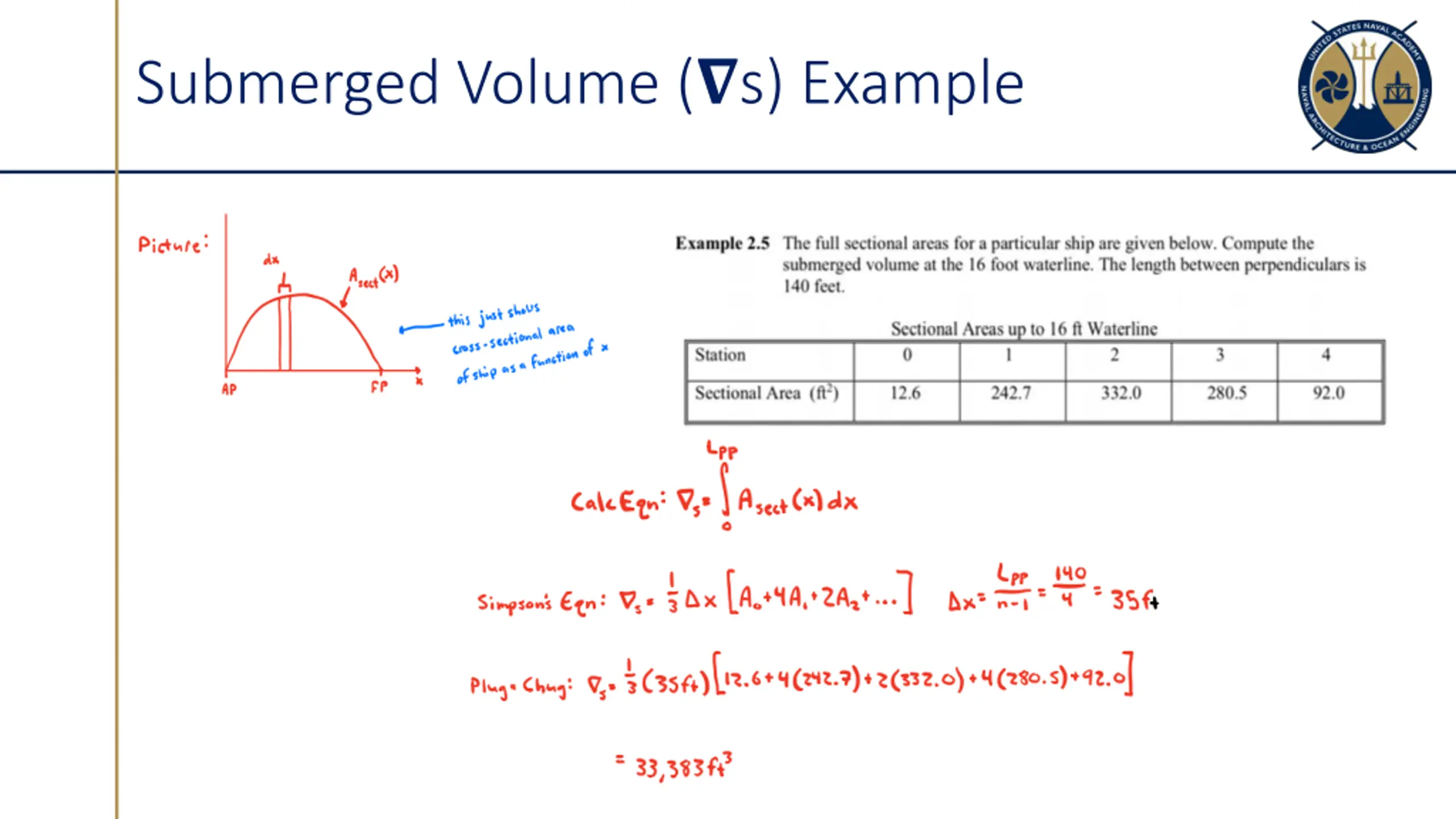

Submerged Volume (?s) Example Steps 1. Draw Picture and D.E. 2. Calc EQN 3. Simpson s EQN A. Constants in front B. dx ? 3 C. In front of dx Simpson s multiplier 4. Plug and Chug For this, either given Asect for stations or Asect curve

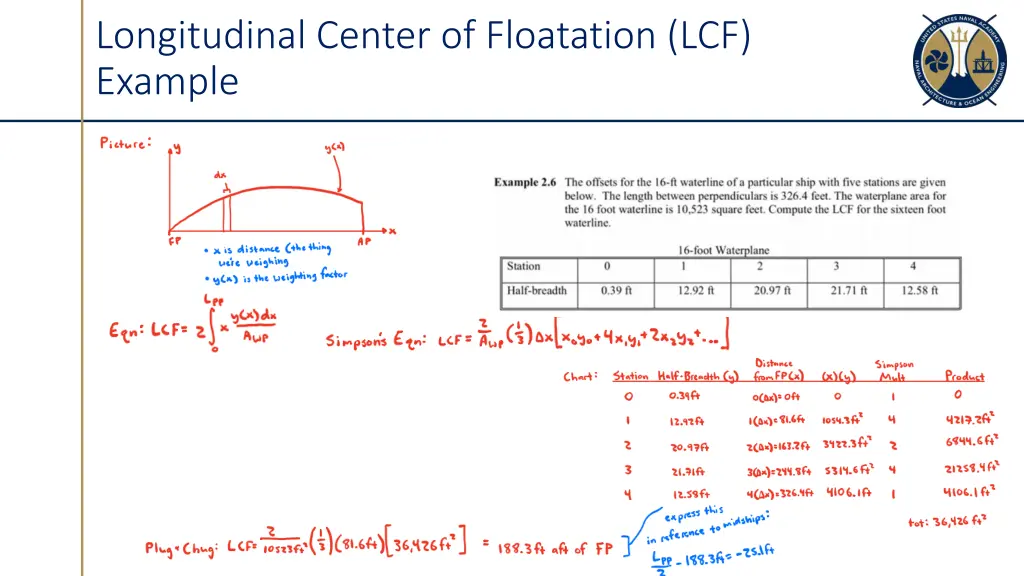

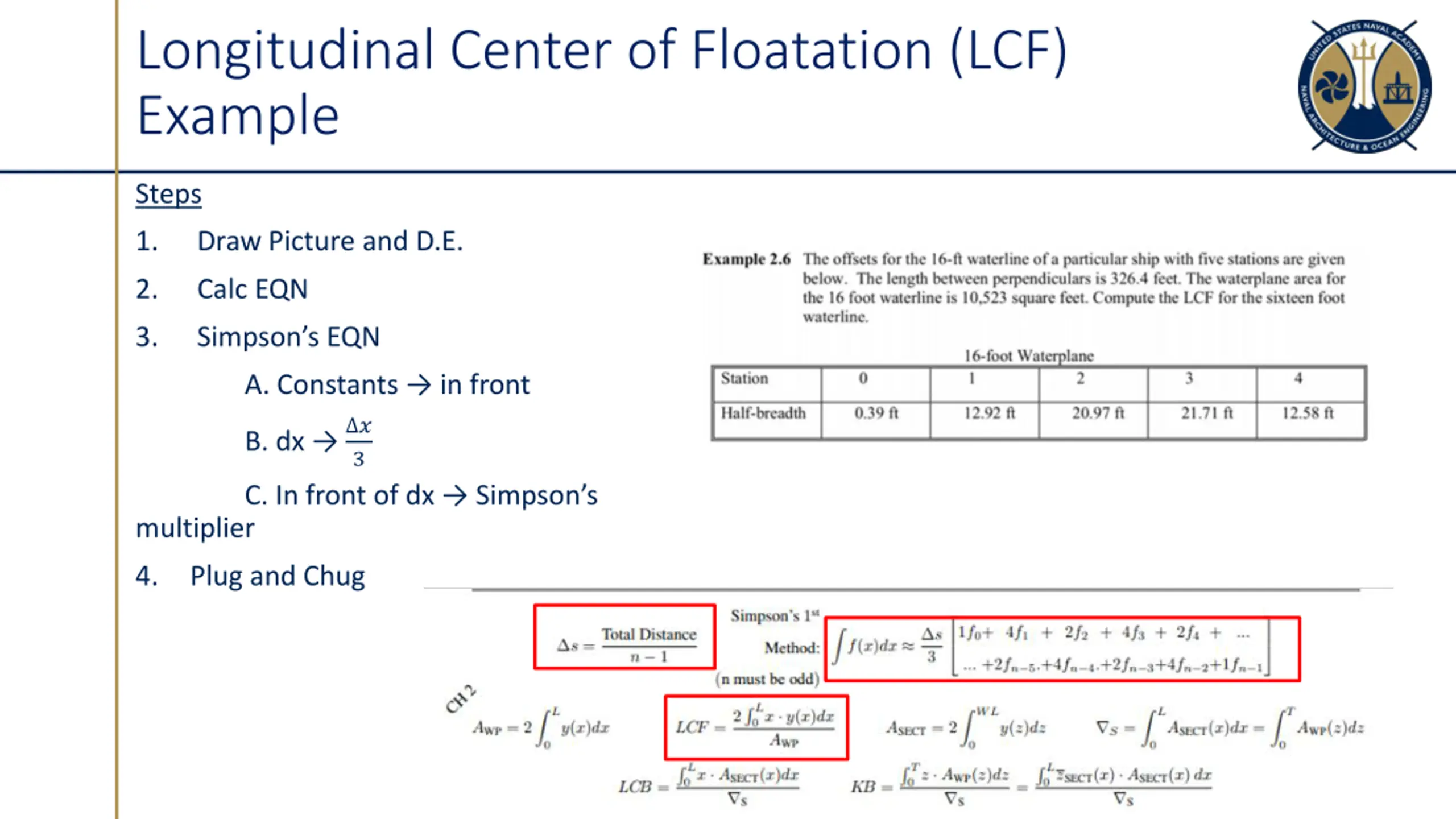

Longitudinal Center of Floatation (LCF) Example Steps 1. Draw Picture and D.E. 2. Calc EQN 3. Simpson s EQN A. Constants in front B. dx ? 3 C. In front of dx Simpson s multiplier 4. Plug and Chug
