Object Adapter Pattern Ziyi Feng ziyif@uchicago.edu

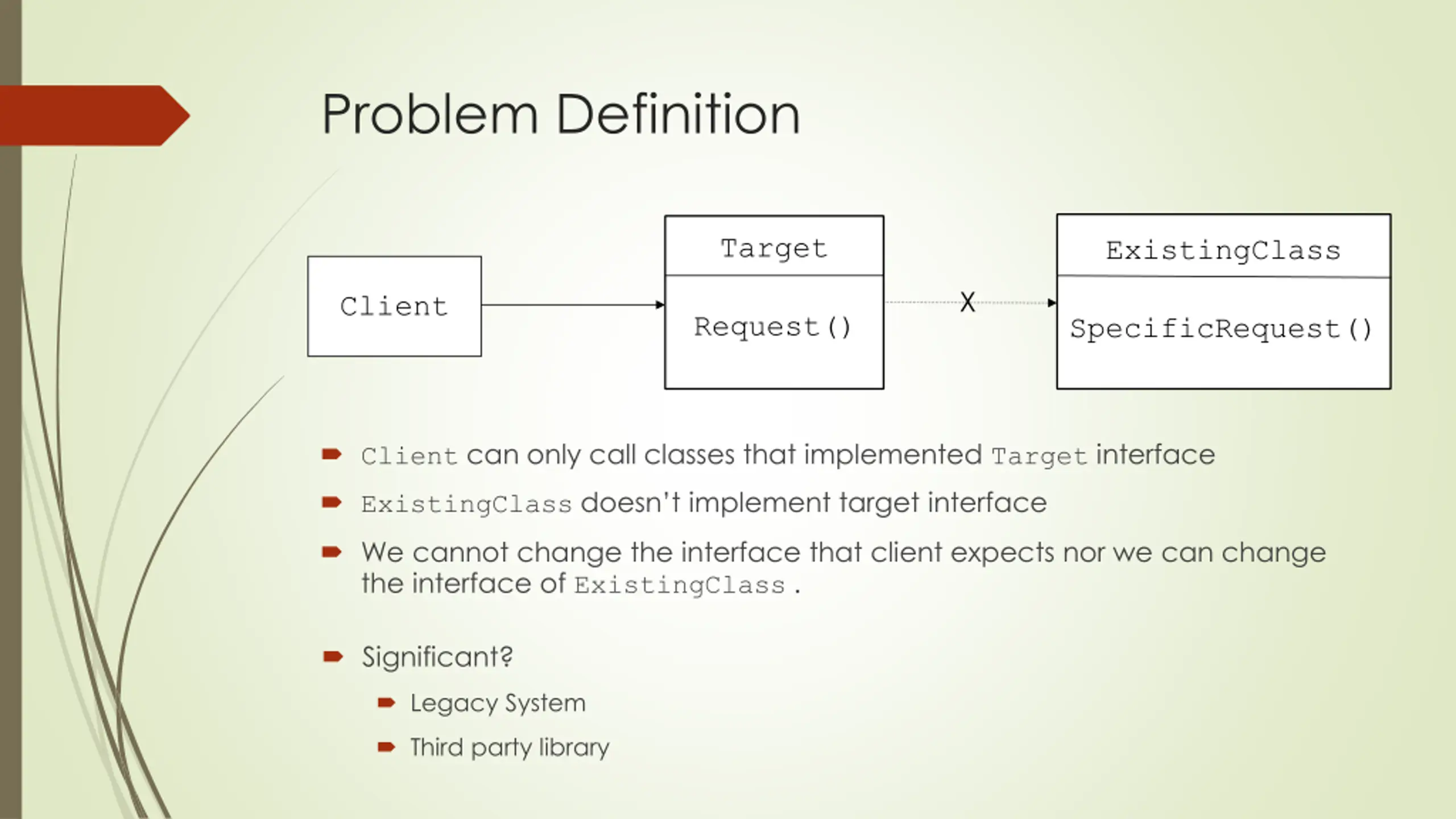

Problem Definition Target ExistingClass X Client Request() SpecificRequest() Client can only call classes that implemented Target interface ExistingClassdoesn t implement target interface We cannot change the interface that client expects nor we can change the interface of ExistingClass . Significant? Legacy System Third party library

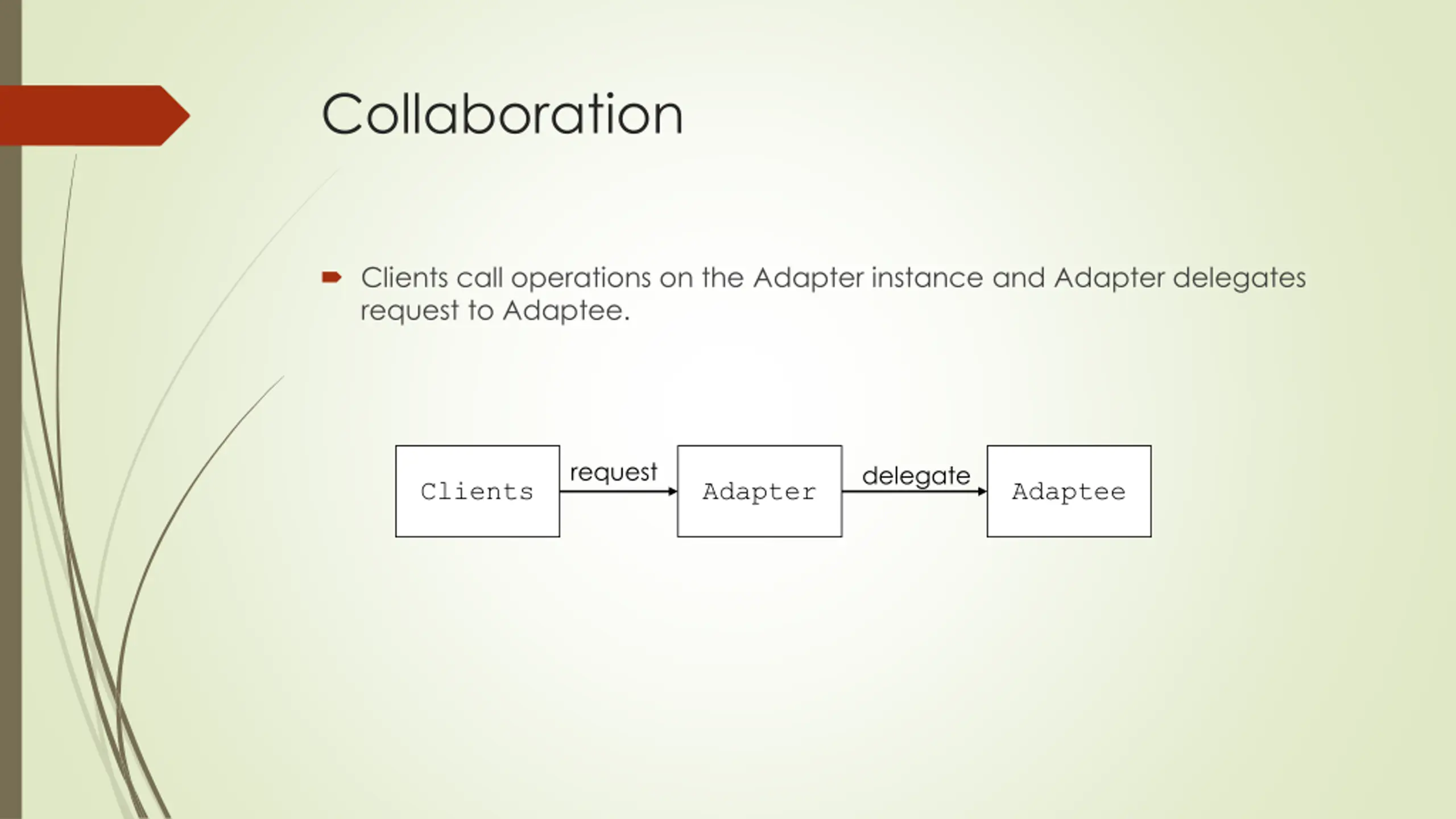

Collaboration Clients call operations on the Adapter instance and Adapter delegates request to Adaptee. request delegate Clients Adapter Adaptee

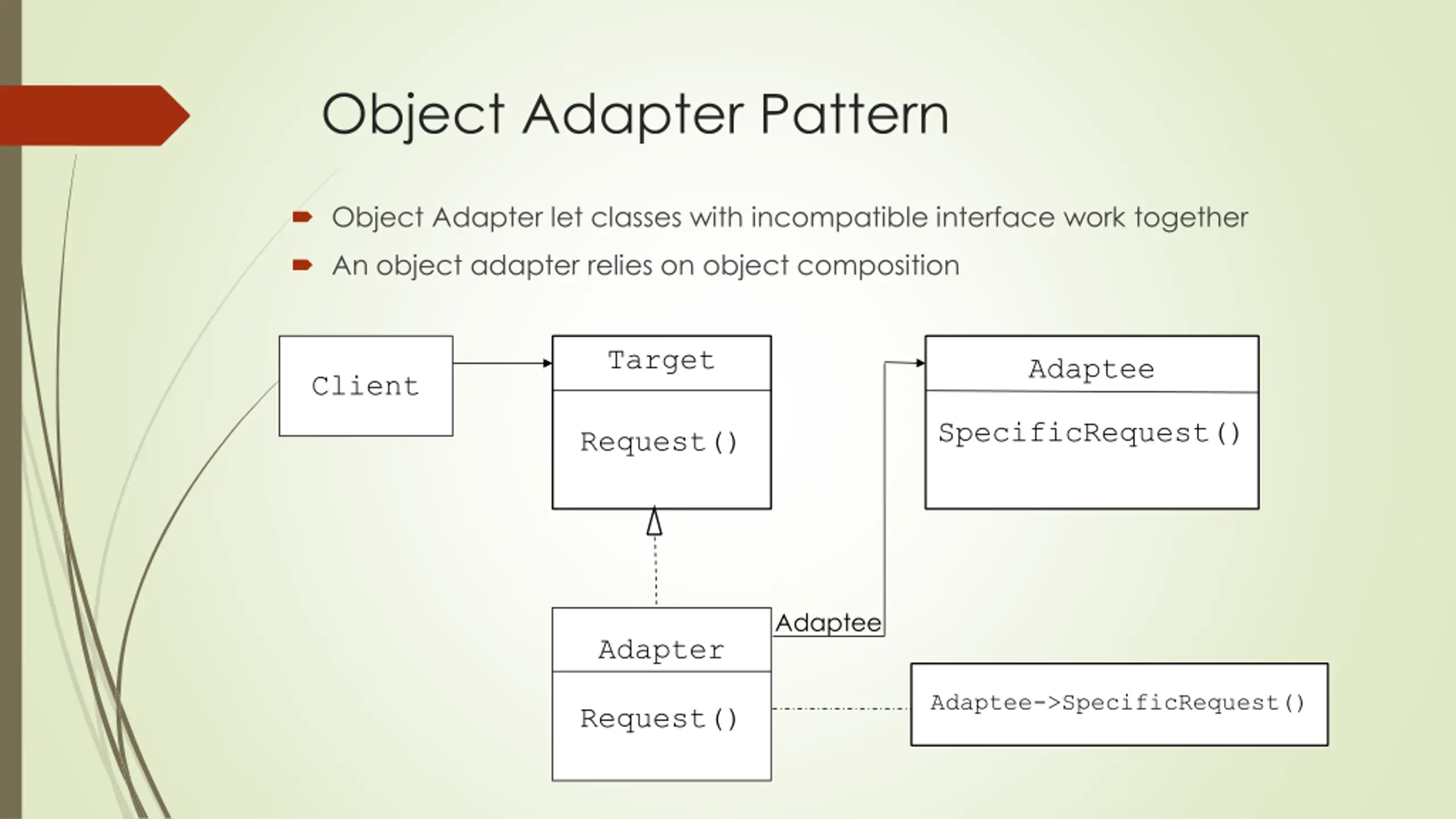

Object Adapter Pattern Object Adapter let classes with incompatible interface work together An object adapter relies on object composition Target Adaptee Client SpecificRequest() Request() Adaptee Adapter Adaptee->SpecificRequest() Request()

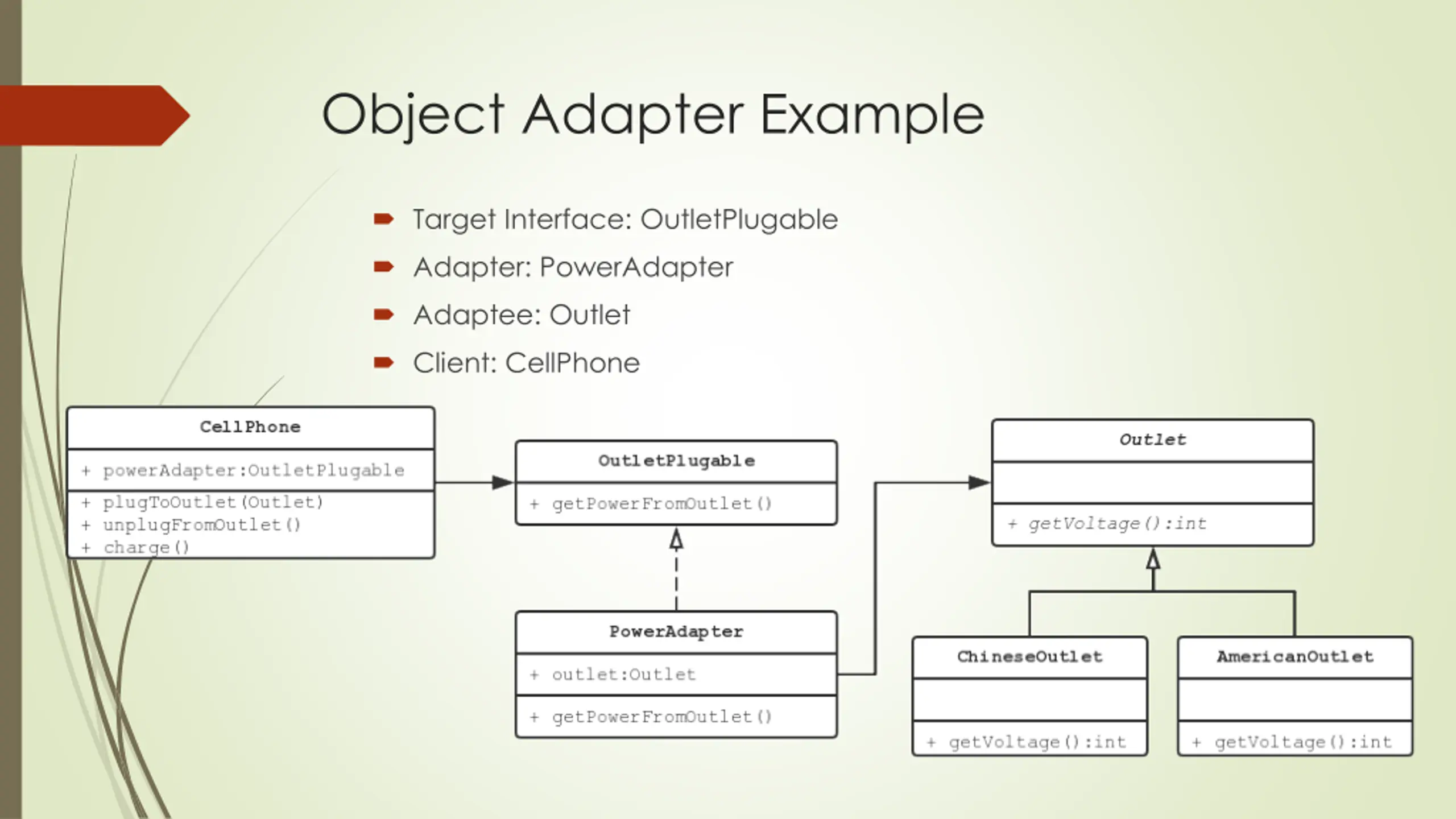

Object Adapter Example Target Interface: OutletPlugable Adapter: PowerAdapter Adaptee: Outlet Client: CellPhone

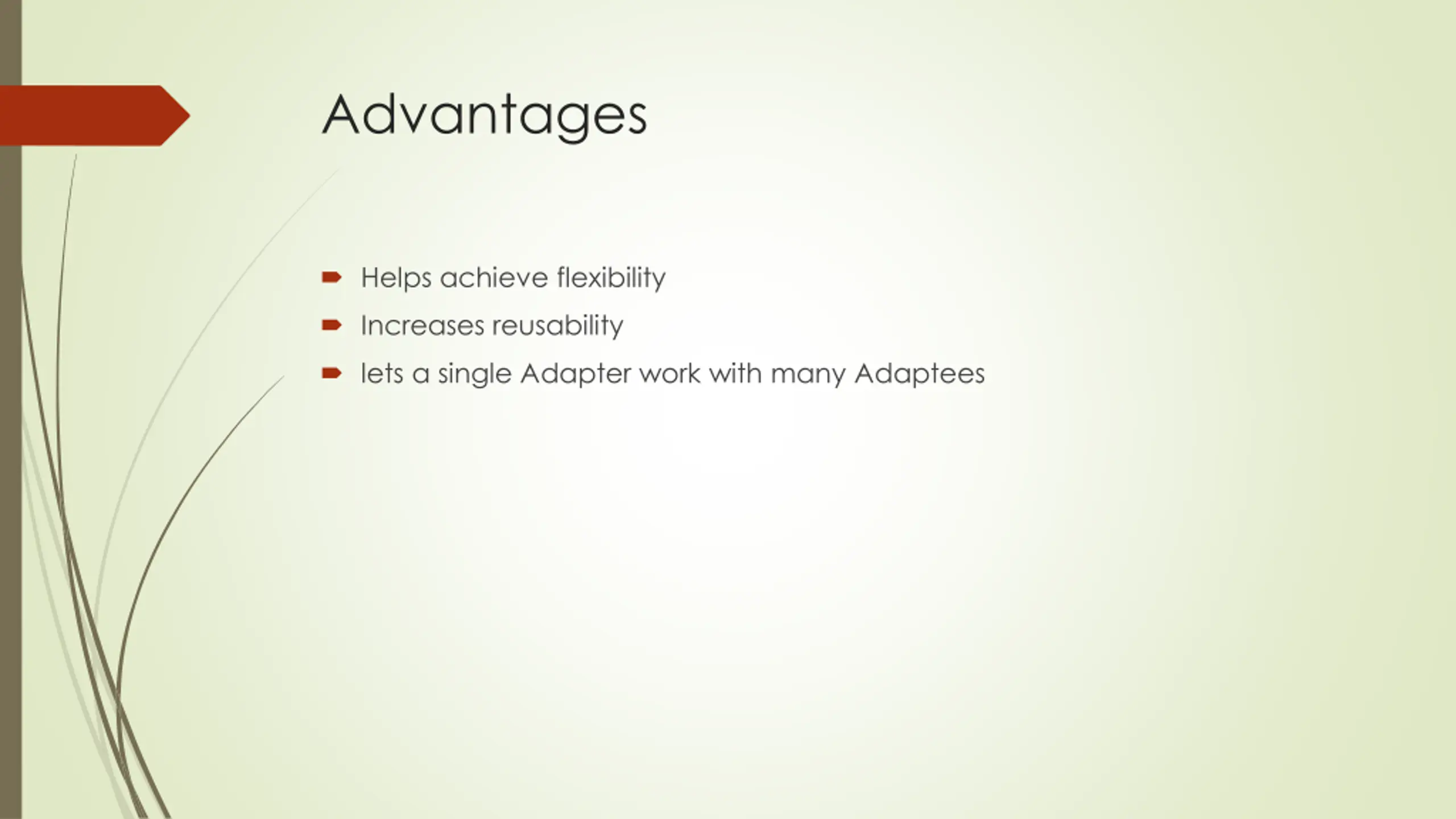

Advantages Helps achieve flexibility Increases reusability lets a single Adapter work with many Adaptees

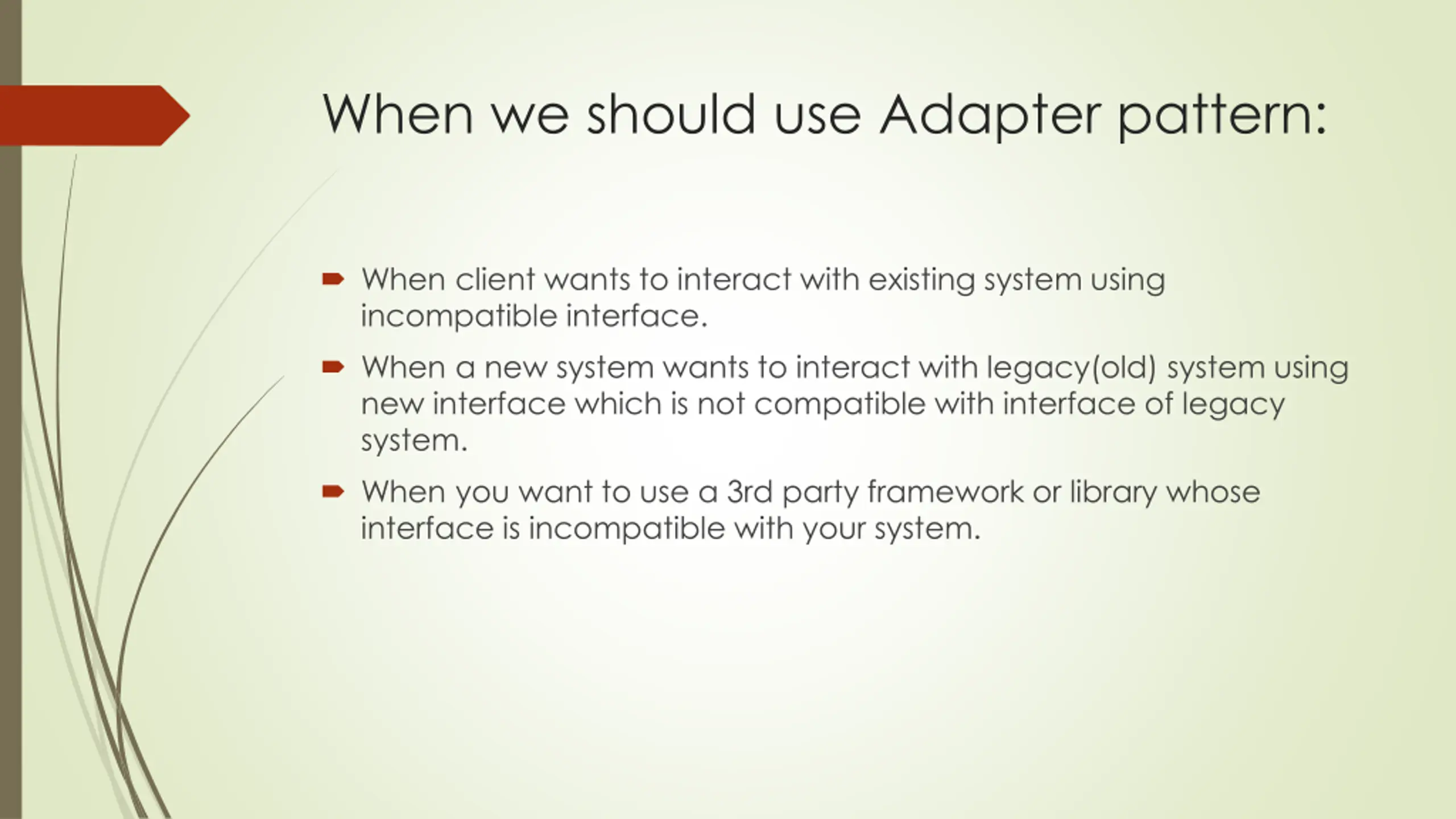

When we should use Adapter pattern: When client wants to interact with existing system using incompatible interface. When a new system wants to interact with legacy(old) system using new interface which is not compatible with interface of legacy system. When you want to use a 3rd party framework or library whose interface is incompatible with your system.
