Object-Oriented Graphics Package Implementation with Python Inheritance

Python Programming in Context Chapter 12

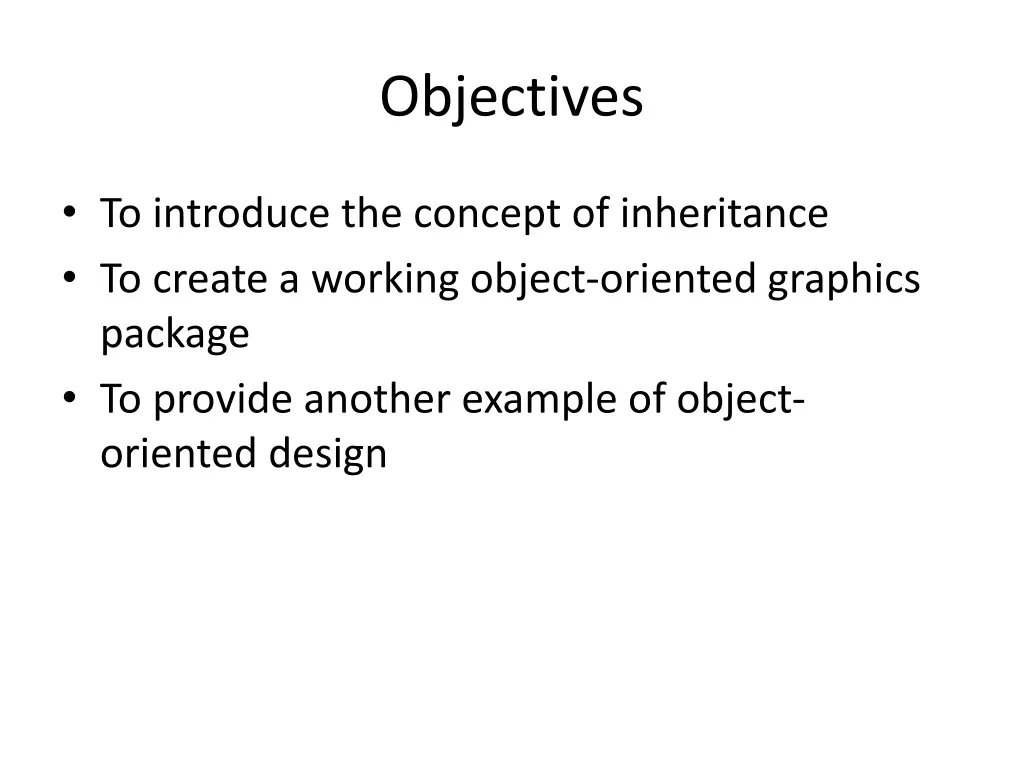

Objectives To introduce the concept of inheritance To create a working object-oriented graphics package To provide another example of object- oriented design

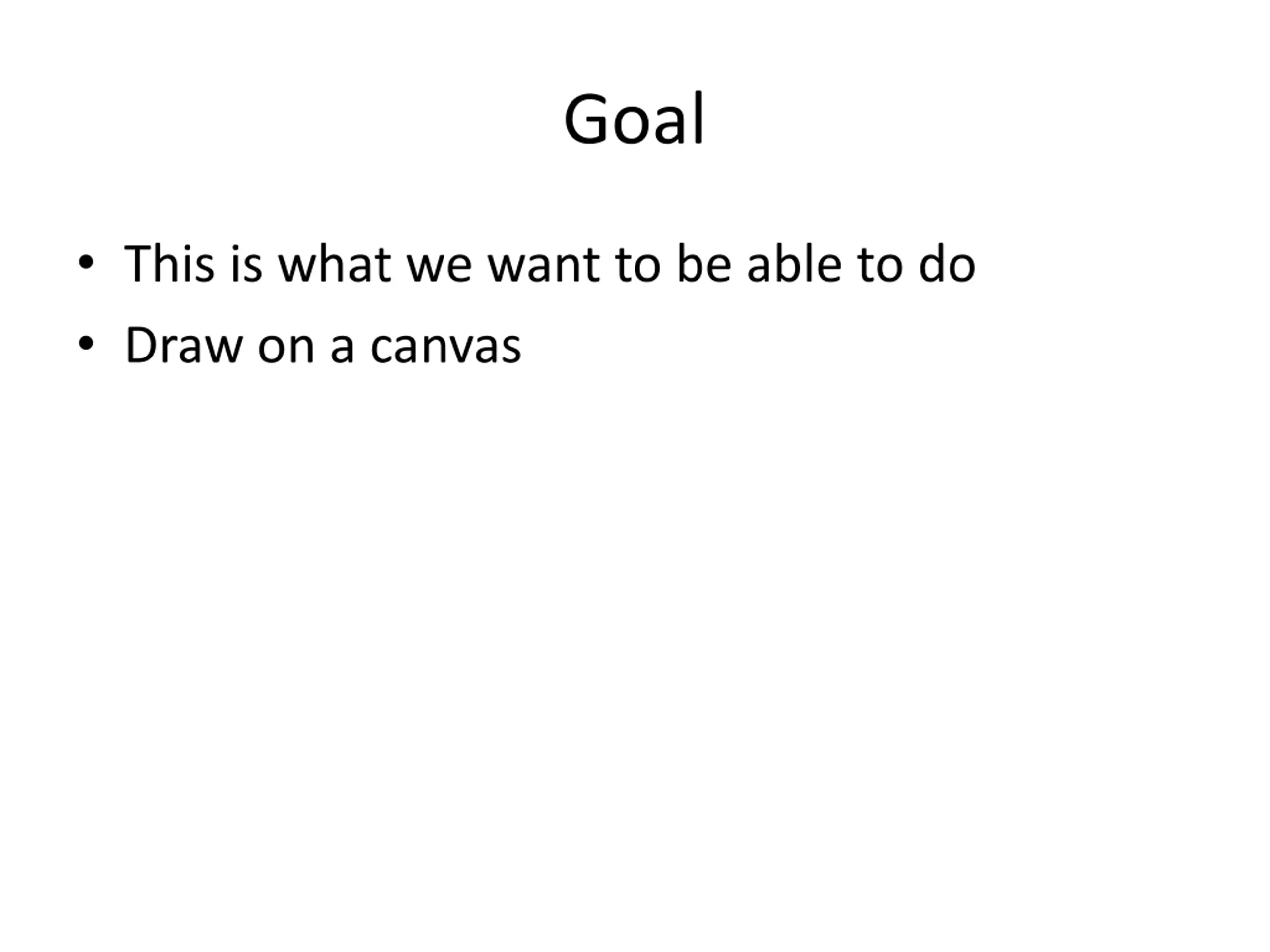

Goal This is what we want to be able to do Draw on a canvas

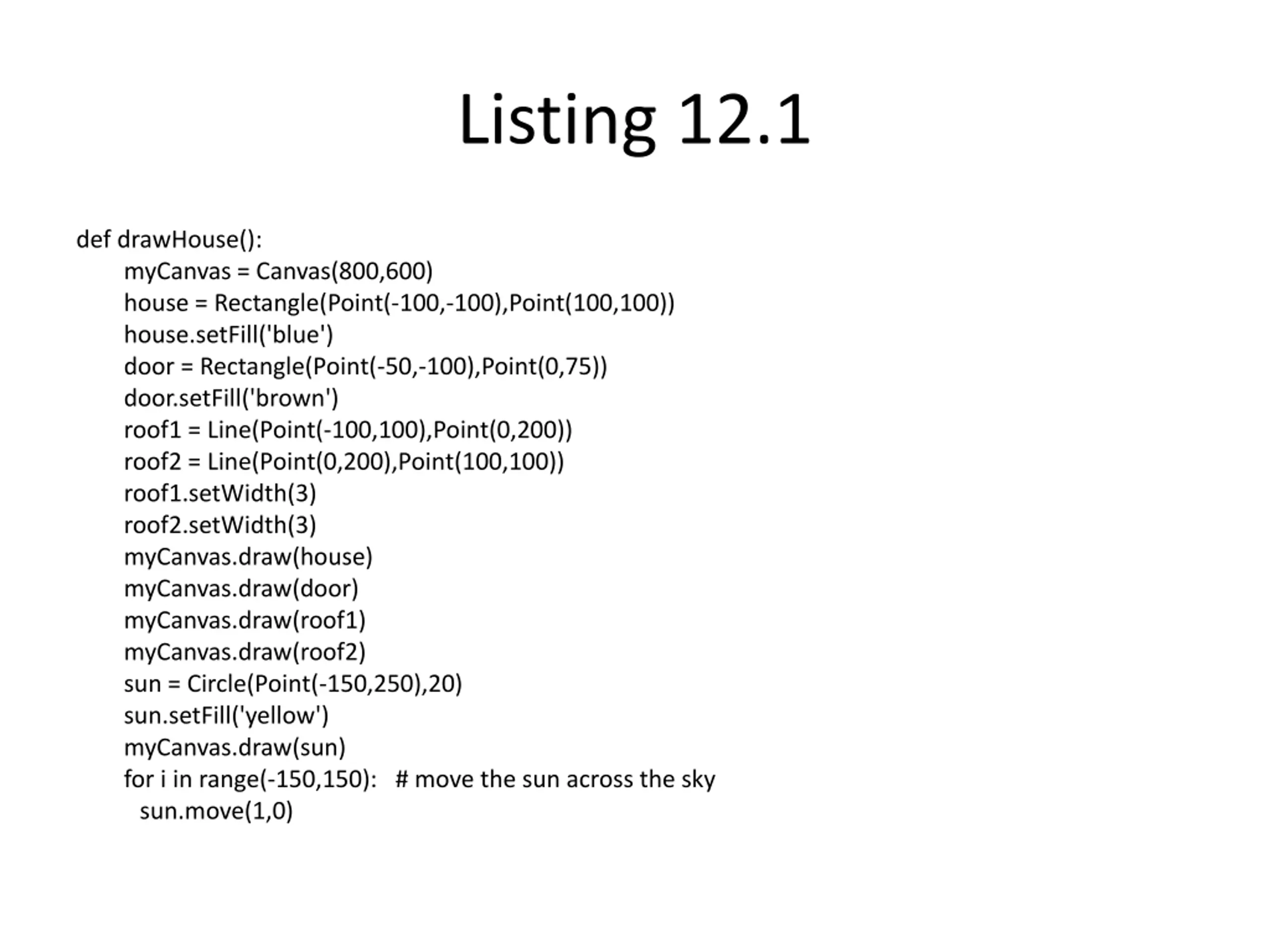

Listing 12.1 def drawHouse(): myCanvas = Canvas(800,600) house = Rectangle(Point(-100,-100),Point(100,100)) house.setFill('blue') door = Rectangle(Point(-50,-100),Point(0,75)) door.setFill('brown') roof1 = Line(Point(-100,100),Point(0,200)) roof2 = Line(Point(0,200),Point(100,100)) roof1.setWidth(3) roof2.setWidth(3) myCanvas.draw(house) myCanvas.draw(door) myCanvas.draw(roof1) myCanvas.draw(roof2) sun = Circle(Point(-150,250),20) sun.setFill('yellow') myCanvas.draw(sun) for i in range(-150,150): # move the sun across the sky sun.move(1,0)

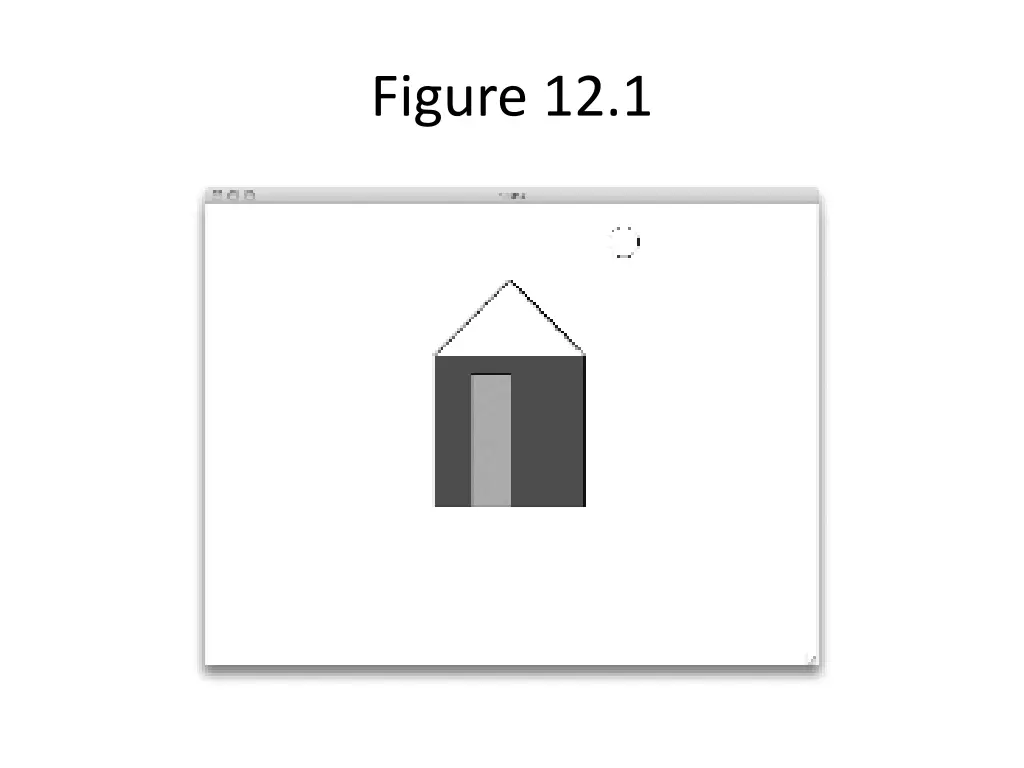

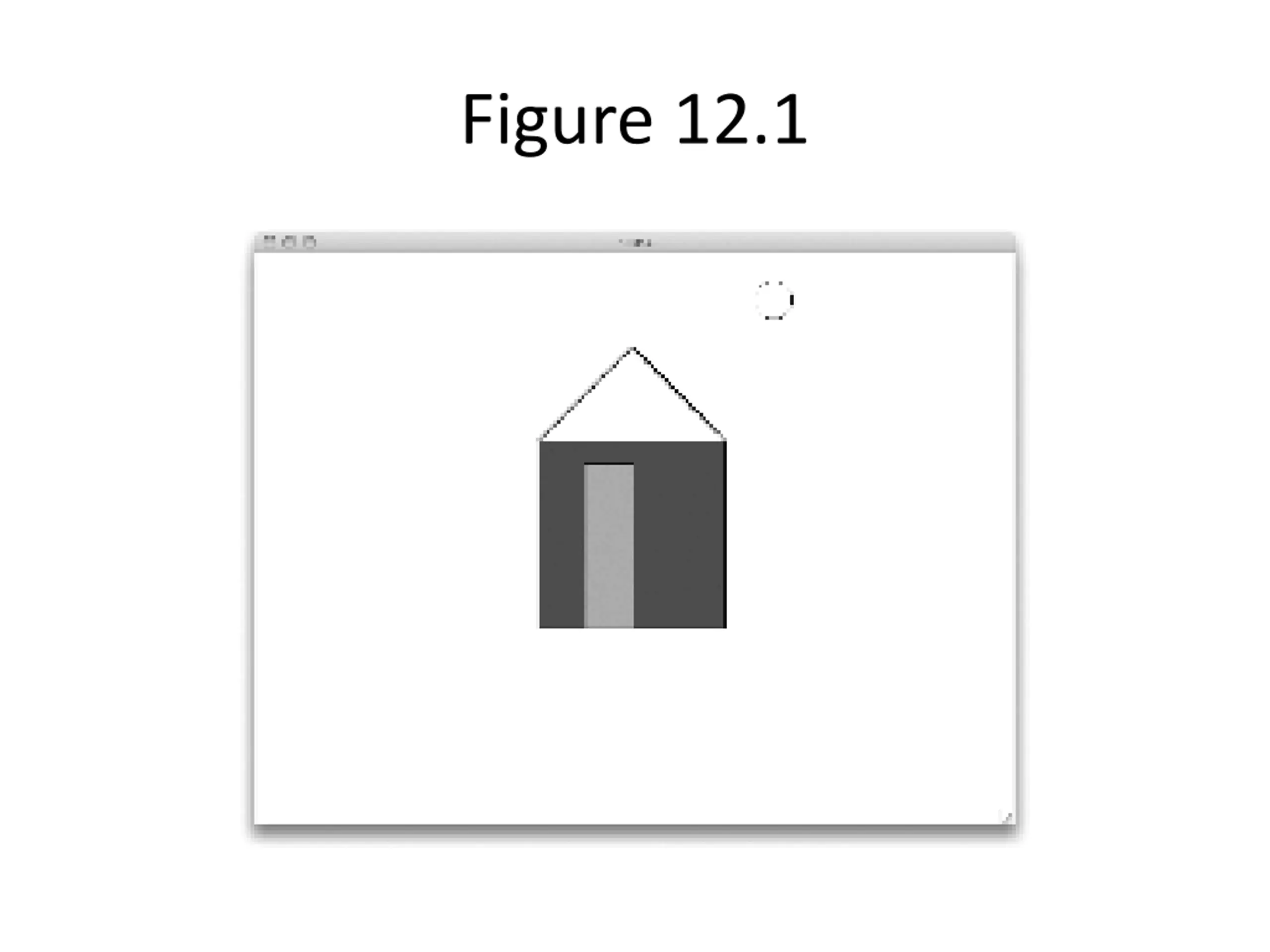

Figure 12.1

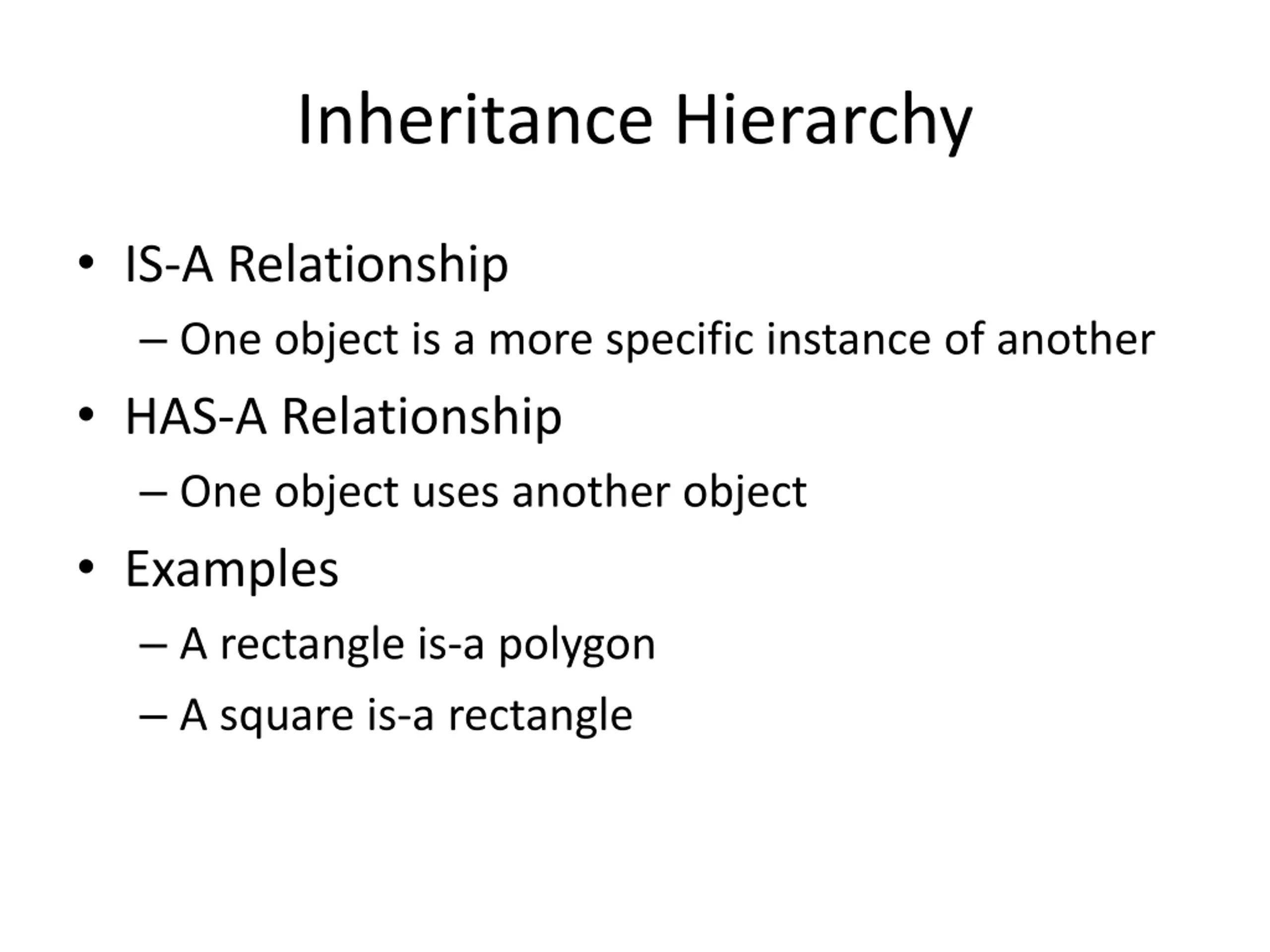

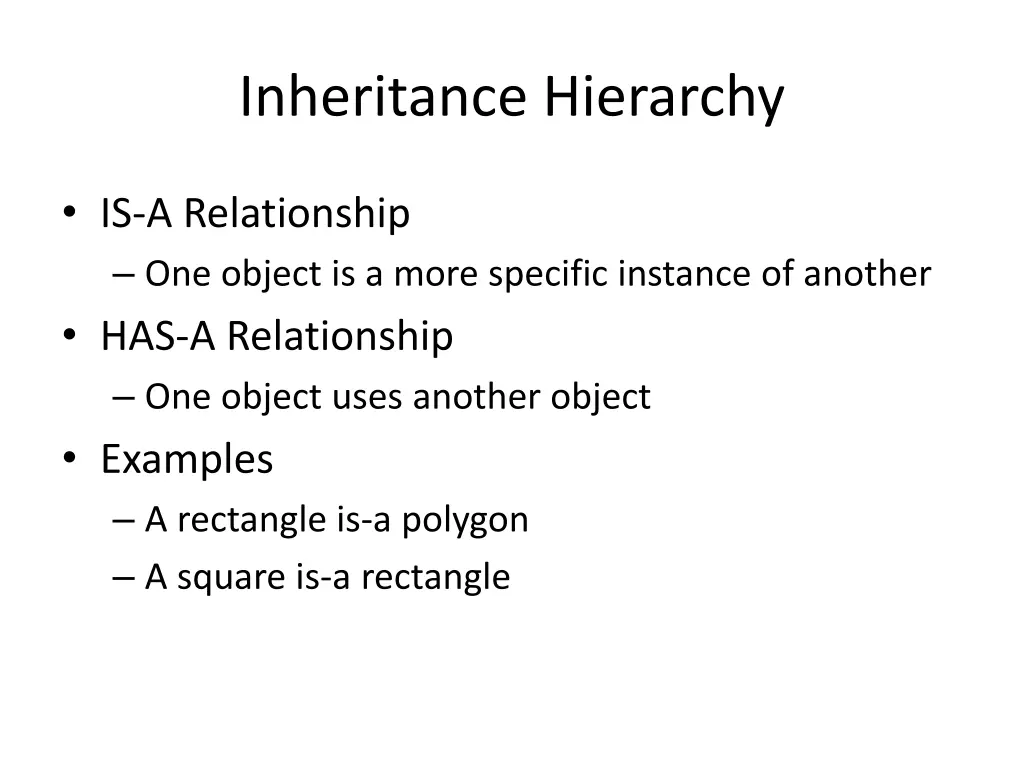

Inheritance Hierarchy IS-A Relationship One object is a more specific instance of another HAS-A Relationship One object uses another object Examples A rectangle is-a polygon A square is-a rectangle

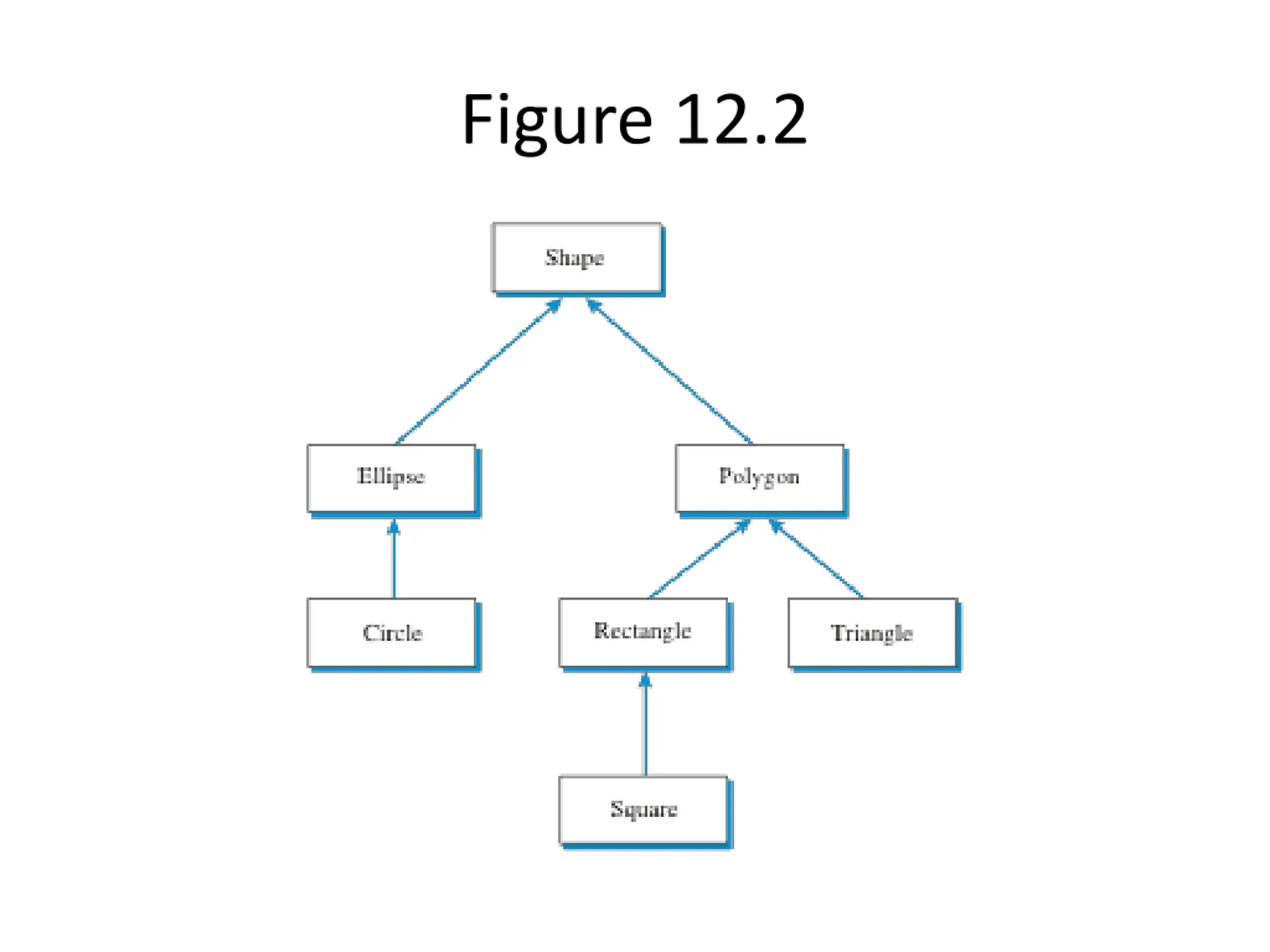

Figure 12.2

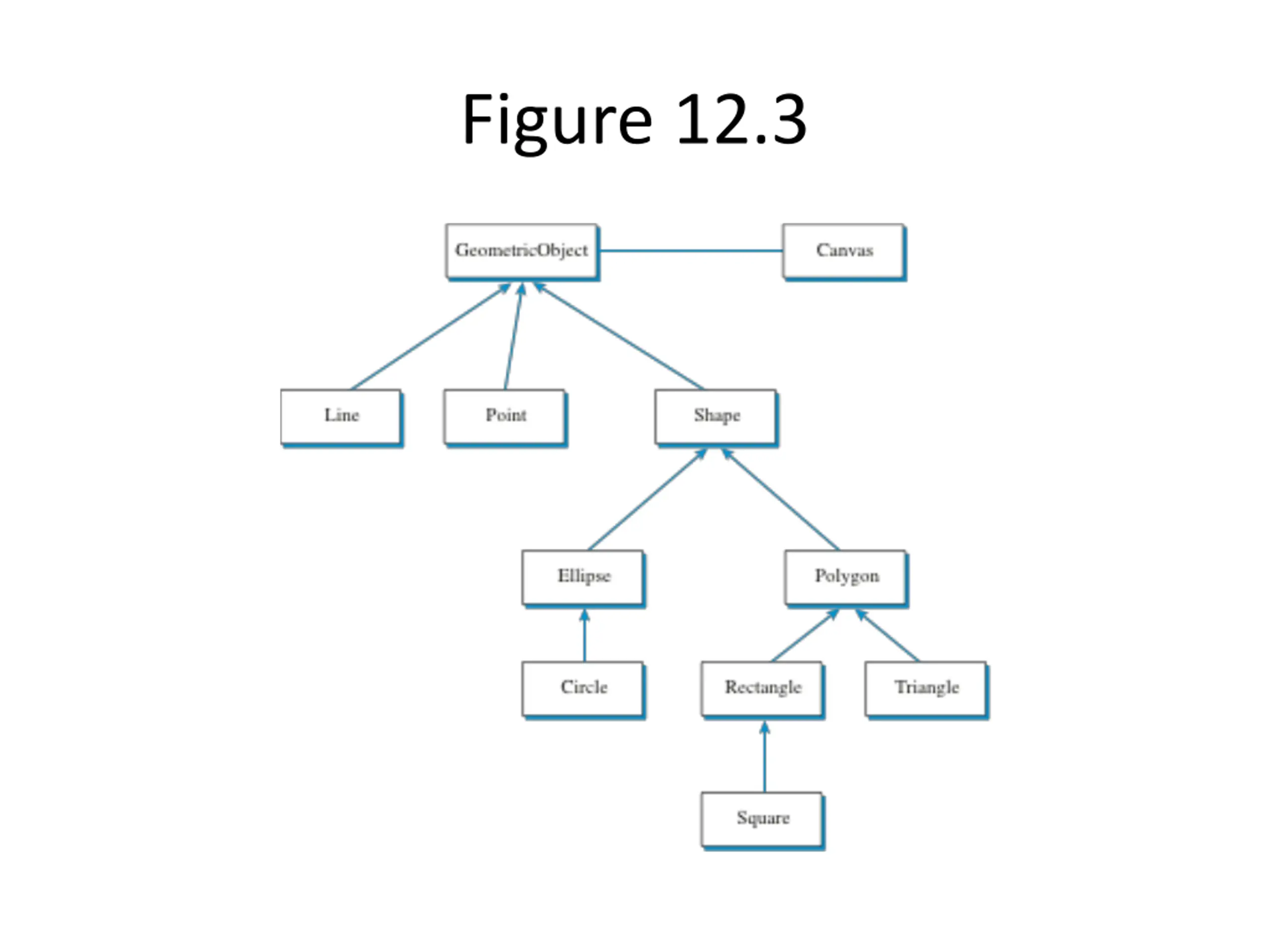

Figure 12.3

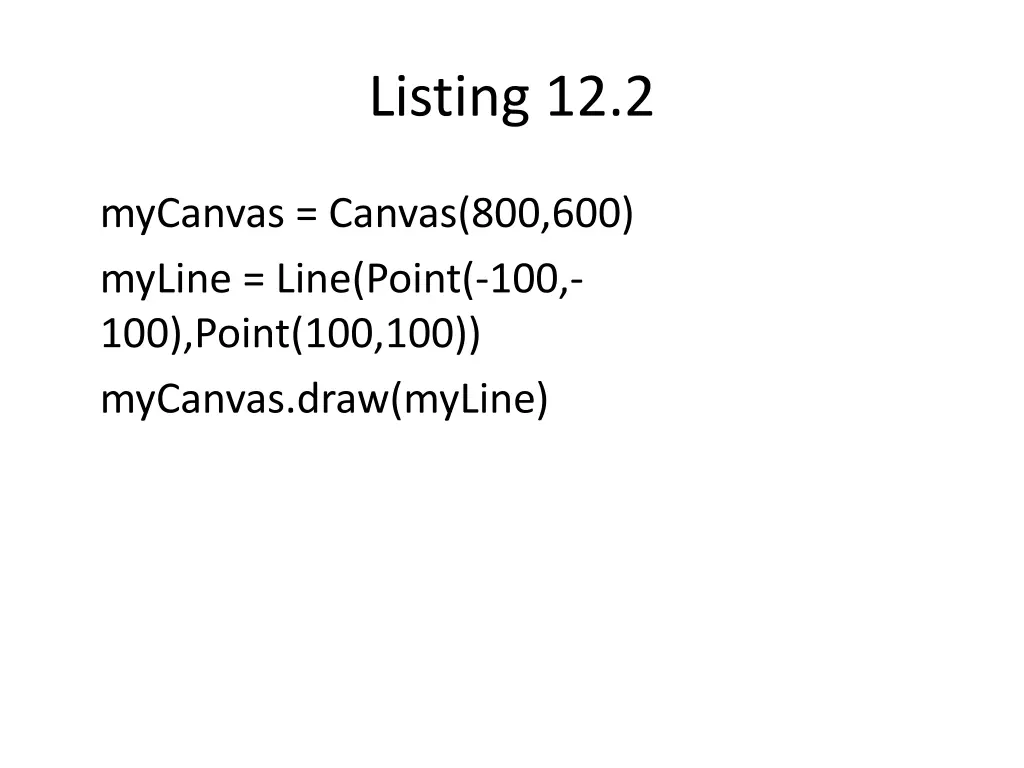

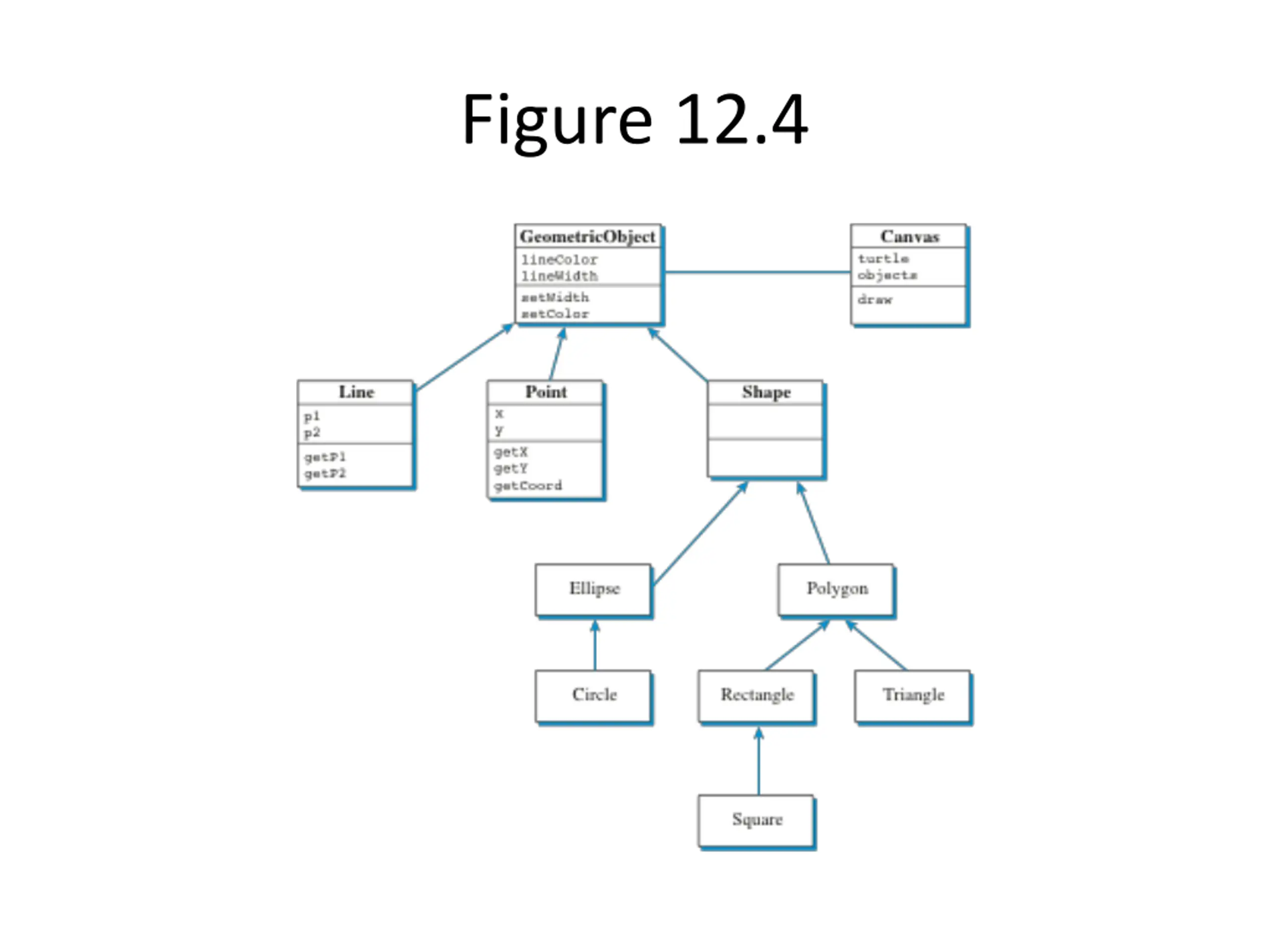

Listing 12.2 myCanvas = Canvas(800,600) myLine = Line(Point(-100,- 100),Point(100,100)) myCanvas.draw(myLine)

Figure 12.4

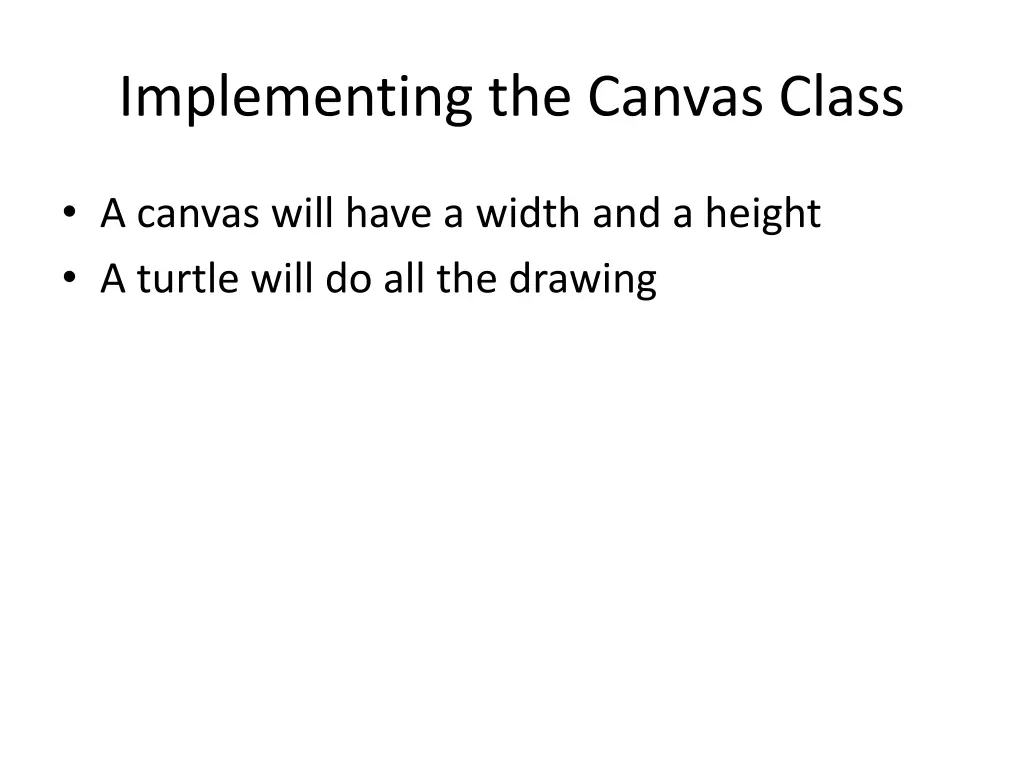

Implementing the Canvas Class A canvas will have a width and a height A turtle will do all the drawing

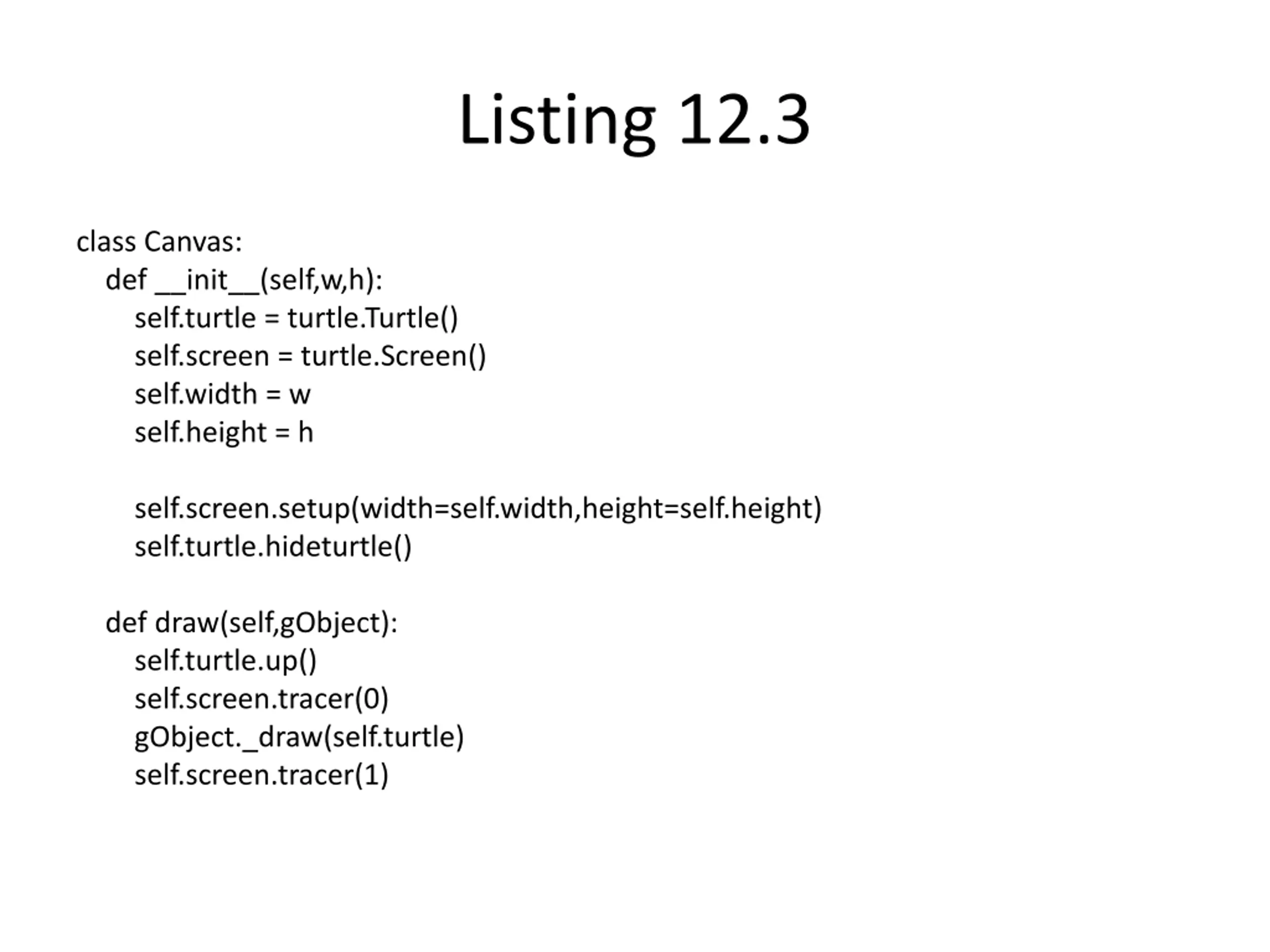

Listing 12.3 class Canvas: def __init__(self,w,h): self.turtle = turtle.Turtle() self.screen = turtle.Screen() self.width = w self.height = h self.screen.setup(width=self.width,height=self.height) self.turtle.hideturtle() def draw(self,gObject): self.turtle.up() self.screen.tracer(0) gObject._draw(self.turtle) self.screen.tracer(1)

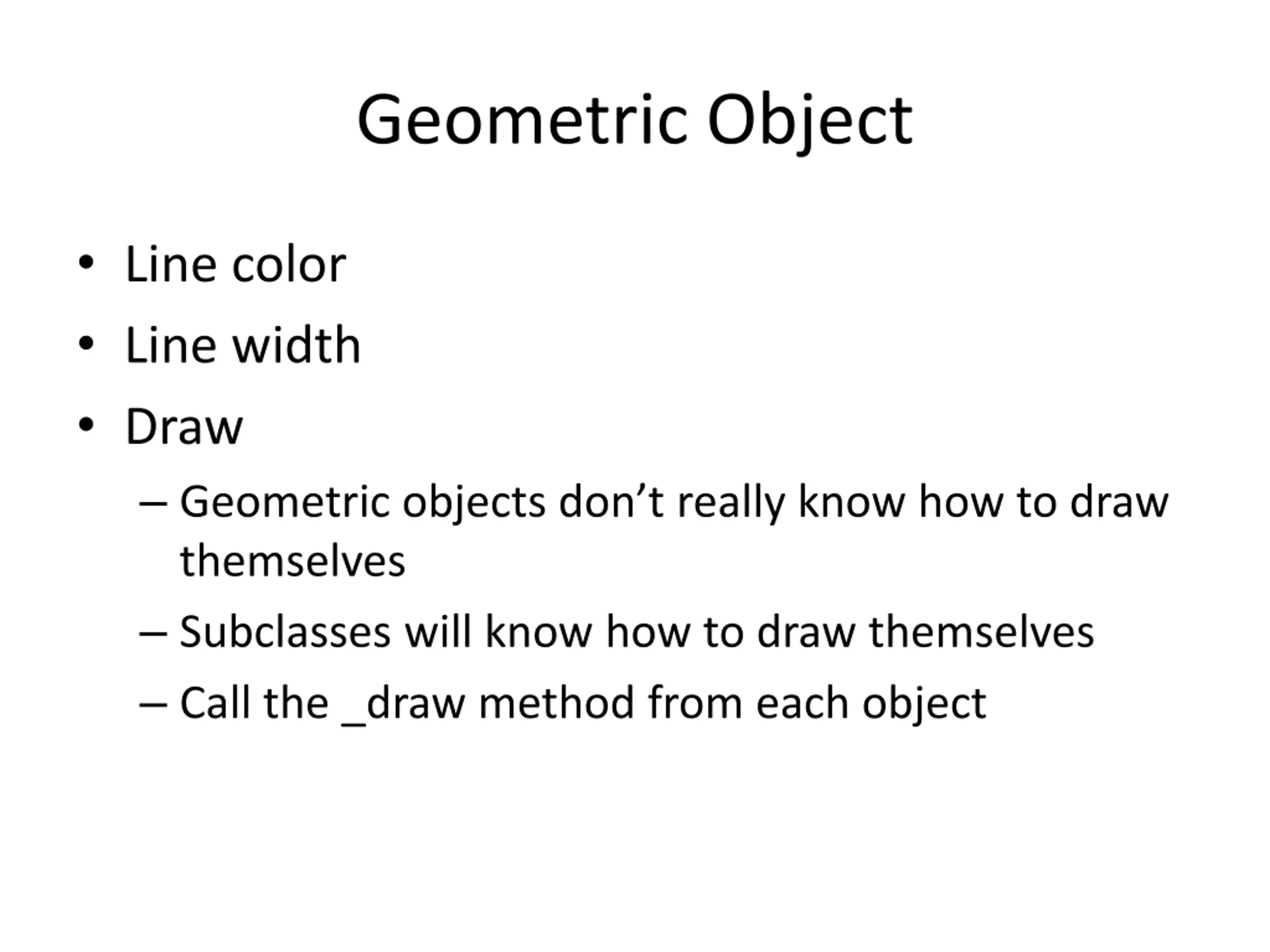

Geometric Object Line color Line width Draw Geometric objects don t really know how to draw themselves Subclasses will know how to draw themselves Call the _draw method from each object

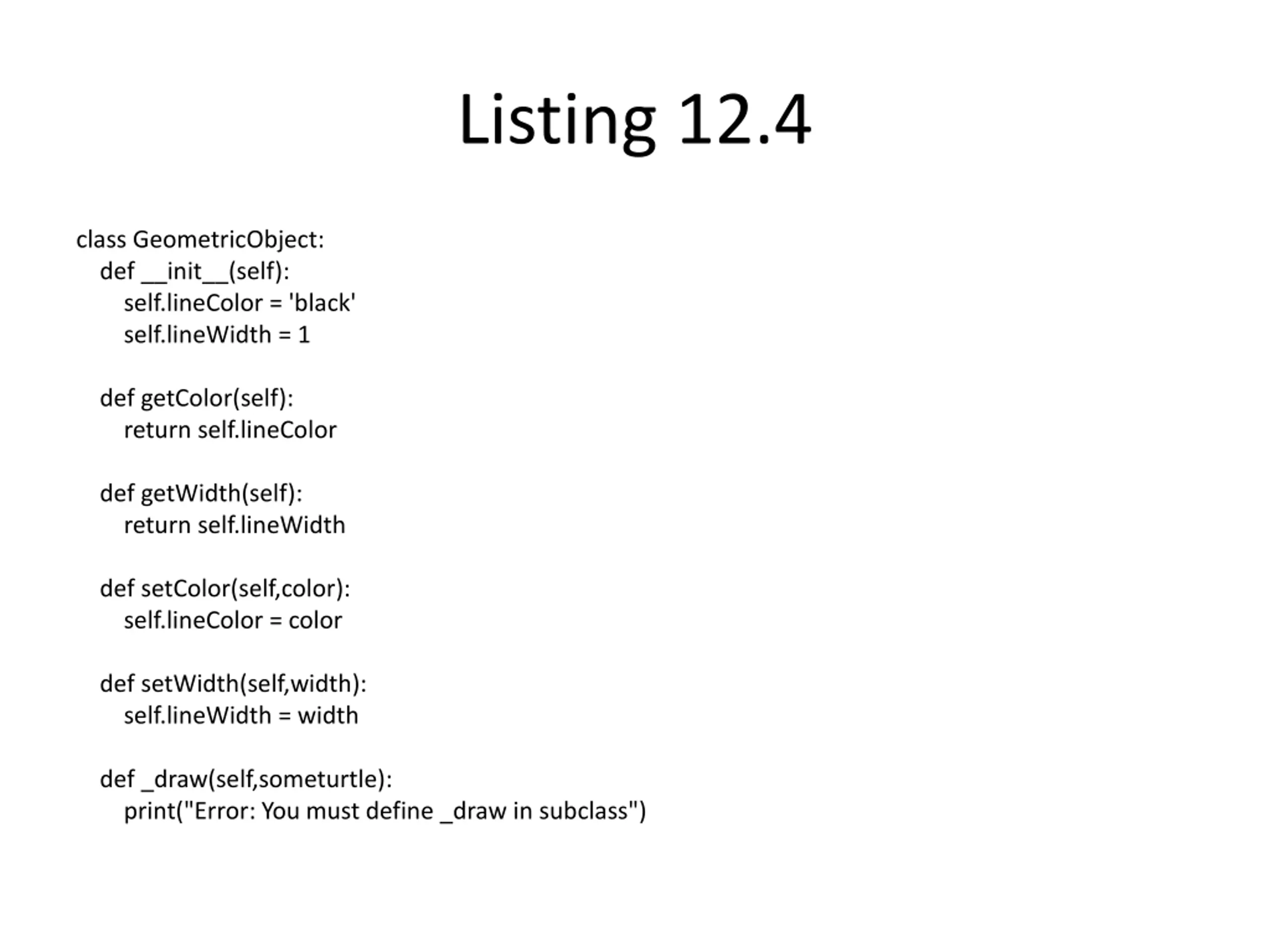

Listing 12.4 class GeometricObject: def __init__(self): self.lineColor = 'black' self.lineWidth = 1 def getColor(self): return self.lineColor def getWidth(self): return self.lineWidth def setColor(self,color): self.lineColor = color def setWidth(self,width): self.lineWidth = width def _draw(self,someturtle): print("Error: You must define _draw in subclass")

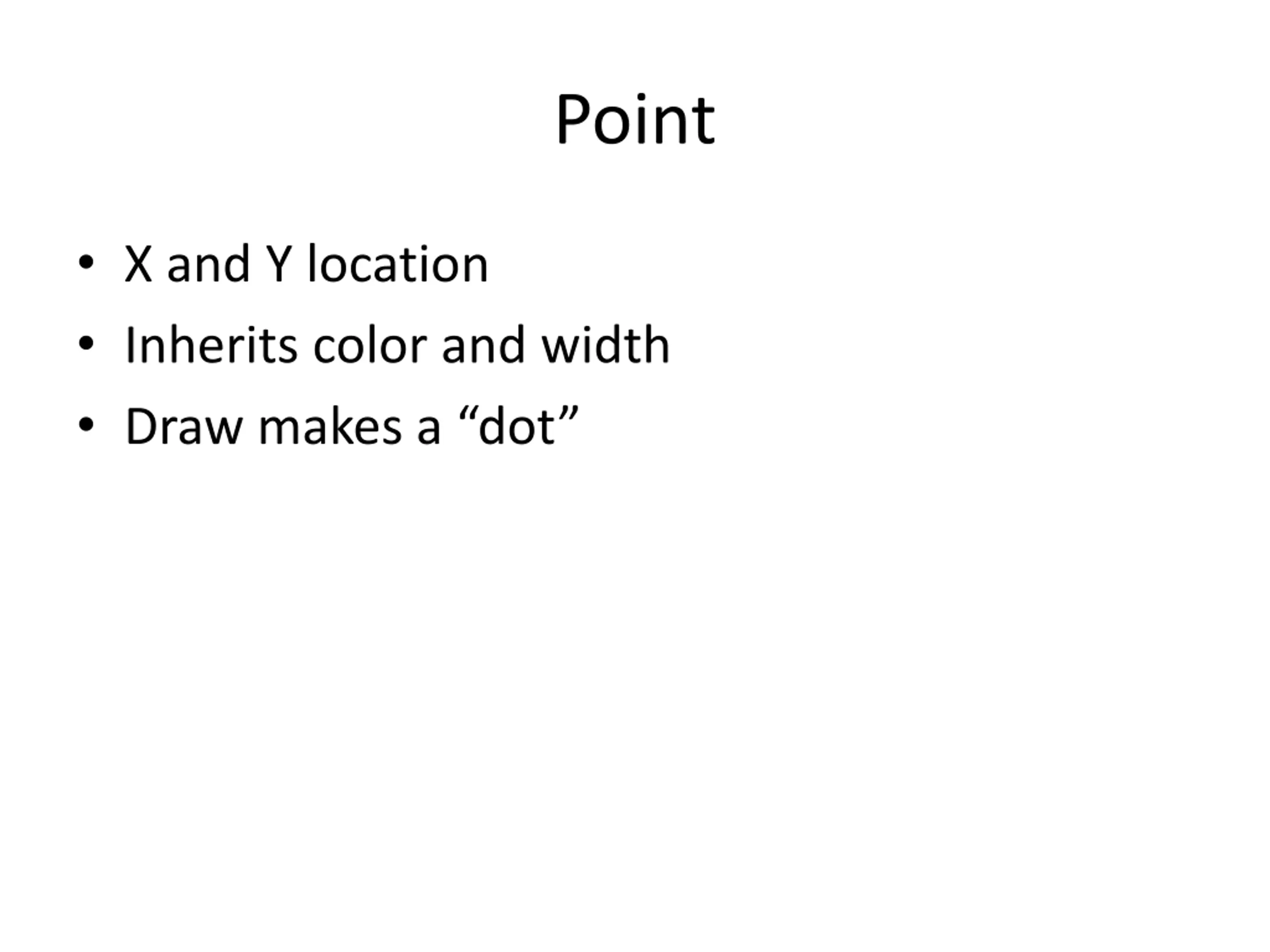

Point X and Y location Inherits color and width Draw makes a dot

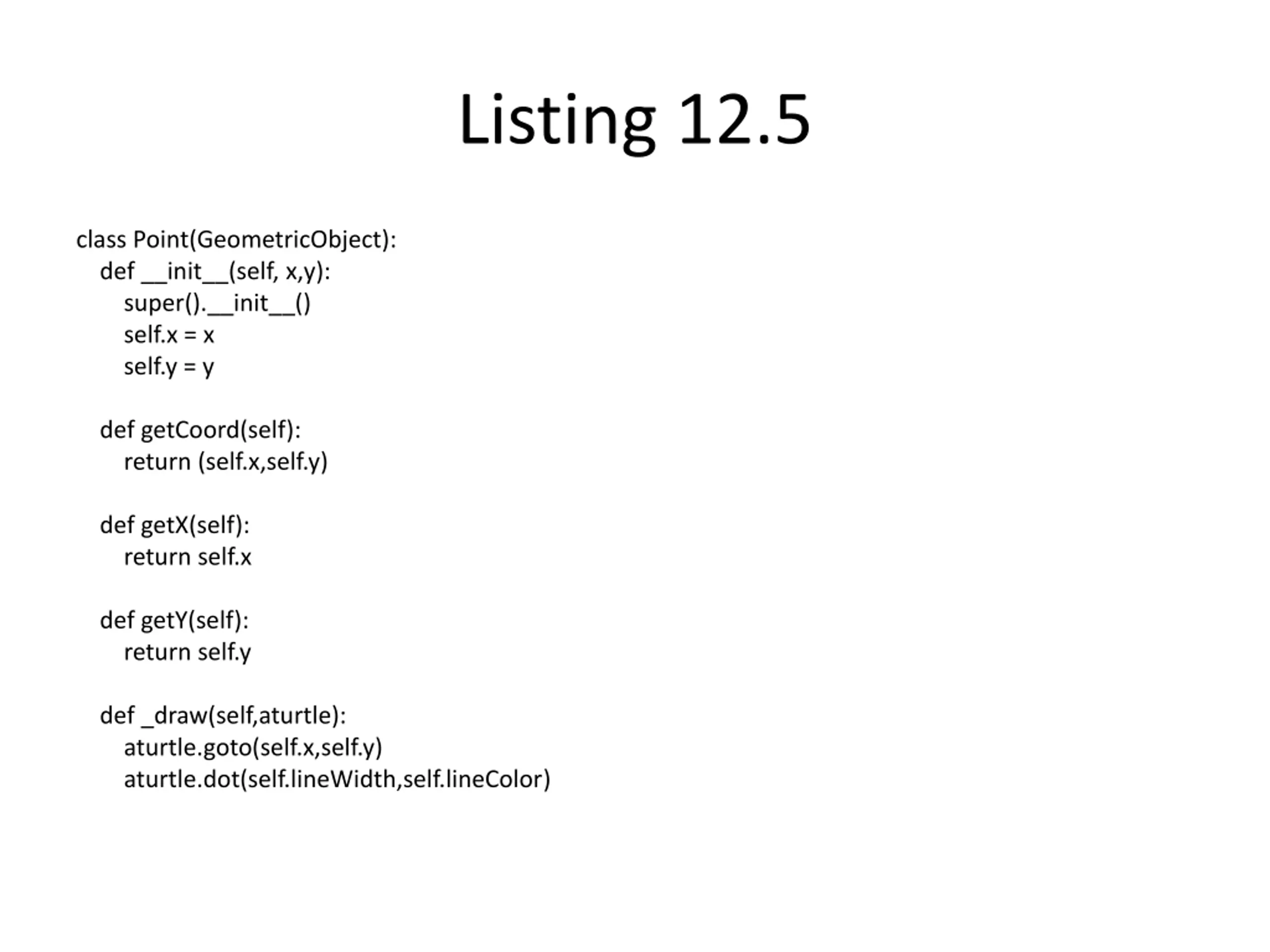

Listing 12.5 class Point(GeometricObject): def __init__(self, x,y): super().__init__() self.x = x self.y = y def getCoord(self): return (self.x,self.y) def getX(self): return self.x def getY(self): return self.y def _draw(self,aturtle): aturtle.goto(self.x,self.y) aturtle.dot(self.lineWidth,self.lineColor)

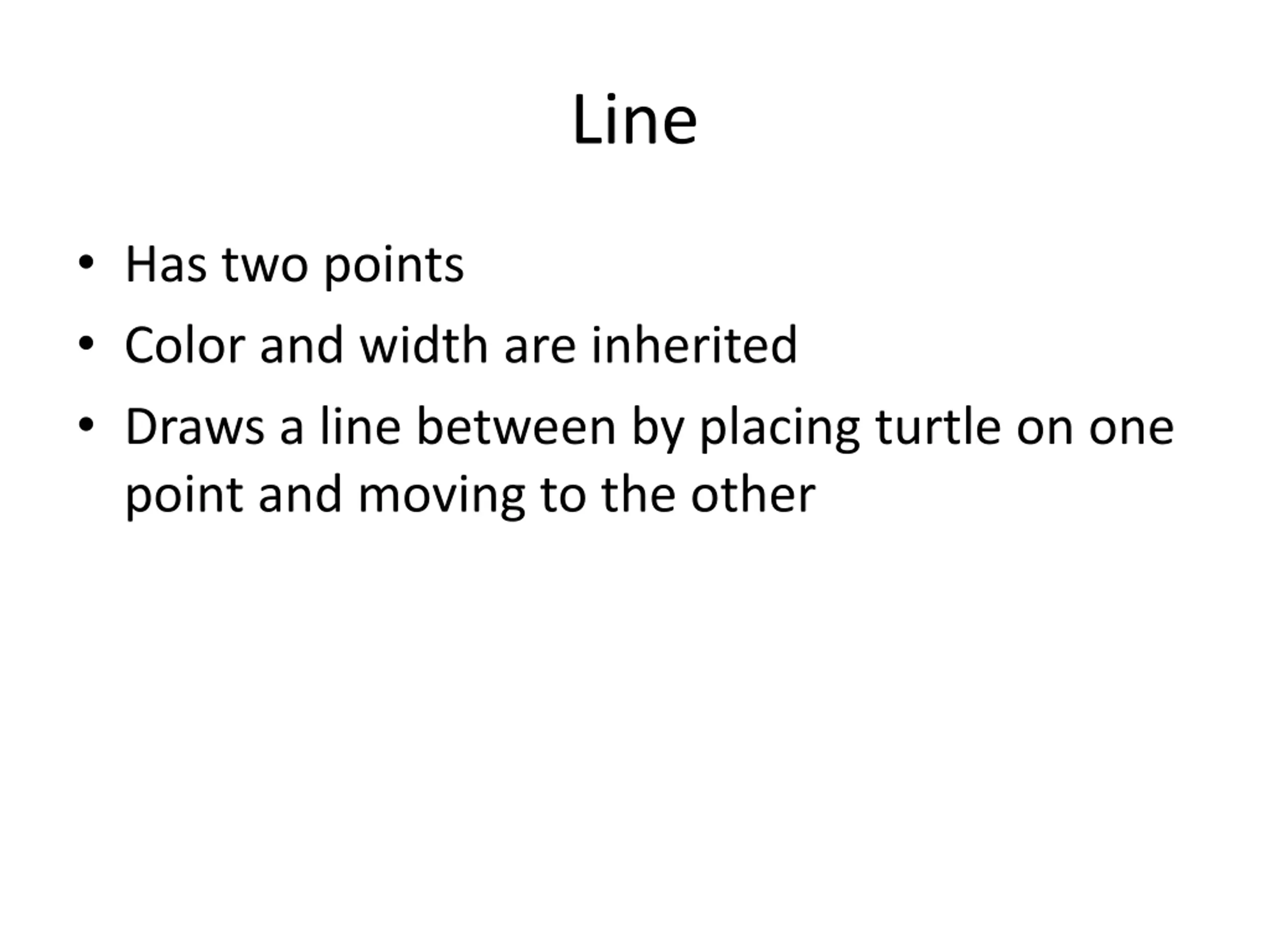

Line Has two points Color and width are inherited Draws a line between by placing turtle on one point and moving to the other

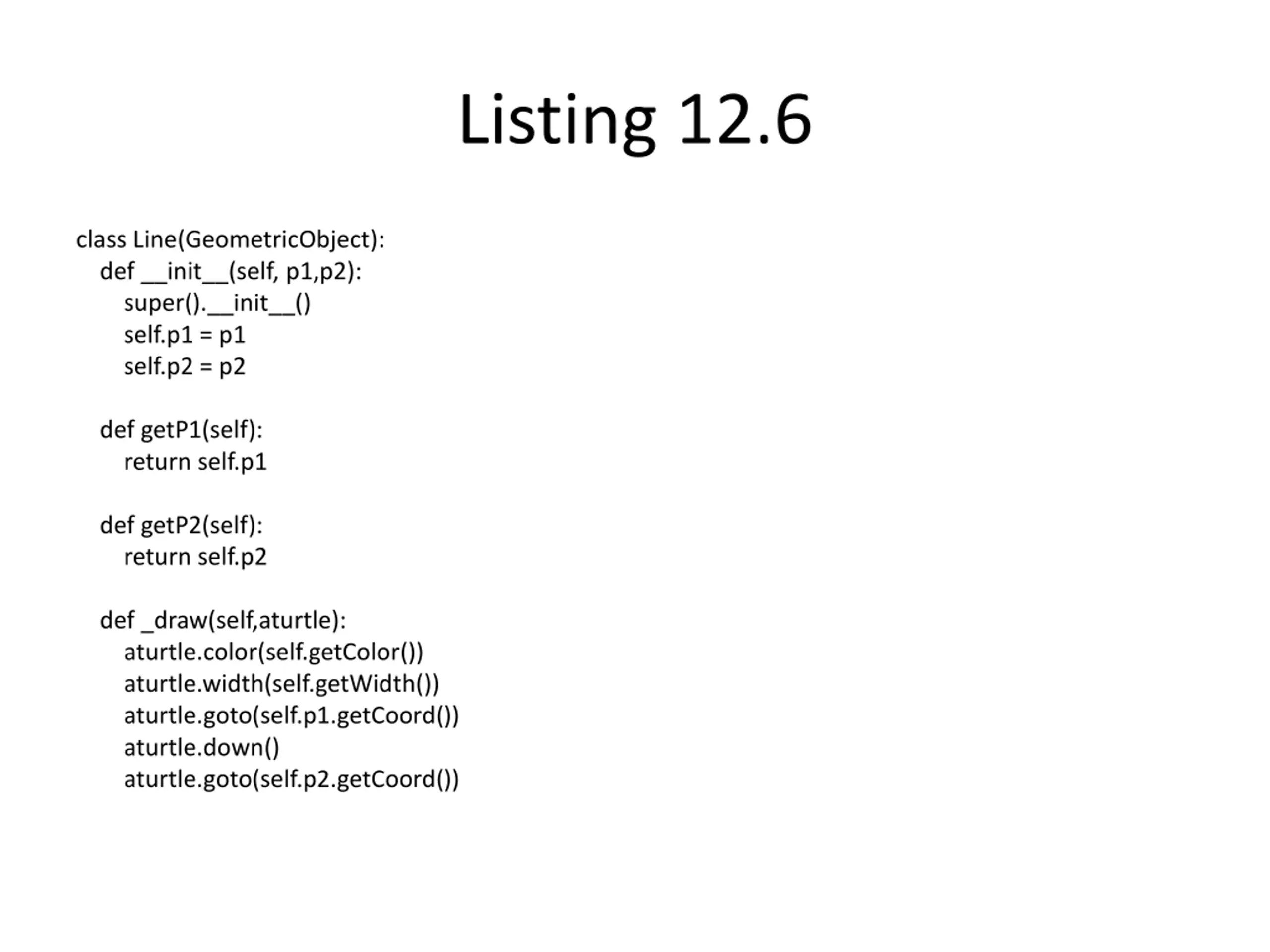

Listing 12.6 class Line(GeometricObject): def __init__(self, p1,p2): super().__init__() self.p1 = p1 self.p2 = p2 def getP1(self): return self.p1 def getP2(self): return self.p2 def _draw(self,aturtle): aturtle.color(self.getColor()) aturtle.width(self.getWidth()) aturtle.goto(self.p1.getCoord()) aturtle.down() aturtle.goto(self.p2.getCoord())

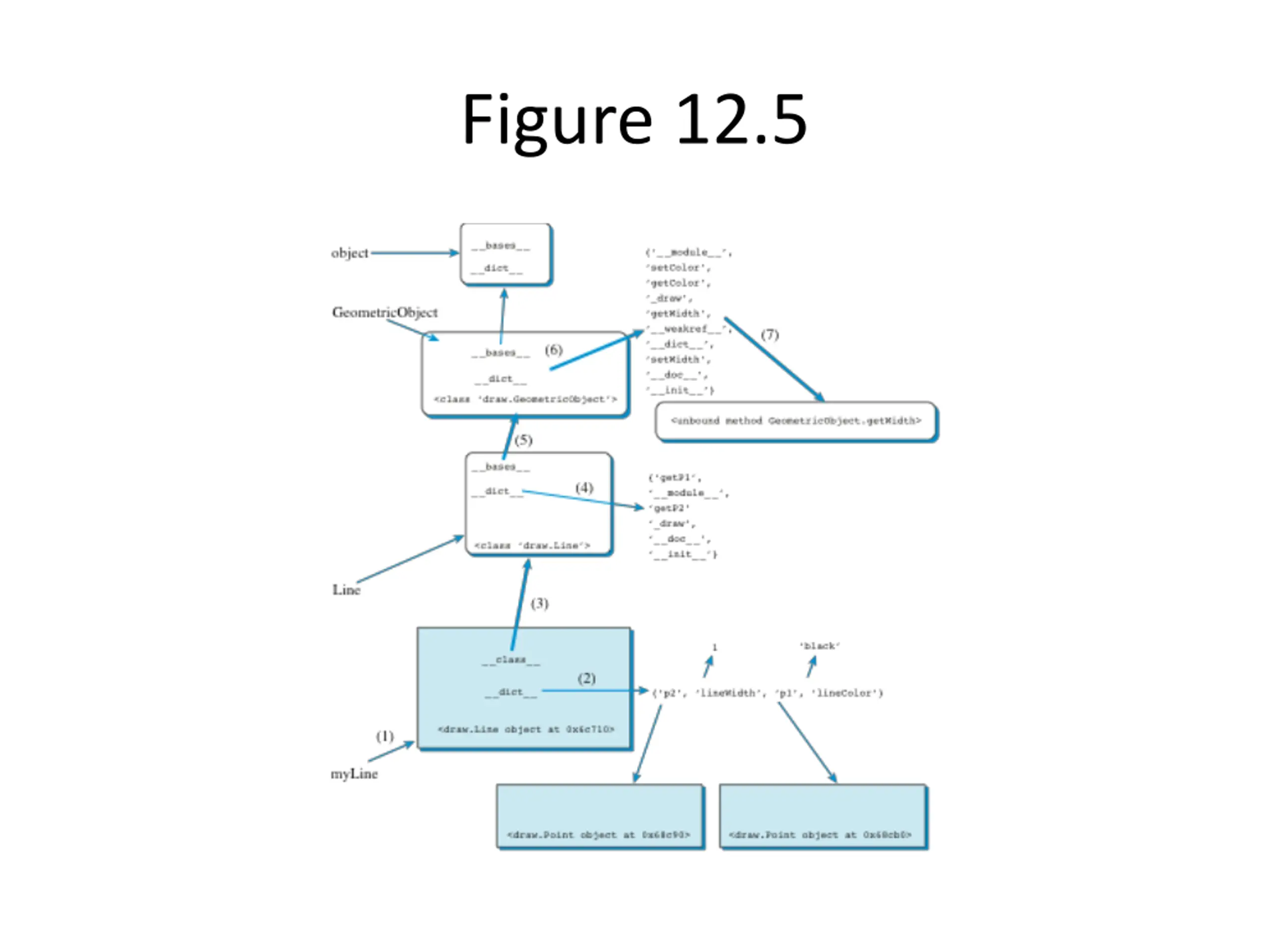

Figure 12.5

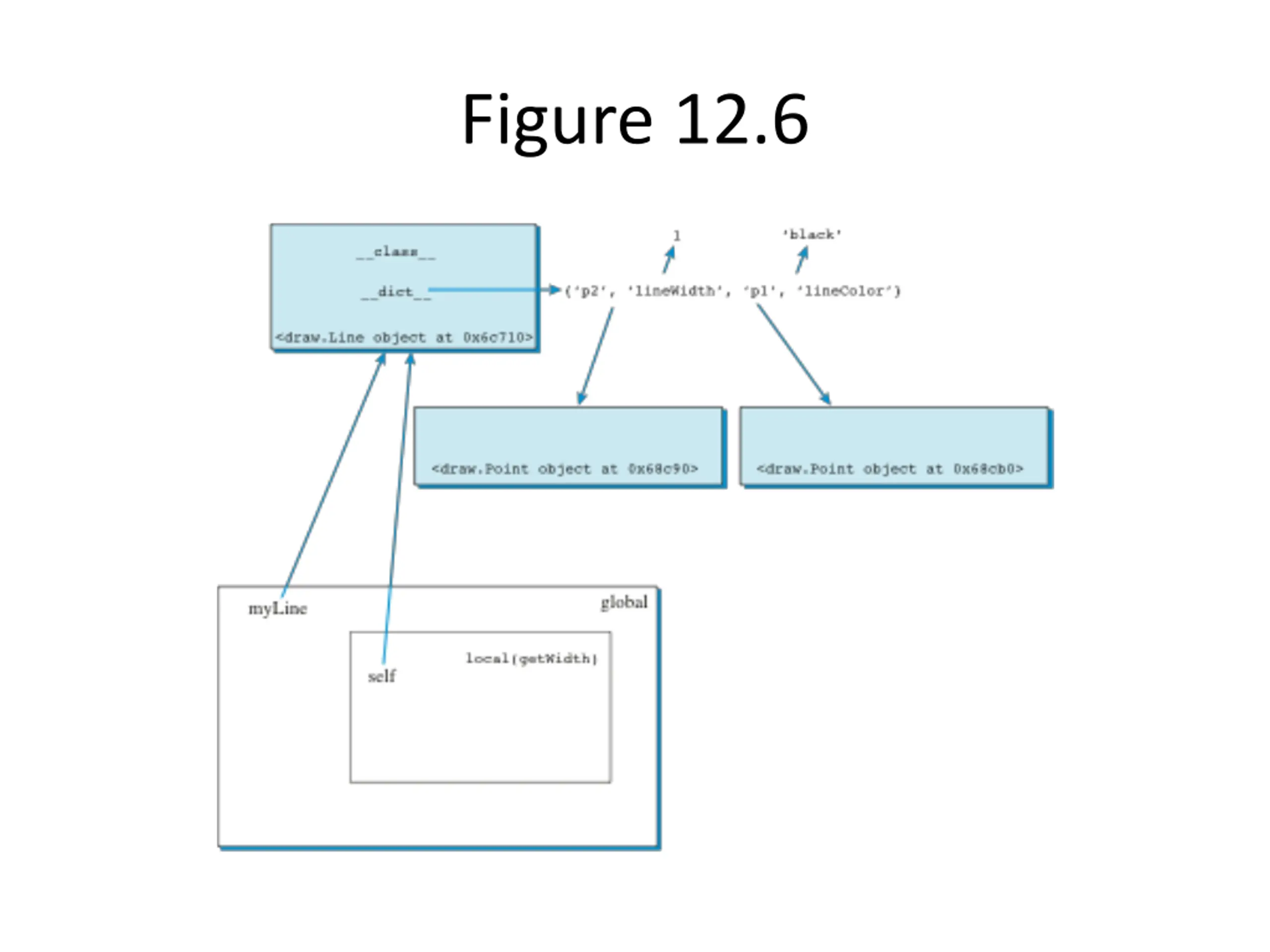

Figure 12.6

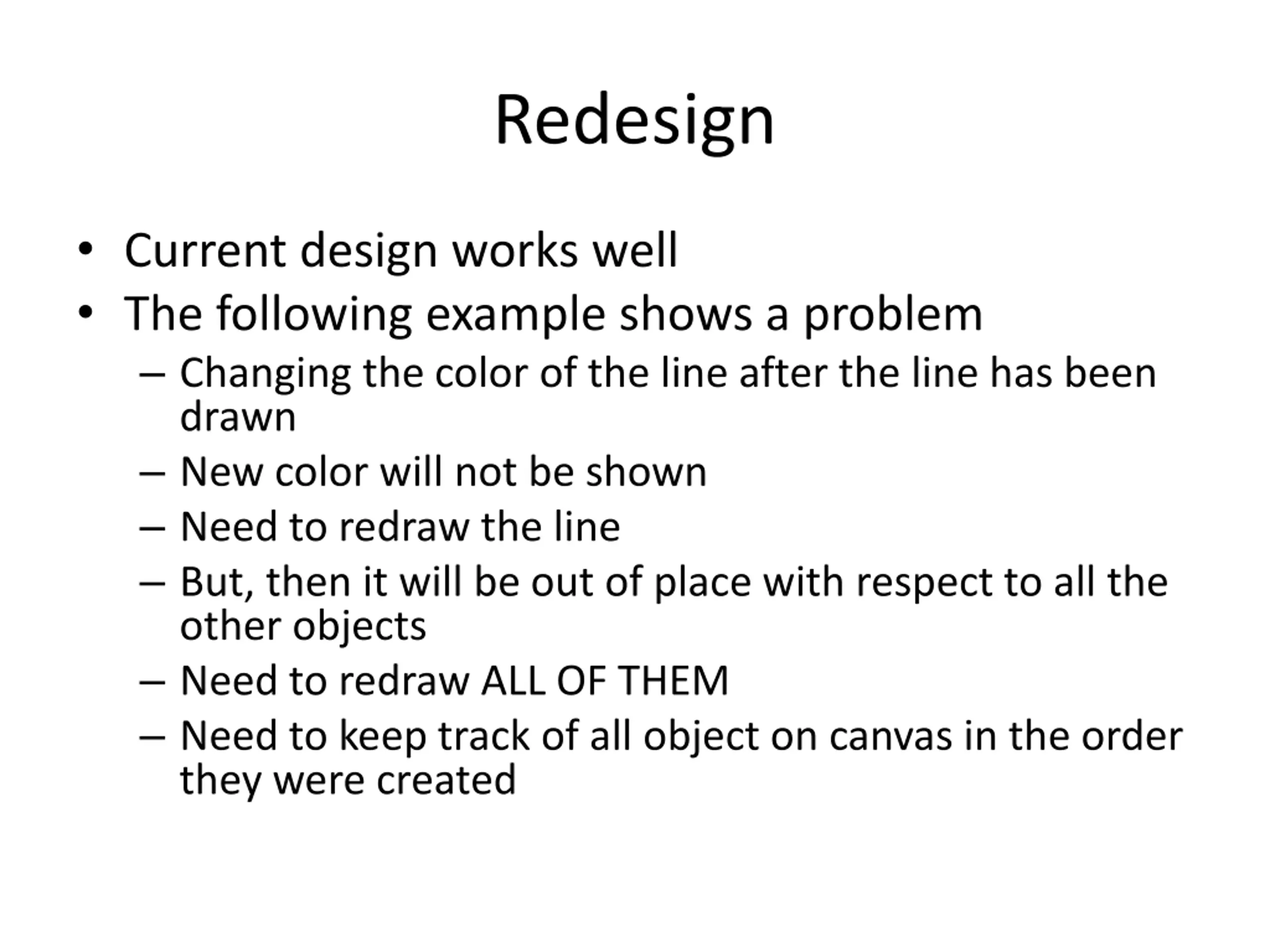

Redesign Current design works well The following example shows a problem Changing the color of the line after the line has been drawn New color will not be shown Need to redraw the line But, then it will be out of place with respect to all the other objects Need to redraw ALL OF THEM Need to keep track of all object on canvas in the order they were created

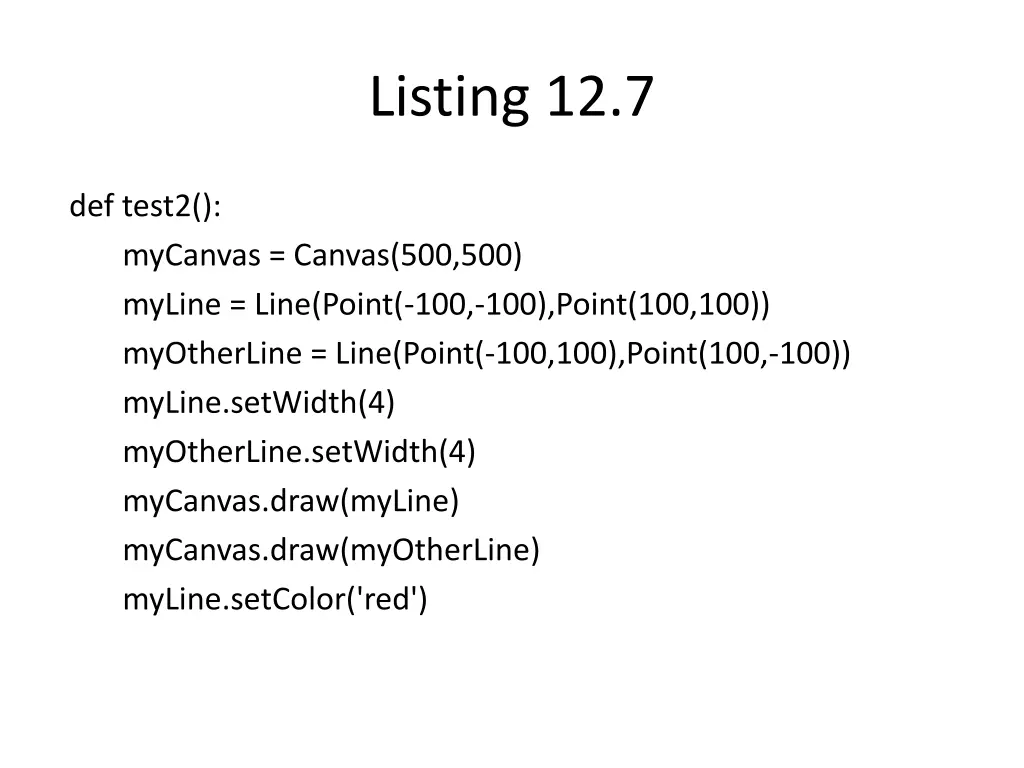

Listing 12.7 def test2(): myCanvas = Canvas(500,500) myLine = Line(Point(-100,-100),Point(100,100)) myOtherLine = Line(Point(-100,100),Point(100,-100)) myLine.setWidth(4) myOtherLine.setWidth(4) myCanvas.draw(myLine) myCanvas.draw(myOtherLine) myLine.setColor('red')

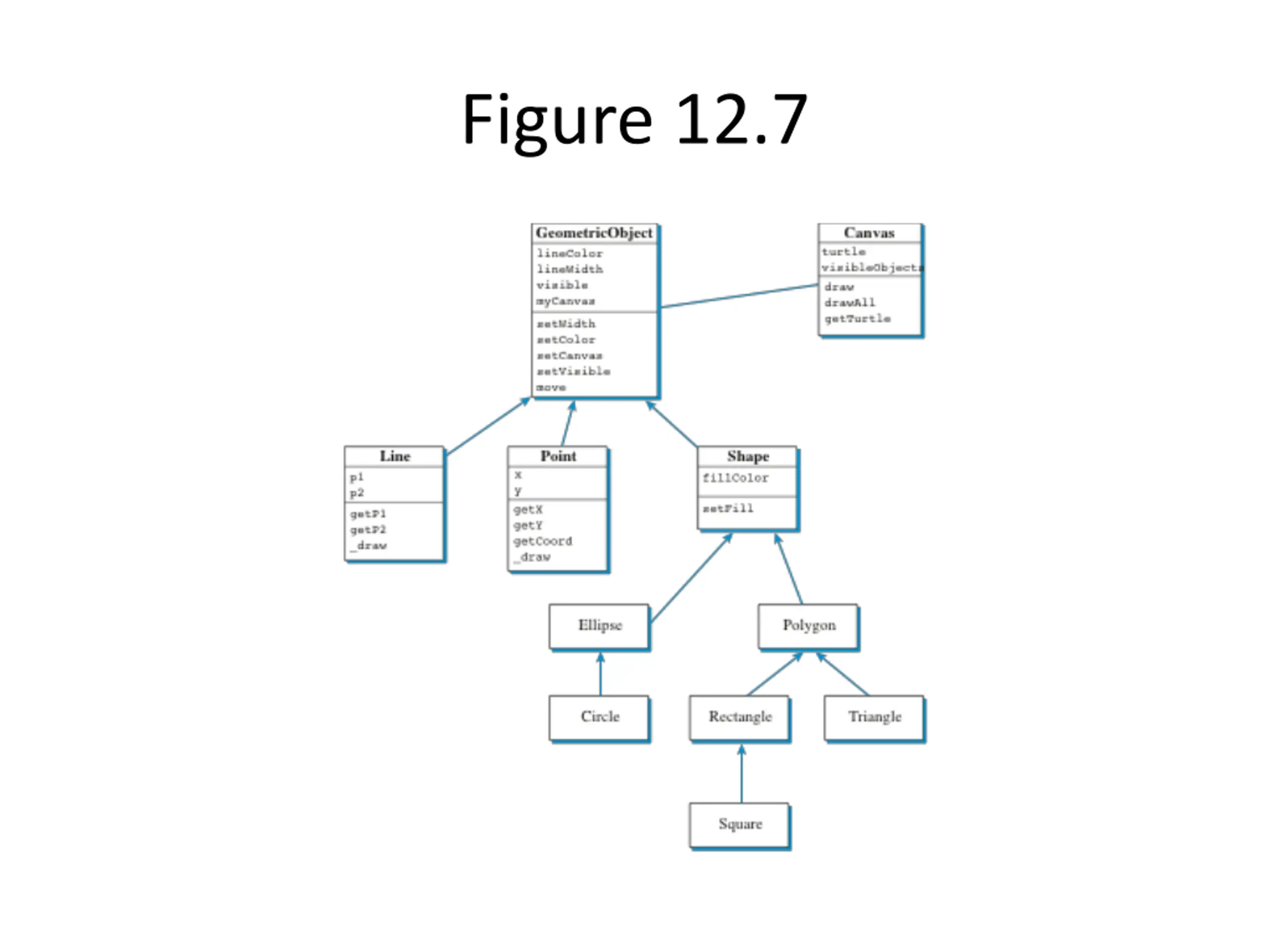

Figure 12.7

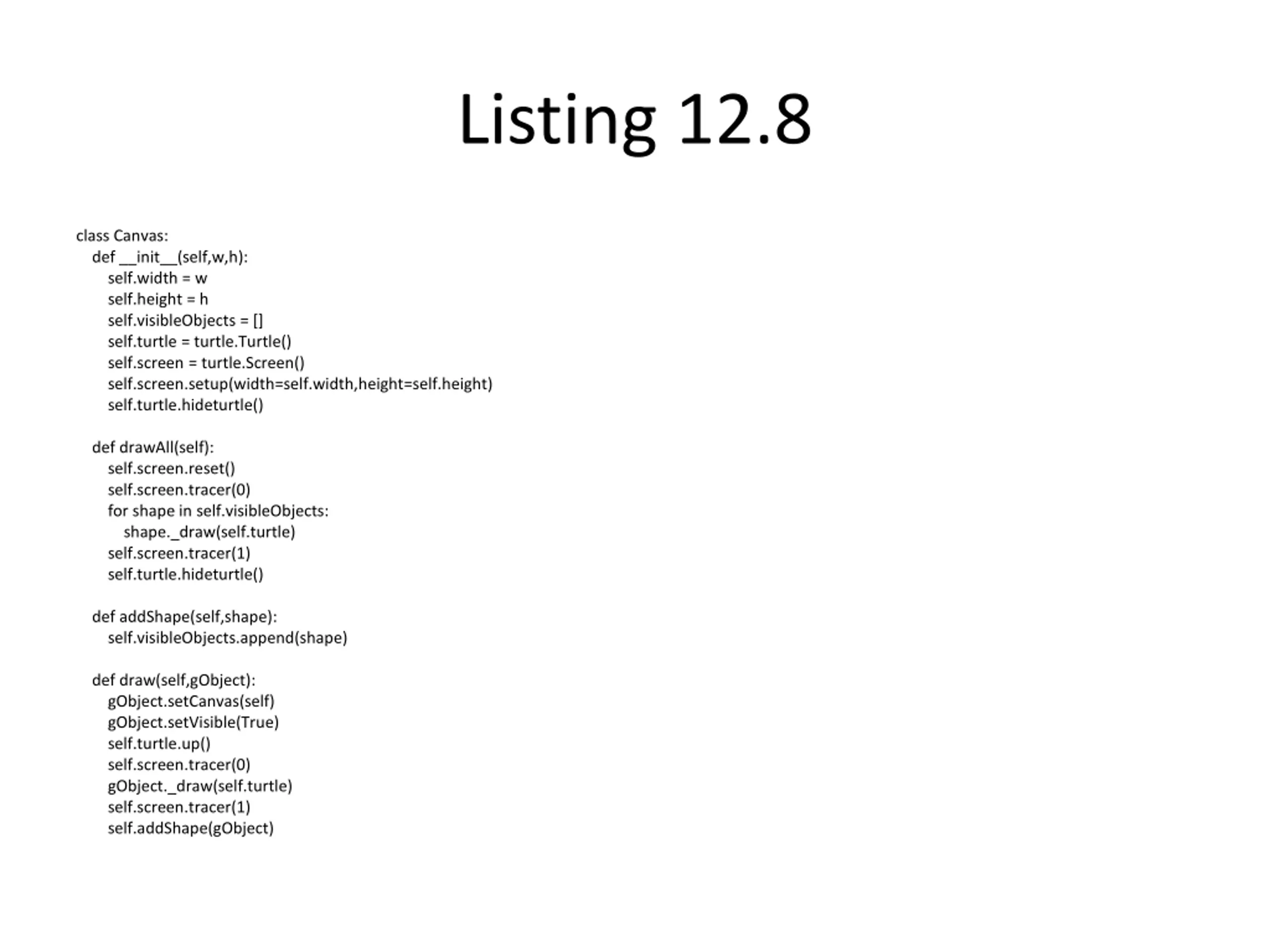

Listing 12.8 class Canvas: def __init__(self,w,h): self.width = w self.height = h self.visibleObjects = [] self.turtle = turtle.Turtle() self.screen = turtle.Screen() self.screen.setup(width=self.width,height=self.height) self.turtle.hideturtle() def drawAll(self): self.screen.reset() self.screen.tracer(0) for shape in self.visibleObjects: shape._draw(self.turtle) self.screen.tracer(1) self.turtle.hideturtle() def addShape(self,shape): self.visibleObjects.append(shape) def draw(self,gObject): gObject.setCanvas(self) gObject.setVisible(True) self.turtle.up() self.screen.tracer(0) gObject._draw(self.turtle) self.screen.tracer(1) self.addShape(gObject)

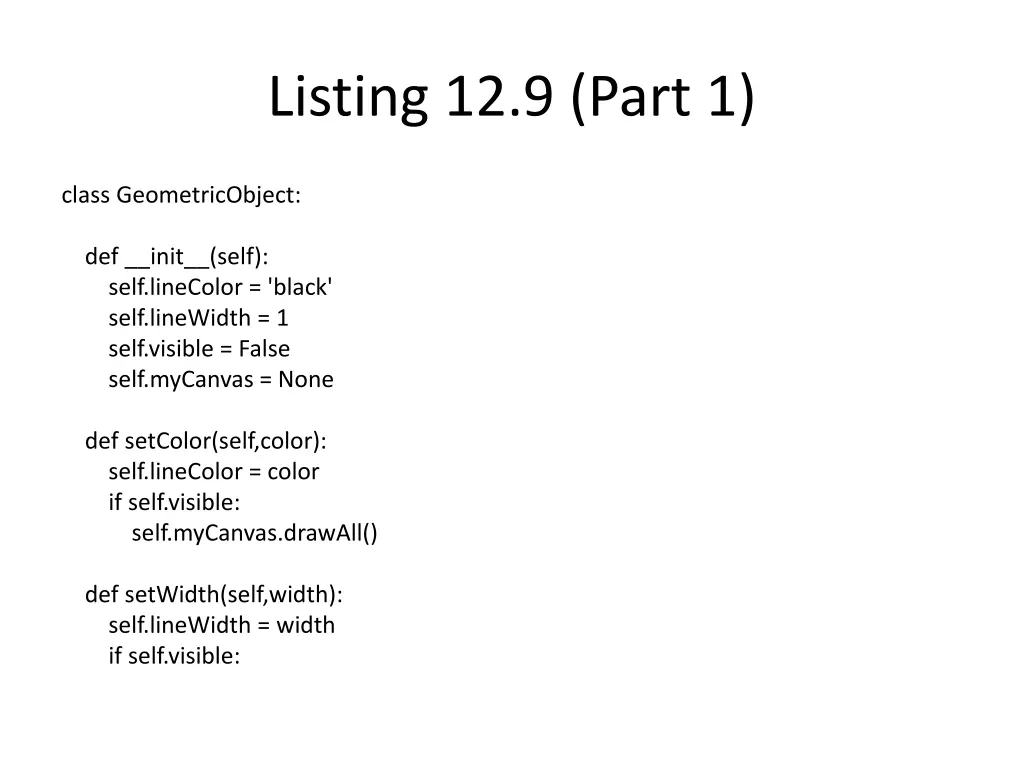

Listing 12.9 (Part 1) class GeometricObject: def __init__(self): self.lineColor = 'black' self.lineWidth = 1 self.visible = False self.myCanvas = None def setColor(self,color): self.lineColor = color if self.visible: self.myCanvas.drawAll() def setWidth(self,width): self.lineWidth = width if self.visible:

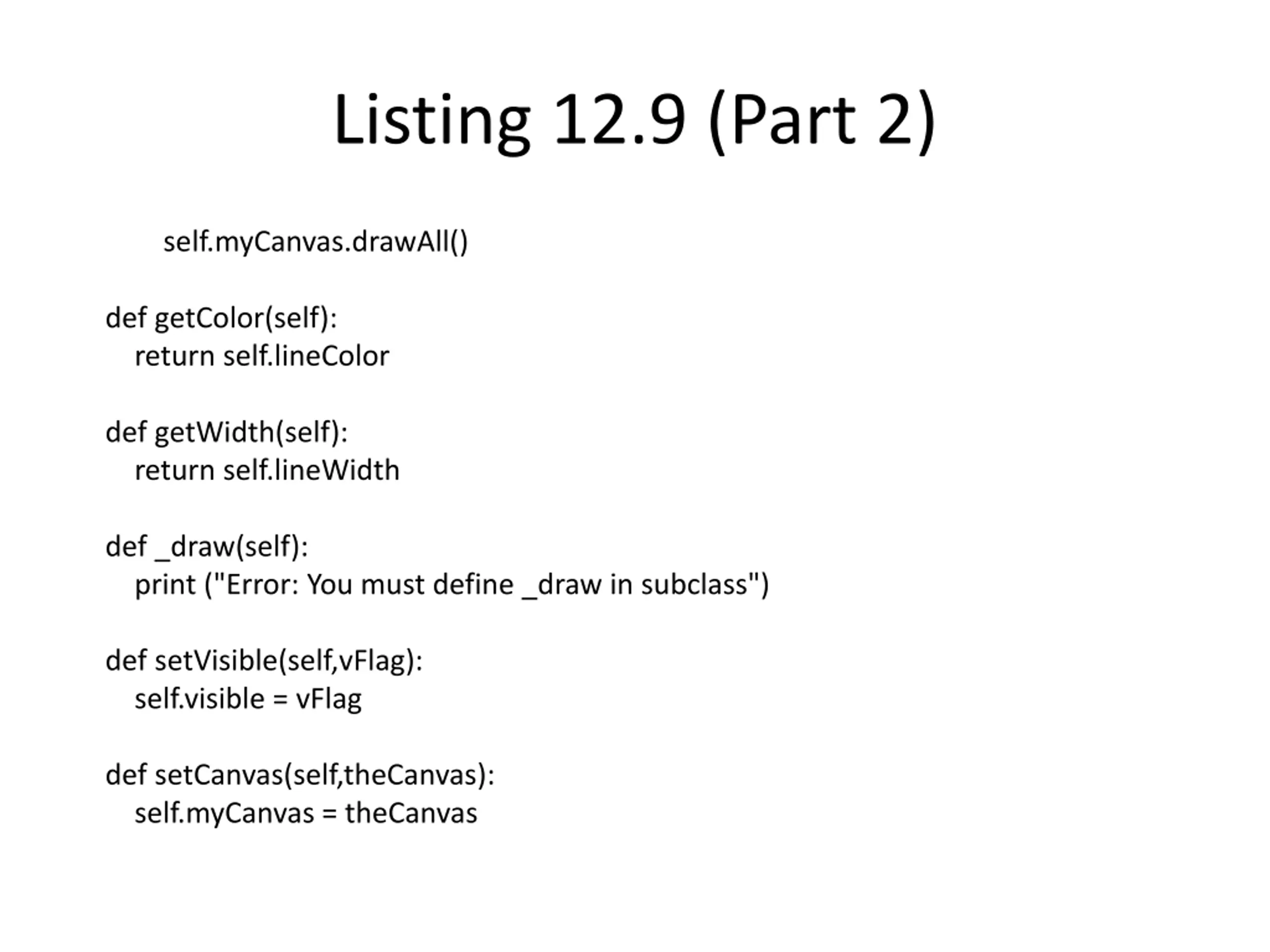

Listing 12.9 (Part 2) self.myCanvas.drawAll() def getColor(self): return self.lineColor def getWidth(self): return self.lineWidth def _draw(self): print ("Error: You must define _draw in subclass") def setVisible(self,vFlag): self.visible = vFlag def setCanvas(self,theCanvas): self.myCanvas = theCanvas

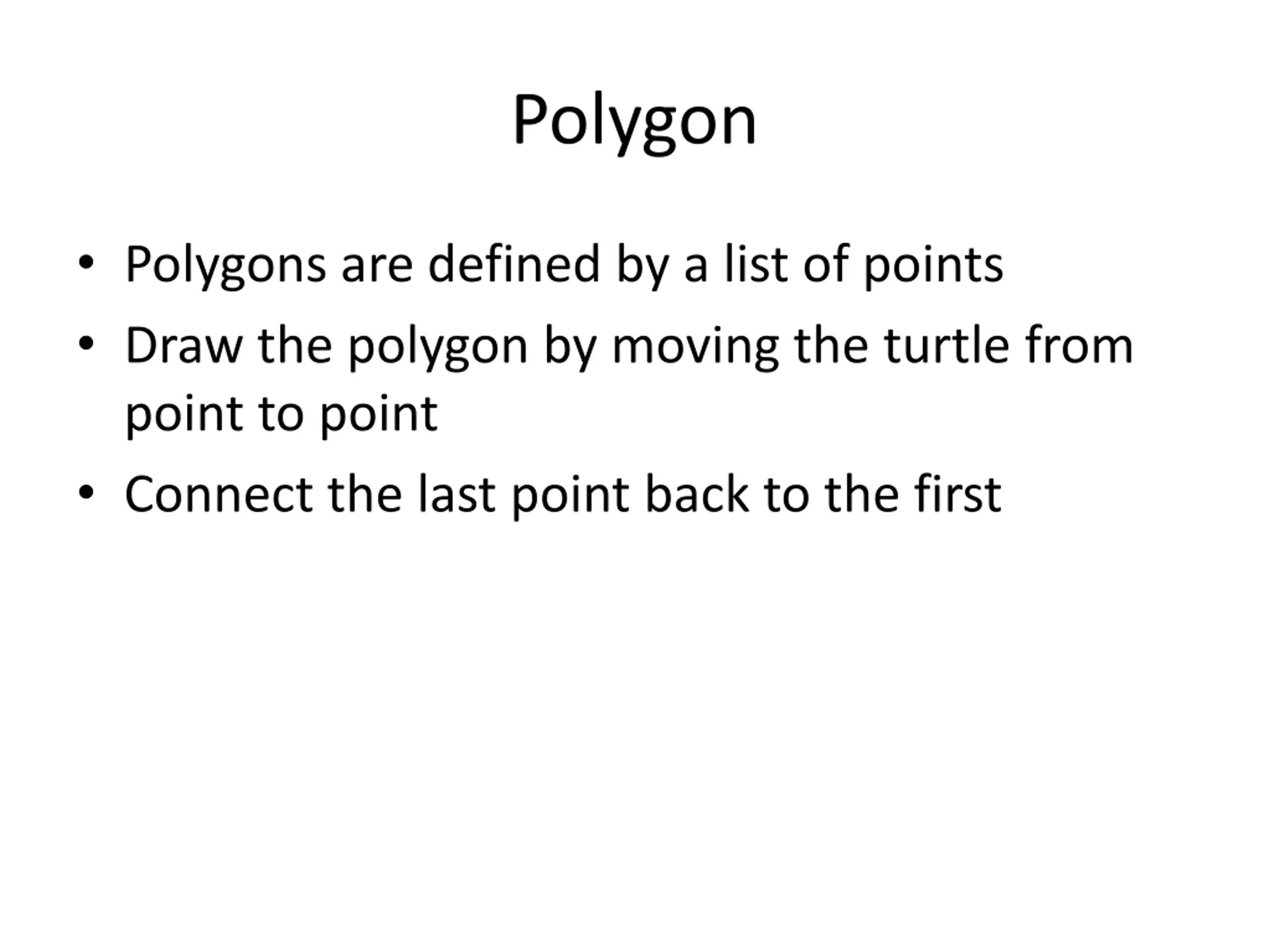

Polygon Polygons are defined by a list of points Draw the polygon by moving the turtle from point to point Connect the last point back to the first

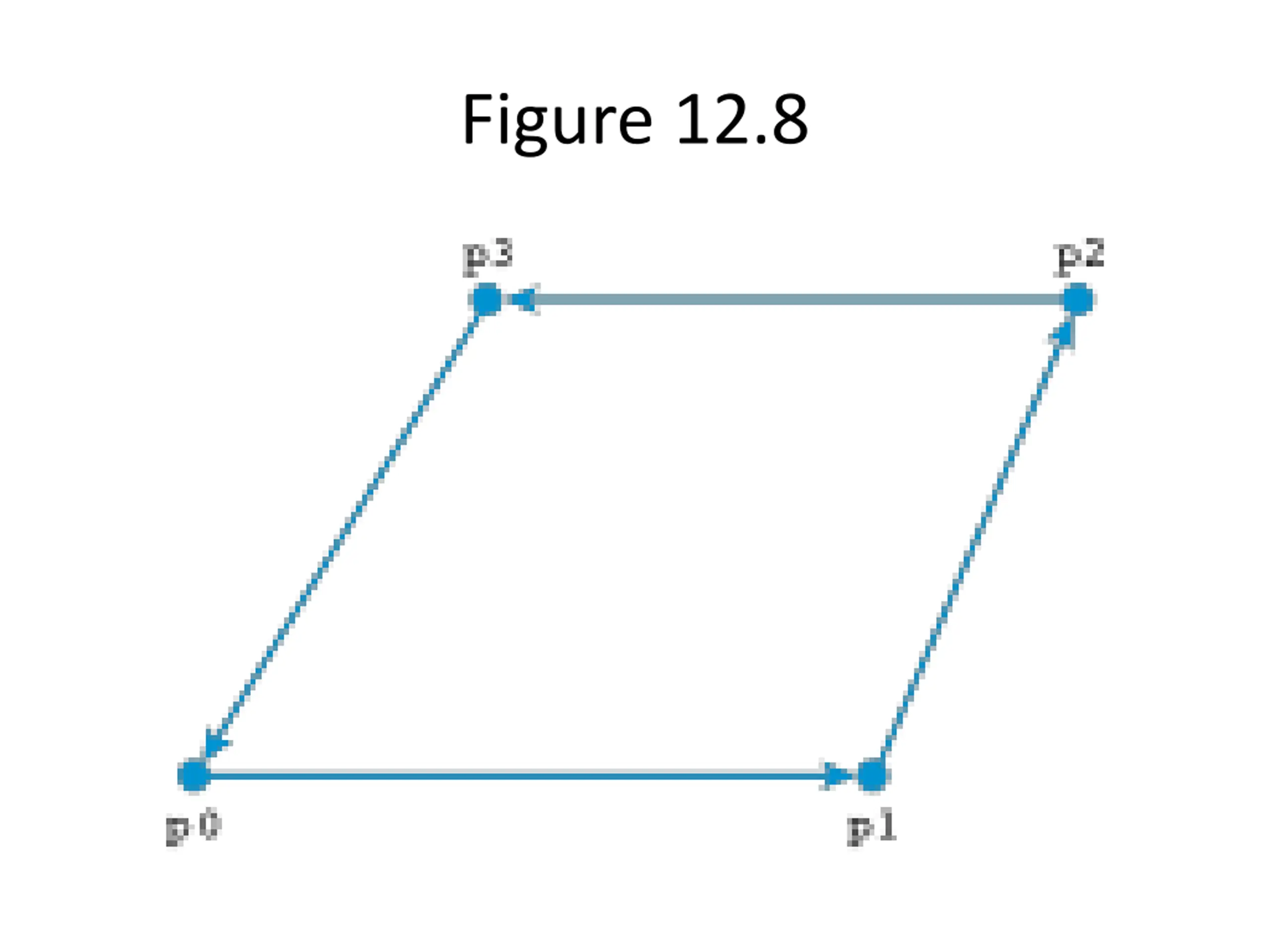

Figure 12.8

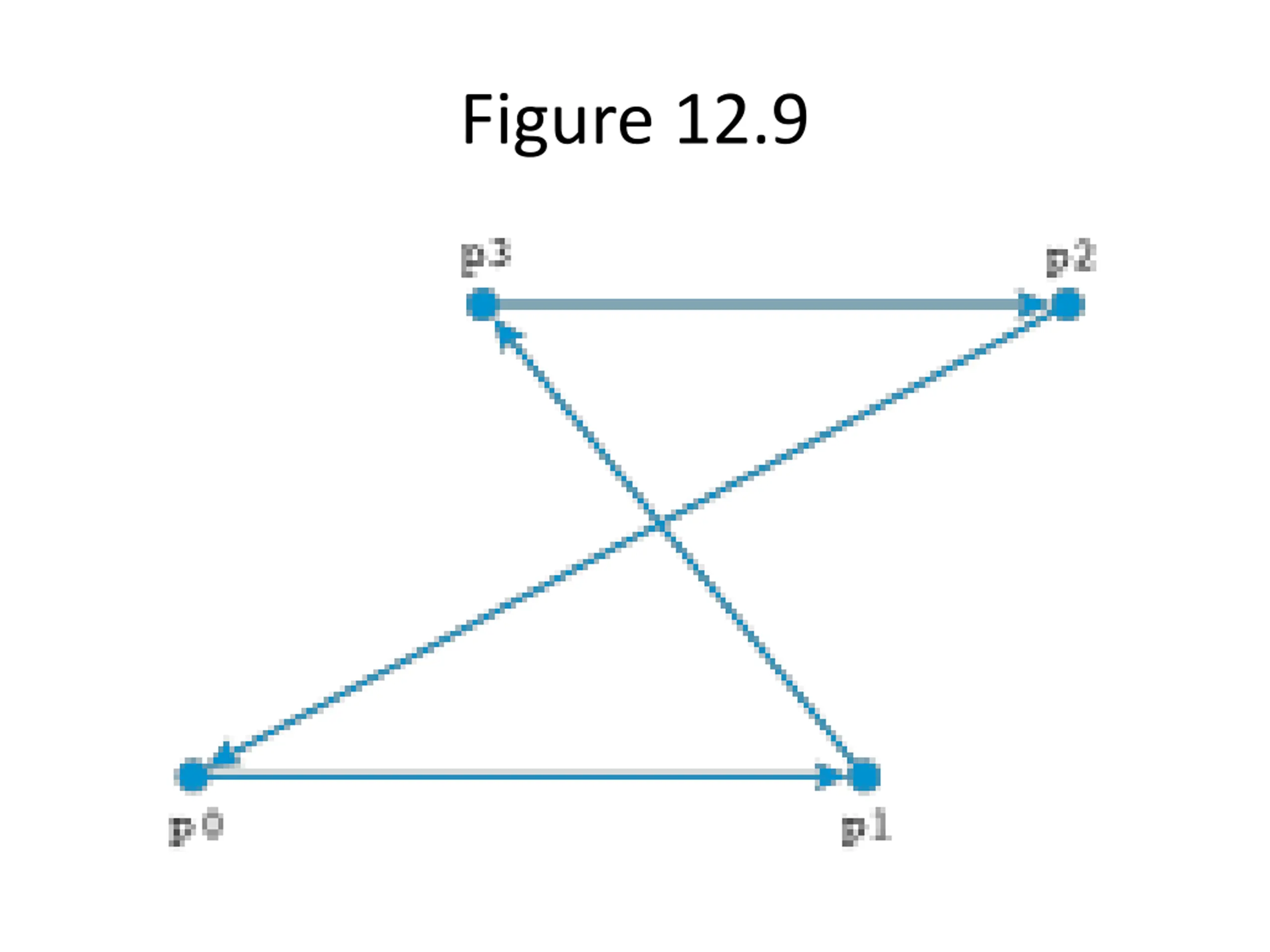

Figure 12.9

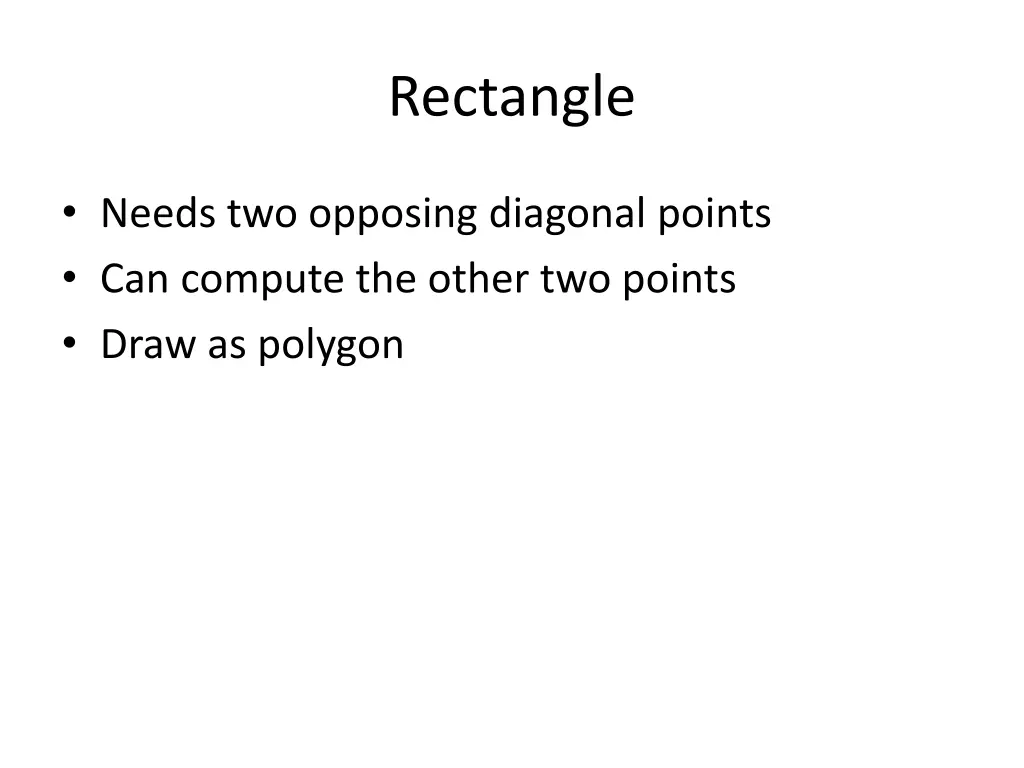

Rectangle Needs two opposing diagonal points Can compute the other two points Draw as polygon

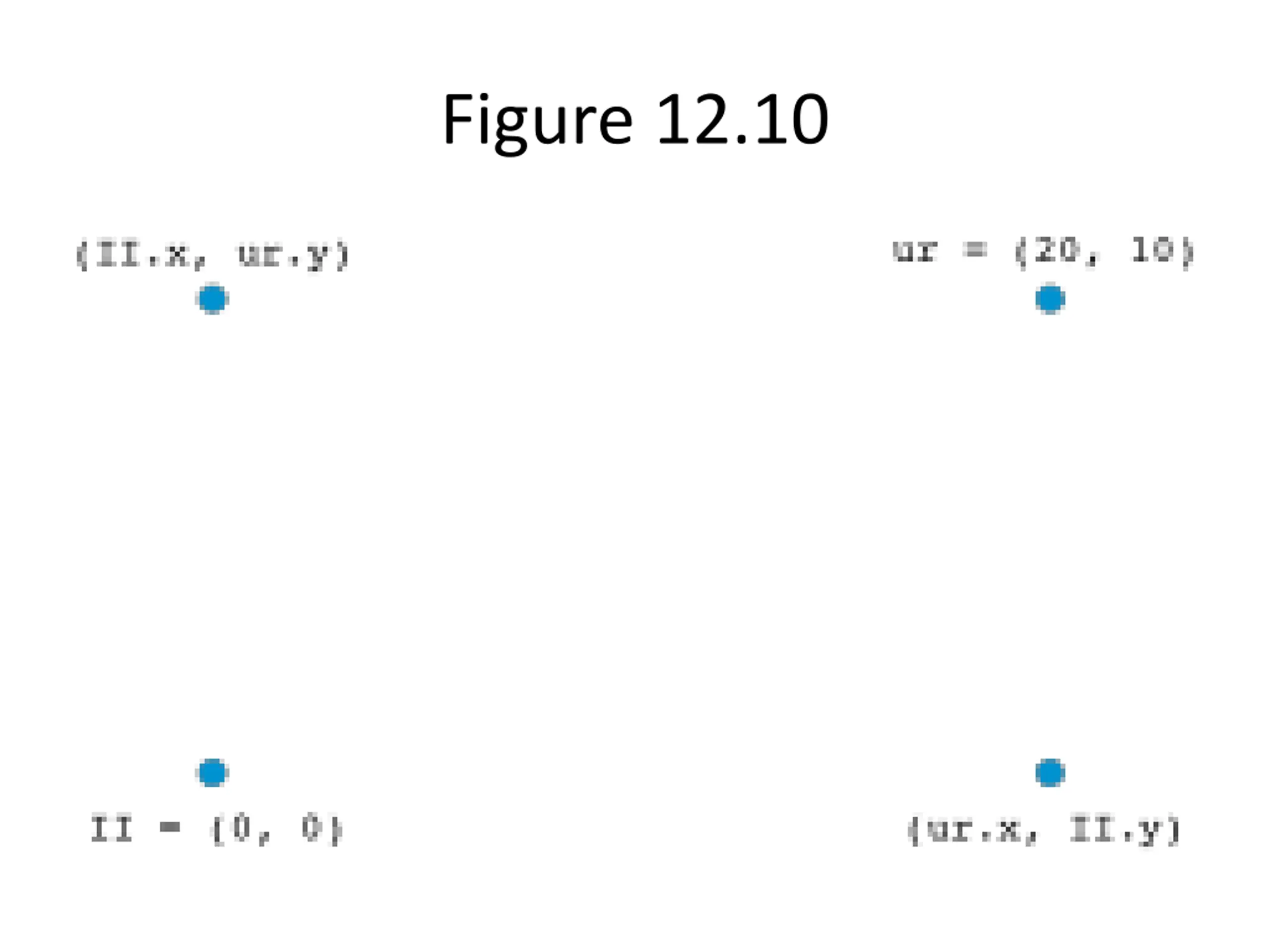

Figure 12.10

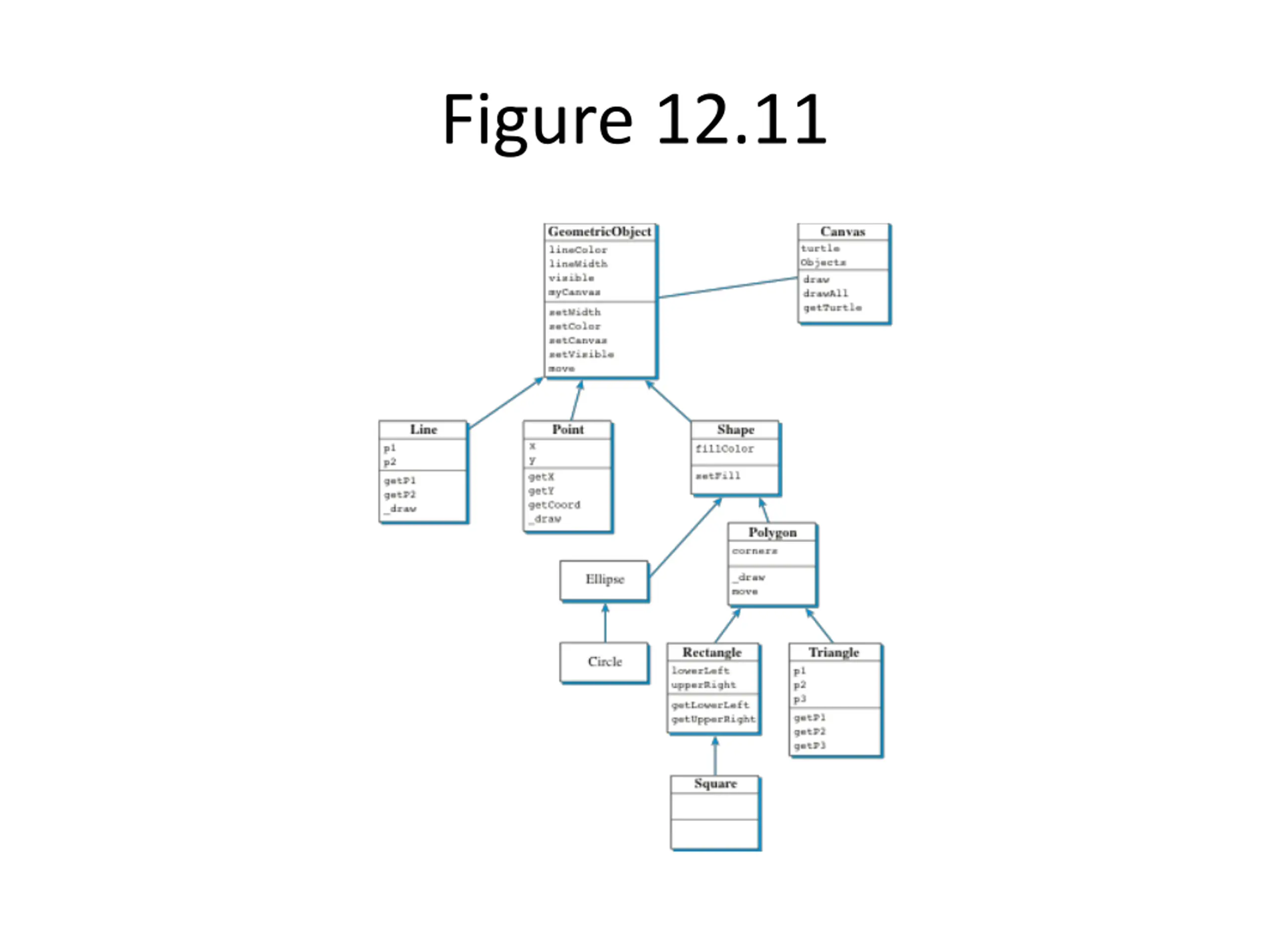

Figure 12.11
