Object Oriented Programming Concepts in JAVA Interface

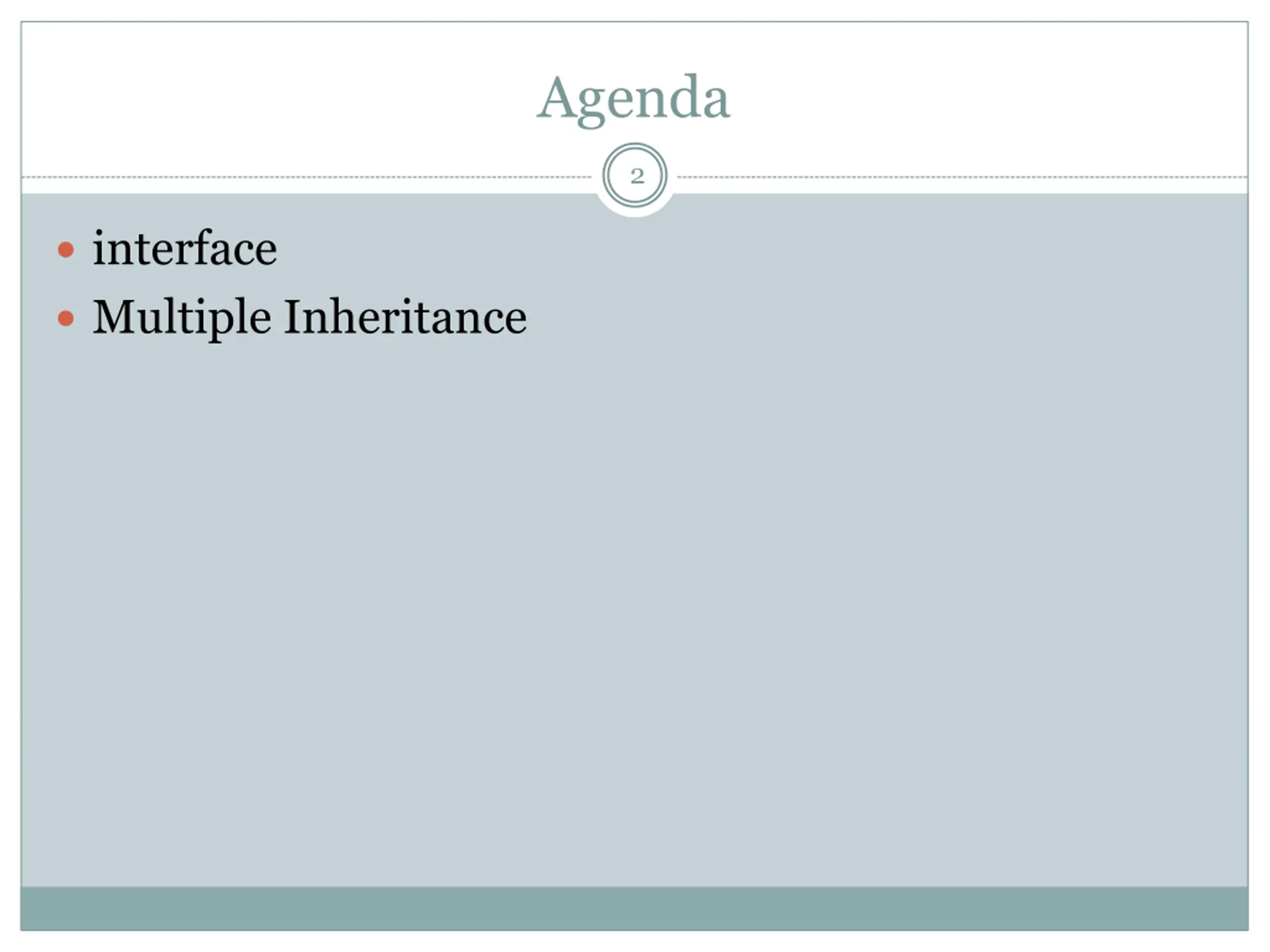

Agenda 2 interface Multiple Inheritance

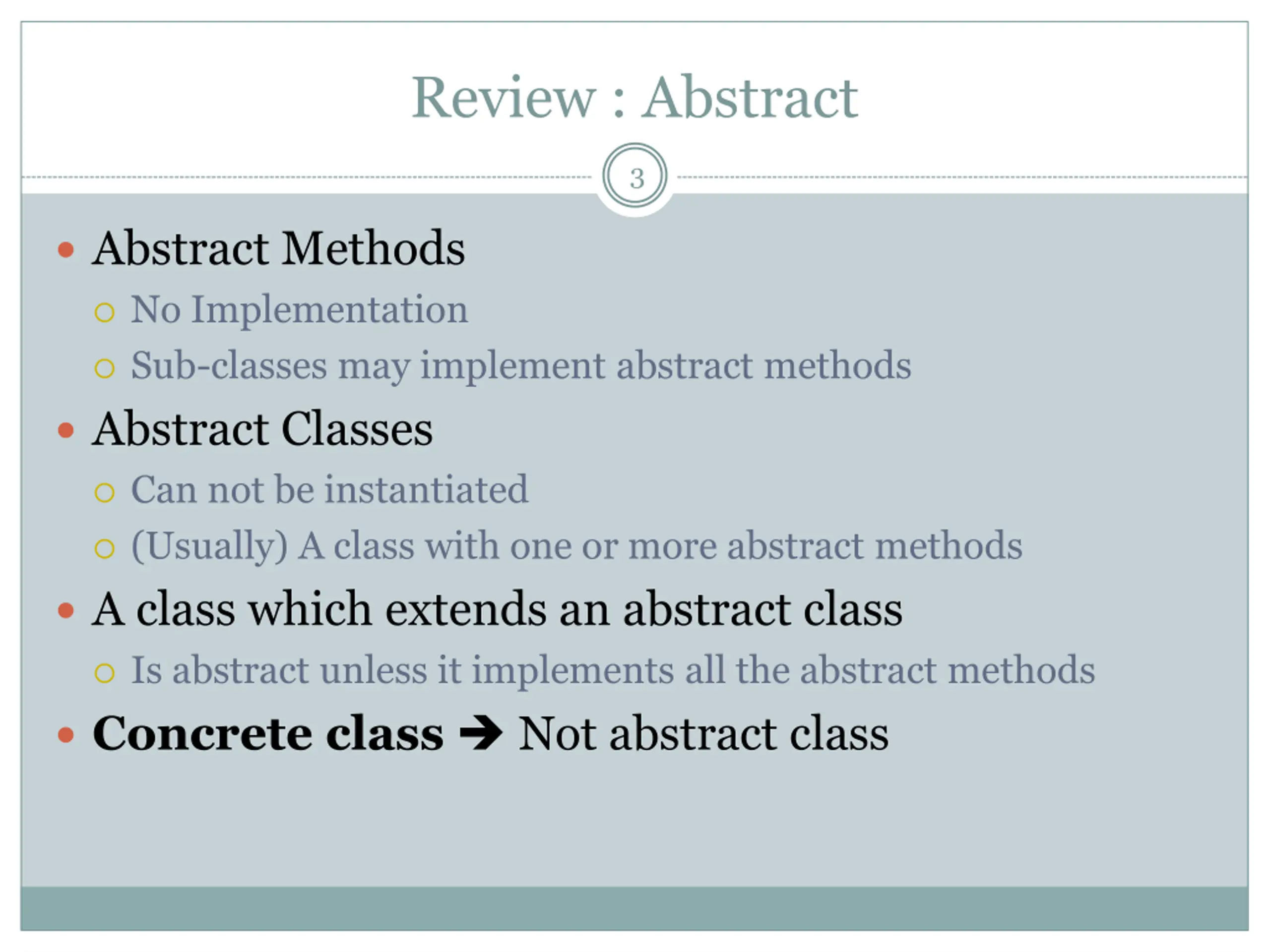

Review : Abstract 3 Abstract Methods No Implementation Sub-classes may implement abstract methods Abstract Classes Can not be instantiated (Usually) A class with one or more abstract methods A class which extends an abstract class Is abstract unless it implements all the abstract methods Concrete class Not abstract class

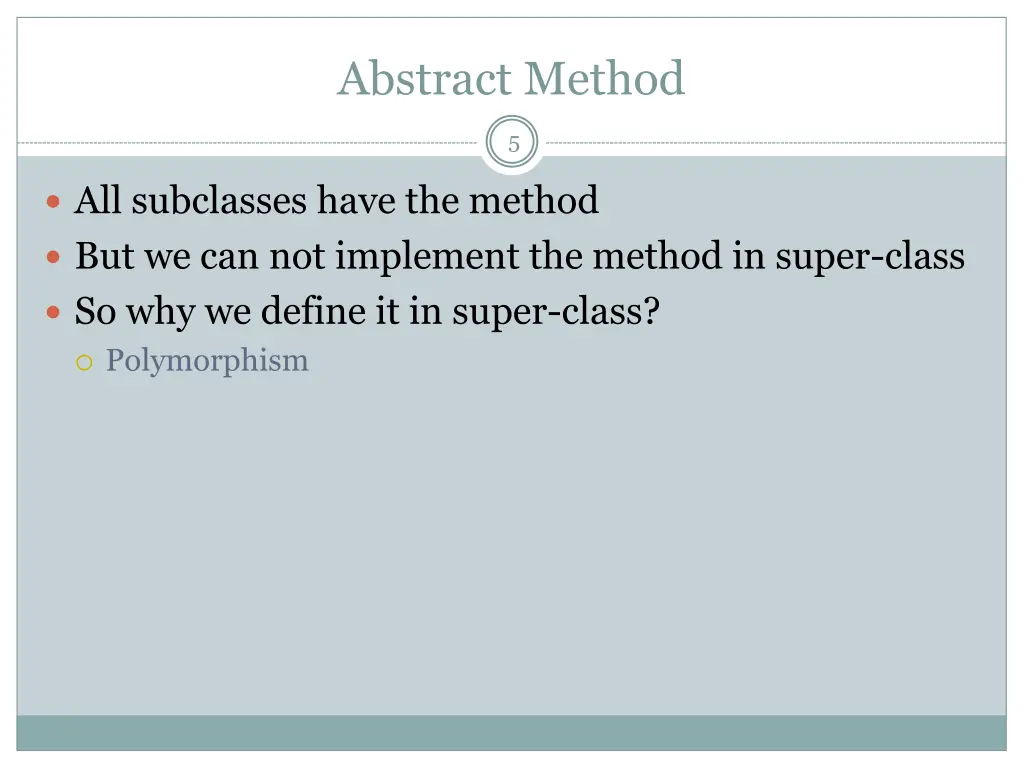

Abstract Method 5 All subclasses have the method But we can not implement the method in super-class So why we define it in super-class? Polymorphism

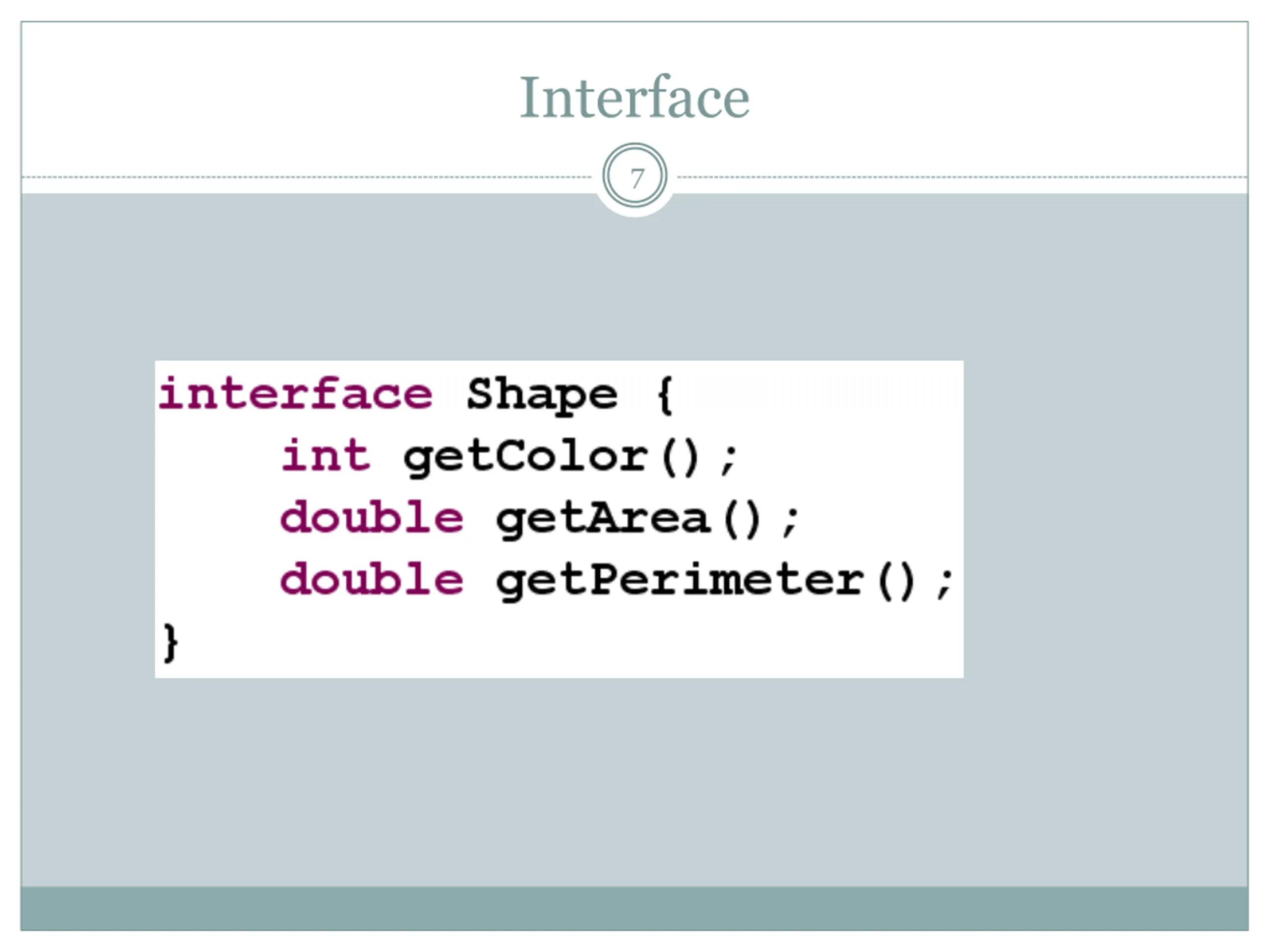

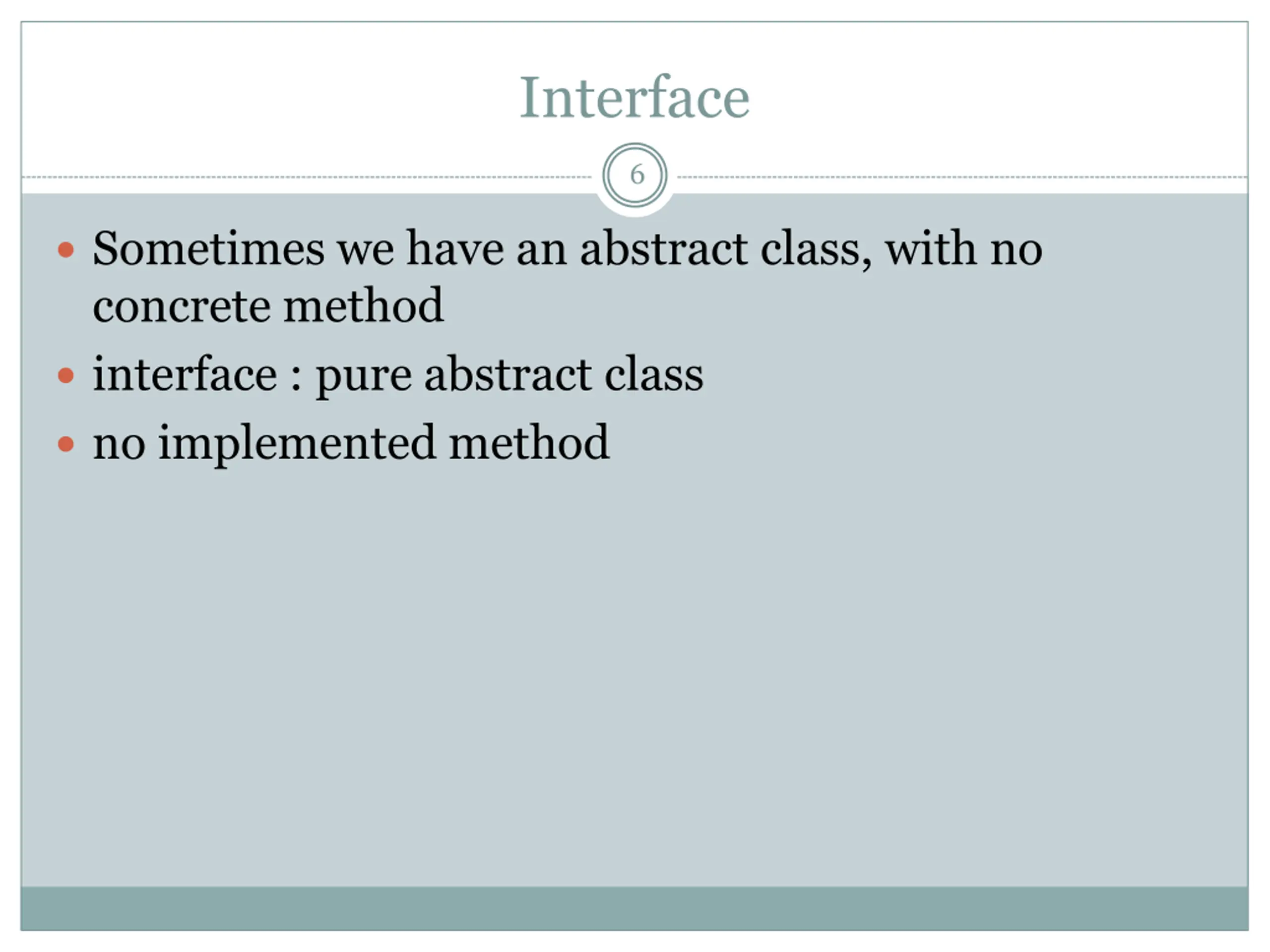

Interface 6 Sometimes we have an abstract class, with no concrete method interface : pure abstract class no implemented method

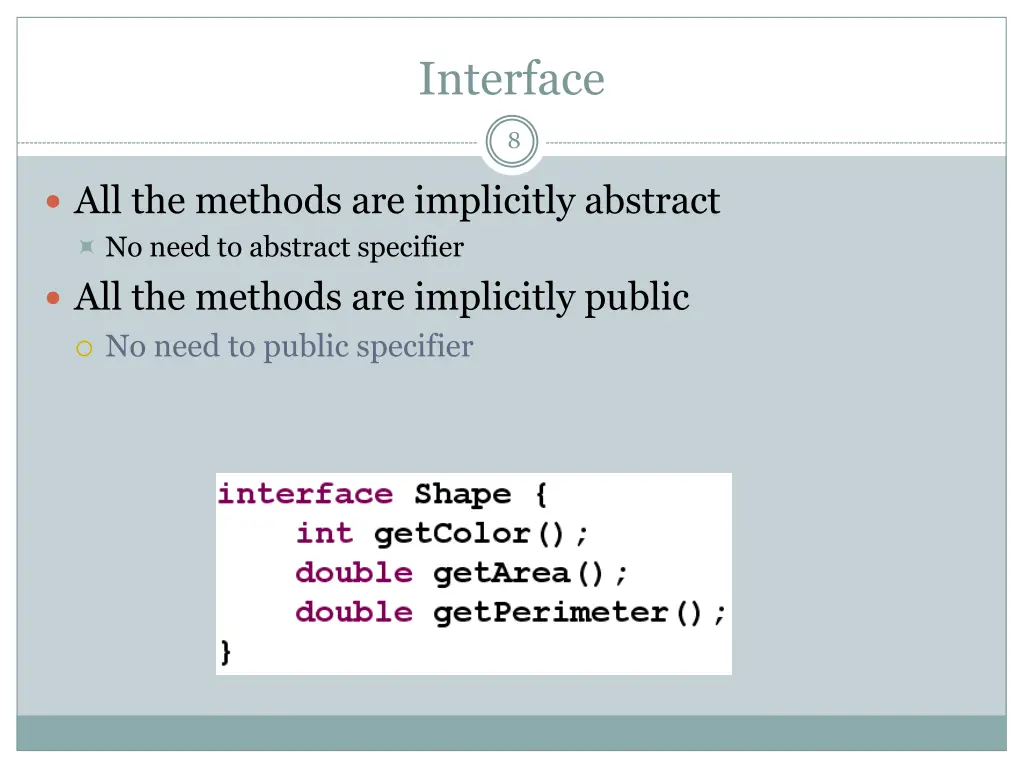

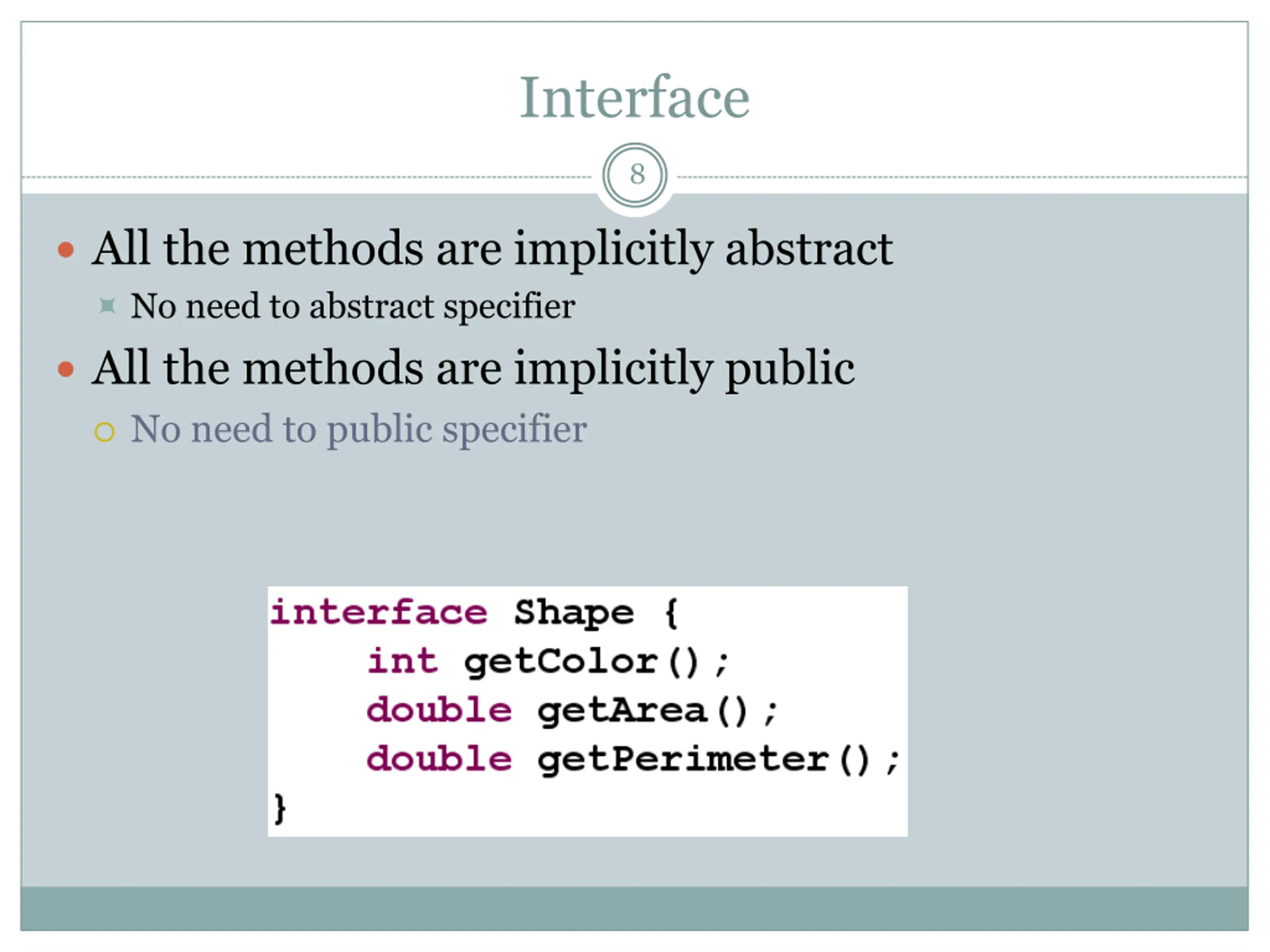

Interface 8 All the methods are implicitly abstract No need to abstract specifier All the methods are implicitly public No need to public specifier

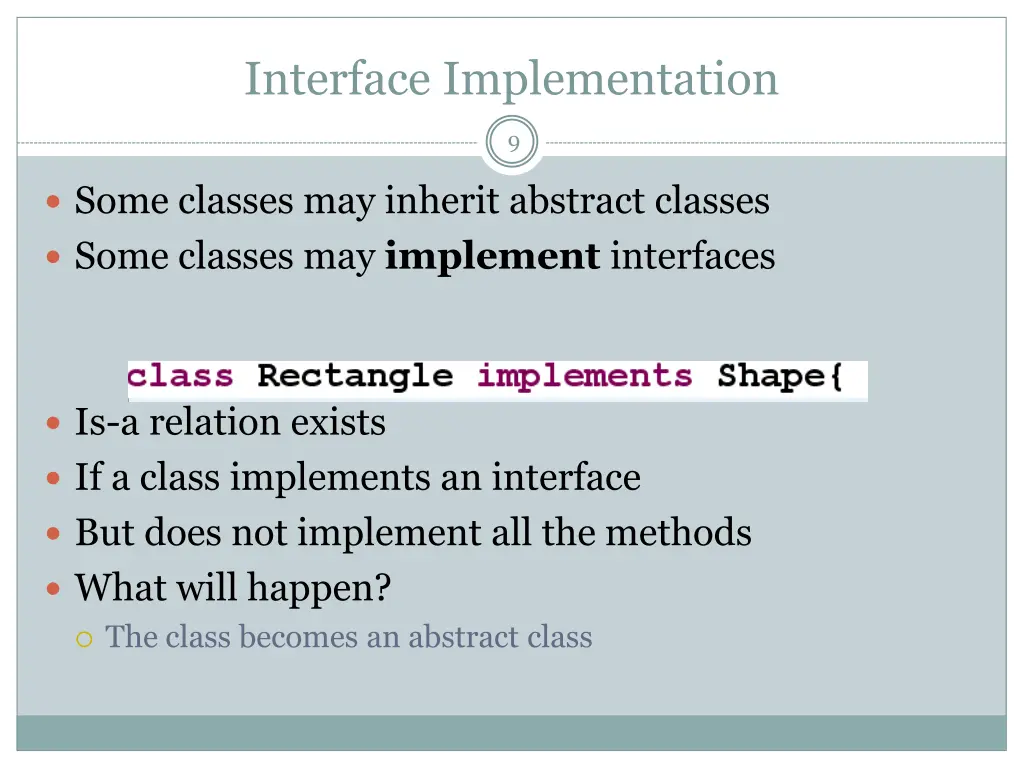

Interface Implementation 9 Some classes may inherit abstract classes Some classes may implement interfaces Is-a relation exists If a class implements an interface But does not implement all the methods What will happen? The class becomes an abstract class

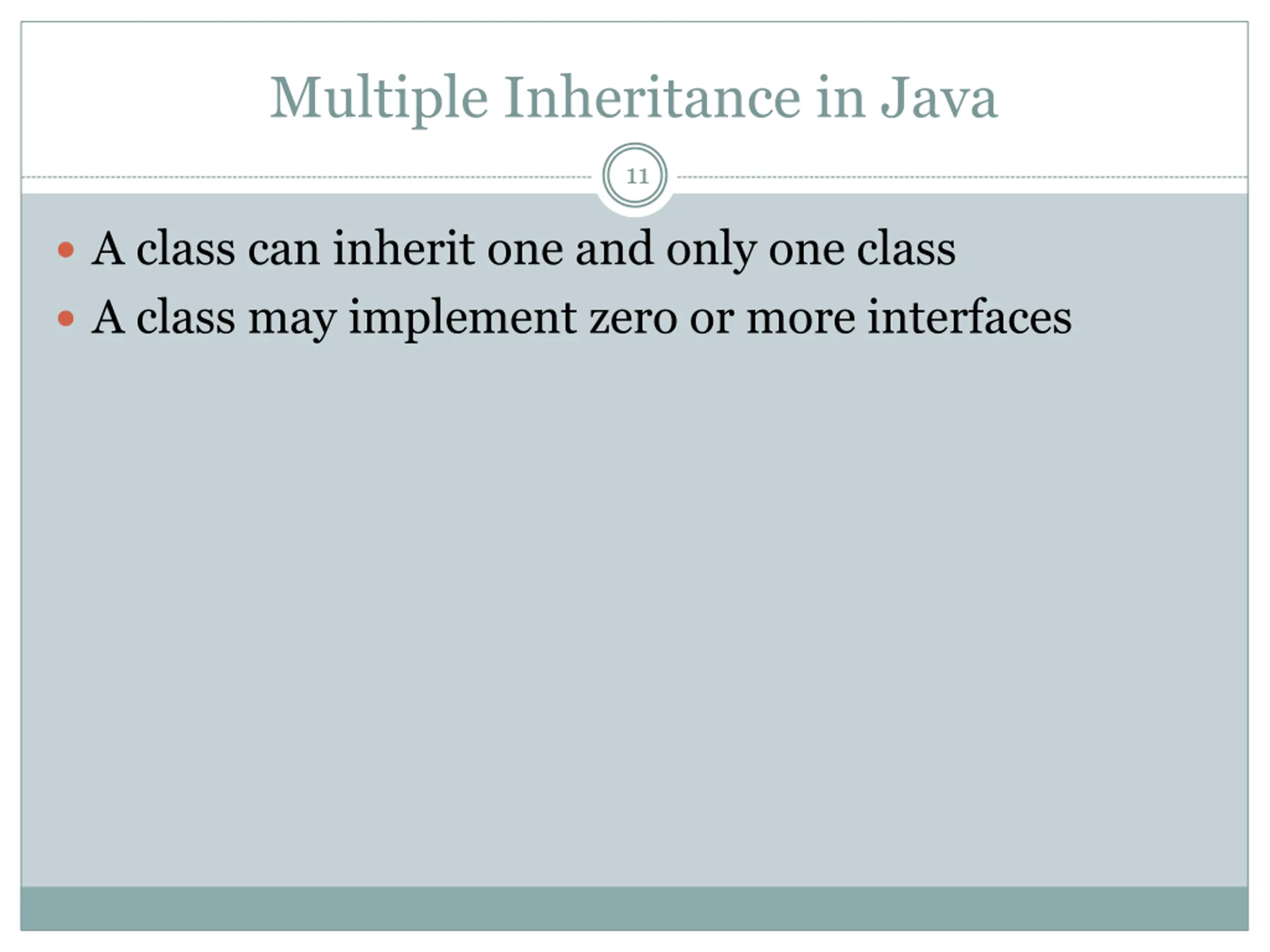

Multiple Inheritance in Java 11 A class can inherit one and only one class A class may implement zero or more interfaces

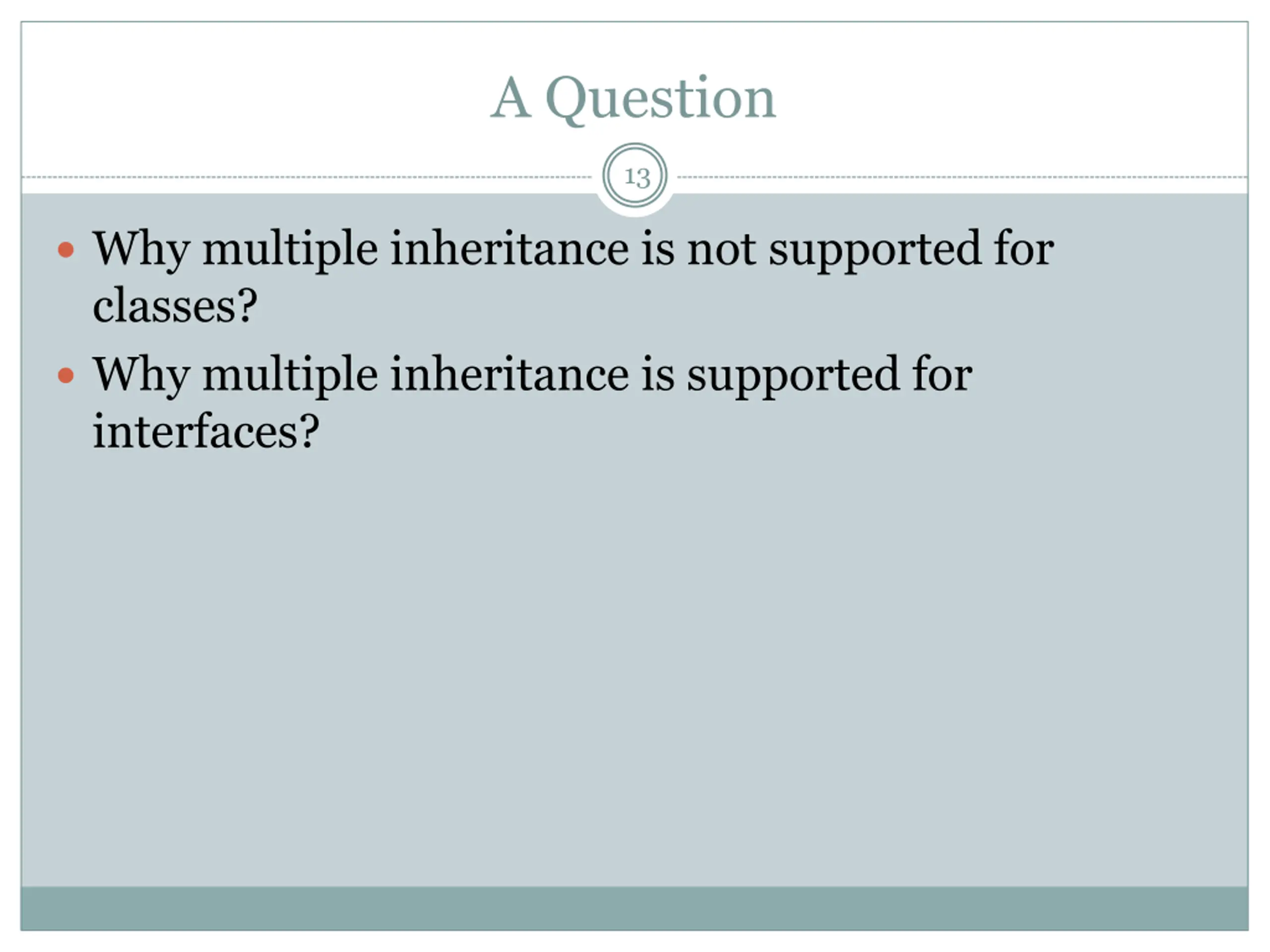

A Question 13 Why multiple inheritance is not supported for classes? Why multiple inheritance is supported for interfaces?

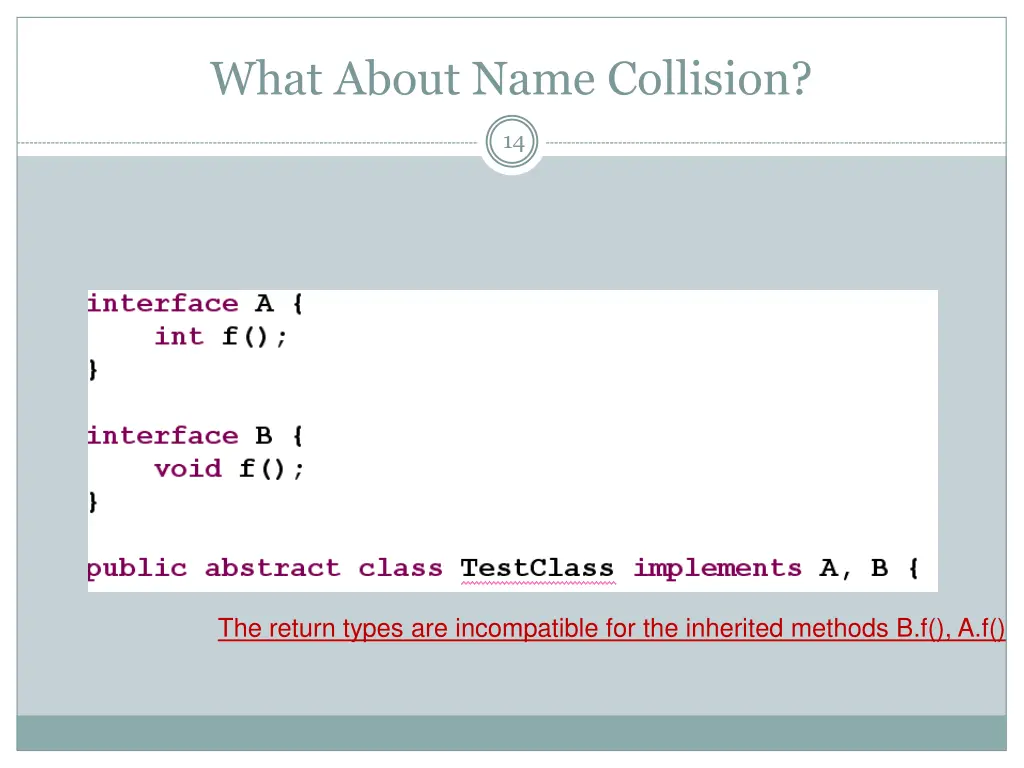

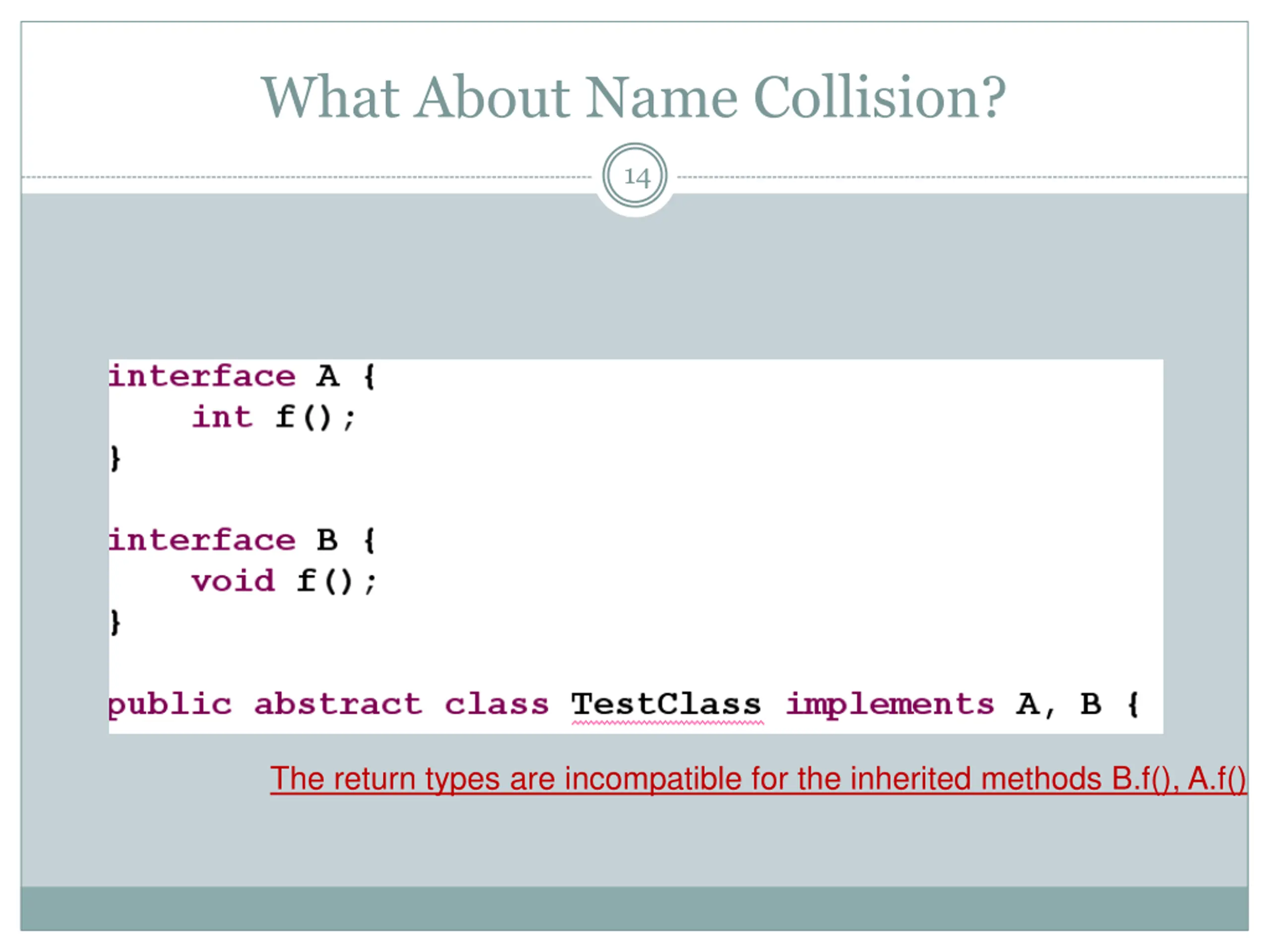

What About Name Collision? 14 The return types are incompatible for the inherited methods B.f(), A.f()

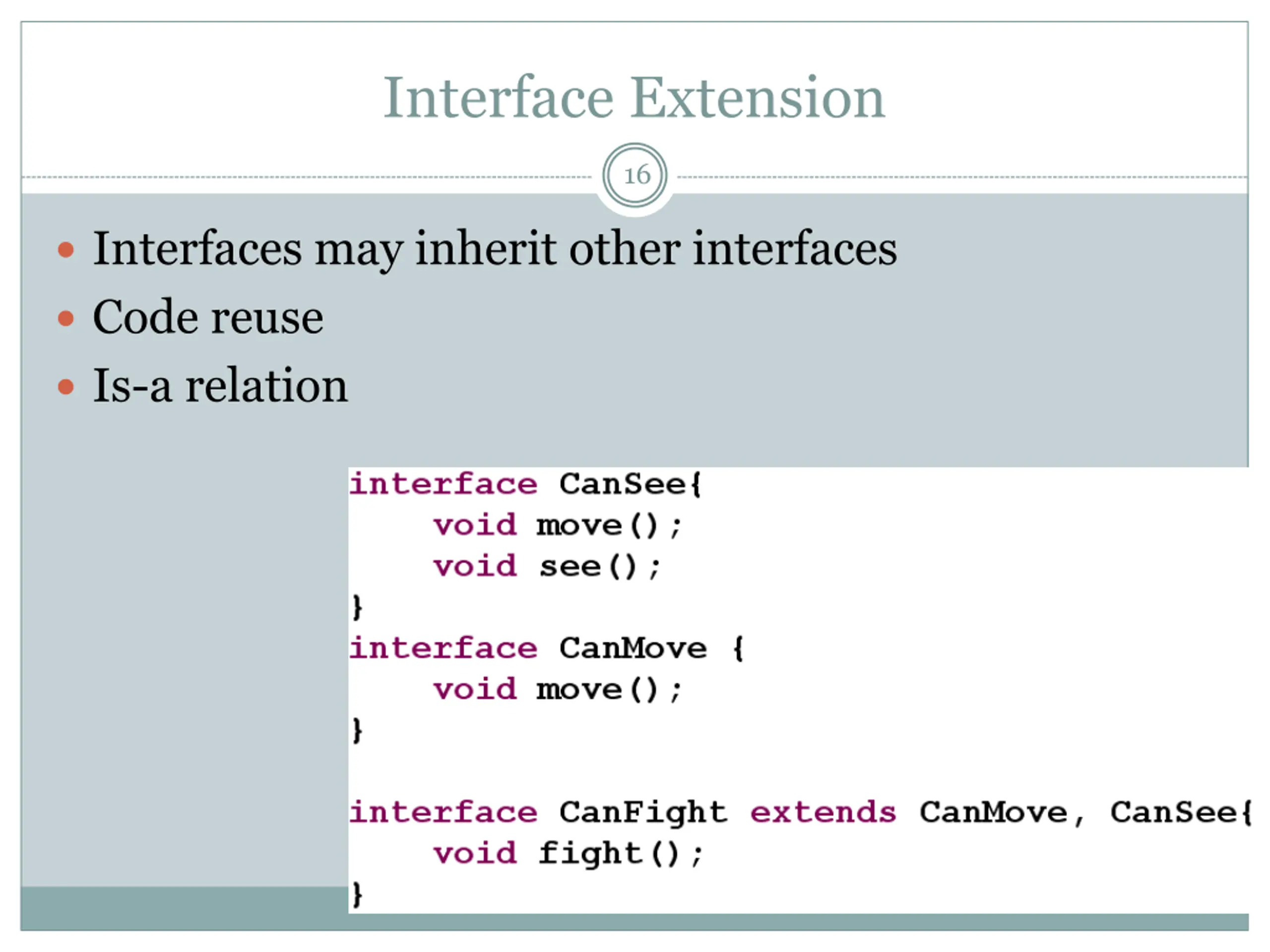

Interface Extension 16 Interfaces may inherit other interfaces Code reuse Is-a relation

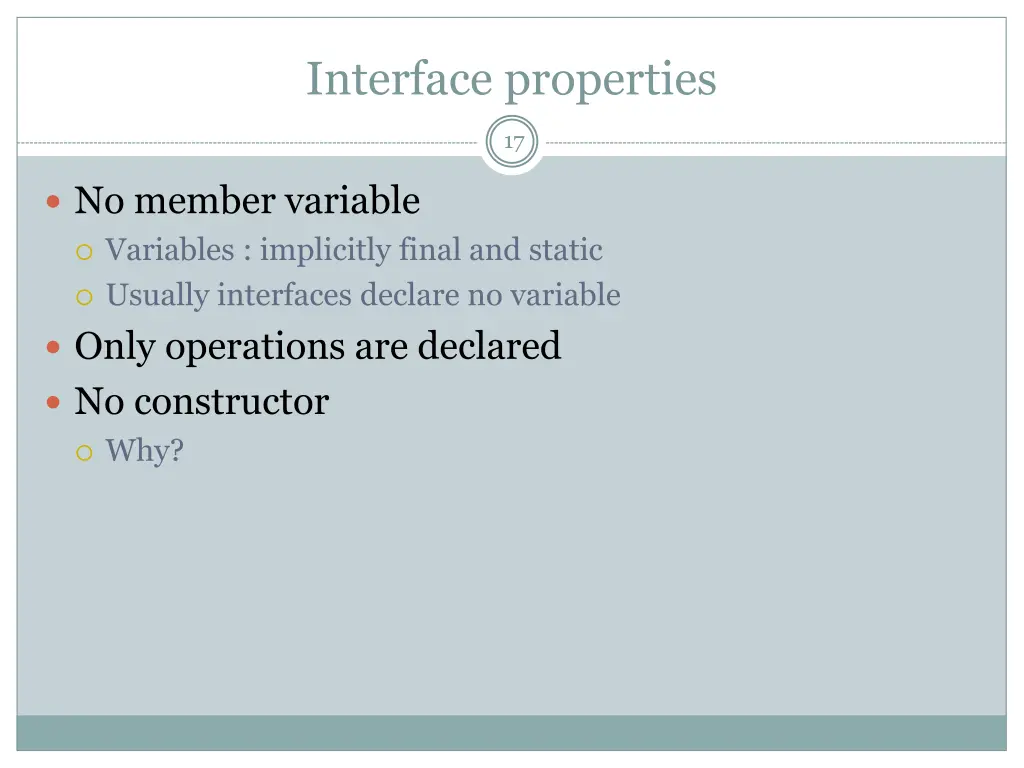

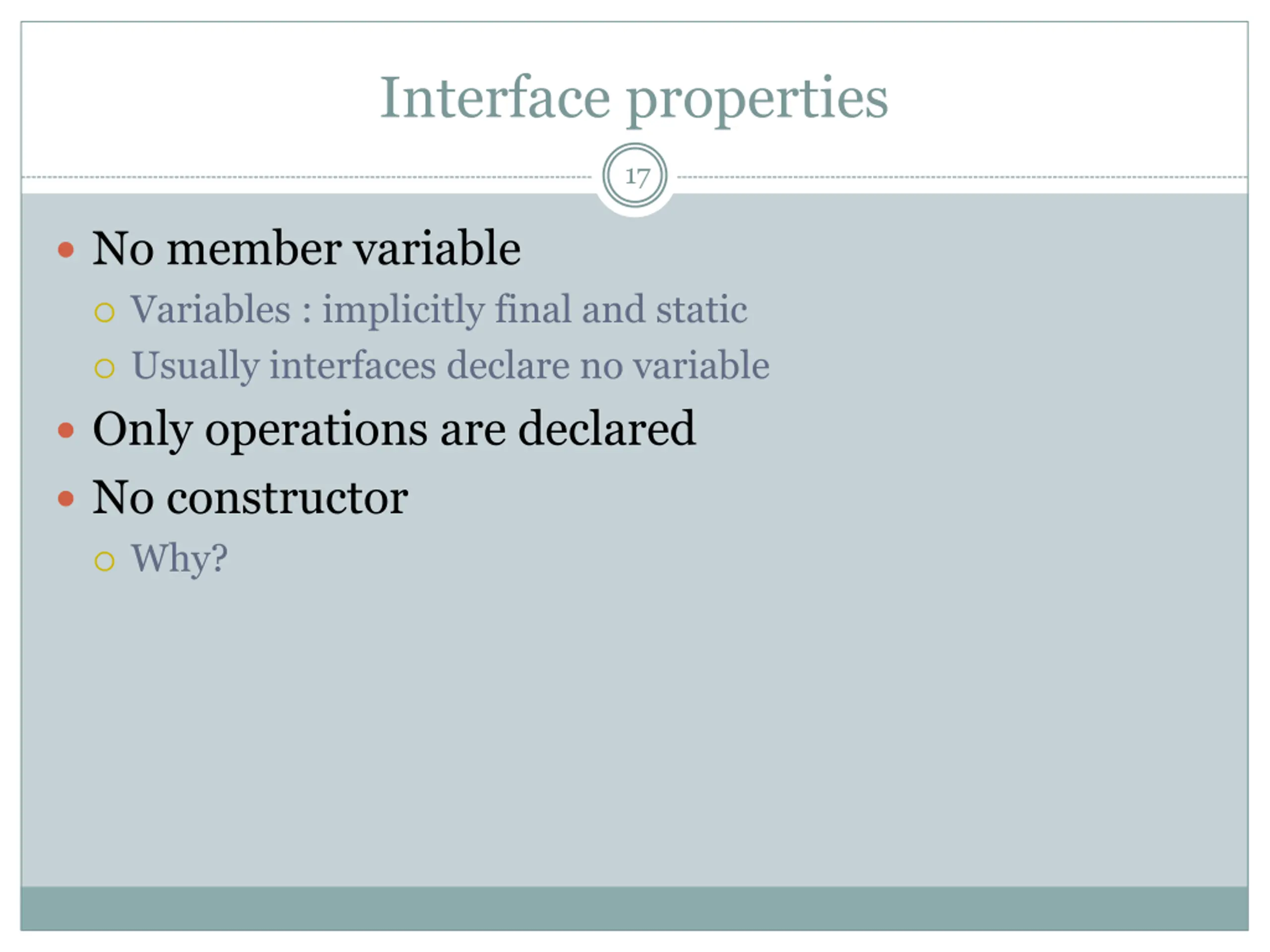

Interface properties 17 No member variable Variables : implicitly final and static Usually interfaces declare no variable Only operations are declared No constructor Why?

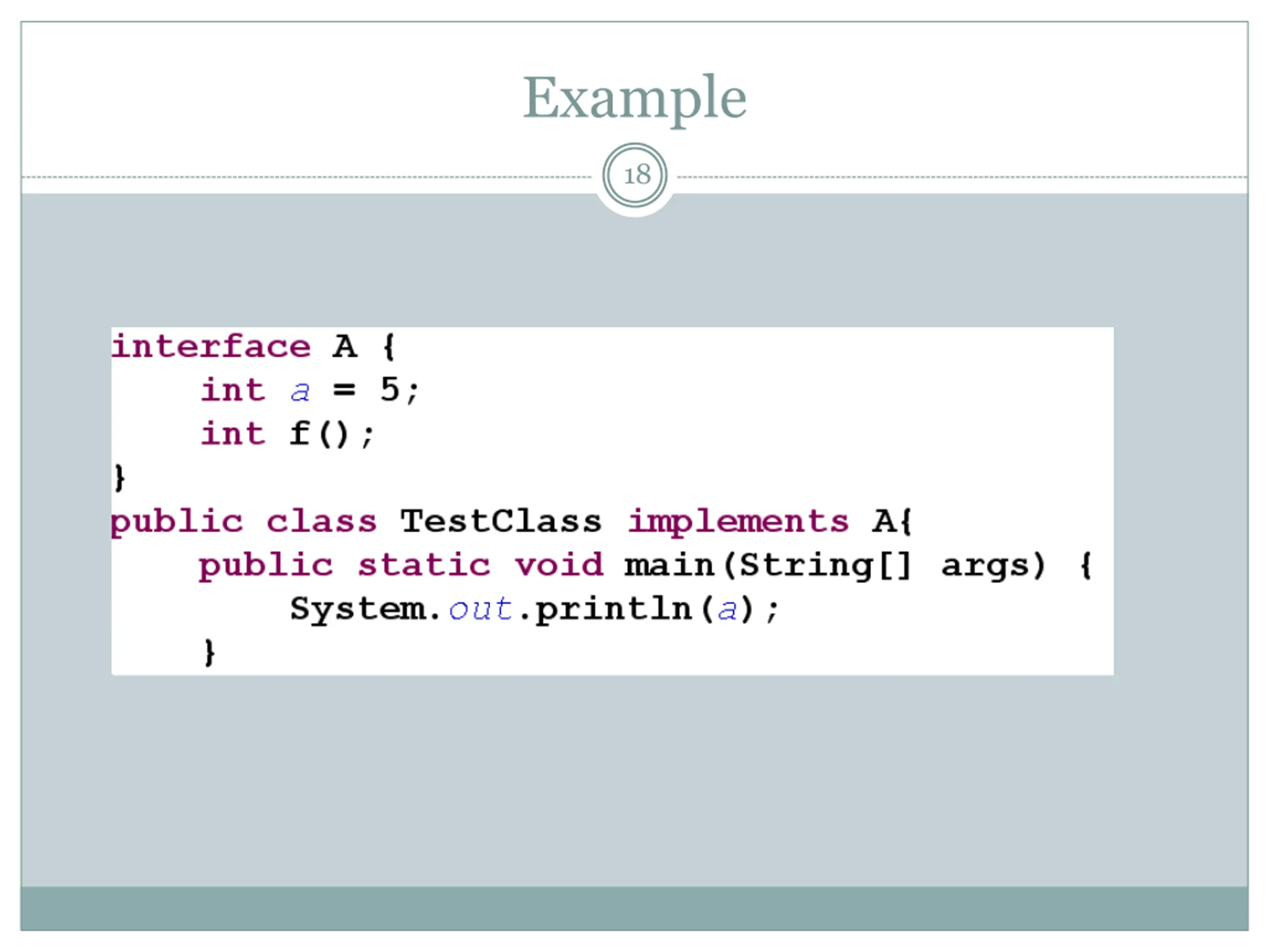

Example 18

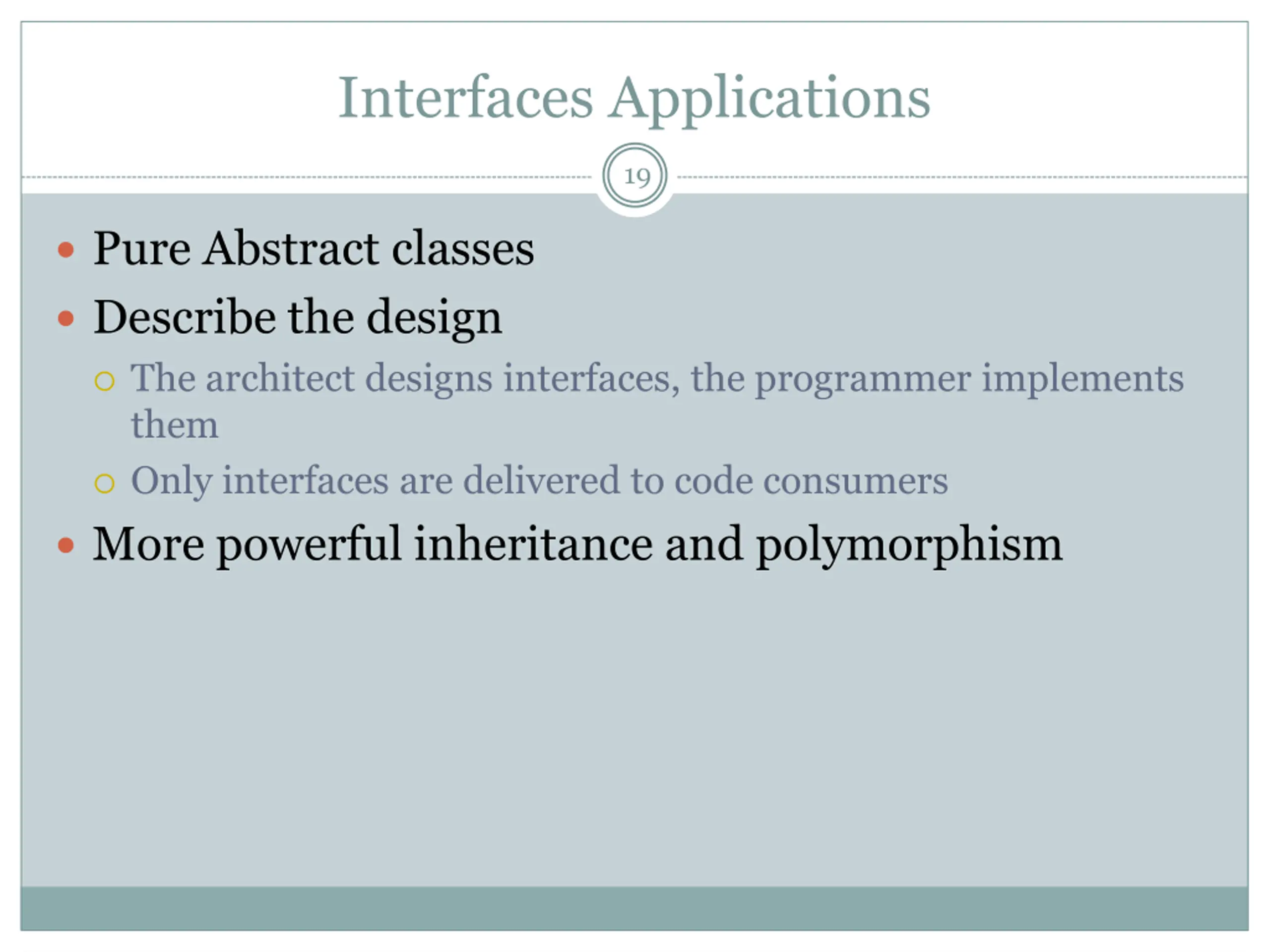

Interfaces Applications 19 Pure Abstract classes Describe the design The architect designs interfaces, the programmer implements them Only interfaces are delivered to code consumers More powerful inheritance and polymorphism

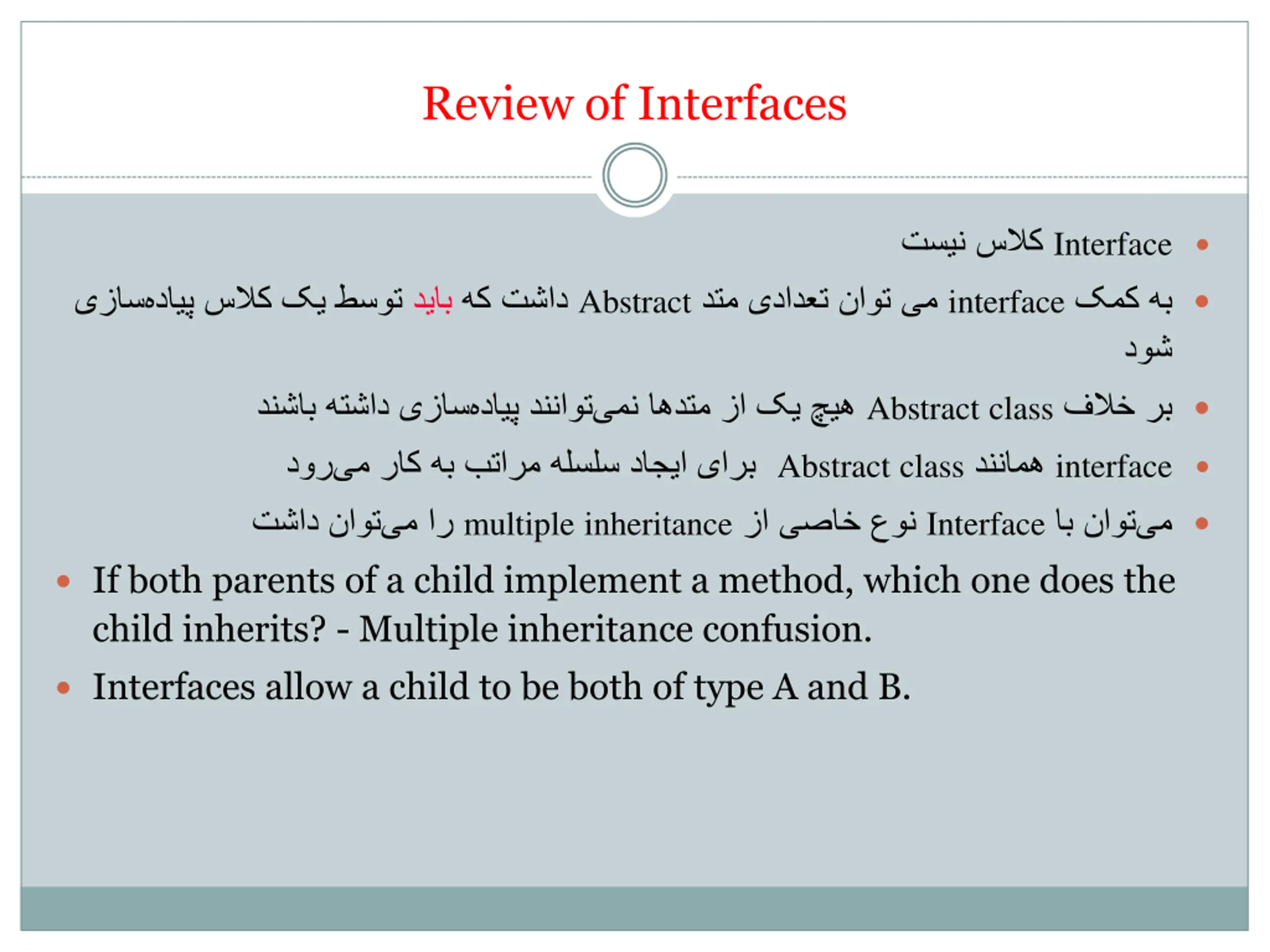

Review of Interfaces Interface Abstract interface Abstractclass Abstractclass multipleinheritance If both parents of a child implement a method, which one does the child inherits? - Multiple inheritance confusion. Interfaces allow a child to be both of type A and B. interface Interface

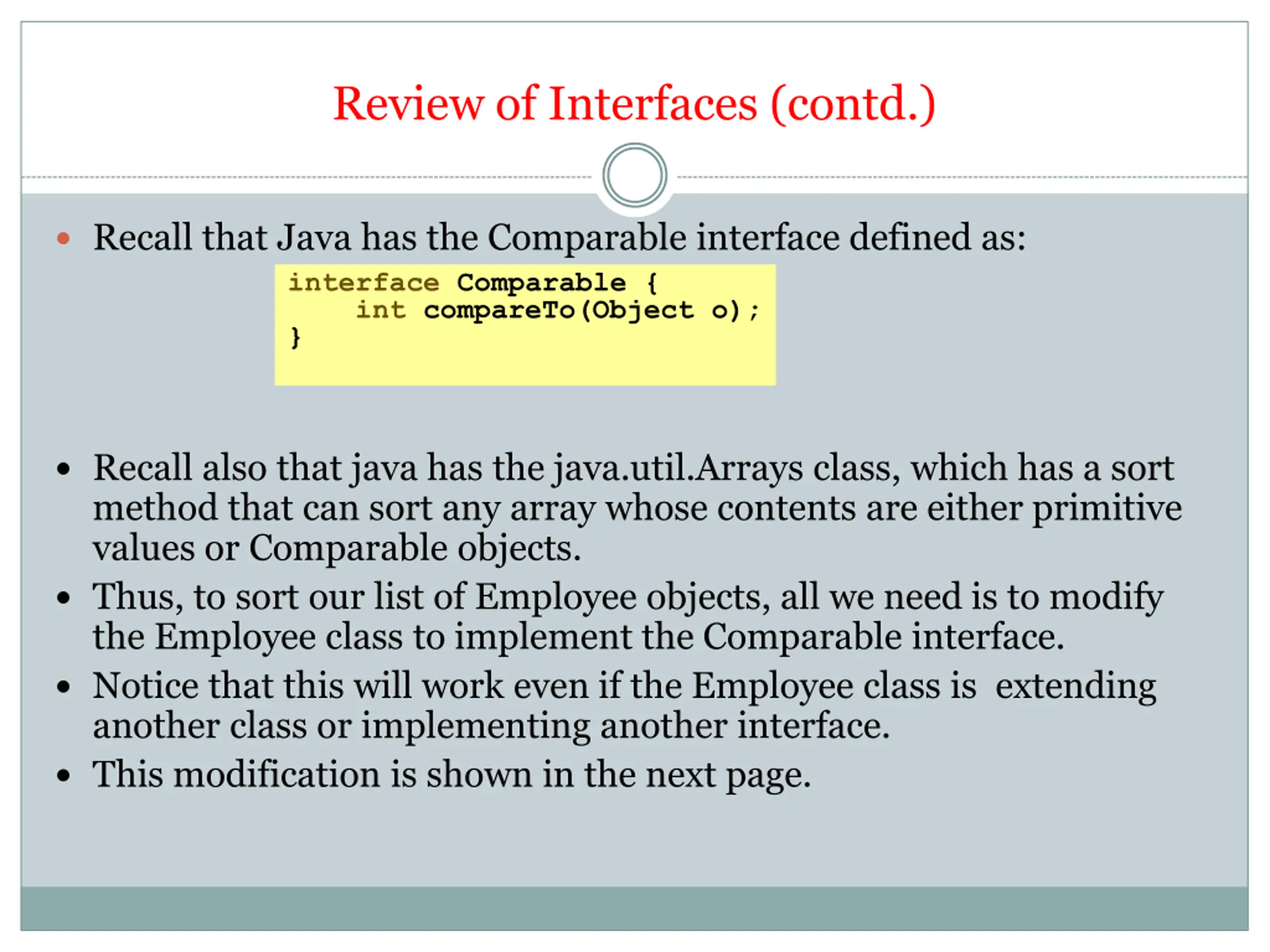

Review of Interfaces (contd.) Recall that Java has the Comparable interface defined as: interface Comparable { int compareTo(Object o); } Recall also that java has the java.util.Arrays class, which has a sort method that can sort any array whose contents are either primitive values or Comparable objects. Thus, to sort our list of Employee objects, all we need is to modify the Employee class to implement the Comparable interface. Notice that this will work even if the Employee class is extending another class or implementing another interface. This modification is shown in the next page.

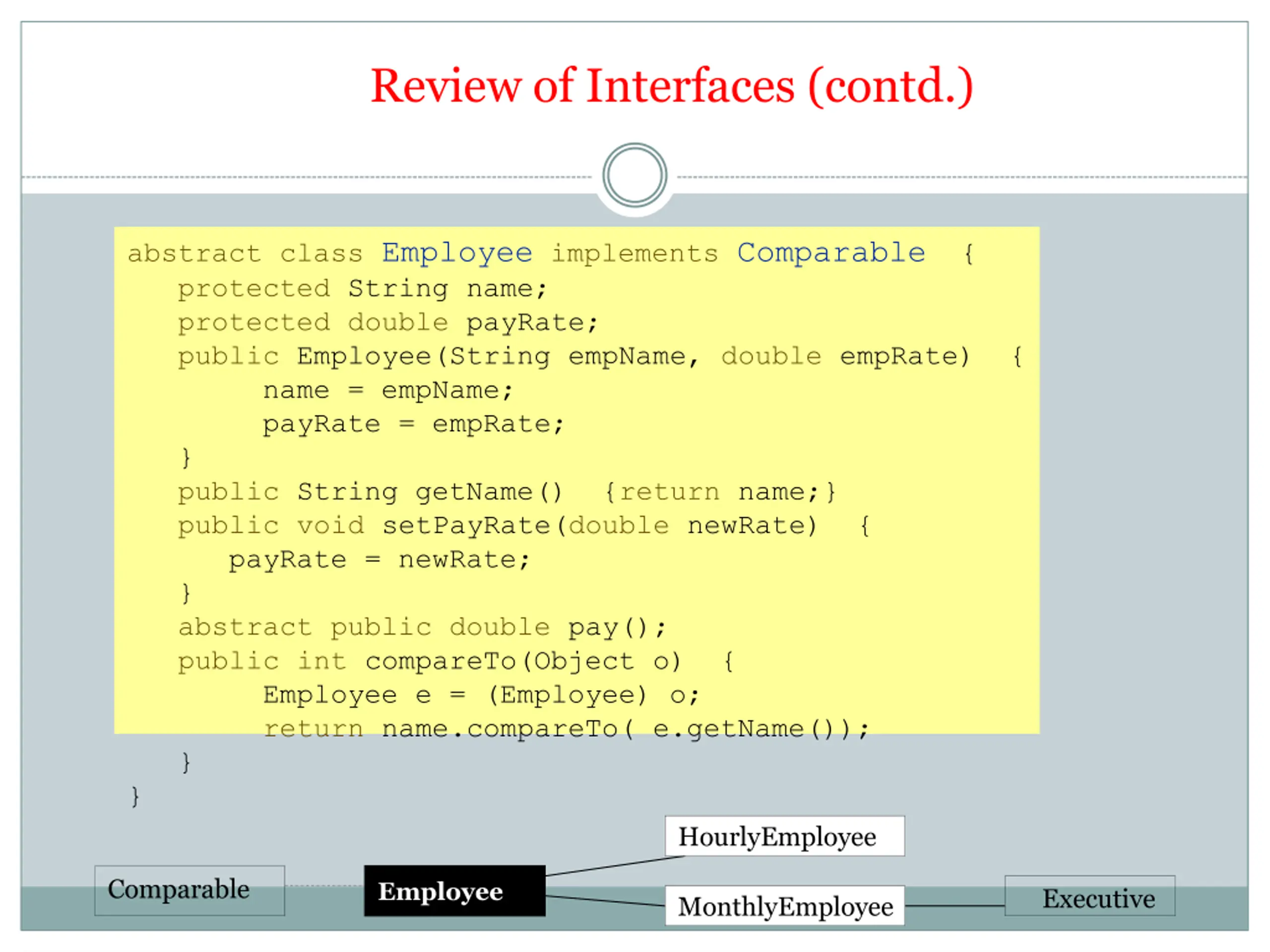

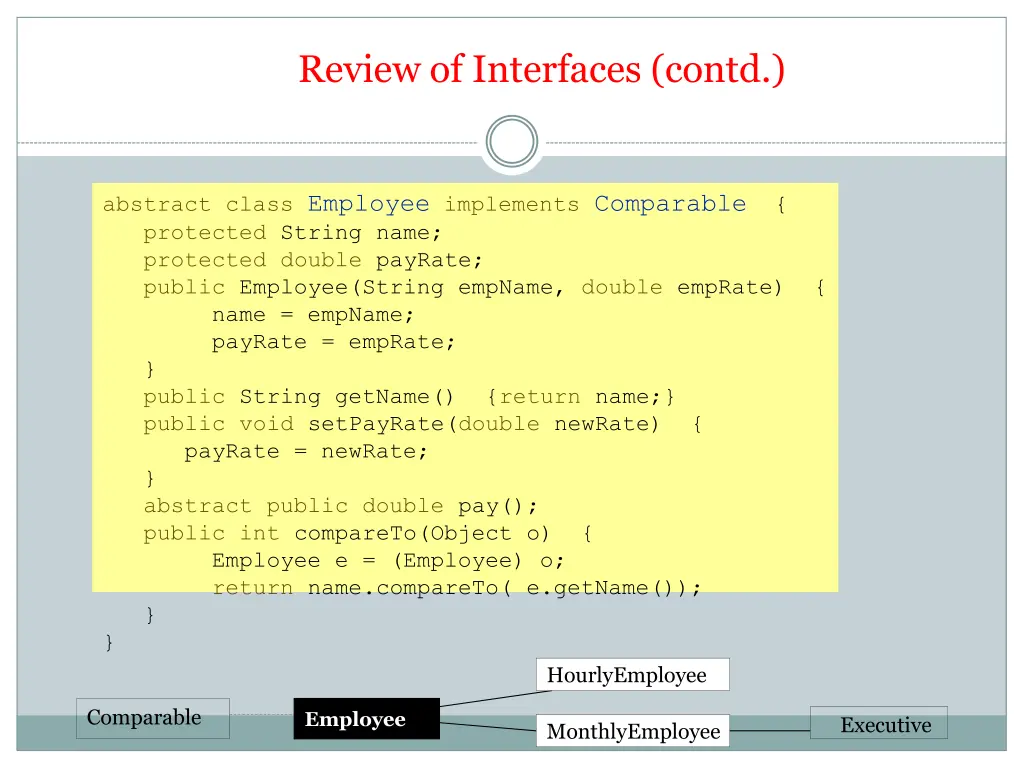

Review of Interfaces (contd.) abstract class Employee implements Comparable { protected String name; protected double payRate; public Employee(String empName, double empRate) { name = empName; payRate = empRate; } public String getName() {return name;} public void setPayRate(double newRate) { payRate = newRate; } abstract public double pay(); public int compareTo(Object o) { Employee e = (Employee) o; return name.compareTo( e.getName()); } } HourlyEmployee Comparable Employee Executive MonthlyEmployee

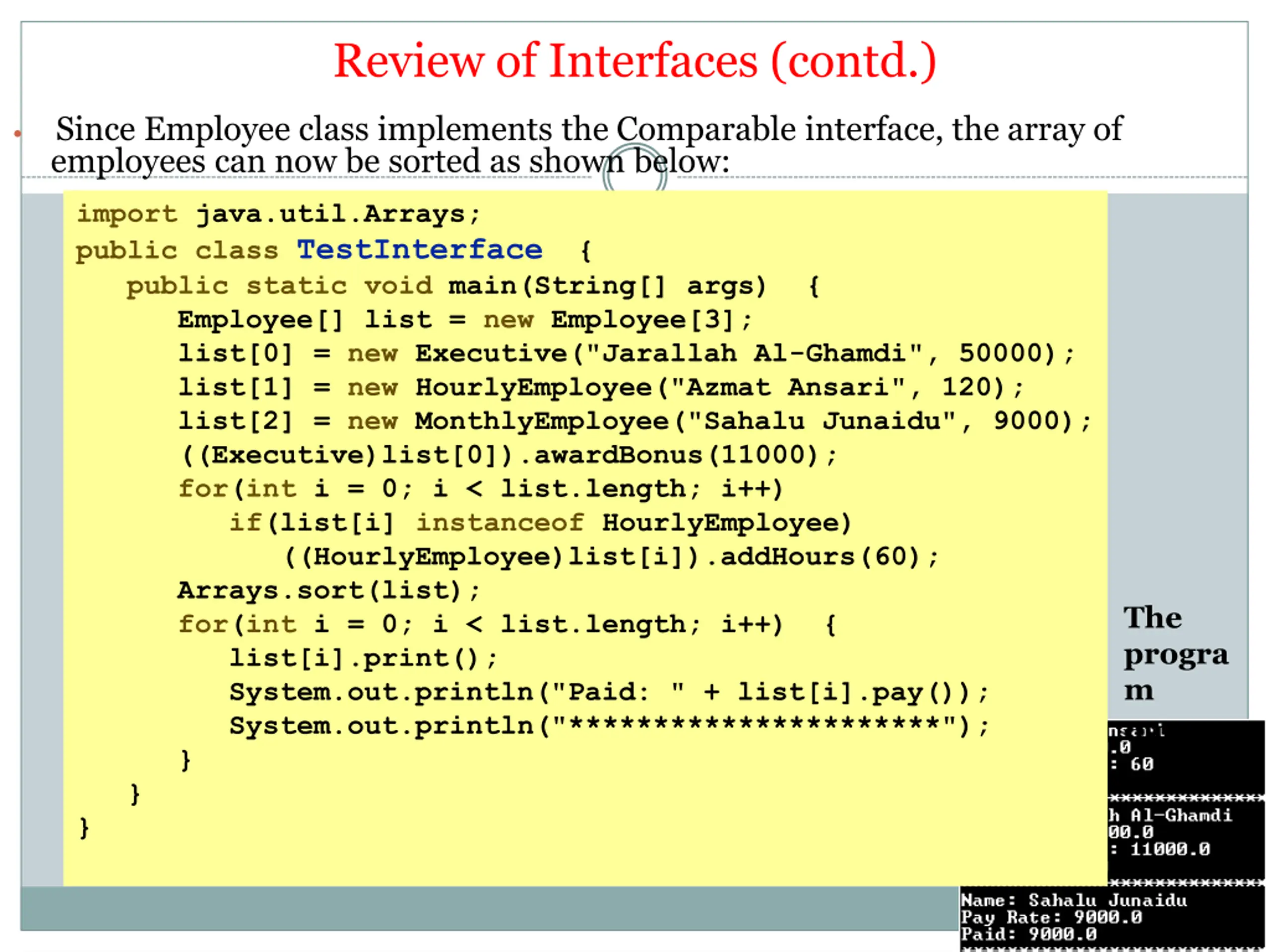

Review of Interfaces (contd.) Since Employee class implements the Comparable interface, the array of employees can now be sorted as shown below: import java.util.Arrays; public class TestInterface { public static void main(String[] args) { Employee[] list = new Employee[3]; list[0] = new Executive("Jarallah Al-Ghamdi", 50000); list[1] = new HourlyEmployee("Azmat Ansari", 120); list[2] = new MonthlyEmployee("Sahalu Junaidu", 9000); ((Executive)list[0]).awardBonus(11000); for(int i = 0; i < list.length; i++) if(list[i] instanceof HourlyEmployee) ((HourlyEmployee)list[i]).addHours(60); Arrays.sort(list); for(int i = 0; i < list.length; i++) { list[i].print(); System.out.println("Paid: " + list[i].pay()); System.out.println("**********************"); } } } The progra m output
