Presentation Transcript

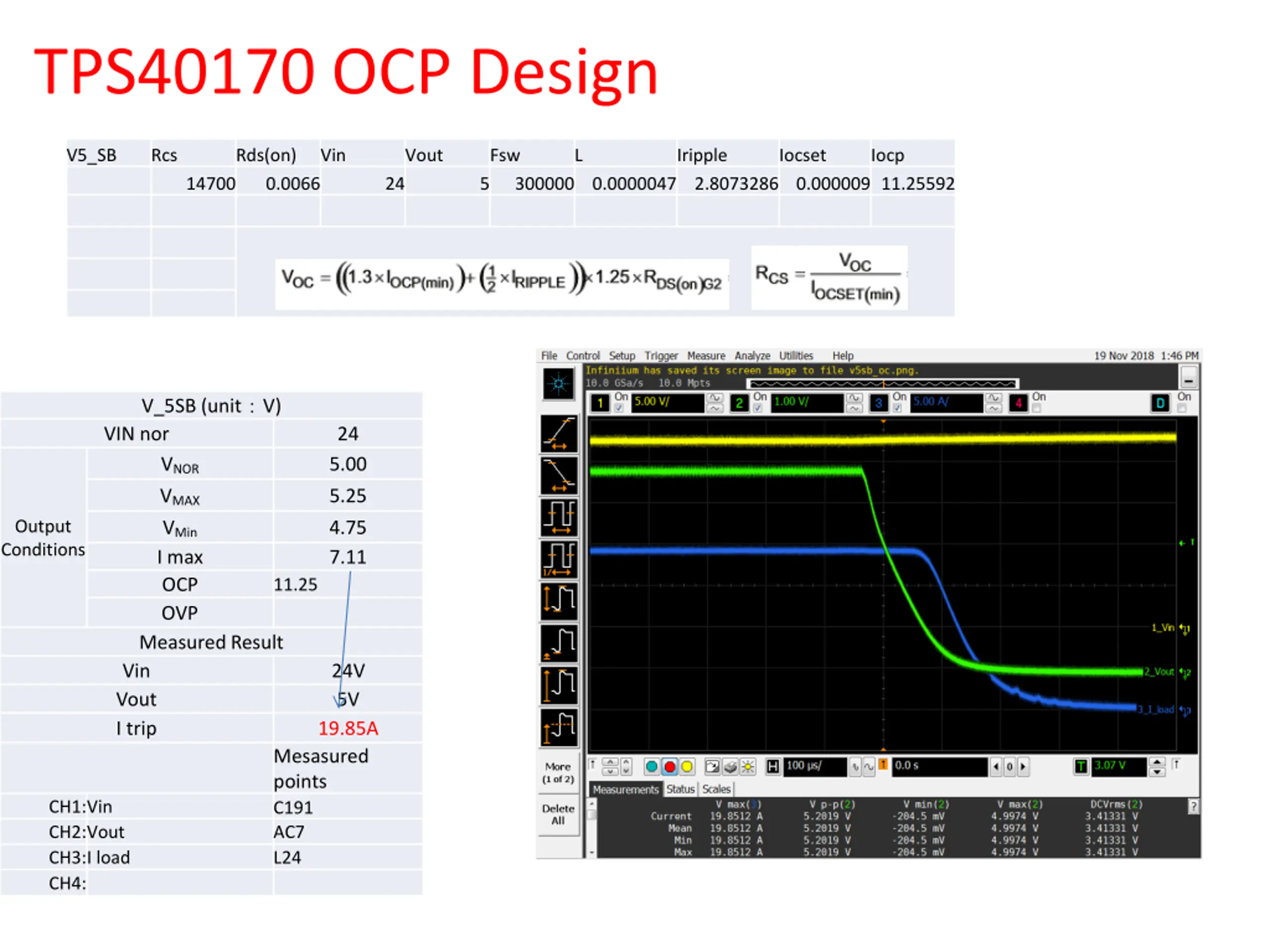

TPS40170 OCP Design V5_SB Rcs Rds(on) 0.0066 Vin Vout Fsw L Iripple 2.8073286 0.000009 11.25592 Iocset Iocp 14700 24 5 300000 0.0000047 V_5SB (unit V) VIN nor VNOR VMAX VMin I max OCP OVP Measured Result Vin Vout I trip 24 5.00 5.25 Output Conditions 4.75 7.11 11.25 24V 5V 19.85A Mesasured points C191 AC7 L24 CH1: Vin CH2: Vout CH3: I load CH4:

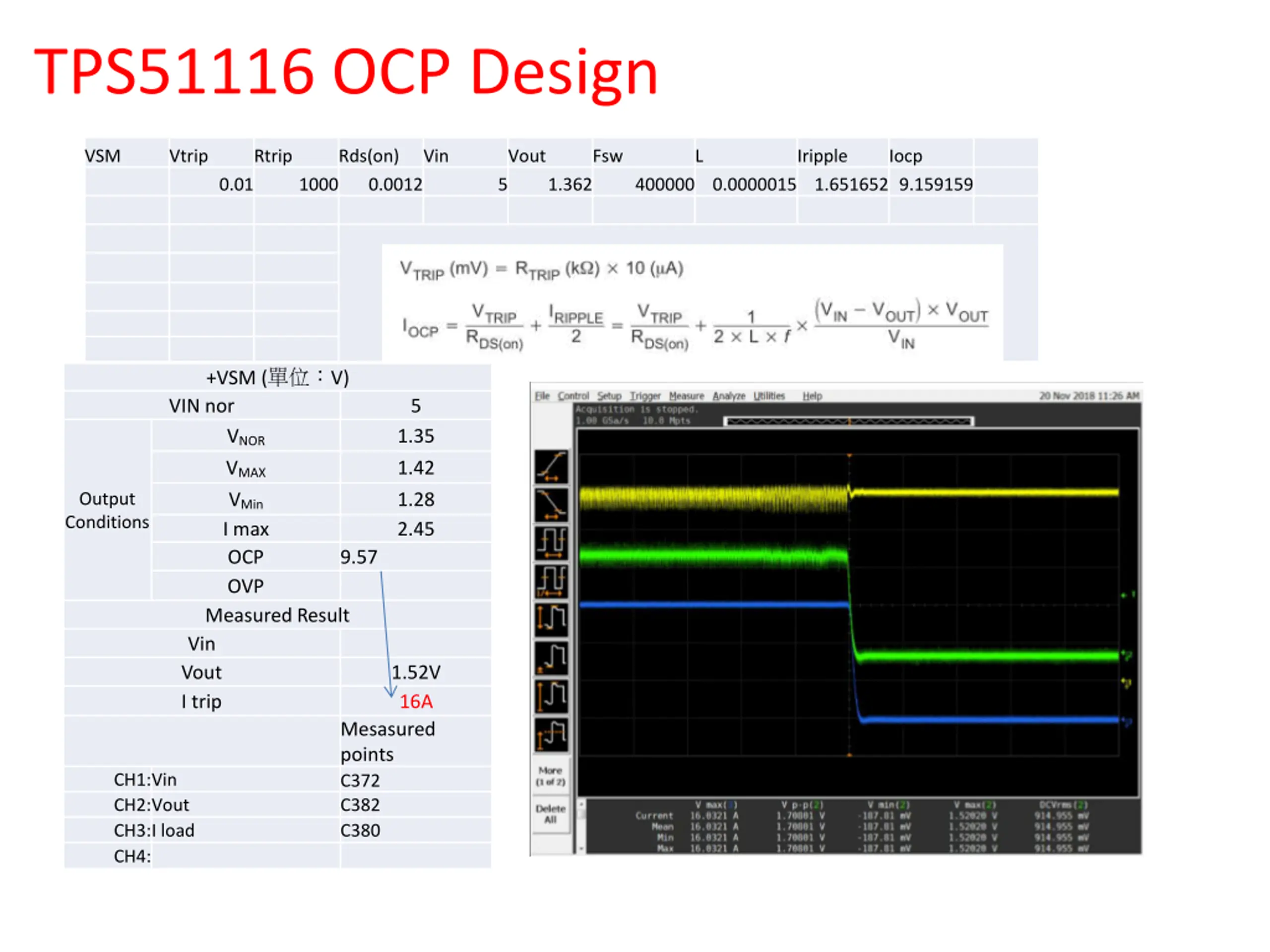

TPS51116 OCP Design VSM Vtrip Rtrip Rds(on) 0.0012 Vin Vout Fsw L Iripple Iocp 0.01 1000 5 1.362 400000 0.0000015 1.651652 9.159159 +VSM ( V) VIN nor VNOR VMAX VMin I max OCP OVP Measured Result Vin Vout I trip 5 1.35 1.42 1.28 2.45 Output Conditions 9.57 1.52V 16A Mesasured points C372 C382 C380 CH1: Vin CH2: Vout CH3: I load CH4:
