Olympic Rescue Sheet MindStorms Mission Assembly Guide
This assembly guide provides detailed instructions for assembling components, including panels, skins, fences, and poles, to create a ski slope for the Olympic Rescue Sheet MindStorms Mission. The guide includes images and step-by-step fabrication processes for each stage of the construction.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

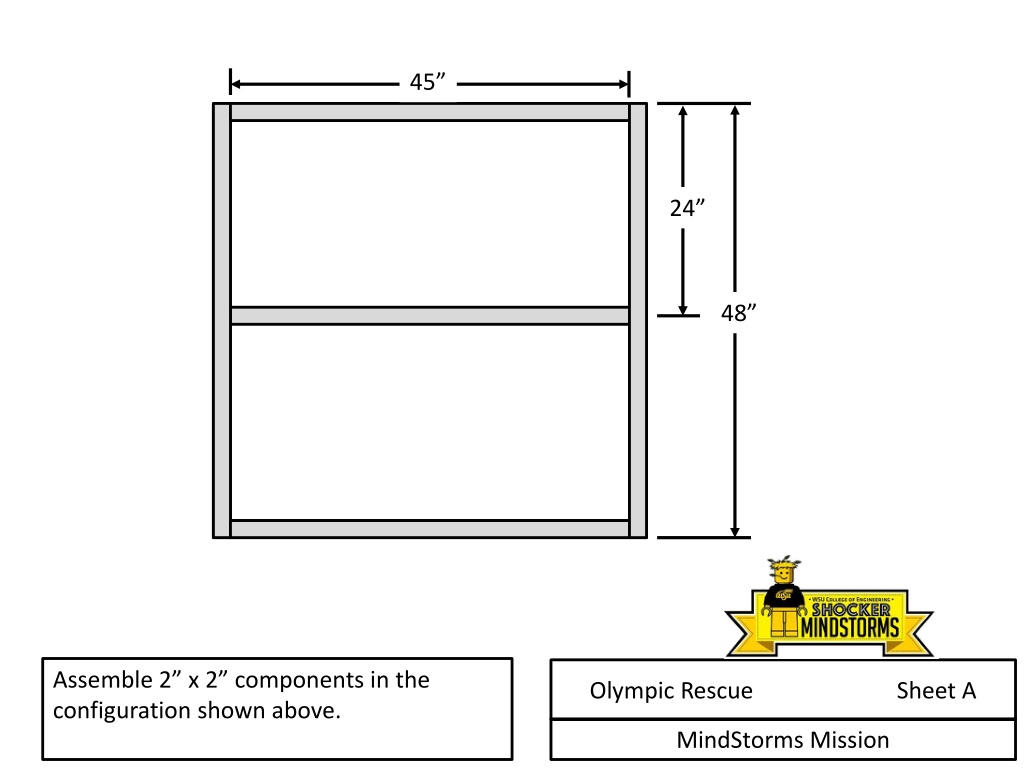

45 24 48 Assemble 2 x 2 components in the configuration shown above. Olympic Rescue Sheet A MindStorms Mission

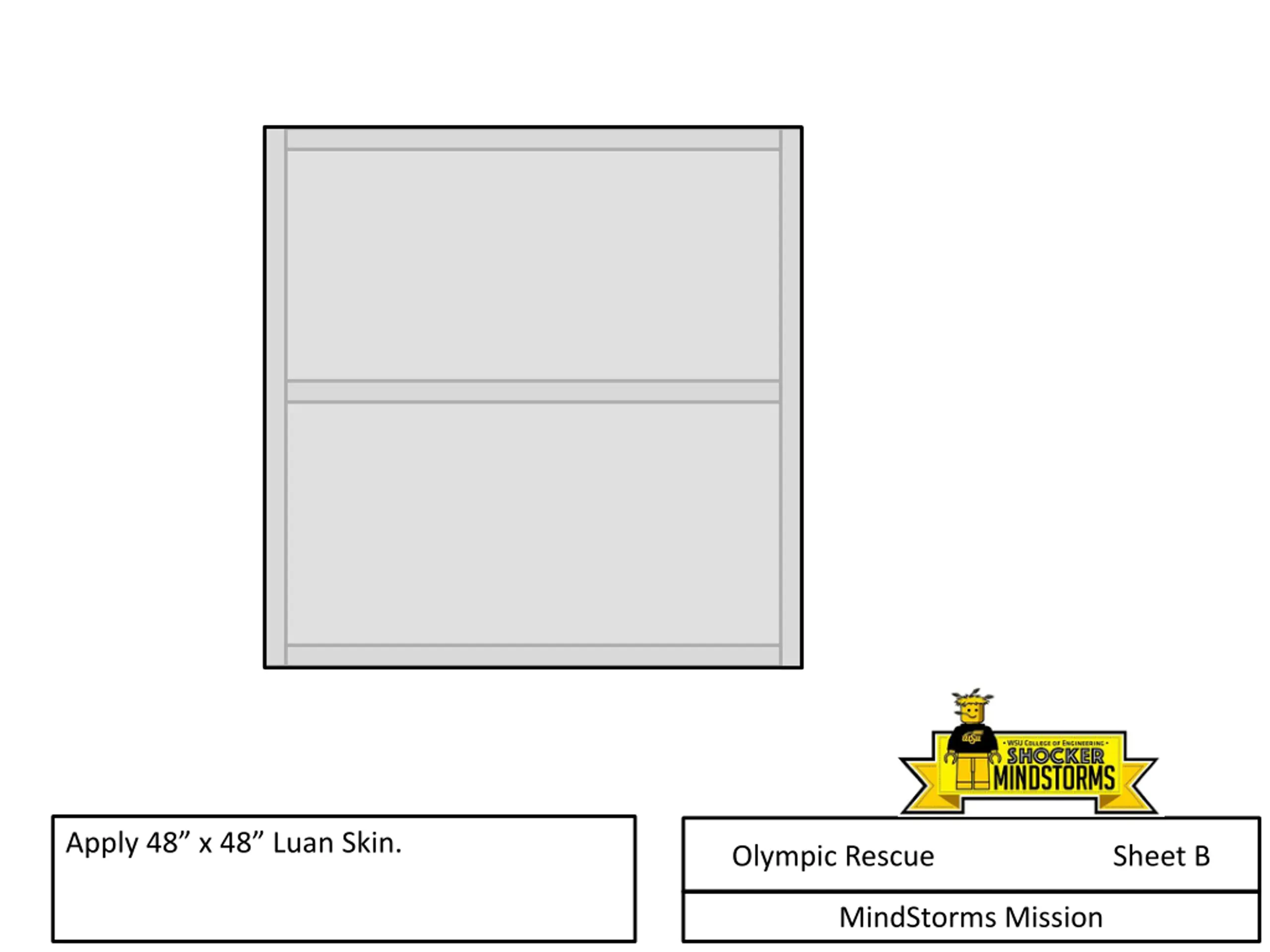

Apply 48 x 48 Luan Skin. Olympic Rescue Sheet B MindStorms Mission

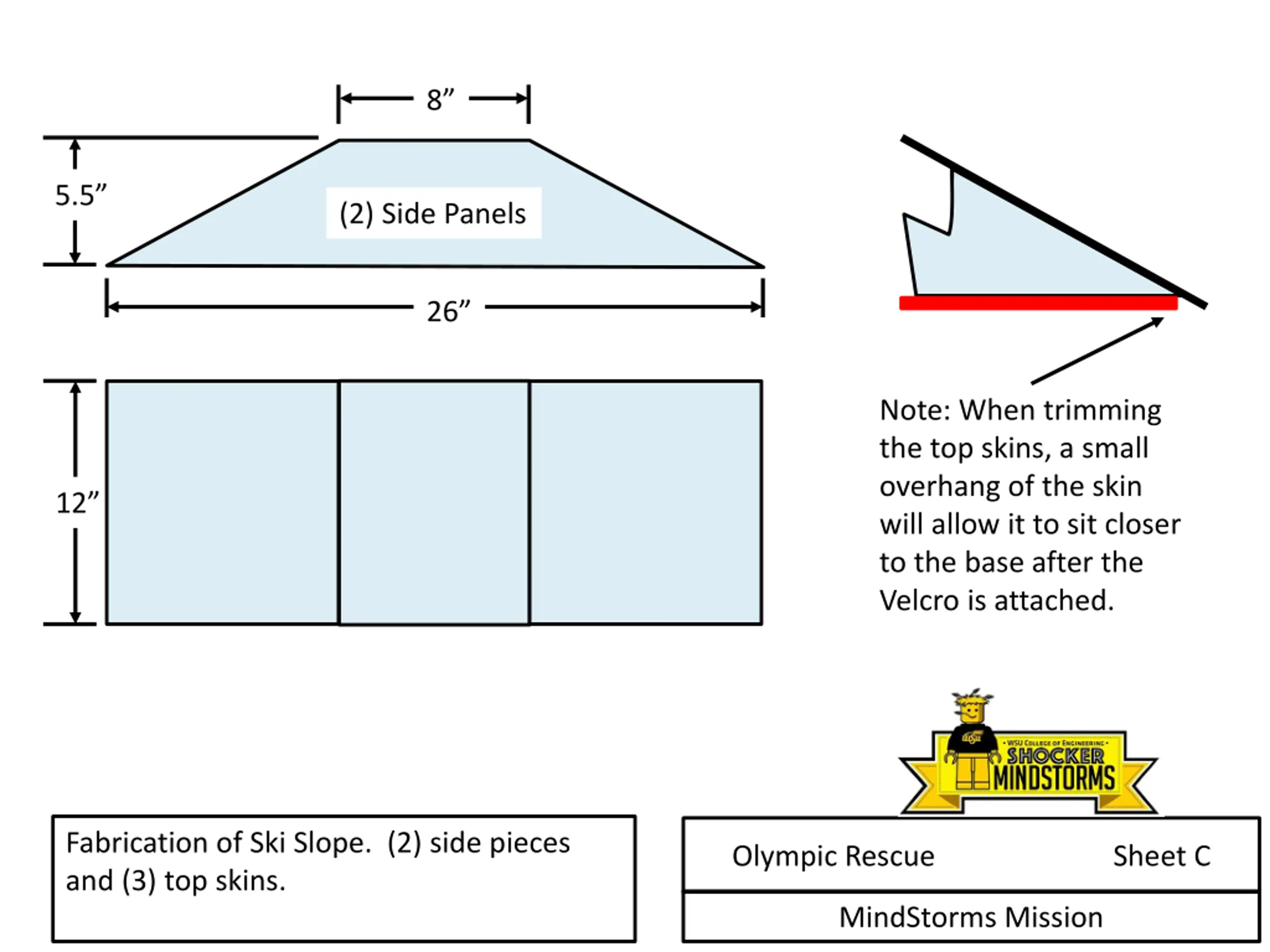

8 5.5 (2) Side Panels 26 Note: When trimming the top skins, a small overhang of the skin will allow it to sit closer to the base after the Velcro is attached. 12 Fabrication of Ski Slope. (2) side pieces and (3) top skins. Olympic Rescue Sheet C MindStorms Mission

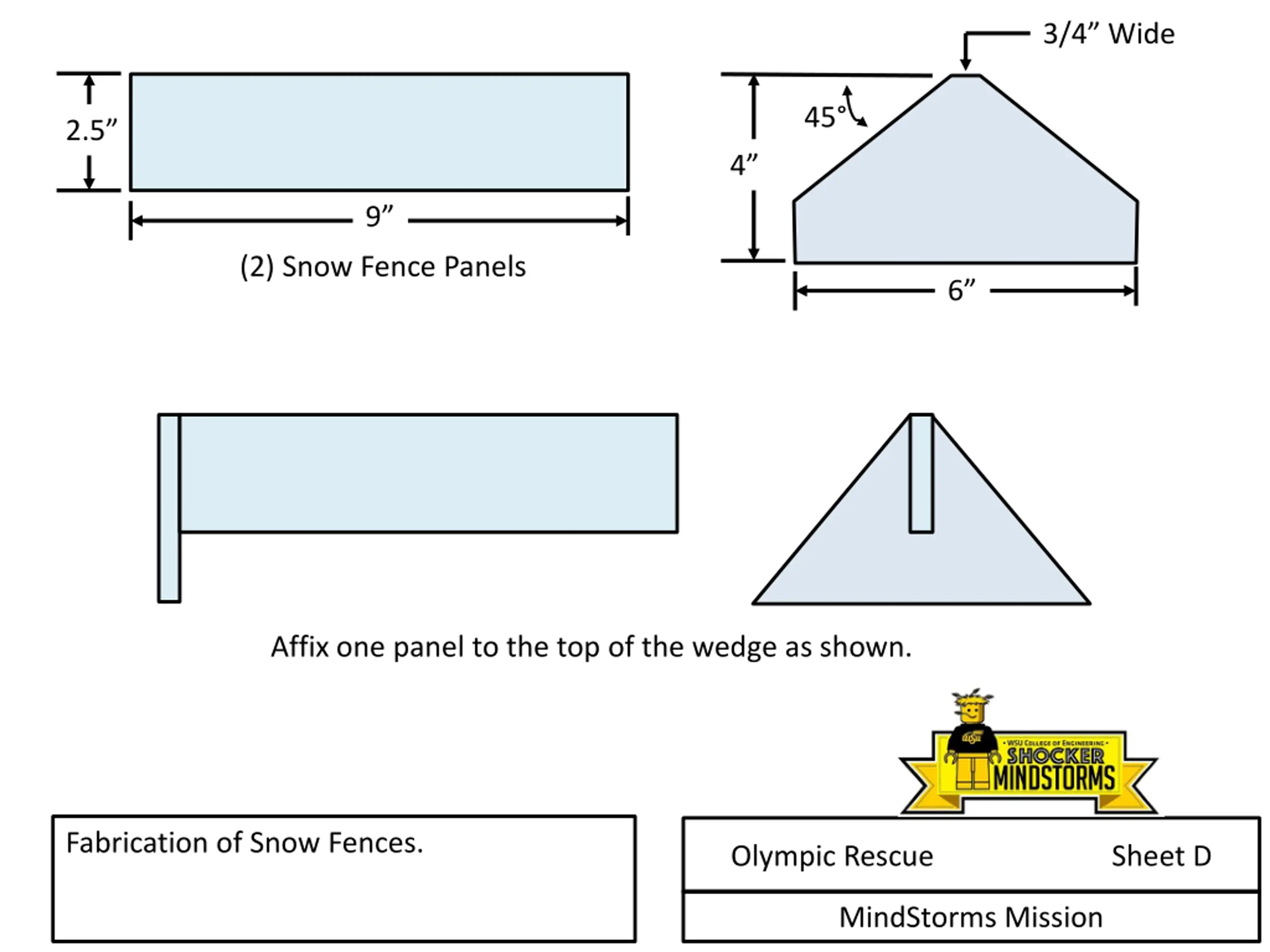

3/4 Wide 45 2.5 4 9 (2) Snow Fence Panels 6 Affix one panel to the top of the wedge as shown. Fabrication of Snow Fences. Olympic Rescue Sheet D MindStorms Mission

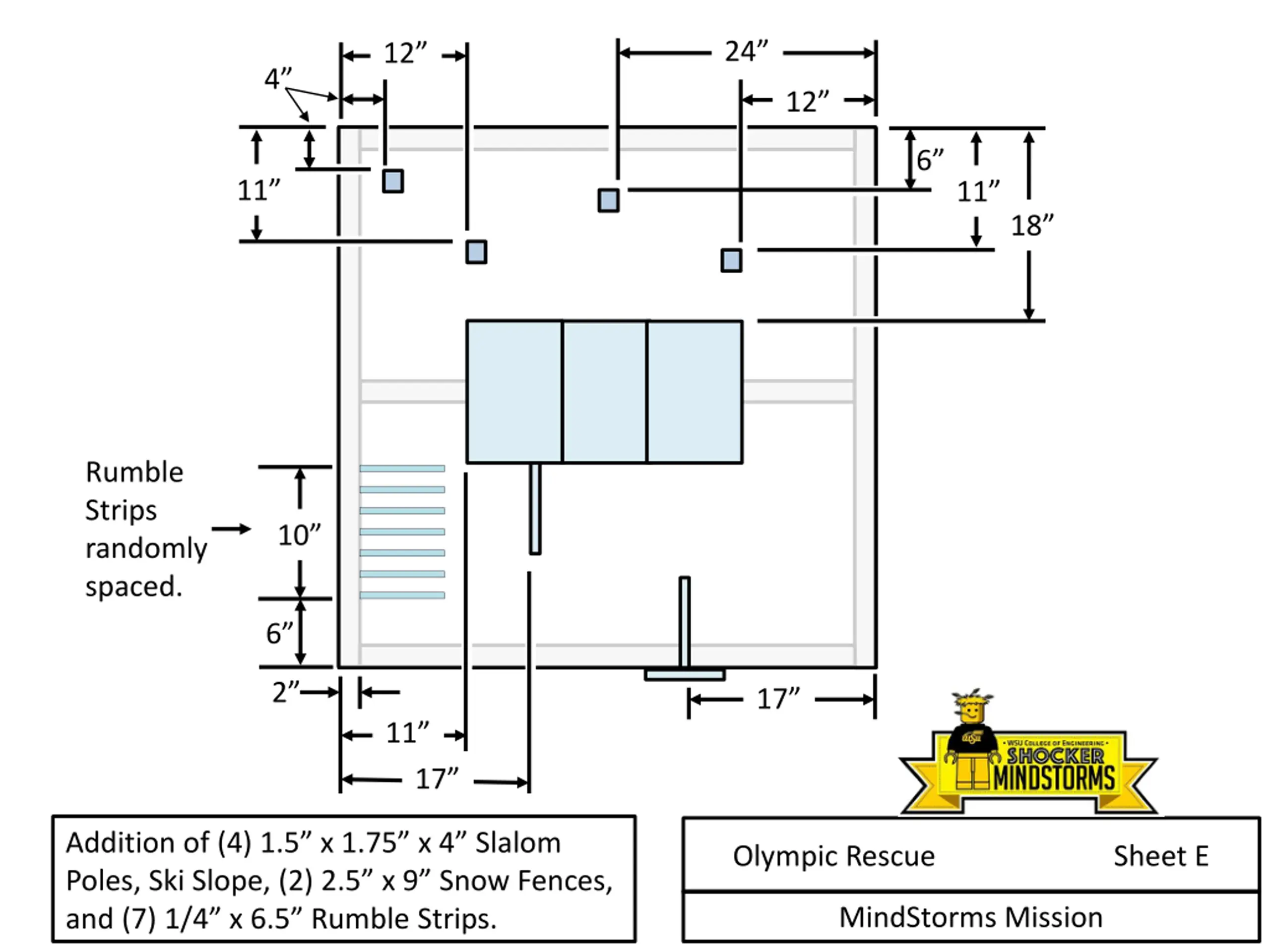

24 12 4 12 6 11 11 18 Rumble Strips randomly spaced. 10 6 2 17 11 17 Addition of (4) 1.5 x 1.75 x 4 Slalom Poles, Ski Slope, (2) 2.5 x 9 Snow Fences, and (7) 1/4 x 6.5 Rumble Strips. Olympic Rescue Sheet E MindStorms Mission

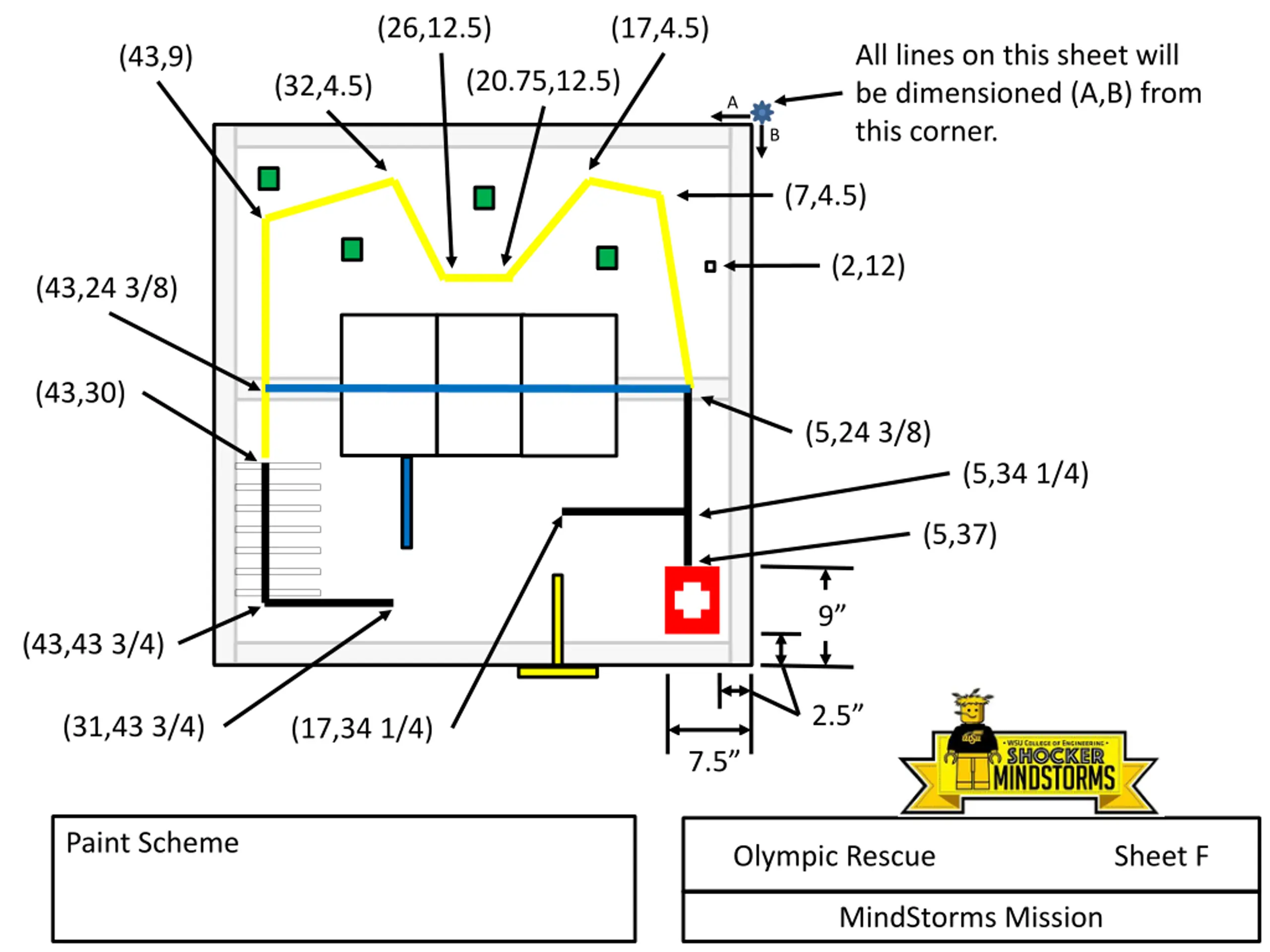

(26,12.5) (17,4.5) All lines on this sheet will be dimensioned (A,B) from this corner. (43,9) (20.75,12.5) (32,4.5) A B (7,4.5) (2,12) (43,24 3/8) (43,30) (5,24 3/8) (5,34 1/4) (5,37) 9 (43,43 3/4) 2.5 (31,43 3/4) (17,34 1/4) 7.5 Paint Scheme Olympic Rescue Sheet F MindStorms Mission
