On Genome Assembly Abhiram Ranade IIT Bombay

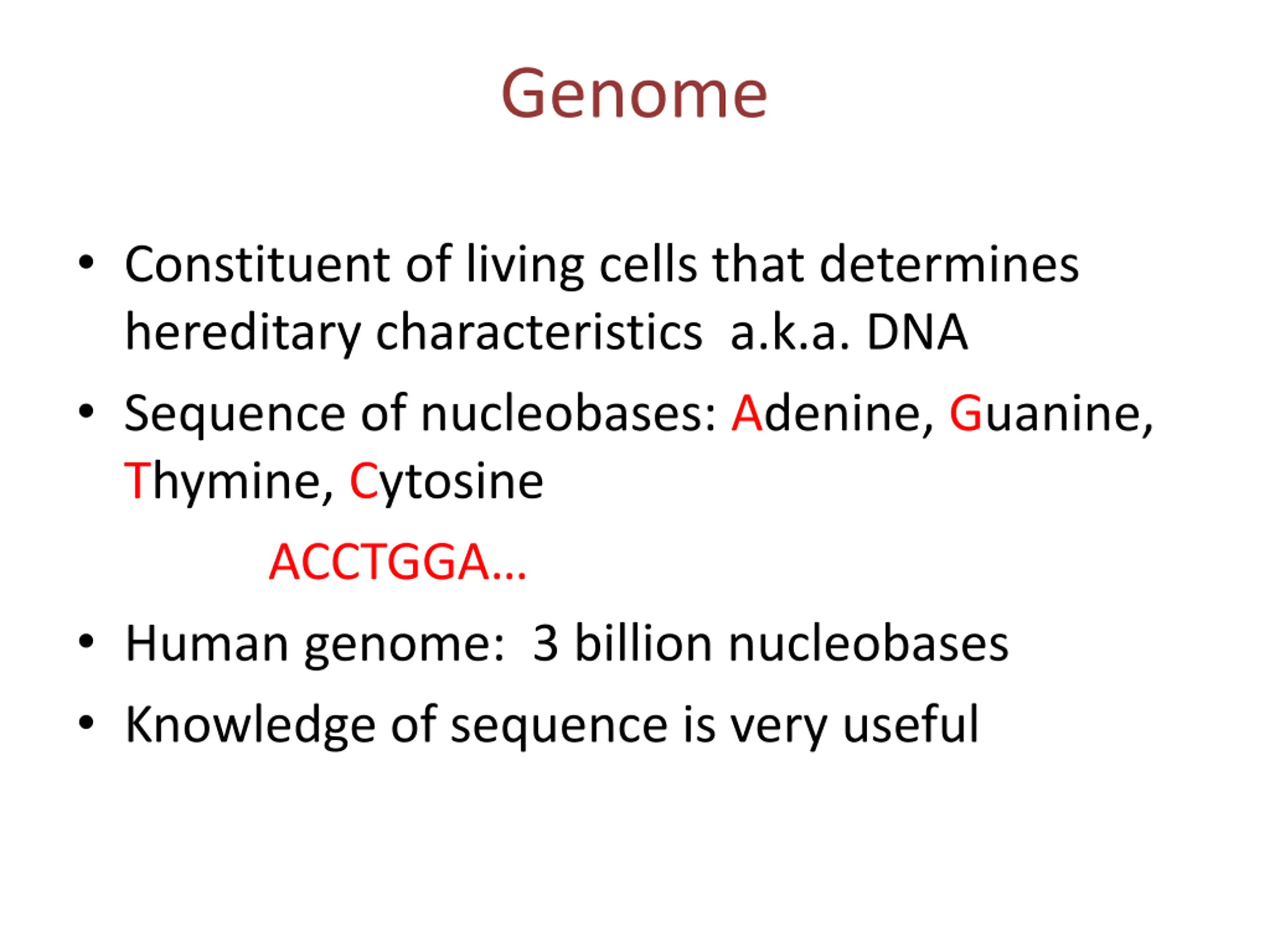

Genome Constituent of living cells that determines hereditary characteristics a.k.a. DNA Sequence of nucleobases: Adenine, Guanine, Thymine, Cytosine ACCTGGA Human genome: 3 billion nucleobases Knowledge of sequence is very useful

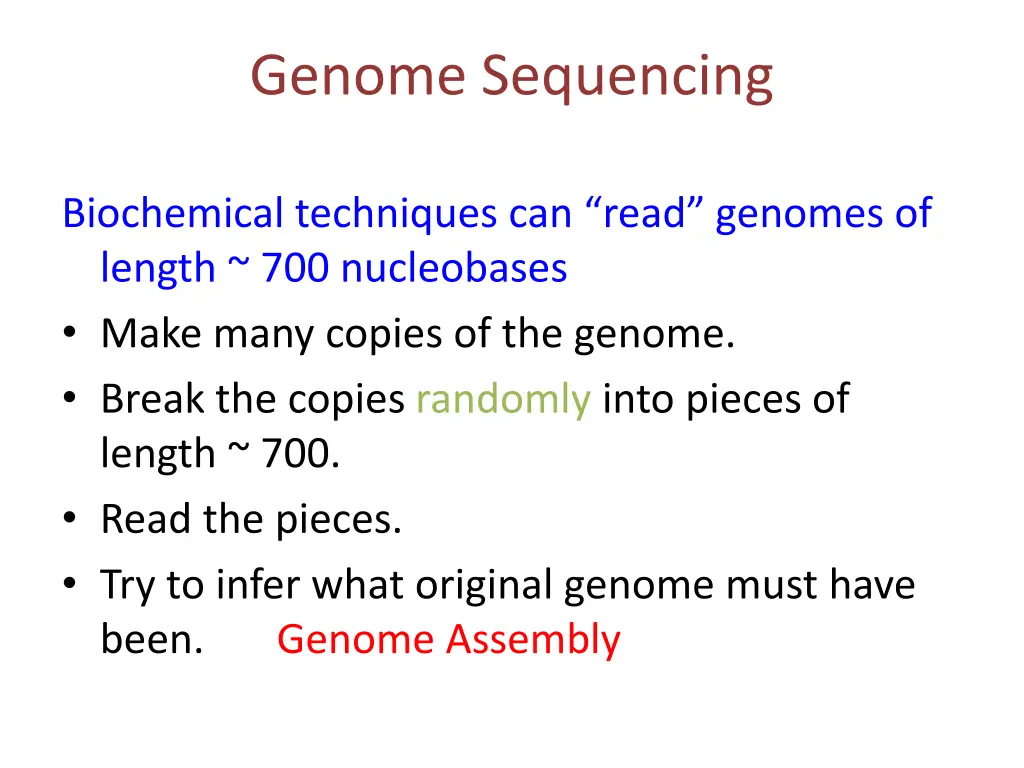

Genome Sequencing Biochemical techniques can read genomes of length ~ 700 nucleobases Make many copies of the genome. Break the copies randomly into pieces of length ~ 700. Read the pieces. Try to infer what original genome must have been. Genome Assembly

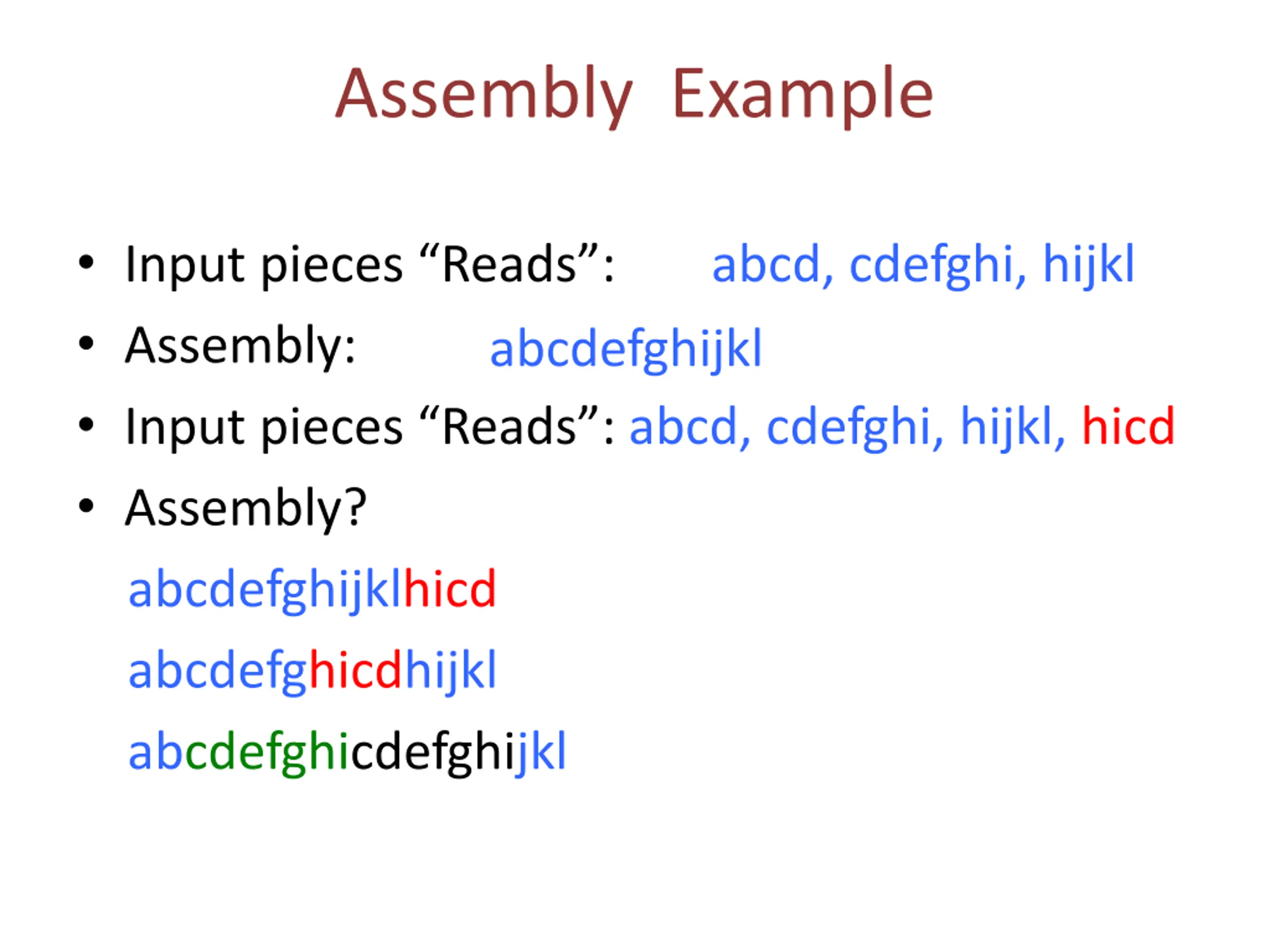

Assembly Example Input pieces Reads : Assembly: Input pieces Reads : abcd, cdefghi, hijkl, hicd Assembly? abcdefghijklhicd abcdefghicdhijkl abcdefghicdefghijkl abcd, cdefghi, hijkl abcdefghijkl

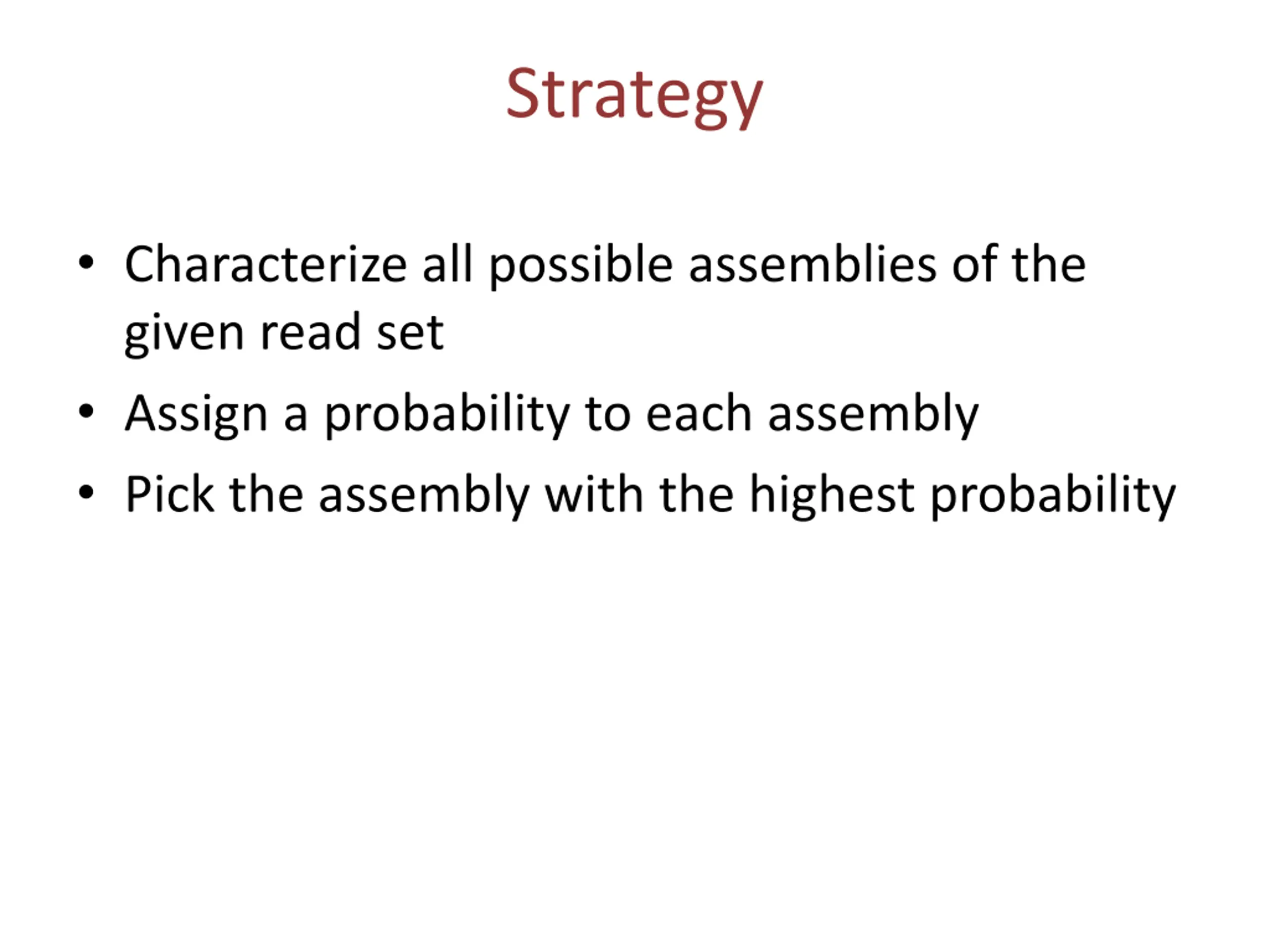

Strategy Characterize all possible assemblies of the given read set Assign a probability to each assembly Pick the assembly with the highest probability

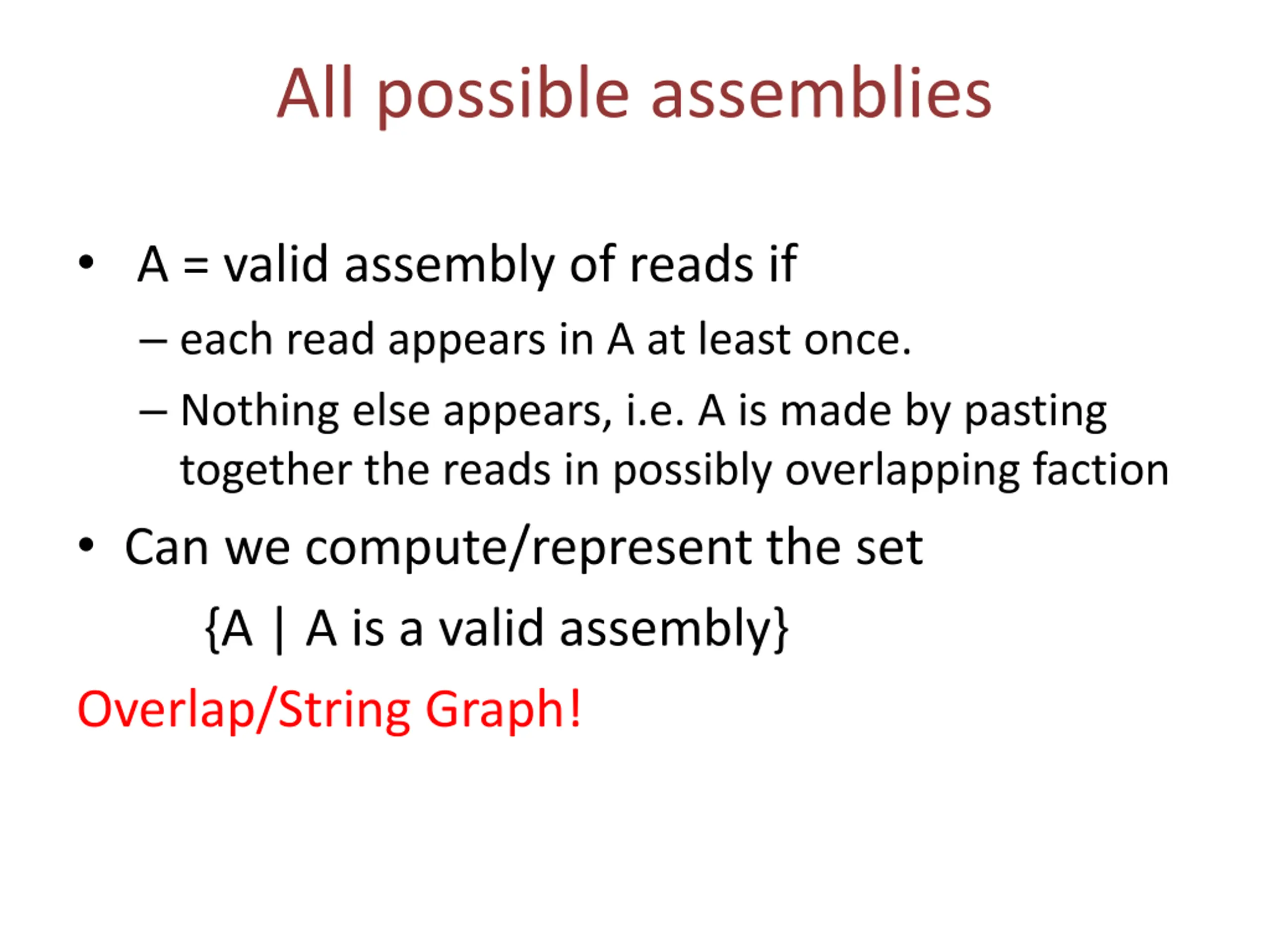

All possible assemblies A = valid assembly of reads if each read appears in A at least once. Nothing else appears, i.e. A is made by pasting together the reads in possibly overlapping faction Can we compute/represent the set {A | A is a valid assembly} Overlap/String Graph!

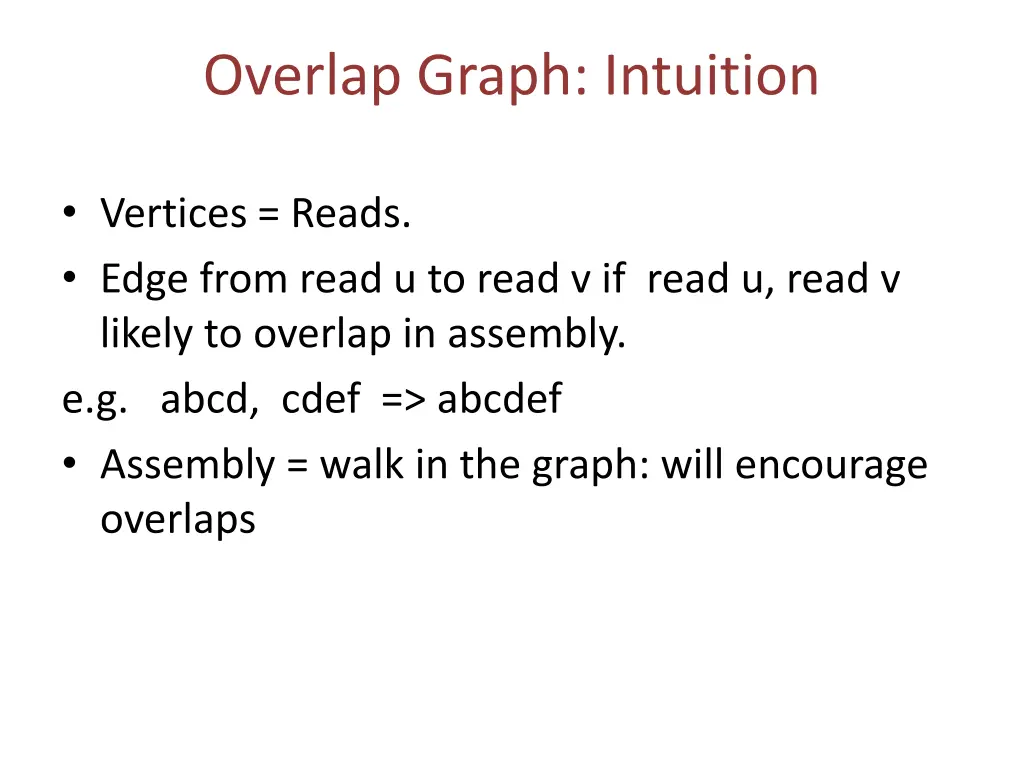

Overlap Graph: Intuition Vertices = Reads. Edge from read u to read v if read u, read v likely to overlap in assembly. e.g. abcd, cdef => abcdef Assembly = walk in the graph: will encourage overlaps

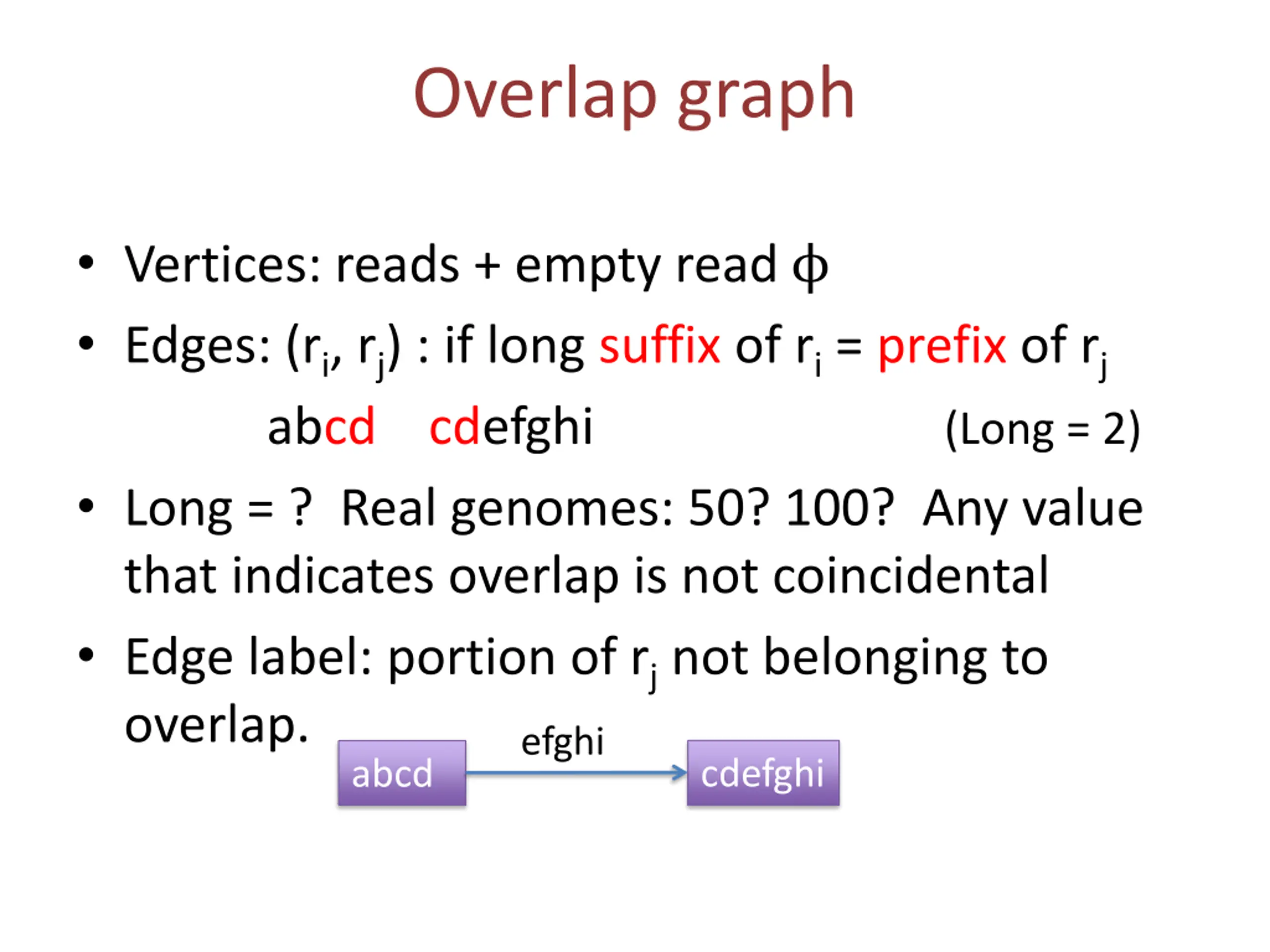

Overlap graph Vertices: reads + empty read Edges: (ri, rj) : if long suffix of ri = prefix of rj abcd cdefghi Long = ? Real genomes: 50? 100? Any value that indicates overlap is not coincidental Edge label: portion of rj not belonging to overlap. abcd (Long = 2) efghi cdefghi

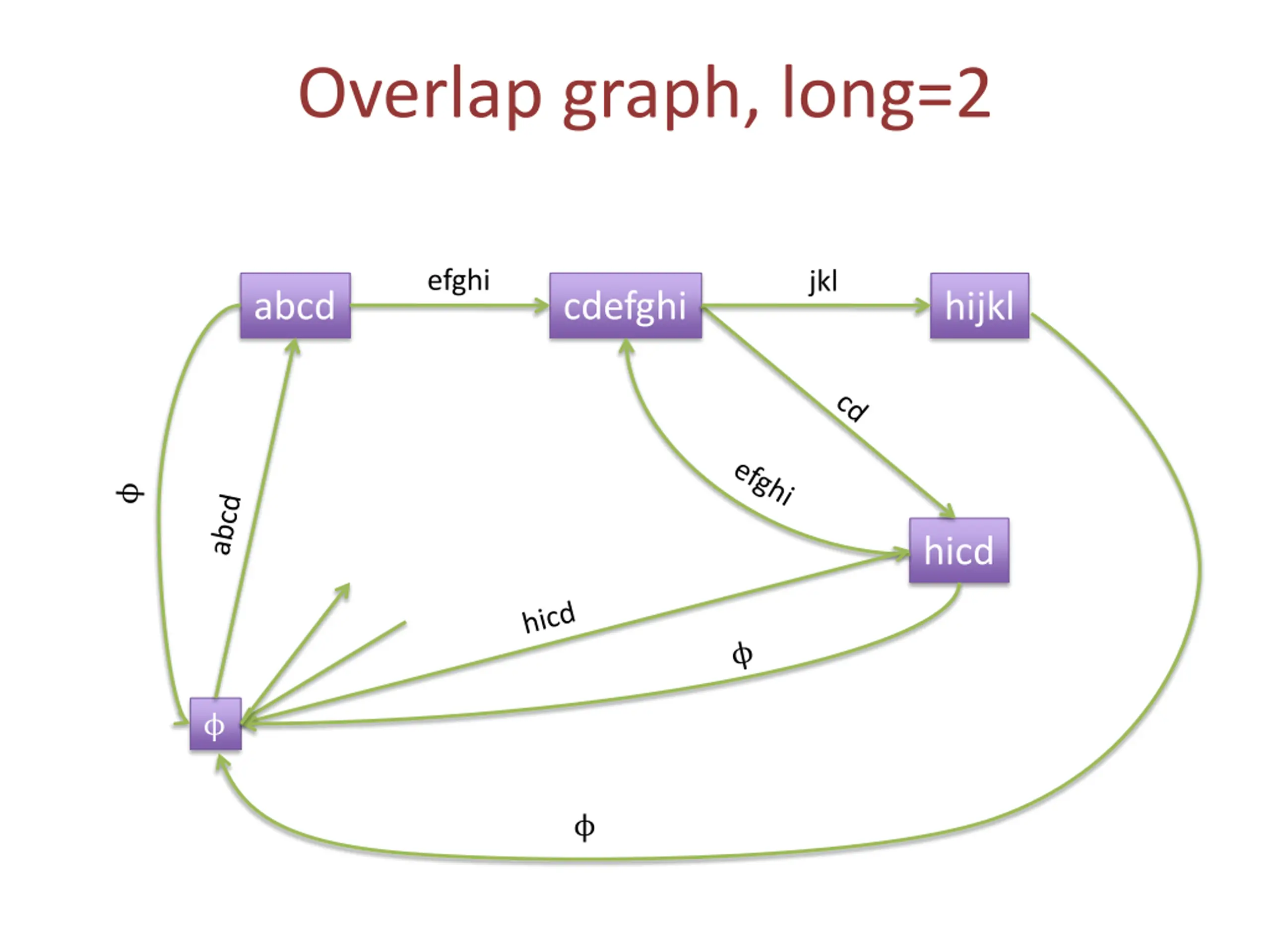

Overlap graph, long=2 efghi jkl abcd cdefghi hijkl hicd
Overlap graph, long=2 efghi jkl abcd cdefghi hijkl hicd

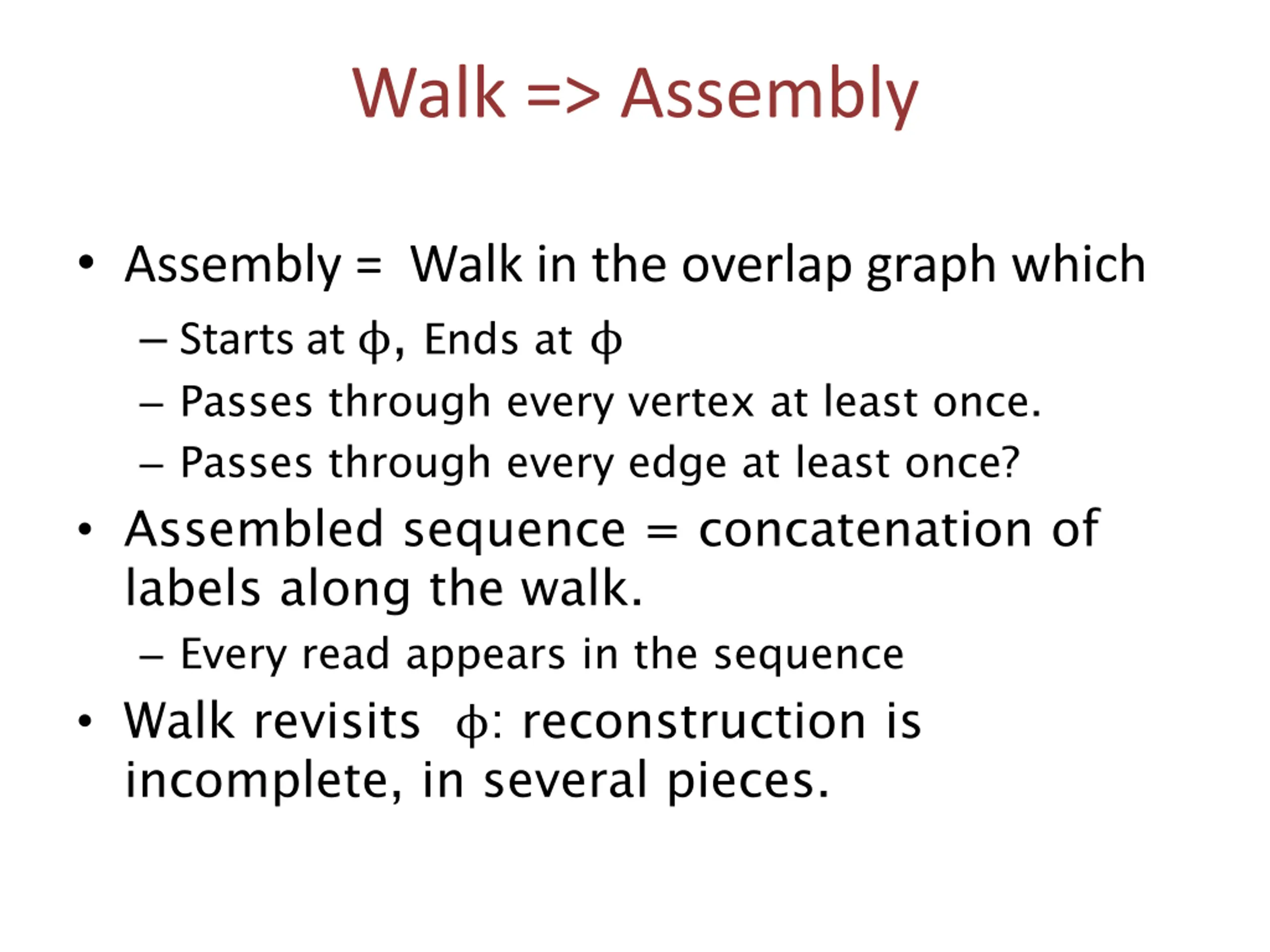

Walk => Assembly Assembly = Walk in the overlap graph which Starts at , Ends at Passes through every vertex at least once. Passes through every edge at least once? Assembled sequence = concatenation of labels along the walk. Every read appears in the sequence Walk revisits : reconstruction is incomplete, in several pieces.

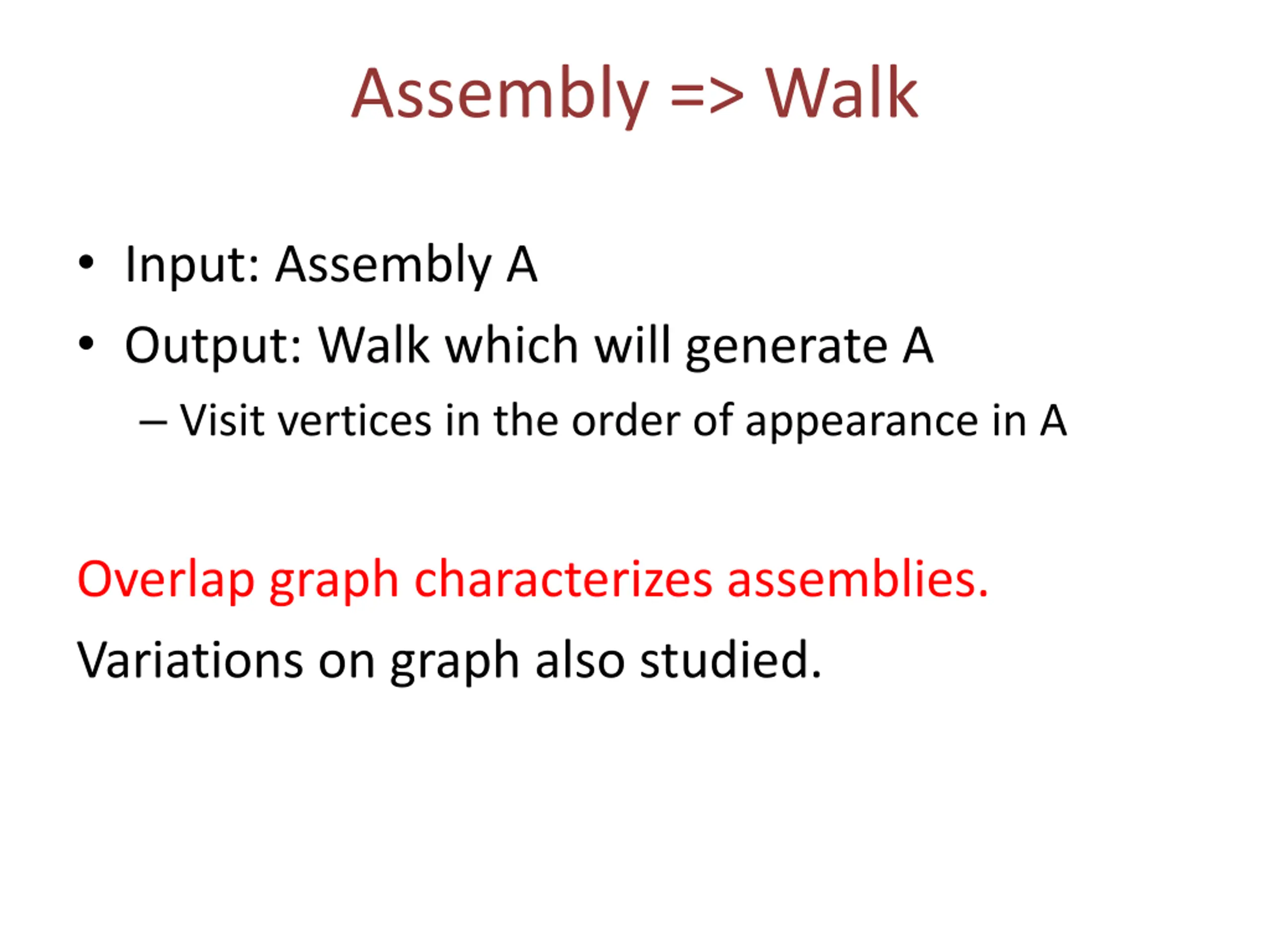

Assembly => Walk Input: Assembly A Output: Walk which will generate A Visit vertices in the order of appearance in A Overlap graph characterizes assemblies. Variations on graph also studied.

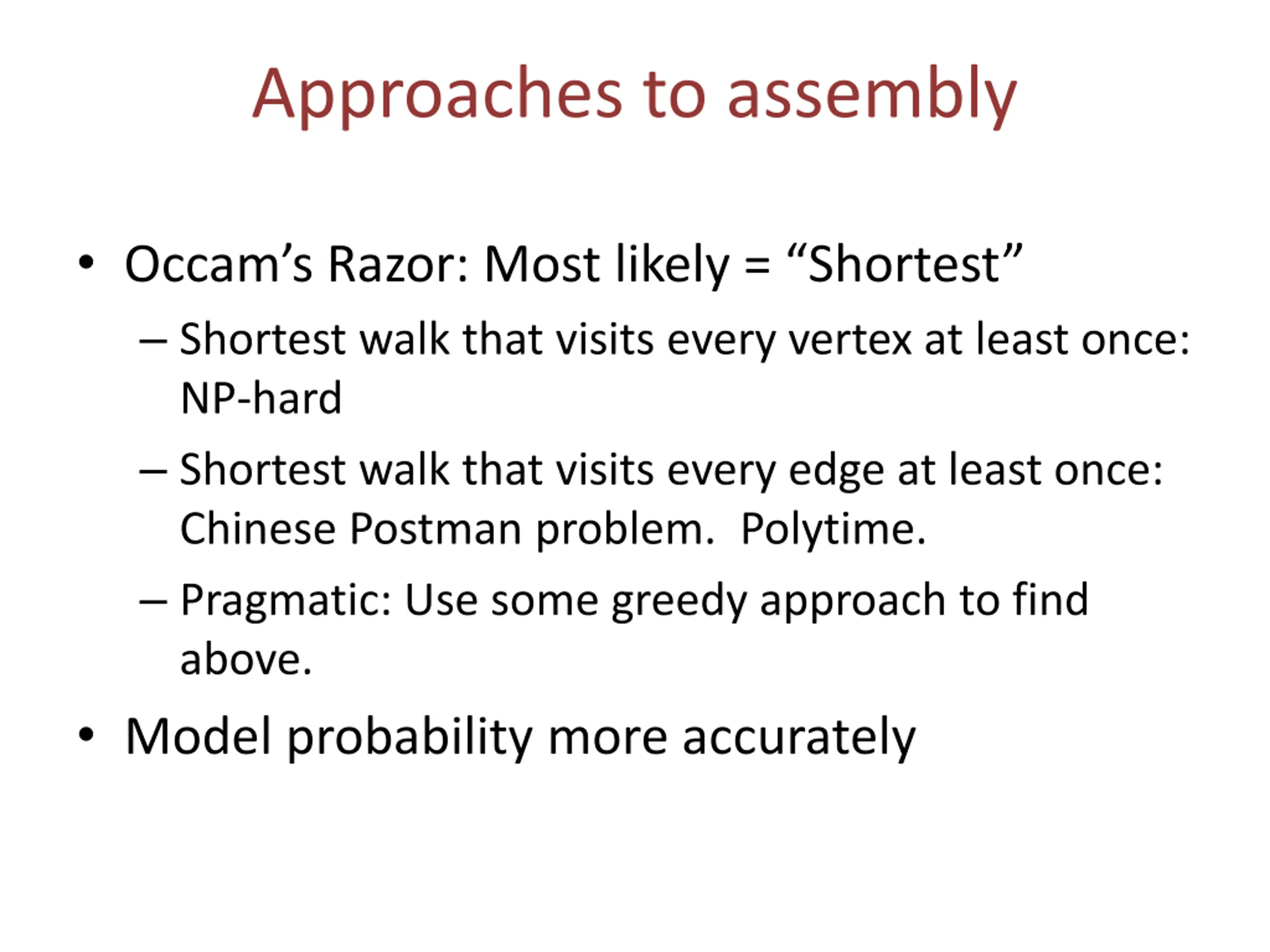

Approaches to assembly Occam s Razor: Most likely = Shortest Shortest walk that visits every vertex at least once: NP-hard Shortest walk that visits every edge at least once: Chinese Postman problem. Polytime. Pragmatic: Use some greedy approach to find above. Model probability more accurately

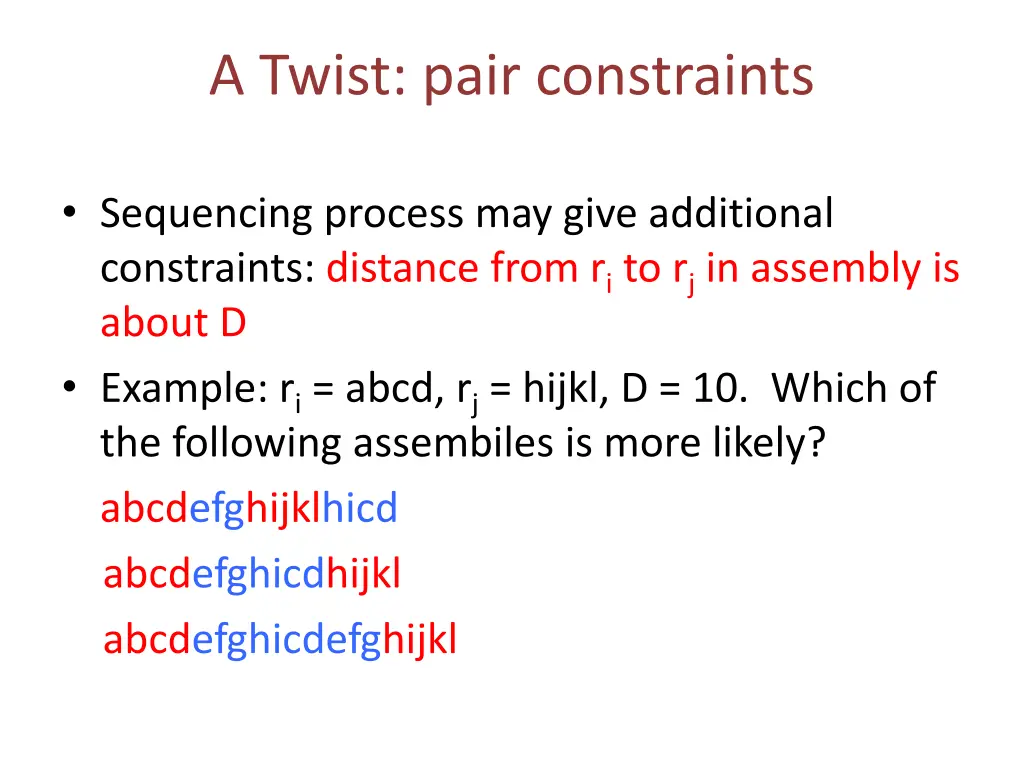

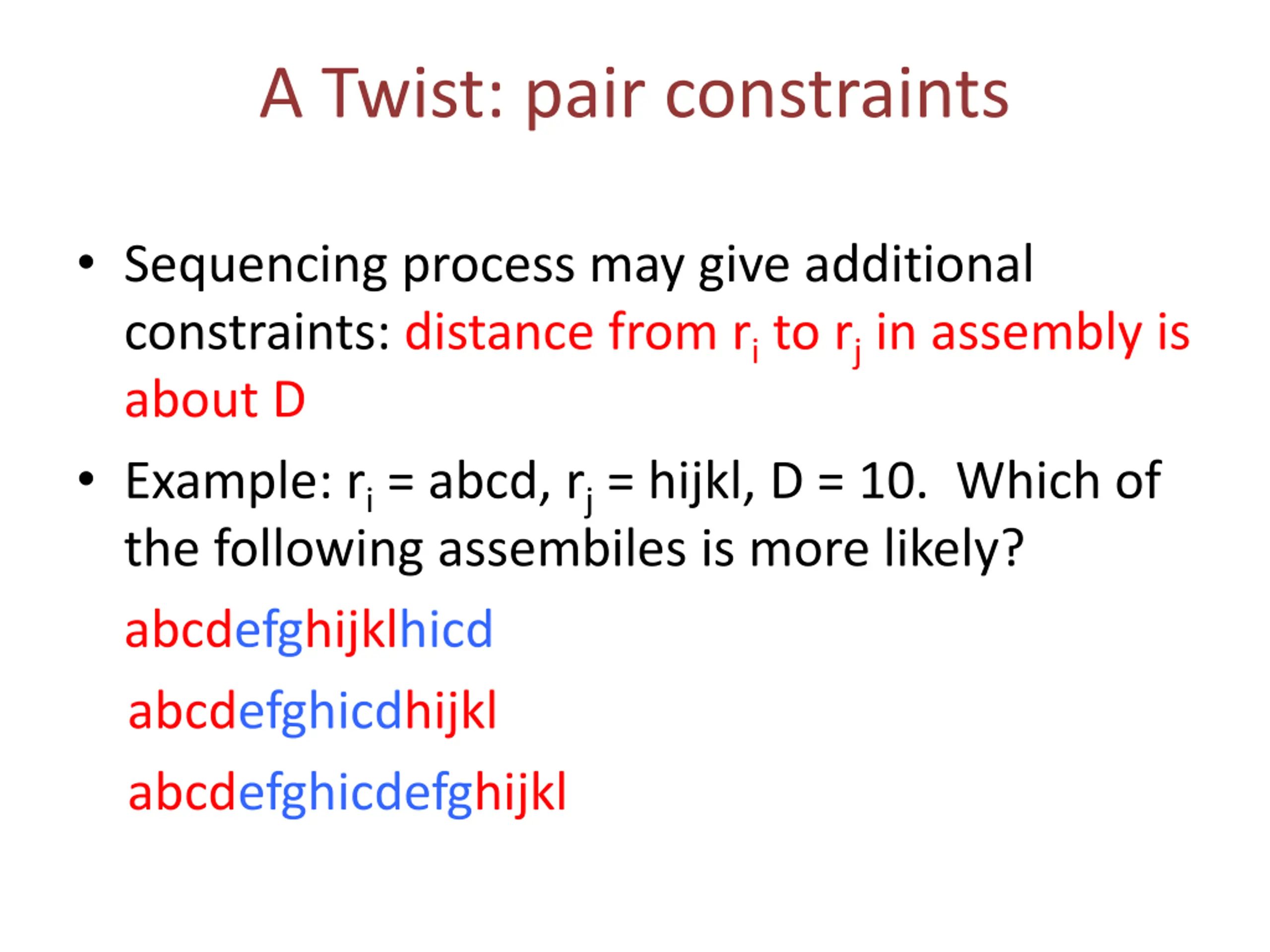

A Twist: pair constraints Sequencing process may give additional constraints: distance from ri to rj in assembly is about D Example: ri = abcd, rj = hijkl, D = 10. Which of the following assembiles is more likely? abcdefghijklhicd abcdefghicdhijkl abcdefghicdefghijkl

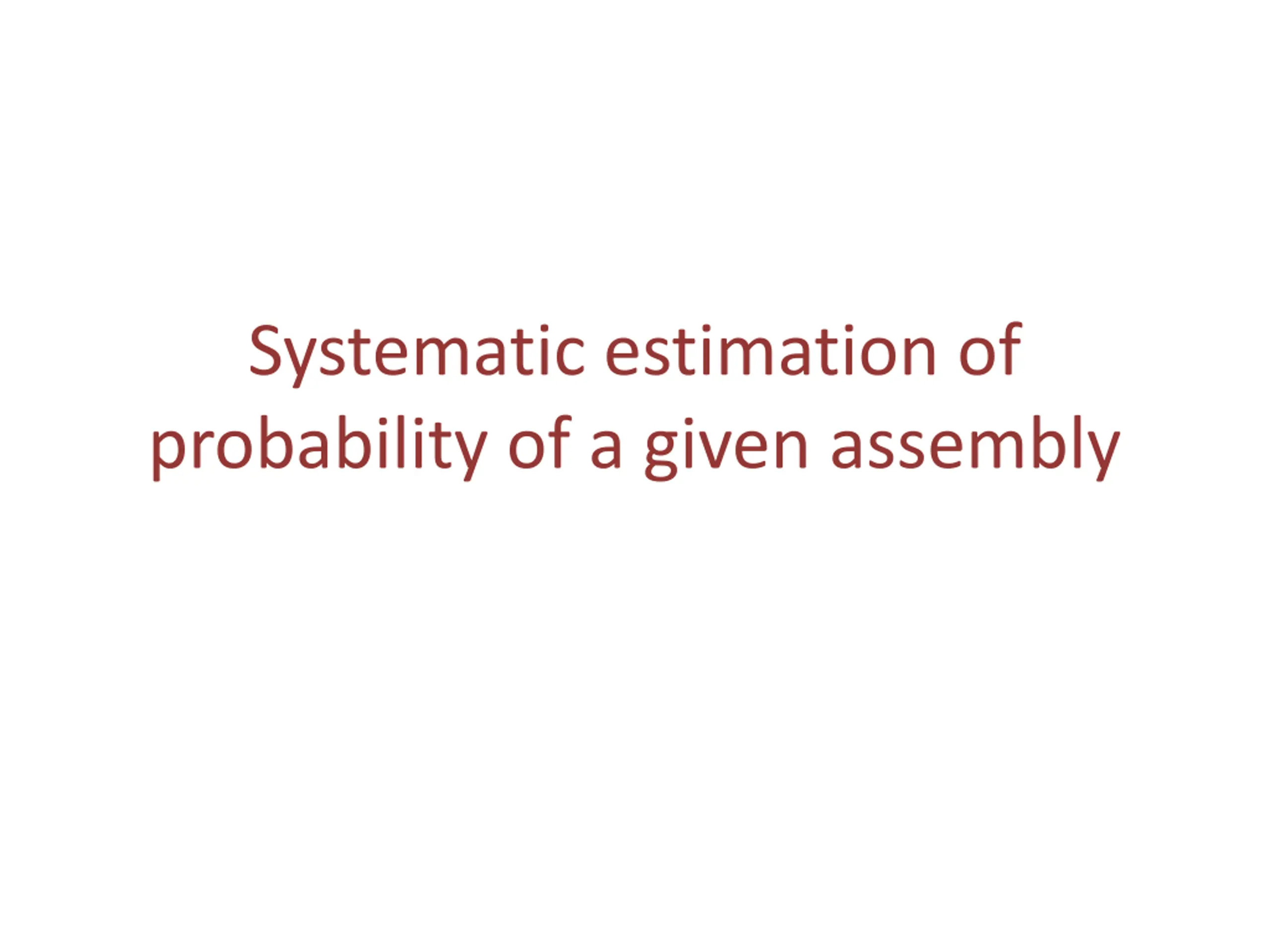

Systematic estimation of probability of a given assembly

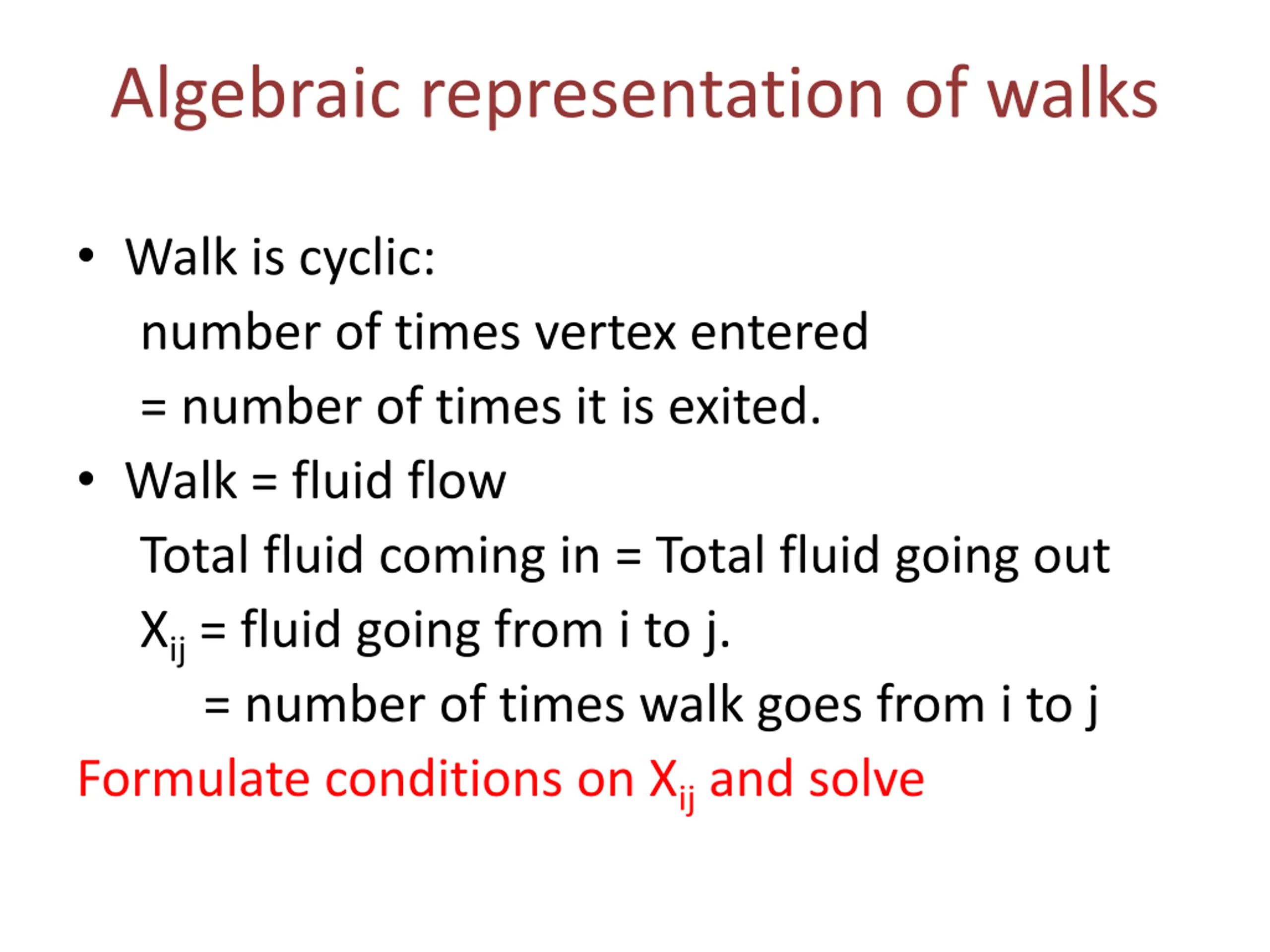

Algebraic representation of walks Walk is cyclic: number of times vertex entered = number of times it is exited. Walk = fluid flow Total fluid coming in = Total fluid going out Xij = fluid going from i to j. = number of times walk goes from i to j Formulate conditions on Xij and solve
Algebraic representation: Xij,j Xij = Number of times walk goes from i to j. j = Number of times walk goes over j Lij = Length of label of edge (i,j) Length of genome L = L may be known.

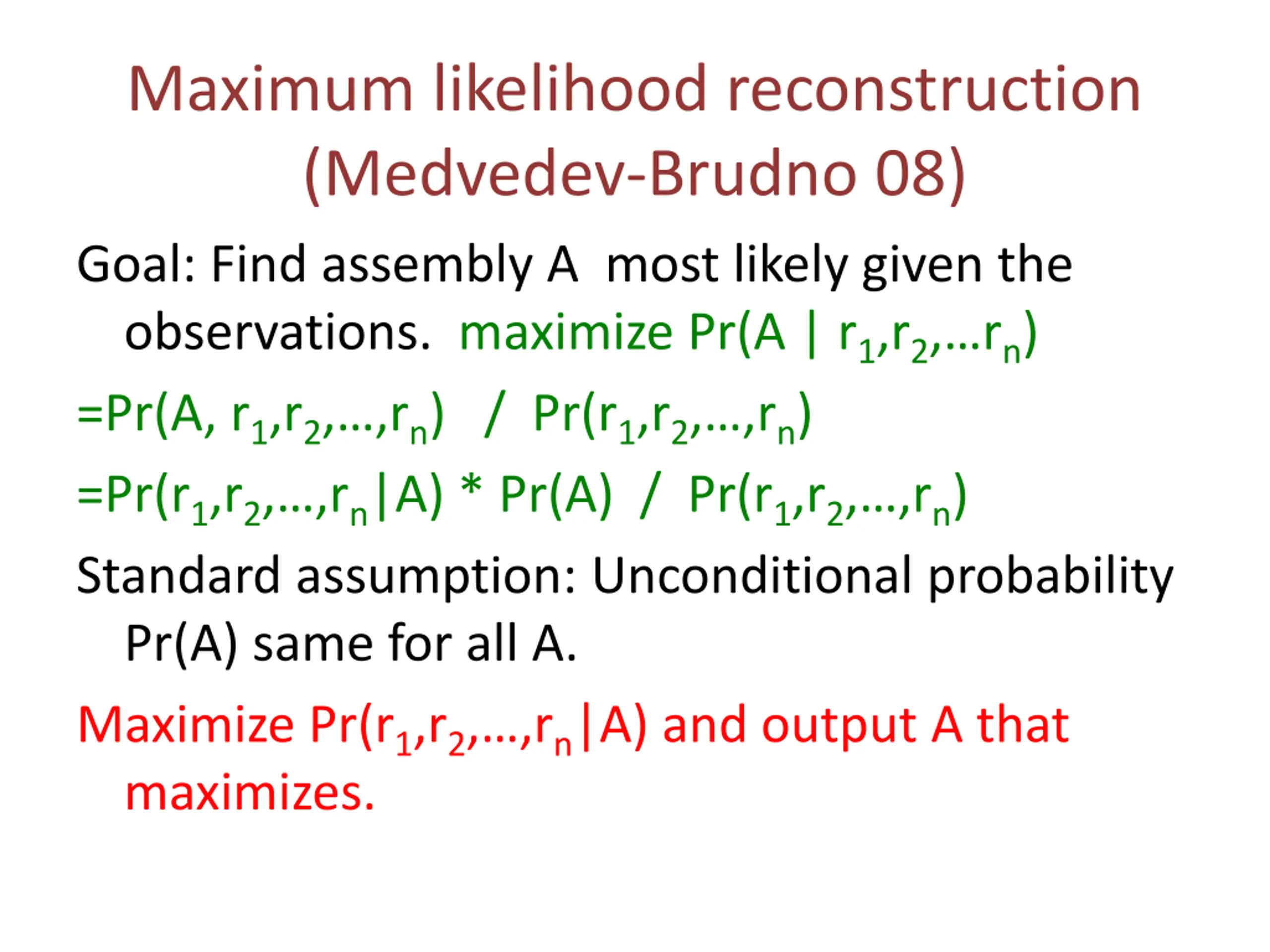

Maximum likelihood reconstruction (Medvedev-Brudno 08) Goal: Find assembly A most likely given the observations. maximize Pr(A | r1,r2, rn) =Pr(A, r1,r2, ,rn) / Pr(r1,r2, ,rn) =Pr(r1,r2, ,rn|A) * Pr(A) / Pr(r1,r2, ,rn) Standard assumption: Unconditional probability Pr(A) same for all A. Maximize Pr(r1,r2, ,rn|A) and output A that maximizes.
Computing Pr(r1,r2,,rn|A) A = abcdefghicdefghijkl r1 = abcd, r2 = cdefghi, r3 = hijkl, r4 = hicd Process of generating reads: Pick a random starting point. Pick a length at random Pr(r2) = ? = 2/Length * Pr(read length = 7) = 2/Length * Pr(read length = 7)
Computing Pr(r1,r2,,rn|A) Generative model: For i=1 to n Pick starting point for ri Pick length Li Probability of generating ri: = Number of times ri appears in A/Length of A * Probability of getting the correct length = i/L * Pr(Li)
Computing Pr(r1,r2,,rn|A) Pr = i i/L * Pr(Li) We want to pick A for which this probability is maximum Score(A) = i i/L * Pr(Li) Best A will have max value of i i/L So now we have a program
Finding the best assembly Maximize i i/L s.t. L known approximately. L = Lge Lg(1+ ) Lg, Lij : constants. Solve for Xij 0, j 0, Convex optimization

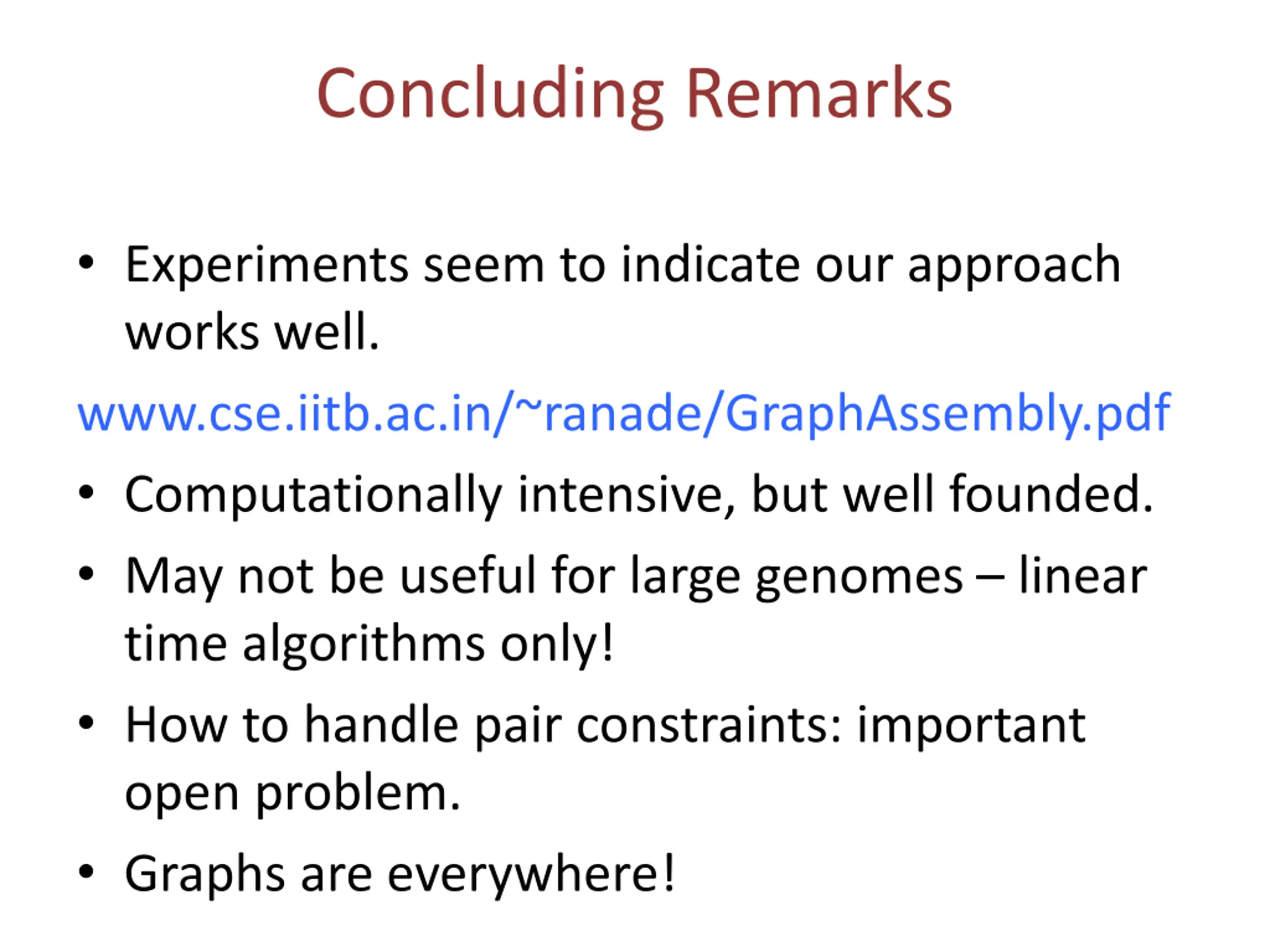

Concluding Remarks Experiments seem to indicate our approach works well. www.cse.iitb.ac.in/~ranade/GraphAssembly.pdf Computationally intensive, but well founded. May not be useful for large genomes linear time algorithms only! How to handle pair constraints: important open problem. Graphs are everywhere!
