OpenFabrics 2.0 or libibverbs 1.0 Sean Hefty Intel Corporation

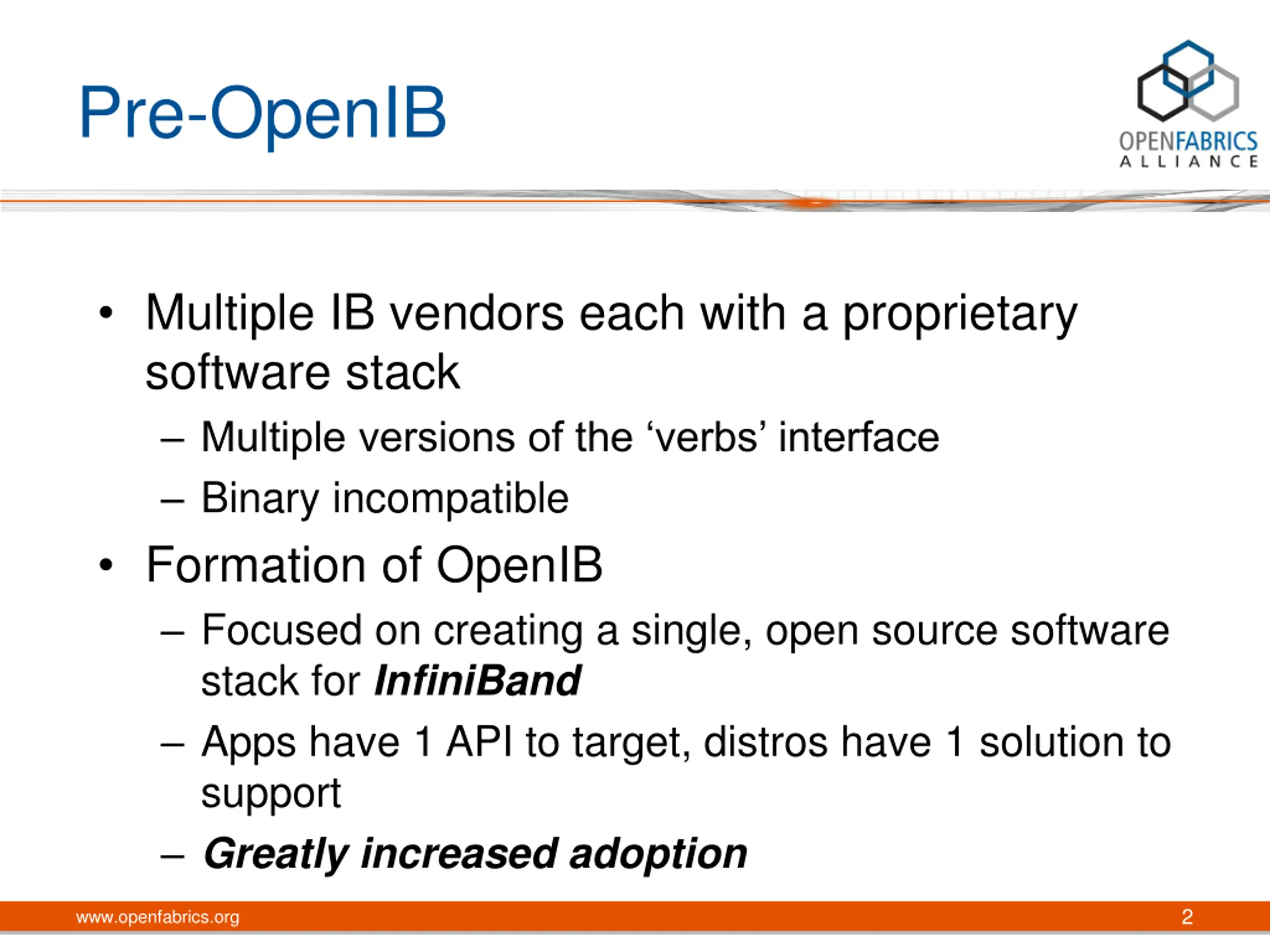

Pre-OpenIB Multiple IB vendors each with a proprietary software stack Multiple versions of the verbs interface Binary incompatible Formation of OpenIB Focused on creating a single, open source software stack for InfiniBand Apps have 1 API to target, distros have 1 solution to support Greatly increased adoption 2 www.openfabrics.org

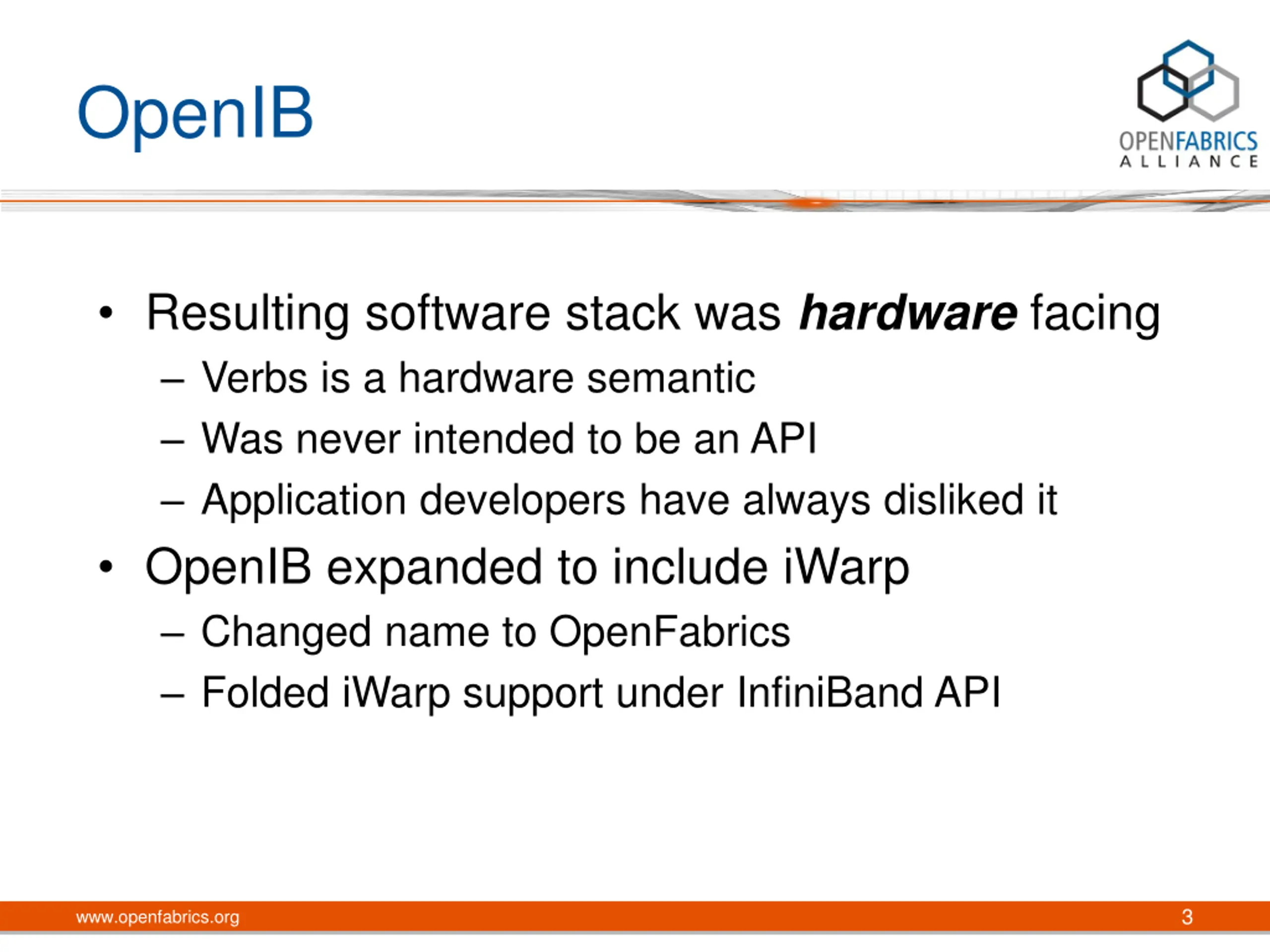

OpenIB Resulting software stack was hardware facing Verbs is a hardware semantic Was never intended to be an API Application developers have always disliked it OpenIB expanded to include iWarp Changed name to OpenFabrics Folded iWarp support under InfiniBand API 3 www.openfabrics.org

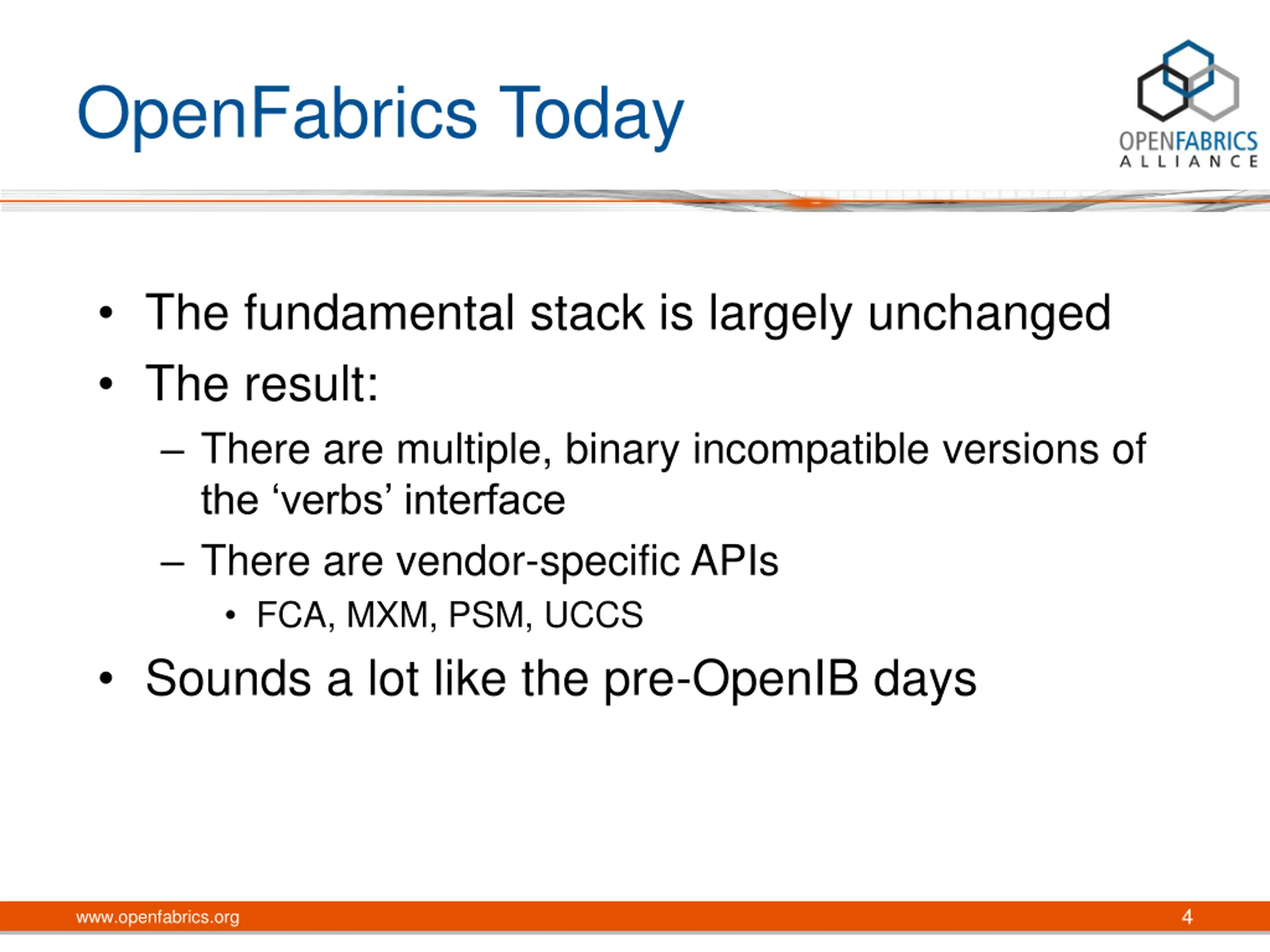

OpenFabrics Today The fundamental stack is largely unchanged The result: There are multiple, binary incompatible versions of the verbs interface There are vendor-specific APIs FCA, MXM, PSM, UCCS Sounds a lot like the pre-OpenIB days 4 www.openfabrics.org

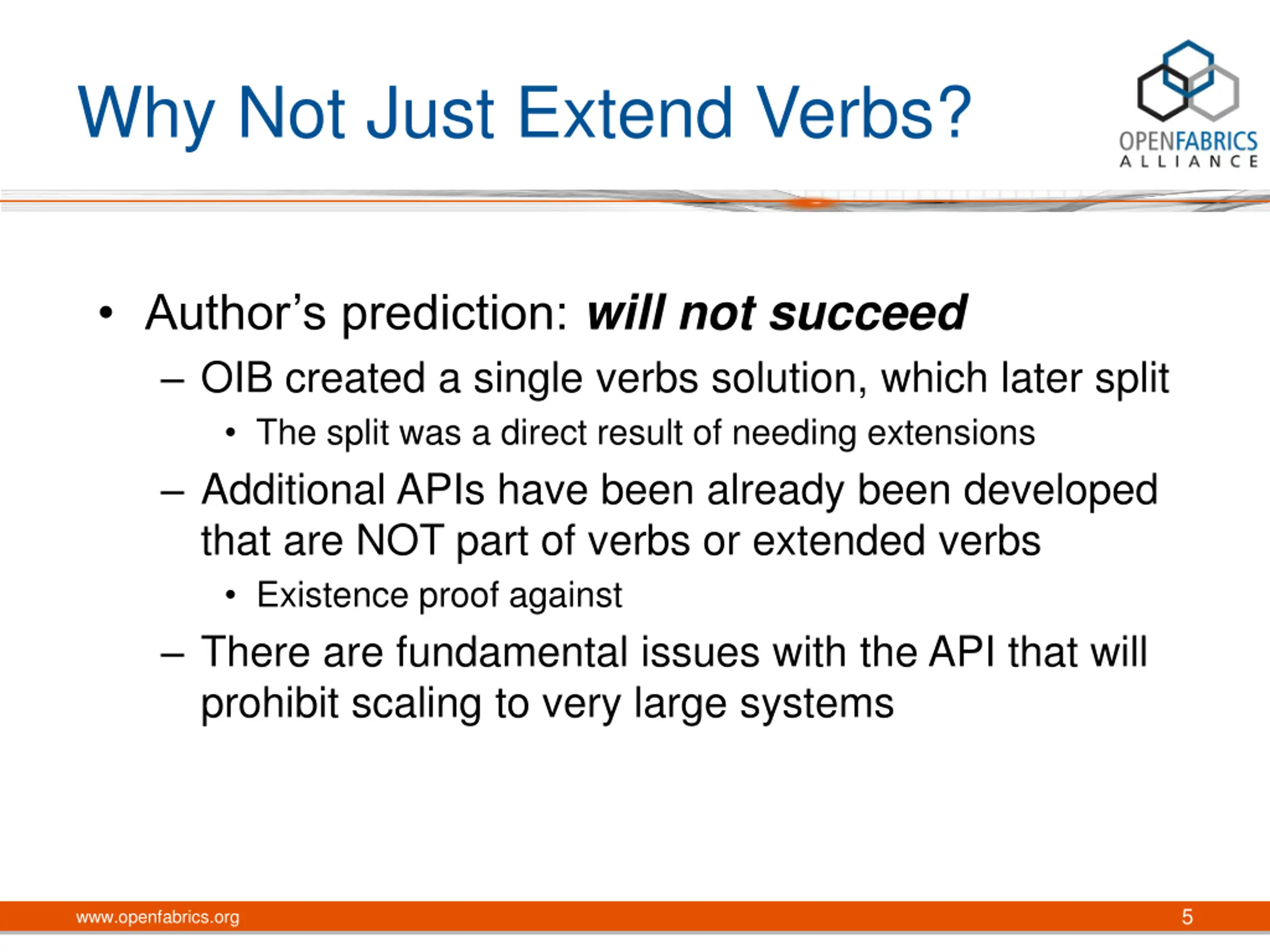

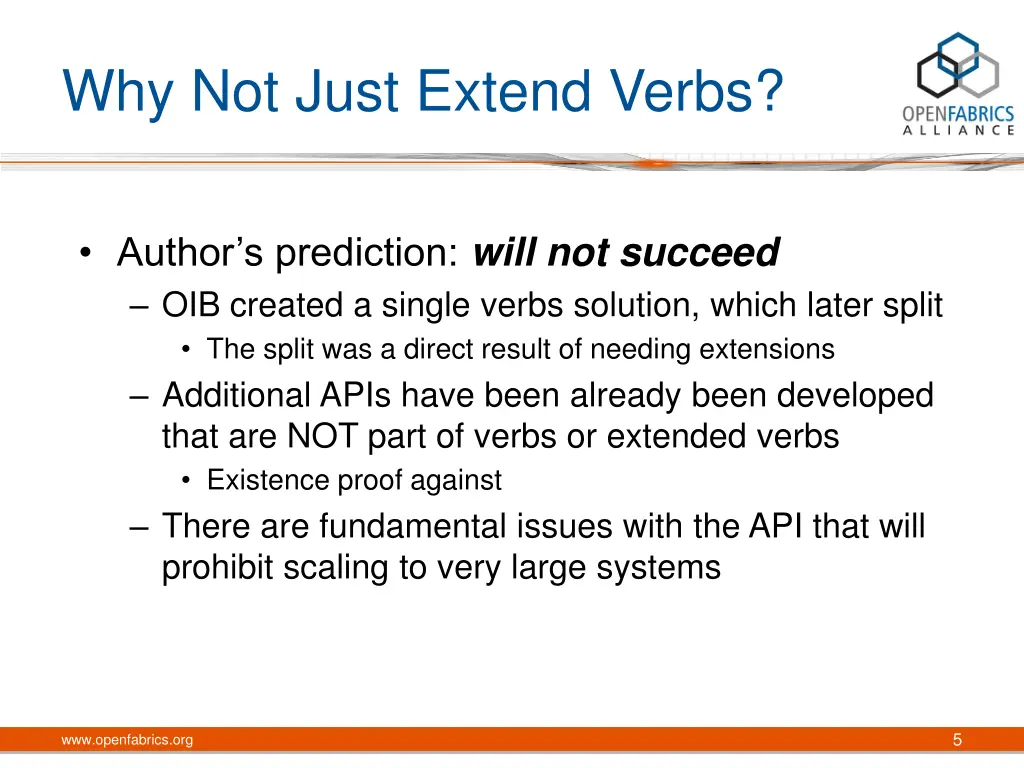

Why Not Just Extend Verbs? Author s prediction: will not succeed OIB created a single verbs solution, which later split The split was a direct result of needing extensions Additional APIs have been already been developed that are NOT part of verbs or extended verbs Existence proof against There are fundamental issues with the API that will prohibit scaling to very large systems 5 www.openfabrics.org

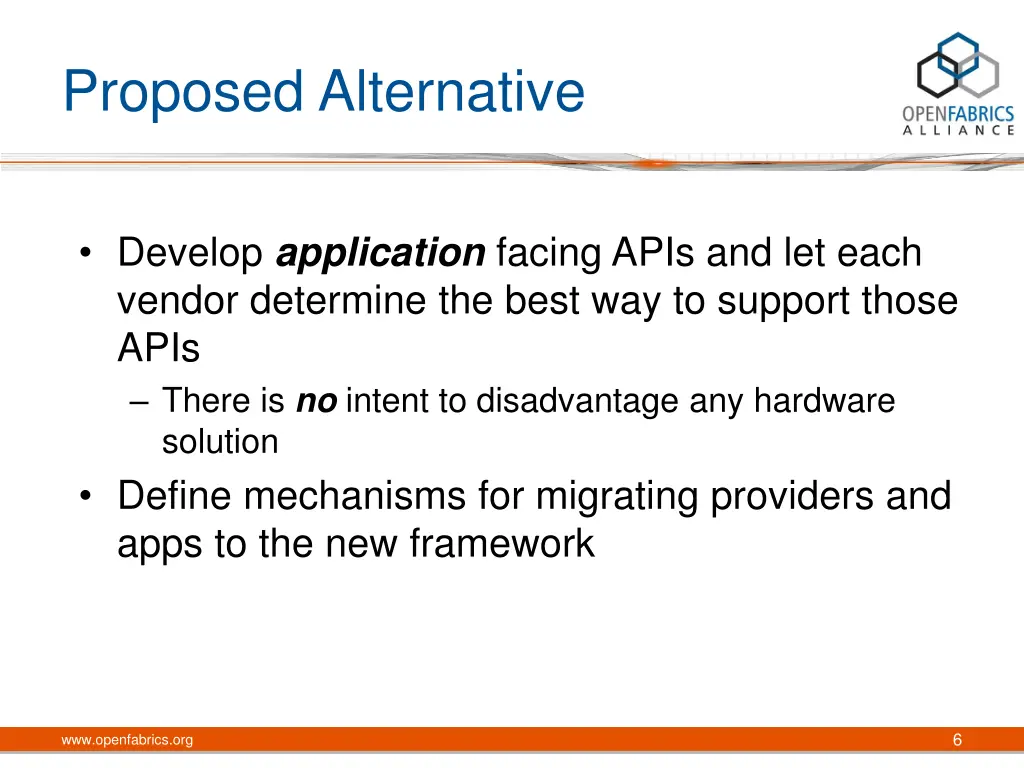

Proposed Alternative Develop application facing APIs and let each vendor determine the best way to support those APIs There is no intent to disadvantage any hardware solution Define mechanisms for migrating providers and apps to the new framework 6 www.openfabrics.org

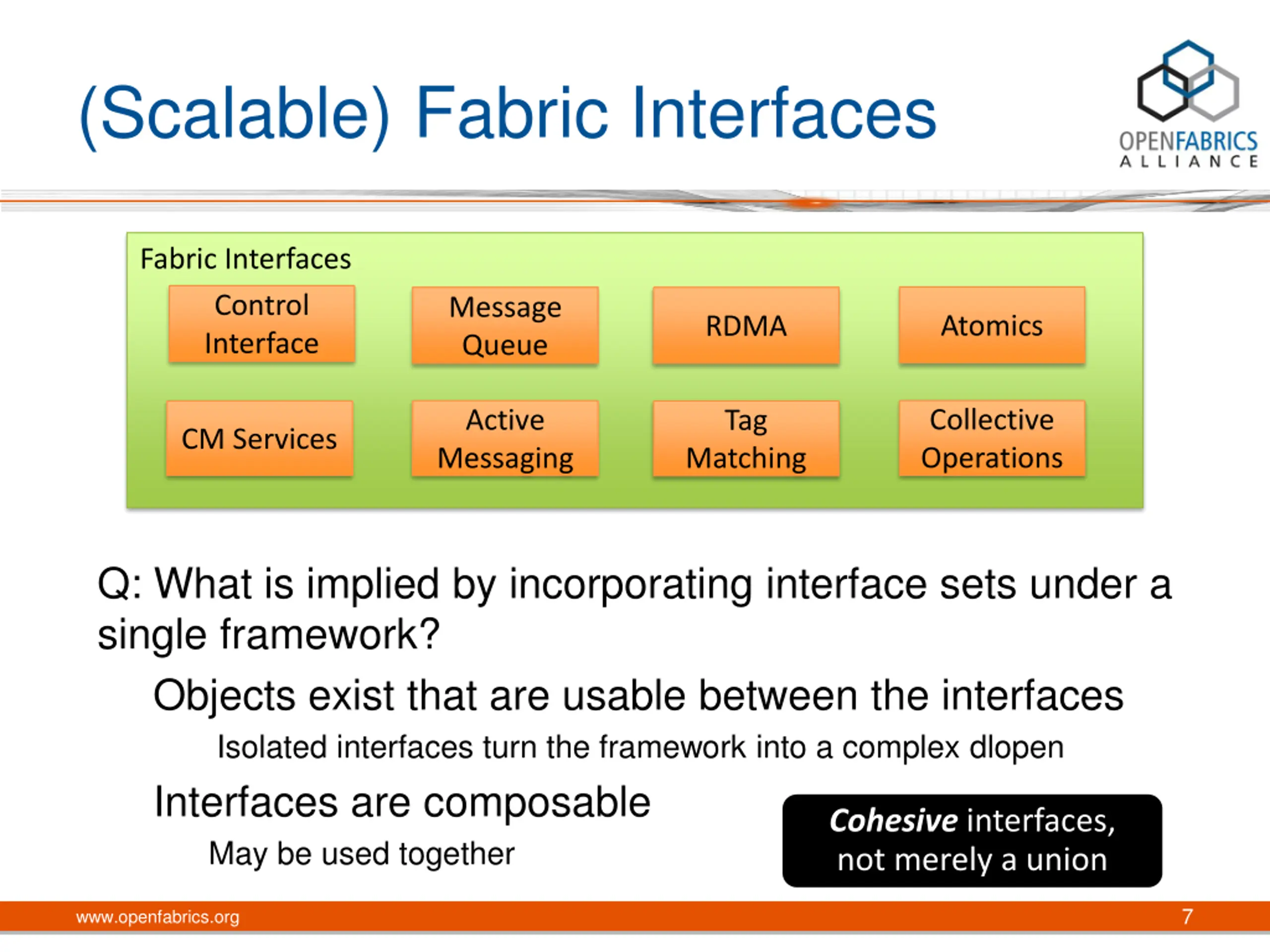

(Scalable) Fabric Interfaces Fabric Interfaces Control Interface Message Queue Atomics RDMA Collective Operations Active Messaging Tag CM Services Matching Q: What is implied by incorporating interface sets under a single framework? Objects exist that are usable between the interfaces Isolated interfaces turn the framework into a complex dlopen Interfaces are composable May be used together Cohesive interfaces, not merely a union 7 www.openfabrics.org

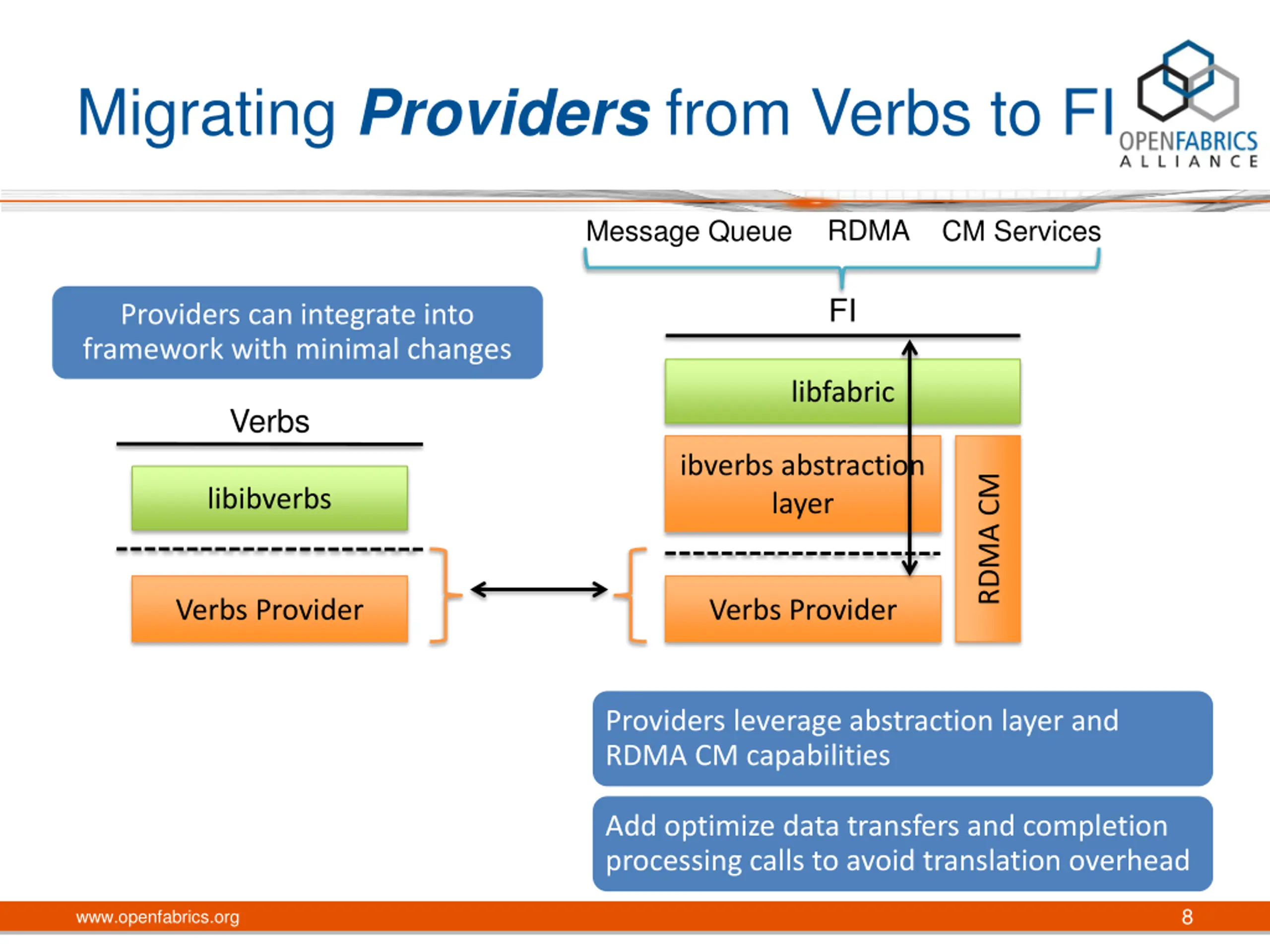

Migrating Providers from Verbs to FI RDMA Message Queue CM Services FI Providers can integrate into framework with minimal changes libfabric Verbs ibverbs abstraction layer RDMA CM libibverbs Verbs Provider Verbs Provider Providers leverage abstraction layer and RDMA CM capabilities Add optimize data transfers and completion processing calls to avoid translation overhead 8 www.openfabrics.org

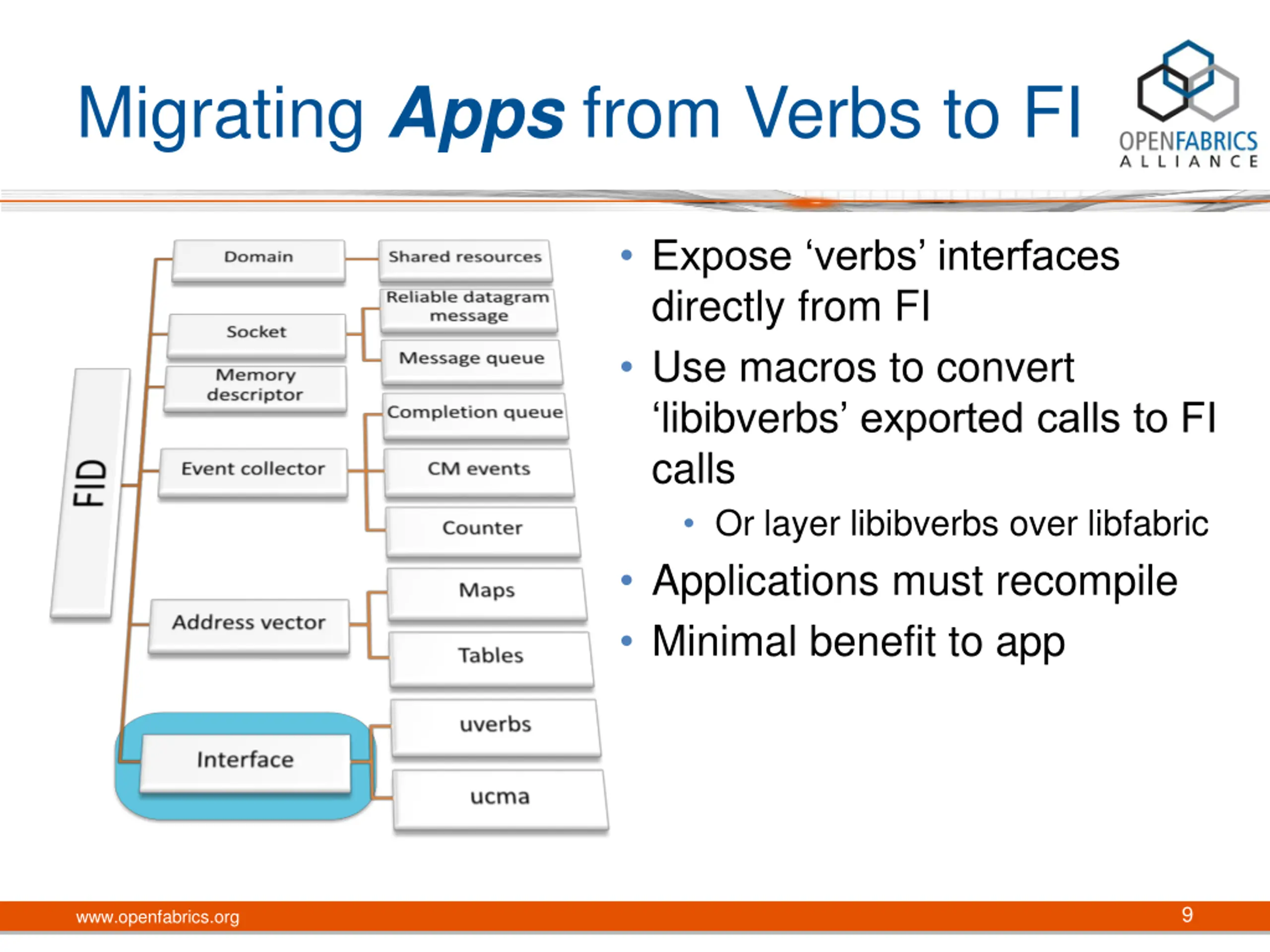

Migrating Apps from Verbs to FI Expose verbs interfaces directly from FI Use macros to convert libibverbs exported calls to FI calls Or layer libibverbs over libfabric Applications must recompile Minimal benefit to app 9 www.openfabrics.org

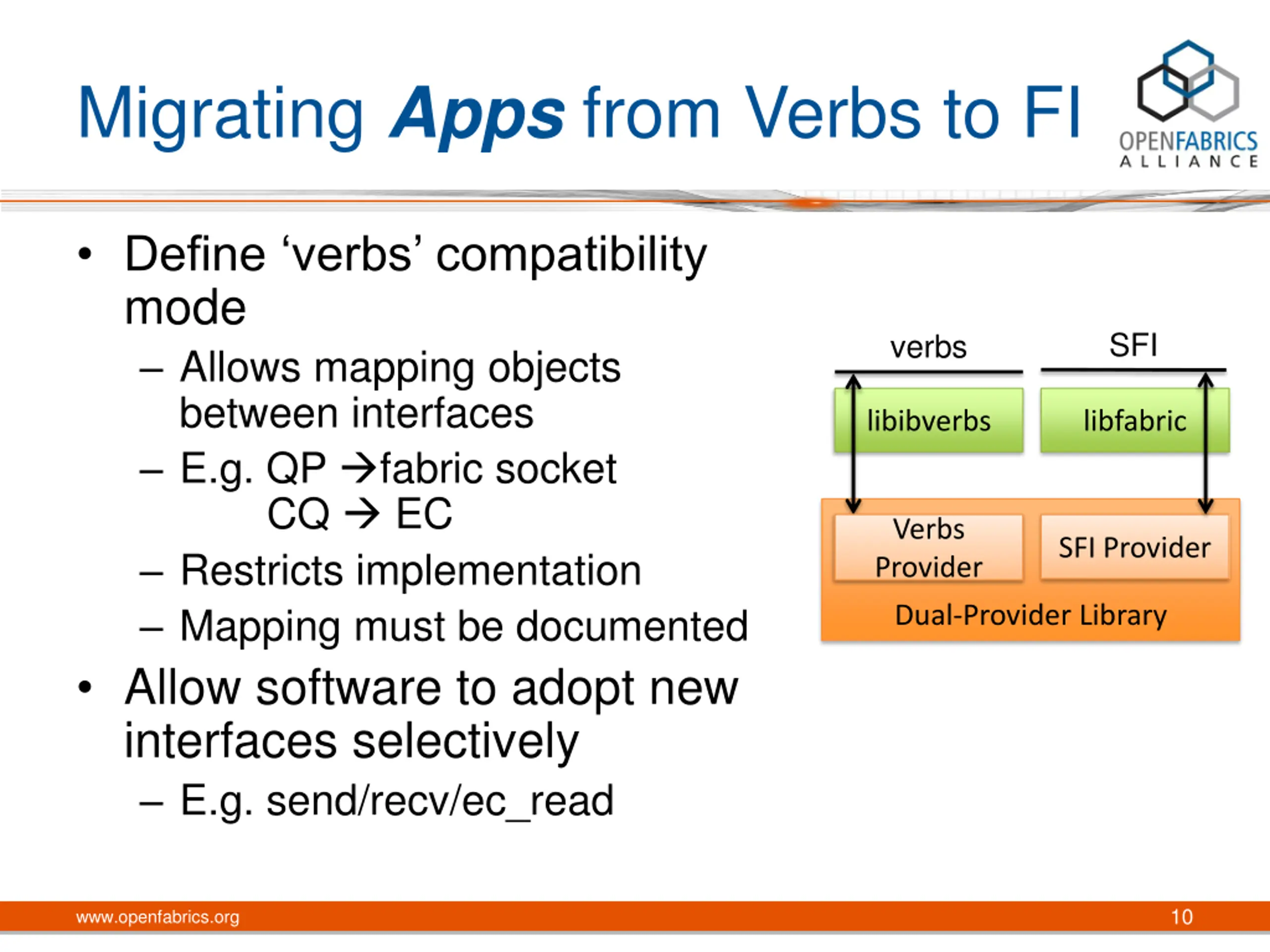

Migrating Apps from Verbs to FI Define verbs compatibility mode Allows mapping objects between interfaces E.g. QP fabric socket CQ EC Restricts implementation Mapping must be documented Allow software to adopt new interfaces selectively E.g. send/recv/ec_read SFI verbs libibverbs libfabric Verbs Provider SFI Provider Dual-Provider Library 10 www.openfabrics.org
