Operating at 400Hz: UCC28070 Insights

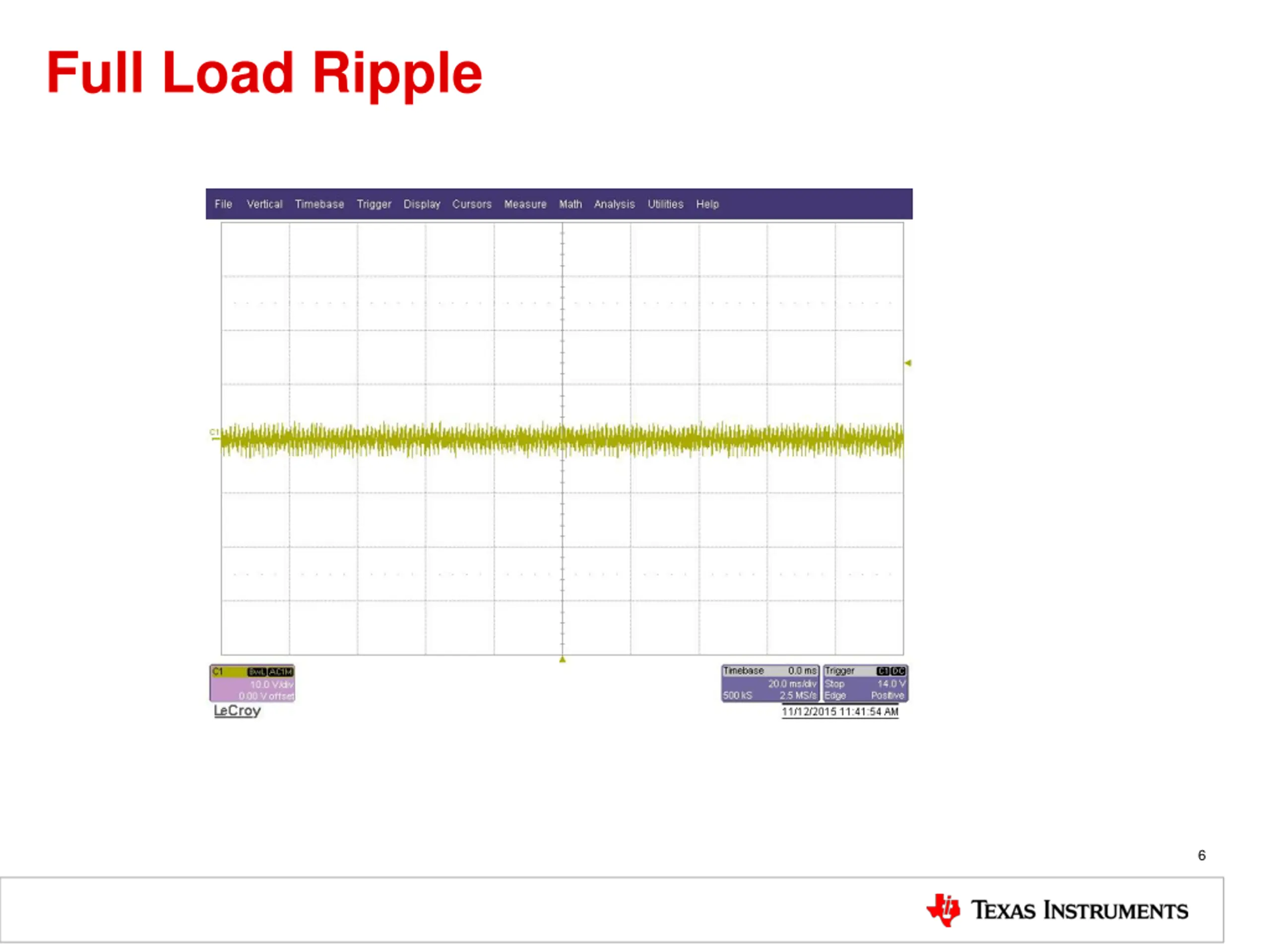

Discover the impact of frequency on line current with the UCC28070 at 400Hz, alongside variations at 60Hz, 800Hz, and different power levels. Explore full load ripple effects as well. Gain valuable insights from the analysis by John Griffin in November 2015.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

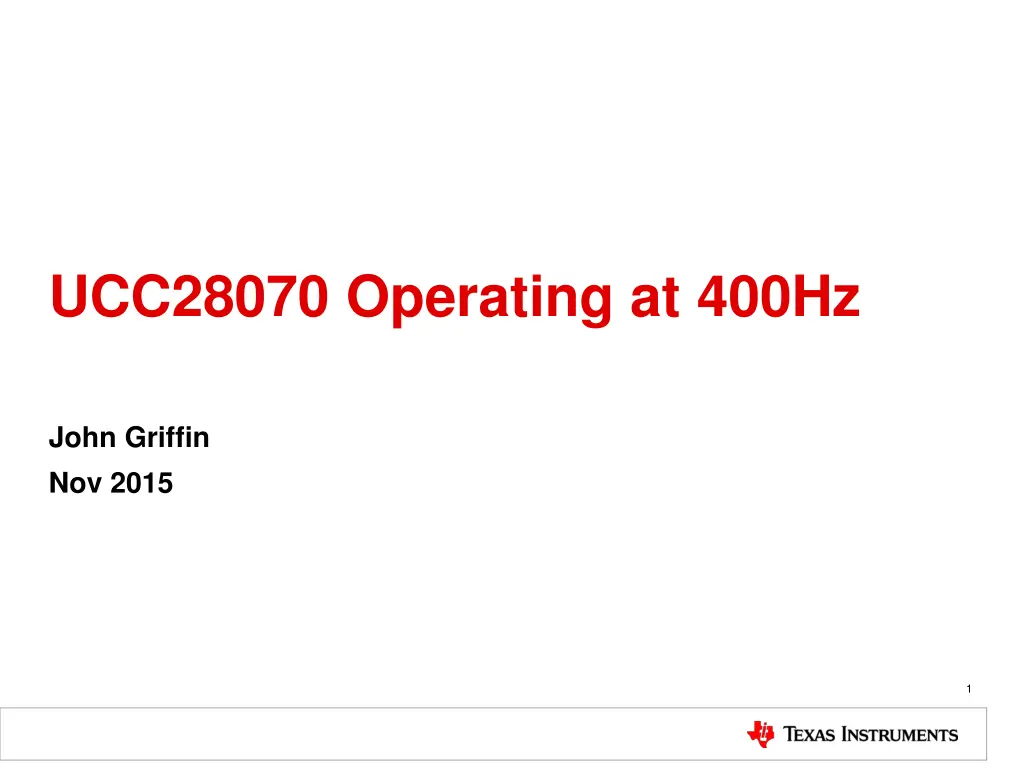

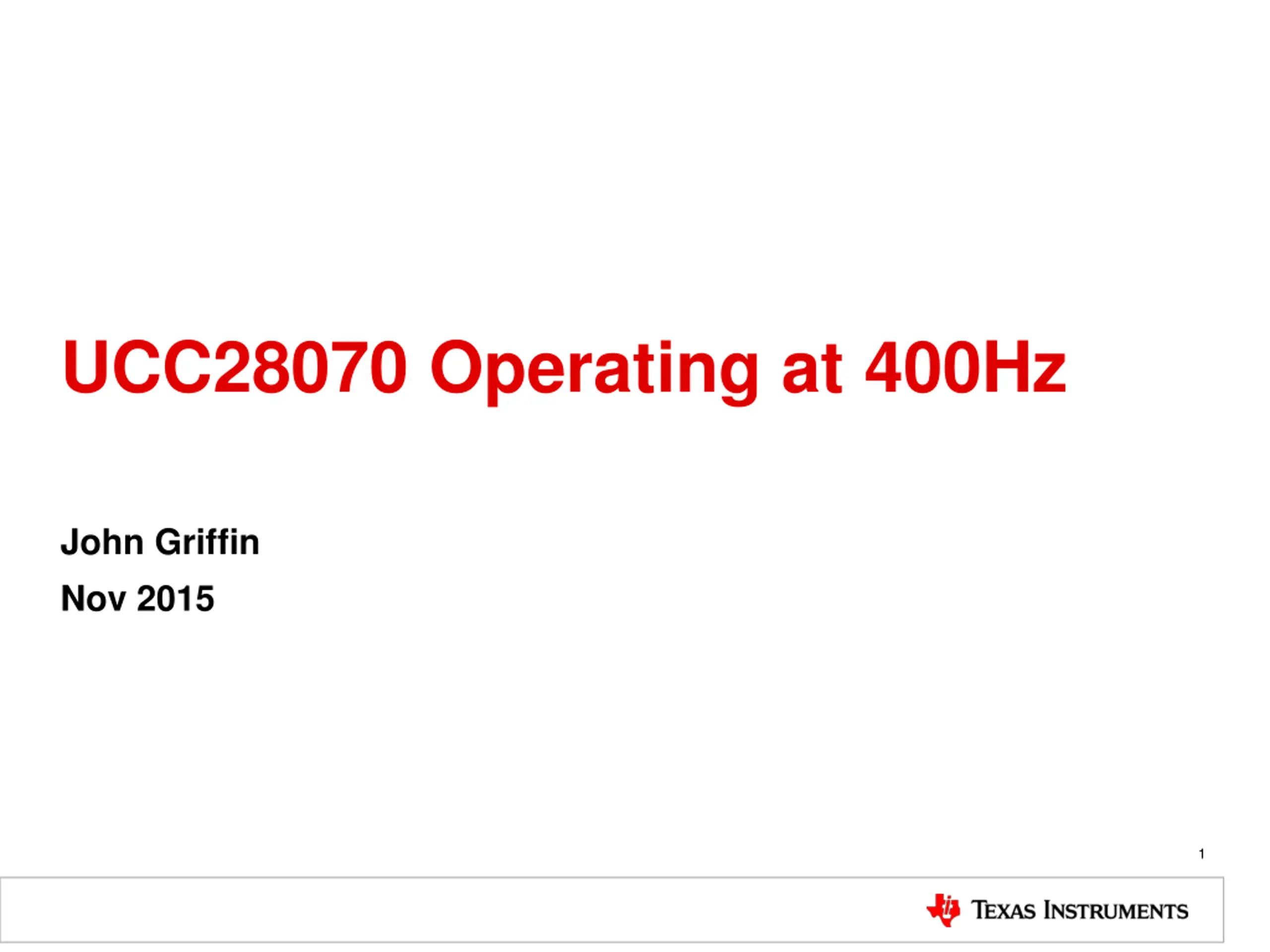

UCC28070 Operating at 400Hz John Griffin Nov 2015 1

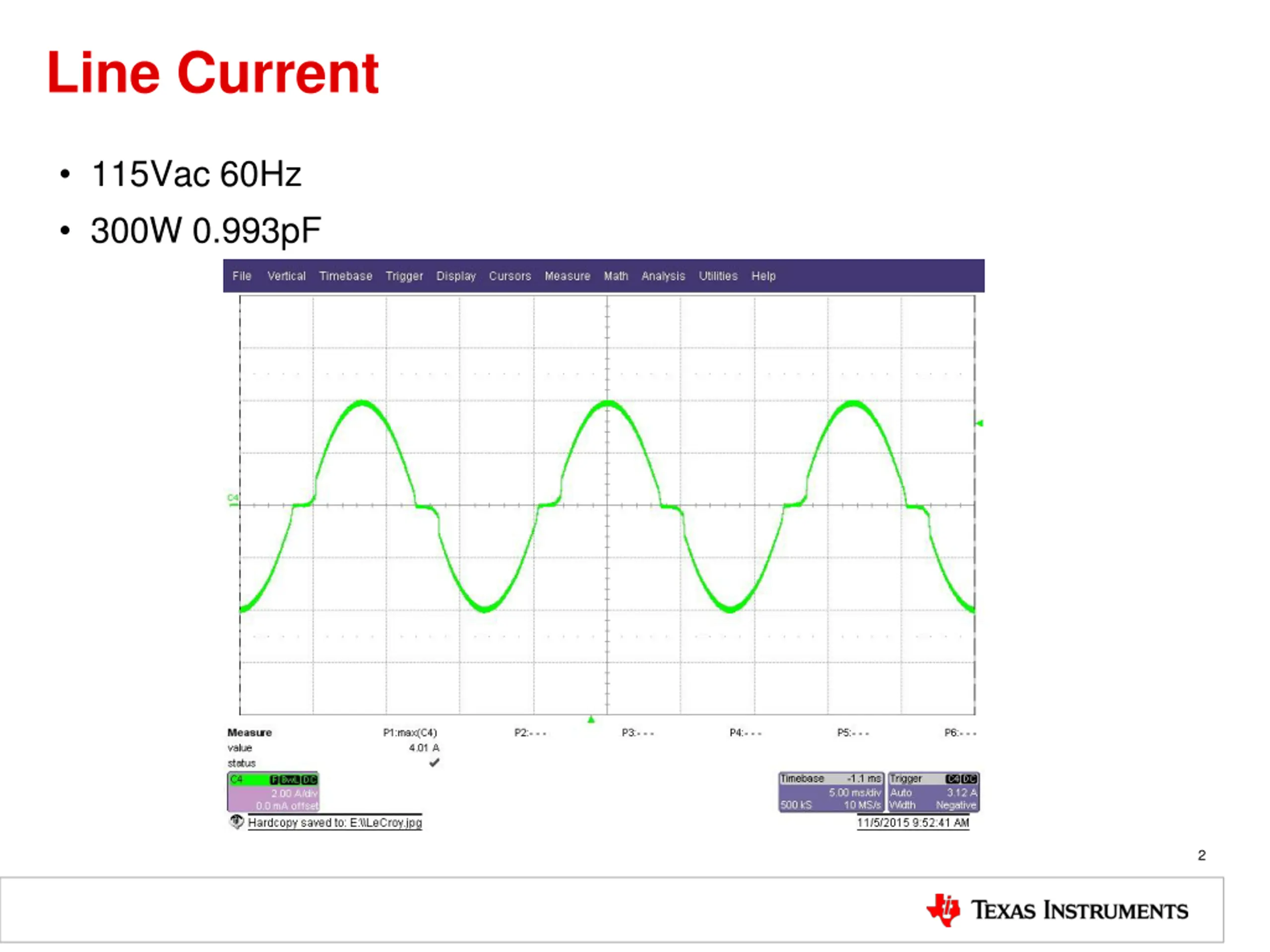

Line Current 115Vac 60Hz 300W 0.993pF 2

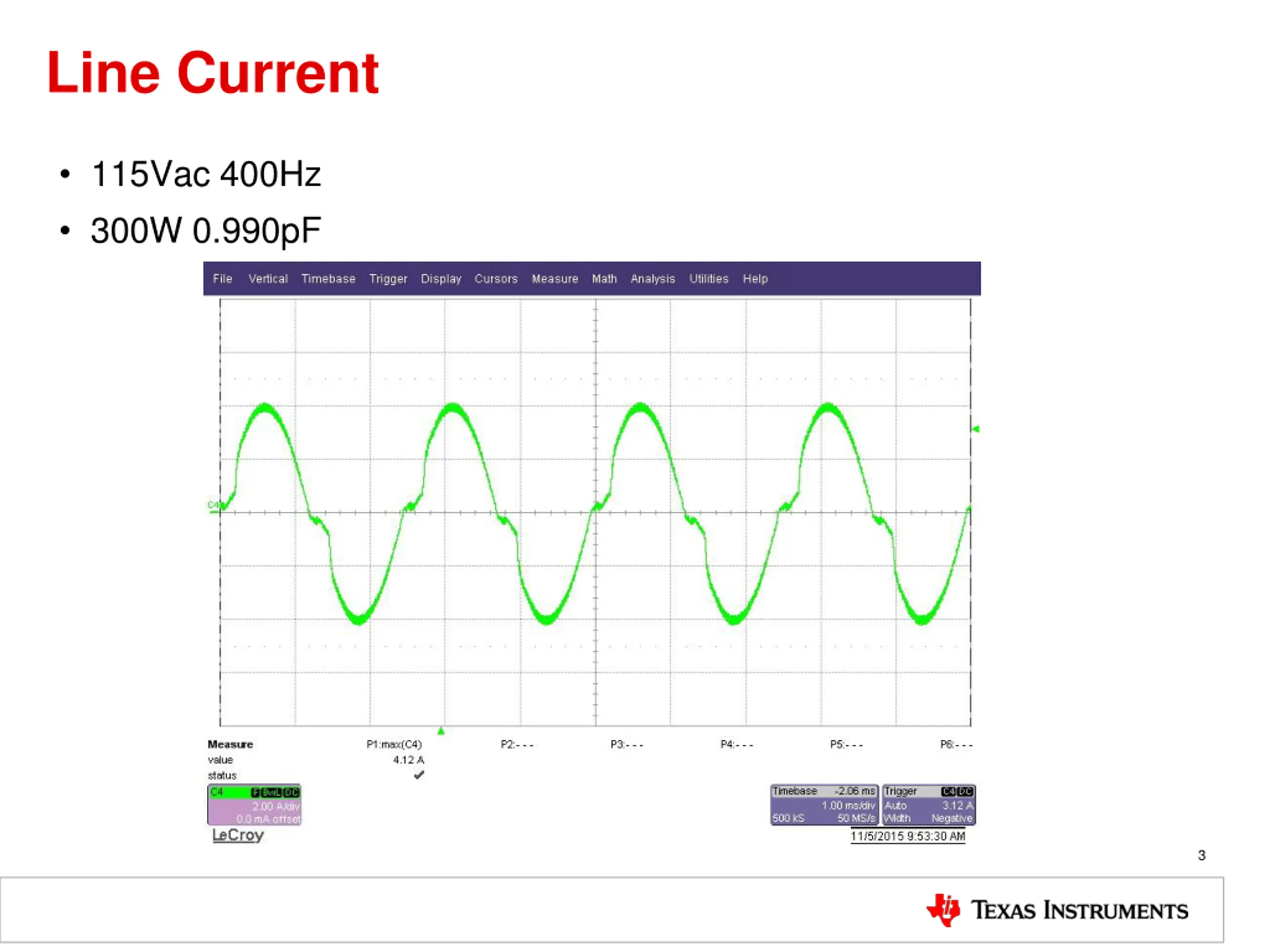

Line Current 115Vac 400Hz 300W 0.990pF 3

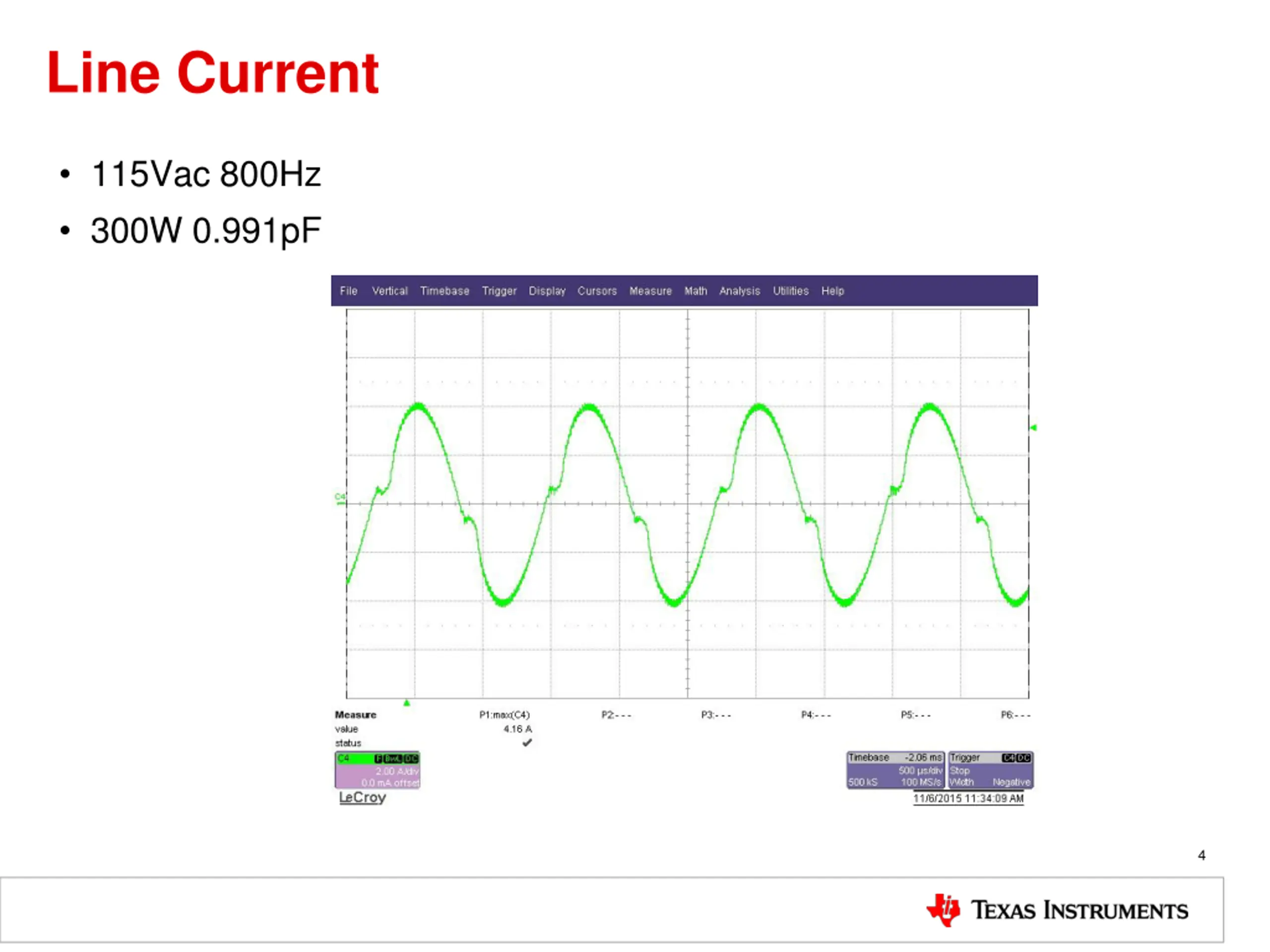

Line Current 115Vac 800Hz 300W 0.991pF 4

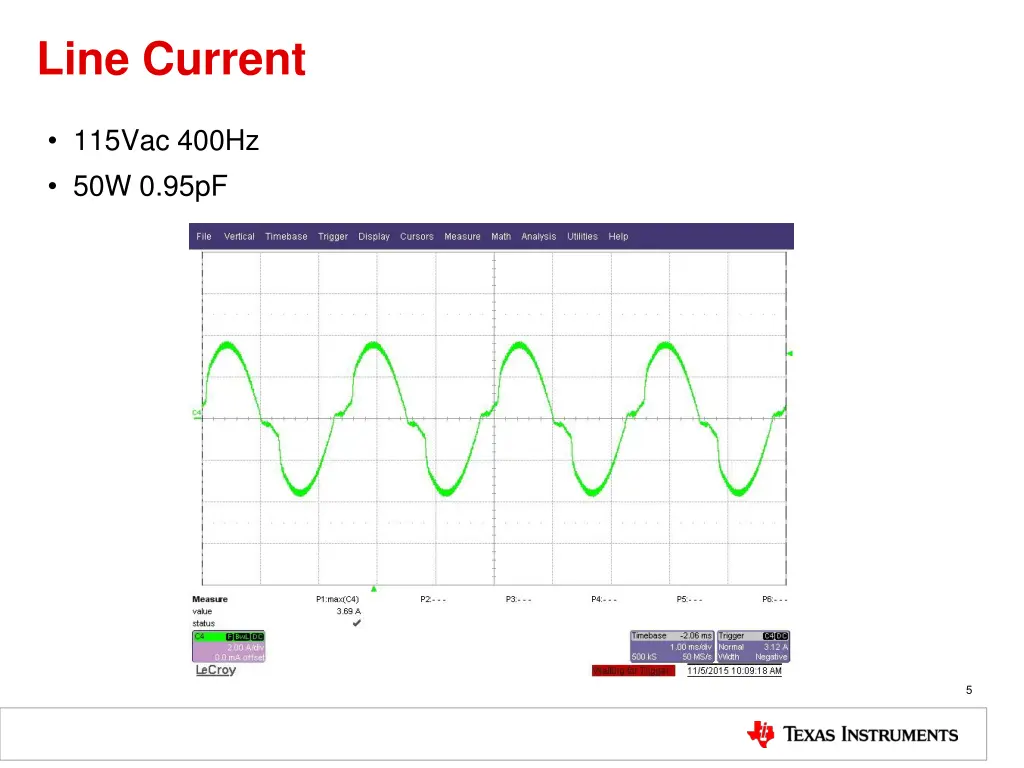

Line Current 115Vac 400Hz 50W 0.95pF 5
