A divide and conquer approach and a work-optimal parallel algorithm for the LIS problem Muhammad Rashed Alam, M. Sohel Rahman Information Processing Letters, 2013, vol. 113, no. 6, pp. 470-476, Presenter: Yu-Lin Chen Date: Mar. 18, 2025

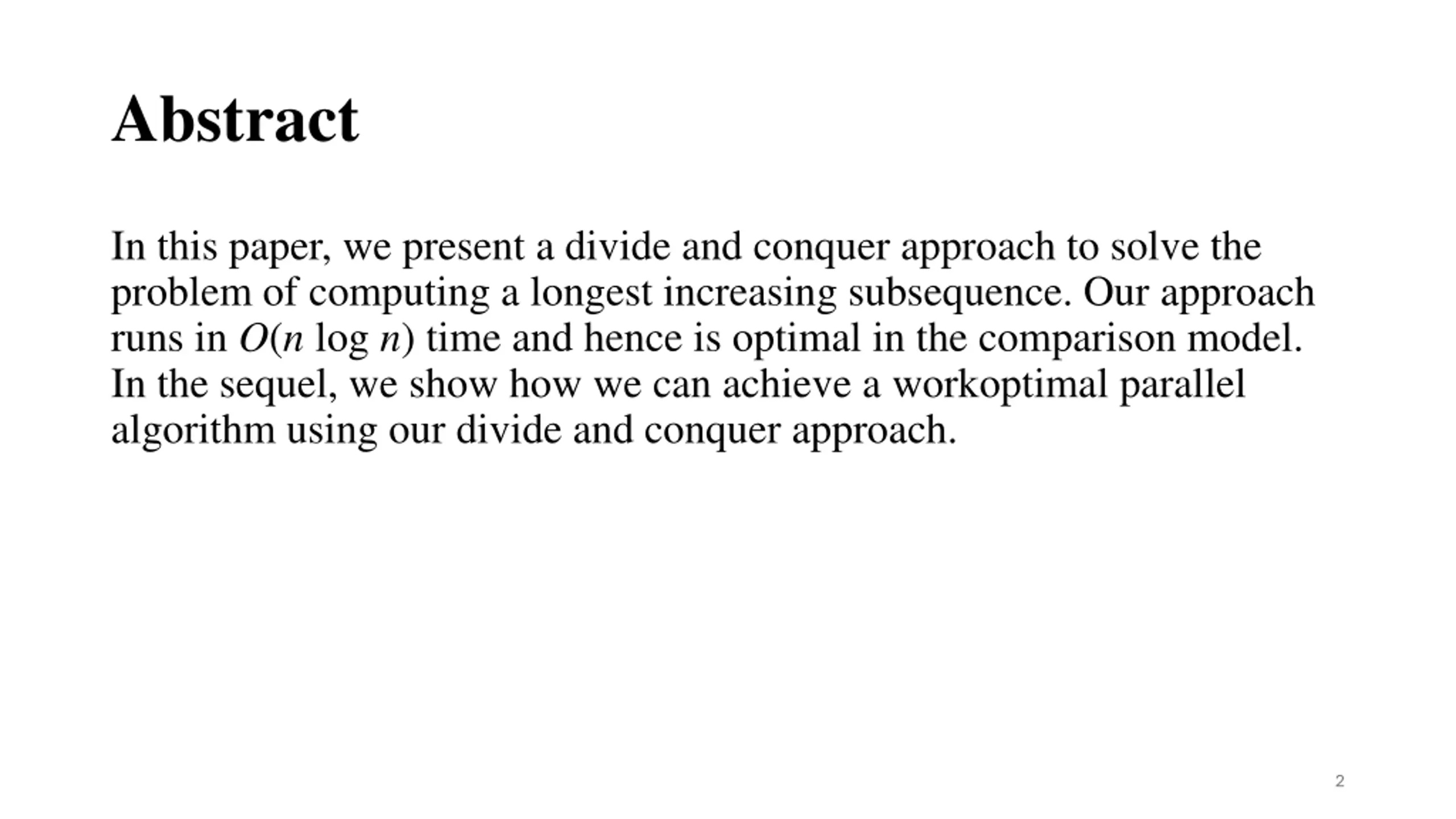

Abstract In this paper, we present a divide and conquer approach to solve the problem of computing a longest increasing subsequence. Our approach runs in O(n log n) time and hence is optimal in the comparison model. In the sequel, we show how we can achieve a workoptimal parallel algorithm using our divide and conquer approach. 2

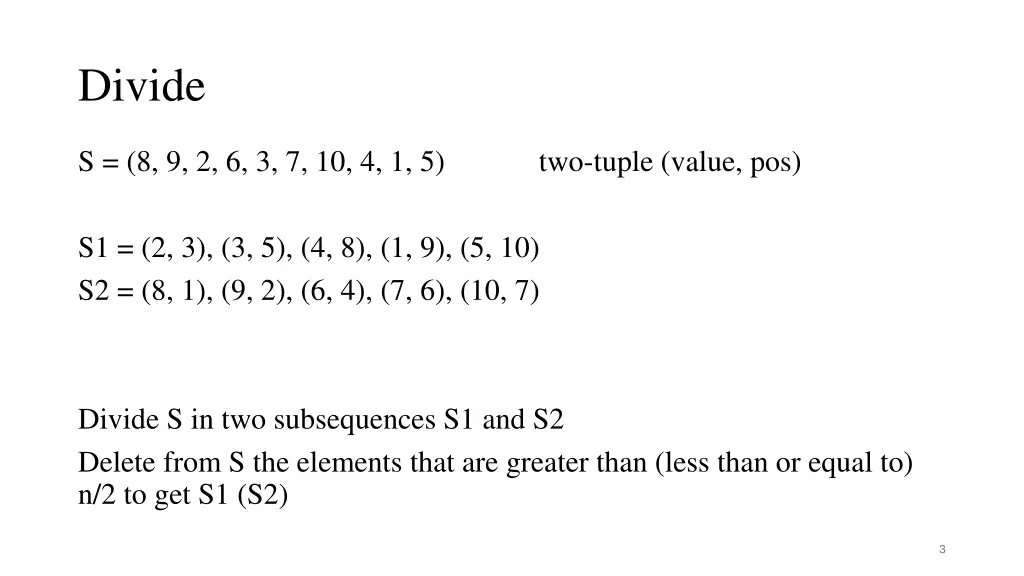

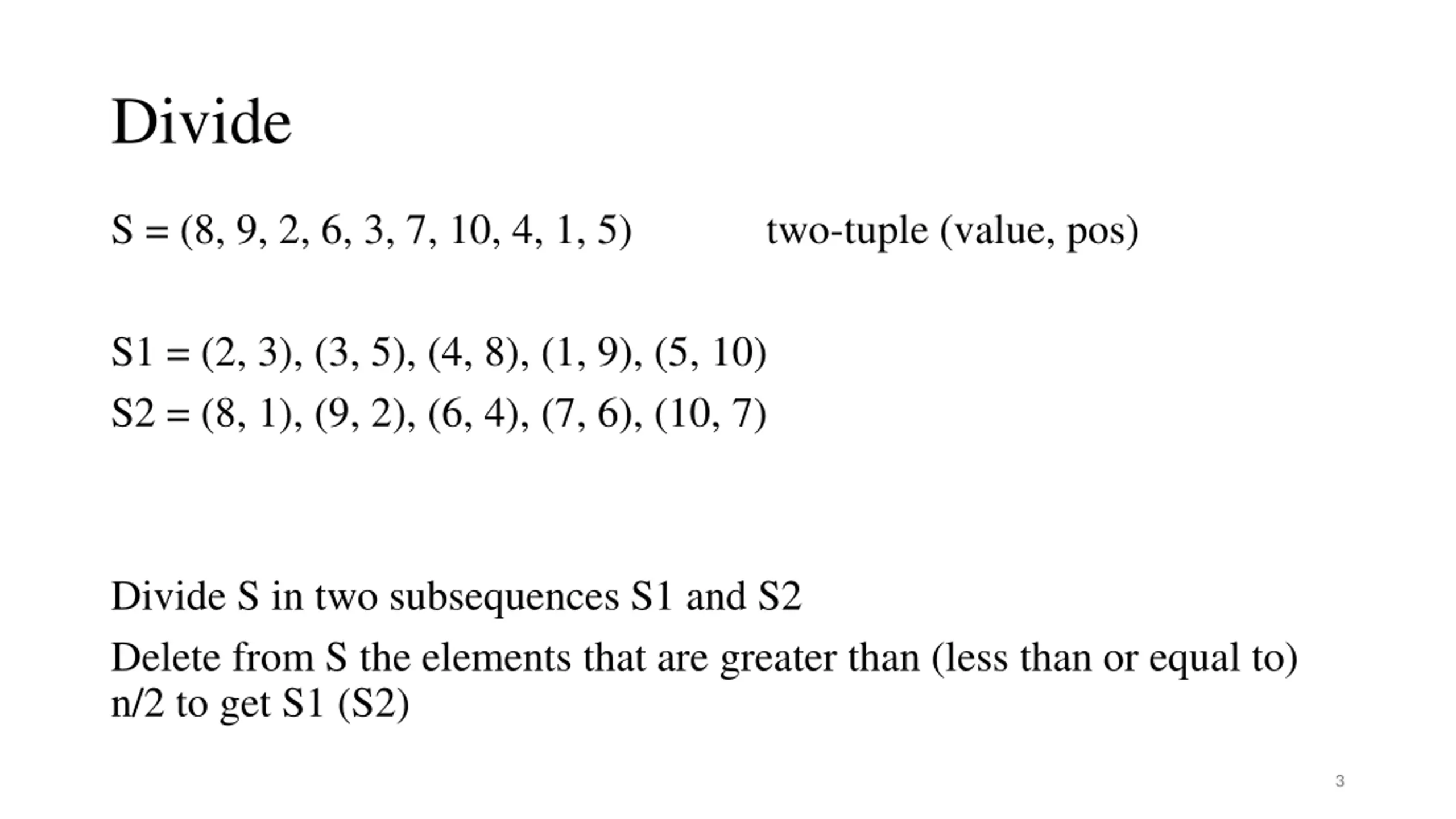

Divide S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) two-tuple (value, pos) S1 = (2, 3), (3, 5), (4, 8), (1, 9), (5, 10) S2 = (8, 1), (9, 2), (6, 4), (7, 6), (10, 7) Divide S in two subsequences S1 and S2 Delete from S the elements that are greater than (less than or equal to) n/2 to get S1 (S2) 3

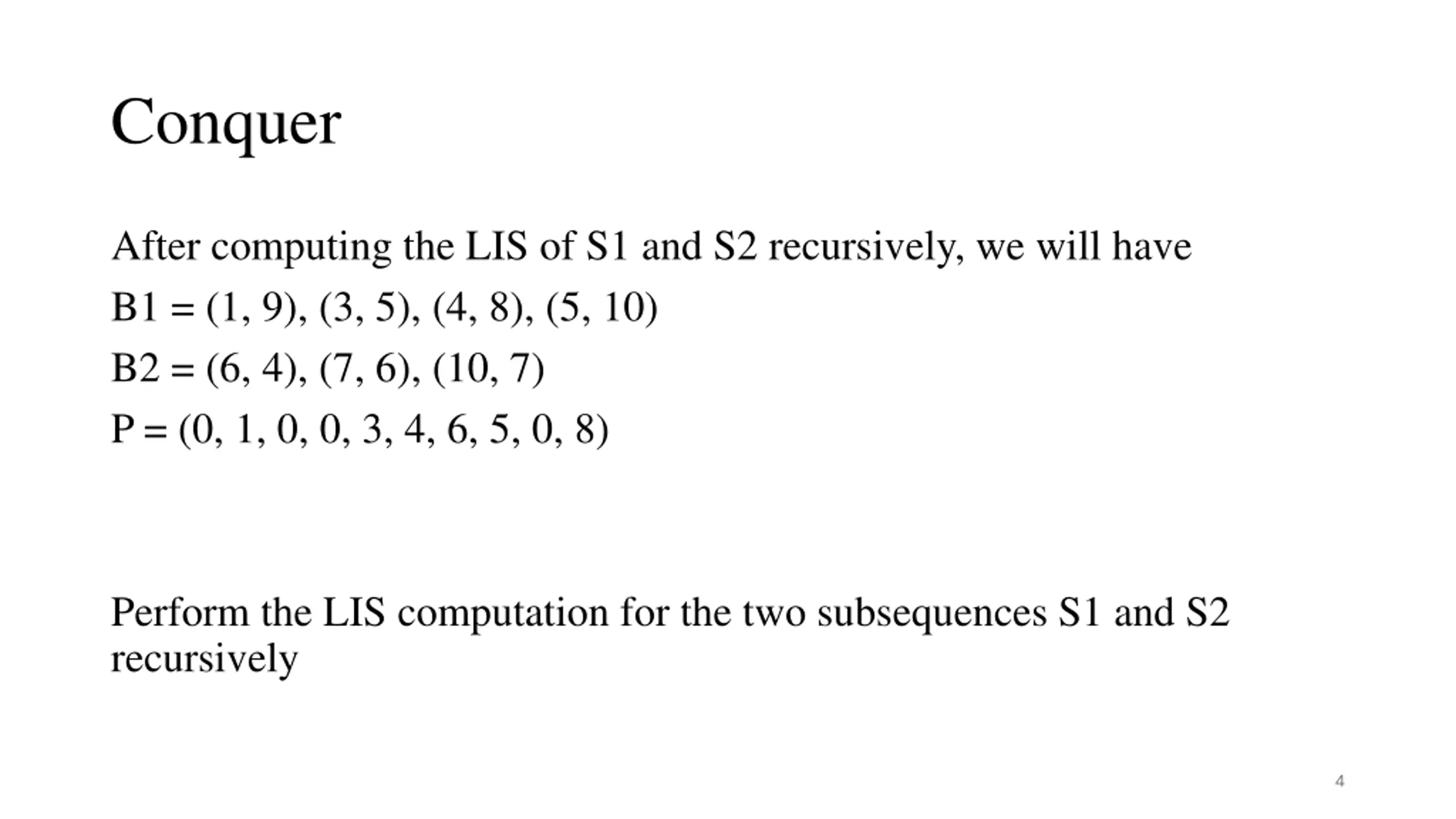

Conquer After computing the LIS of S1 and S2 recursively, we will have B1 = (1, 9), (3, 5), (4, 8), (5, 10) B2 = (6, 4), (7, 6), (10, 7) P = (0, 1, 0, 0, 3, 4, 6, 5, 0, 8) Perform the LIS computation for the two subsequences S1 and S2 recursively 4

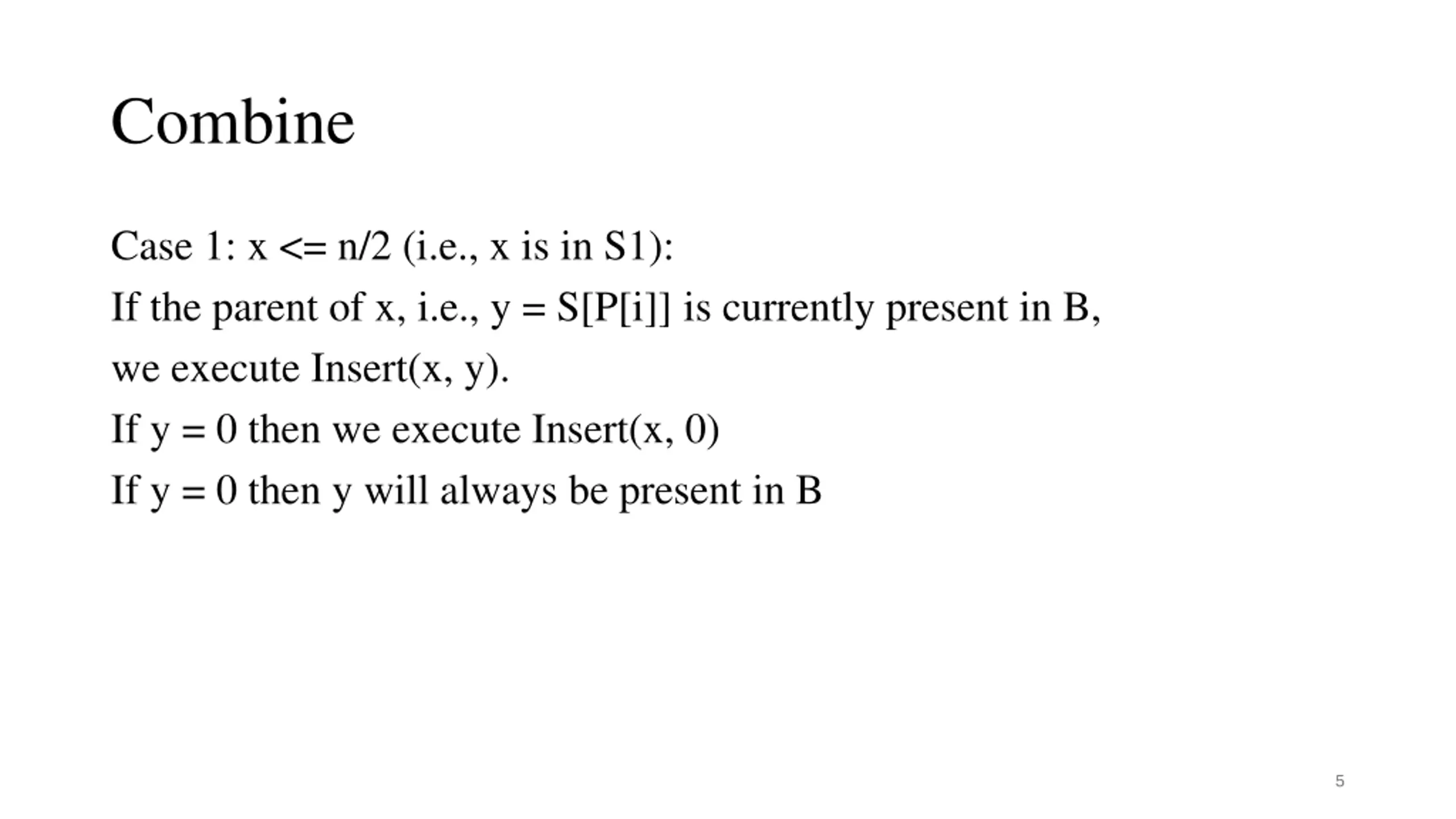

Combine Case 1: x <= n/2 (i.e., x is in S1): If the parent of x, i.e., y = S[P[i]] is currently present in B, we execute Insert(x, y). If y = 0 then we execute Insert(x, 0) If y = 0 then y will always be present in B 5

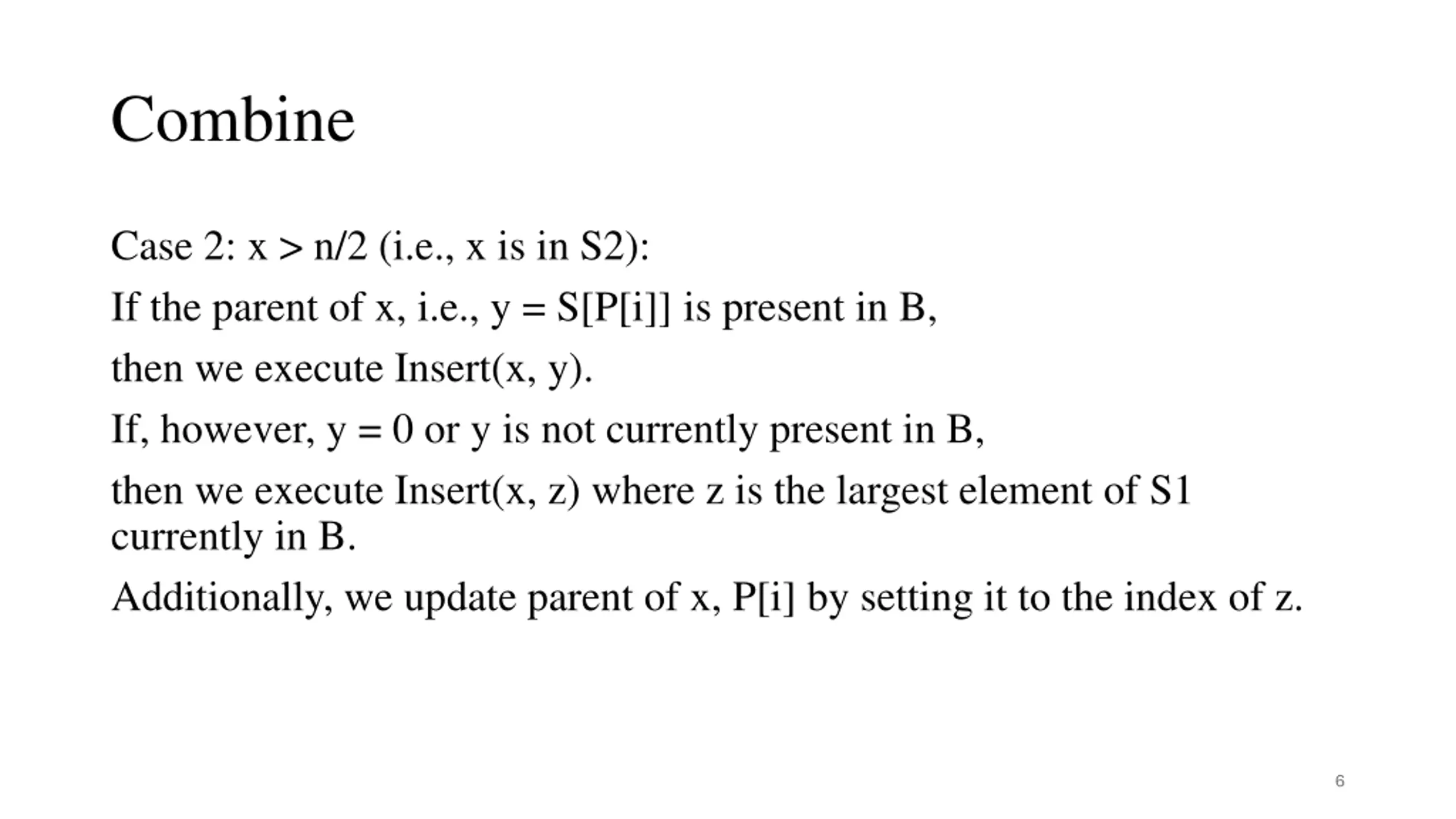

Combine Case 2: x > n/2 (i.e., x is in S2): If the parent of x, i.e., y = S[P[i]] is present in B, then we execute Insert(x, y). If, however, y = 0 or y is not currently present in B, then we execute Insert(x, z) where z is the largest element of S1 currently in B. Additionally, we update parent of x, P[i] by setting it to the index of z. 6
Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 4, 6, 5, 0, 8) S1 = (2, 3), (3, 5), (4, 8), (1, 9), (5, 10) S2 = (8, 1), (9, 2), (6, 4), (7, 6), (10, 7) B = {(8, 1)} 7

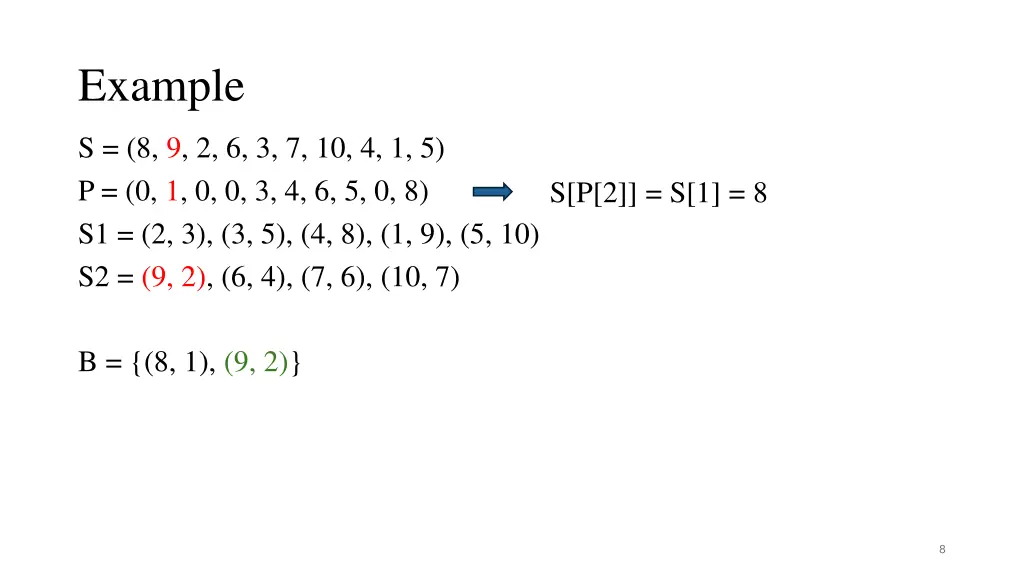

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 4, 6, 5, 0, 8) S1 = (2, 3), (3, 5), (4, 8), (1, 9), (5, 10) S2 = (9, 2), (6, 4), (7, 6), (10, 7) S[P[2]] = S[1] = 8 B = {(8, 1), (9, 2)} 8

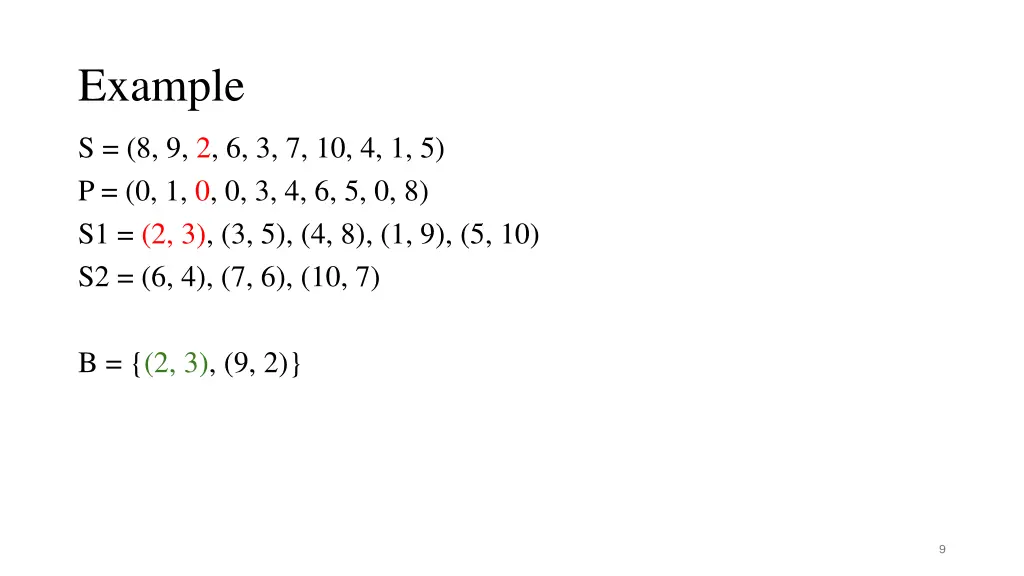

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 4, 6, 5, 0, 8) S1 = (2, 3), (3, 5), (4, 8), (1, 9), (5, 10) S2 = (6, 4), (7, 6), (10, 7) B = {(2, 3), (9, 2)} 9

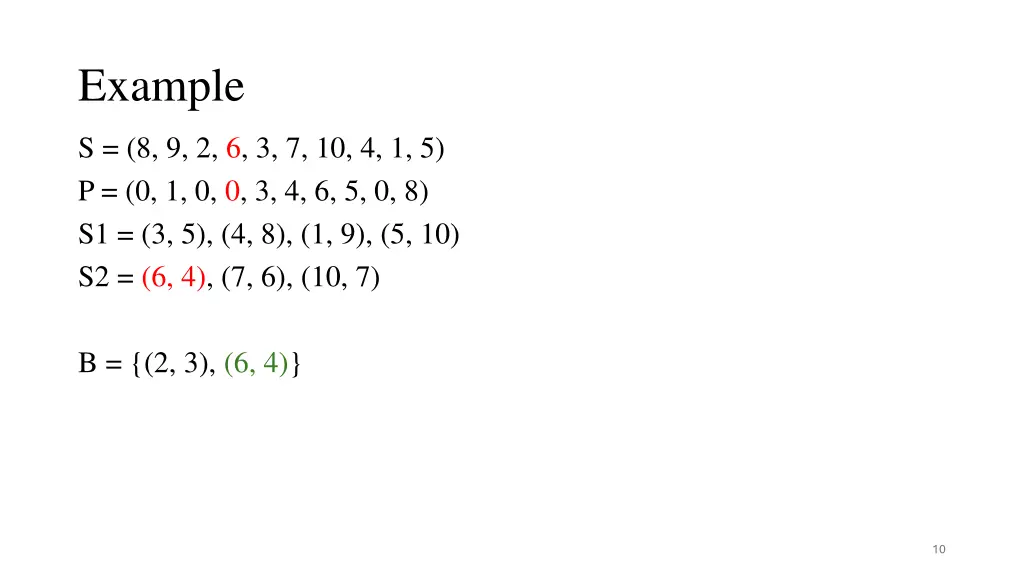

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 4, 6, 5, 0, 8) S1 = (3, 5), (4, 8), (1, 9), (5, 10) S2 = (6, 4), (7, 6), (10, 7) B = {(2, 3), (6, 4)} 10

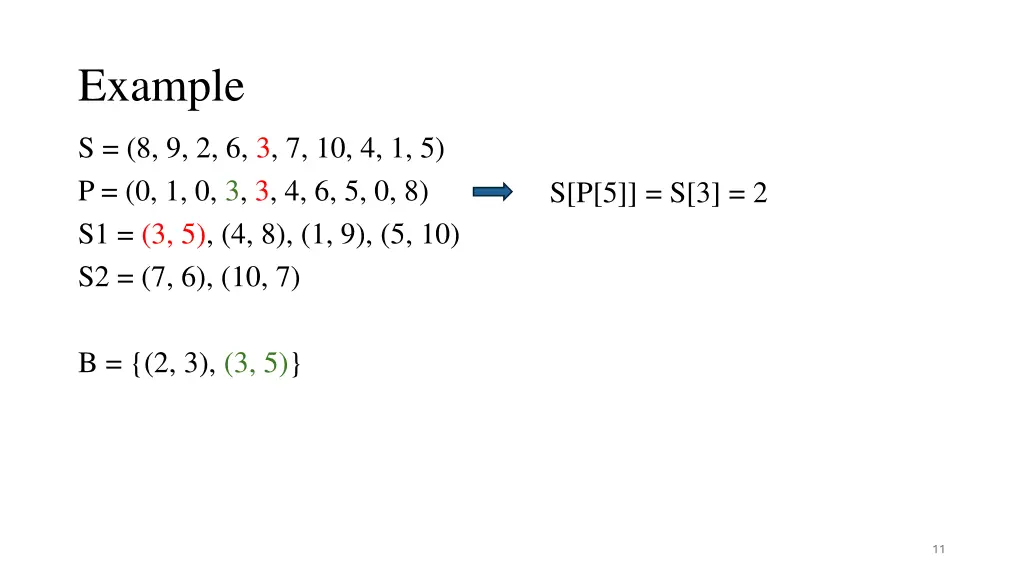

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 3, 3, 4, 6, 5, 0, 8) S1 = (3, 5), (4, 8), (1, 9), (5, 10) S2 = (7, 6), (10, 7) S[P[5]] = S[3] = 2 B = {(2, 3), (3, 5)} 11

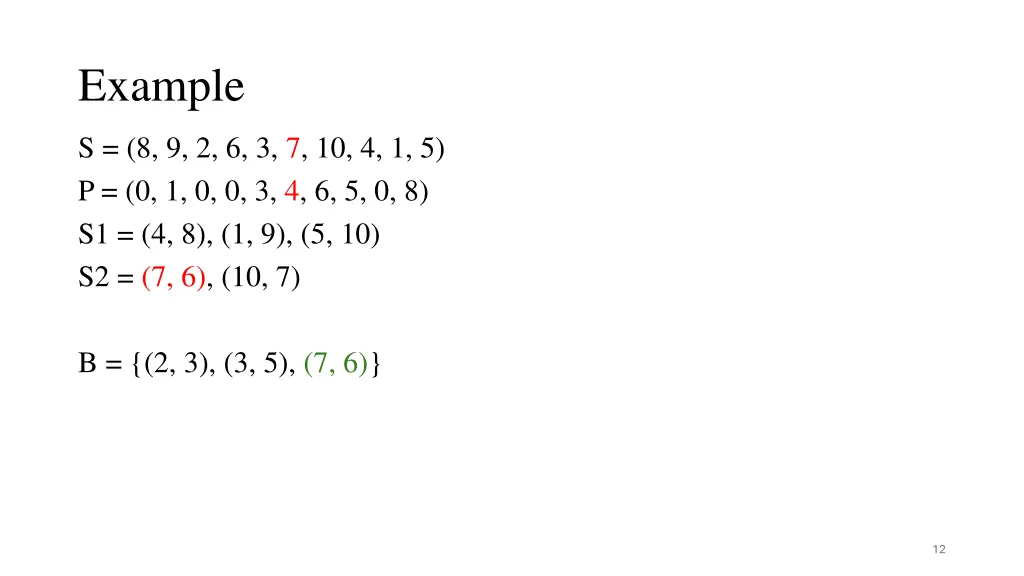

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 4, 6, 5, 0, 8) S1 = (4, 8), (1, 9), (5, 10) S2 = (7, 6), (10, 7) B = {(2, 3), (3, 5), (7, 6)} 12

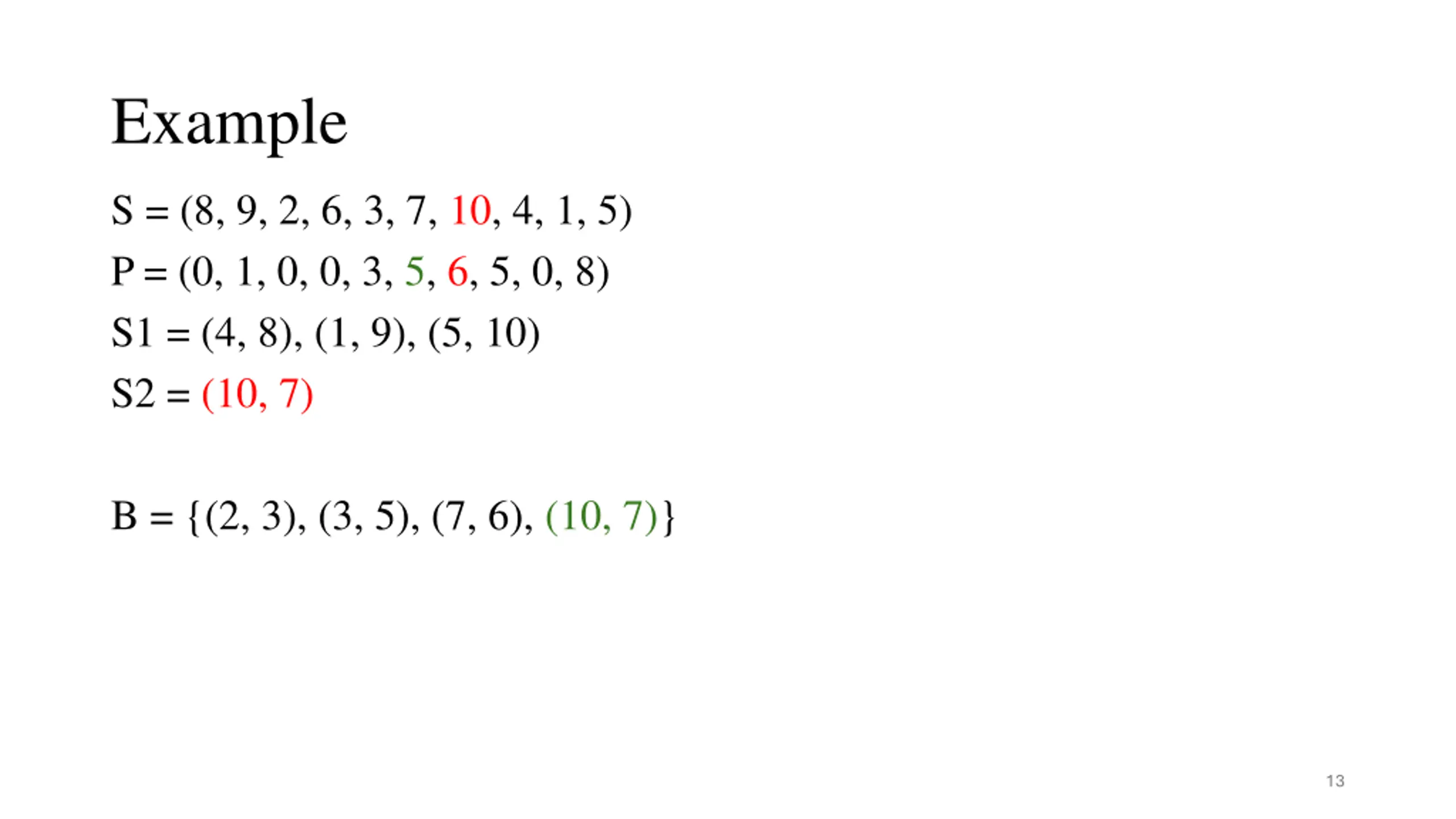

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 5, 6, 5, 0, 8) S1 = (4, 8), (1, 9), (5, 10) S2 = (10, 7) B = {(2, 3), (3, 5), (7, 6), (10, 7)} 13

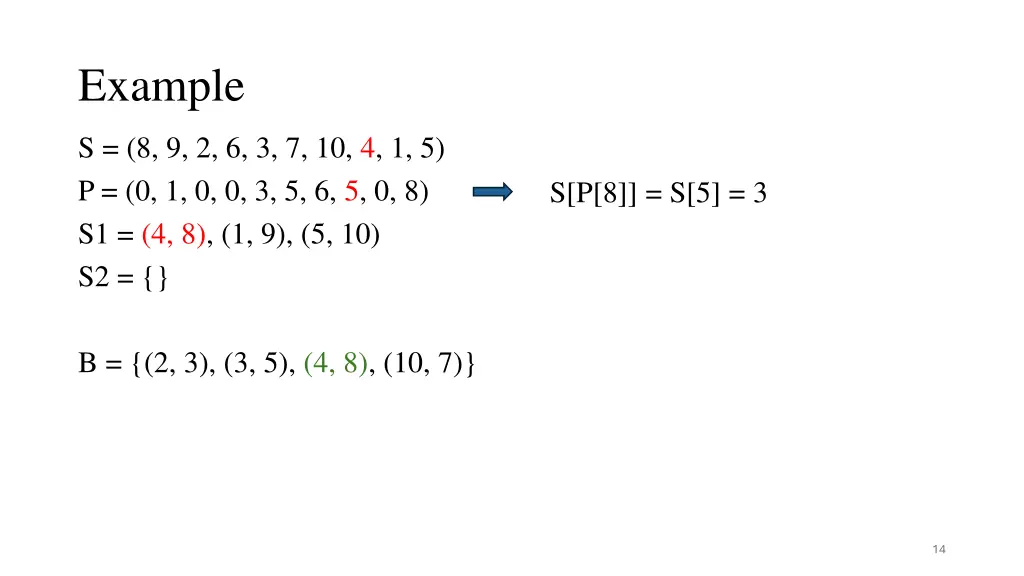

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 5, 6, 5, 0, 8) S1 = (4, 8), (1, 9), (5, 10) S2 = {} S[P[8]] = S[5] = 3 B = {(2, 3), (3, 5), (4, 8), (10, 7)} 14

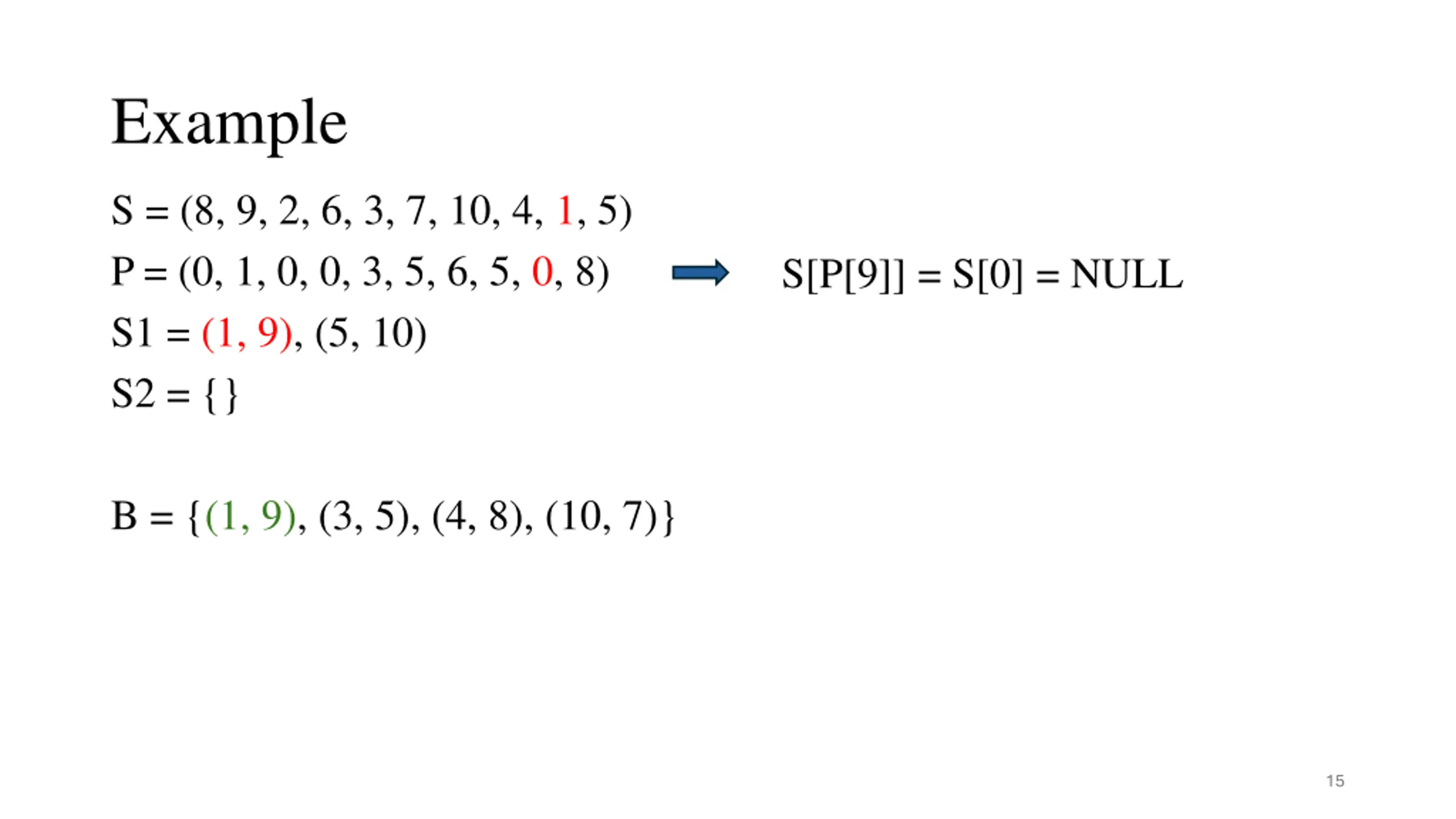

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 5, 6, 5, 0, 8) S1 = (1, 9), (5, 10) S2 = {} S[P[9]] = S[0] = NULL B = {(1, 9), (3, 5), (4, 8), (10, 7)} 15

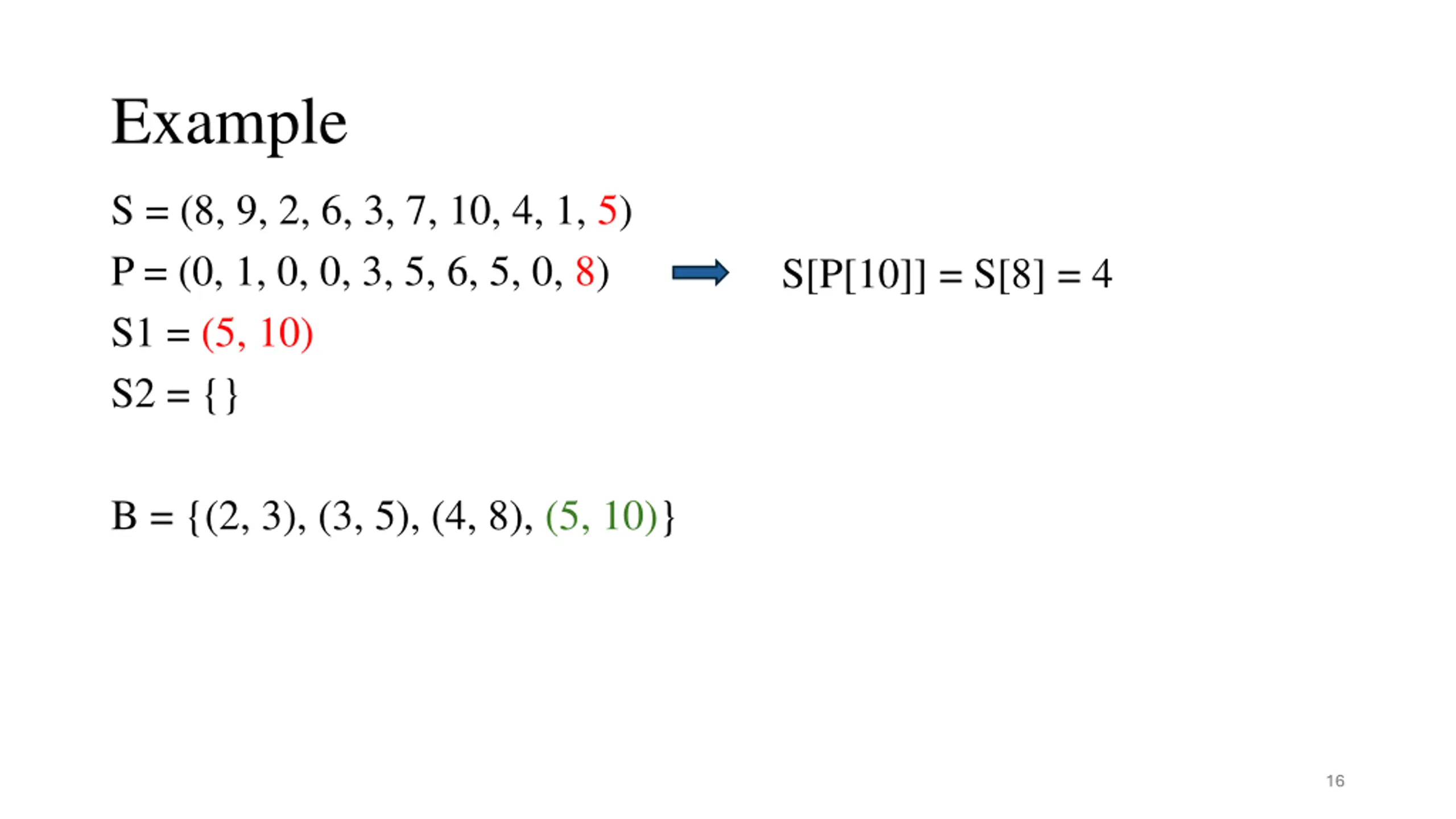

Example S = (8, 9, 2, 6, 3, 7, 10, 4, 1, 5) P = (0, 1, 0, 0, 3, 5, 6, 5, 0, 8) S1 = (5, 10) S2 = {} S[P[10]] = S[8] = 4 B = {(2, 3), (3, 5), (4, 8), (5, 10)} 16
