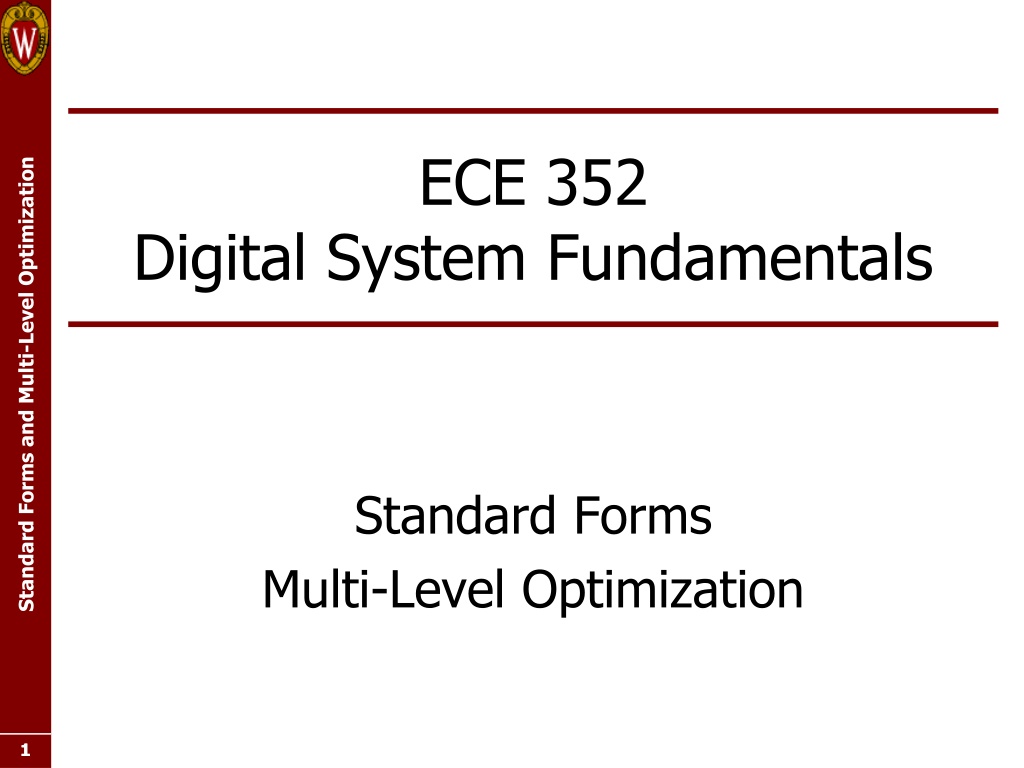

ECE 352 Standard Forms and Multi-Level Optimization Digital System Fundamentals Standard Forms Multi-Level Optimization 1 1

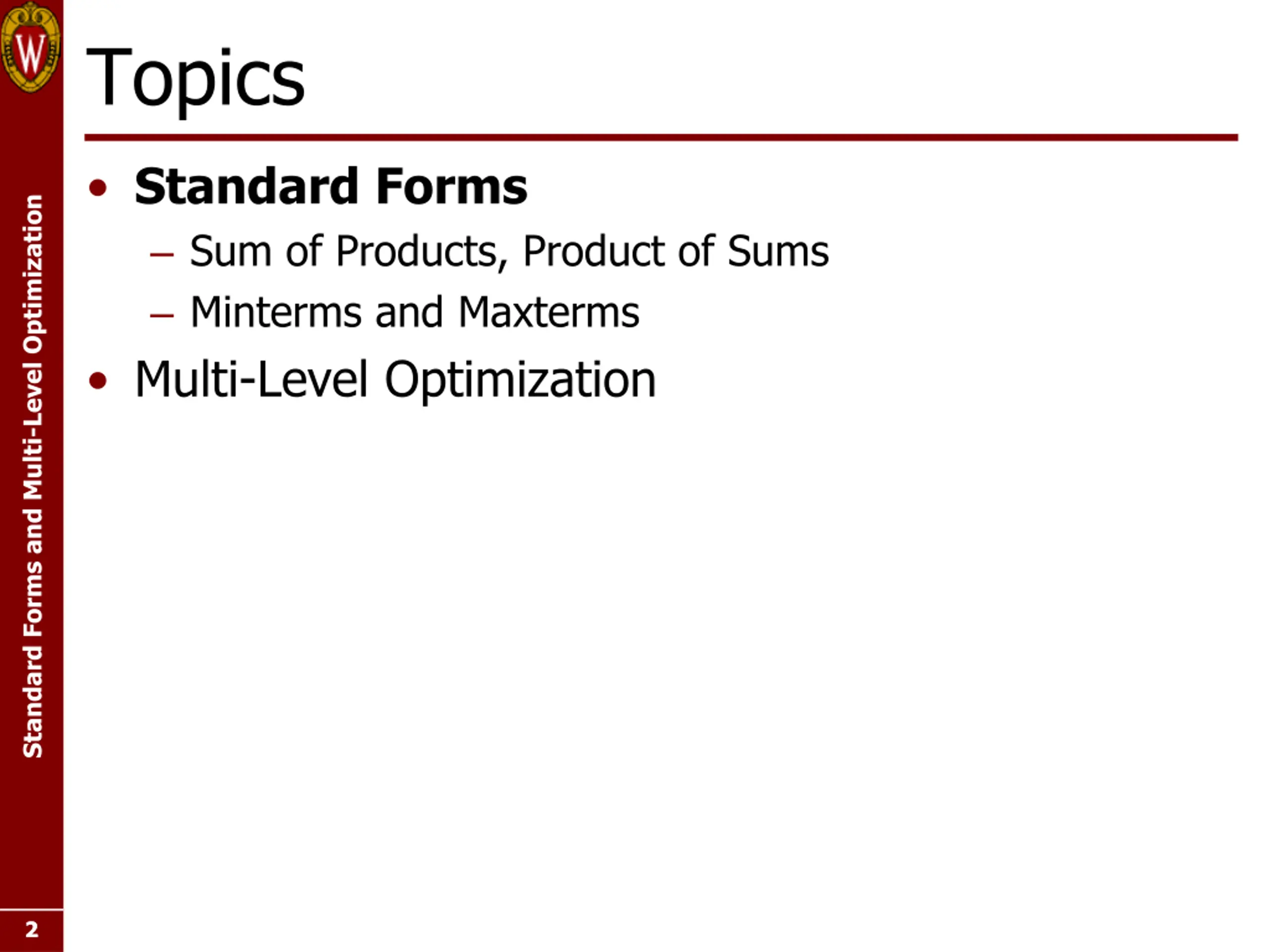

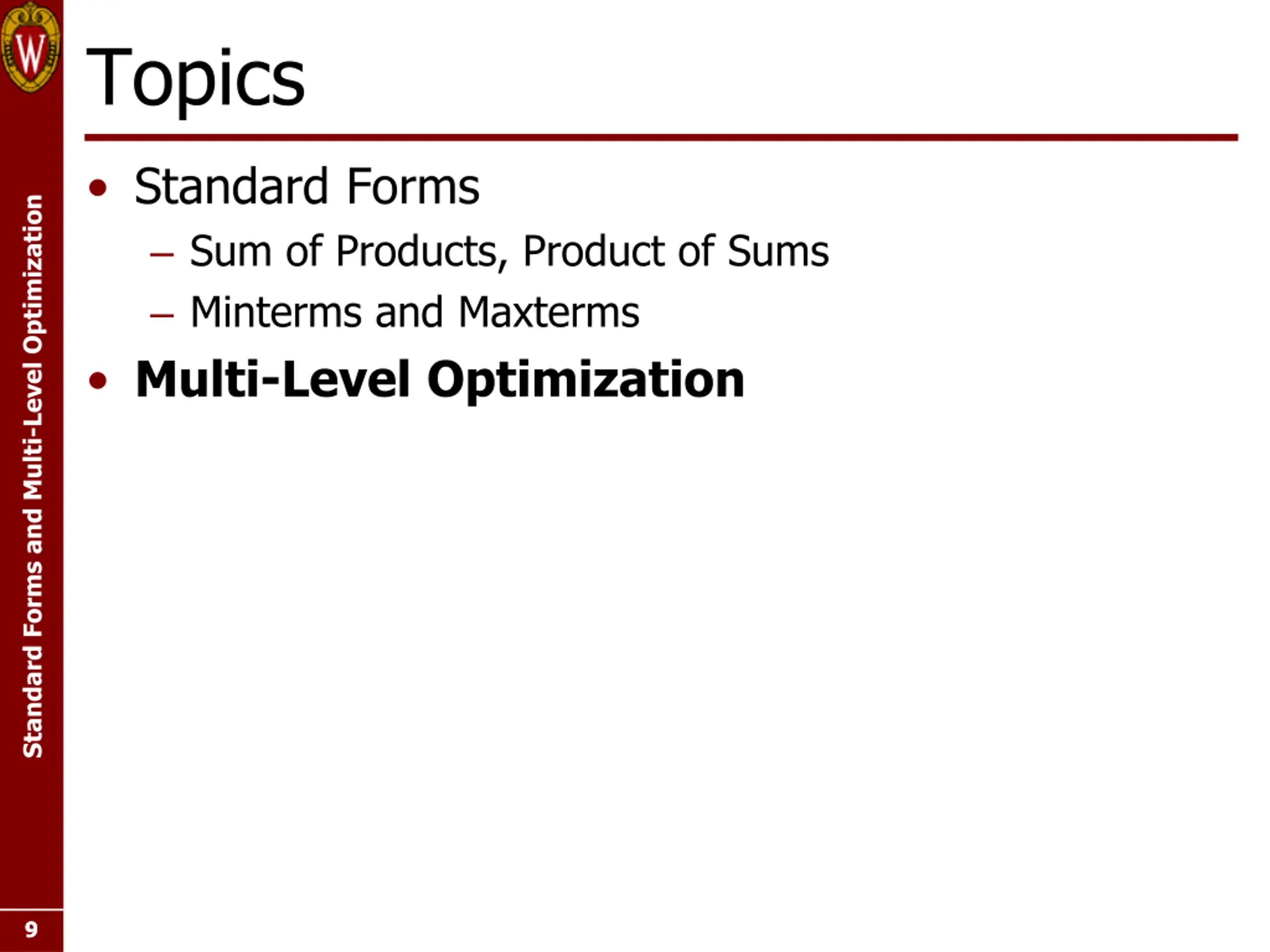

Topics Standard Forms Sum of Products, Product of Sums Minterms and Maxterms Multi-Level Optimization Standard Forms and Multi-Level Optimization 2 2

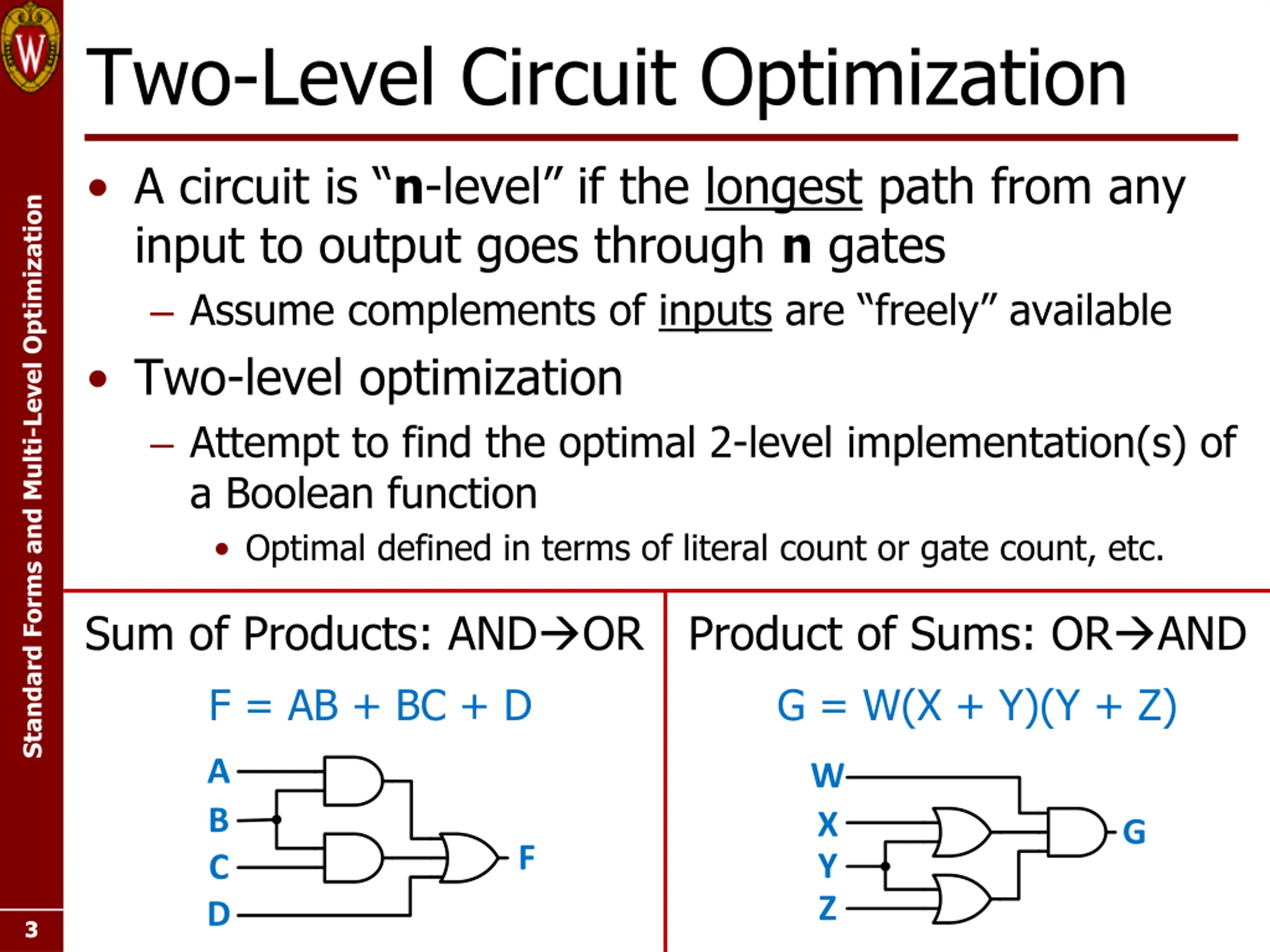

Two-Level Circuit Optimization A circuit is n-level if the longest path from any input to output goes through n gates Assume complements of inputs are freely available Two-level optimization Attempt to find the optimal 2-level implementation(s) of a Boolean function Optimal defined in terms of literal count or gate count, etc. Standard Forms and Multi-Level Optimization Sum of Products: AND OR F = AB + BC + D Product of Sums: OR AND G = W(X + Y)(Y + Z) A B C D W X Y Z G F 3 3

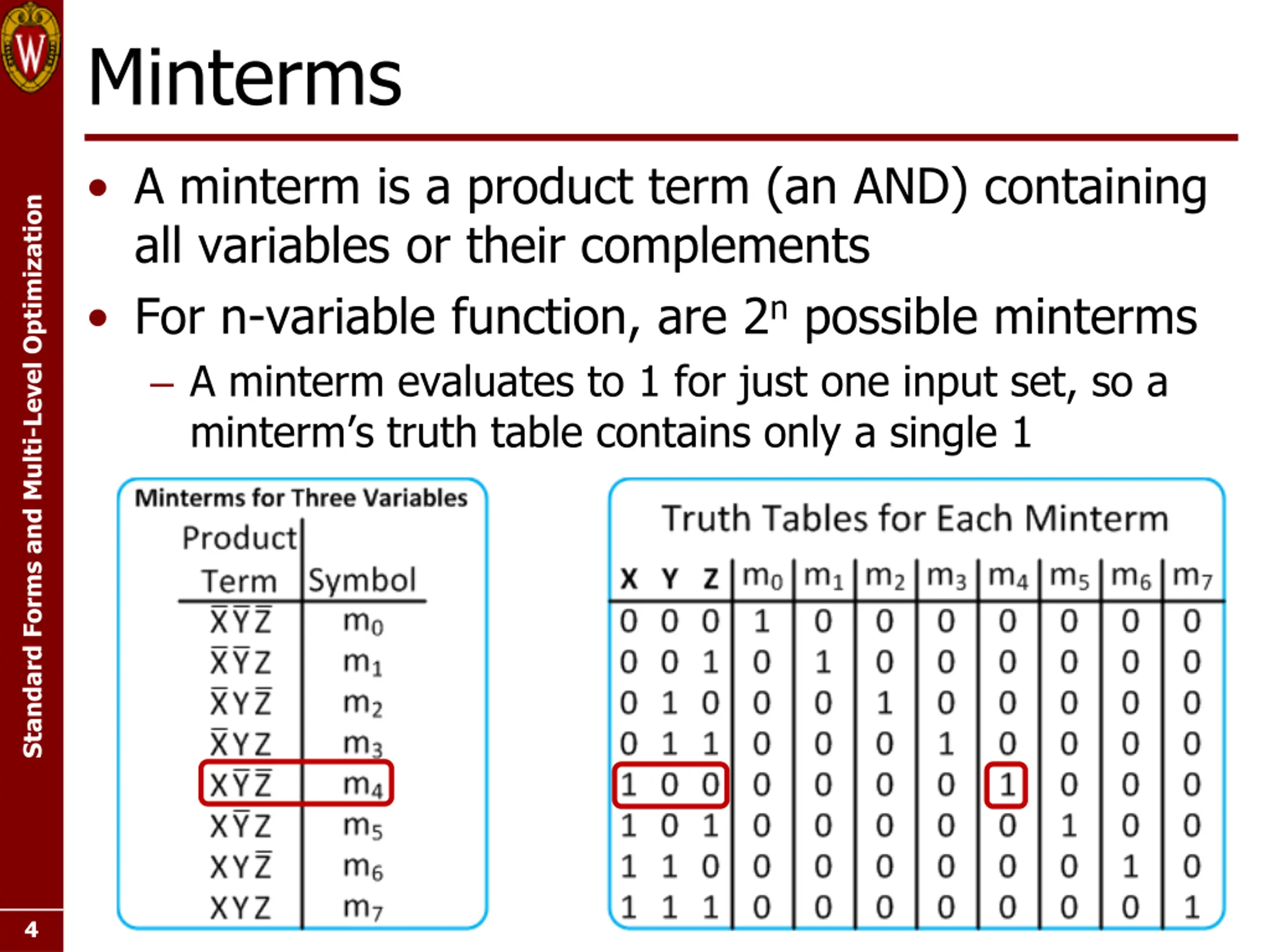

Minterms A minterm is a product term (an AND) containing all variables or their complements For n-variable function, are 2n possible minterms A minterm evaluates to 1 for just one input set, so a minterm s truth table contains only a single 1 Standard Forms and Multi-Level Optimization 4 4

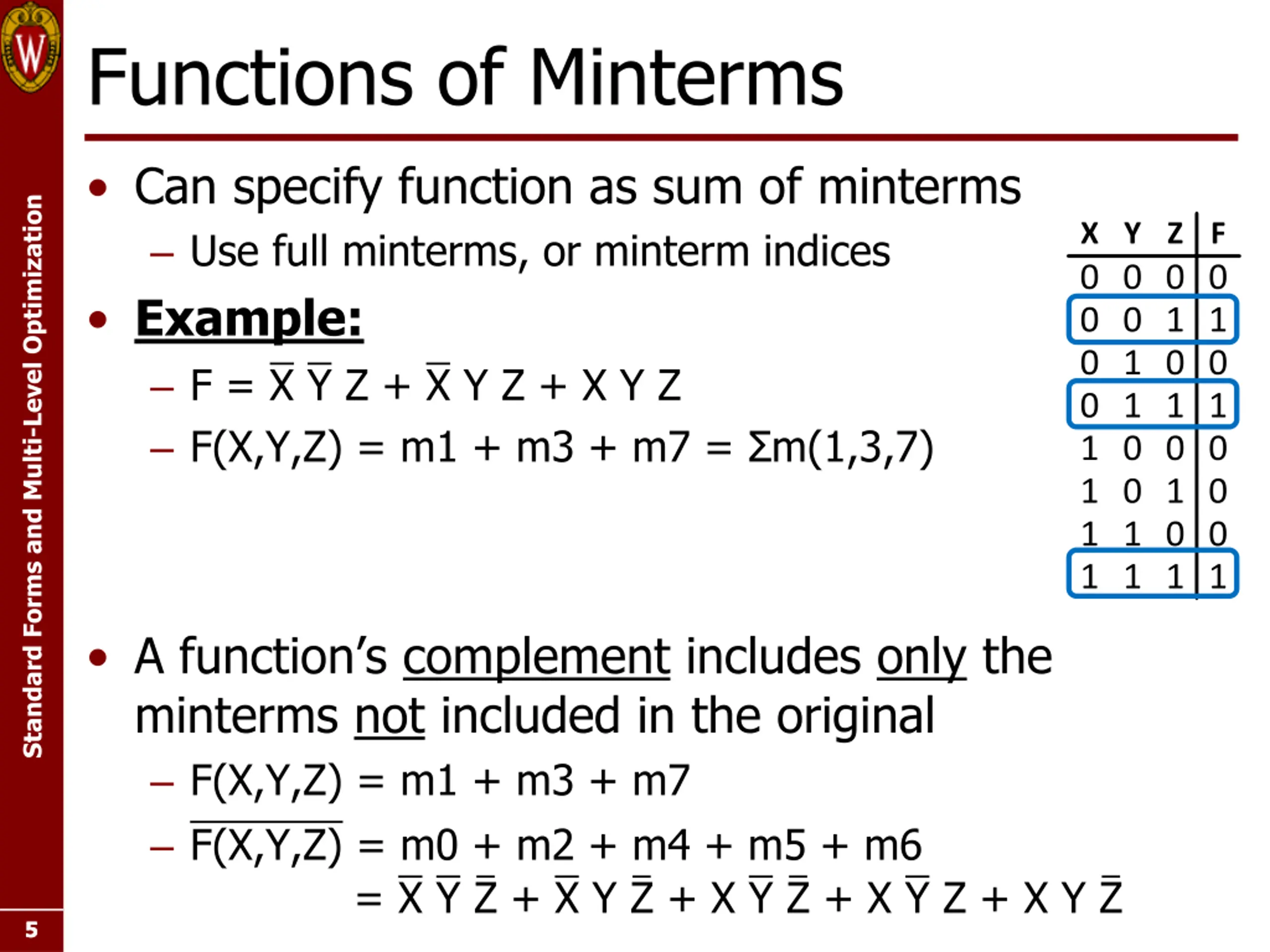

Functions of Minterms Can specify function as sum of minterms Use full minterms, or minterm indices Example: F = X Y Z + X Y Z + X Y Z F(X,Y,Z) = m1 + m3 + m7 = m(1,3,7) Standard Forms and Multi-Level Optimization X Y Z F 0 0 0 0 0 0 1 1 0 0 1 1 1 0 0 1 0 0 1 0 1 1 1 0 1 1 1 0 1 0 0 1 A function s complement includes only the minterms not included in the original F(X,Y,Z) = m1 + m3 + m7 F(X,Y,Z) = m0 + m2 + m4 + m5 + m6 = X Y Z + X Y Z + X Y Z + X Y Z + X Y Z 5 5

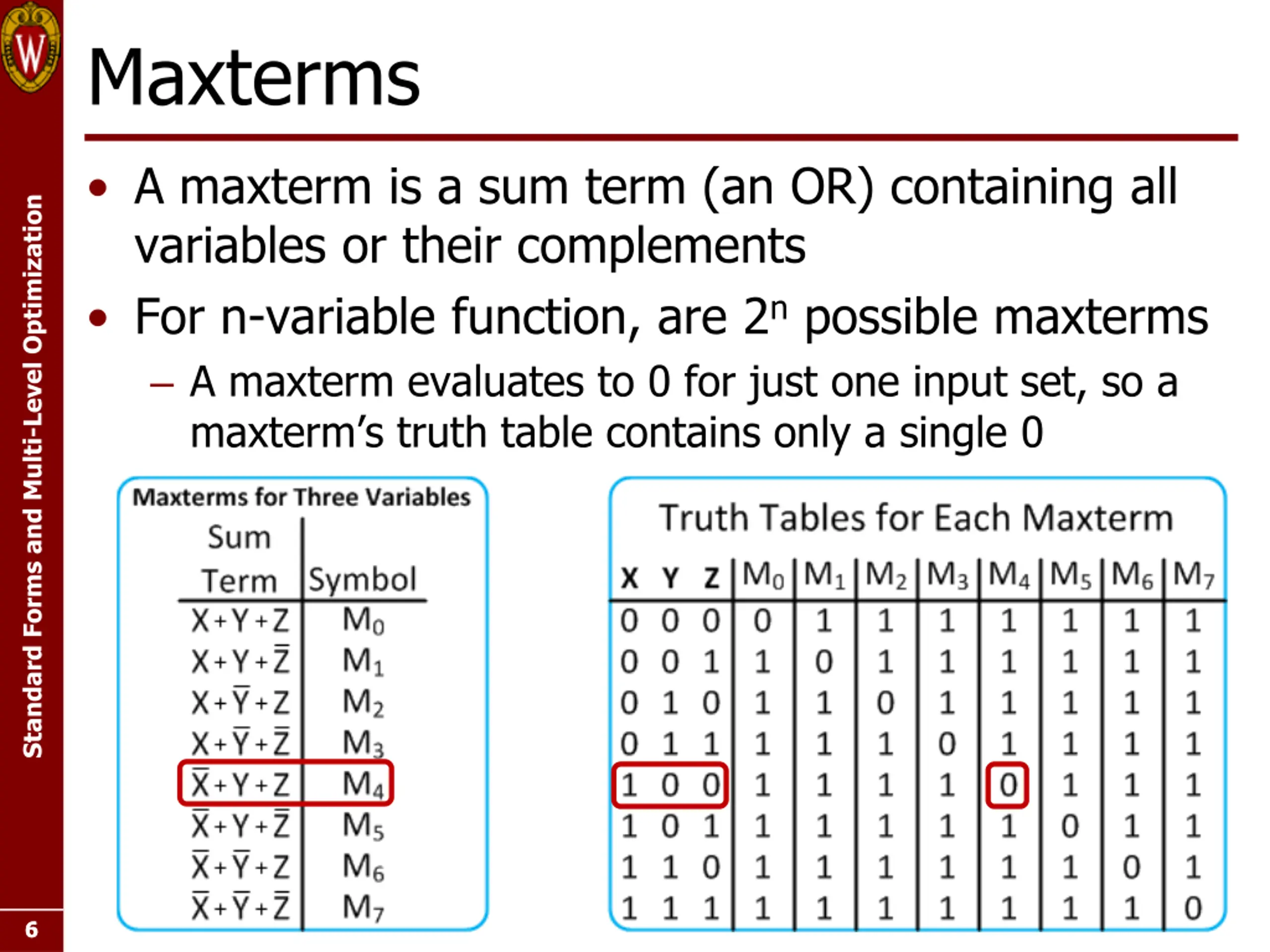

Maxterms A maxterm is a sum term (an OR) containing all variables or their complements For n-variable function, are 2n possible maxterms A maxterm evaluates to 0 for just one input set, so a maxterm s truth table contains only a single 0 Standard Forms and Multi-Level Optimization 6 6

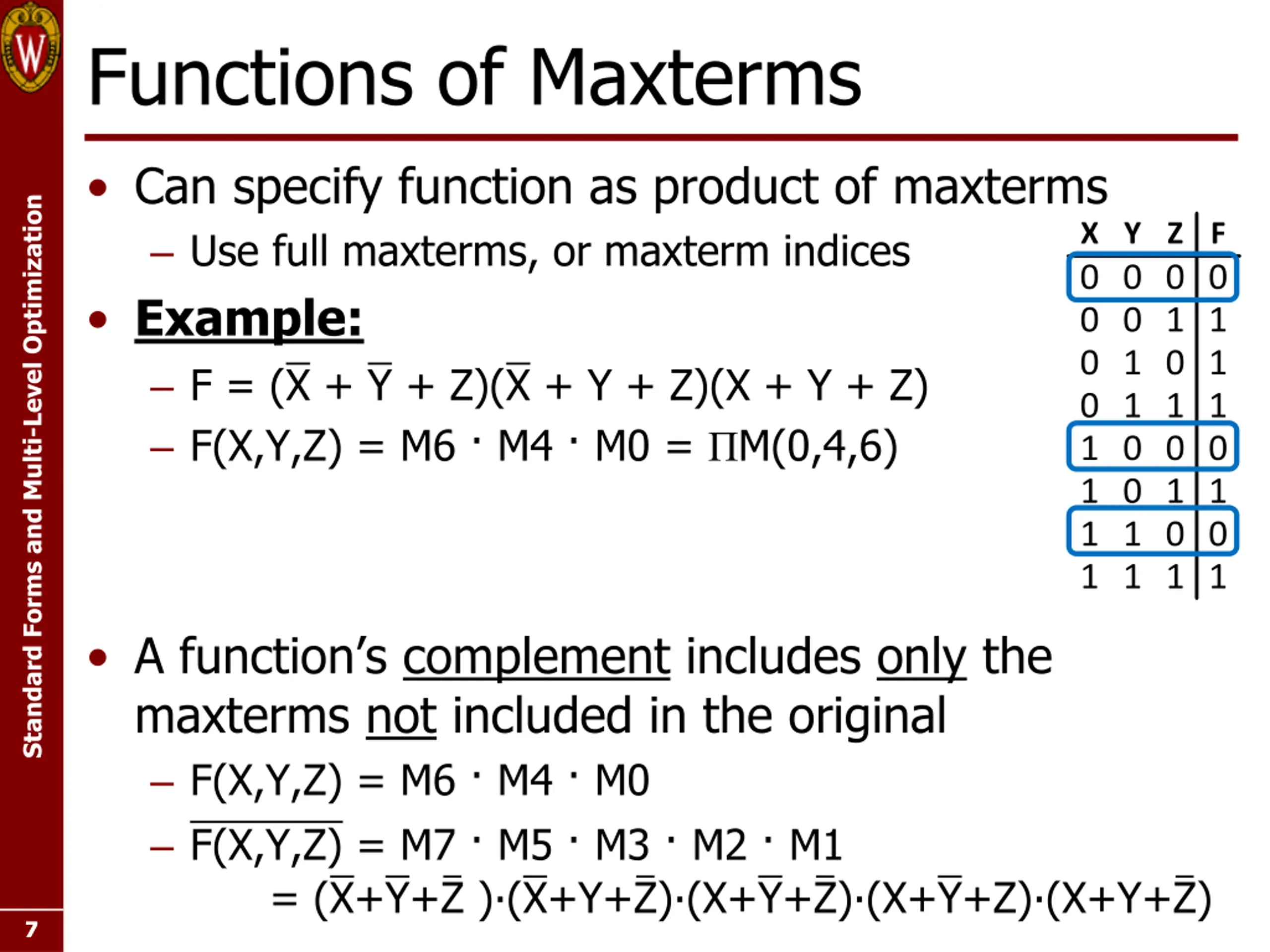

Functions of Maxterms Can specify function as product of maxterms Use full maxterms, or maxterm indices Example: F = ( X + Y + Z)( X + Y + Z)(X + Y + Z) F(X,Y,Z) = M6 M4 M0 = M(0,4,6) Standard Forms and Multi-Level Optimization X Y Z F 0 0 0 0 0 0 1 1 0 0 1 1 1 0 0 1 0 1 1 0 1 1 1 0 1 1 1 0 1 1 0 1 A function s complement includes only the maxterms not included in the original F(X,Y,Z) = M6 M4 M0 F(X,Y,Z) = M7 M5 M3 M2 M1 = ( X+ Y+ Z ) ( X+Y+ Z) (X+ Y+ Z) (X+ Y+Z) (X+Y+ Z) 7 7

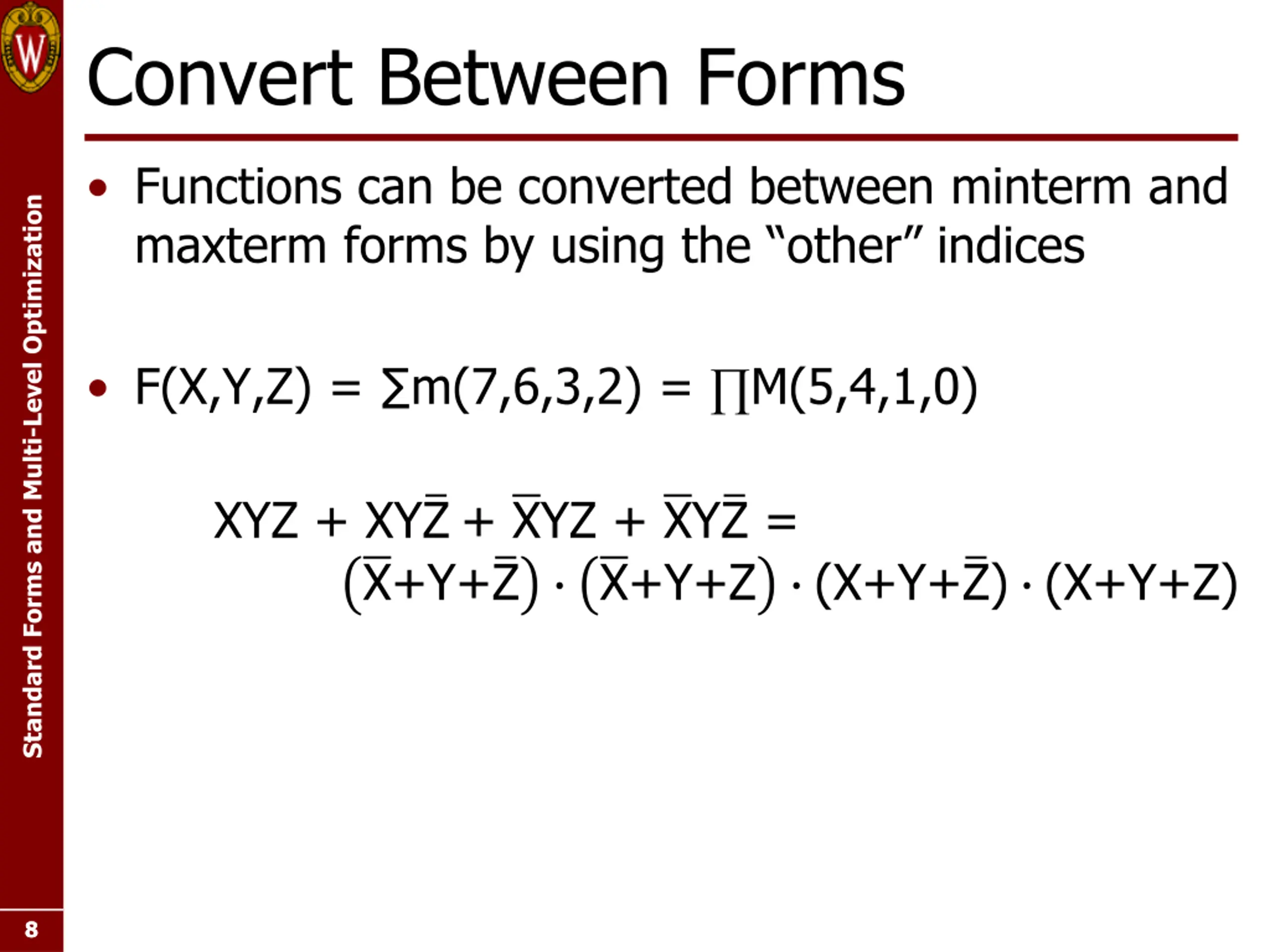

Convert Between Forms Functions can be converted between minterm and maxterm forms by using the other indices Standard Forms and Multi-Level Optimization F(X,Y,Z) = m(7,6,3,2) = M(5,4,1,0) XYZ + XY Z+ XYZ + XY Z = X+Y+ Z X+Y+Z (X+Y+ Z) (X+Y+Z) 8 8
Topics Standard Forms Sum of Products, Product of Sums Minterms and Maxterms Multi-Level Optimization Standard Forms and Multi-Level Optimization 9 9

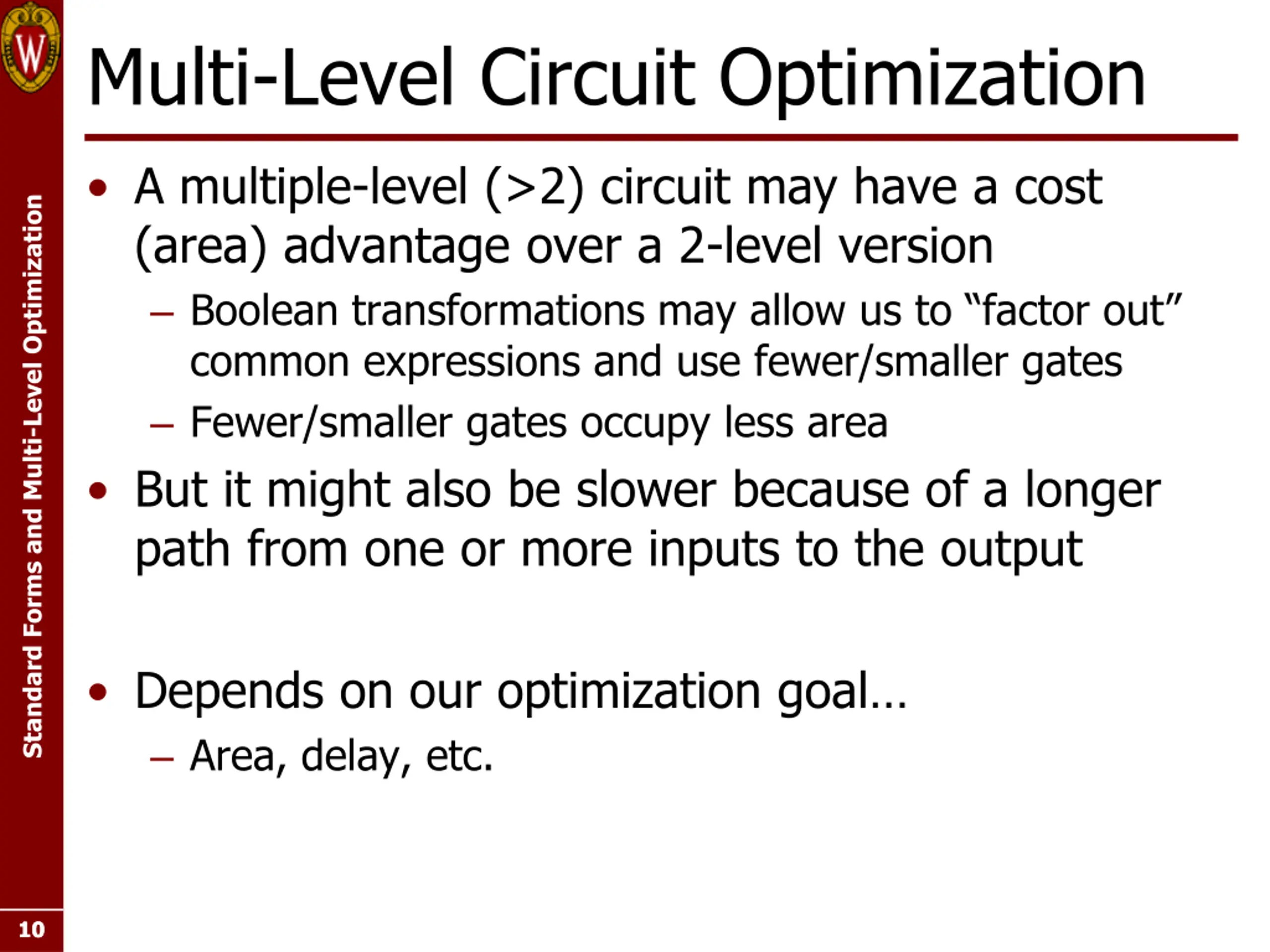

Multi-Level Circuit Optimization A multiple-level (>2) circuit may have a cost (area) advantage over a 2-level version Boolean transformations may allow us to factor out common expressions and use fewer/smaller gates Fewer/smaller gates occupy less area But it might also be slower because of a longer path from one or more inputs to the output Standard Forms and Multi-Level Optimization Depends on our optimization goal Area, delay, etc. 10 10

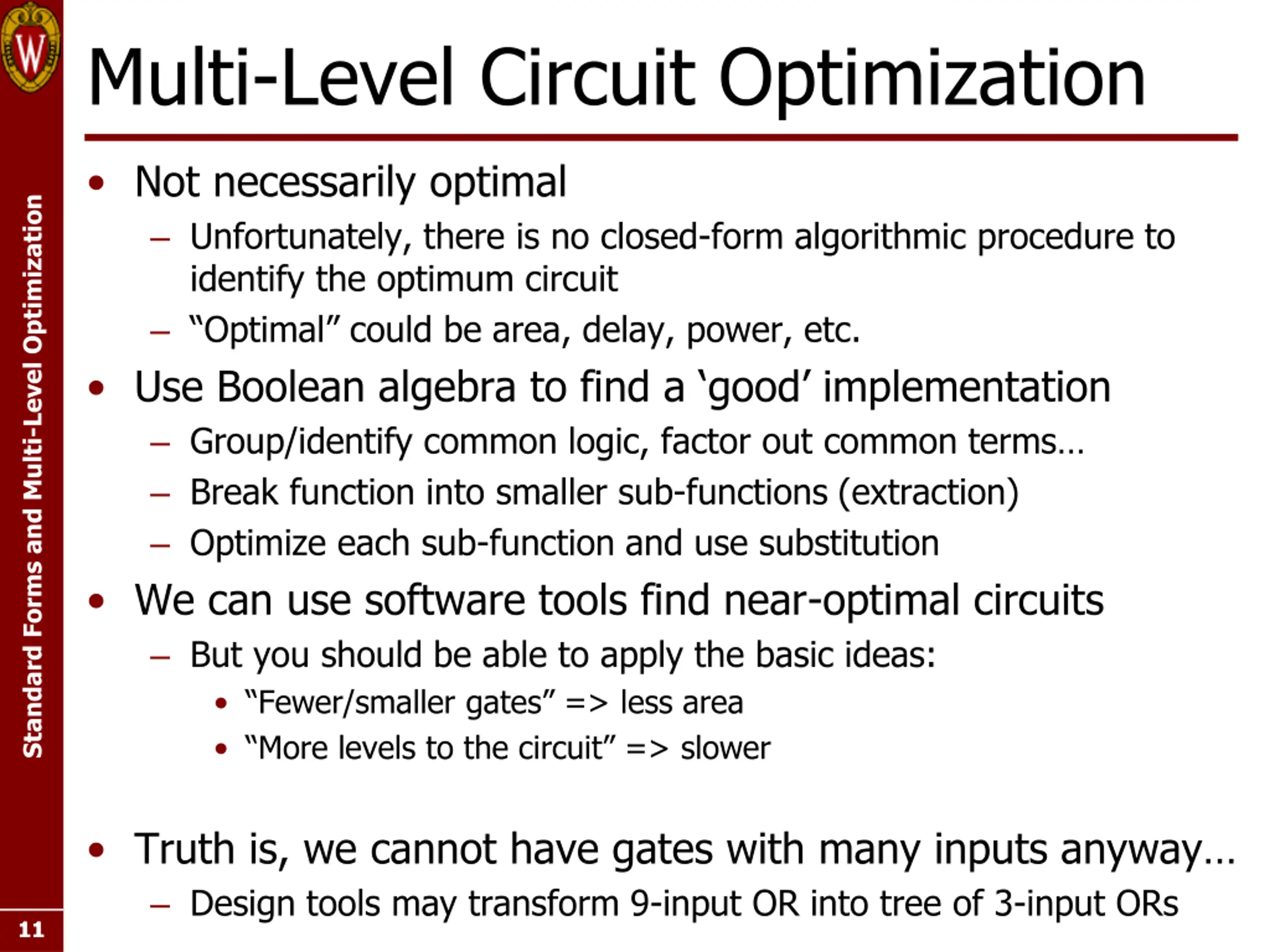

Multi-Level Circuit Optimization Not necessarily optimal Unfortunately, there is no closed-form algorithmic procedure to identify the optimum circuit Optimal could be area, delay, power, etc. Use Boolean algebra to find a good implementation Group/identify common logic, factor out common terms Break function into smaller sub-functions (extraction) Optimize each sub-function and use substitution We can use software tools find near-optimal circuits But you should be able to apply the basic ideas: Fewer/smaller gates => less area More levels to the circuit => slower Standard Forms and Multi-Level Optimization Truth is, we cannot have gates with many inputs anyway Design tools may transform 9-input OR into tree of 3-input ORs 11 11

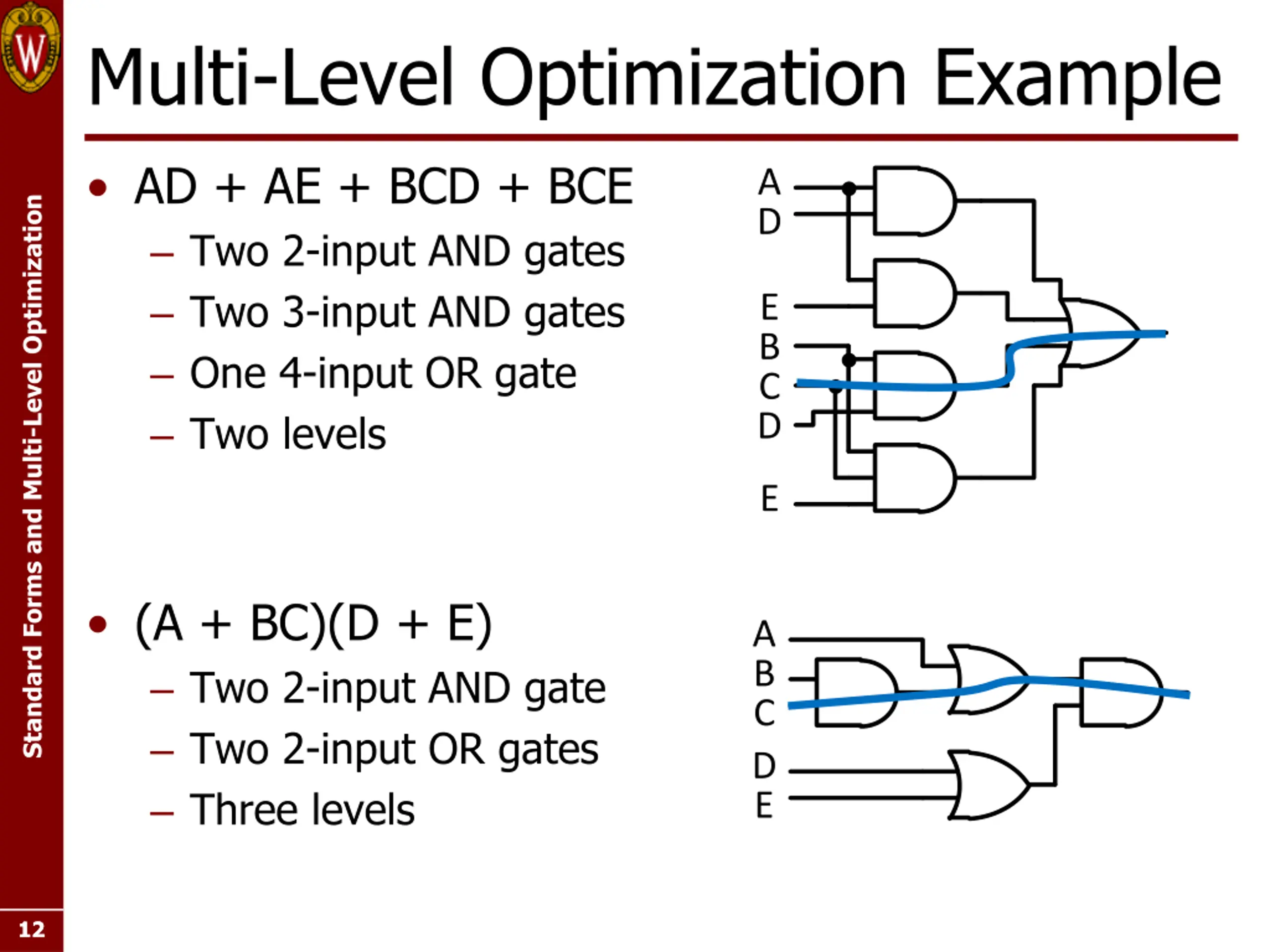

Multi-Level Optimization Example AD + AE + BCD + BCE Two 2-input AND gates Two 3-input AND gates One 4-input OR gate Two levels A D Standard Forms and Multi-Level Optimization E B C D E (A + BC)(D + E) Two 2-input AND gate Two 2-input OR gates Three levels A B C D E 12 12

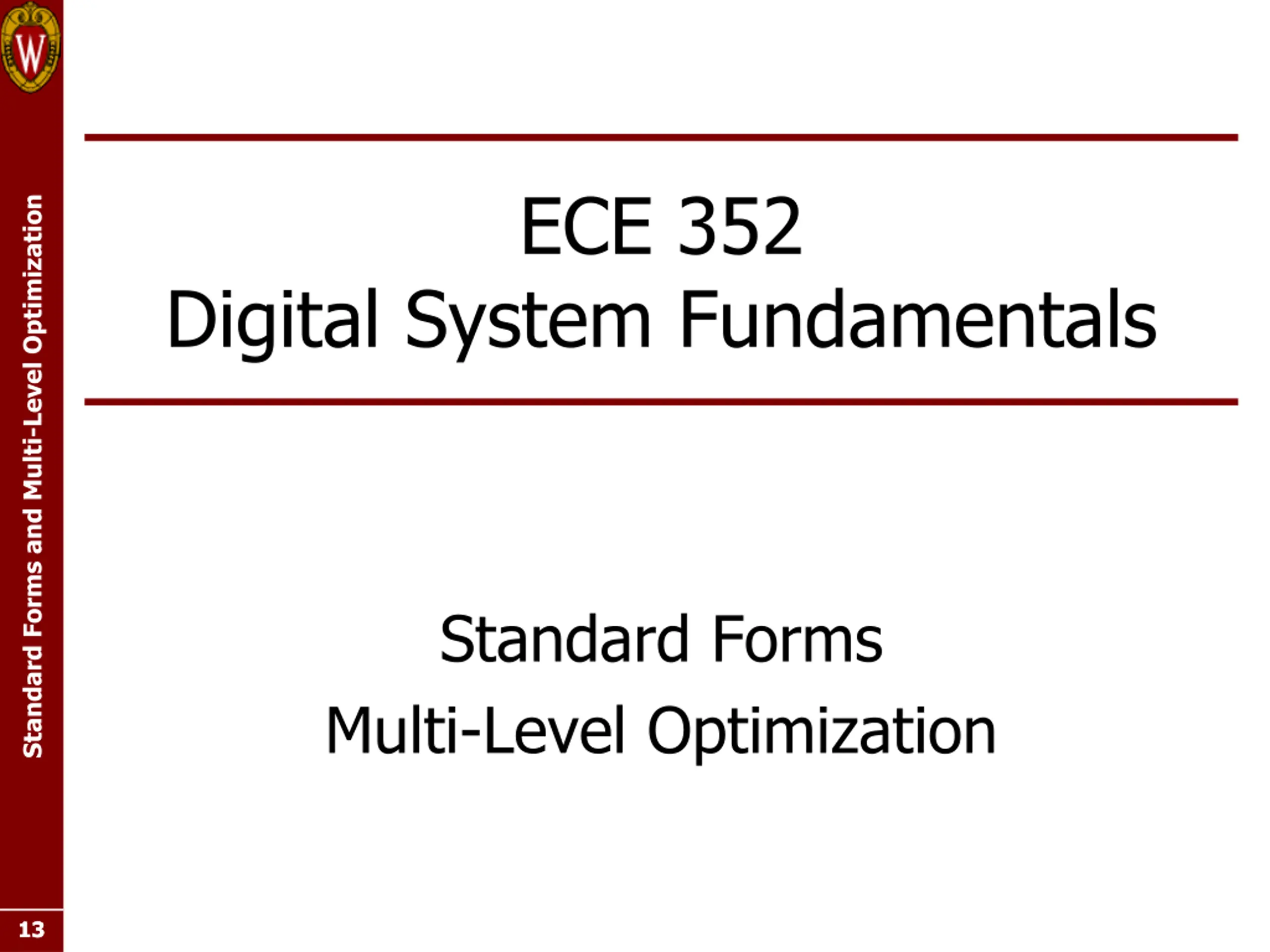

ECE 352 Standard Forms and Multi-Level Optimization Digital System Fundamentals Standard Forms Multi-Level Optimization 13 13
