Presentation Transcript

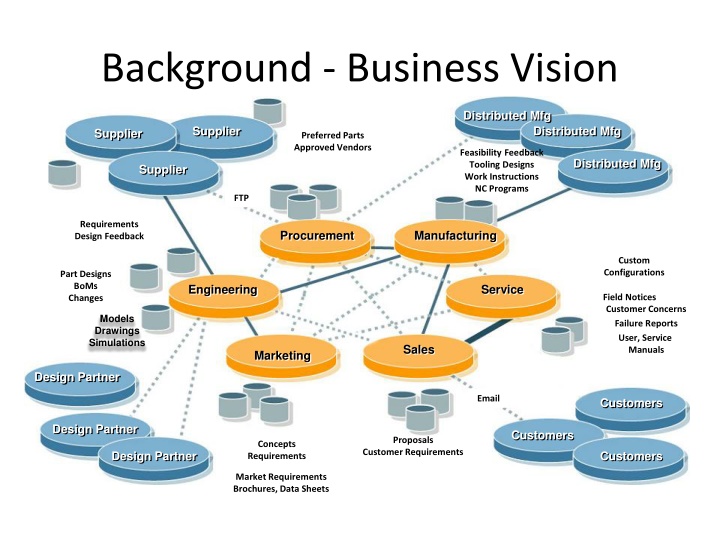

Background - Business Vision Distributed Mfg Supplier Distributed Mfg Supplier Preferred Parts Approved Vendors Feasibility Feedback Tooling Designs Work Instructions NC Programs Distributed Mfg Supplier FTP Requirements Design Feedback Procurement Manufacturing Custom Configurations Part Designs BoMs Changes Engineering Service Field Notices Customer Concerns Failure Reports User, Service Manuals Models Drawings Simulations Sales Marketing Design Partner Email Customers Design Partner Customers Proposals Concepts Requirements Customer Requirements Design Partner Customers Market Requirements Brochures, Data Sheets
Optimized Product Development System Feasibility Feedback Tooling Designs Work Instructions NC Programs Manufacturing Assembly BOMs Sharing Supplier Distributed Mfg Preferred Parts Approved Vendors Vendor Specification Representations of Designs & Specifications Procurement Manufacturing Requirements Design Feedback Part Designs Engineering BOMs Changes Validation & Test Reports Test Assembly BOMs QA and Service Engineering ECAD and MCAD 3D, Drawings, Analysis, Test & Simulations Customer Concerns Failure Reports User, Service Manuals Marketing Sales ProjectLink ProductPoint Proposals Design Partner Customers Customer Requirements Customer Requests Concepts Requirements Market Requirements Brochures, Data Sheets Custom Configurations
Engineering Focused Mentor Graphics & DXDatabook with AML & AVL India Europe Clearcase Software Electrical ProE, Ideas, UG-NX, Ansys AutoCAD Specifications & Drawings Program/Project Management Schedules & Milestones based on ECNs Mechanical RF Analysis Product Management FE Analysis Output & Reports Ottawa Stock Crt. Classifications, Categorization & Structured EBOMs, MBOMs and Test BOMs
Complete Business Vision Product Data Cycle Where the most impactful product decisions are made, features and cost determined, suppliers and materials locked-in. SCM SAP SUPPLIERS of Hardware, AMLs AVLs PDS (Windchill) ENGINEERING FOCUSED Product Data Physical Product Scope of project ERP SAP CRM Process MANUFACTURING PROCUREMENT MANAGEMENT /PROCESSES MATERIALS PROGRAM Physical Product Delivery ENGINEERING DESIGN & MANUFACTURING & TEST Product Data CUSTOMERS Release to Manufacturing Via ECNs MARKETING SALES Product Data Product Data Continual Improvement
Product Development Today PLM and ERP info Manual required entry data Engineering Design SAP Agile Database ERP System Acceptance ECN MCAD ECAD Released Design Documents In PDFs PDFs Network Flat File System Reference via naming convention PLM CAD Database Manual data entry via Lifecycle Manual extraction throughout project Manual information Exchange logging, Version tracking, PO issuing Manual Data Exchange with OEMs and ODMs
Completion of Stage 2 Engineering Design MCAD ECAD RF Tool Export Lifecycle SAP Database ERP System PLM System (Objects not files) Reference via External link Purchasing Engaging CM Manufacturability Verification Serviceability Verification
Overview of Supplier Management Organization Structure Windchill Server Site Organization(s)/Container Corporate. Suppliers/Partners Library Product Project Program Program Library Product Project Context/Container Program Project Project Project Project Project Project Project
Overview of Supplier Management Organization Structure External Organizations Manufacturing Structure Parent Companies ODMs Customers Internal Organizations Manufacturing Structure Parent Companies Partners Parent Company A Flextroni cs OEMs Parent Company Mobile and Consum er Devices Aerospa ce & Defense Automo tive Clean Tech Computi ng Industria l Infrastru cture Subsidiaries Medical Shipping Sites/Locations (ERP) A B C D Suppliers of various Cost/OEM products Parent Company B Vendors
4 Separate Configurations to Capture At the Point of Release Product Definition & Requirements (Marketing) MRD/ RCN Product Design and Engineering (Engineering) ECO/ ECN Production (Manufacturing) MCO/ MCN Distribution, Sales and Support (Procurement & Supply Chain)
Object Type Lifecycle Process & States Change Request Future Option In Under Review Approved Implementation Resolved Cancelled Work Option Start A Change Notice In Under Review Approved Implementated Closed Rejected Cancelled Work Effectivity Change Activity(ies) (Package Approval) Under Review In Work Resolved Cancelled Resulting Objects Option Start B Preliminary In Work Preliminary Preliminary Released Preliminary Cancelled CN InWork Approved Drawing Document Released Cancelled Superseded Obsolete Review Numeric Alpha AffectedObjects Released Cancelled Superseded Obsolete
Rate of Change and Number of Configurations Rate of Change and Number of Configurations Static Bombardie r Corporate Marketing and Requirements Bombardie r Transporta tion Bombardie r Aerospace Engineering Partners ODMs OEMs Vendors OCMs A B D E Internal Manufacturing and Production Assembly Dynamic
