Pointer analysis John Rollinson & Kaiyuan Li 15745 - Optimizing Compilers for Modern Architectures, Spring 2019

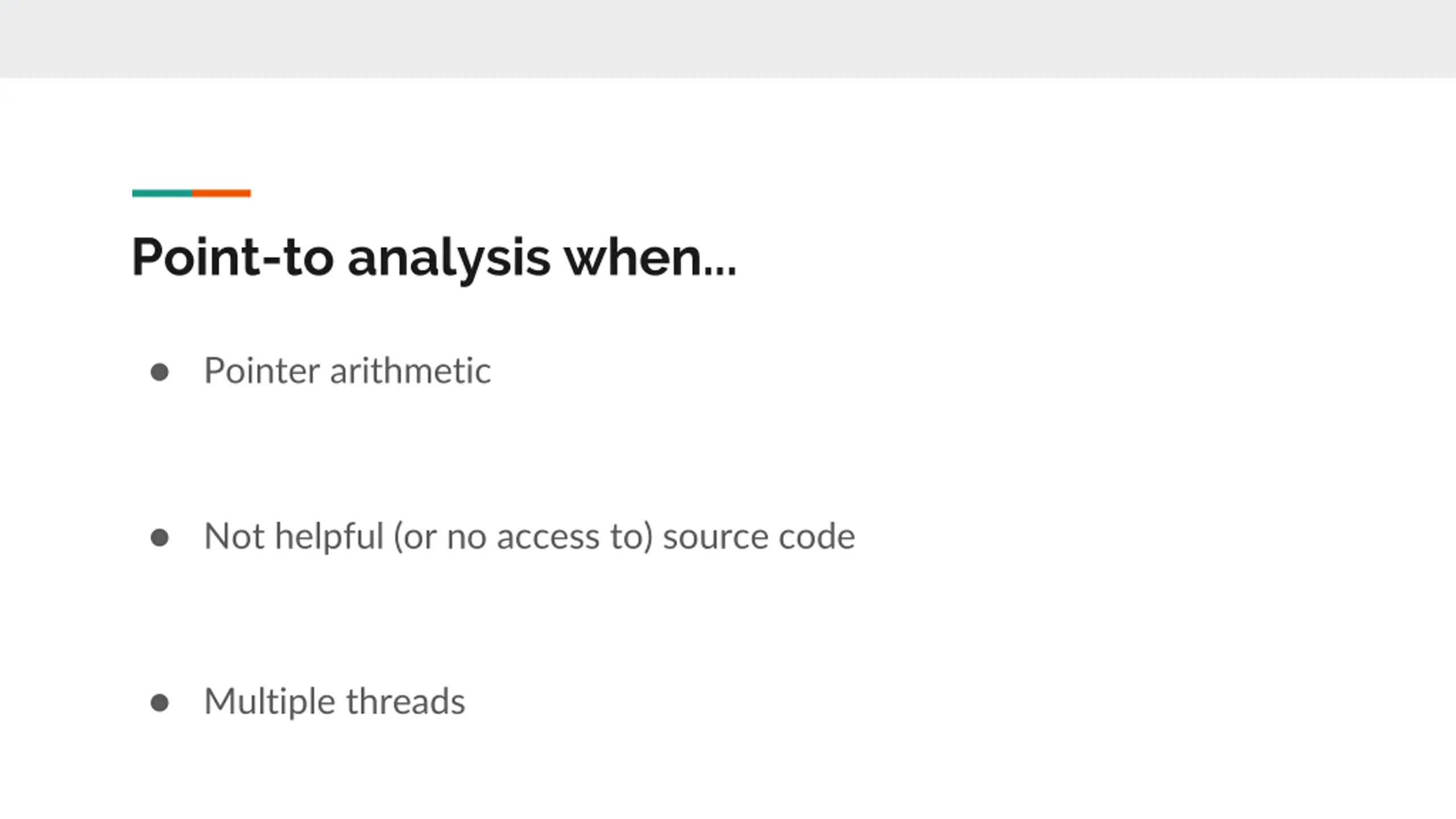

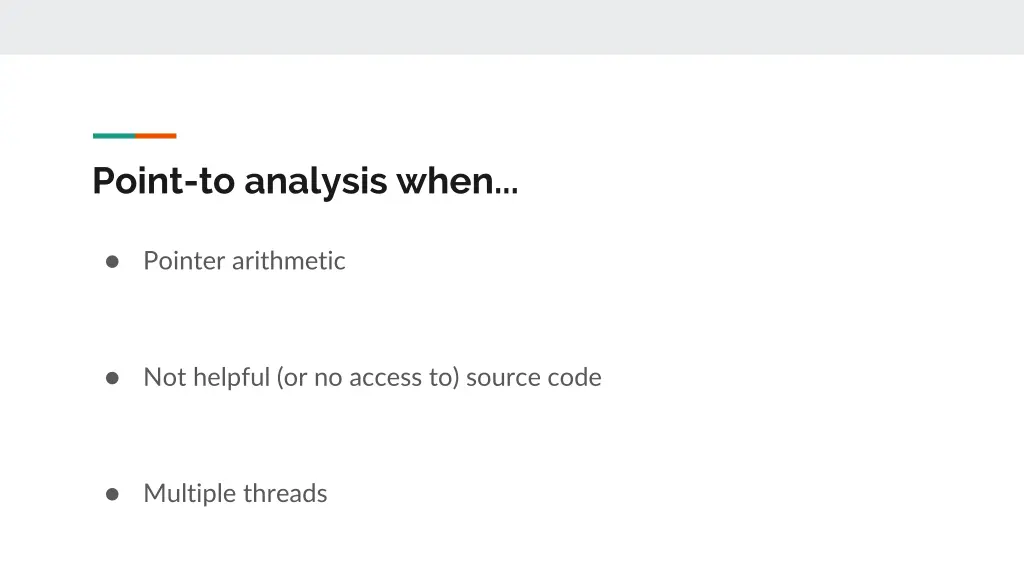

Point-to analysis when... Pointer arithmetic Not helpful (or no access to) source code Multiple threads

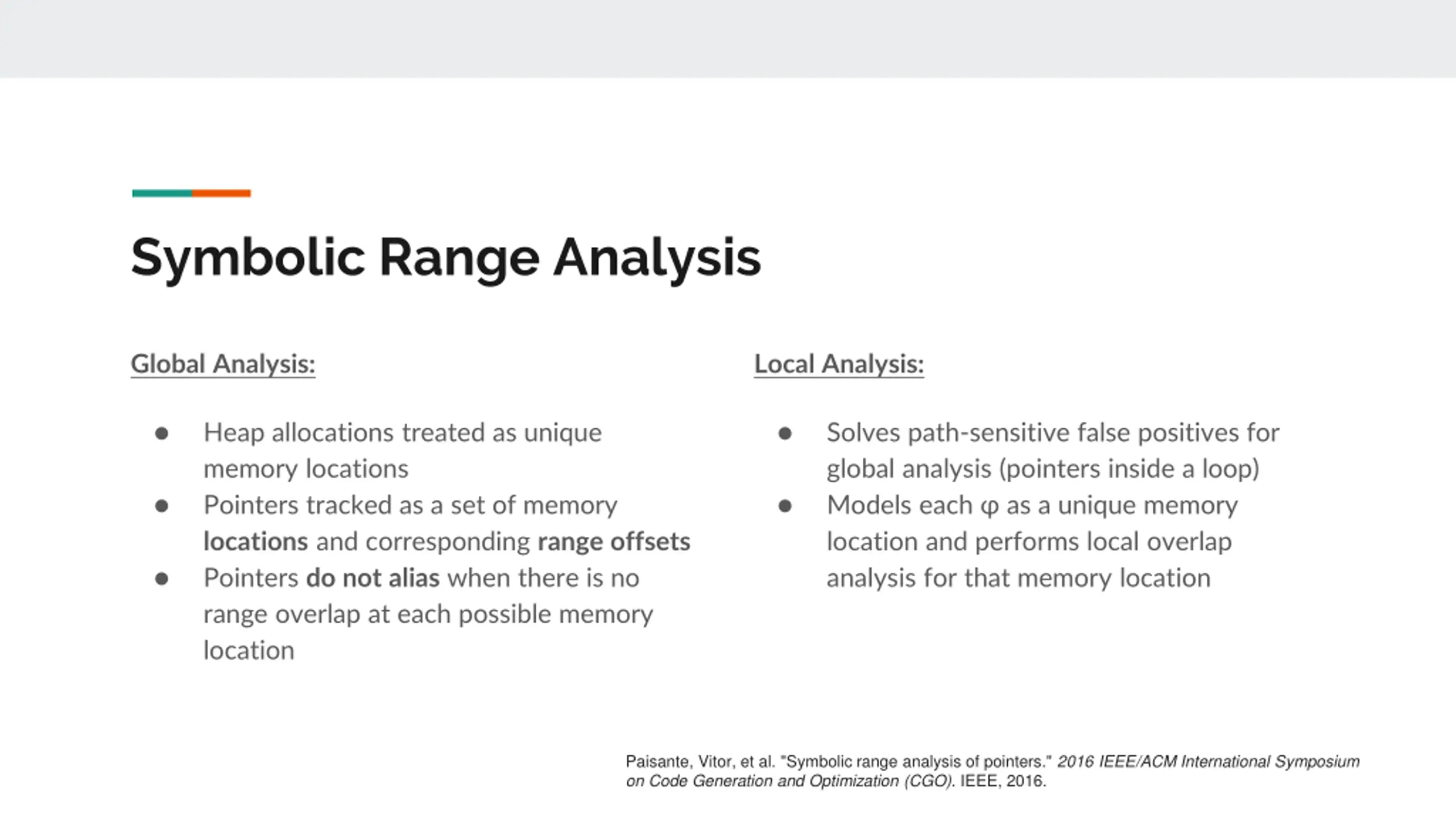

Symbolic Range Analysis Global Analysis: Local Analysis: Heap allocations treated as unique memory locations Pointers tracked as a set of memory locations and corresponding range offsets Pointers do not alias when there is no range overlap at each possible memory location Solves path-sensitive false positives for global analysis (pointers inside a loop) Models each as a unique memory location and performs local overlap analysis for that memory location Paisante, Vitor, et al. "Symbolic range analysis of pointers." 2016 IEEE/ACM International Symposium on Code Generation and Optimization (CGO). IEEE, 2016.

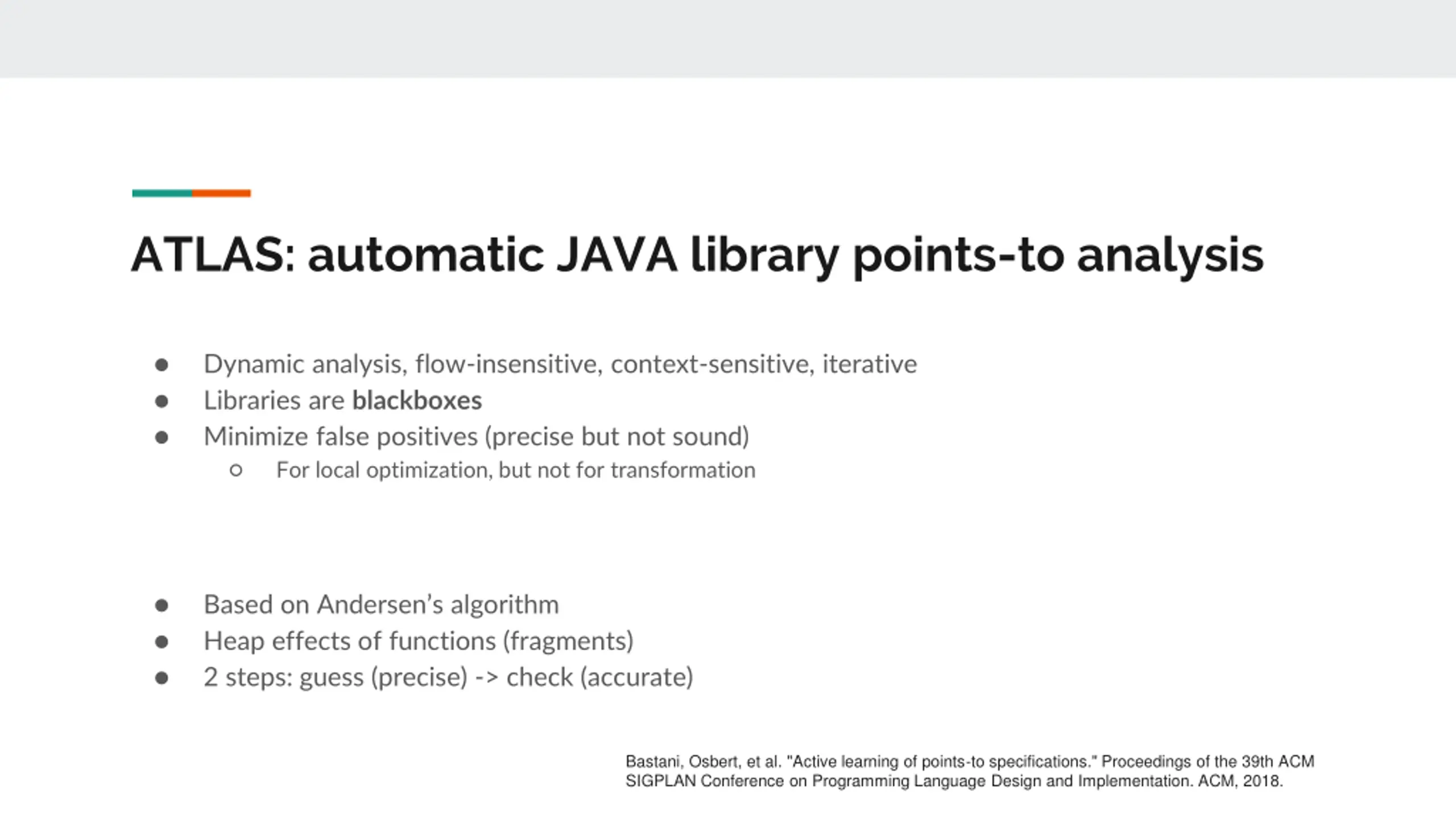

ATLAS: automatic JAVA library points-to analysis Dynamic analysis, flow-insensitive, context-sensitive, iterative Libraries are blackboxes Minimize false positives (precise but not sound) For local optimization, but not for transformation Based on Andersen s algorithm Heap effects of functions (fragments) 2 steps: guess (precise) -> check (accurate) Bastani, Osbert, et al. "Active learning of points-to specifications." Proceedings of the 39th ACM SIGPLAN Conference on Programming Language Design and Implementation. ACM, 2018.

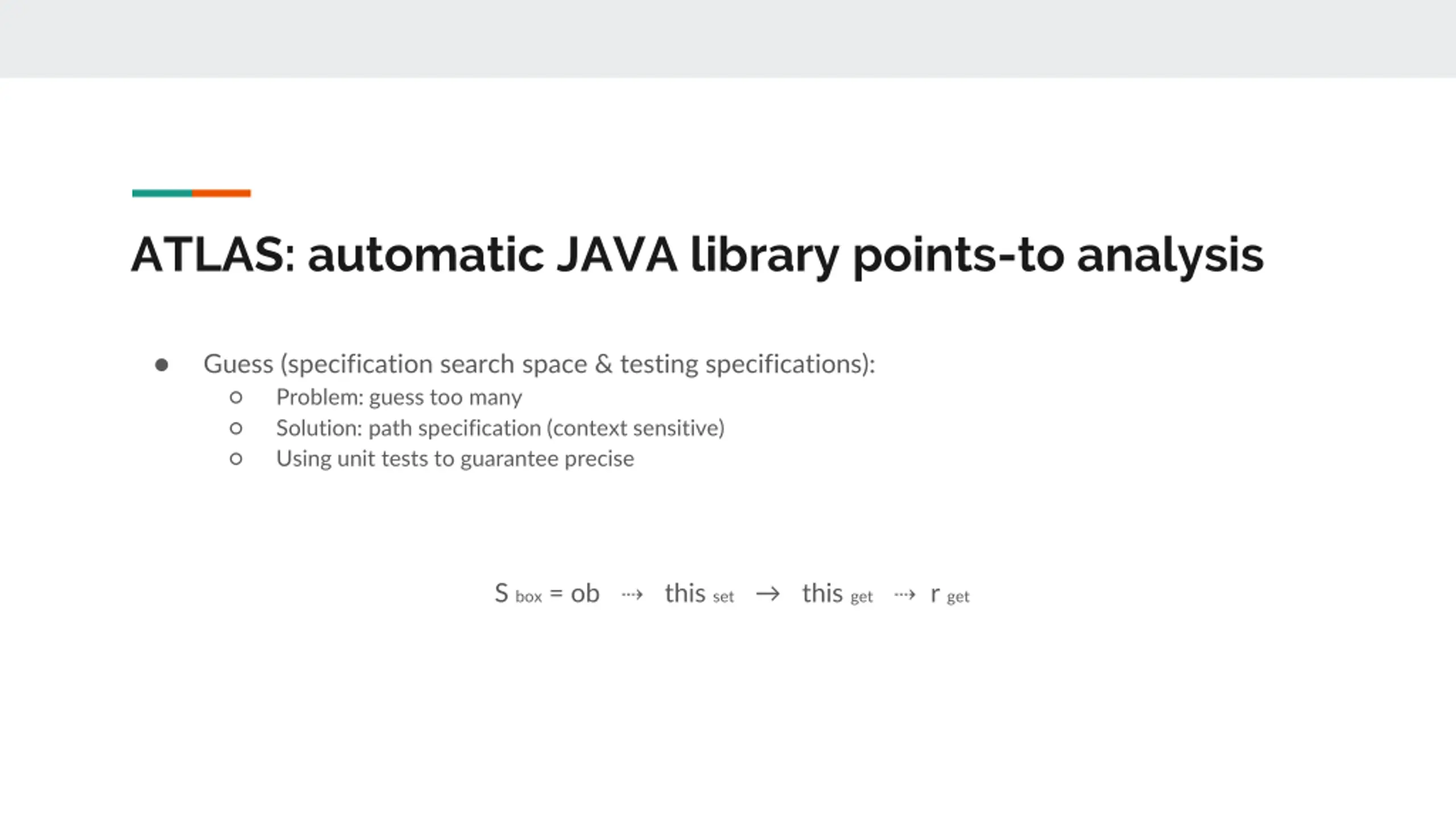

ATLAS: automatic JAVA library points-to analysis Guess (specification search space & testing specifications): Problem: guess too many Solution: path specification (context sensitive) Using unit tests to guarantee precise S box = ob this set this get r get

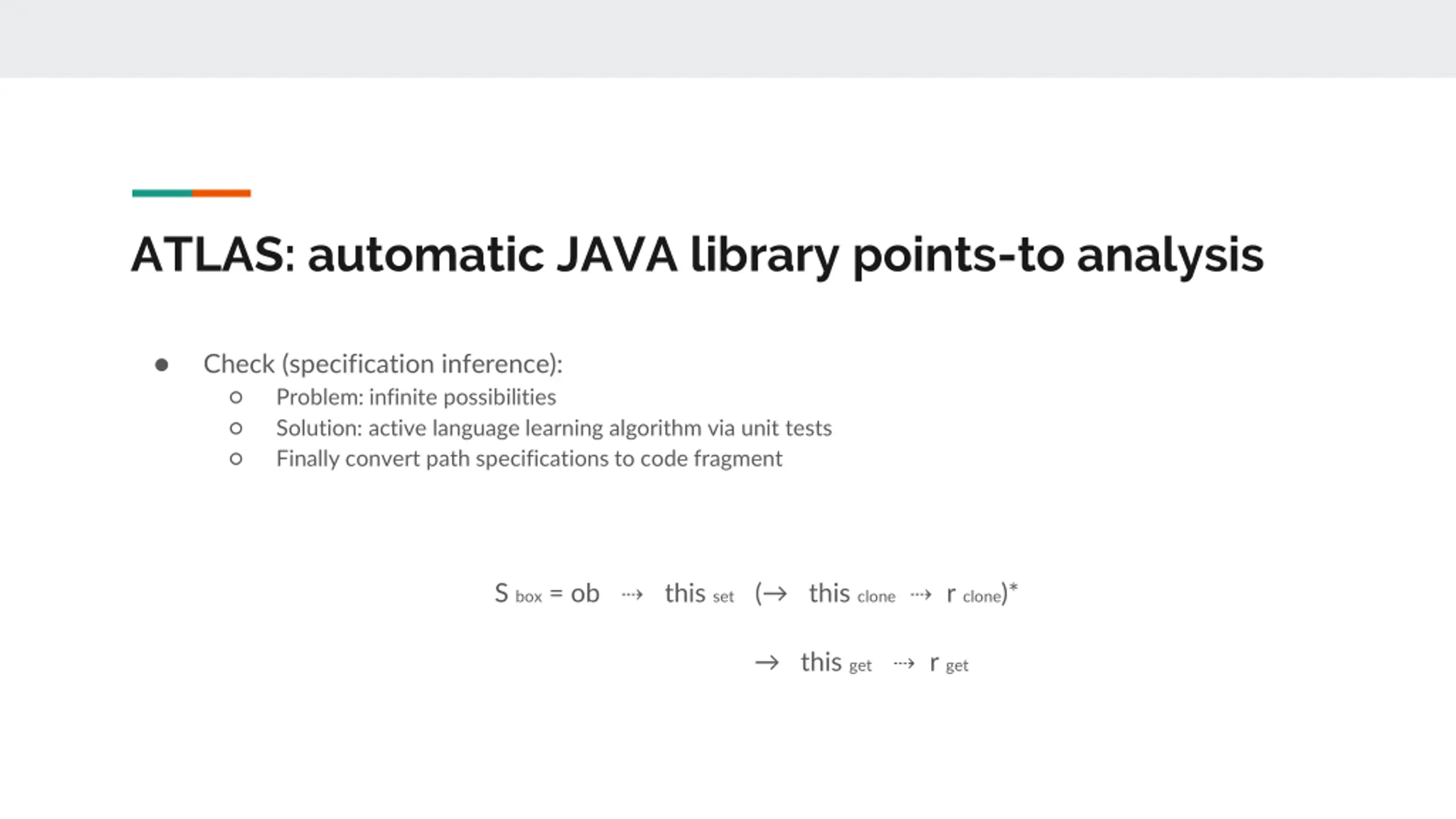

ATLAS: automatic JAVA library points-to analysis Check (specification inference): Problem: infinite possibilities Solution: active language learning algorithm via unit tests Finally convert path specifications to code fragment S box = ob this set ( this clone r clone)* this get r get

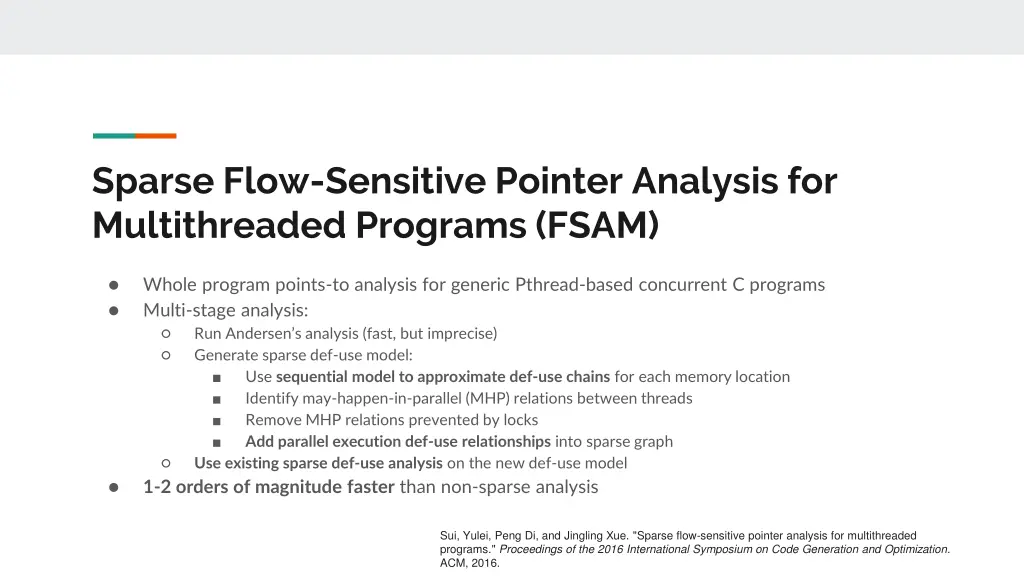

Sparse Flow-Sensitive Pointer Analysis for Multithreaded Programs (FSAM) Whole program points-to analysis for generic Pthread-based concurrent C programs Multi-stage analysis: Run Andersen s analysis (fast, but imprecise) Generate sparse def-use model: Use sequential model to approximate def-use chains for each memory location Identify may-happen-in-parallel (MHP) relations between threads Remove MHP relations prevented by locks Add parallel execution def-use relationships into sparse graph Use existing sparse def-use analysis on the new def-use model 1-2 orders of magnitude faster than non-sparse analysis Sui, Yulei, Peng Di, and Jingling Xue. "Sparse flow-sensitive pointer analysis for multithreaded programs." Proceedings of the 2016 International Symposium on Code Generation and Optimization. ACM, 2016.

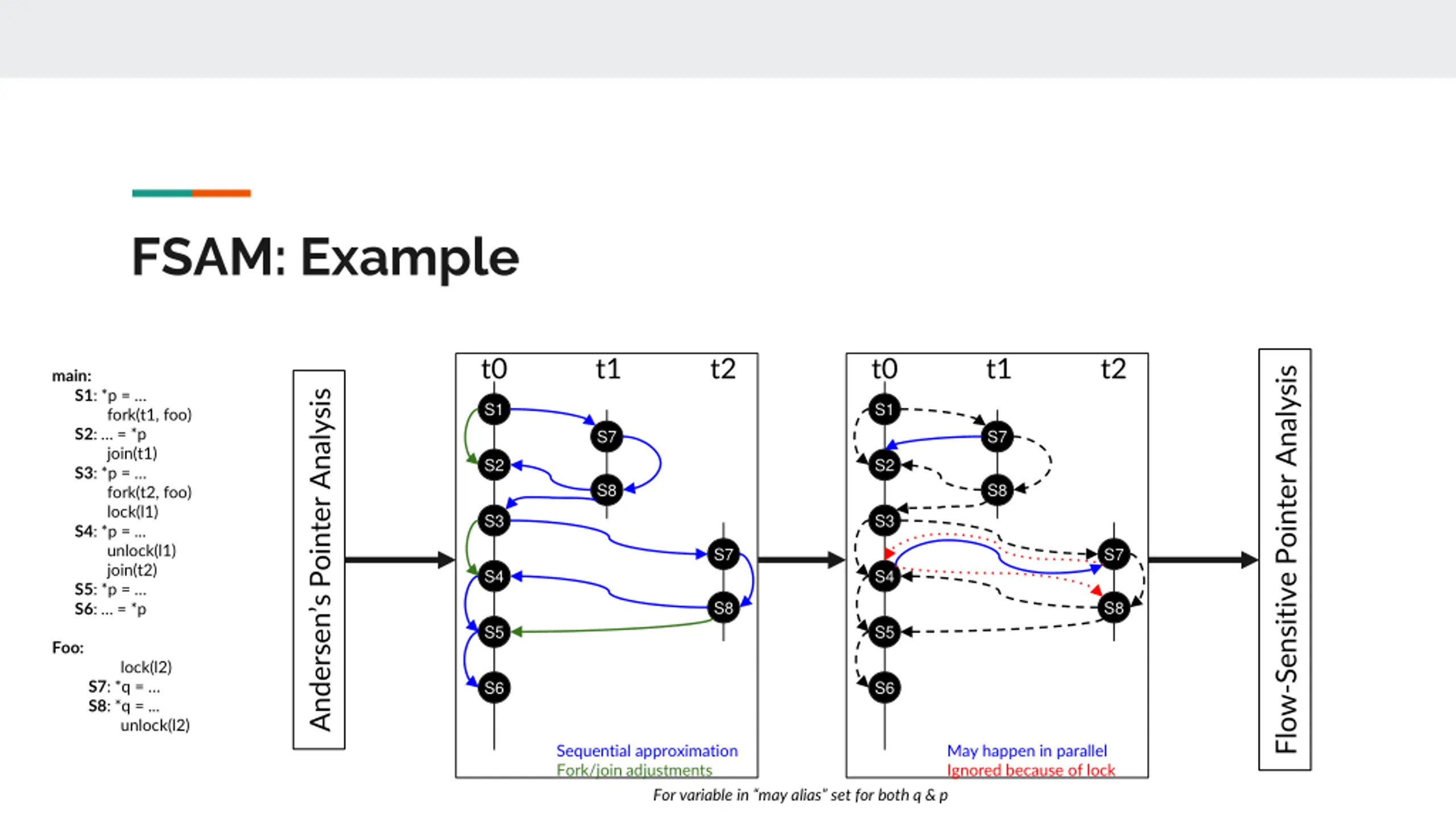

FSAM: Example t0 t1 t2 t0 t1 t2 Flow-Sensitive Pointer Analysis main: S1: *p = fork(t1, foo) S2: = *p join(t1) S3: *p = fork(t2, foo) lock(l1) S4: *p = ... unlock(l1) join(t2) S5: *p = S6: = *p Andersen s Pointer Analysis S1 S1 S7 S7 S2 S2 S8 S8 S3 S3 S7 S7 S4 S4 S8 S8 S5 S5 Foo: lock(l2) S7: *q = S8: *q = ... unlock(l2) S6 S6 Sequential approximation Fork/join adjustments May happen in parallel Ignored because of lock For variable in may alias set for both q & p
