Transmit and Receive Contexts Sean Hefty

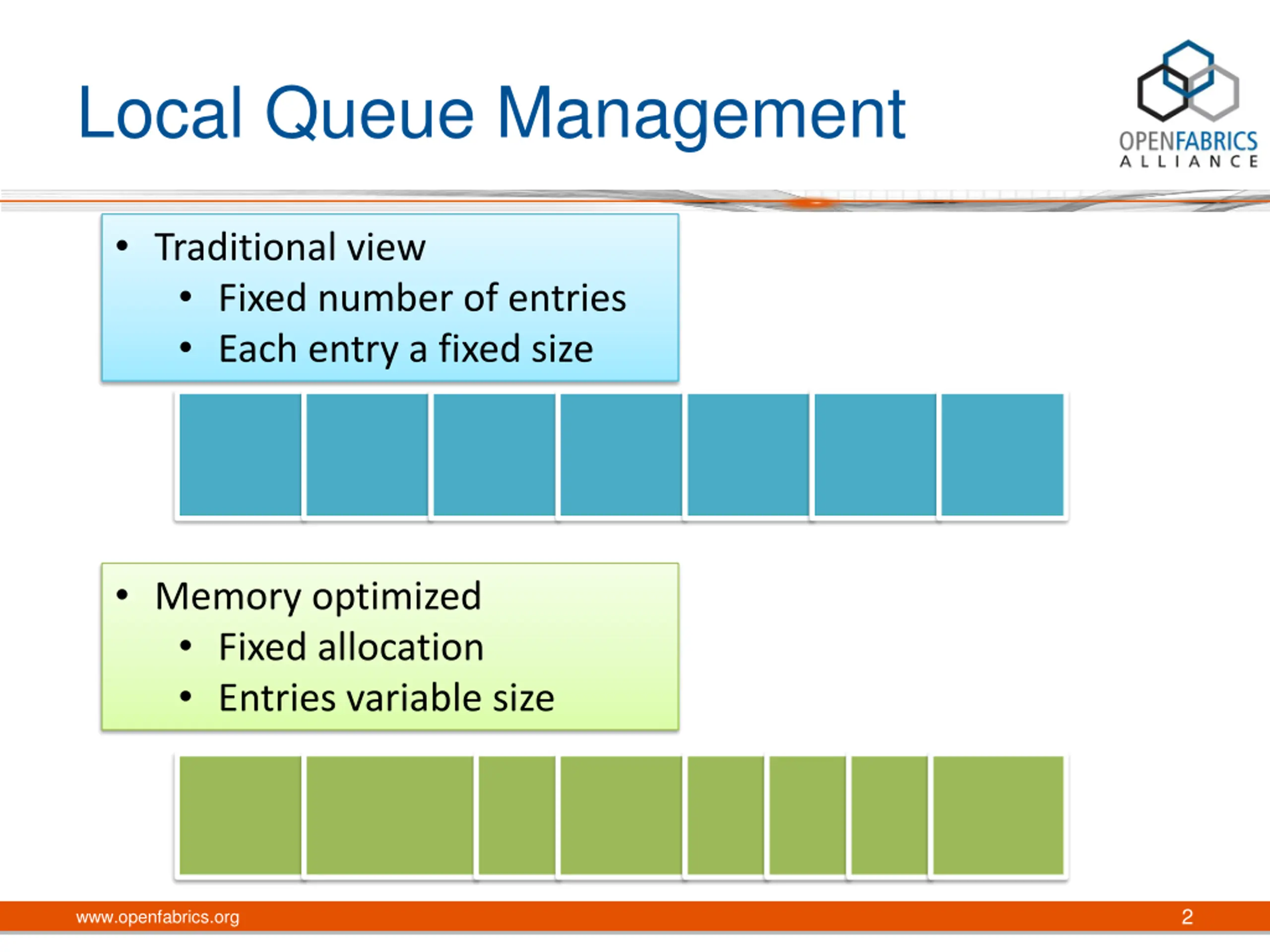

Local Queue Management Traditional view Fixed number of entries Each entry a fixed size Memory optimized Fixed allocation Entries variable size 2 www.openfabrics.org

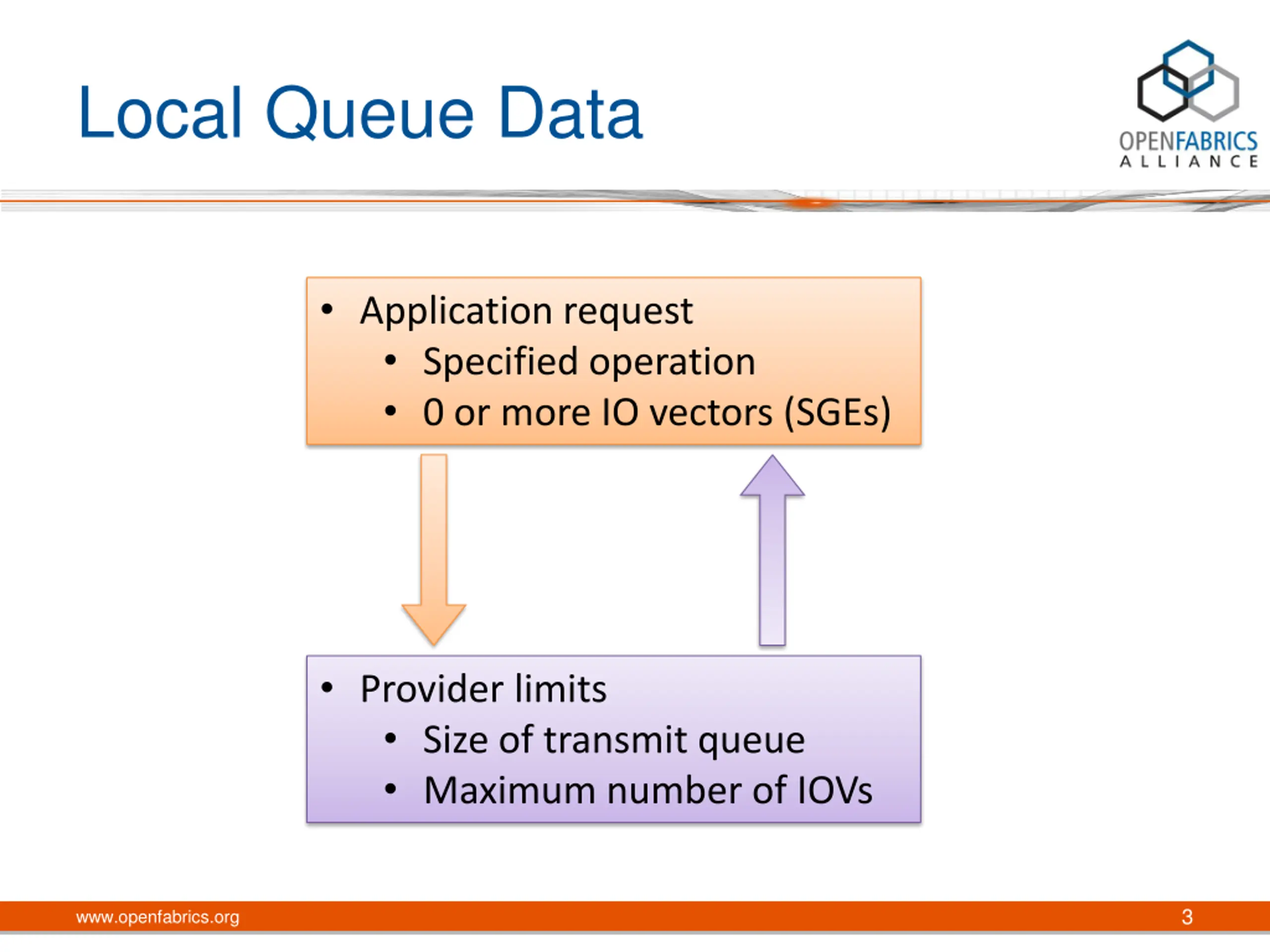

Local Queue Data Application request Specified operation 0 or more IO vectors (SGEs) Provider limits Size of transmit queue Maximum number of IOVs 3 www.openfabrics.org

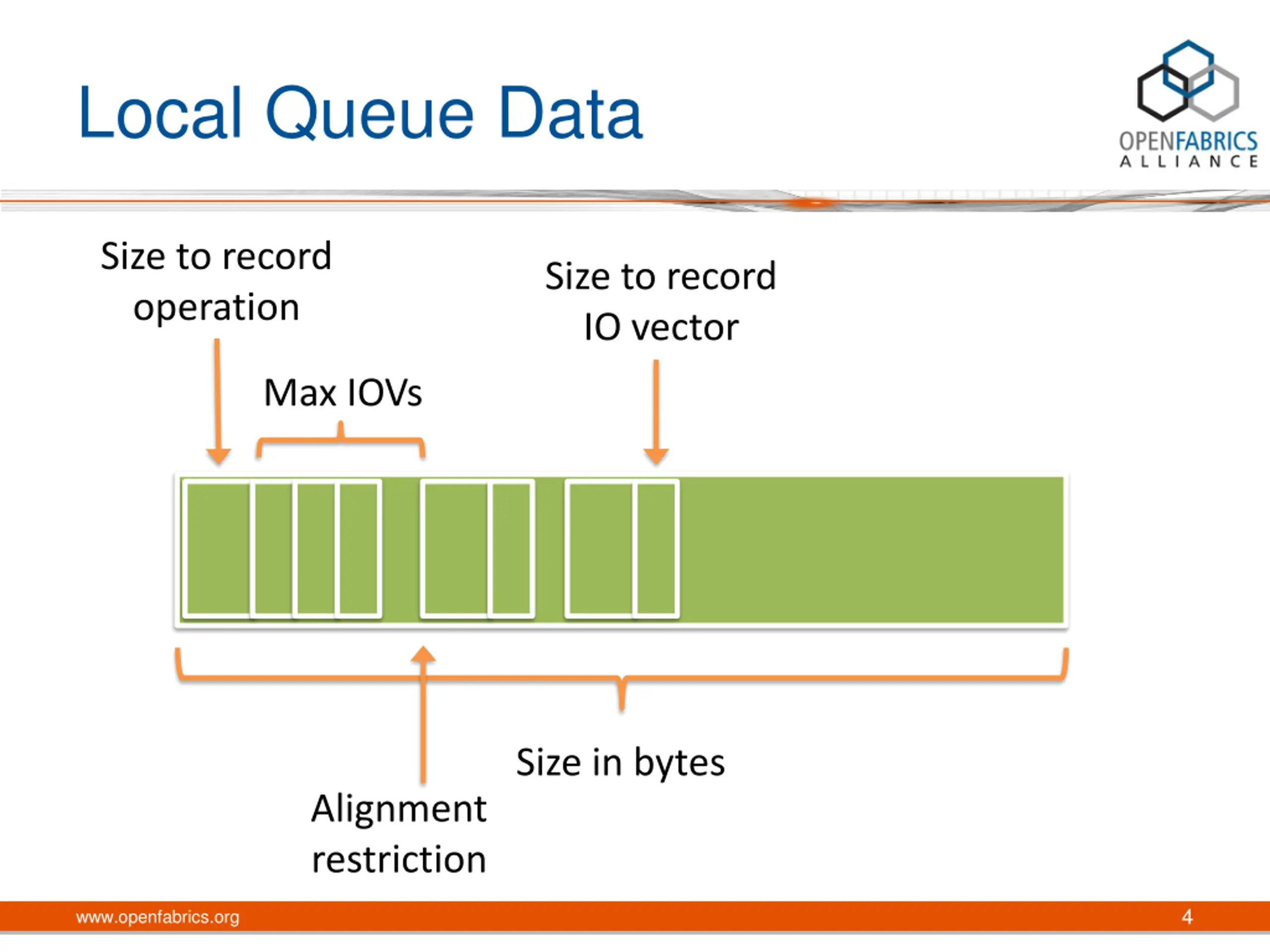

Local Queue Data Size to record operation Size to record IO vector Max IOVs Size in bytes Alignment restriction 4 www.openfabrics.org

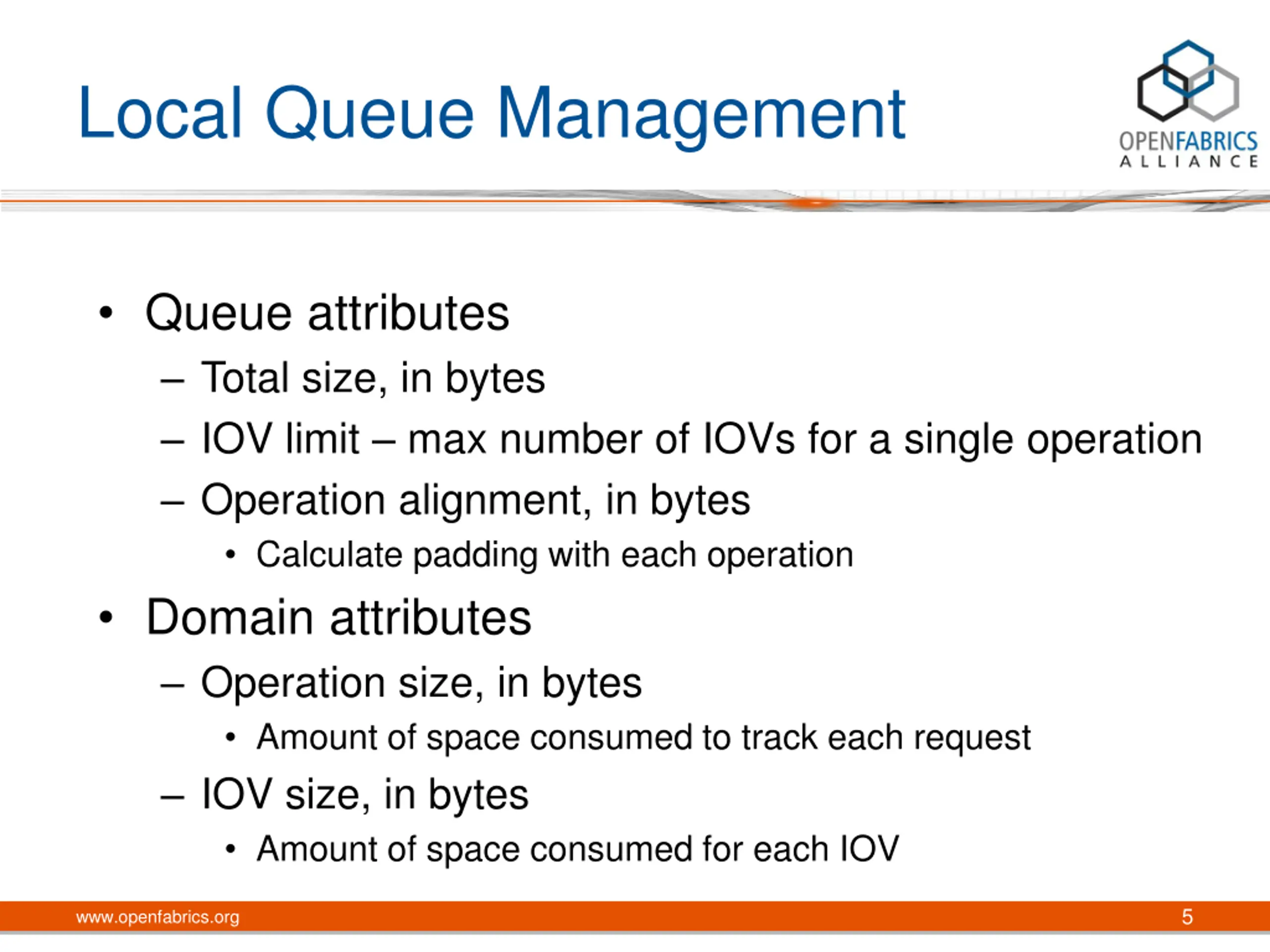

Local Queue Management Queue attributes Total size, in bytes IOV limit max number of IOVs for a single operation Operation alignment, in bytes Calculate padding with each operation Domain attributes Operation size, in bytes Amount of space consumed to track each request IOV size, in bytes Amount of space consumed for each IOV 5 www.openfabrics.org

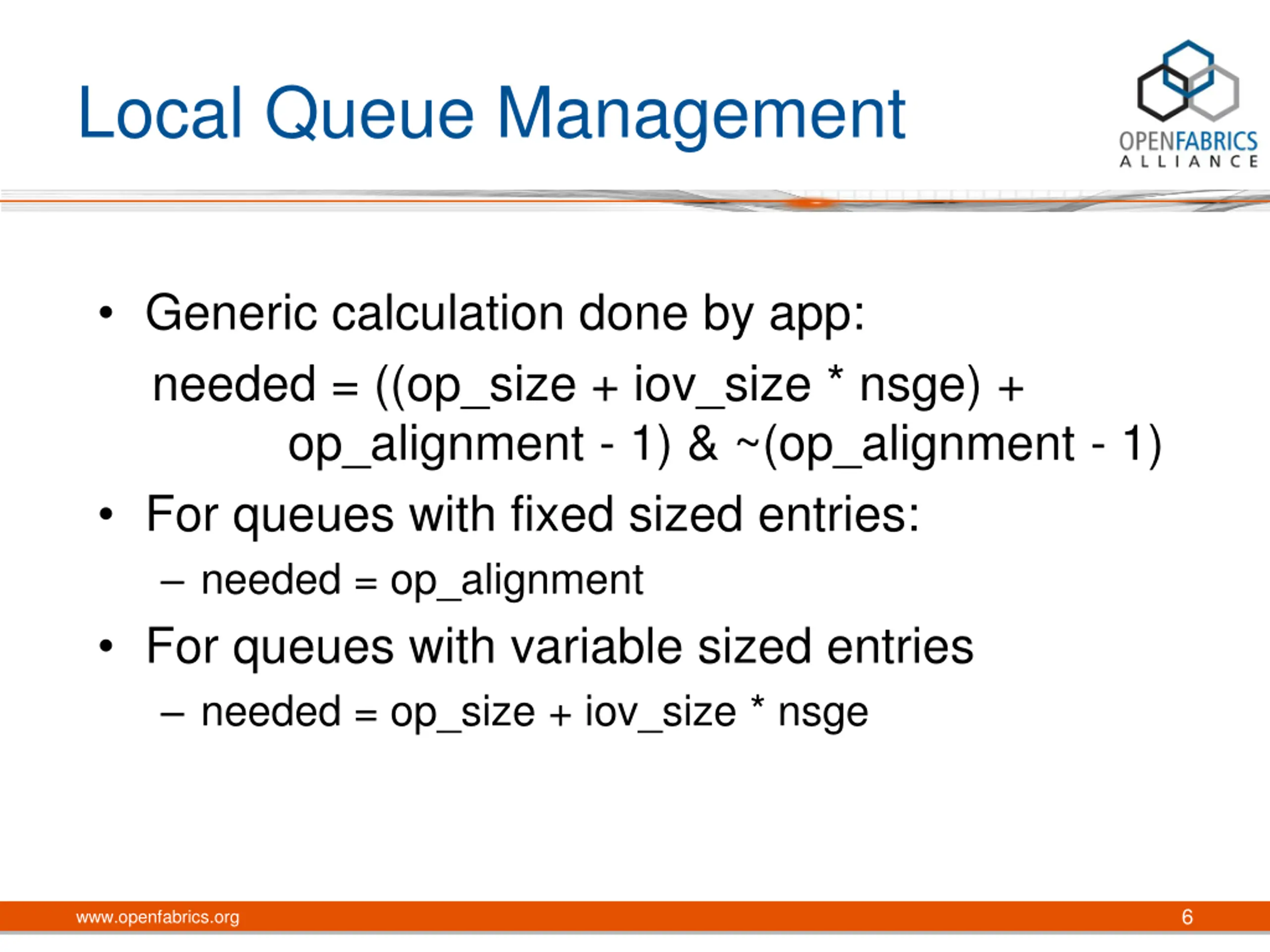

Local Queue Management Generic calculation done by app: needed = ((op_size + iov_size * nsge) + op_alignment - 1) & ~(op_alignment - 1) For queues with fixed sized entries: needed = op_alignment For queues with variable sized entries needed = op_size + iov_size * nsge 6 www.openfabrics.org

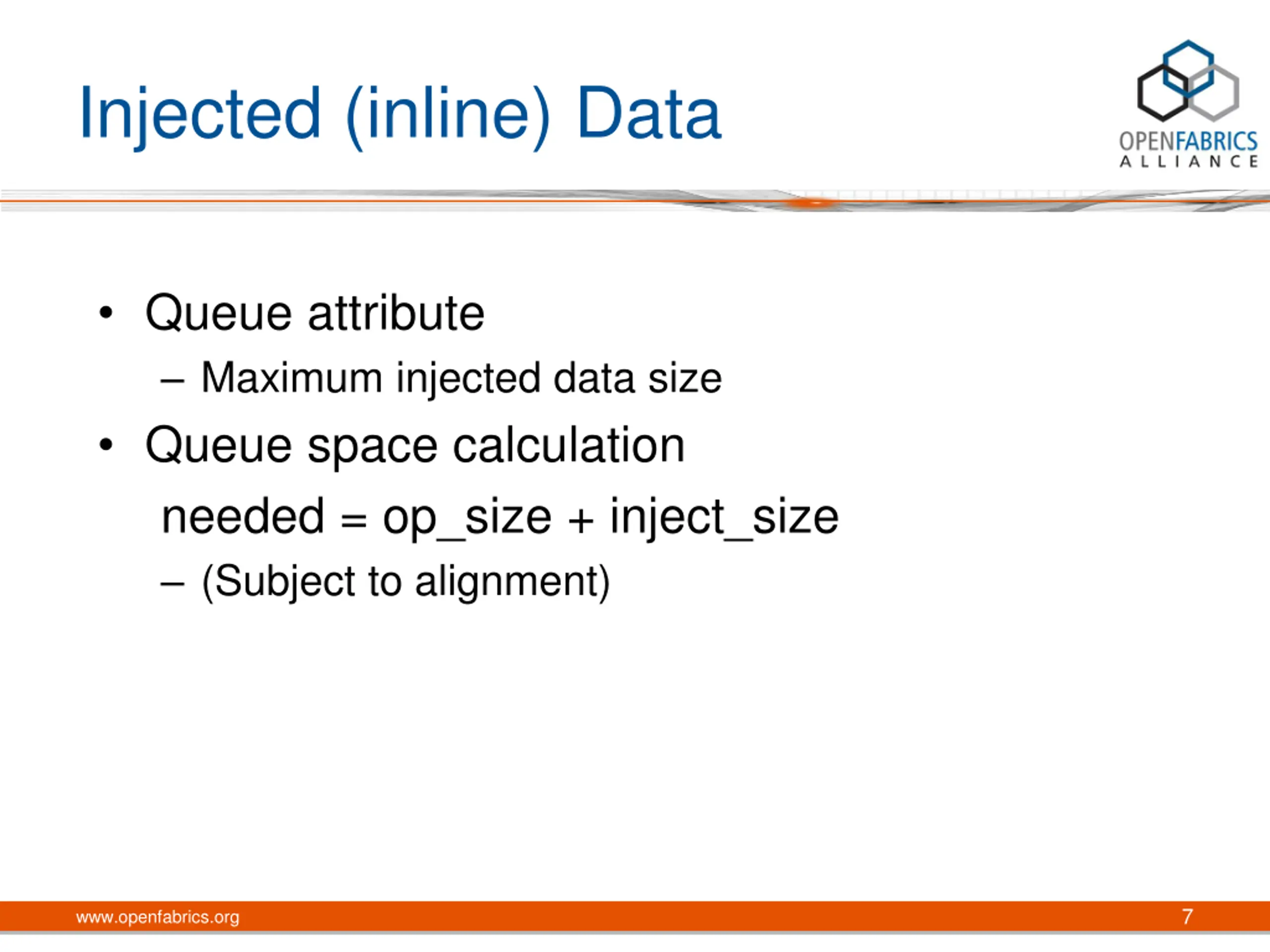

Injected (inline) Data Queue attribute Maximum injected data size Queue space calculation needed = op_size + inject_size (Subject to alignment) 7 www.openfabrics.org
