Optimizing Service Selection and Load Balancing in Multi-Cluster Microservice Systems with MCOSS Daniel Bachar Reichman University, Israel Joint work with Anat Bremler-Barr (Tel Aviv U.) and David Hay (The Hebrew U.). This research is in collaboration with Red Hat.

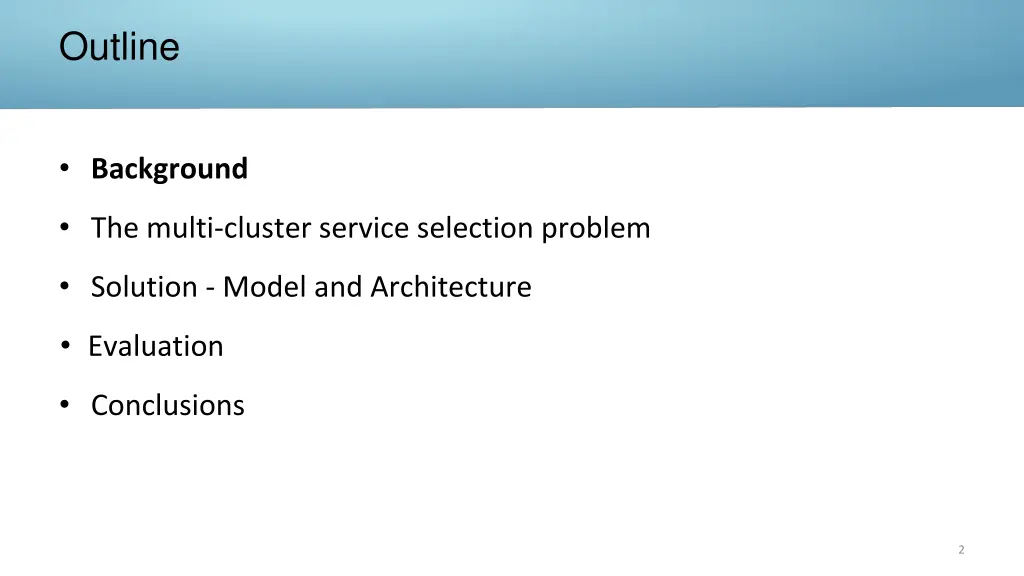

Outline Background The multi-cluster service selection problem Solution - Model and Architecture Evaluation Conclusions 2

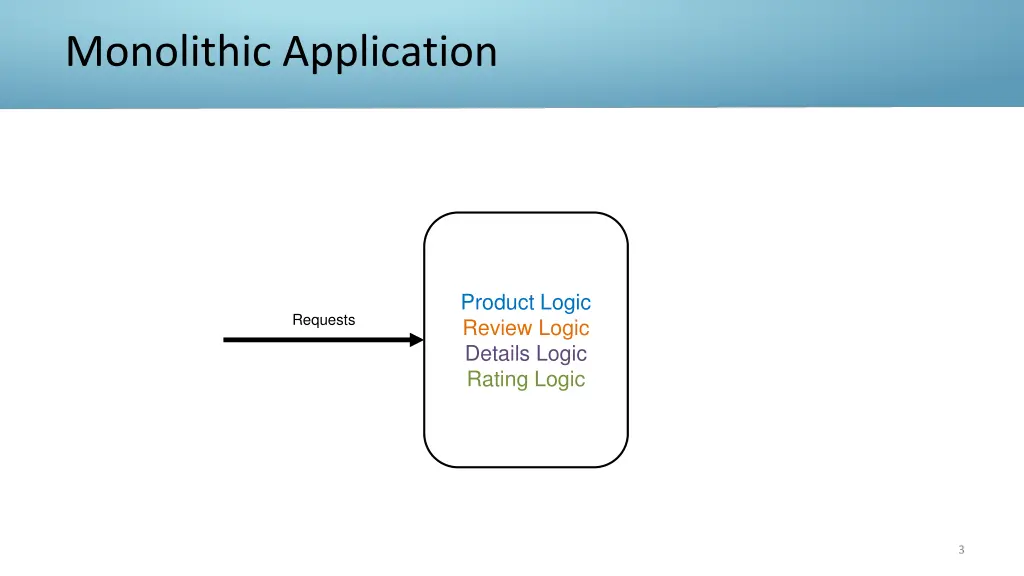

Monolithic Application Product Logic Review Logic Details Logic Rating Logic Requests 3

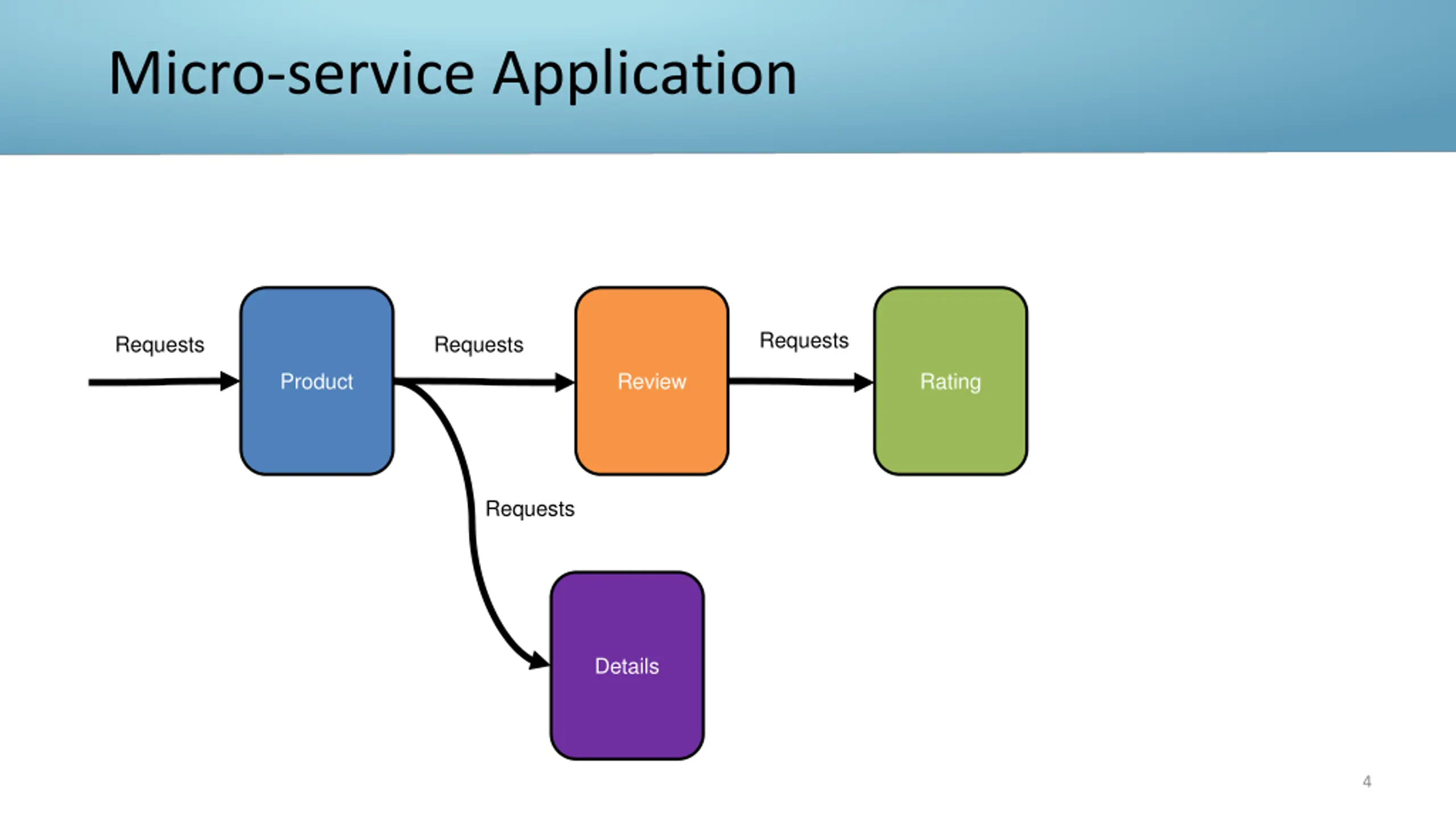

Micro-service Application Requests Requests Requests Product Review Rating Requests Details 4

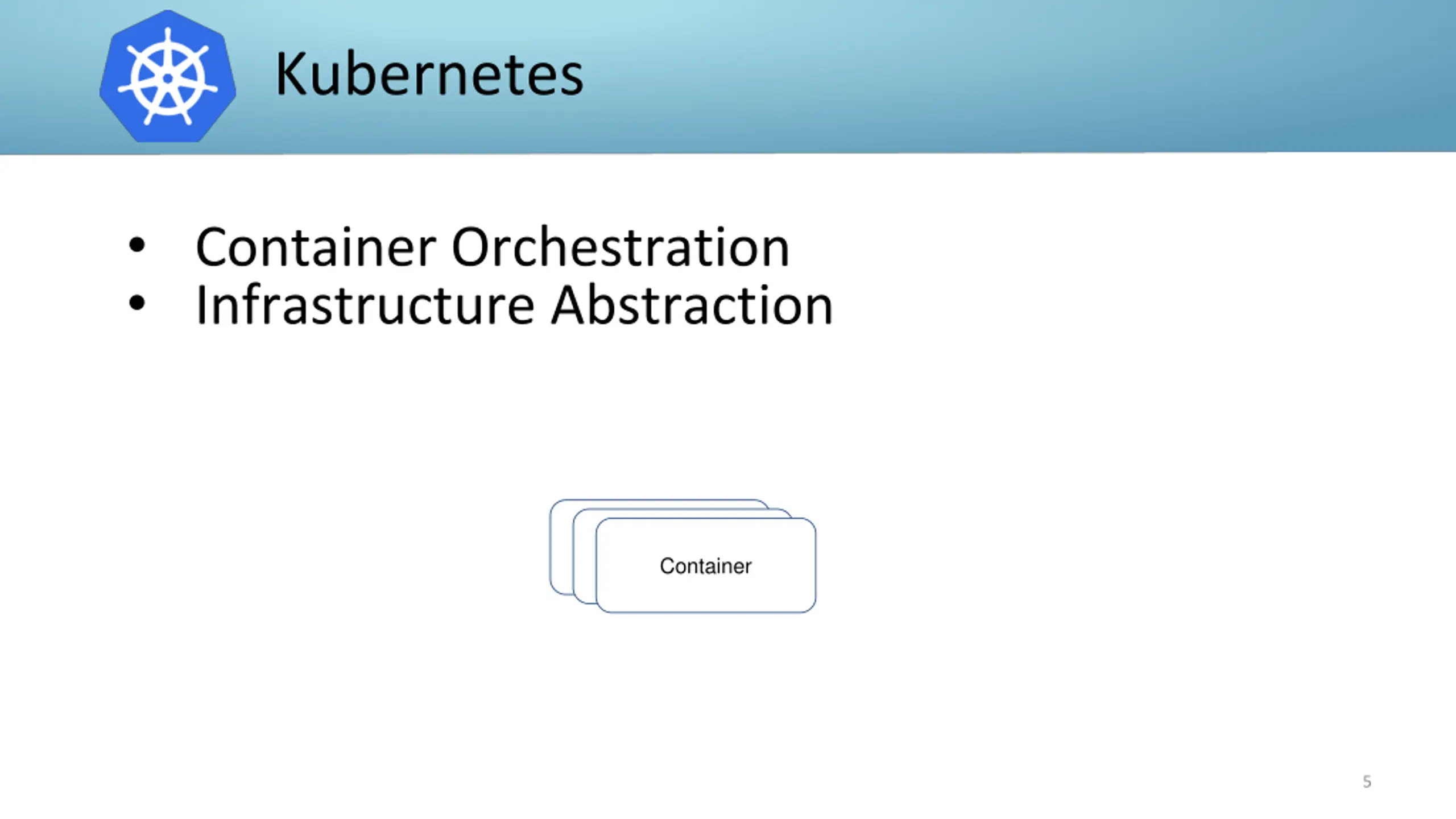

Kubernetes Container Orchestration Infrastructure Abstraction Pod Container Container Container 5

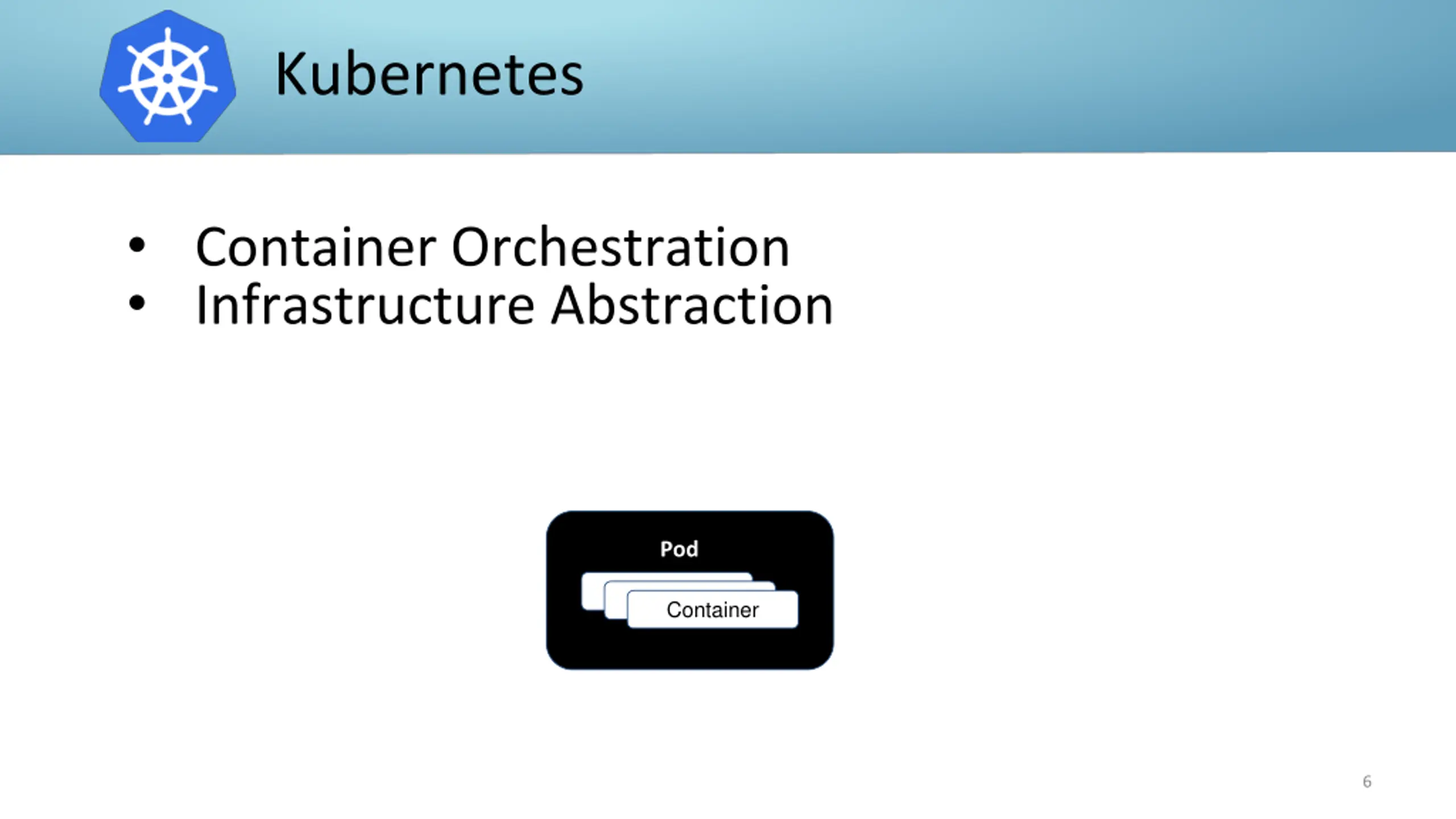

Kubernetes Container Orchestration Infrastructure Abstraction Pod Container Container Container 6

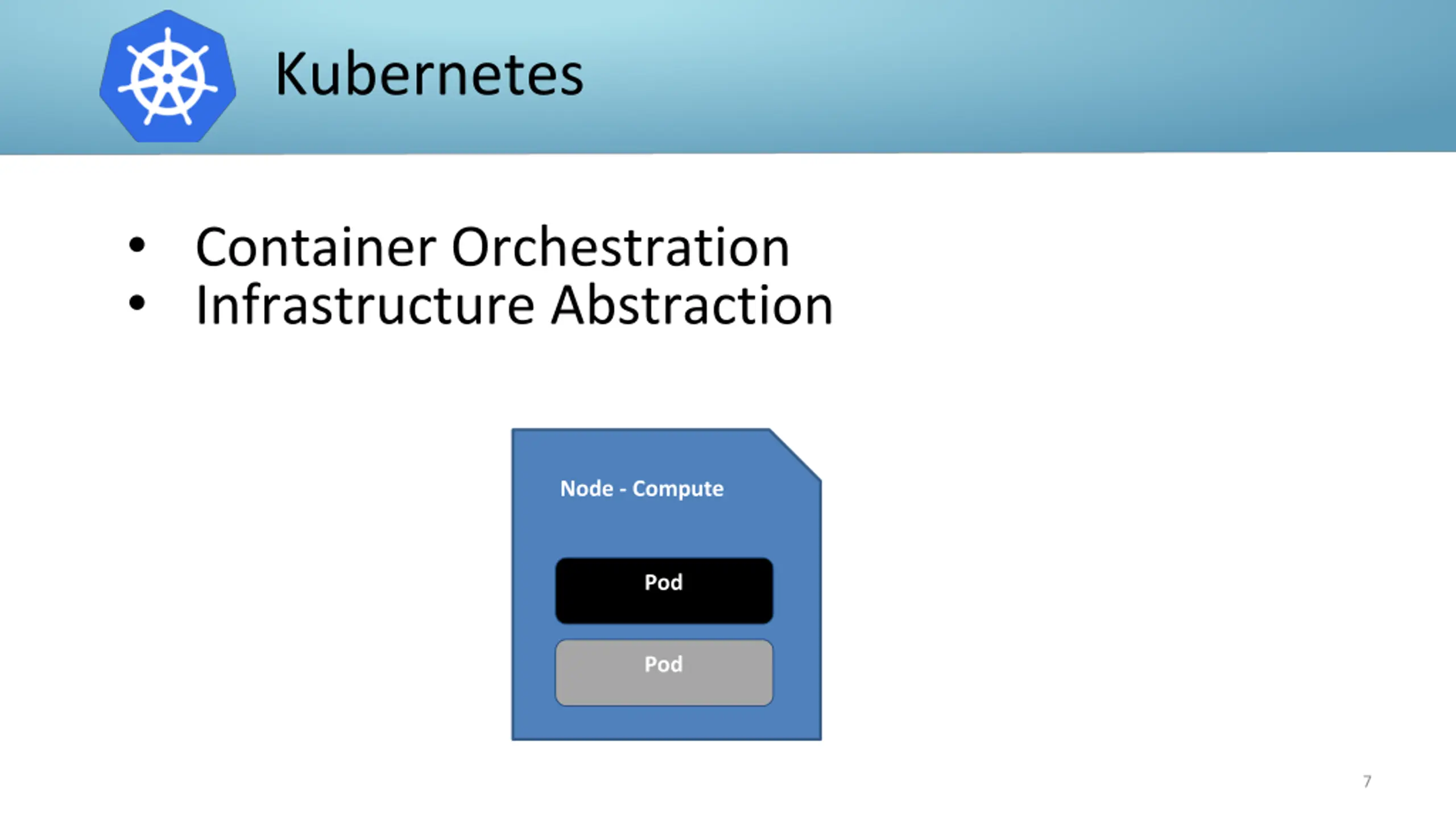

Kubernetes Container Orchestration Infrastructure Abstraction Node - Compute Pod No Pod 7

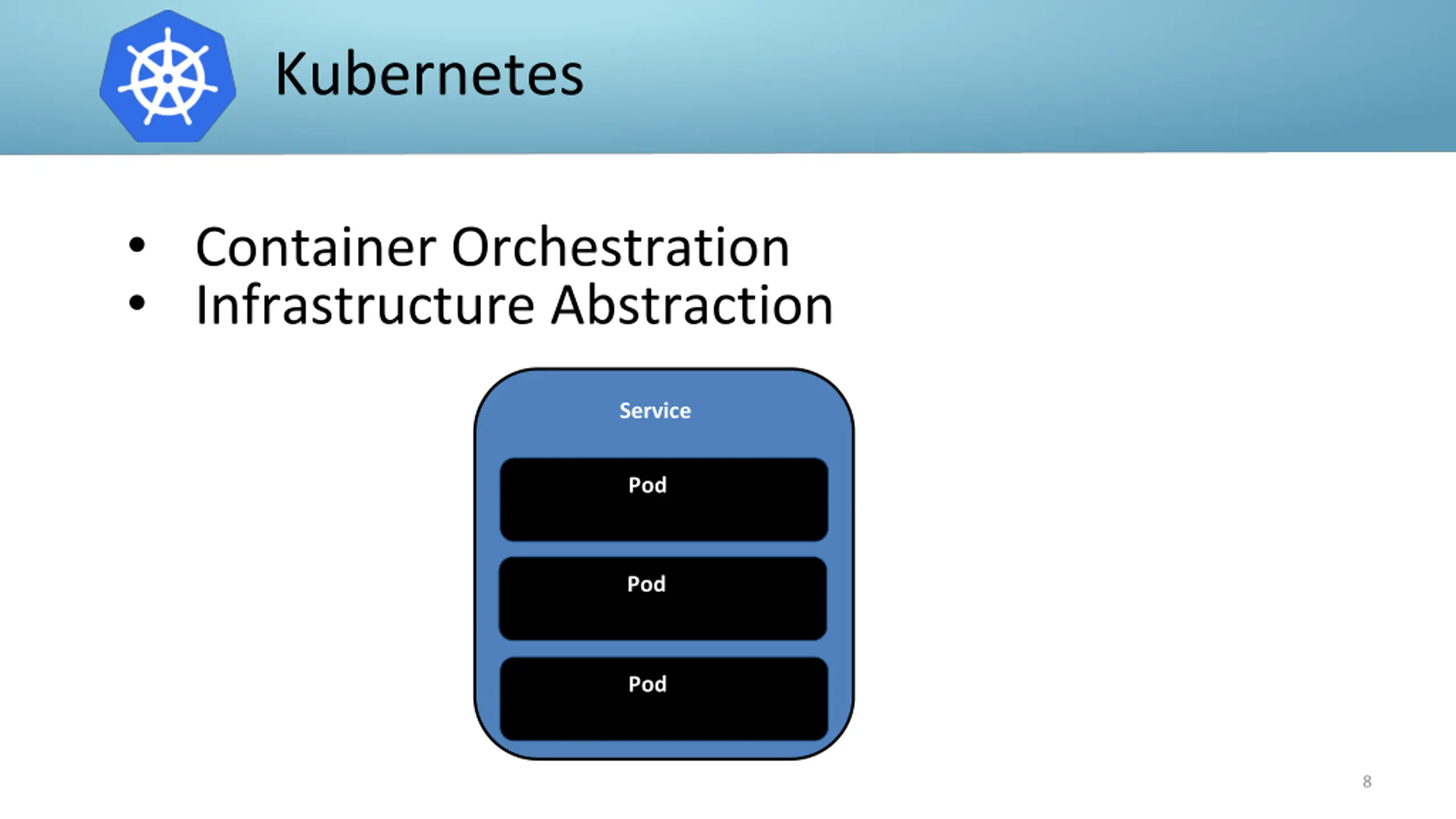

Kubernetes Container Orchestration Infrastructure Abstraction Service Pod Pod Pod 8

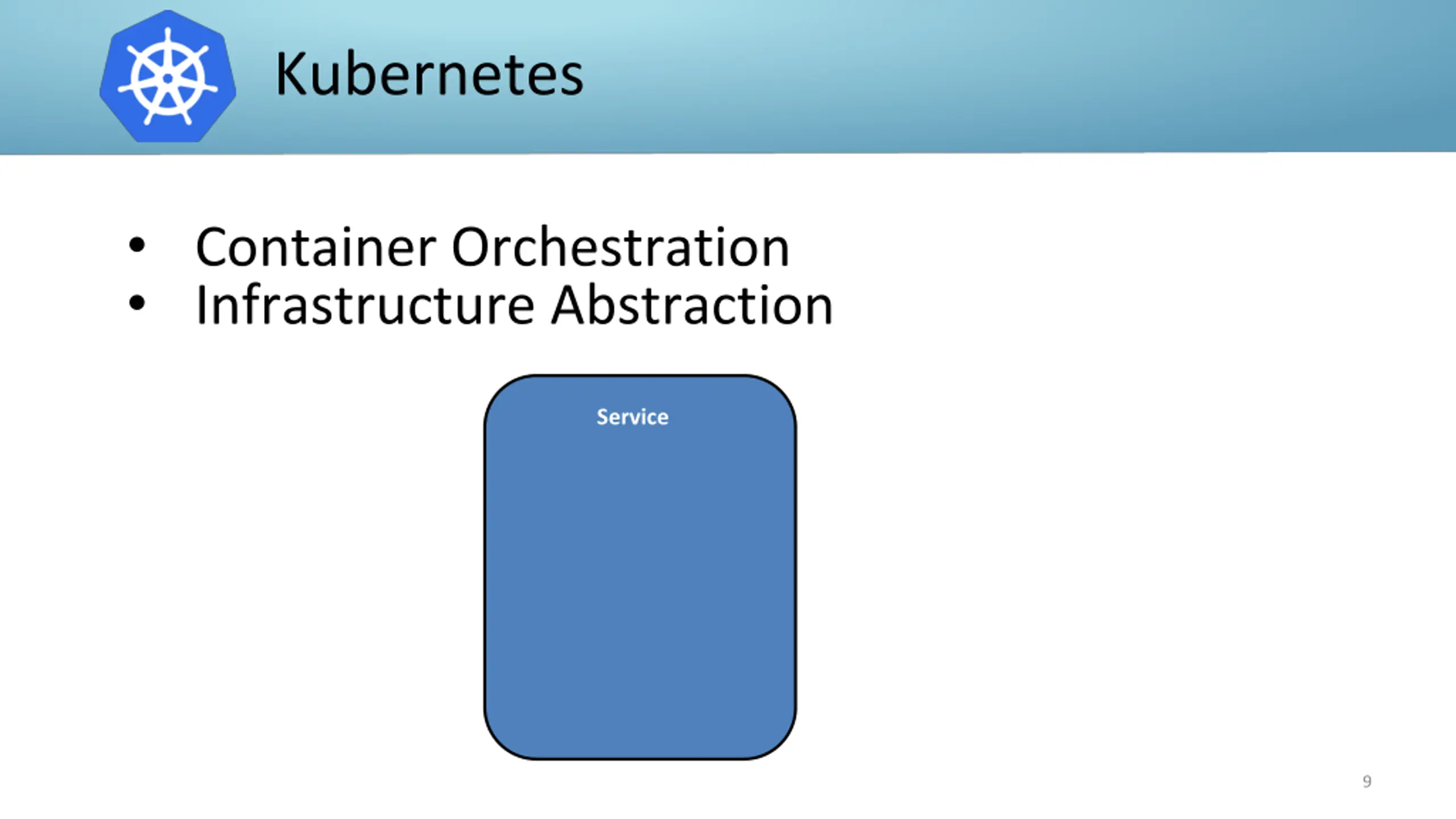

Kubernetes Container Orchestration Infrastructure Abstraction Service 9

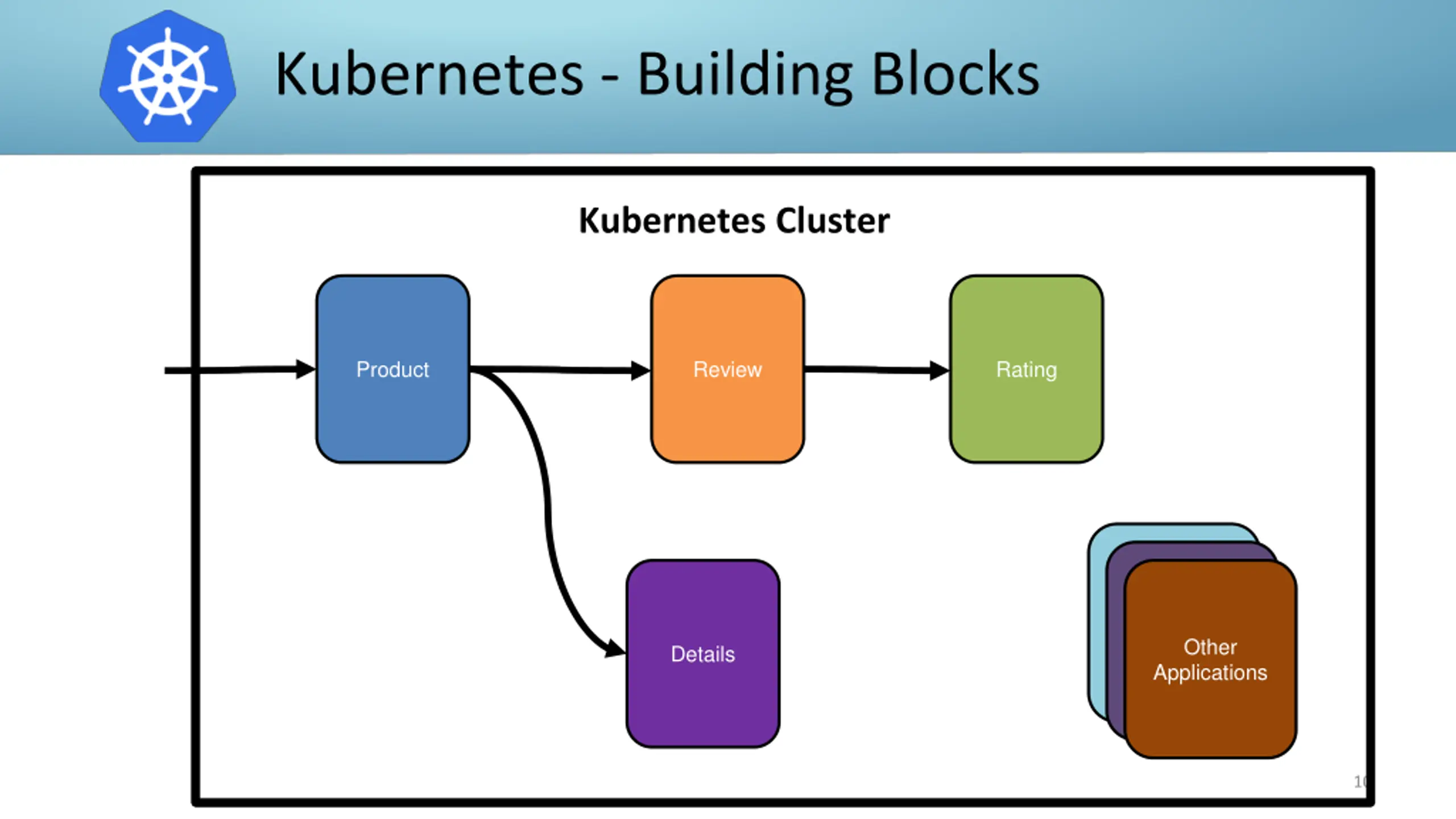

Kubernetes - Building Blocks Kubernetes Cluster Product Review Rating Front End Front End Other Applications Details 10

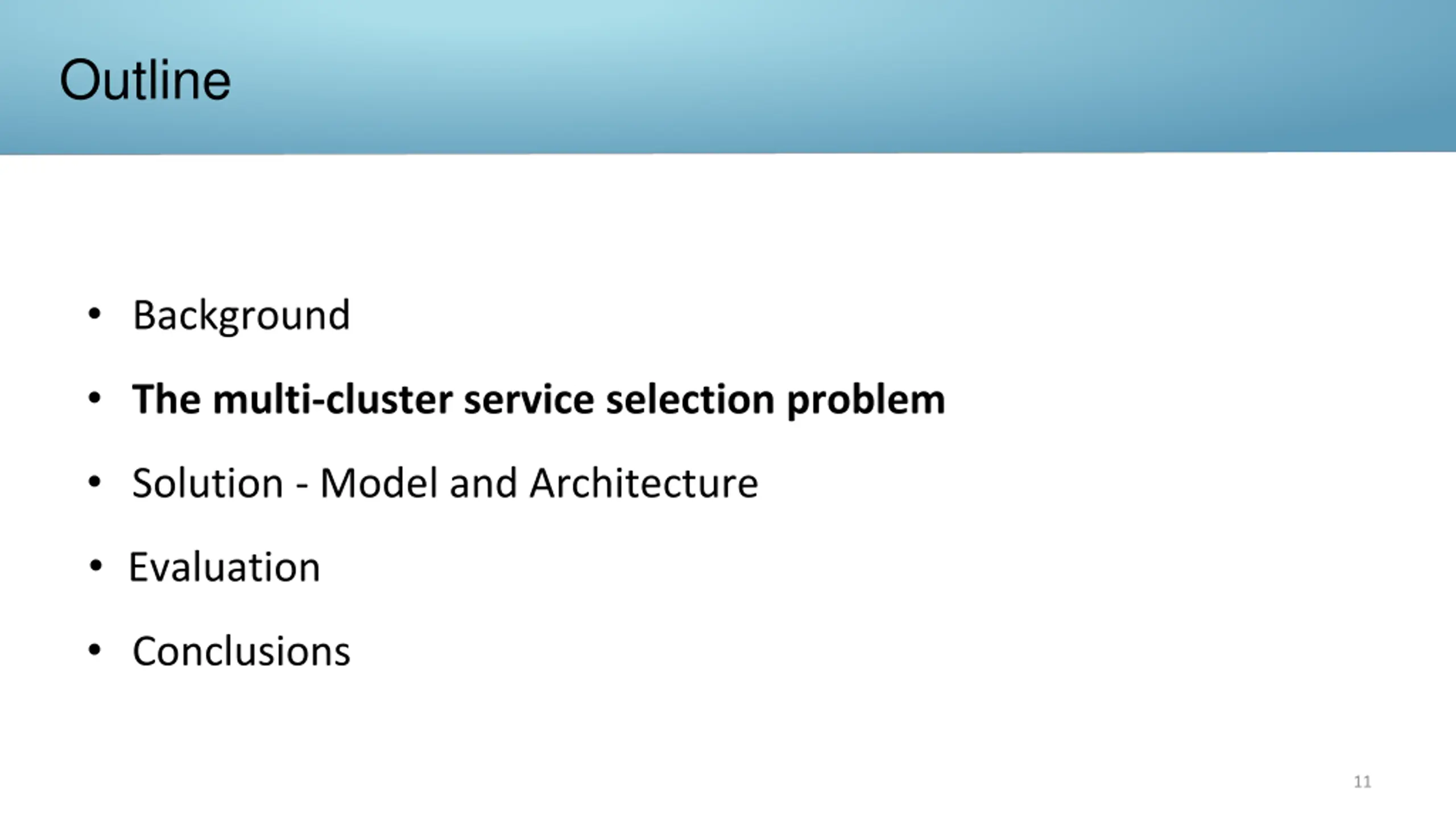

Outline Background The multi-cluster service selection problem Solution - Model and Architecture Evaluation Conclusions 11

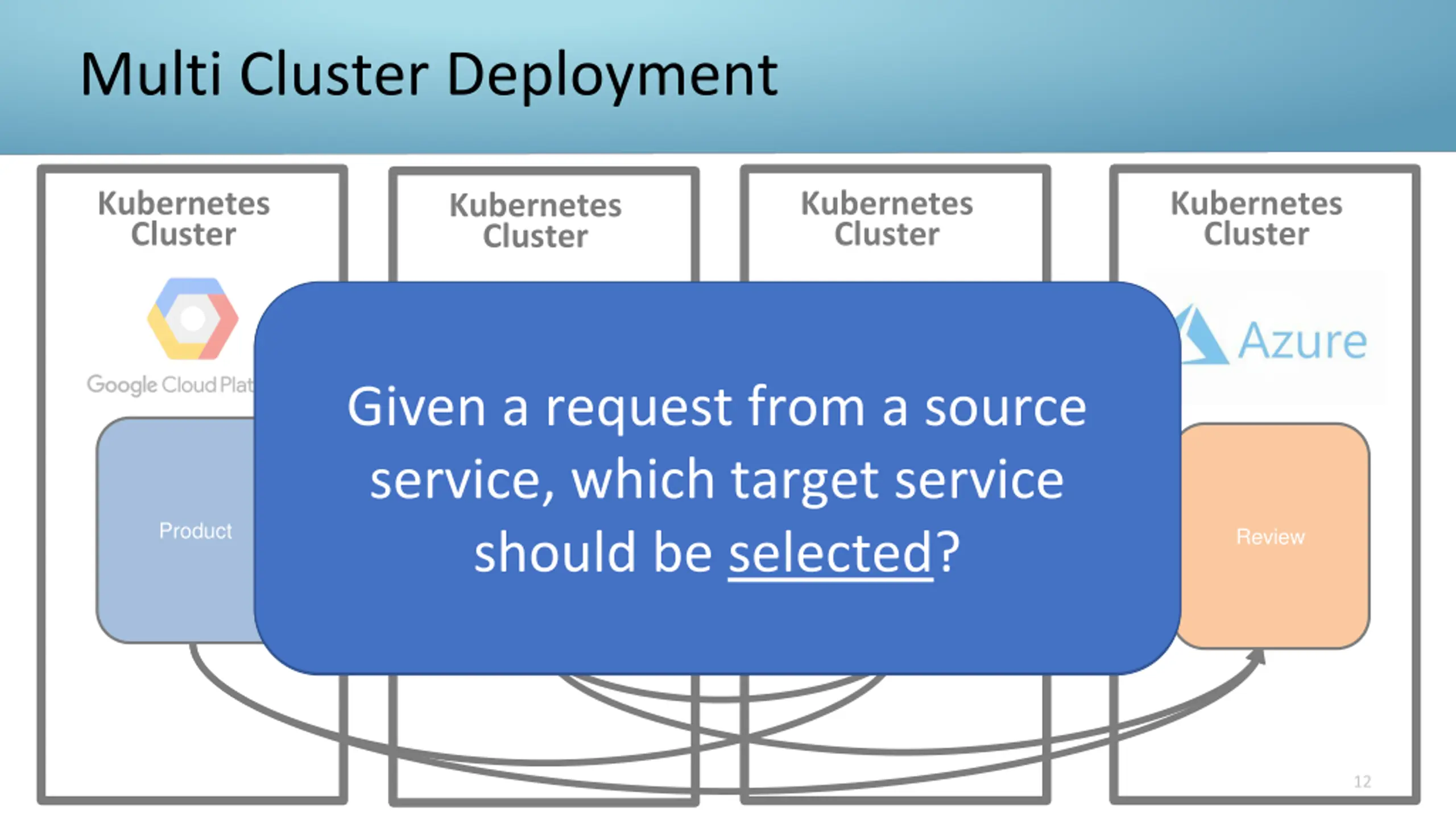

Multi Cluster Deployment Kubernetes Cluster Kubernetes Cluster Kubernetes Cluster Kubernetes Cluster Given a request from a source service, which target service Multi-cluster deployment introduces traffic pricing and performance challenges Product Product should be selected? Review Review 12

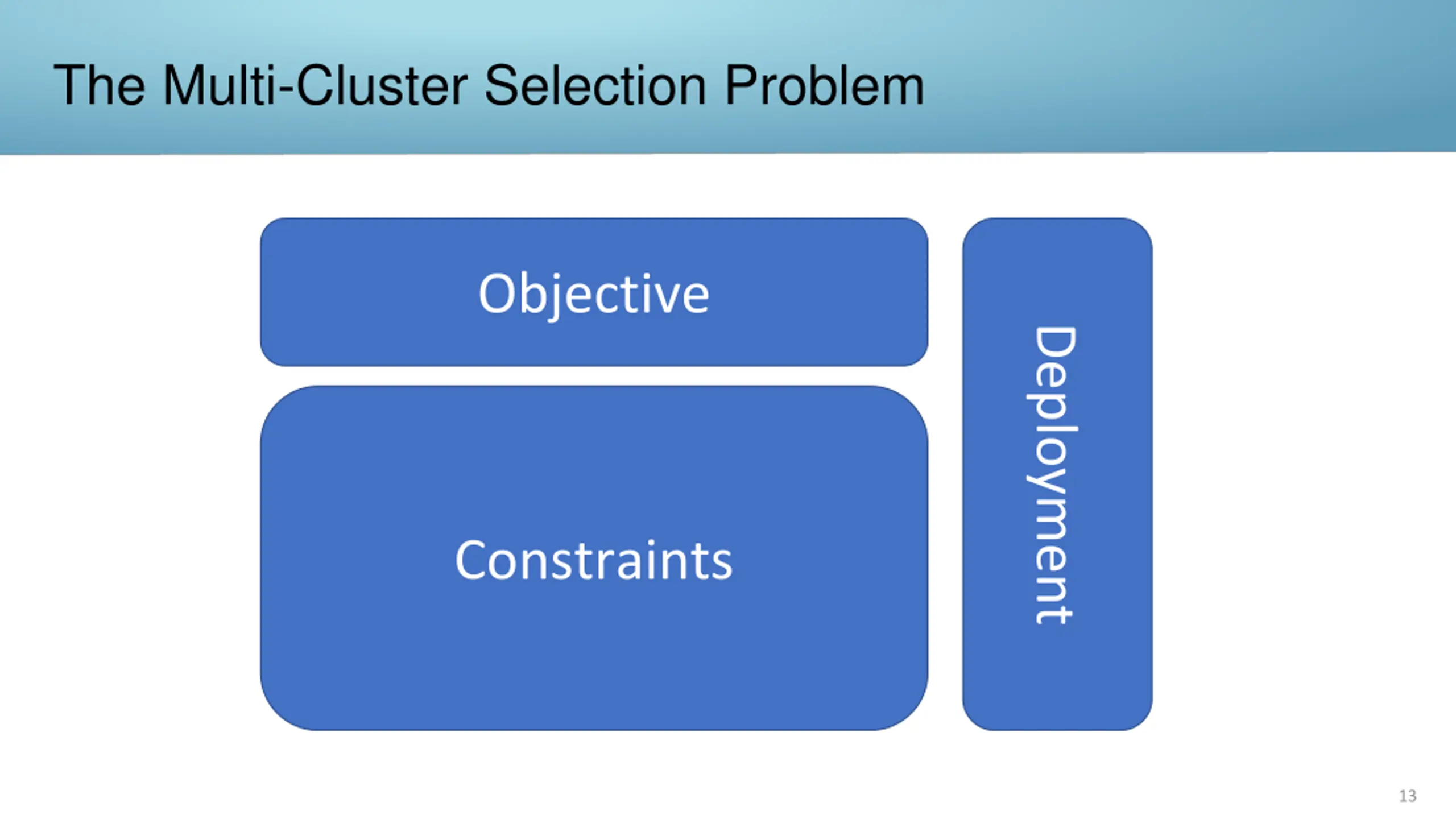

The Multi-Cluster Selection Problem Objective Deployment Constraints 13
Architecture: Data Plane WRR Cluster 2 Cluster 1 DNS DNS (2) (1) Rating Review Product (3) 14

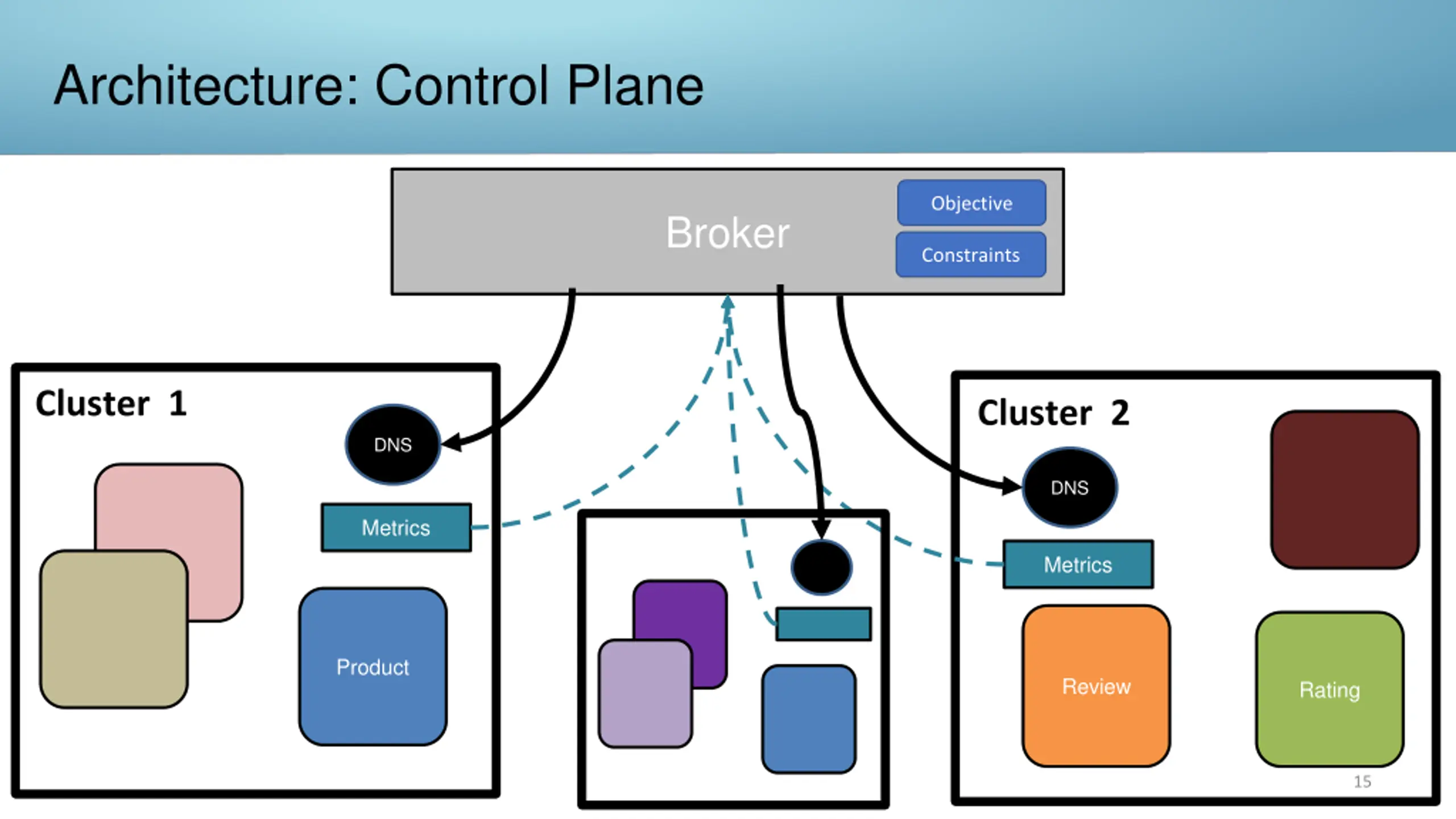

Architecture: Control Plane Objective Broker Constraints Cluster 1 Cluster 2 DNS DNS Metrics Metrics Product Review Rating 15

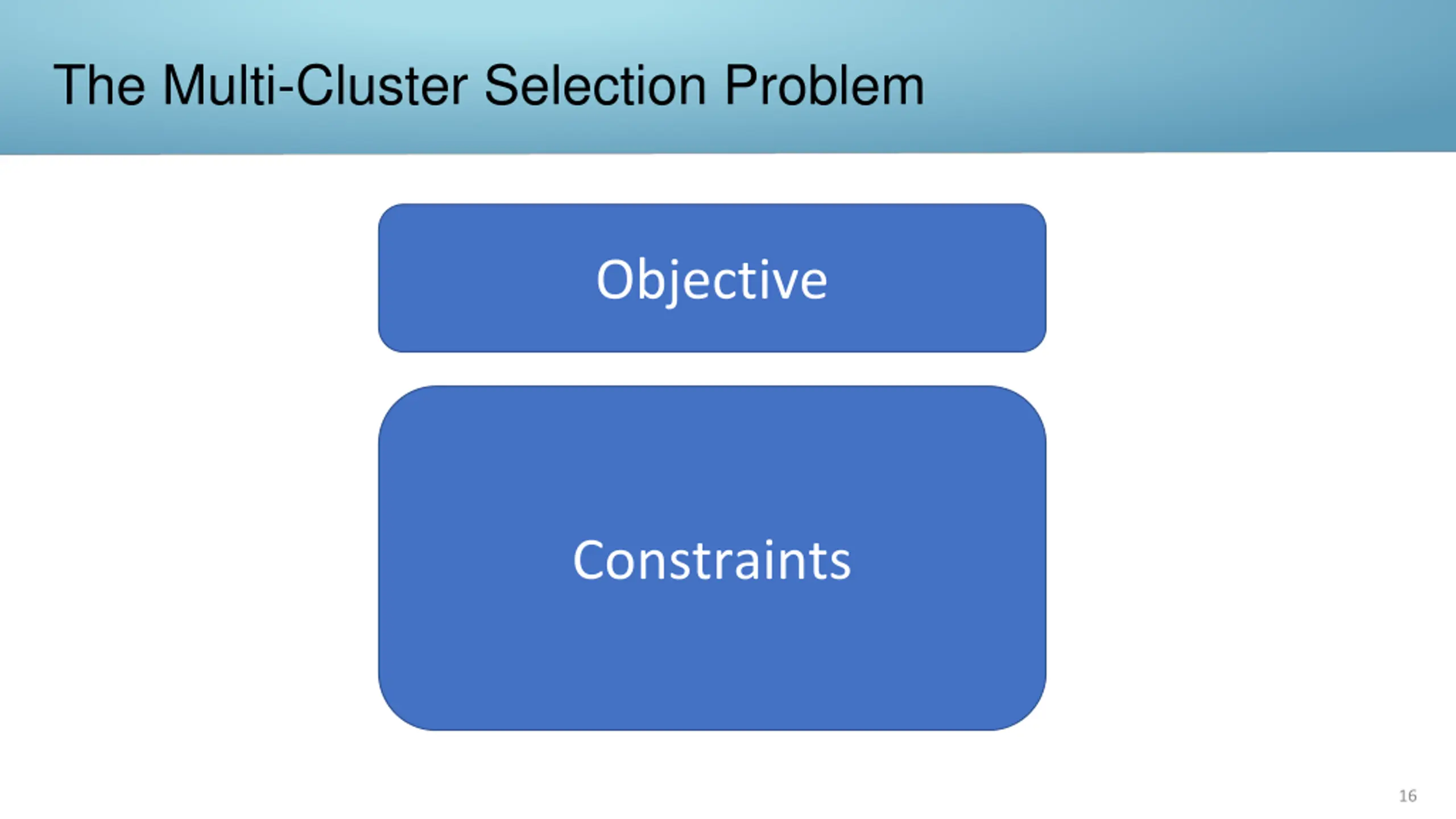

The Multi-Cluster Selection Problem Objective Constraints 16

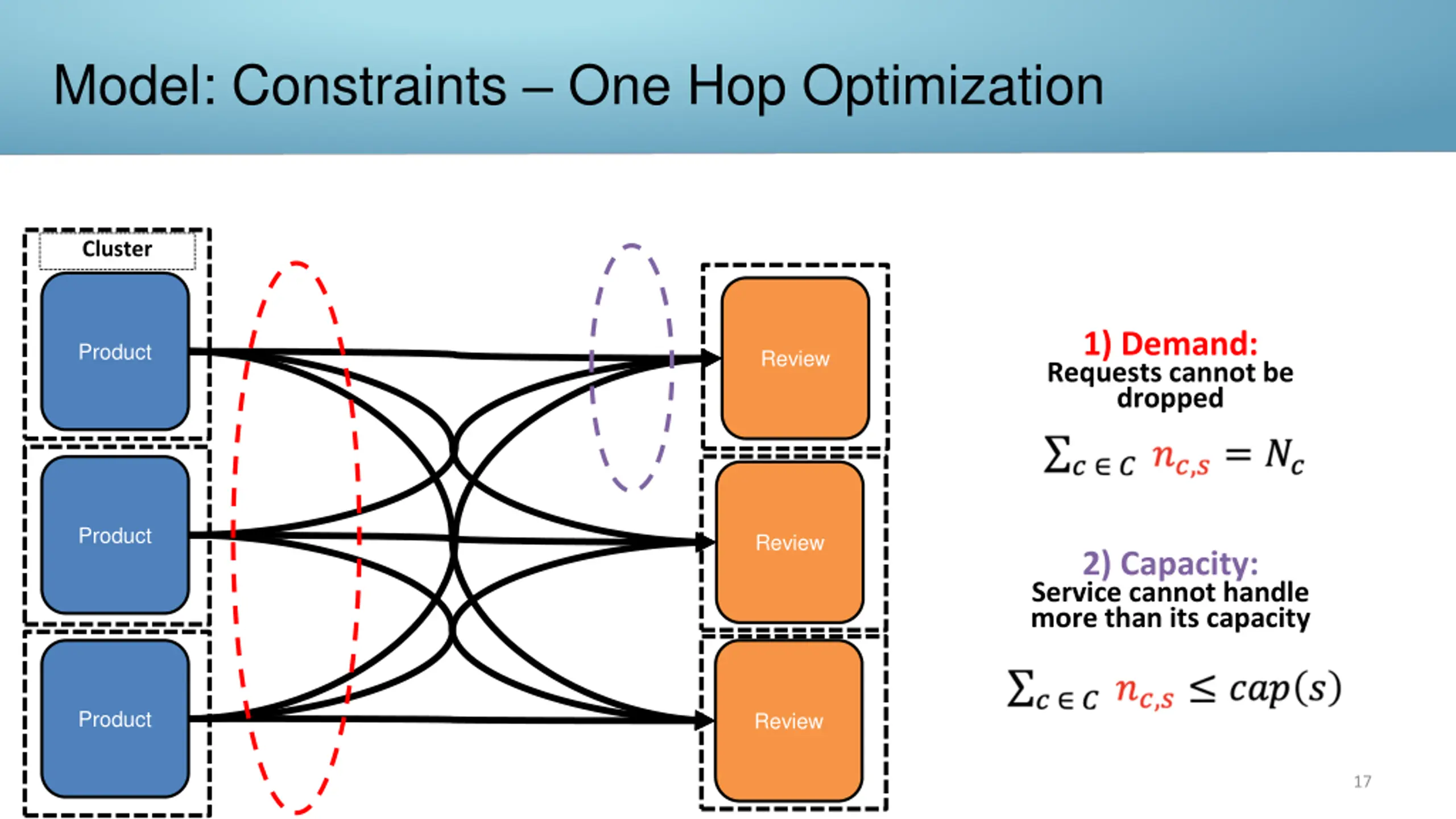

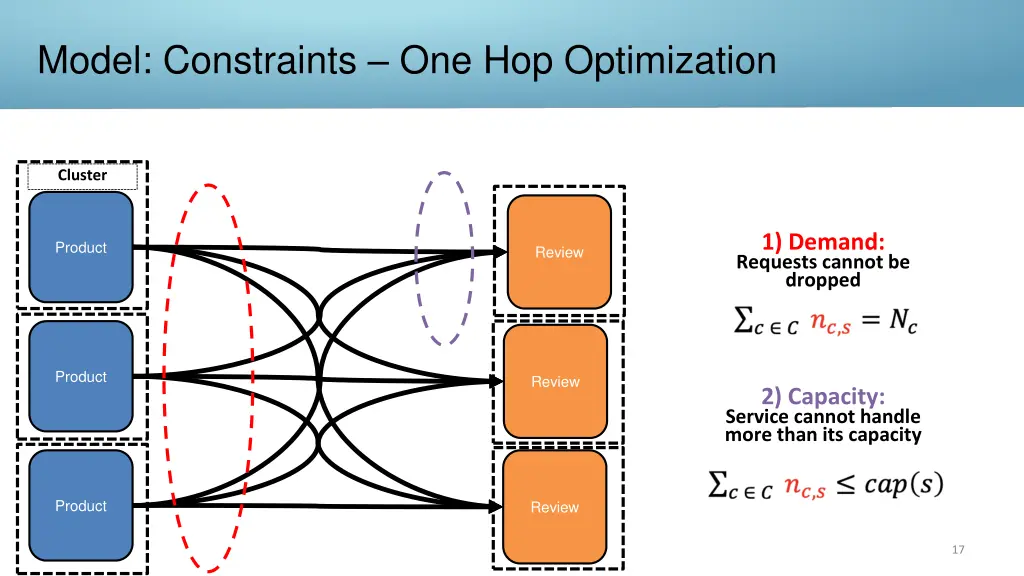

Model: Constraints One Hop Optimization Cluster 1) Demand: Requests cannot be dropped Product Review Product Review 2) Capacity: Service cannot handle more than its capacity Product Review 17

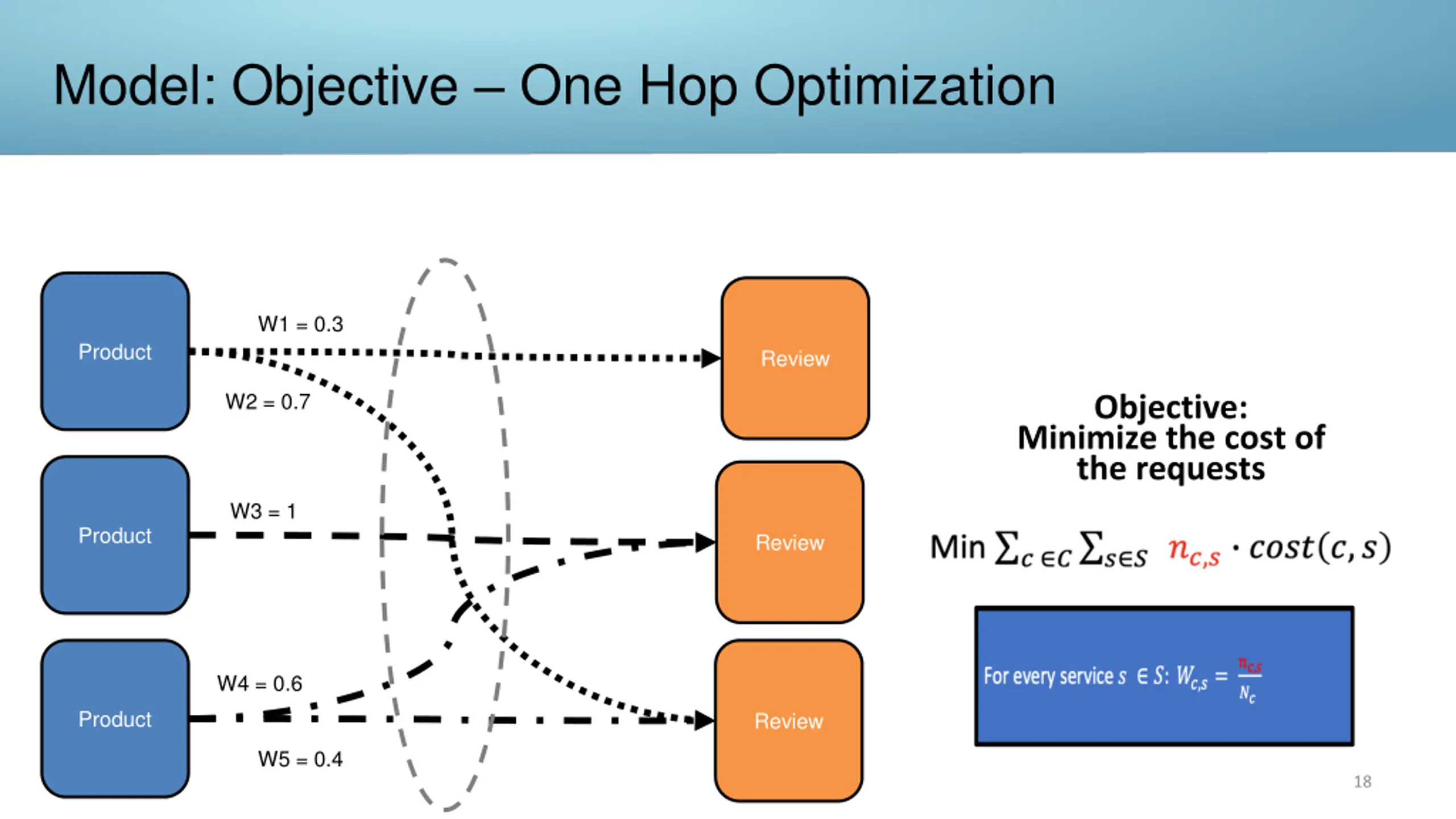

Model: Objective One Hop Optimization W1 = 0.3 Product Review W2 = 0.7 Objective: Minimize the cost of the requests W3 = 1 Product Review W4 = 0.6 Product Review W5 = 0.4 18

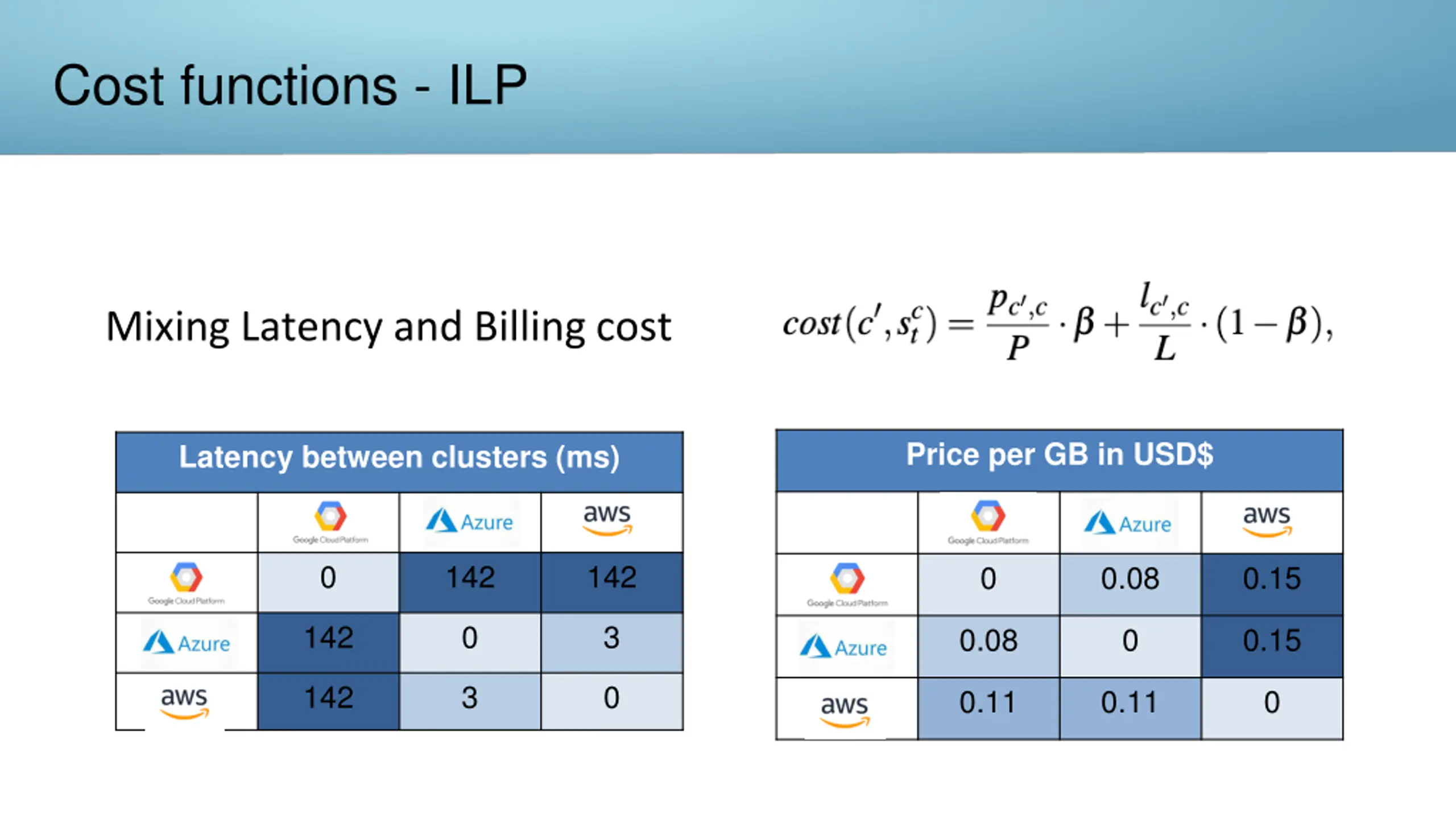

Cost functions - ILP Mixing Latency and Billing cost Price per GB in USD$ Latency between clusters (ms) 0 142 142 0 0.08 0.15 142 0 3 0.08 0 0.15 142 3 0 0.11 0.11 0 19 19

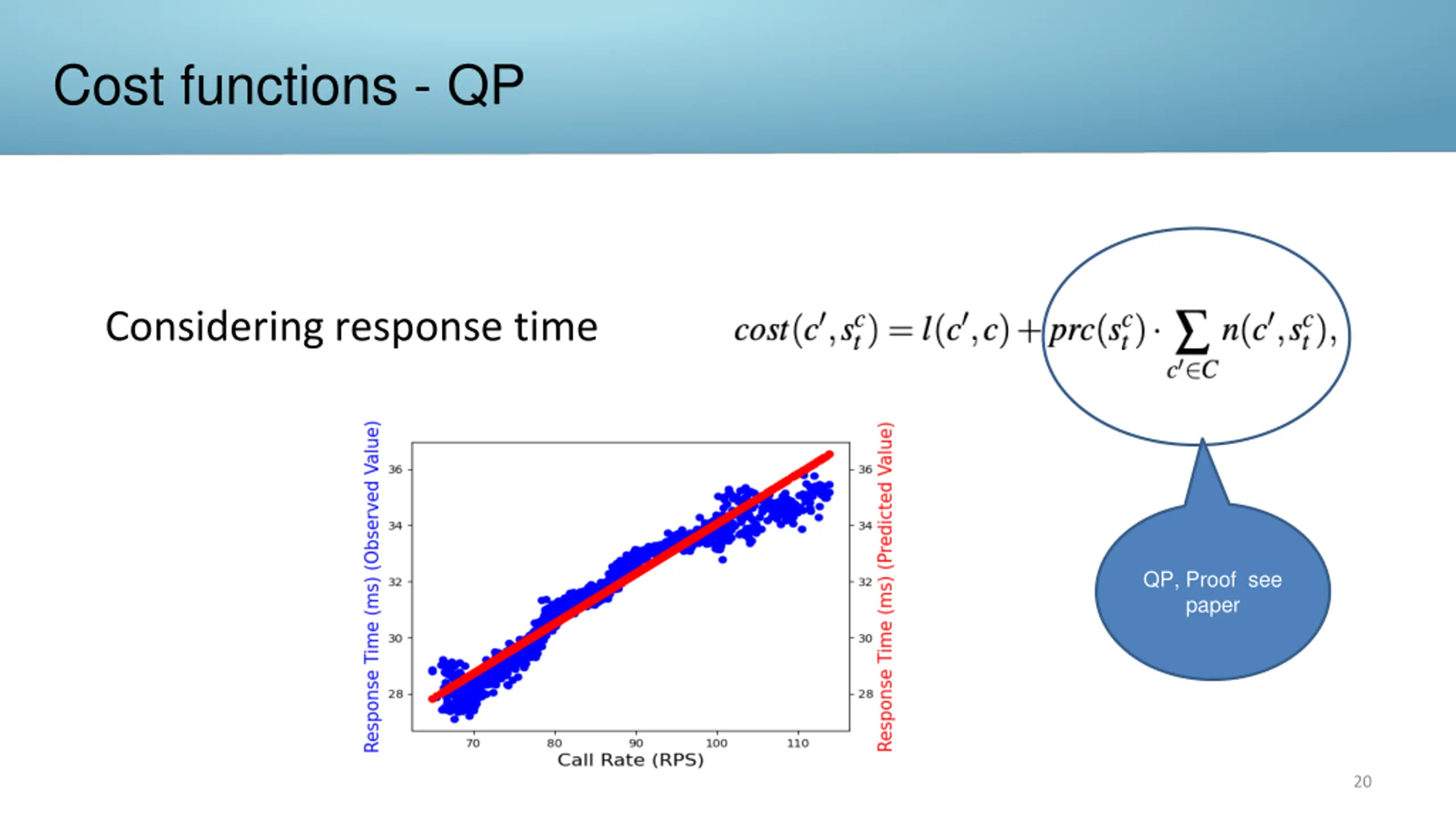

Cost functions - QP Considering response time QP, Proof see paper 20

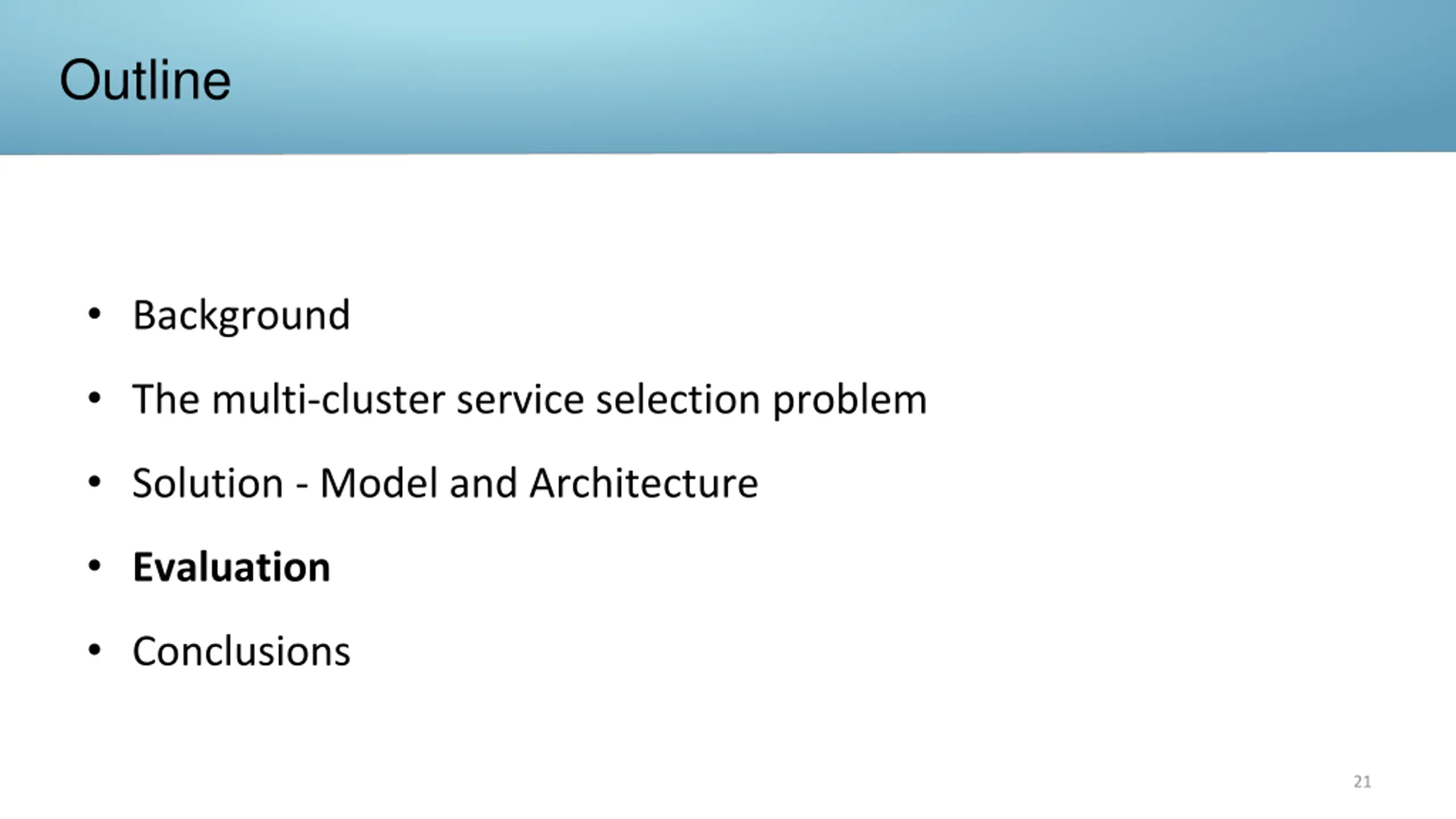

Outline Background The multi-cluster service selection problem Solution - Model and Architecture Evaluation Conclusions 21

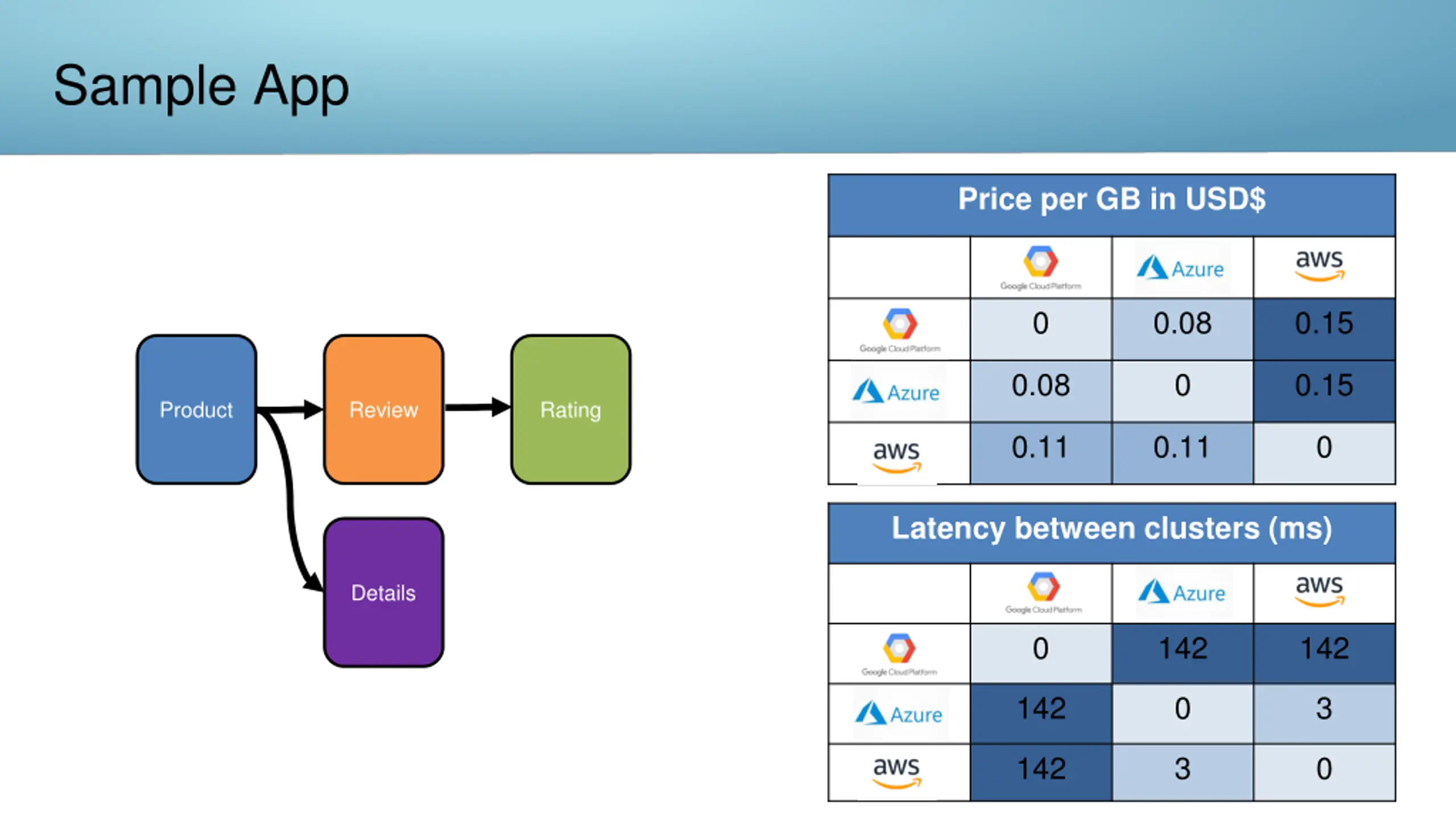

Sample App Price per GB in USD$ 0 0.08 0.15 0.08 0 0.15 Product Review Rating 0.11 0.11 0 Latency between clusters (ms) Details 0 142 142 142 0 3 142 3 0 22

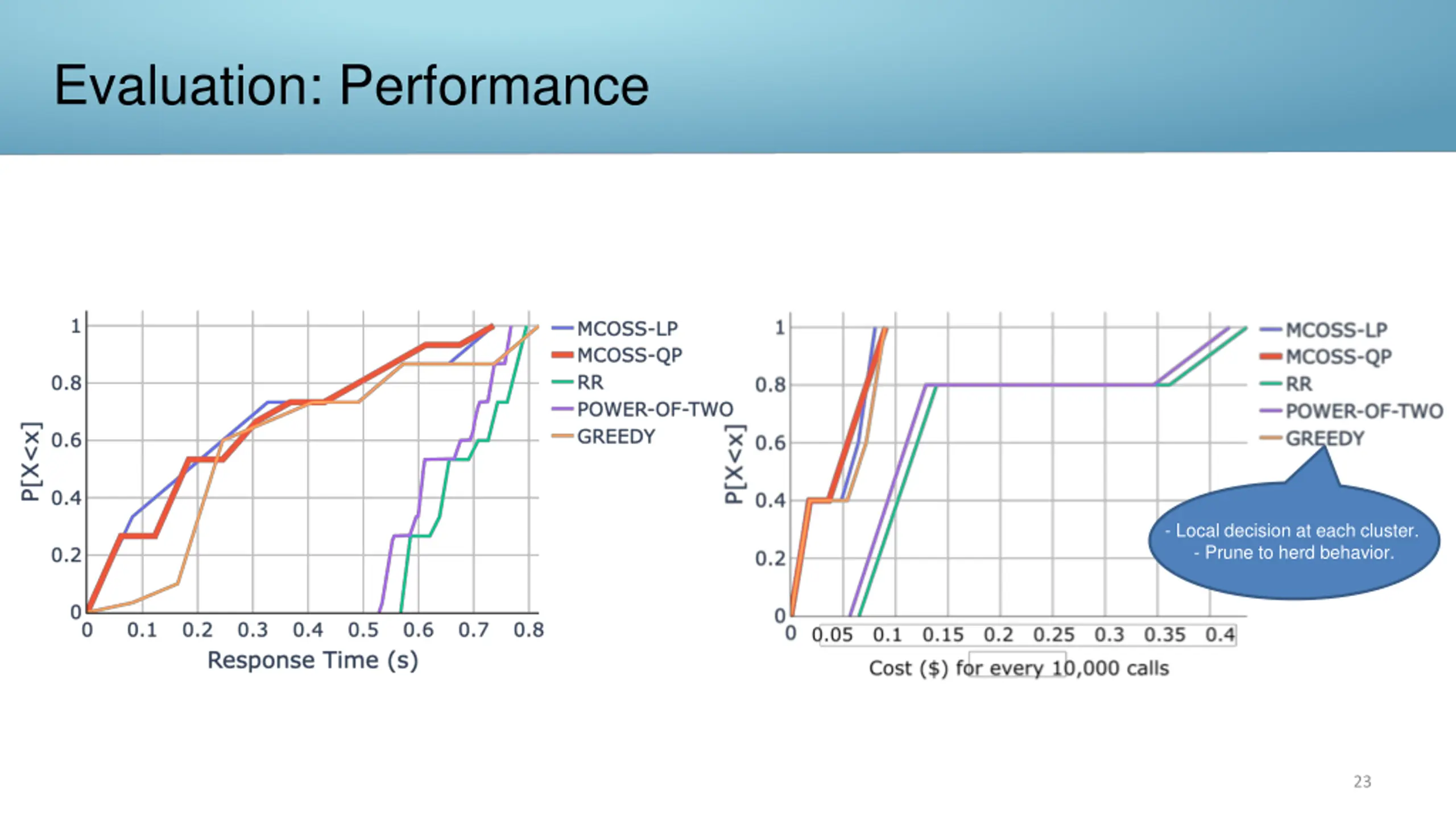

Evaluation: Performance - Local decision at each cluster. - Prune to herd behavior. 23

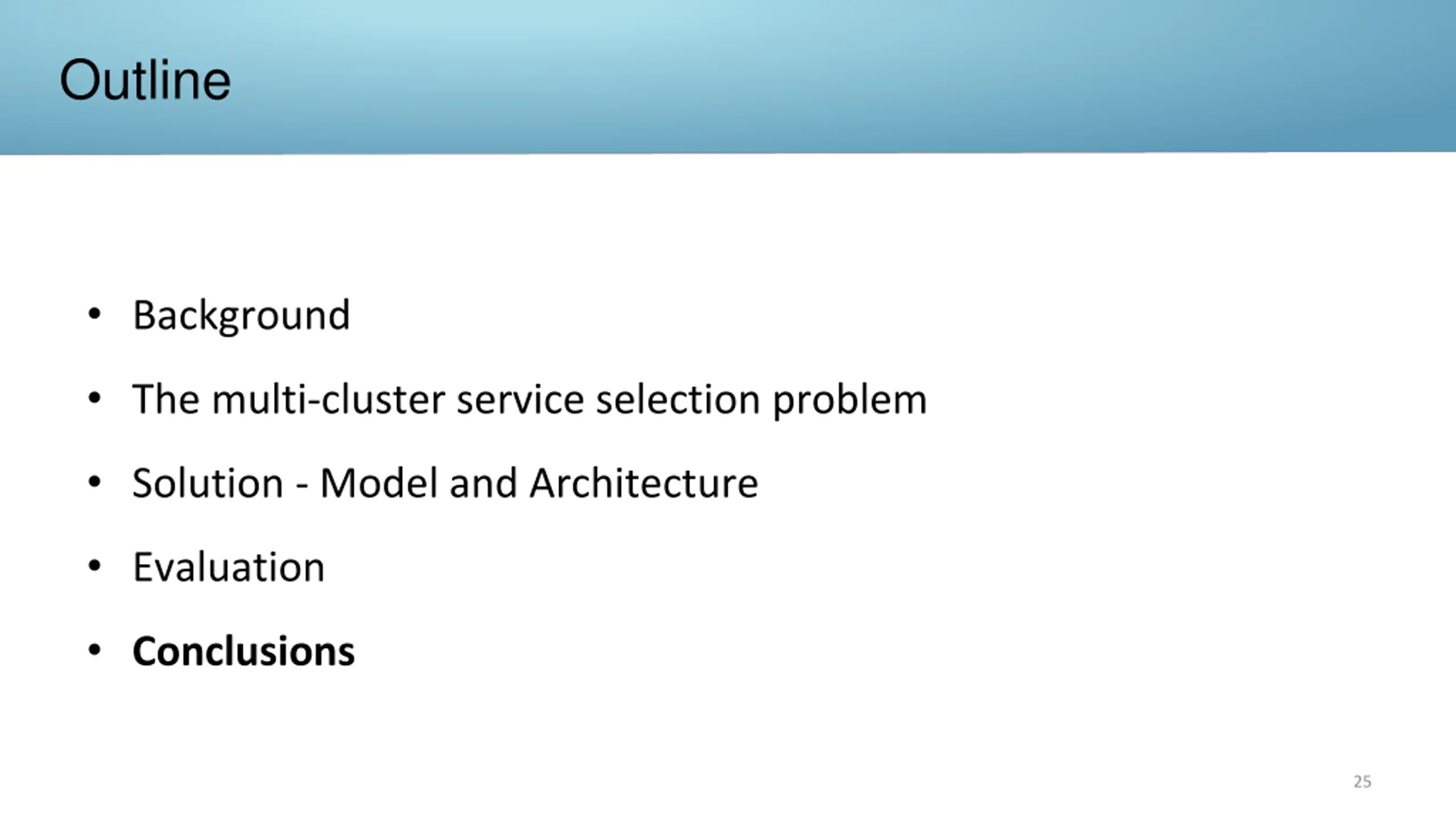

Outline Background The multi-cluster service selection problem Solution - Model and Architecture Evaluation Conclusions 25

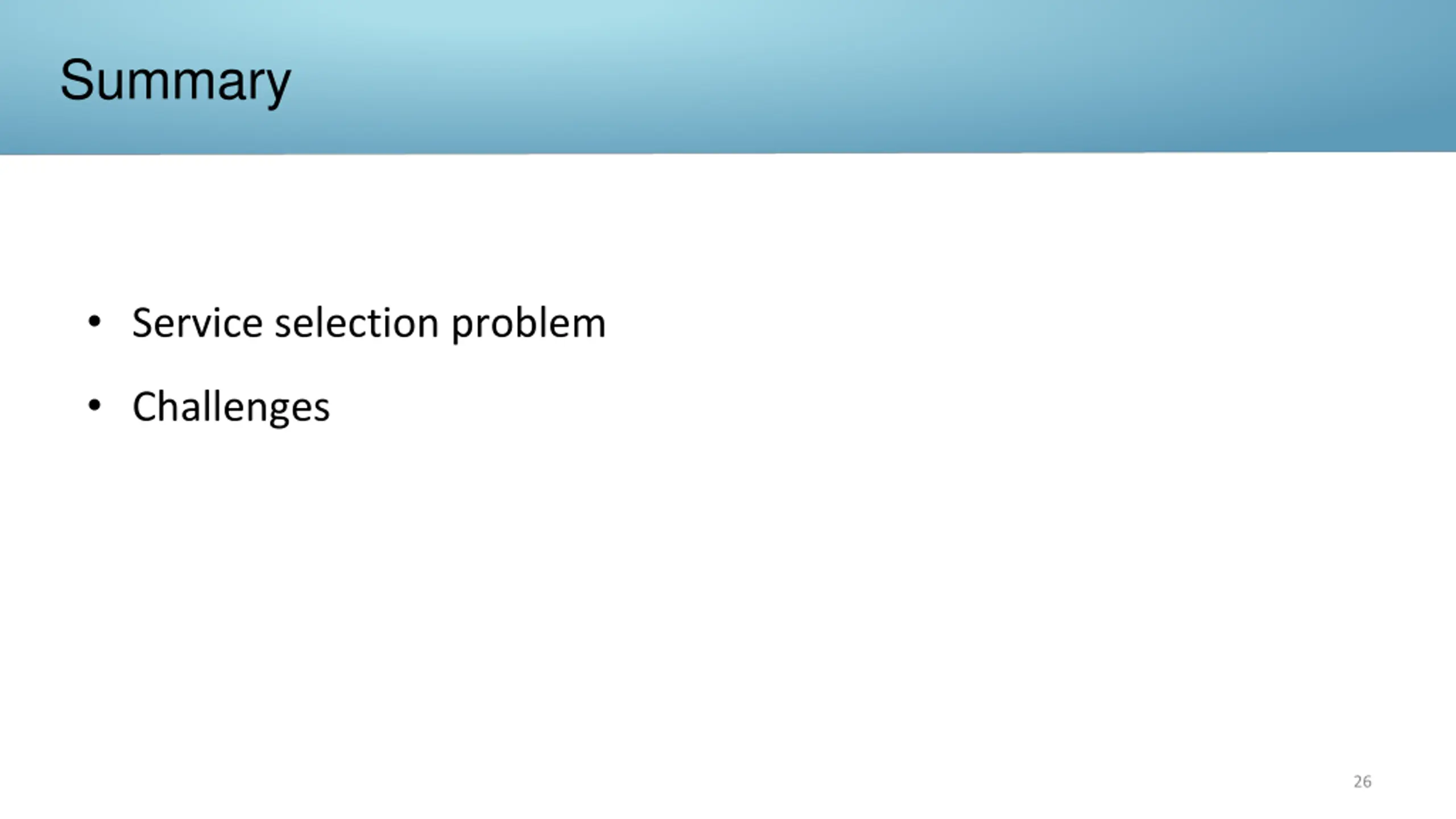

Summary Service selection problem Challenges 26

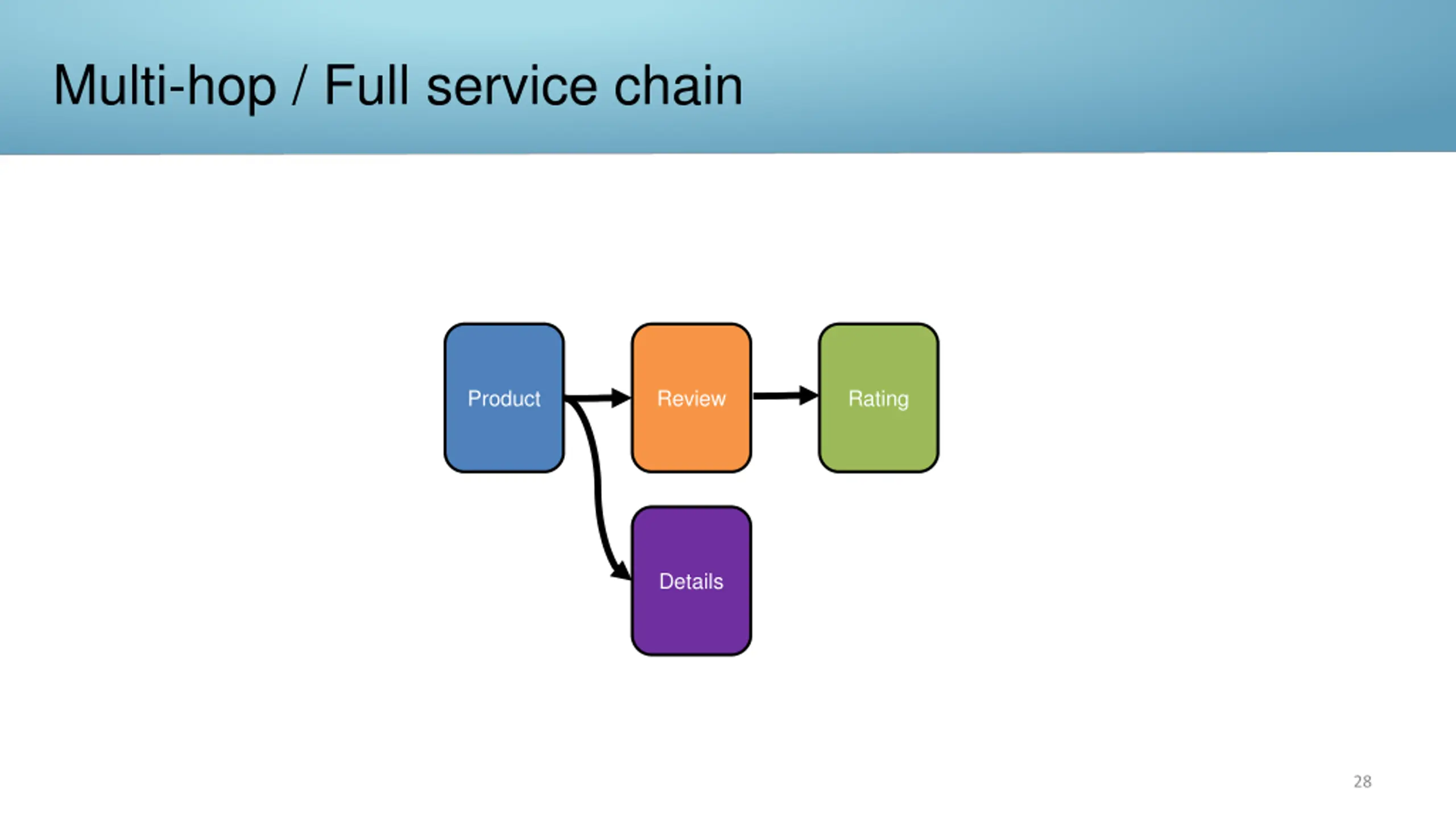

Multi-hop / Full service chain Product Review Rating Details 28

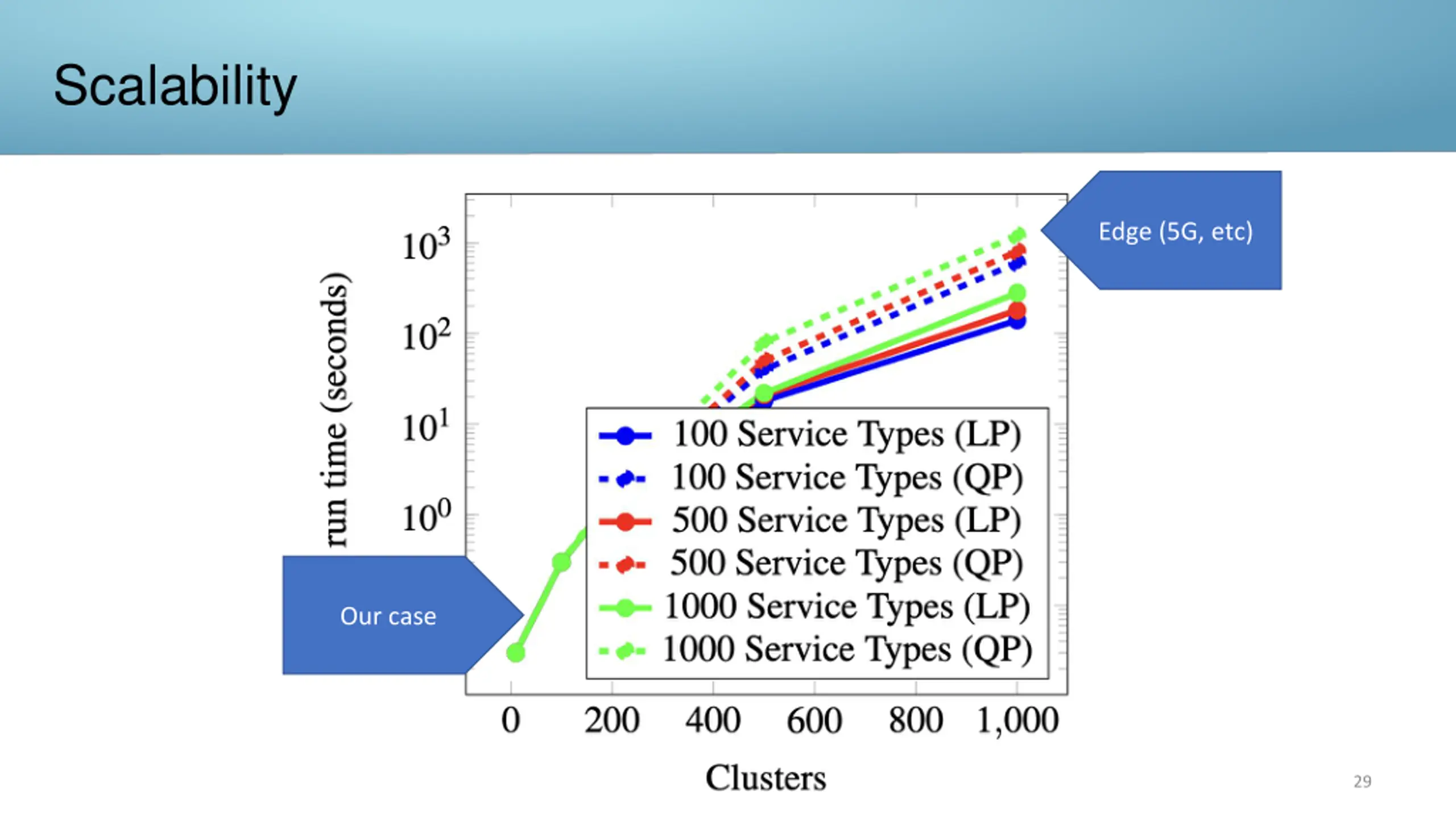

Scalability Edge (5G, etc) Our case 29
Thank you! bachar.daniel@post.runi.ac.il Simulator Implementation Deepness lab 30
