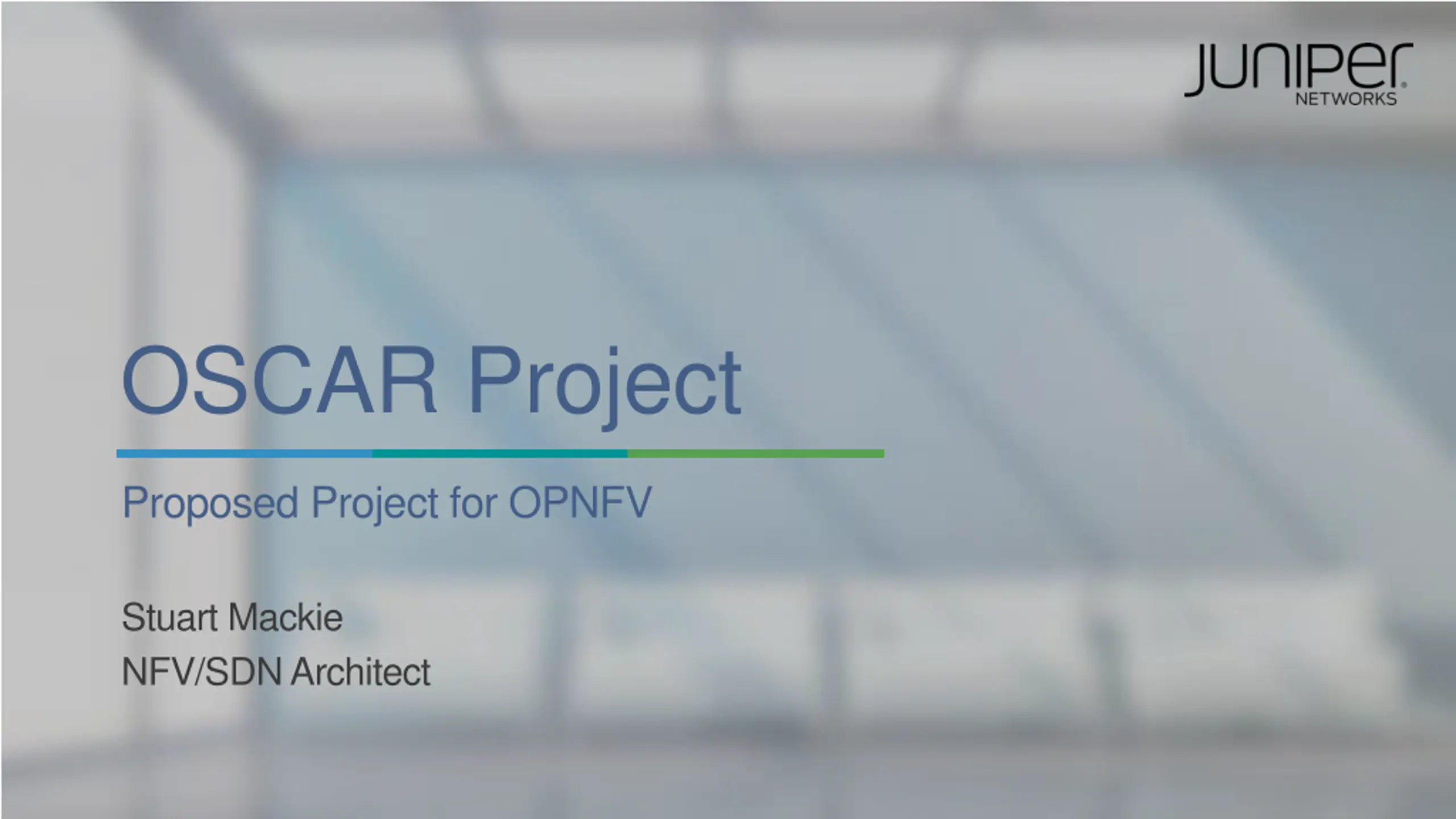

OSCAR Project Proposed Project for OPNFV Stuart Mackie NFV/SDN Architect

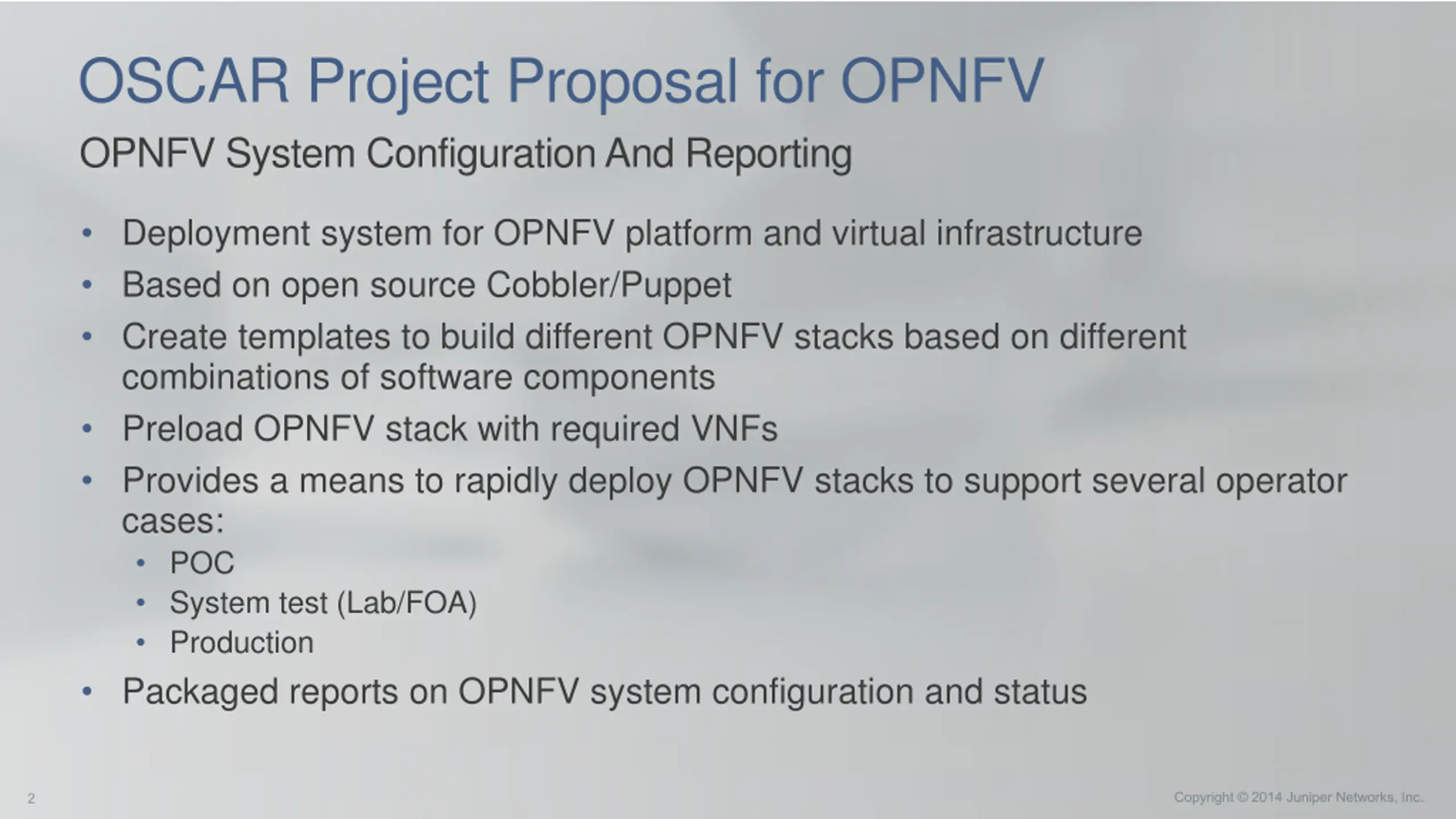

OSCAR Project Proposal for OPNFV OPNFV System Configuration And Reporting Deployment system for OPNFV platform and virtual infrastructure Based on open source Cobbler/Puppet Create templates to build different OPNFV stacks based on different combinations of software components Preload OPNFV stack with required VNFs Provides a means to rapidly deploy OPNFV stacks to support several operator cases: POC System test (Lab/FOA) Production Packaged reports on OPNFV system configuration and status

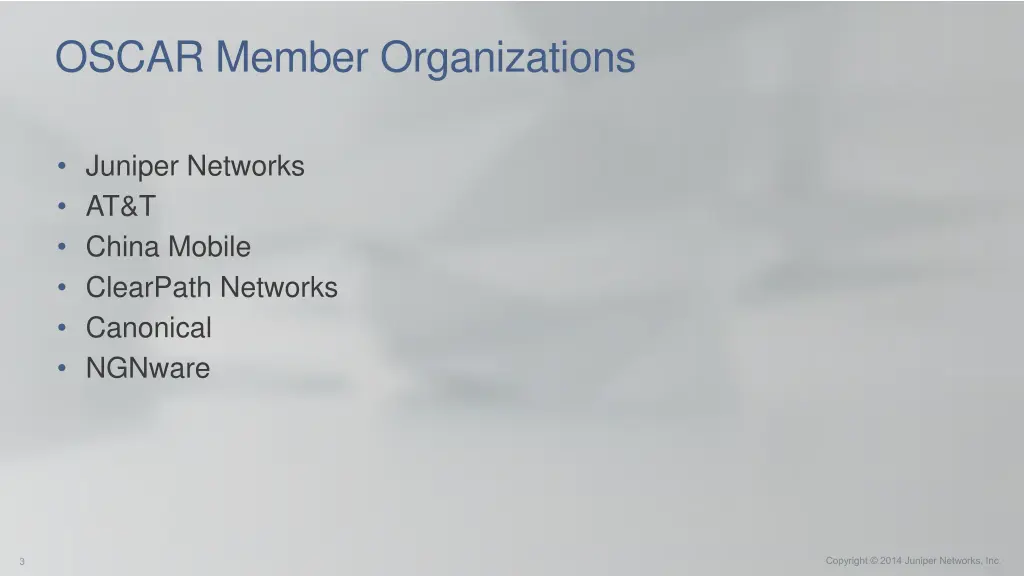

OSCAR Member Organizations Juniper Networks AT&T China Mobile ClearPath Networks Canonical NGNware

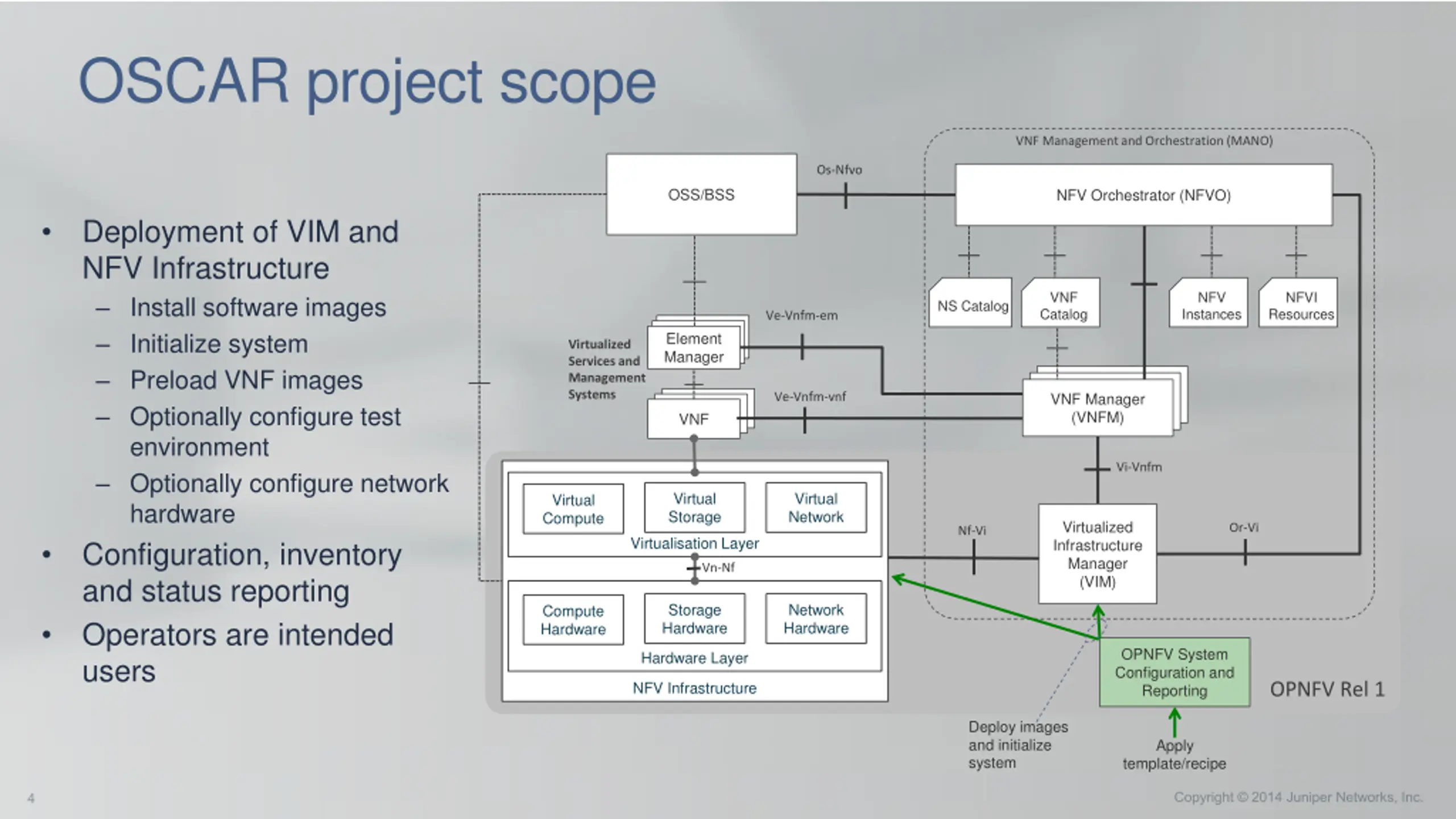

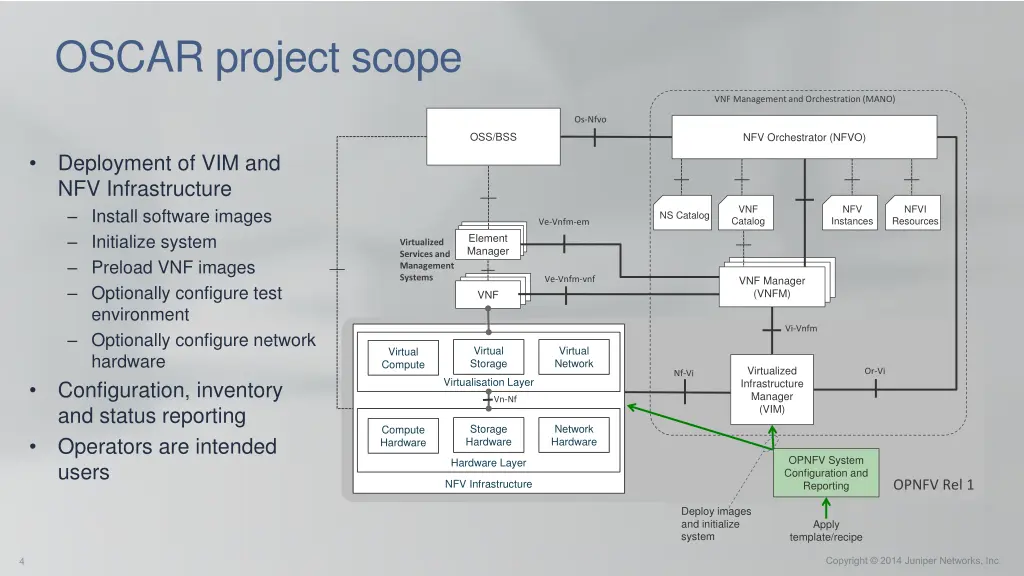

OSCAR project scope VNF Management and Orchestration (MANO) Os-Nfvo OSS/BSS NFV Orchestrator (NFVO) Deployment of VIM and NFV Infrastructure Install software images Initialize system Preload VNF images Optionally configure test environment Optionally configure network hardware Configuration, inventory and status reporting Operators are intended users VNF Catalog NFV NFVI Resources NS Catalog Instances Ve-Vnfm-em Element Manager Manager Manager Element Element Virtualized Services and Management Systems VNF Manager (VNFM) (VNFM) (VNFM) VNF Manager VNF Manager Ve-Vnfm-vnf VNF VNF VNF Vi-Vnfm Virtual Storage Virtual Network Virtual Compute Virtualized Infrastructure Manager (VIM) Or-Vi Nf-Vi Virtualisation Layer Vn-Nf Storage Hardware Network Hardware Compute Hardware OPNFV System Configuration and Reporting Hardware Layer NFV Infrastructure OPNFV Rel 1 Deploy images and initialize system Apply template/recipe

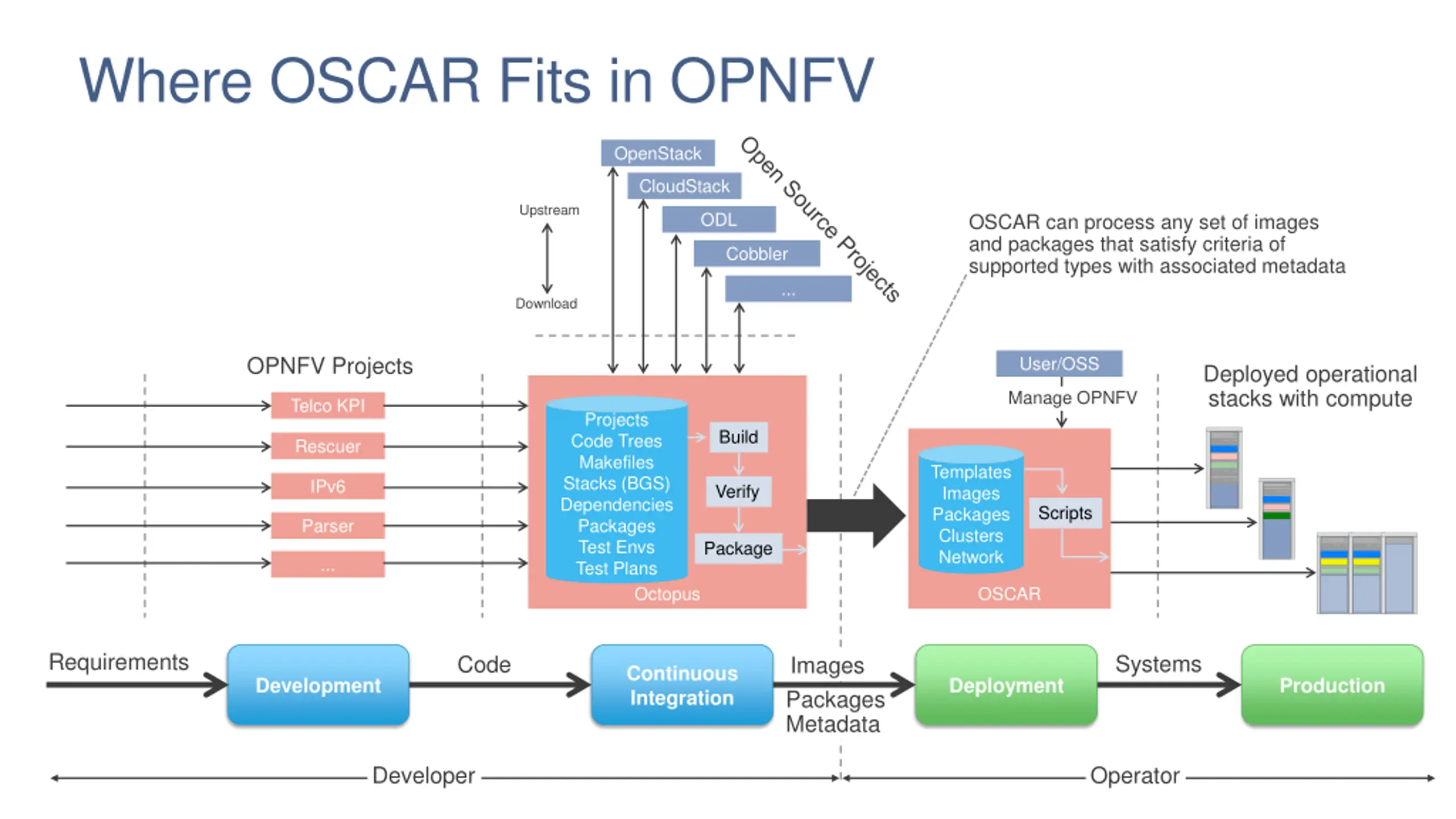

Where OSCAR Fits in OPNFV OpenStack CloudStack Upstream ODL OSCAR can process any set of images and packages that satisfy criteria of supported types with associated metadata Cobbler ... Download OPNFV Projects User/OSS Deployed operational stacks with compute Manage OPNFV Telco KPI Projects Code Trees Makefiles Stacks (BGS) Dependencies Packages Test Envs Test Plans Build Rescuer Templates Images Packages Clusters Network IPv6 Verify Scripts Parser Package ... Octopus OSCAR Requirements Systems Code Images Packages Metadata Continuous Integration Development Deployment Production Developer Operator

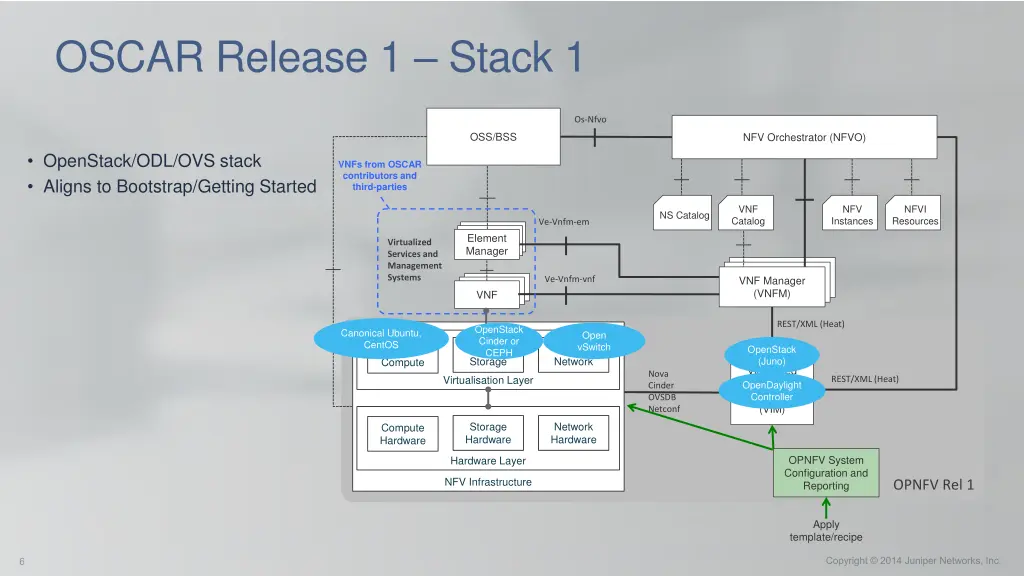

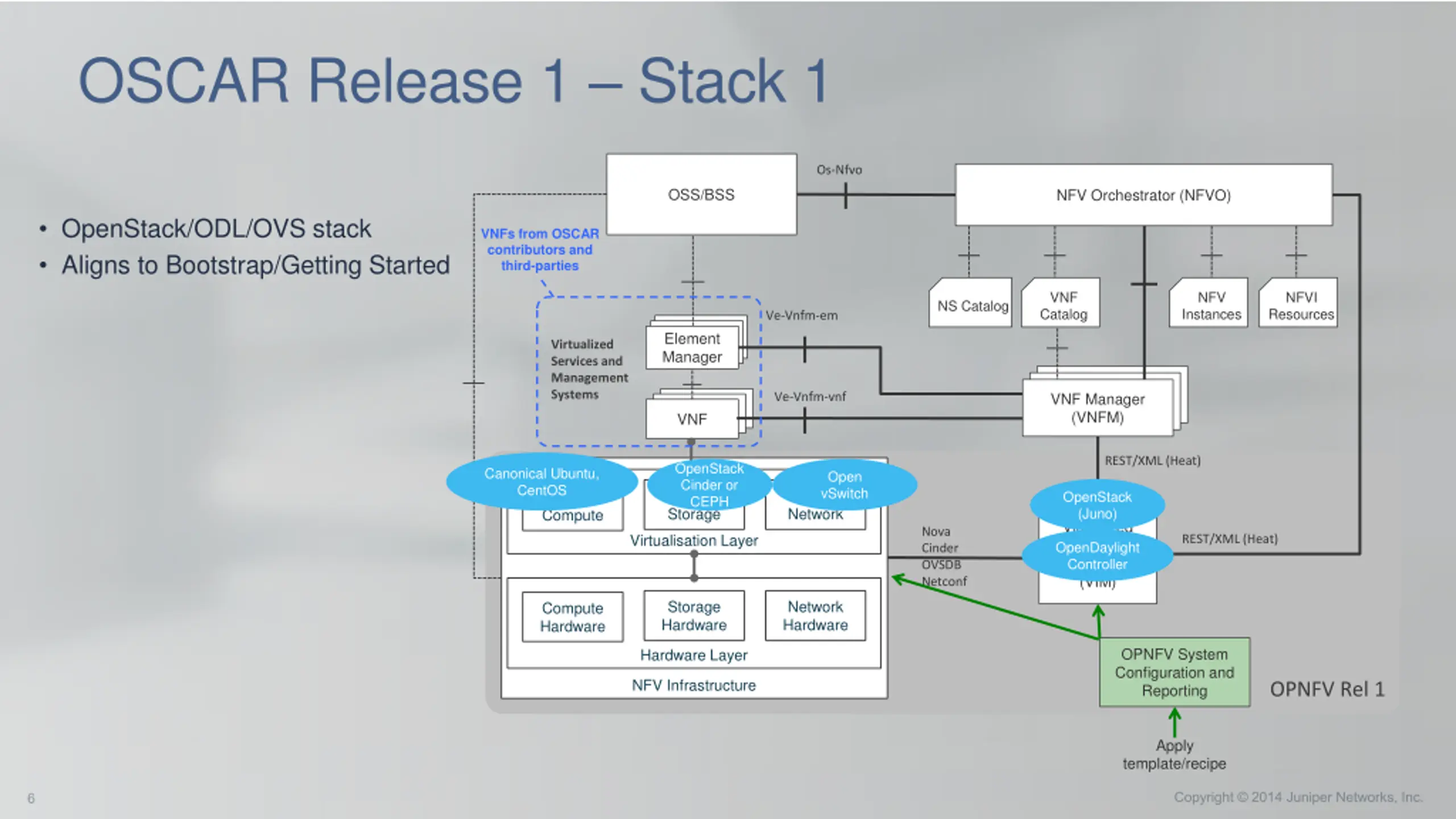

OSCAR Release 1 Stack 1 Os-Nfvo OSS/BSS NFV Orchestrator (NFVO) OpenStack/ODL/OVS stack Aligns to Bootstrap/Getting Started VNFs from OSCAR contributors and third-parties VNF Catalog NFV NFVI Resources NS Catalog Instances Ve-Vnfm-em Element Manager Manager Manager Element Element Virtualized Services and Management Systems VNF Manager (VNFM) (VNFM) (VNFM) VNF Manager VNF Manager Ve-Vnfm-vnf VNF VNF VNF REST/XML (Heat) OpenStack Cinder or CEPH Canonical Ubuntu, CentOS Open vSwitch Virtual Storage Virtual Network Virtual Compute OpenStack (Juno) Virtualized Infrastructure Manager (VIM) Nova Cinder OVSDB Netconf Virtualisation Layer REST/XML (Heat) OpenDaylight Controller Storage Hardware Network Hardware Compute Hardware OPNFV System Configuration and Reporting Hardware Layer NFV Infrastructure OPNFV Rel 1 Apply template/recipe

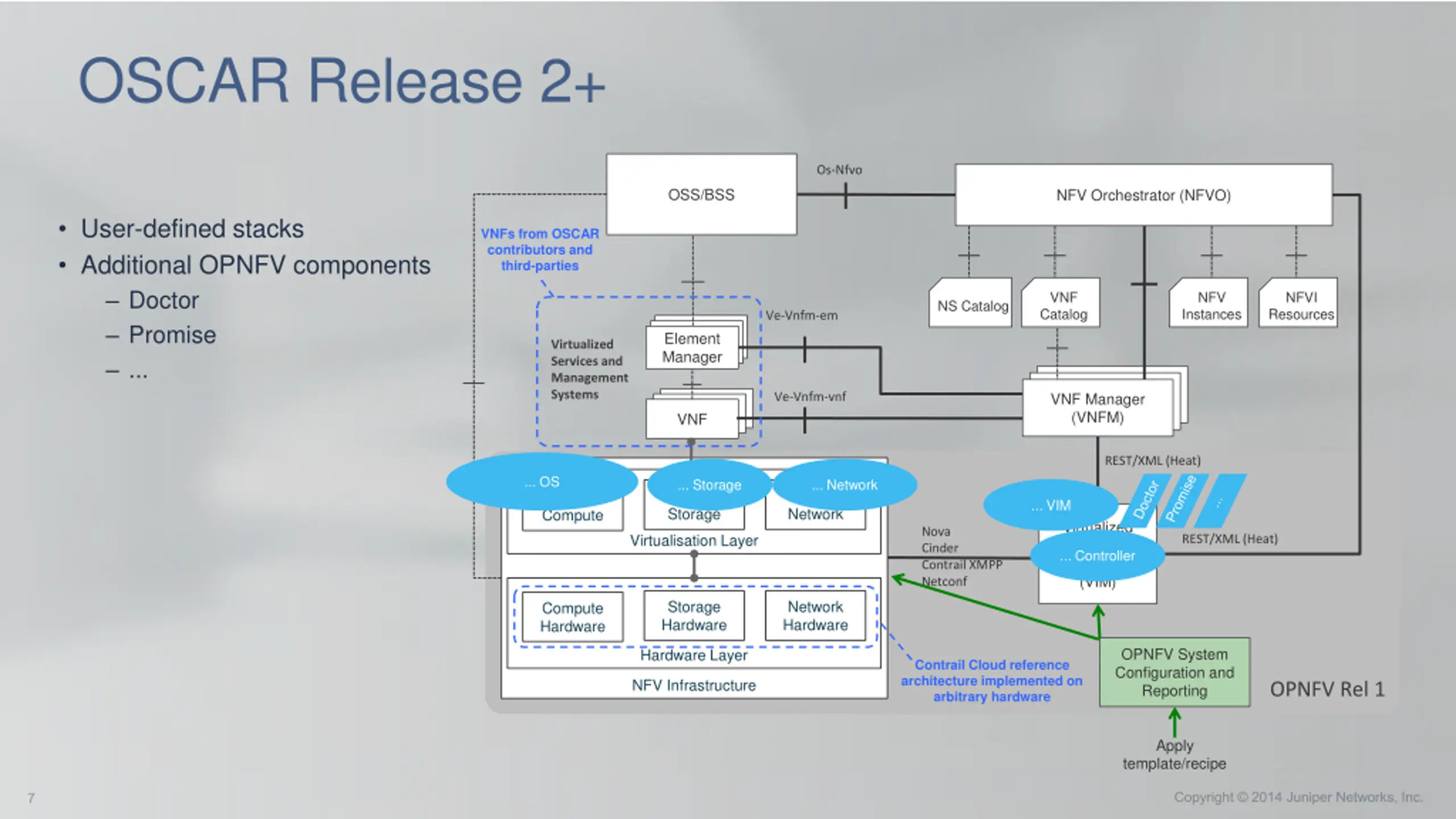

OSCAR Release 2+ Os-Nfvo OSS/BSS NFV Orchestrator (NFVO) User-defined stacks Additional OPNFV components Doctor Promise ... VNFs from OSCAR contributors and third-parties VNF Catalog NFV NFVI Resources NS Catalog Instances Ve-Vnfm-em Element Manager Manager Manager Element Element Virtualized Services and Management Systems VNF Manager (VNFM) (VNFM) (VNFM) VNF Manager VNF Manager Ve-Vnfm-vnf VNF VNF VNF REST/XML (Heat) ... OS ... Storage ... Network Virtual Storage Virtual Network Virtual Compute ... VIM Virtualized Infrastructure Manager (VIM) Nova Cinder Contrail XMPP Netconf Virtualisation Layer REST/XML (Heat) ... Controller Storage Hardware Network Hardware Compute Hardware OPNFV System Configuration and Reporting Hardware Layer Contrail Cloud reference architecture implemented on arbitrary hardware NFV Infrastructure OPNFV Rel 1 Apply template/recipe

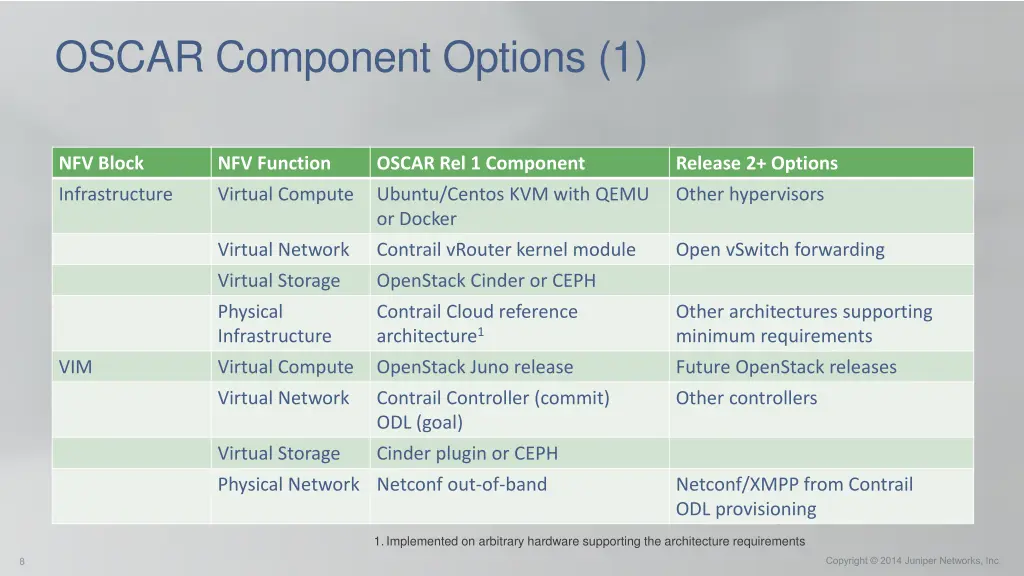

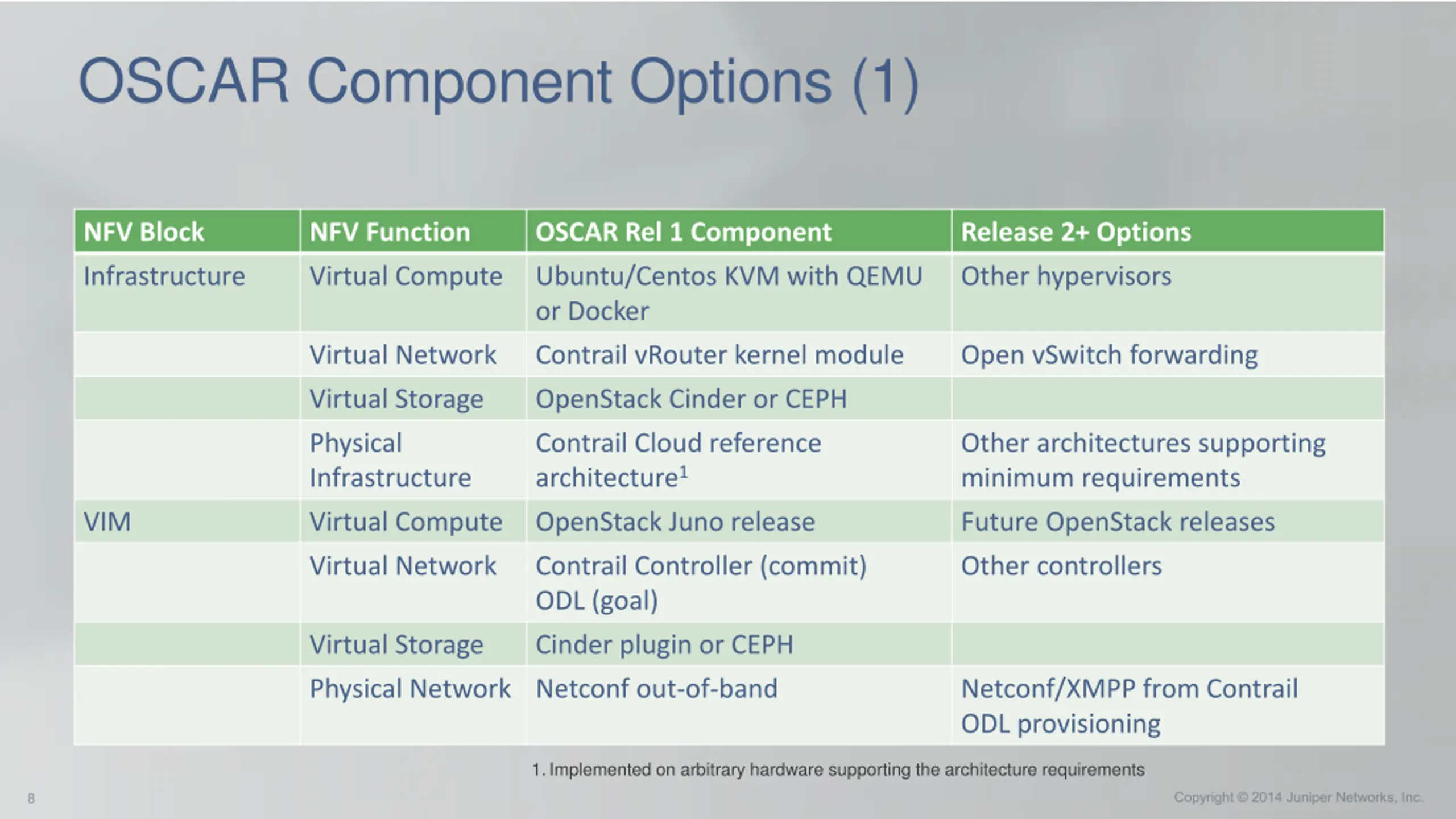

OSCAR Component Options (1) NFV Block NFV Function OSCAR Rel 1 Component Release 2+ Options Infrastructure Virtual Compute Ubuntu/Centos KVM with QEMU or Docker Other hypervisors Virtual Network Contrail vRouter kernel module Open vSwitch forwarding Virtual Storage OpenStack Cinder or CEPH Physical Infrastructure Contrail Cloud reference architecture1 Other architectures supporting minimum requirements VIM Virtual Compute OpenStack Juno release Future OpenStack releases Virtual Network Contrail Controller (commit) ODL (goal) Other controllers Virtual Storage Cinder plugin or CEPH Physical Network Netconf out-of-band Netconf/XMPP from Contrail ODL provisioning 1.Implemented on arbitrary hardware supporting the architecture requirements

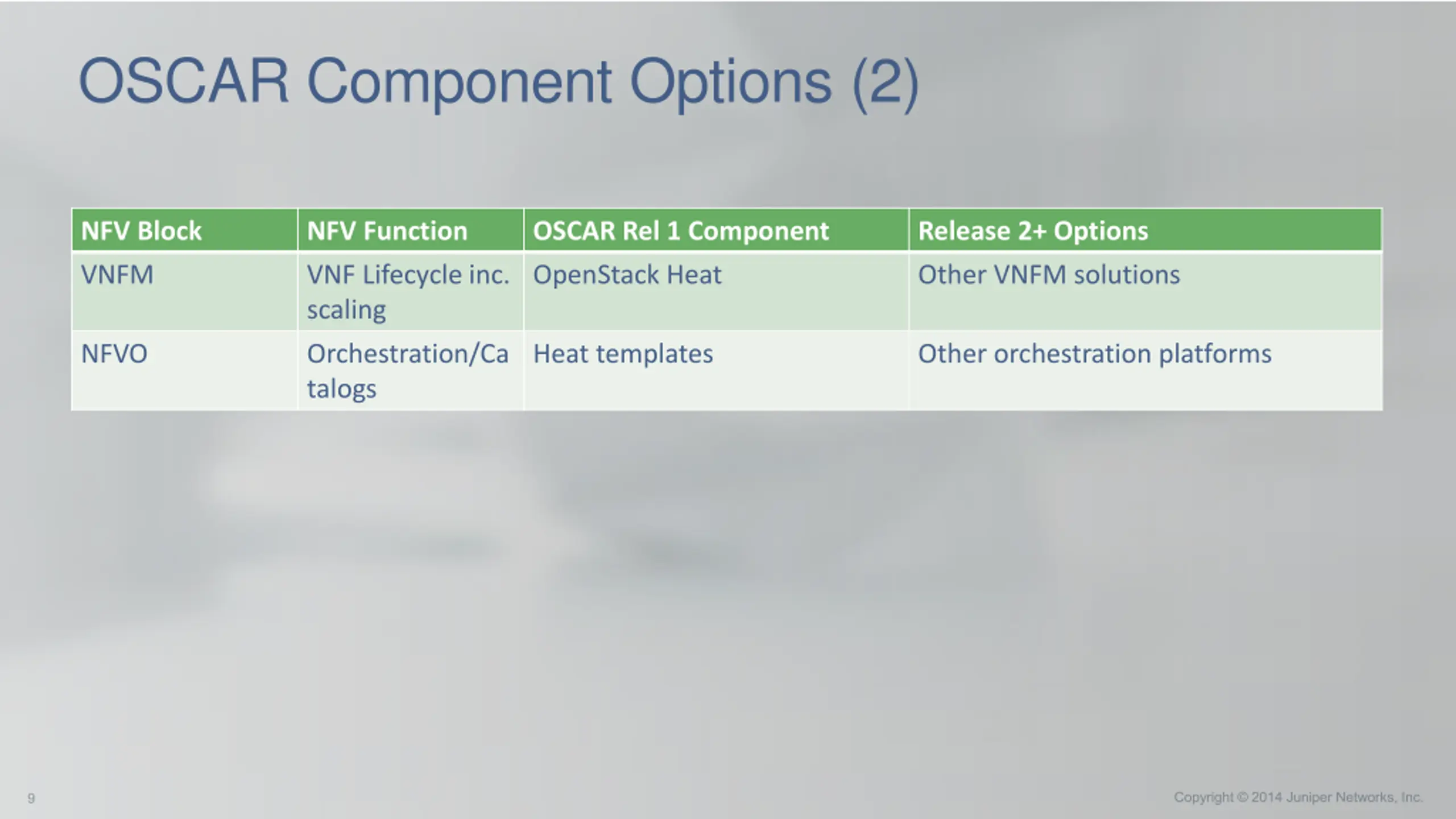

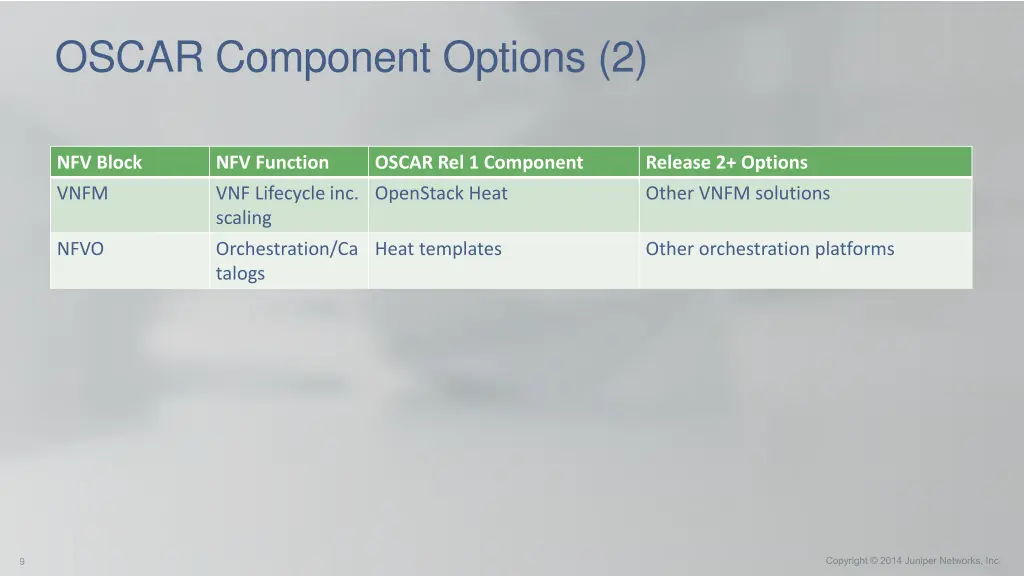

OSCAR Component Options (2) NFV Block NFV Function OSCAR Rel 1 Component Release 2+ Options VNFM VNF Lifecycle inc. scaling OpenStack Heat Other VNFM solutions NFVO Orchestration/Ca talogs Heat templates Other orchestration platforms

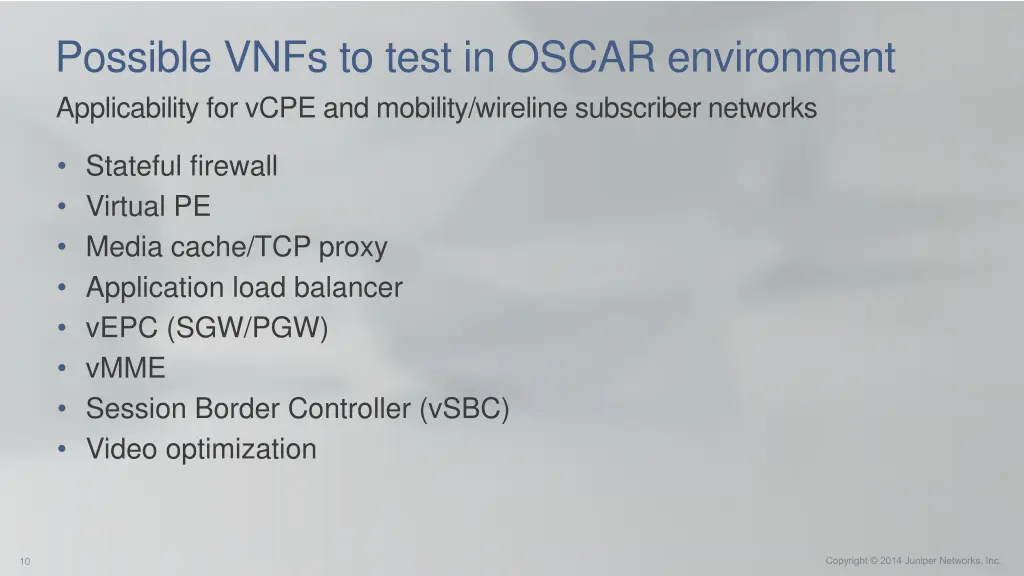

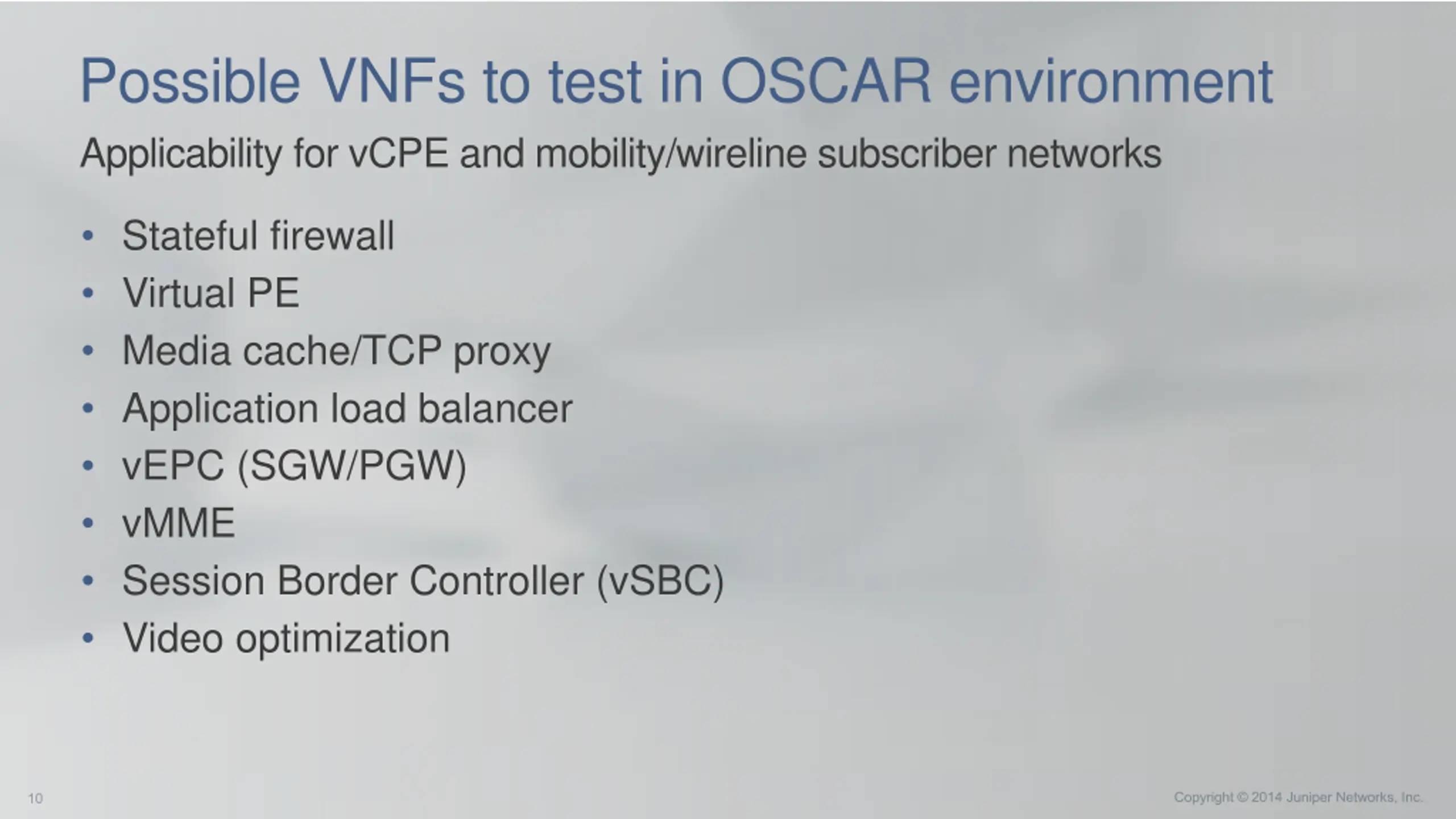

Possible VNFs to test in OSCAR environment Applicability for vCPE and mobility/wireline subscriber networks Stateful firewall Virtual PE Media cache/TCP proxy Application load balancer vEPC (SGW/PGW) vMME Session Border Controller (vSBC) Video optimization
Test Cases Create templates that allow supported stacks to be built at different scales (POC/test/production) Test deployment at various scales Test preloading of VNFs

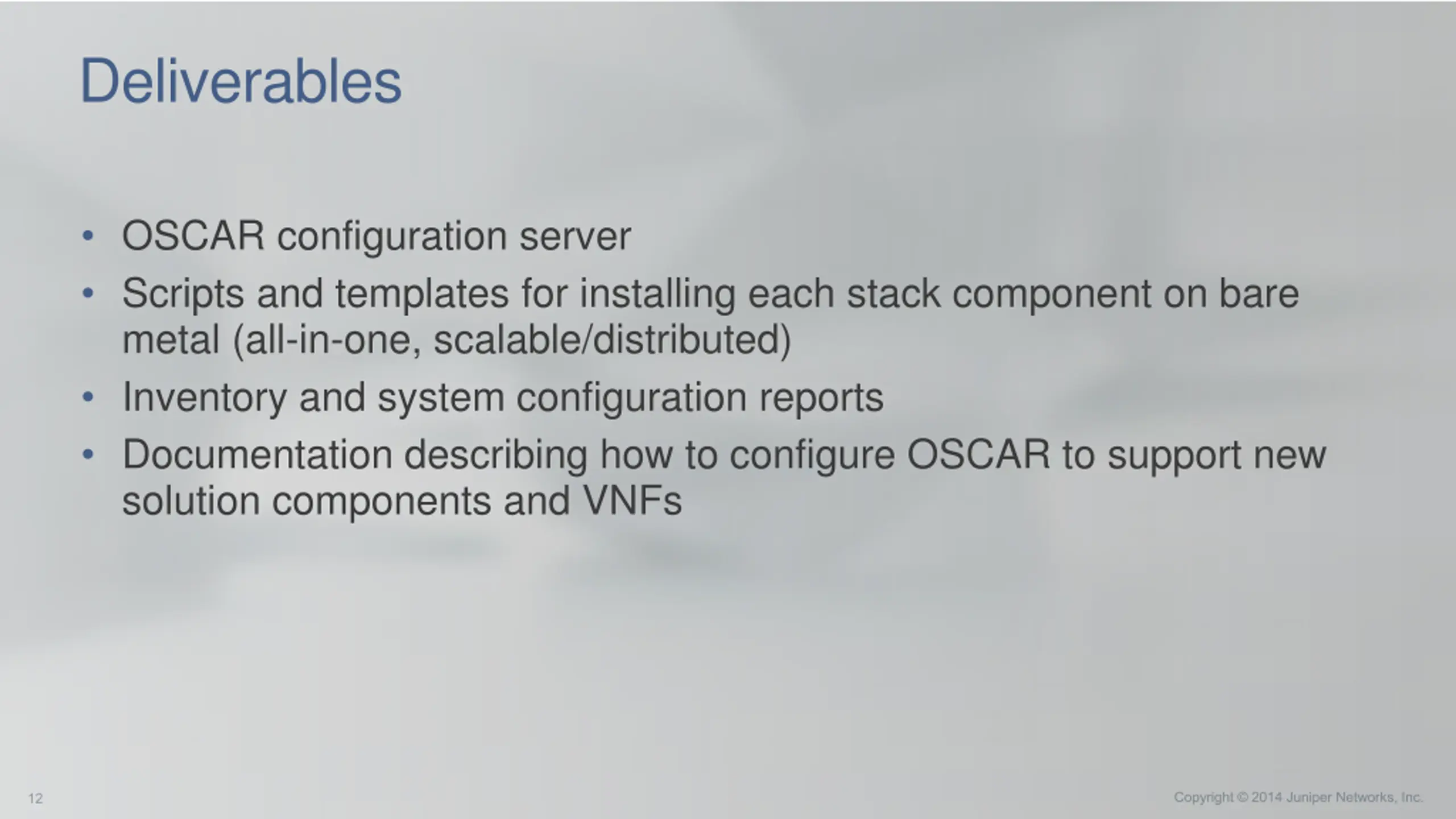

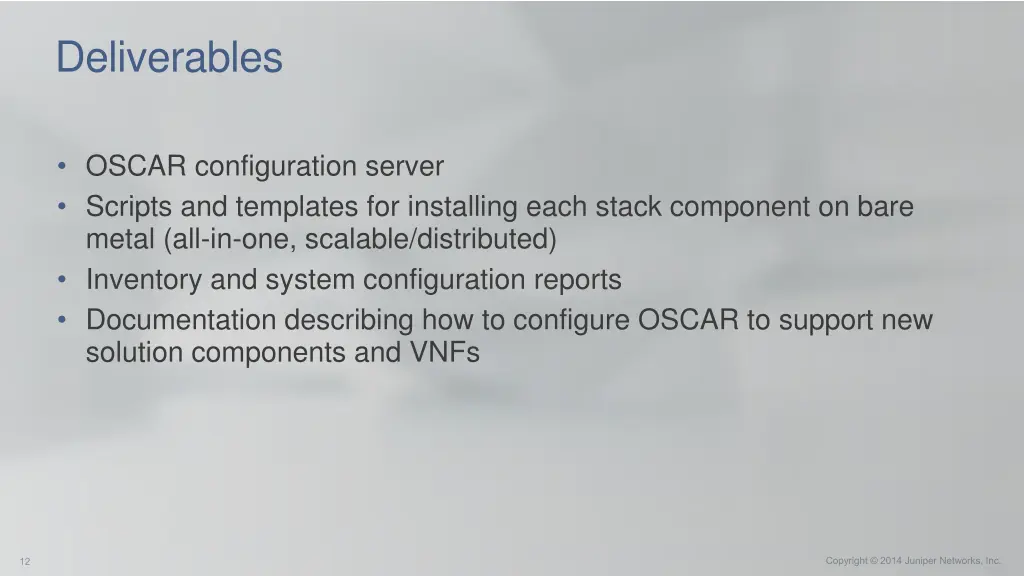

Deliverables OSCAR configuration server Scripts and templates for installing each stack component on bare metal (all-in-one, scalable/distributed) Inventory and system configuration reports Documentation describing how to configure OSCAR to support new solution components and VNFs
