Open Shortest Path First (OSPF) Appendix: Dijkstra s Algorithm ECE 461 Professor Jorg Liebeherr 1
Operation of a link state routing protocol Operation of a link state routing protocol Dijkstra s Algorithm Received LSAs Link State Database IP Routing Table LSAs are flooded to other interfaces 2

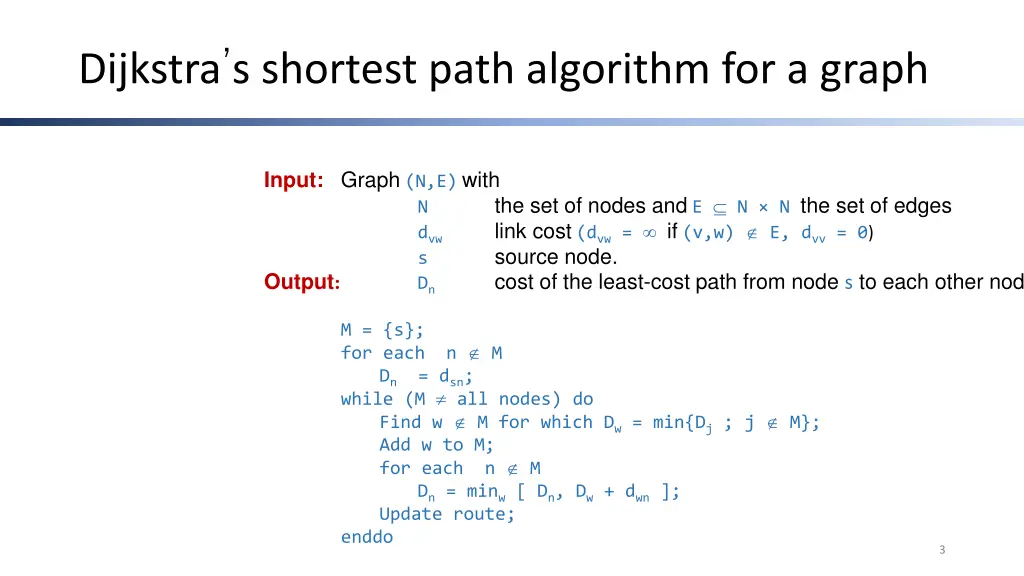

Dijkstras shortest path algorithm for a graph Input:Graph(N,E)with Output: the set of nodes andE N N the set of edges link cost(dvw = if(v,w) E, dvv = 0) source node. cost of the least-cost path from node s to each other node N dvw s Dn M = {s}; for each n M Dn = dsn; while (M all nodes) do Find w M for which Dw = min{Dj ; j M}; Add w to M; for each n M Dn = minw [ Dn, Dw + dwn ]; Update route; enddo 3

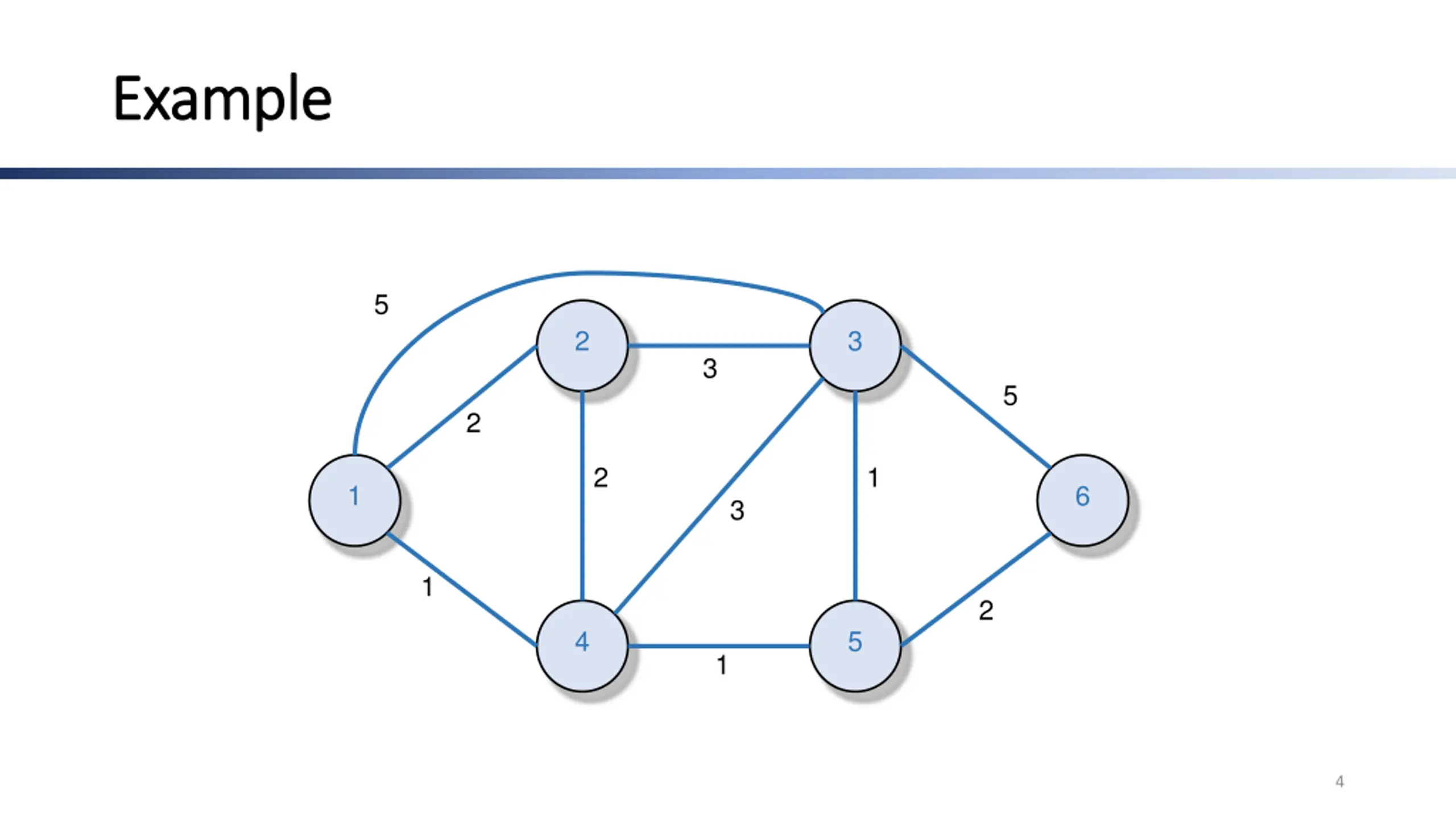

Example Example 5 2 3 3 5 2 2 1 1 6 3 1 2 4 5 1 4

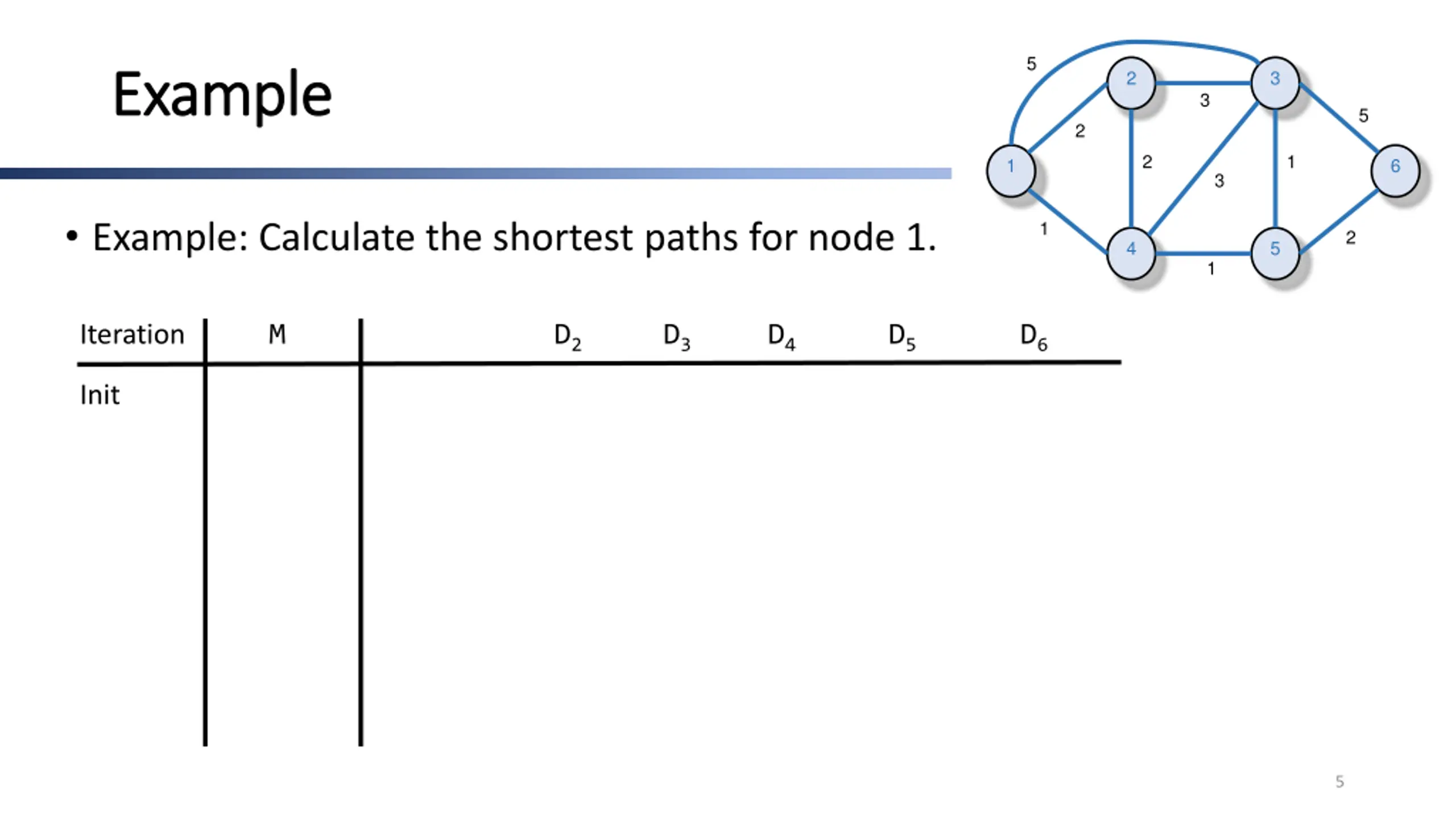

5 Example Example 2 3 3 5 2 2 1 1 6 3 Example: Calculate the shortest paths for node 1. 1 2 4 5 1 IterationM D2 D3 D4 D5 D6 Init 5

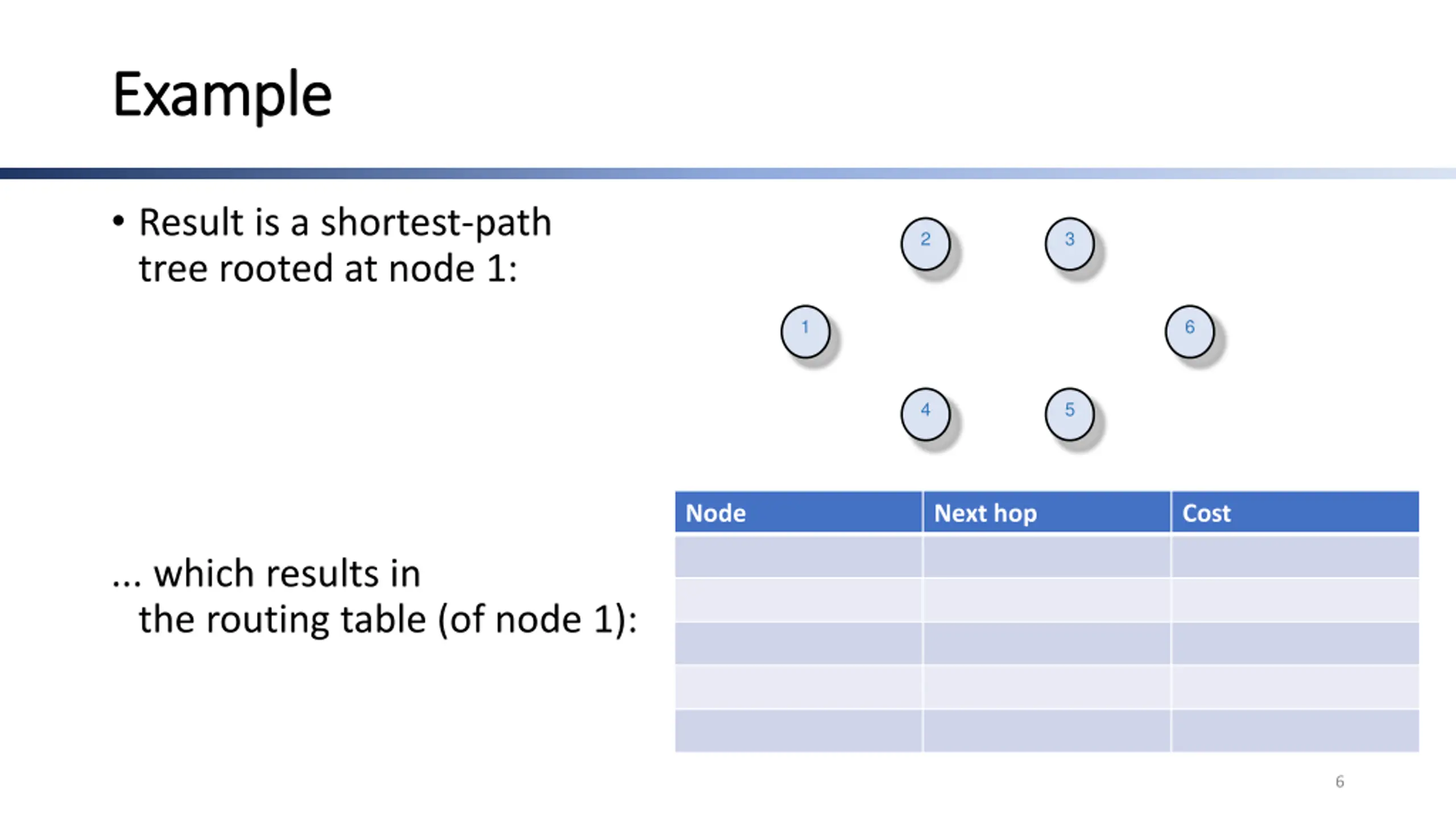

Example Example Result is a shortest-path tree rooted at node 1: 2 3 1 6 4 5 Node Next hop Cost ... which results in the routing table (of node 1): 6
