Using the PROSE Framework Programming by Examples Tutorial Alex Polozov polozov@cs.washington.edu January 21, 2017 UC Berkeley PROSE Hackathon 1

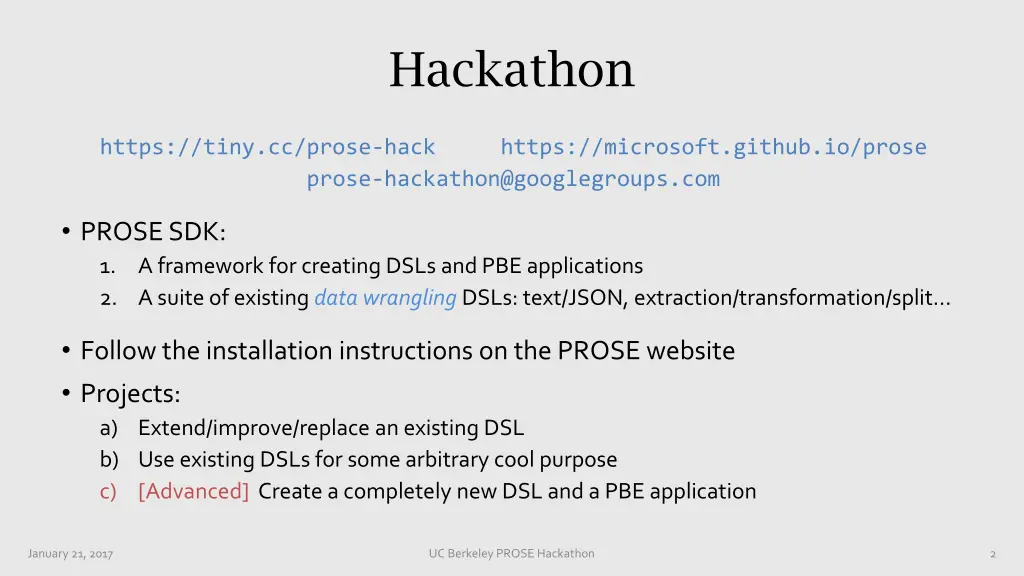

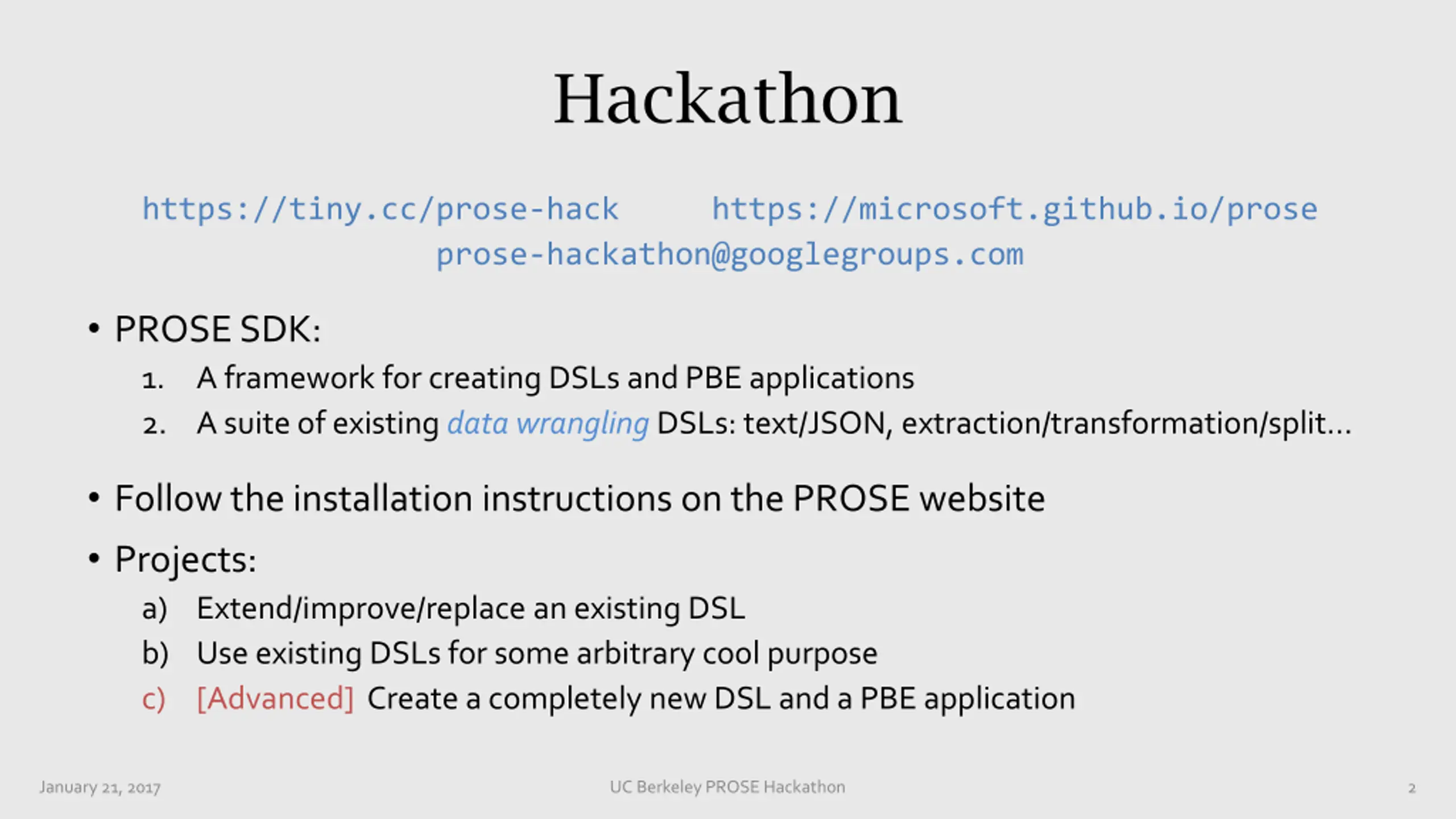

Hackathon https://tiny.cc/prose-hack https://microsoft.github.io/prose prose-hackathon@googlegroups.com PROSE SDK: 1. A framework for creating DSLs and PBE applications 2. A suite of existing data wranglingDSLs: text/JSON, extraction/transformation/split Follow the installation instructions on the PROSE website Projects: a) Extend/improve/replace an existing DSL b) Use existing DSLs for some arbitrary cool purpose c) [Advanced] Create a completely new DSL and a PBE application January 21, 2017 UC Berkeley PROSE Hackathon 2

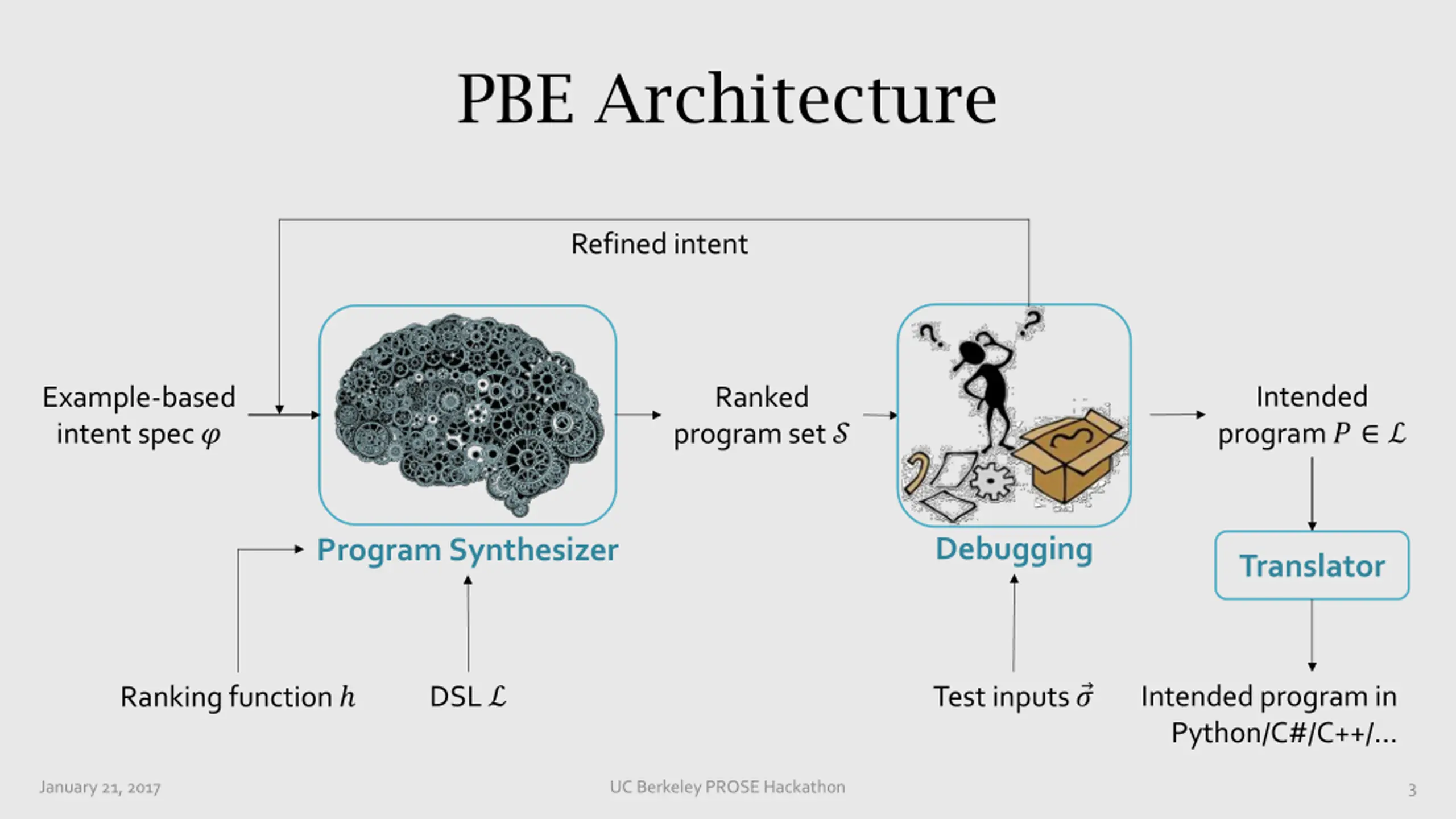

PBE Architecture Refined intent Intended program ? Example-based intent spec ? Ranked program set ? Debugging Program Synthesizer Translator DSL Test inputs ? Ranking function Intended program in Python/C#/C++/ January 21, 2017 UC Berkeley PROSE Hackathon 3

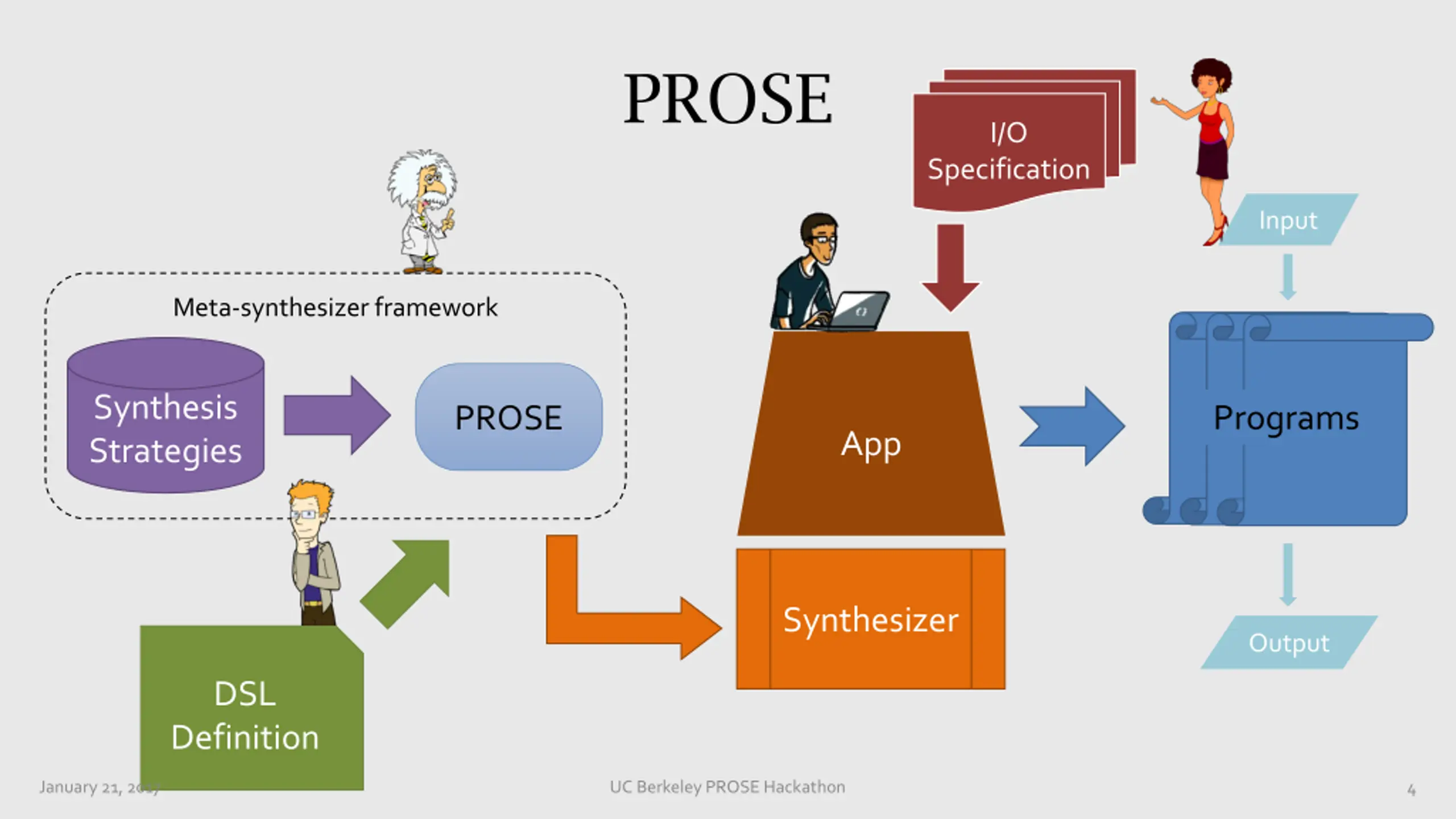

PROSE I/O Specification Input Meta-synthesizer framework Synthesis Strategies Programs PROSE App Synthesizer Output DSL Definition January 21, 2017 UC Berkeley PROSE Hackathon 4

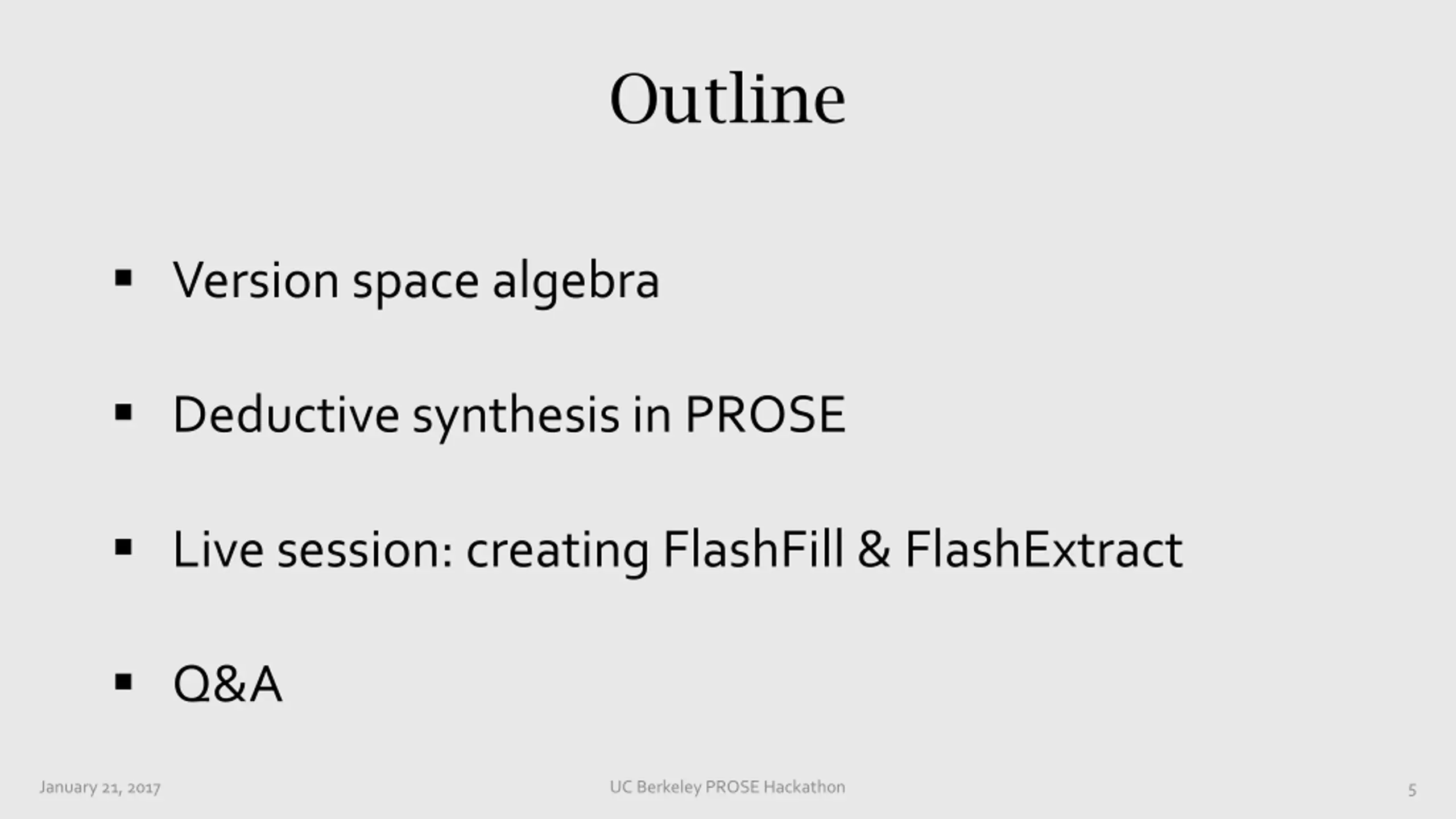

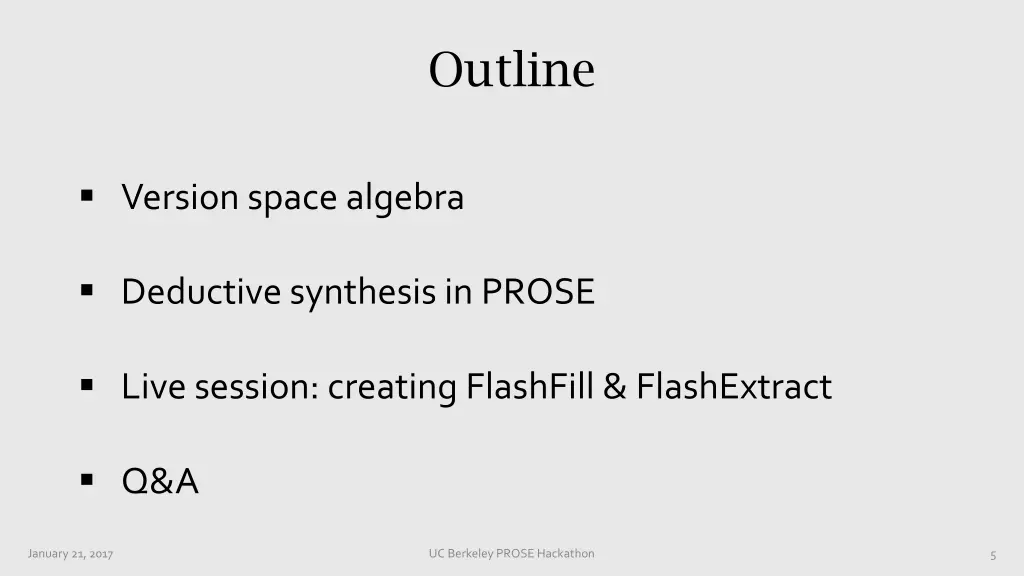

Outline Version space algebra Deductive synthesis in PROSE Live session: creating FlashFill & FlashExtract Q&A January 21, 2017 UC Berkeley PROSE Hackathon 5
Outline Version space algebra Deductive synthesis in PROSE Live session: creating FlashFill & FlashExtract Q&A January 21, 2017 UC Berkeley PROSE Hackathon 6

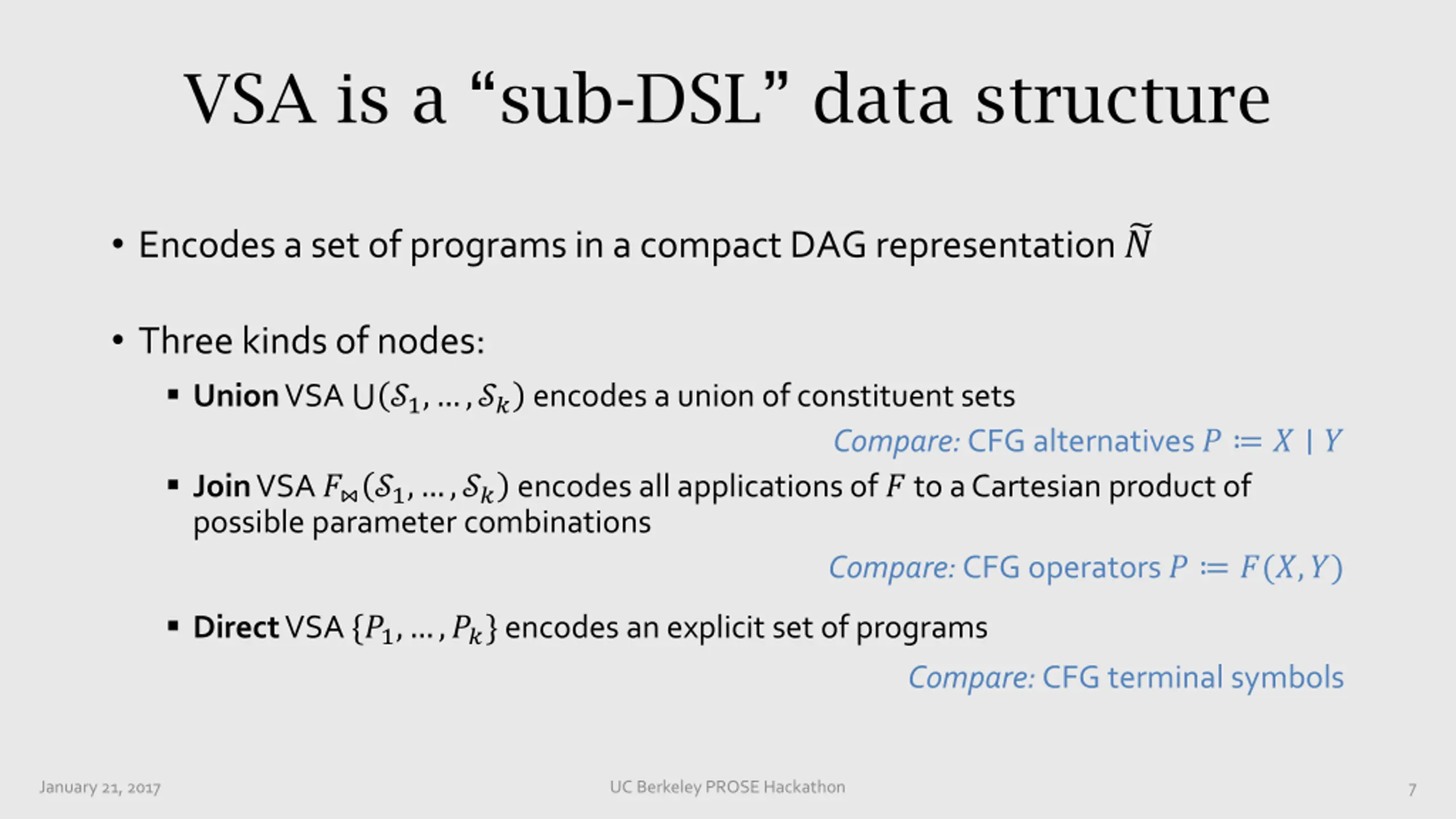

VSA is a sub-DSL data structure Encodes a set of programs in a compact DAG representation ? Three kinds of nodes: Union VSA ?1, ,?? encodes a union of constituent sets Compare: CFG alternatives ? ? ? Join VSA ? ?1, ,?? encodes all applications of ? to a Cartesian product of possible parameter combinations Compare: CFG operators ? ?(?,?) Direct VSA {?1, ,??} encodes an explicit set of programs Compare: CFG terminal symbols January 21, 2017 UC Berkeley PROSE Hackathon 7

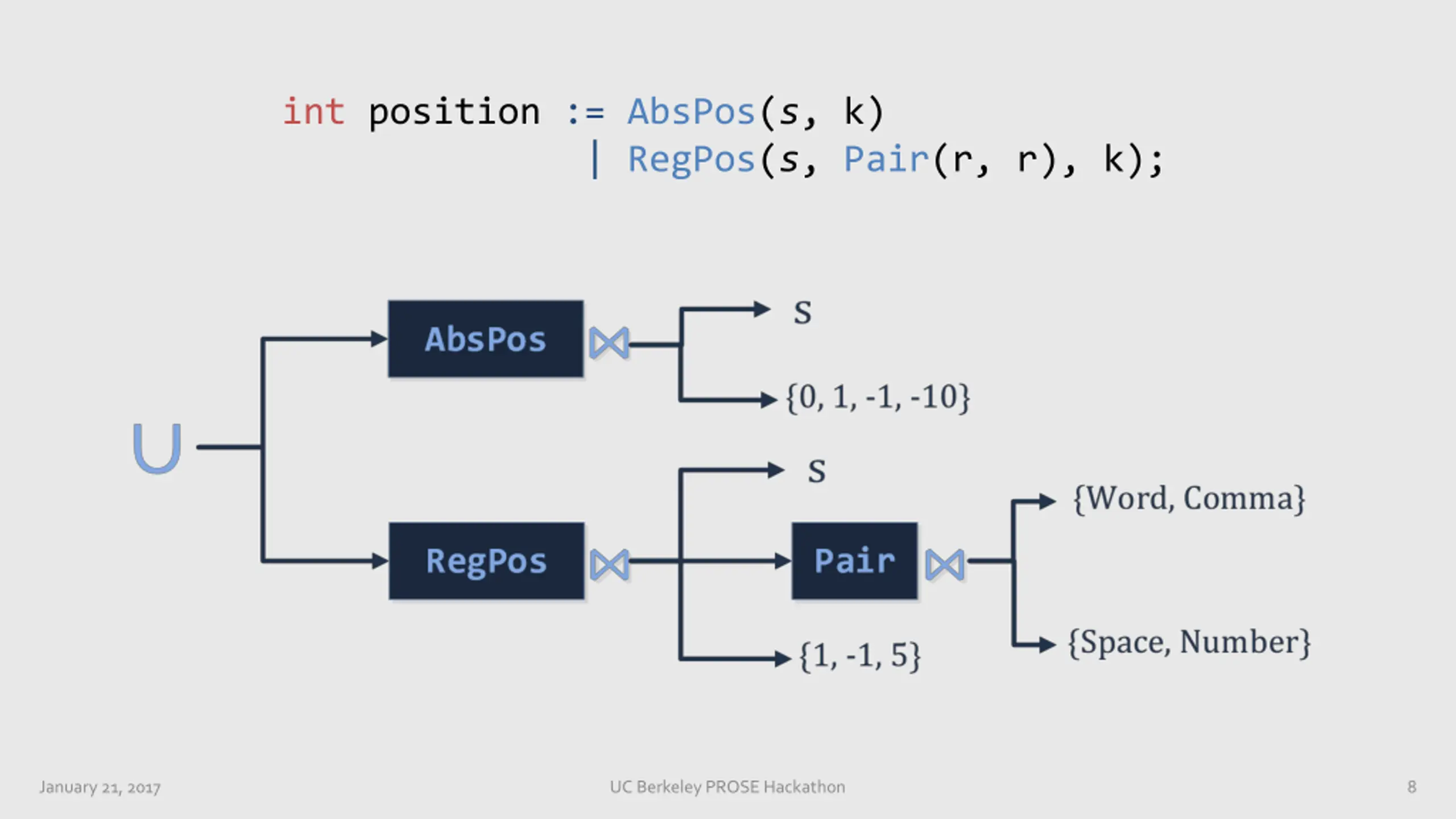

int position := AbsPos(s, k) | RegPos(s, Pair(r, r), k); January 21, 2017 UC Berkeley PROSE Hackathon 8

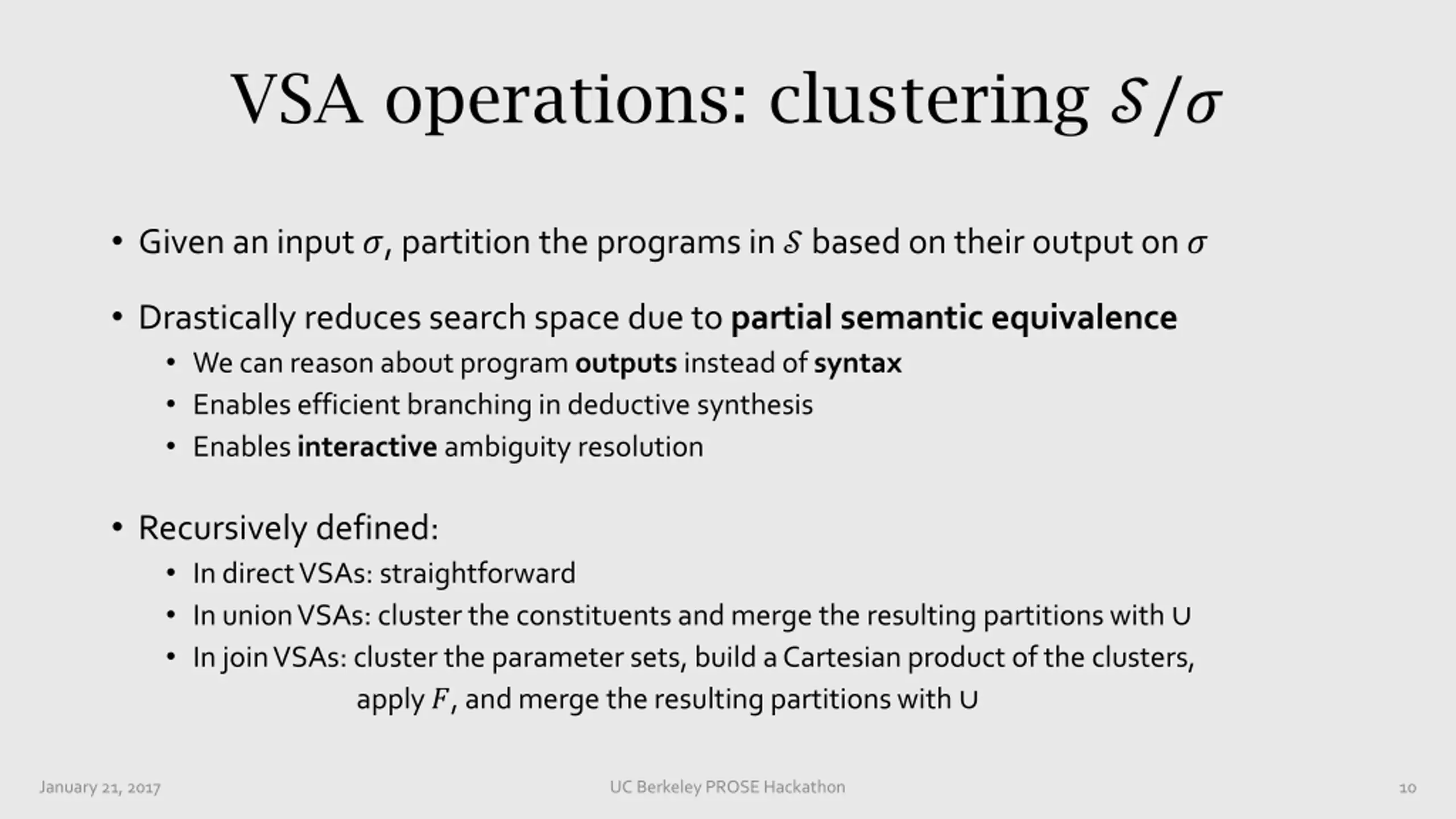

VSA operations: clustering ?/? Given an input ?, partition the programs in ? based on their output on ? Drastically reduces search space due to partial semantic equivalence We can reason about program outputs instead of syntax Enables efficient branching in deductive synthesis Enables interactive ambiguity resolution Recursively defined: In direct VSAs: straightforward In union VSAs: cluster the constituents and merge the resulting partitions with In join VSAs: cluster the parameter sets, build a Cartesian product of the clusters, apply ?, and merge the resulting partitions with January 21, 2017 UC Berkeley PROSE Hackathon 10

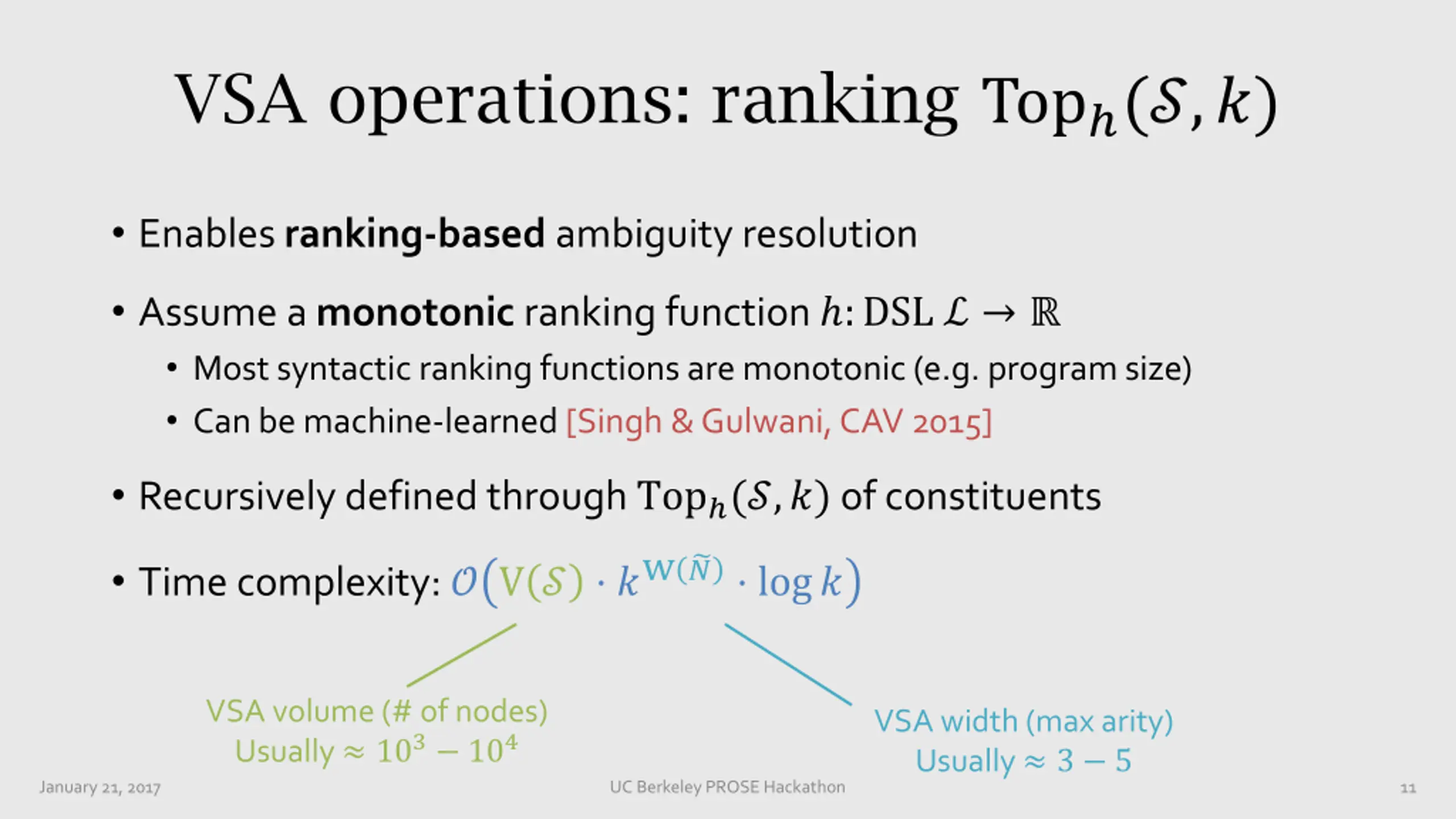

VSA operations: ranking Top(?,?) Enables ranking-based ambiguity resolution Assume a monotonicranking function :DSL Most syntactic ranking functions are monotonic (e.g. program size) Can be machine-learned [Singh & Gulwani, CAV 2015] Recursively defined through Top (?,?) of constituents Time complexity: ? V ? ?w ? log? VSA volume (# of nodes) Usually 103 104 VSA width (max arity) Usually 3 5 January 21, 2017 UC Berkeley PROSE Hackathon 11

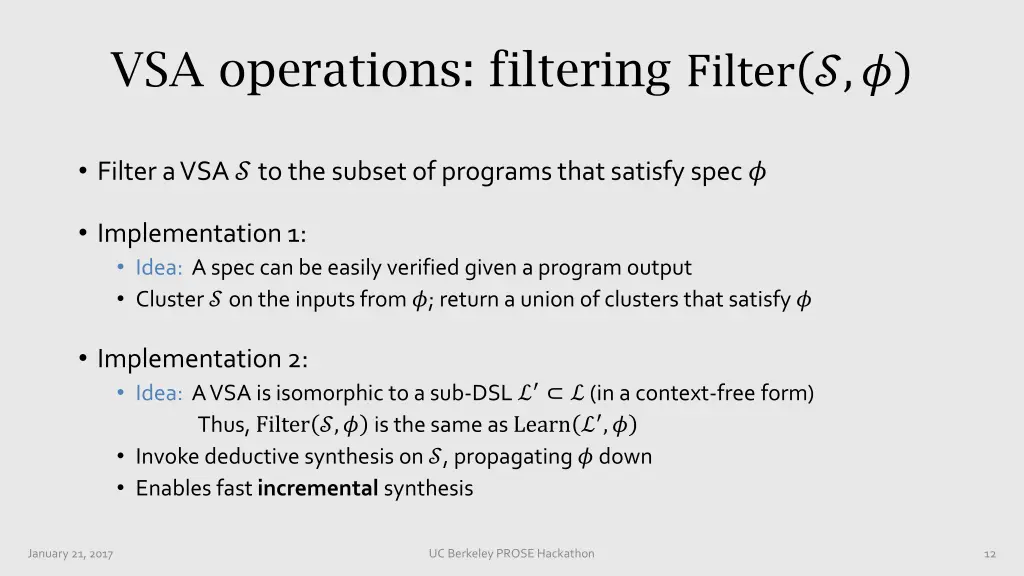

VSA operations: filtering Filter ?,? Filter a VSA ? to the subset of programs that satisfy spec ? Implementation 1: Idea: A spec can be easily verified given a program output Cluster ? on the inputs from ?; return a union of clusters that satisfy ? Implementation 2: Idea: A VSA is isomorphic to a sub-DSL (in a context-free form) Thus, Filter ?,? is the same as Learn ,? Invoke deductive synthesis on ?, propagating ? down Enables fast incrementalsynthesis January 21, 2017 UC Berkeley PROSE Hackathon 12

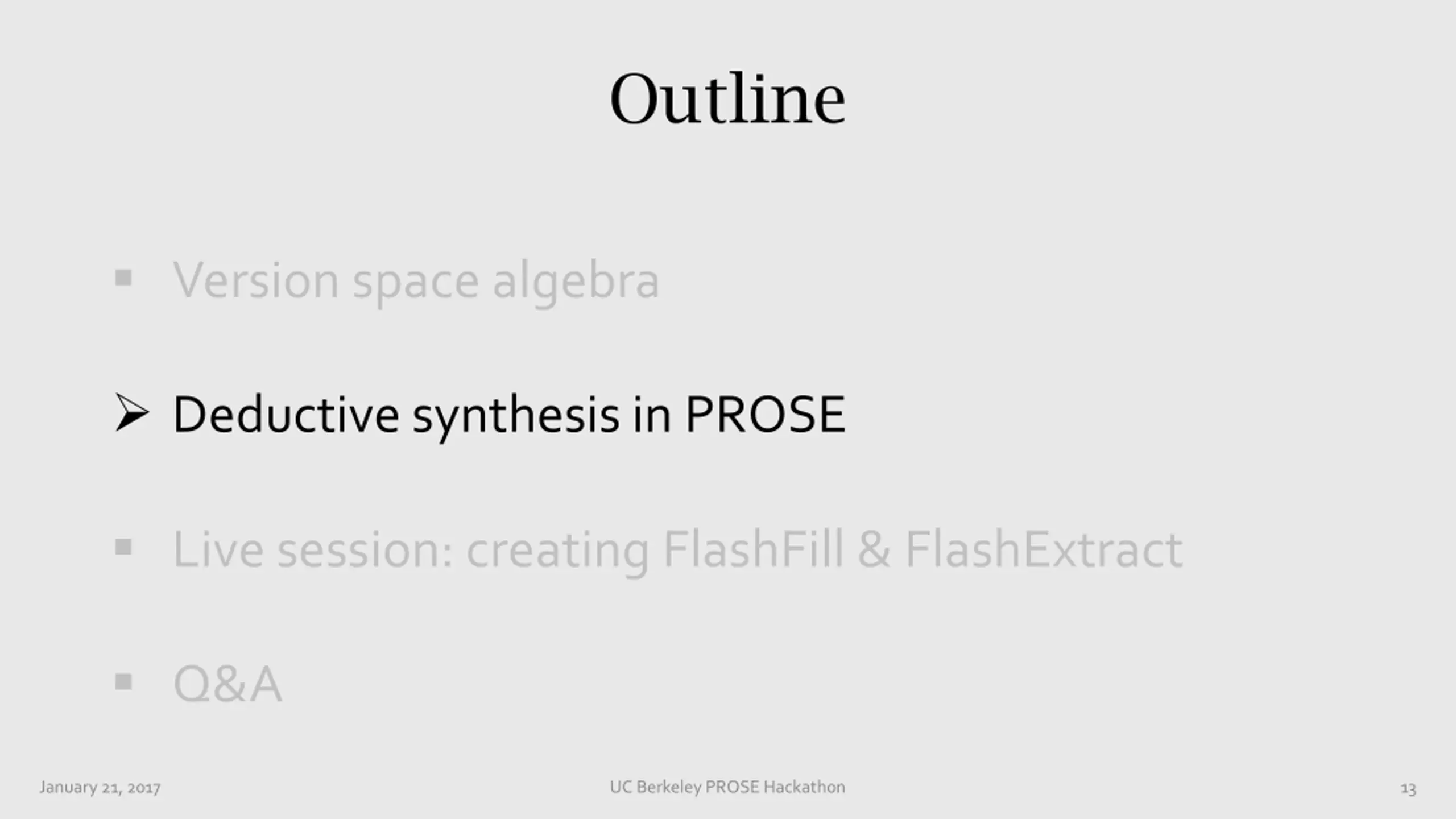

Outline Version space algebra Deductive synthesis in PROSE Live session: creating FlashFill & FlashExtract Q&A January 21, 2017 UC Berkeley PROSE Hackathon 13

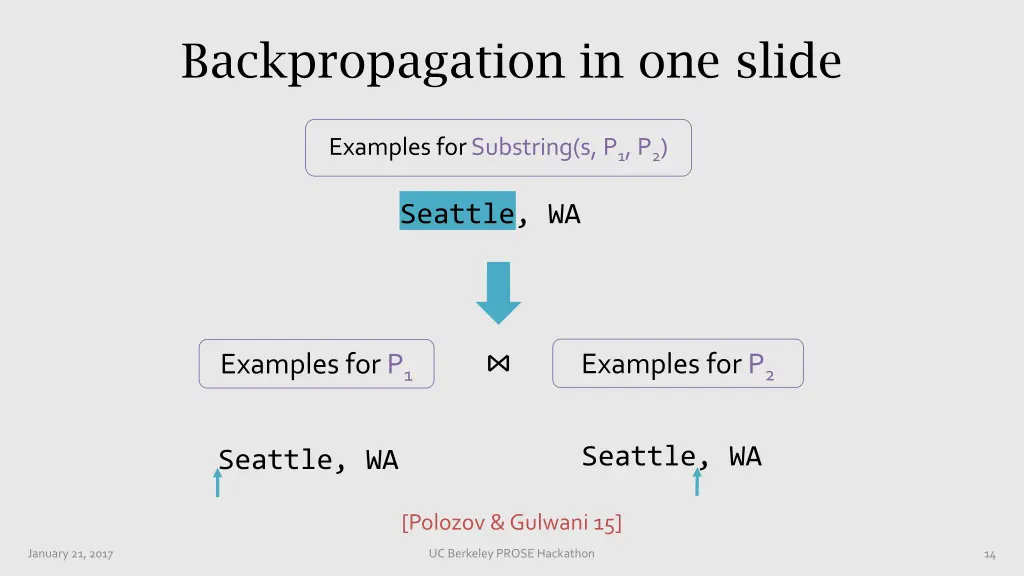

Backpropagation in one slide Examples for Substring(s, P1, P2) Seattle, WA Examples for P2 Examples for P1 Seattle, WA Seattle, WA [Polozov & Gulwani 15] January 21, 2017 UC Berkeley PROSE Hackathon 14

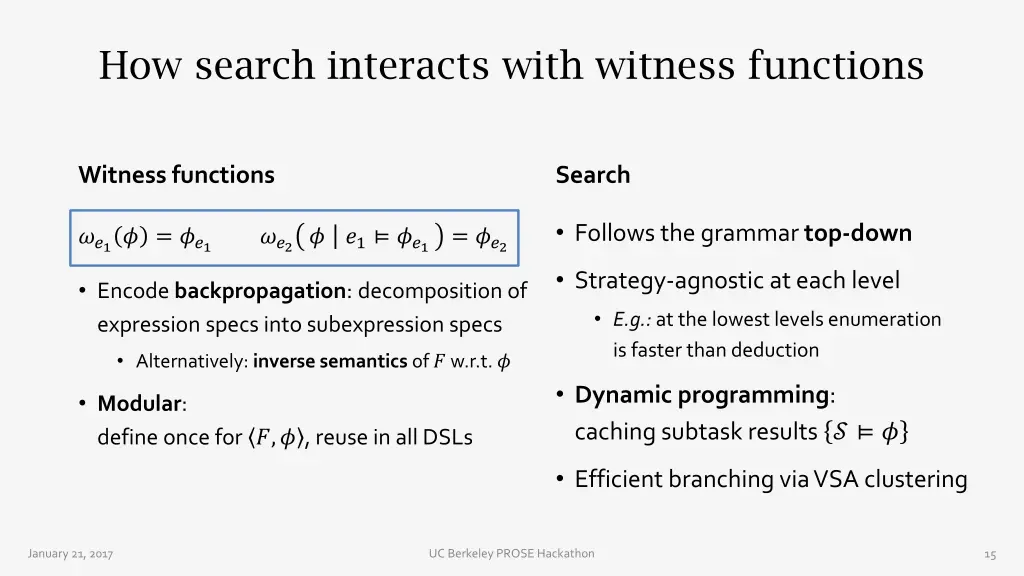

How search interacts with witness functions Witness functions Search Follows the grammar top-down ??1? = ??1??2? ?1 ??1 = ??2 Strategy-agnostic at each level Encode backpropagation: decomposition of expression specs into subexpression specs E.g.: at the lowest levels enumeration is faster than deduction Alternatively: inverse semantics of ? w.r.t. ? Dynamic programming: caching subtask results ? ? Modular: define once for ?,? , reuse in all DSLs Efficient branching via VSA clustering January 21, 2017 UC Berkeley PROSE Hackathon 15

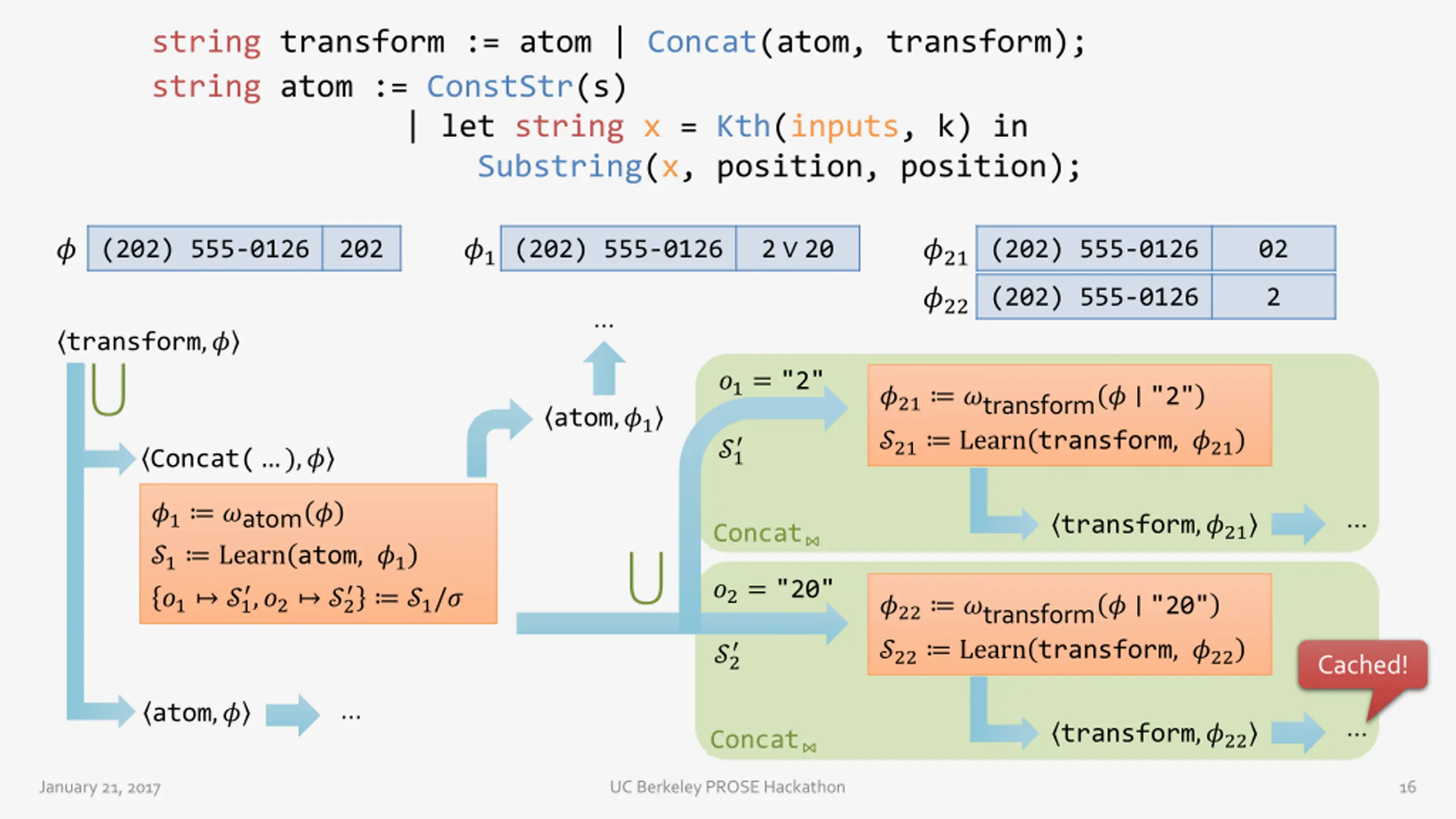

string transform := atom | Concat(atom, transform); string atom := ConstStr(s) | let string x = Kth(inputs, k) in Substring(x, position, position); ? ?1 ?21 ?22 2 20 (202) 555-0126 202 (202) 555-0126 (202) 555-0126 02 (202) 555-0126 2 transform,? ?1= "2" ?21 ?transform? "2" ?21 Learn transform, ?21 atom,?1 ?1 Concat( ),? ?1 ?atom? ?1 Learn atom, ?1 ?1 ?1 transform,?21 Concat ?2= "20" ,?2 ?2 ?1/? ?22 ?transform? "20" ?22 Learn transform, ?22 ?2 Cached! atom,? transform,?22 Concat January 21, 2017 UC Berkeley PROSE Hackathon 16

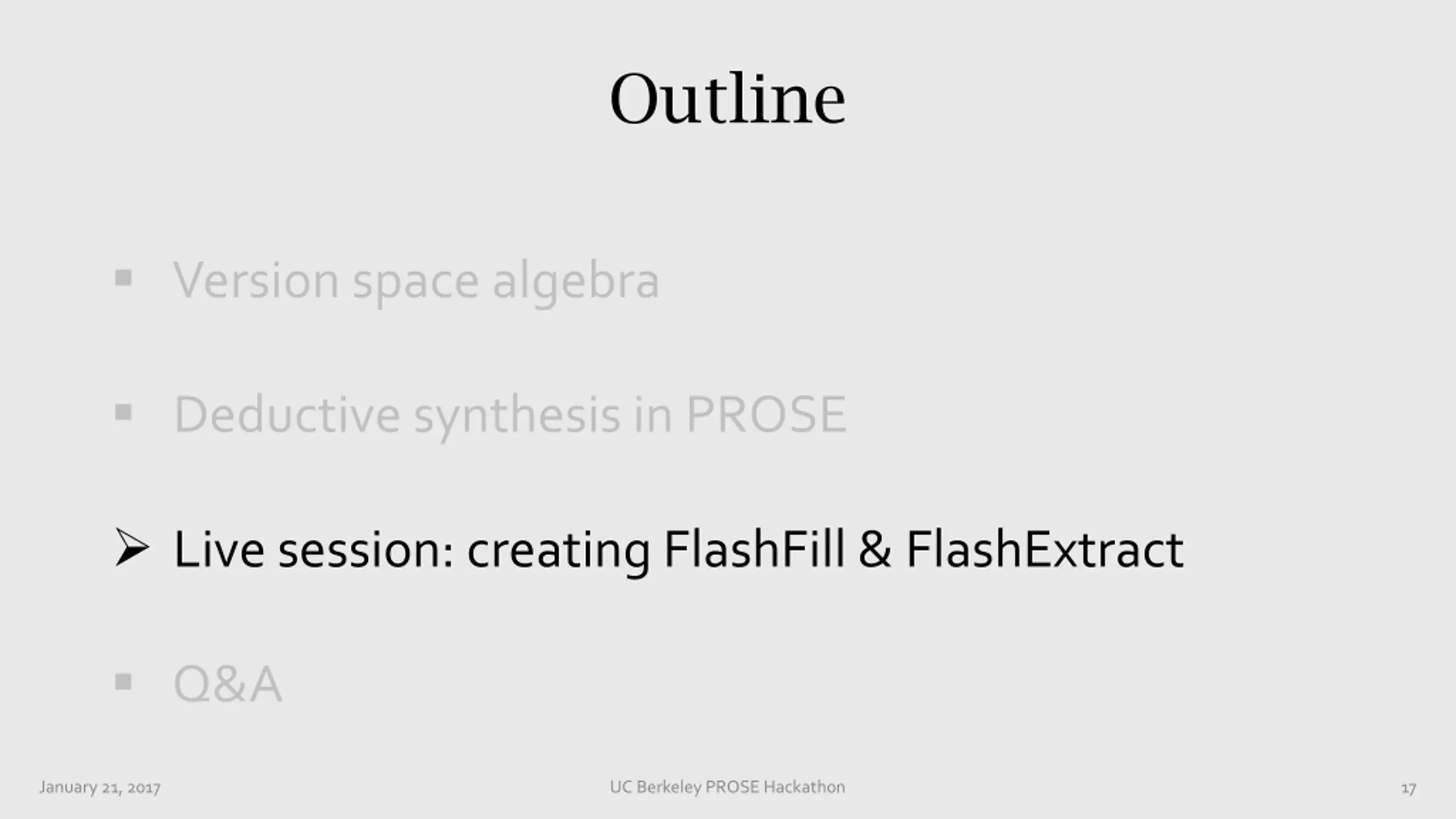

Outline Version space algebra Deductive synthesis in PROSE Live session: creating FlashFill & FlashExtract Q&A January 21, 2017 UC Berkeley PROSE Hackathon 17
Demo January 21, 2017 UC Berkeley PROSE Hackathon 18

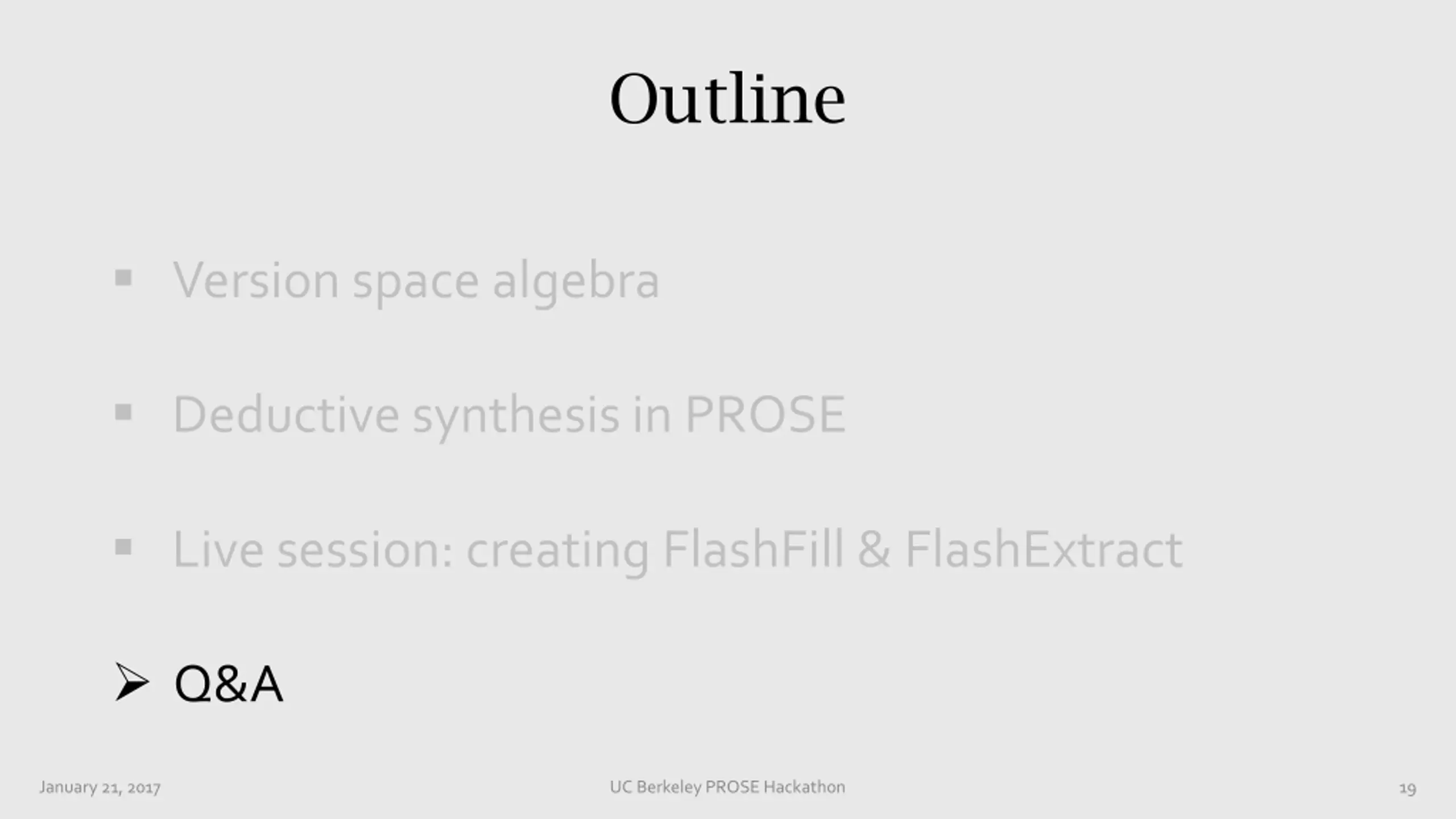

Outline Version space algebra Deductive synthesis in PROSE Live session: creating FlashFill & FlashExtract Q&A January 21, 2017 UC Berkeley PROSE Hackathon 19
