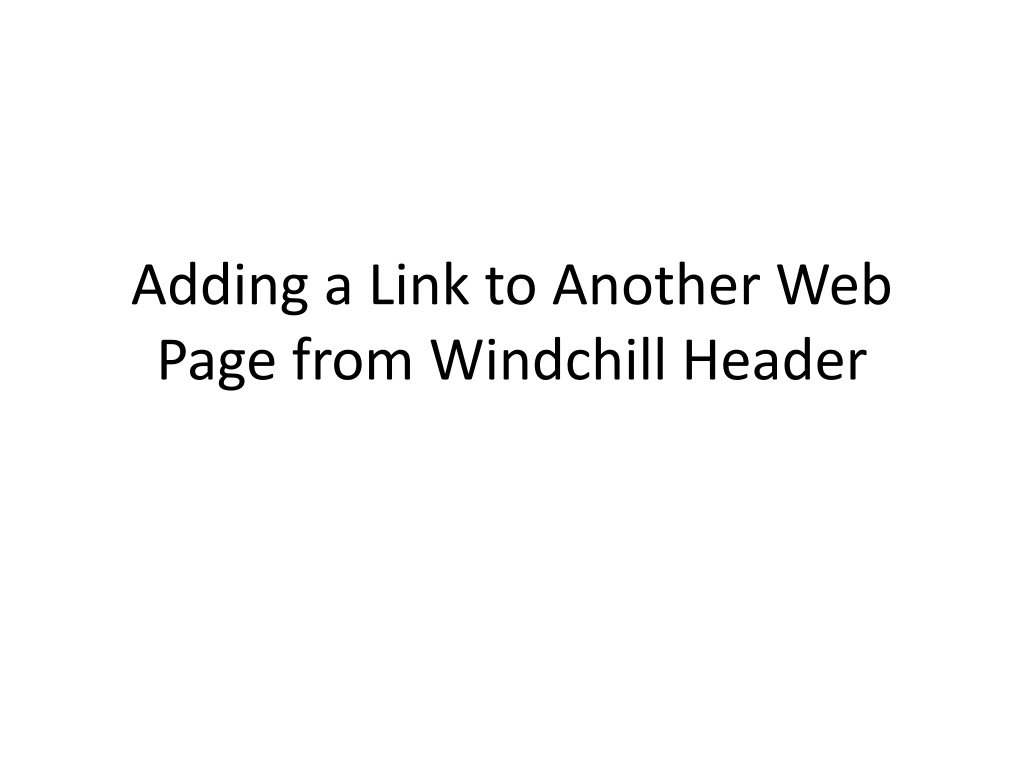

Adding a Link to Another Web Page from Windchill Header

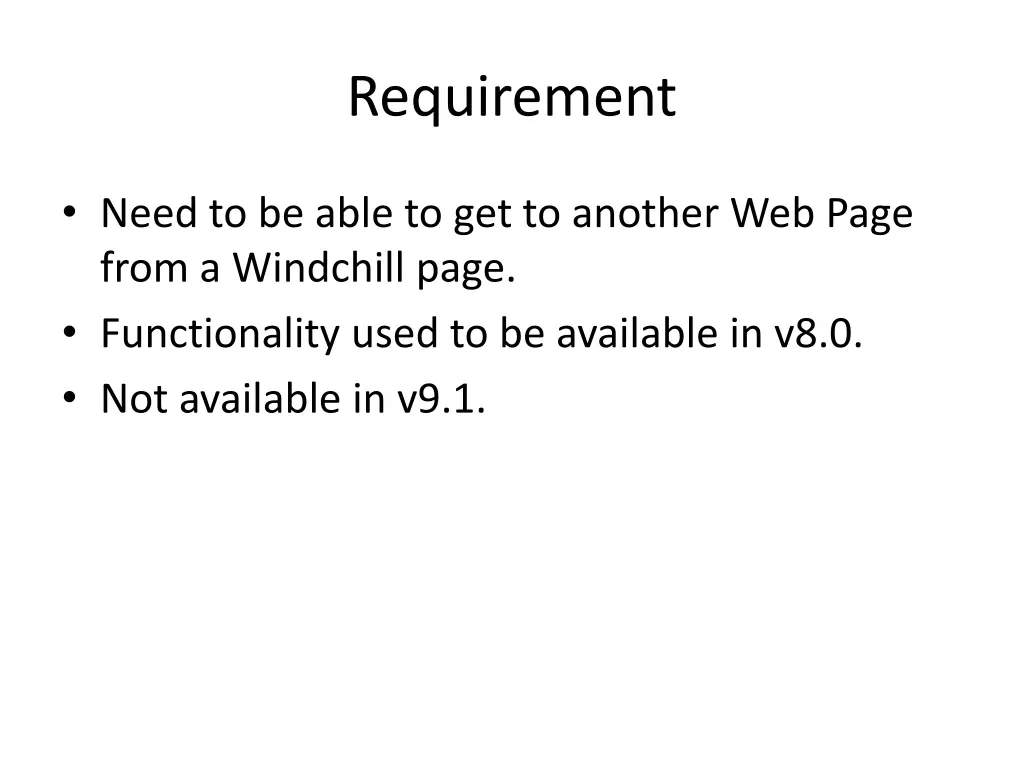

Requirement Need to be able to get to another Web Page from a Windchill page. Functionality used to be available in v8.0. Not available in v9.1.

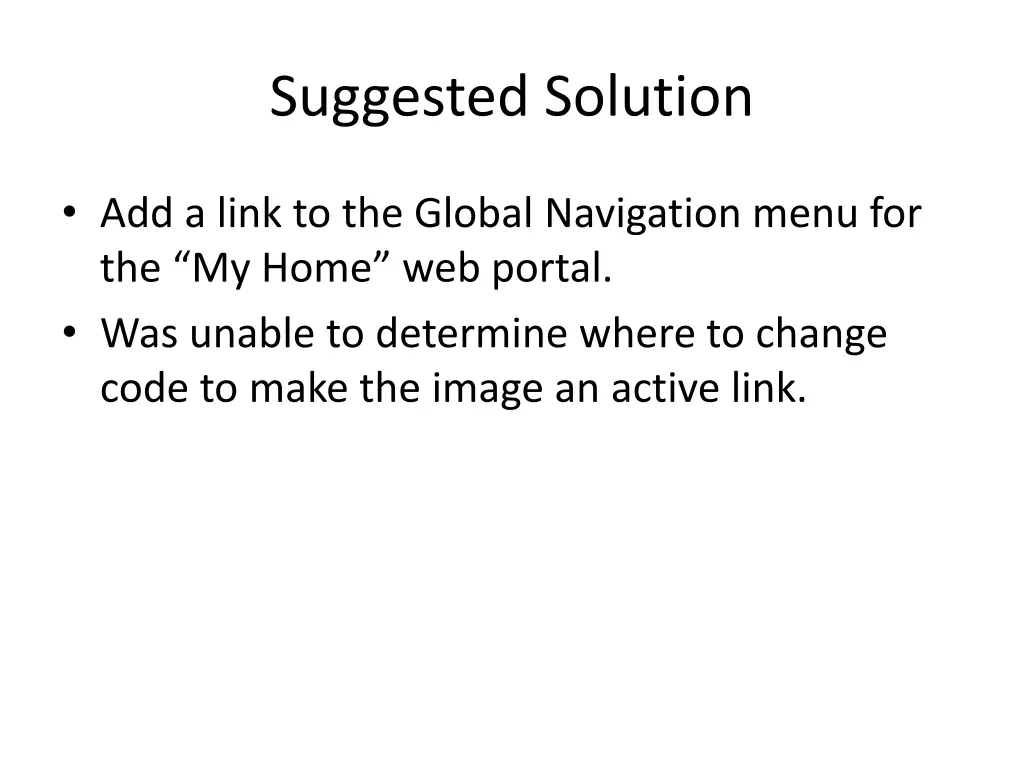

Suggested Solution Add a link to the Global Navigation menu for the My Home web portal. Was unable to determine where to change code to make the image an active link.
Copied the header actions action model to add new action. <model name="header actions"> <description>actions that appear in the top right of the header</description> <action name= myHome" type="navigation"/> <action name="separator" type="separator"/> <action name="clipboard" type="netmarkets"/> <action name="separator" type="separator"/> <action name="globalWindchillHelp" type="netmarkets"/> <action name="separator" type="separator"/> <action name="emailPage" type="project"/> <action name="separator" type="separator"/> <action name="hotList" type="user"/> </model>
Defined new action in custom-actions.xml. <objecttype name="navigation" class="" resourceBundle="com.ptc.core.ui.navigationRB"> <action name= myHome" enabledwhensuspended="true" renderType="GENERAL"> <command url="/com/myCompany/jsp/portal/myHome.jsp" windowType="popup"/> </action> </objecttype> Defined new action labels in navigationRB.rbInfo. navigation.ideHome.description.value=My Home navigation.ideHome.description.comment=Used to open a new window to the My Portal Home navigation.ideHome.tooltip.value=Open My Portal Home

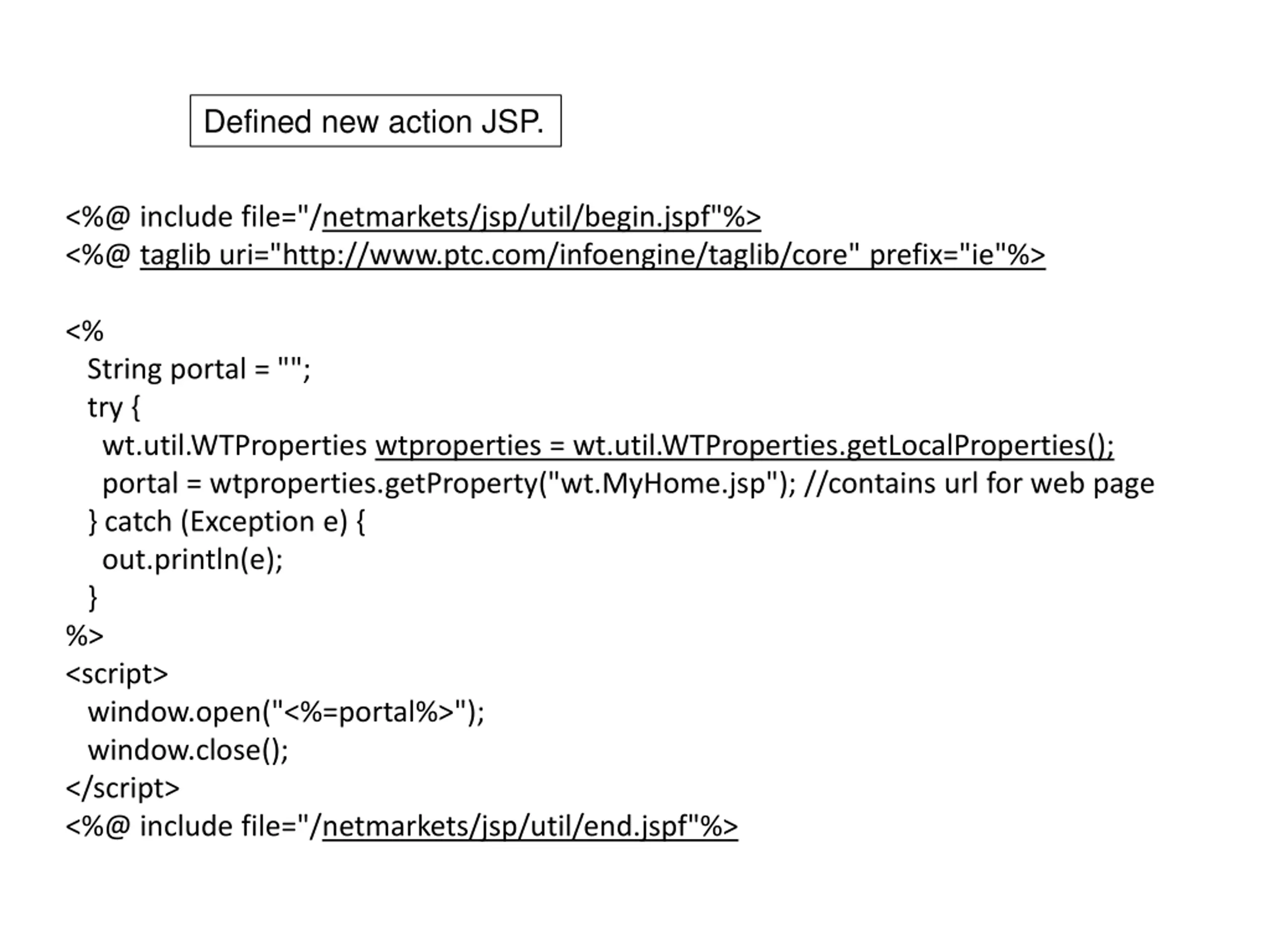

Defined new action JSP. <%@ include file="/netmarkets/jsp/util/begin.jspf"%> <%@ taglib uri="http://www.ptc.com/infoengine/taglib/core" prefix="ie"%> <% String portal = ""; try { wt.util.WTProperties wtproperties = wt.util.WTProperties.getLocalProperties(); portal = wtproperties.getProperty("wt.MyHome.jsp"); //contains url for web page } catch (Exception e) { out.println(e); } %> <script> window.open("<%=portal%>"); window.close(); </script> <%@ include file="/netmarkets/jsp/util/end.jspf"%>
