3-1 PROPERTIES OF PARALLEL LINES GEOMETRY
Vocabulary A transversal is a line that intersects two coplanar lines at two distinct points. (8 angles are formed)

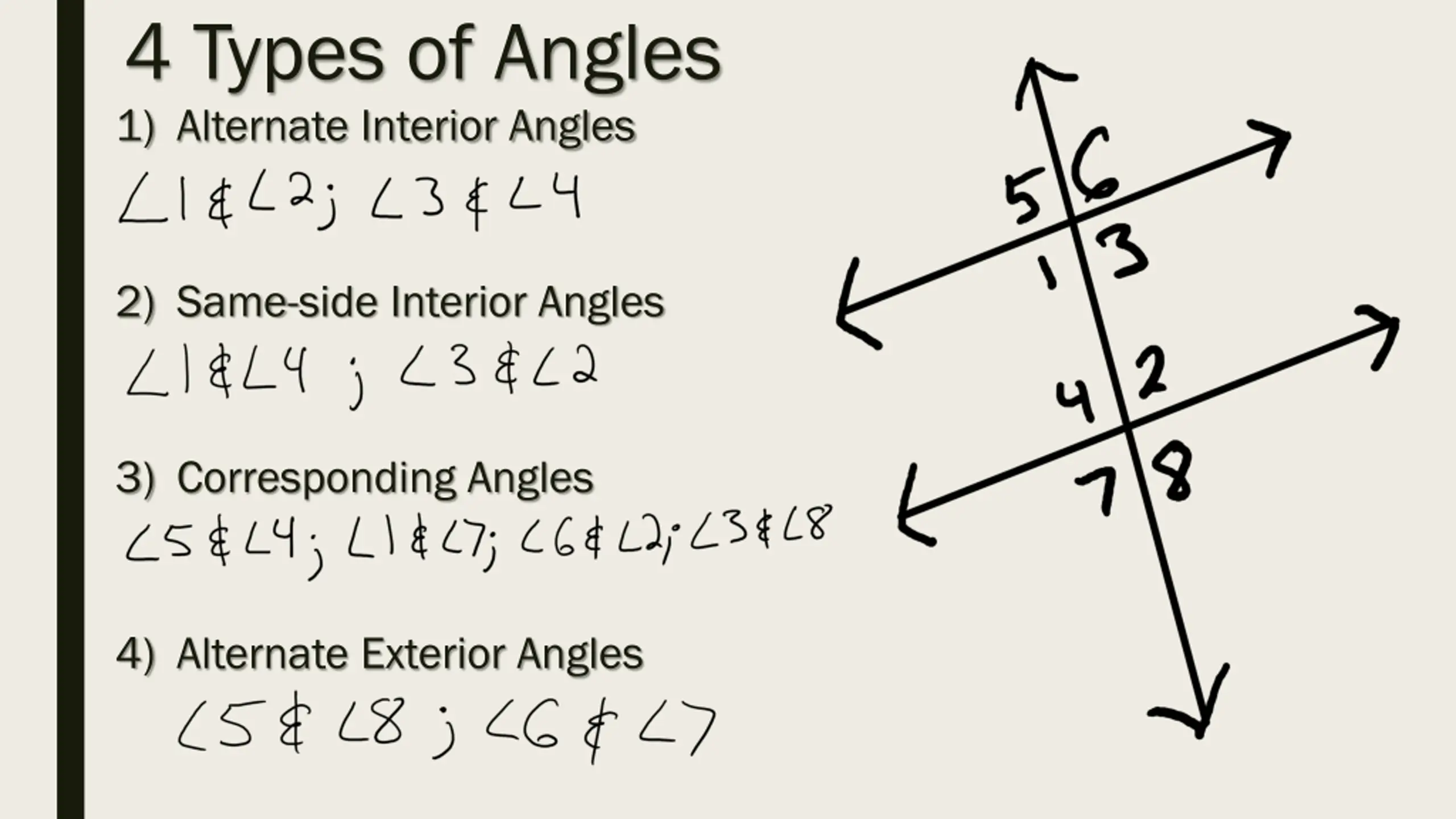

4 Types of Angles 1) Alternate Interior Angles 2) Same-side Interior Angles 3) Corresponding Angles 4) Alternate Exterior Angles

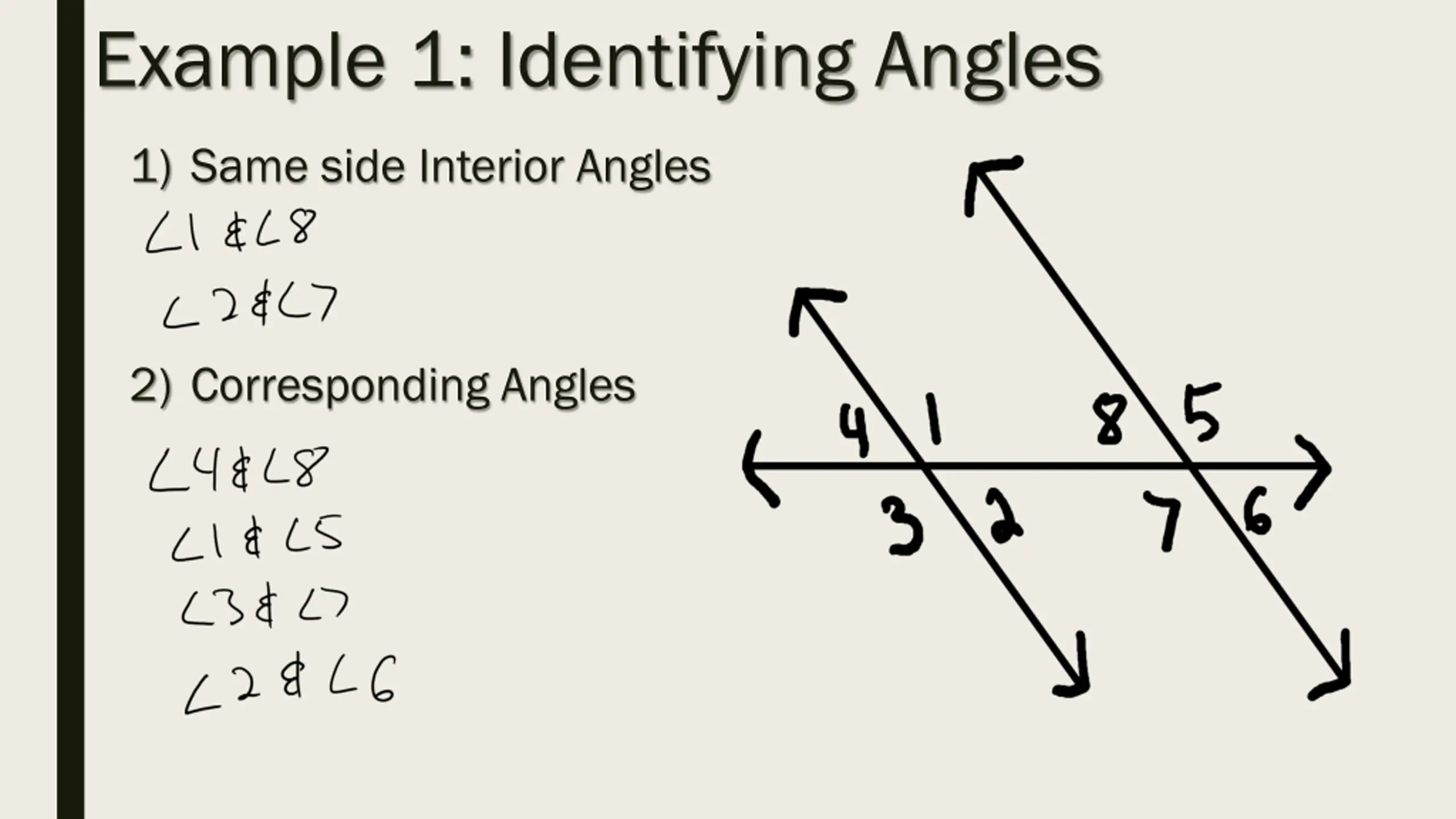

Example 1: Identifying Angles 1) Same side Interior Angles 2) Corresponding Angles

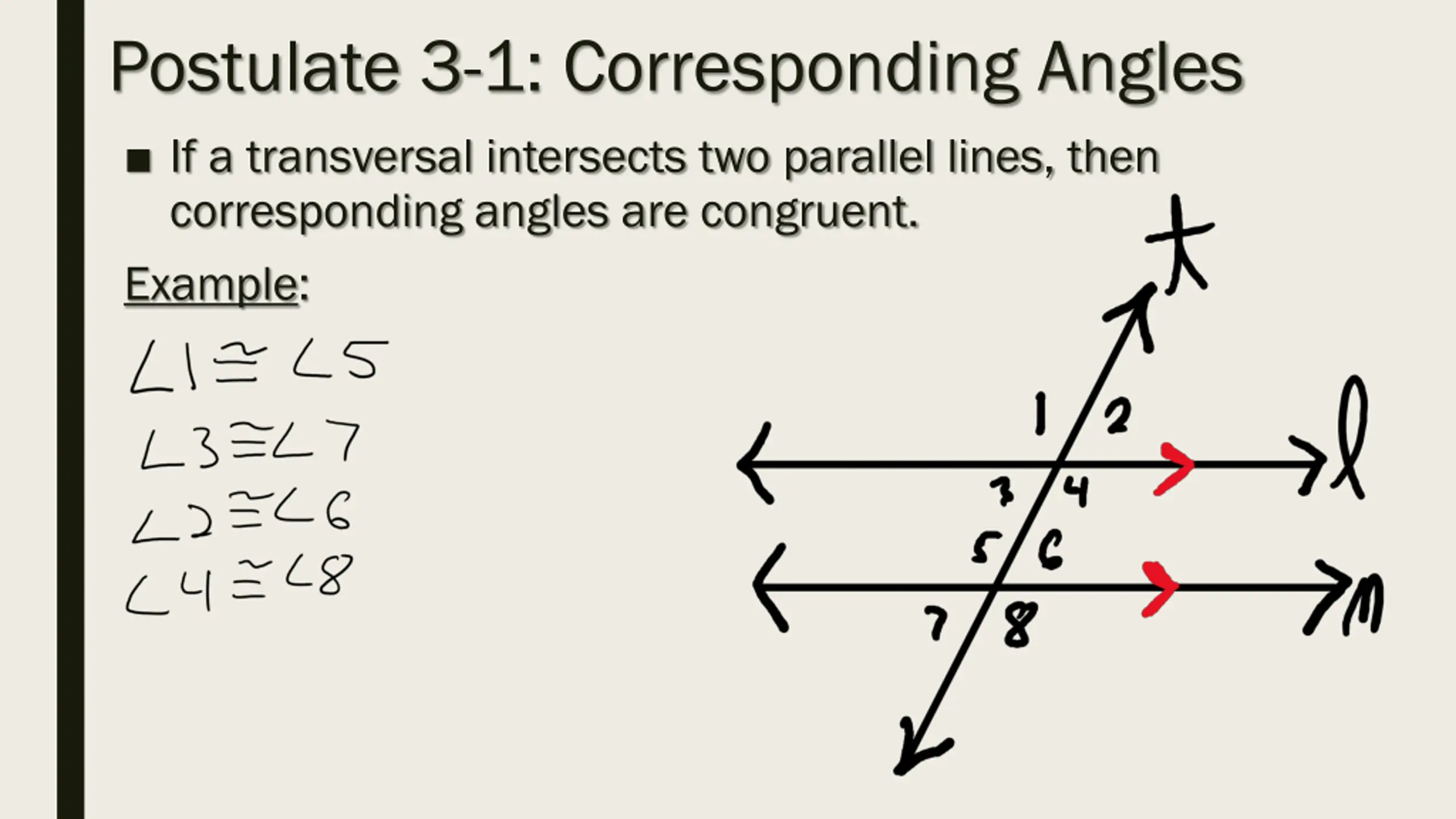

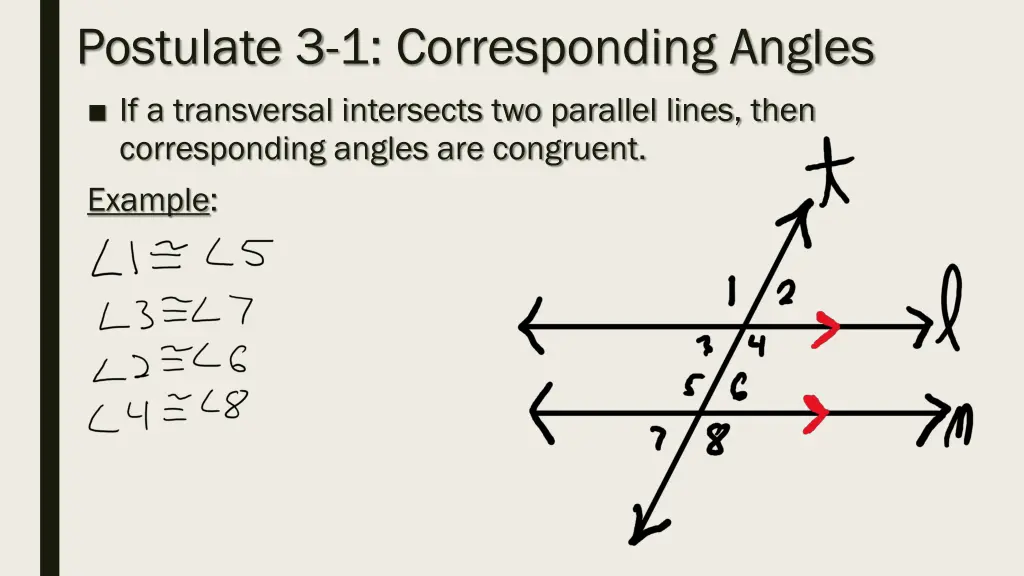

Postulate 3-1: Corresponding Angles If a transversal intersects two parallel lines, then corresponding angles are congruent. Example:
Alternate Interior/Exterior Angles If a transversal intersects two parallel lines, then alternate interior angles and the alternate exterior angles are congruent. Example:

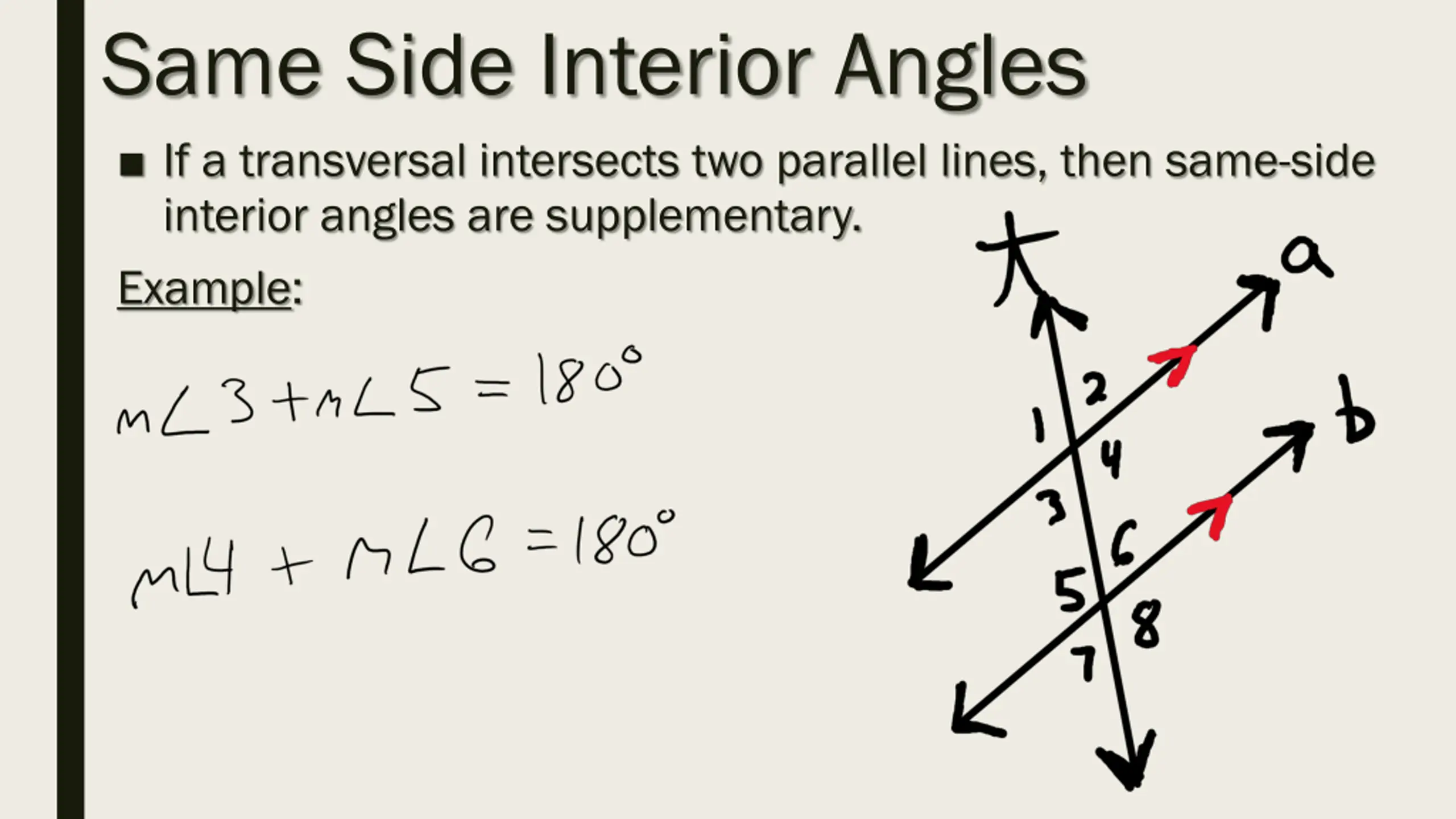

Same Side Interior Angles If a transversal intersects two parallel lines, then same-side interior angles are supplementary. Example:

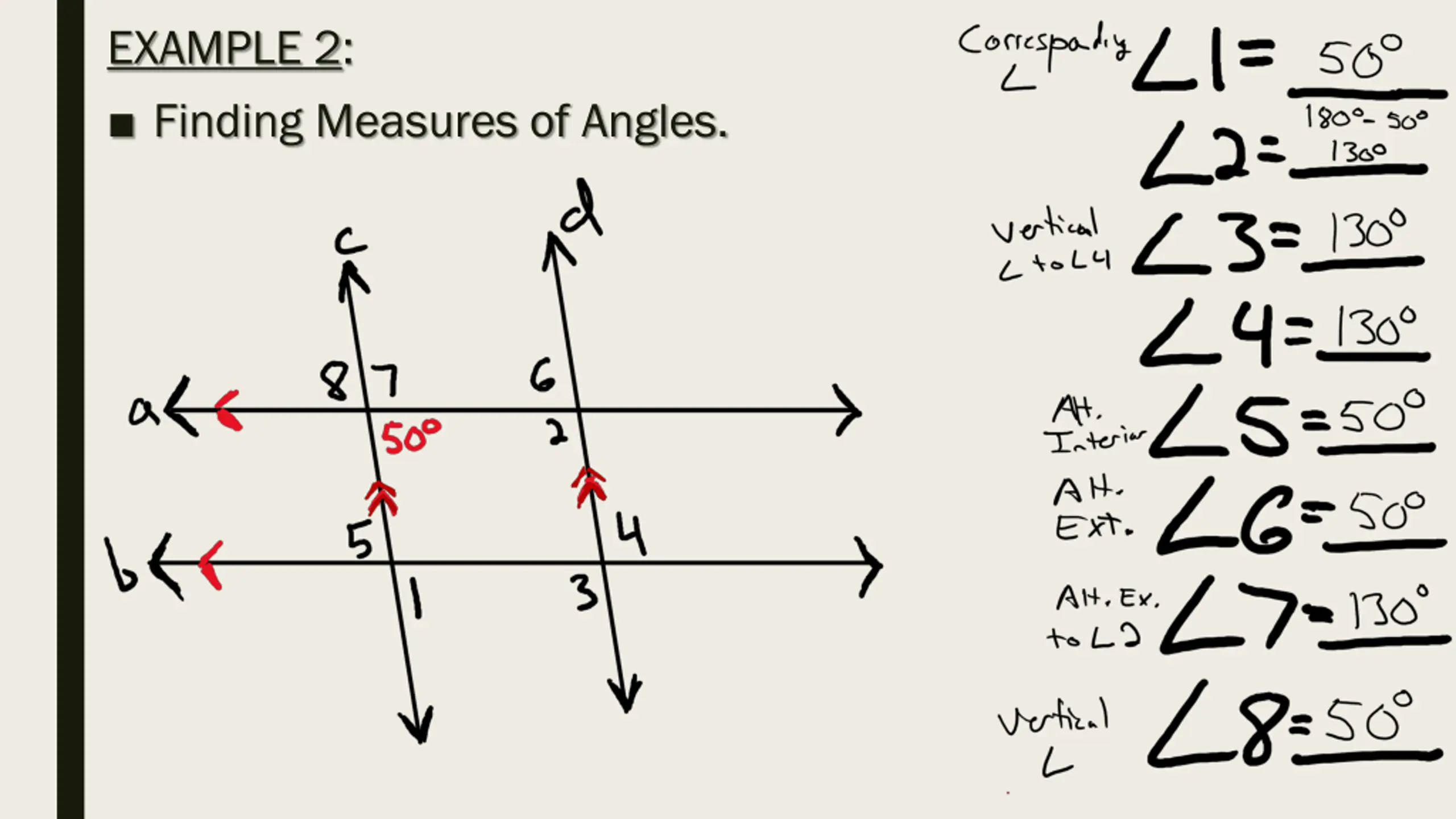

EXAMPLE 2: Finding Measures of Angles.
