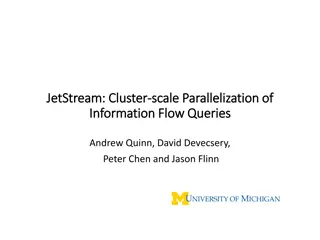

JetStream: Cluster JetStream: Cluster- -scale Parallelization of scale Parallelization of Information Flow Queries Information Flow Queries Andrew Quinn, David Devecsery, Peter Chen and Jason Flinn

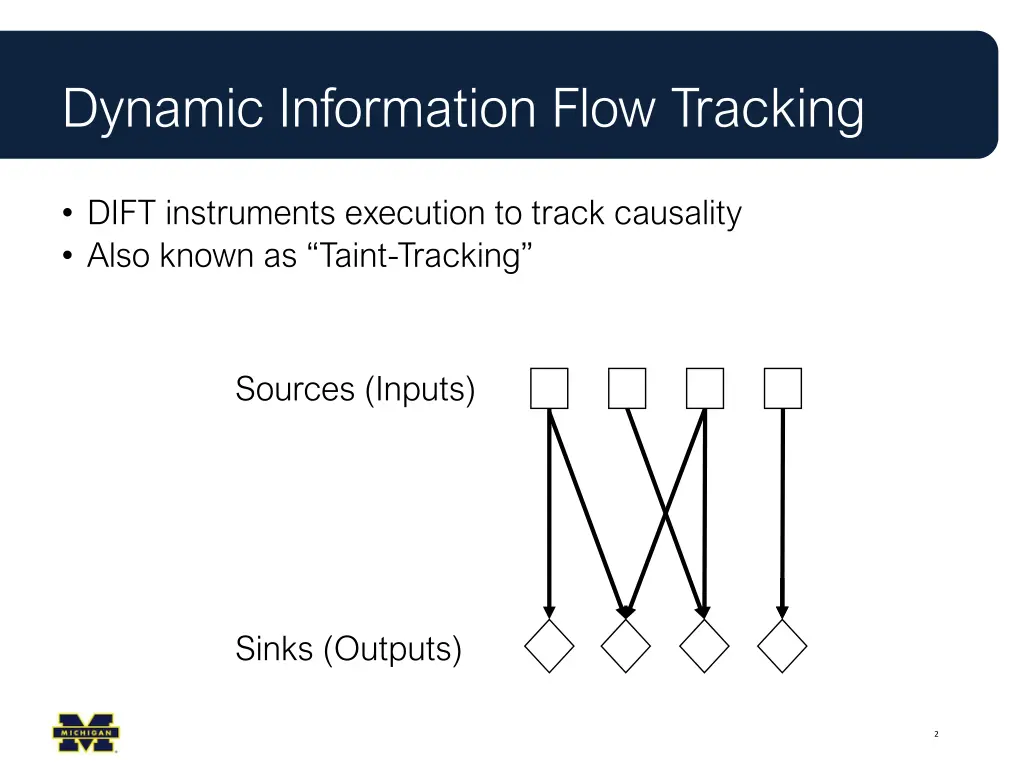

Dynamic Information Flow Tracking DIFT instruments execution to track causality Also known as Taint-Tracking Sources (Inputs) Sinks (Outputs) 2

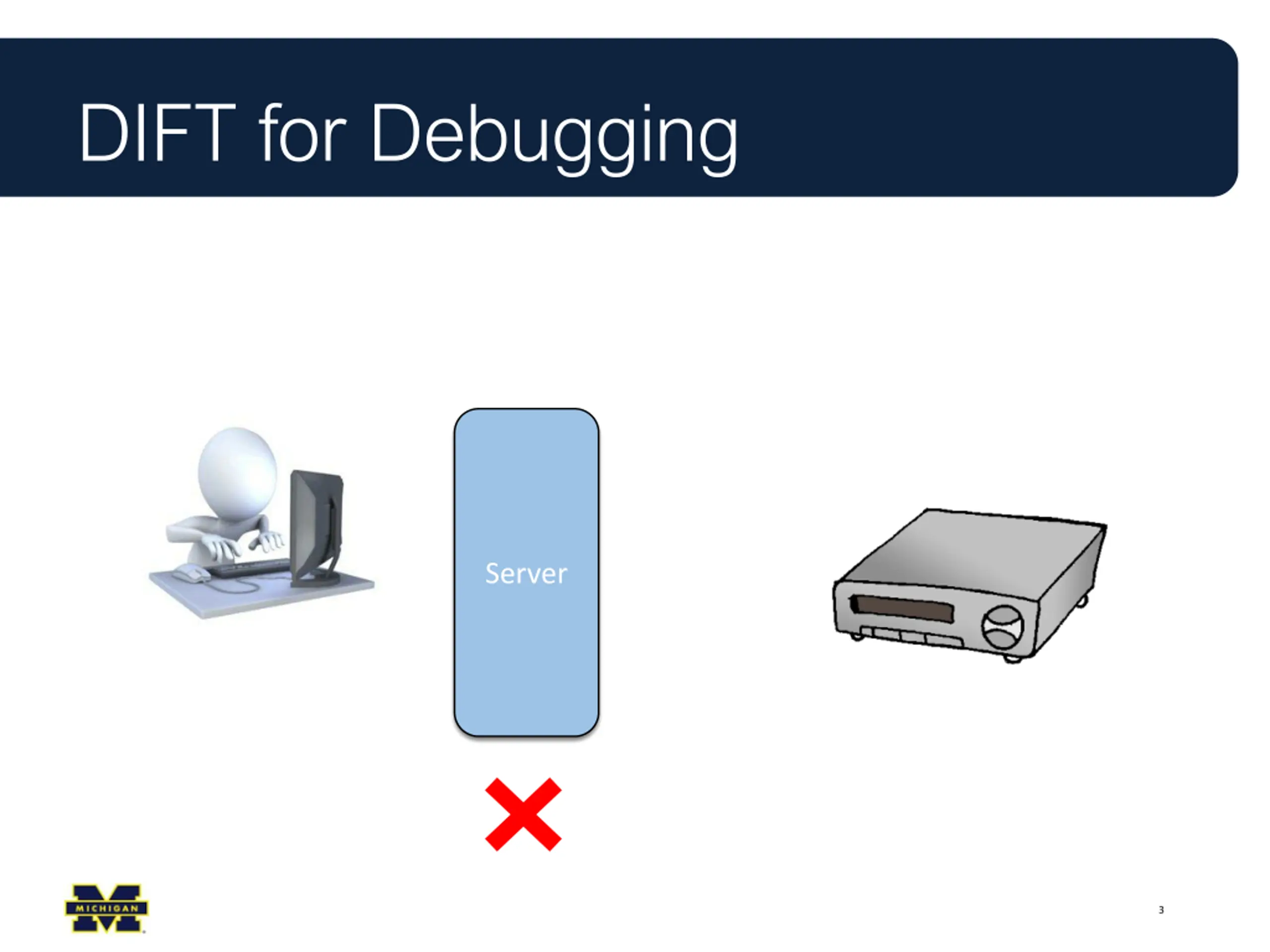

DIFT for Debugging o1 o1 Server 3

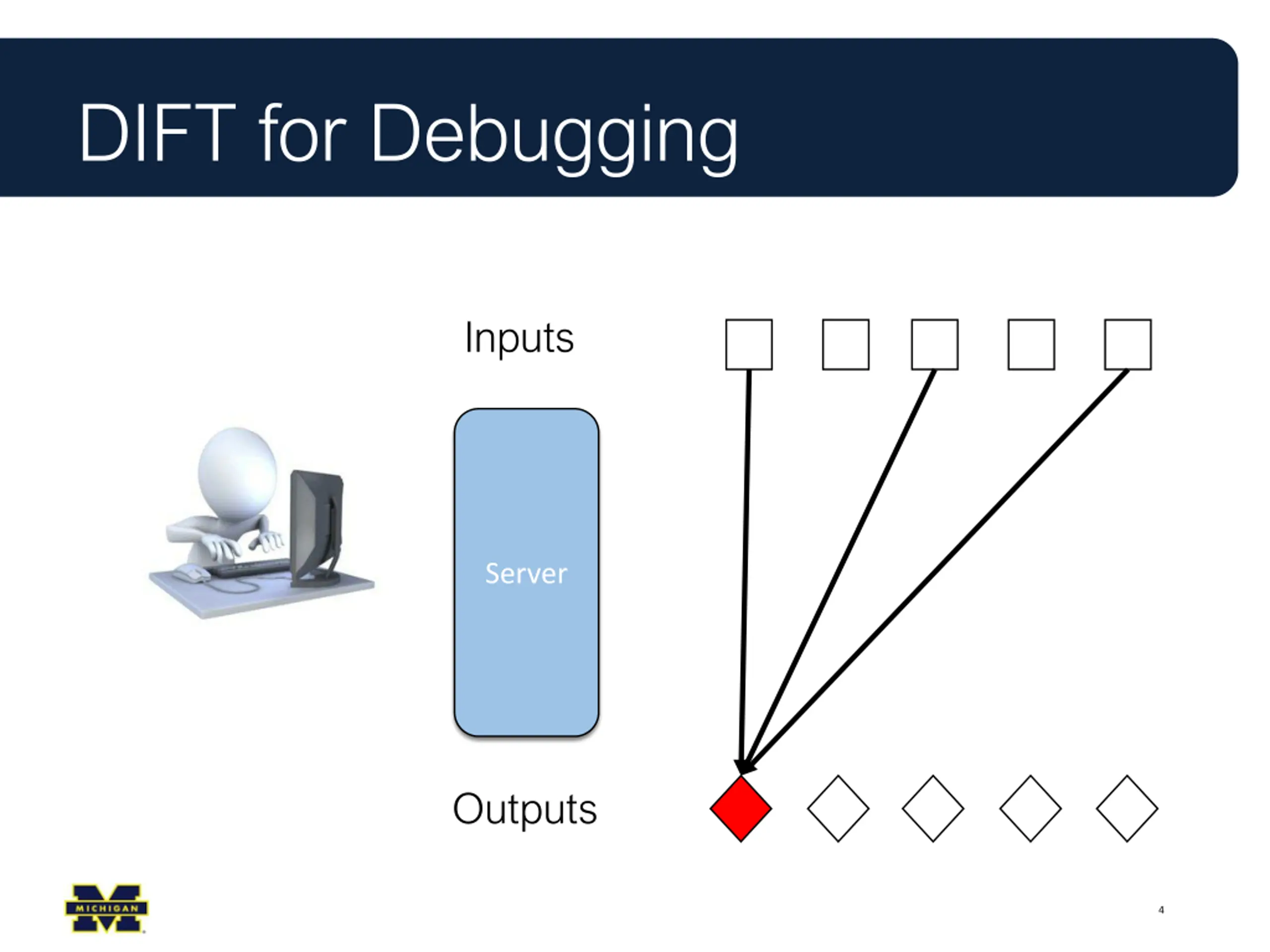

DIFT for Debugging Inputs o1 Server Outputs 4

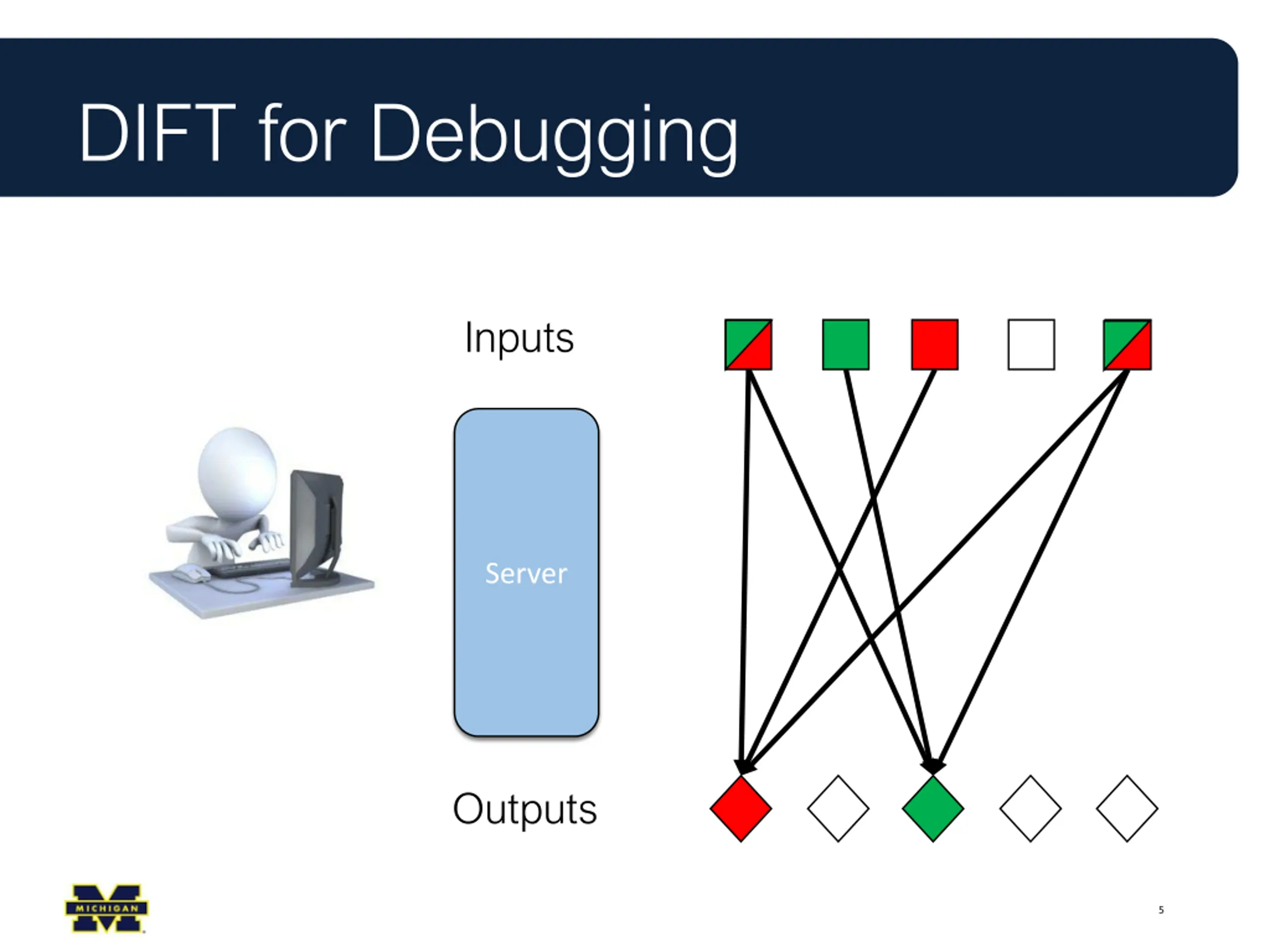

DIFT for Debugging Inputs o1 Server Outputs 5

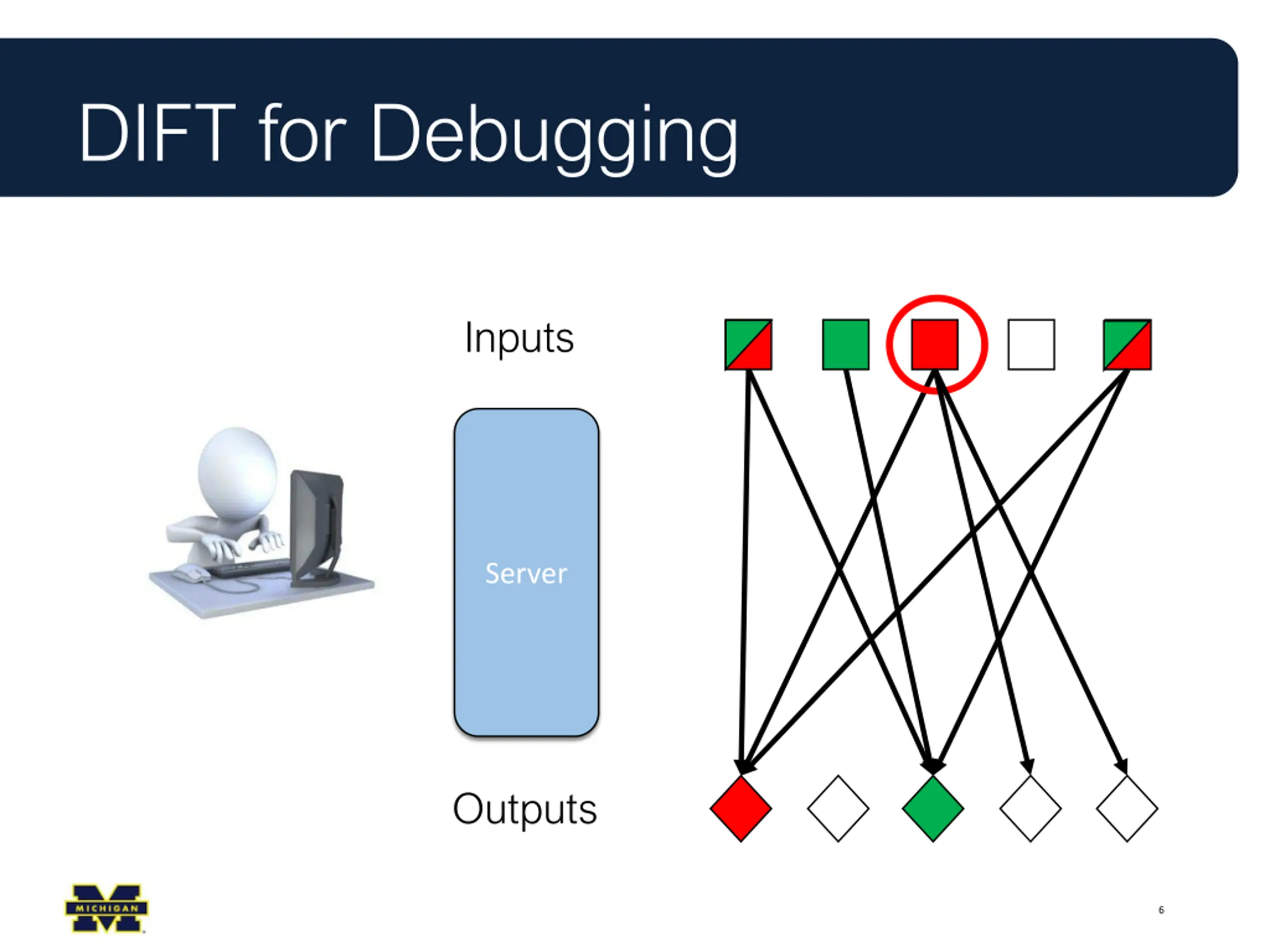

DIFT for Debugging Inputs o1 Server Outputs 6

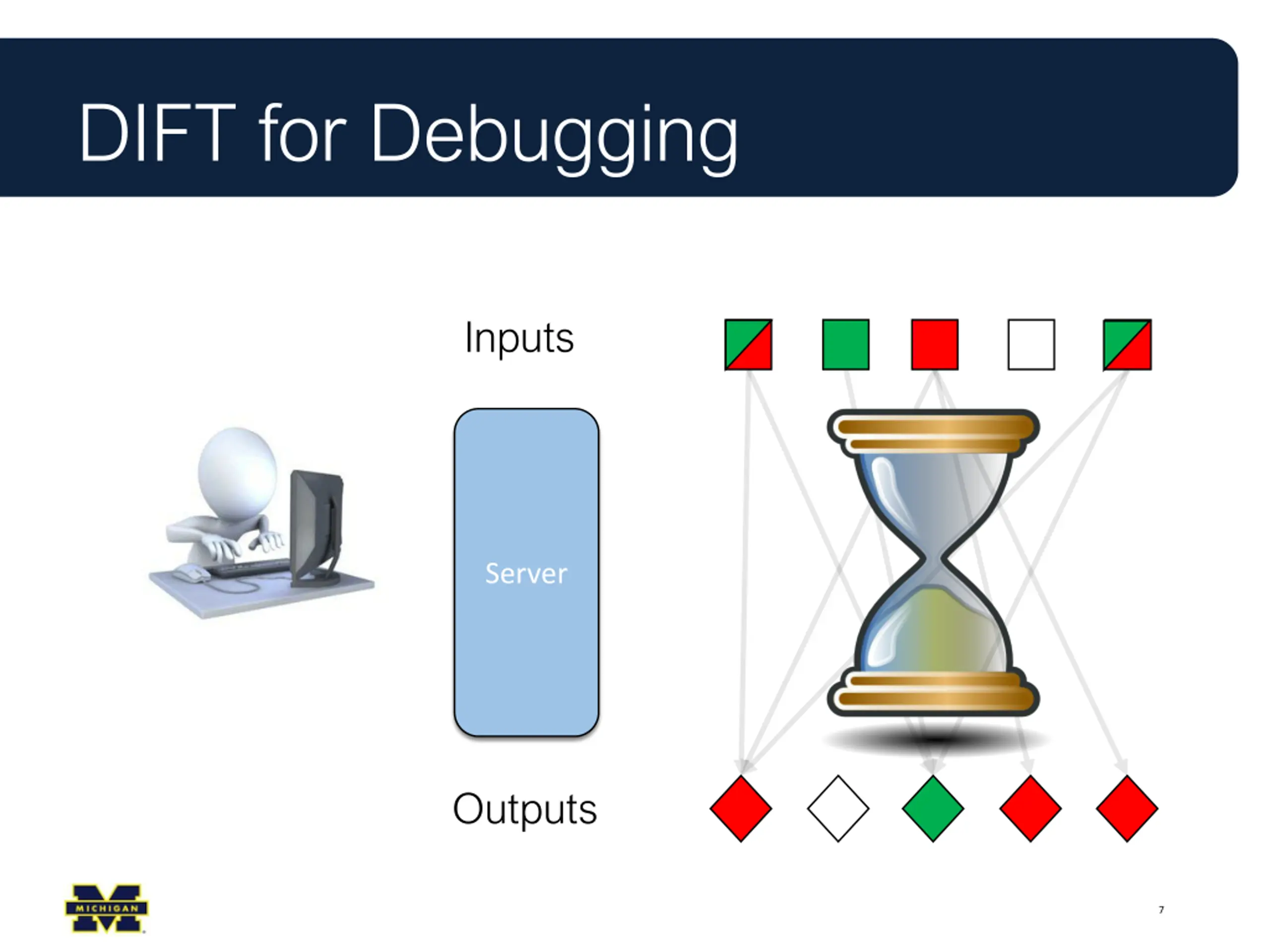

DIFT for Debugging Inputs o1 Server Outputs 7
DIFT limitations Overheads ~100x Arnold 14 Long queries X-Ray 12 TaintDroid 10 No native code Backtracker 03 Coarse-grained causality 8

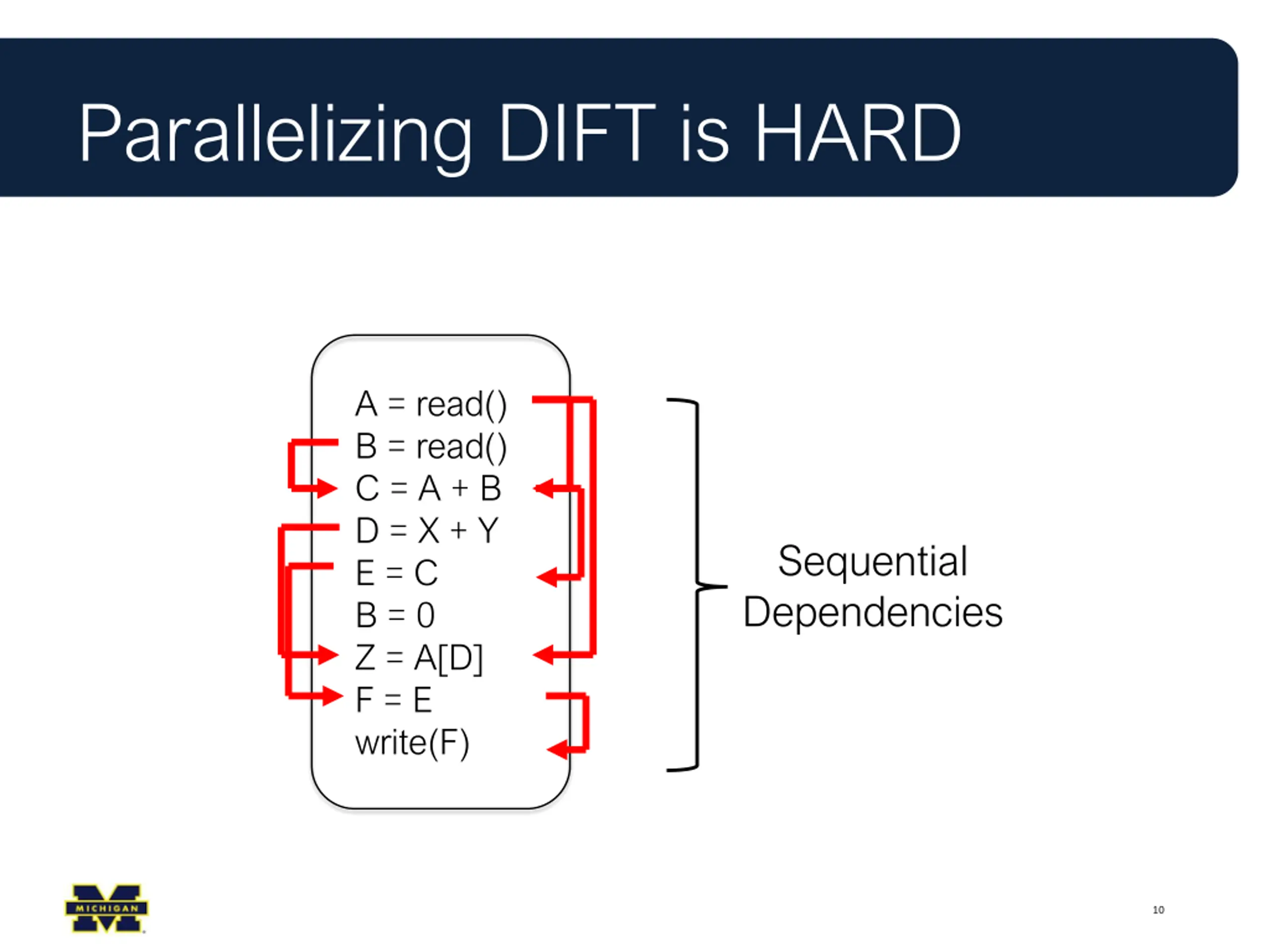

Parallelizing DIFT is HARD A = read() B = read() C = A + B D = X + Y E = C B = 0 Z = A[D] F = E write(F) Sequential Dependencies 10

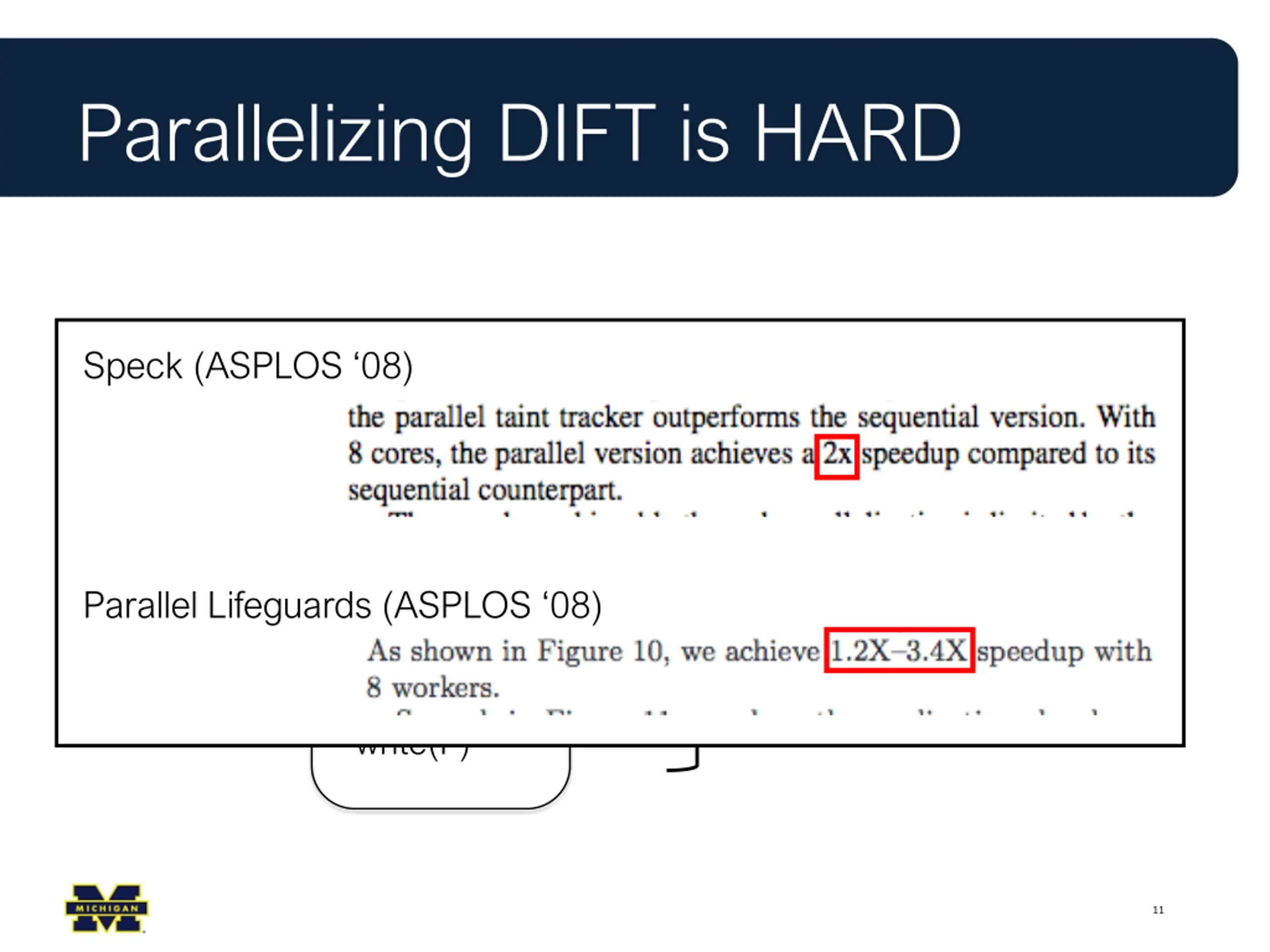

Parallelizing DIFT is HARD Speck (ASPLOS 08) A = read() B = read() C = A + B D = X + Y E = C B = 0 Z = A[D] F = E write(F) Sequential Dependencies Parallel Lifeguards (ASPLOS 08) 11

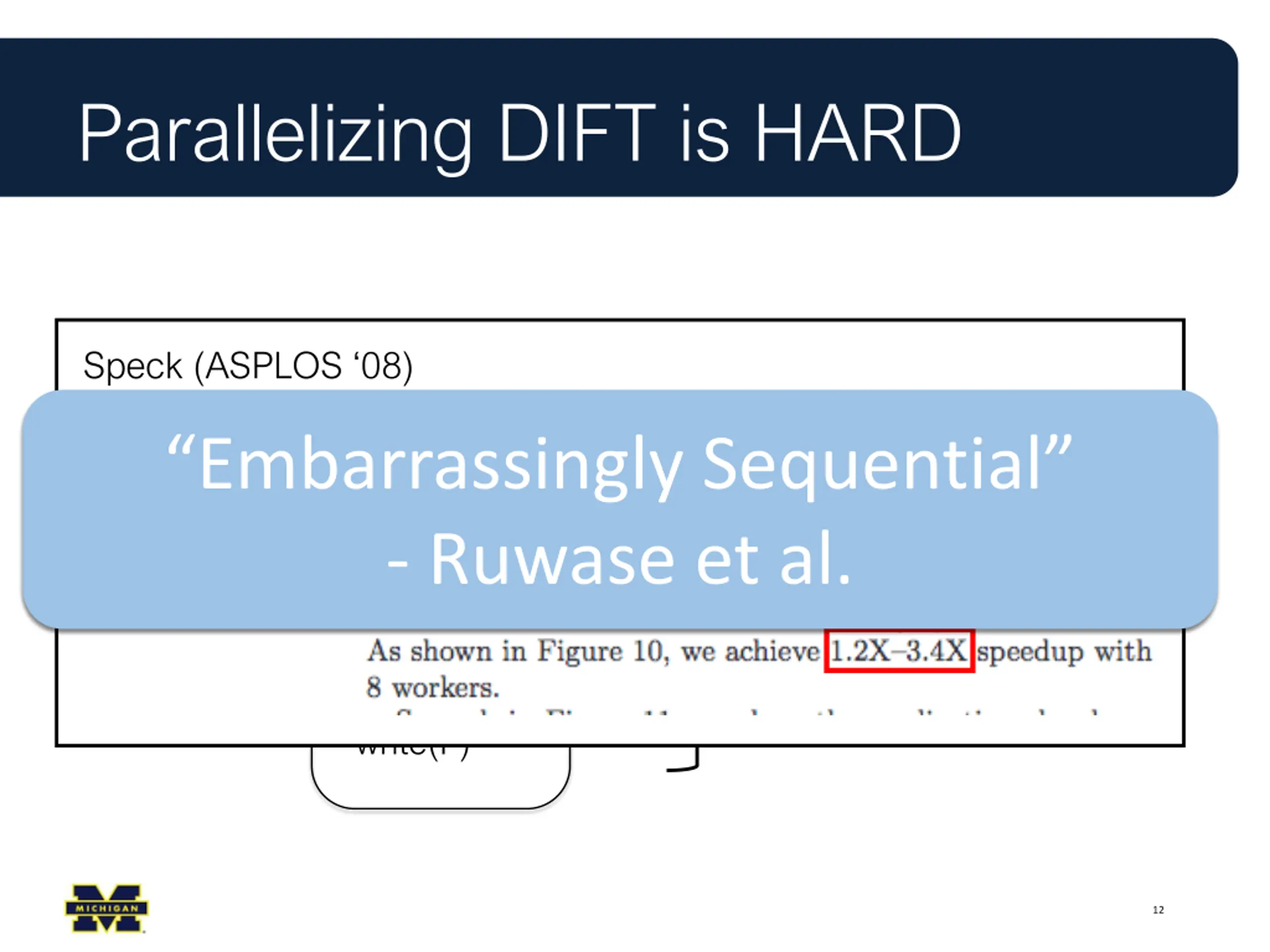

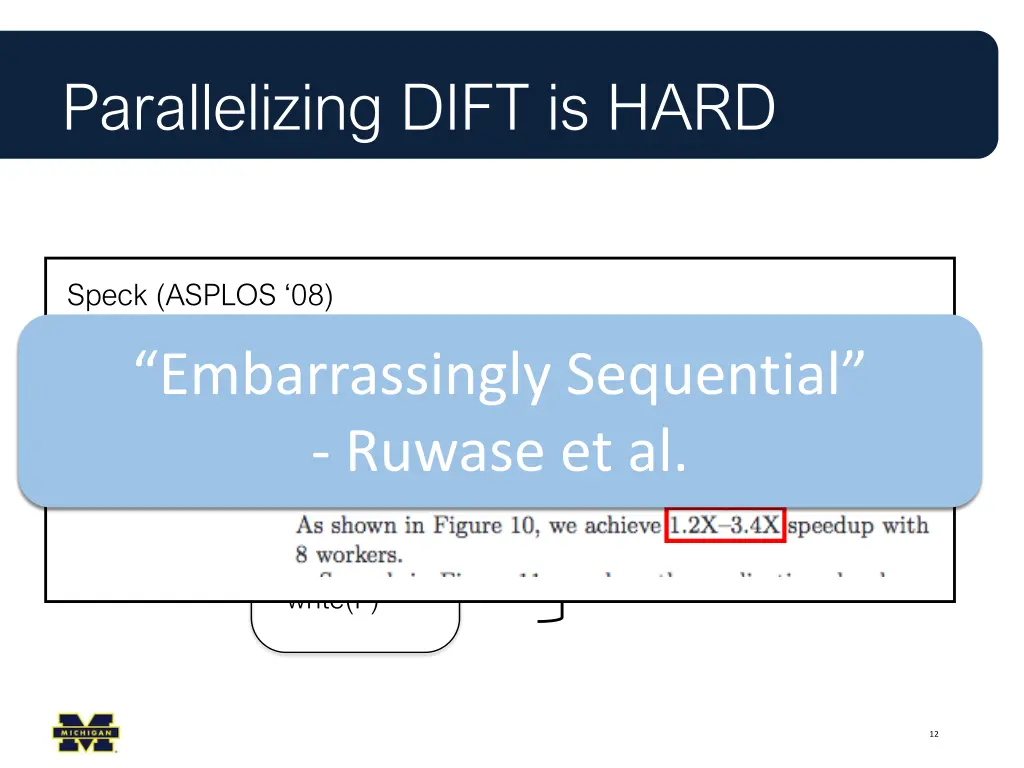

Parallelizing DIFT is HARD Speck (ASPLOS 08) A = read() B = read() C = A + B D = X + Y E = C B = 0 Z = A[D] F = E write(F) Embarrassingly Sequential - Ruwase et al. Sequential Dependencies Parallel Lifeguards (APSLOS 08) 12

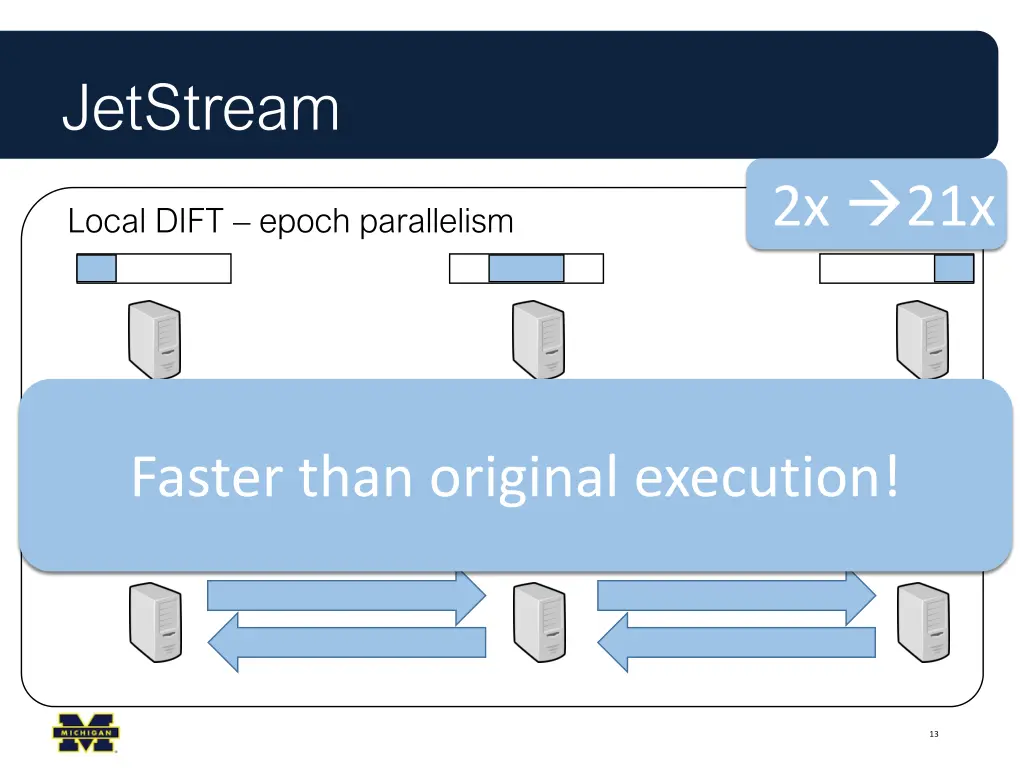

JetStream 2x 21x Local DIFT epoch parallelism Faster than original execution! Aggregation pipeline parallelism 13
Outline Design of JetStream Local DIFT Aggregation Evaluation 14

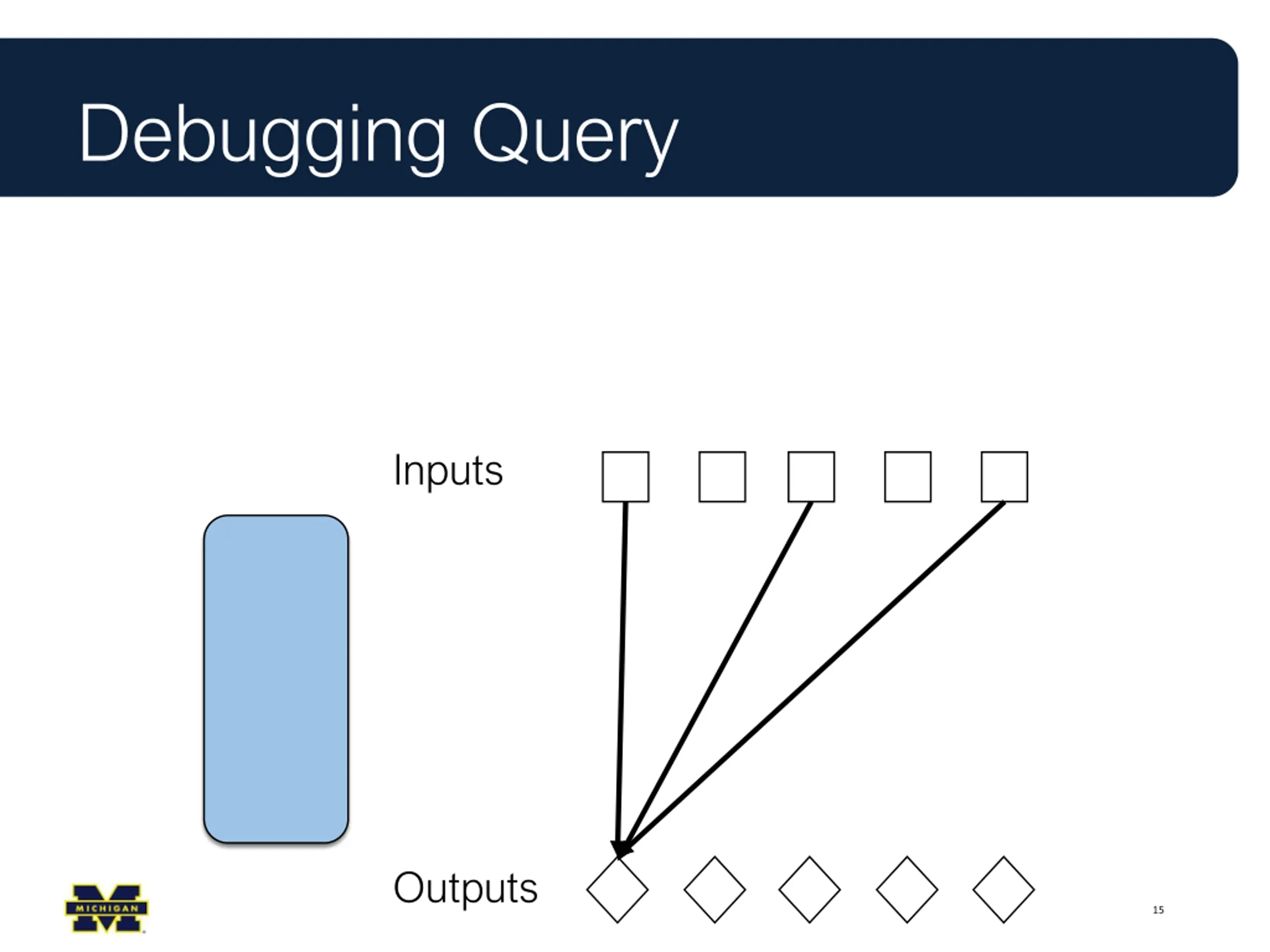

Debugging Query Inputs Outputs 15
Local DIFT Time slice execution into Epochs Inputs Outputs 16
Local DIFT Leverage Record and Replay to calculate DIFT in parallel Inputs Outputs 17
Local DIFT Track mapping between all intermediate locations Inputs Outputs 18
Local DIFT Mapping is too expensive to calculate: log operations defer calculating relationships until aggregation Inputs Outputs 19

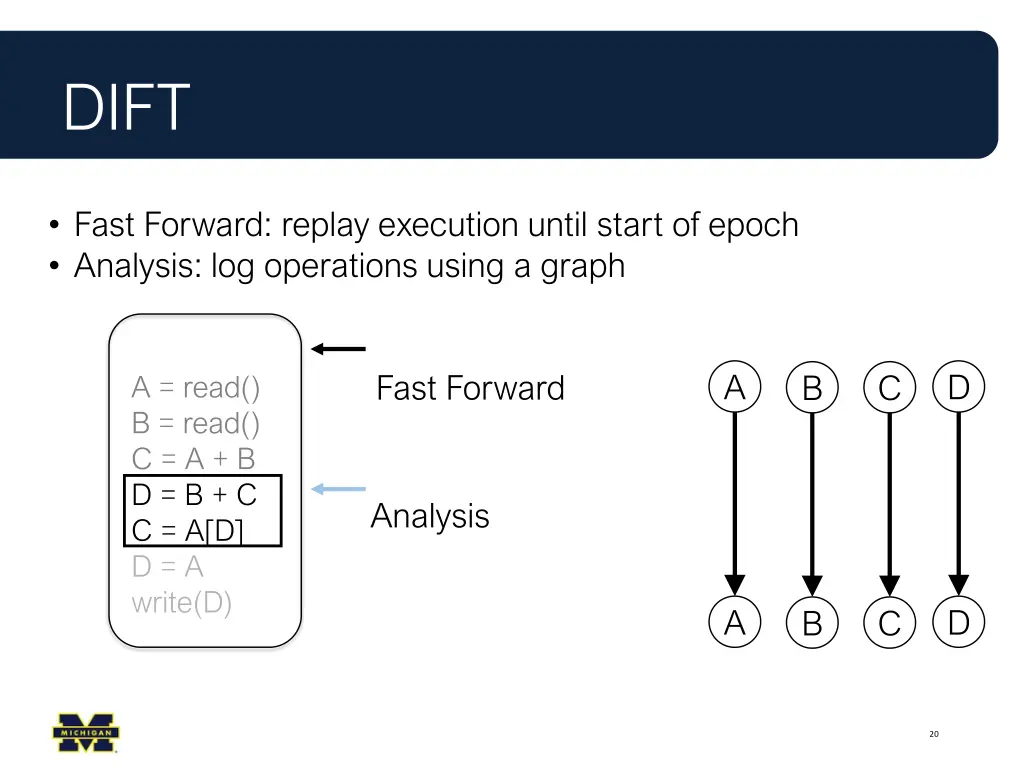

DIFT Fast Forward: replay execution until start of epoch Analysis: log operations using a graph A D Fast Forward B C D = B + C C = A[D] Analysis A D B C 20
DIFT Fast Forward: replay execution until start of epoch Analysis: log operations using a graph A D Fast Forward B C D = B + C C = A[D] Analysis A D B C 21
DIFT Fast Forward: replay execution until start of epoch Analysis: log operations using a graph A D Fast Forward B C D = B + C C = A[D] Analysis A D B C 22

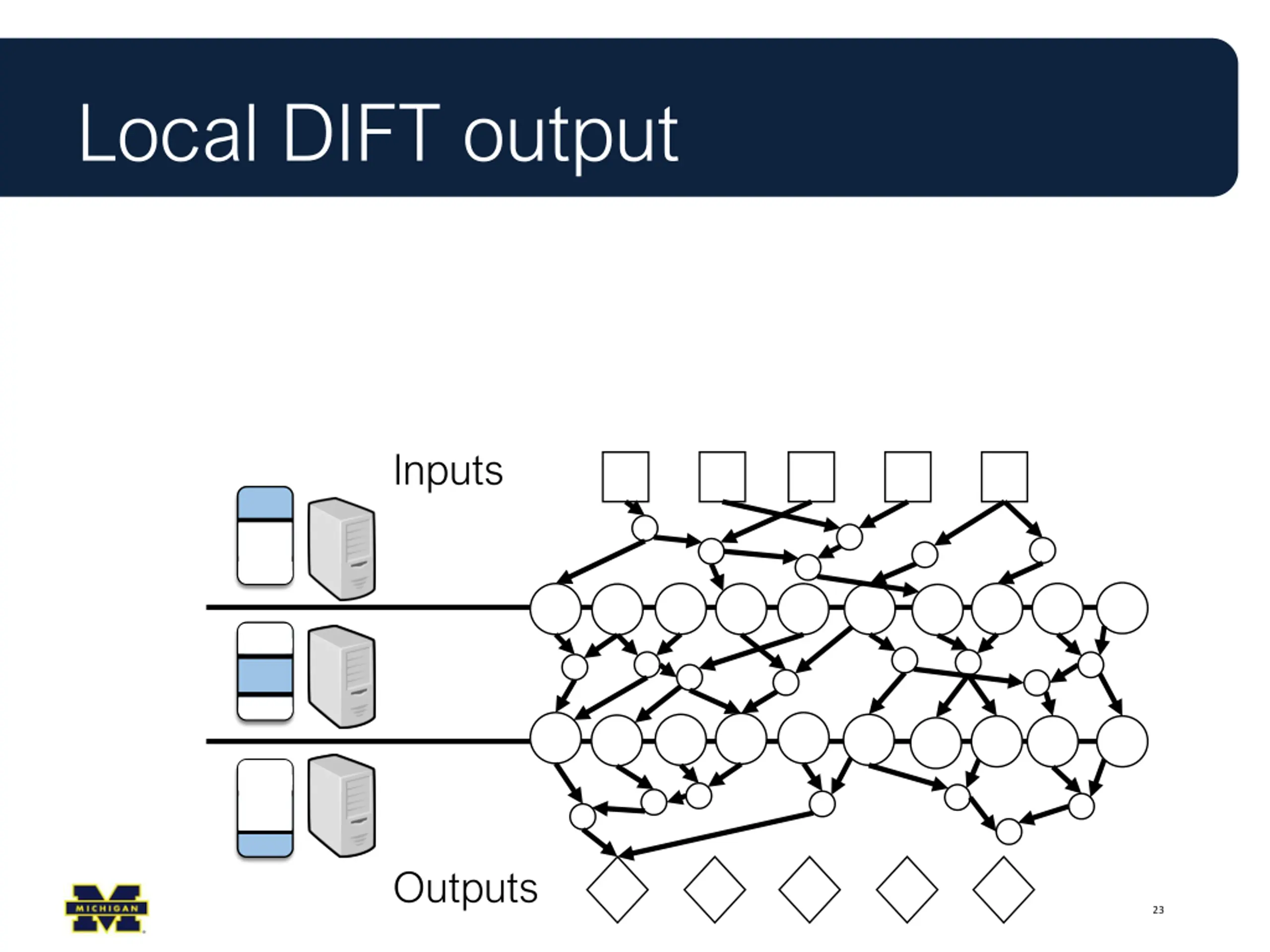

Local DIFT output Inputs Outputs 23

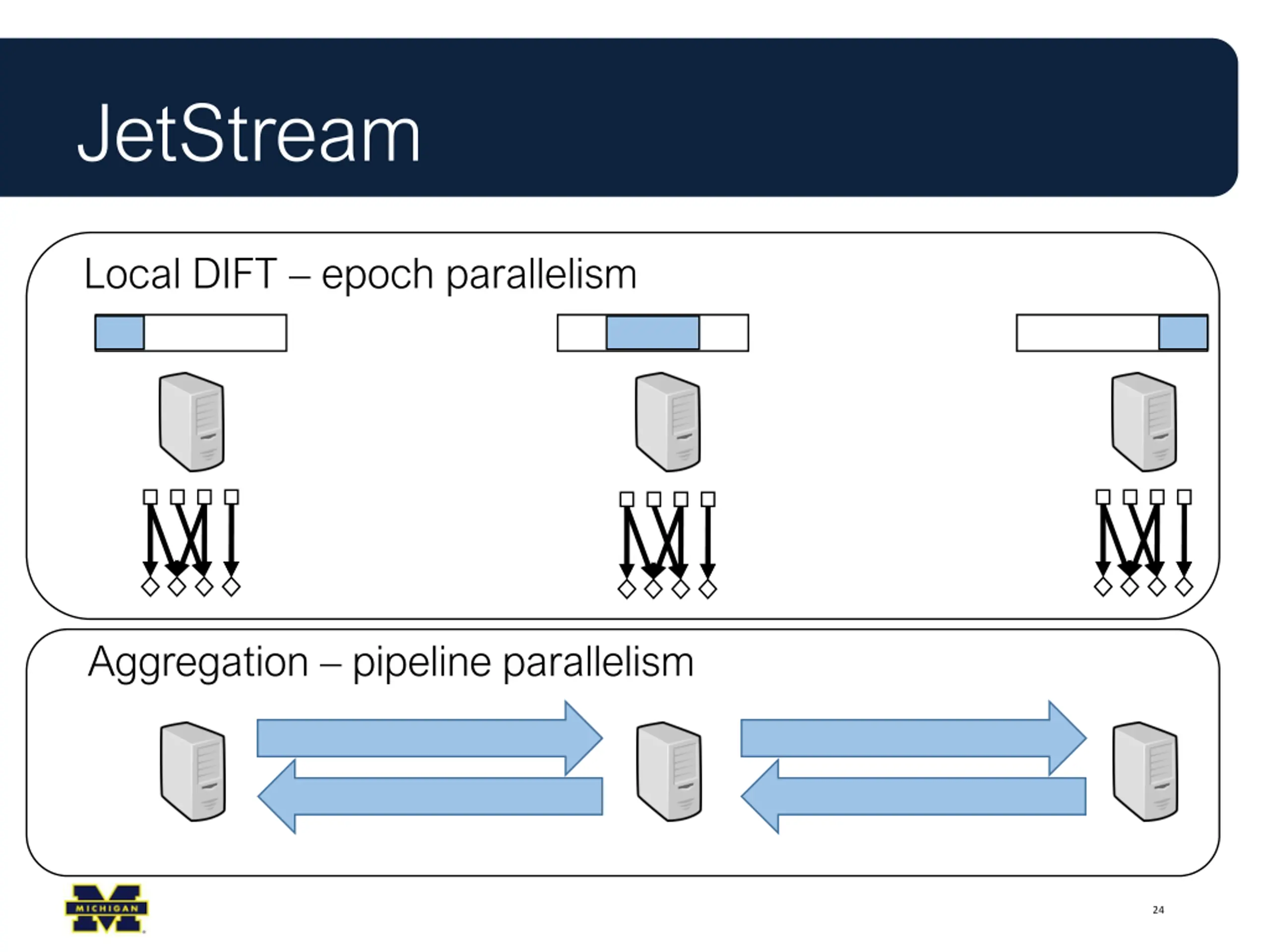

JetStream Local DIFT epoch parallelism Aggregation pipeline parallelism 24

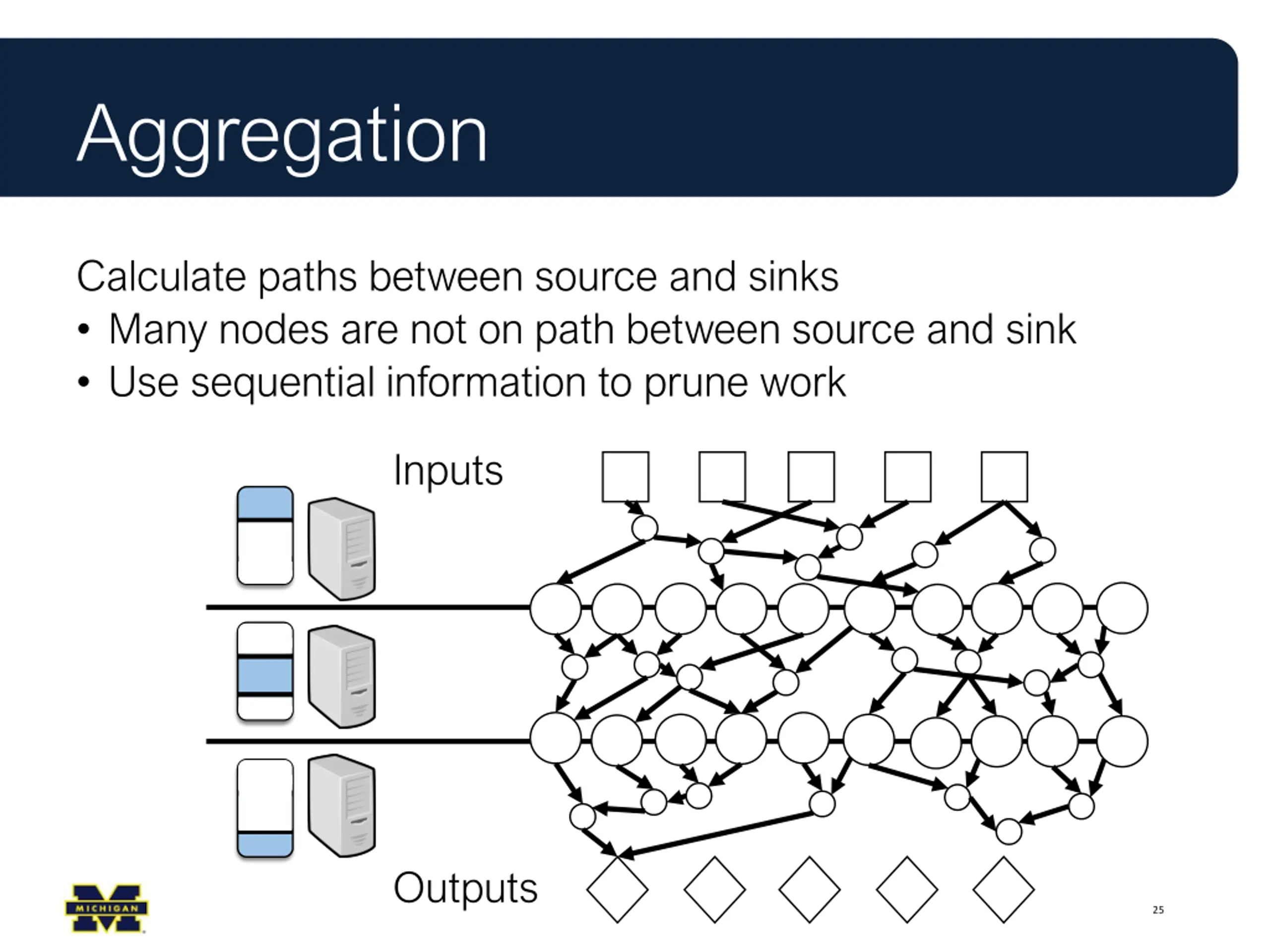

Aggregation Calculate paths between source and sinks Many nodes are not on path between source and sink Use sequential information to prune work Inputs Outputs 25

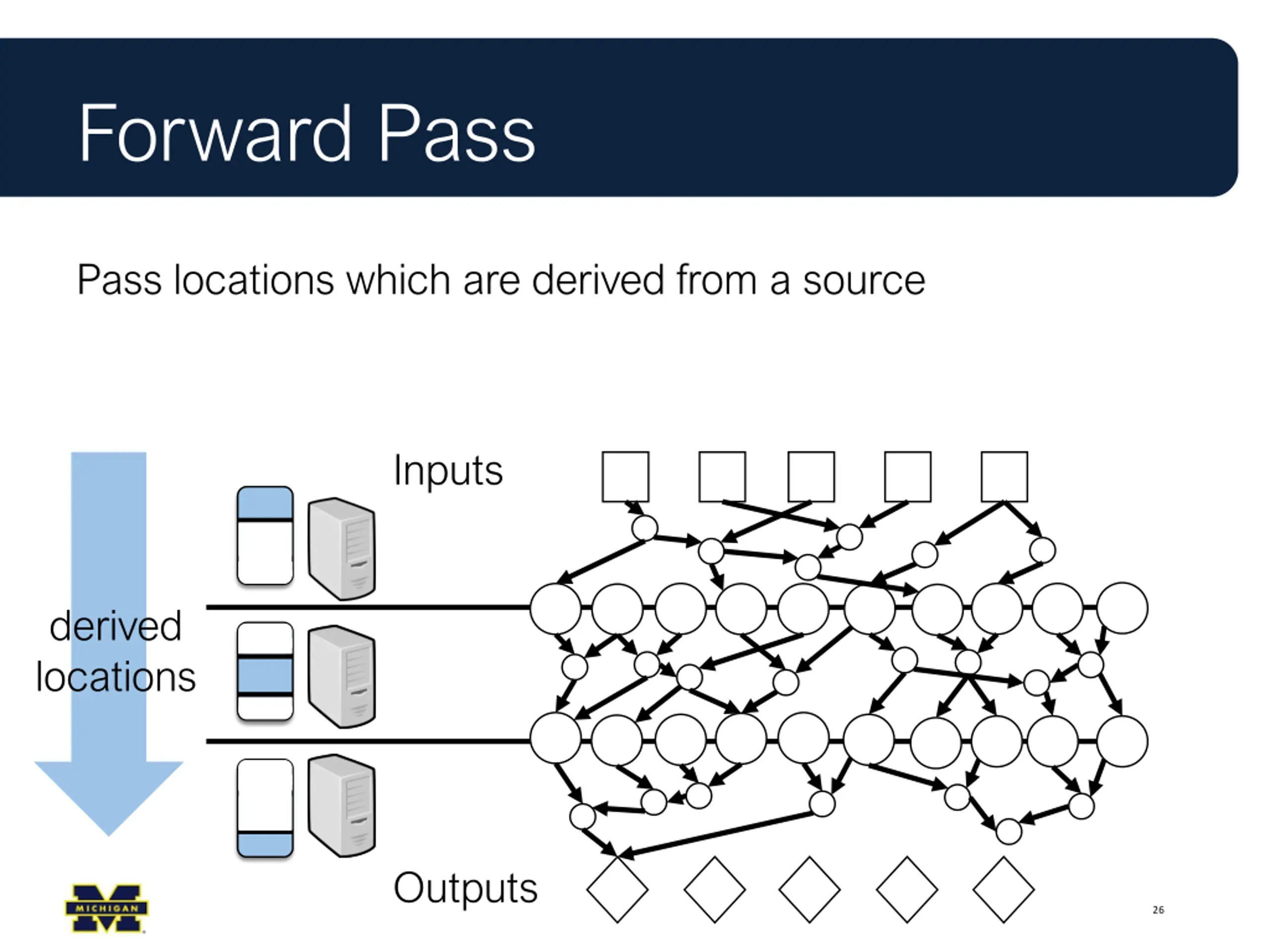

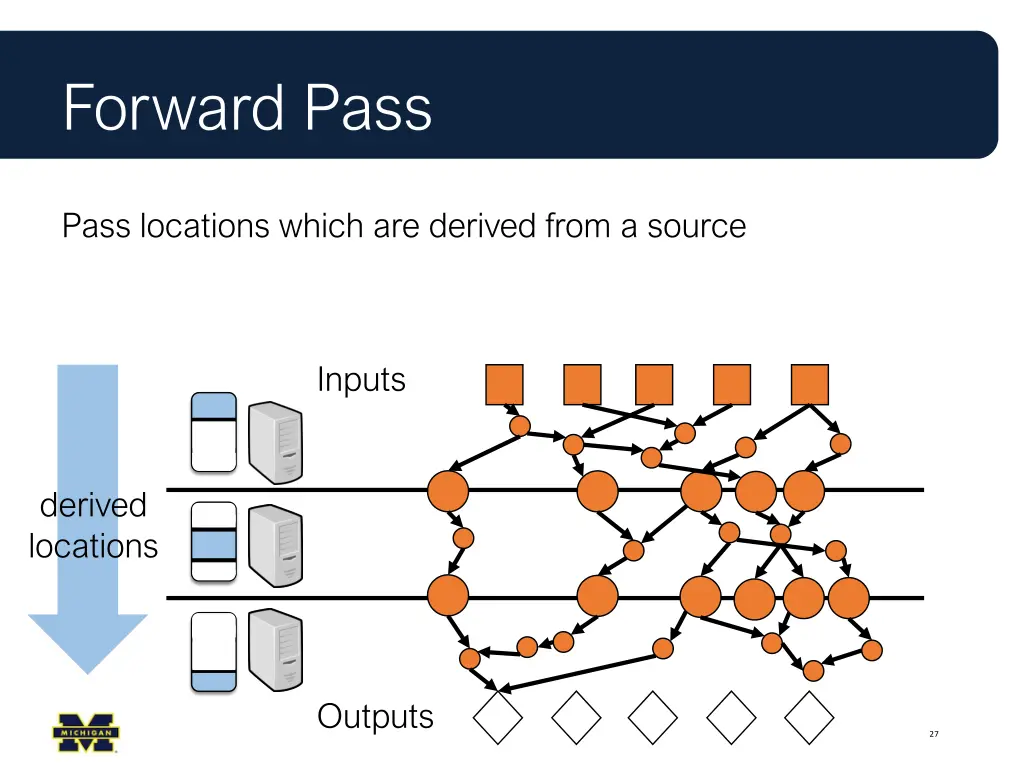

Forward Pass Pass locations which are derived from a source Inputs derived locations Outputs 26
Forward Pass Pass locations which are derived from a source Inputs derived locations Outputs 27

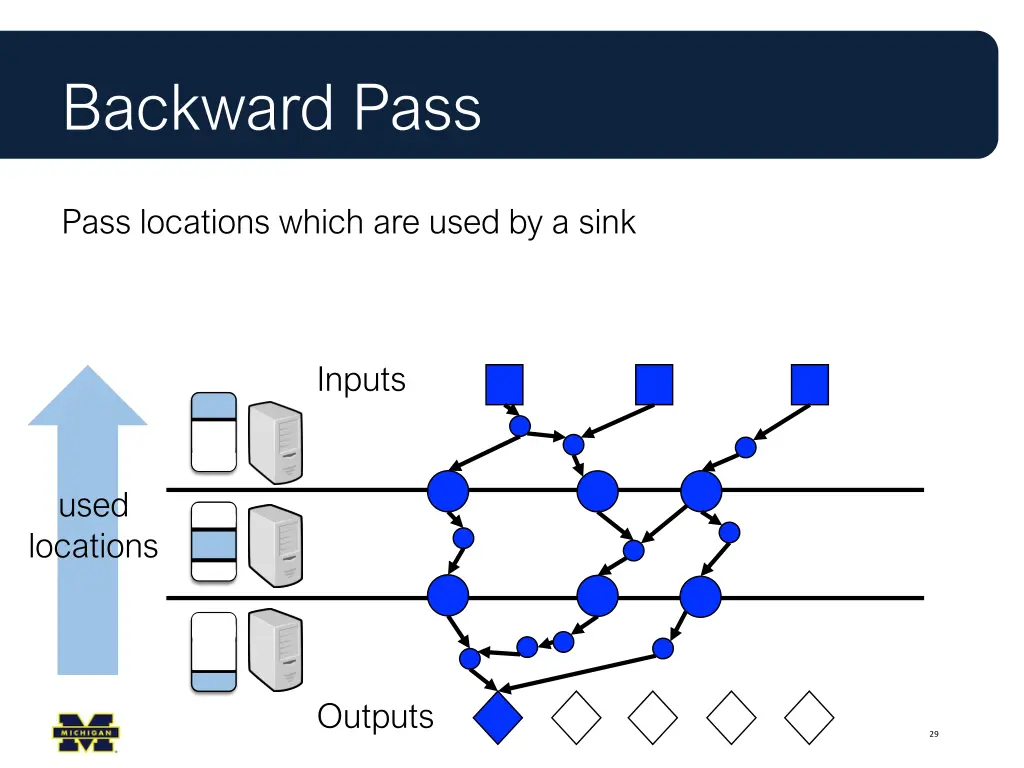

Backward Pass Pass locations which are used by a sink Inputs used locations Outputs 28

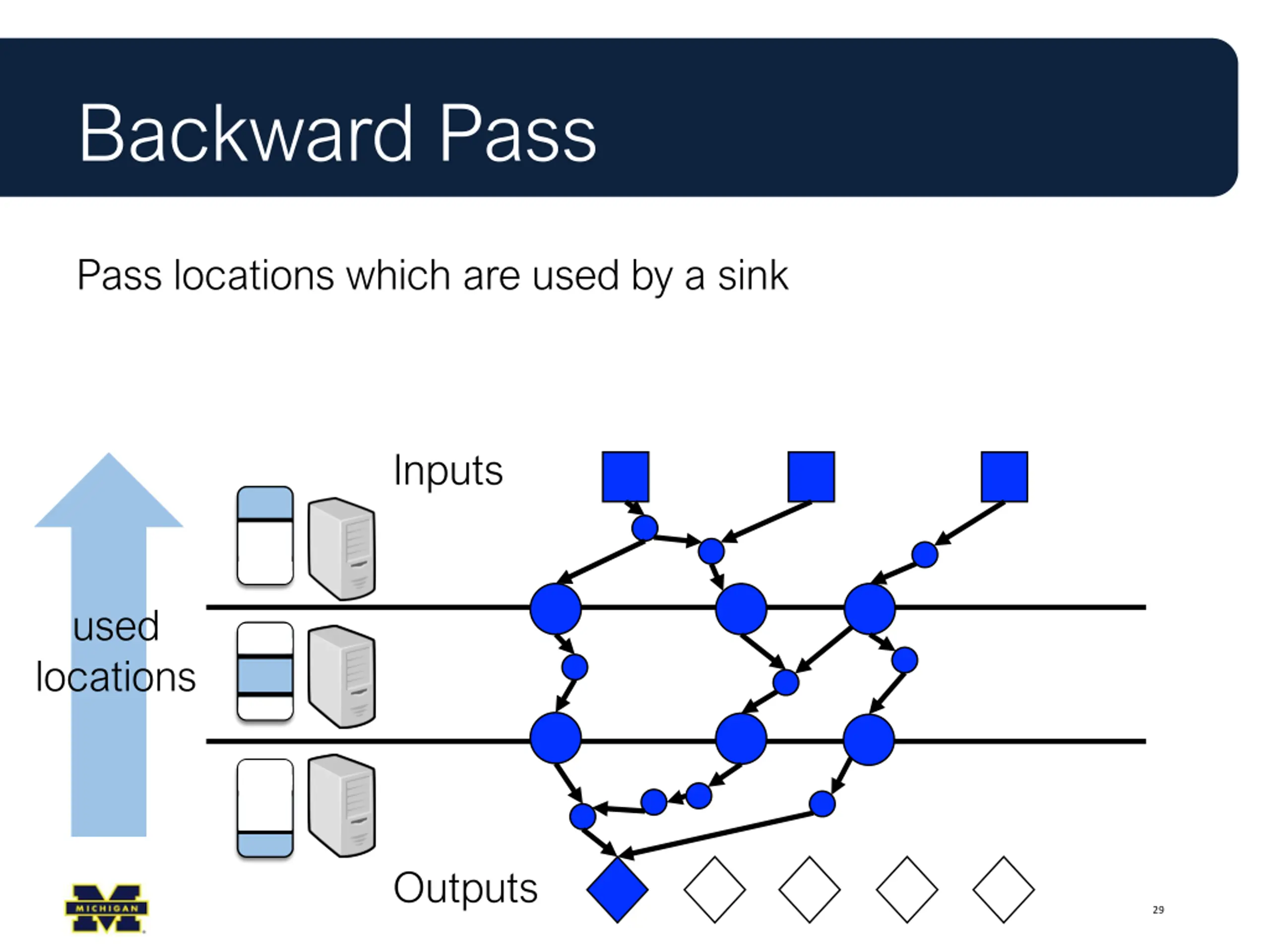

Backward Pass Pass locations which are used by a sink Inputs used locations Outputs 29

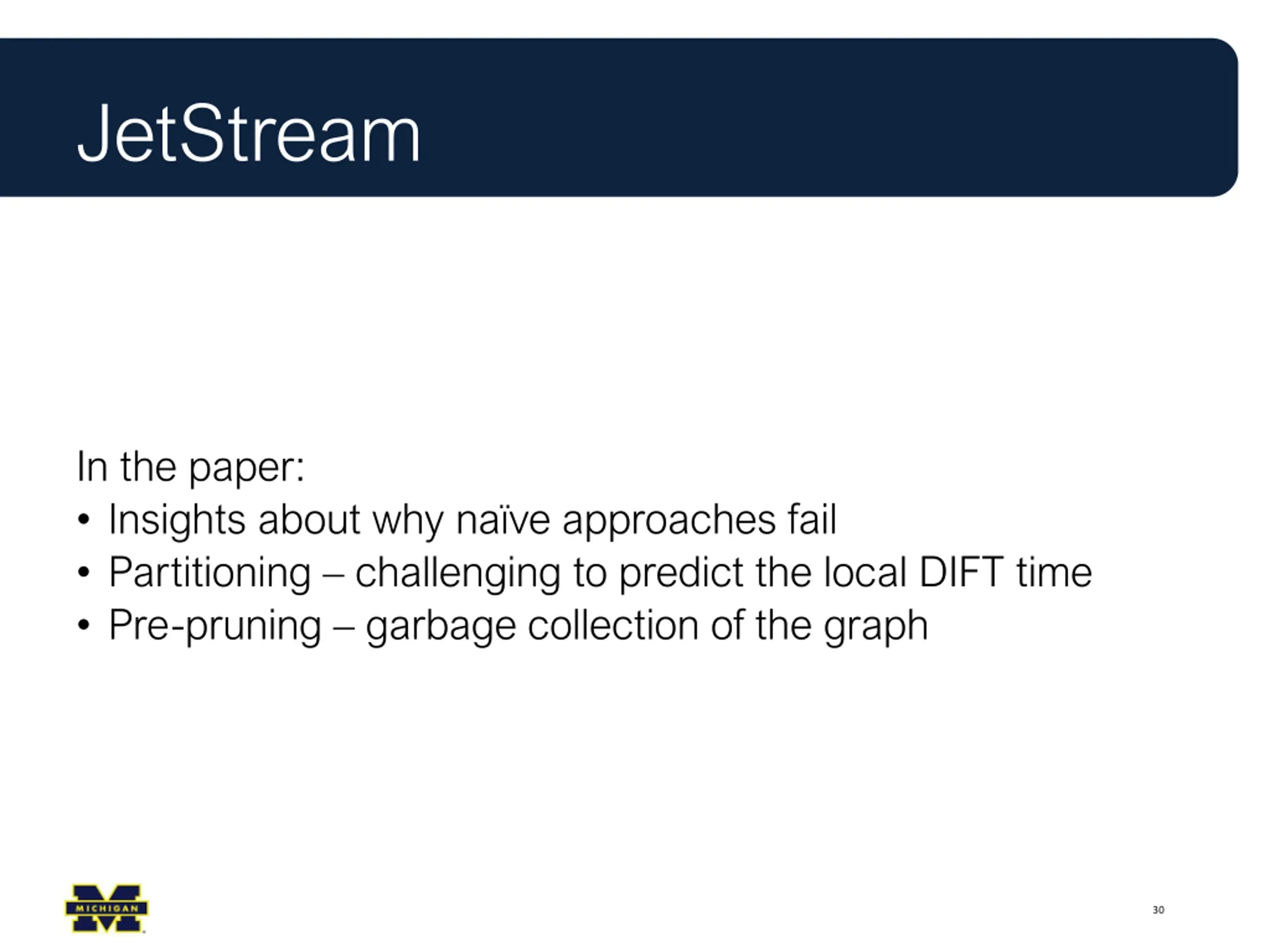

JetStream In the paper: Insights about why na ve approaches fail Partitioning challenging to predict the local DIFT time Pre-pruning garbage collection of the graph 30

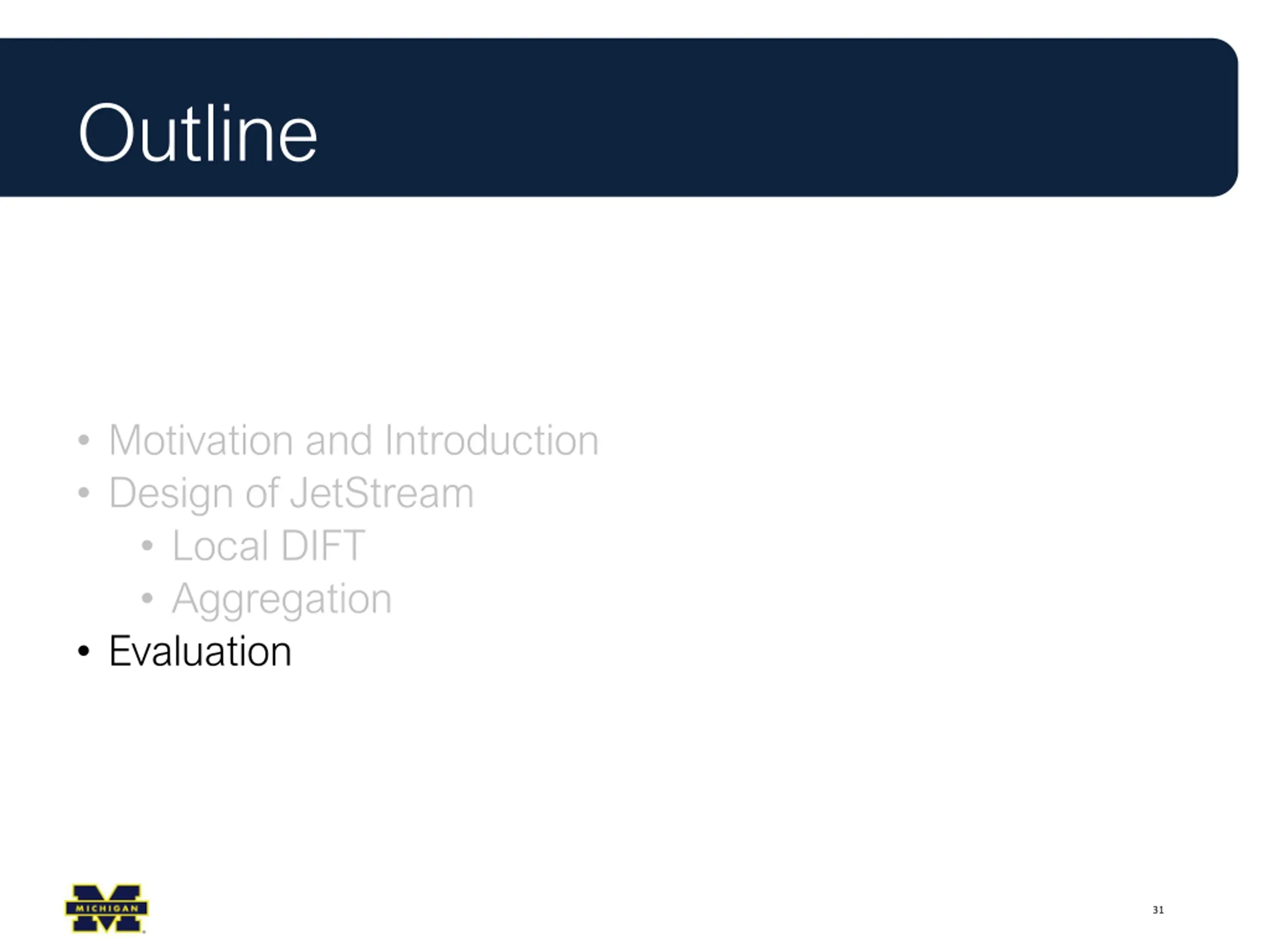

Outline Evaluation 31

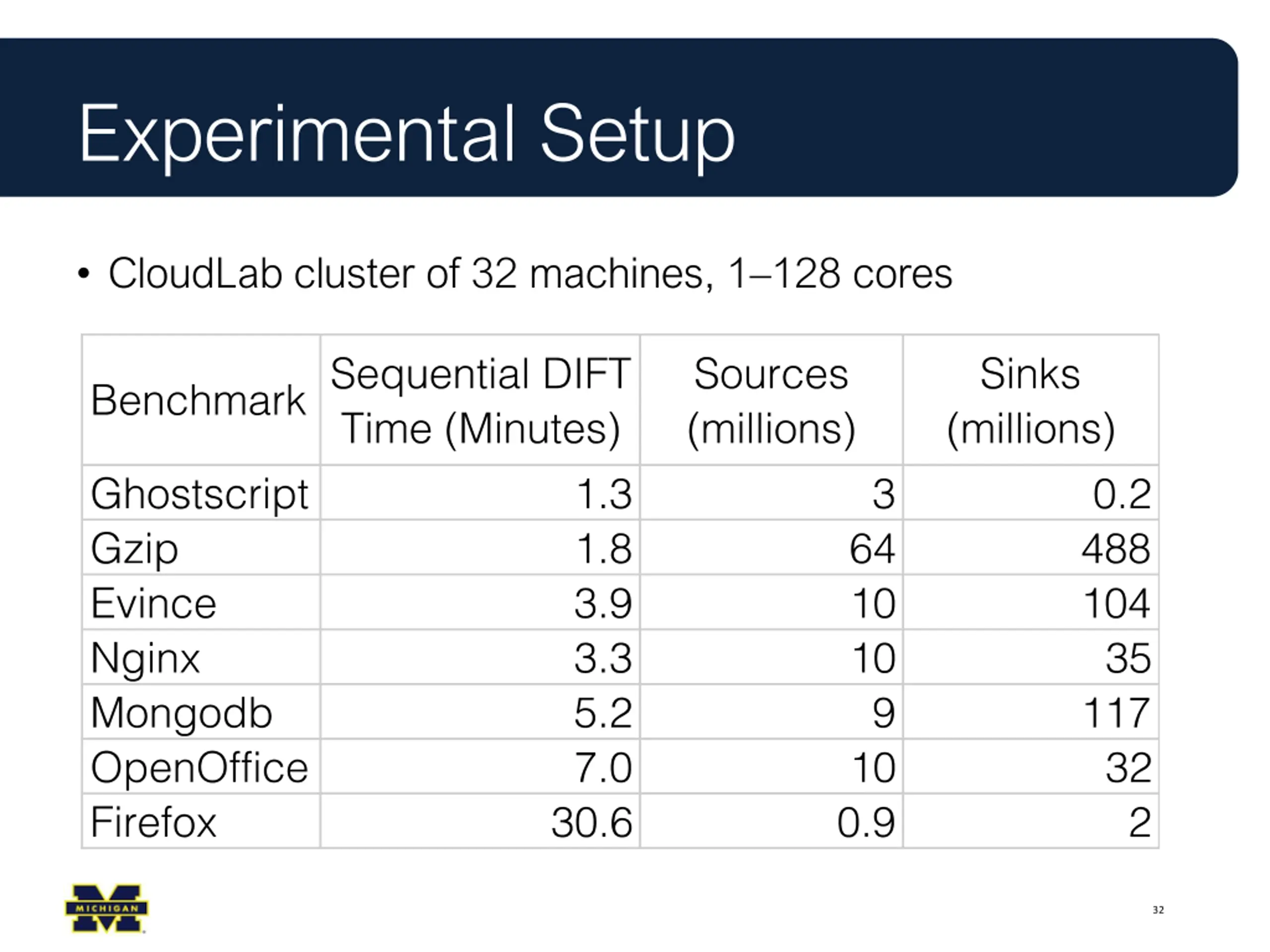

Experimental Setup CloudLab cluster of 32 machines, 1 128 cores 32

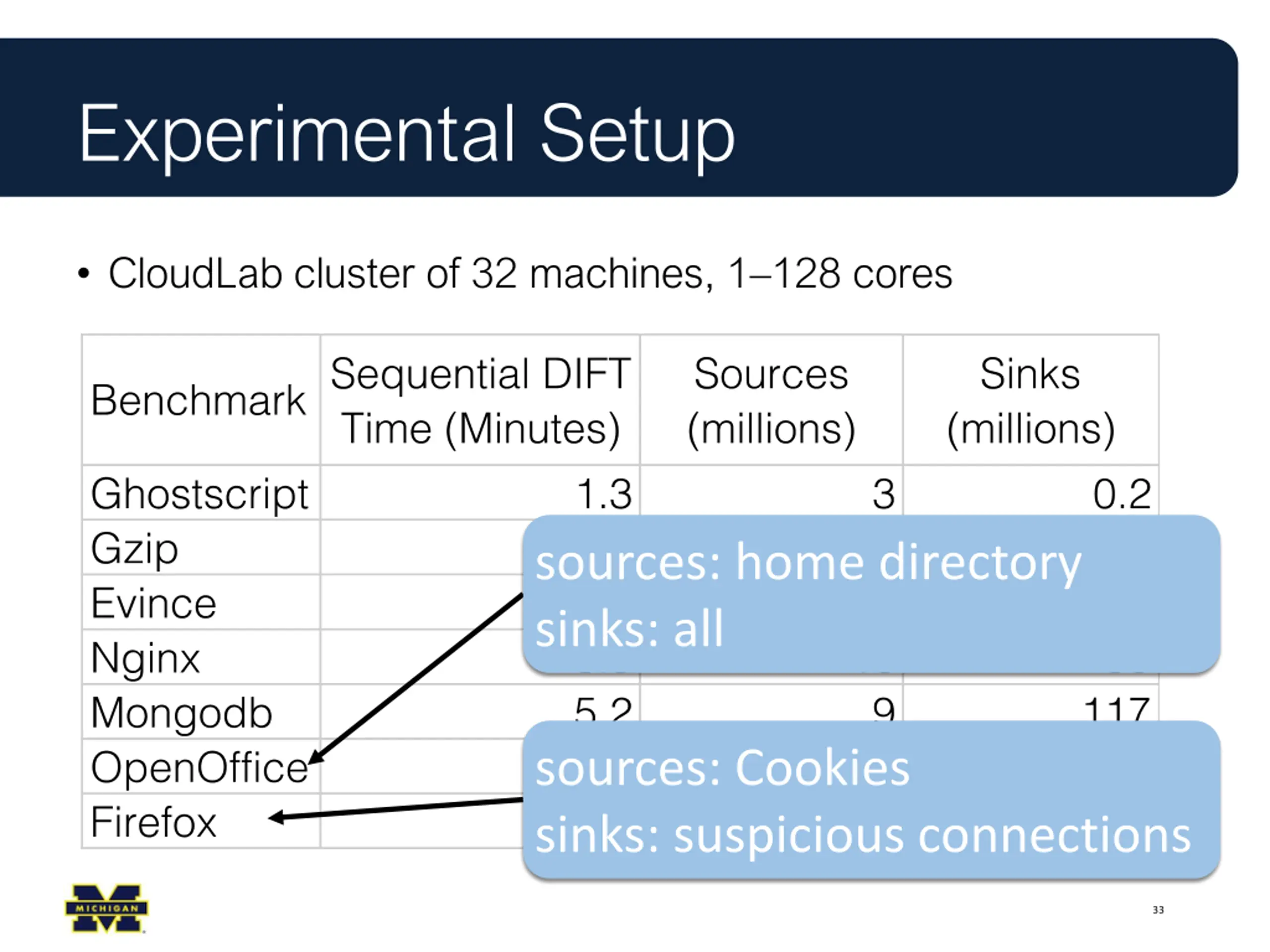

Experimental Setup CloudLab cluster of 32 machines, 1 128 cores sources: home directory sinks: all sources: Cookies sinks: suspicious connections 33

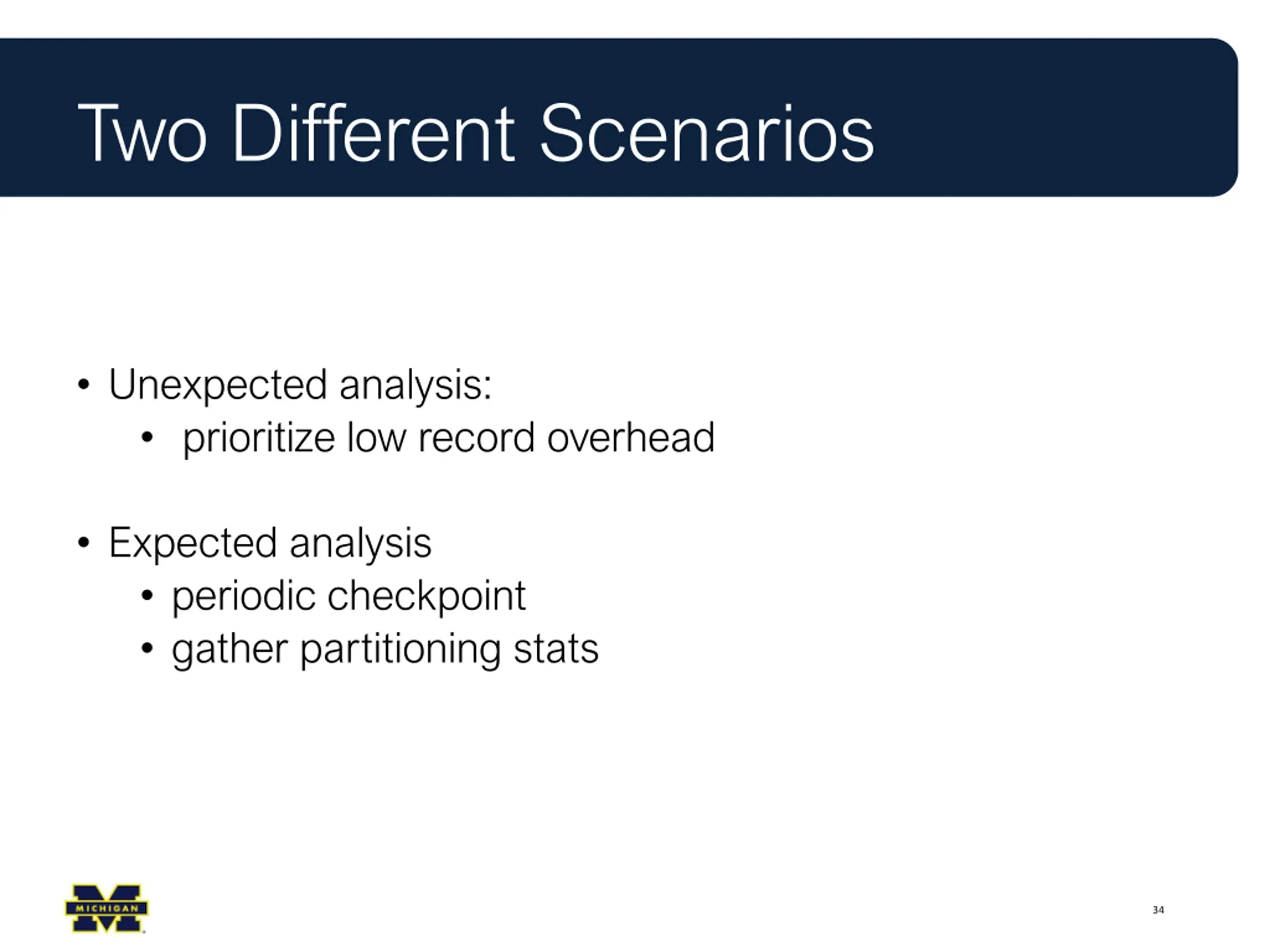

Two Different Scenarios Unexpected analysis: prioritize low record overhead Expected analysis periodic checkpoint gather partitioning stats 34

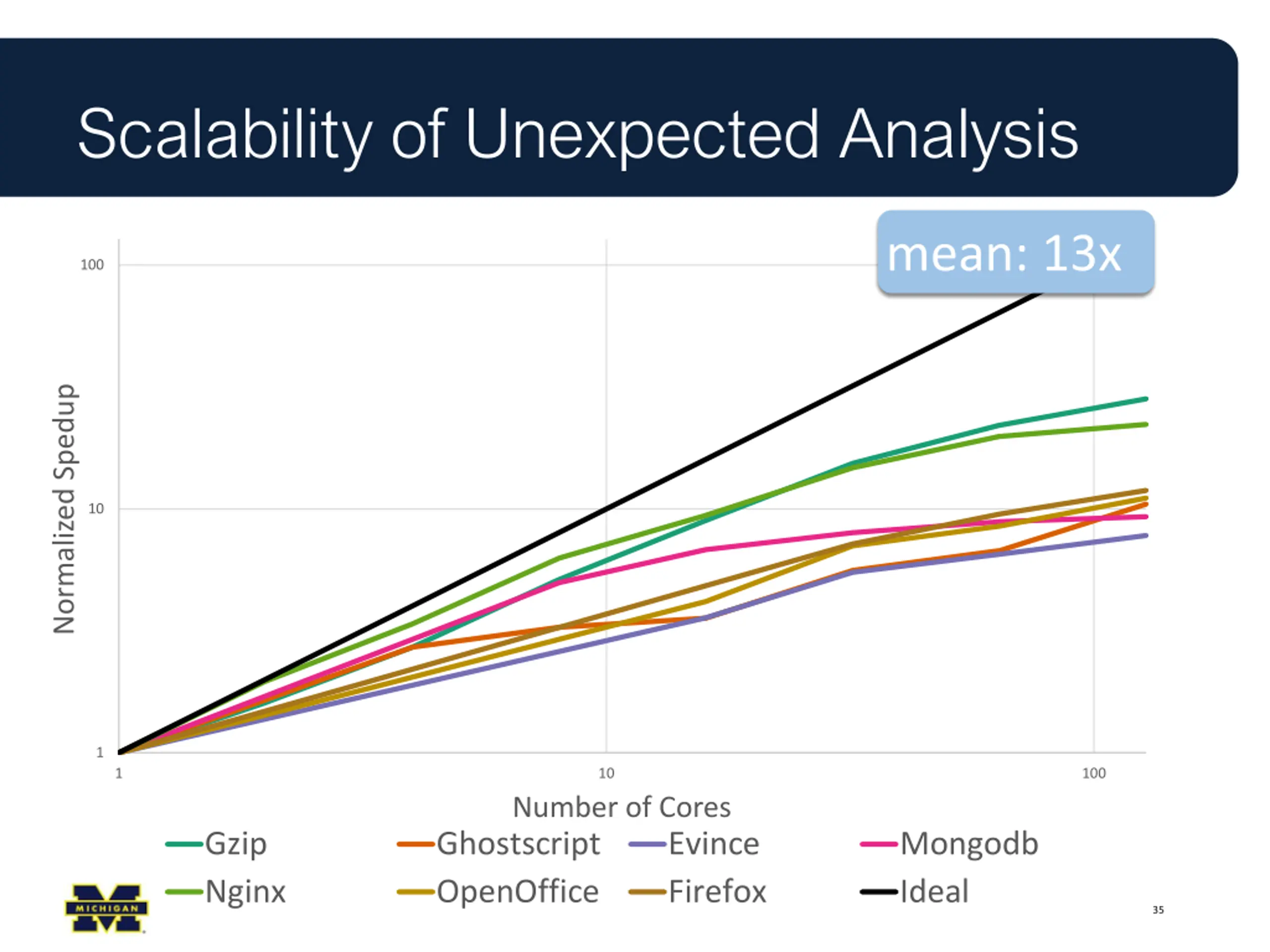

Scalability of Unexpected Analysis mean: 13x 100 Normalized Spedup 10 1 1 10 100 Number of Cores Ghostscript OpenOffice Gzip Nginx Evince Firefox Mongodb Ideal 35

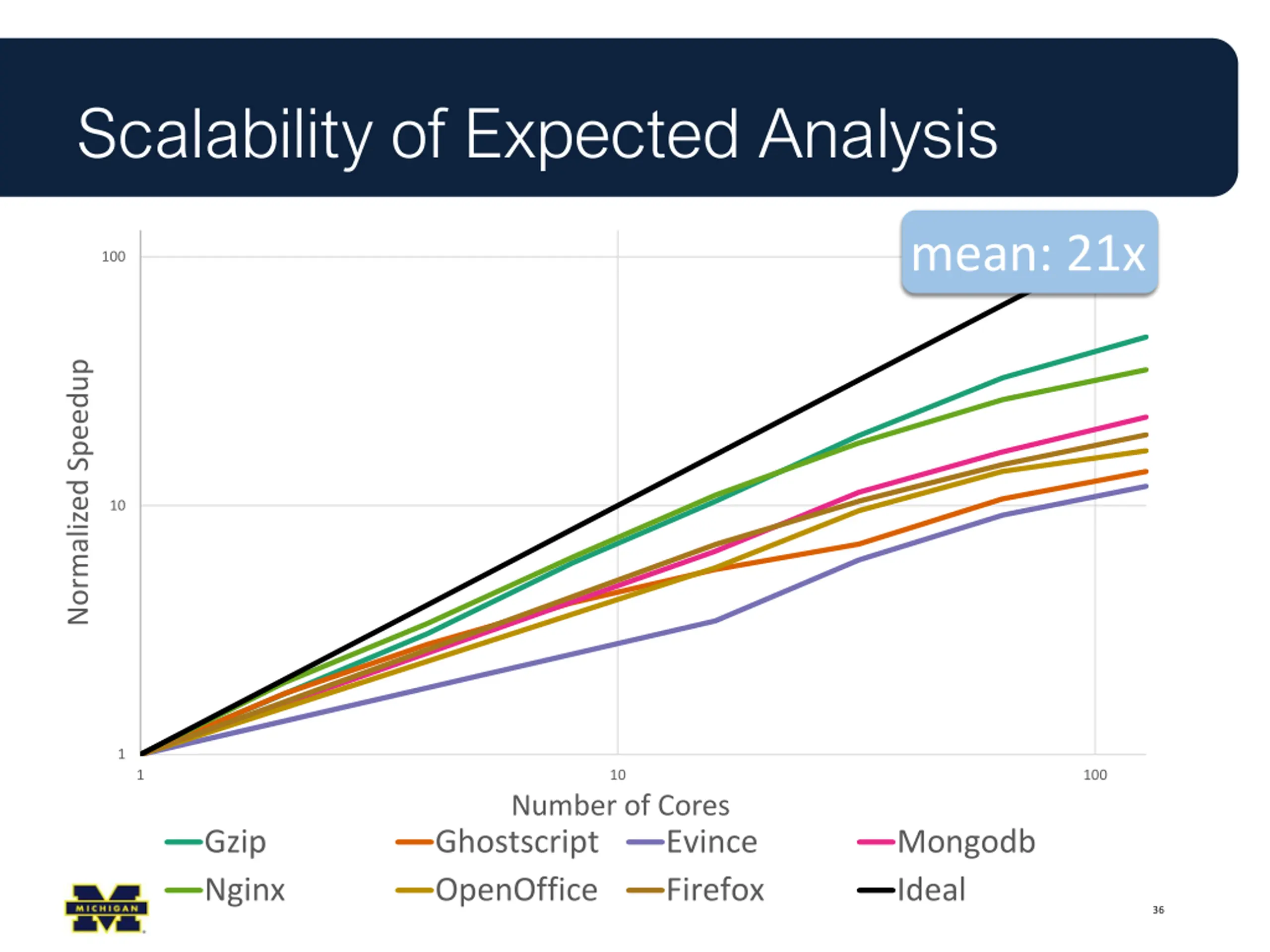

Scalability of Expected Analysis mean: 21x 100 Normalized Speedup 10 1 1 10 100 Number of Cores Ghostscript OpenOffice Gzip Nginx Evince Firefox Mongodb Ideal 36
JetStream 2x 21x Local DIFT epoch parallelism Faster than original execution! Aggregation pipeline parallelism 37
Questions 38
