Patch Bundle Mode Walkthrough
Discover a step-by-step guide to transitioning PD controller to patch mode, initiating patch burst mode, and configuring via I2C addresses using PBMs and PBMc commands. Explore PBMs and PBMc pseudo code examples for implementation.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

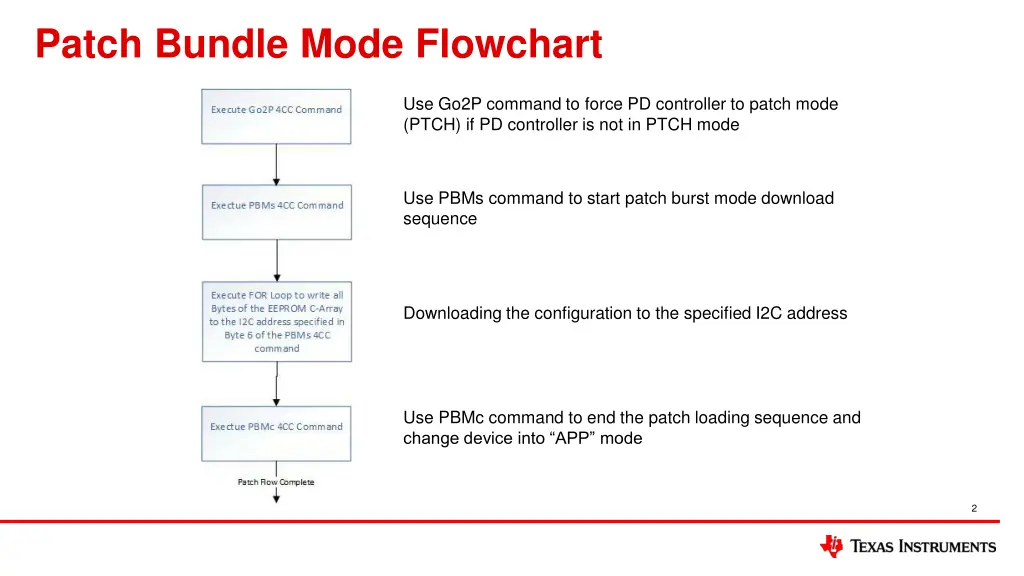

Patch Bundle Mode Flowchart Use Go2P command to force PD controller to patch mode (PTCH) if PD controller is not in PTCH mode Use PBMs command to start patch burst mode download sequence Downloading the configuration to the specified I2C address Use PBMc command to end the patch loading sequence and change device into APP mode 2
