Patent Licensing Proposal
This patent proposal introduces a mechanism to adjust the burner height on a gas stove, maximizing efficiency and heat utilization for cooking. With a focus on Mechanical Engineering, the invention adds significant value to the Cooking Appliances Industry by enhancing LPG stove performance.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Patent Licensing Proposal BURNER HEIGHT ADJUSTMENT MECHANISM FOR GAS STOVE Inventor: Mr. ASHISH KUMAR

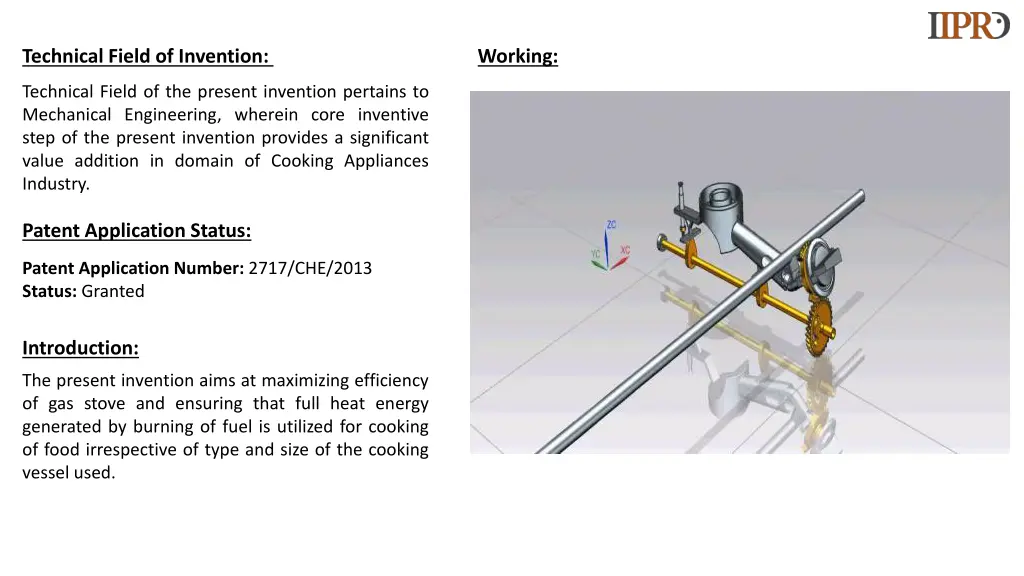

Technical Field of Invention: Working: Technical Field of the present invention pertains to Mechanical Engineering, wherein core inventive step of the present invention provides a significant value addition in domain of Cooking Appliances Industry. Patent Application Status: Patent Application Number: 2717/CHE/2013 Status: Granted Introduction: The present invention aims at maximizing efficiency of gas stove and ensuring that full heat energy generated by burning of fuel is utilized for cooking of food irrespective of type and size of the cooking vessel used.

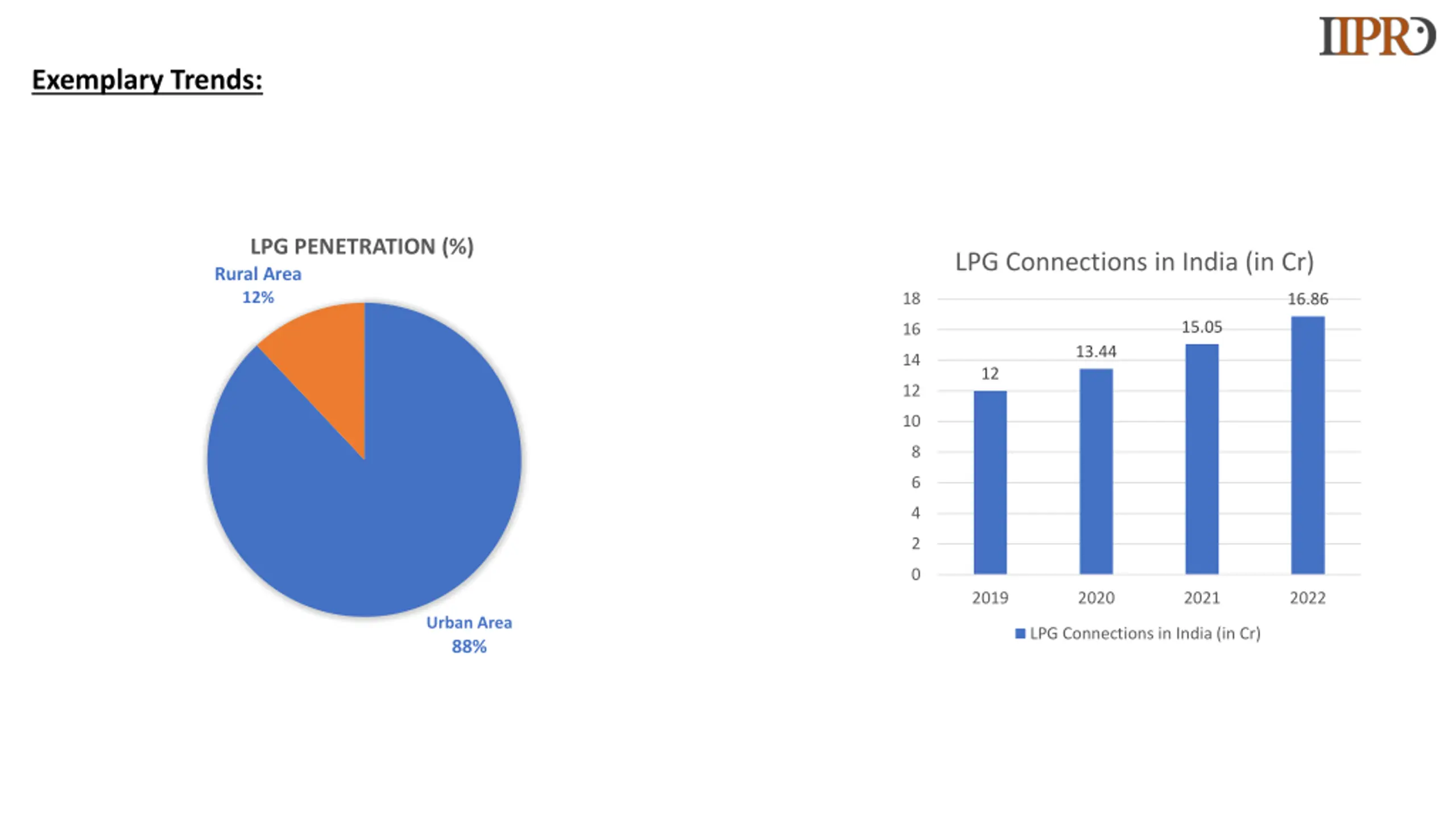

Exemplary Trends: LPG PENETRATION (%) LPG Connections in India (in Cr) Rural Area 12% 18 16.86 15.05 16 13.44 14 12 12 10 8 6 4 2 0 2019 2020 2021 2022 Urban Area 88% LPG Connections in India (in Cr)

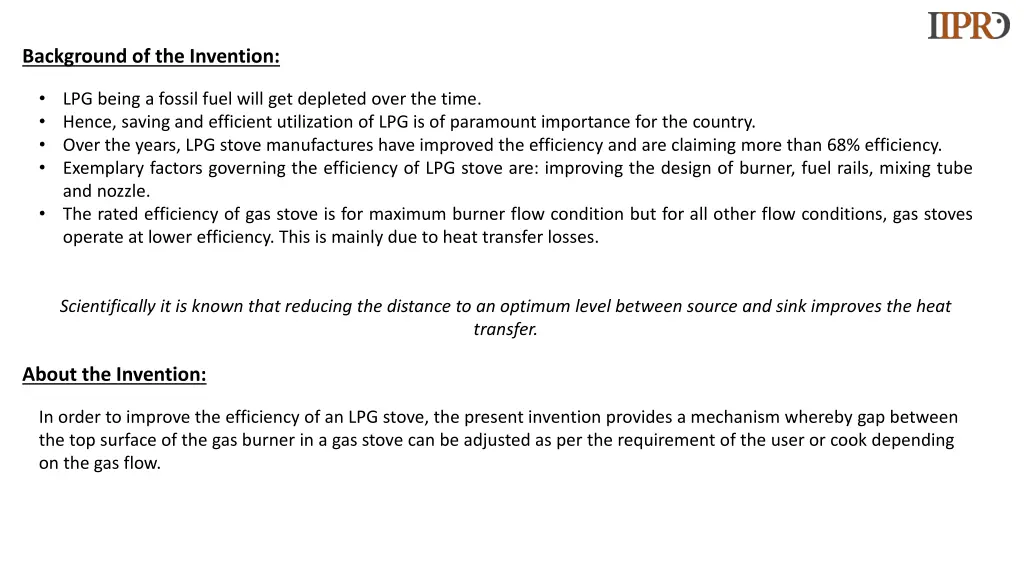

Background of the Invention: LPG being a fossil fuel will get depleted over the time. Hence, saving and efficient utilization of LPG is of paramount importance for the country. Over the years, LPG stove manufactures have improved the efficiency and are claiming more than 68% efficiency. Exemplary factors governing the efficiency of LPG stove are: improving the design of burner, fuel rails, mixing tube and nozzle. The rated efficiency of gas stove is for maximum burner flow condition but for all other flow conditions, gas stoves operate at lower efficiency. This is mainly due to heat transfer losses. Scientifically it is known that reducing the distance to an optimum level between source and sink improves the heat transfer. About the Invention: In order to improve the efficiency of an LPG stove, the present invention provides a mechanism whereby gap between the top surface of the gas burner in a gas stove can be adjusted as per the requirement of the user or cook depending on the gas flow.

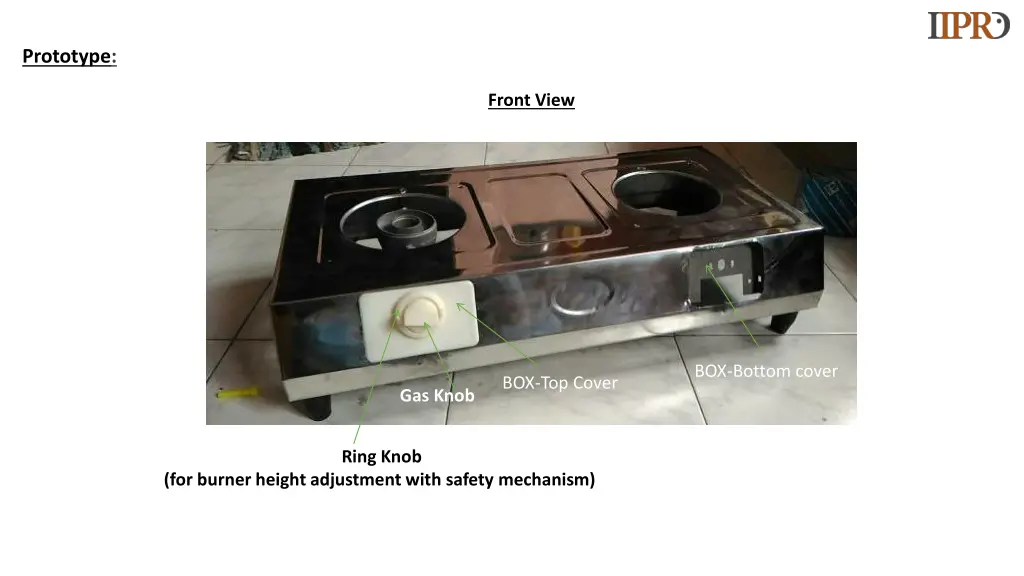

Prototype: Front View BOX-Bottom cover BOX-Top Cover Gas Knob Ring Knob (for burner height adjustment with safety mechanism)

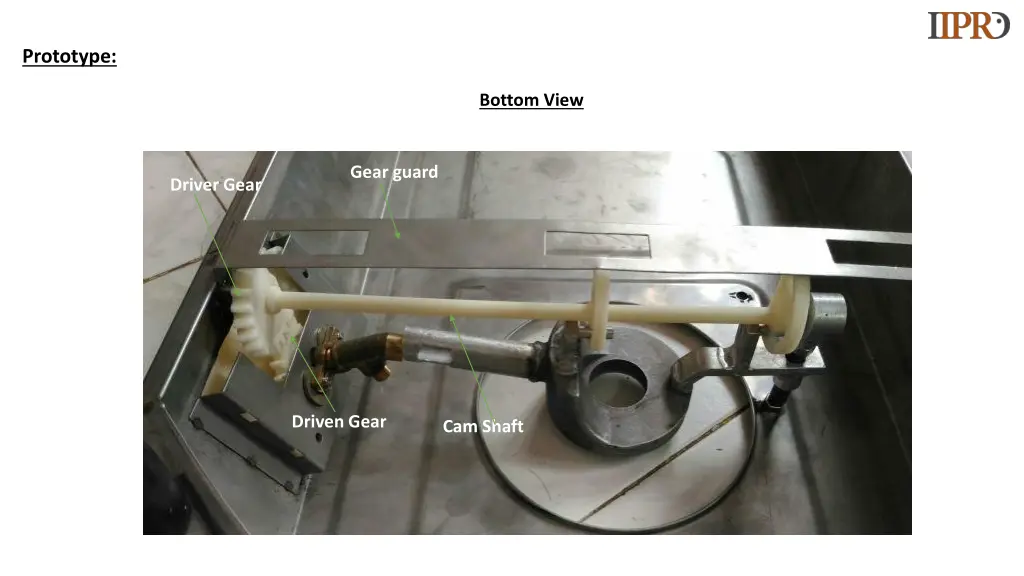

Prototype: Bottom View Gear guard Driver Gear Driven Gear Cam Shaft

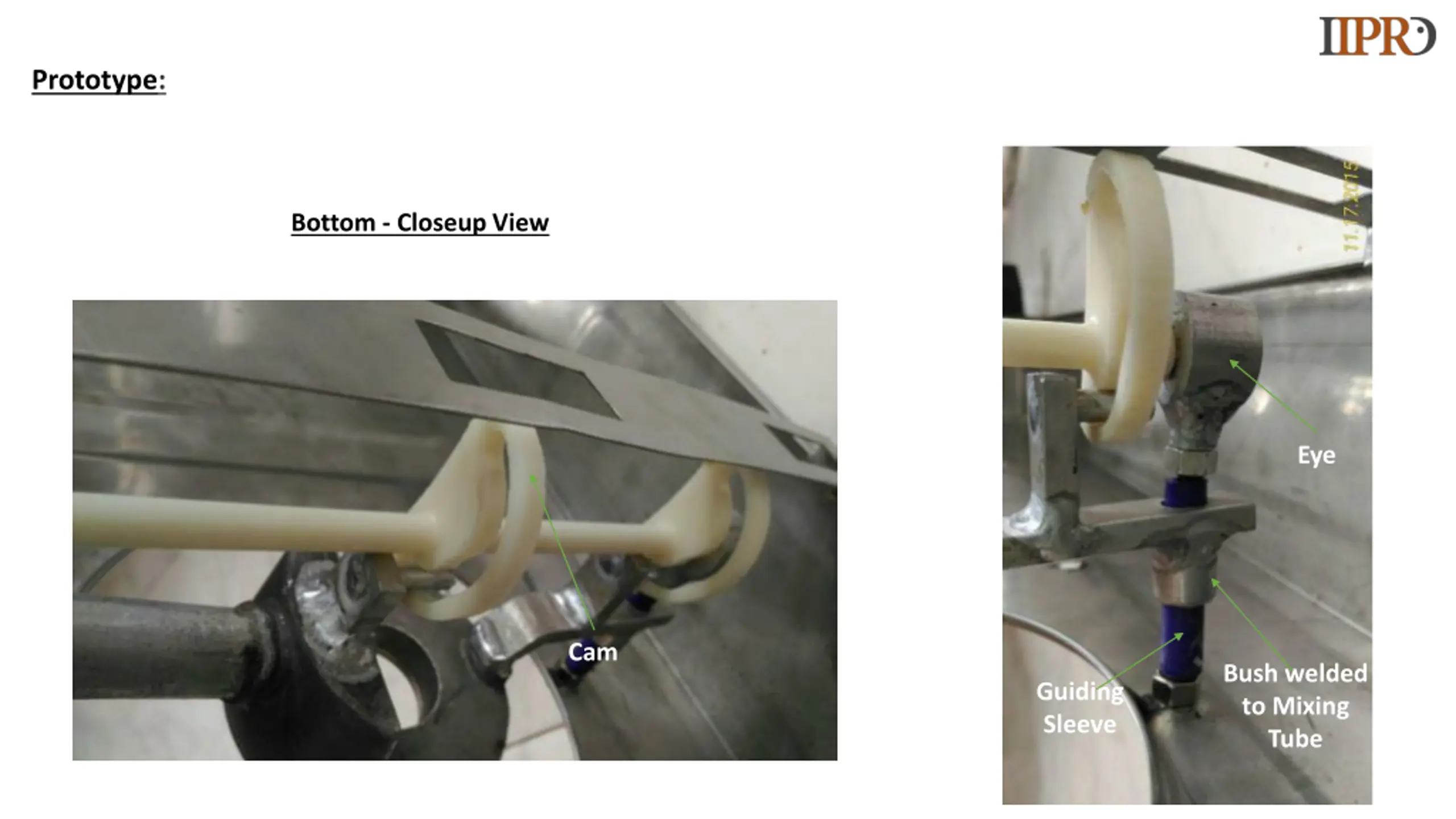

Prototype: Bottom - Closeup View Eye Cam Bush welded to Mixing Tube Guiding Sleeve

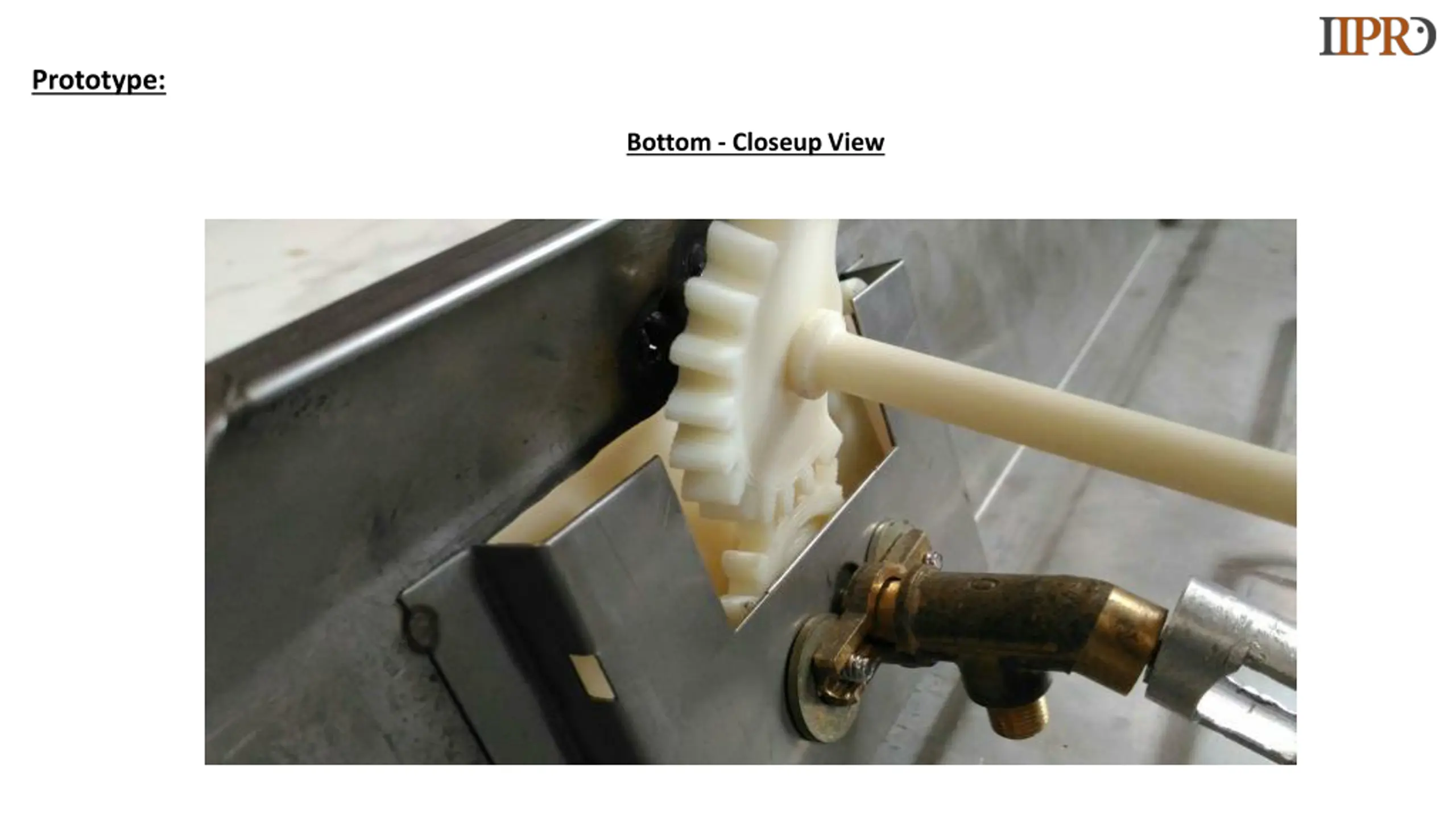

Prototype: Bottom - Closeup View

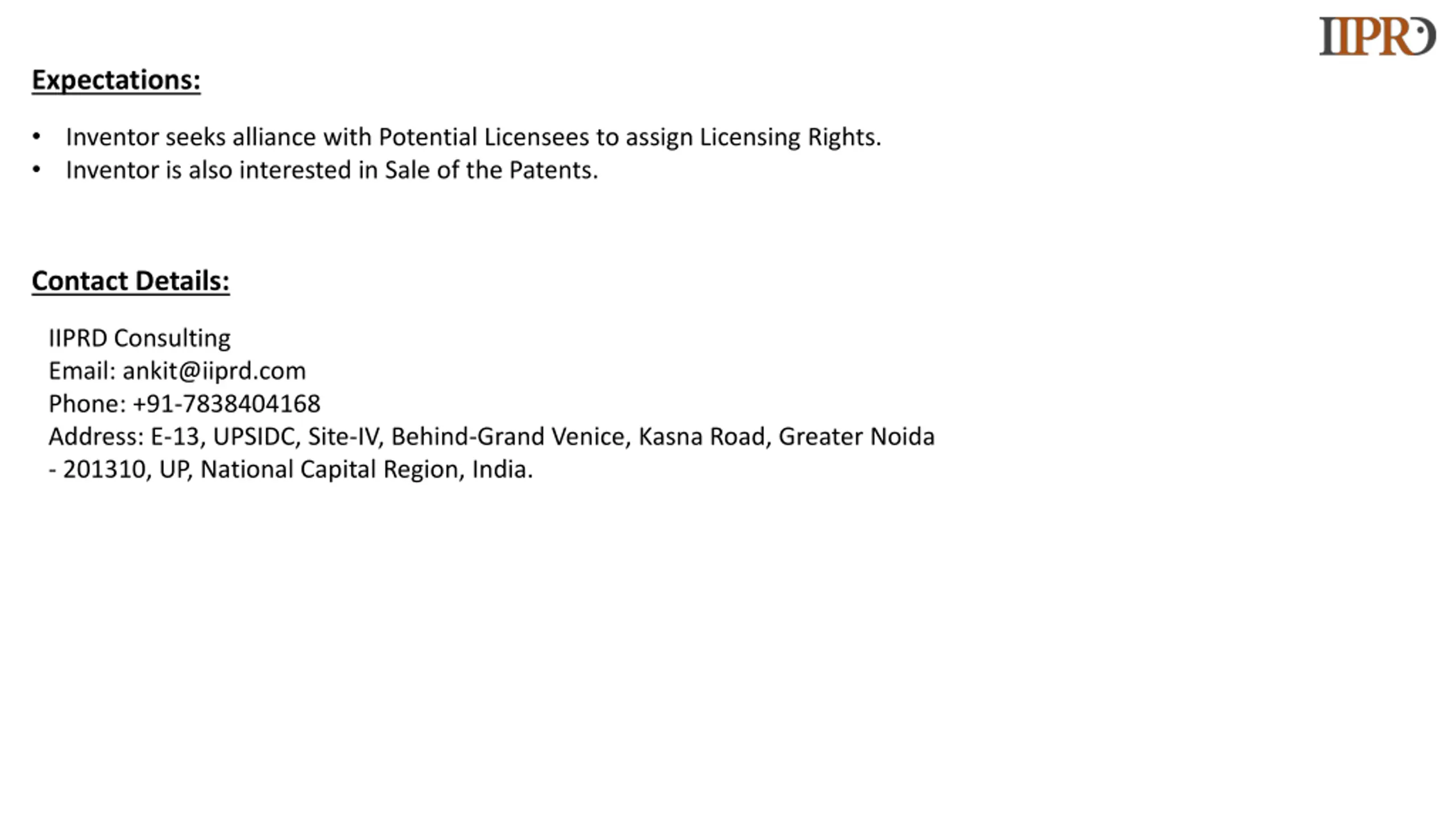

Expectations: Inventor seeks alliance with Potential Licensees to assign Licensing Rights. Inventor is also interested in Sale of the Patents. Contact Details: IIPRD Consulting Email: ankit@iiprd.com Phone: +91-7838404168 Address: E-13, UPSIDC, Site-IV, Behind-Grand Venice, Kasna Road, Greater Noida - 201310, UP, National Capital Region, India.
