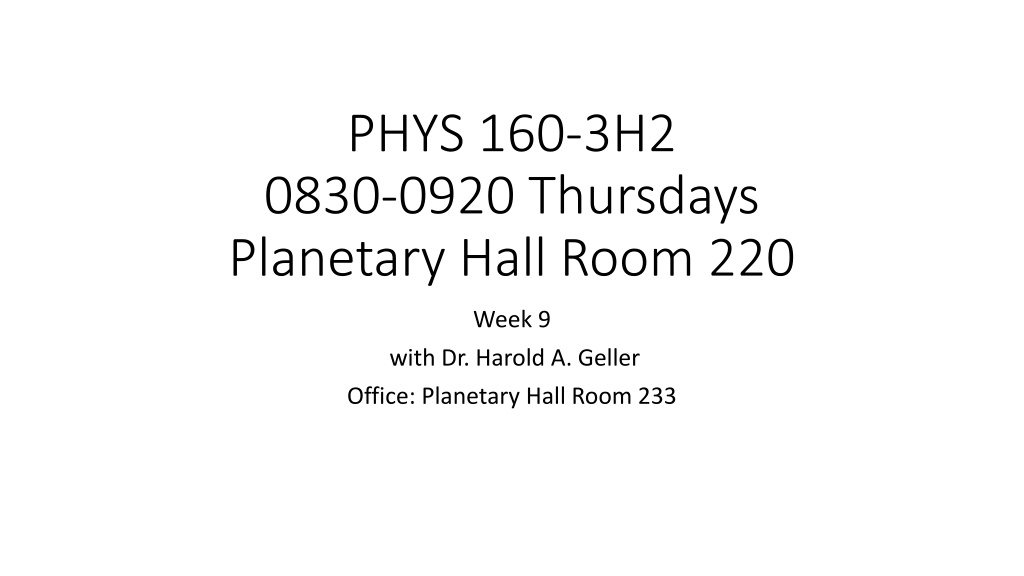

PHYS 160-3H2 0830-0920 Thursdays Planetary Hall Room 220 Week 9 with Dr. Harold A. Geller Office: Planetary Hall Room 233
Again, dont forget the Again, don t forget the webpage for this recitation webpage for this recitation http://physics.gmu.edu/~hgeller/PHYS160-3H2spring2024/

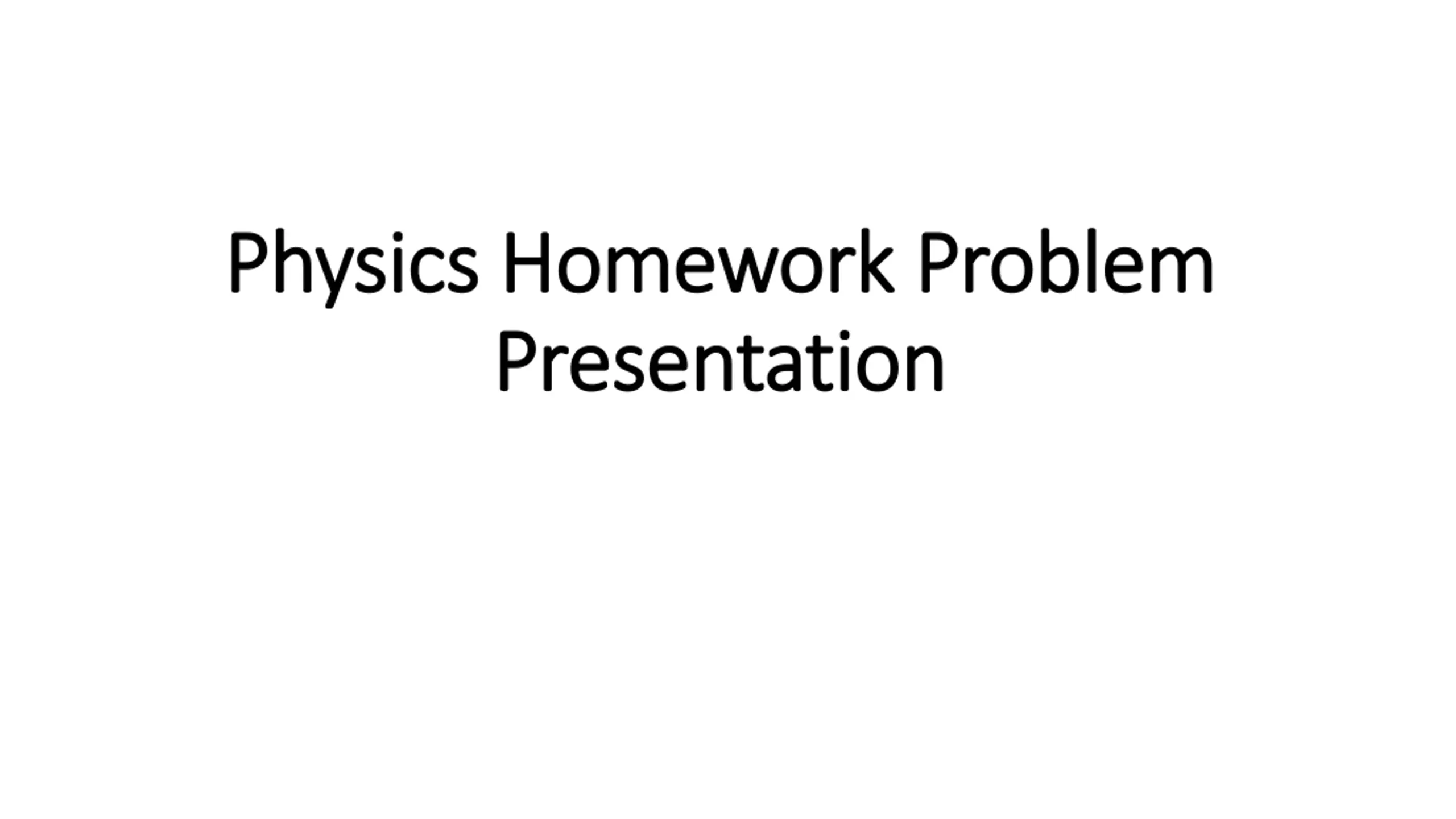

Physics Homework Problem Physics Homework Problem Presentation Presentation

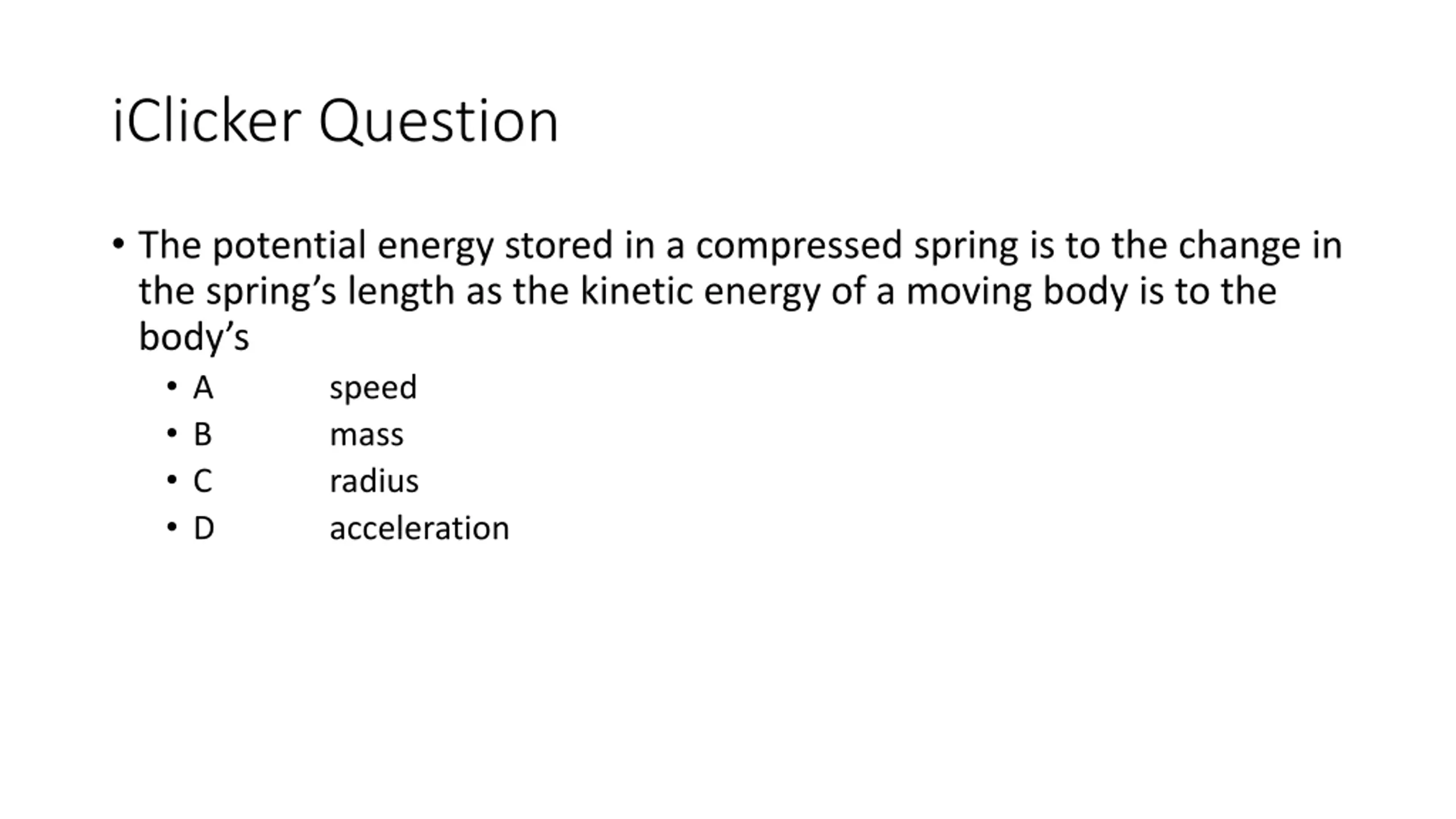

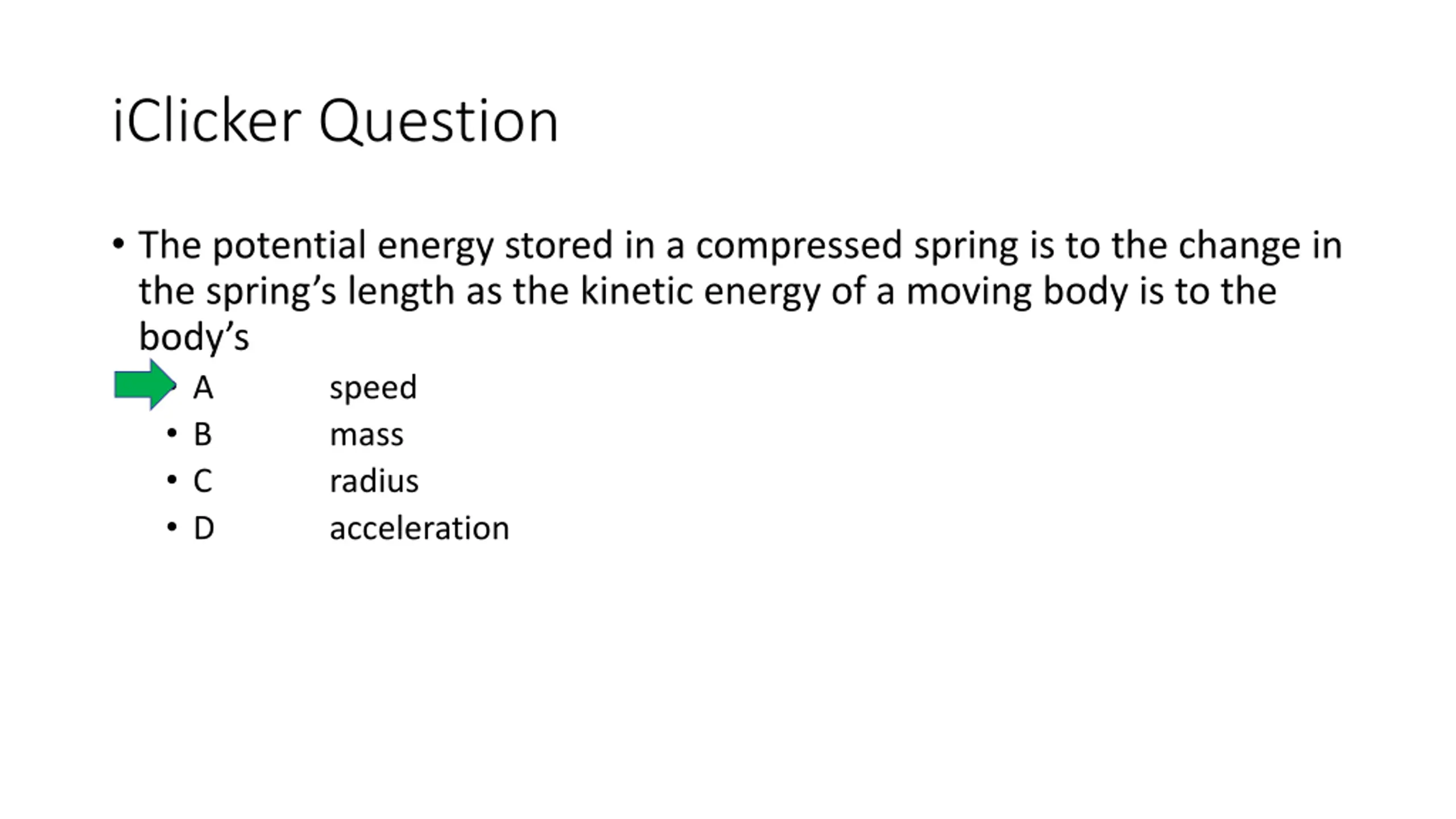

iClicker Question The potential energy stored in a compressed spring is to the change in the spring s length as the kinetic energy of a moving body is to the body s A speed B mass C radius D acceleration
iClicker Question The potential energy stored in a compressed spring is to the change in the spring s length as the kinetic energy of a moving body is to the body s A speed B mass C radius D acceleration

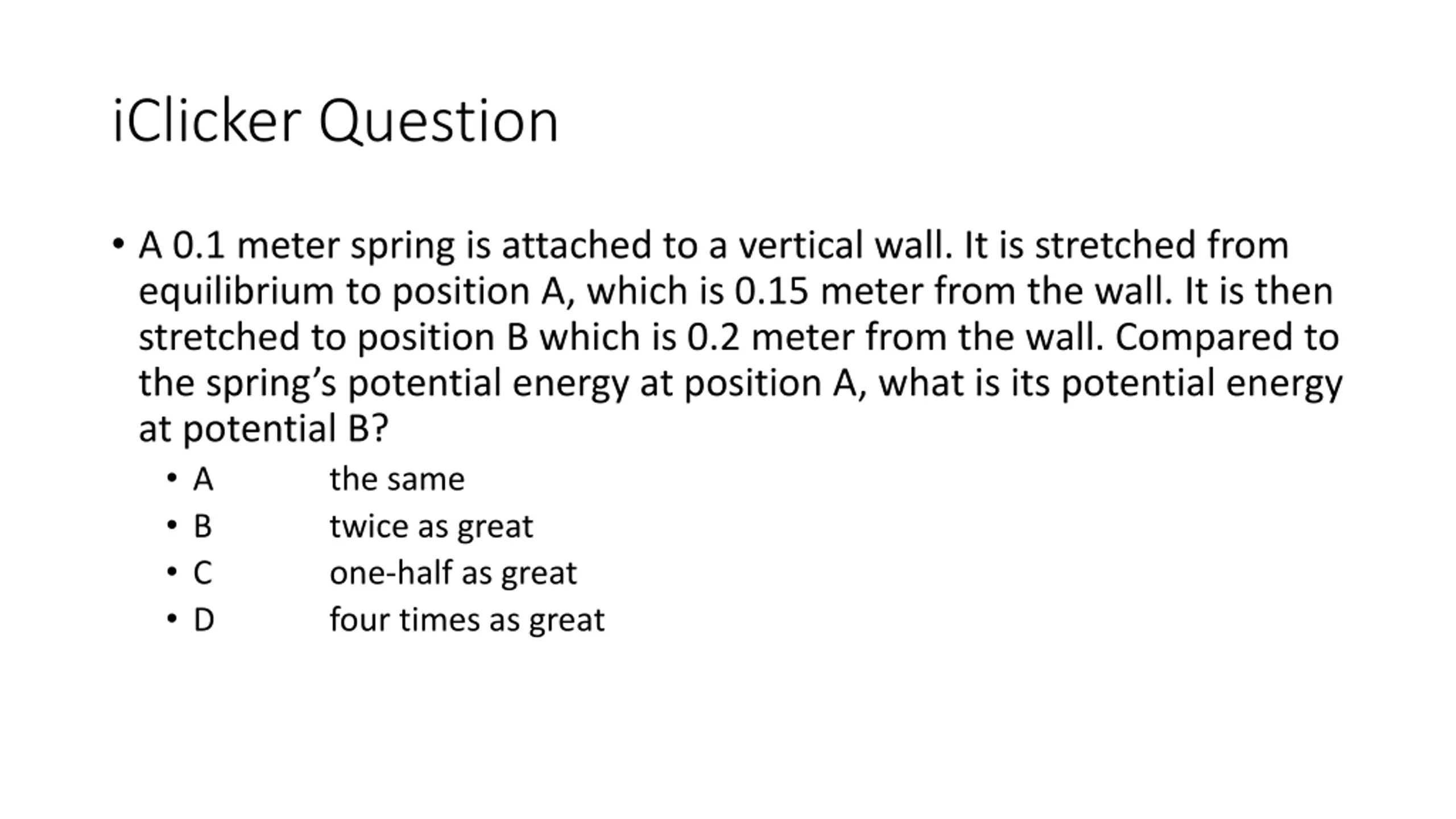

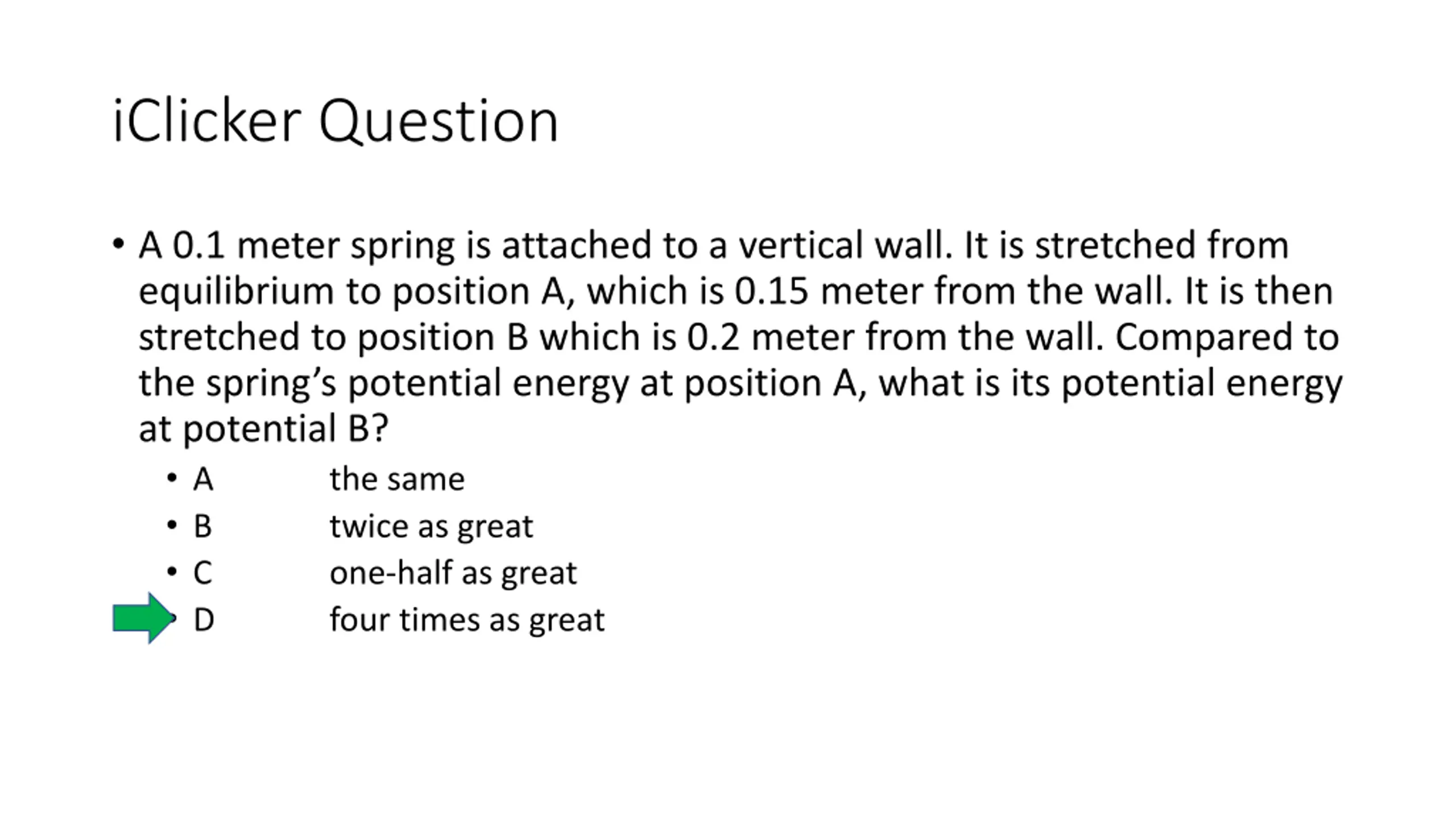

iClicker Question A 0.1 meter spring is attached to a vertical wall. It is stretched from equilibrium to position A, which is 0.15 meter from the wall. It is then stretched to position B which is 0.2 meter from the wall. Compared to the spring s potential energy at position A, what is its potential energy at potential B? A the same B twice as great C one-half as great D four times as great
iClicker Question A 0.1 meter spring is attached to a vertical wall. It is stretched from equilibrium to position A, which is 0.15 meter from the wall. It is then stretched to position B which is 0.2 meter from the wall. Compared to the spring s potential energy at position A, what is its potential energy at potential B? A the same B twice as great C one-half as great D four times as great

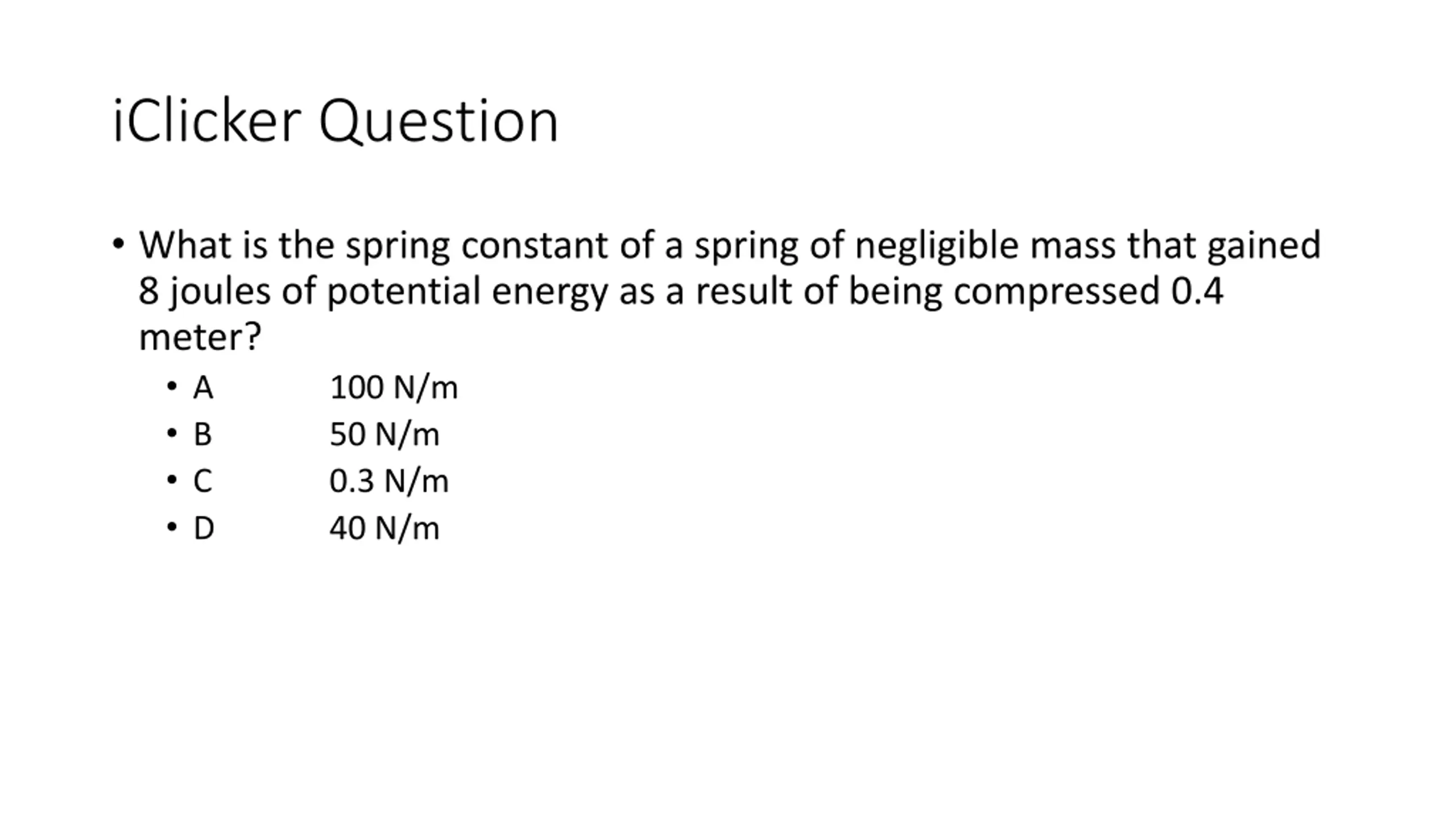

iClicker Question What is the spring constant of a spring of negligible mass that gained 8 joules of potential energy as a result of being compressed 0.4 meter? A 100 N/m B 50 N/m C 0.3 N/m D 40 N/m

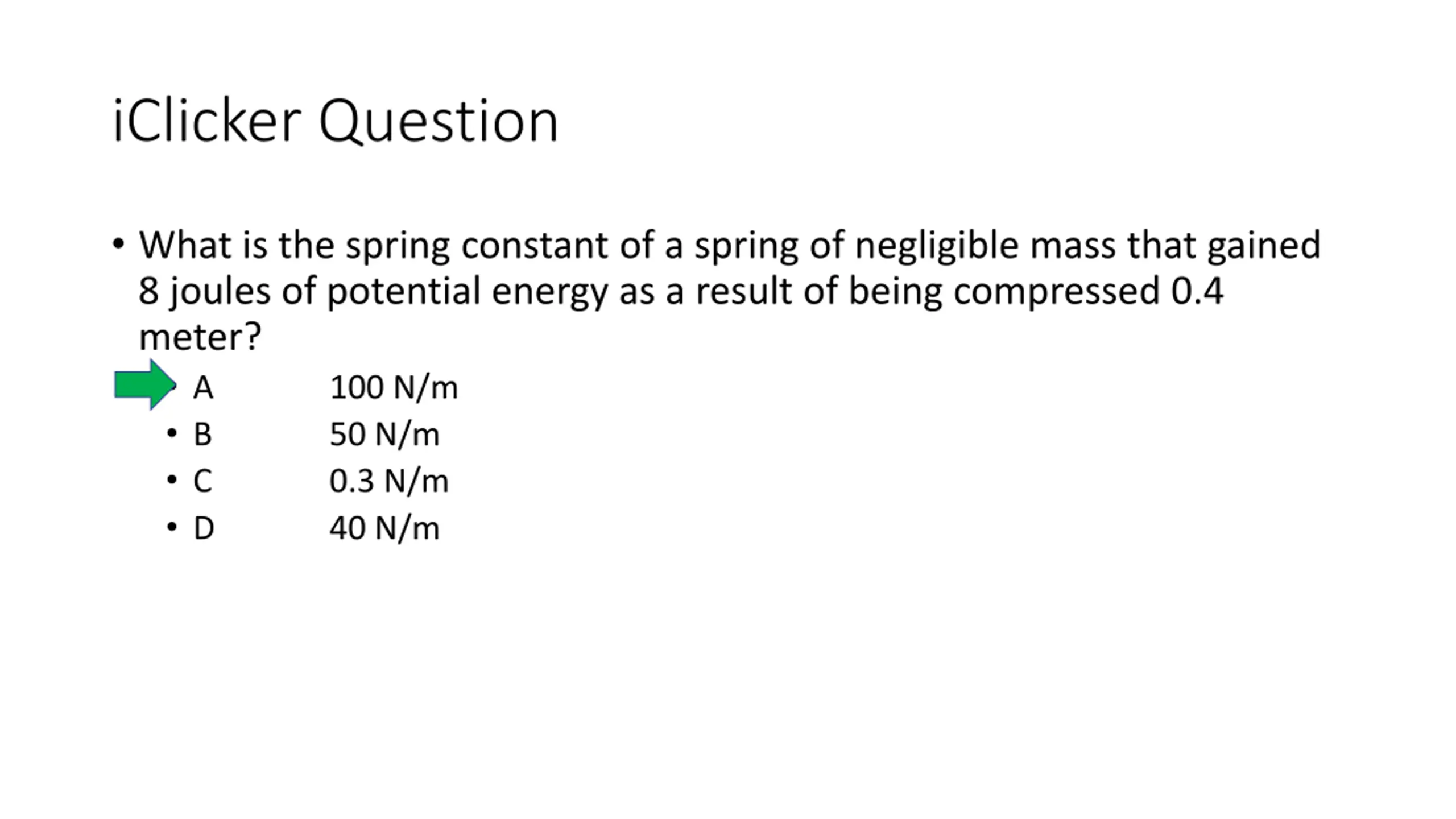

iClicker Question What is the spring constant of a spring of negligible mass that gained 8 joules of potential energy as a result of being compressed 0.4 meter? A 100 N/m B 50 N/m C 0.3 N/m D 40 N/m

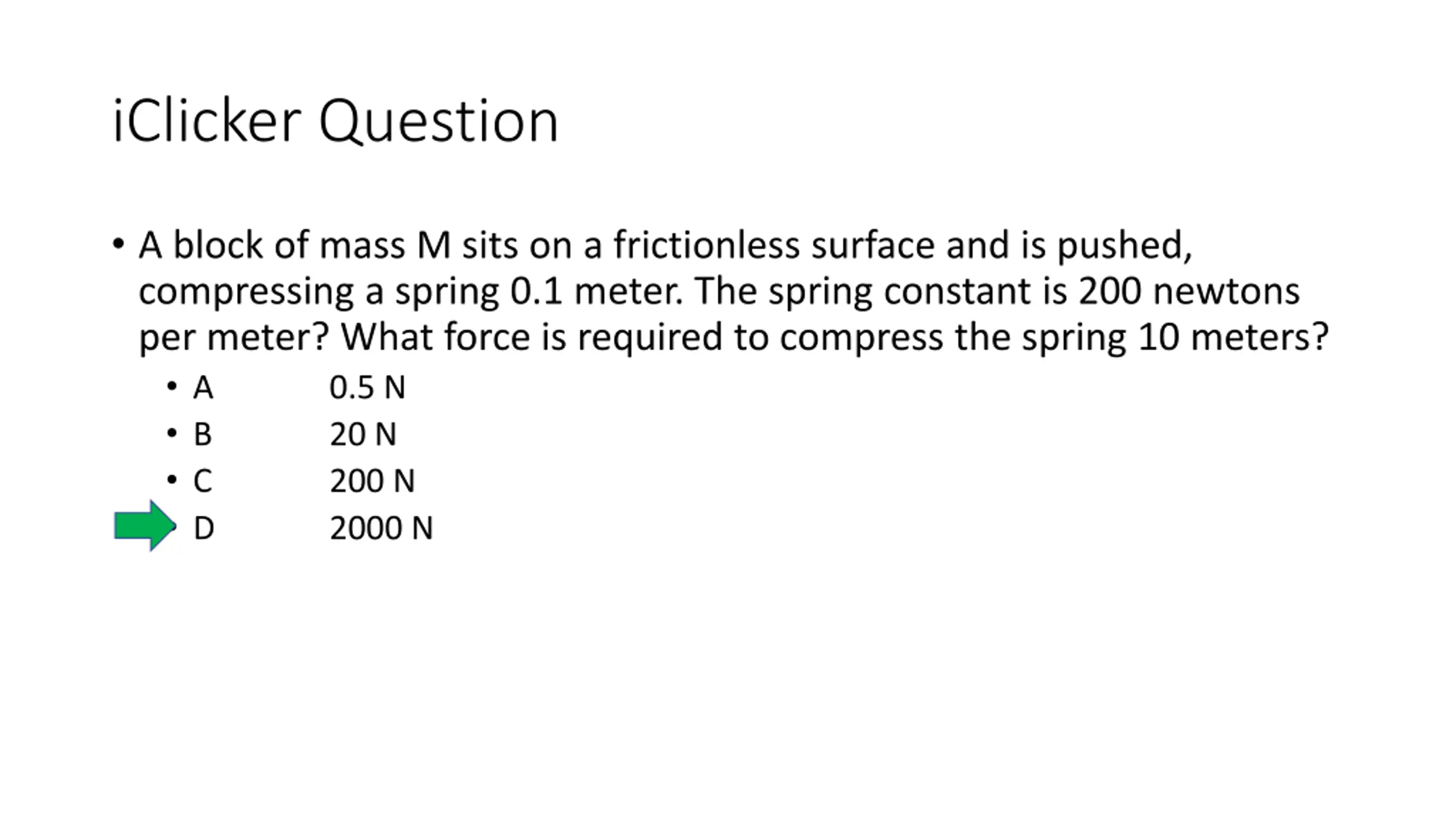

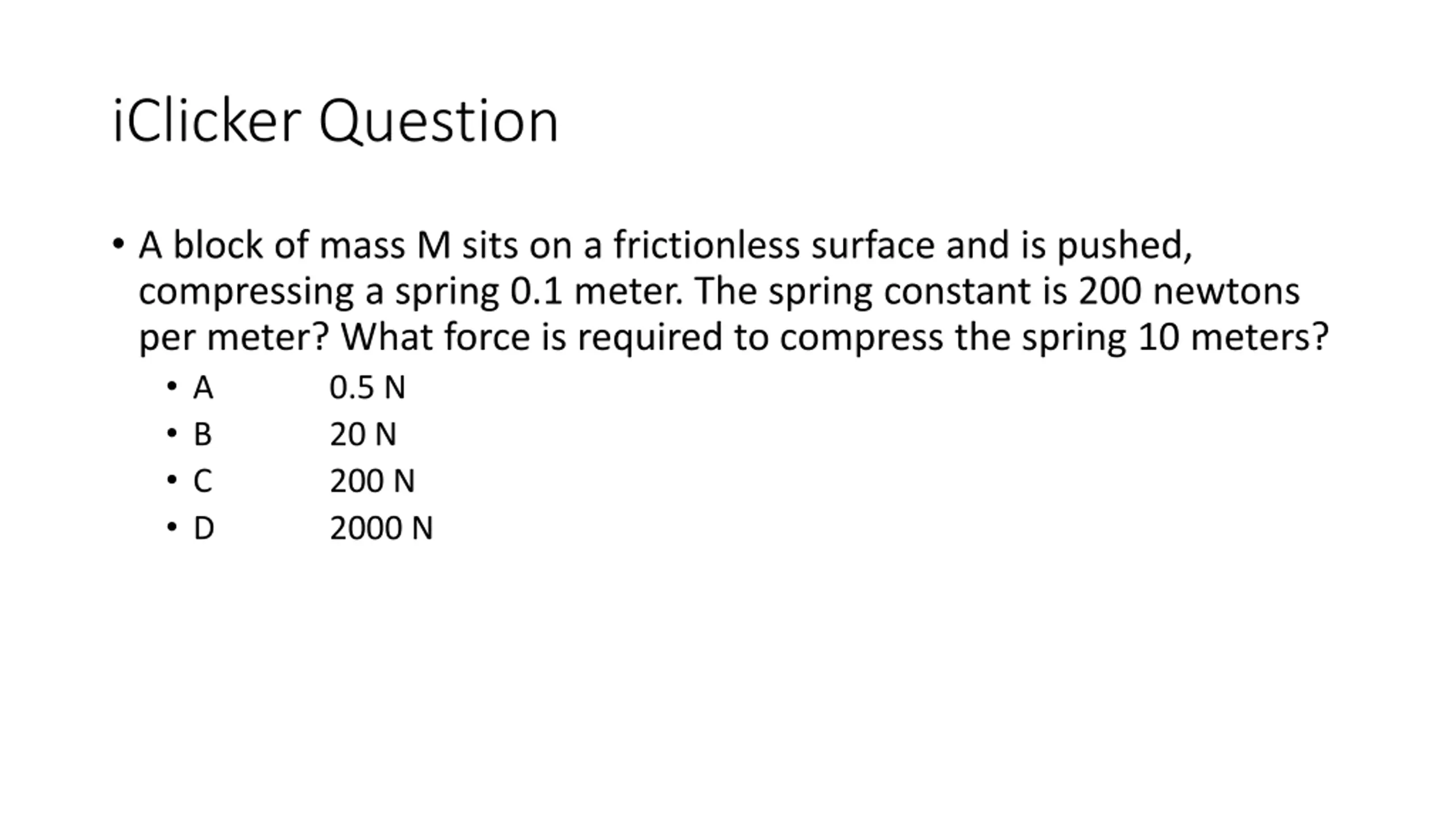

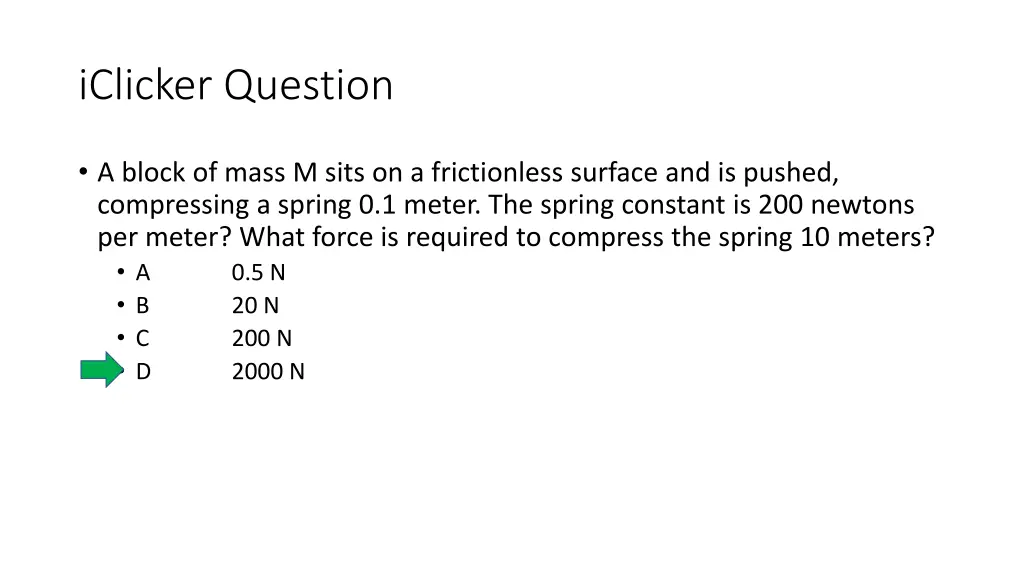

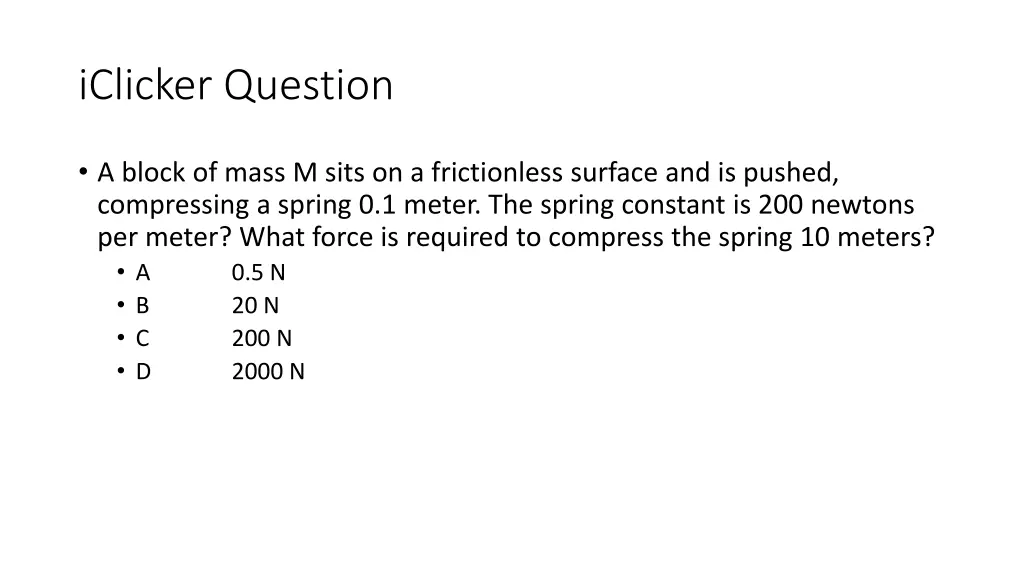

iClicker Question A block of mass M sits on a frictionless surface and is pushed, compressing a spring 0.1 meter. The spring constant is 200 newtons per meter? What force is required to compress the spring 10 meters? A 0.5 N B 20 N C 200 N D 2000 N
iClicker Question A block of mass M sits on a frictionless surface and is pushed, compressing a spring 0.1 meter. The spring constant is 200 newtons per meter? What force is required to compress the spring 10 meters? A 0.5 N B 20 N C 200 N D 2000 N

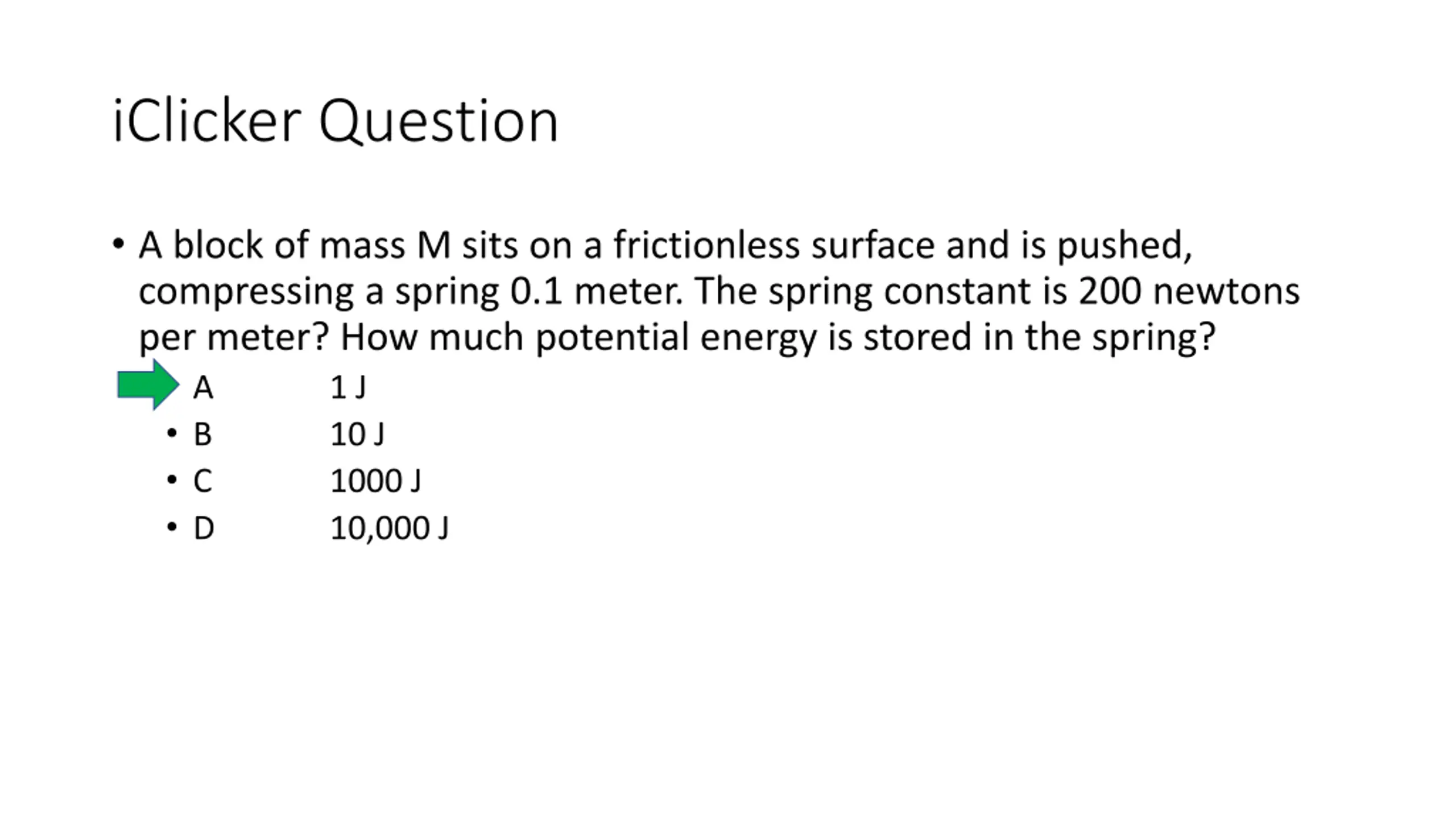

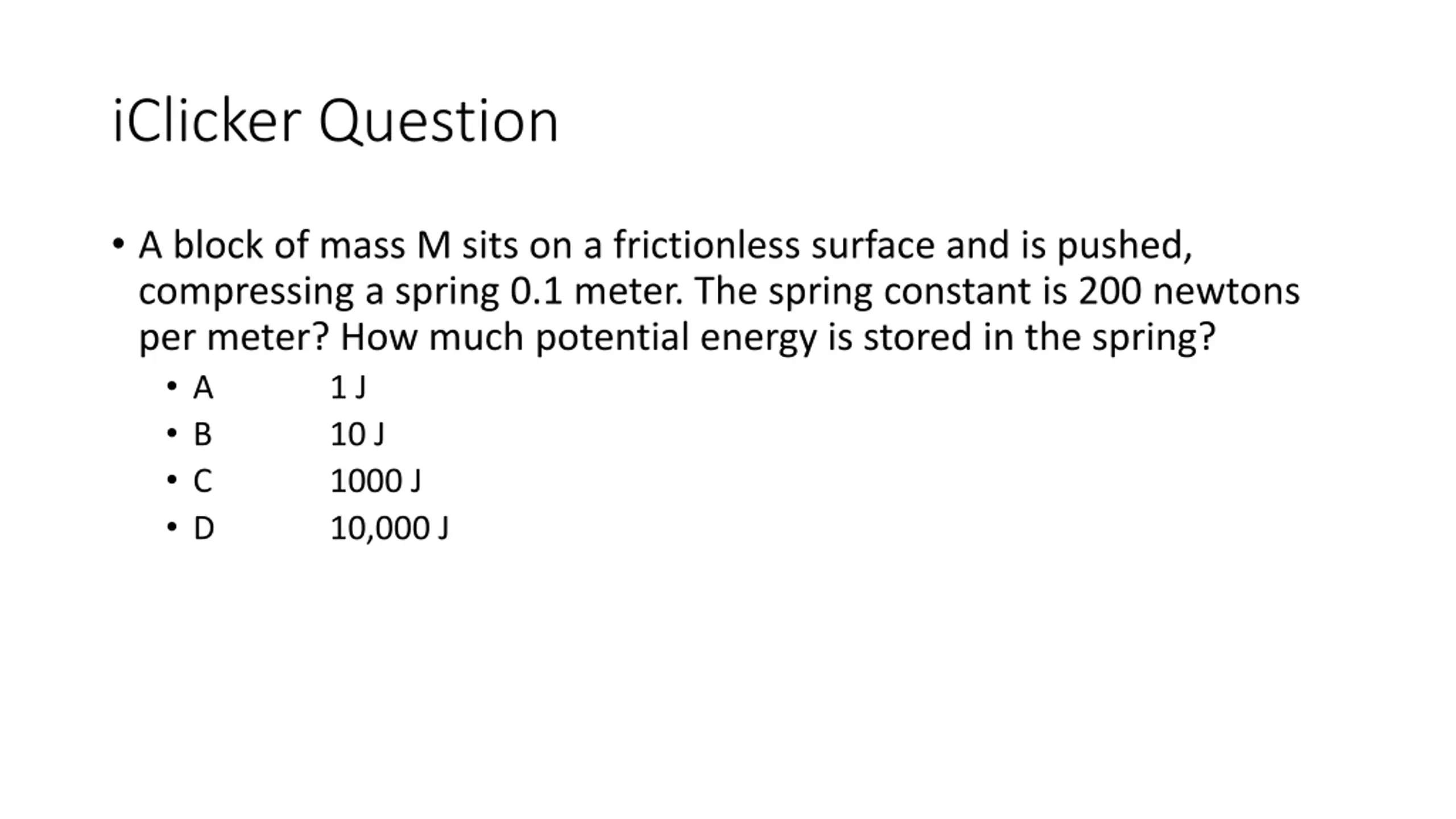

iClicker Question A block of mass M sits on a frictionless surface and is pushed, compressing a spring 0.1 meter. The spring constant is 200 newtons per meter? How much potential energy is stored in the spring? A 1 J B 10 J C 1000 J D 10,000 J
iClicker Question A block of mass M sits on a frictionless surface and is pushed, compressing a spring 0.1 meter. The spring constant is 200 newtons per meter? How much potential energy is stored in the spring? A 1 J B 10 J C 1000 J D 10,000 J

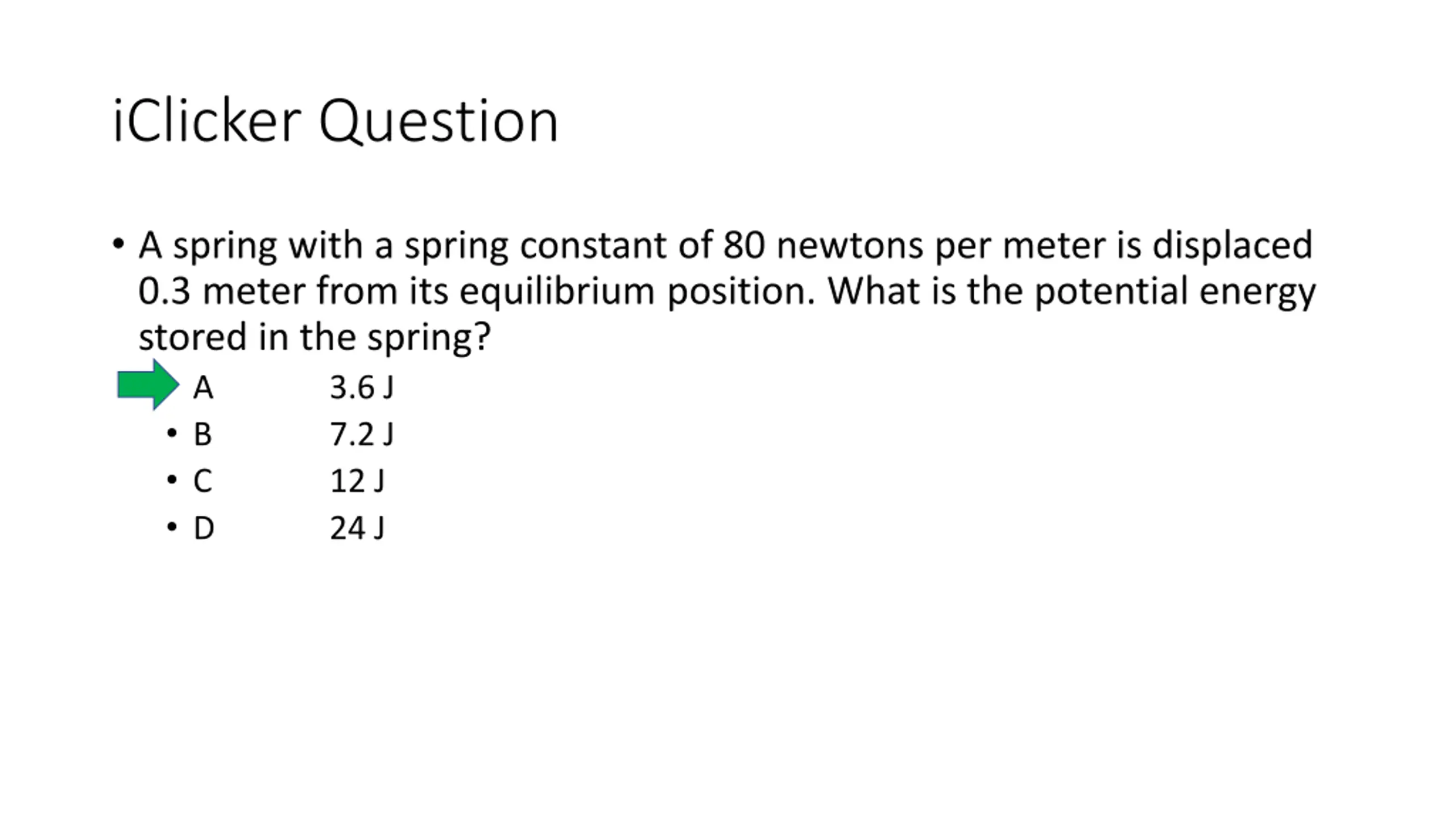

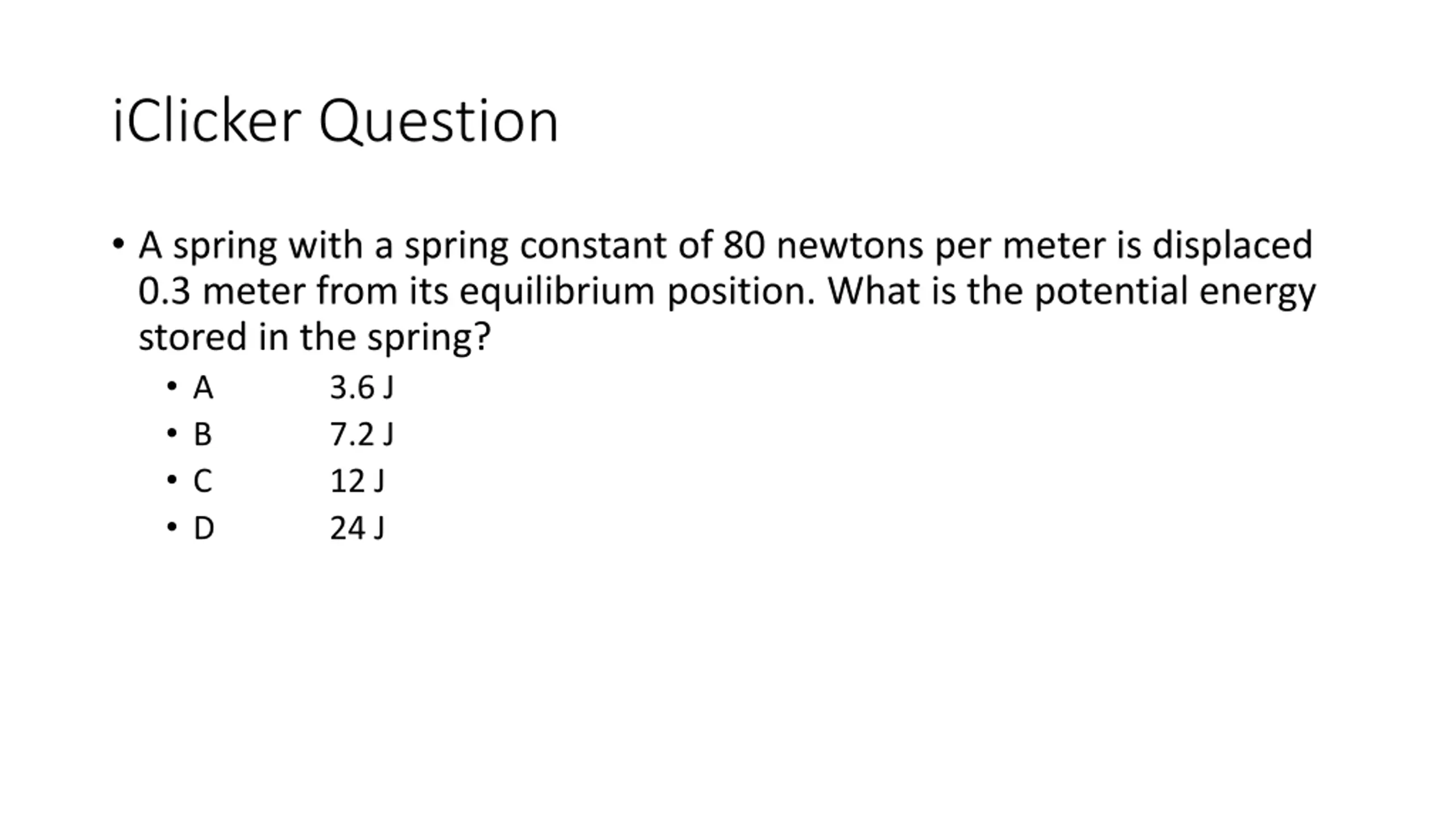

iClicker Question A spring with a spring constant of 80 newtons per meter is displaced 0.3 meter from its equilibrium position. What is the potential energy stored in the spring? A 3.6 J B 7.2 J C 12 J D 24 J
iClicker Question A spring with a spring constant of 80 newtons per meter is displaced 0.3 meter from its equilibrium position. What is the potential energy stored in the spring? A 3.6 J B 7.2 J C 12 J D 24 J

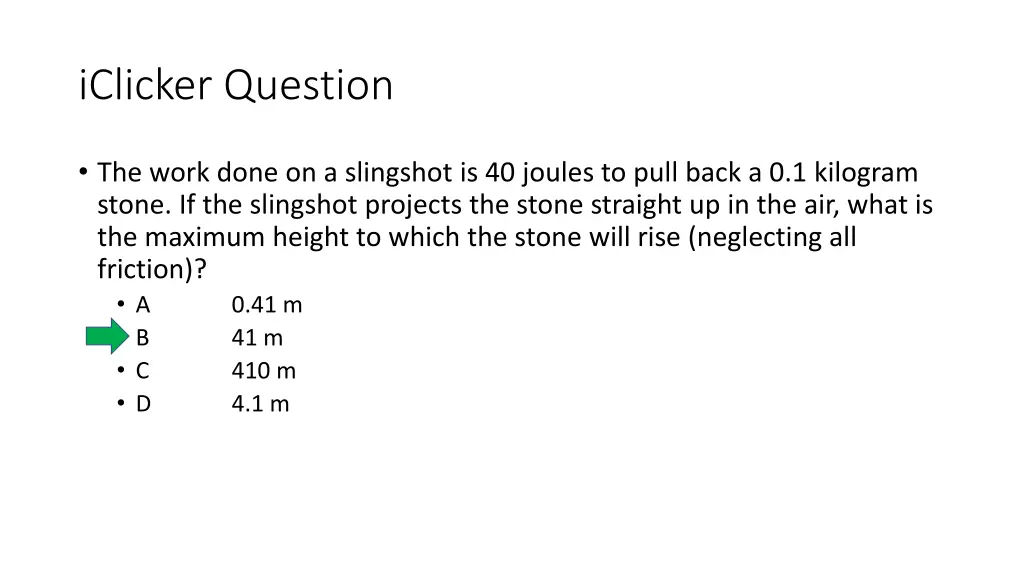

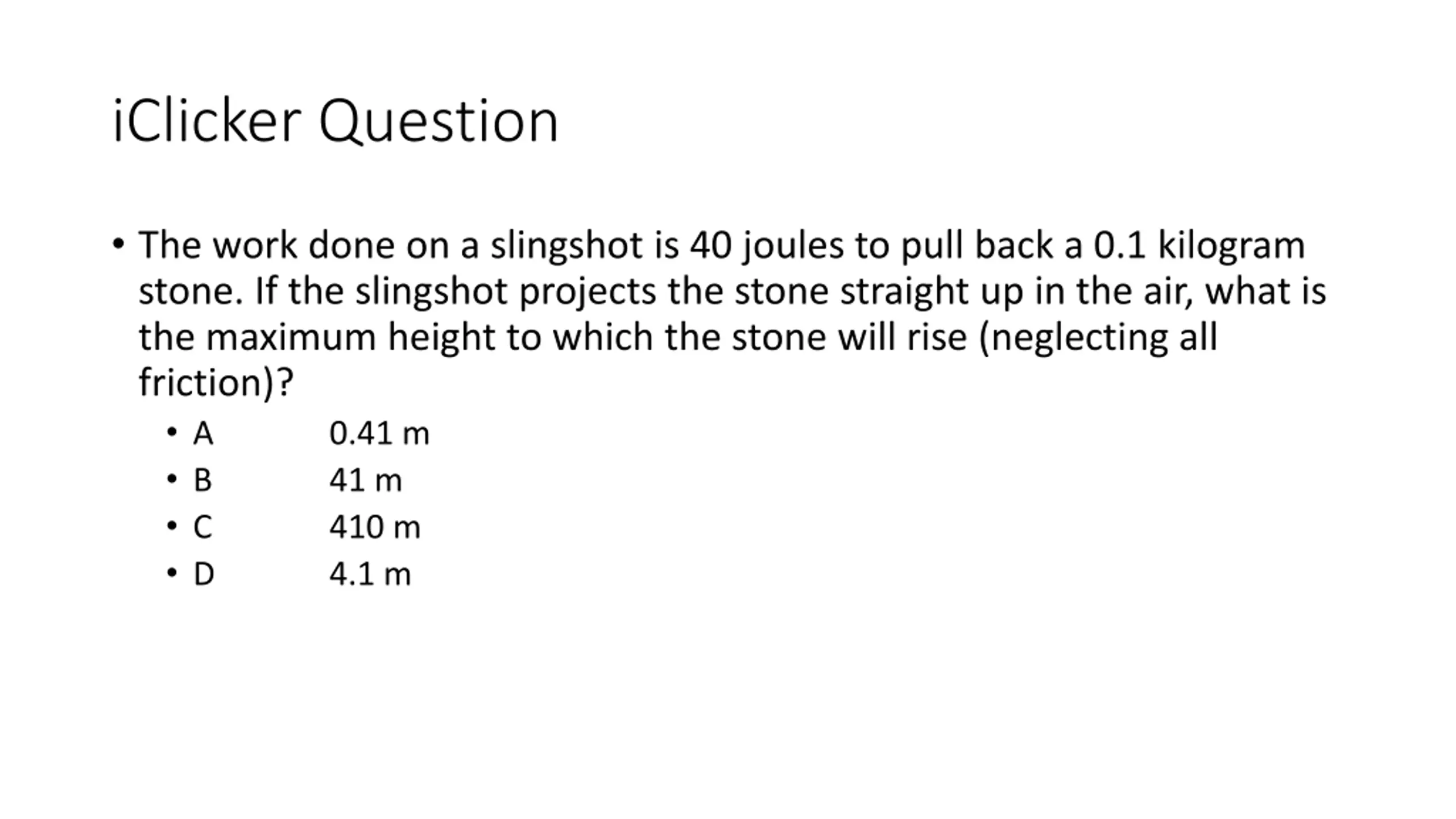

iClicker Question The work done on a slingshot is 40 joules to pull back a 0.1 kilogram stone. If the slingshot projects the stone straight up in the air, what is the maximum height to which the stone will rise (neglecting all friction)? A 0.41 m B 41 m C 410 m D 4.1 m
iClicker Question The work done on a slingshot is 40 joules to pull back a 0.1 kilogram stone. If the slingshot projects the stone straight up in the air, what is the maximum height to which the stone will rise (neglecting all friction)? A 0.41 m B 41 m C 410 m D 4.1 m
