PHYS 243-317 1230-1320 Tuesdays Enterprise Hall Room 275 Week 10 with Dr. Harold A. Geller Office: Planetary Hall Room 233

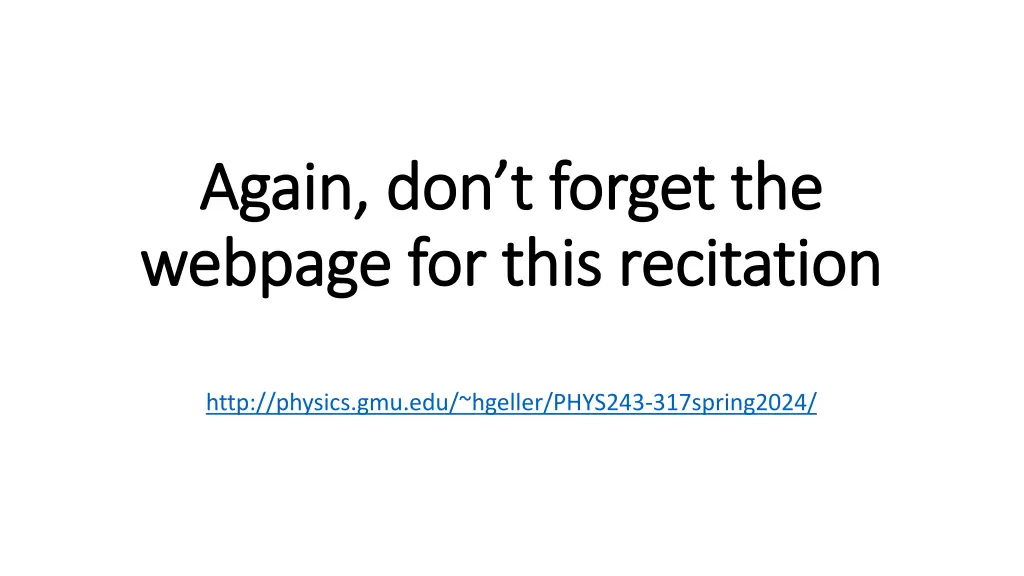

Again, dont forget the Again, don t forget the webpage for this recitation webpage for this recitation http://physics.gmu.edu/~hgeller/PHYS243-317spring2024/

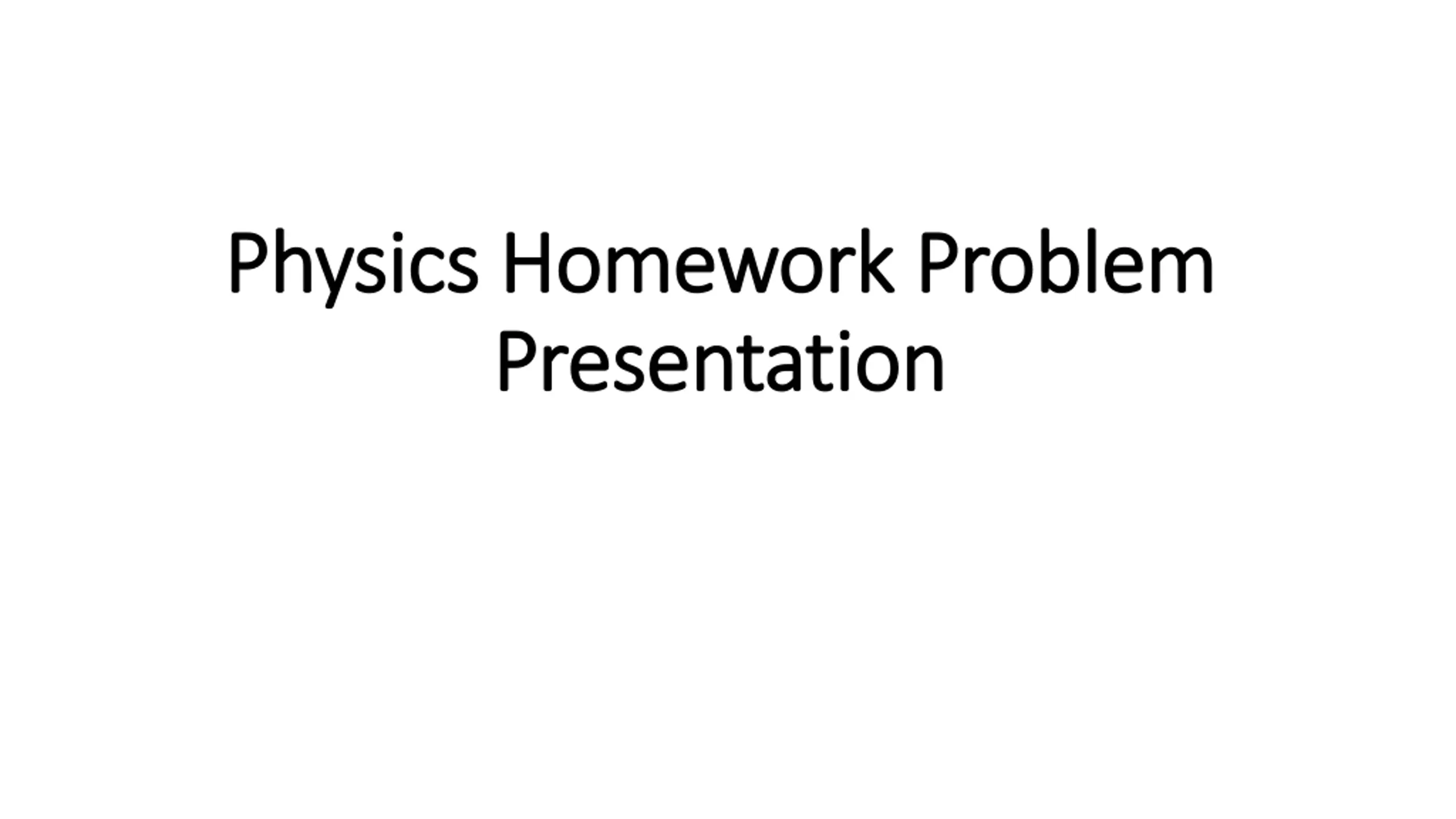

Physics Homework Problem Physics Homework Problem Presentation Presentation

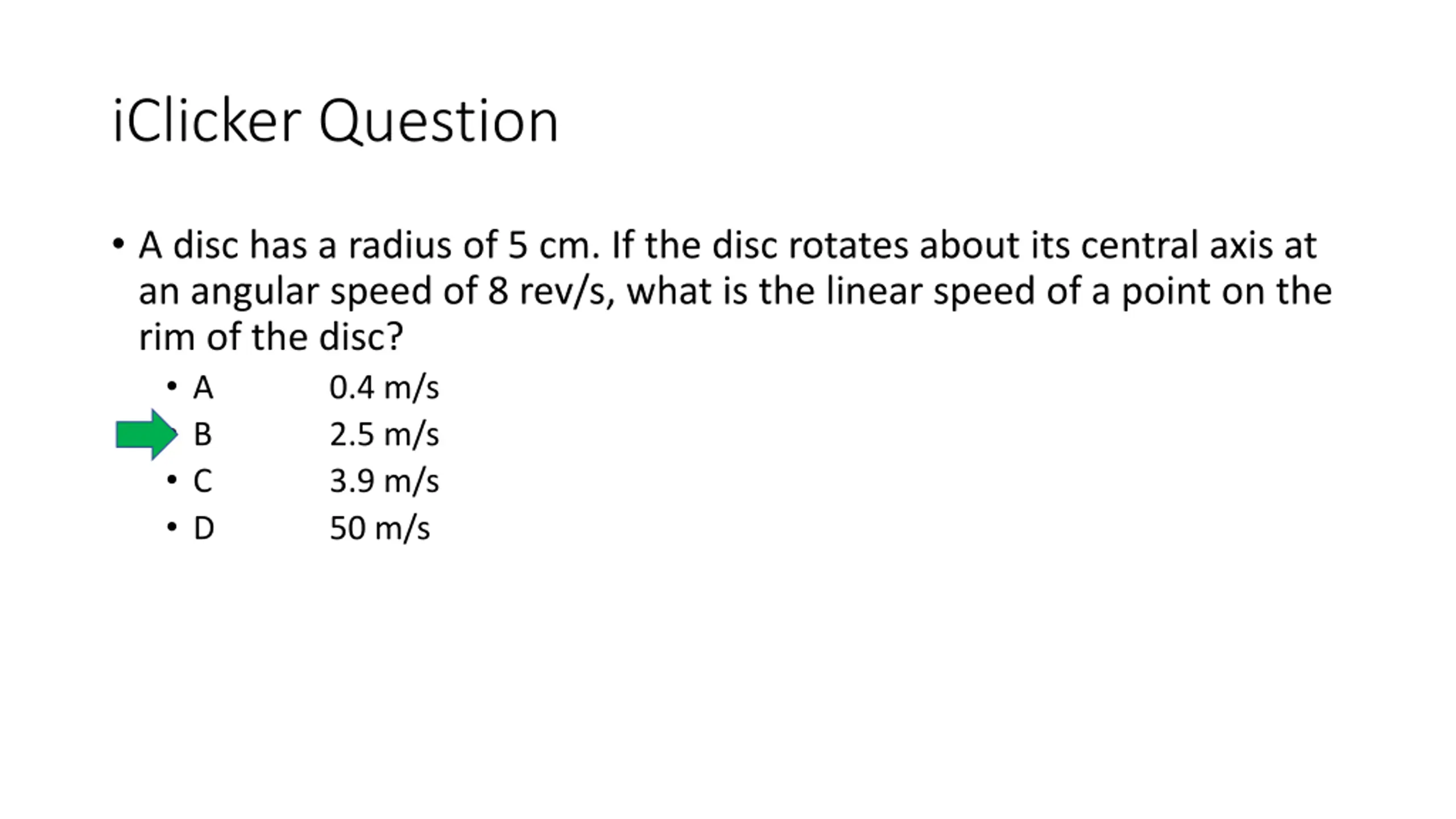

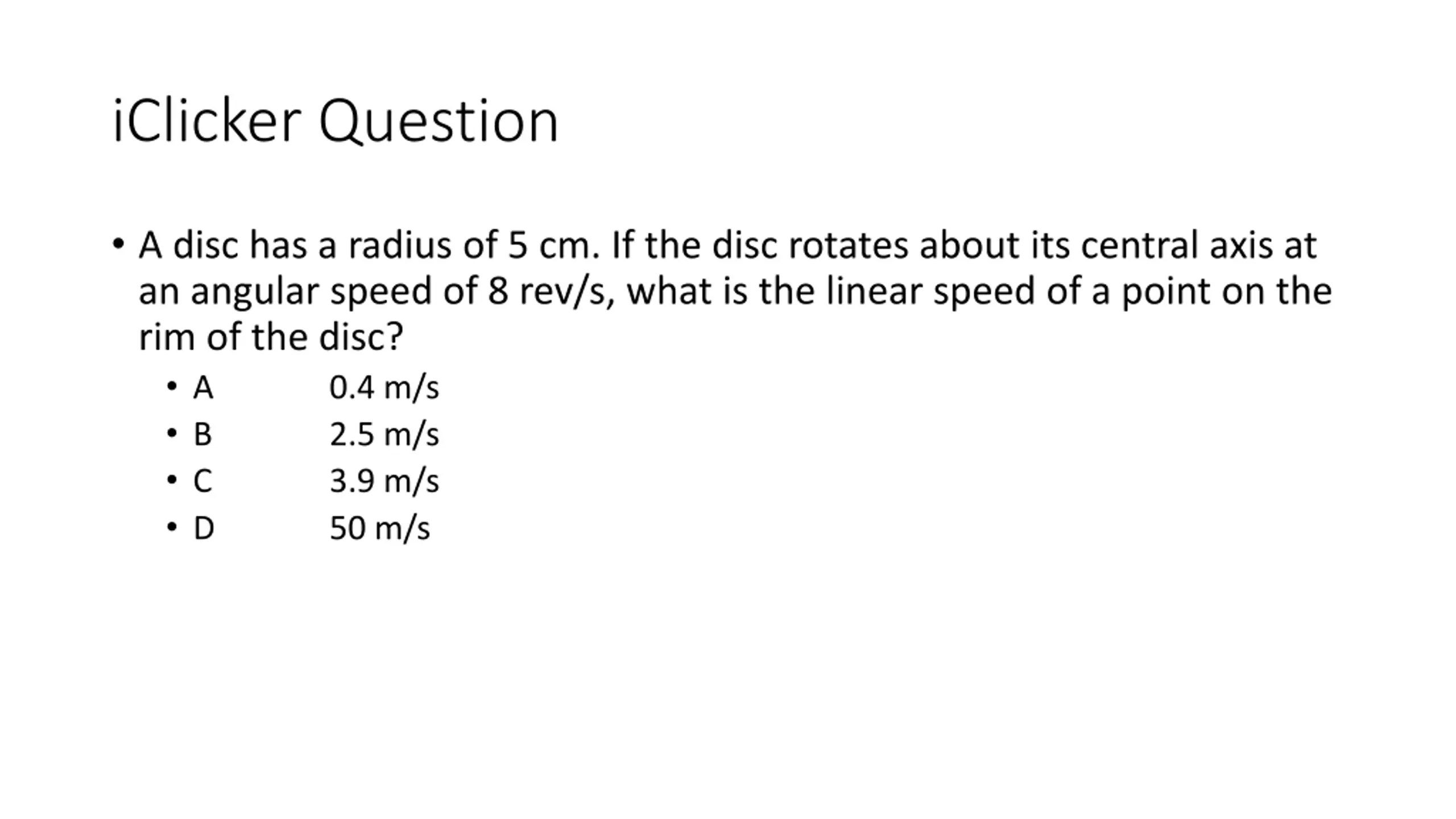

iClicker Question A disc has a radius of 5 cm. If the disc rotates about its central axis at an angular speed of 8 rev/s, what is the linear speed of a point on the rim of the disc? A 0.4 m/s B 2.5 m/s C 3.9 m/s D 50 m/s
iClicker Question A disc has a radius of 5 cm. If the disc rotates about its central axis at an angular speed of 8 rev/s, what is the linear speed of a point on the rim of the disc? A 0.4 m/s B 2.5 m/s C 3.9 m/s D 50 m/s

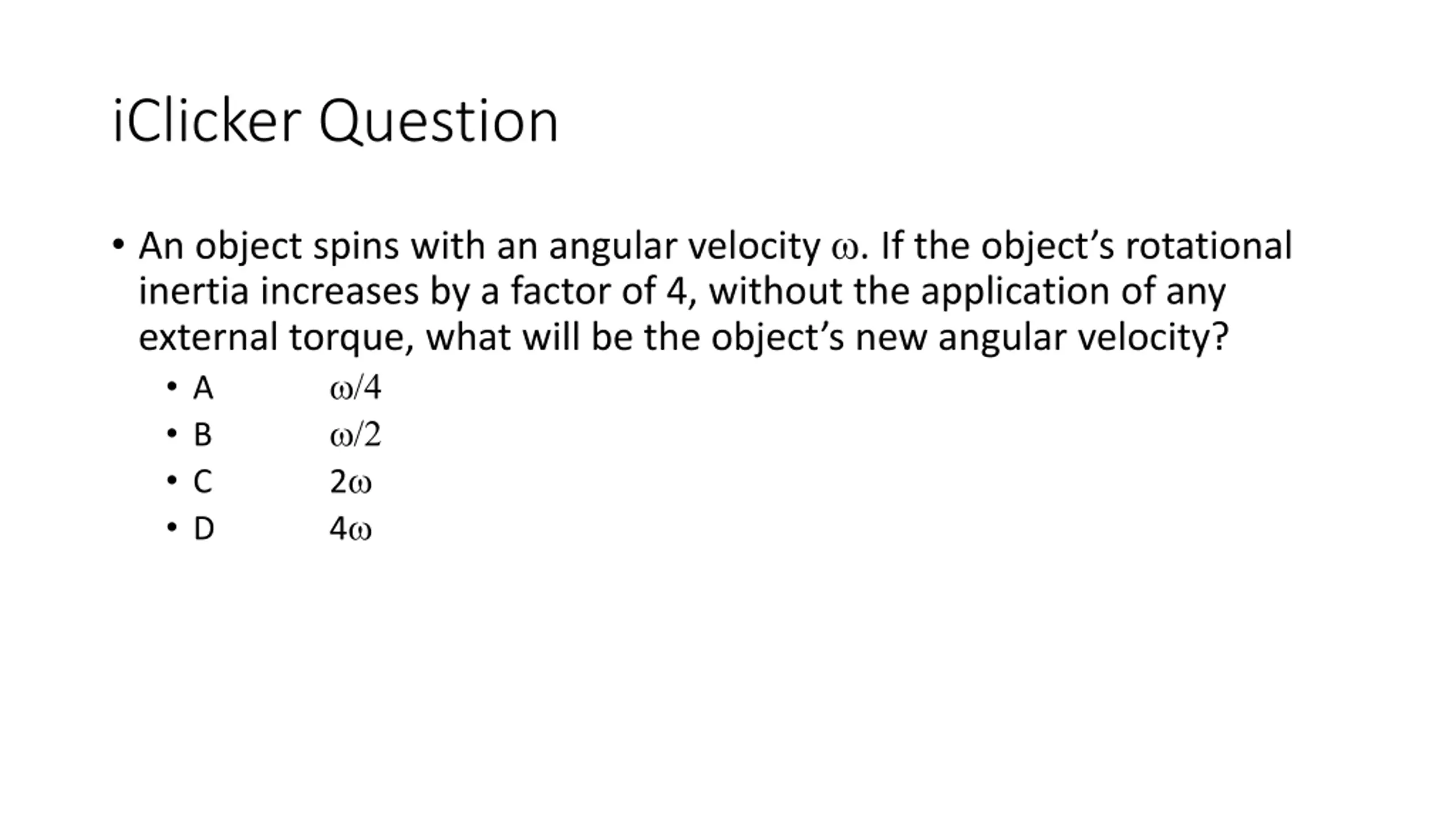

iClicker Question An object spins with an angular velocity . If the object s rotational inertia increases by a factor of 4, without the application of any external torque, what will be the object s new angular velocity? A B C 2 D 4

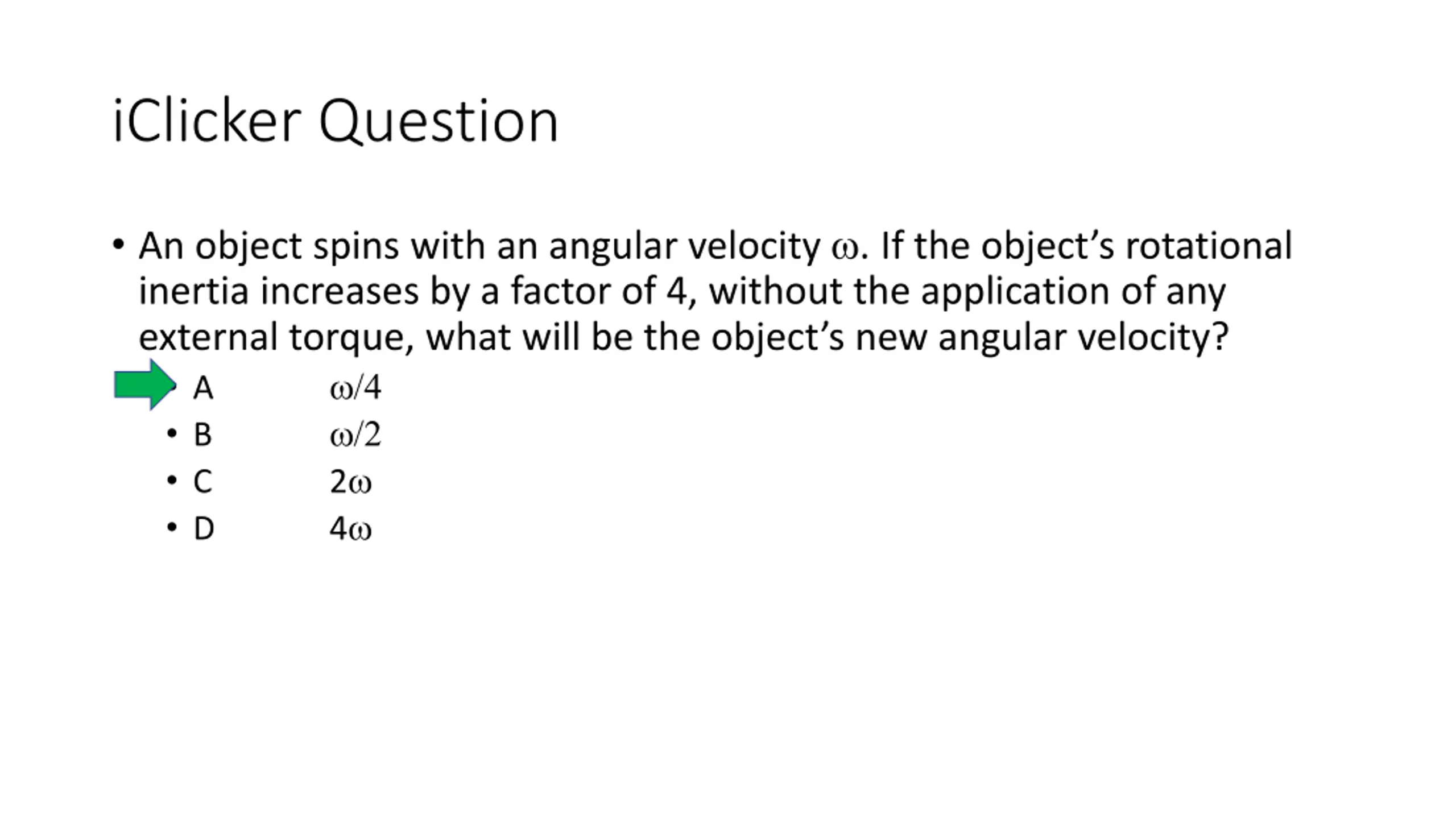

iClicker Question An object spins with an angular velocity . If the object s rotational inertia increases by a factor of 4, without the application of any external torque, what will be the object s new angular velocity? A B C 2 D 4

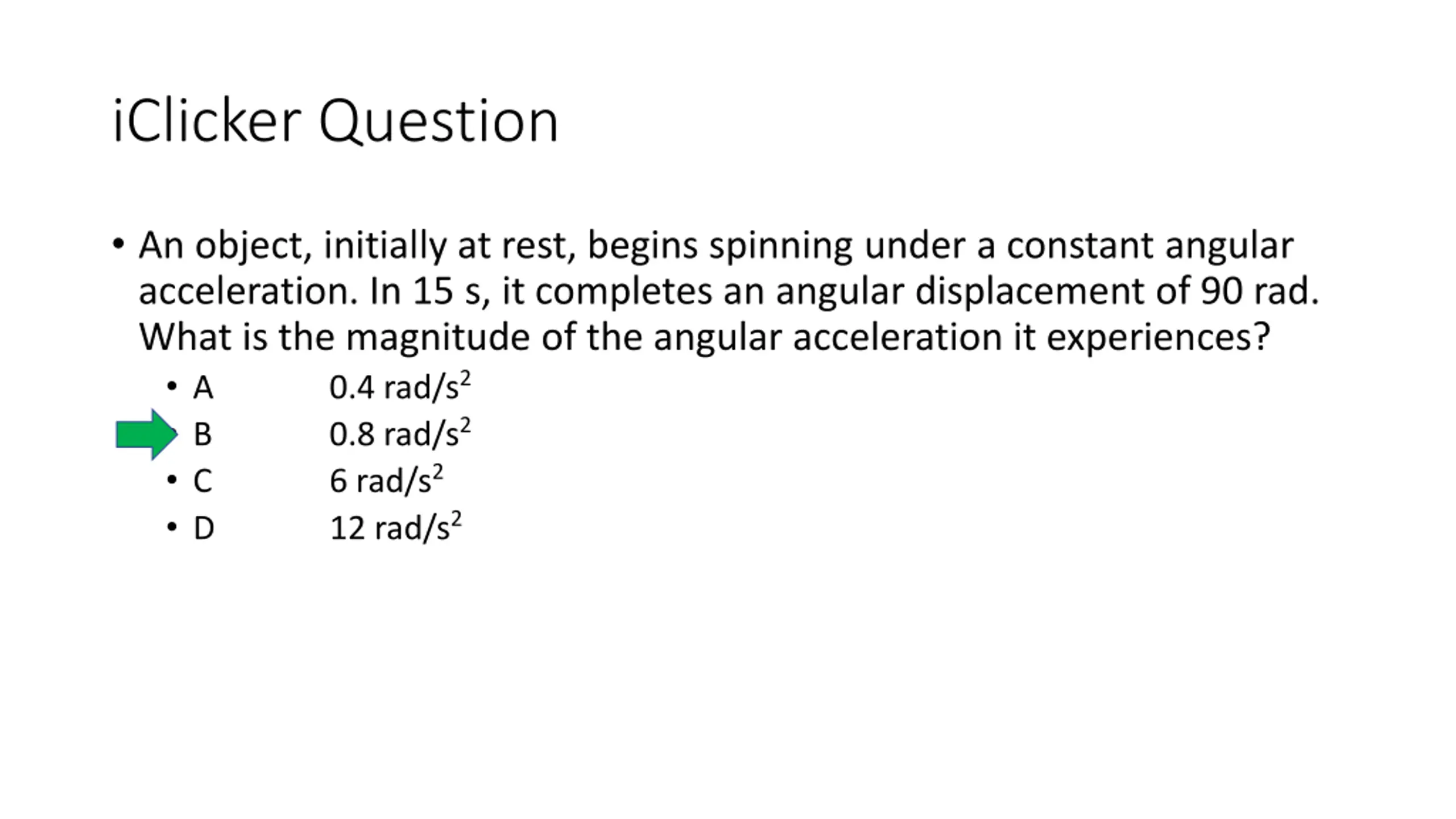

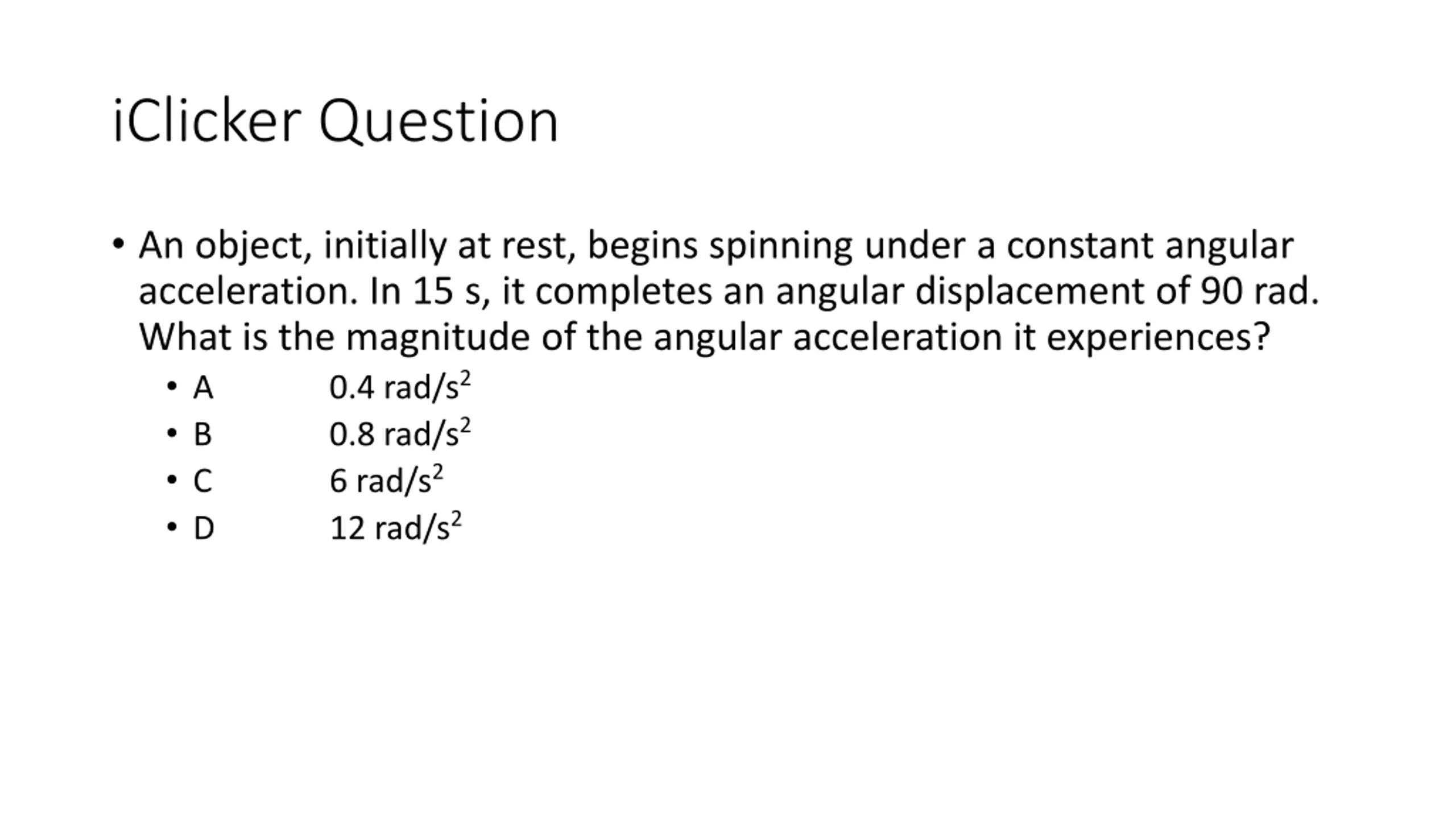

iClicker Question An object, initially at rest, begins spinning under a constant angular acceleration. In 15 s, it completes an angular displacement of 90 rad. What is the magnitude of the angular acceleration it experiences? A 0.4 rad/s2 B 0.8 rad/s2 C 6 rad/s2 D 12 rad/s2
iClicker Question An object, initially at rest, begins spinning under a constant angular acceleration. In 15 s, it completes an angular displacement of 90 rad. What is the magnitude of the angular acceleration it experiences? A 0.4 rad/s2 B 0.8 rad/s2 C 6 rad/s2 D 12 rad/s2

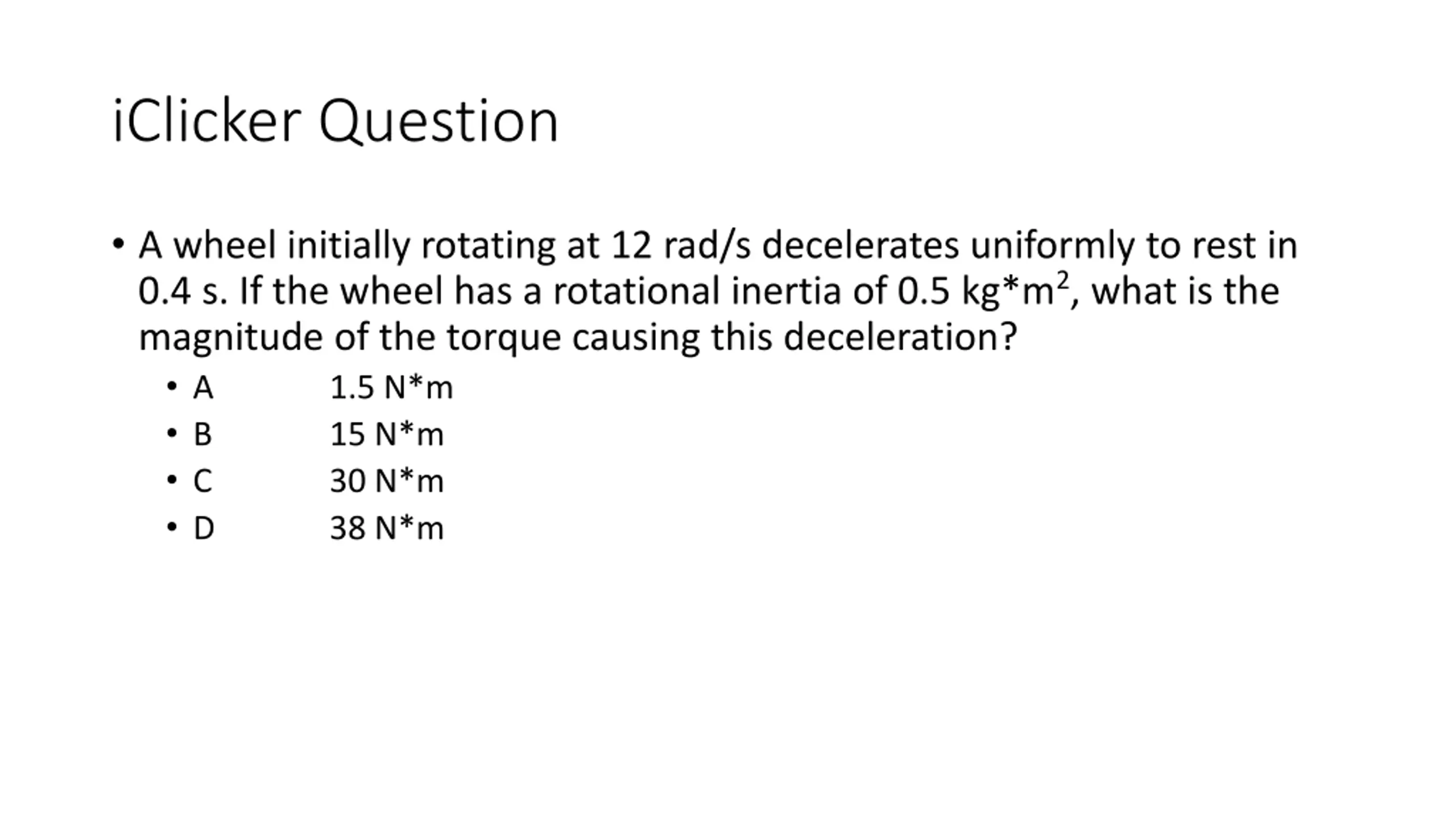

iClicker Question A wheel initially rotating at 12 rad/s decelerates uniformly to rest in 0.4 s. If the wheel has a rotational inertia of 0.5 kg*m2, what is the magnitude of the torque causing this deceleration? A 1.5 N*m B 15 N*m C 30 N*m D 38 N*m
iClicker Question A wheel initially rotating at 12 rad/s decelerates uniformly to rest in 0.4 s. If the wheel has a rotational inertia of 0.5 kg*m2, what is the magnitude of the torque causing this deceleration? A 1.5 N*m B 15 N*m C 30 N*m D 38 N*m

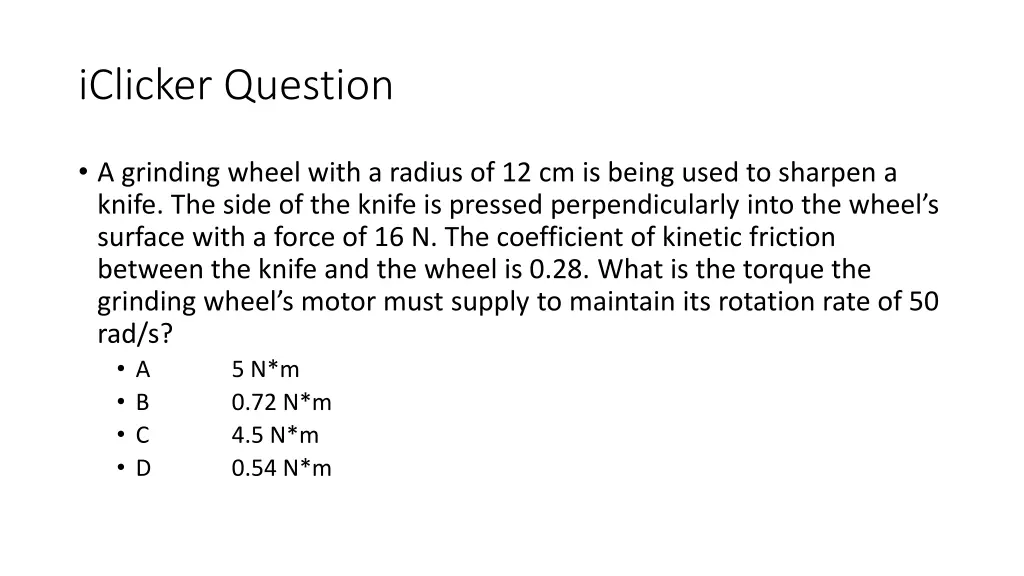

iClicker Question A grinding wheel with a radius of 12 cm is being used to sharpen a knife. The side of the knife is pressed perpendicularly into the wheel s surface with a force of 16 N. The coefficient of kinetic friction between the knife and the wheel is 0.28. What is the torque the grinding wheel s motor must supply to maintain its rotation rate of 50 rad/s? A 5 N*m B 0.72 N*m C 4.5 N*m D 0.54 N*m

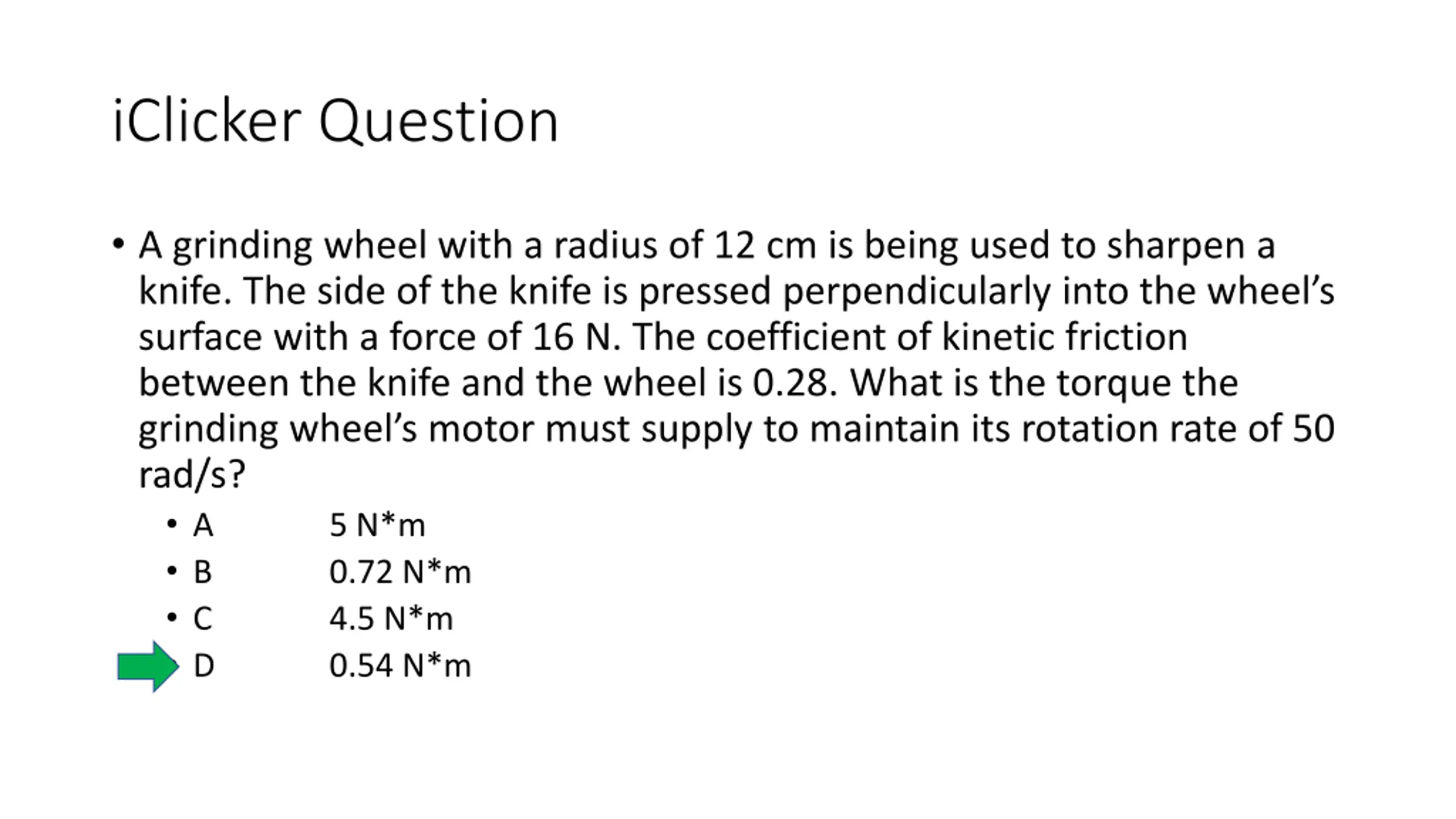

iClicker Question A grinding wheel with a radius of 12 cm is being used to sharpen a knife. The side of the knife is pressed perpendicularly into the wheel s surface with a force of 16 N. The coefficient of kinetic friction between the knife and the wheel is 0.28. What is the torque the grinding wheel s motor must supply to maintain its rotation rate of 50 rad/s? A 5 N*m B 0.72 N*m C 4.5 N*m D 0.54 N*m

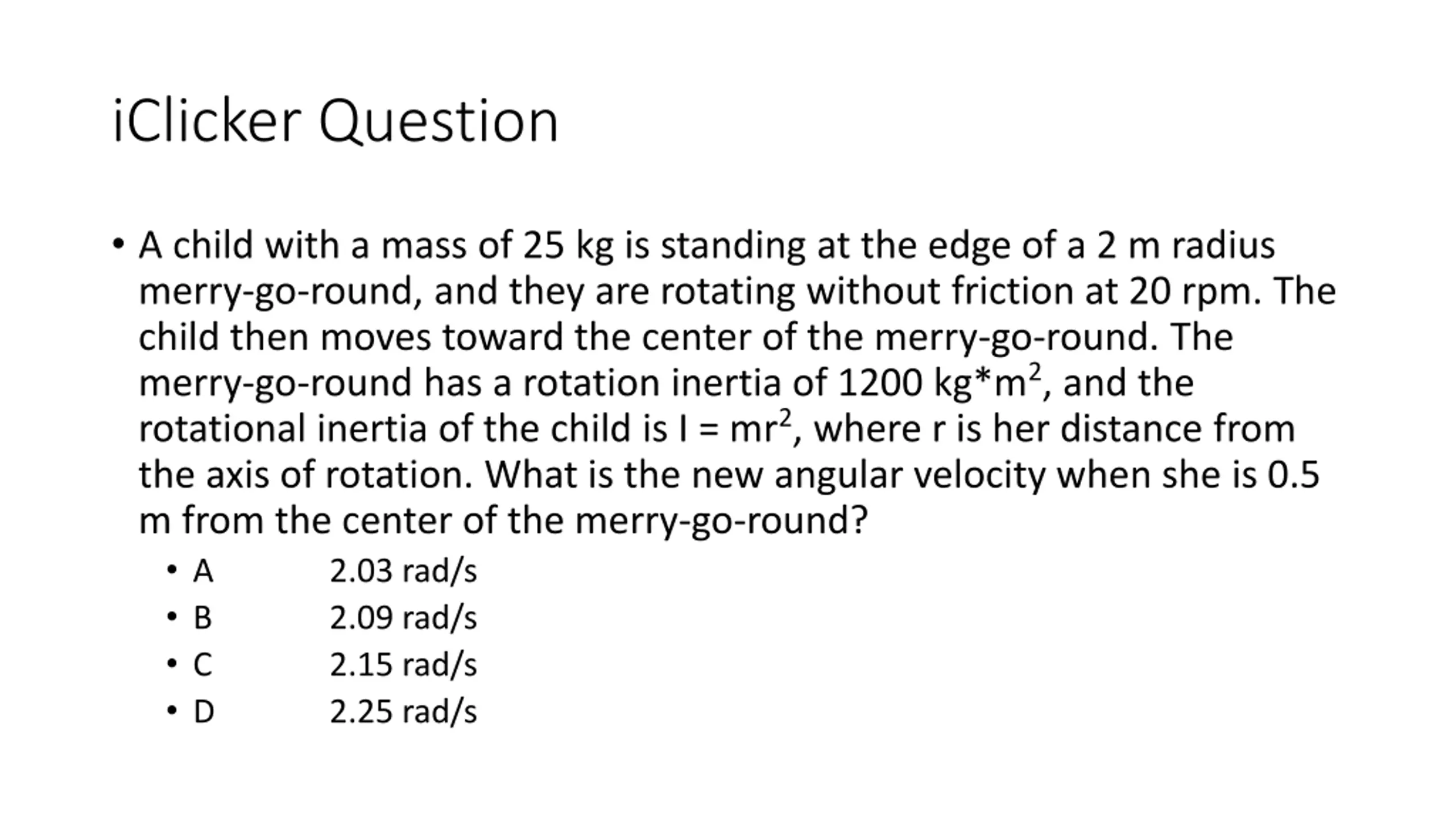

iClicker Question A child with a mass of 25 kg is standing at the edge of a 2 m radius merry-go-round, and they are rotating without friction at 20 rpm. The child then moves toward the center of the merry-go-round. The merry-go-round has a rotation inertia of 1200 kg*m2, and the rotational inertia of the child is I = mr2, where r is her distance from the axis of rotation. What is the new angular velocity when she is 0.5 m from the center of the merry-go-round? A 2.03 rad/s B 2.09 rad/s C 2.15 rad/s D 2.25 rad/s

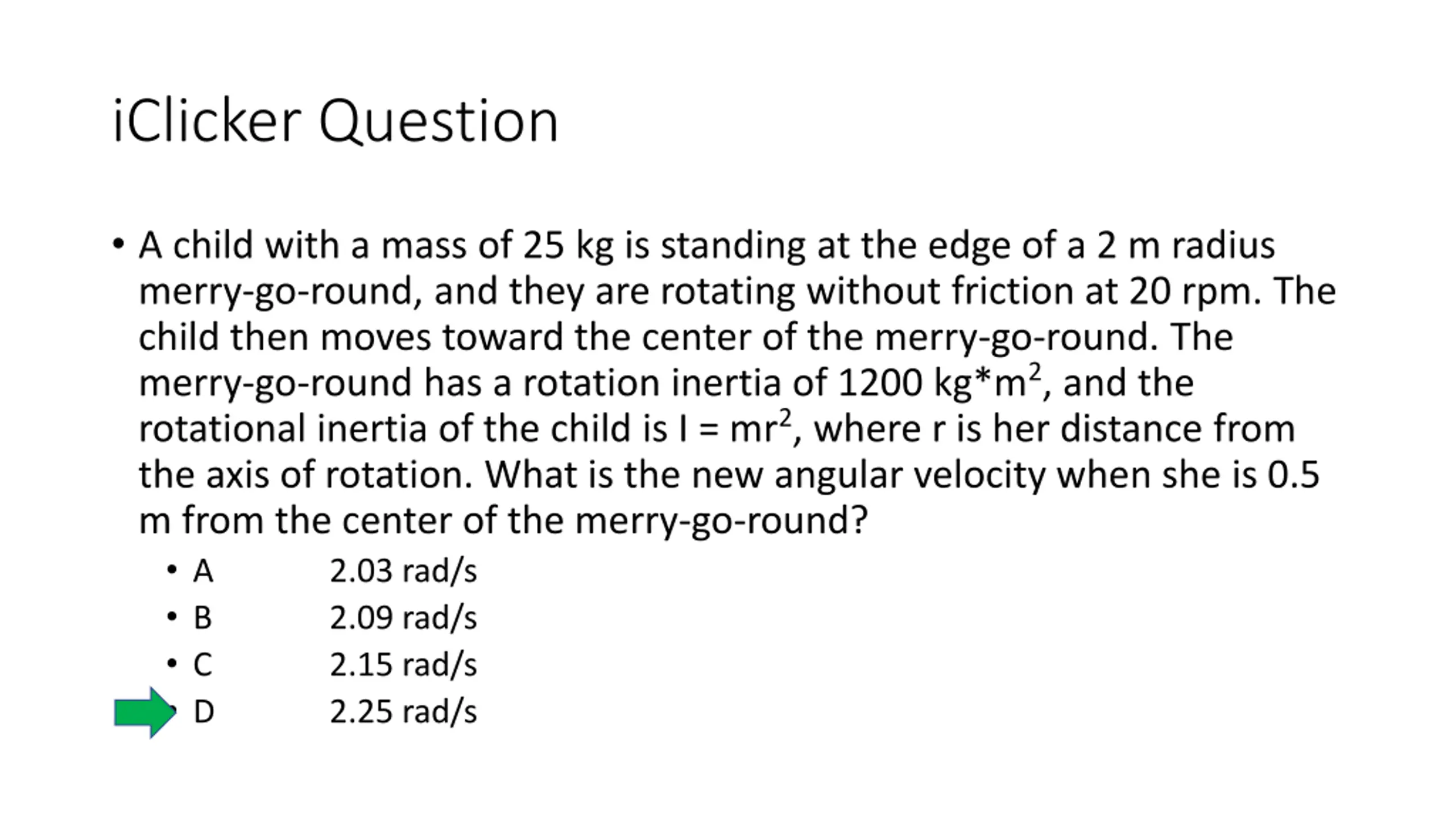

iClicker Question A child with a mass of 25 kg is standing at the edge of a 2 m radius merry-go-round, and they are rotating without friction at 20 rpm. The child then moves toward the center of the merry-go-round. The merry-go-round has a rotation inertia of 1200 kg*m2, and the rotational inertia of the child is I = mr2, where r is her distance from the axis of rotation. What is the new angular velocity when she is 0.5 m from the center of the merry-go-round? A 2.03 rad/s B 2.09 rad/s C 2.15 rad/s D 2.25 rad/s
