Physics Fundamentals: Analysis of Forces and Torques in XY Plane
Explore the simplification of forces and torques in the xy plane for rotational analysis in physics, illustrated through examples and solutions.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
FUNDAMENTALS OF PHYSICS ( 10th edition )- HALLIDAY & RESNICK

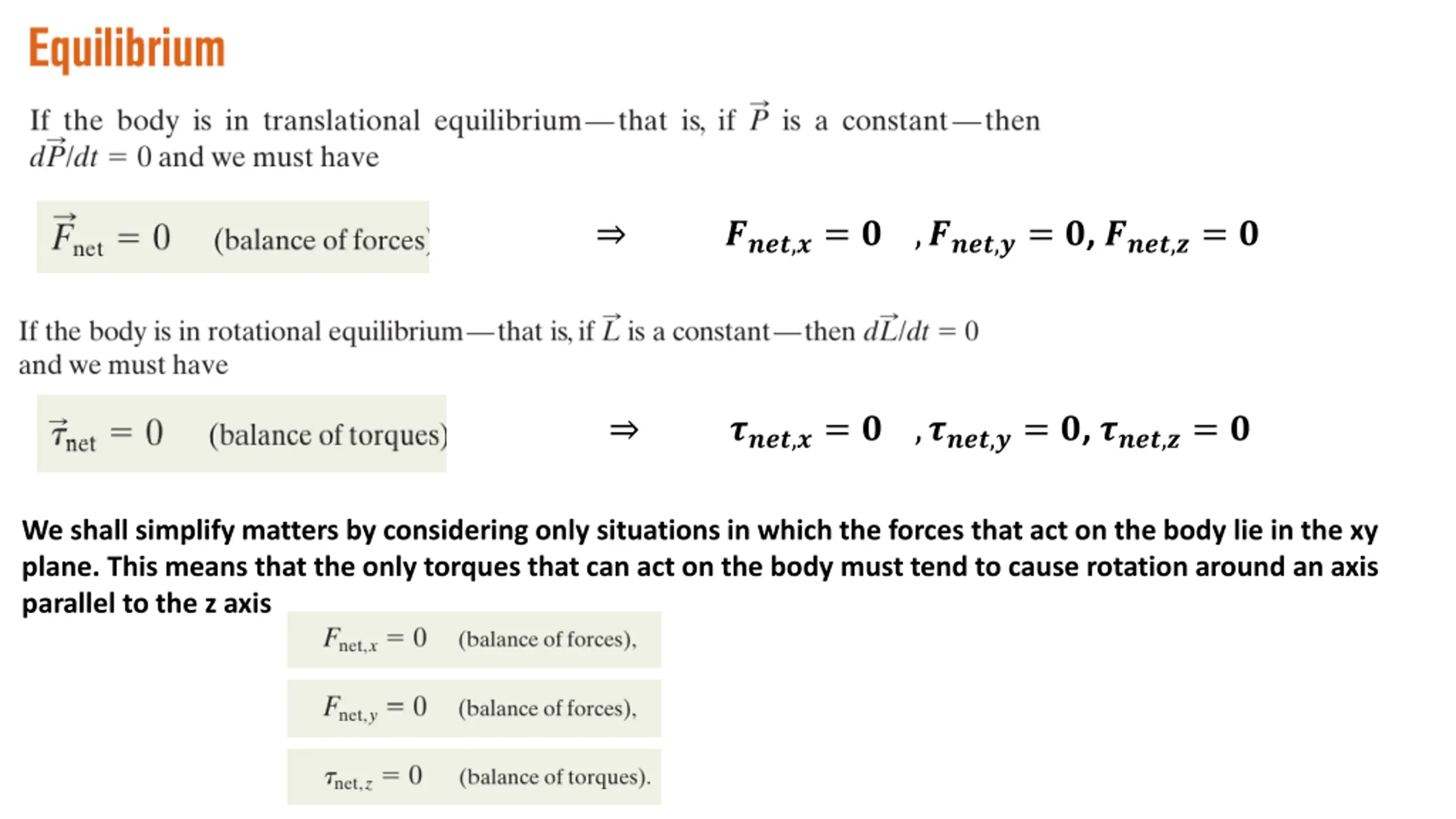

????,?= ? ,????,?= ?, ????,?= ? ????,?= ? ,????,?= ?, ????,?= ? We shall simplify matters by considering only situations in which the forces that act on the body lie in the xy plane. This means that the only torques that can act on the body must tend to cause rotation around an axis parallel to the z axis

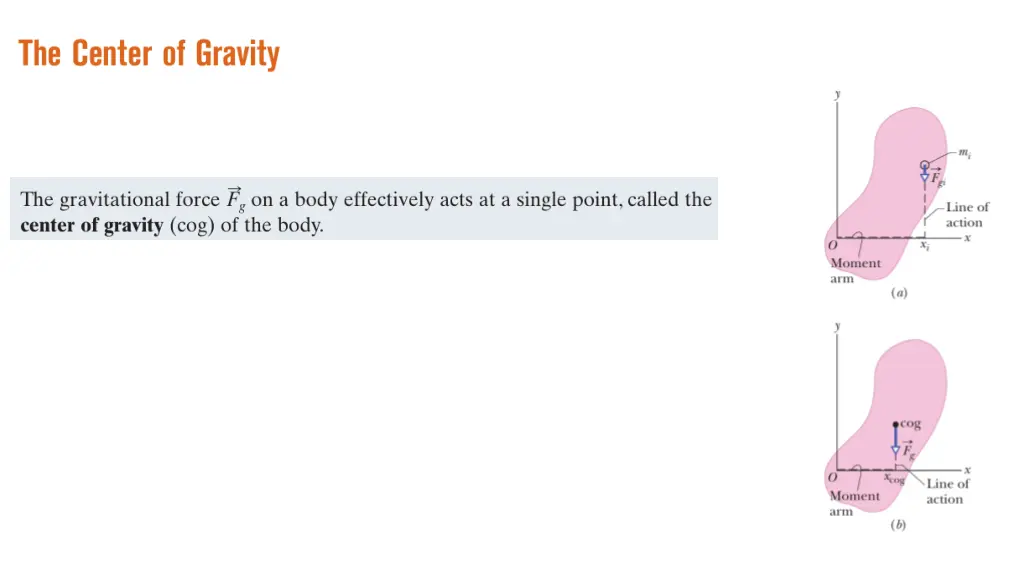

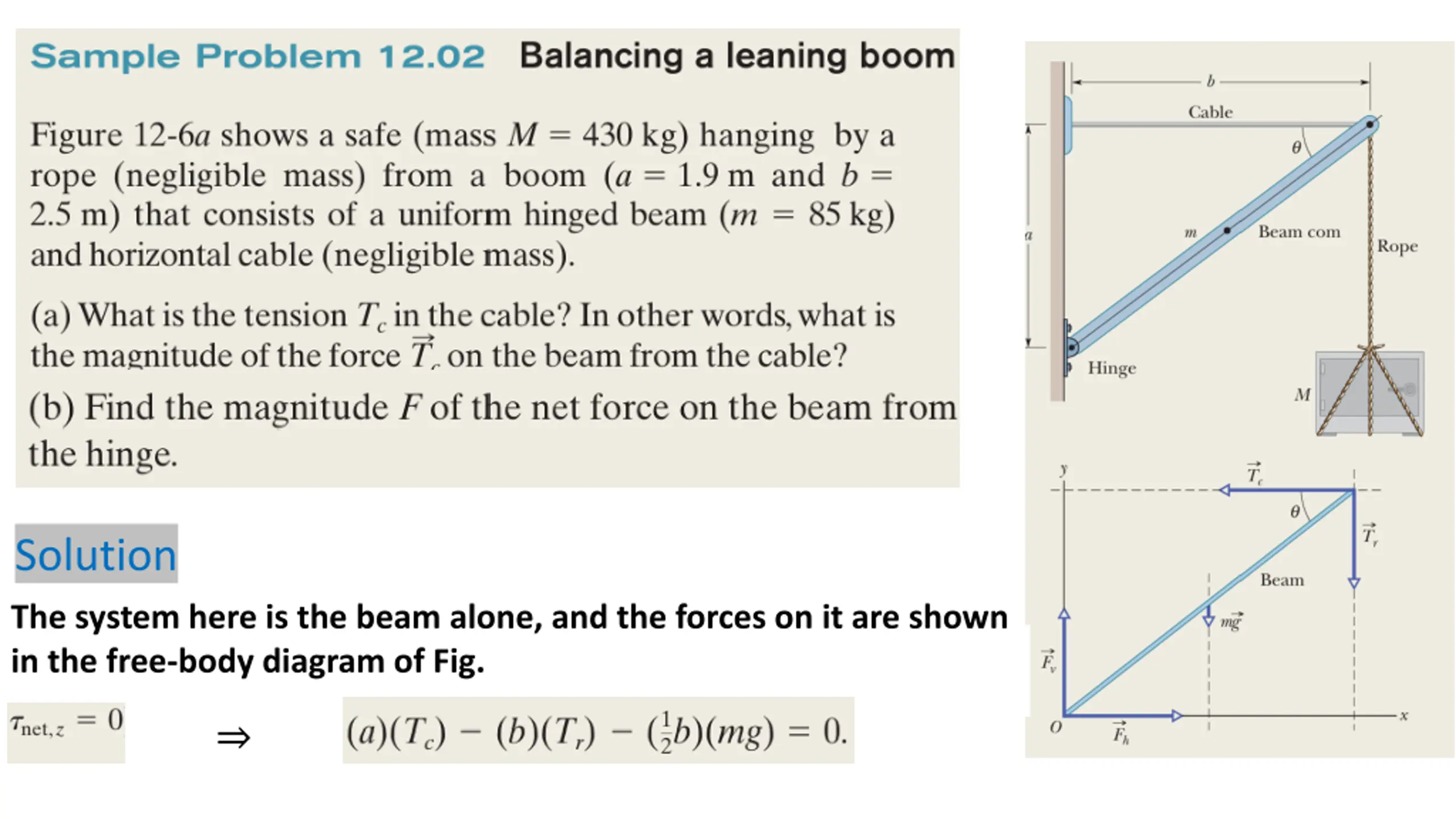

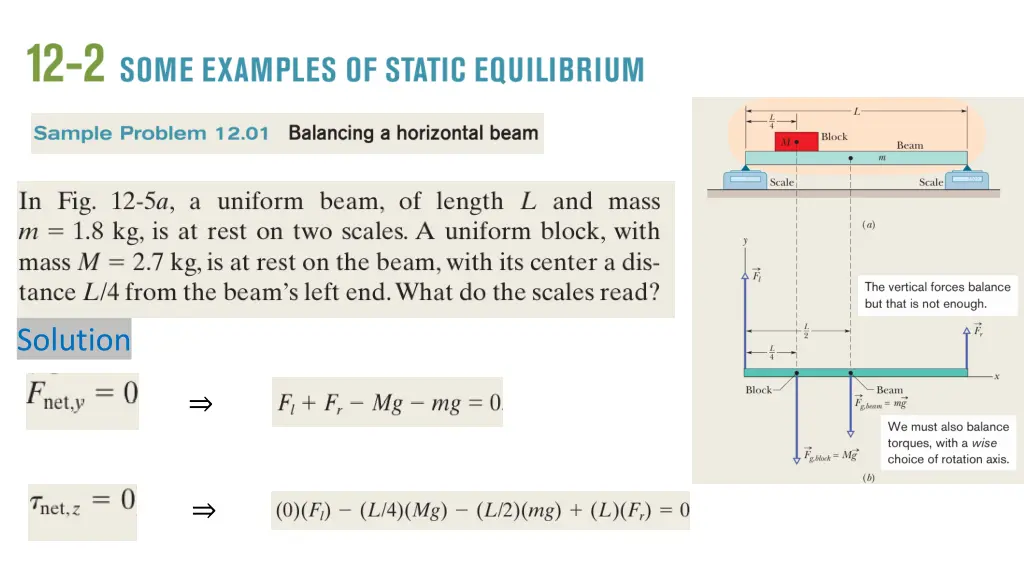

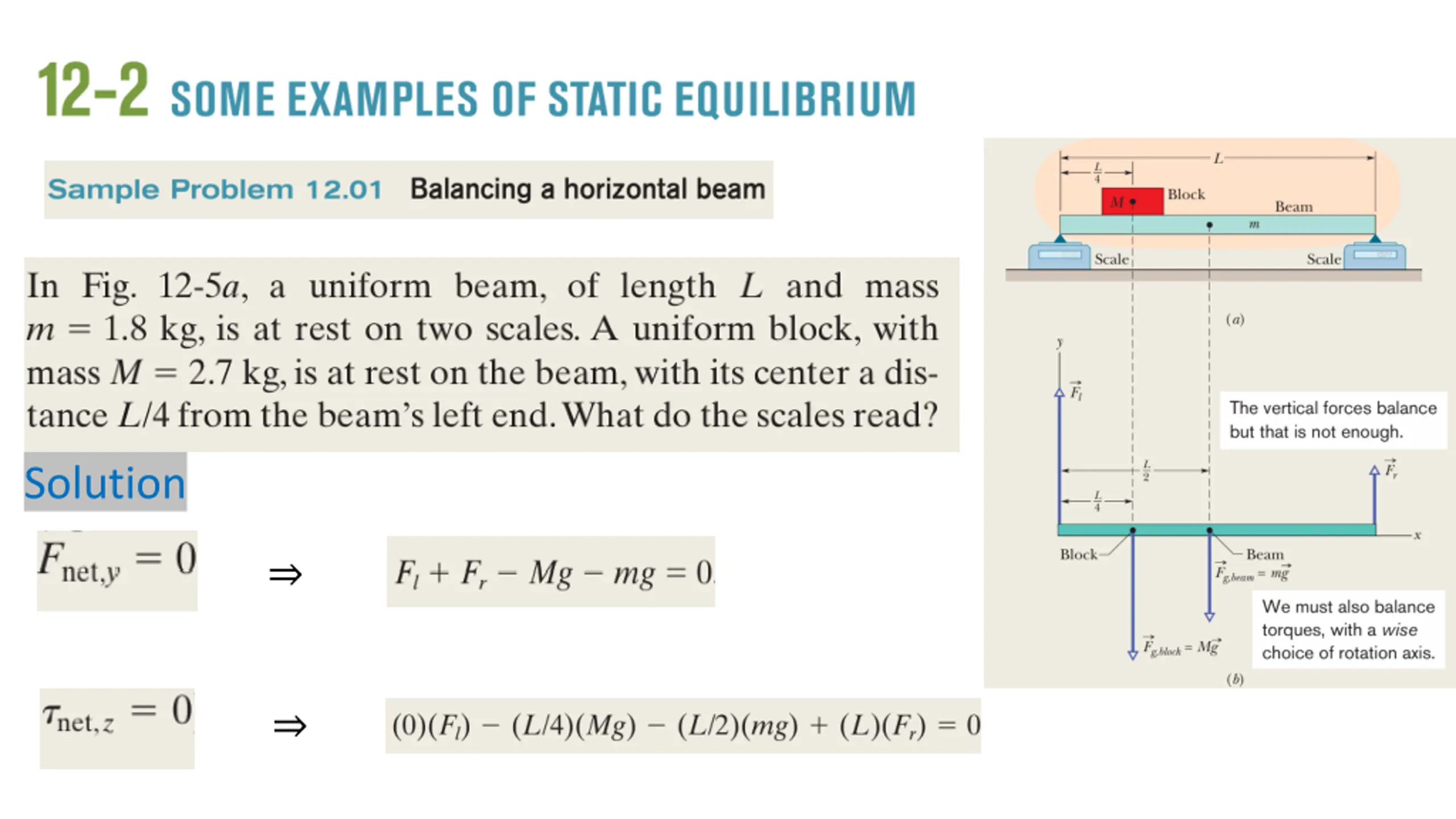

Solution The system here is the beam alone, and the forces on it are shown in the free-body diagram of Fig.

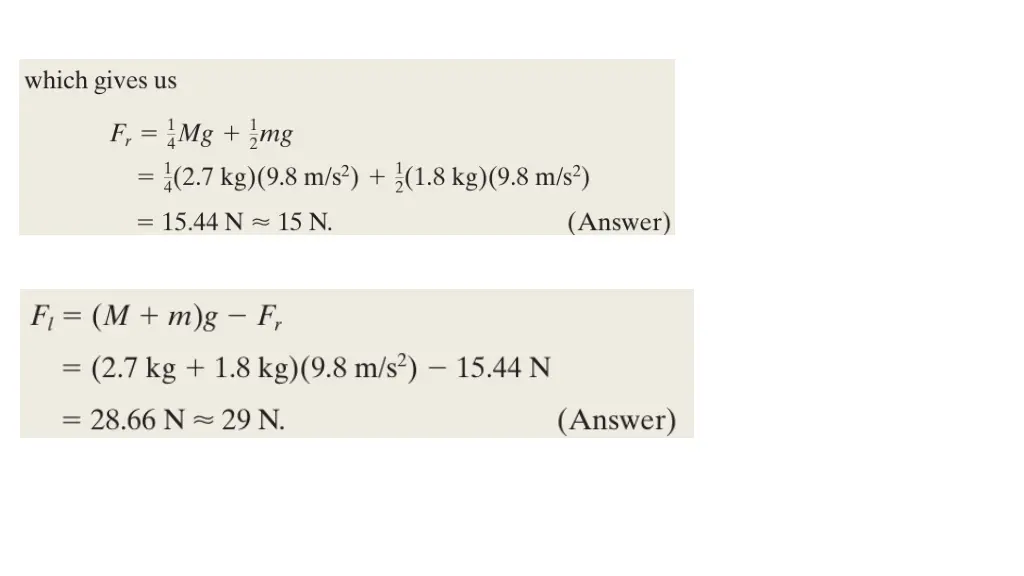

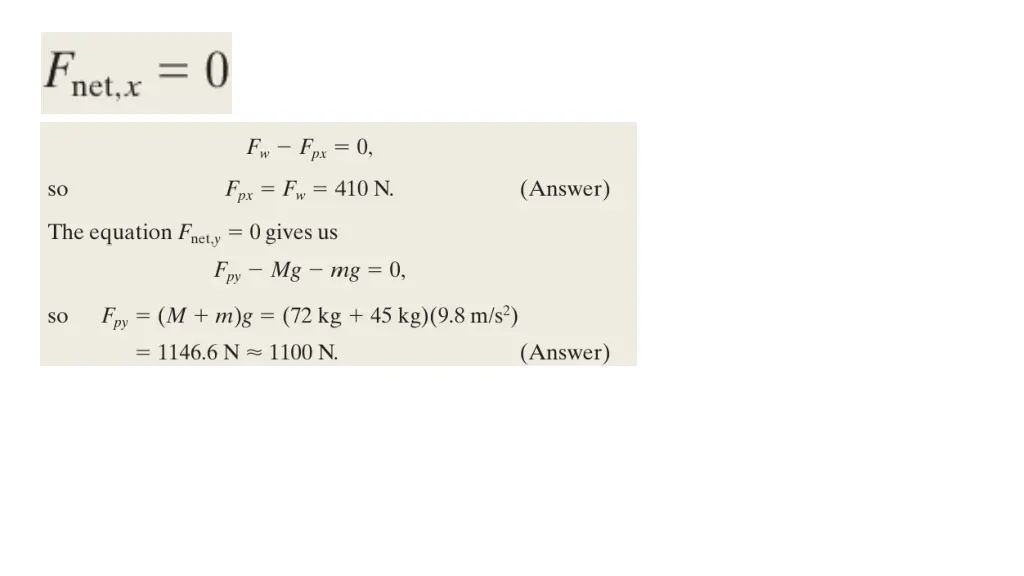

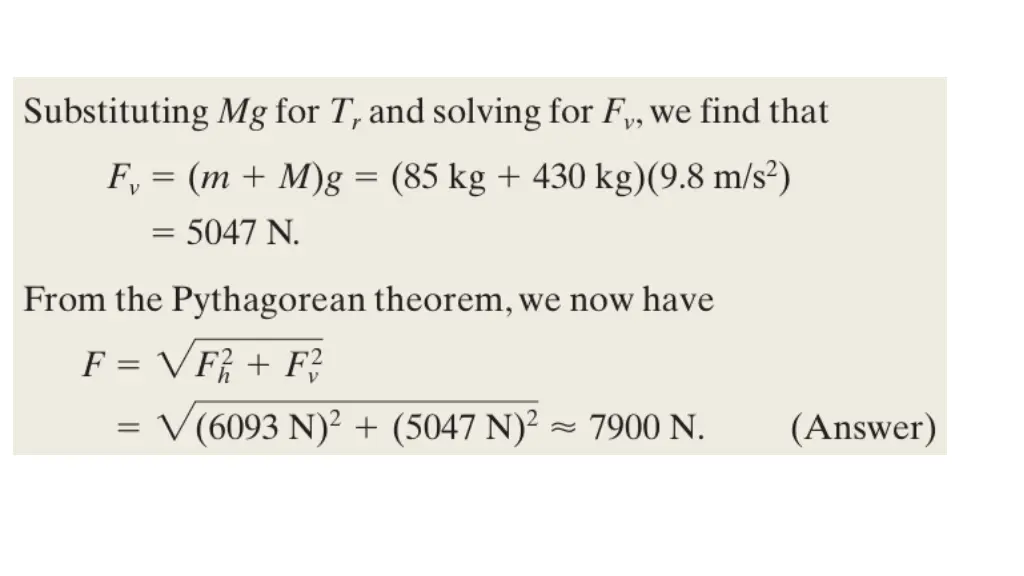

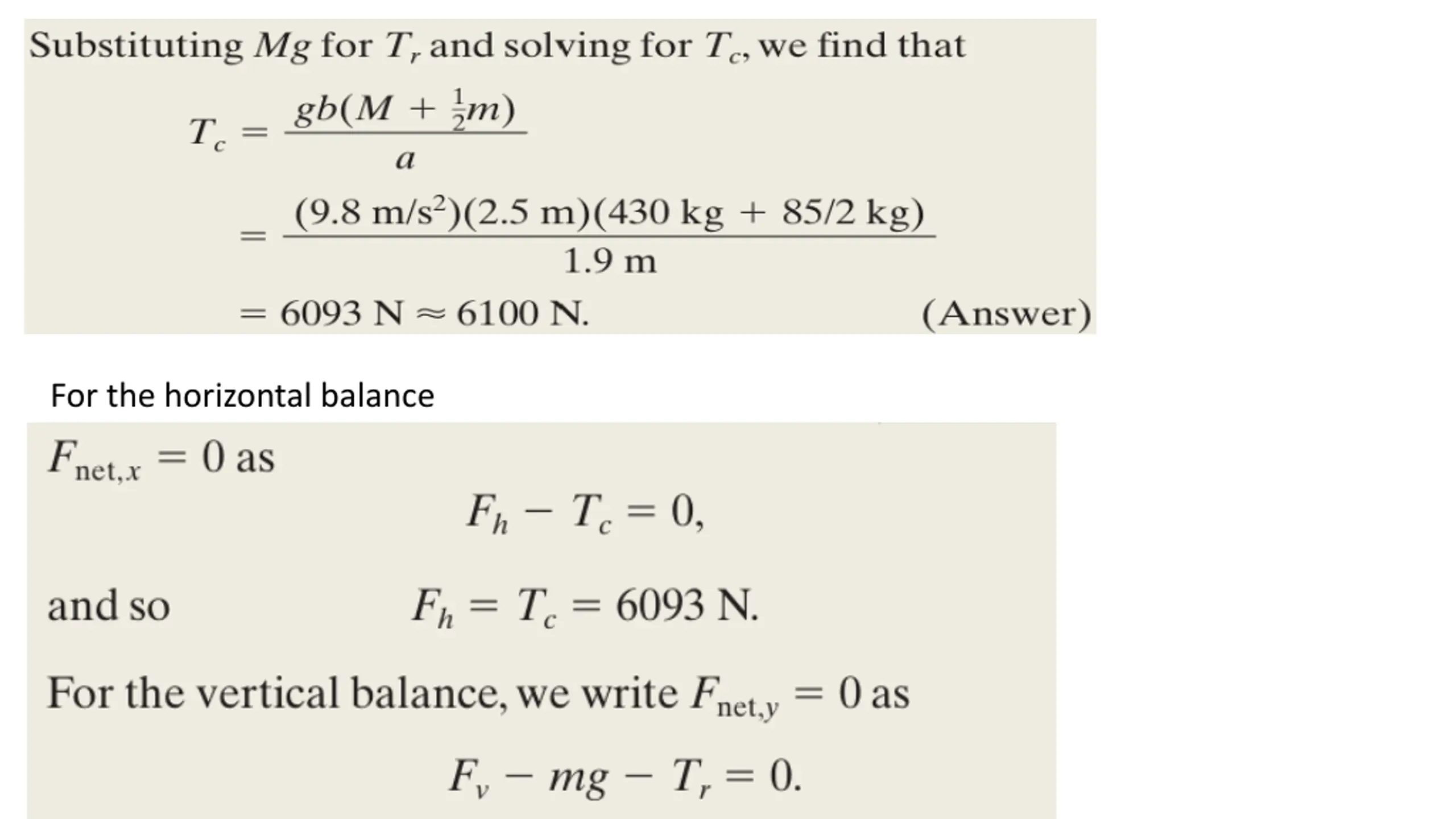

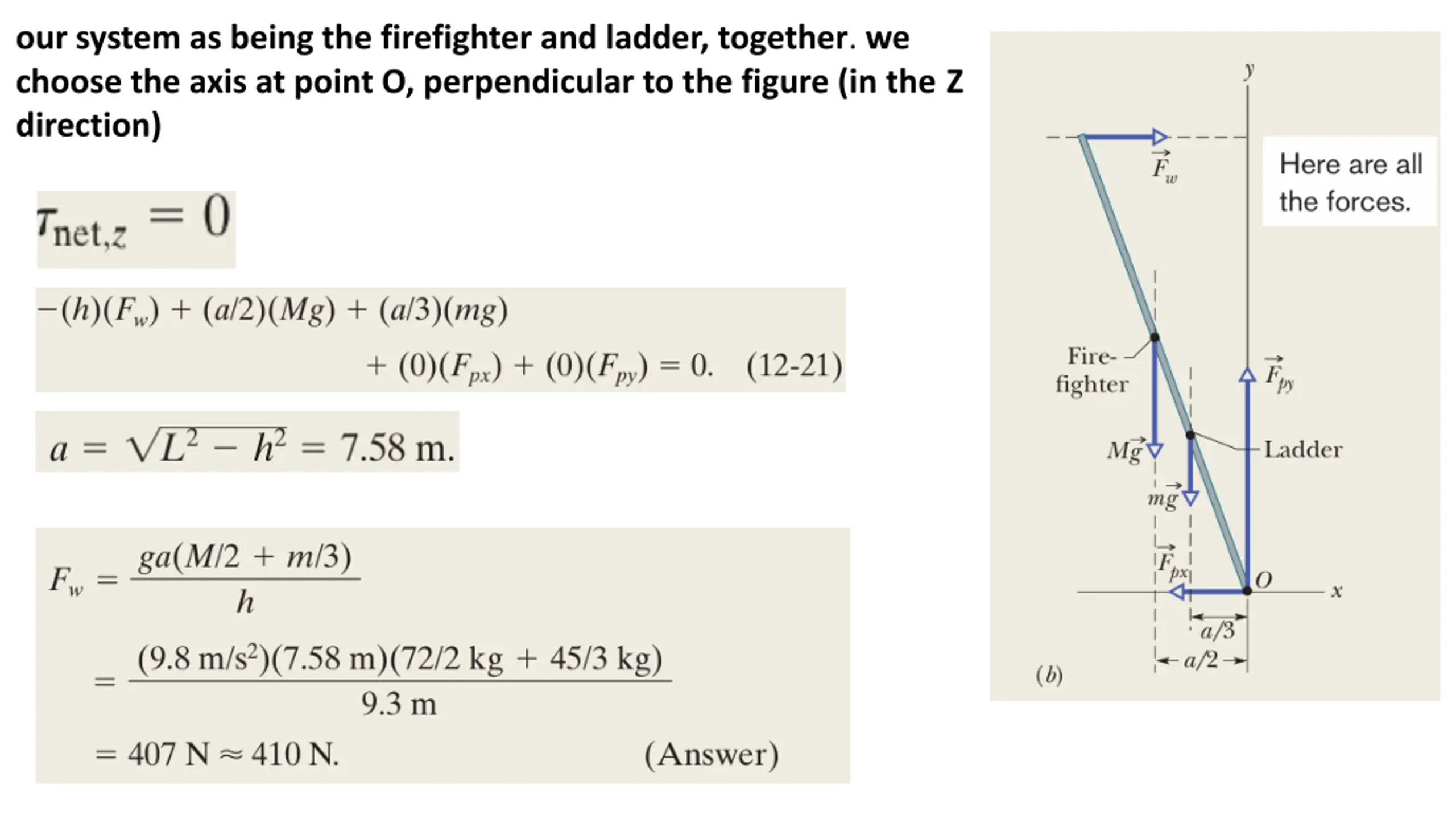

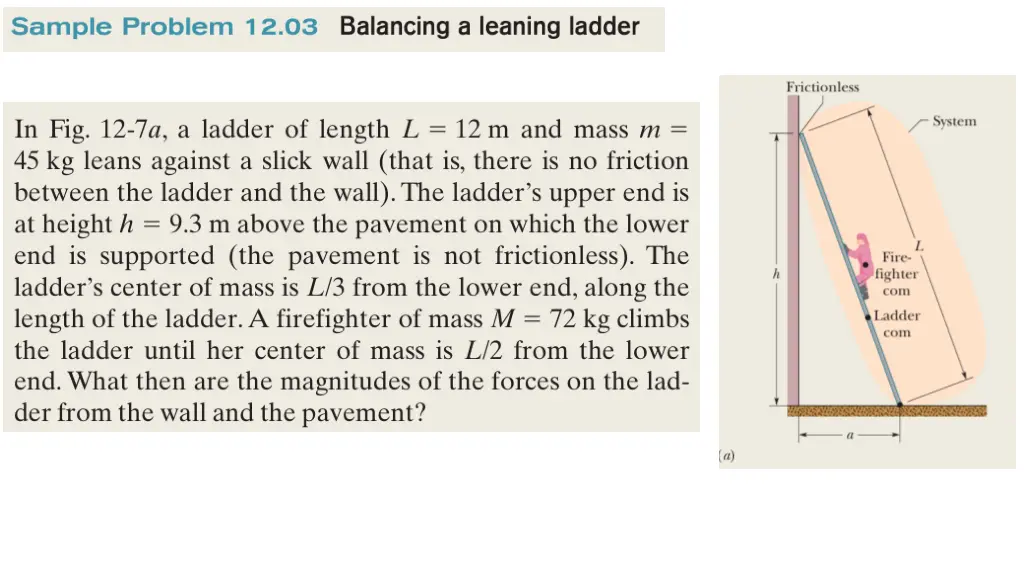

our system as being the firefighter and ladder, together. we choose the axis at point O, perpendicular to the figure (in theZ direction)
