Physics Lab: Motion with Constant Acceleration Using Atwood's Machine
Study motion in one dimension with constant acceleration using a modified Atwood's machine in this physics lab. Determine free-fall acceleration due to gravity from measurements and analyze with Newton's second law. Explore the apparatus, setup, and data analysis techniques involved in the experiment.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

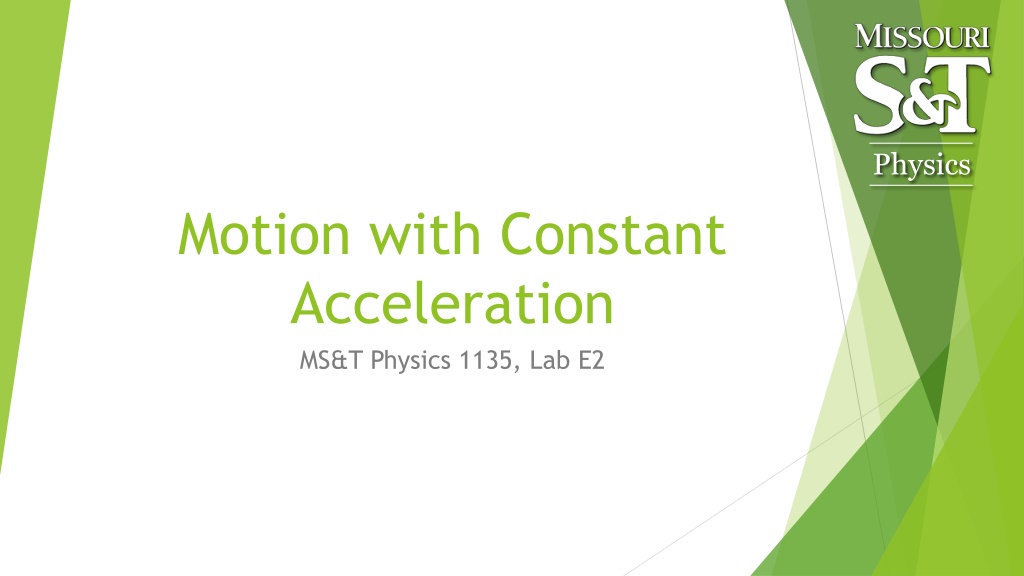

Physics Motion with Constant Acceleration MS&T Physics 1135, Lab E2

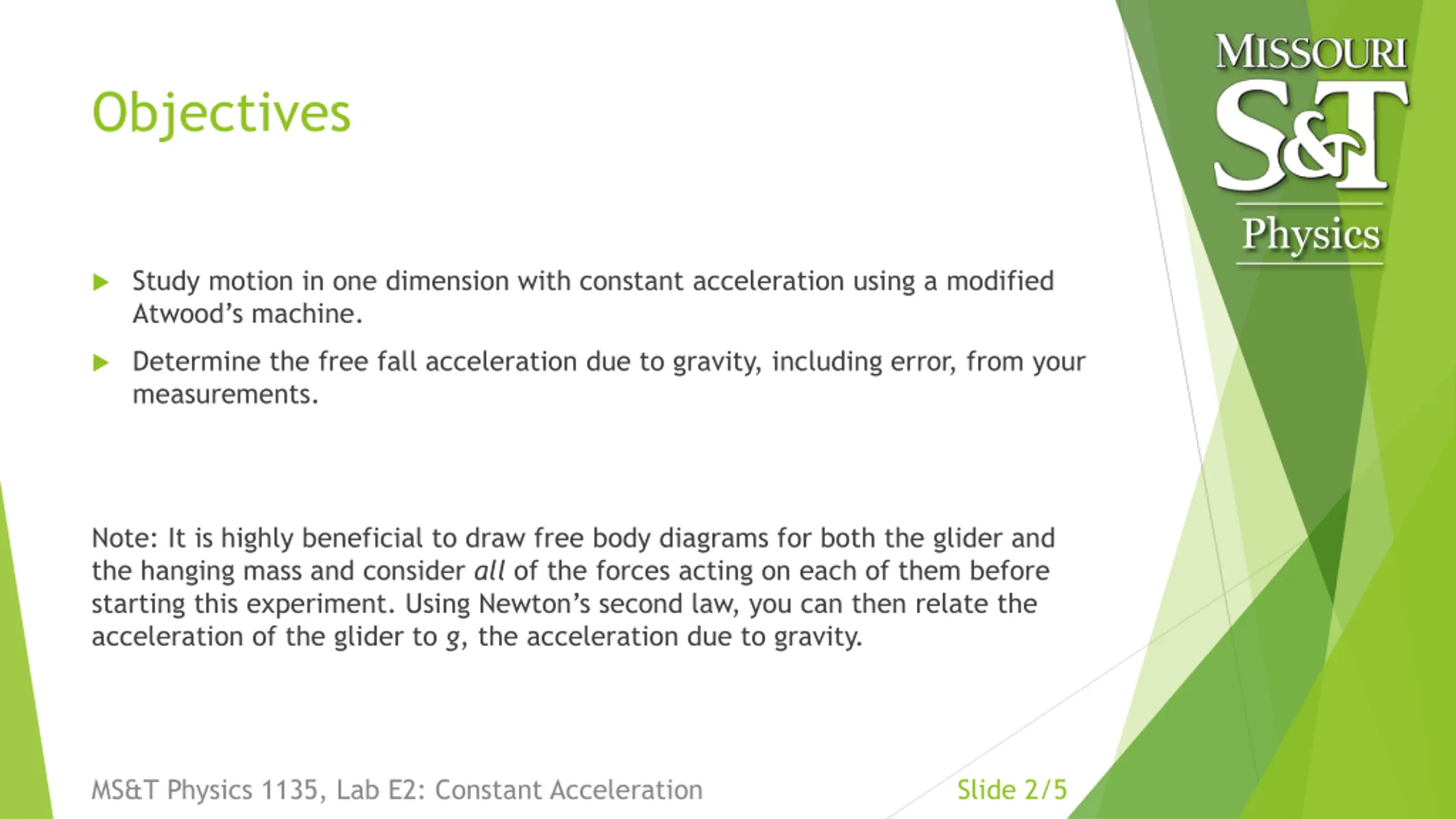

Objectives Physics Study motion in one dimension with constant acceleration using a modified Atwood s machine. Determine the free fall acceleration due to gravity, including error, from your measurements. Note: It is highly beneficial to draw free body diagrams for both the glider and the hanging mass and consider all of the forces acting on each of them before starting this experiment. Using Newton s second law, you can then relate the acceleration of the glider to g, the acceleration due to gravity. MS&T Physics 1135, Lab E2: Constant Acceleration Slide 2/5

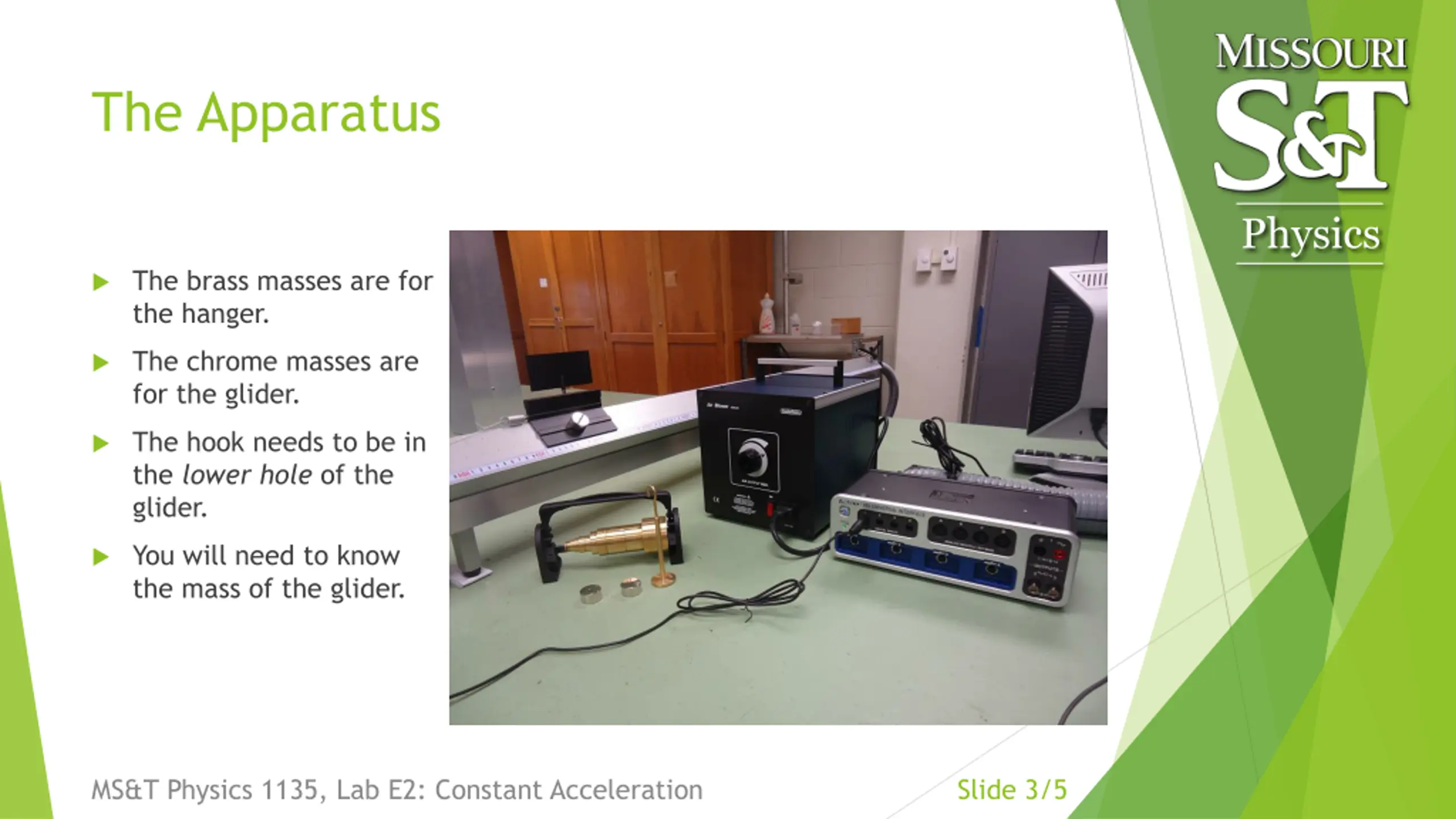

The Apparatus Physics The brass masses are for the hanger. The chrome masses are for the glider. The hook needs to be in the lower hole of the glider. You will need to know the mass of the glider. MS&T Physics 1135, Lab E2: Constant Acceleration Slide 3/5

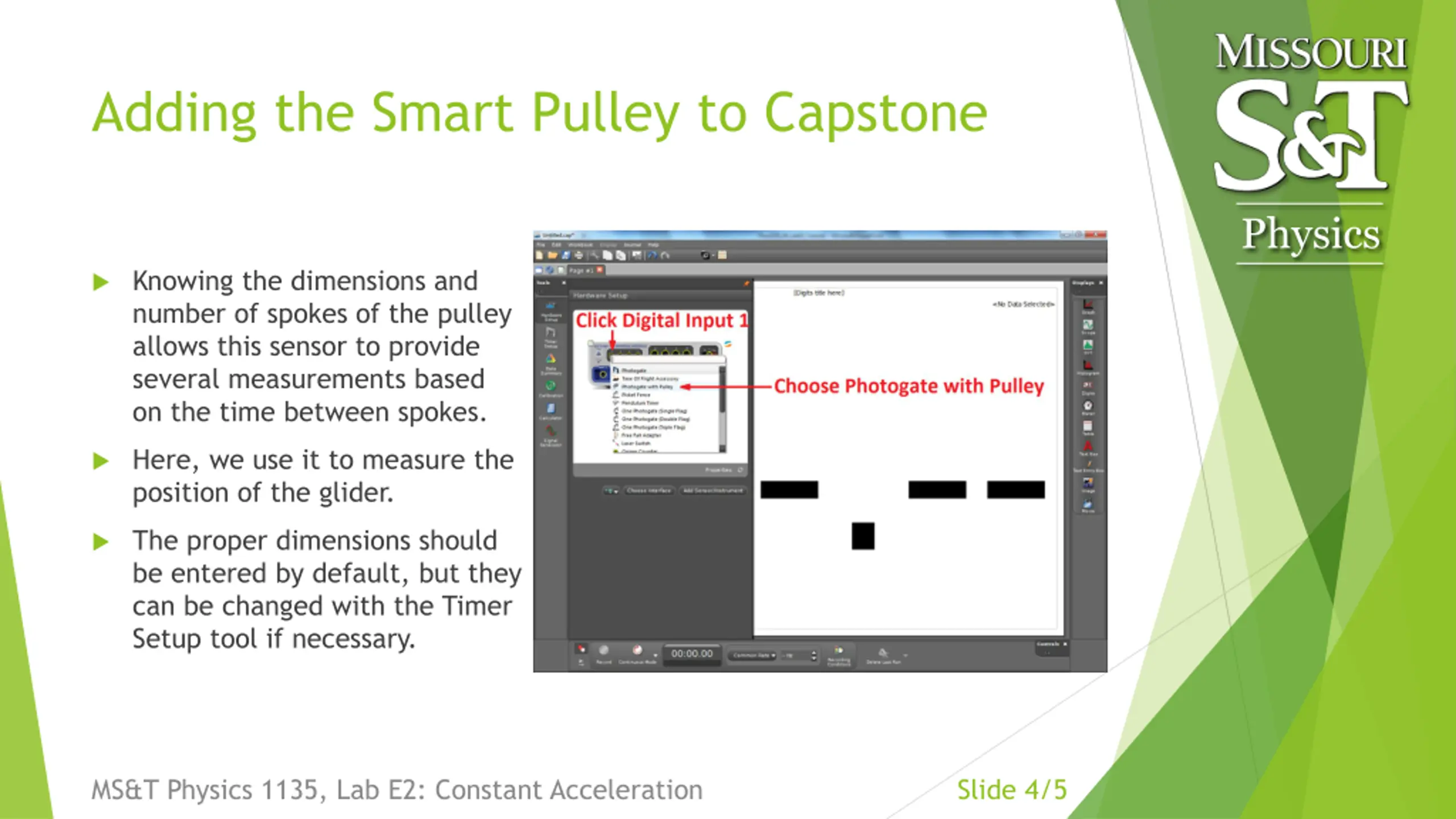

Adding the Smart Pulley to Capstone Physics Knowing the dimensions and number of spokes of the pulley allows this sensor to provide several measurements based on the time between spokes. Here, we use it to measure the position of the glider. The proper dimensions should be entered by default, but they can be changed with the Timer Setup tool if necessary. MS&T Physics 1135, Lab E2: Constant Acceleration Slide 4/5

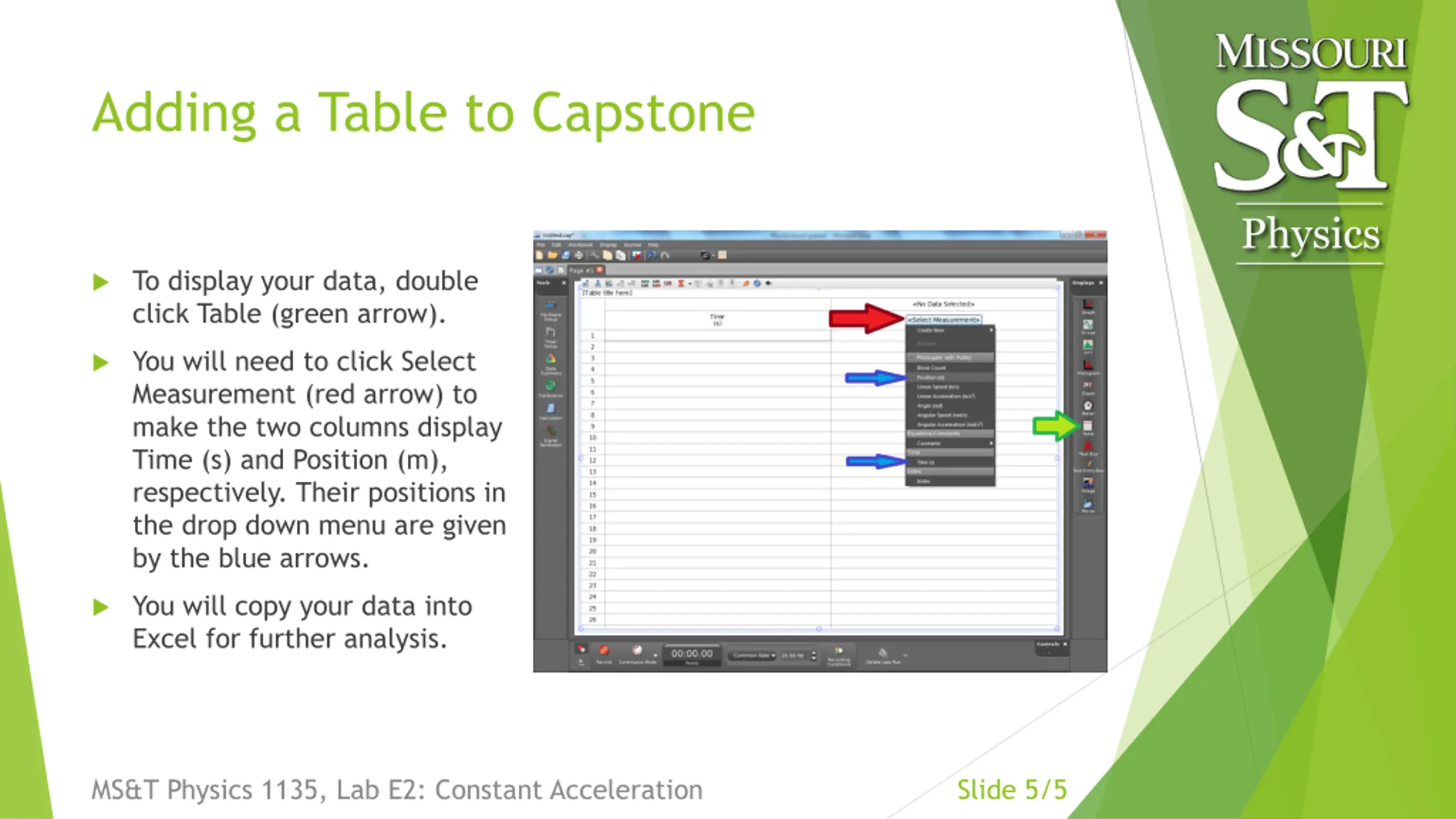

Adding a Table to Capstone Physics To display your data, double click Table (green arrow). You will need to click Select Measurement (red arrow) to make the two columns display Time (s) and Position (m), respectively. Their positions in the drop down menu are given by the blue arrows. You will copy your data into Excel for further analysis. MS&T Physics 1135, Lab E2: Constant Acceleration Slide 5/5
