Pin Control(PinCtrl) SOP Under Ubuntu Author: Wilbert Lee Date : 2023/05/03

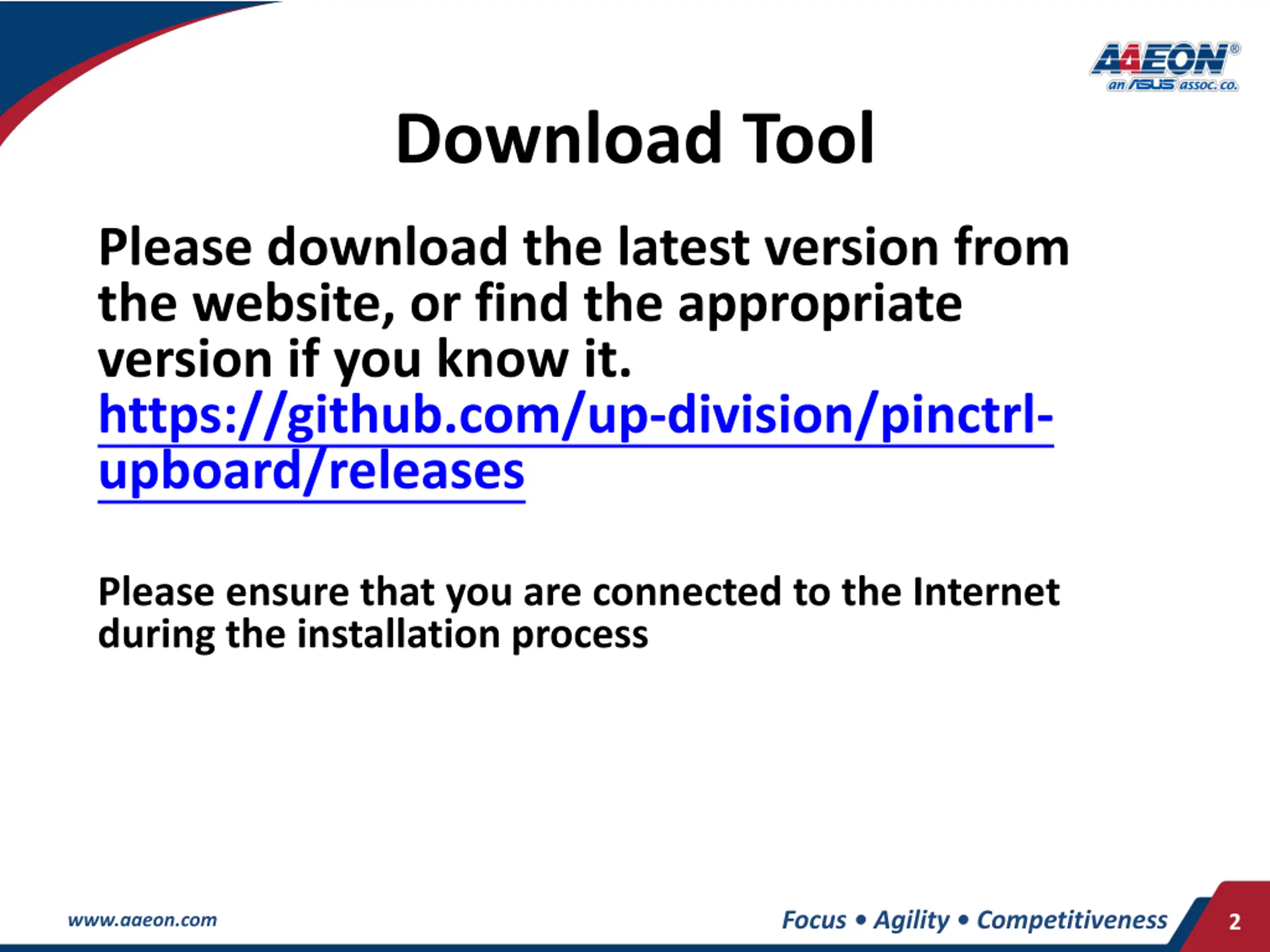

Download Tool Please download the latest version from the website, or find the appropriate version if you know it. https://github.com/up-division/pinctrl- upboard/releases Please ensure that you are connected to the Internet during the installation process Focus Agility Competitiveness www.aaeon.com 2

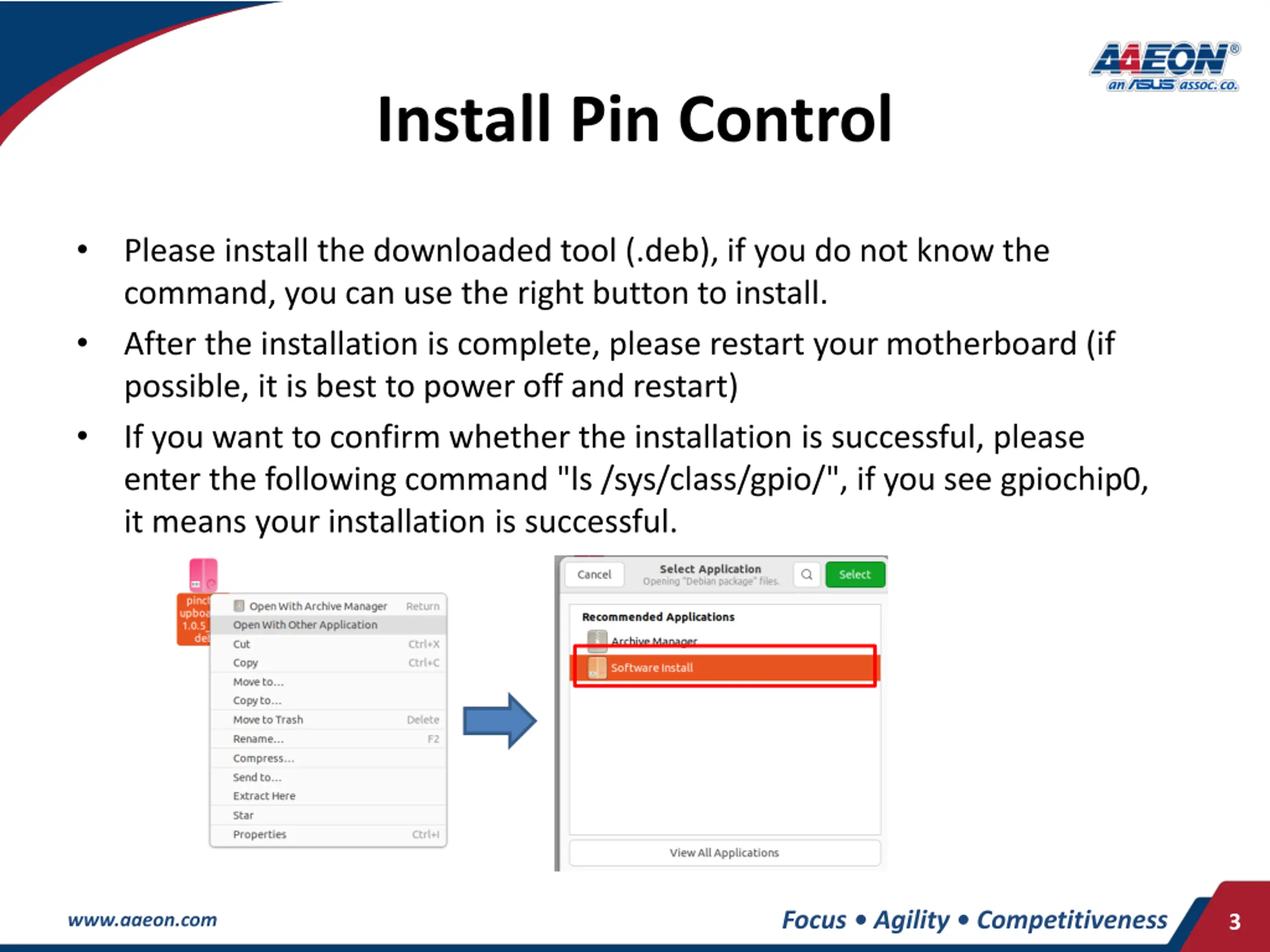

Install Pin Control Please install the downloaded tool (.deb), if you do not know the command, you can use the right button to install. After the installation is complete, please restart your motherboard (if possible, it is best to power off and restart) If you want to confirm whether the installation is successful, please enter the following command "ls /sys/class/gpio/", if you see gpiochip0, it means your installation is successful. Focus Agility Competitiveness www.aaeon.com 3

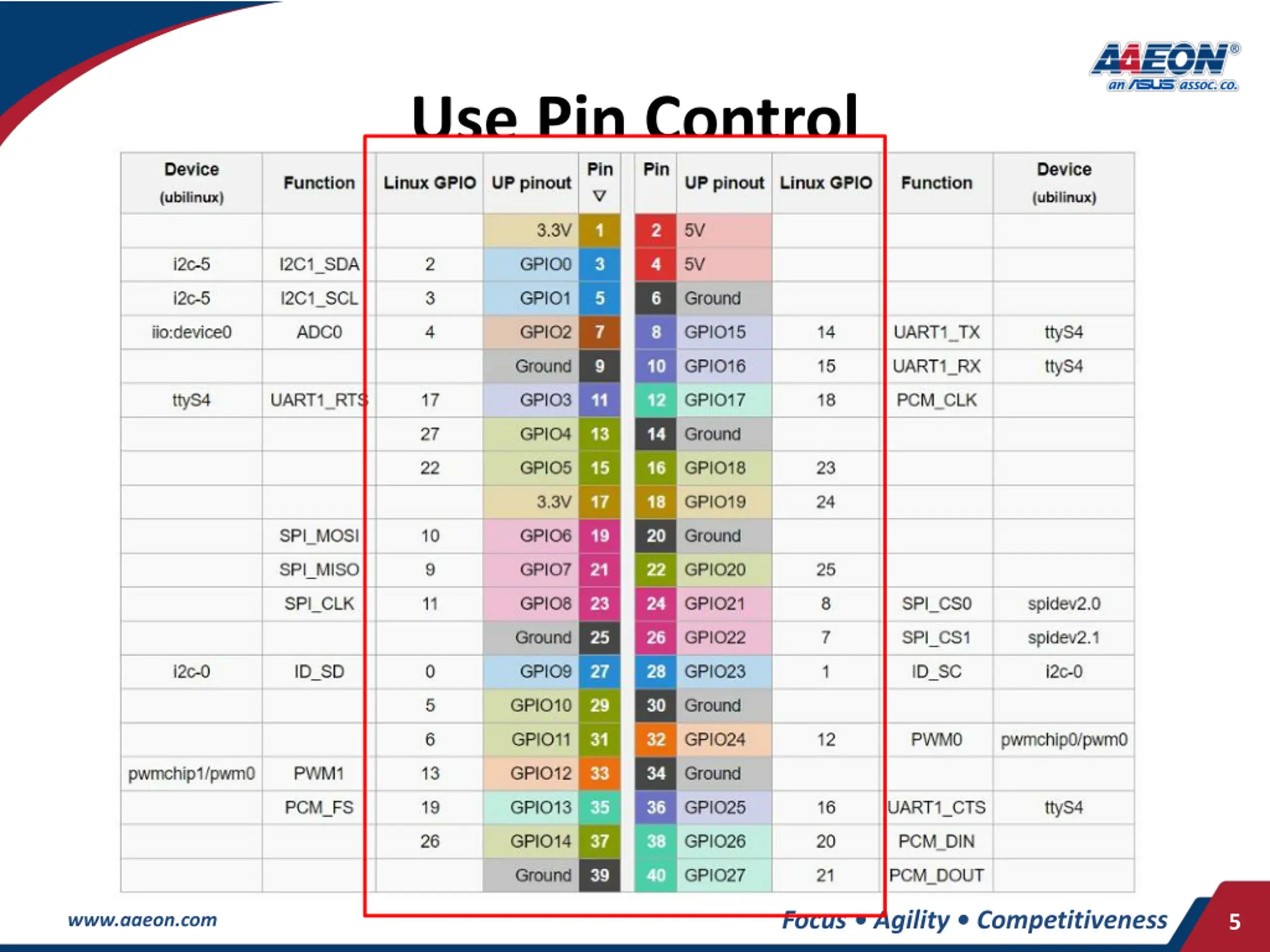

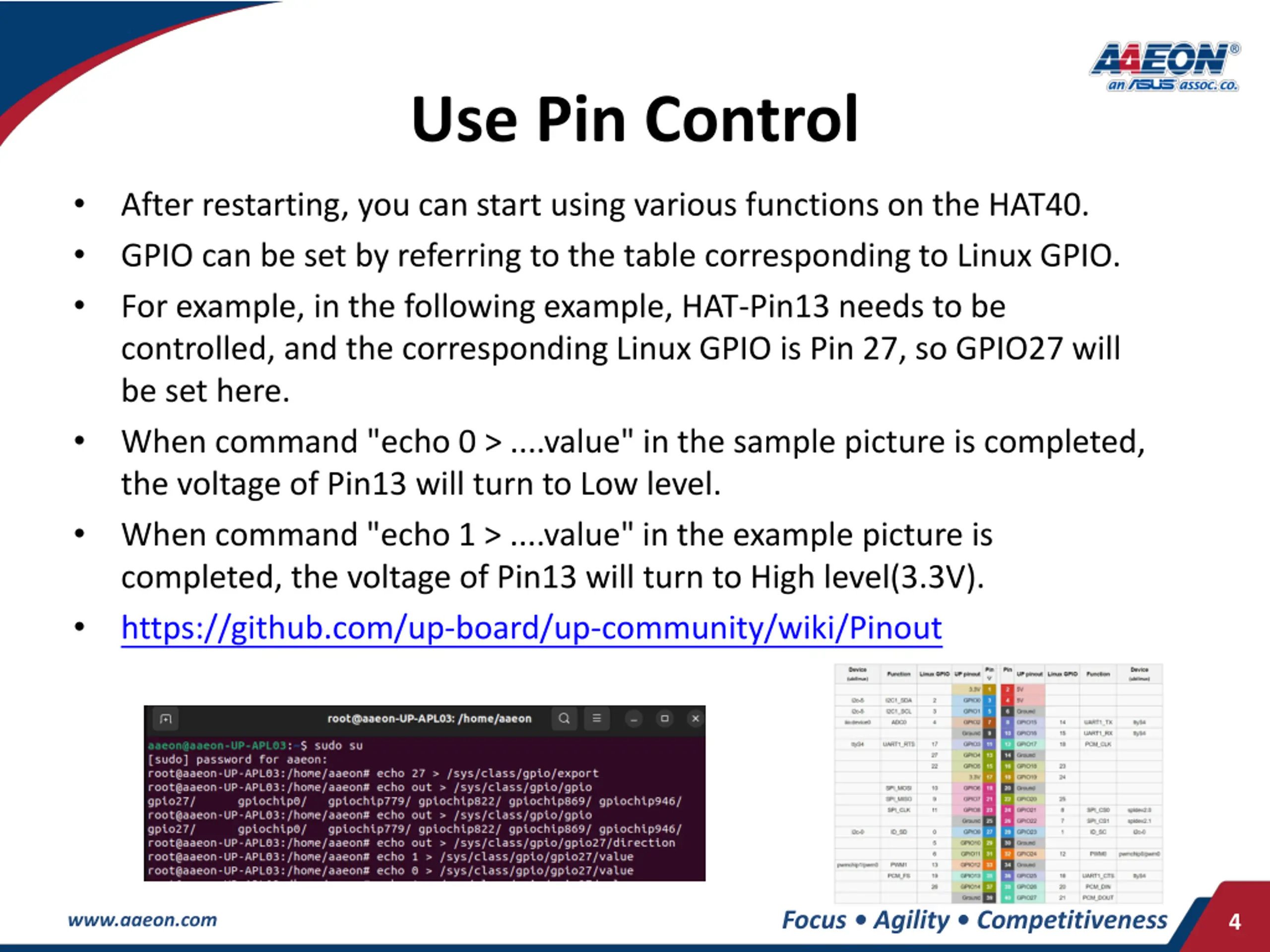

Use Pin Control After restarting, you can start using various functions on the HAT40. GPIO can be set by referring to the table corresponding to Linux GPIO. For example, in the following example, HAT-Pin13 needs to be controlled, and the corresponding Linux GPIO is Pin 27, so GPIO27 will be set here. When command "echo 0 > ....value" in the sample picture is completed, the voltage of Pin13 will turn to Low level. When command "echo 1 > ....value" in the example picture is completed, the voltage of Pin13 will turn to High level(3.3V). https://github.com/up-board/up-community/wiki/Pinout Focus Agility Competitiveness www.aaeon.com 4
Use Pin Control Focus Agility Competitiveness www.aaeon.com 5
