Population Genetics: Hardy-Weinberg Equilibrium Explained

Population Genetics Population Genetics Dr. Mohammed Hussein M.B.Ch.B, MSC, PhD, DCH (UK), MRCPCH

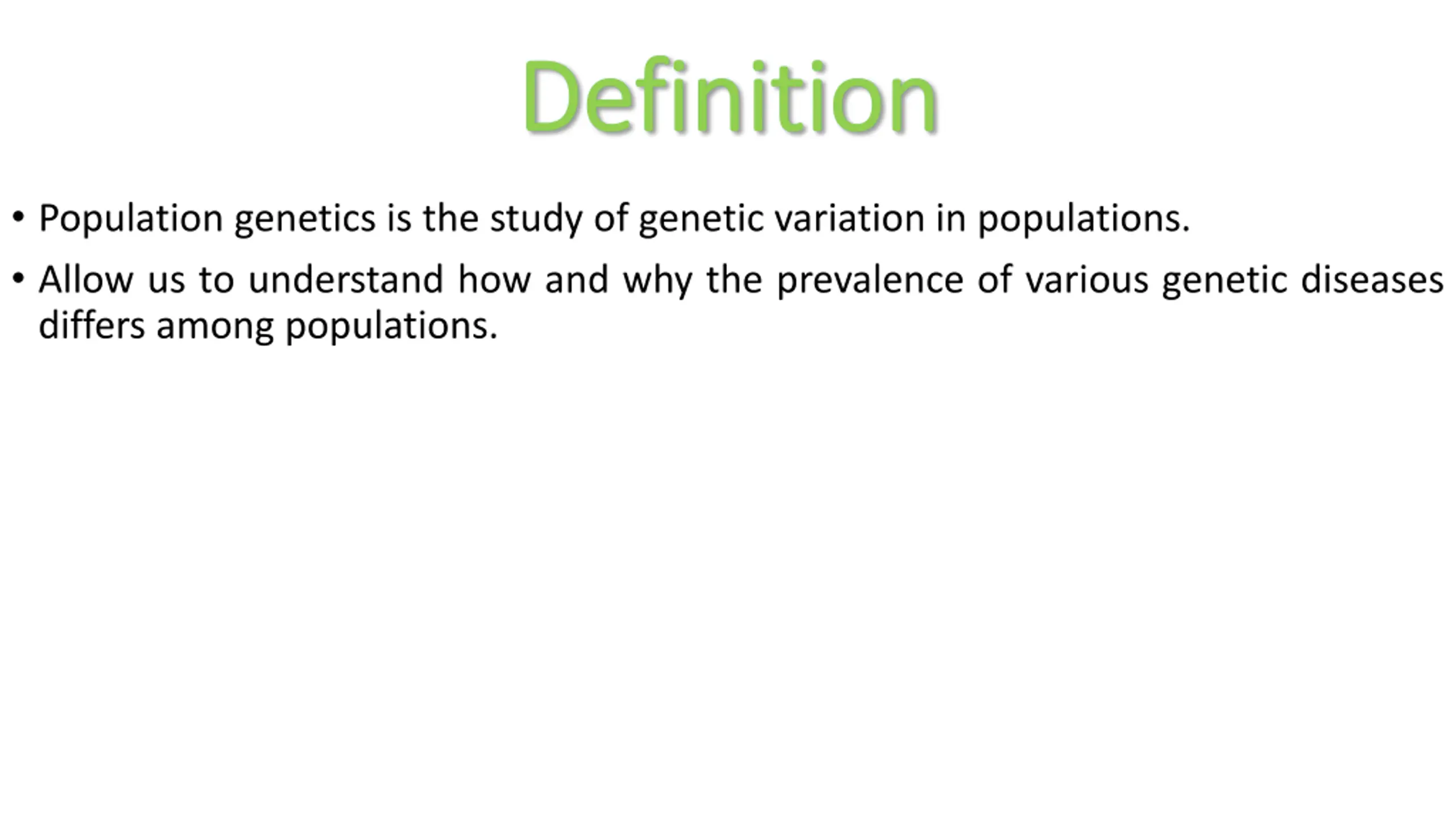

Definition Definition Population genetics is the study of genetic variation in populations. Allow us to understand how and why the prevalence of various genetic diseases differs among populations.

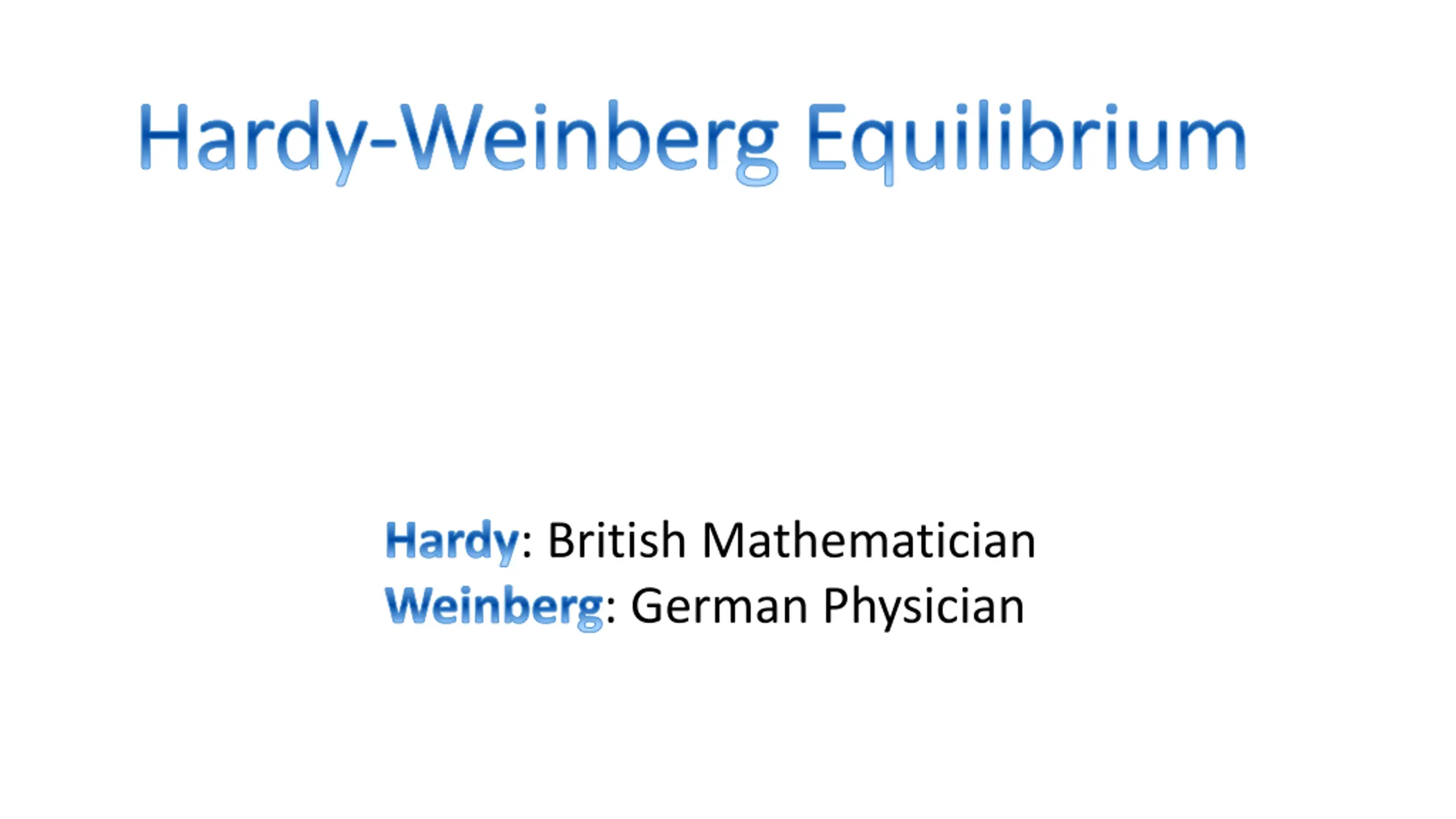

Hardy Hardy- -Weinberg Equilibrium Weinberg Equilibrium Hardy: British Mathematician Weinberg: German Physician

Hardy Hardy- -Weinberg Equilibrium Weinberg Equilibrium

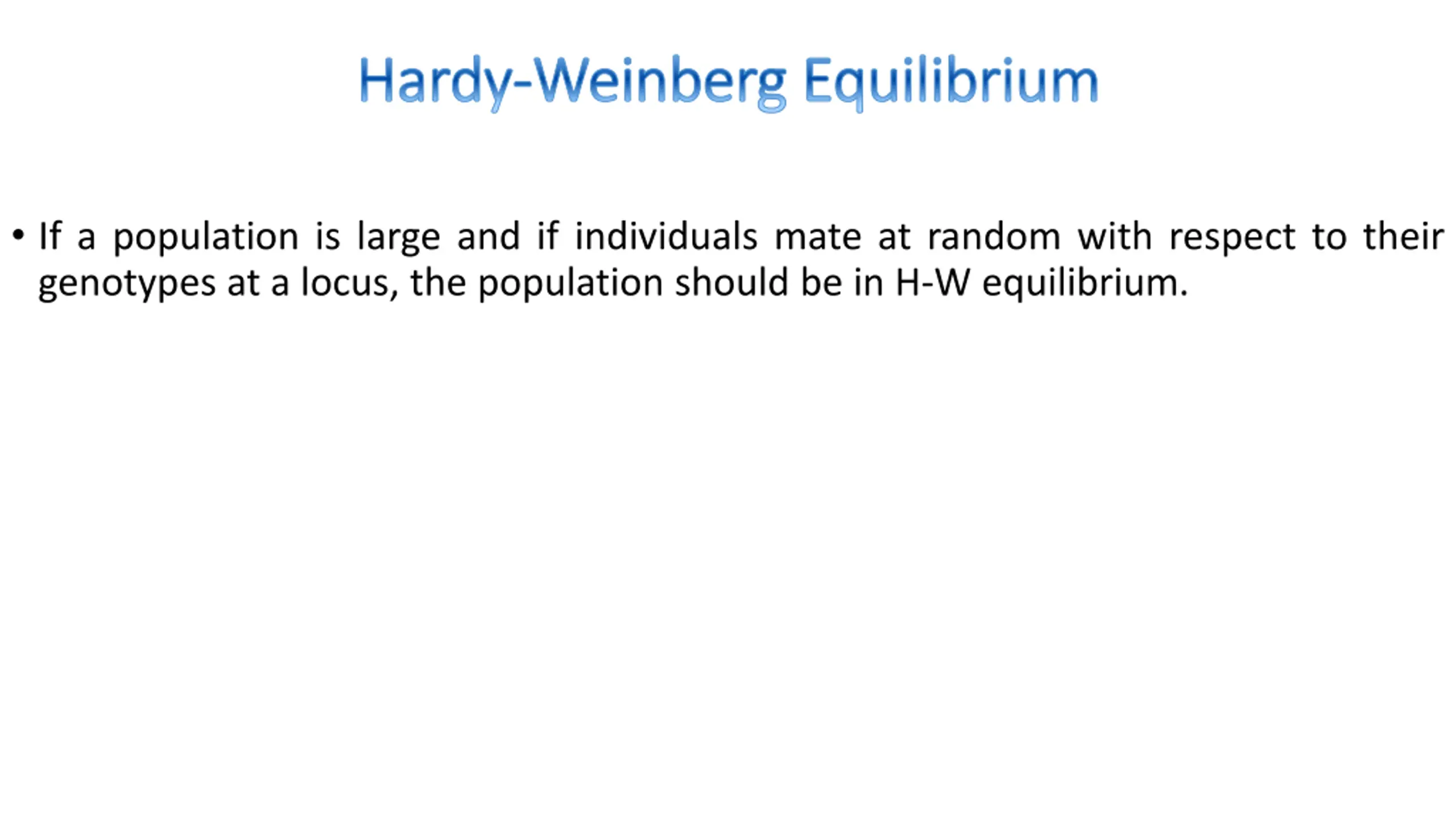

Hardy Hardy- -Weinberg Weinberg Equilibrium Equilibrium If a population is large and if individuals mate at random with respect to their genotypes at a locus, the population should be in H-W equilibrium.

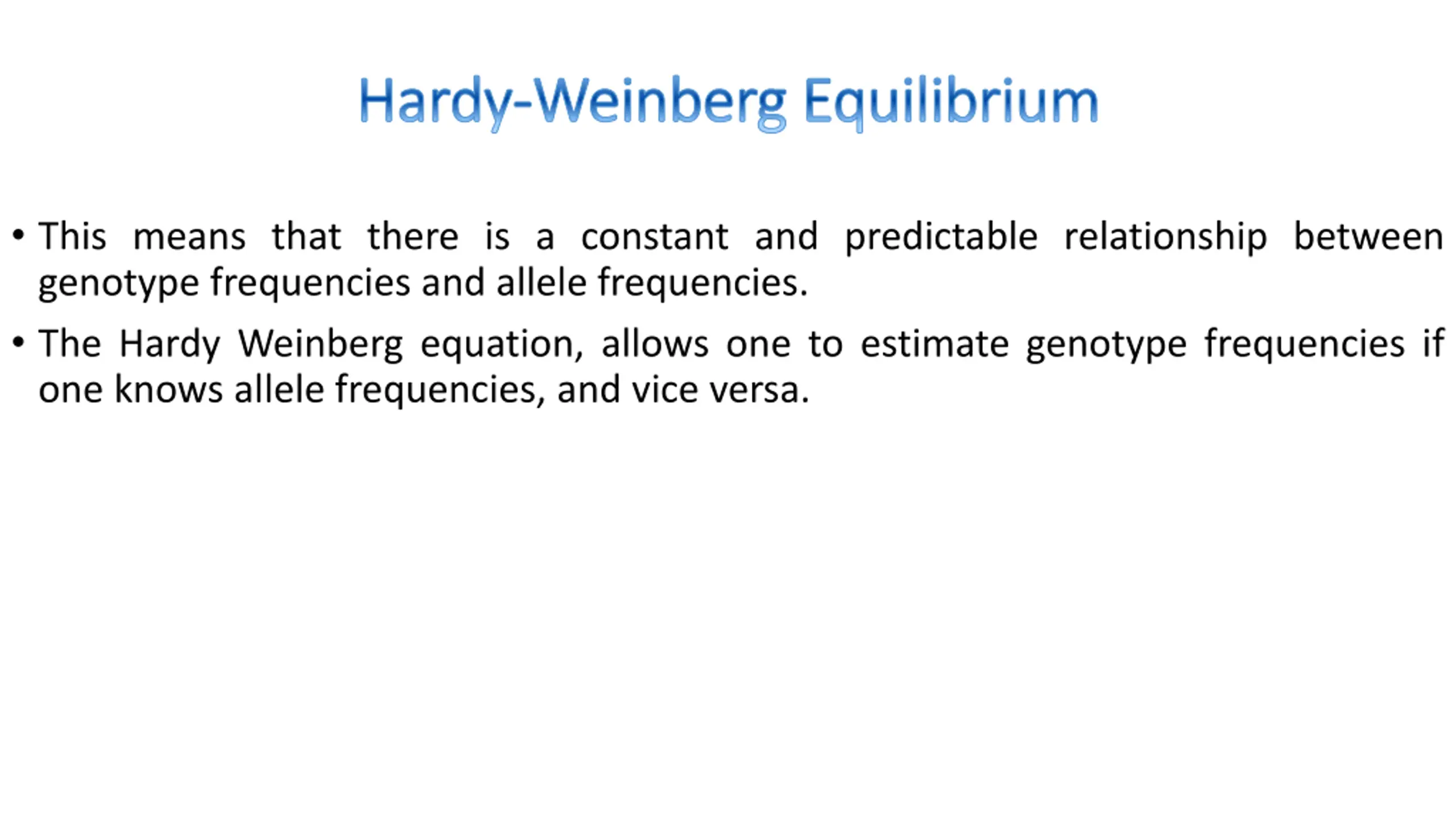

Hardy Hardy- -Weinberg Weinberg Equilibrium Equilibrium This means that there is a constant and predictable relationship between genotype frequencies and allele frequencies. The Hardy Weinberg equation, allows one to estimate genotype frequencies if one knows allele frequencies, and vice versa.

Hardy Hardy- -Weinberg Weinberg Equilibrium Equilibrium P2 + 2pq + q2 = 1 p = a normal allele q = a disease producing allele

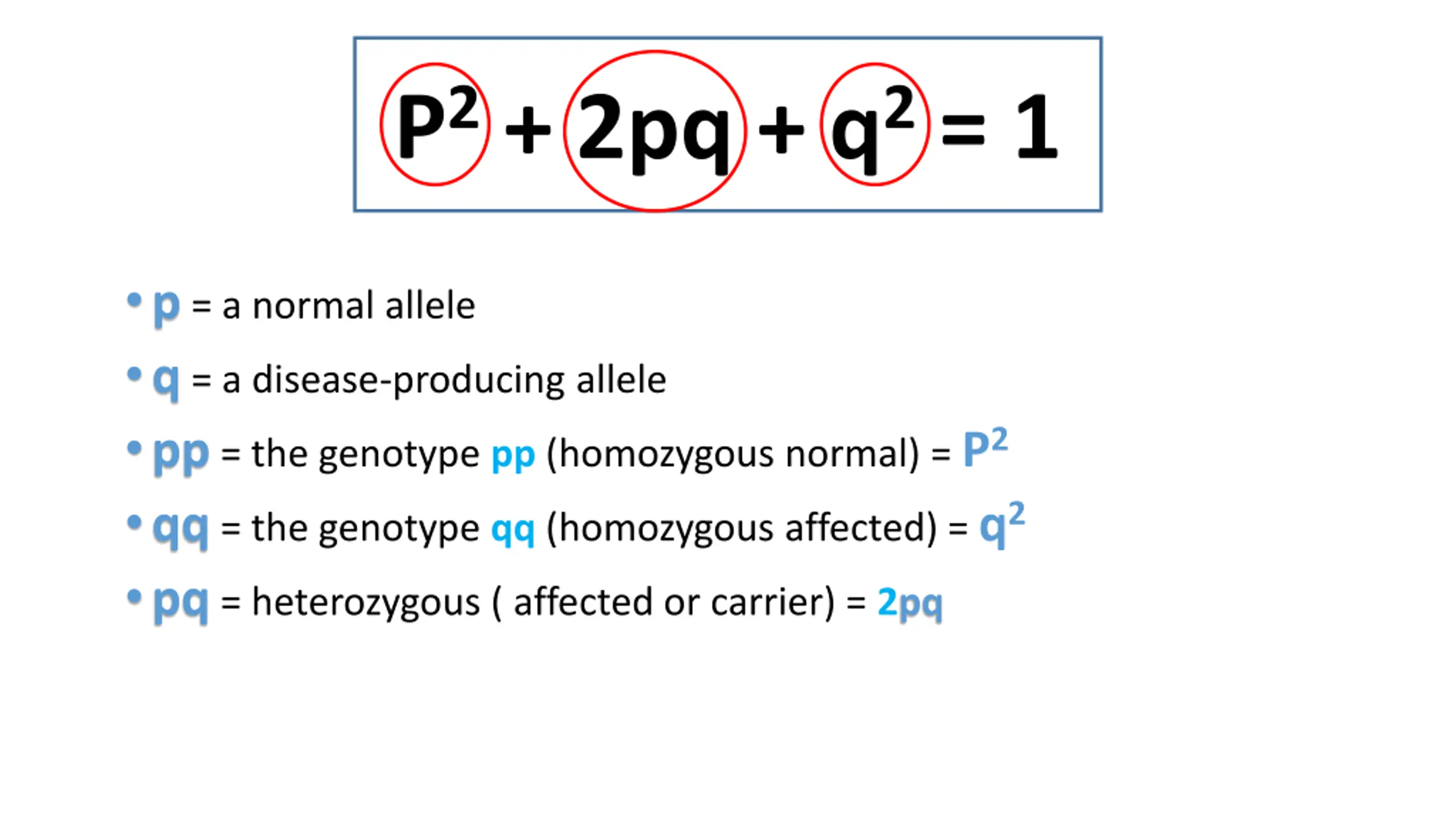

P2 + 2pq + q2 = 1 p = a normal allele q = a disease-producing allele pp = the genotype pp (homozygous normal) = P2 qq = the genotype qq (homozygous affected) = q2 pq= heterozygous ( affected or carrier) = 2pq

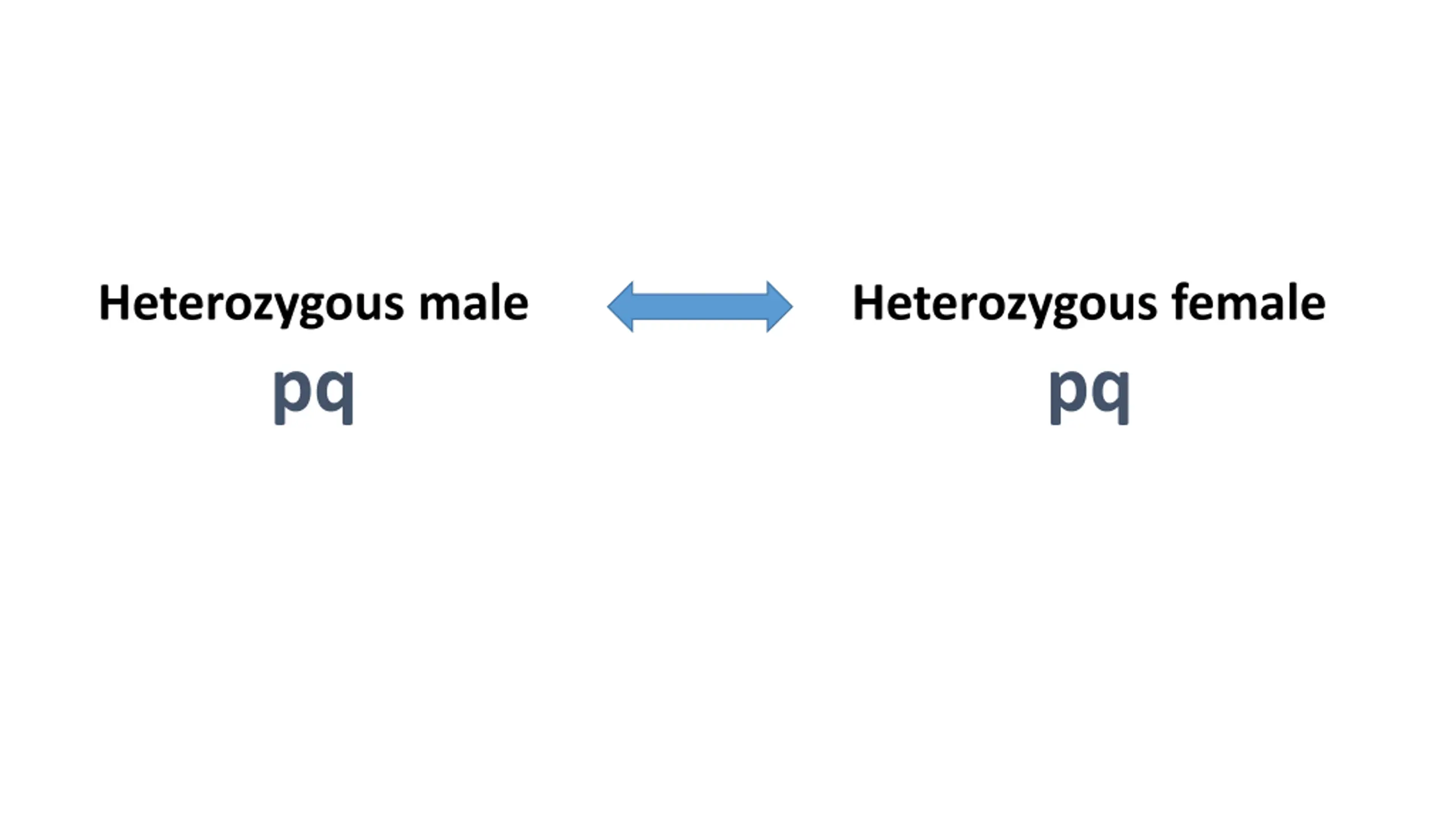

Heterozygous male pq Heterozygous female pq

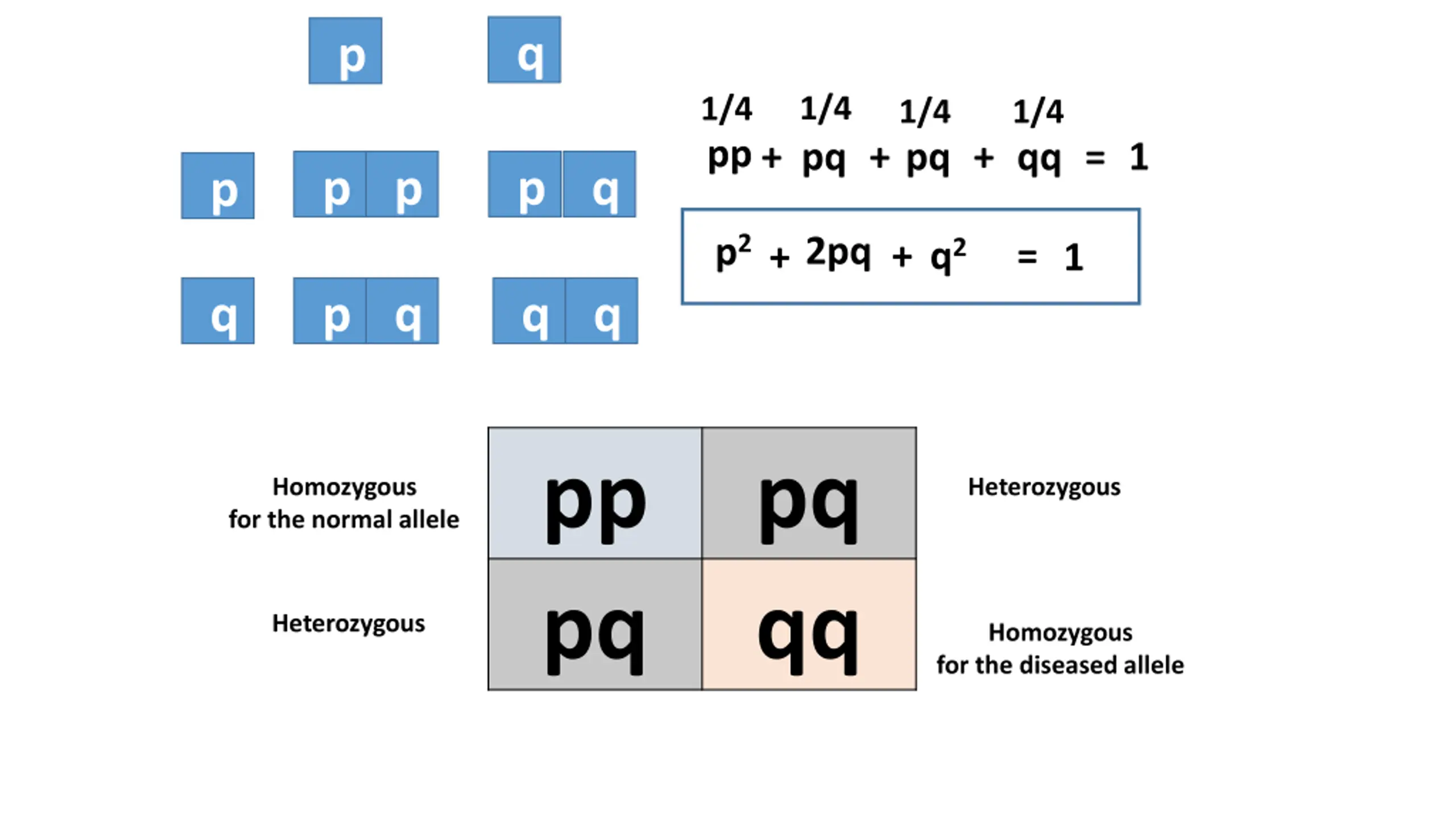

q p 1/4 1/4 1/4 1/4 pp+ pq + pq + qq = 1 p p p q p p2+2pq + q2 = 1 q p q q q pp pq pq qq Homozygous for the normal allele Heterozygous Heterozygous Homozygous for the diseased allele

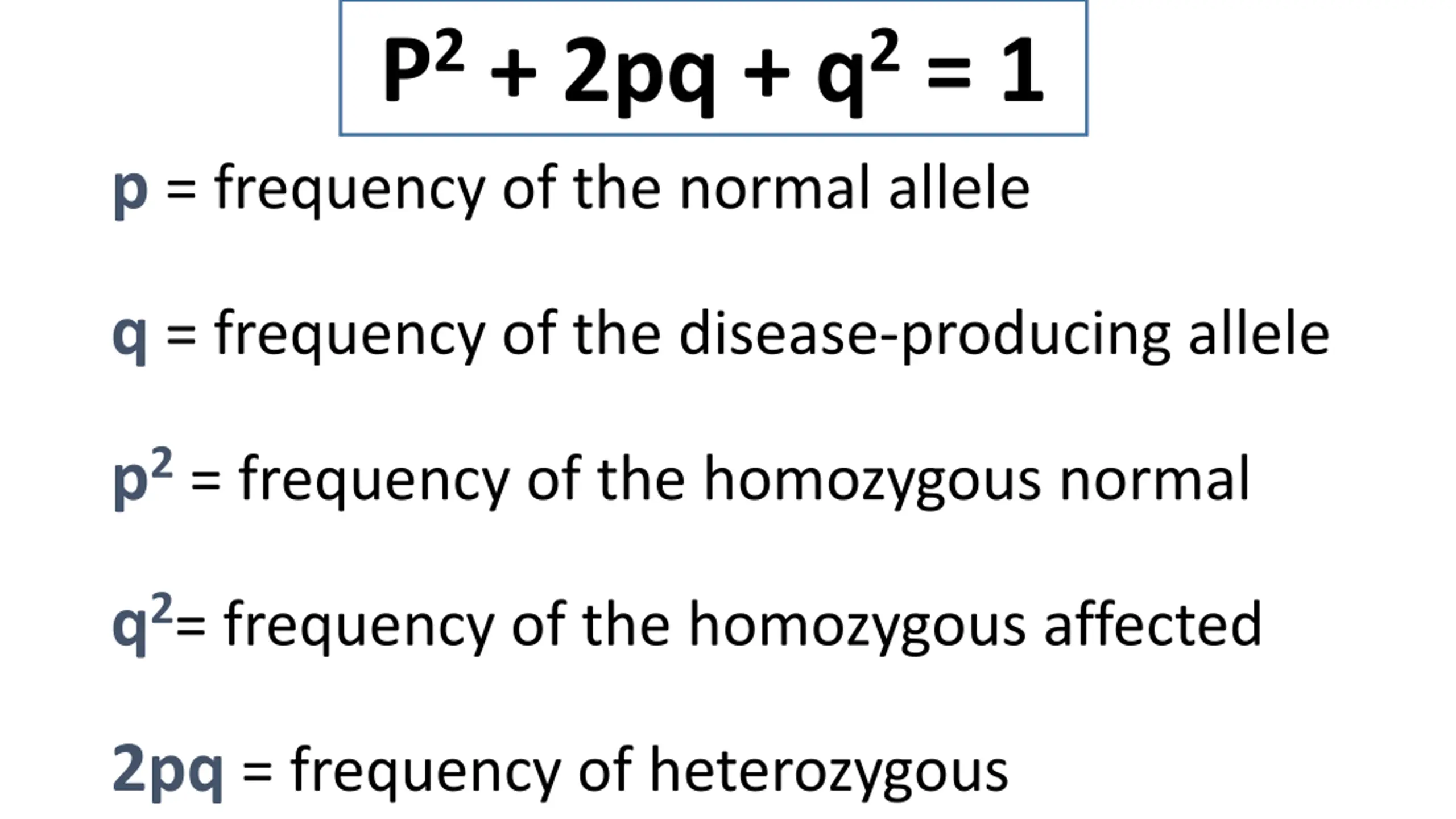

P2 + 2pq + q2 = 1 p = frequency of the normal allele q = frequency of the disease-producing allele p2 = frequency of the homozygous normal q2= frequency of the homozygous affected 2pq = frequency of heterozygous

Simplification Simplification Generally p, the normal allele frequency in the population, is very close to 1 (e.g., most of the alleles of this gene are normal). In this case, we may assume that p ~ 1, and the equation simplifies to: P2 + 2pq + q2 = 1 1 + 2q + q2 = 1

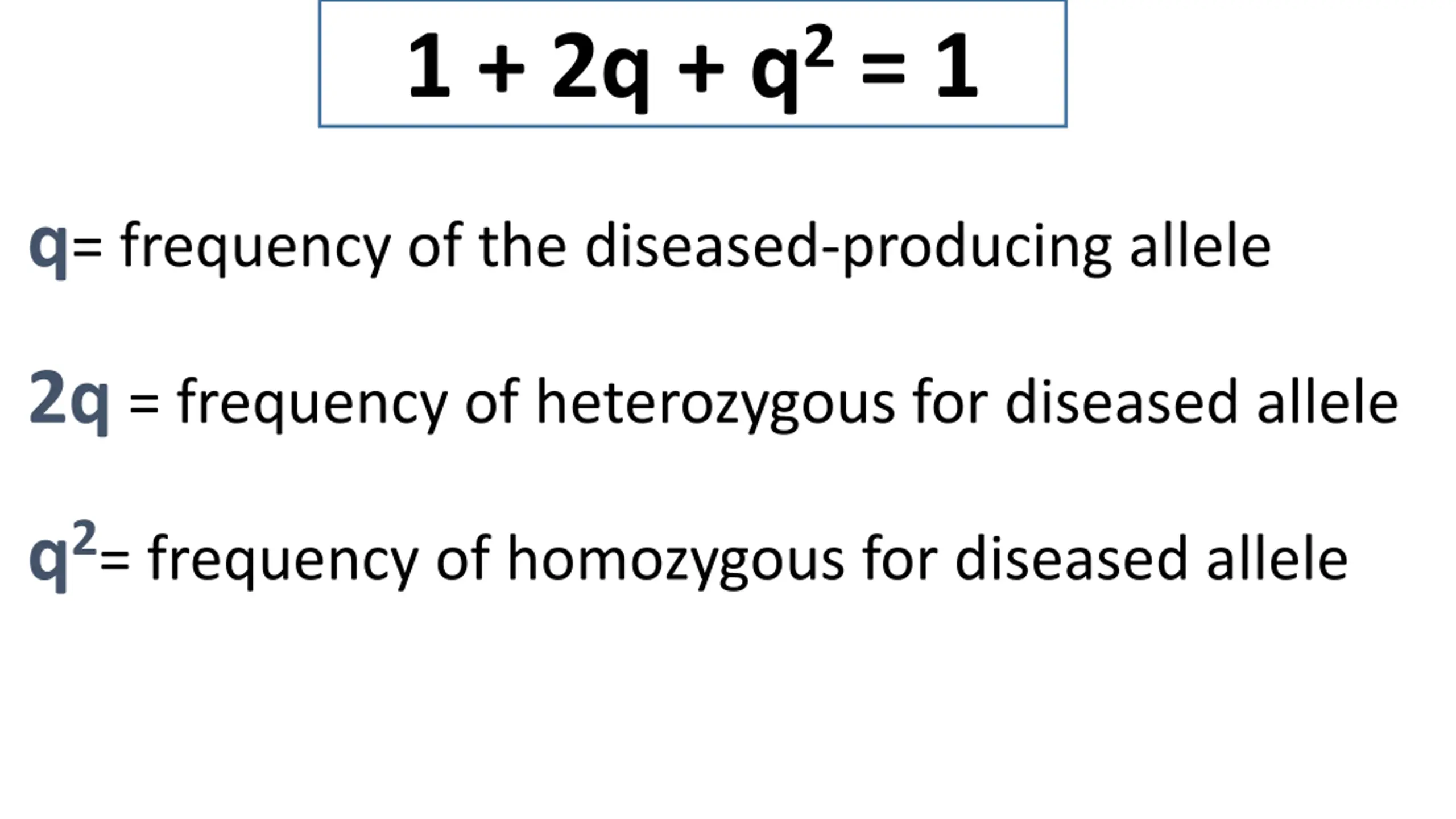

1 + 2q + q2 = 1 q= frequency of the diseased-producing allele 2q = frequency of heterozygous for diseased allele q2= frequency of homozygous for diseased allele

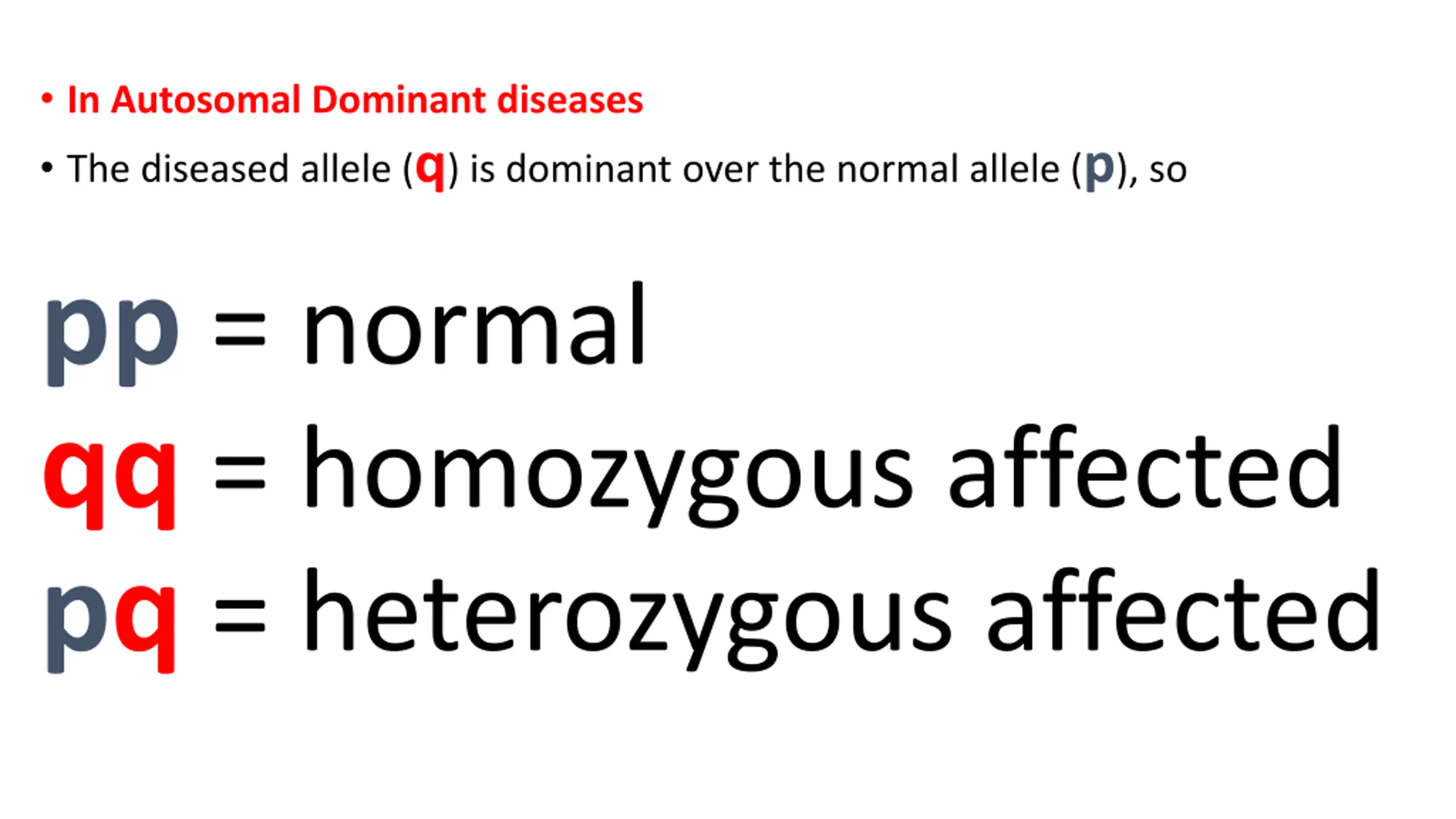

InAutosomal Dominant diseases The diseased allele (q) is dominant over the normal allele (p), so pp = normal qq = homozygous affected pq = heterozygous affected

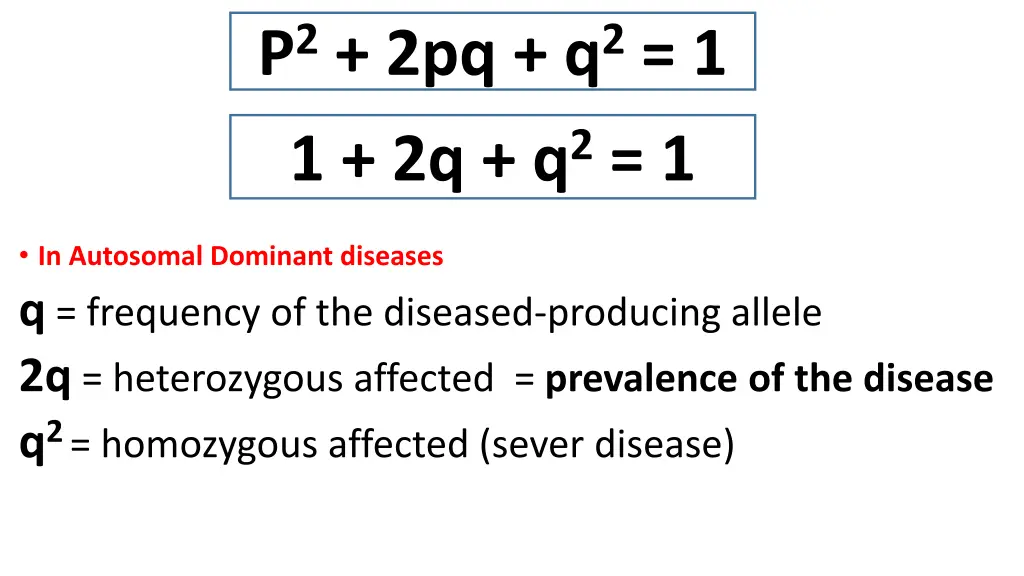

P2 + 2pq + q2 = 1 1 + 2q + q2 = 1 In Autosomal Dominant diseases q= frequency of the diseased-producing allele 2q = heterozygous affected = prevalence of the disease q2= homozygous affected (sever disease)

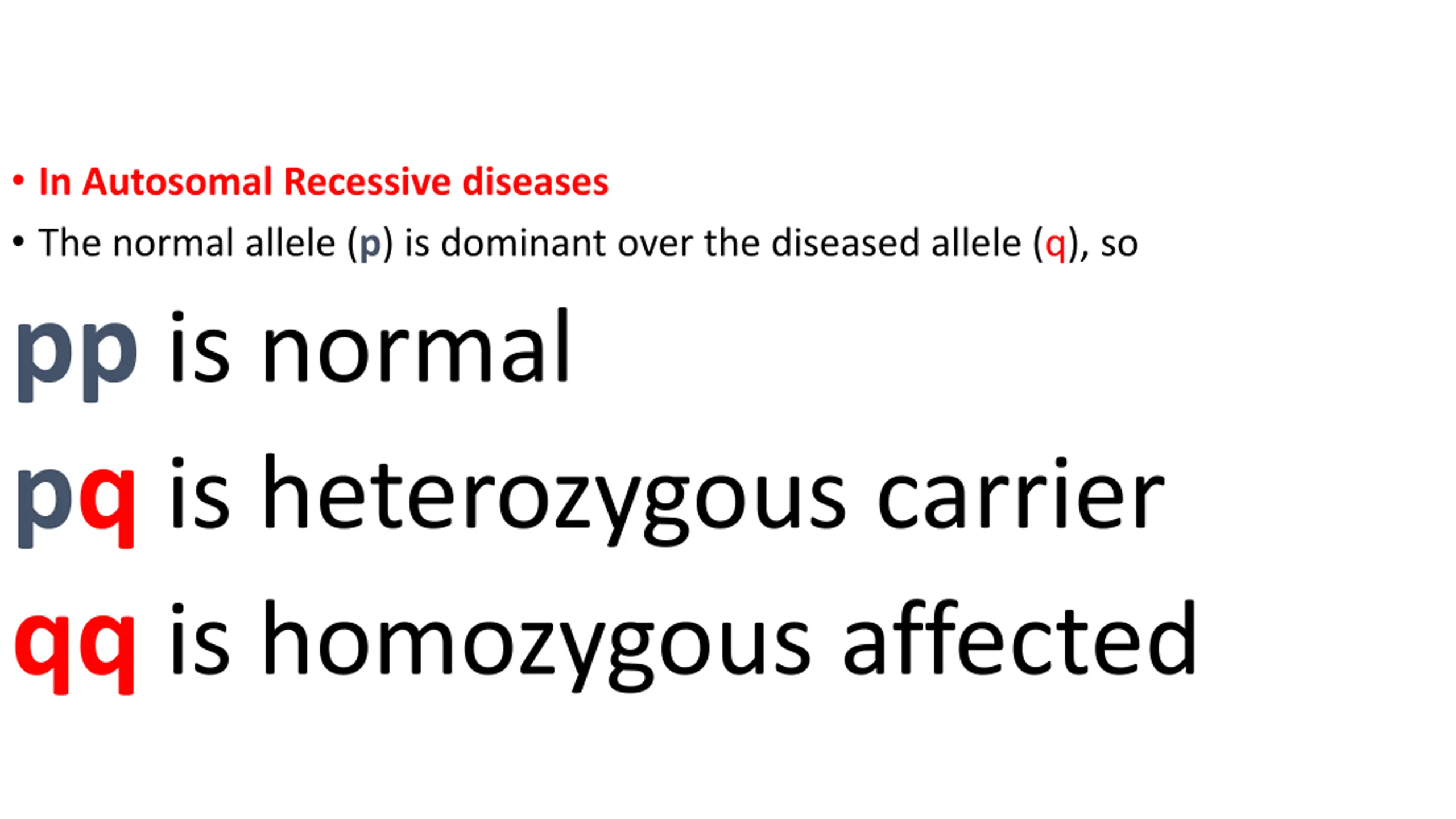

In Autosomal Recessive diseases The normal allele (p) is dominant over the diseased allele (q), so pp is normal pq is heterozygous carrier qq is homozygous affected

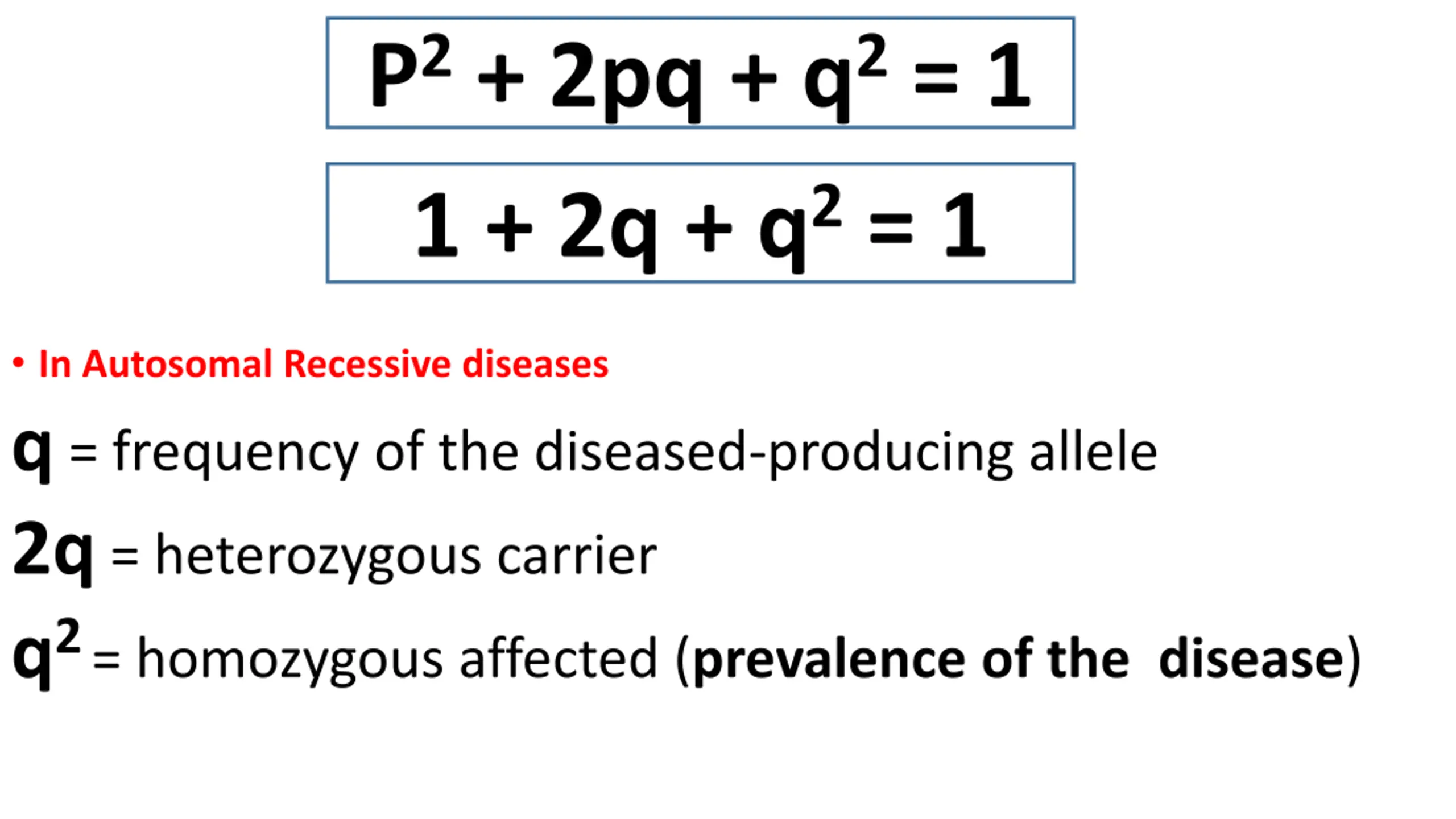

P2 + 2pq + q2 = 1 1 + 2q + q2 = 1 In Autosomal Recessive diseases q= frequency of the diseased-producing allele 2q = heterozygous carrier q2= homozygous affected (prevalence of the disease)

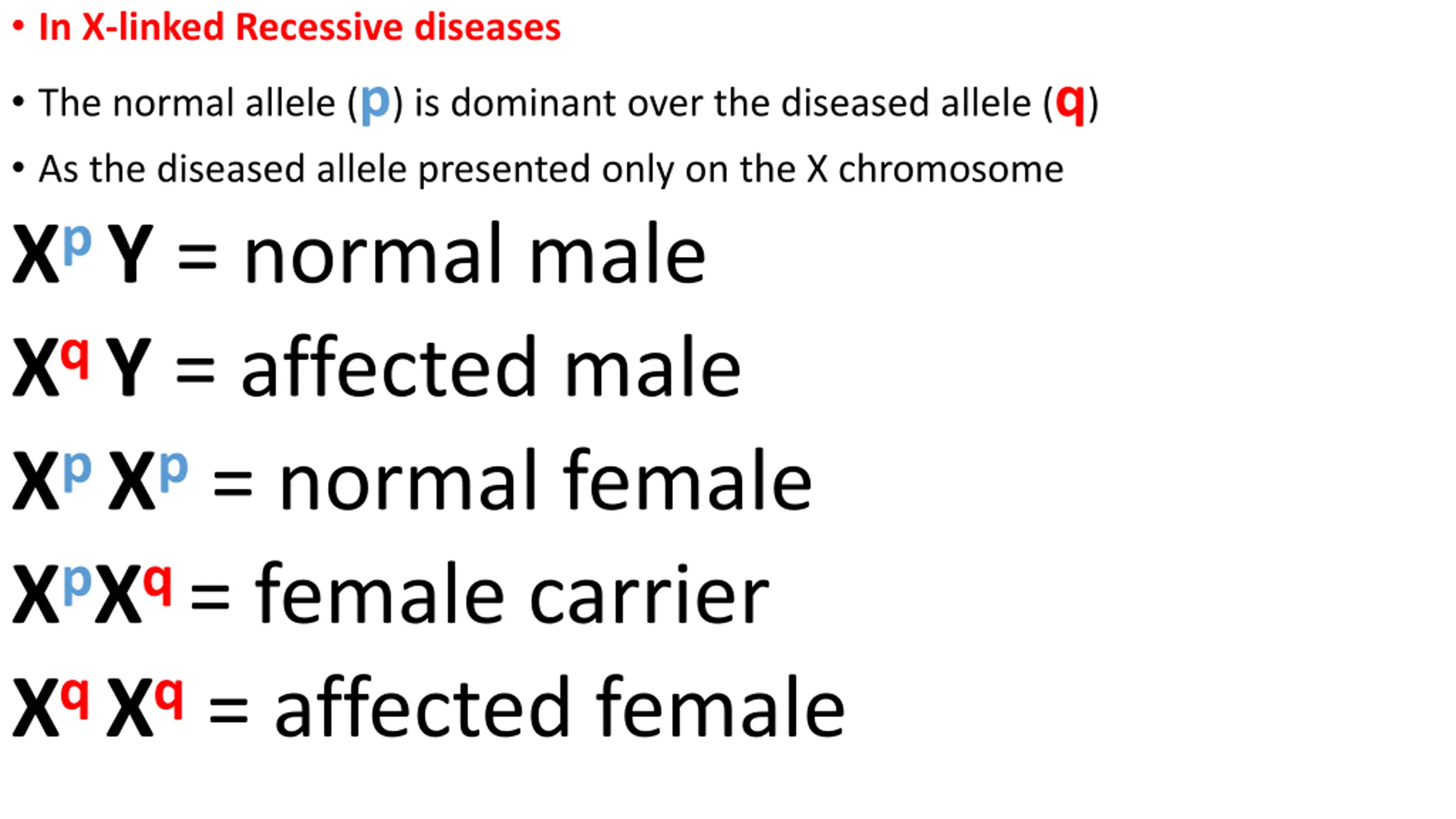

InX-linked Recessive diseases The normal allele (p) is dominant over the diseased allele (q) As the diseased allele presented only on the X chromosome Xp Y = normal male Xq Y = affected male Xp Xp= normal female XpXq = female carrier Xq Xq= affected female

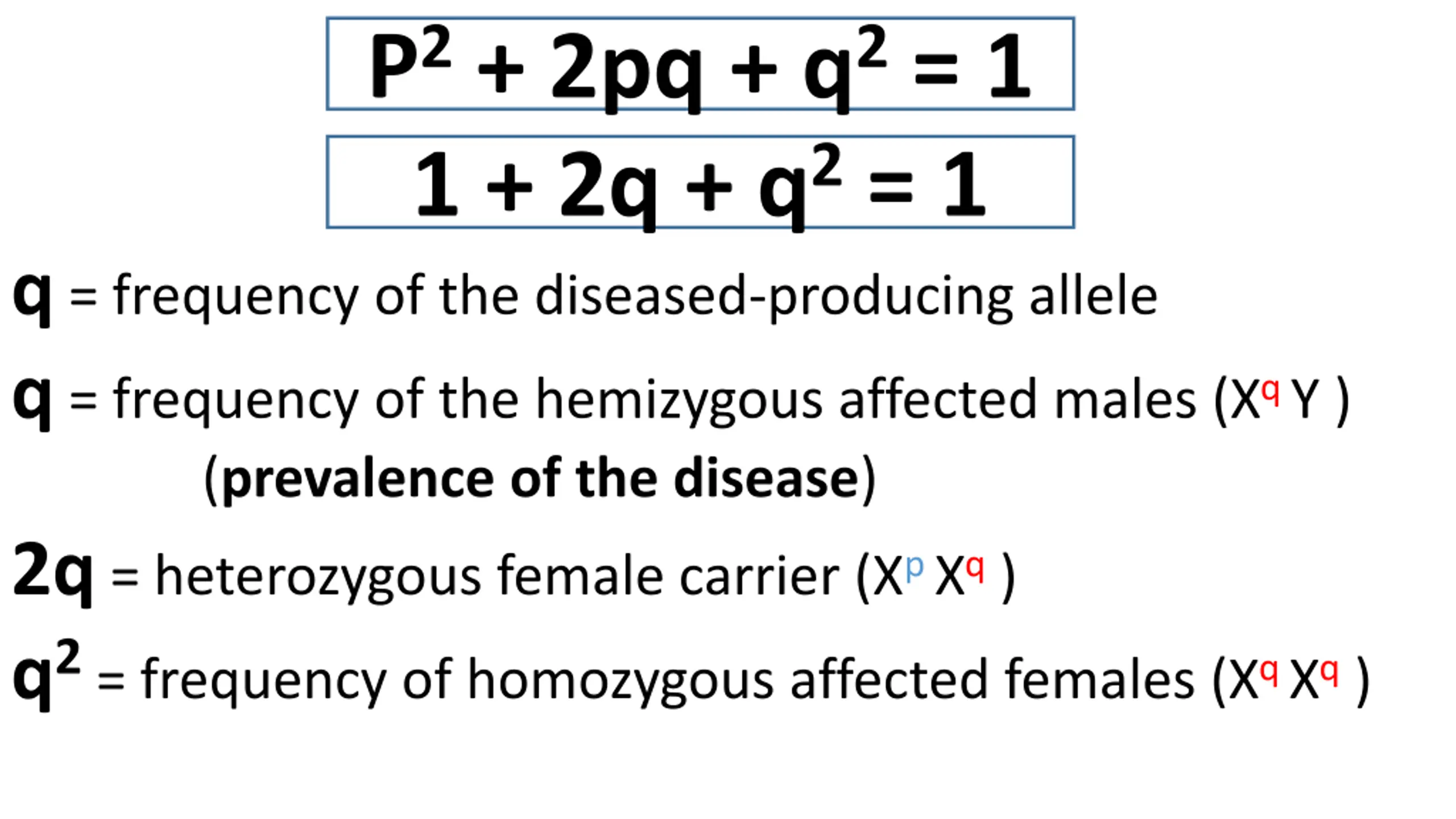

P2 + 2pq + q2 = 1 1 + 2q + q2 = 1 q = frequency of the diseased-producing allele q = frequency of the hemizygous affected males (Xq Y ) (prevalence of the disease) 2q = heterozygous female carrier (Xp Xq ) q2 = frequency of homozygous affected females (Xq Xq )

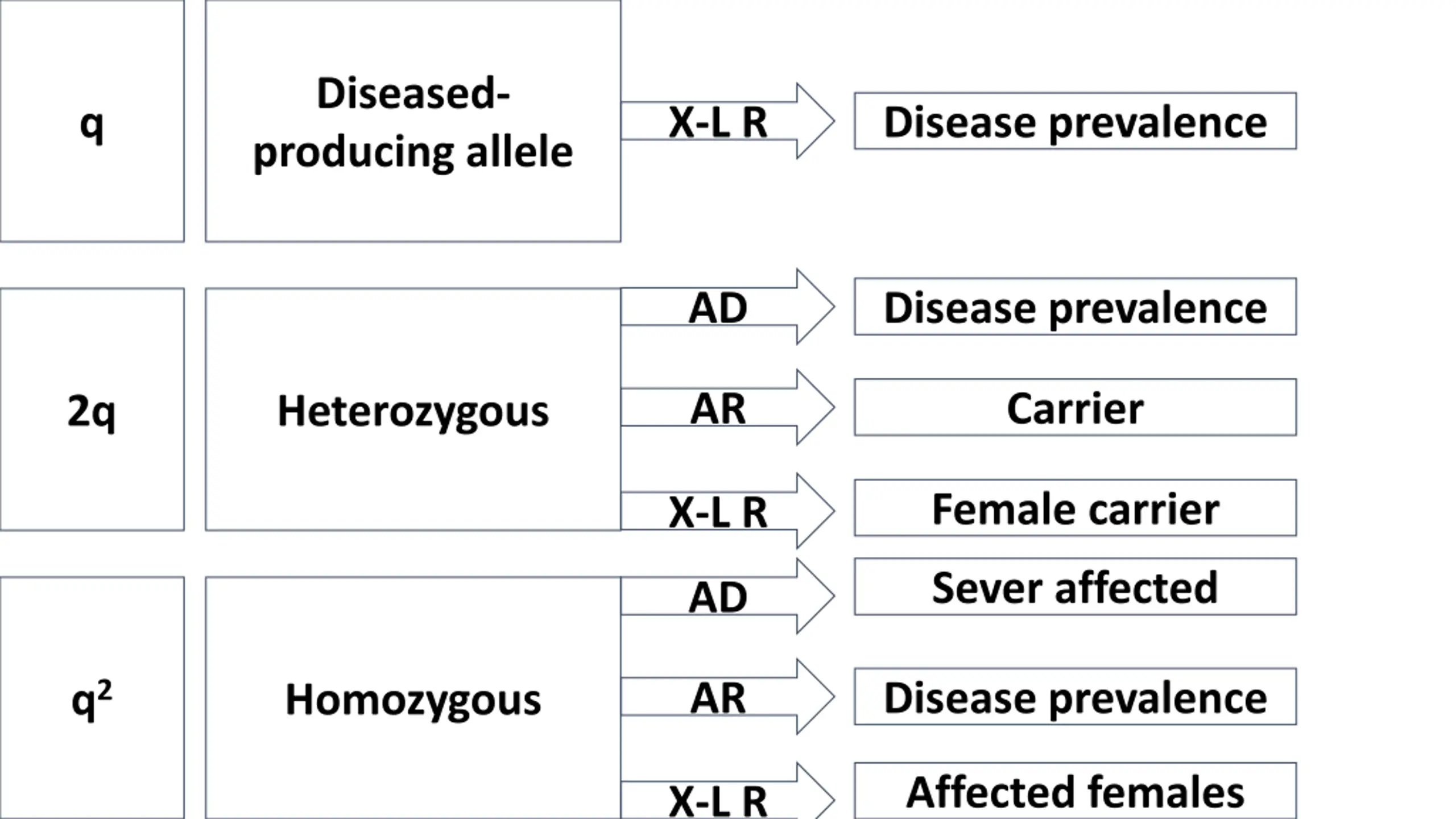

Diseased- producing allele q X-L R Disease prevalence AD Disease prevalence AR Carrier 2q Heterozygous Female carrier X-L R Sever affected AD q2 AR Disease prevalence Homozygous Affected females X-L R

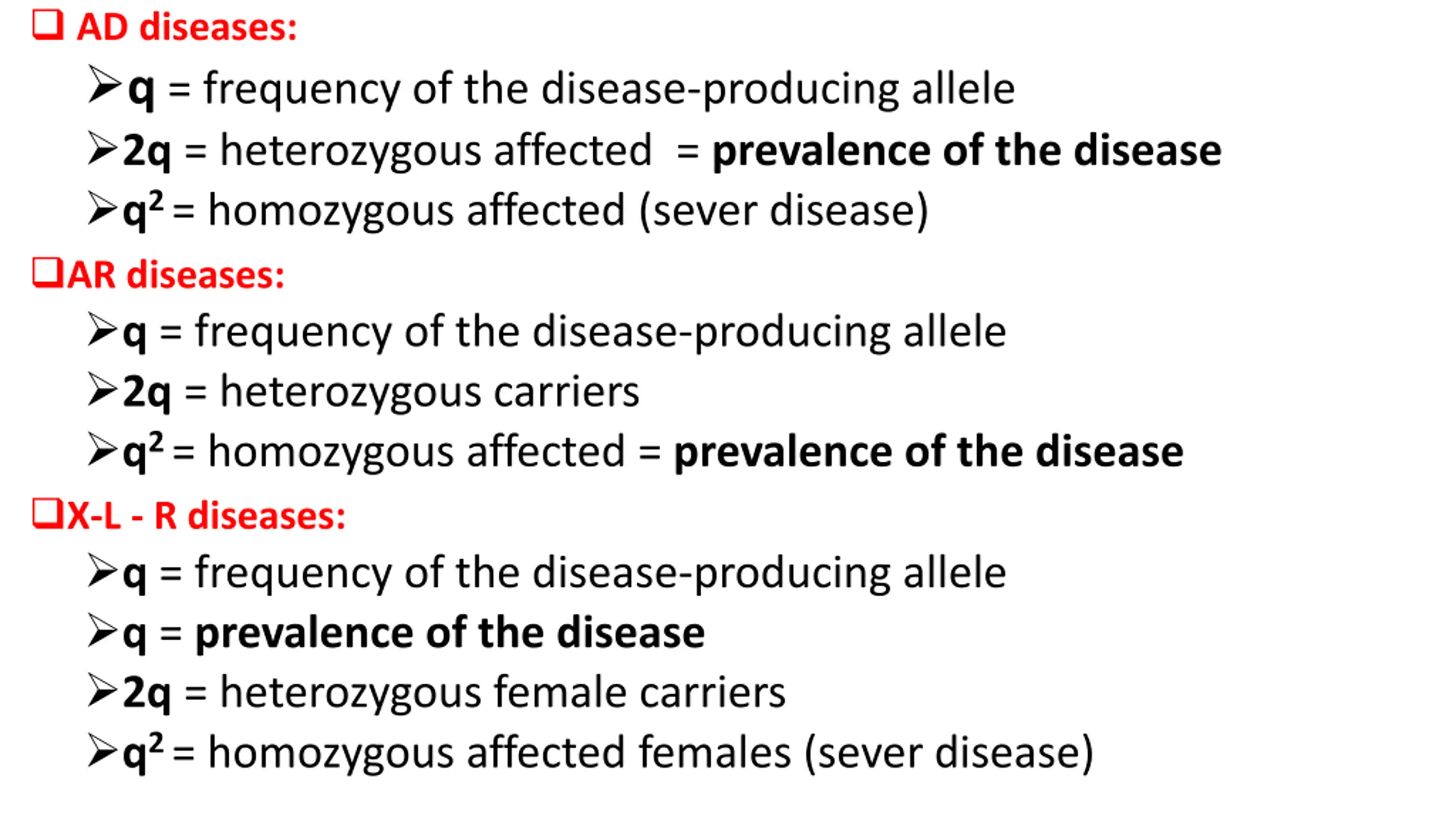

AD diseases: q= frequency of the disease-producing allele 2q = heterozygous affected = prevalence of the disease q2 = homozygous affected (sever disease) AR diseases: q = frequency of the disease-producing allele 2q = heterozygous carriers q2 = homozygous affected = prevalence of the disease X-L - R diseases: q = frequency of the disease-producing allele q = prevalence of the disease 2q = heterozygous female carriers q2 = homozygous affected females (sever disease)

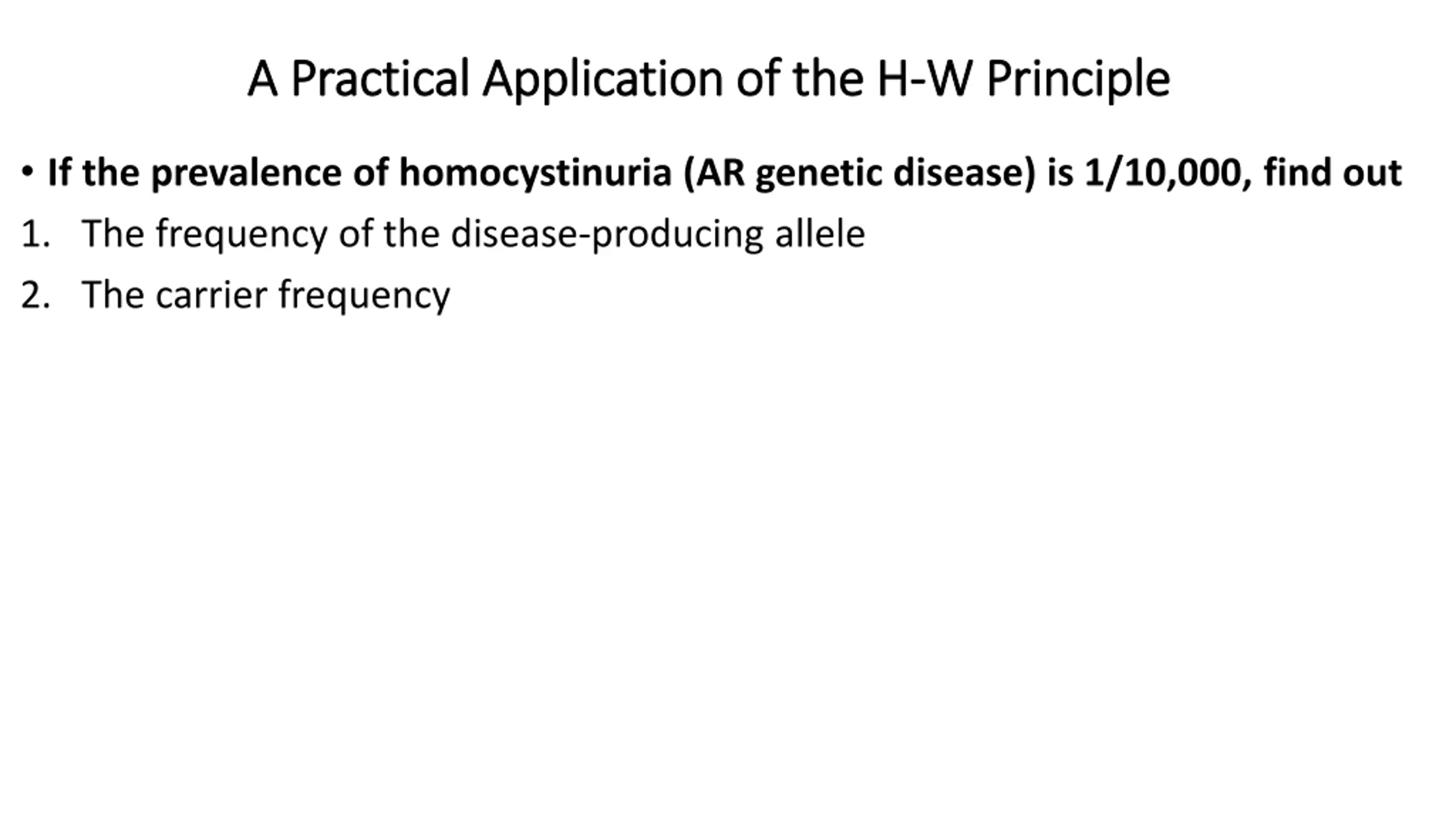

A Practical Application of the H A Practical Application of the H- -W Principle W Principle If the prevalence of homocystinuria (AR genetic disease) is 1/10,000, find out 1. The frequency of the disease-producing allele 2. The carrier frequency

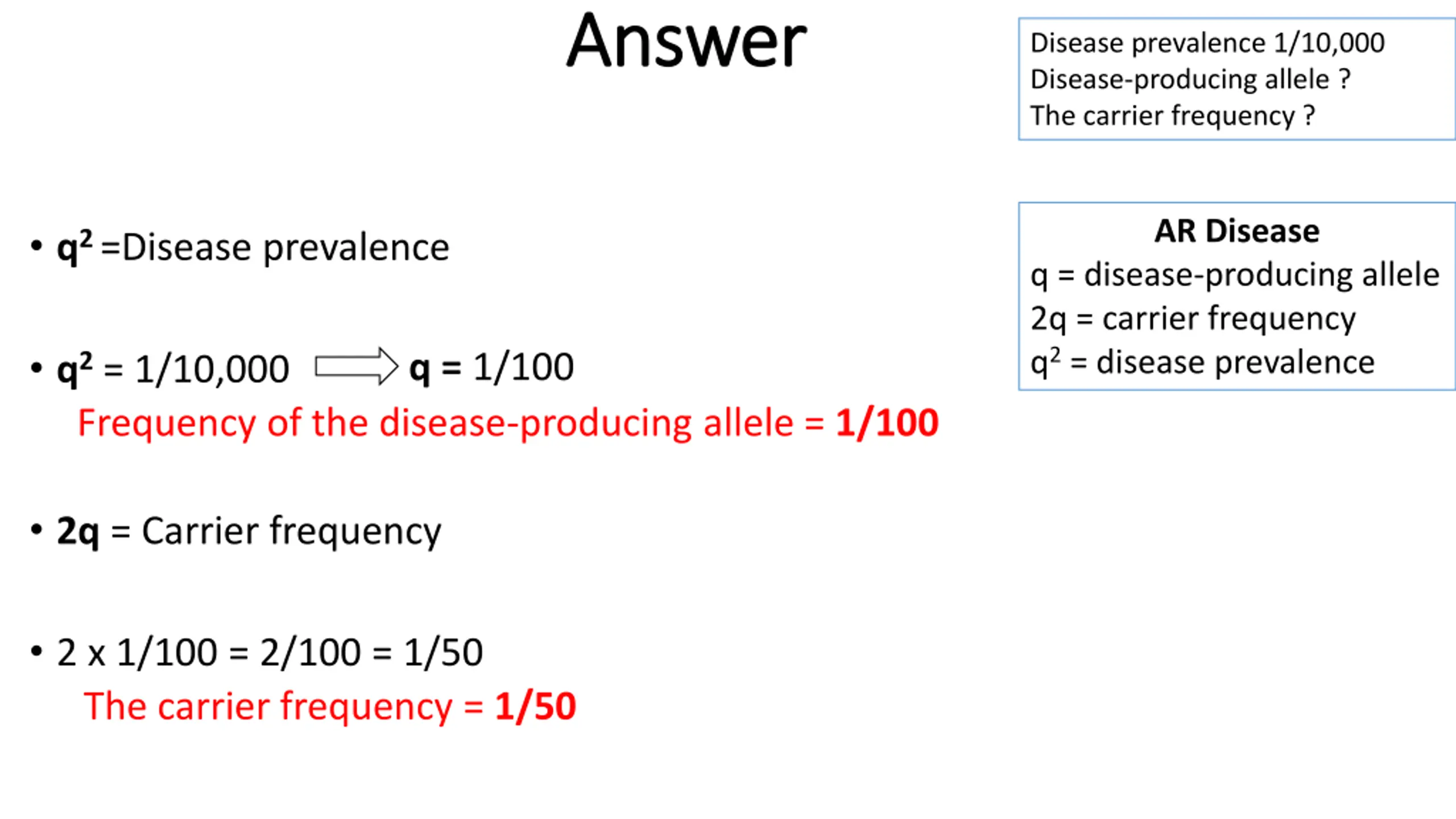

Answer Answer Disease prevalence 1/10,000 Disease-producing allele ? The carrier frequency ? AR Disease q2 =Disease prevalence q = disease-producing allele 2q = carrier frequency q2 = disease prevalence q2 = 1/10,000 Frequency of the disease-producing allele = 1/100 q = 1/100 2q = Carrier frequency 2 x 1/100 = 2/100 = 1/50 The carrier frequency = 1/50

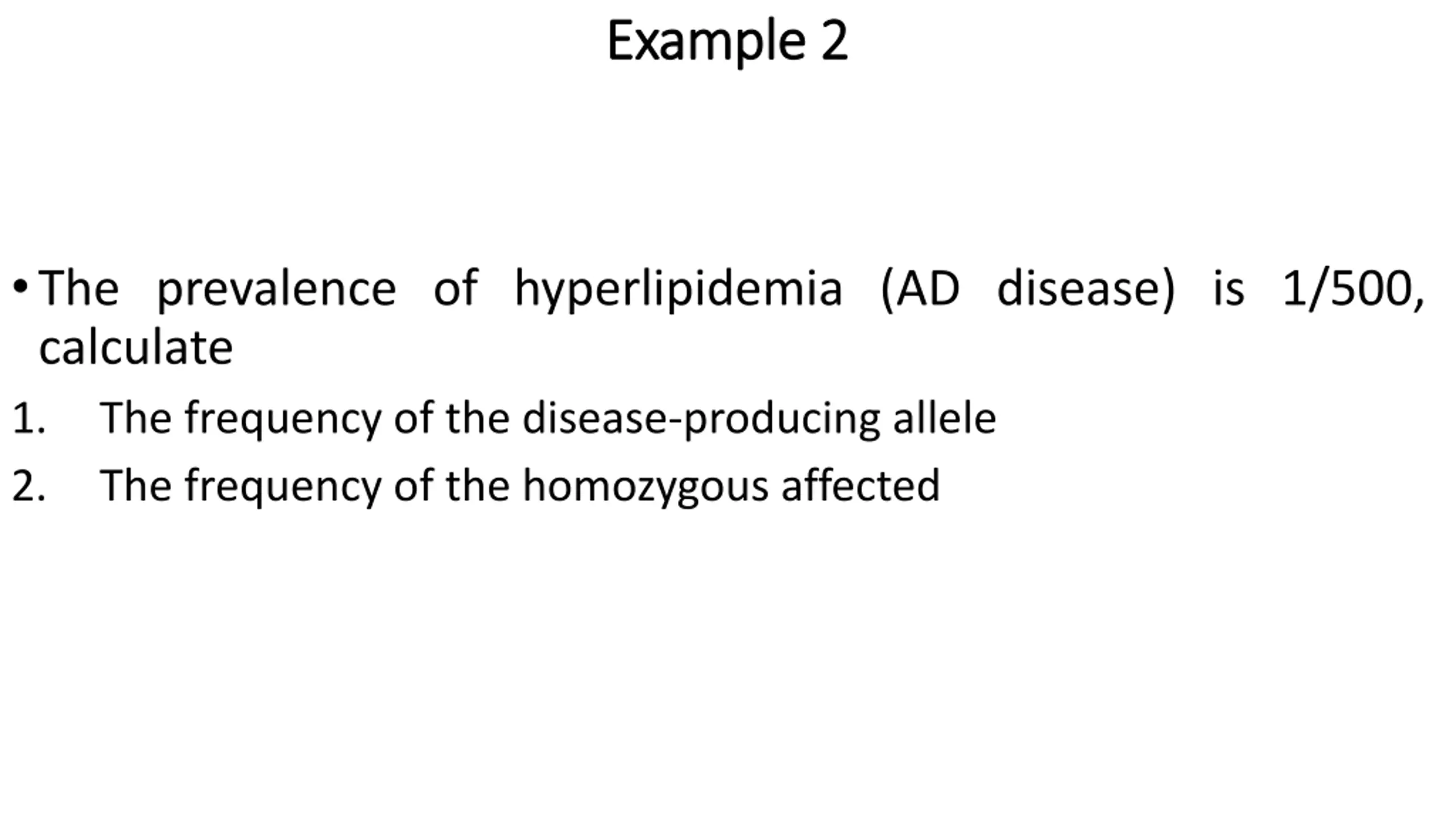

Example 2 Example 2 The prevalence of hyperlipidemia (AD disease) is 1/500, calculate 1. The frequency of the disease-producing allele 2. The frequency of the homozygous affected

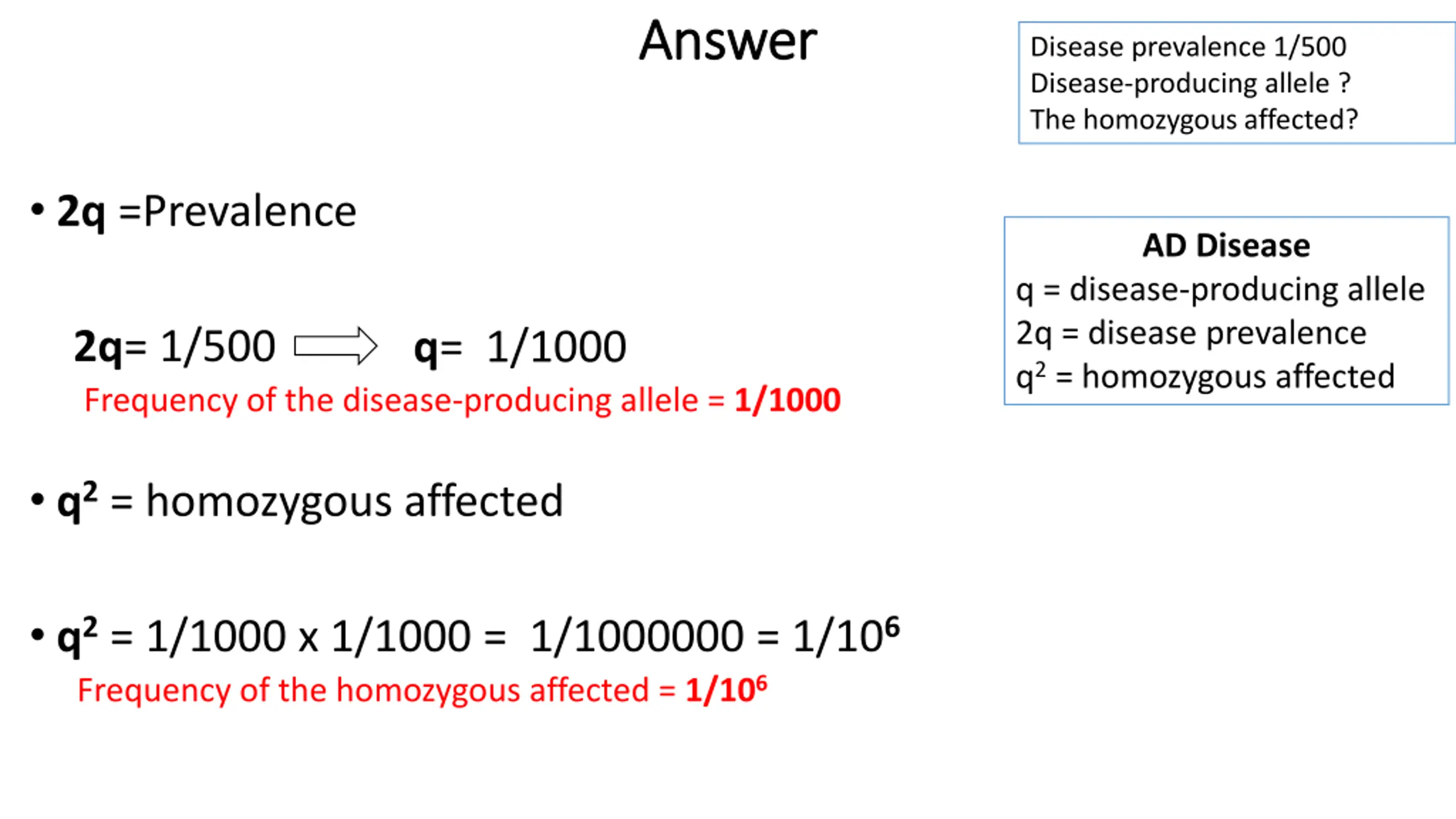

Answer Answer Disease prevalence 1/500 Disease-producing allele ? The homozygous affected? 2q =Prevalence AD Disease q = disease-producing allele 2q = disease prevalence q2 = homozygous affected 2q= 1/500 Frequency of the disease-producing allele = 1/1000 q= 1/1000 q2 = homozygous affected q2=1/1000 x 1/1000 = 1/1000000 = 1/106 Frequency of the homozygous affected = 1/106

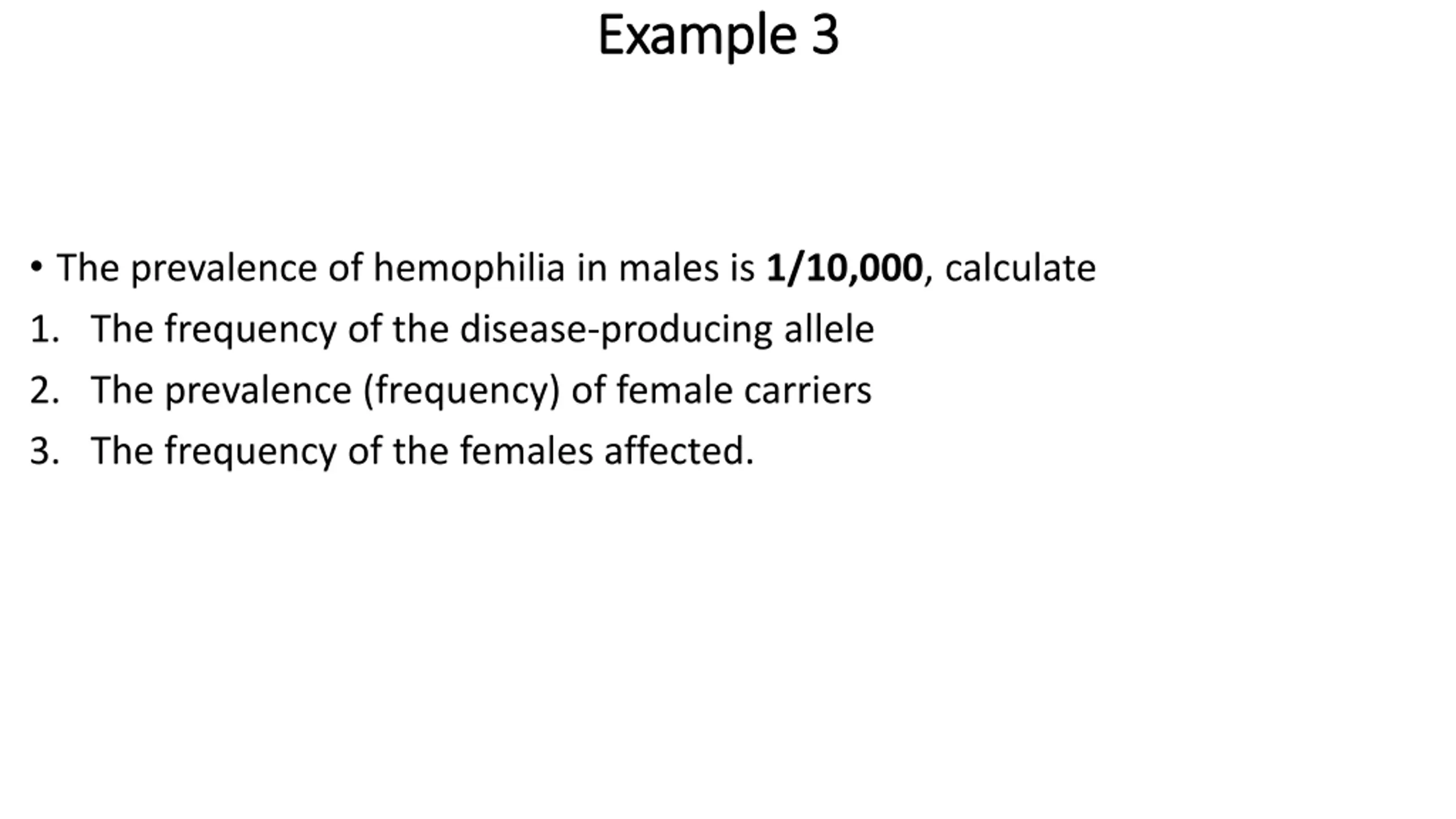

Example 3 Example 3 The prevalence of hemophilia in males is 1/10,000, calculate 1. The frequency of the disease-producing allele 2. The prevalence (frequency) of female carriers 3. The frequency of the females affected.

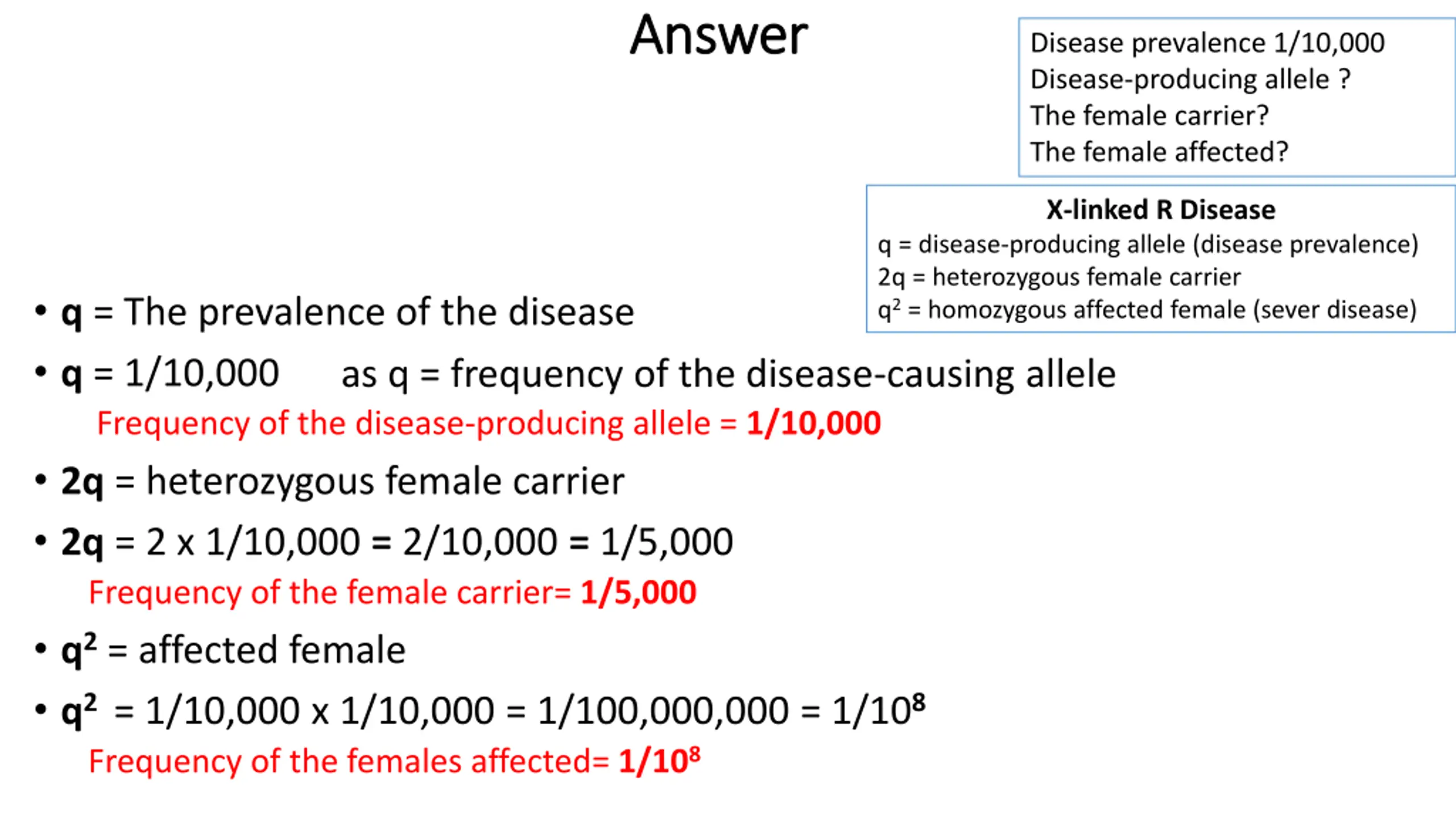

Answer Answer Disease prevalence 1/10,000 Disease-producing allele ? The female carrier? The female affected? X-linked R Disease q = disease-producing allele (disease prevalence) 2q = heterozygous female carrier q2 = homozygous affected female (sever disease) q = The prevalence of the disease q = 1/10,000 Frequency of the disease-producing allele = 1/10,000 2q = heterozygous female carrier 2q = 2 x 1/10,000 = 2/10,000 = 1/5,000 Frequency of the female carrier= 1/5,000 q2 = affected female q2 = 1/10,000 x 1/10,000 = 1/100,000,000 = 1/108 Frequency of the females affected= 1/108 as q = frequency of the disease-causing allele

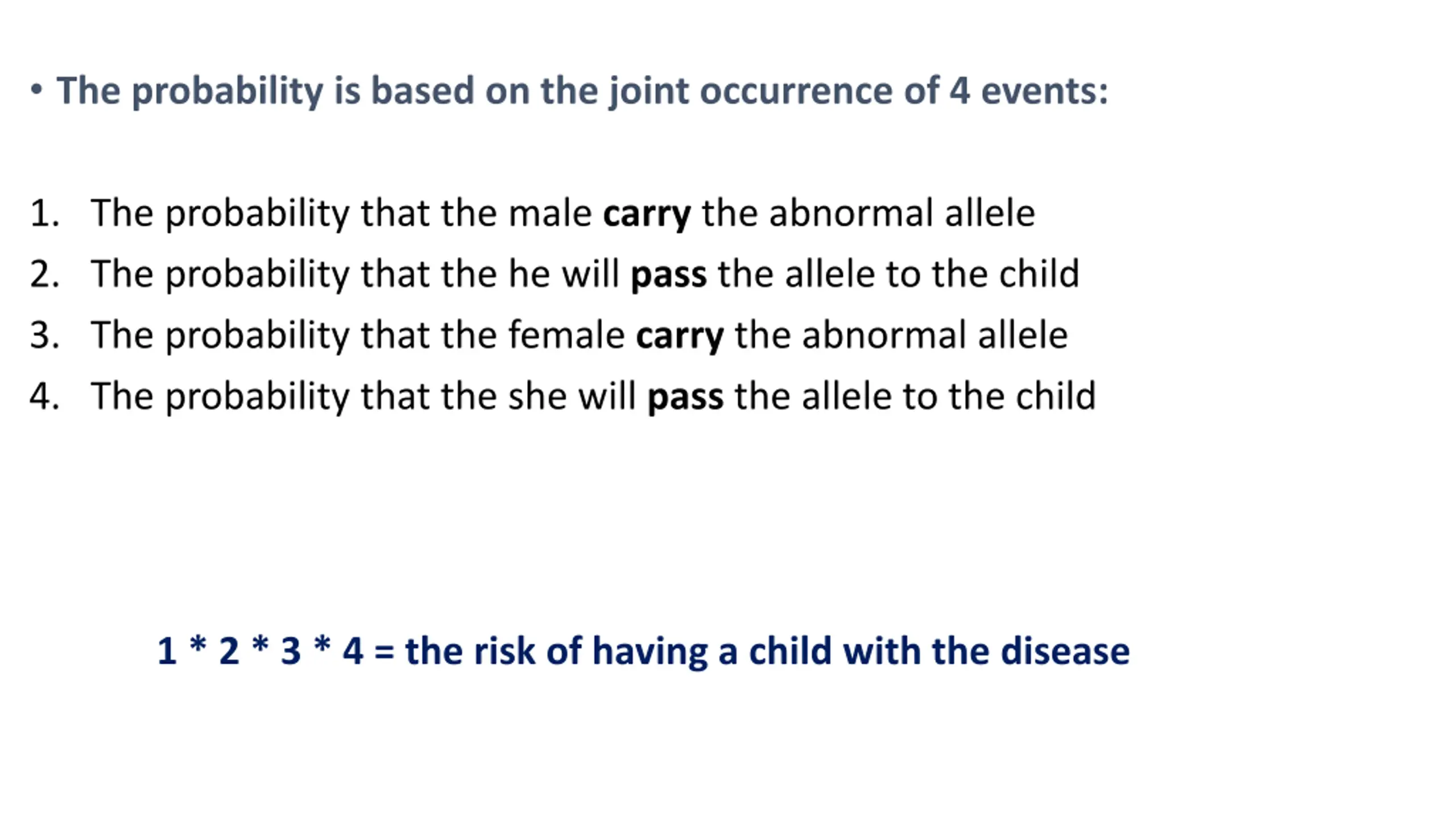

The probability is based on the joint occurrence of 4 events: 1. The probability that the male carry the abnormal allele 2. The probability that the he will pass the allele to the child 3. The probability that the female carry the abnormal allele 4. The probability that the she will pass the allele to the child 1 * 2 * 3 * 4 = the risk of having a child with the disease

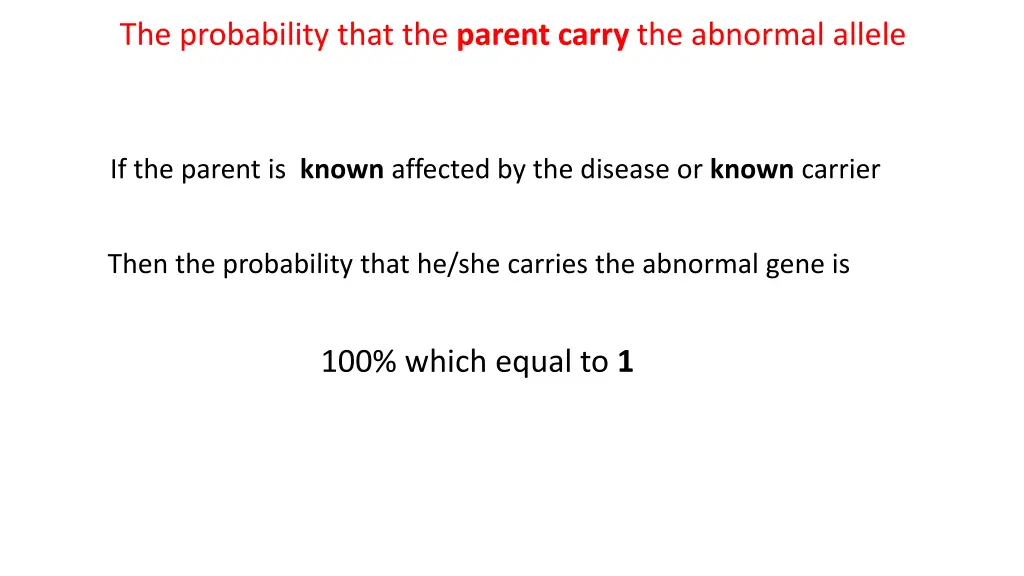

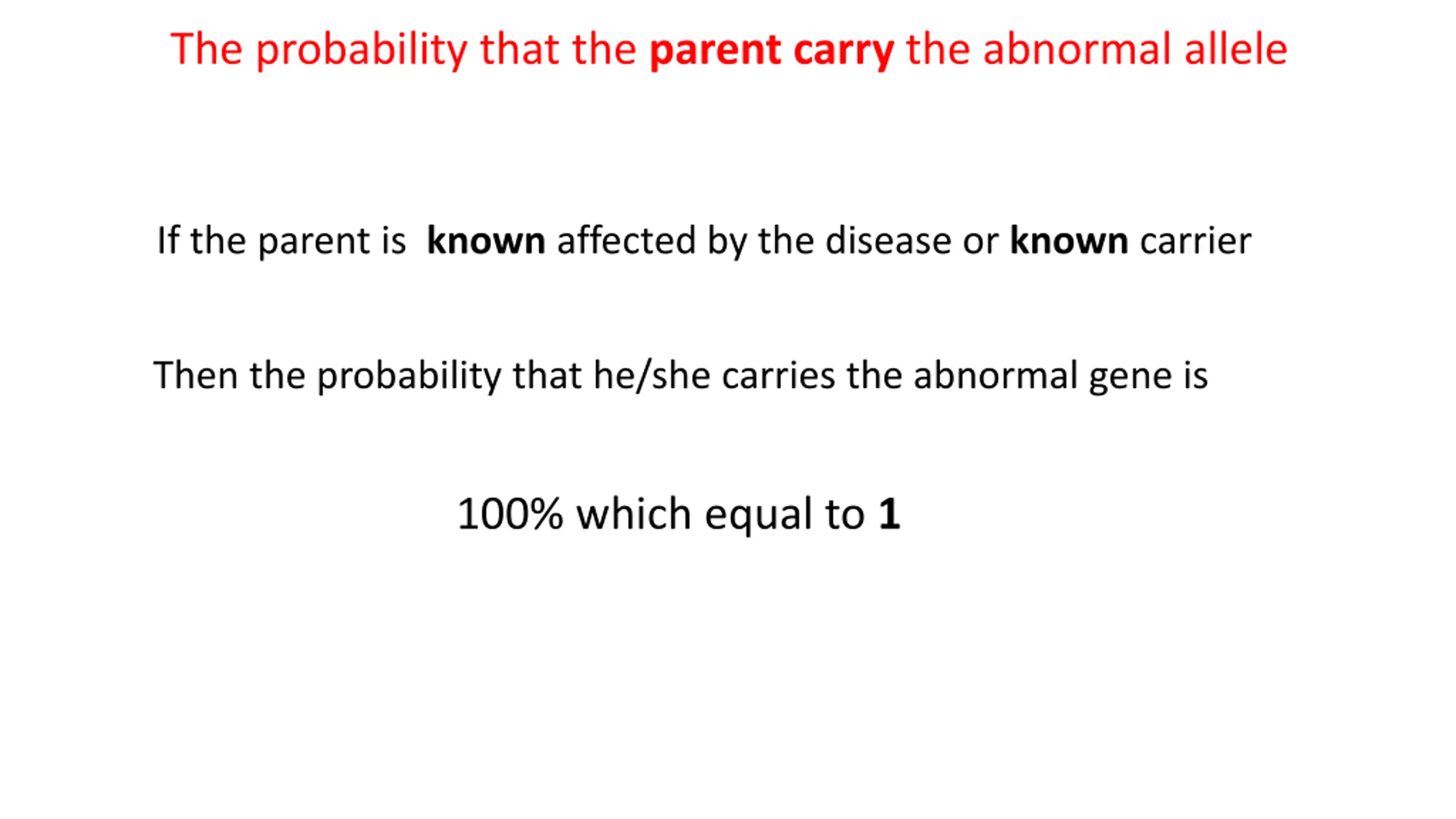

The probability that the parent carry the abnormal allele If the parent is known affected by the disease or known carrier Then the probability that he/she carries the abnormal gene is 100% which equal to 1

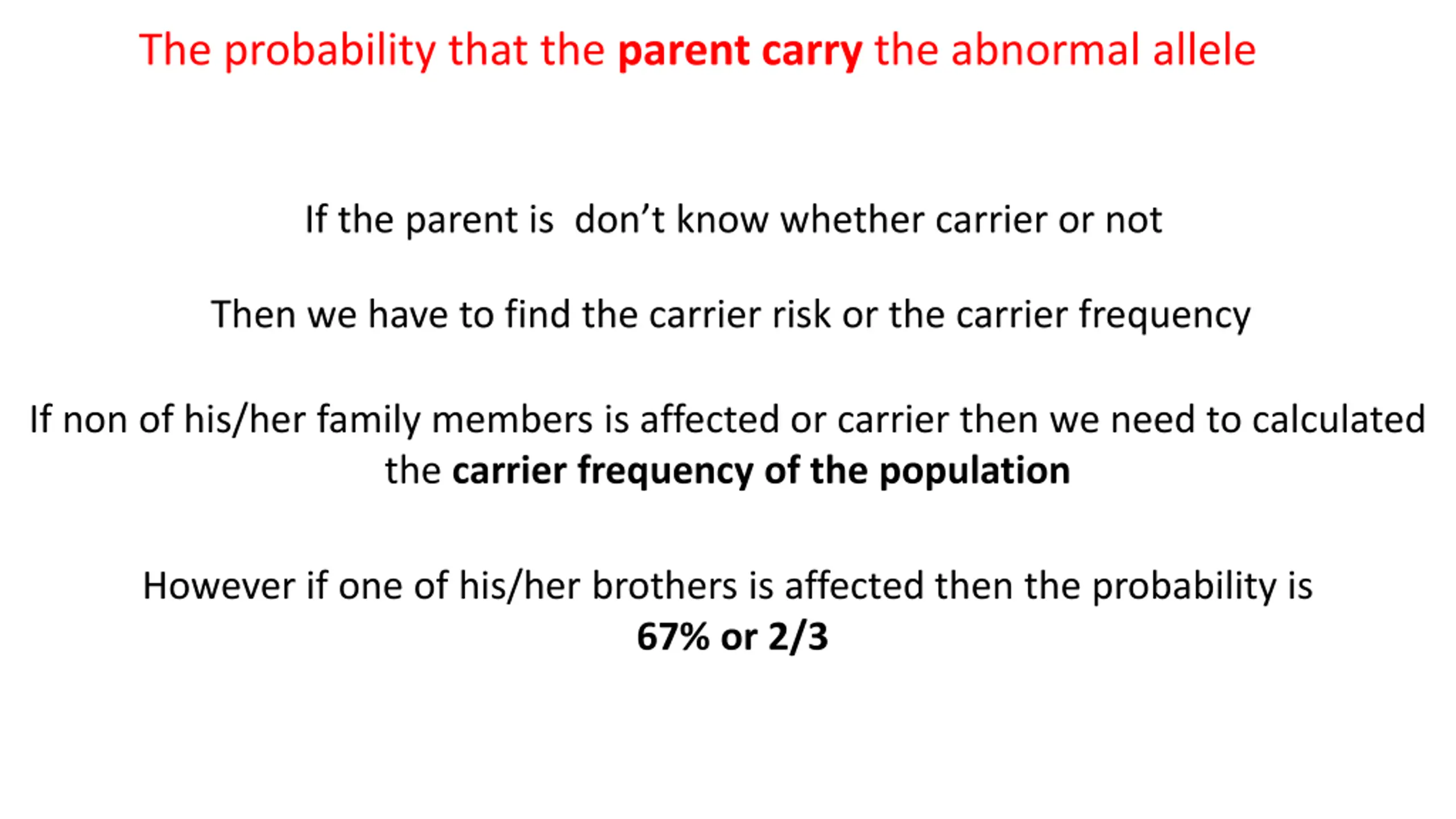

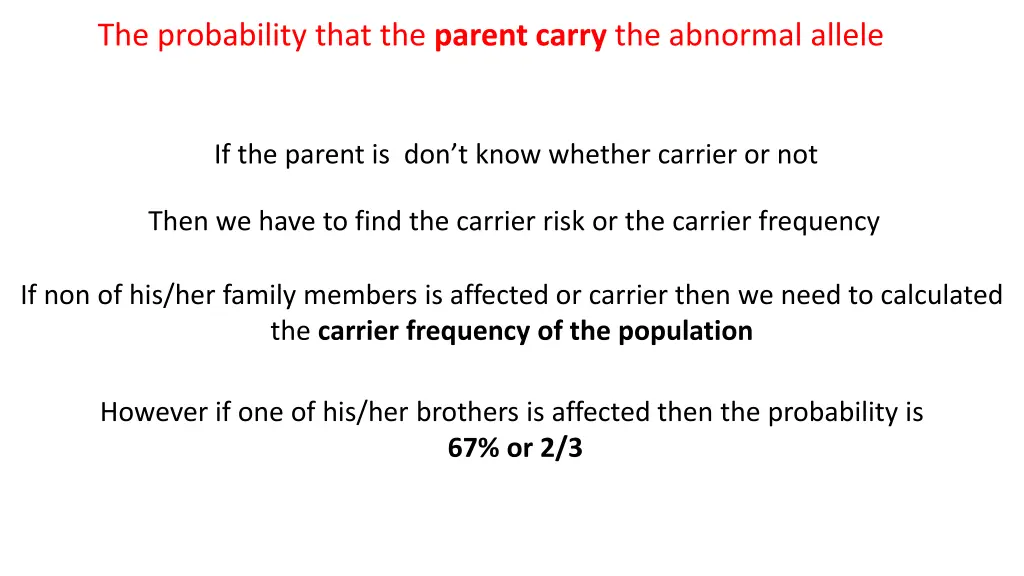

The probability that the parent carry the abnormal allele If the parent is don t know whether carrier or not Then we have to find the carrier risk or the carrier frequency If non of his/her family members is affected or carrier then we need to calculated the carrier frequency of the population However if one of his/her brothers is affected then the probability is 67% or 2/3

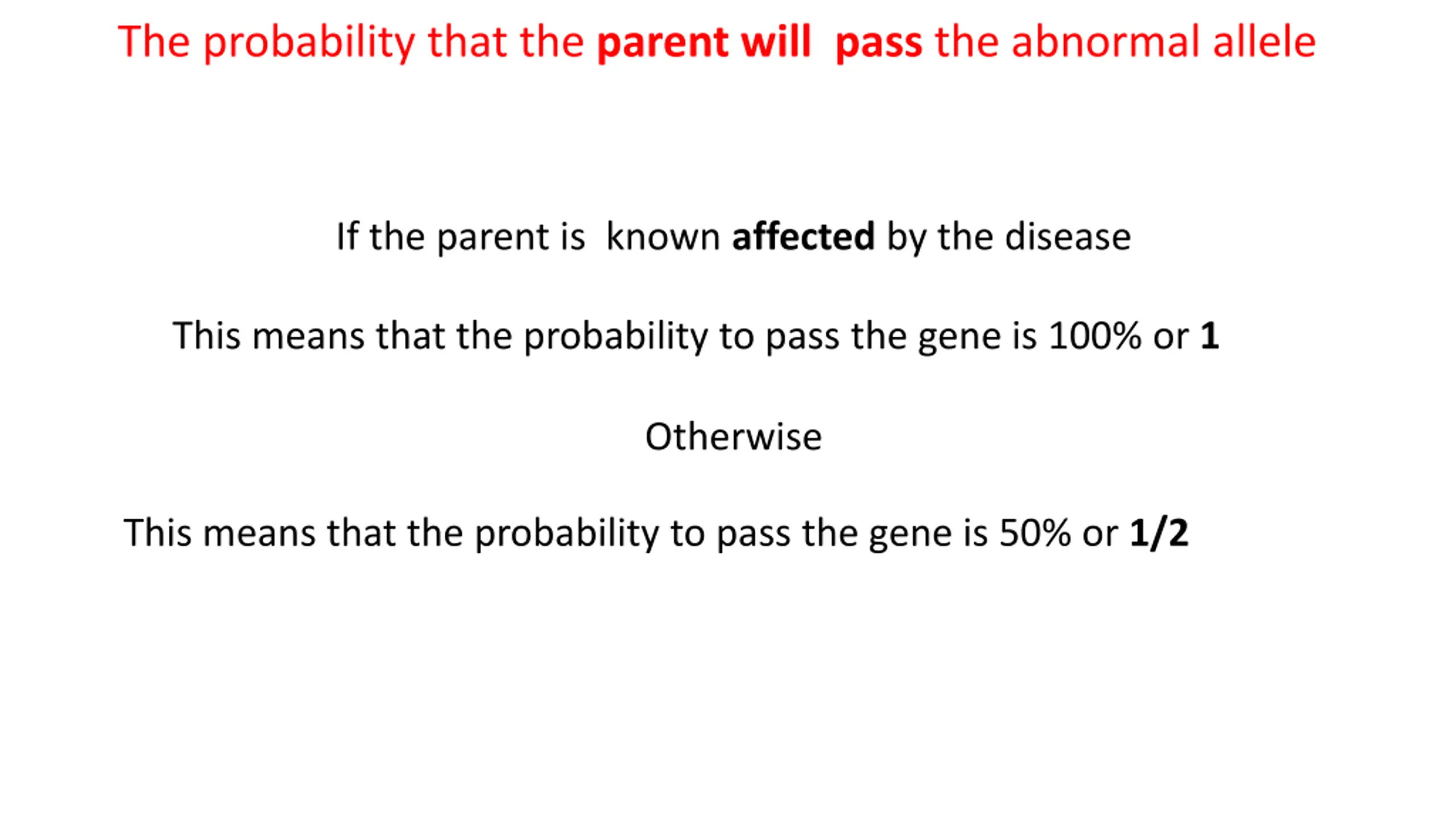

The probability that the parent will pass the abnormal allele If the parent is known affected by the disease This means that the probability to pass the gene is 100% or 1 Otherwise This means that the probability to pass the gene is 50% or 1/2

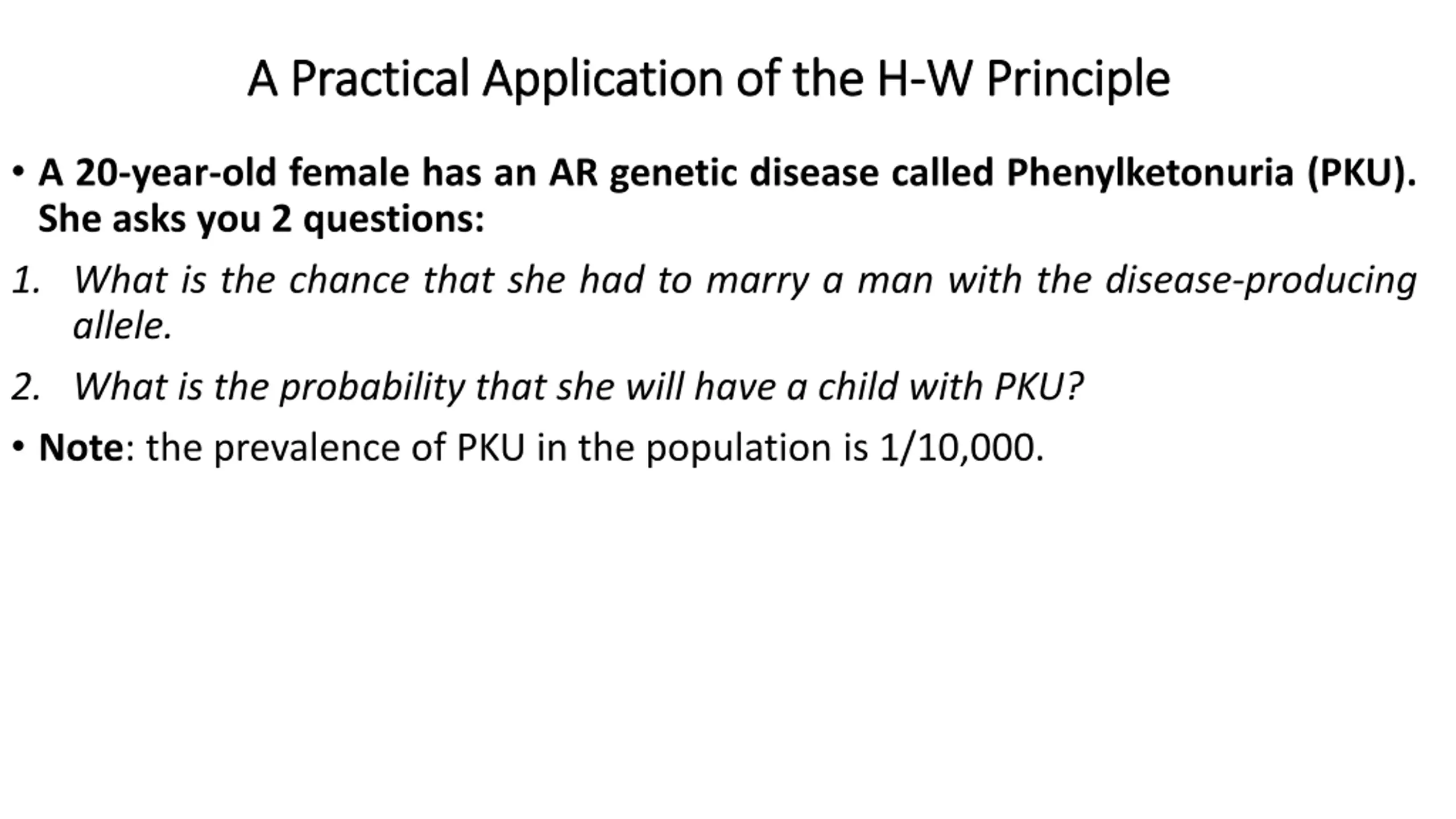

A Practical Application of the H A Practical Application of the H- -W Principle W Principle A 20-year-old female has an AR genetic disease called Phenylketonuria (PKU). She asks you 2 questions: 1. What is the chance that she had to marry a man with the disease-producing allele. 2. What is the probability that she will have a child with PKU? Note: the prevalence of PKU in the population is 1/10,000.

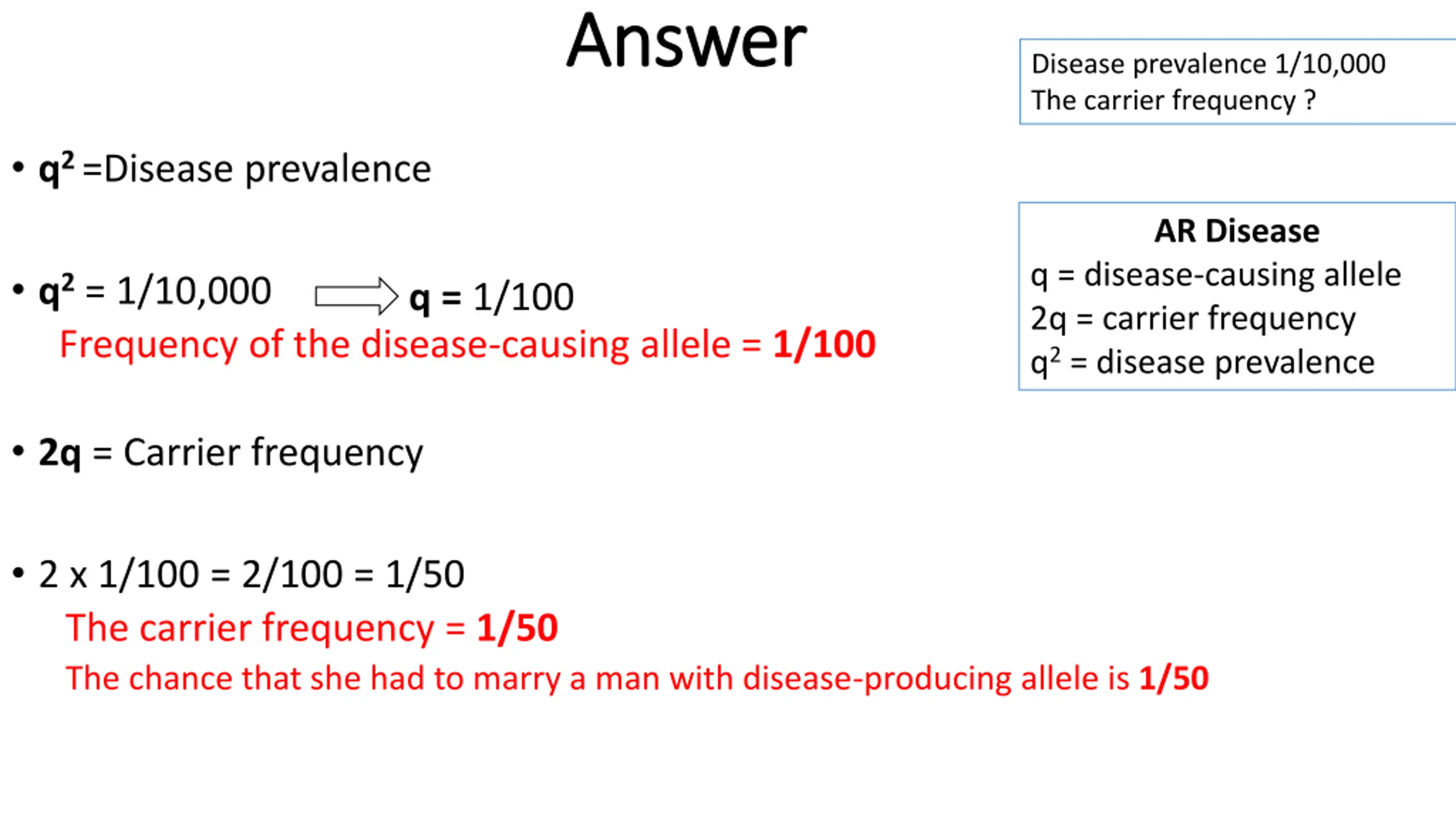

Answer Answer Disease prevalence 1/10,000 The carrier frequency ? q2 =Disease prevalence AR Disease q = disease-causing allele 2q = carrier frequency q2 = disease prevalence q2 = 1/10,000 Frequency of the disease-causing allele = 1/100 q = 1/100 2q = Carrier frequency 2 x 1/100 = 2/100 = 1/50 The carrier frequency = 1/50 The chance that she had to marry a man with disease-producing allele is 1/50

The answer to the second question is based on the joint occurrence of 4 events: 1. The probability that the female carries the abnormal allele is 2. The probability that the she will passes her abnormal allele to the child is 3. The probability that the male carries the abnormal allele is 4. The probability that the he will passes his abnormal allele to the child is 1/2 as the disease is AR as he is carrier (1) as she is known affected 1 as the disease is AR as she is affected 1/50 as we calculate it before 1 * 1 * 1/50*1/2 = 1/100

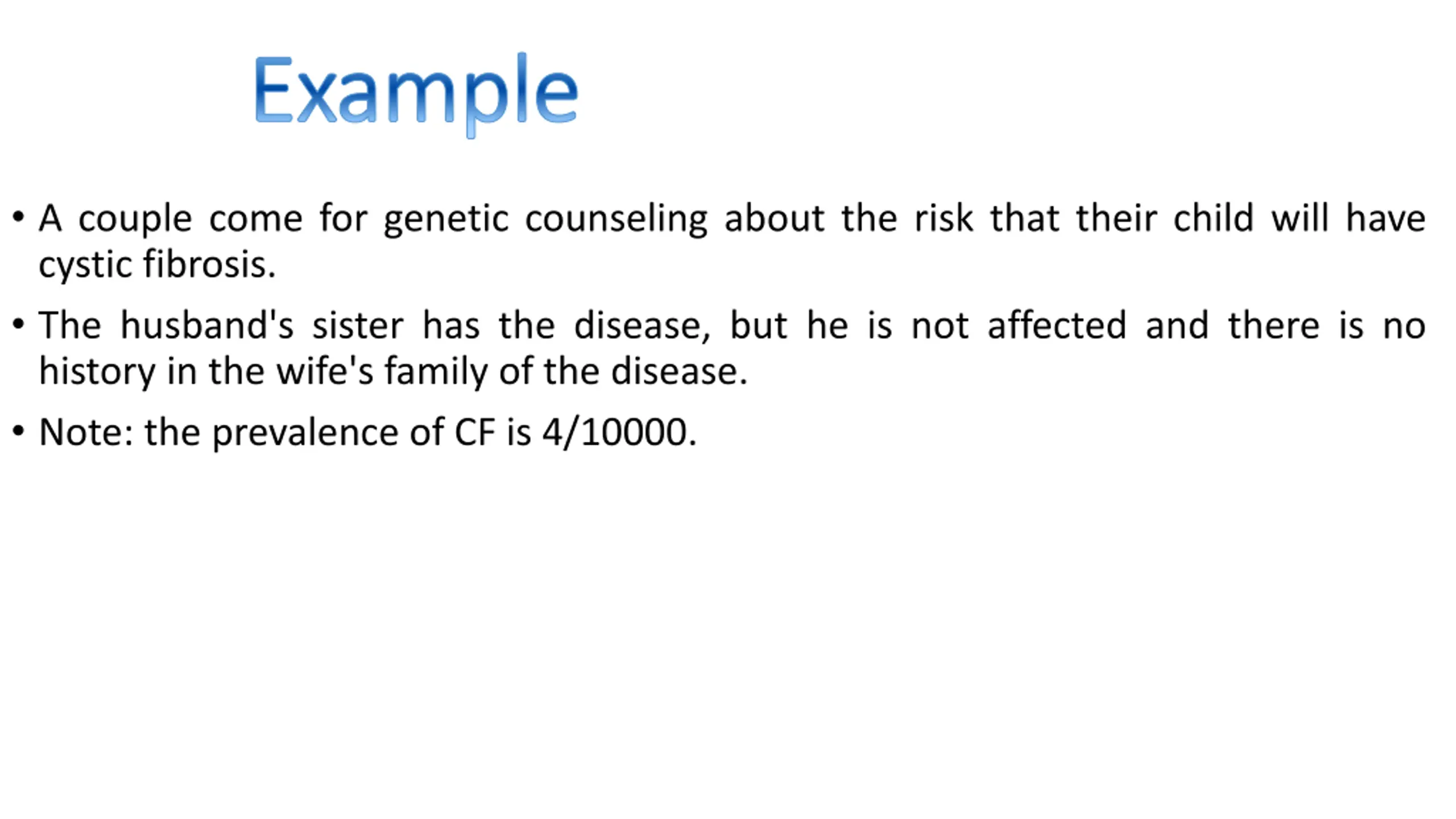

Example Example A couple come for genetic counseling about the risk that their child will have cystic fibrosis. The husband's sister has the disease, but he is not affected and there is no history in the wife's family of the disease. Note: the prevalence of CF is 4/10000.

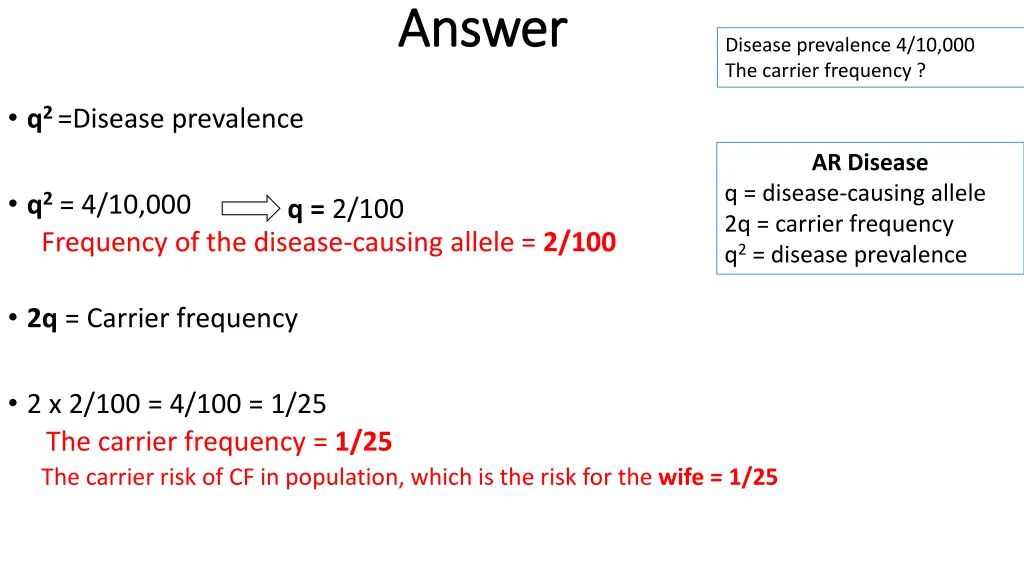

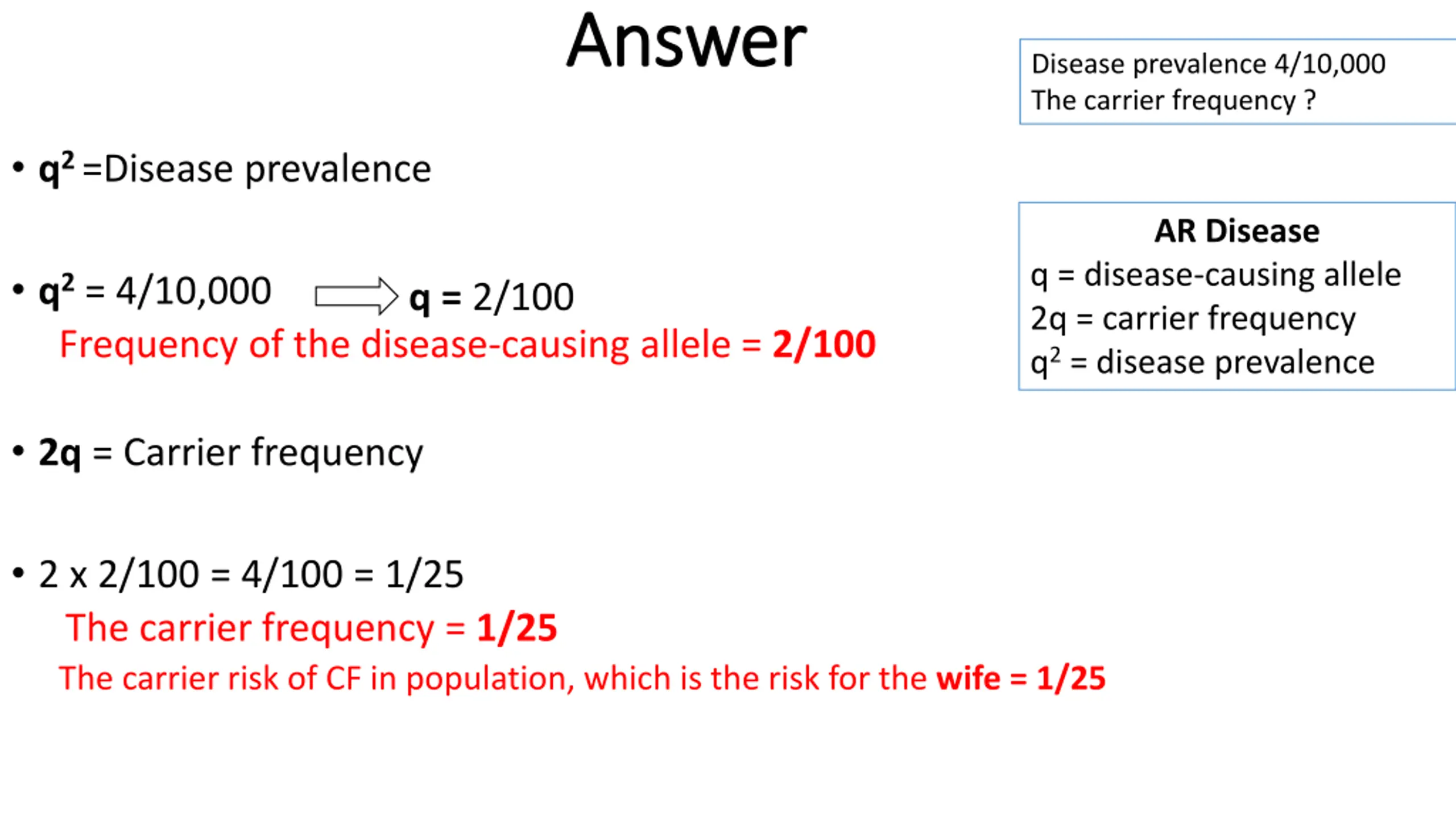

Answer Answer Disease prevalence 4/10,000 The carrier frequency ? q2 =Disease prevalence AR Disease q = disease-causing allele 2q = carrier frequency q2 = disease prevalence q2 = 4/10,000 Frequency of the disease-causing allele = 2/100 q = 2/100 2q = Carrier frequency 2 x 2/100 = 4/100 = 1/25 The carrier frequency = 1/25 The carrier risk of CF in population, which is the risk for the wife = 1/25

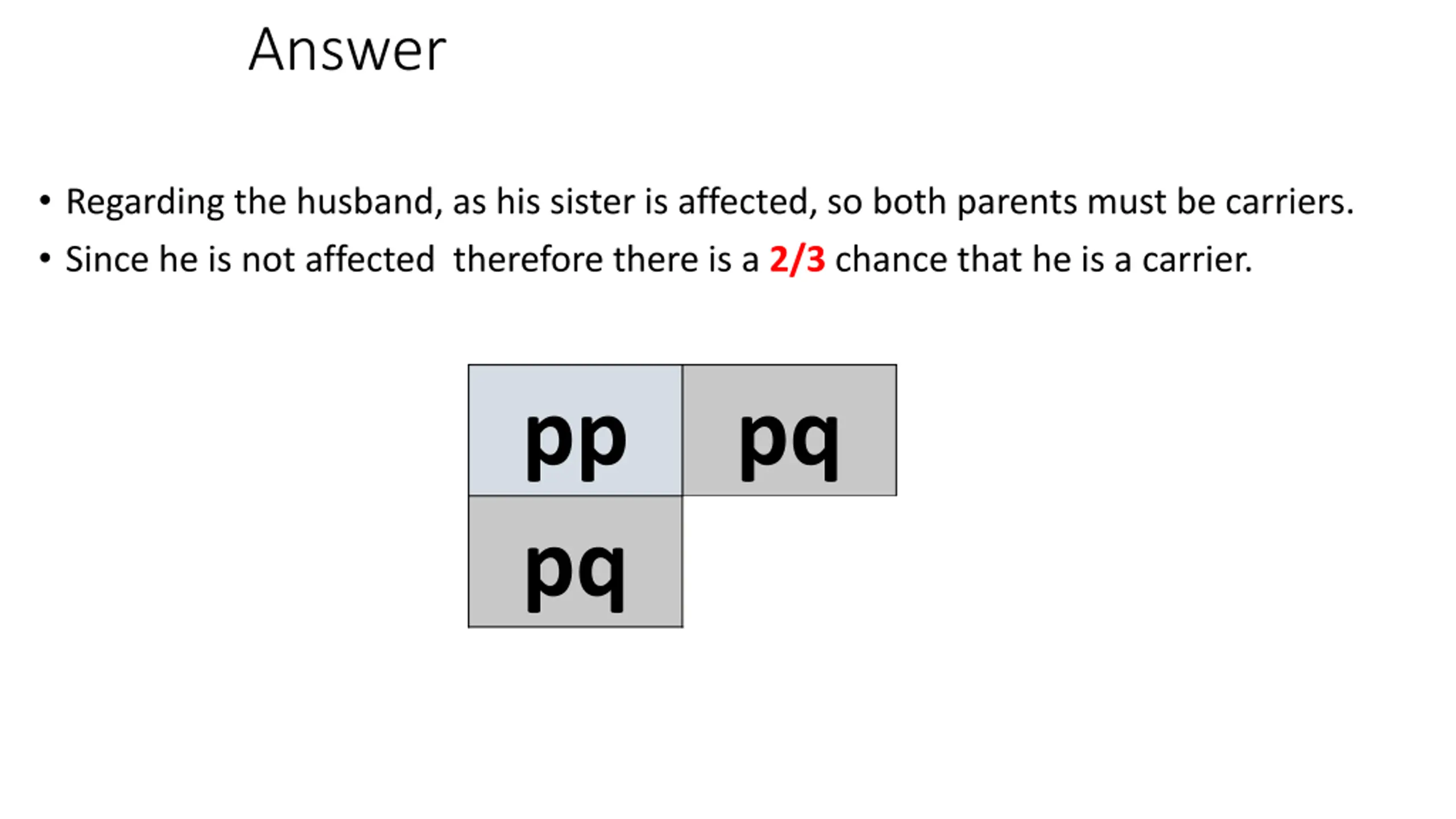

Answer Regarding the husband, as his sister is affected, so both parents must be carriers. Since he is not affected therefore there is a 2/3 chance that he is a carrier. pp pq pq qq

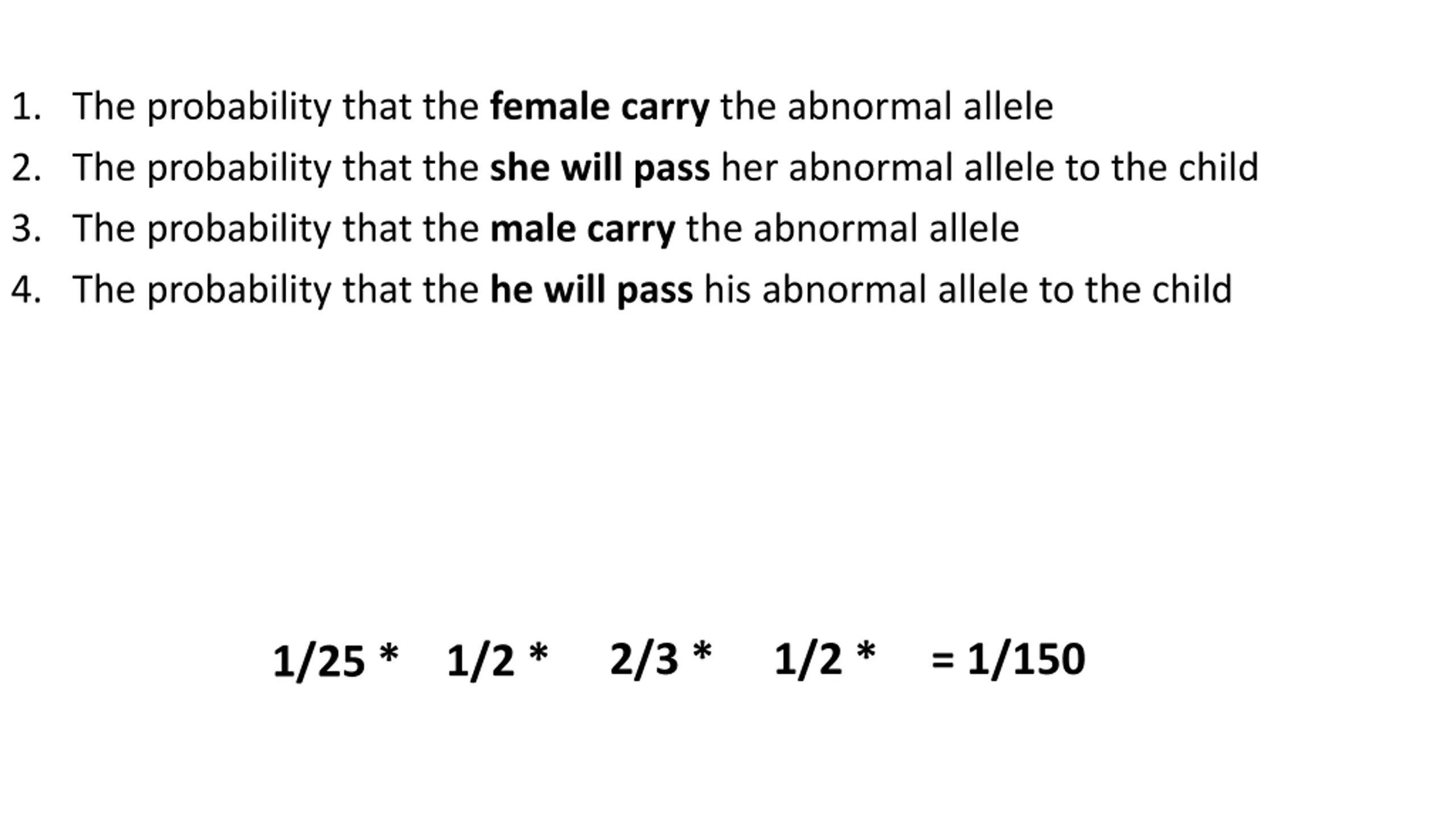

1. The probability that the female carry the abnormal allele 2. The probability that the she will pass her abnormal allele to the child 3. The probability that the male carry the abnormal allele 4. The probability that the he will pass his abnormal allele to the child 2/3 * 1/2 * = 1/150 1/2 * 1/25 *

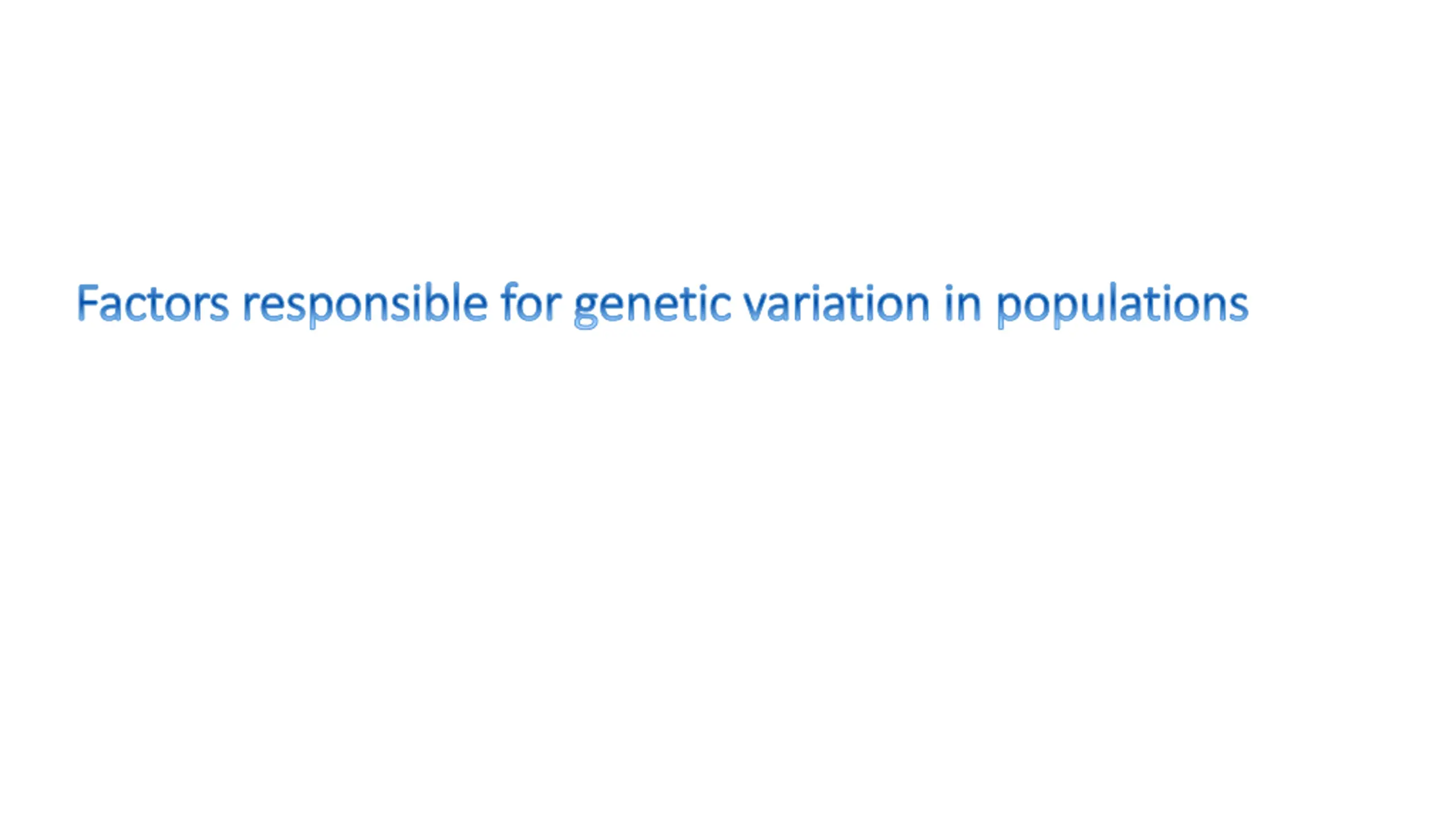

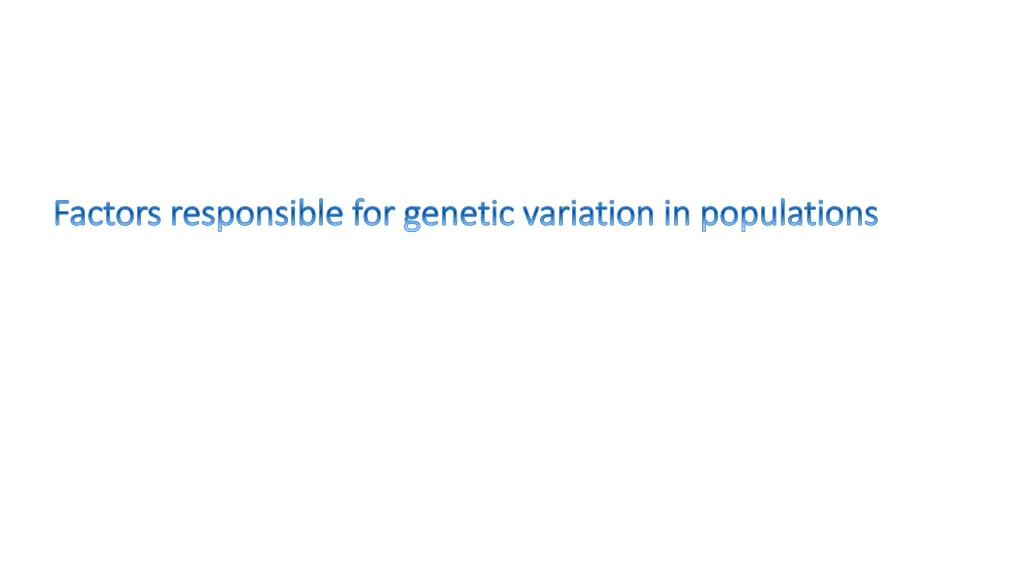

Factors responsible for genetic variation in populations Factors responsible for genetic variation in populations

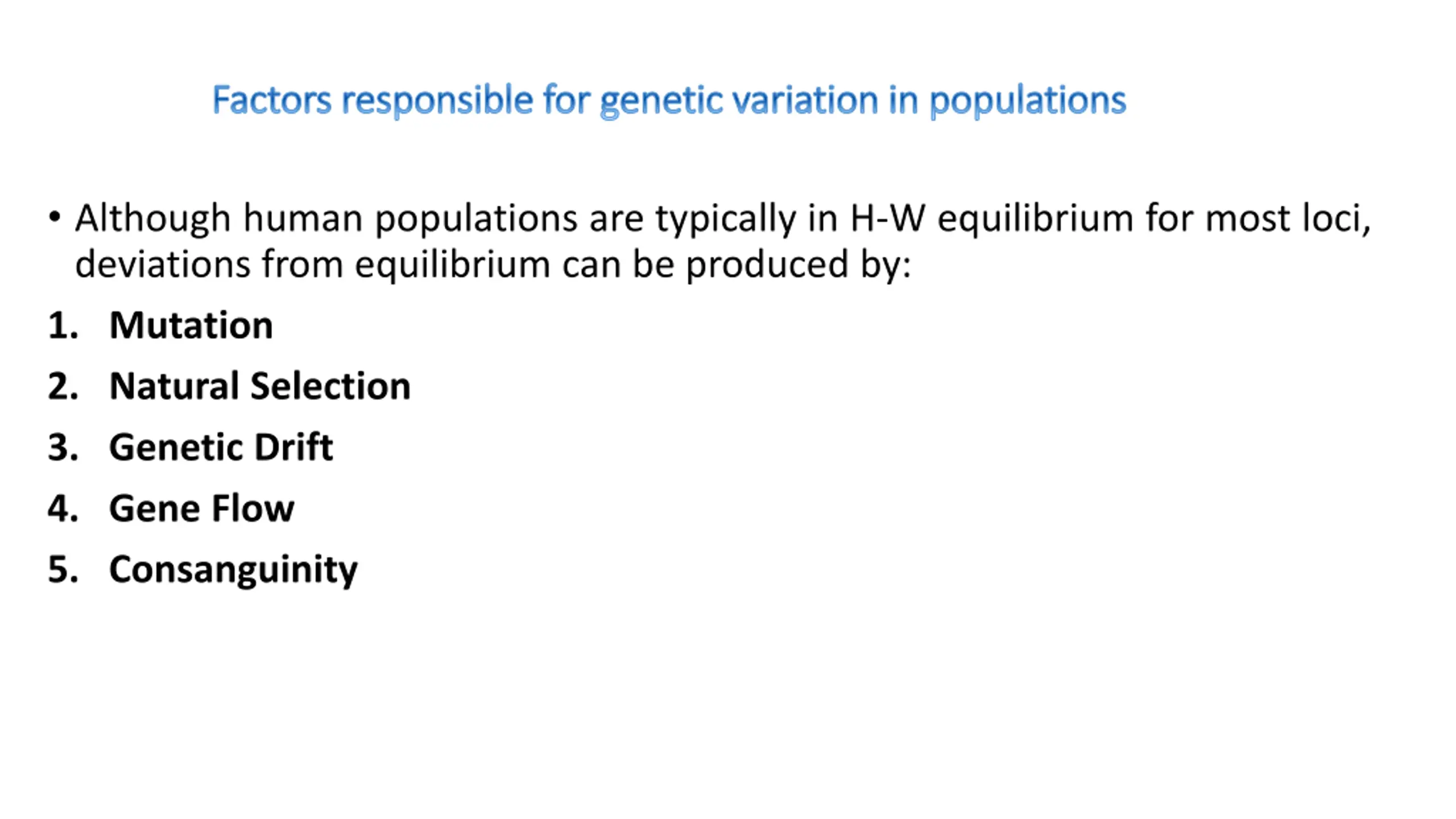

Factors responsible for genetic variation in populations Factors responsible for genetic variation in populations Although human populations are typically in H-W equilibrium for most loci, deviations from equilibrium can be produced by: 1. Mutation 2. Natural Selection 3. Genetic Drift 4. Gene Flow 5. Consanguinity

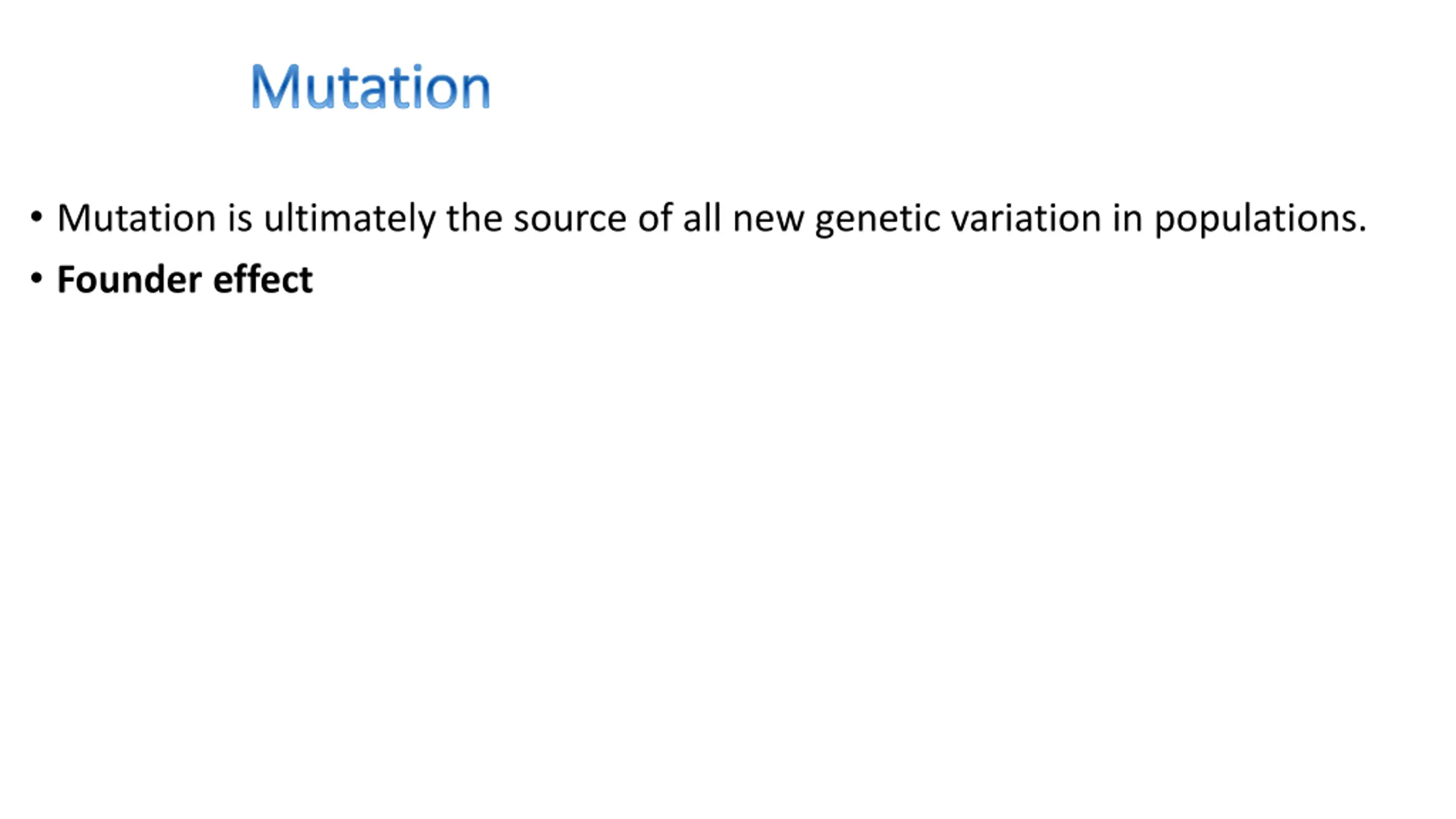

Mutation Mutation Mutation is ultimately the source of all new genetic variation in populations. Founder effect

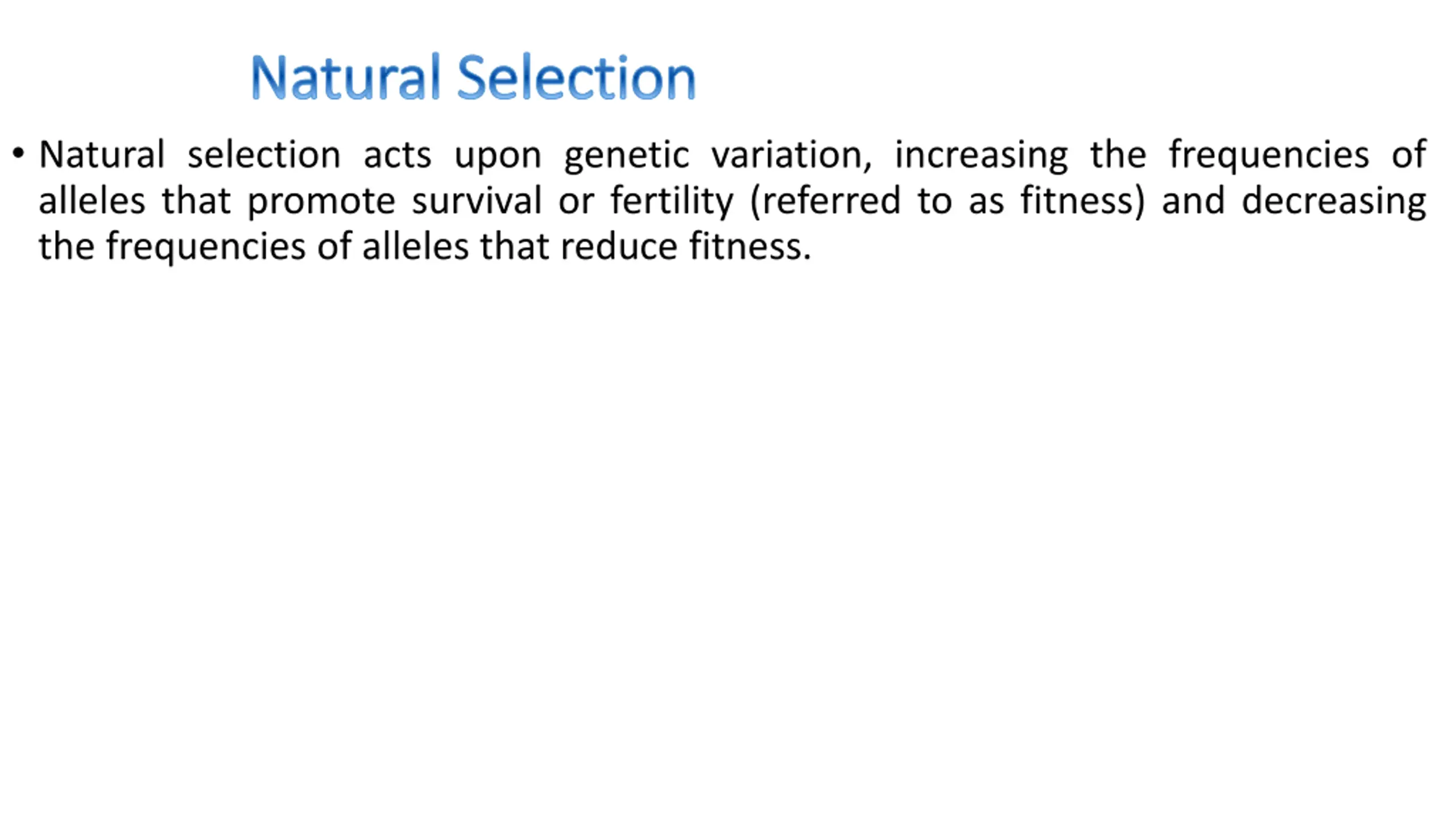

Natural Natural Selection Selection Natural selection acts upon genetic variation, increasing the frequencies of alleles that promote survival or fertility (referred to as fitness) and decreasing the frequencies of alleles that reduce fitness.

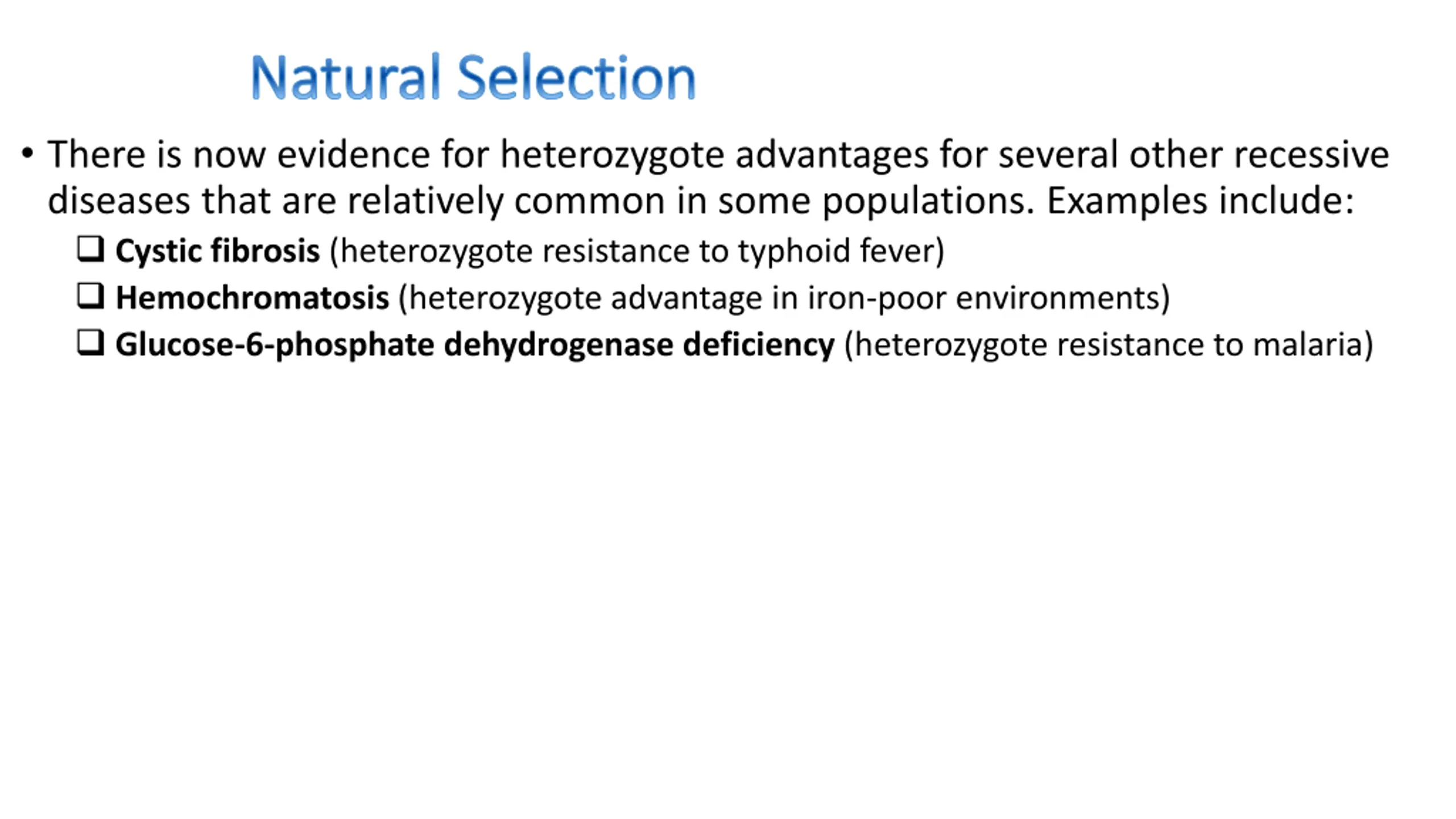

Natural Natural Selection Selection There is now evidence for heterozygote advantages for several other recessive diseases that are relatively common in some populations. Examples include: Cystic fibrosis (heterozygote resistance to typhoid fever) Hemochromatosis (heterozygote advantage in iron-poor environments) Glucose-6-phosphate dehydrogenase deficiency (heterozygote resistance to malaria)

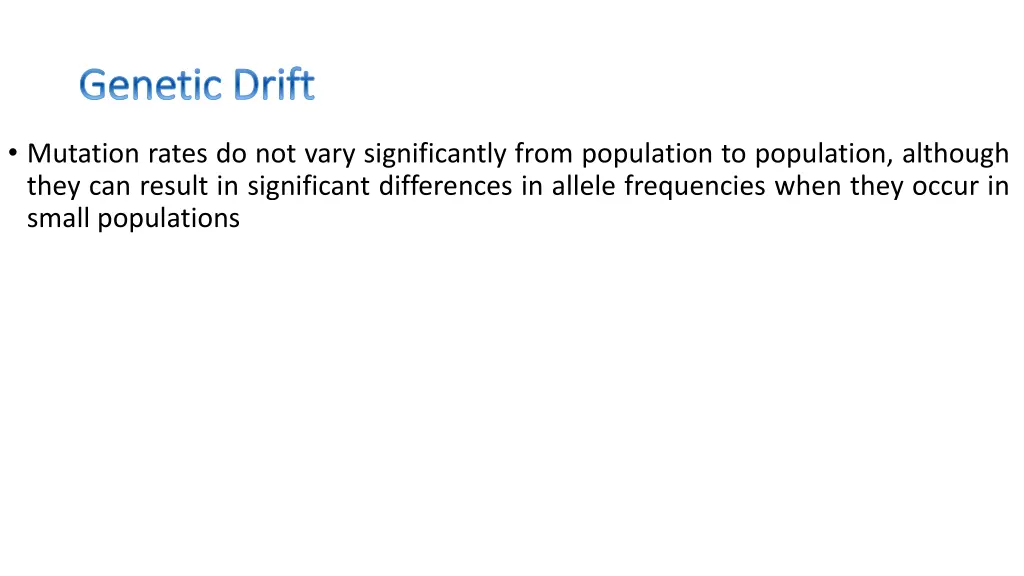

Genetic Genetic Drift Drift Mutation rates do not vary significantly from population to population, although they can result in significant differences in allele frequencies when they occur in small populations

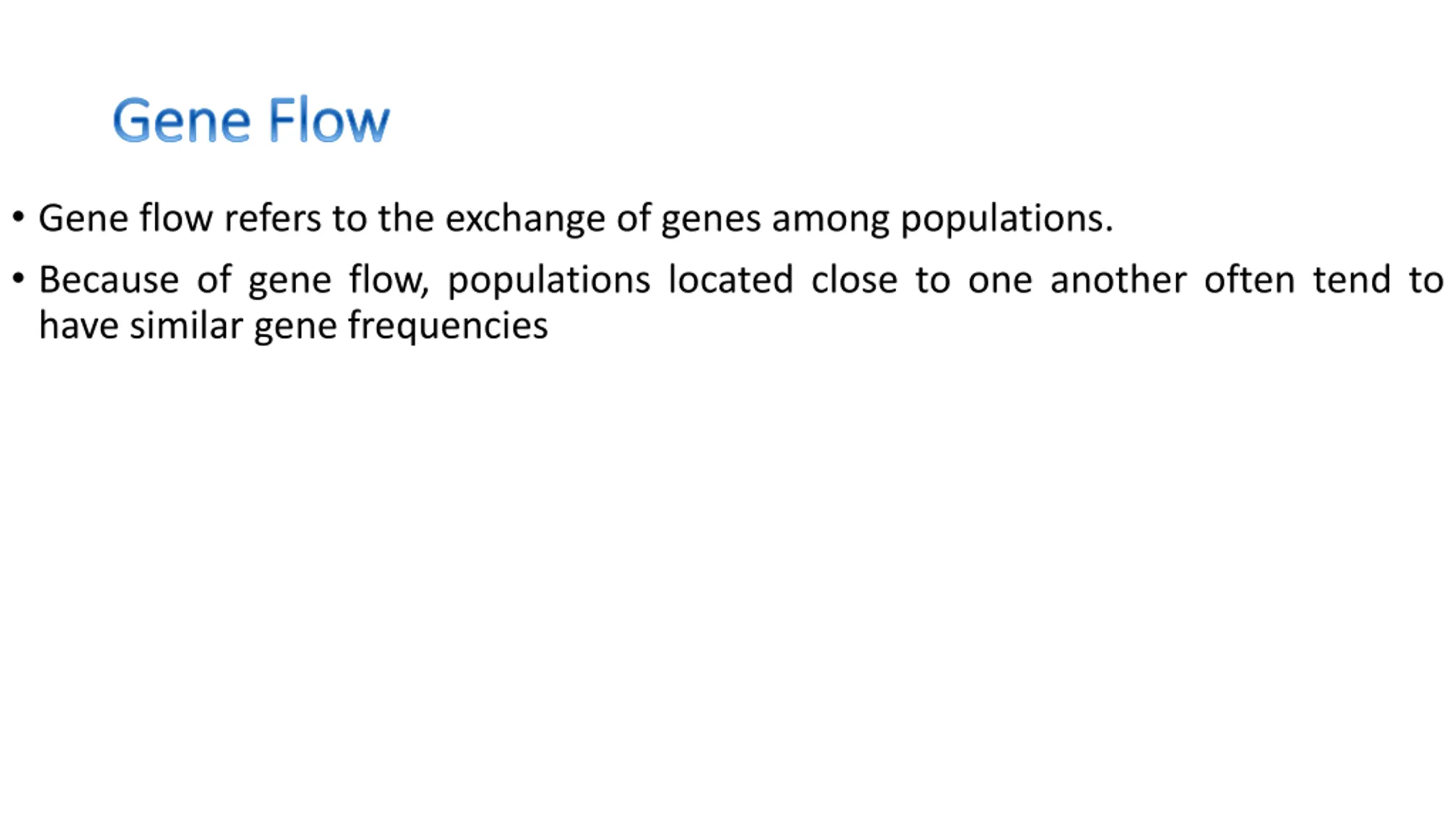

Gene Gene Flow Flow Gene flow refers to the exchange of genes among populations. Because of gene flow, populations located close to one another often tend to have similar gene frequencies

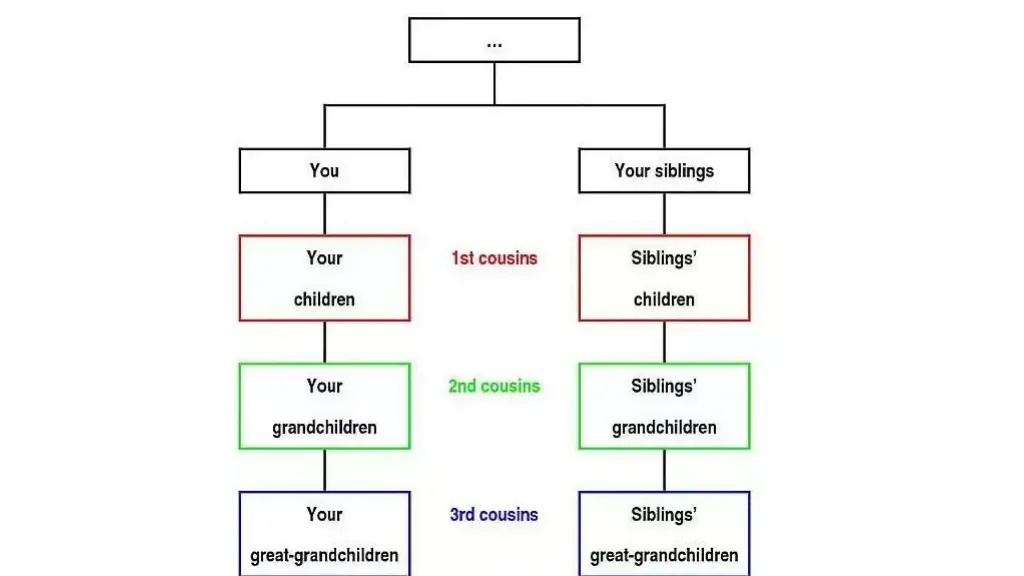

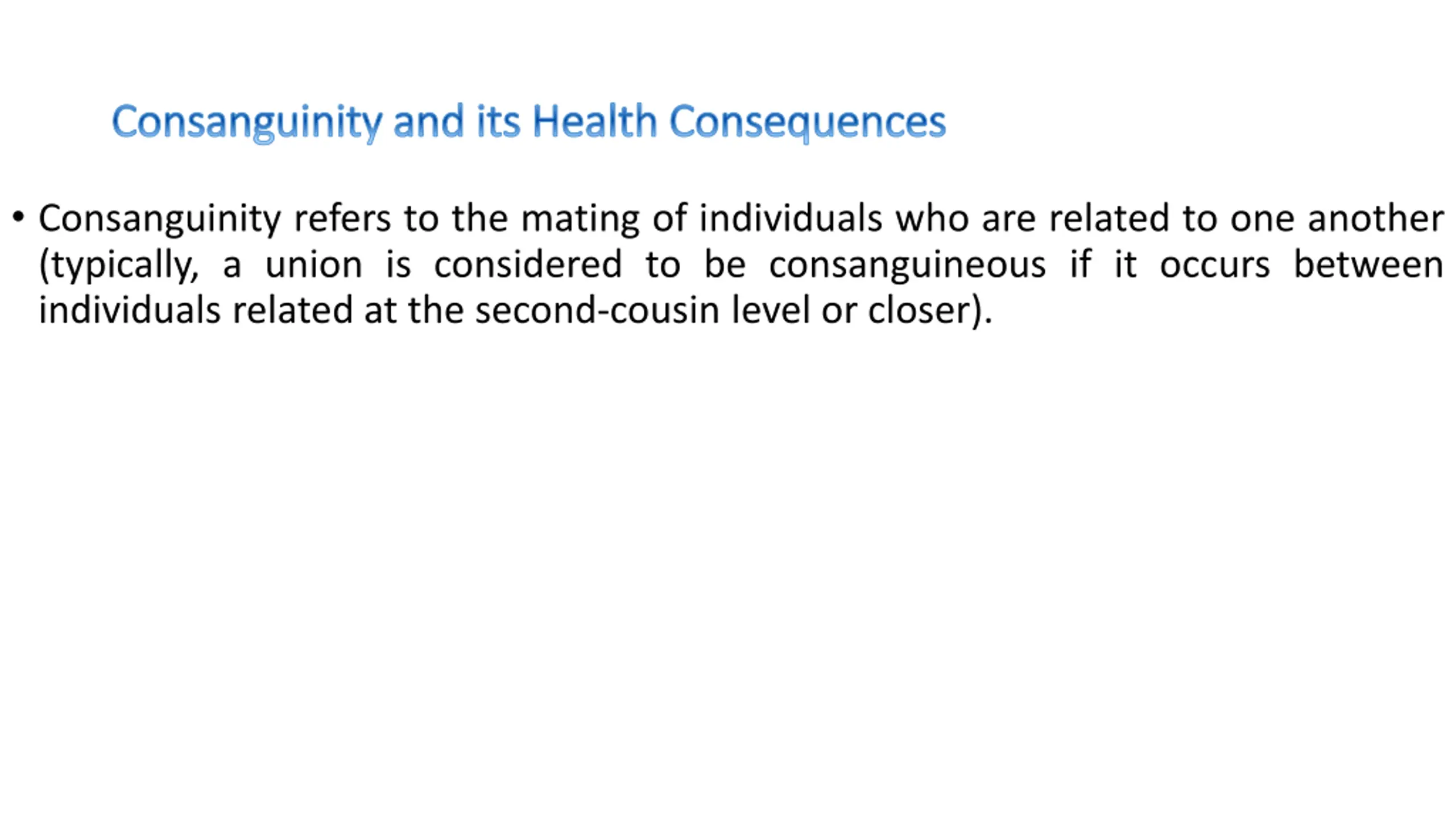

Consanguinity and its Health Consequences Consanguinity and its Health Consequences Consanguinity refers to the mating of individuals who are related to one another (typically, a union is considered to be consanguineous if it occurs between individuals related at the second-cousin level or closer).

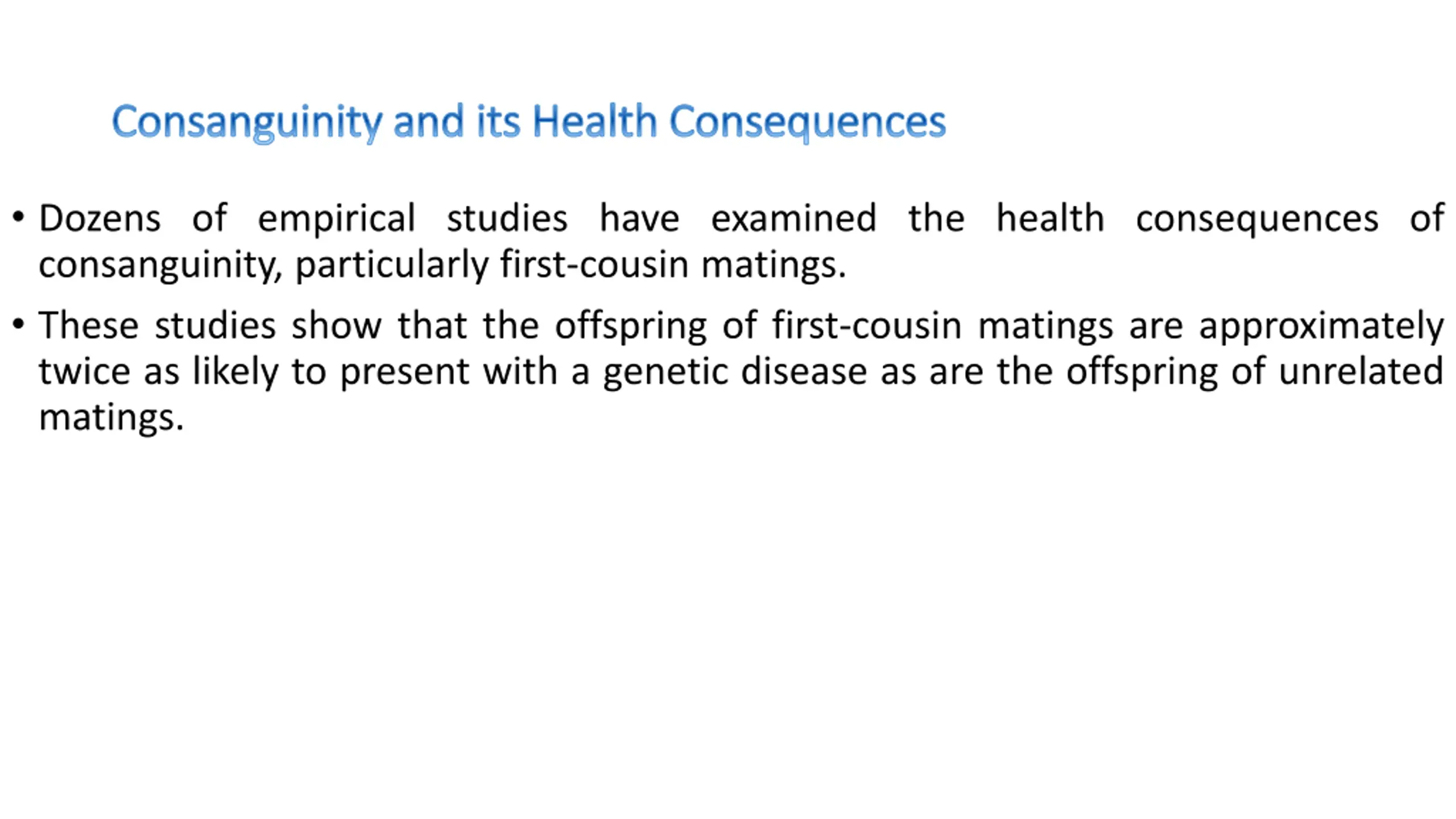

Consanguinity and its Health Consequences Consanguinity and its Health Consequences Dozens of empirical studies have examined the health consequences of consanguinity, particularly first-cousin matings. These studies show that the offspring of first-cousin matings are approximately twice as likely to present with a genetic disease as are the offspring of unrelated matings.
