Power FET Structures and Applications Brian Schminski 17 April 2015

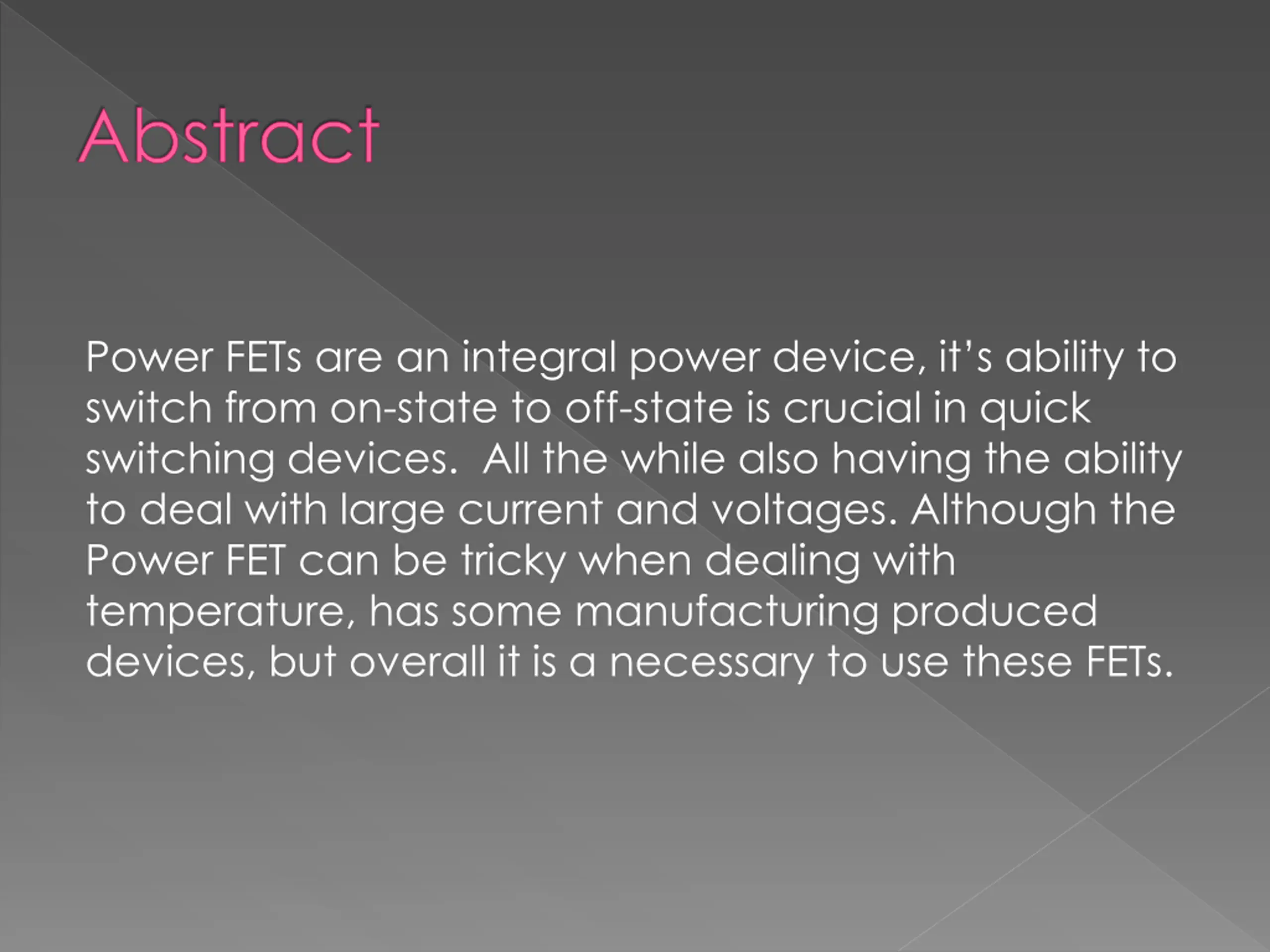

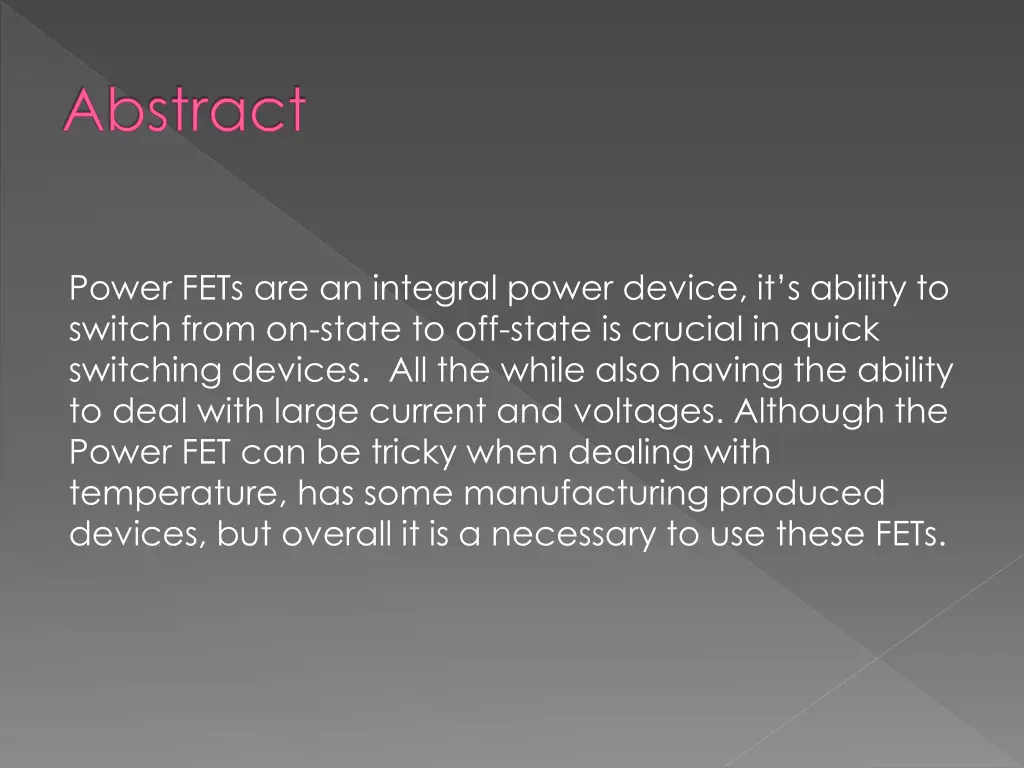

Abstract Power FETs are an integral power device, it s ability to switch from on-state to off-state is crucial in quick switching devices. All the while also having the ability to deal with large current and voltages. Although the Power FET can be tricky when dealing with temperature, has some manufacturing produced devices, but overall it is a necessary to use these FETs.

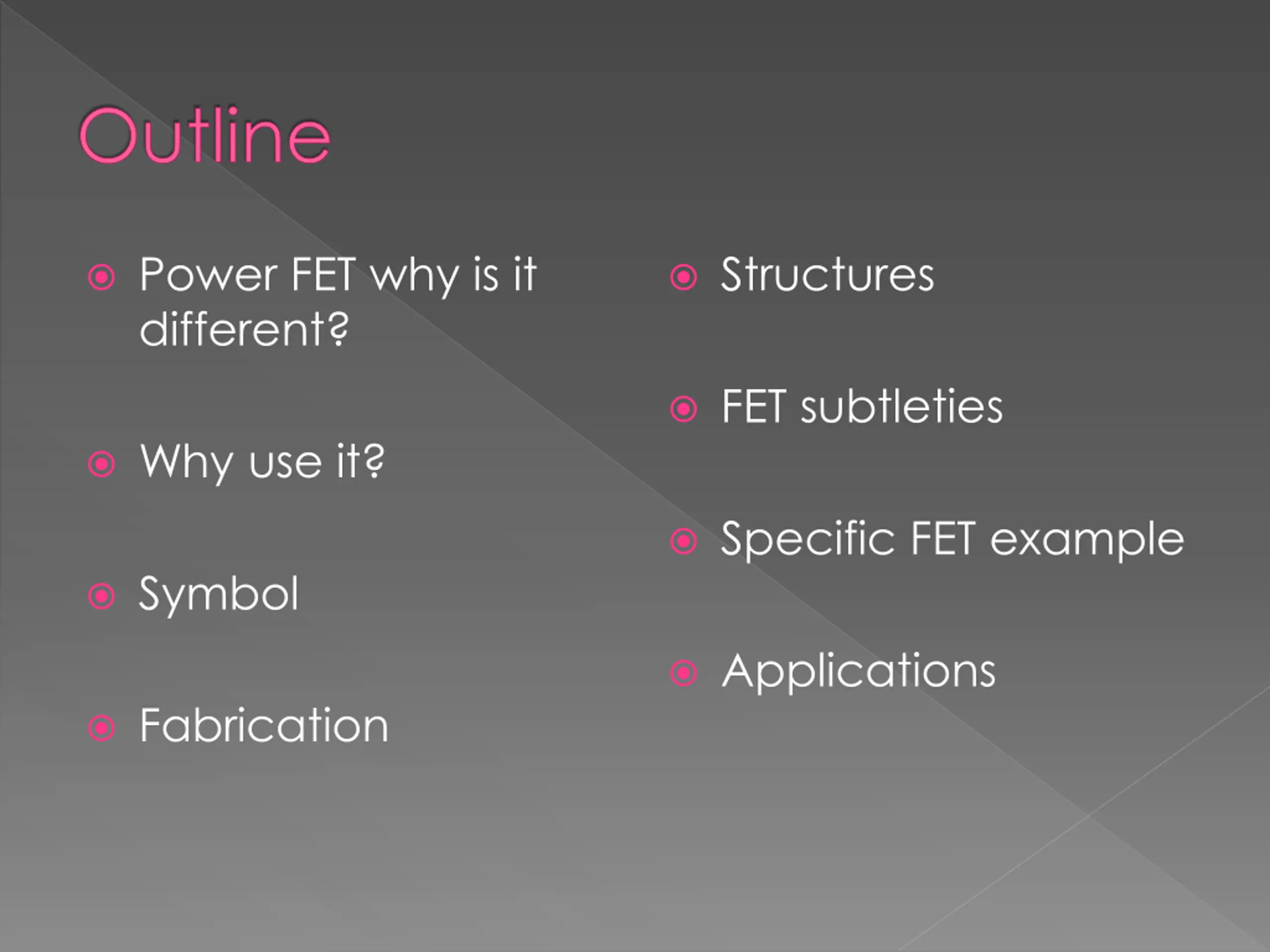

Outline Power FET why is it different? Structures FET subtleties Why use it? Specific FET example Symbol Applications Fabrication

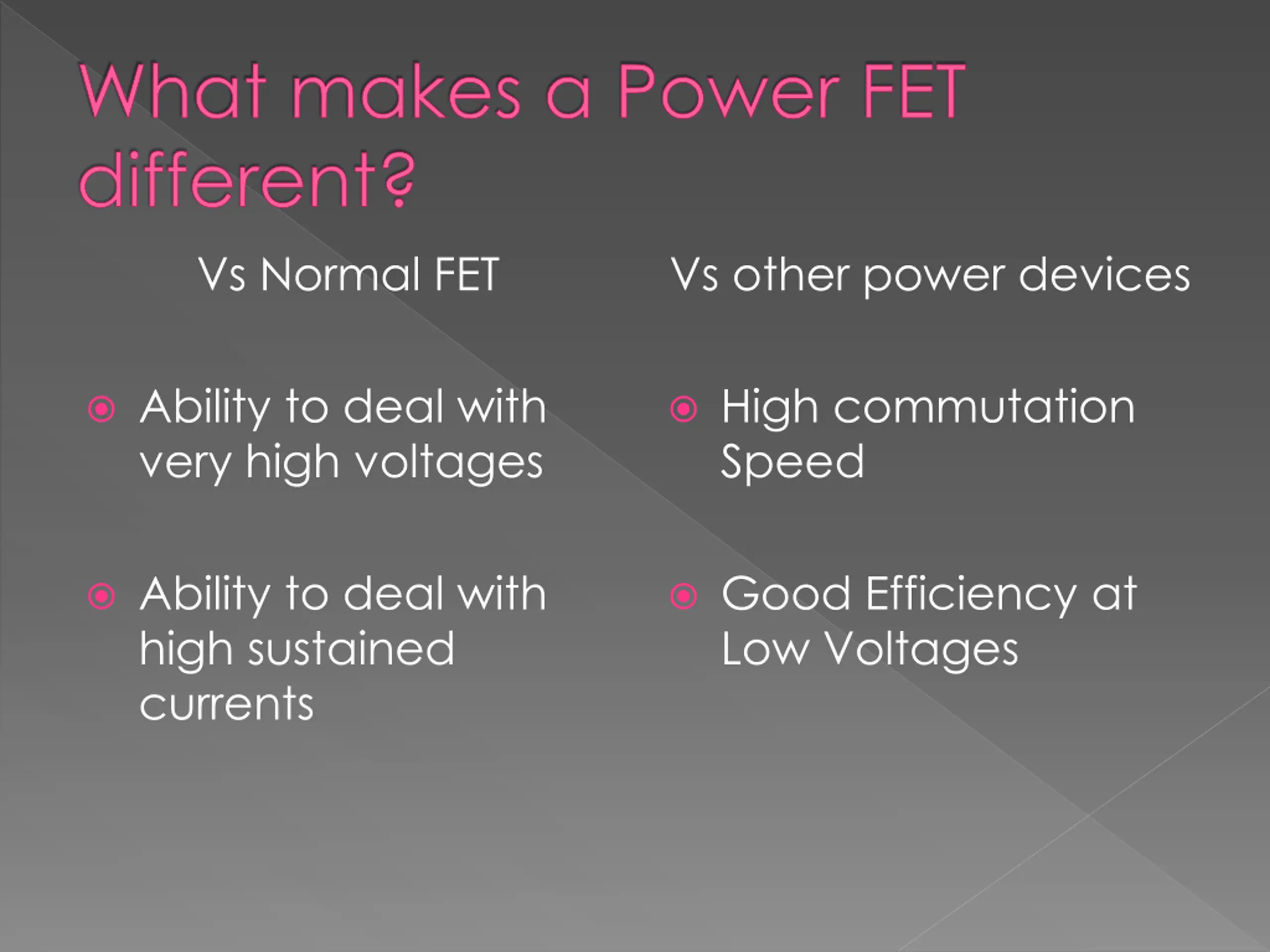

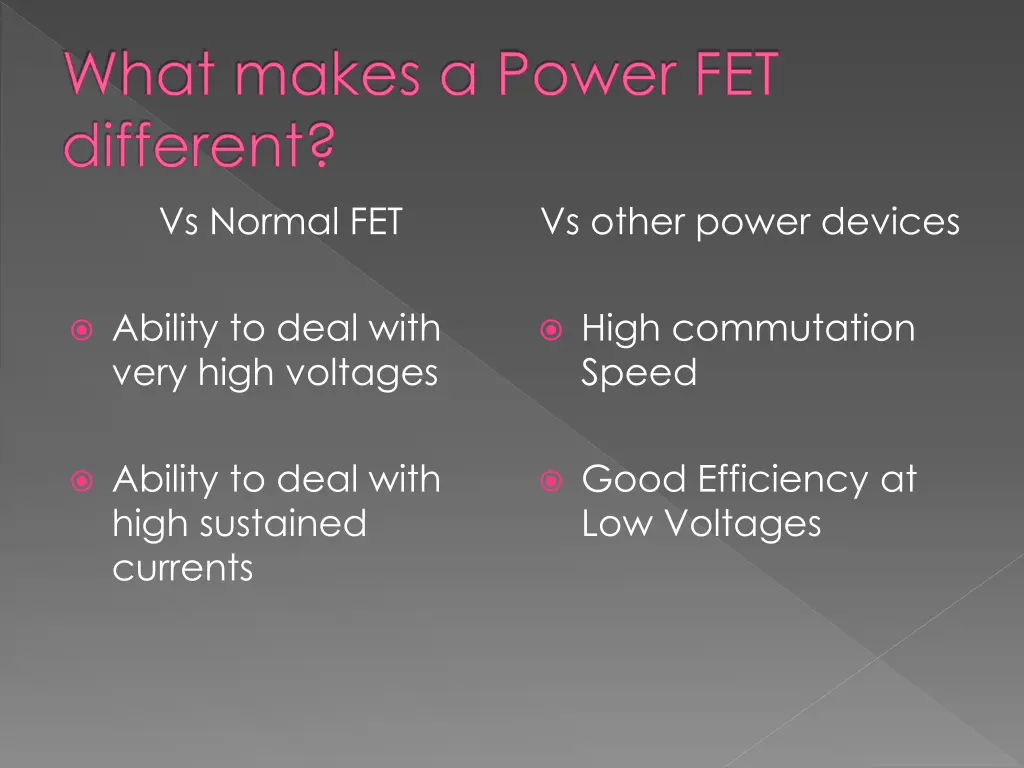

What makes a Power FET different? Vs Normal FET Vs other power devices Ability to deal with very high voltages High commutation Speed Ability to deal with high sustained currents Good Efficiency at Low Voltages

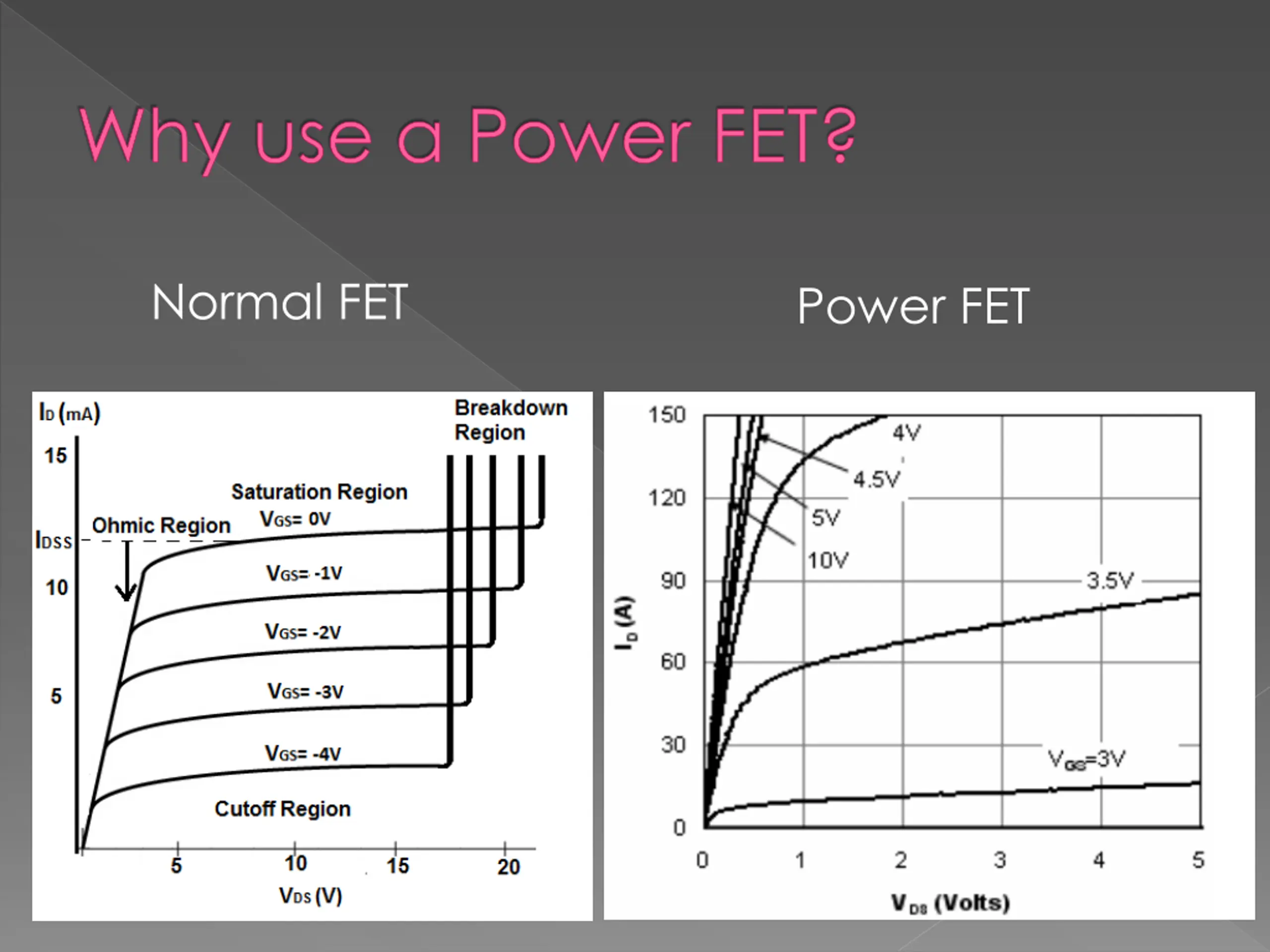

Why use a Power FET? Normal FET Power FET

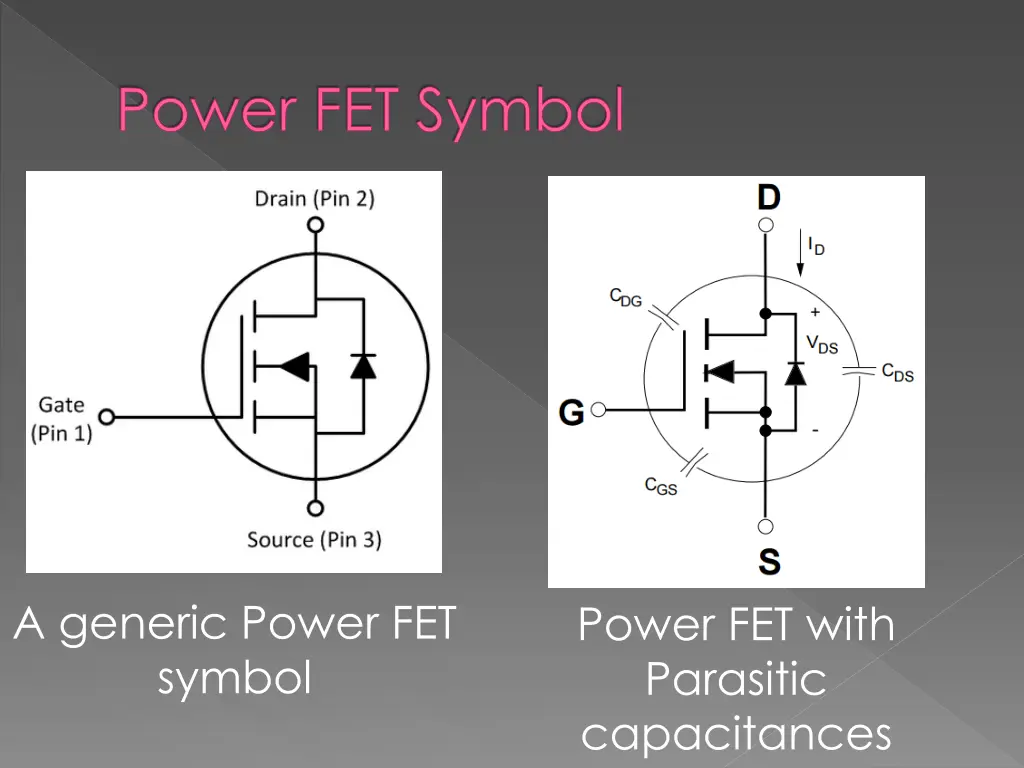

Power FET Symbol A generic Power FET symbol Power FET with Parasitic capacitances

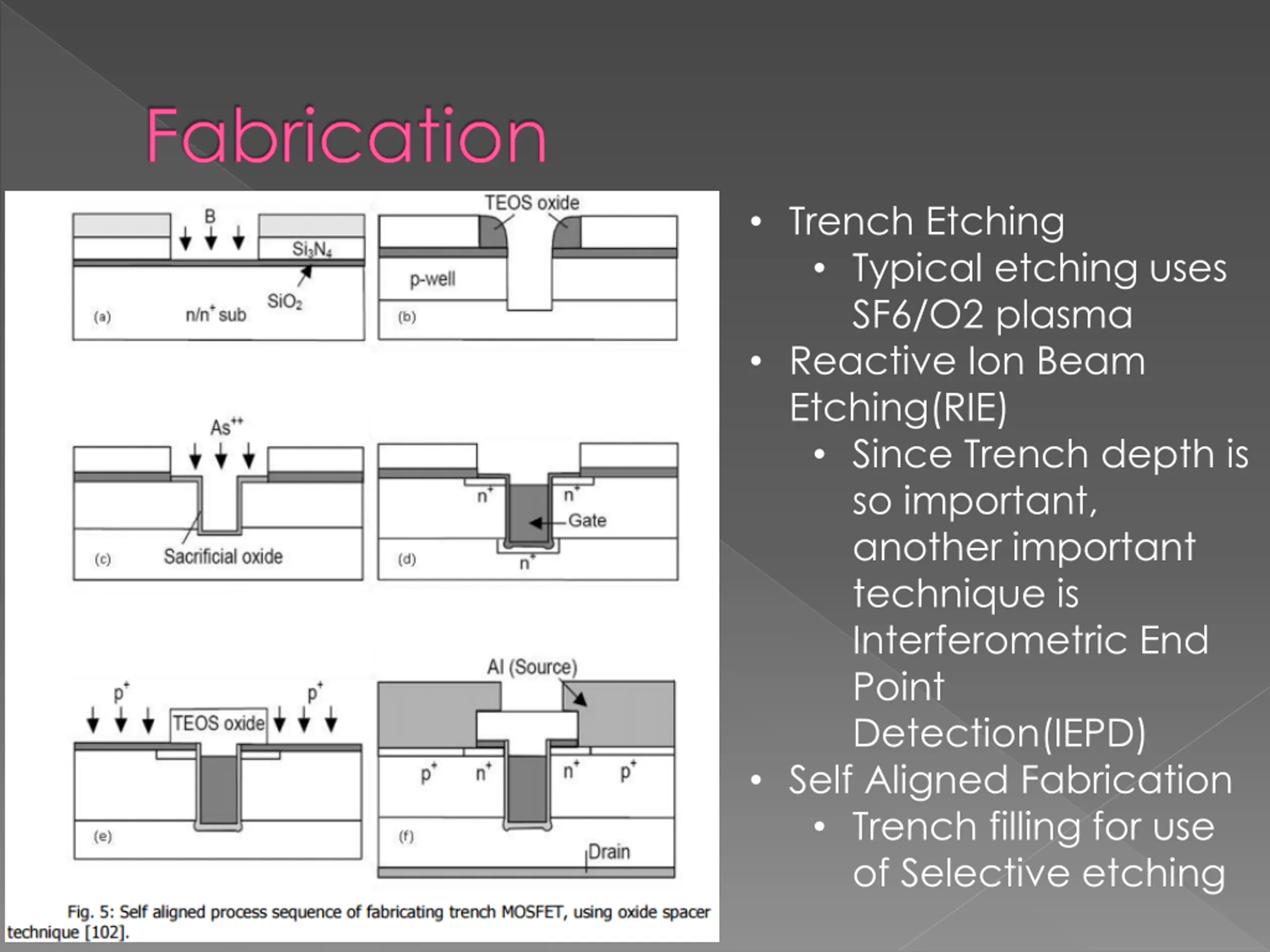

Fabrication Trench Etching Typical etching uses SF6/O2 plasma Reactive Ion Beam Etching(RIE) Since Trench depth is so important, another important technique is Interferometric End Point Detection(IEPD) Self Aligned Fabrication Trench filling for use of Selective etching

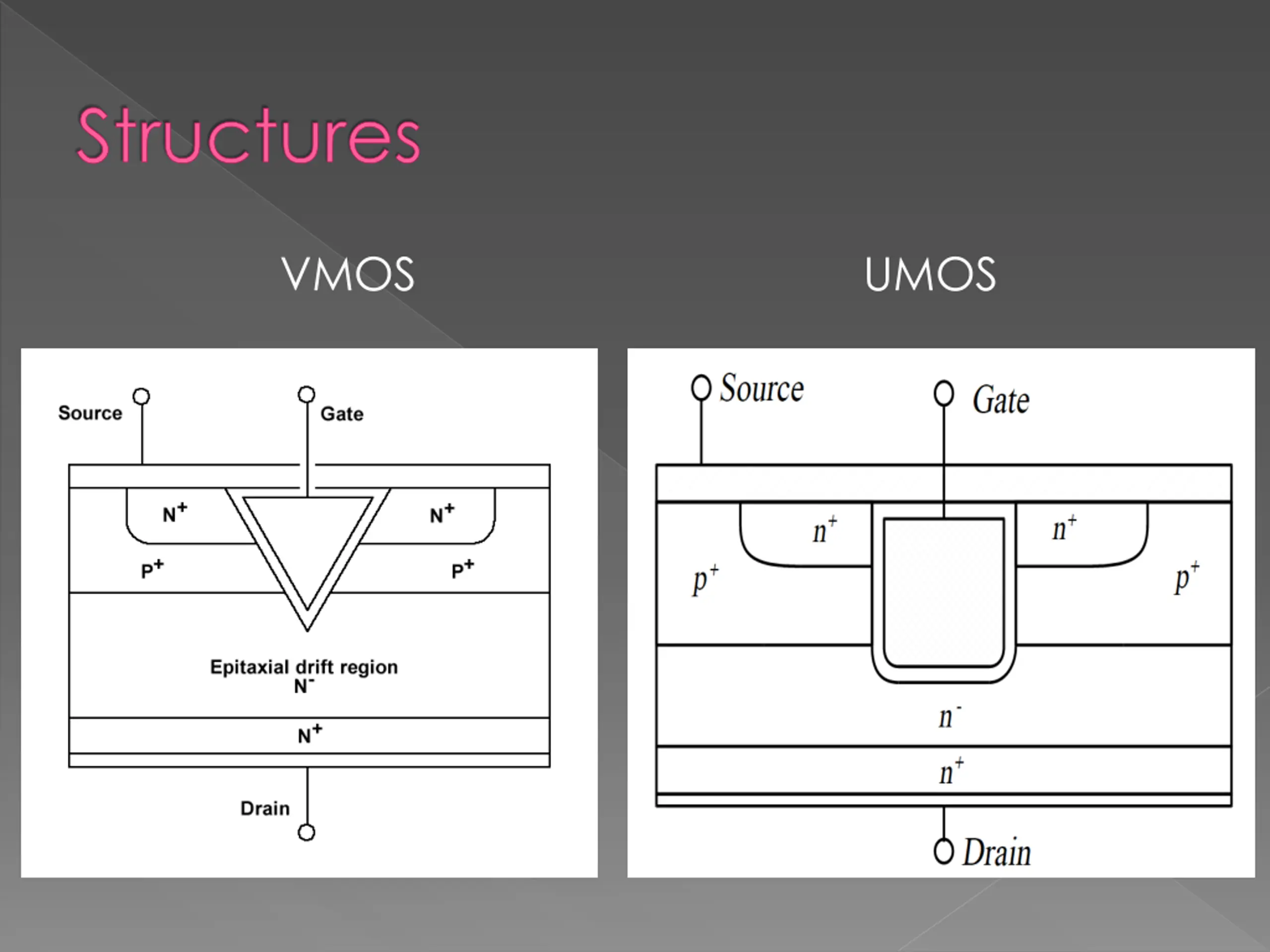

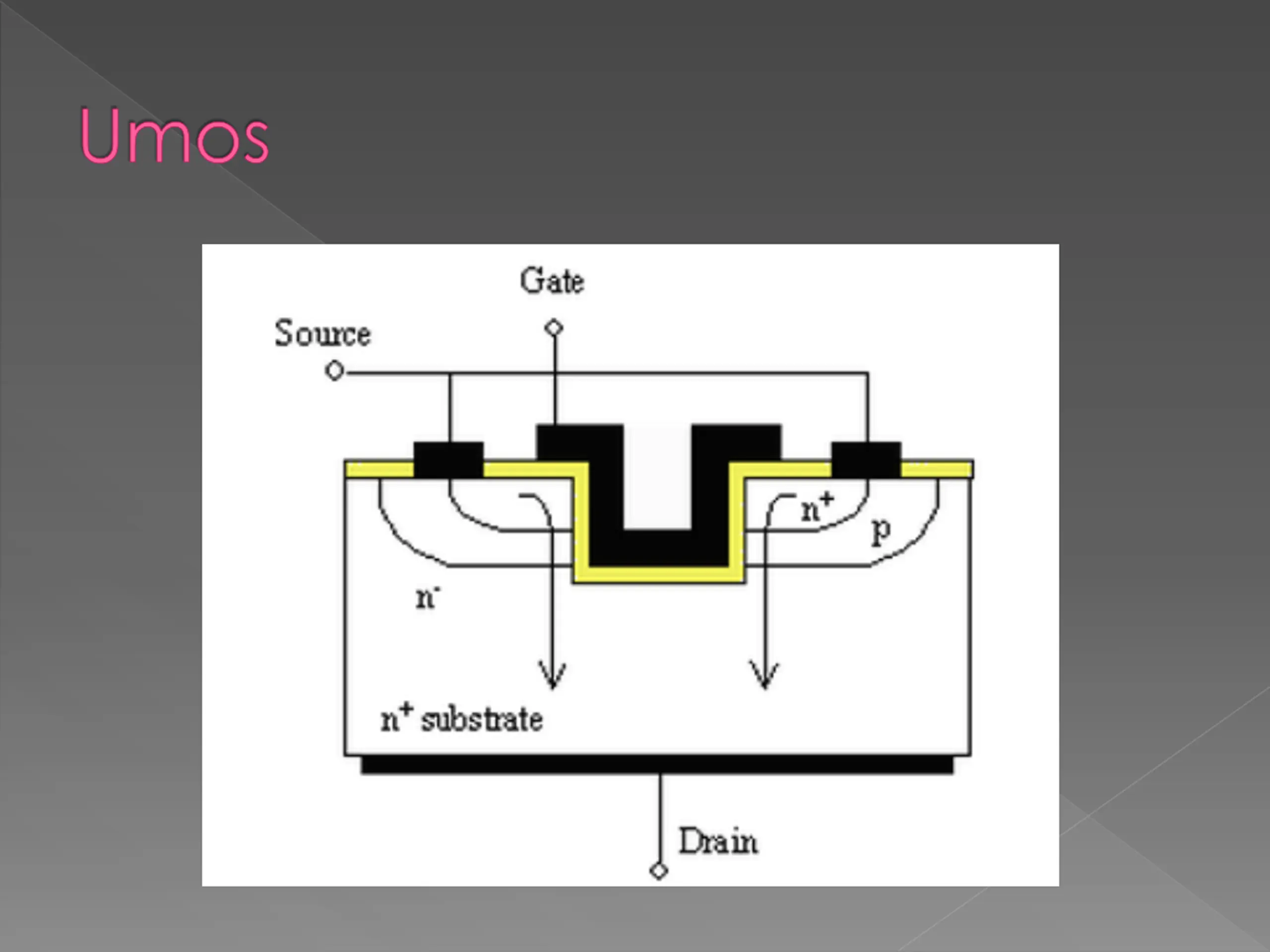

Structures VMOS UMOS

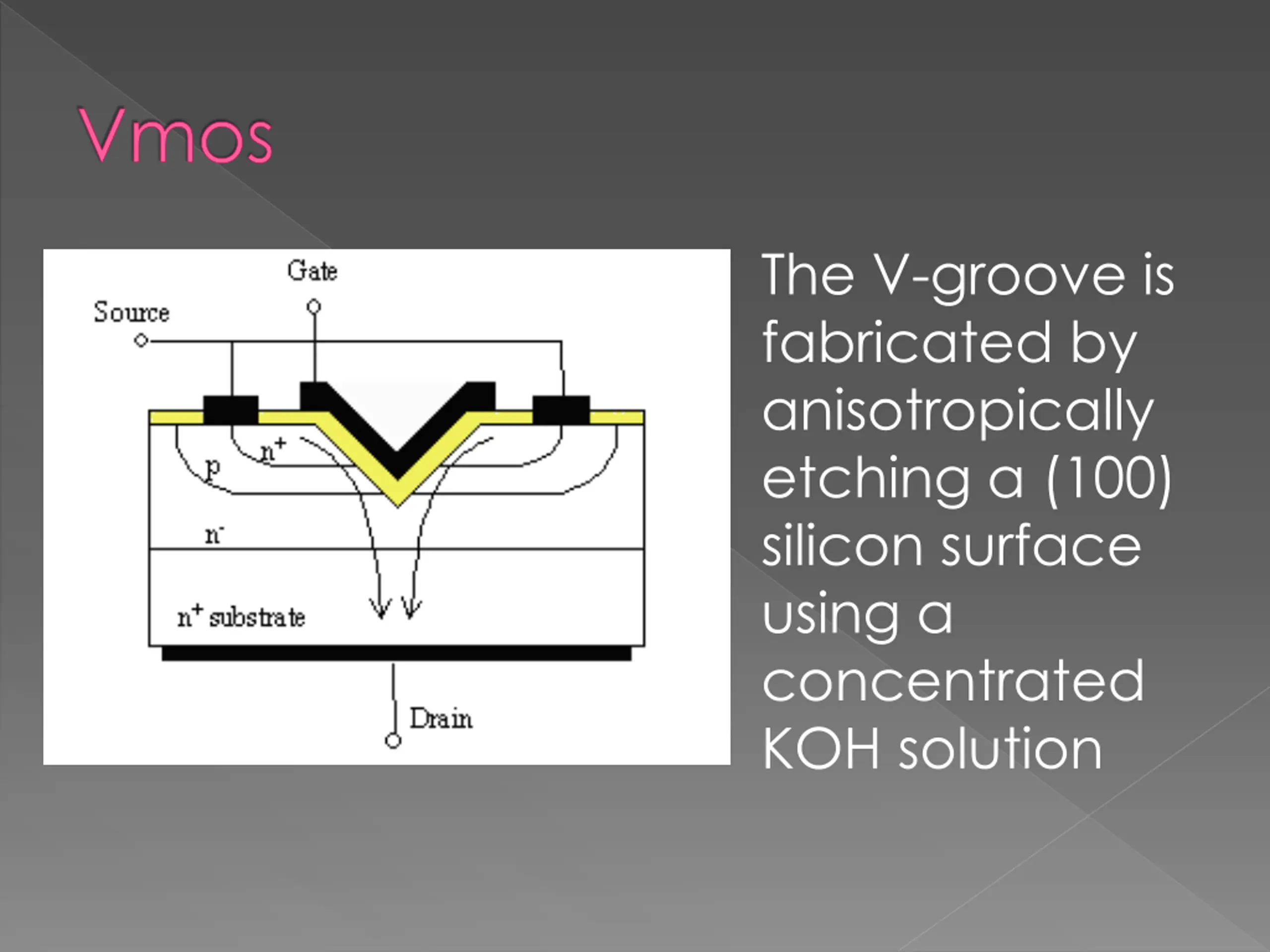

Vmos The V-groove is fabricated by anisotropically etching a (100) silicon surface using a concentrated KOH solution

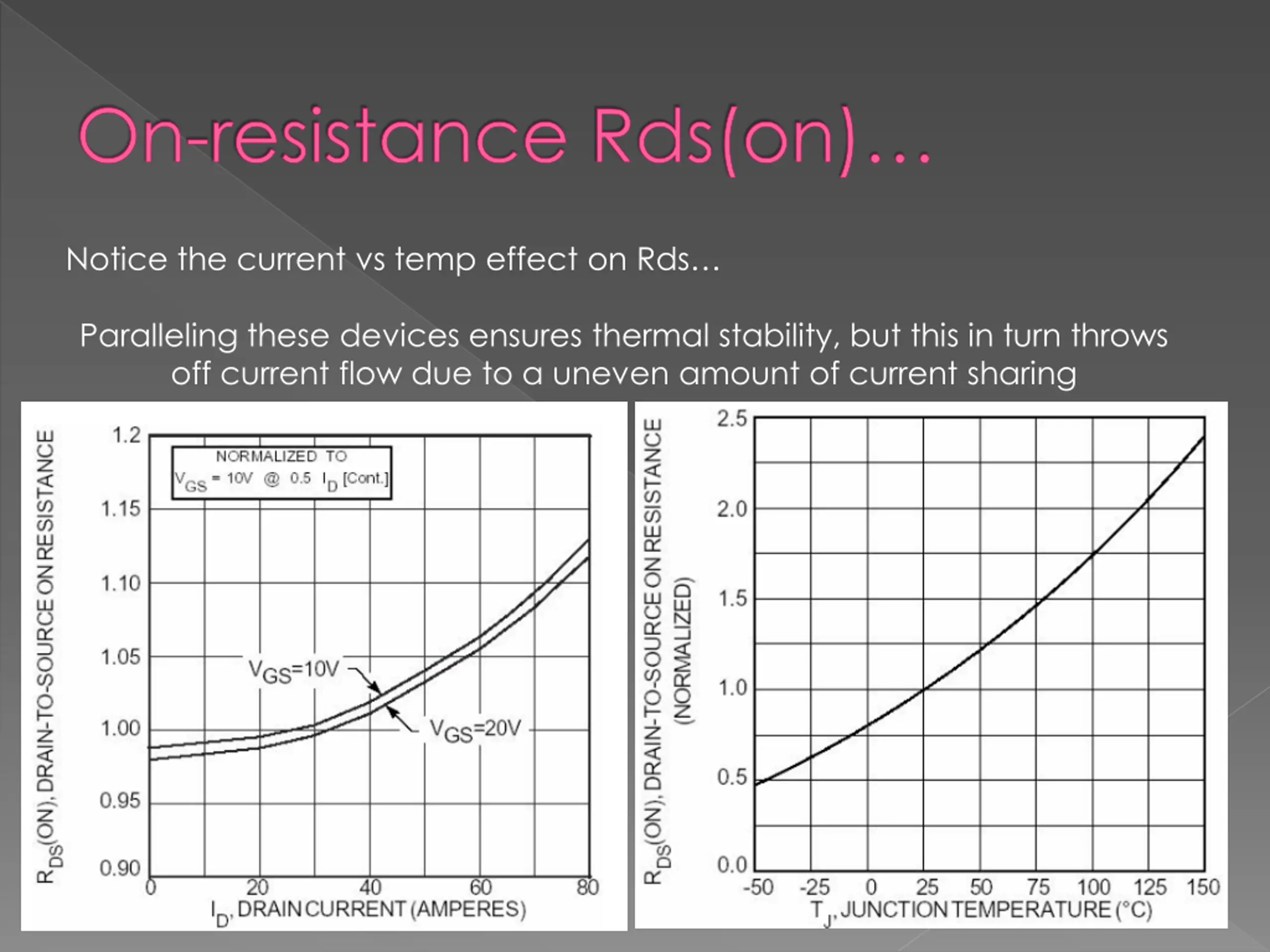

On-resistance Rds(on) Notice the current vs temp effect on Rds Paralleling these devices ensures thermal stability, but this in turn throws off current flow due to a uneven amount of current sharing

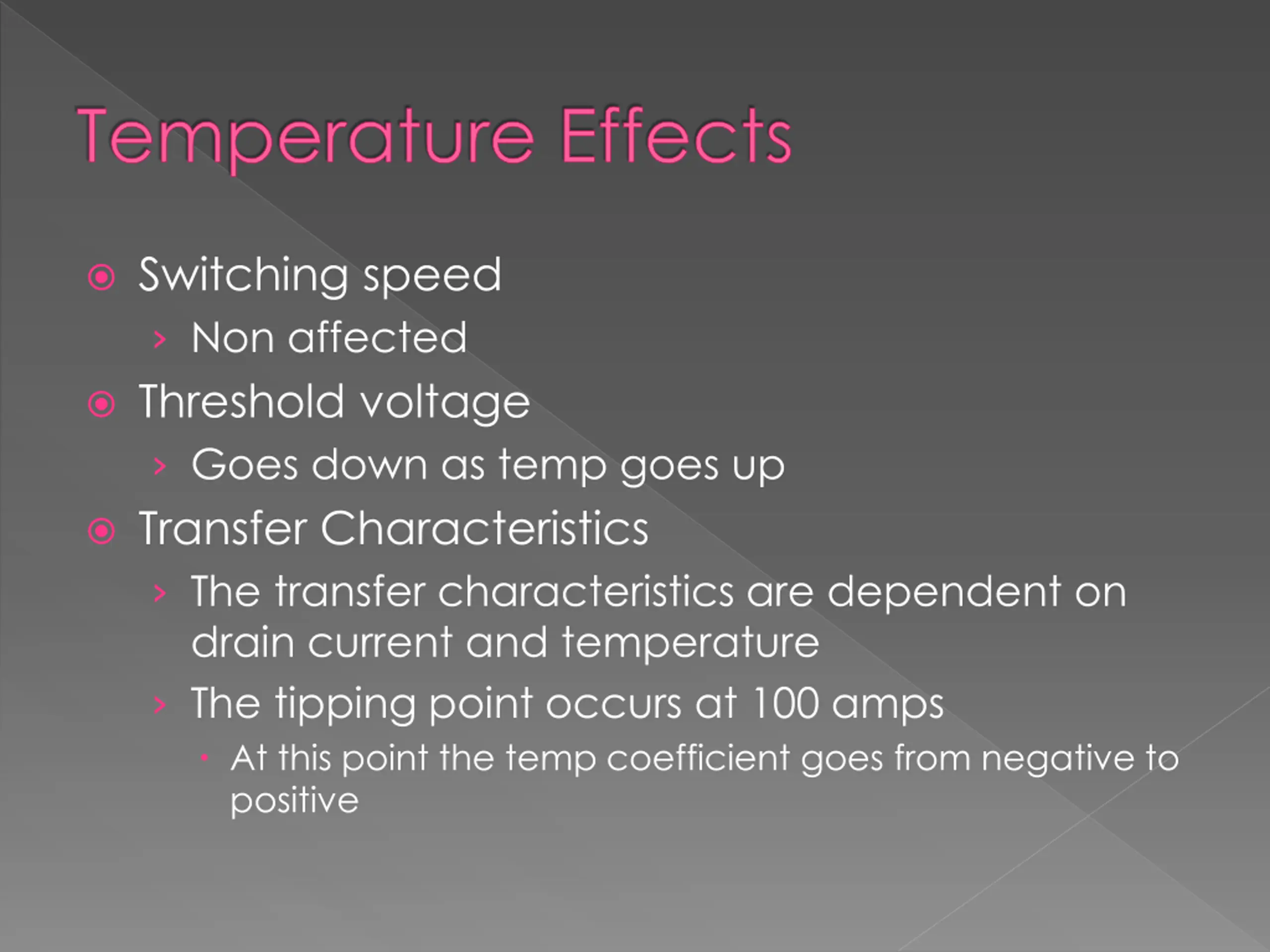

Temperature Effects Switching speed Non affected Threshold voltage Goes down as temp goes up Transfer Characteristics The transfer characteristics are dependent on drain current and temperature The tipping point occurs at 100 amps At this point the temp coefficient goes from negative to positive

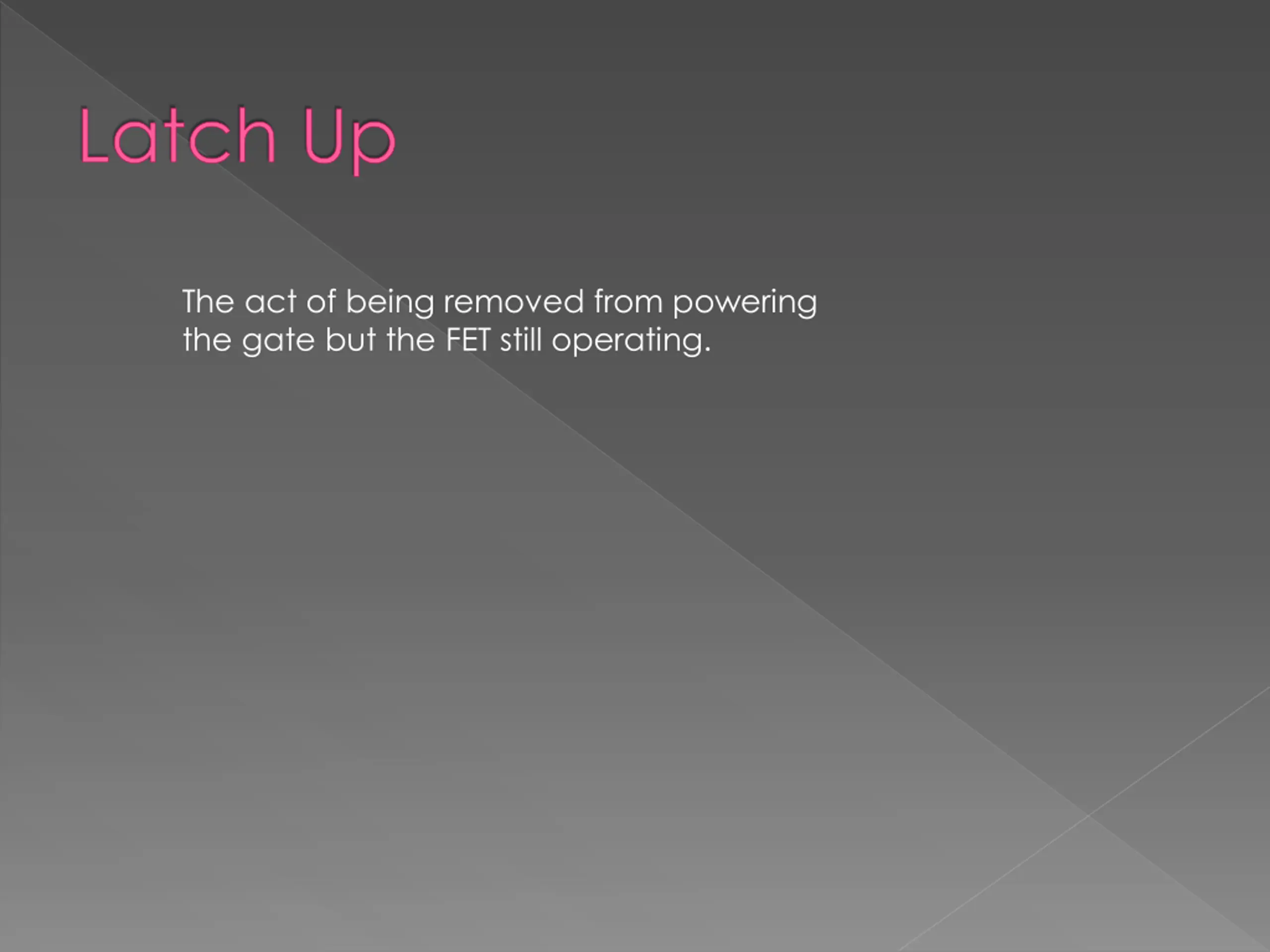

Latch Up The act of being removed from powering the gate but the FET still operating.

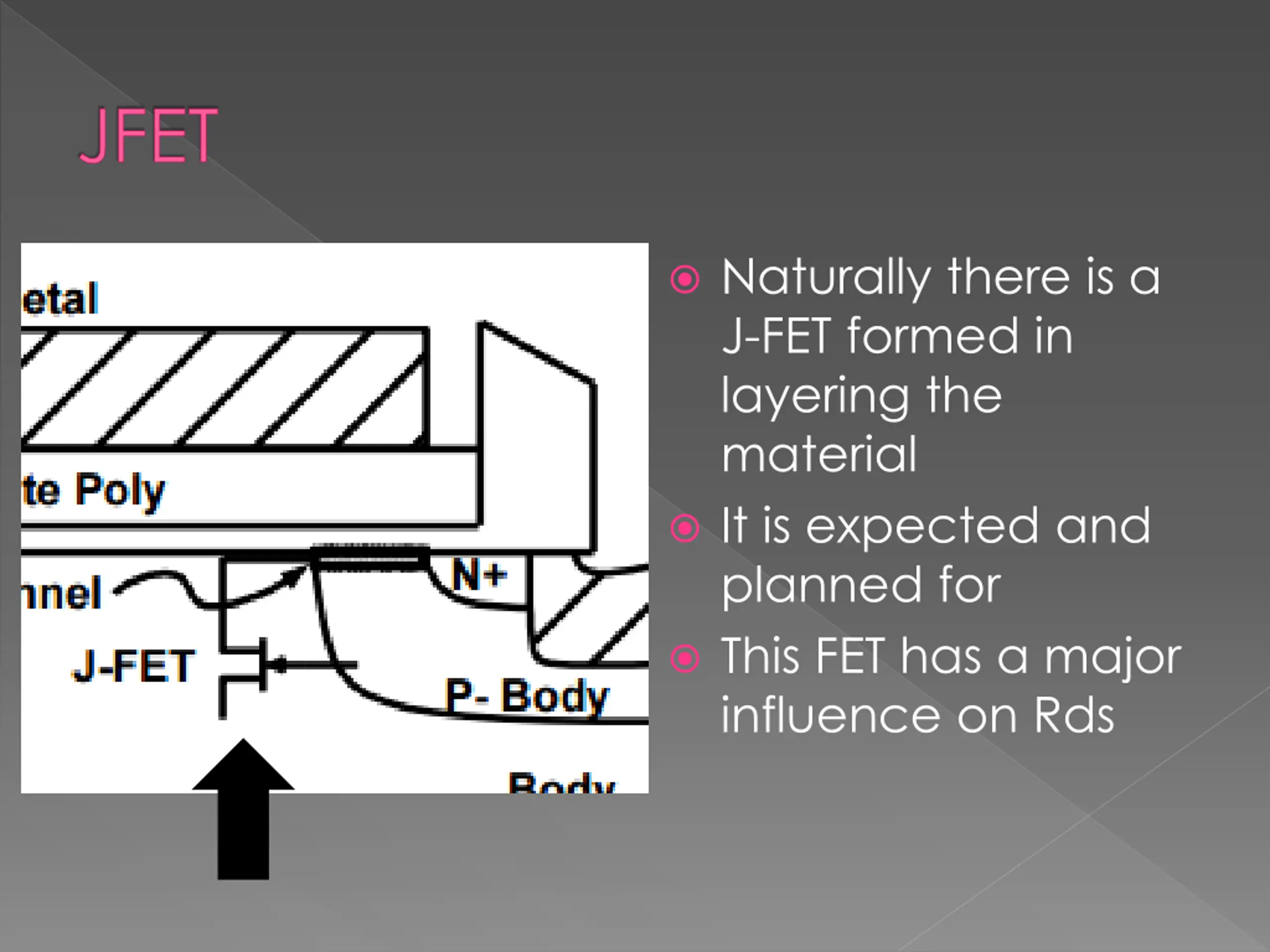

JFET Naturally there is a J-FET formed in layering the material It is expected and planned for This FET has a major influence on Rds

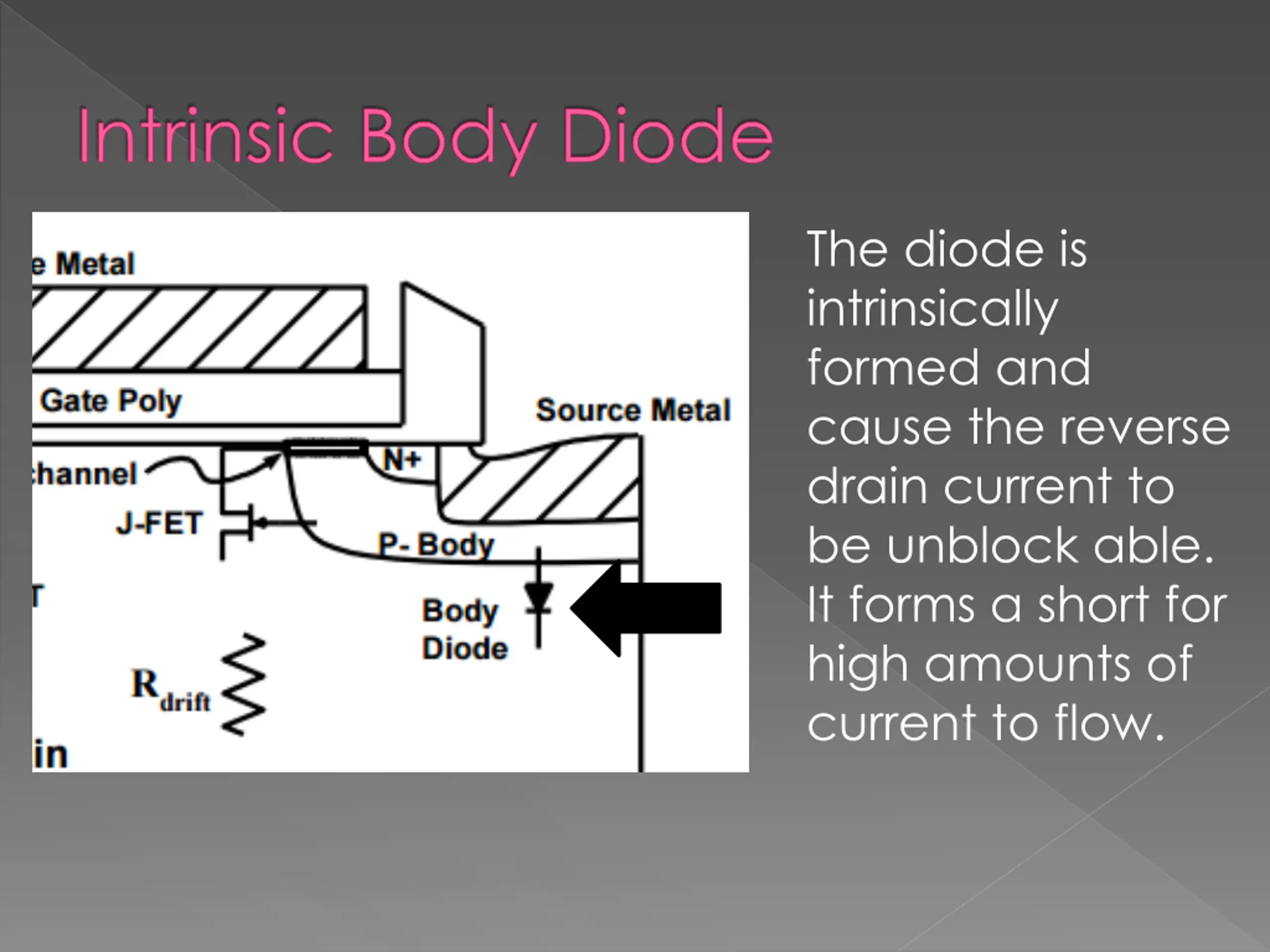

Intrinsic Body Diode The diode is intrinsically formed and cause the reverse drain current to be unblock able. It forms a short for high amounts of current to flow.

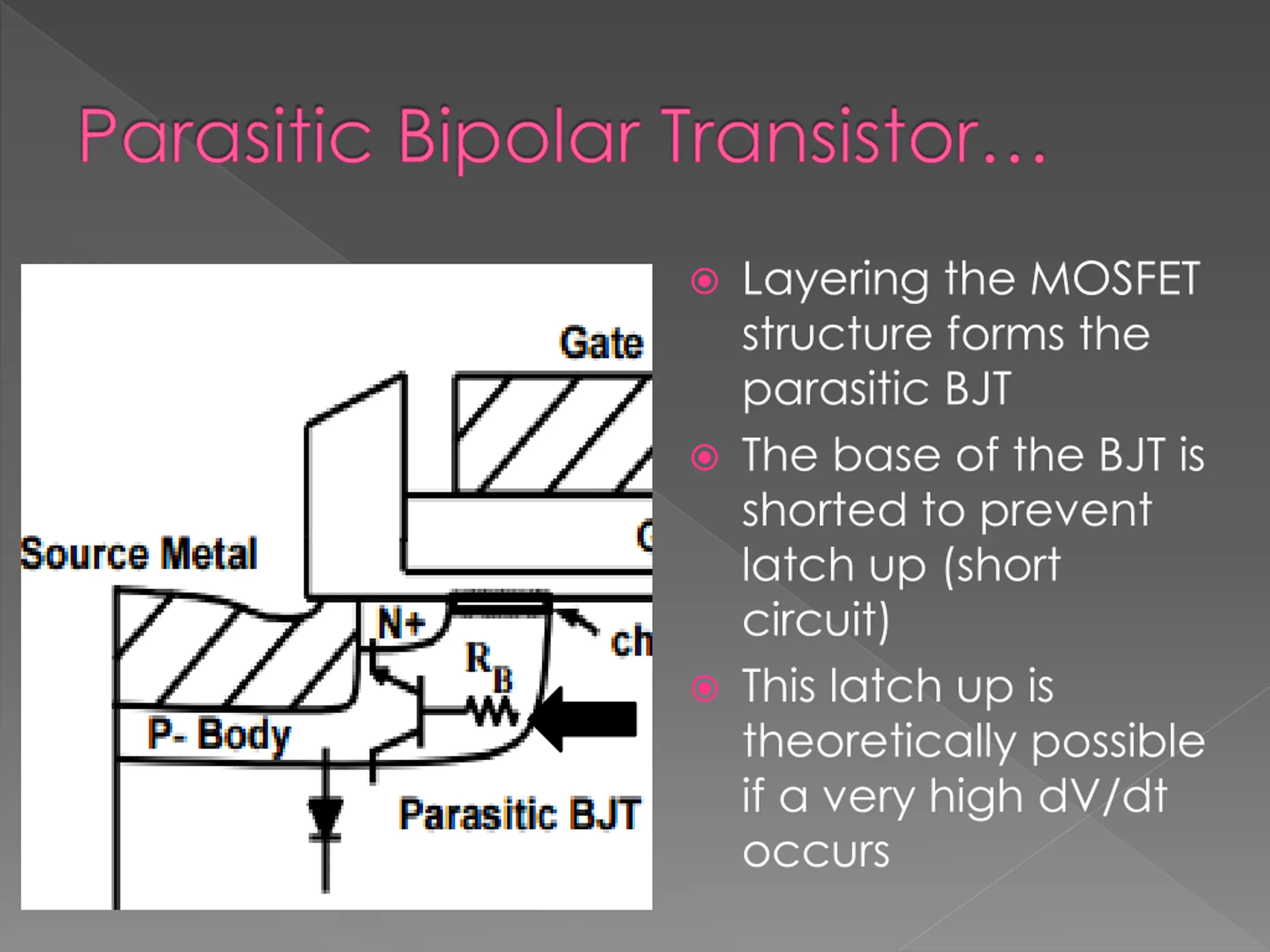

Parasitic Bipolar Transistor Layering the MOSFET structure forms the parasitic BJT The base of the BJT is shorted to prevent latch up (short circuit) This latch up is theoretically possible if a very high dV/dt occurs

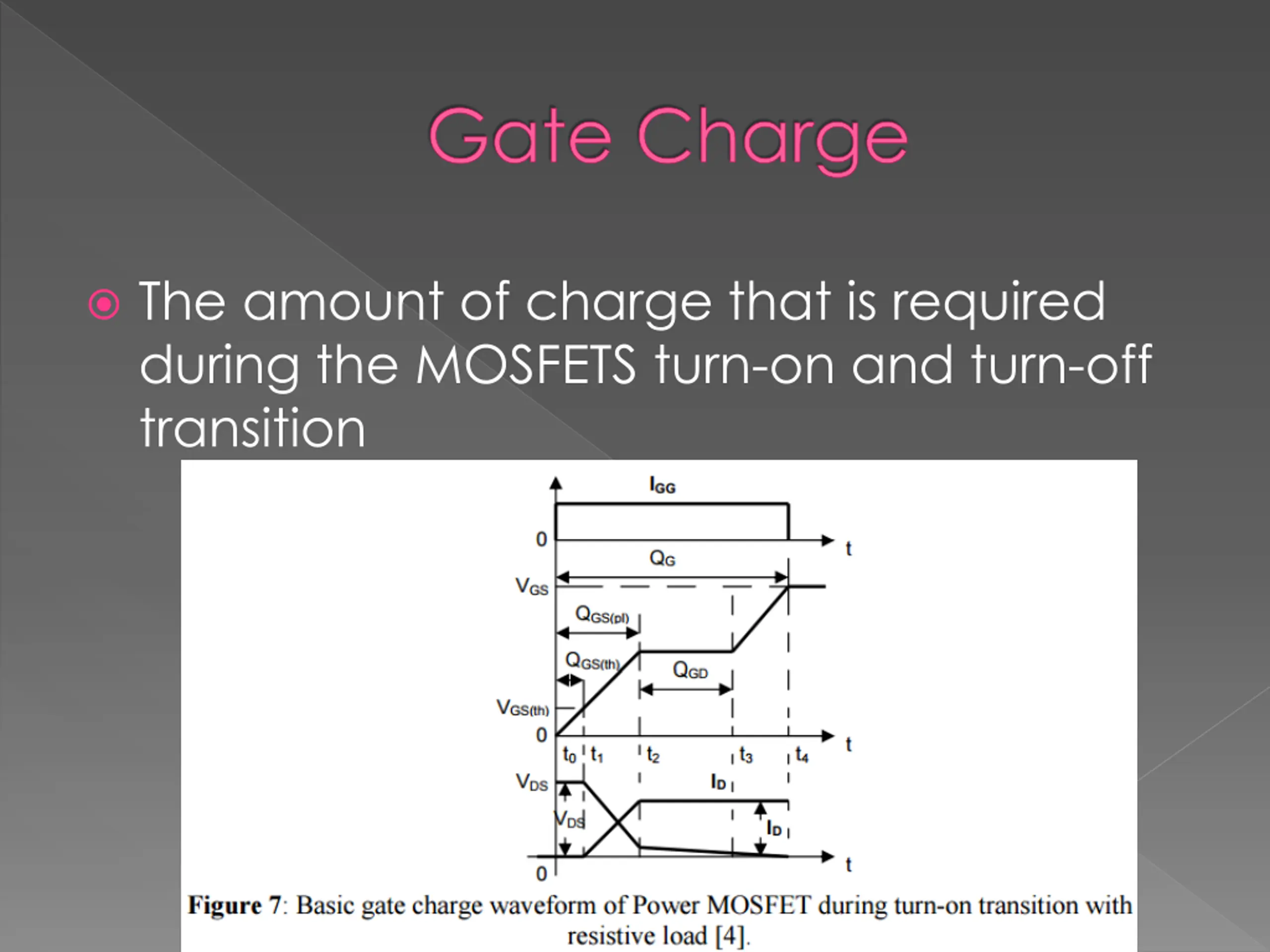

Gate Charge The amount of charge that is required during the MOSFETS turn-on and turn-off transition

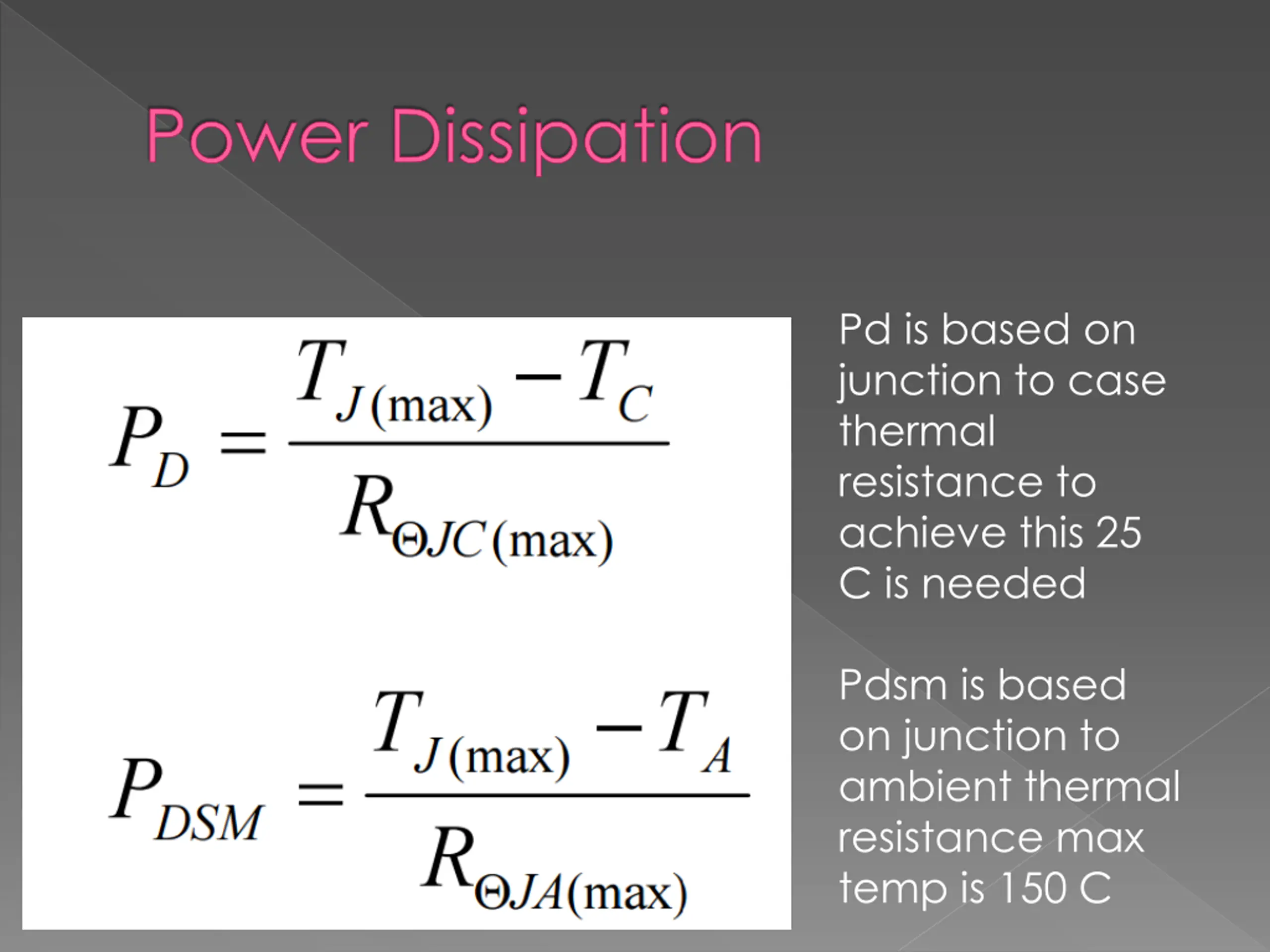

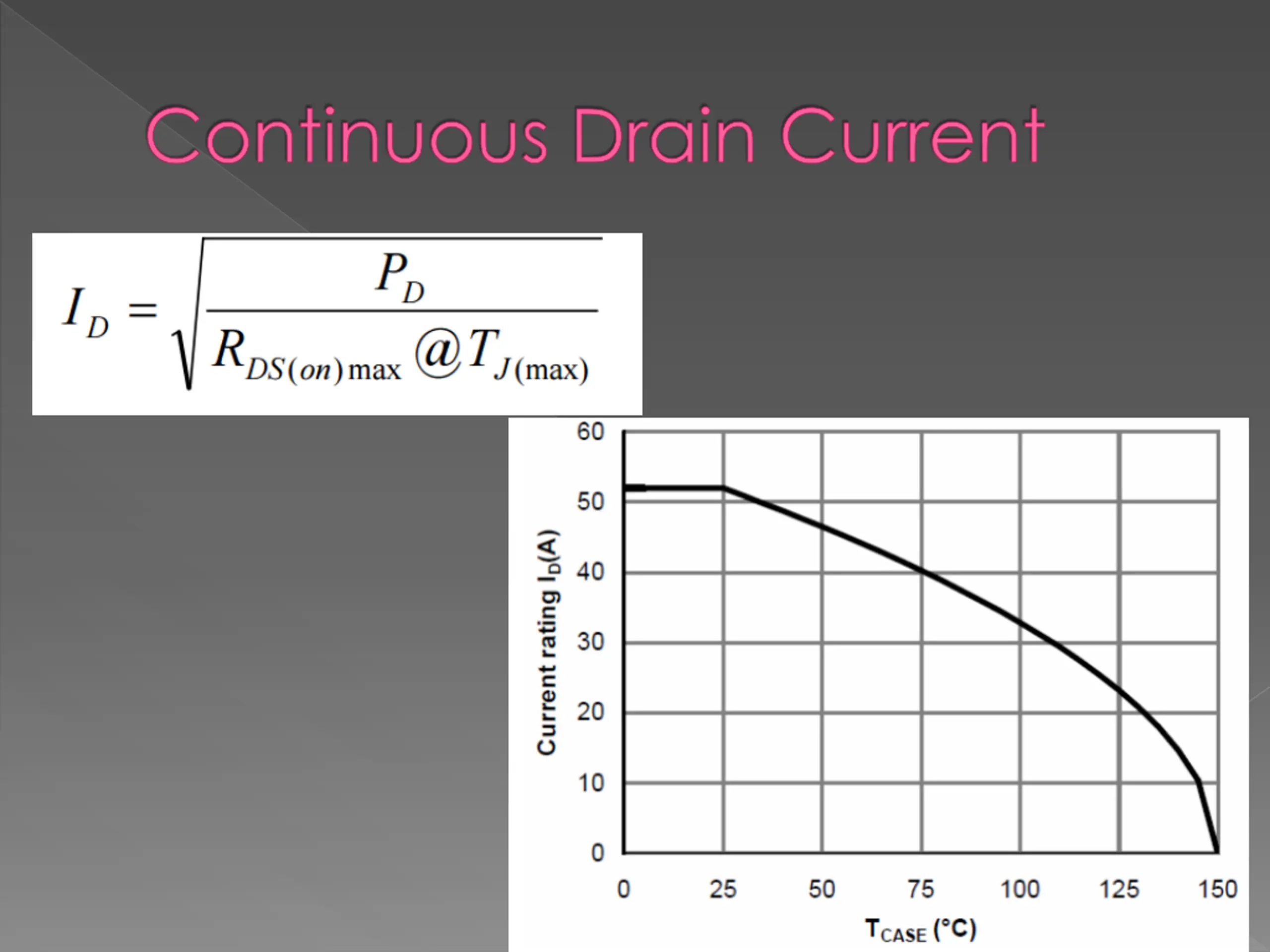

Power Dissipation Pd is based on junction to case thermal resistance to achieve this 25 C is needed Pdsm is based on junction to ambient thermal resistance max temp is 150 C

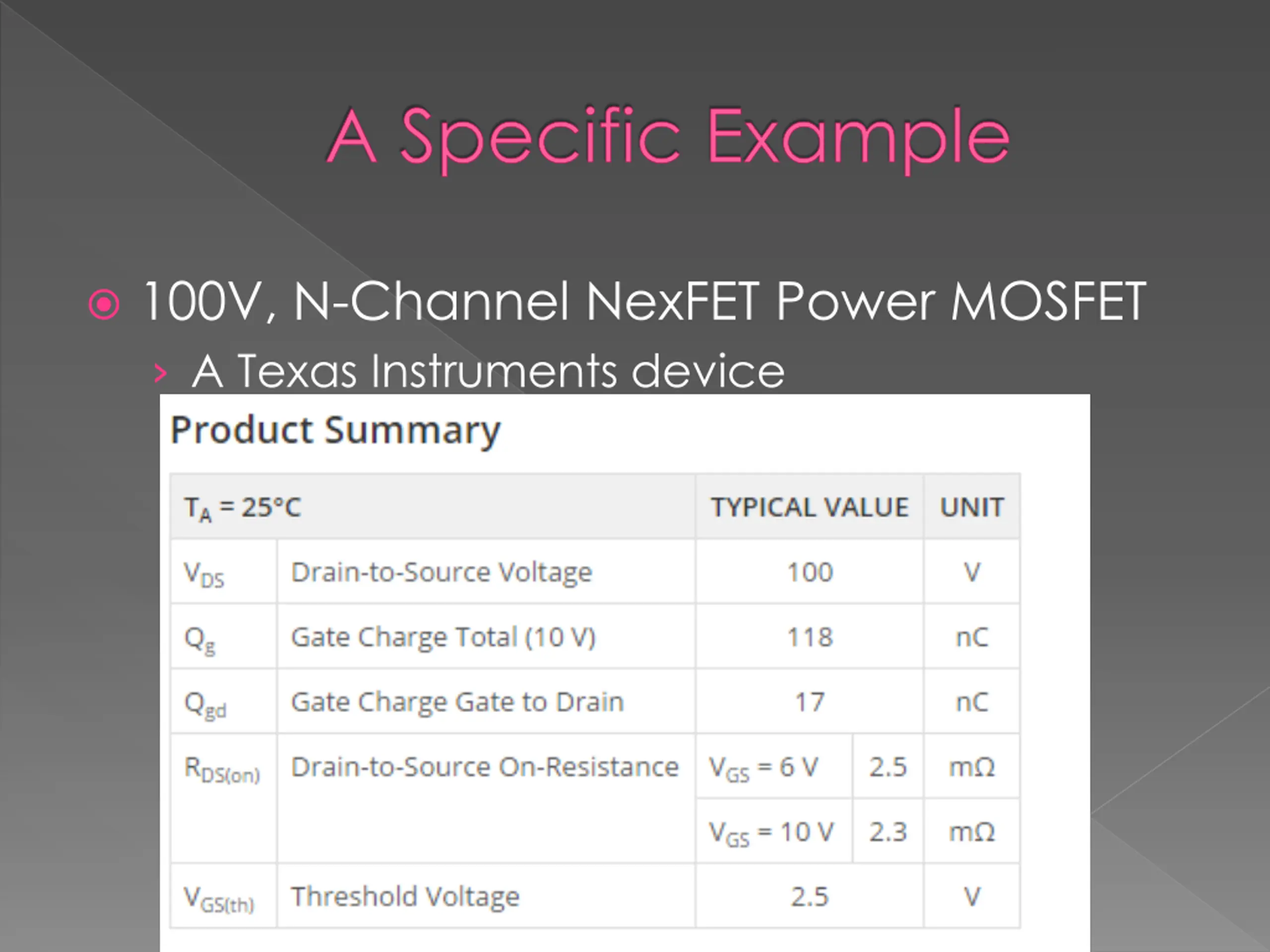

A Specific Example 100V, N-Channel NexFET Power MOSFET A Texas Instruments device

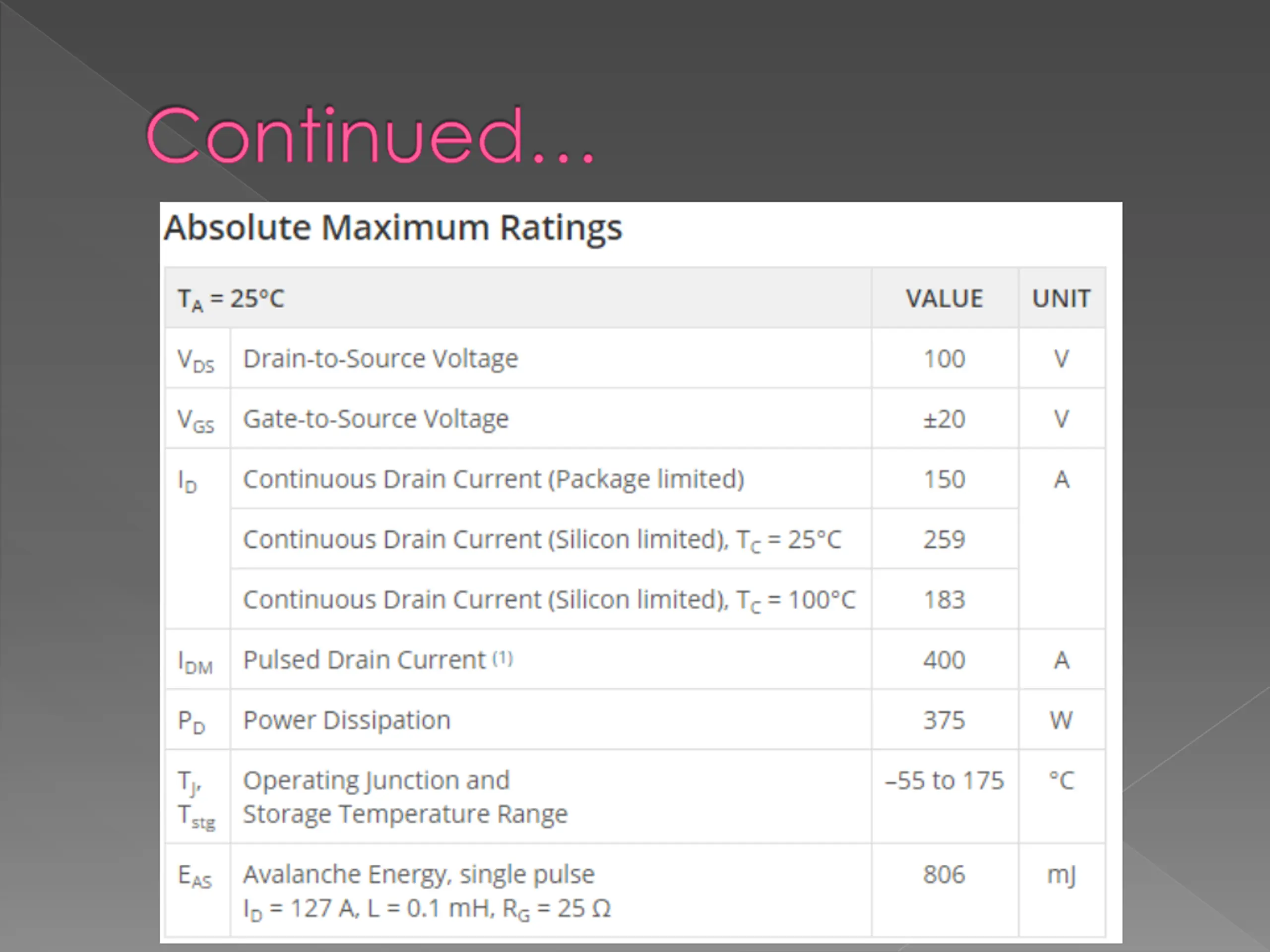

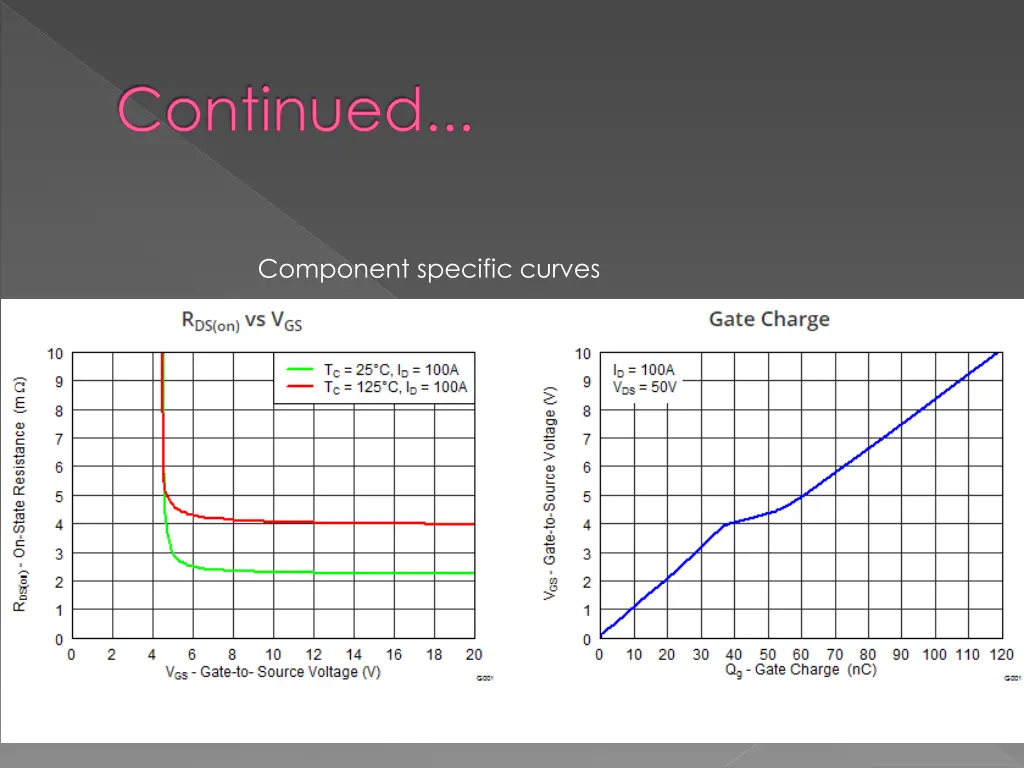

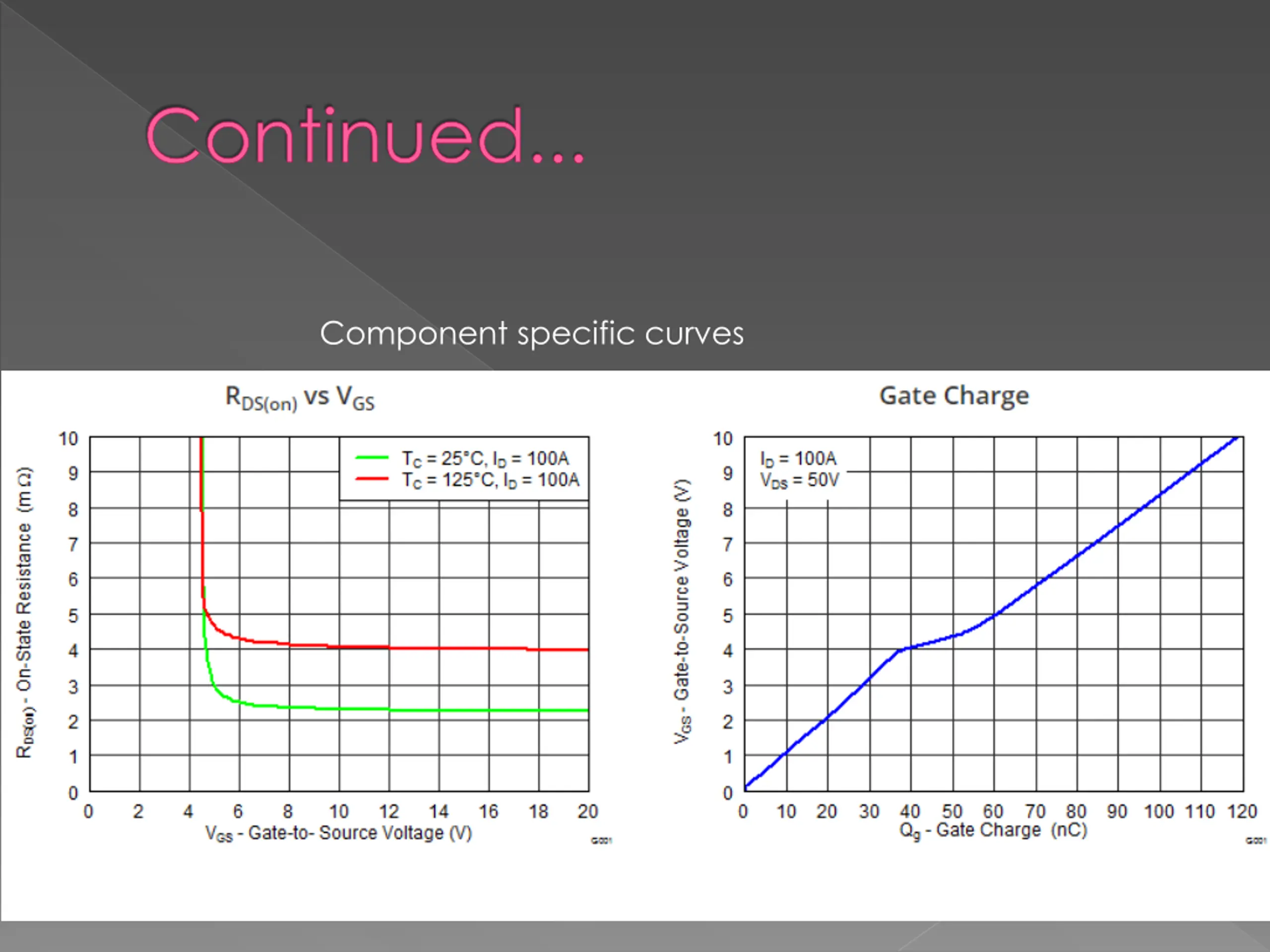

Continued... Component specific curves

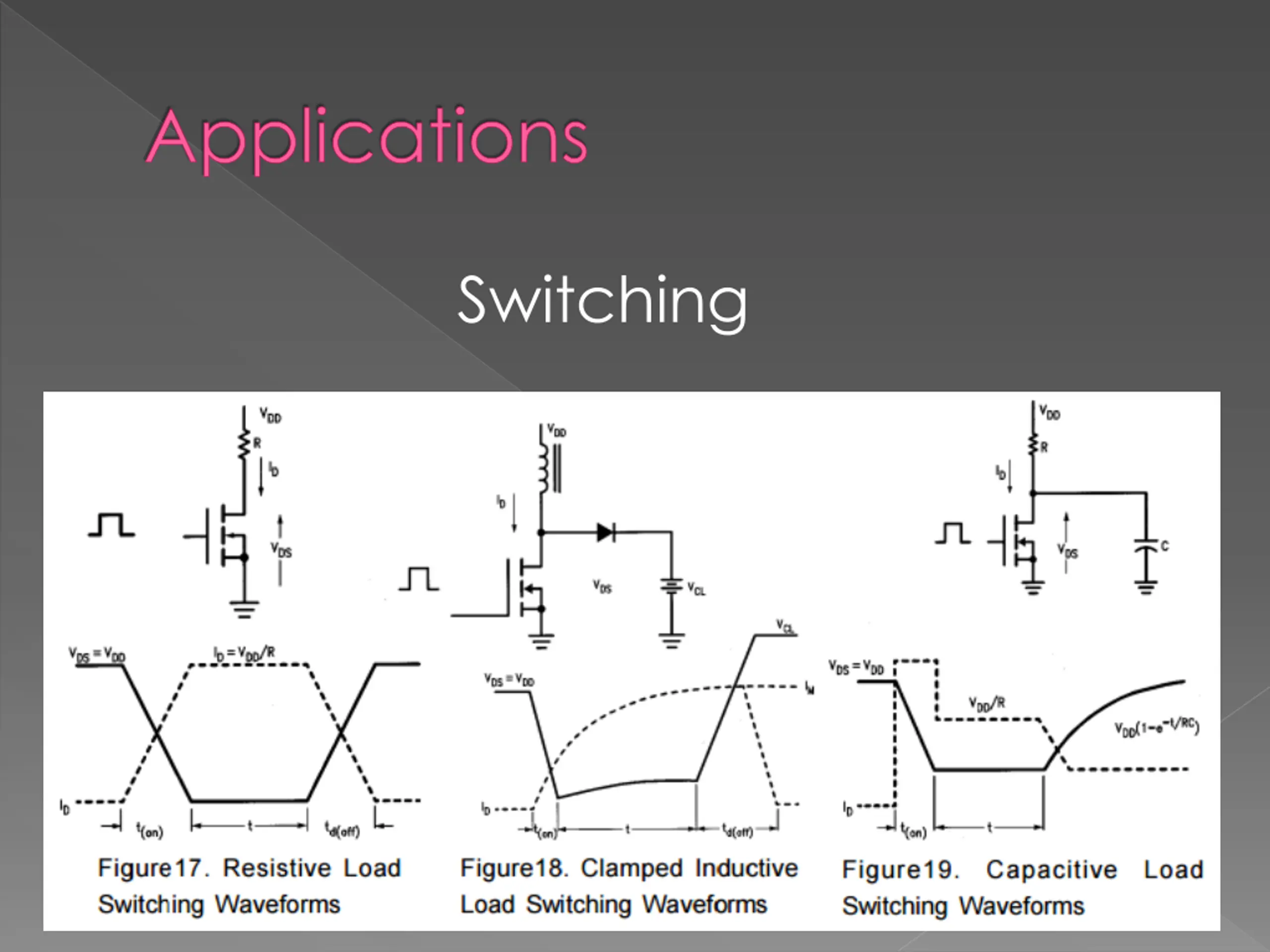

Applications Switching

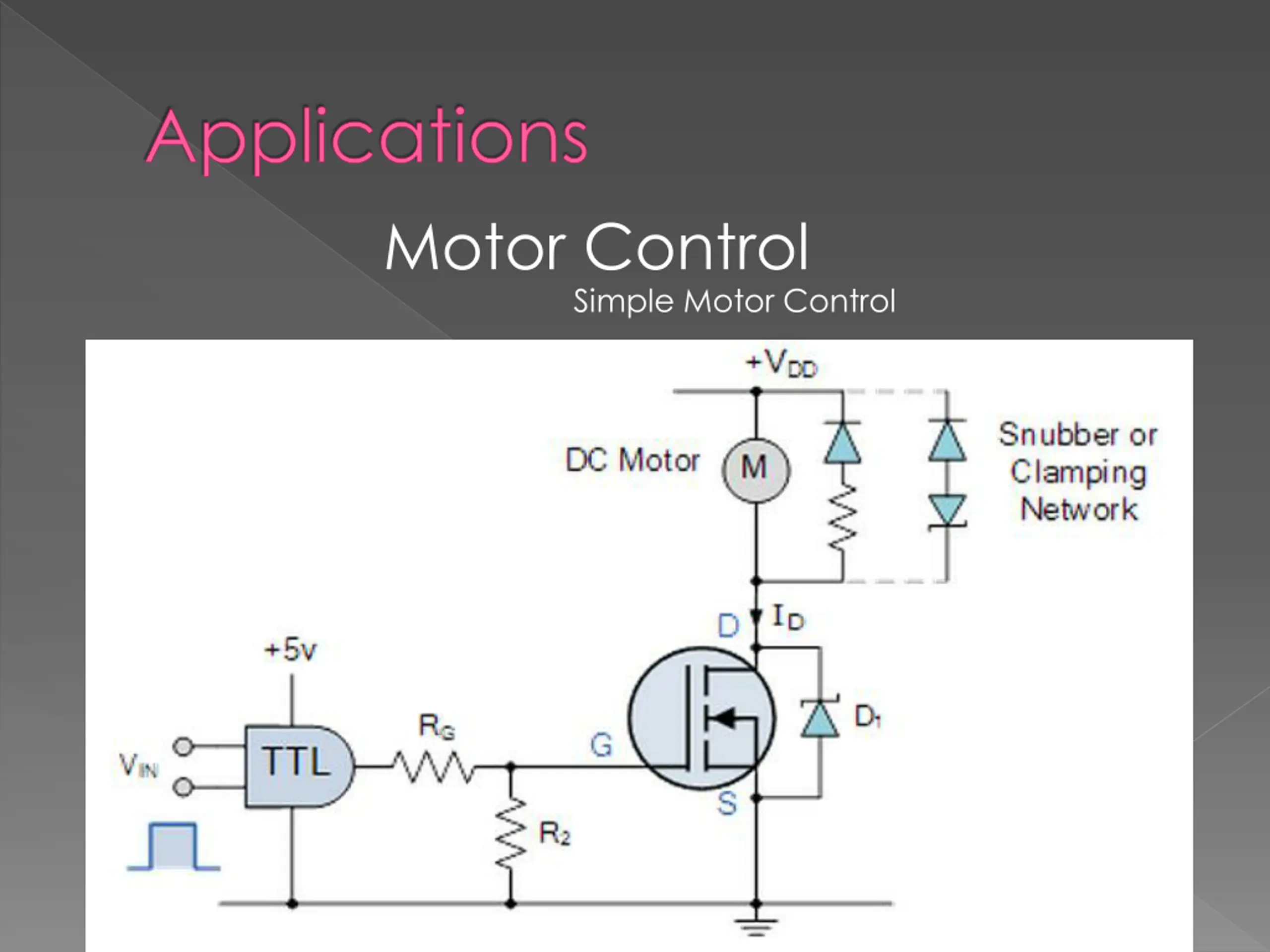

Applications Motor Control Simple Motor Control

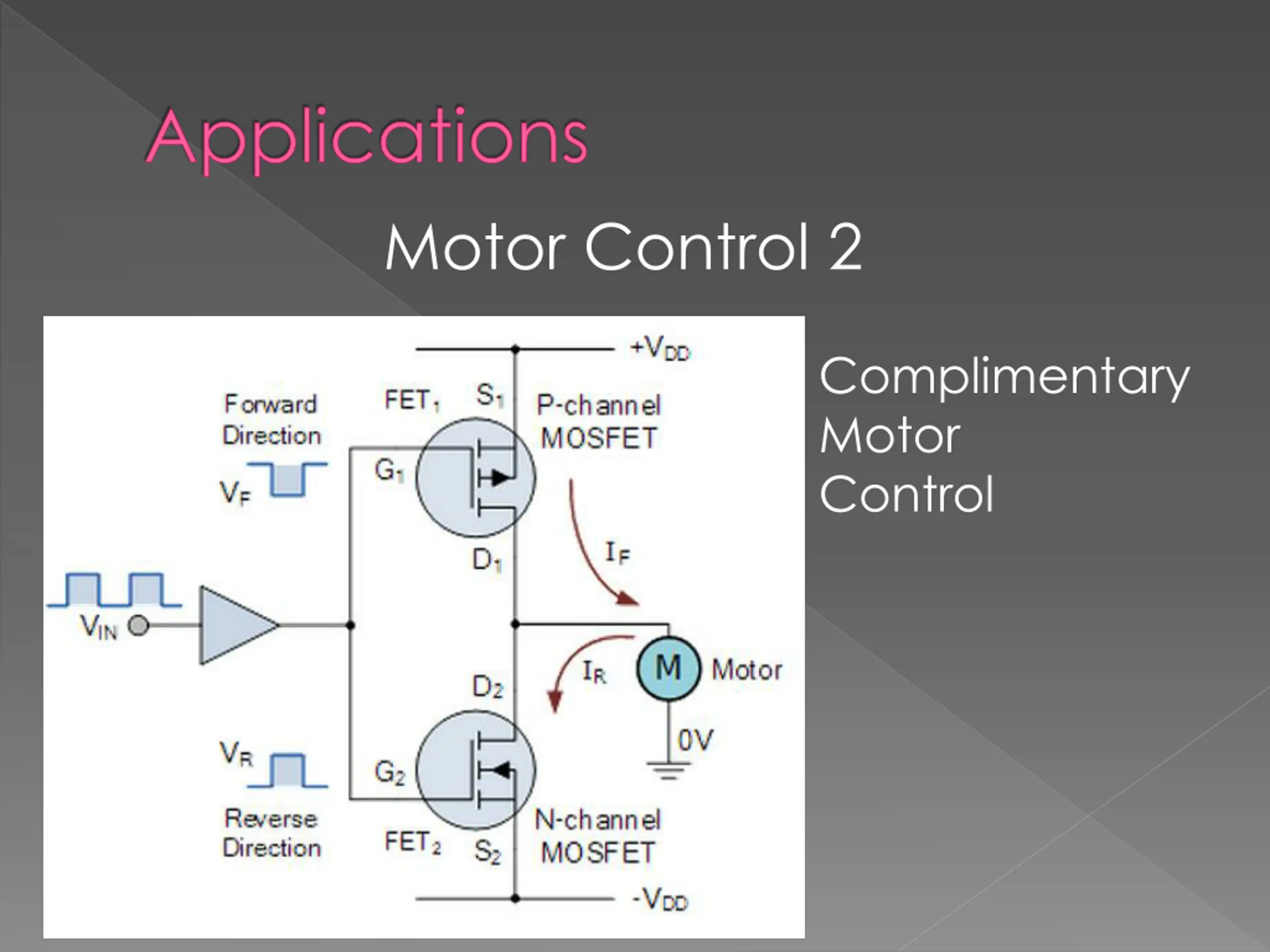

Applications Motor Control 2 Complimentary Motor Control

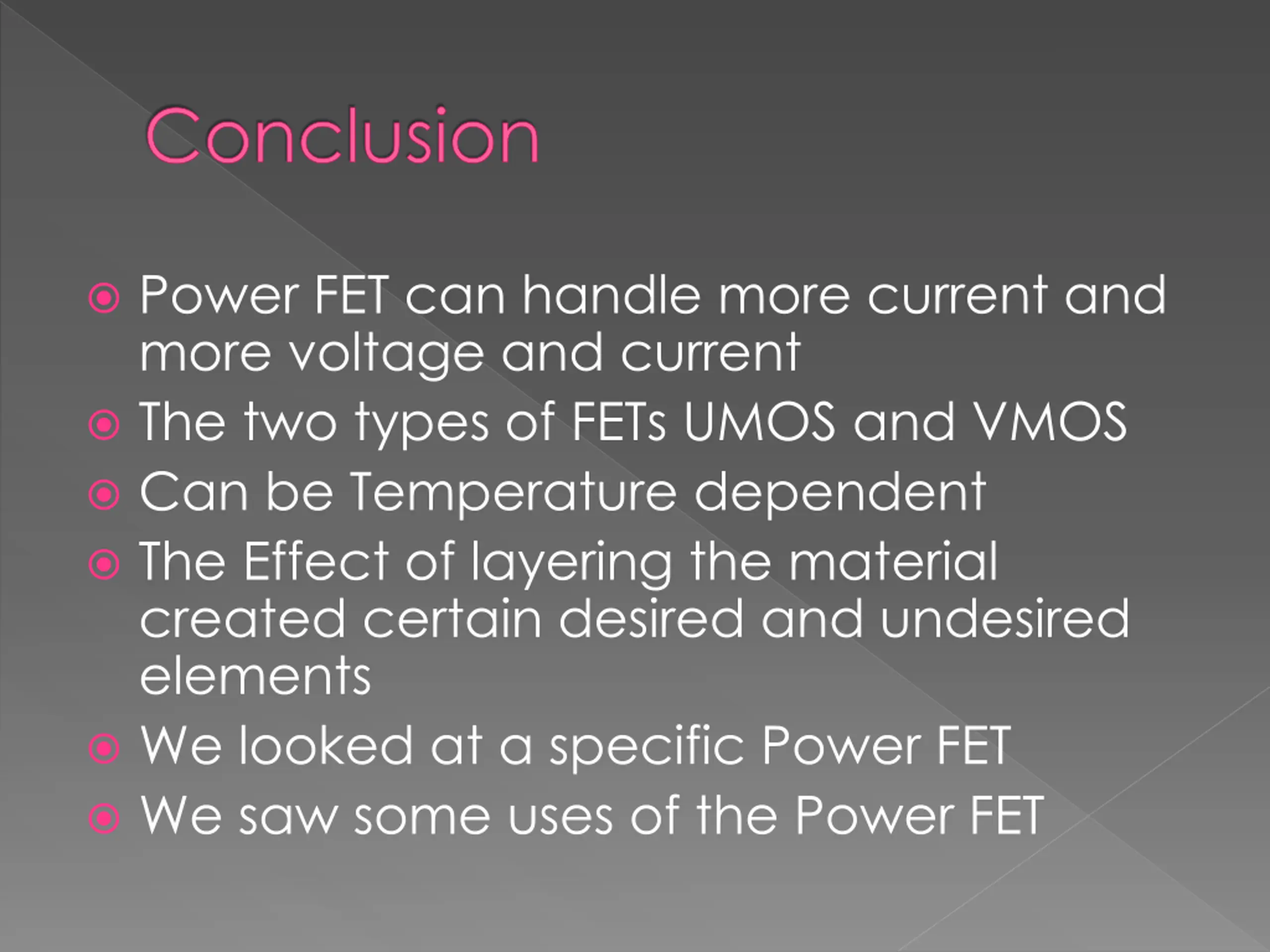

Conclusion Power FET can handle more current and more voltage and current The two types of FETs UMOS and VMOS Can be Temperature dependent The Effect of layering the material created certain desired and undesired elements We looked at a specific Power FET We saw some uses of the Power FET

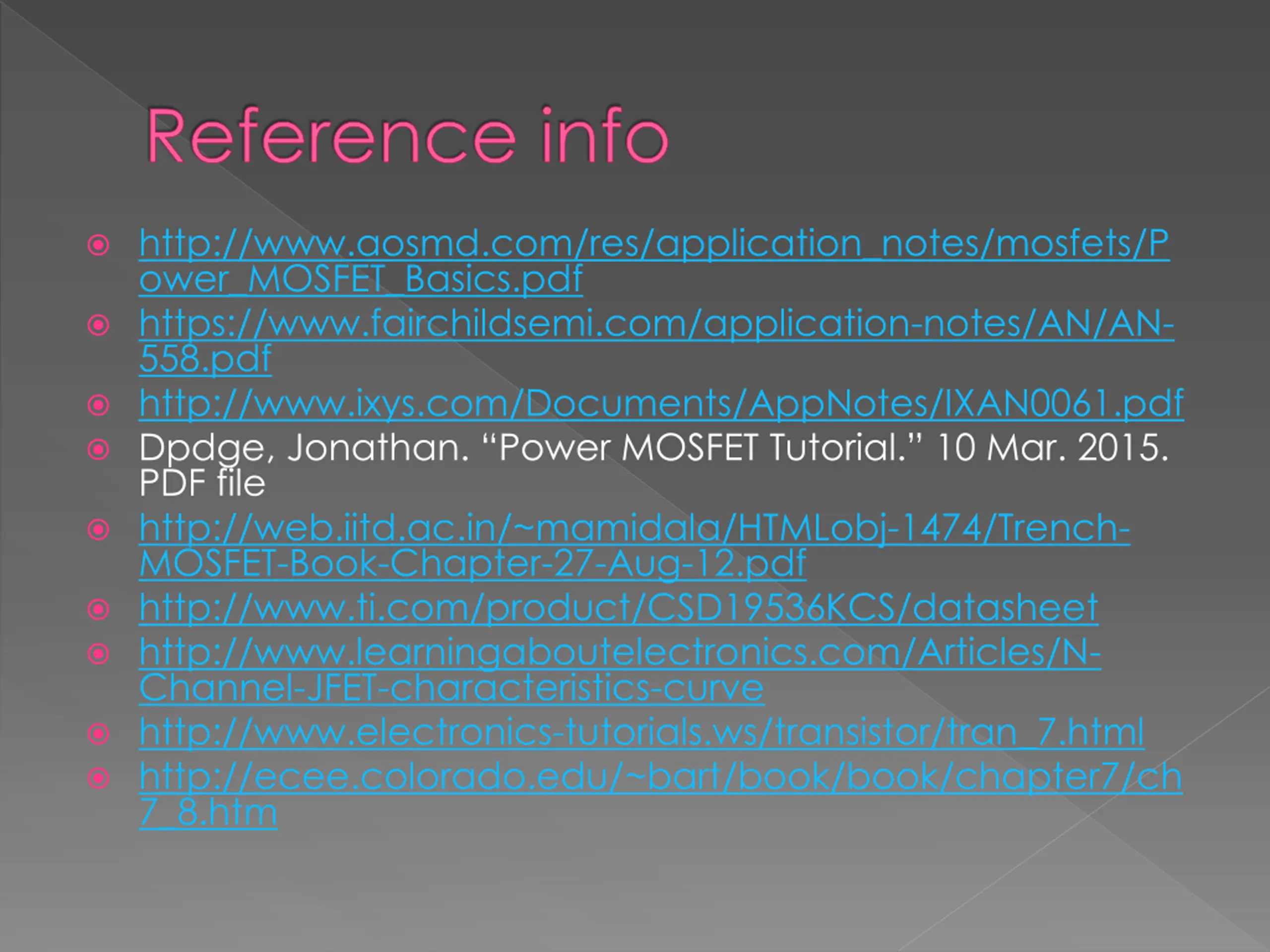

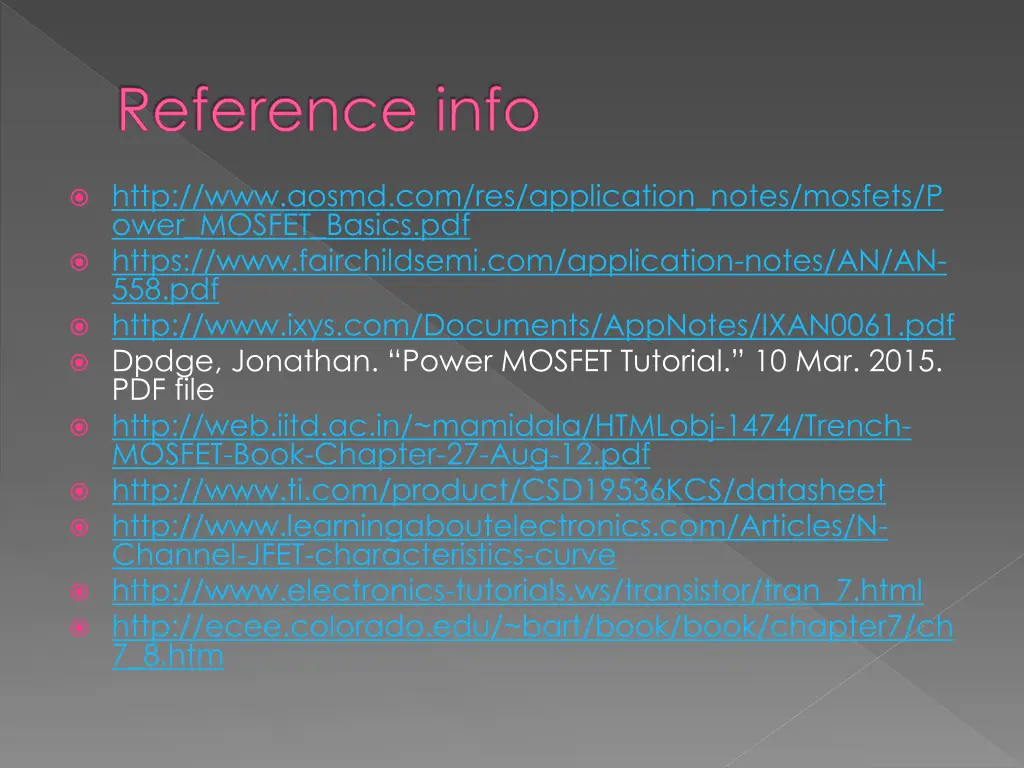

Reference info http://www.aosmd.com/res/application_notes/mosfets/P ower_MOSFET_Basics.pdf https://www.fairchildsemi.com/application-notes/AN/AN- 558.pdf http://www.ixys.com/Documents/AppNotes/IXAN0061.pdf Dpdge, Jonathan. Power MOSFET Tutorial. 10 Mar. 2015. PDF file http://web.iitd.ac.in/~mamidala/HTMLobj-1474/Trench- MOSFET-Book-Chapter-27-Aug-12.pdf http://www.ti.com/product/CSD19536KCS/datasheet http://www.learningaboutelectronics.com/Articles/N- Channel-JFET-characteristics-curve http://www.electronics-tutorials.ws/transistor/tran_7.html http://ecee.colorado.edu/~bart/book/book/chapter7/ch 7_8.htm

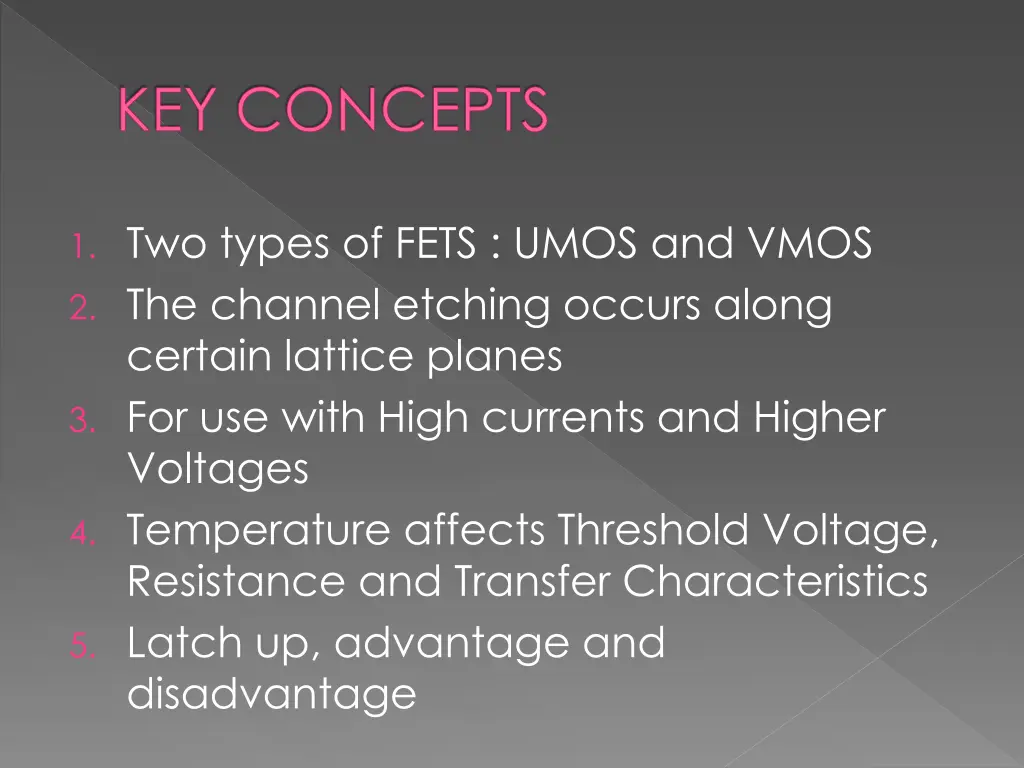

KEY CONCEPTS 1. Two types of FETS : UMOS and VMOS 2. The channel etching occurs along certain lattice planes 3. For use with High currents and Higher Voltages 4. Temperature affects Threshold Voltage, Resistance and Transfer Characteristics 5. Latch up, advantage and disadvantage
