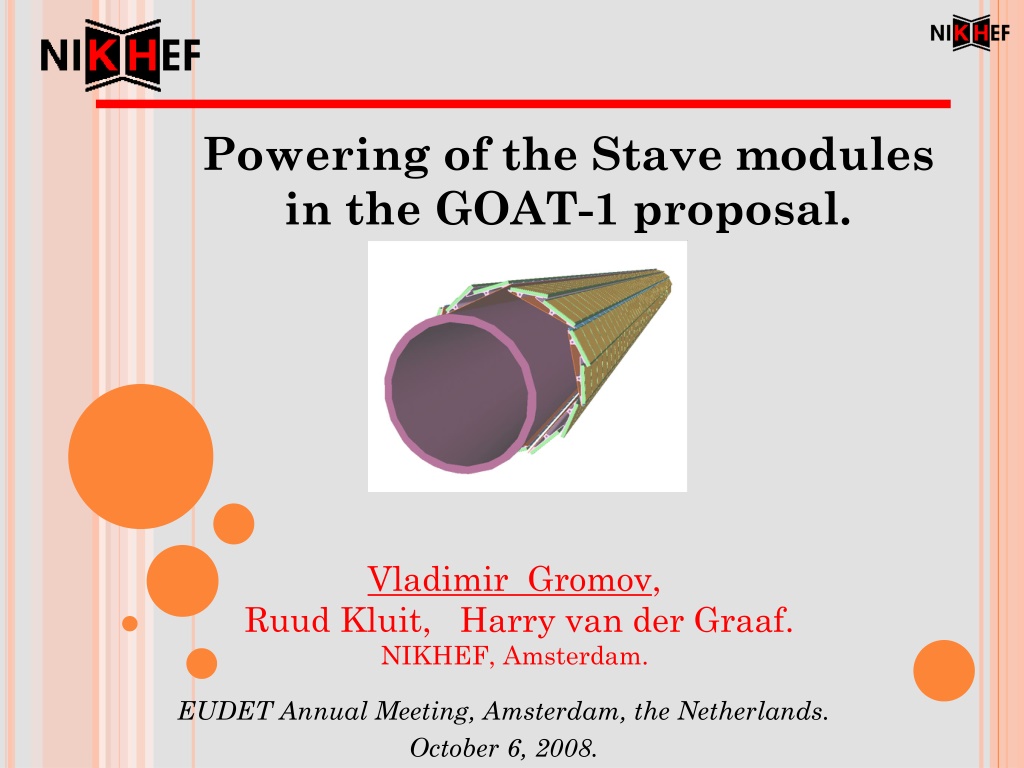

Powering of the Stave modules in the GOAT-1 proposal. Vladimir Gromov, Ruud Kluit, Harry van der Graaf. NIKHEF, Amsterdam. EUDET Annual Meeting, Amsterdam, the Netherlands. October 6, 2008.

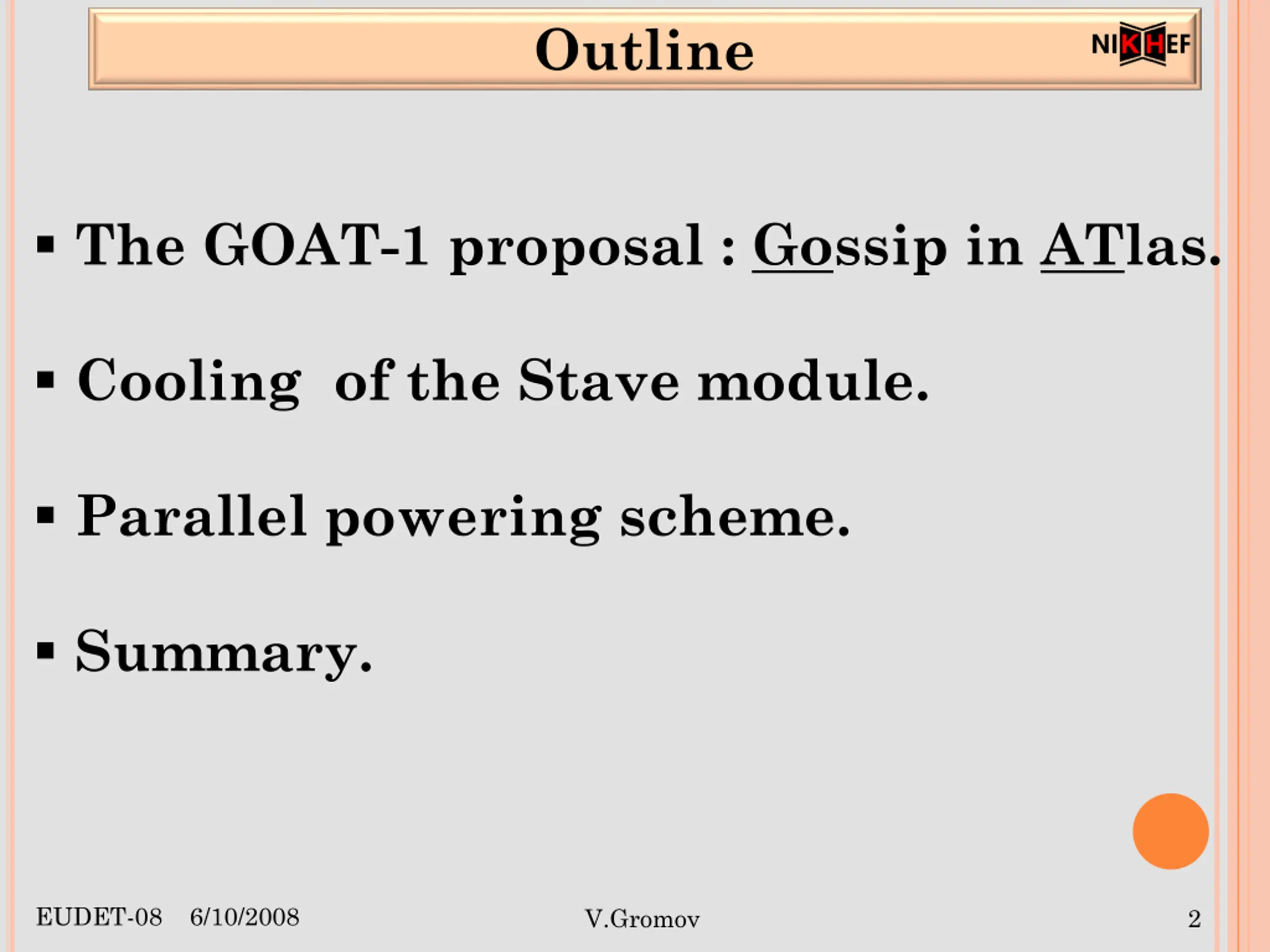

Outline The GOAT-1 proposal : Gossip in ATlas. Cooling of the Stave module. Parallel powering scheme. Summary. EUDET-08 6/10/2008 V.Gromov 2

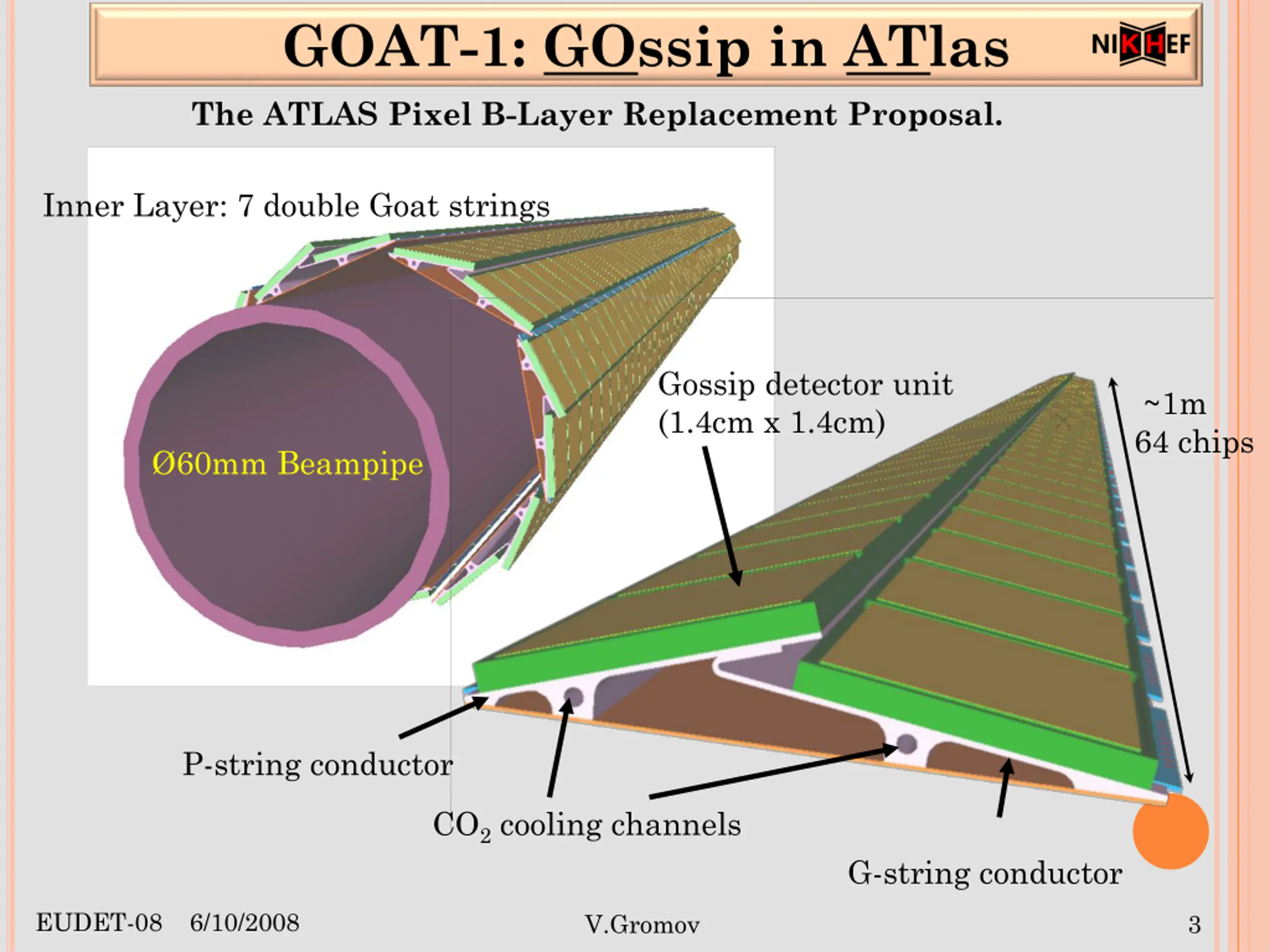

GOAT-1: GOssip in ATlas The ATLAS Pixel B-Layer Replacement Proposal. Inner Layer: 7 double Goat strings Gossip detector unit (1.4cm x 1.4cm) ~1m 64 chips 60mm Beampipe P-string conductor CO2cooling channels G-string conductor EUDET-08 6/10/2008 V.Gromov 3

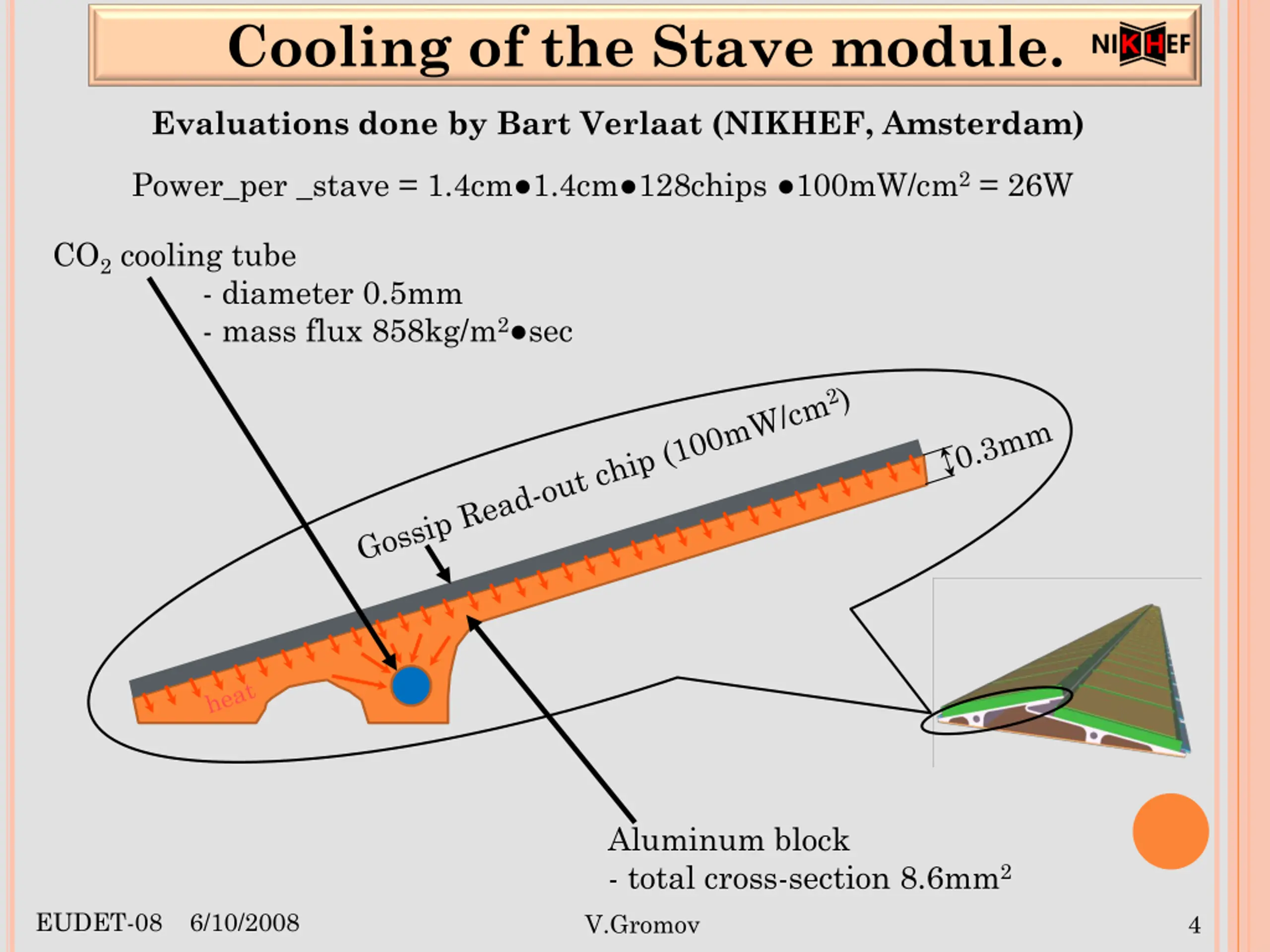

Cooling of the Stave module. Evaluations done by Bart Verlaat (NIKHEF, Amsterdam) Power_per _stave = 1.4cm 1.4cm 128chips 100mW/cm2= 26W CO2cooling tube - diameter 0.5mm - mass flux 858kg/m2 sec Aluminum block - total cross-section 8.6mm2 EUDET-08 6/10/2008 V.Gromov 4

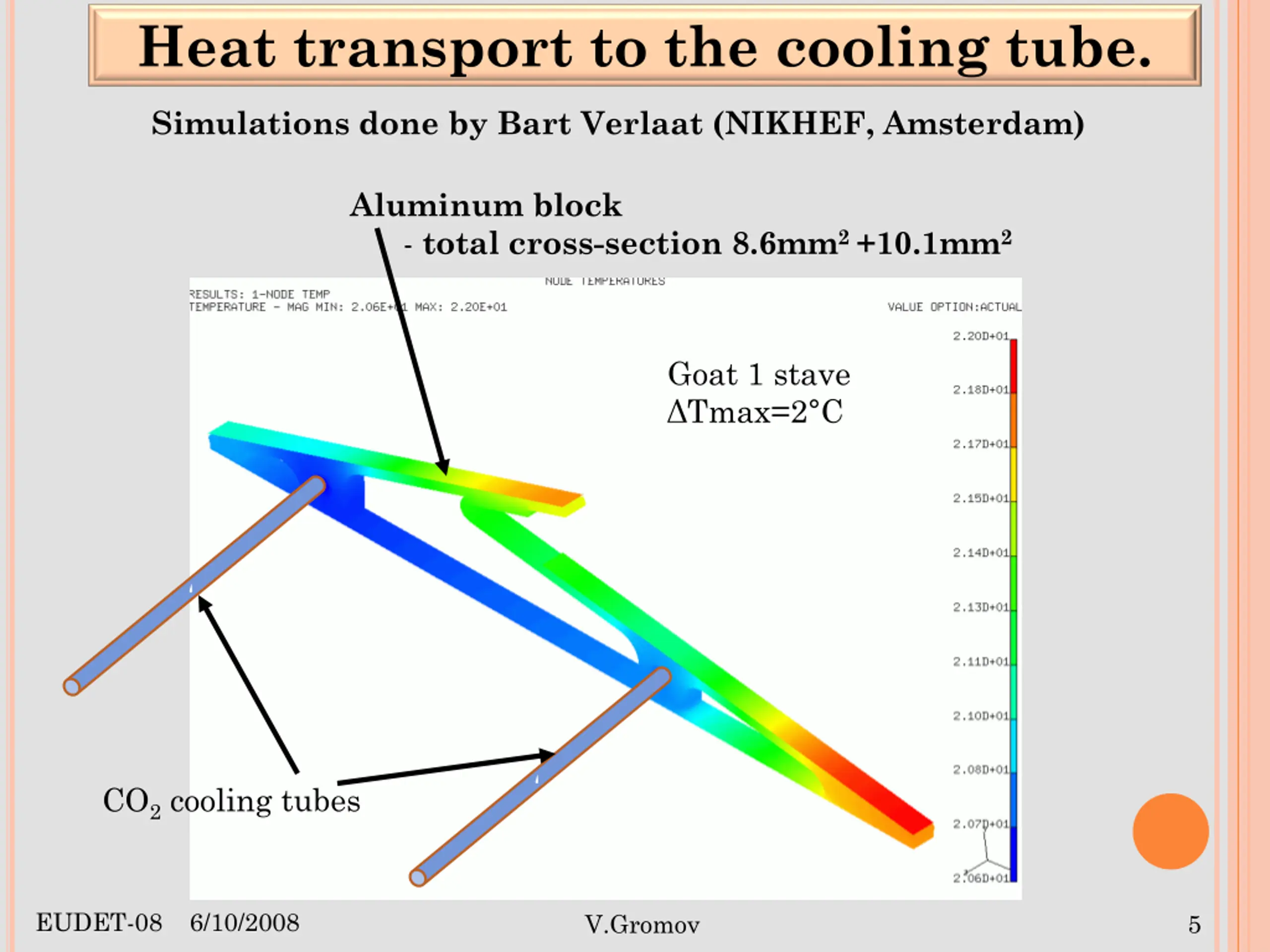

Heat transport to the cooling tube. Simulations done by Bart Verlaat (NIKHEF, Amsterdam) Aluminum block - total cross-section 8.6mm2 +10.1mm2 Goat 1 stave Tmax=2 C CO2cooling tubes EUDET-08 6/10/2008 V.Gromov 5

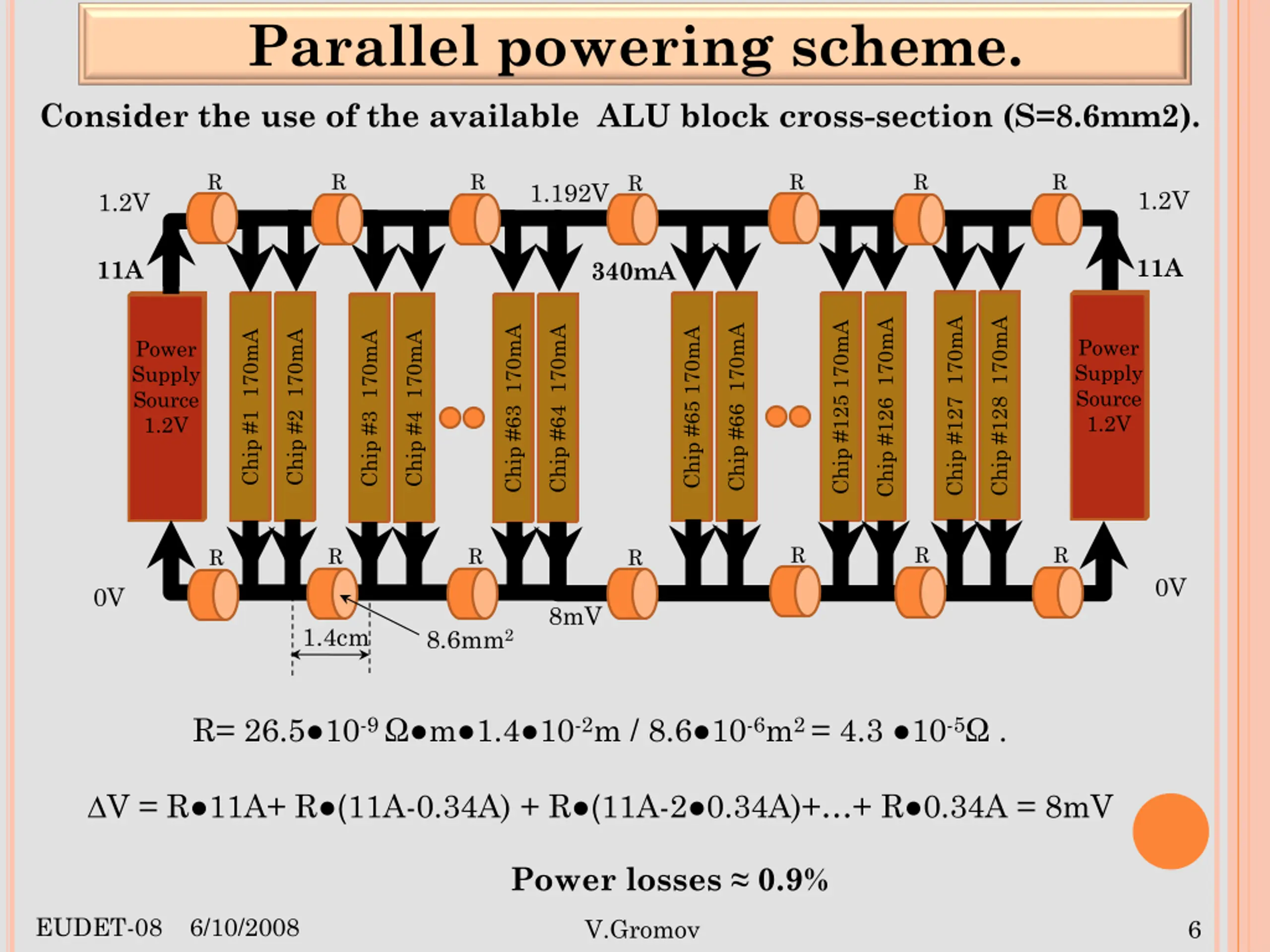

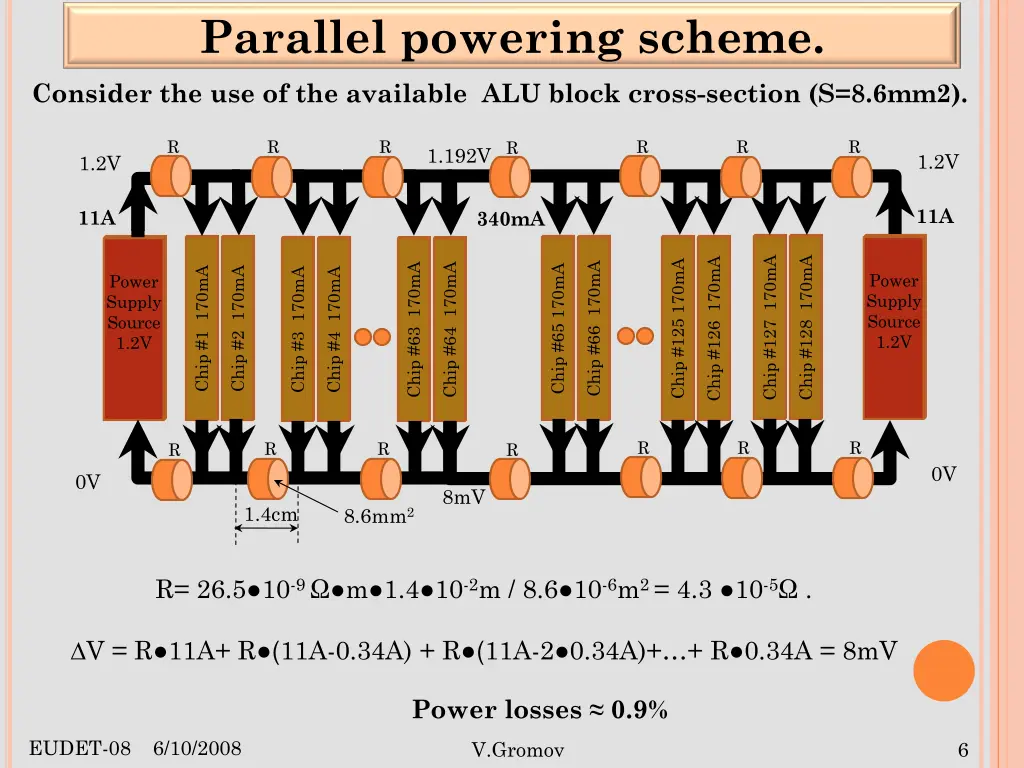

Parallel powering scheme. Consider the use of the available ALU block cross-section (S=8.6mm2). R R R R R R R 1.192V 1.2V 1.2V 11A 11A 340mA Chip #127 170mA Chip #128 170mA Chip #126 170mA Chip #125 170mA Chip #66 170mA Chip #64 170mA Chip #63 170mA Chip #65 170mA Chip #1 170mA Chip #2 170mA Chip #3 170mA Chip #4 170mA Power Supply Source 1.2V Power Supply Source 1.2V R R R R R R R 0V 0V 8mV 1.4cm 8.6mm2 R= 26.5 10-9 m 1.4 10-2m / 8.6 10-6m2 = 4.3 10-5 . V = R 11A+ R (11A-0.34A) + R (11A-2 0.34A)+ + R 0.34A = 8mV Power losses 0.9% EUDET-08 6/10/2008 V.Gromov 6

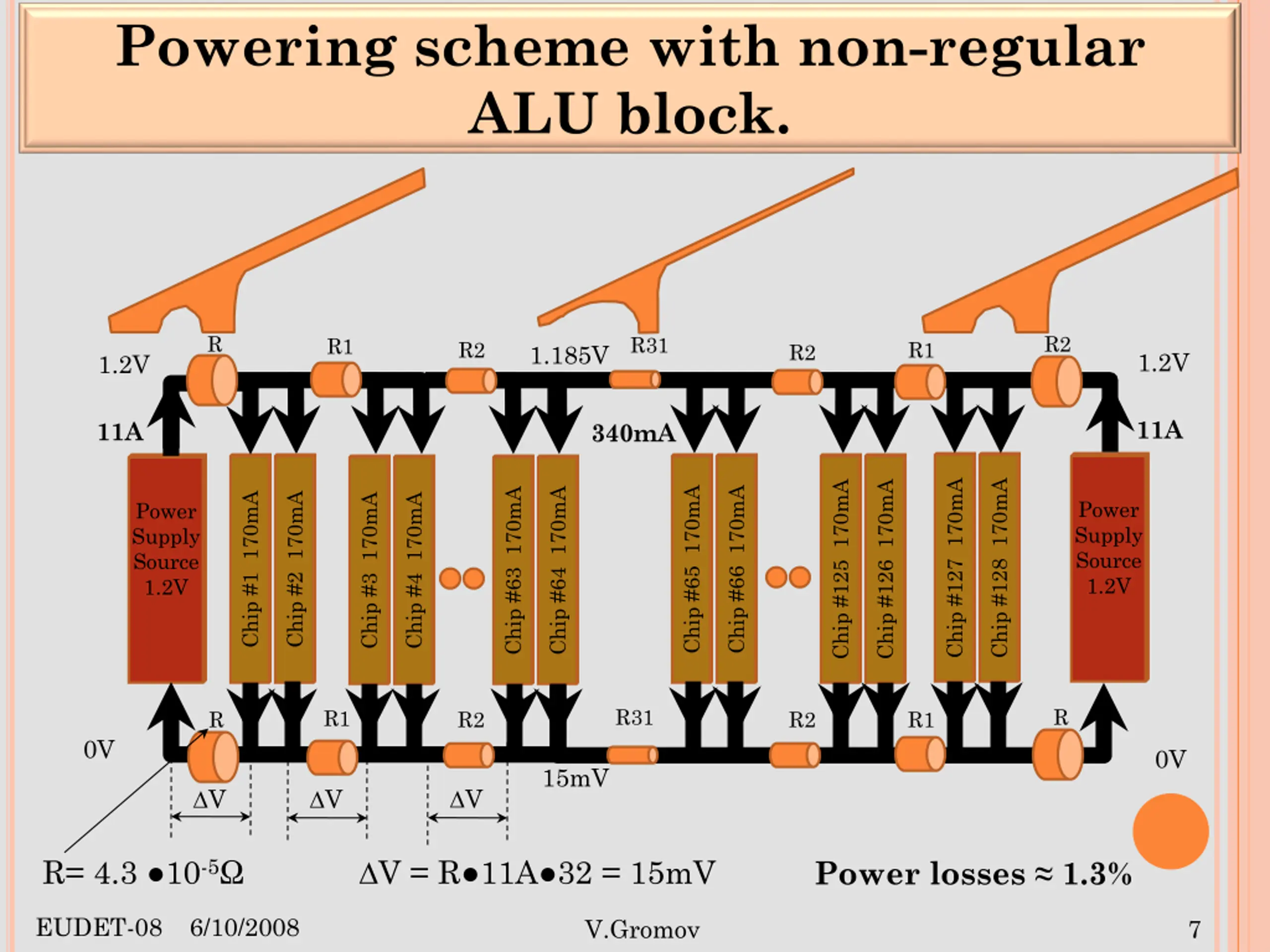

Powering scheme with non-regular ALU block. R R2 R31 R1 R1 R2 1.185V R2 1.2V 1.2V 11A 11A 340mA Chip #127 170mA Chip #128 170mA Chip #125 170mA Chip #126 170mA Chip #65 170mA Chip #66 170mA Chip #64 170mA Chip #63 170mA Chip #1 170mA Chip #2 170mA Chip #3 170mA Chip #4 170mA Power Supply Source 1.2V Power Supply Source 1.2V R31 R R1 R R2 R1 R2 0V 0V 15mV V V V R= 4.3 10-5 V = R 11A 32 = 15mV Power losses 1.3% EUDET-08 6/10/2008 V.Gromov 7

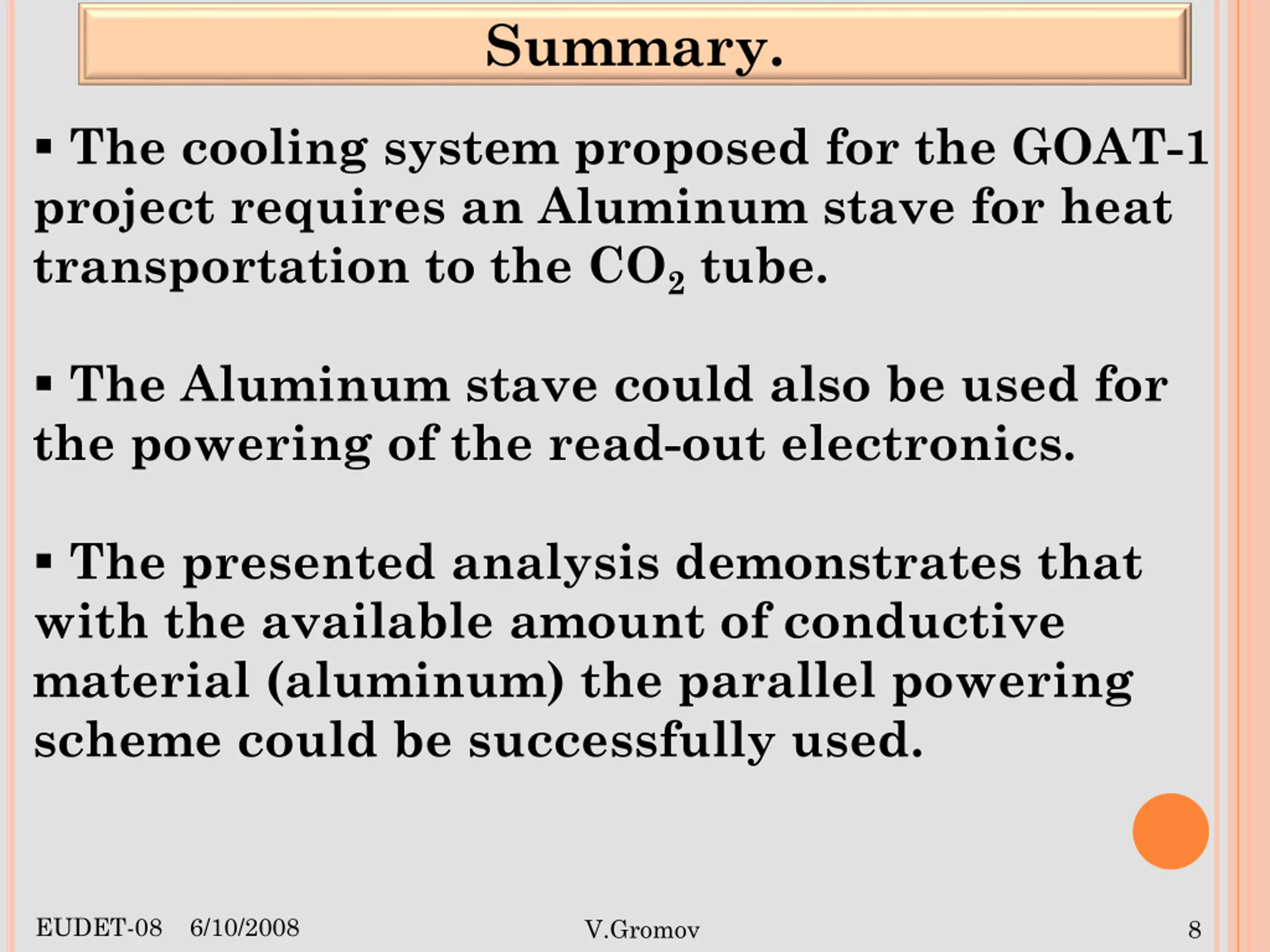

Summary. The cooling system proposed for the GOAT-1 project requires an Aluminum stave for heat transportation to the CO2 tube. The Aluminum stave could also be used for the powering of the read-out electronics. The presented analysis demonstrates that with the available amount of conductive material (aluminum) the parallel powering scheme could be successfully used. EUDET-08 6/10/2008 V.Gromov 8
