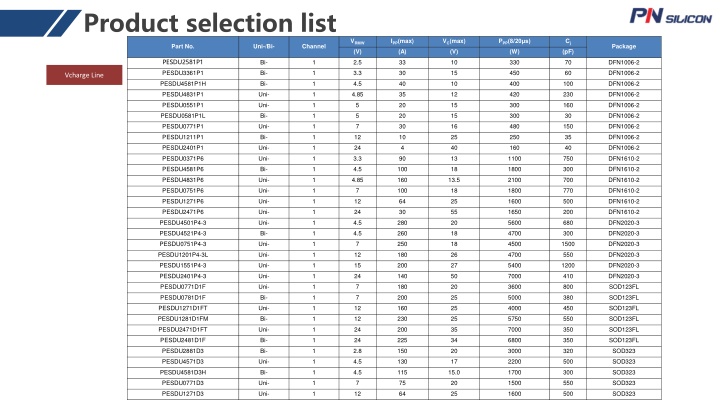

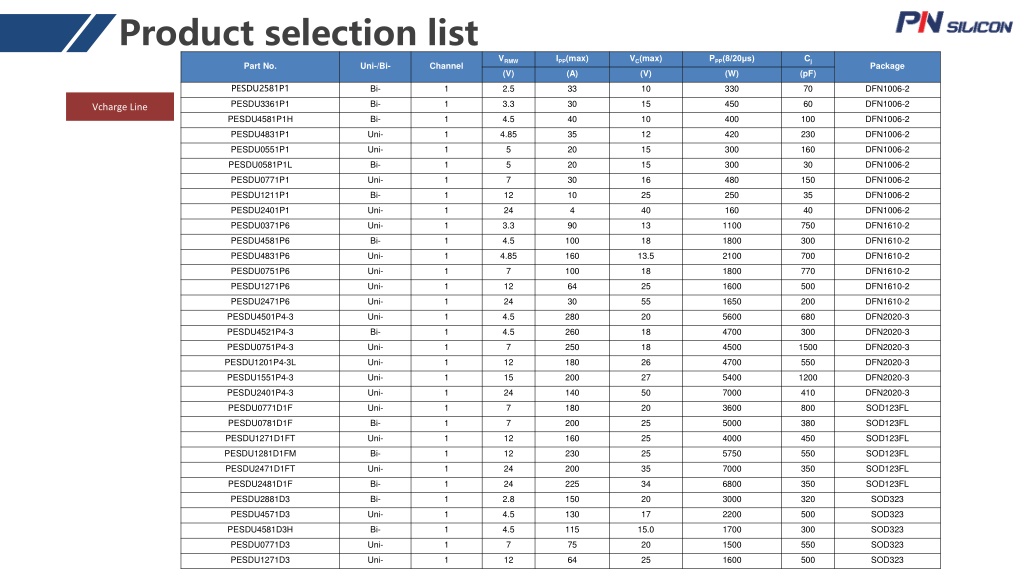

Product selection list VRMW (V) IPP(max) (A) VC(max) (V) PPP(8/20 s) (W) Cj Part No. Uni-/Bi- Channel Package (pF) PESDU2581P1 Bi- 1 2.5 33 10 330 70 DFN1006-2 PESDU3361P1 Bi- 1 3.3 30 15 450 60 DFN1006-2 Vcharge Line PESDU4581P1H Bi- 1 4.5 40 10 400 100 DFN1006-2 PESDU4831P1 Uni- 1 4.85 35 12 420 230 DFN1006-2 PESDU0551P1 Uni- 1 5 20 15 300 160 DFN1006-2 PESDU0581P1L Bi- 1 5 20 15 300 30 DFN1006-2 PESDU0771P1 Uni- 1 7 30 16 480 150 DFN1006-2 PESDU1211P1 Bi- 1 12 10 25 250 35 DFN1006-2 PESDU2401P1 Uni- 1 24 4 40 160 40 DFN1006-2 PESDU0371P6 Uni- 1 3.3 90 13 1100 750 DFN1610-2 PESDU4581P6 Bi- 1 4.5 100 18 1800 300 DFN1610-2 PESDU4831P6 Uni- 1 4.85 160 13.5 2100 700 DFN1610-2 PESDU0751P6 Uni- 1 7 100 18 1800 770 DFN1610-2 PESDU1271P6 Uni- 1 12 64 25 1600 500 DFN1610-2 PESDU2471P6 Uni- 1 24 30 55 1650 200 DFN1610-2 PESDU4501P4-3 Uni- 1 4.5 280 20 5600 680 DFN2020-3 PESDU4521P4-3 Bi- 1 4.5 260 18 4700 300 DFN2020-3 PESDU0751P4-3 Uni- 1 7 250 18 4500 1500 DFN2020-3 PESDU1201P4-3L Uni- 1 12 180 26 4700 550 DFN2020-3 PESDU1551P4-3 Uni- 1 15 200 27 5400 1200 DFN2020-3 PESDU2401P4-3 Uni- 1 24 140 50 7000 410 DFN2020-3 PESDU0771D1F Uni- 1 7 180 20 3600 800 SOD123FL PESDU0781D1F Bi- 1 7 200 25 5000 380 SOD123FL PESDU1271D1FT Uni- 1 12 160 25 4000 450 SOD123FL PESDU1281D1FM Bi- 1 12 230 25 5750 550 SOD123FL PESDU2471D1FT Uni- 1 24 200 35 7000 350 SOD123FL PESDU2481D1F Bi- 1 24 225 34 6800 350 SOD123FL PESDU2881D3 Bi- 1 2.8 150 20 3000 320 SOD323 PESDU4571D3 Uni- 1 4.5 130 17 2200 500 SOD323 PESDU4581D3H Bi- 1 4.5 115 15.0 1700 300 SOD323 PESDU0771D3 Uni- 1 7 75 20 1500 550 SOD323 PESDU1271D3 Uni- 1 12 64 25 1600 500 SOD323

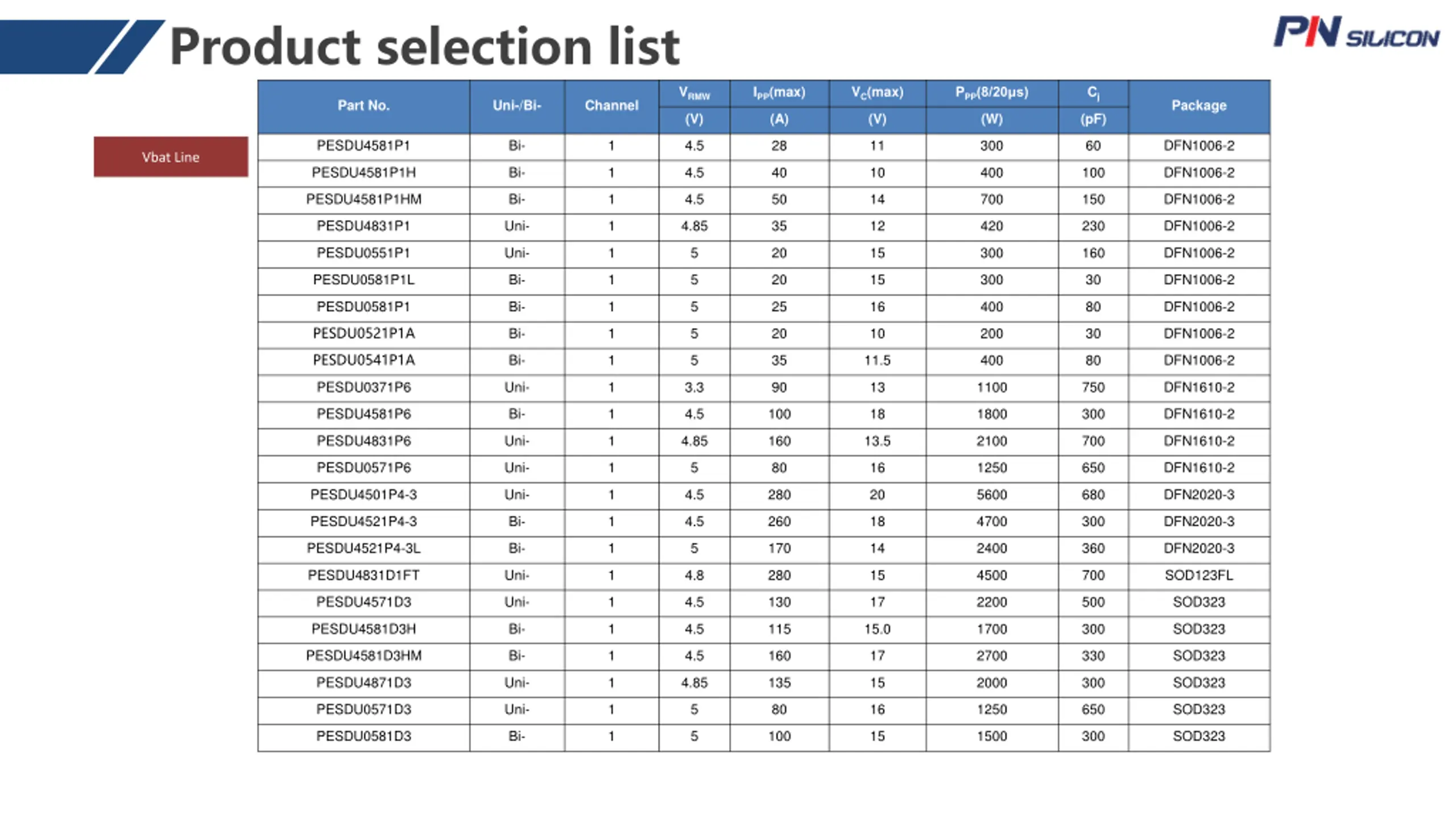

Product selection list VRMW IPP(max) VC(max) PPP(8/20 s) Cj Part No. Uni-/Bi- Channel Package (V) (A) (V) (W) (pF) PESDU4581P1 Bi- 1 4.5 28 11 300 60 DFN1006-2 Vbat Line PESDU4581P1H Bi- 1 4.5 40 10 400 100 DFN1006-2 PESDU4581P1HM Bi- 1 4.5 50 14 700 150 DFN1006-2 PESDU4831P1 Uni- 1 4.85 35 12 420 230 DFN1006-2 PESDU0551P1 Uni- 1 5 20 15 300 160 DFN1006-2 PESDU0581P1L Bi- 1 5 20 15 300 30 DFN1006-2 PESDU0581P1 Bi- 1 5 25 16 400 80 DFN1006-2 PESDU0521P1A Bi- 1 5 20 10 200 30 DFN1006-2 PESDU0541P1A Bi- 1 5 35 11.5 400 80 DFN1006-2 PESDU0371P6 Uni- 1 3.3 90 13 1100 750 DFN1610-2 PESDU4581P6 Bi- 1 4.5 100 18 1800 300 DFN1610-2 PESDU4831P6 Uni- 1 4.85 160 13.5 2100 700 DFN1610-2 PESDU0571P6 Uni- 1 5 80 16 1250 650 DFN1610-2 PESDU4501P4-3 Uni- 1 4.5 280 20 5600 680 DFN2020-3 PESDU4521P4-3 Bi- 1 4.5 260 18 4700 300 DFN2020-3 PESDU4521P4-3L Bi- 1 5 170 14 2400 360 DFN2020-3 PESDU4831D1FT Uni- 1 4.8 280 15 4500 700 SOD123FL PESDU4571D3 Uni- 1 4.5 130 17 2200 500 SOD323 PESDU4581D3H Bi- 1 4.5 115 15.0 1700 300 SOD323 PESDU4581D3HM Bi- 1 4.5 160 17 2700 330 SOD323 PESDU4871D3 Uni- 1 4.85 135 15 2000 300 SOD323 PESDU0571D3 Uni- 1 5 80 16 1250 650 SOD323 PESDU0581D3 Bi- 1 5 100 15 1500 300 SOD323

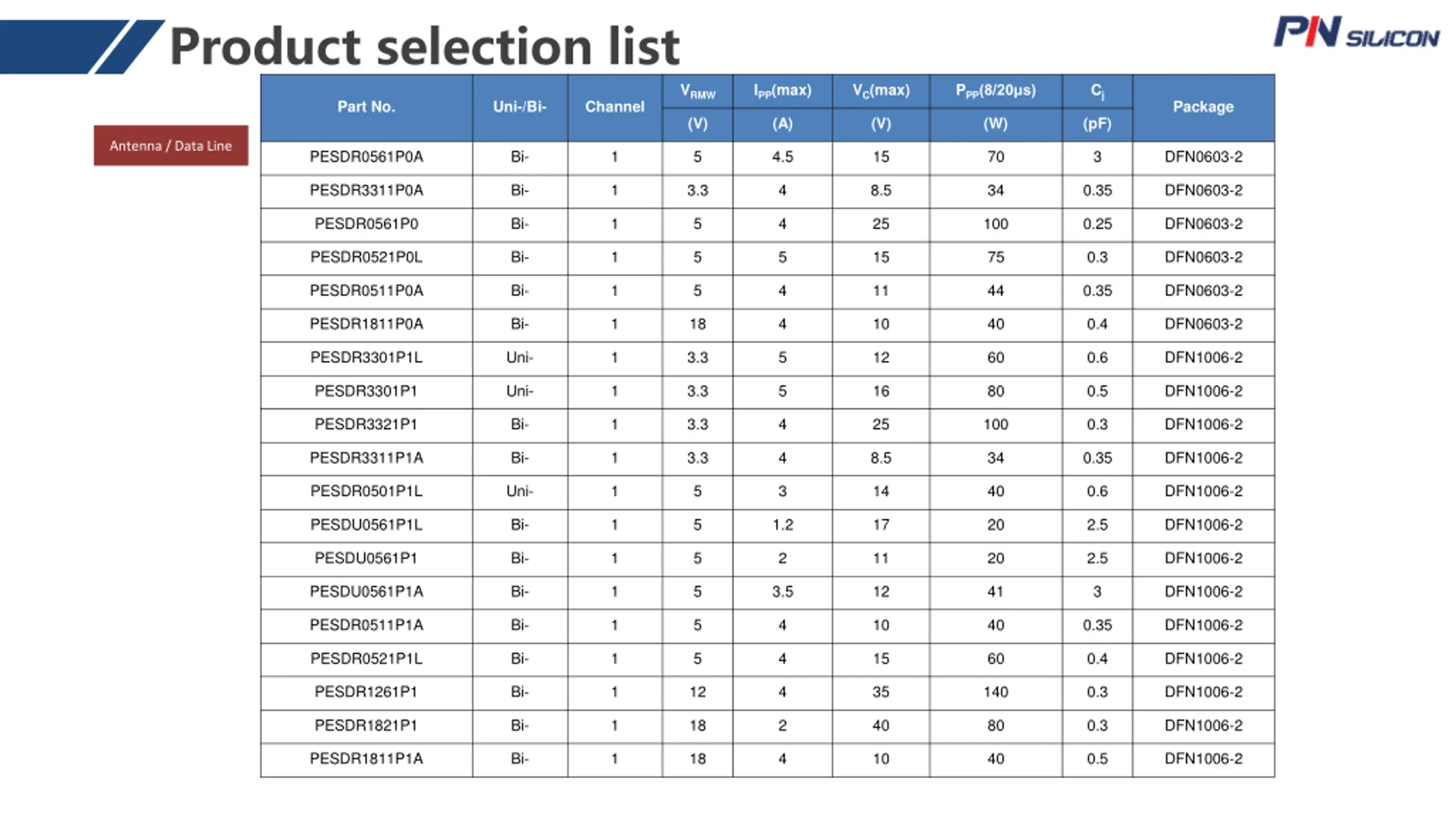

Product selection list VRMW IPP(max) VC(max) PPP(8/20 s) Cj Part No. Uni-/Bi- Channel Package (V) (A) (V) (W) (pF) Antenna / Data Line PESDR0561P0A Bi- 1 5 4.5 15 70 3 DFN0603-2 PESDR3311P0A Bi- 1 3.3 4 8.5 34 0.35 DFN0603-2 PESDR0561P0 Bi- 1 5 4 25 100 0.25 DFN0603-2 PESDR0521P0L Bi- 1 5 5 15 75 0.3 DFN0603-2 PESDR0511P0A Bi- 1 5 4 11 44 0.35 DFN0603-2 PESDR1811P0A Bi- 1 18 4 10 40 0.4 DFN0603-2 PESDR3301P1L Uni- 1 3.3 5 12 60 0.6 DFN1006-2 PESDR3301P1 Uni- 1 3.3 5 16 80 0.5 DFN1006-2 PESDR3321P1 Bi- 1 3.3 4 25 100 0.3 DFN1006-2 PESDR3311P1A Bi- 1 3.3 4 8.5 34 0.35 DFN1006-2 PESDR0501P1L Uni- 1 5 3 14 40 0.6 DFN1006-2 PESDU0561P1L Bi- 1 5 1.2 17 20 2.5 DFN1006-2 PESDU0561P1 Bi- 1 5 2 11 20 2.5 DFN1006-2 PESDU0561P1A Bi- 1 5 3.5 12 41 3 DFN1006-2 PESDR0511P1A Bi- 1 5 4 10 40 0.35 DFN1006-2 PESDR0521P1L Bi- 1 5 4 15 60 0.4 DFN1006-2 PESDR1261P1 Bi- 1 12 4 35 140 0.3 DFN1006-2 PESDR1821P1 Bi- 1 18 2 40 80 0.3 DFN1006-2 PESDR1811P1A Bi- 1 18 4 10 40 0.5 DFN1006-2

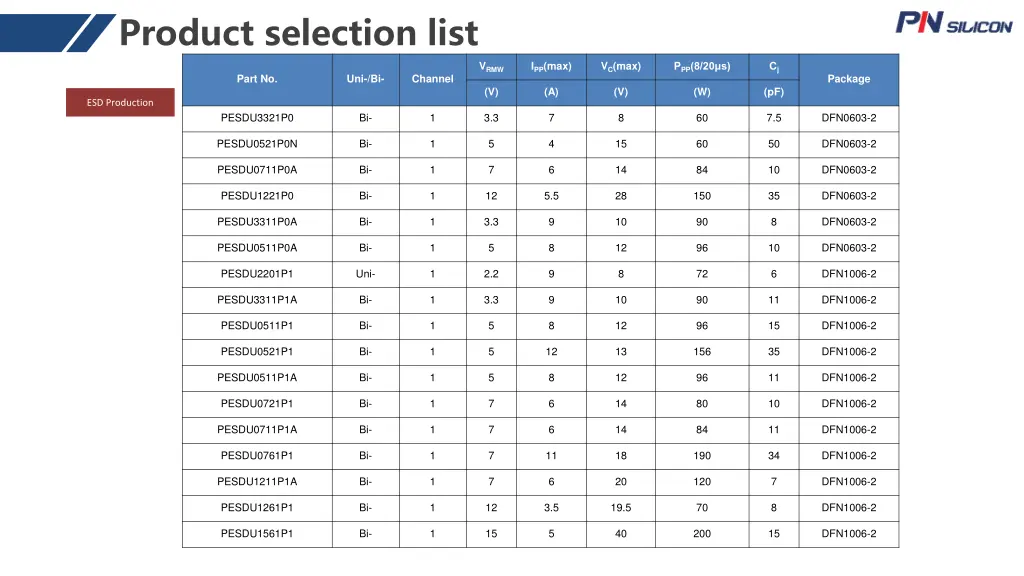

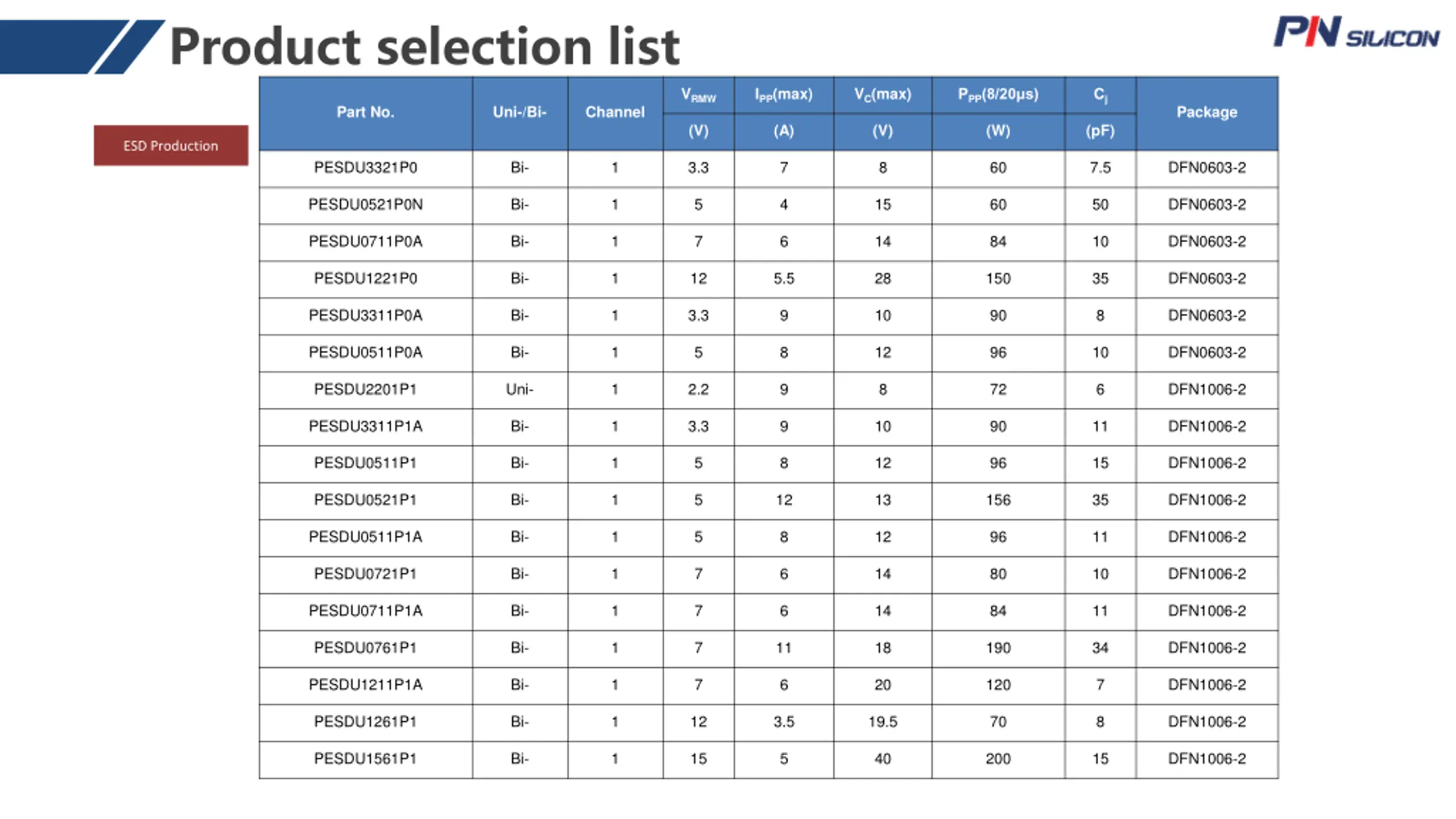

Product selection list VRMW IPP(max) VC(max) PPP(8/20 s) Cj Part No. Uni-/Bi- Channel Package (V) (A) (V) (W) (pF) ESD Production PESDU3321P0 Bi- 1 3.3 7 8 60 7.5 DFN0603-2 PESDU0521P0N Bi- 1 5 4 15 60 50 DFN0603-2 PESDU0711P0A Bi- 1 7 6 14 84 10 DFN0603-2 PESDU1221P0 Bi- 1 12 5.5 28 150 35 DFN0603-2 PESDU3311P0A Bi- 1 3.3 9 10 90 8 DFN0603-2 PESDU0511P0A Bi- 1 5 8 12 96 10 DFN0603-2 PESDU2201P1 Uni- 1 2.2 9 8 72 6 DFN1006-2 PESDU3311P1A Bi- 1 3.3 9 10 90 11 DFN1006-2 PESDU0511P1 Bi- 1 5 8 12 96 15 DFN1006-2 PESDU0521P1 Bi- 1 5 12 13 156 35 DFN1006-2 PESDU0511P1A Bi- 1 5 8 12 96 11 DFN1006-2 PESDU0721P1 Bi- 1 7 6 14 80 10 DFN1006-2 PESDU0711P1A Bi- 1 7 6 14 84 11 DFN1006-2 PESDU0761P1 Bi- 1 7 11 18 190 34 DFN1006-2 PESDU1211P1A Bi- 1 7 6 20 120 7 DFN1006-2 PESDU1261P1 Bi- 1 12 3.5 19.5 70 8 DFN1006-2 PESDU1561P1 Bi- 1 15 5 40 200 15 DFN1006-2

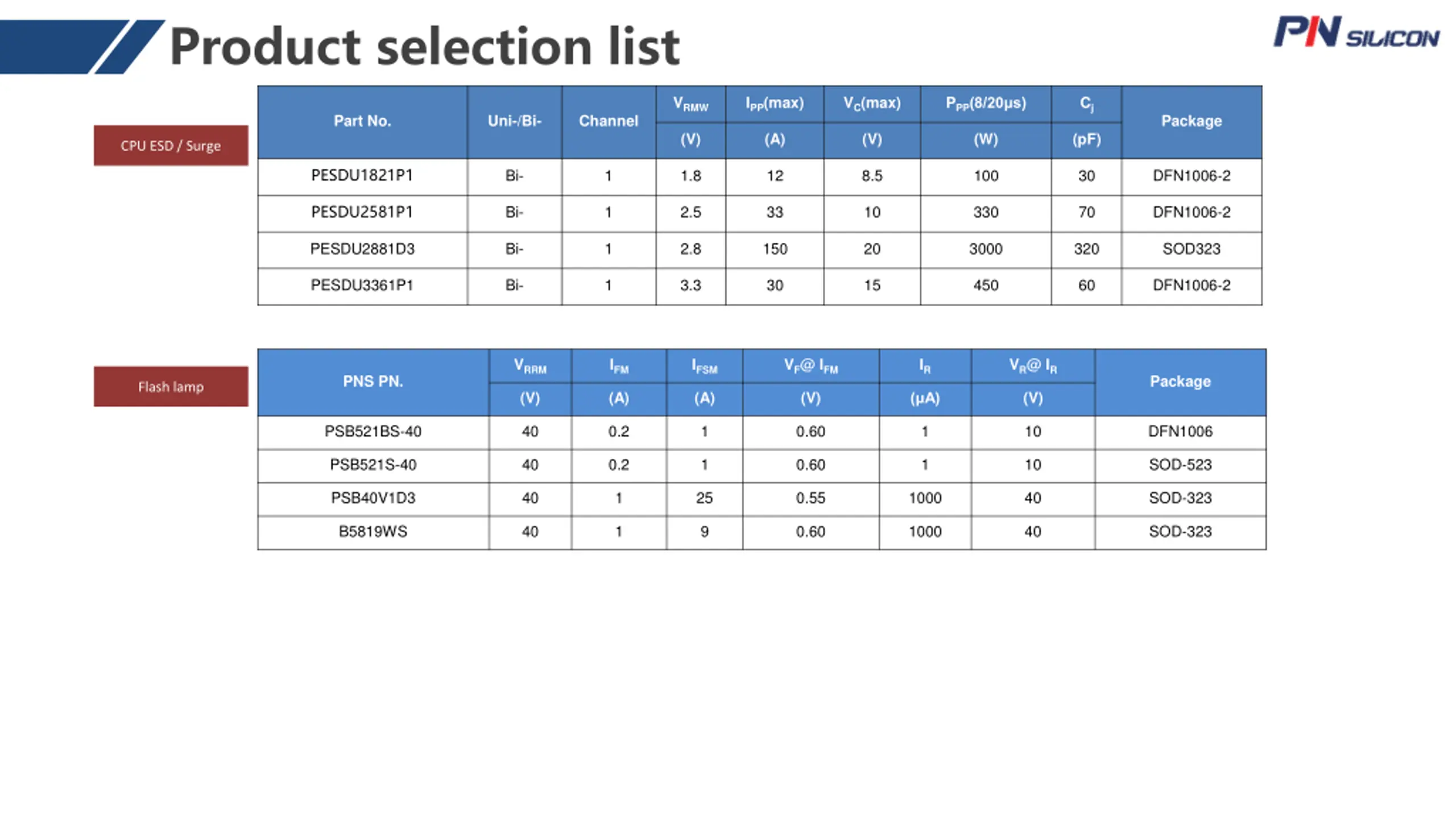

Product selection list VRMW IPP(max) VC(max) PPP(8/20 s) Cj Part No. Uni-/Bi- Channel Package (V) (A) (V) (W) (pF) CPU ESD / Surge PESDU1821P1 Bi- 1 1.8 12 8.5 100 30 DFN1006-2 PESDU2581P1 Bi- 1 2.5 33 10 330 70 DFN1006-2 PESDU2881D3 Bi- 1 2.8 150 20 3000 320 SOD323 PESDU3361P1 Bi- 1 3.3 30 15 450 60 DFN1006-2 VRRM IFM IFSM VF@ IFM IR VR@ IR PNS PN. Package Flash lamp (V) (A) (A) (V) (V) ( A) PSB521BS-40 40 0.2 1 0.60 1 10 DFN1006 PSB521S-40 40 0.2 1 0.60 1 10 SOD-523 PSB40V1D3 40 1 25 0.55 1000 40 SOD-323 B5819WS 40 1 9 0.60 1000 40 SOD-323
