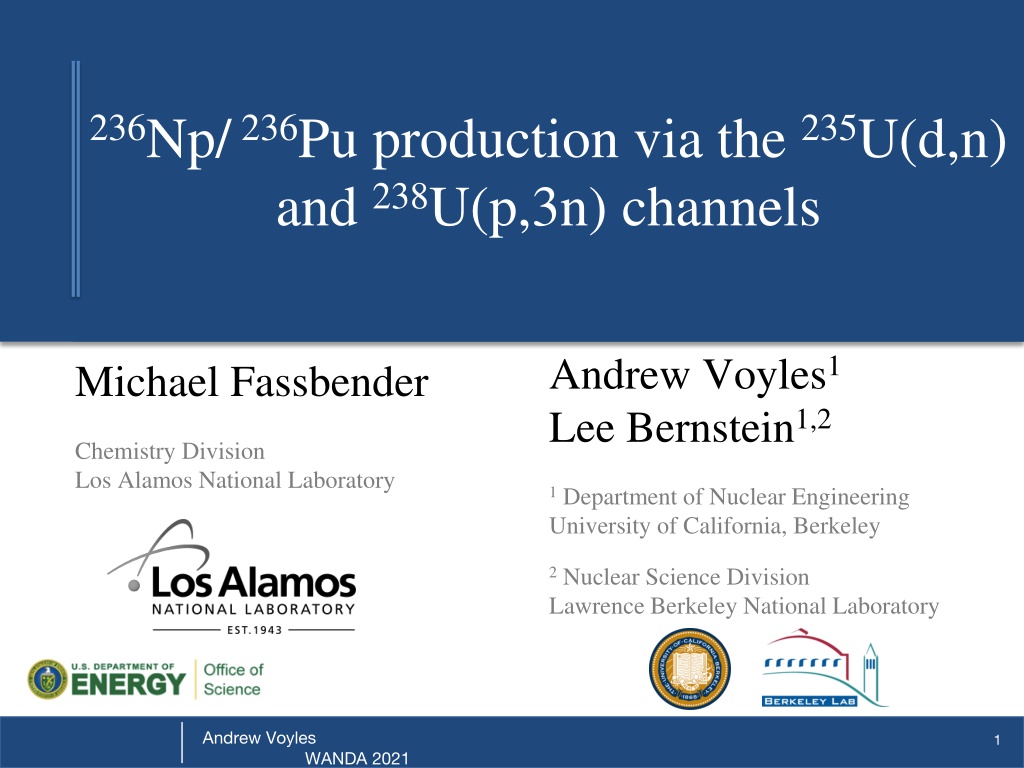

236Np/236Pu production via the 235U(d,n) and 238U(p,3n) channels Andrew Voyles1 Lee Bernstein1,2 Michael Fassbender Chemistry Division Los Alamos National Laboratory 1Department of Nuclear Engineering University of California, Berkeley 2Nuclear Science Division Lawrence Berkeley National Laboratory Andrew Voyles 1 1 WANDA 2021

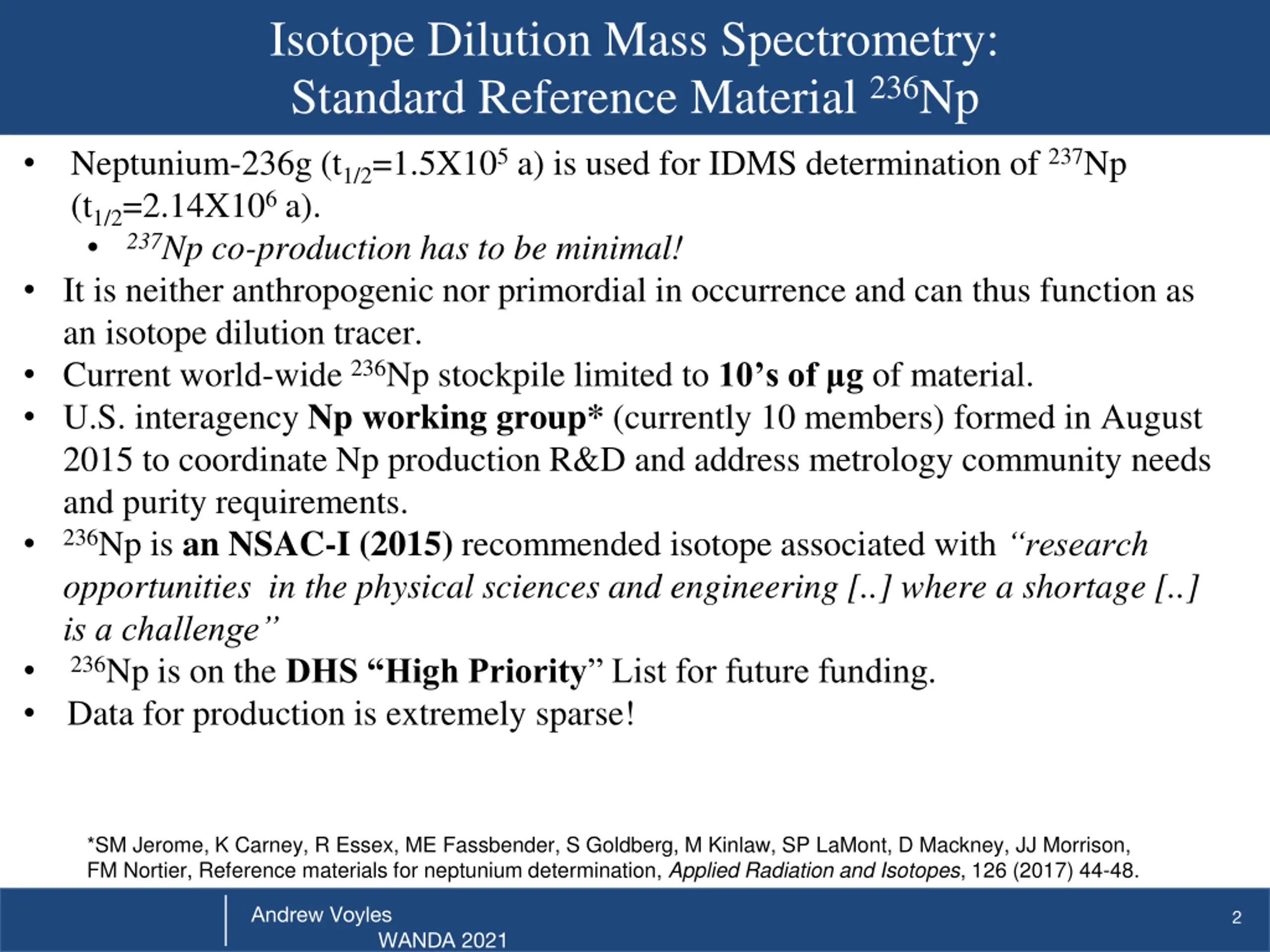

Isotope Dilution Mass Spectrometry: Standard Reference Material 236Np Neptunium-236g (t1/2=1.5X105a) is used for IDMS determination of 237Np (t1/2=2.14X106a). It is neither anthropogenic nor primordial in occurrence and can thus function as an isotope dilution tracer. Current world-wide 236Np stockpile limited to 10 s of g of material. U.S. interagency Np working group* (currently 10 members) formed in August 2015 to coordinate Np production R&D and address metrology community needs and purity requirements. opportunities in the physical sciences and engineering [..] where a shortage [..] is a challenge Data for production is extremely sparse! 237Np co-production has to be minimal! 236Np is an NSAC-I (2015) recommended isotope associated with research 236Np is on the DHS High Priority List for future funding. *SM Jerome, K Carney, R Essex, ME Fassbender, S Goldberg, M Kinlaw, SP LaMont, D Mackney, JJ Morrison, FM Nortier, Reference materials for neptunium determination, Applied Radiation and Isotopes, 126 (2017) 44-48. Andrew Voyles 2 2 WANDA 2021

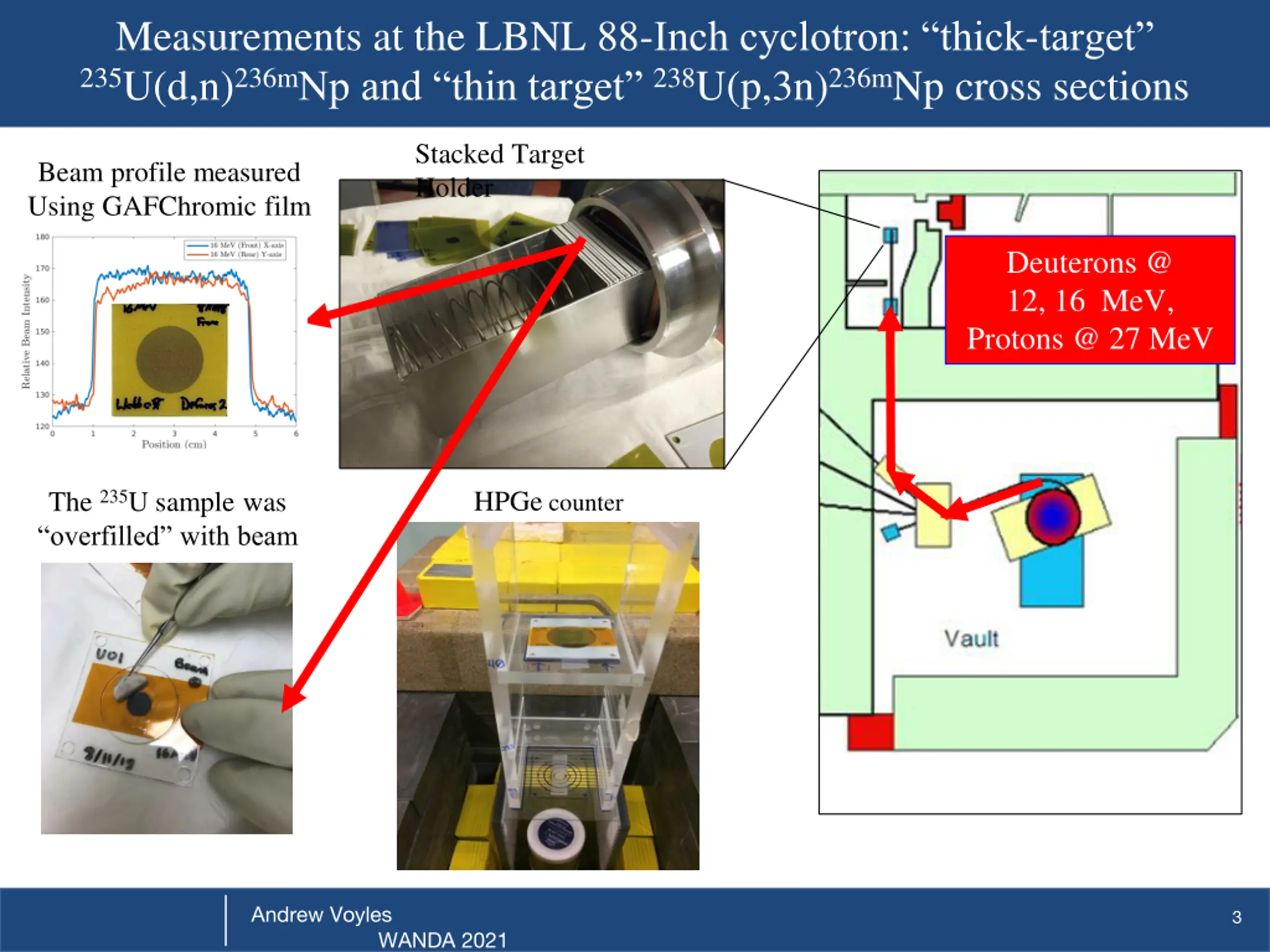

Measurements at the LBNL 88-Inch cyclotron: thick-target 235U(d,n)236mNp and thin target 238U(p,3n)236mNp cross sections Stacked Target Holder Beam profile measured Using GAFChromic film Deuterons @ 12, 16 MeV, Protons @ 27 MeV HPGe counter The 235U sample was overfilled with beam Andrew Voyles 3 3 WANDA 2021

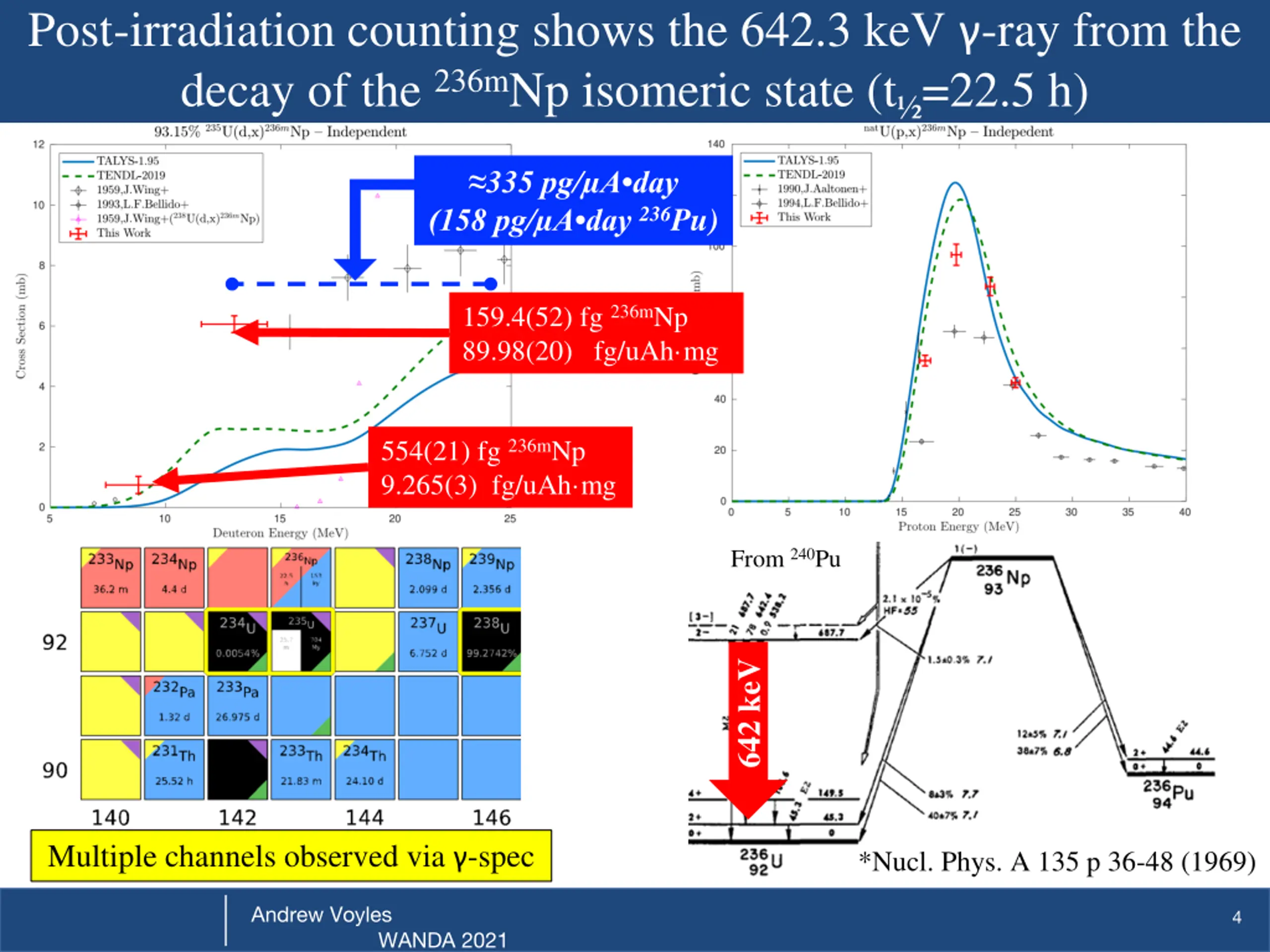

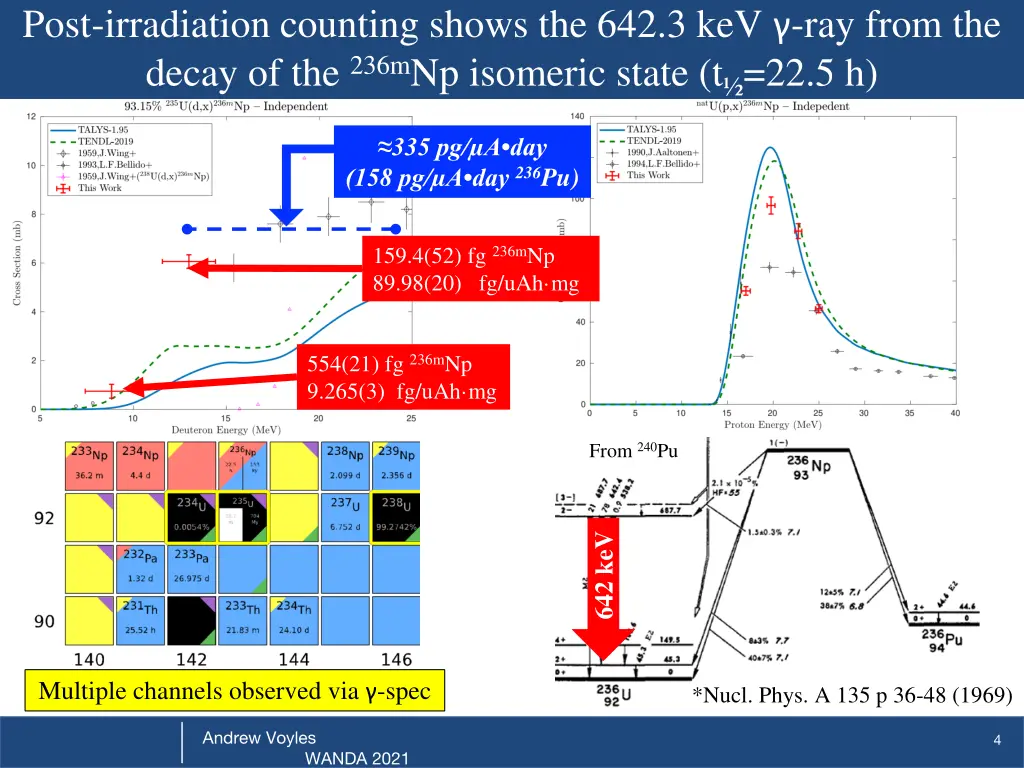

Post-irradiation counting shows the 642.3 keV -ray from the decay of the 236mNp isomeric state (t =22.5 h) 335 pg/ A day (158 pg/ A day 236Pu) 159.4(52) fg 236mNp 89.98(20) fg/uAh mg 554(21) fg 236mNp 9.265(3) fg/uAh mg From 240Pu 642 keV Multiple channels observed via -spec *Nucl. Phys. A 135 p 36-48 (1969) Andrew Voyles 4 4 WANDA 2021

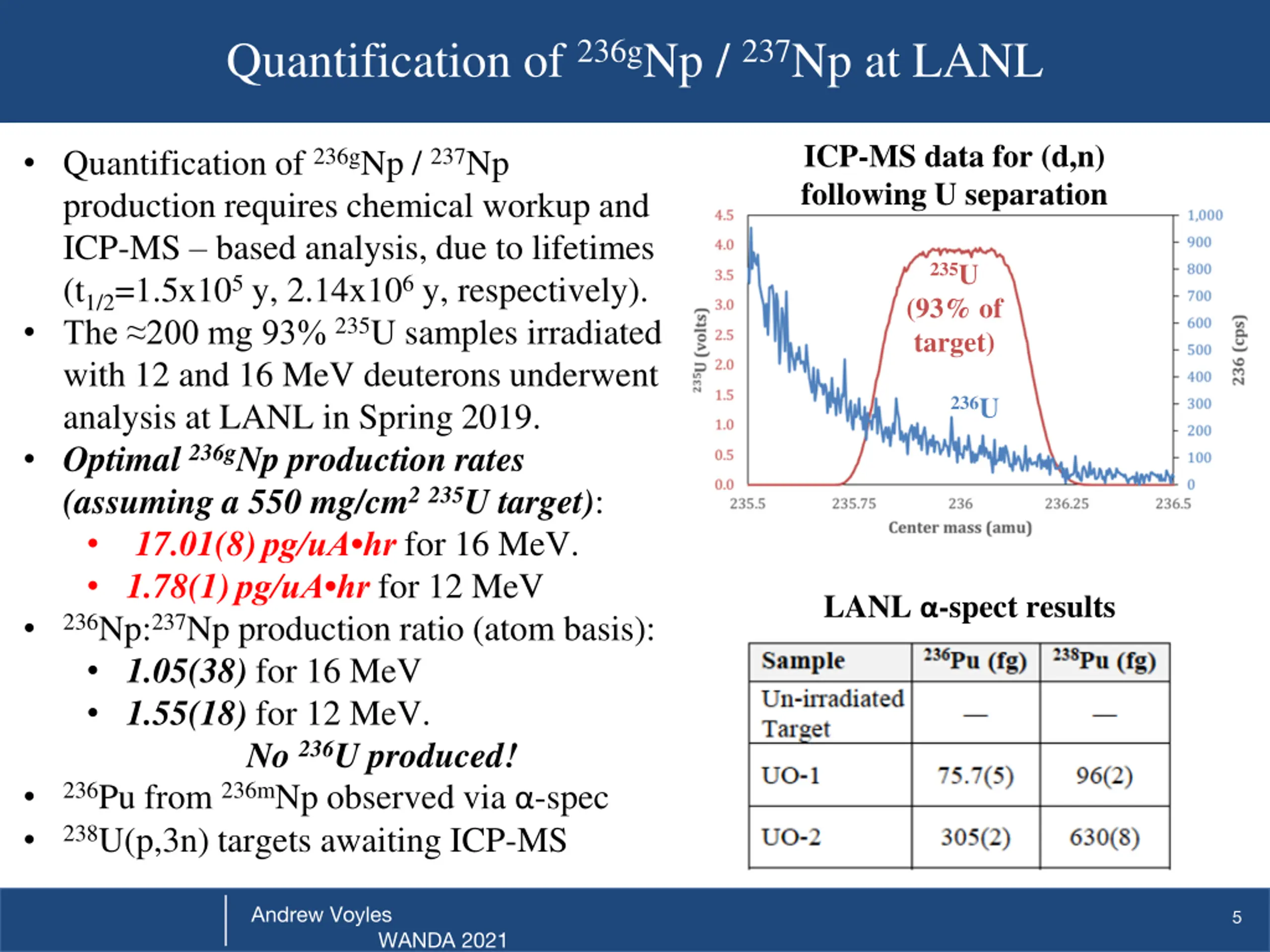

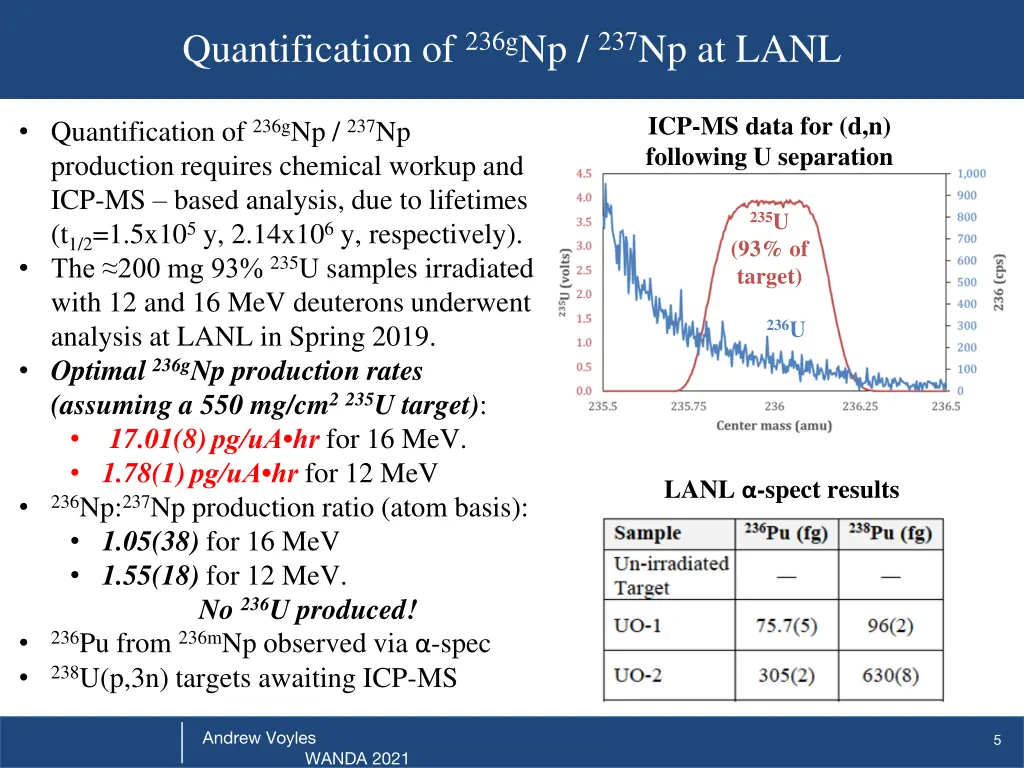

Quantification of 236gNp / 237Np at LANL ICP-MS data for (d,n) following U separation Quantification of 236gNp / 237Np production requires chemical workup and ICP-MS based analysis, due to lifetimes (t1/2=1.5x105y, 2.14x106y, respectively). The 200 mg 93% 235U samples irradiated with 12 and 16 MeV deuterons underwent analysis at LANL in Spring 2019. Optimal 236gNp production rates (assuming a 550 mg/cm2 235U target): 17.01(8)pg/uA hr for 16 MeV. 1.78(1)pg/uA hr for 12 MeV 1.05(38) for 16 MeV 1.55(18) for 12 MeV. No 236U produced! 235U (93% of target) 236U LANL -spect results 236Np:237Np production ratio (atom basis): 236Pu from 236mNp observed via -spec 238U(p,3n) targets awaiting ICP-MS Andrew Voyles 5 5 WANDA 2021

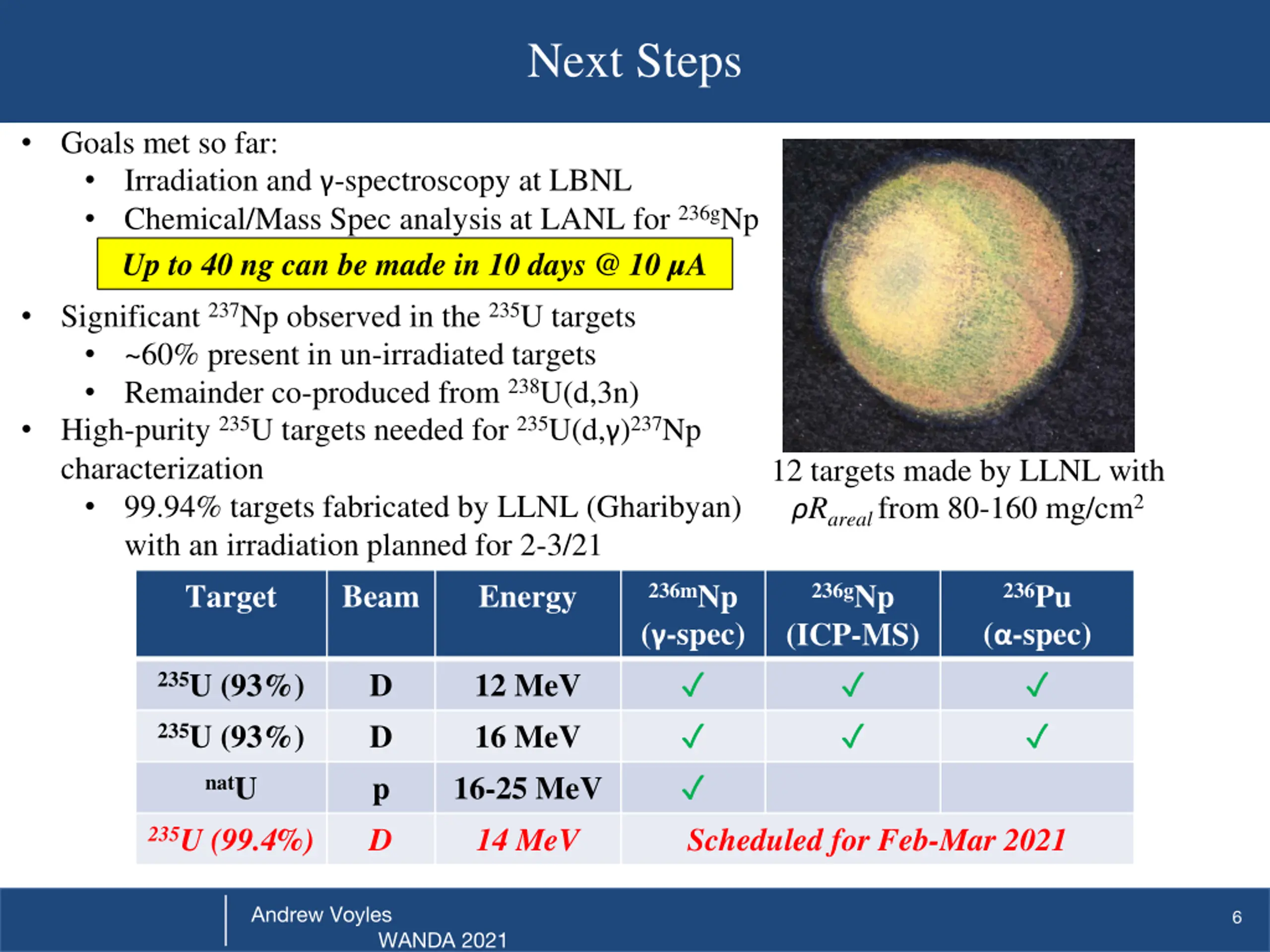

Next Steps Goals met so far: Irradiation and -spectroscopy at LBNL Chemical/Mass Spec analysis at LANL for 236gNp Up to 40 ng can be made in 10 days @ 10 A Significant 237Np observed in the 235U targets ~60% present in un-irradiated targets Remainder co-produced from 238U(d,3n) High-purity 235U targets needed for 235U(d, )237Np characterization 99.94% targets fabricated by LLNL (Gharibyan) with an irradiation planned for 2-3/21 Target Beam 12 targets made by LLNL with Rareal from 80-160 mg/cm2 Energy 236mNp ( -spec) Scheduled for Feb-Mar 2021 236gNp (ICP-MS) 236Pu ( -spec) 235U (93%) D D p D 12 MeV 16 MeV 16-25 MeV 14 MeV 235U (93%) natU 235U (99.4%) Andrew Voyles 6 6 WANDA 2021

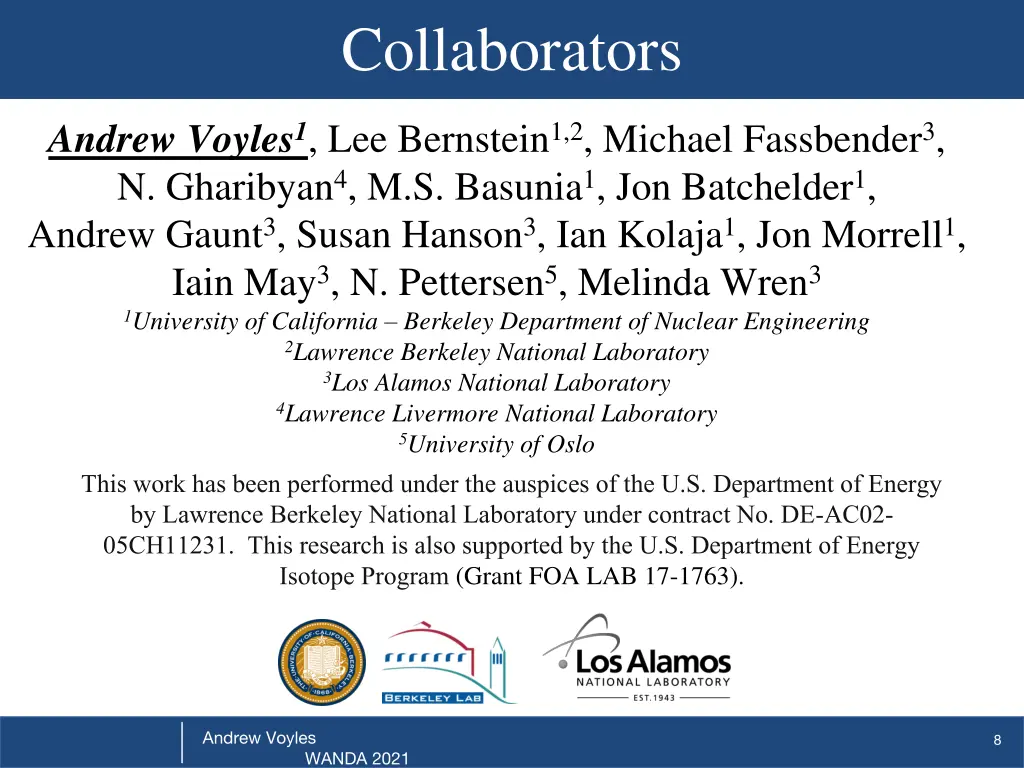

Collaborators Andrew Voyles1, Lee Bernstein1,2, Michael Fassbender3, N. Gharibyan4, M.S. Basunia1, Jon Batchelder1, Andrew Gaunt3, Susan Hanson3, Ian Kolaja1, Jon Morrell1, Iain May3, N. Pettersen5, Melinda Wren3 1University of California Berkeley Department of Nuclear Engineering 2Lawrence Berkeley National Laboratory 3Los Alamos National Laboratory 4Lawrence Livermore National Laboratory 5University of Oslo This work has been performed under the auspices of the U.S. Department of Energy by Lawrence Berkeley National Laboratory under contract No. DE-AC02- 05CH11231. This research is also supported by the U.S. Department of Energy Isotope Program (Grant FOA LAB 17-1763). Andrew Voyles 8 8 WANDA 2021
