Production and Separation Protocol for 111Ag Radiopharmaceuticals
Explore the steps involved in the development of a separation and recycling protocol for 111Ag production at Laboratori Nazionali di Legnaro. Discover the up-to-date protocol, possible improvements, and key conclusions from the ISOLPHARM project. Dive into the production of 111Ag via neutron activation, radiopharmaceutical design, synthesis, radiolabeling, and testing for in-vitro and in-vivo applications.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

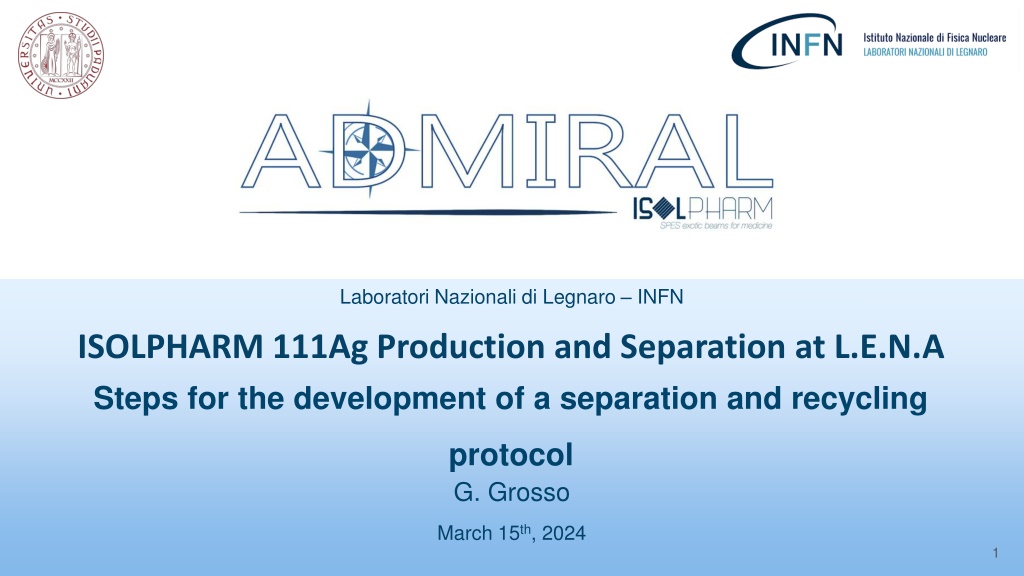

Laboratori Nazionali di Legnaro INFN ISOLPHARM 111Ag Production and Separation at L.E.N.A Steps for the development of a separation and recycling protocol G. Grosso March 15th, 2024 1

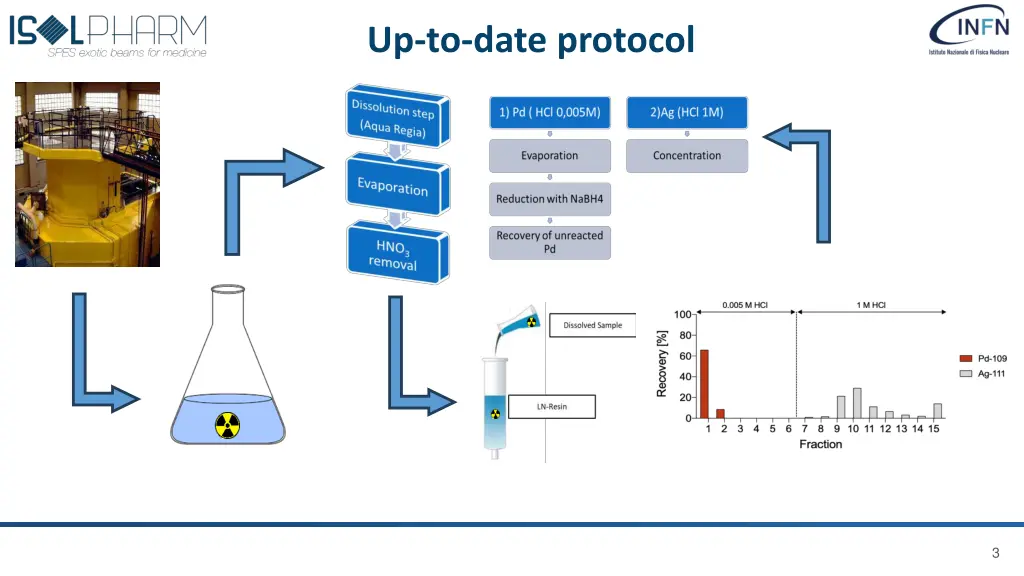

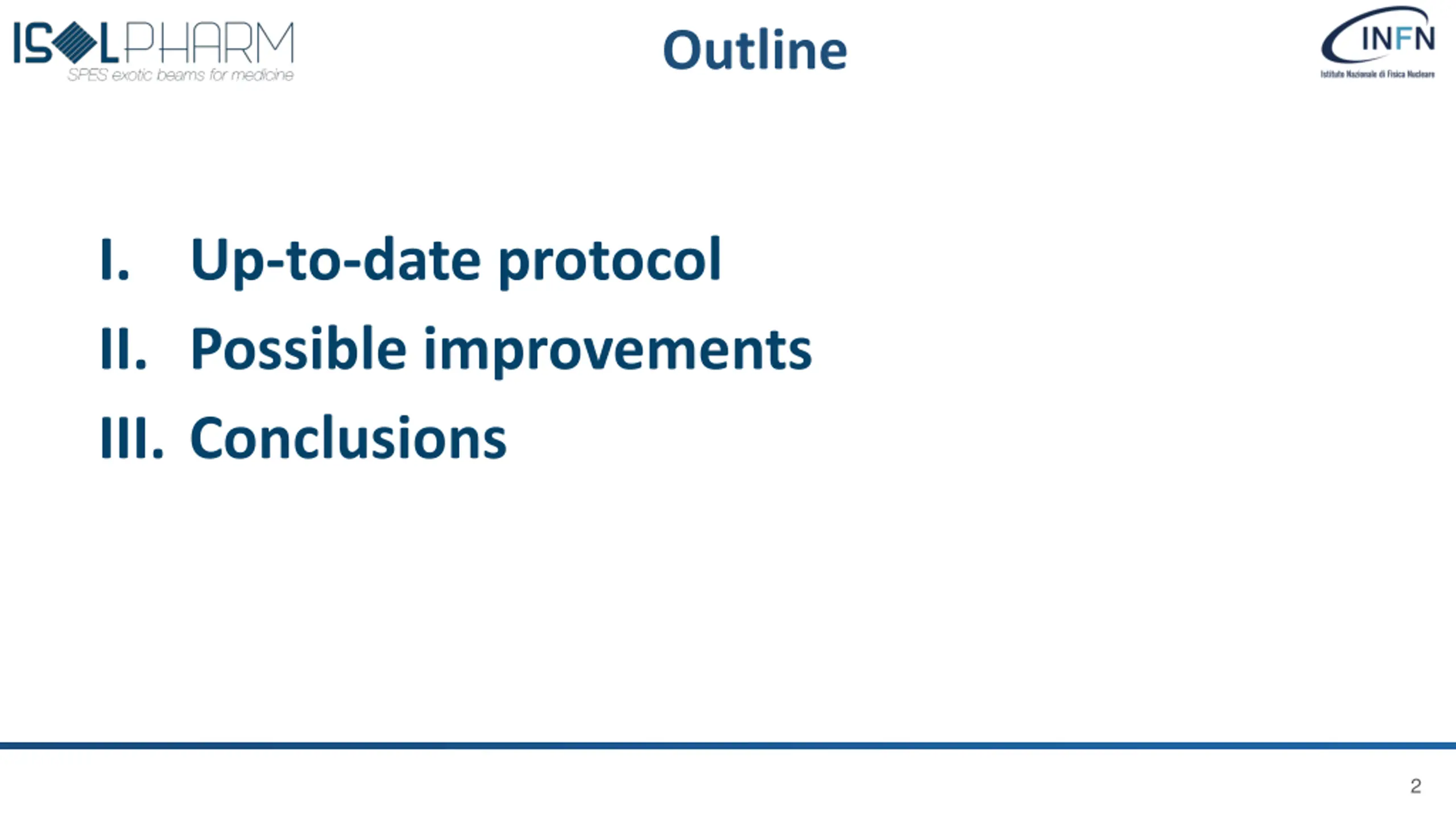

Outline I. Up-to-date protocol II. Possible improvements III. Conclusions 2

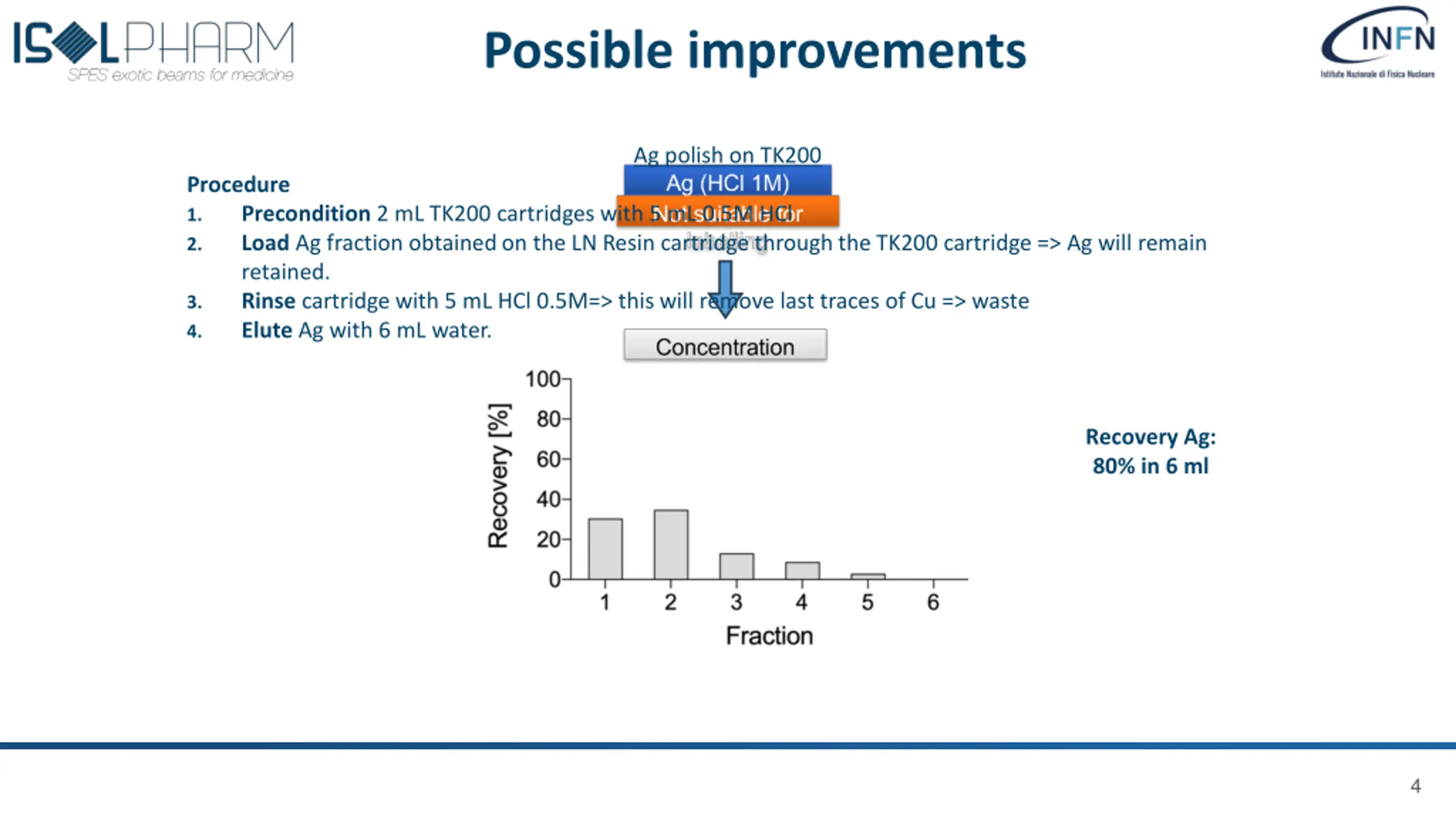

Possible improvements Ag polish on TK200 Procedure 1. 2. Precondition 2 mL TK200 cartridges with 5 mL 0.5M HCl Load Ag fraction obtained on the LN Resin cartridge through the TK200 cartridge => Ag will remain retained. Rinse cartridge with 5 mL HCl 0.5M=> this will remove last traces of Cu => waste Elute Ag with 6 mL water. 3. 4. Recovery Ag: 80% in 6 ml 4

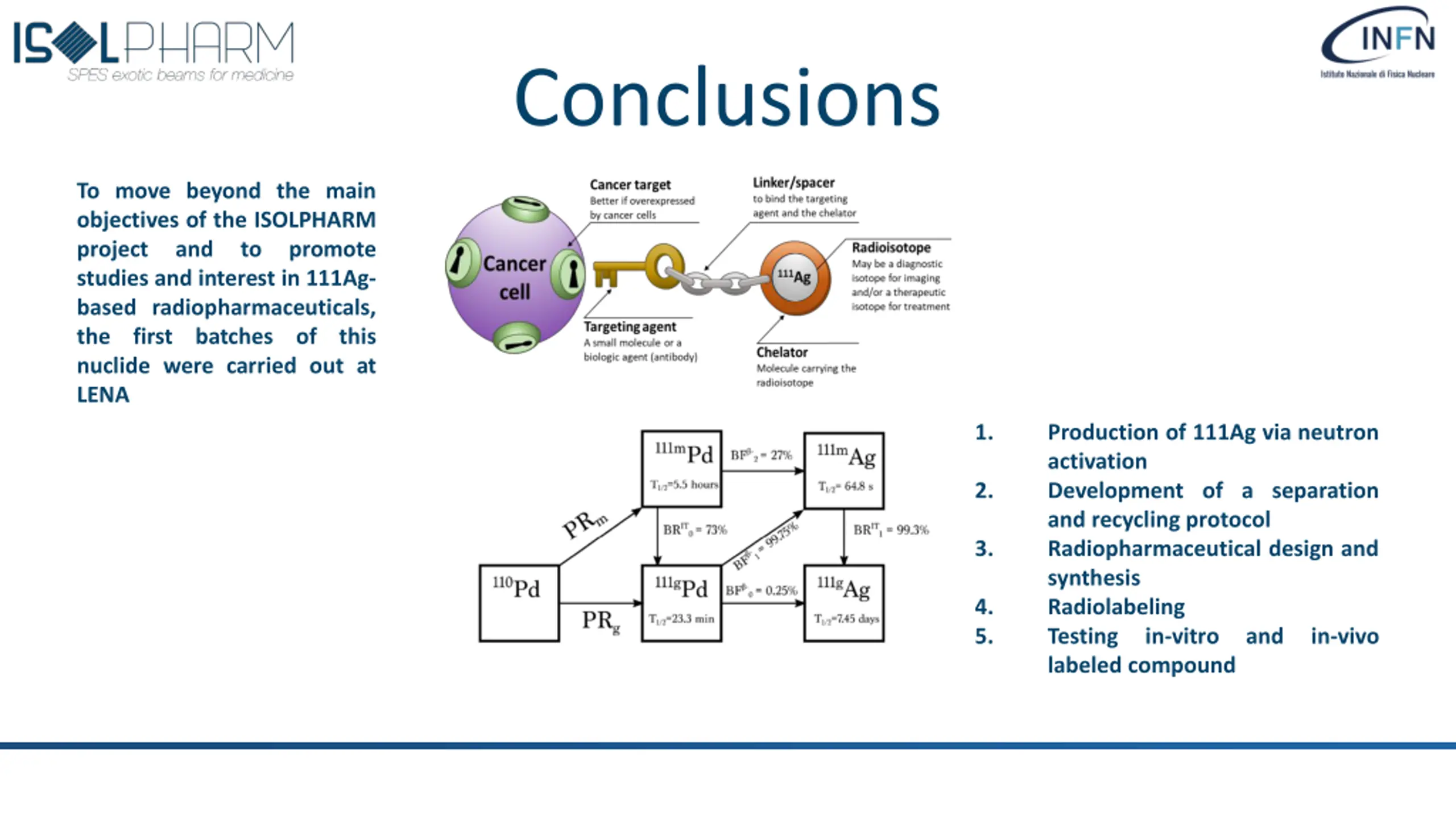

Conclusions To move beyond the main objectives of the ISOLPHARM project and studies and interest in 111Ag- based radiopharmaceuticals, the first batches nuclide were carried out at LENA to promote of this 1. Production of 111Ag via neutron activation Development of a separation and recycling protocol Radiopharmaceutical design and synthesis Radiolabeling Testing in-vitro labeled compound 2. 3. 4. 5. and in-vivo
