UNDERSTANDING THE HAAS SIGMA-1 INDEXER

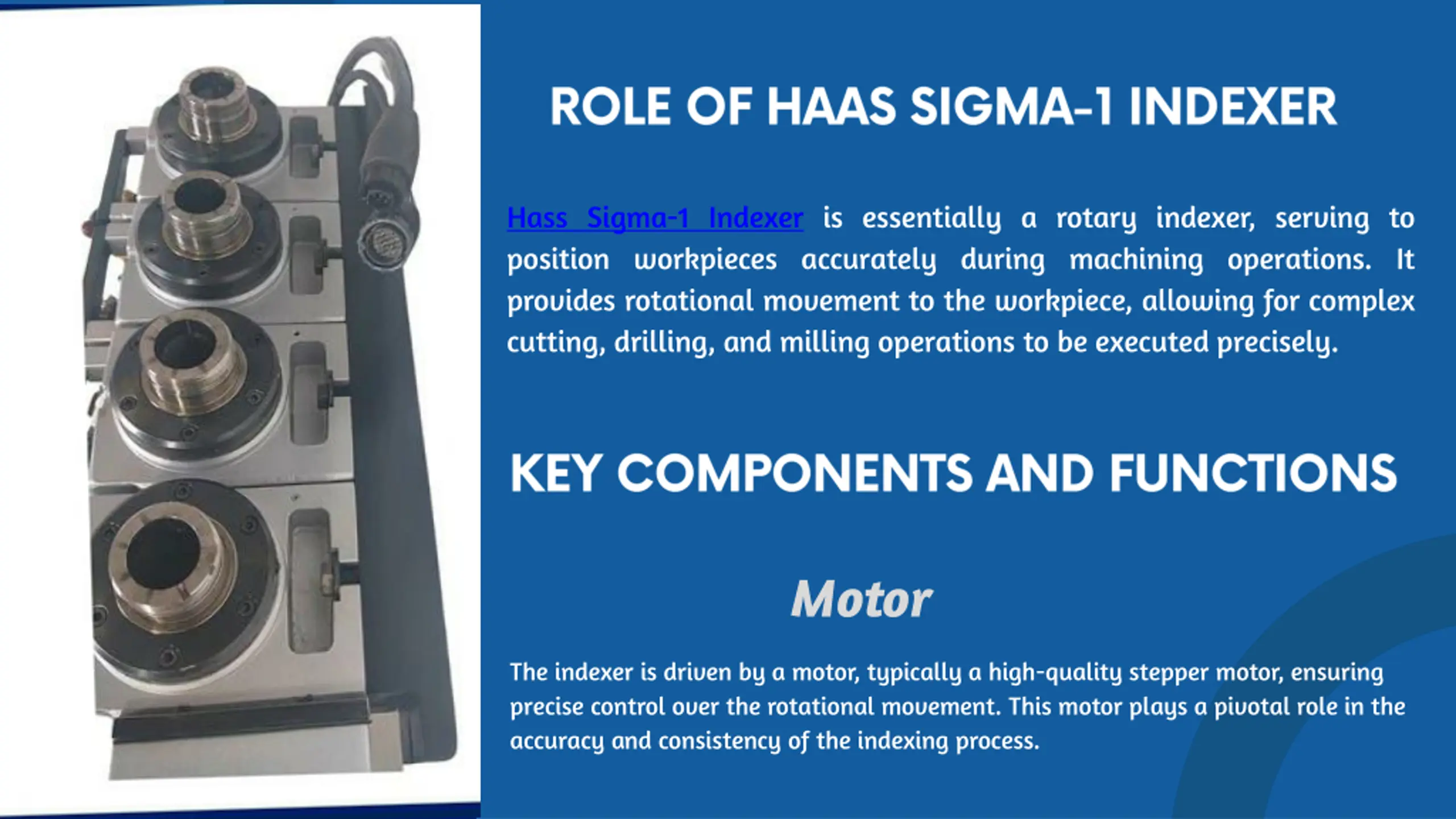

Hass Sigma-1 Indexer is essentially a rotary indexer, serving to position workpieces accurately during machining operations. It provides rotational movement to the workpiece, allowing for complex cutting, drilling, and milling operations to be executed precisely. Motor The indexer is driven by a motor, typically a high-quality stepper motor, ensuring precise control over the rotational movement. This motor plays a pivotal role in the accuracy and consistency of the indexing process.

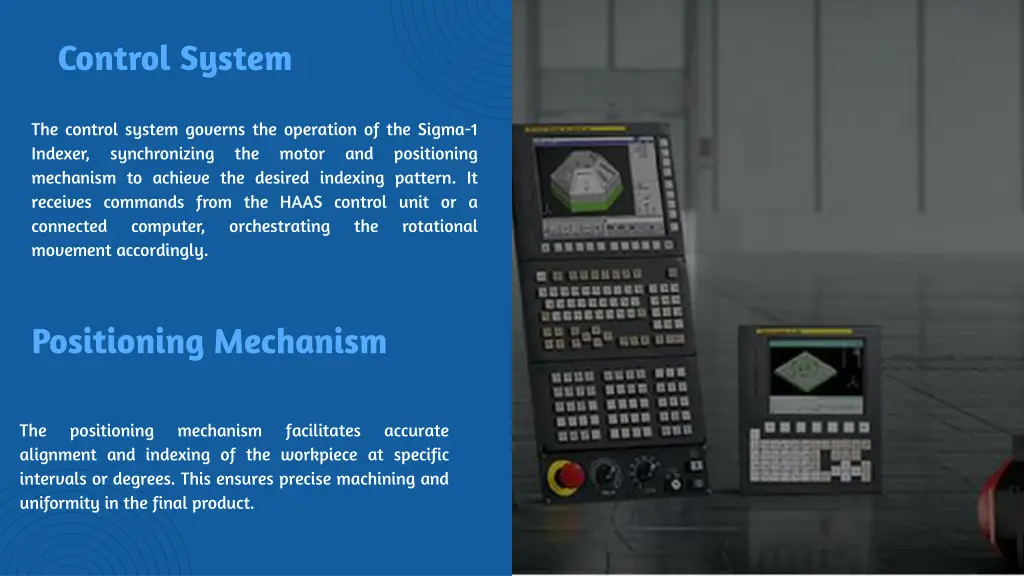

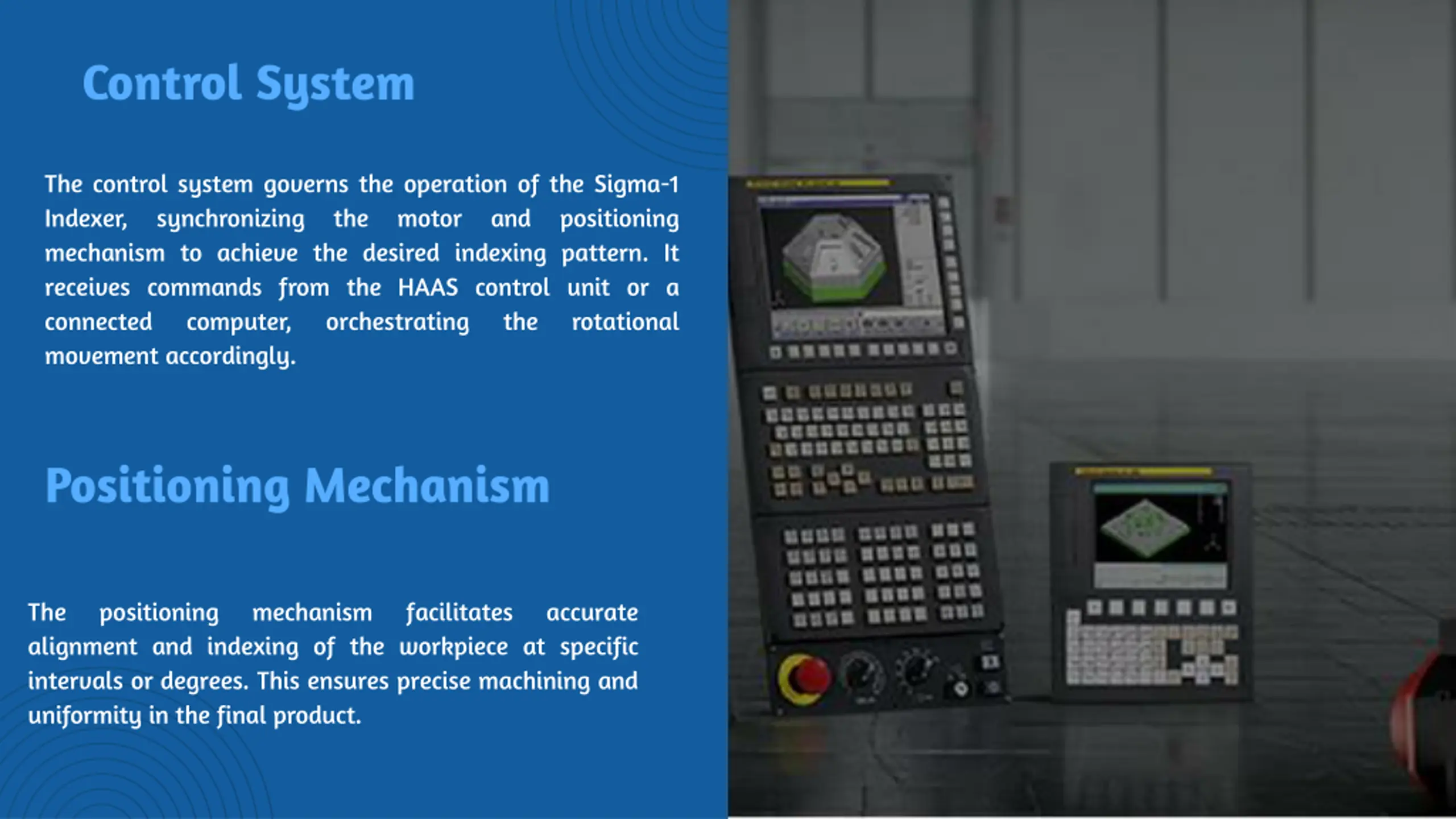

Control System The control system governs the operation of the Sigma-1 Indexer, synchronizing the motor and positioning mechanism to achieve the desired indexing pattern. It receives commands from the HAAS control unit or a connected computer, orchestrating movement accordingly. the rotational Positioning Mechanism The alignment and indexing of the workpiece at specific intervals or degrees. This ensures precise machining and uniformity in the final product. positioning mechanism facilitates accurate

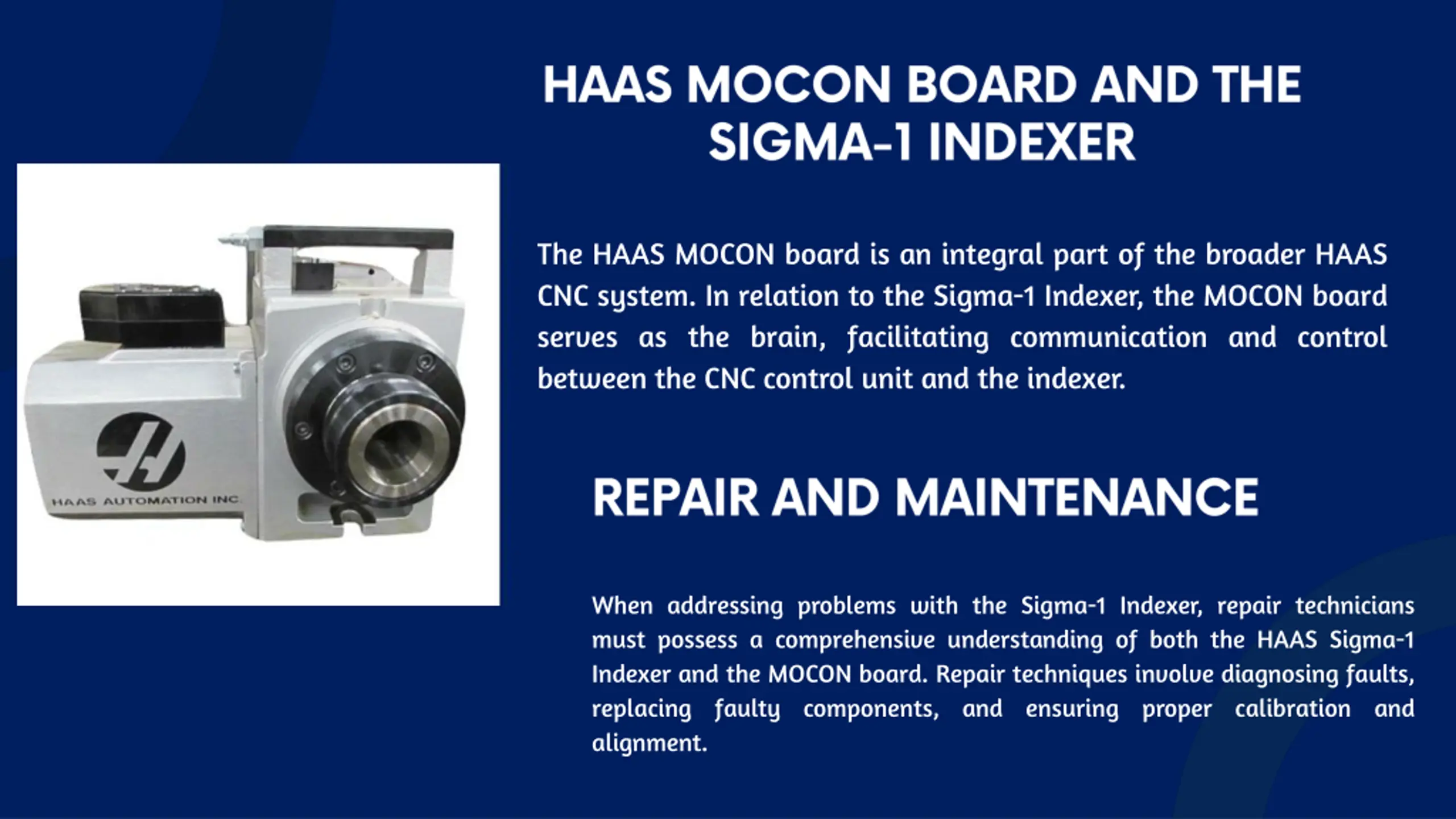

The HAAS MOCON board is an integral part of the broader HAAS CNC system. In relation to the Sigma-1 Indexer, the MOCON board serves as the brain, facilitating communication and control between the CNC control unit and the indexer. When addressing problems with the Sigma-1 Indexer, repair technicians must possess a comprehensive understanding of both the HAAS Sigma-1 Indexer and the MOCON board. Repair techniques involve diagnosing faults, replacing faulty components, and ensuring proper calibration and alignment.
