Proof of the middle levels conjecture Torsten M tze

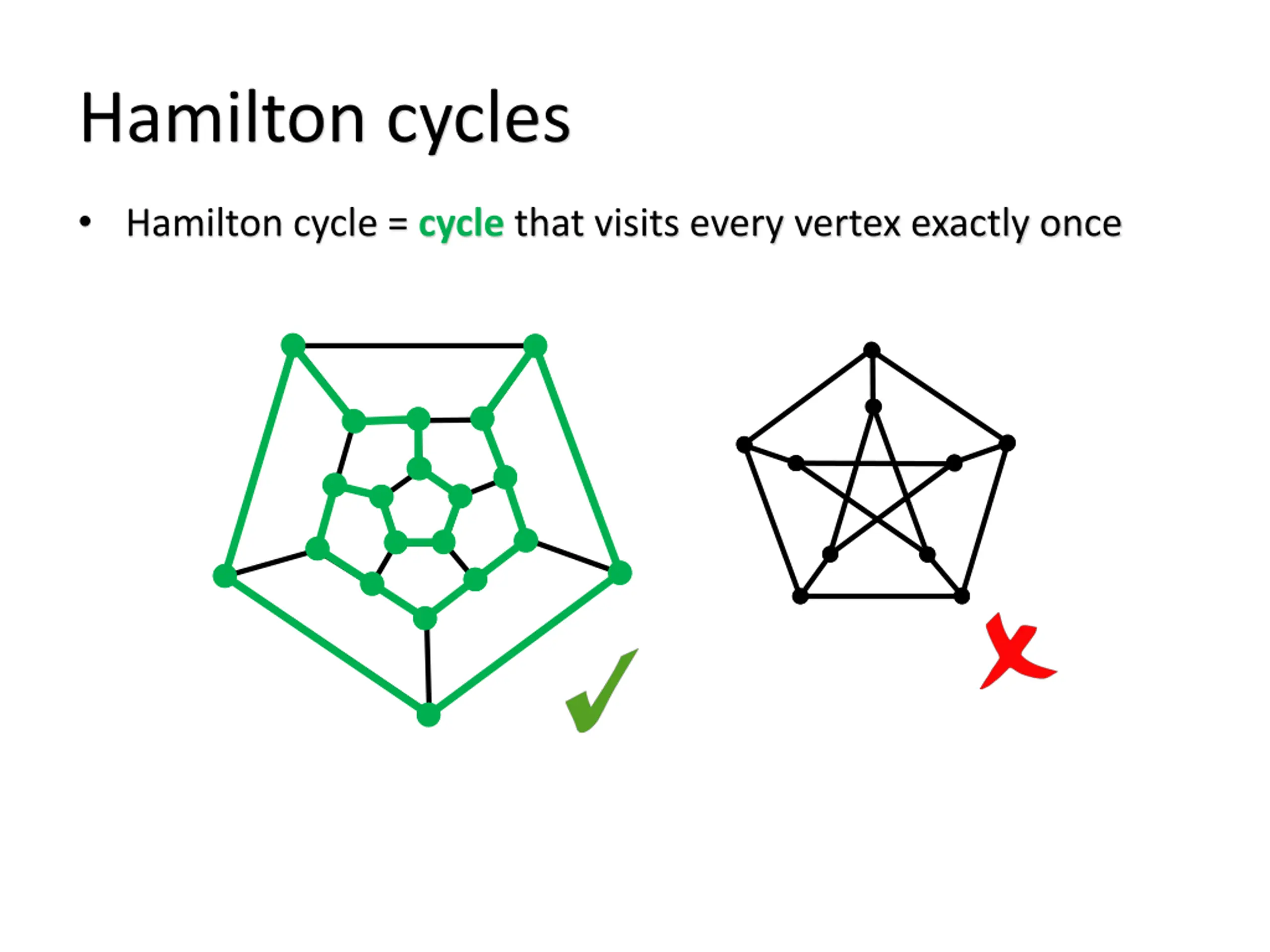

Hamilton cycles Hamilton cycle = cycle that visits every vertex exactly once

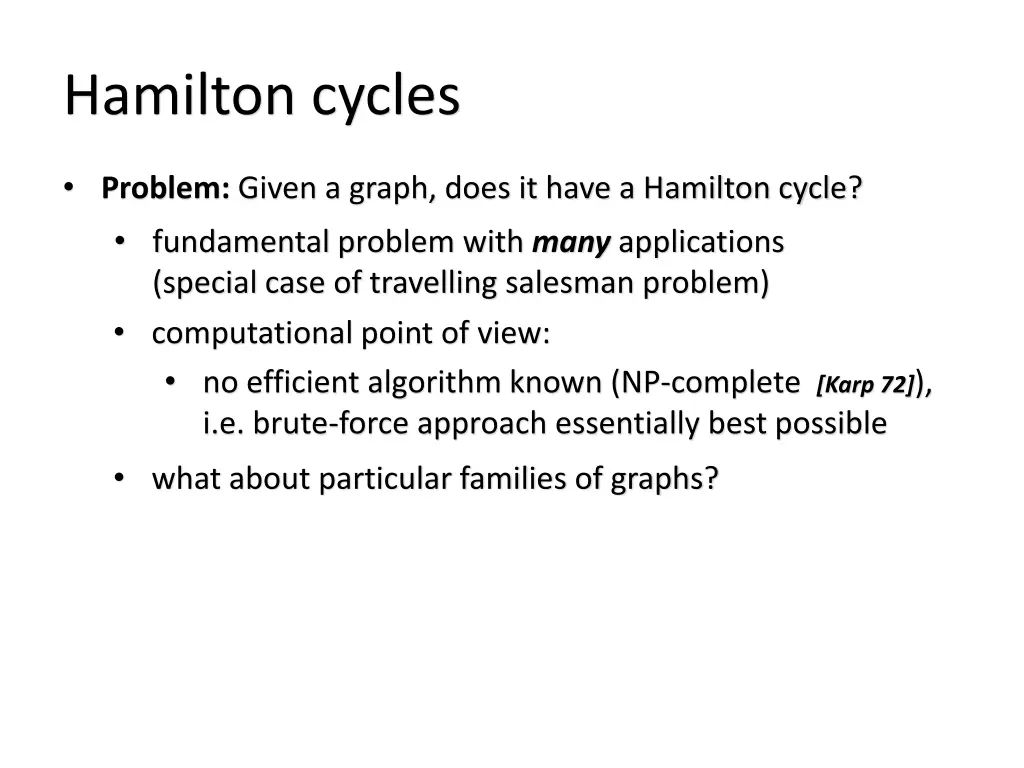

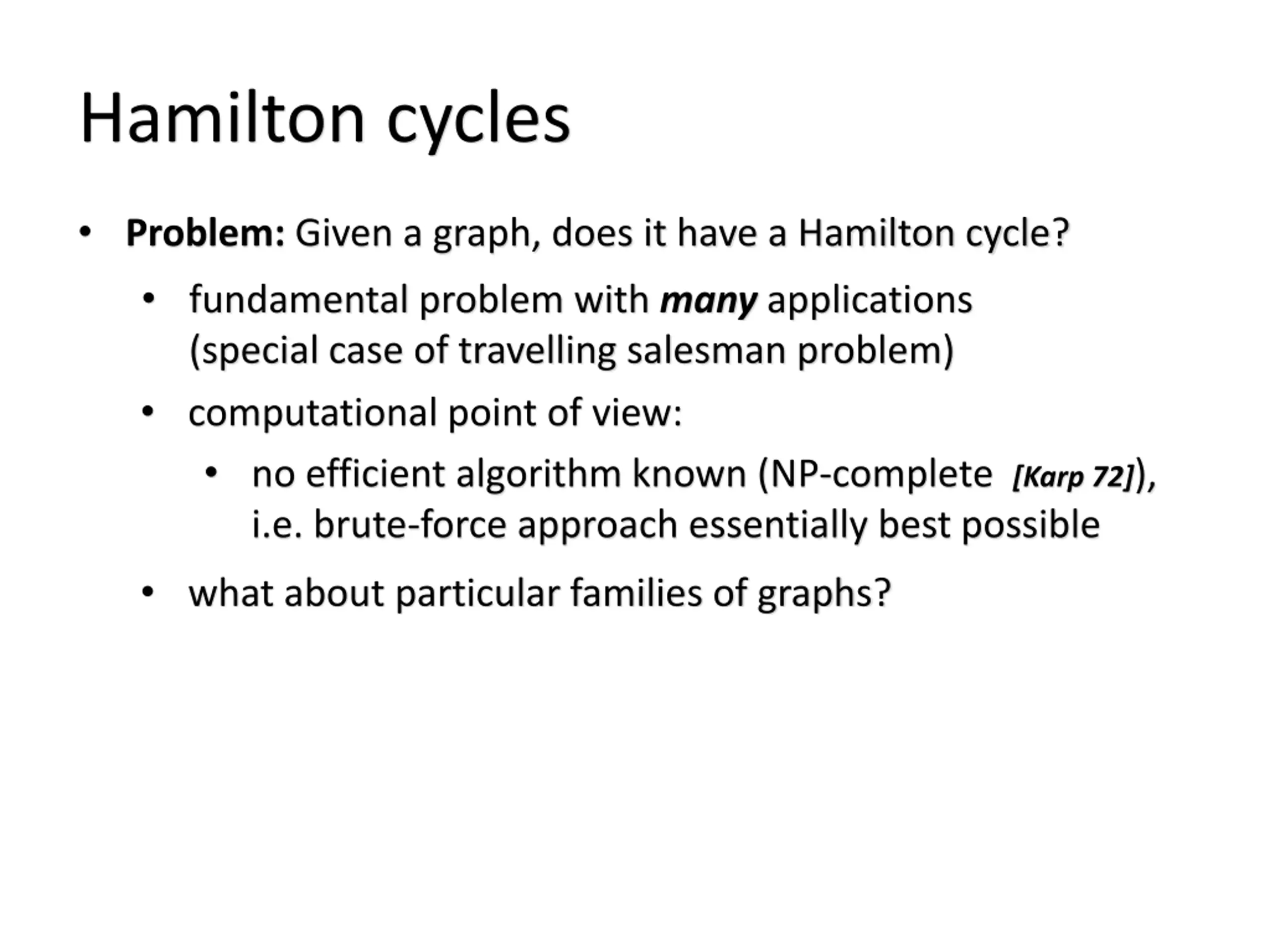

Hamilton cycles Problem: Given a graph, does it have a Hamilton cycle? fundamental problem with many applications (special case of travelling salesman problem) computational point of view: no efficient algorithm known (NP-complete [Karp 72]), i.e. brute-force approach essentially best possible what about particular families of graphs?

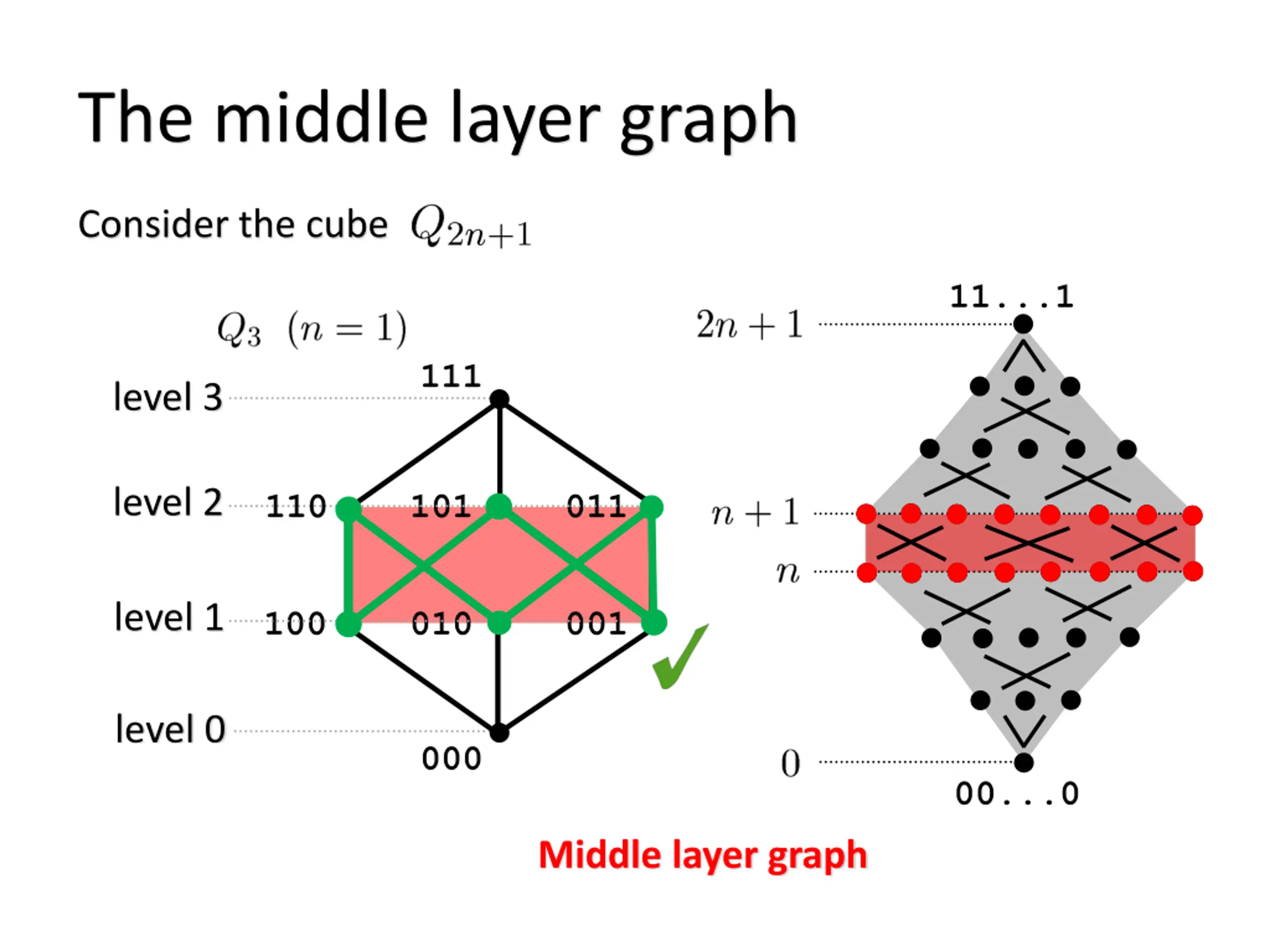

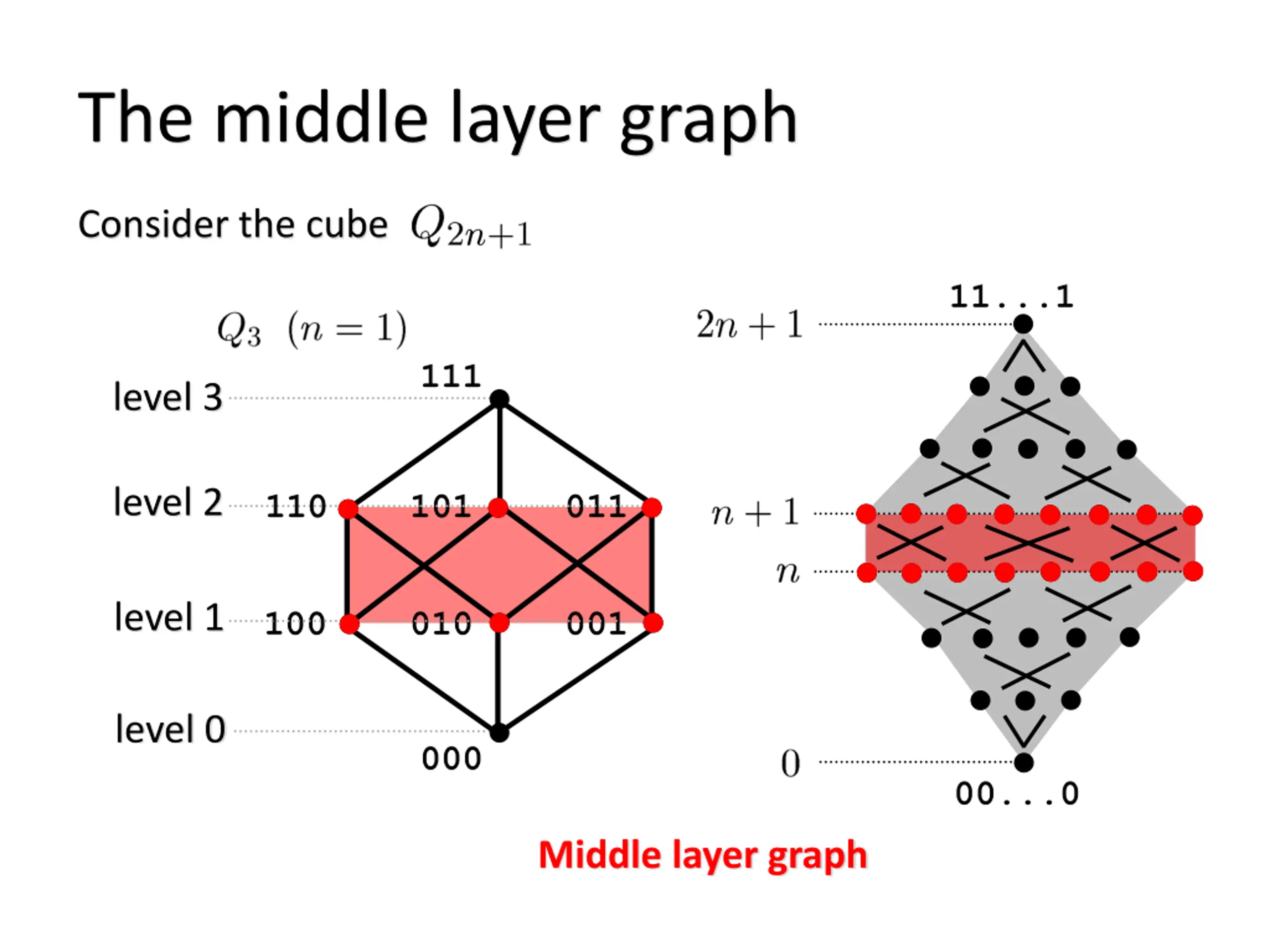

The middle layer graph Consider the cube 11...1 111 level 3 level 2 110 101 011 level 1 100 010 001 level 0 000 00...0 Middle layer graph

The middle layer graph Consider the cube 11...1 111 level 3 level 2 110 101 011 level 1 100 010 001 level 0 000 00...0 Middle layer graph

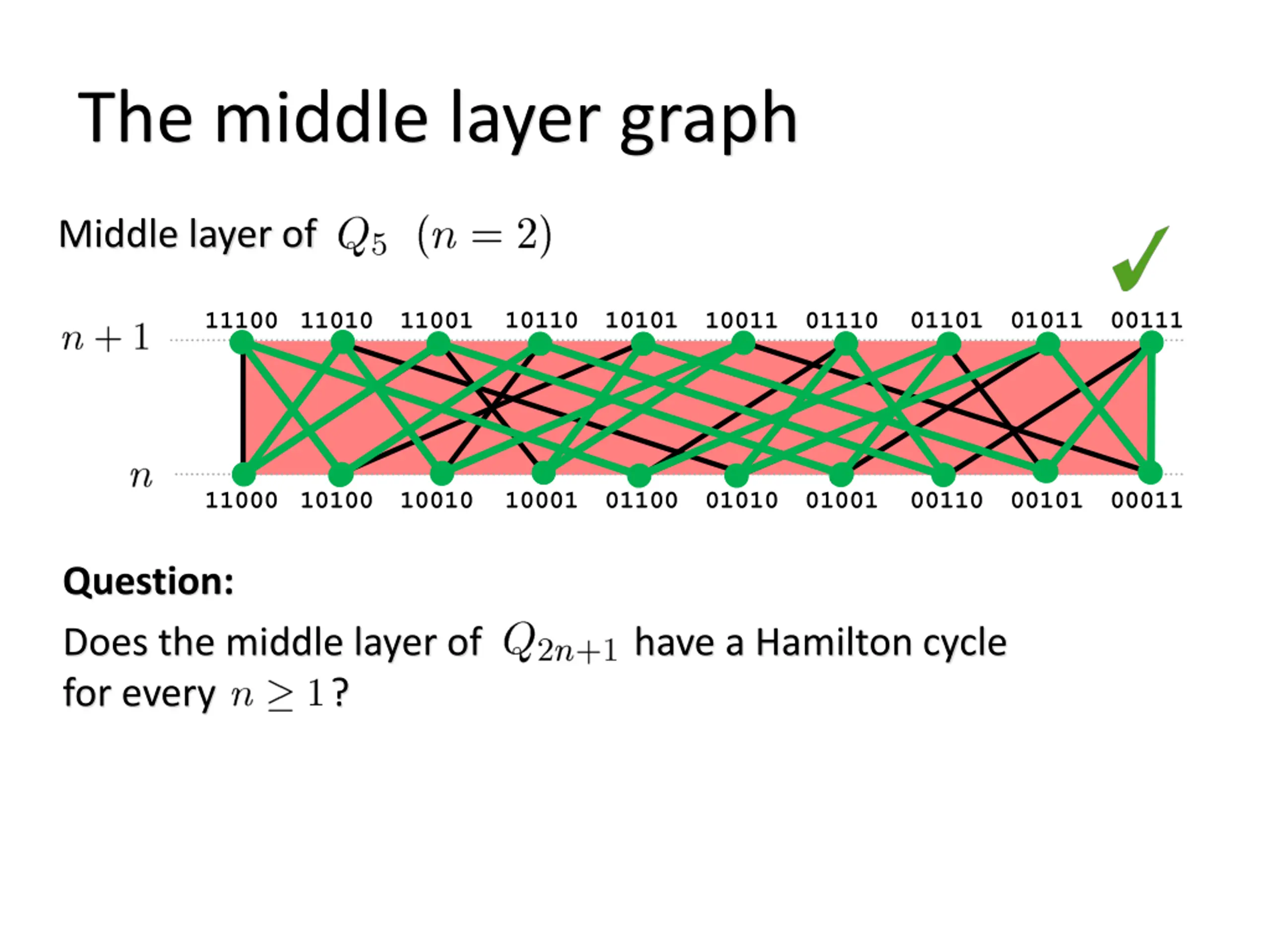

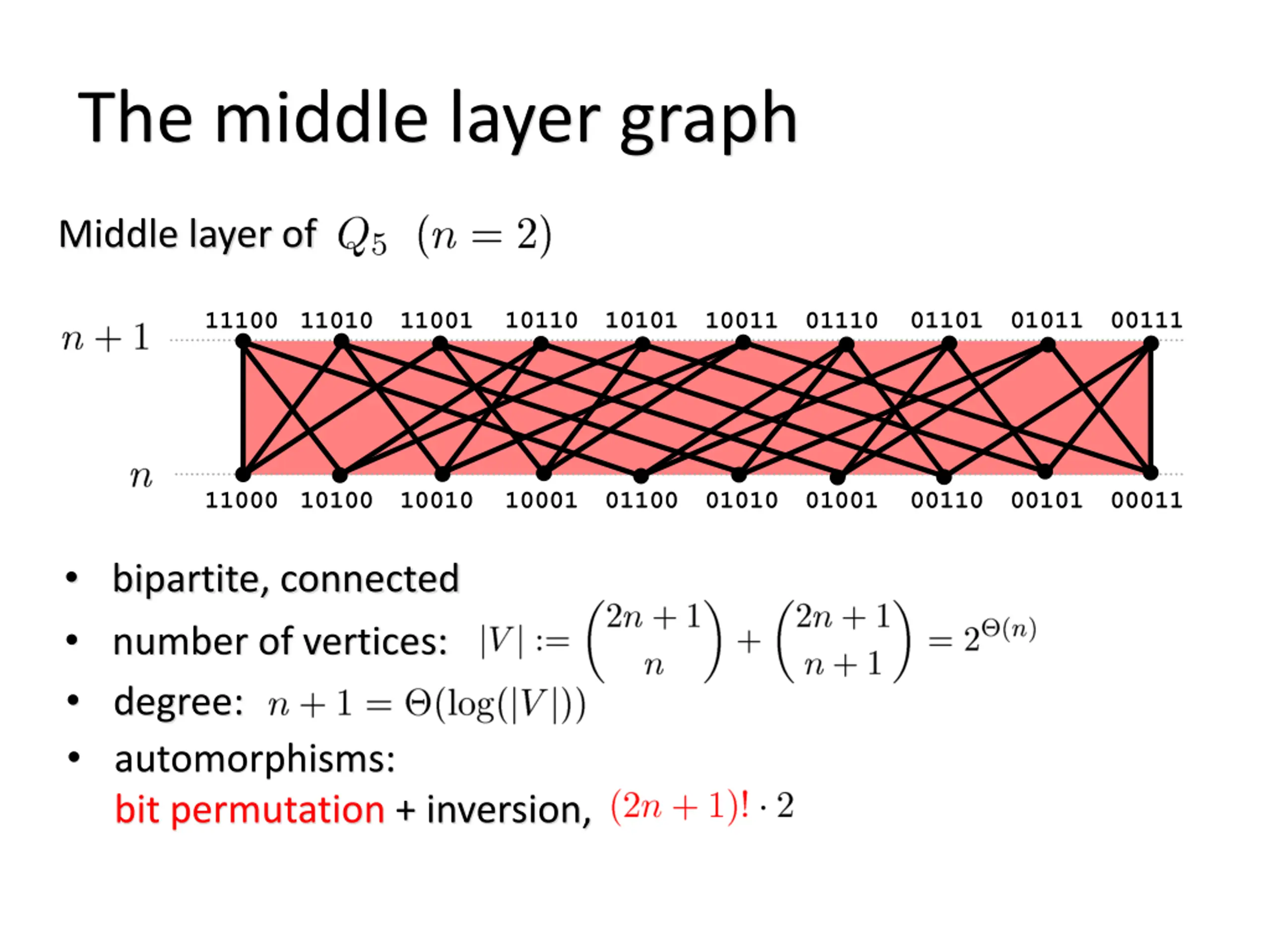

The middle layer graph Middle layer of 10110 10101 01101 01011 00111 11100 11010 11001 10011 01110 10001 01100 00110 00101 00011 11000 10100 10010 01010 01001 Question: Does the middle layer of have a Hamilton cycle for every ?

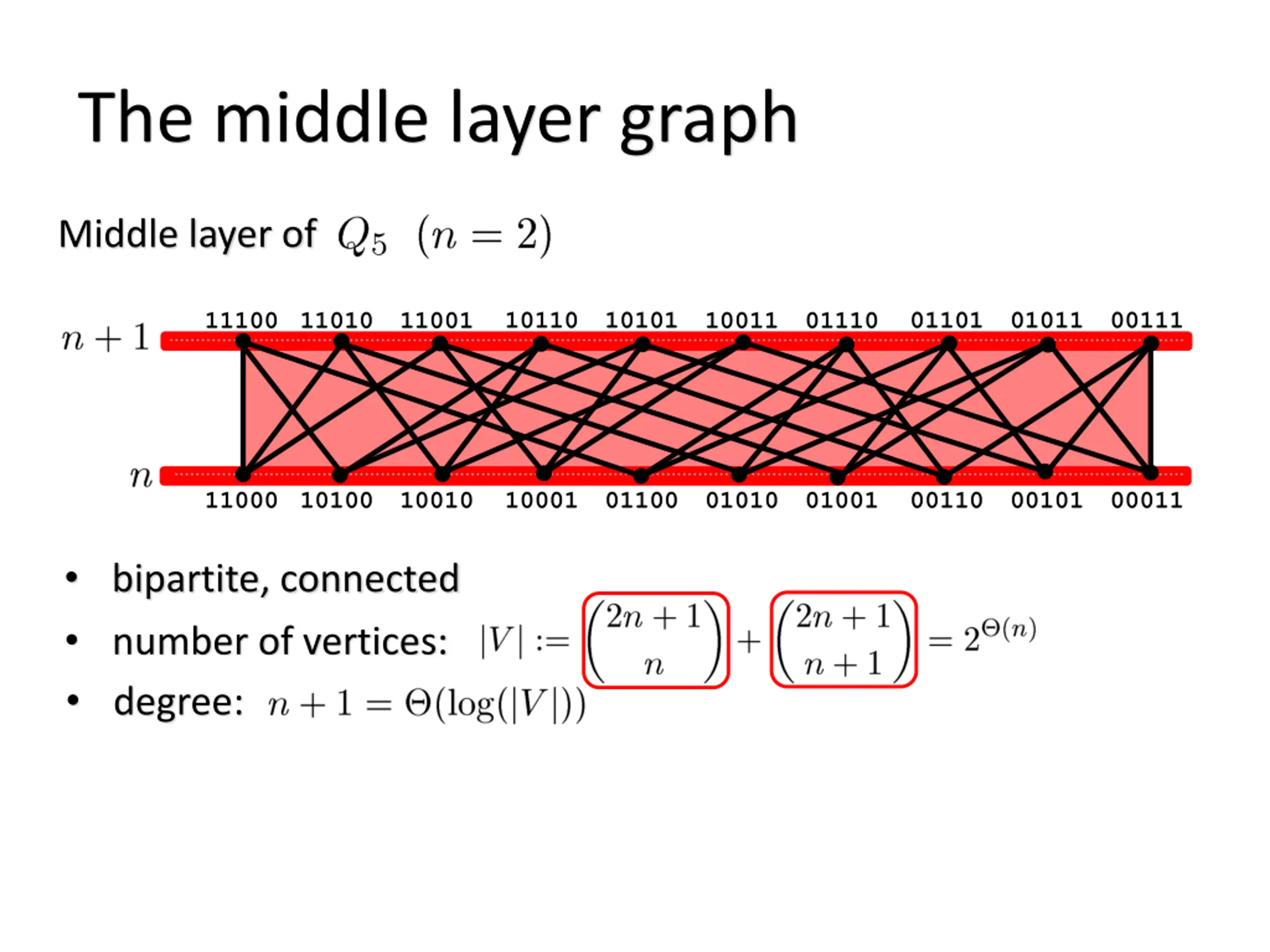

The middle layer graph Middle layer of 10110 10101 01101 01011 00111 11100 11010 11001 10011 01110 10001 01100 00110 00101 00011 11000 10100 10010 01010 01001 bipartite, connected number of vertices: degree:

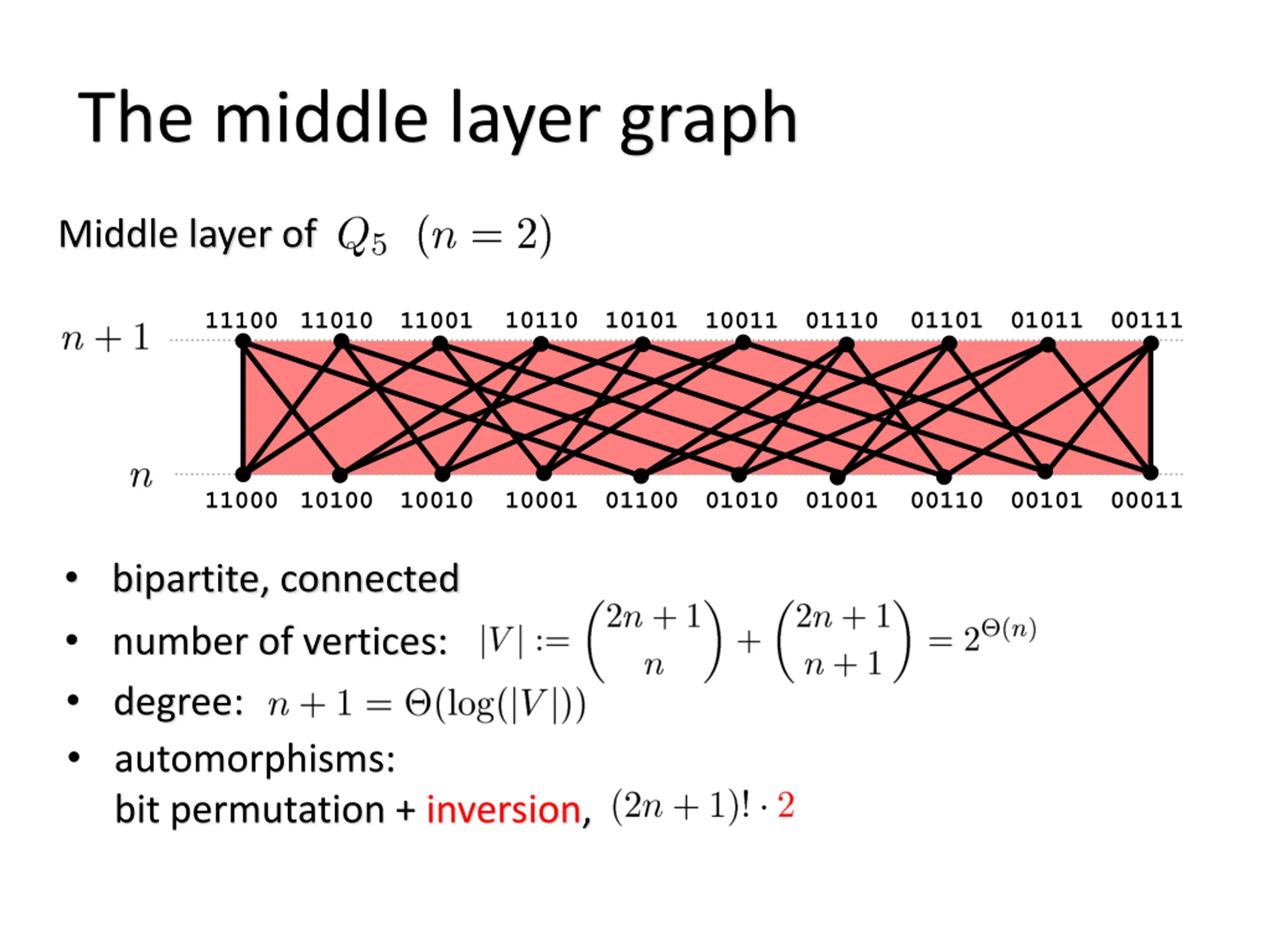

The middle layer graph Middle layer of 10110 10101 01101 01011 00111 11100 11010 11001 10011 01110 10001 01100 00110 00101 00011 11000 10100 10010 01010 01001 bipartite, connected number of vertices: degree: automorphisms: bit permutation + inversion,

The middle layer graph Middle layer of 10110 10101 01101 01011 00111 11100 11010 11001 10011 01110 10001 01100 00110 00101 00011 11000 10100 10010 01010 01001 bipartite, connected number of vertices: degree: automorphisms: bit permutation + inversion,

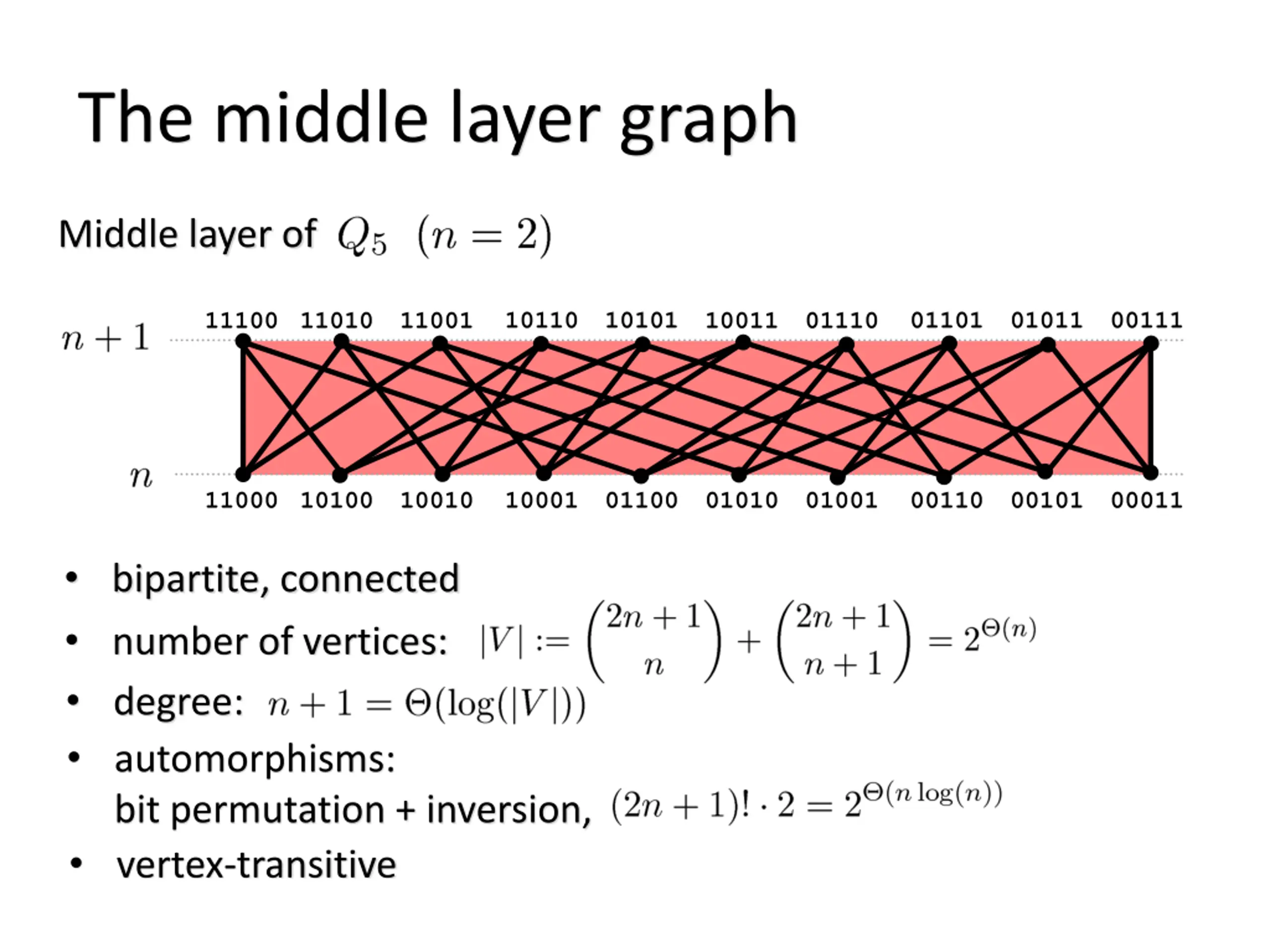

The middle layer graph Middle layer of 10110 10101 01101 01011 00111 11100 11010 11001 10011 01110 10001 01100 00110 00101 00011 11000 10100 10010 01010 01001 bipartite, connected number of vertices: degree: automorphisms: bit permutation + inversion, vertex-transitive

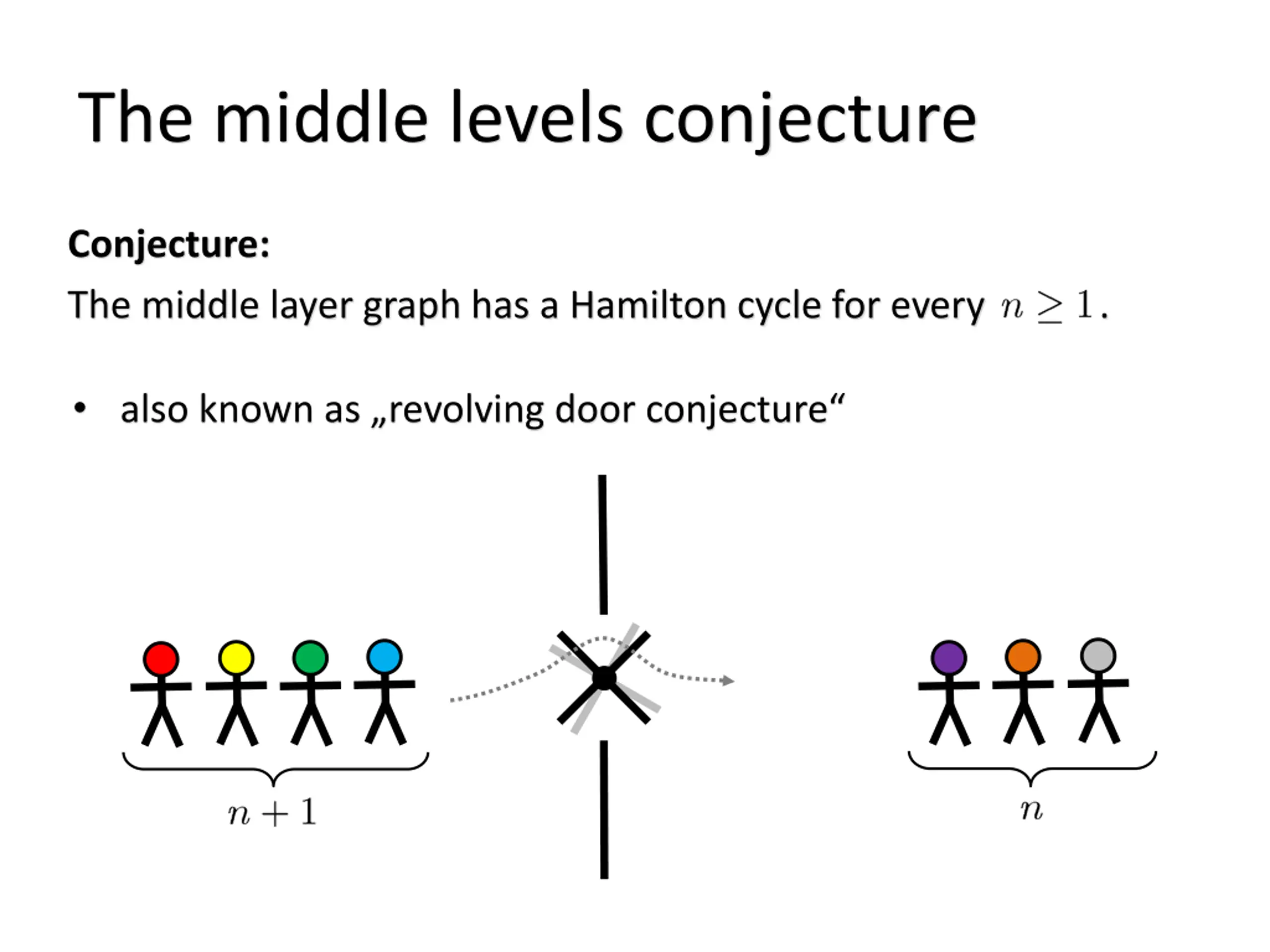

The middle levels conjecture Conjecture: The middle layer graph has a Hamilton cycle for every . also known as revolving door conjecture

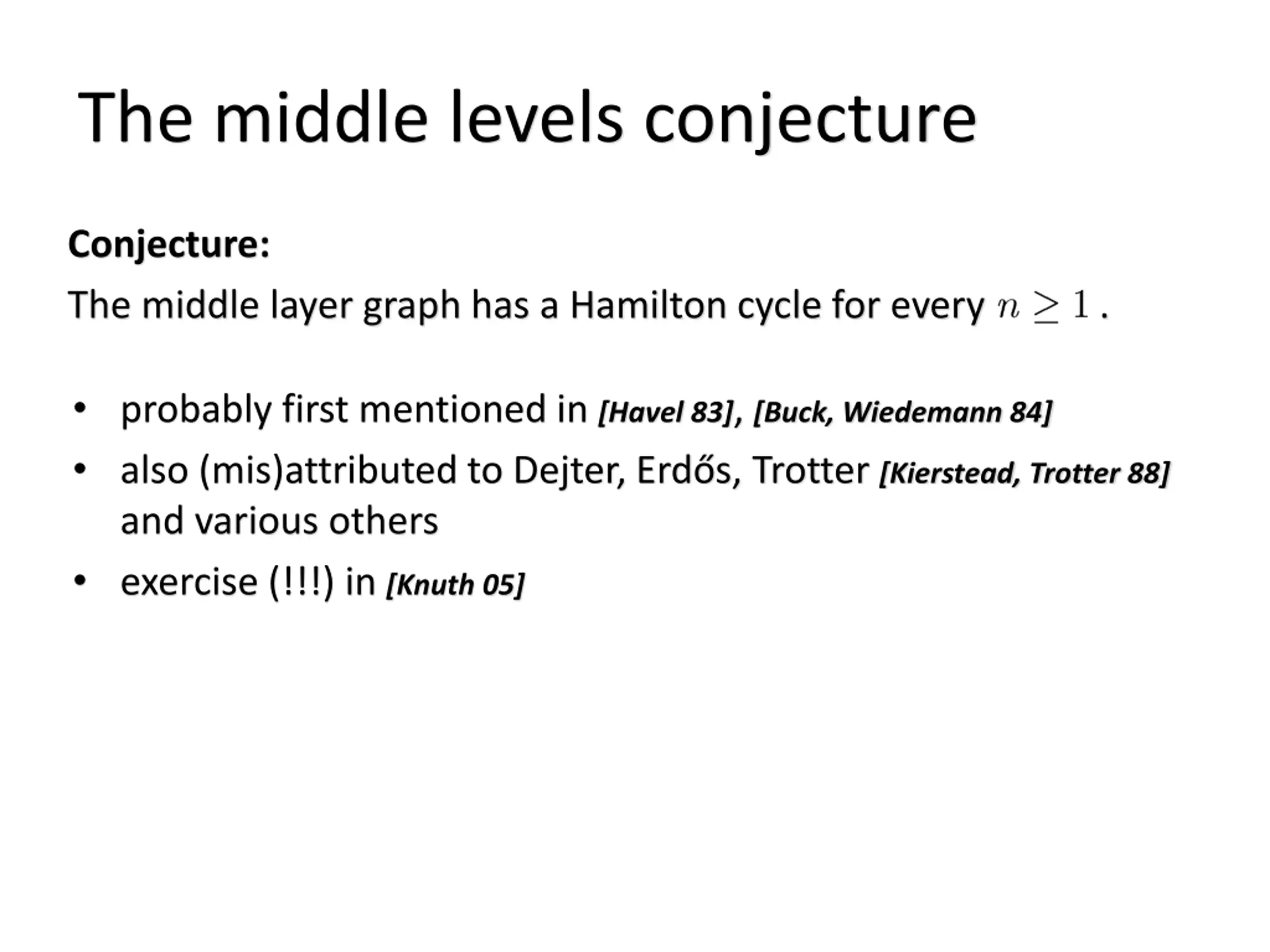

The middle levels conjecture Conjecture: The middle layer graph has a Hamilton cycle for every . probably first mentioned in [Havel 83], [Buck, Wiedemann 84] also (mis)attributed to Dejter, Erd s, Trotter [Kierstead, Trotter 88] and various others exercise (!!!) in [Knuth 05]

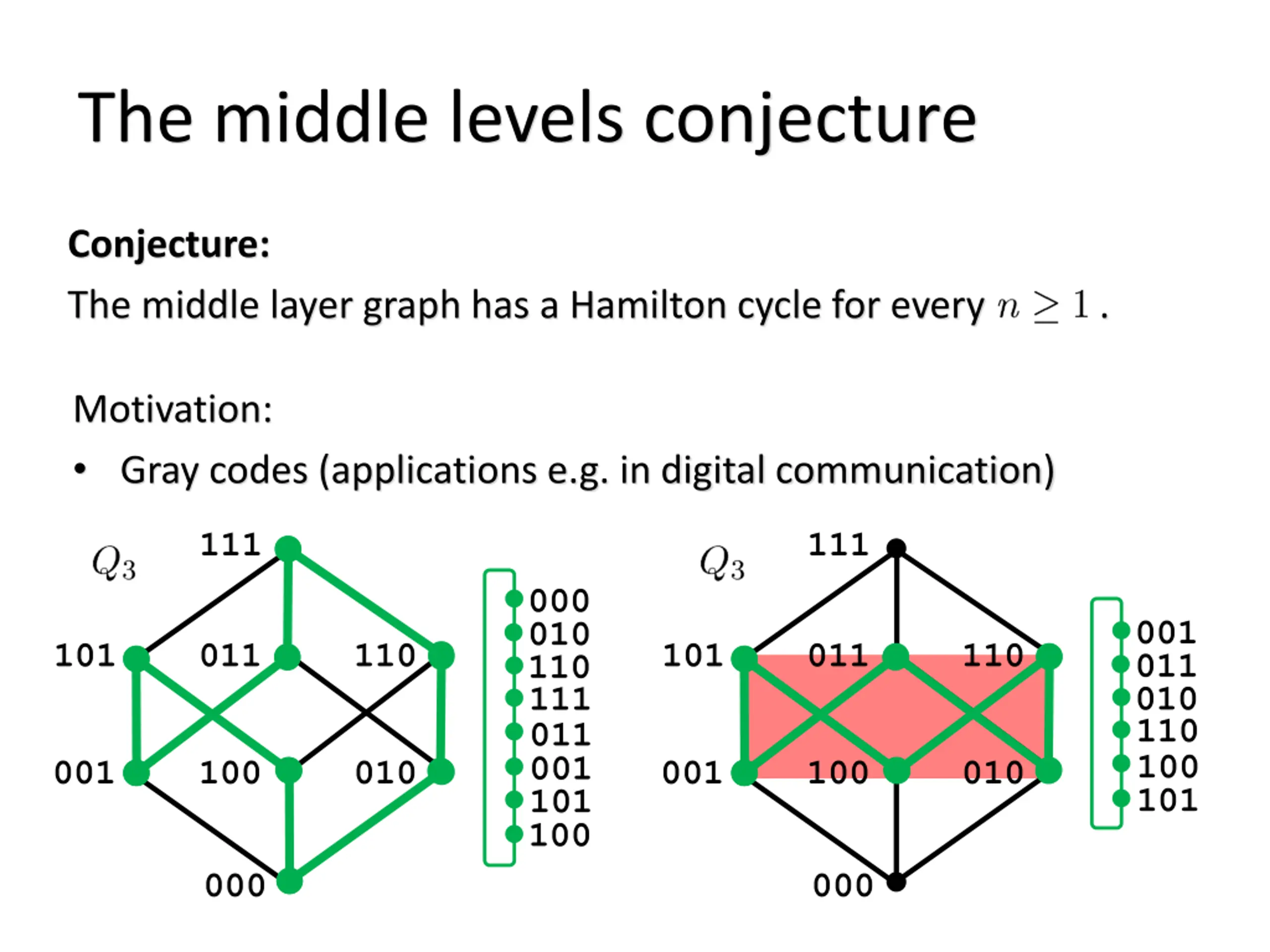

The middle levels conjecture Conjecture: The middle layer graph has a Hamilton cycle for every . Motivation: Gray codes (applications e.g. in digital communication) 111 111 000 010 110 111 011 001 101 100 001 011 010 110 100 101 101 011 110 101 011 110 001 100 010 001 100 010 000 000

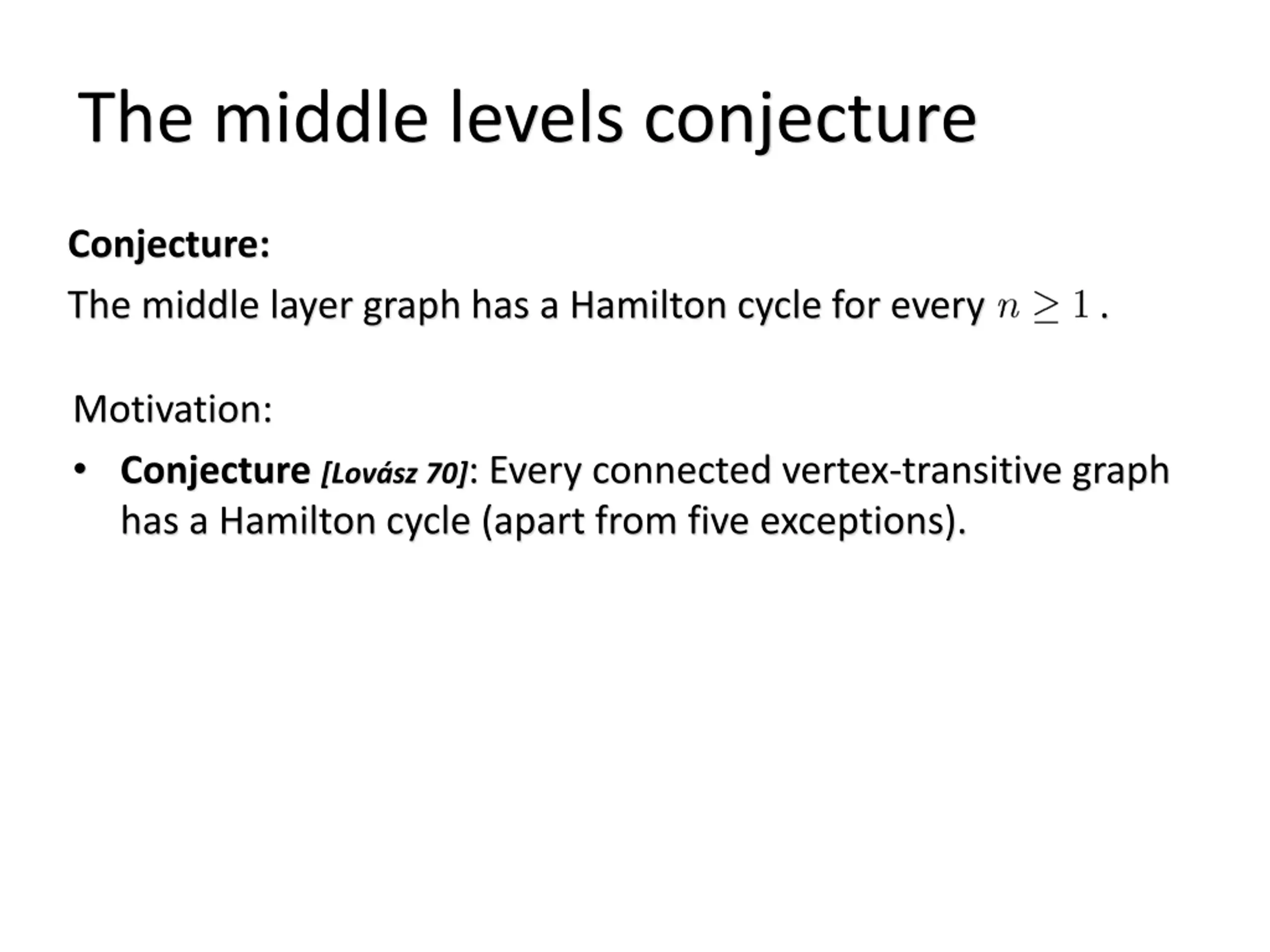

The middle levels conjecture Conjecture: The middle layer graph has a Hamilton cycle for every . Motivation: Conjecture [Lov sz 70]: Every connected vertex-transitive graph has a Hamilton cycle (apart from five exceptions).

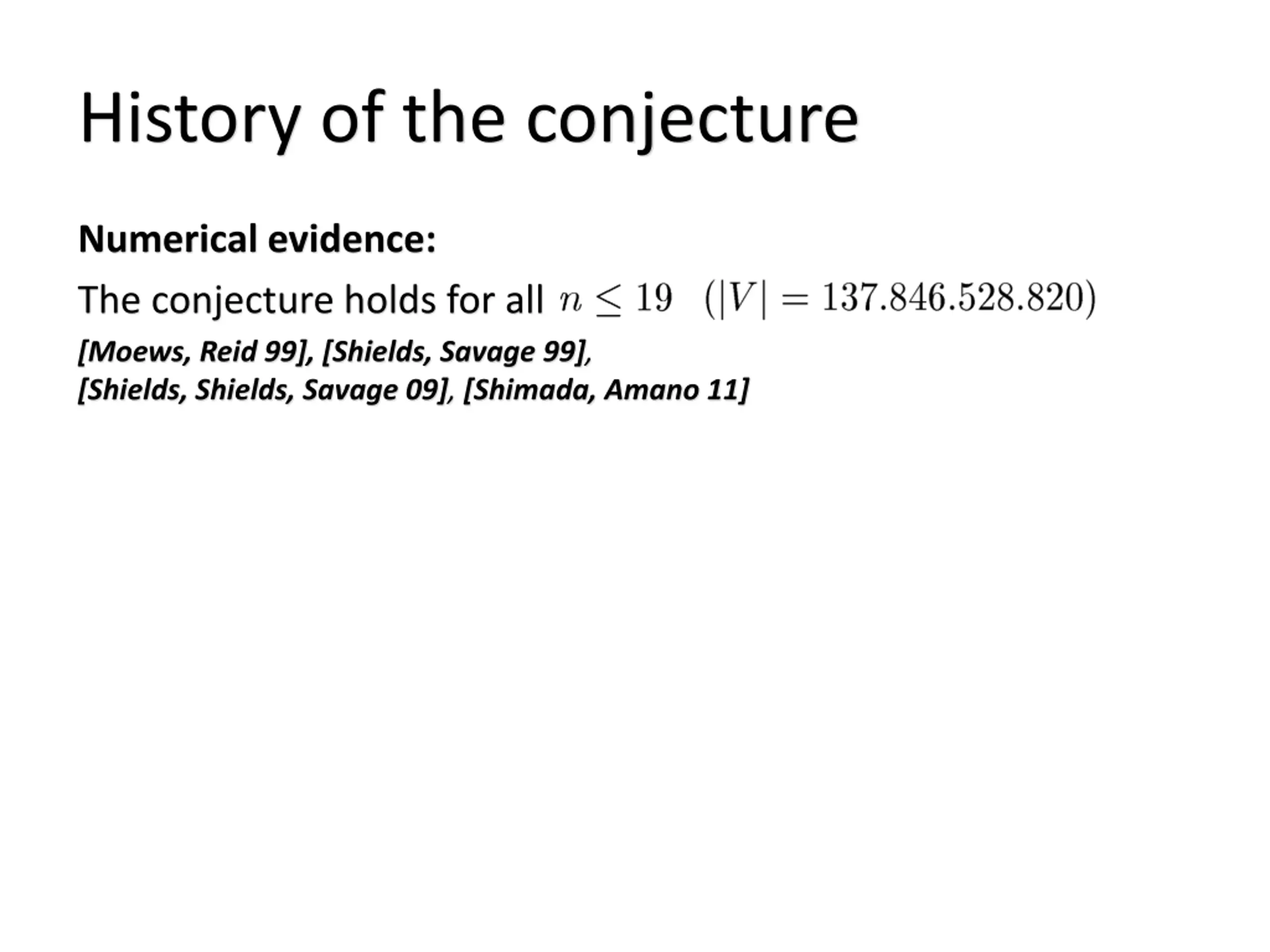

History of the conjecture Numerical evidence: The conjecture holds for all [Moews, Reid 99], [Shields, Savage 99], [Shields, Shields, Savage 09], [Shimada, Amano 11]

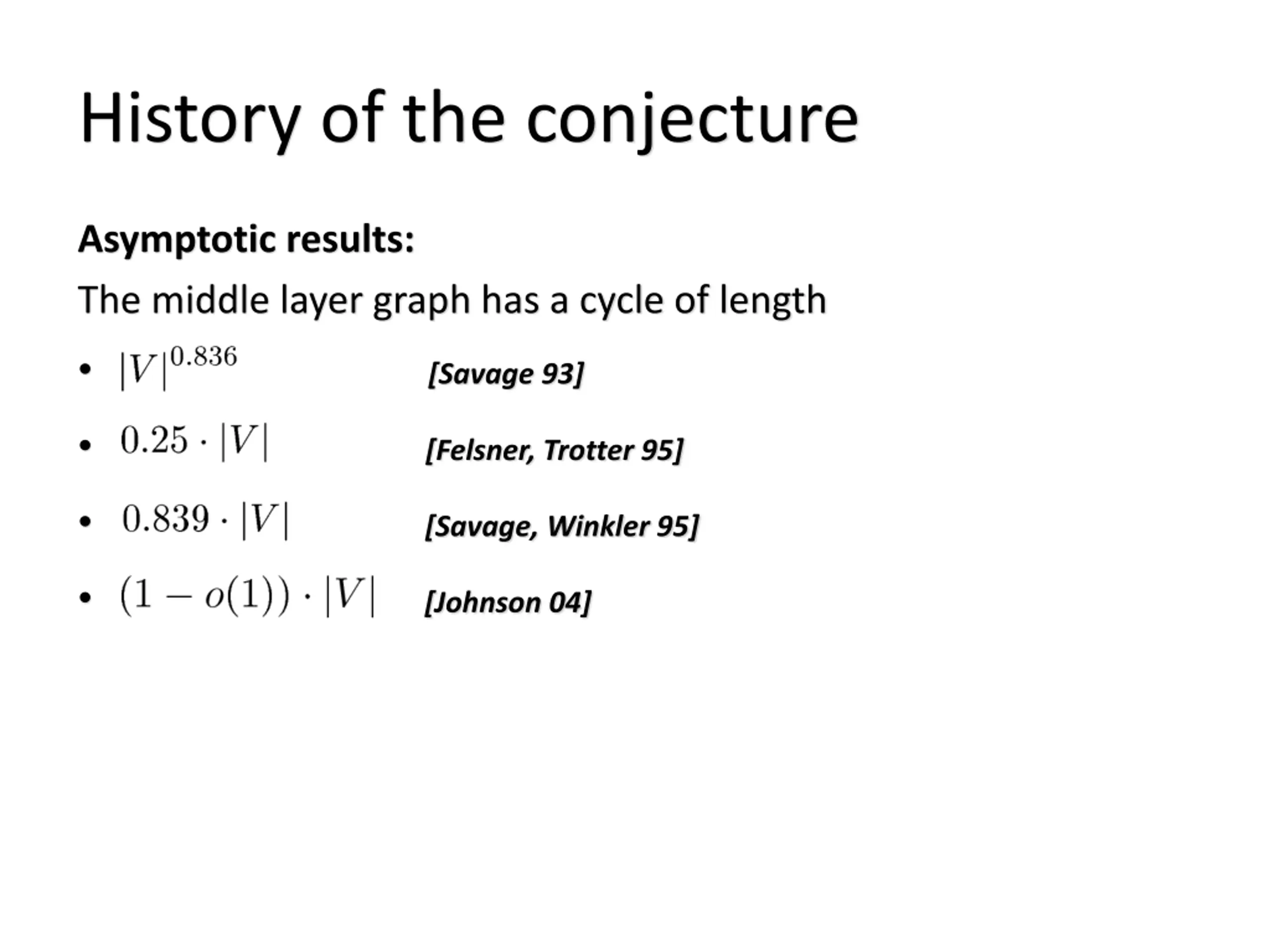

History of the conjecture Asymptotic results: The middle layer graph has a cycle of length [Savage 93] [Felsner, Trotter 95] [Savage, Winkler 95] [Johnson 04]

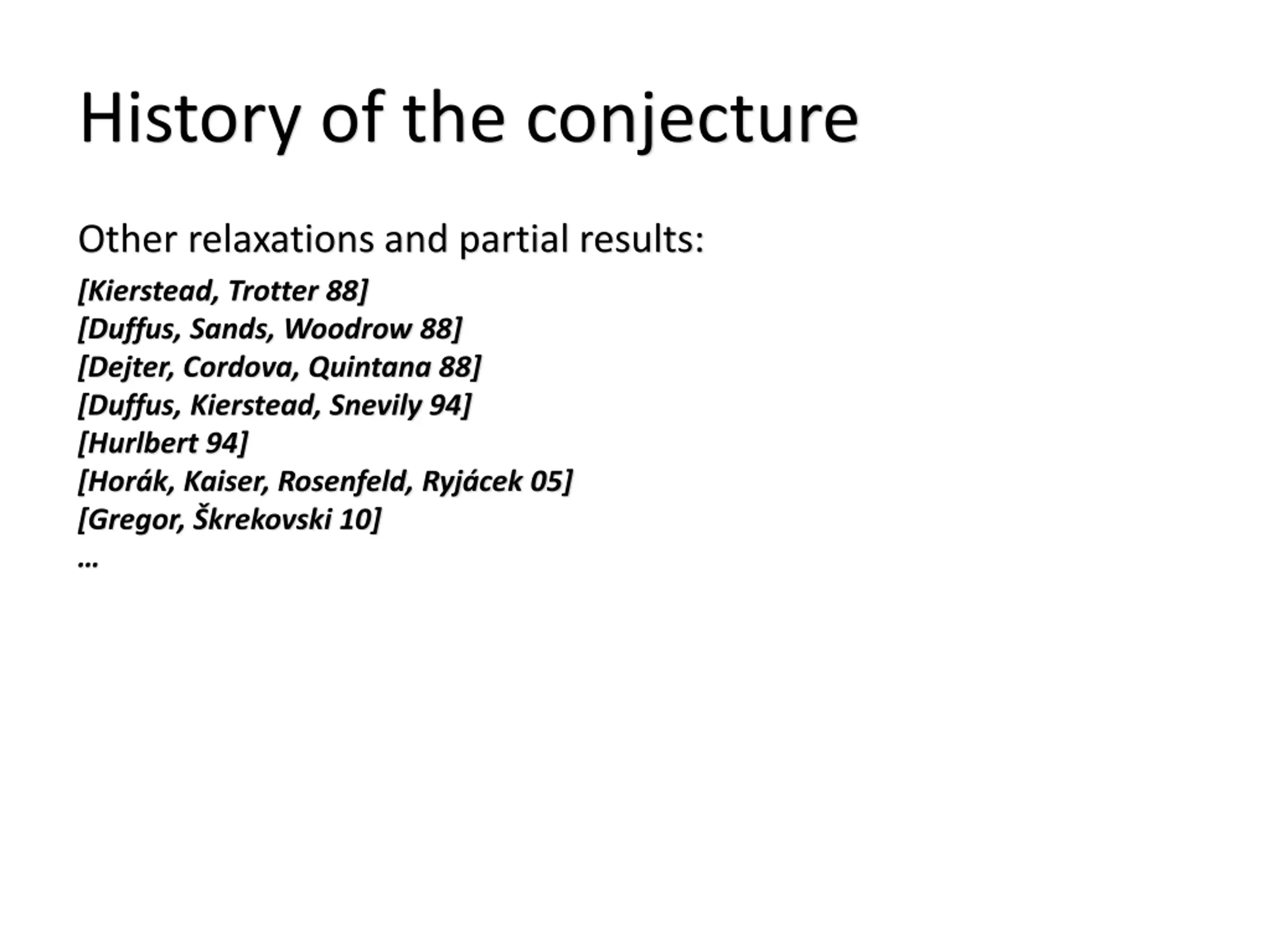

History of the conjecture Other relaxations and partial results: [Kierstead, Trotter 88] [Duffus, Sands, Woodrow 88] [Dejter, Cordova, Quintana 88] [Duffus, Kierstead, Snevily 94] [Hurlbert 94] [Hor k, Kaiser, Rosenfeld, Ryj cek 05] [Gregor, krekovski 10]

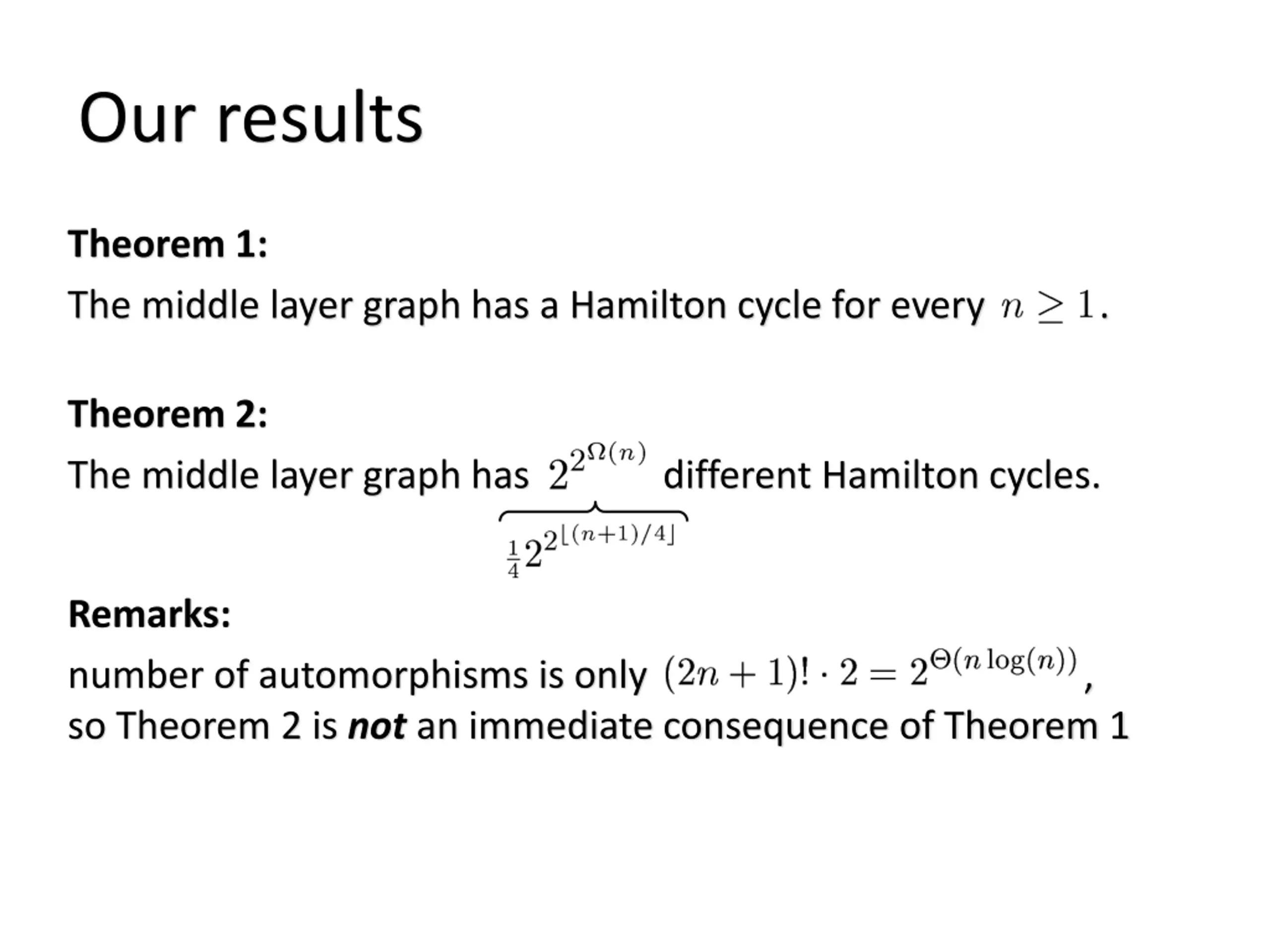

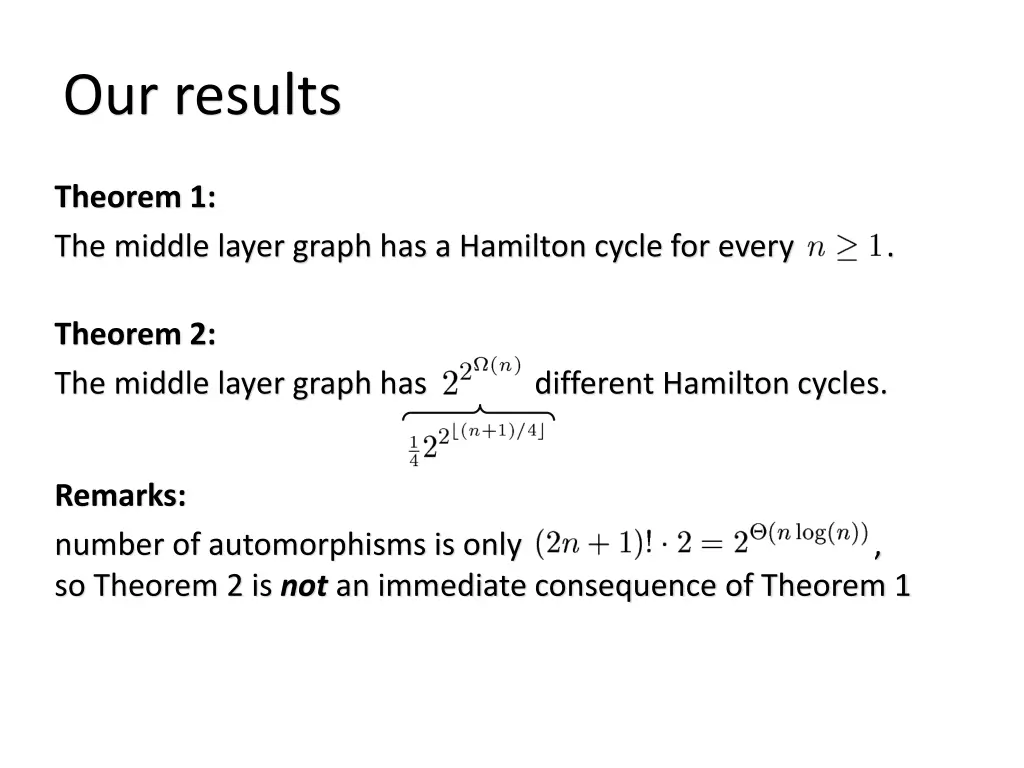

Our results Theorem 1: The middle layer graph has a Hamilton cycle for every . Theorem 2: The middle layer graph has different Hamilton cycles. Remarks: number of automorphisms is only so Theorem 2 is not an immediate consequence of Theorem 1 ,

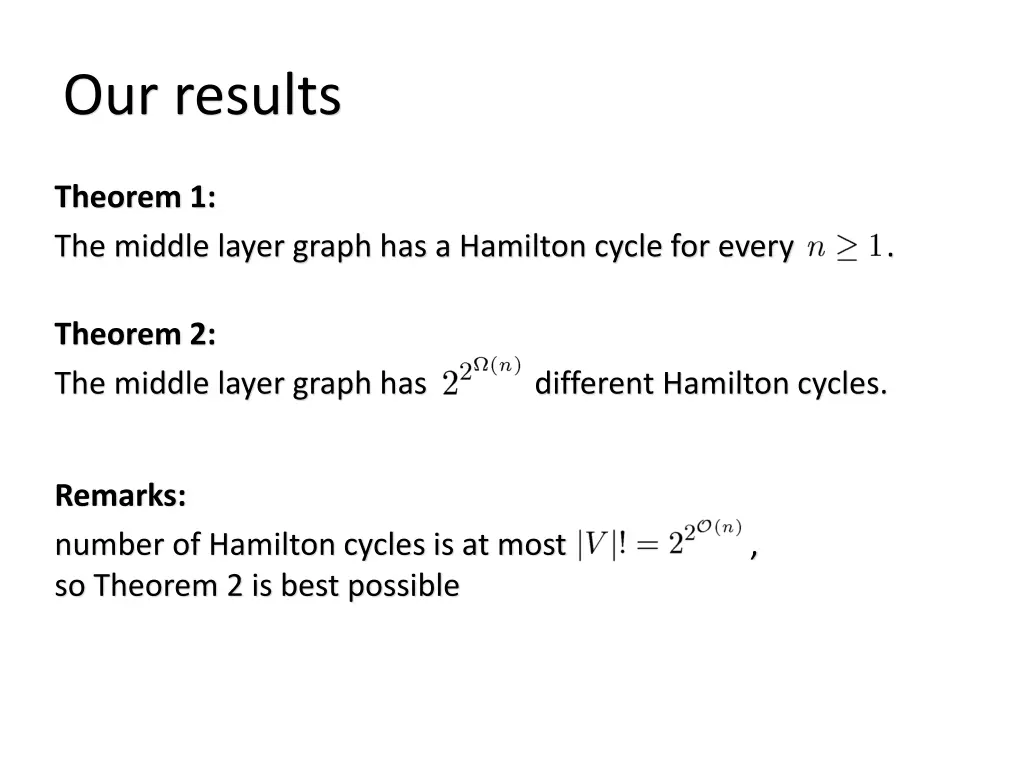

Our results Theorem 1: The middle layer graph has a Hamilton cycle for every . Theorem 2: The middle layer graph has different Hamilton cycles. Remarks: number of Hamilton cycles is at most so Theorem 2 is best possible ,

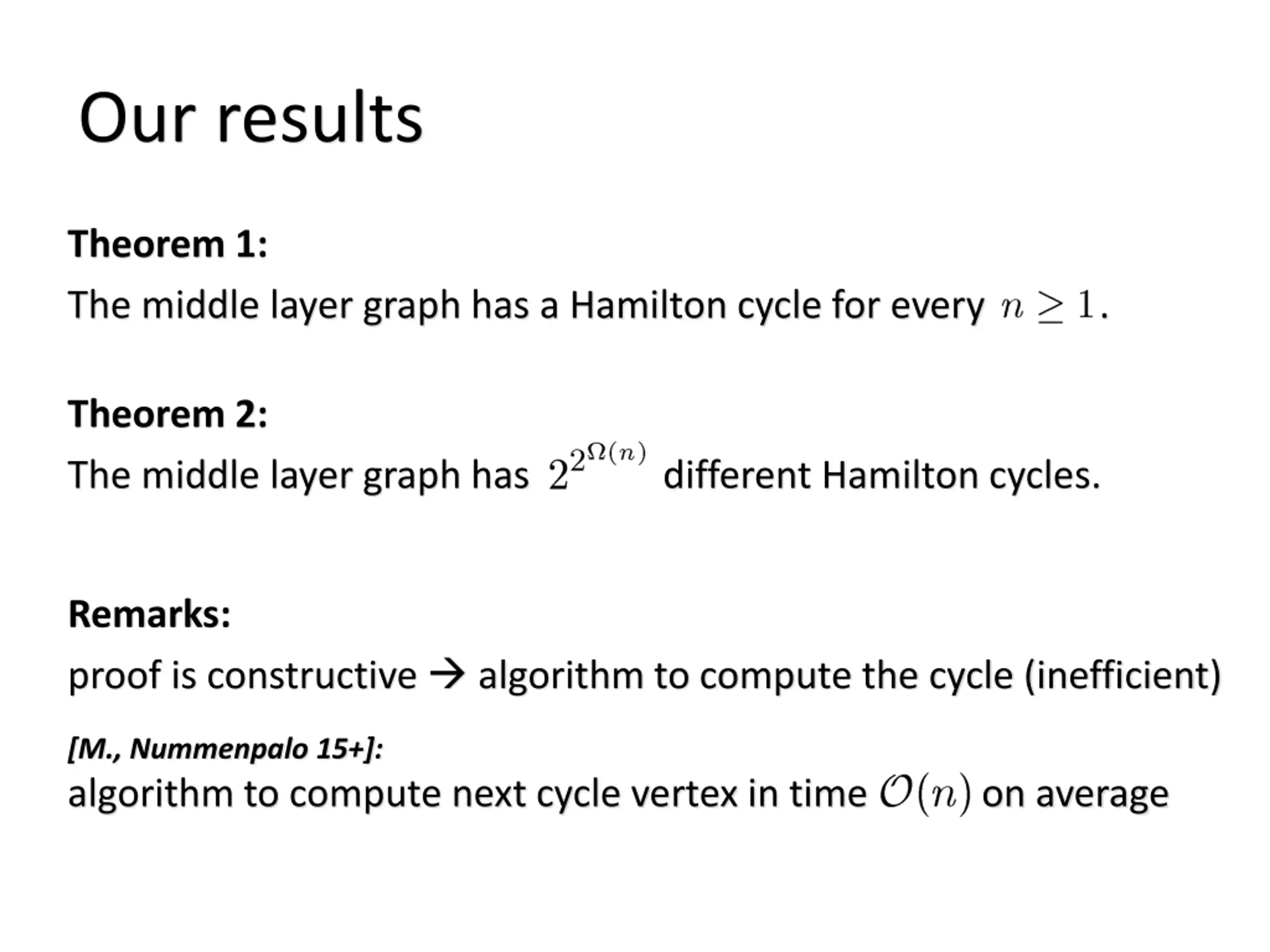

Our results Theorem 1: The middle layer graph has a Hamilton cycle for every . Theorem 2: The middle layer graph has different Hamilton cycles. Remarks: proof is constructive algorithm to compute the cycle (inefficient) [M., Nummenpalo 15+]: algorithm to compute next cycle vertex in time on average

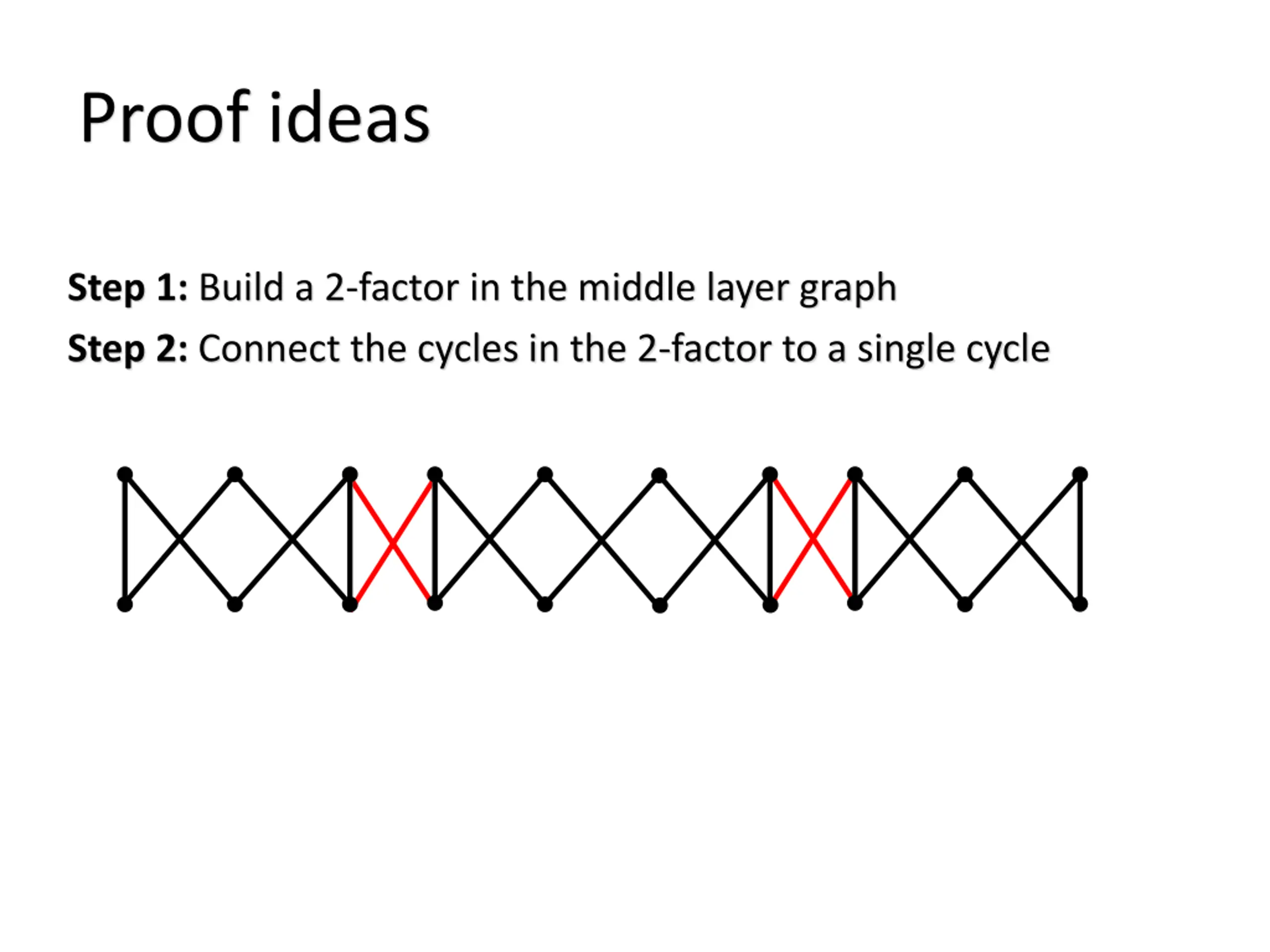

Proof ideas Step 1: Build a 2-factor in the middle layer graph Step 2: Connect the cycles in the 2-factor to a single cycle

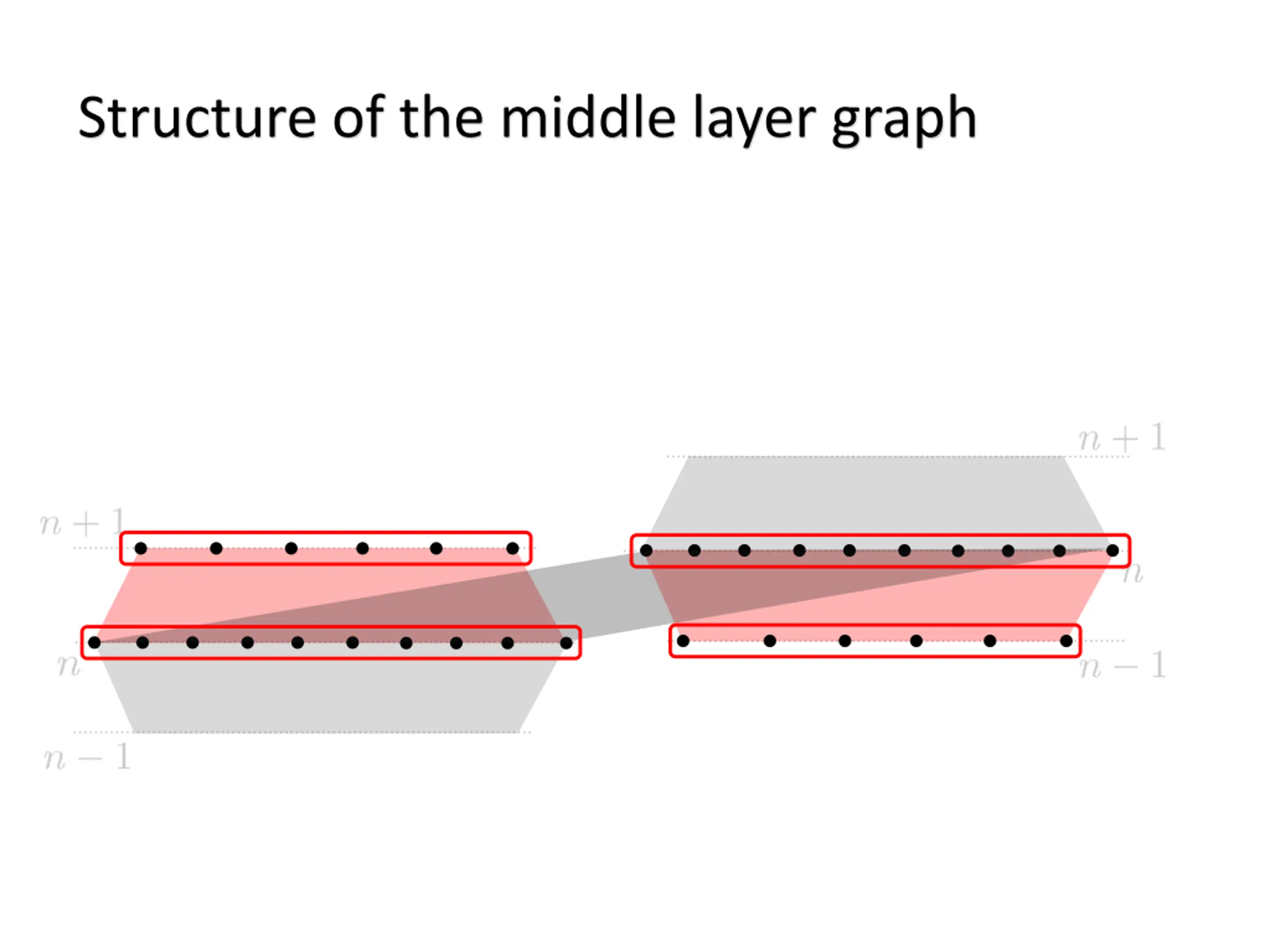

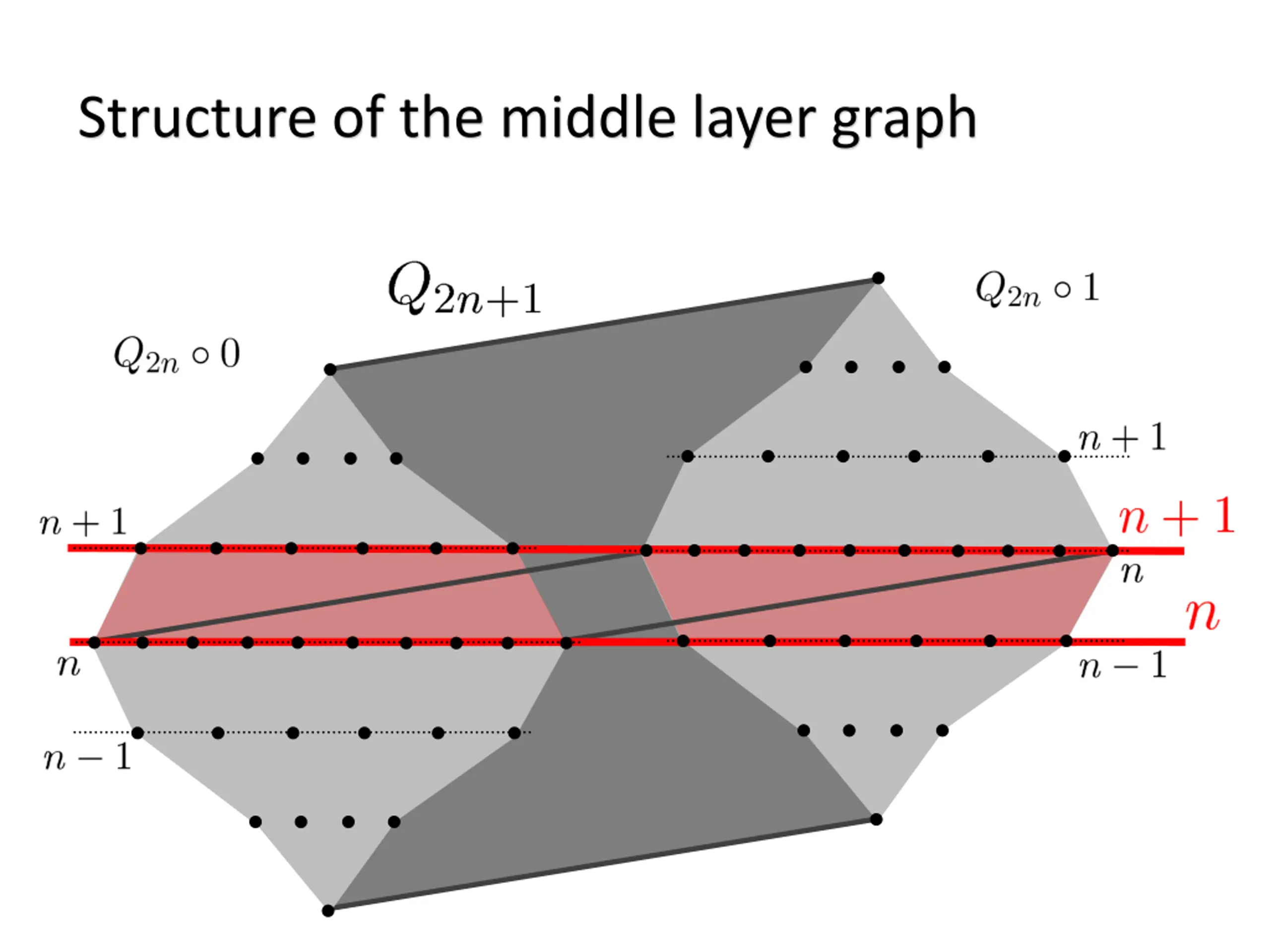

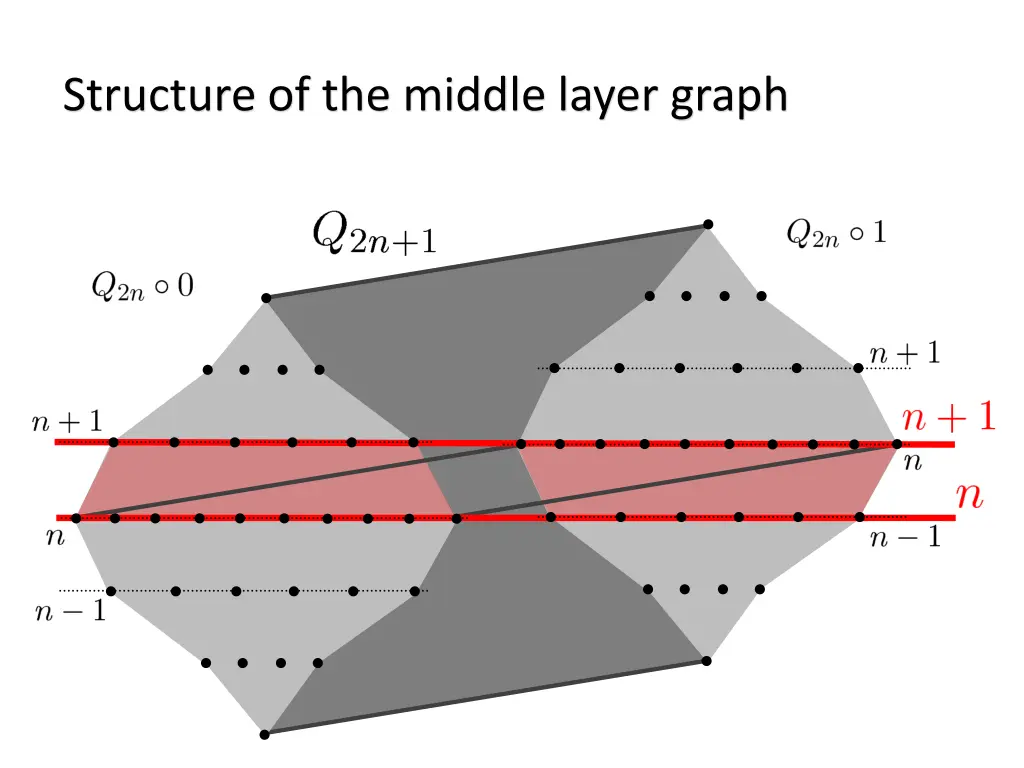

Structure of the middle layer graph

Structure of the middle layer graph

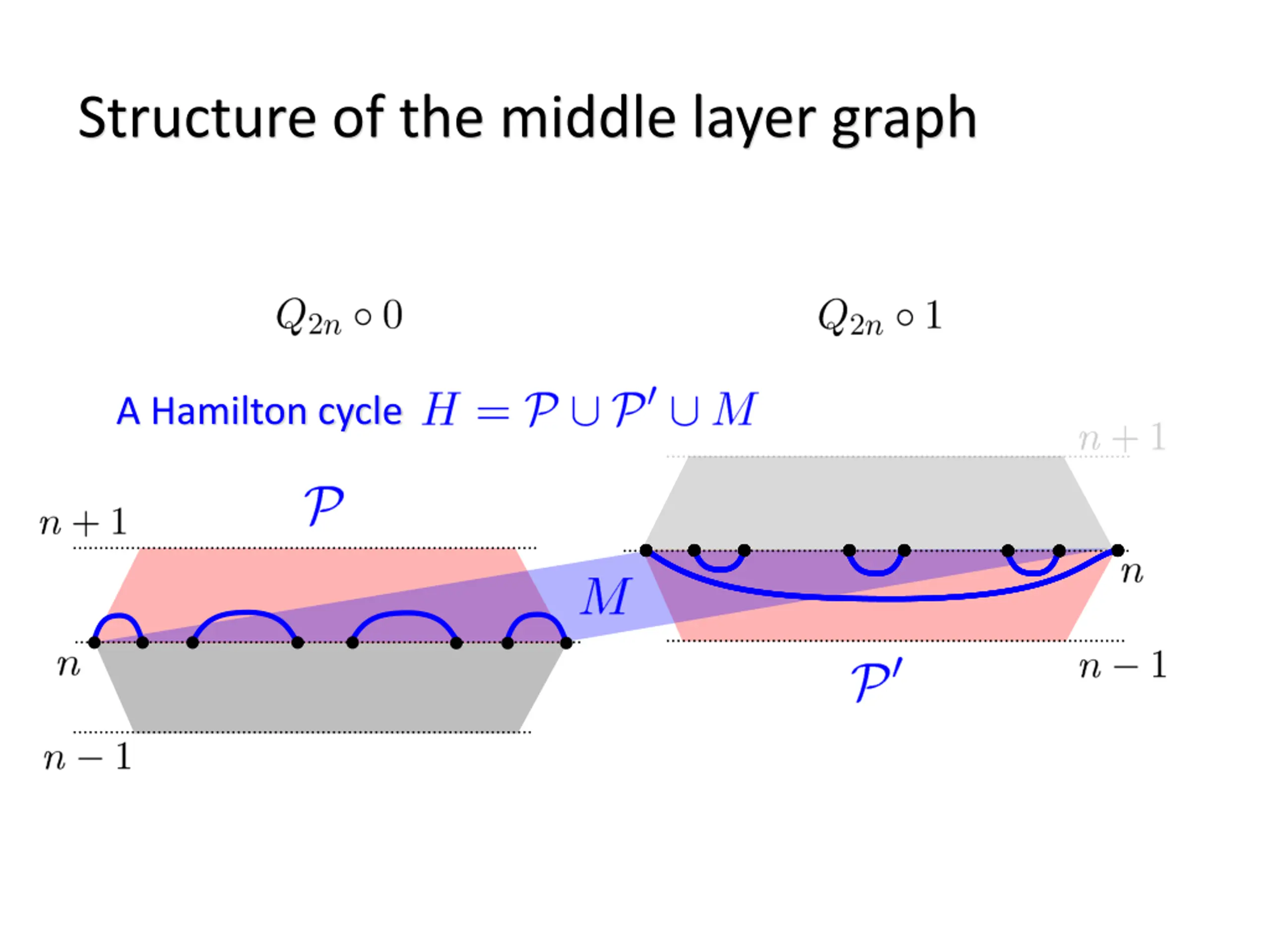

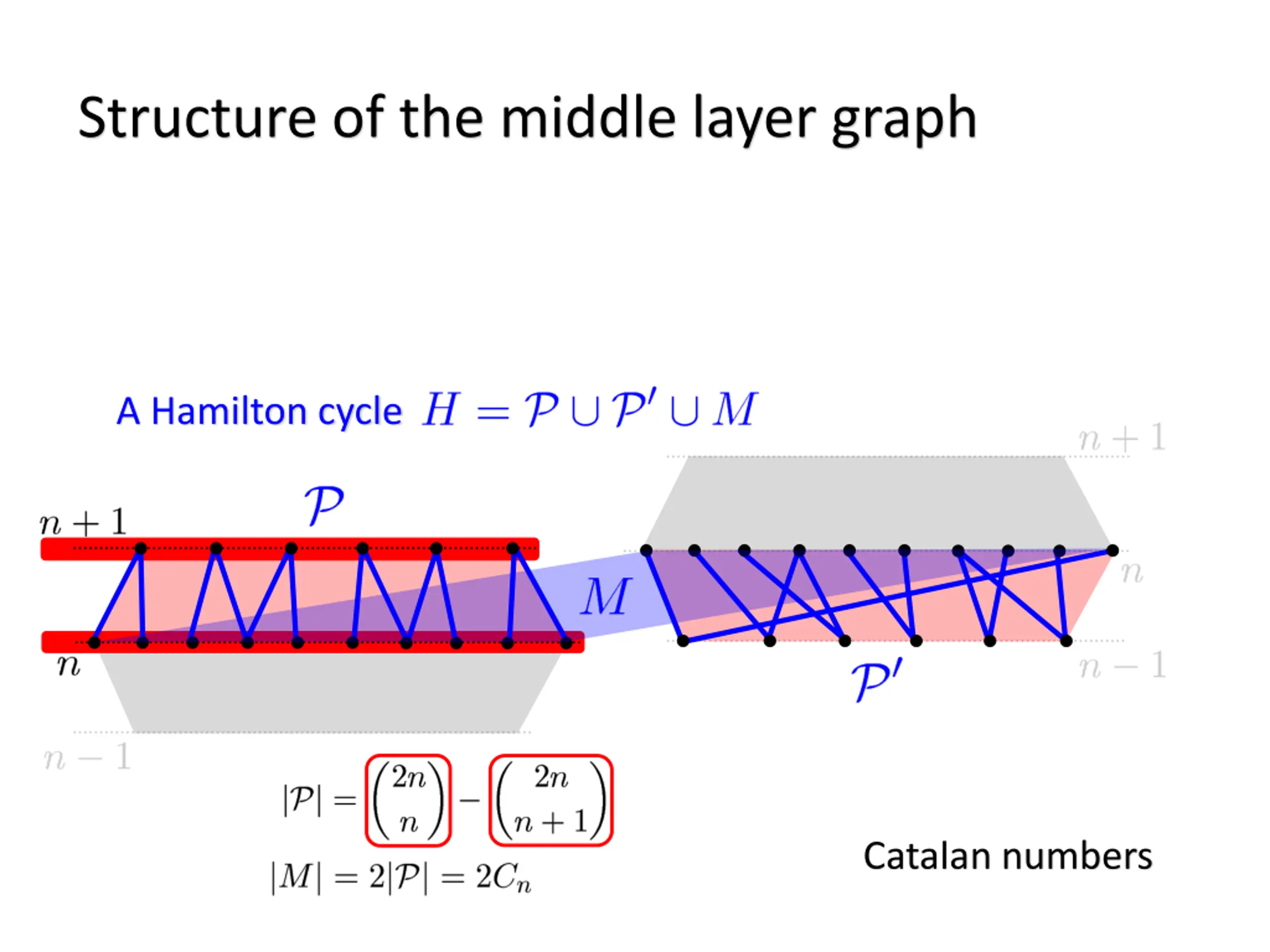

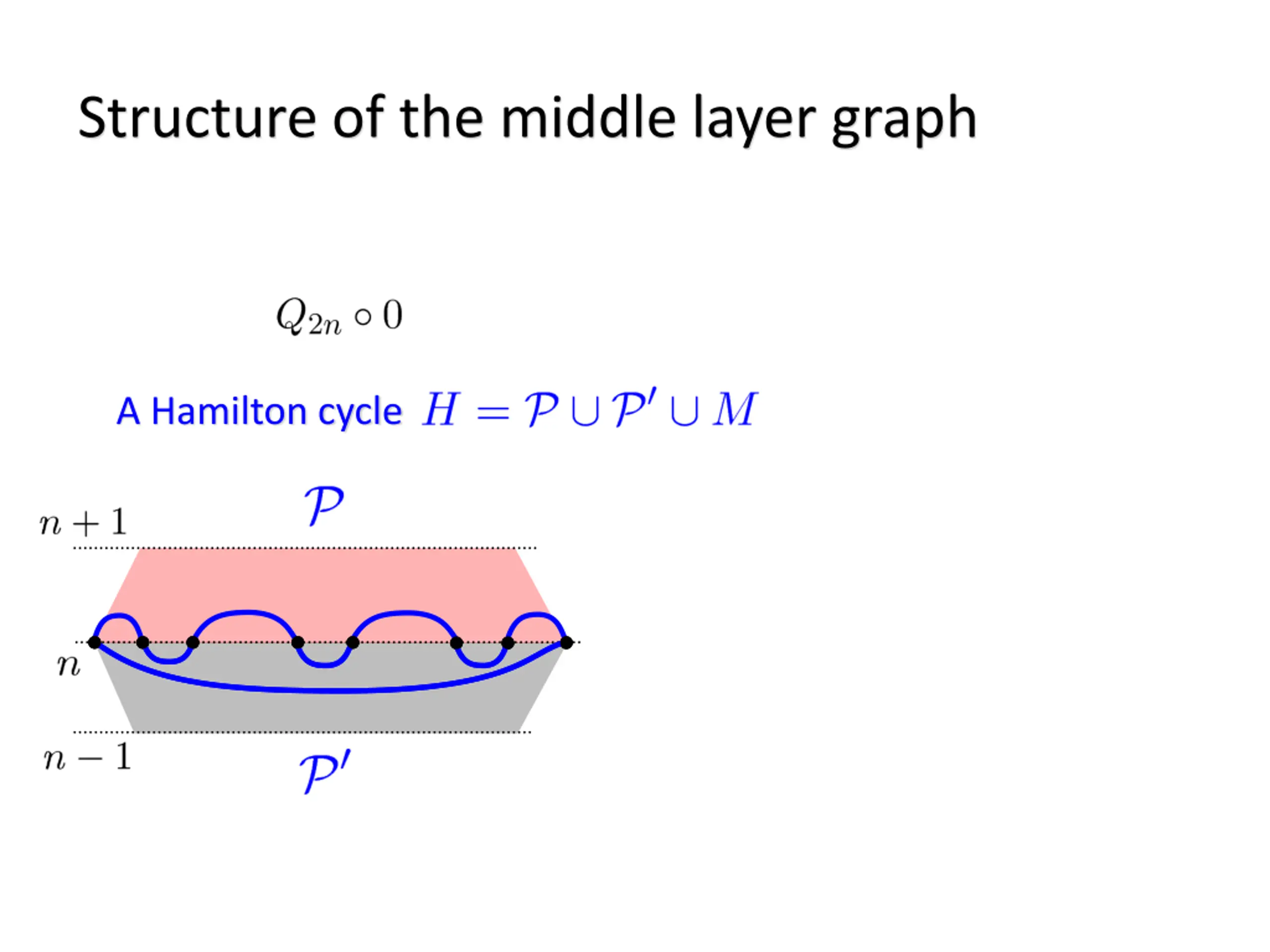

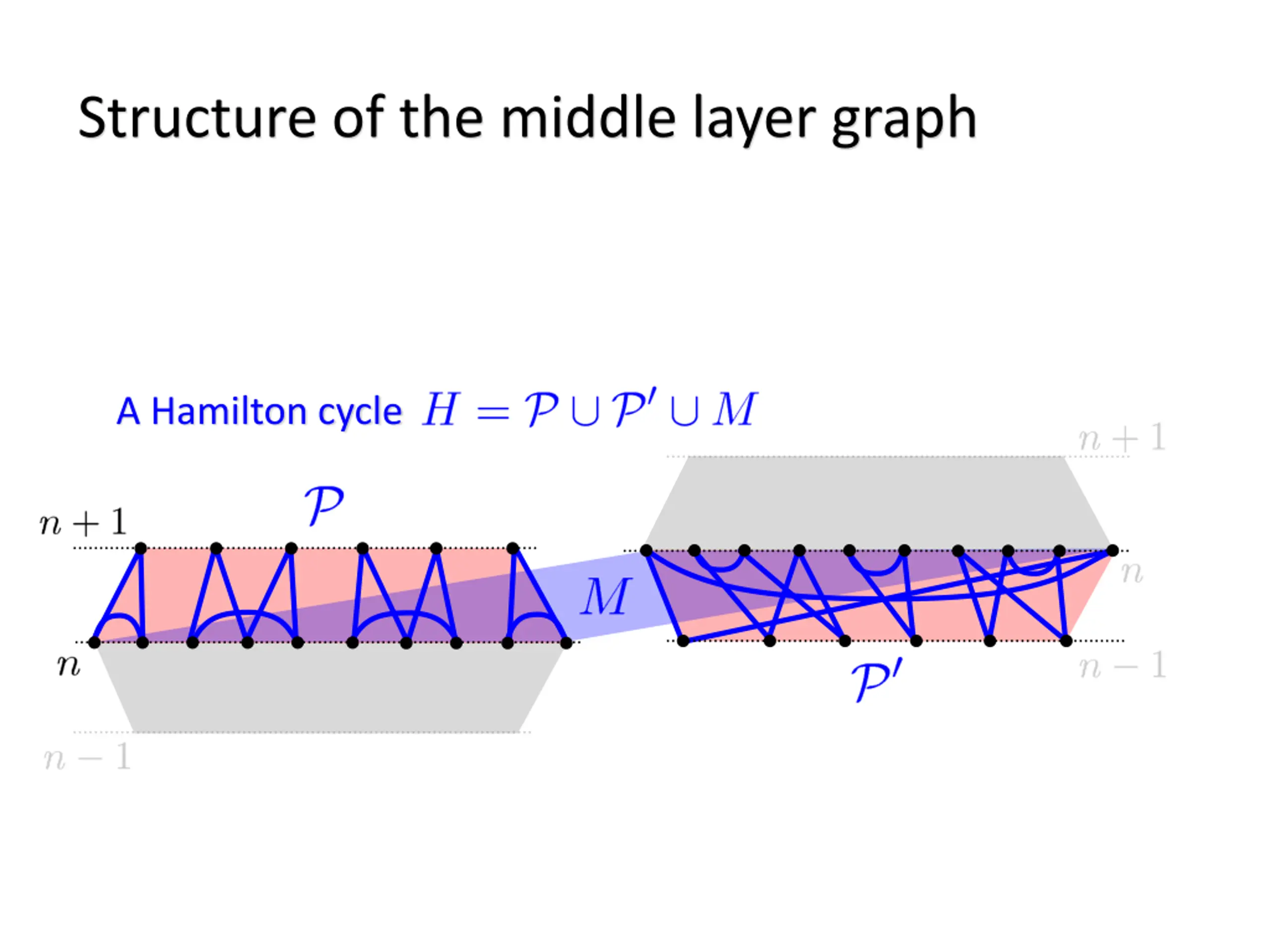

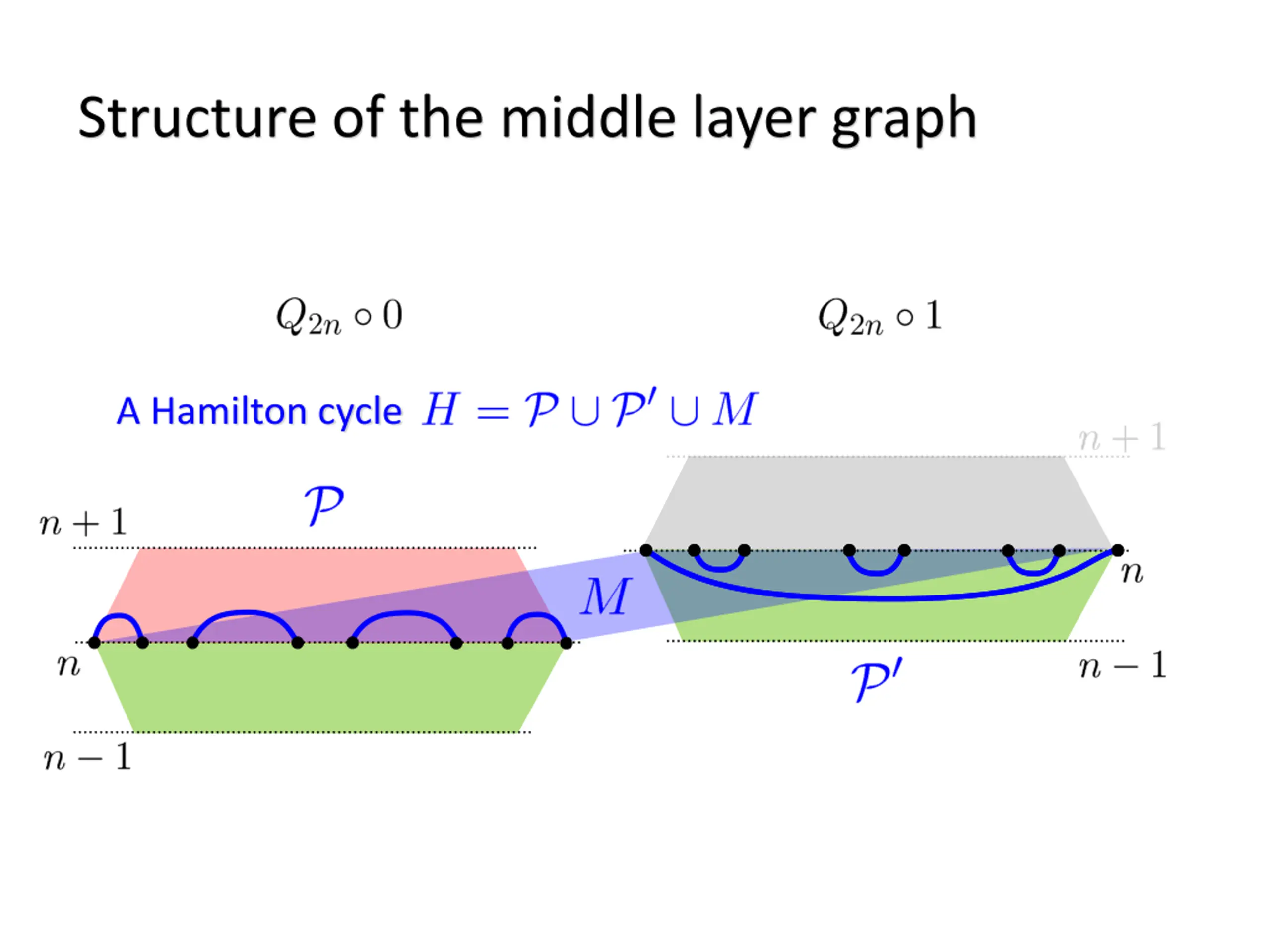

Structure of the middle layer graph A Hamilton cycle Catalan numbers

Structure of the middle layer graph A Hamilton cycle

Structure of the middle layer graph A Hamilton cycle

Structure of the middle layer graph A Hamilton cycle

Structure of the middle layer graph A Hamilton cycle

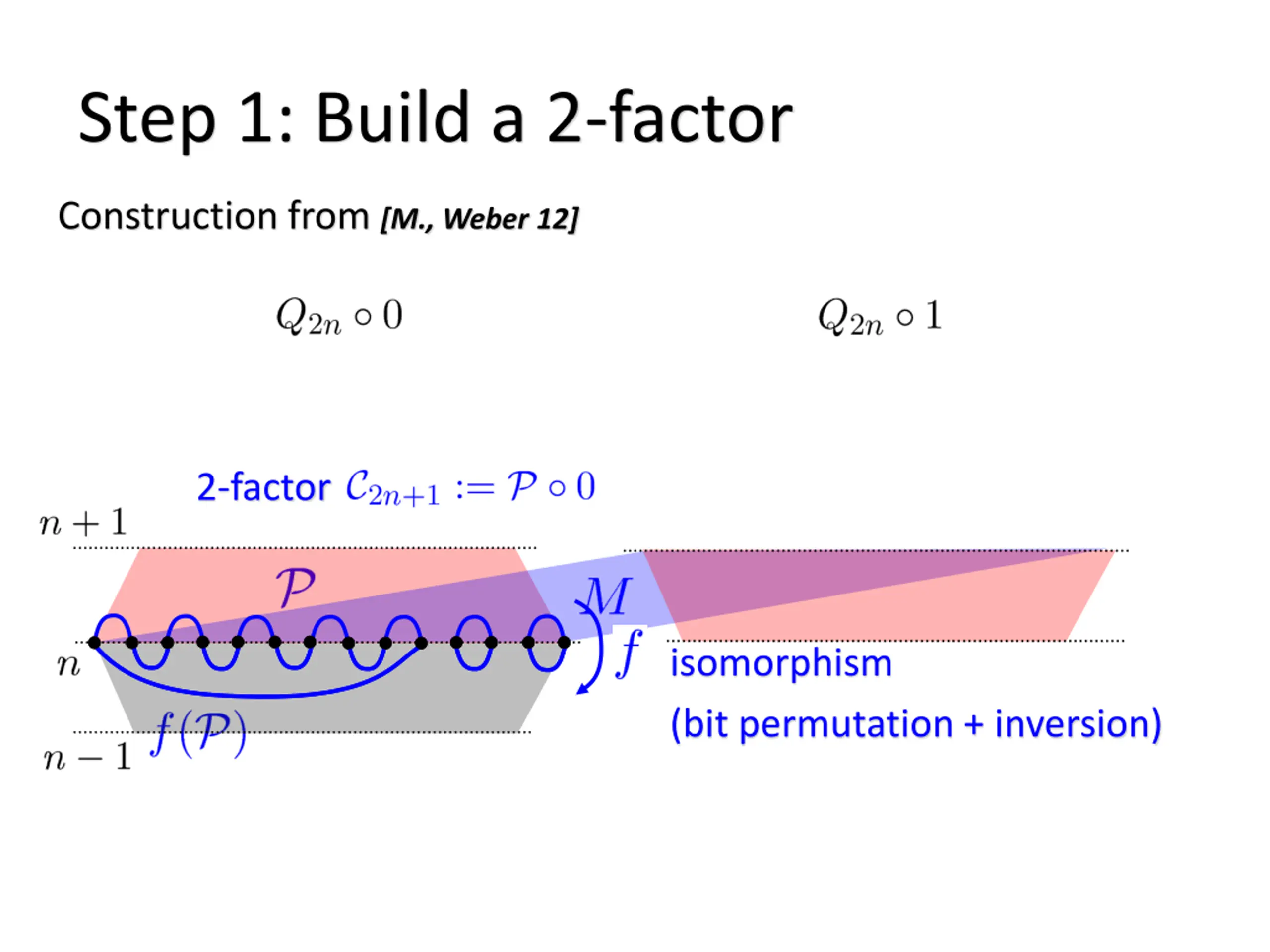

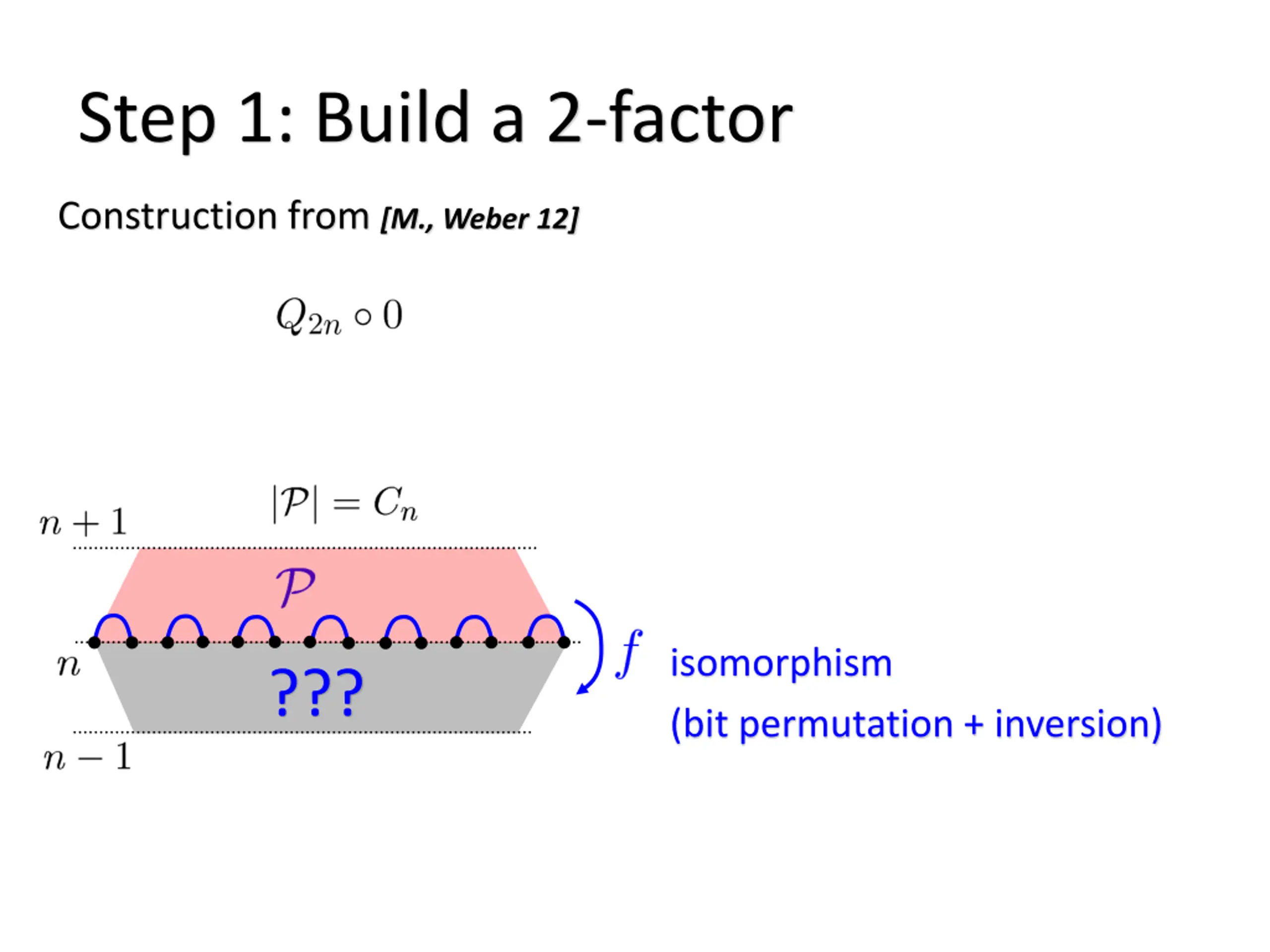

Step 1: Build a 2-factor Construction from [M., Weber 12] isomorphism (bit permutation + inversion) ???

Step 1: Build a 2-factor Construction from [M., Weber 12] 2-factor isomorphism (bit permutation + inversion)

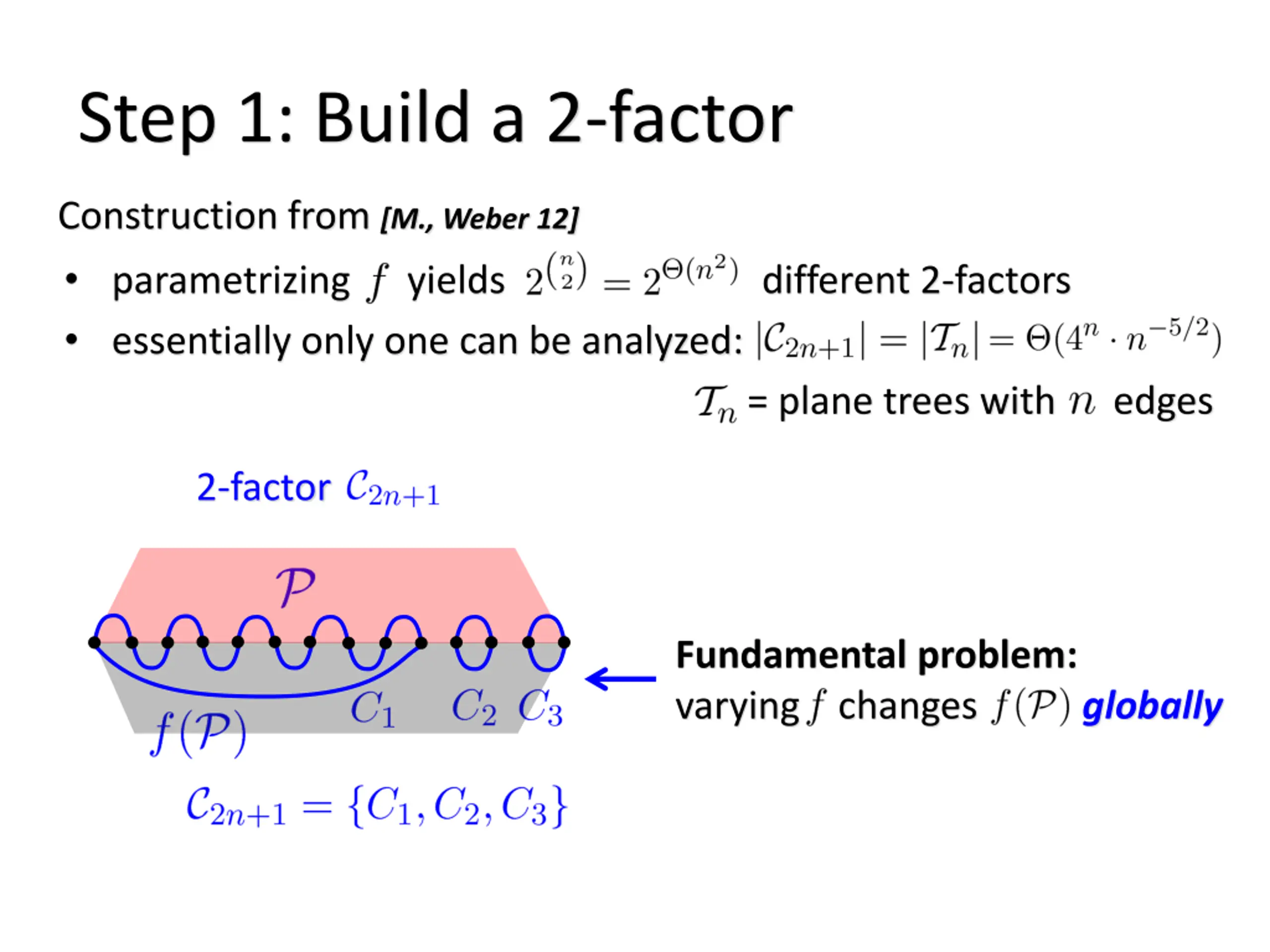

Step 1: Build a 2-factor Construction from [M., Weber 12] parametrizing essentially only one can be analyzed: yields different 2-factors = plane trees with edges 2-factor Fundamental problem: varying changes globally

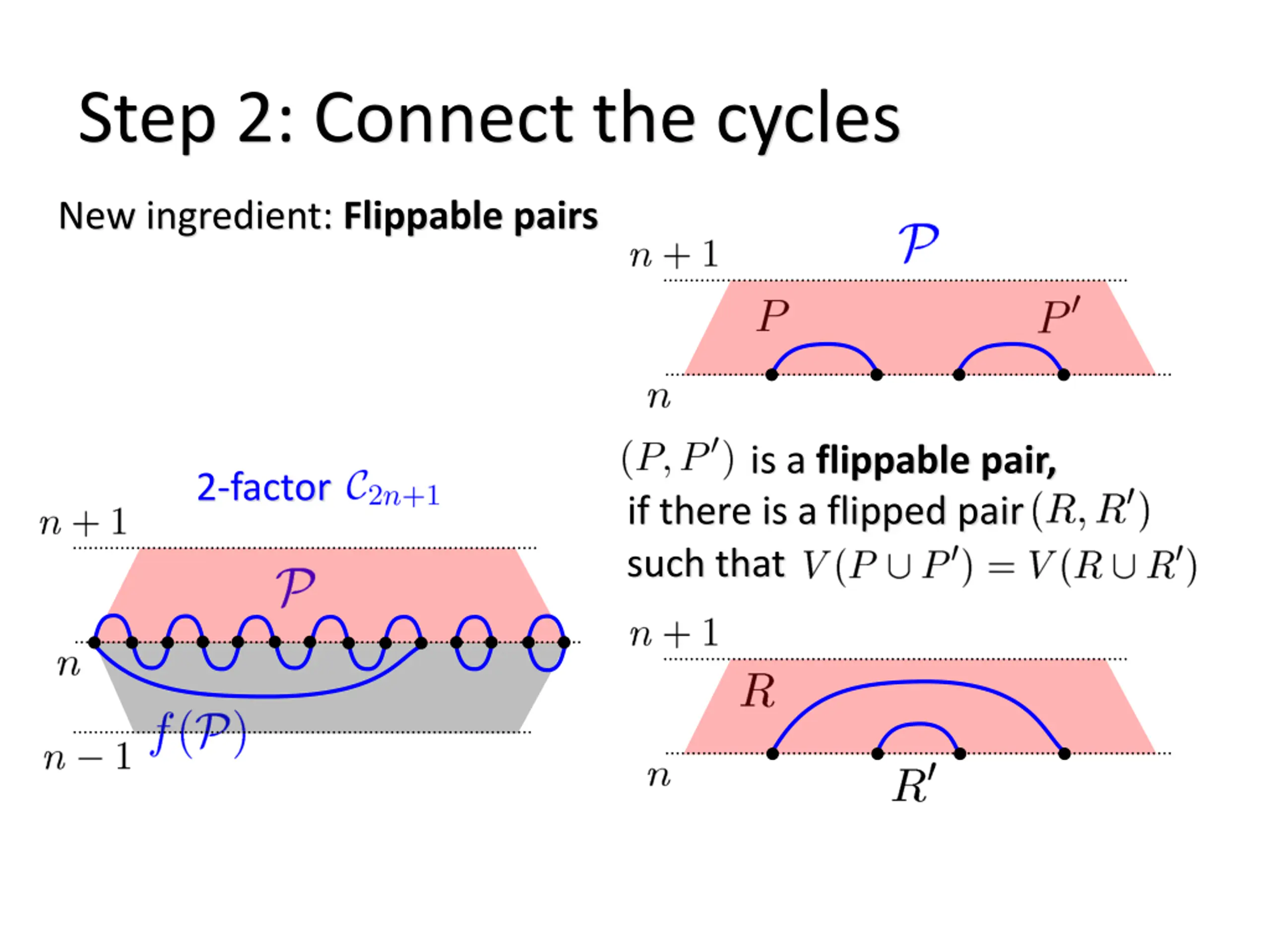

Step 2: Connect the cycles New ingredient: Flippable pairs is a flippable pair, if there is a flipped pair such that 2-factor

Step 2: Connect the cycles New ingredient: Flippable pairs is a flippable pair, if there is a flipped pair such that 2-factor

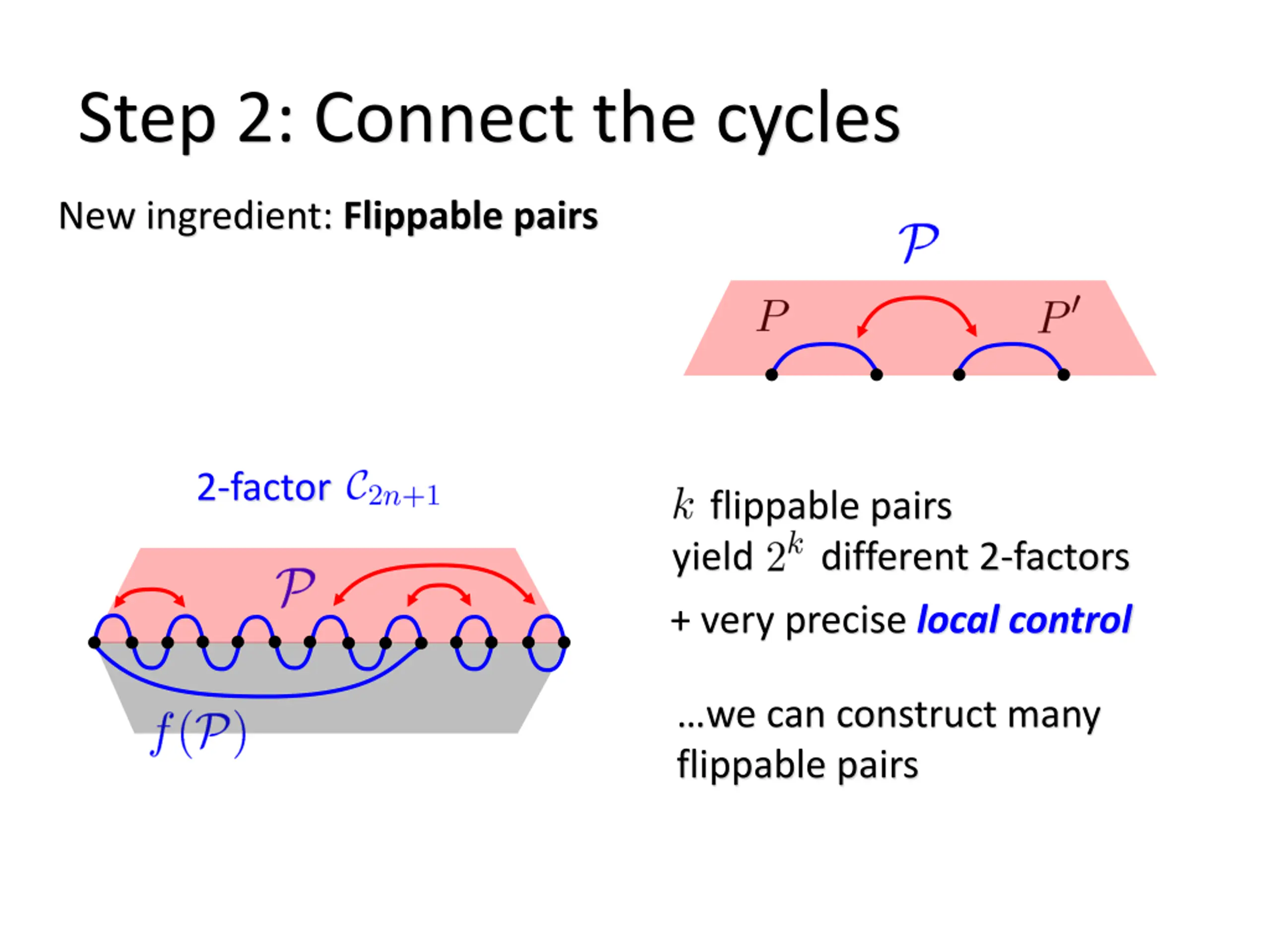

Step 2: Connect the cycles New ingredient: Flippable pairs 2-factor flippable pairs yield different 2-factors + very precise local control we can construct many flippable pairs

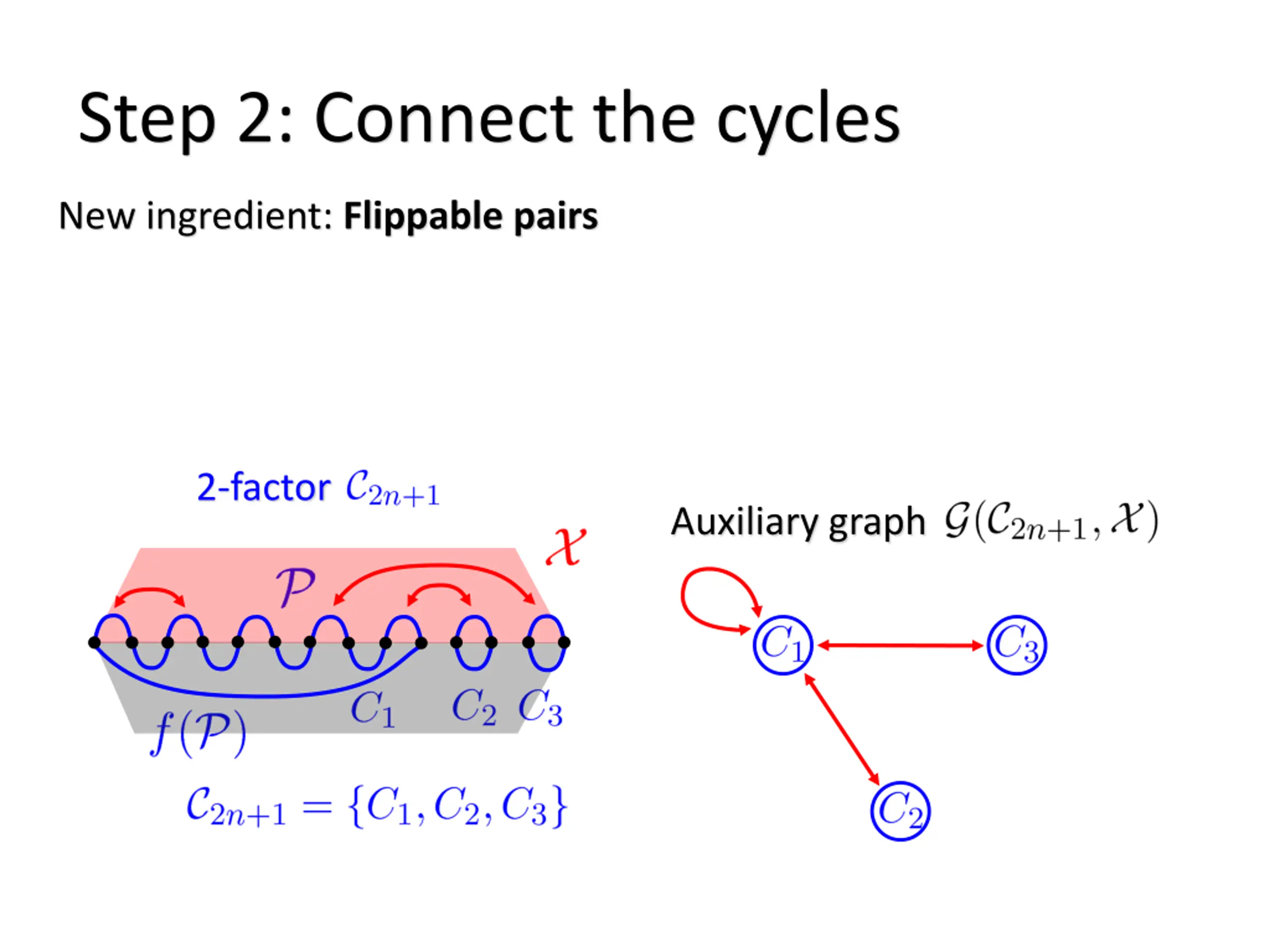

Step 2: Connect the cycles New ingredient: Flippable pairs 2-factor Auxiliary graph

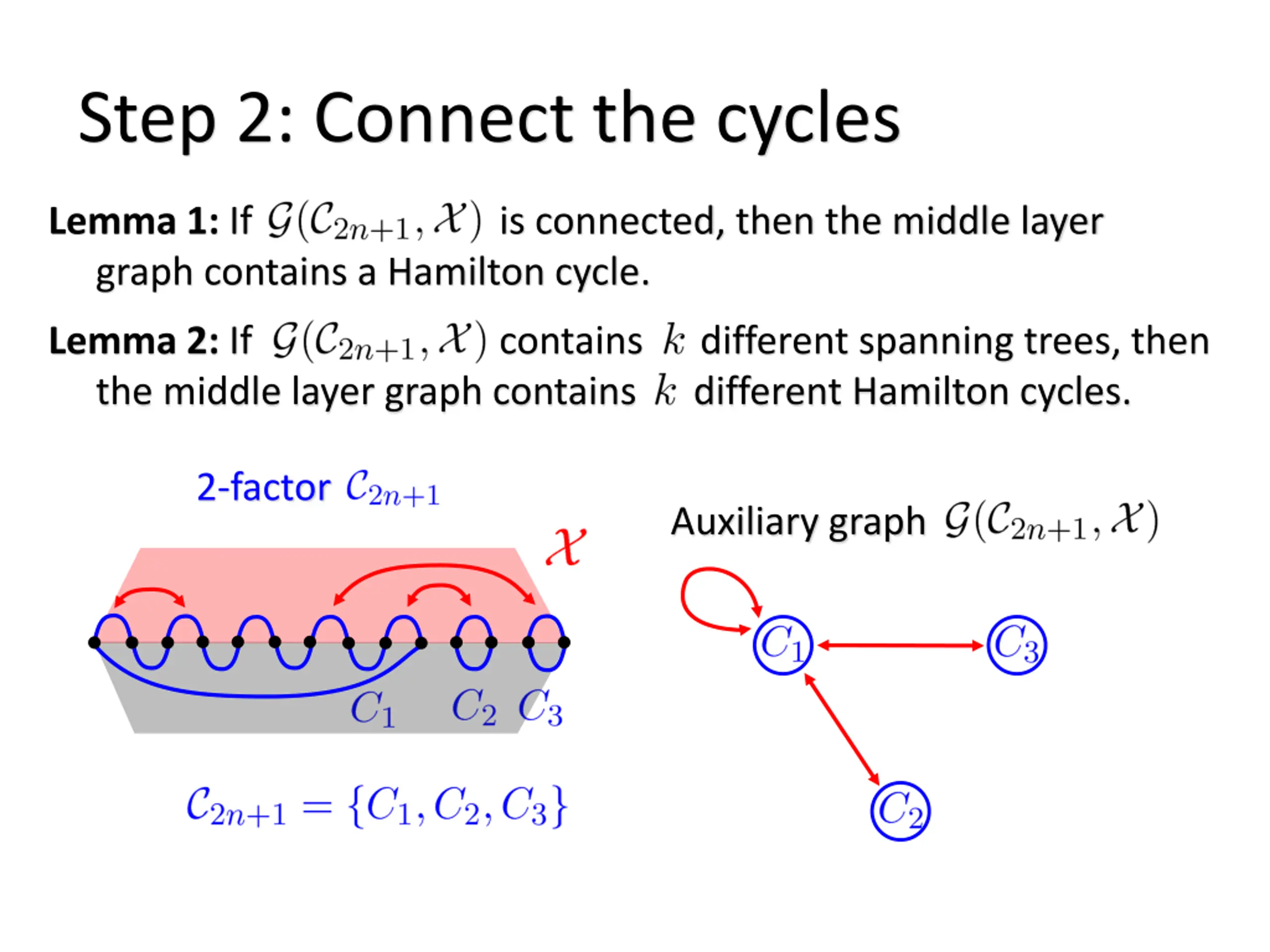

Step 2: Connect the cycles Lemma 1: If graph contains a Hamilton cycle. is connected, then the middle layer Lemma 2: If the middle layer graph contains contains different spanning trees, then different Hamilton cycles. 2-factor Auxiliary graph

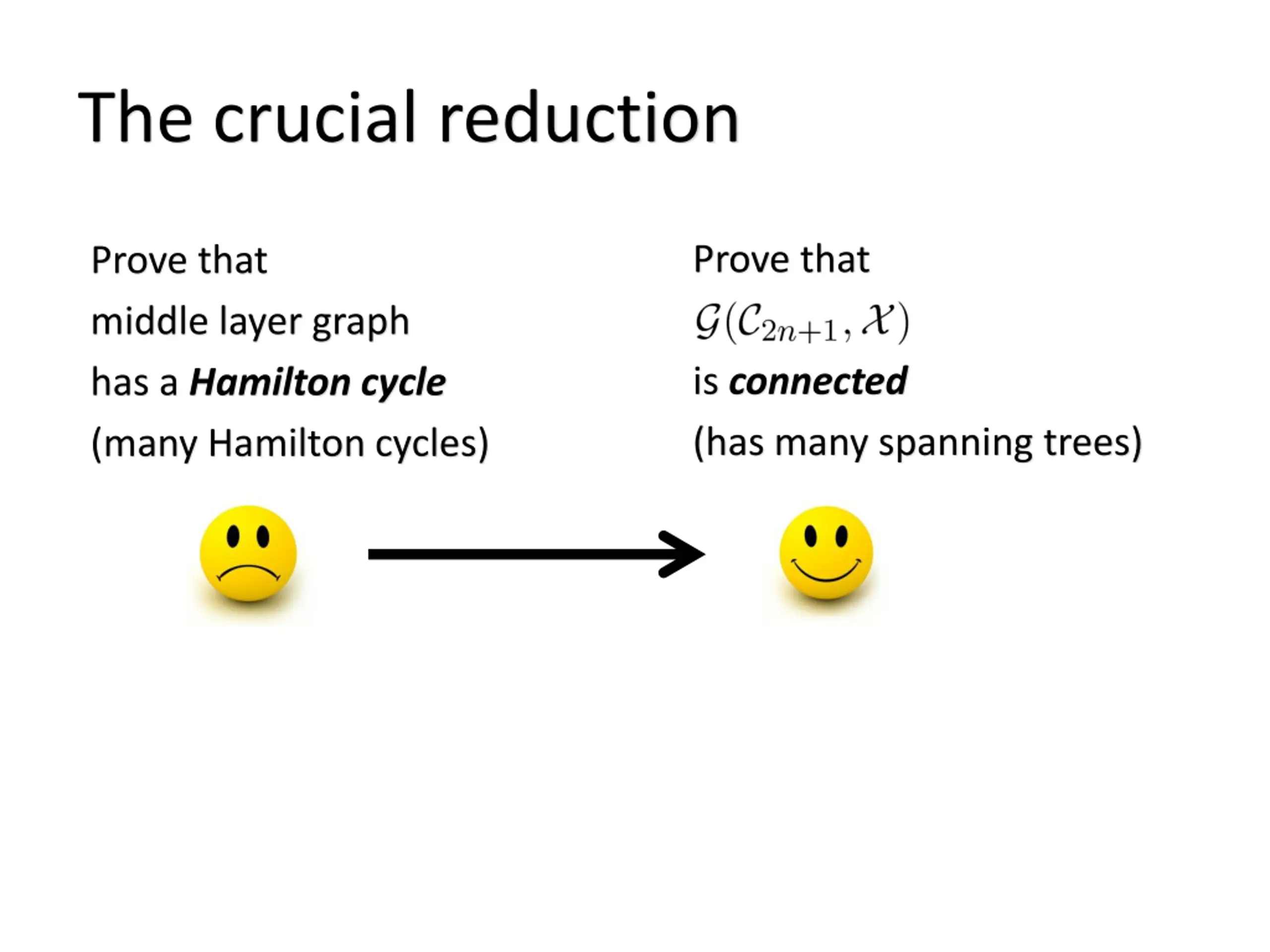

The crucial reduction Prove that Prove that middle layer graph has a Hamilton cycle (many Hamilton cycles) is connected (has many spanning trees)

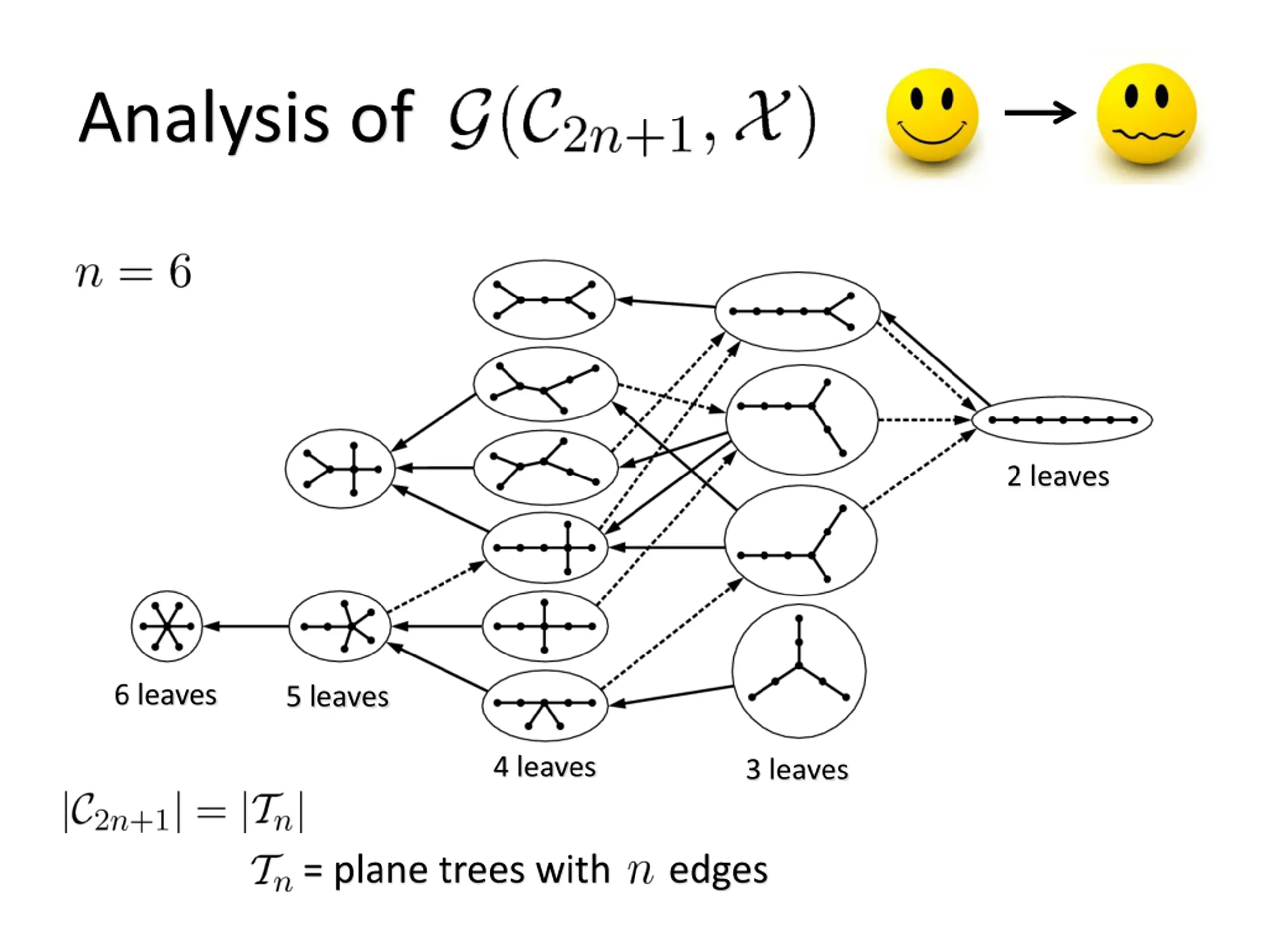

Analysis of 2 leaves 6 leaves 5 leaves 4 leaves 3 leaves = plane trees with edges

Analysis of 2 leaves 6 leaves 5 leaves 4 leaves 3 leaves = plane trees with edges
