Proposals for Simultaneous PSFCH Transmission Requirements
In the 3GPP TSG-RAN-WG4 electronic meeting #94bis-e, various companies like Huawei, Qualcomm, and LGE presented MPR simulations for simultaneous PSFCH transmission. The aim is to derive the MPR/AMPR requirements due to non-contiguous RB allocation. Different WF documents discuss simulation assumptions, parameters, and results related to PSFCH transmission in the context of LTE V2X. The proposed MPR values vary based on RB allocation types. For single RB transmission, MPR is specified differently from simultaneous transmission with contiguous and non-contiguous RB allocation strategies. Discussions also touch upon A-MPR considerations for different UL transmission bandwidth configurations and frequency ranges.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

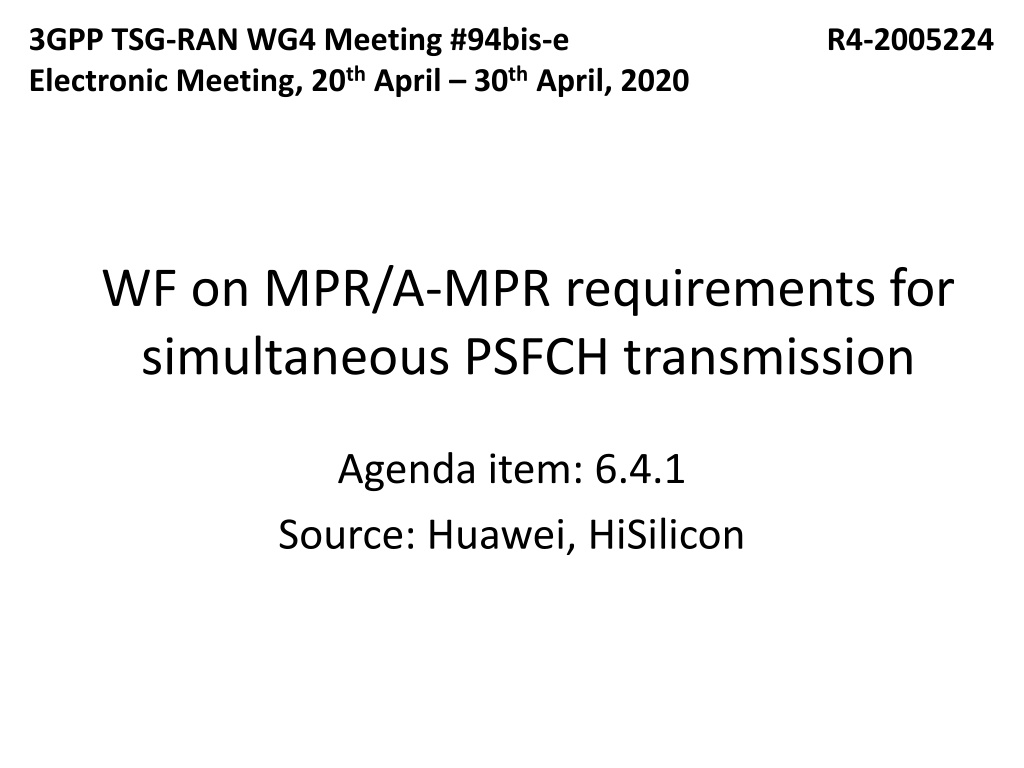

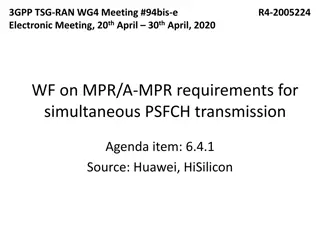

3GPP TSG-RAN WG4 Meeting #94bis-e Electronic Meeting, 20thApril 30thApril, 2020 R4-2005224 WF on MPR/A-MPR requirements for simultaneous PSFCH transmission Agenda item: 6.4.1 Source: Huawei, HiSilicon

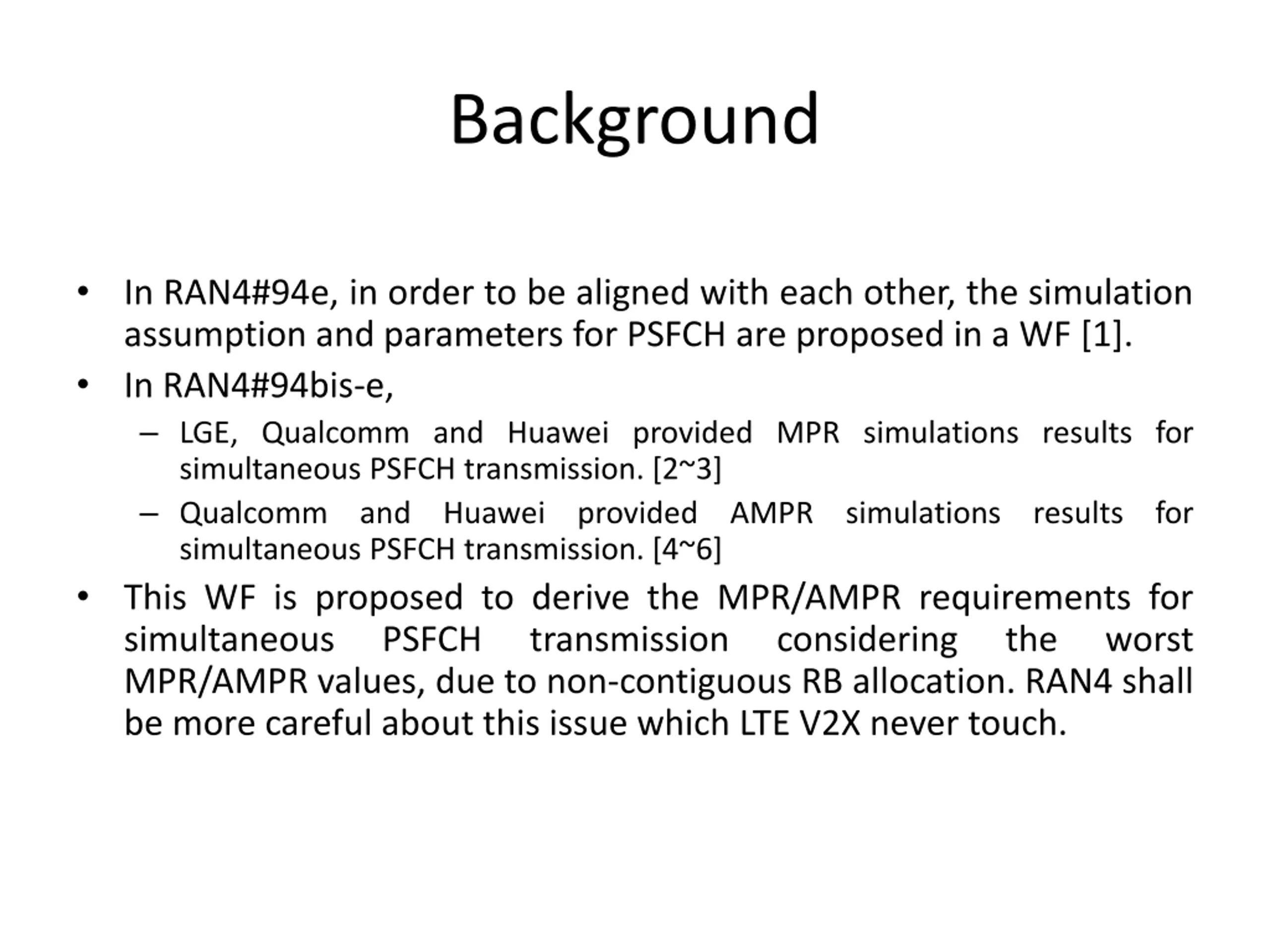

Background In RAN4#94e, in order to be aligned with each other, the simulation assumption and parameters for PSFCH are proposed in a WF [1]. In RAN4#94bis-e, LGE, Qualcomm and Huawei provided MPR simulations results for simultaneous PSFCH transmission. [2~3] Qualcomm and Huawei provided simultaneous PSFCH transmission. [4~6] This WF is proposed to derive the MPR/AMPR requirements for simultaneous PSFCH transmission MPR/AMPR values, due to non-contiguous RB allocation. RAN4 shall be more careful about this issue which LTE V2X never touch. AMPR simulations results for considering the worst

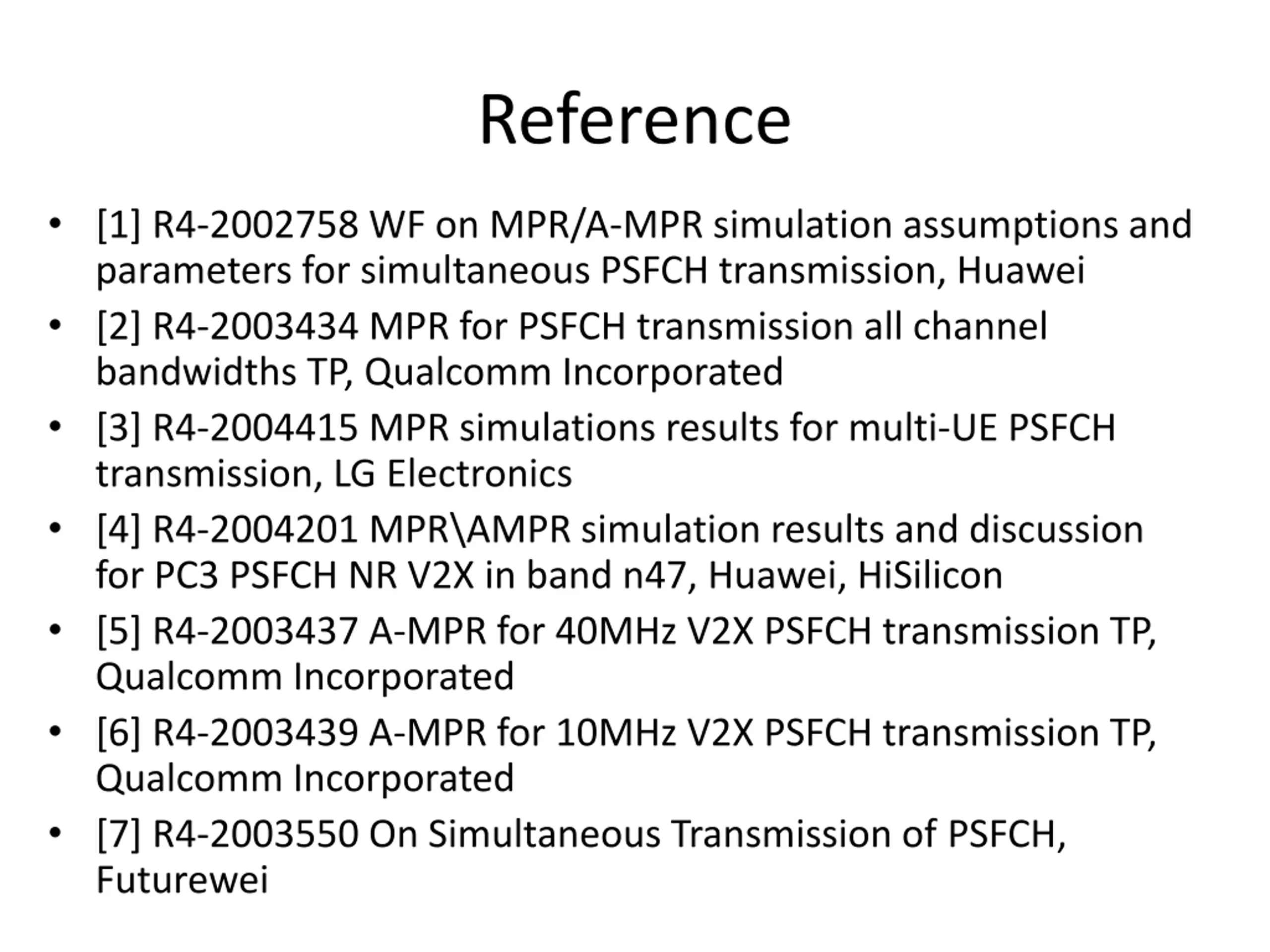

Reference [1] R4-2002758 WF on MPR/A-MPR simulation assumptions and parameters for simultaneous PSFCH transmission, Huawei [2] R4-2003434 MPR for PSFCH transmission all channel bandwidths TP, Qualcomm Incorporated [3] R4-2004415 MPR simulations results for multi-UE PSFCH transmission, LG Electronics [4] R4-2004201 MPR\AMPR simulation results and discussion for PC3 PSFCH NR V2X in band n47, Huawei, HiSilicon [5] R4-2003437 A-MPR for 40MHz V2X PSFCH transmission TP, Qualcomm Incorporated [6] R4-2003439 A-MPR for 10MHz V2X PSFCH transmission TP, Qualcomm Incorporated [7] R4-2003550 On Simultaneous Transmission of PSFCH, Futurewei

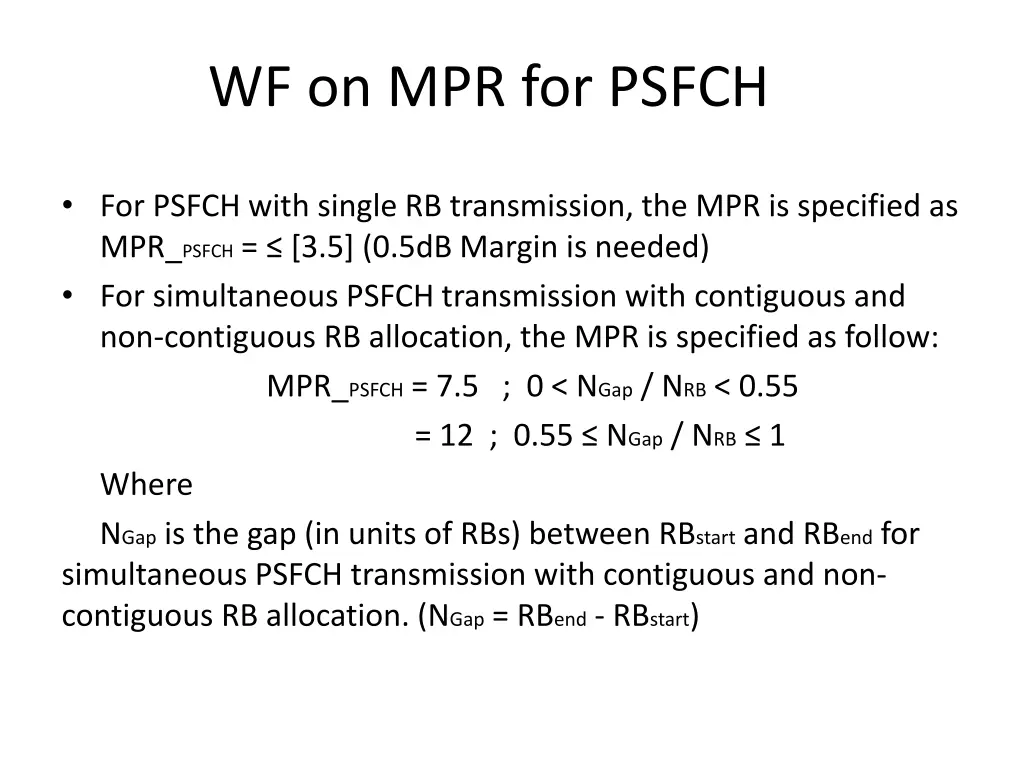

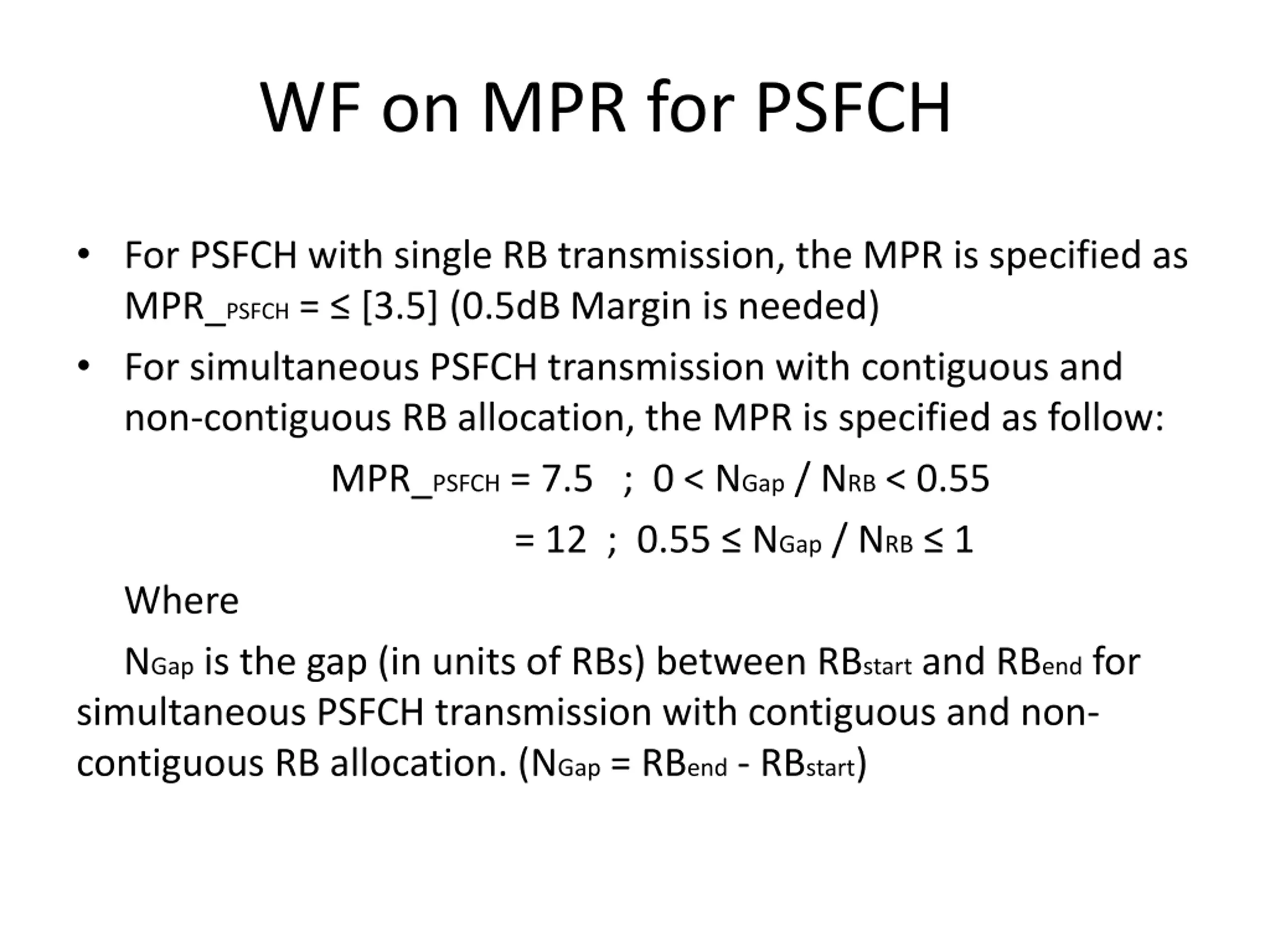

WF on MPR for PSFCH For PSFCH with single RB transmission, the MPR is specified as MPR_PSFCH = [3.5] (0.5dB Margin is needed) For simultaneous PSFCH transmission with contiguous and non-contiguous RB allocation, the MPR is specified as follow: MPR_PSFCH = 7.5 ; 0 < NGap / NRB < 0.55 = 12 ; 0.55 NGap / NRB 1 Where NGap is the gap (in units of RBs) between RBstart and RBend for simultaneous PSFCH transmission with contiguous and non- contiguous RB allocation. (NGap = RBend - RBstart)

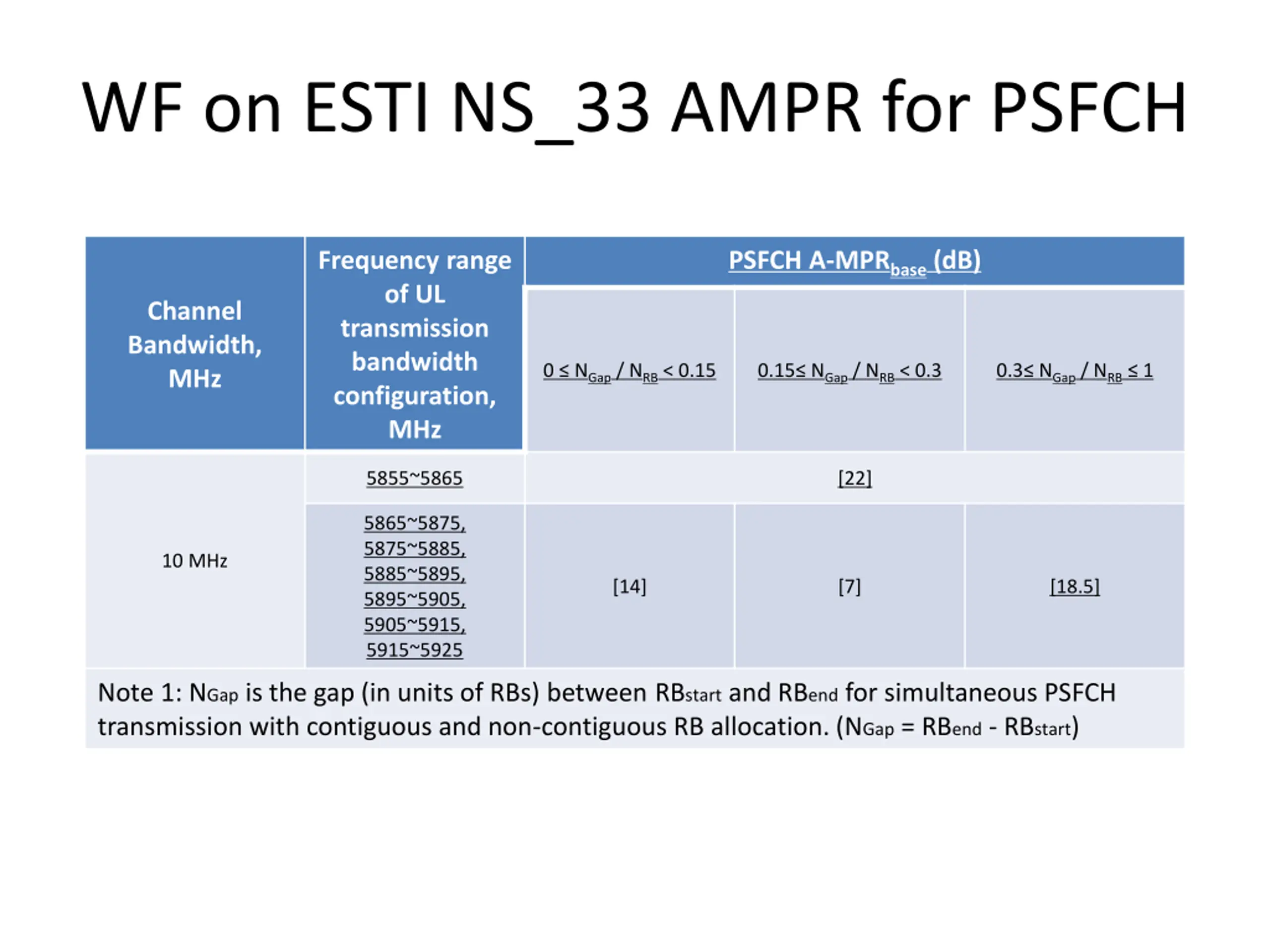

WF on ESTI NS_33 AMPR for PSFCH Frequency range of UL transmission bandwidth configuration, MHz PSFCH A-MPRbase(dB) Channel Bandwidth, MHz 0 NGap/ NRB< 0.15 0.15 NGap/ NRB< 0.3 0.3 NGap/ NRB 1 5855~5865 [22] 5865~5875, 5875~5885, 5885~5895, 5895~5905, 5905~5915, 5915~5925 10 MHz [14] [7] [18.5] Note 1: NGap is the gap (in units of RBs) between RBstart and RBend for simultaneous PSFCH transmission with contiguous and non-contiguous RB allocation. (NGap = RBend - RBstart)

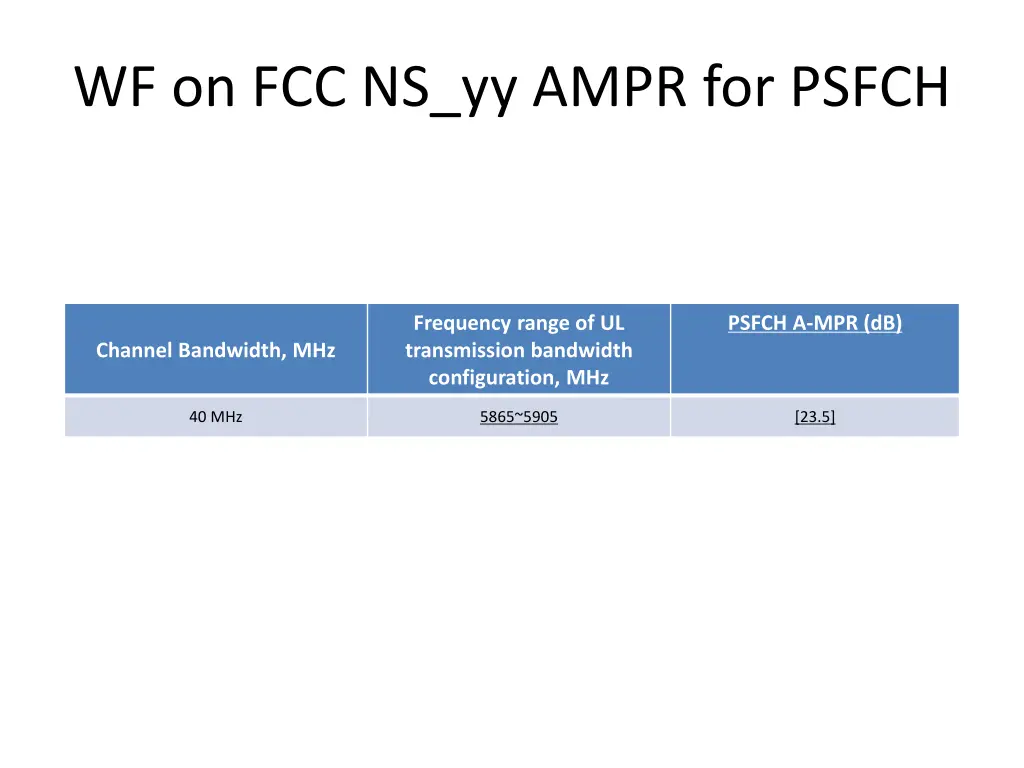

WF on FCC NS_yy AMPR for PSFCH Frequency range of UL transmission bandwidth configuration, MHz PSFCH A-MPR (dB) Channel Bandwidth, MHz 40 MHz 5865~5905 [23.5]
