Proposed Change for IEEE 802.15 SG3e TGD Wireless Data Storage
Explore the proposed change for wireless data storage in IEEE 802.15 SG3e Technical Guidance Document. The submission suggests using wireless storage devices for various applications like smart posters and portable storage, emphasizing seamless user experience and low power consumption.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

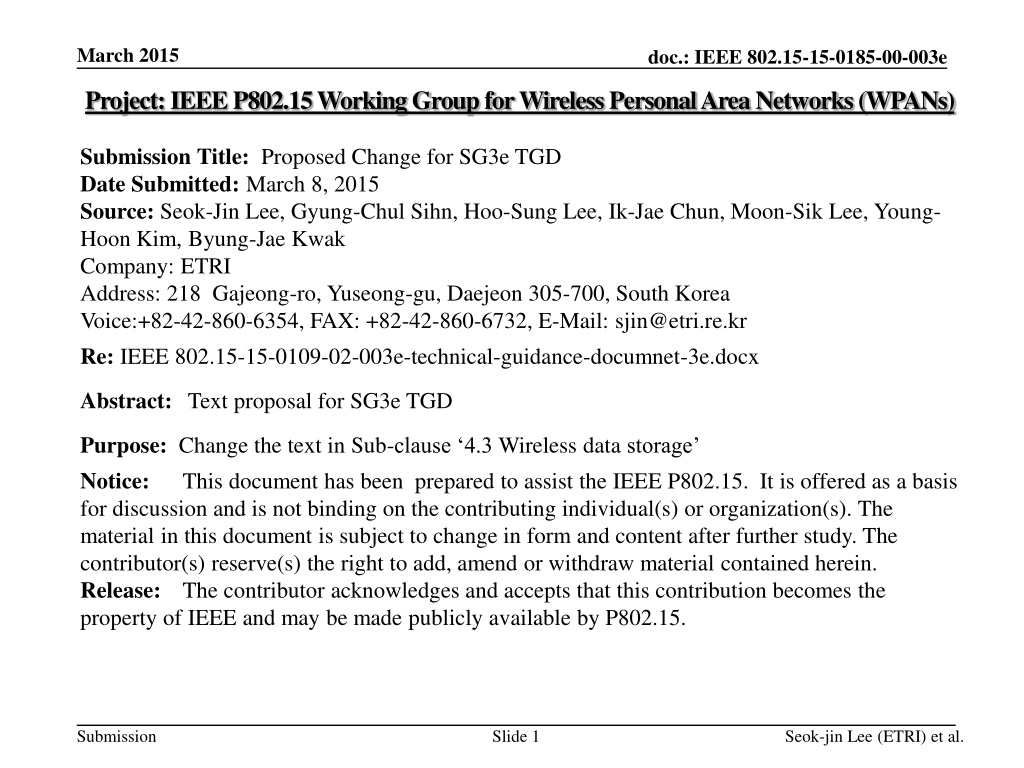

March 2015 doc.: IEEE 802.15-15-0185-00-003e Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: Proposed Change for SG3e TGD Date Submitted: March 8, 2015 Source: Seok-Jin Lee, Gyung-Chul Sihn, Hoo-Sung Lee, Ik-Jae Chun, Moon-Sik Lee, Young- Hoon Kim, Byung-Jae Kwak Company: ETRI Address: 218 Gajeong-ro, Yuseong-gu, Daejeon 305-700, South Korea Voice:+82-42-860-6354, FAX: +82-42-860-6732, E-Mail: sjin@etri.re.kr Re: IEEE 802.15-15-0109-02-003e-technical-guidance-documnet-3e.docx Abstract: Text proposal for SG3e TGD Purpose: Change the text in Sub-clause 4.3 Wireless data storage Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Submission Slide 1 Seok-jin Lee (ETRI) et al.

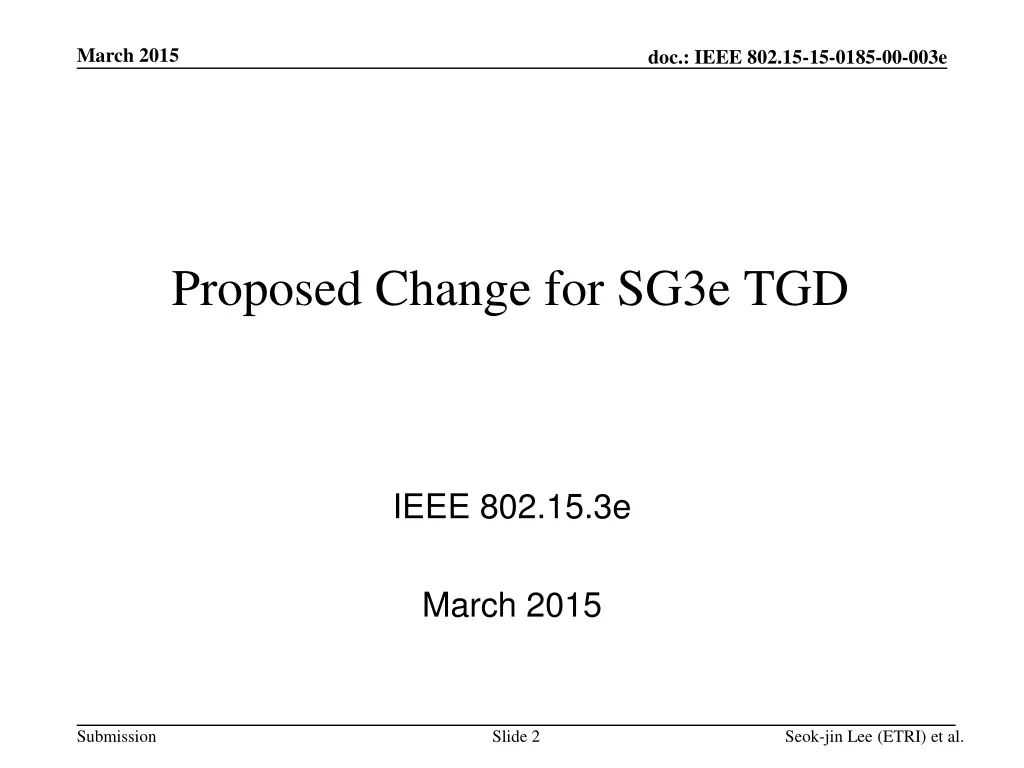

March 2015 doc.: IEEE 802.15-15-0185-00-003e Proposed Change for SG3e TGD IEEE 802.15.3e March 2015 Submission Slide 2 Seok-jin Lee (ETRI) et al.

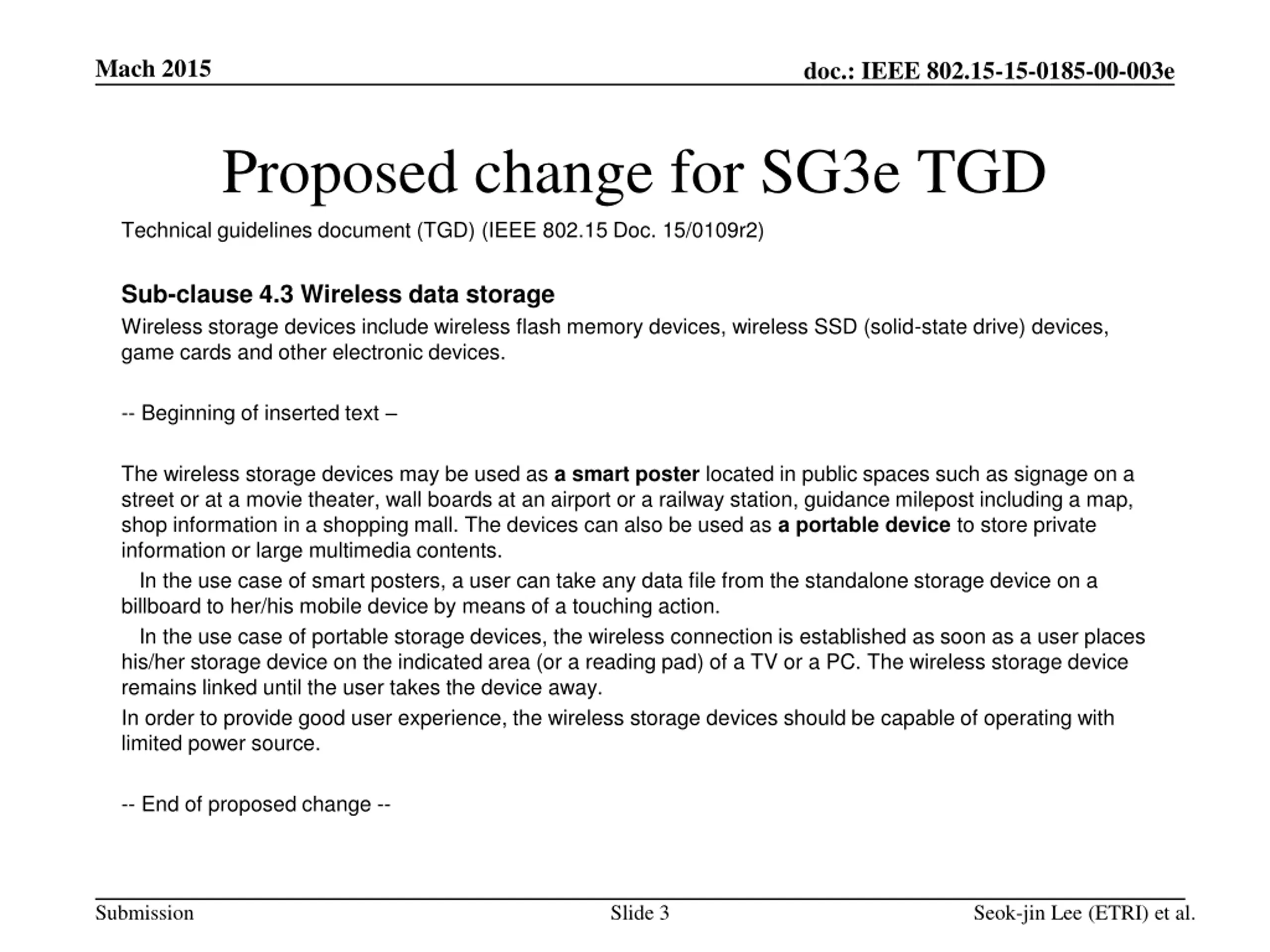

Mach 2015 doc.: IEEE 802.15-15-0185-00-003e Proposed change for SG3e TGD Technical guidelines document (TGD) (IEEE 802.15 Doc. 15/0109r2) Sub-clause 4.3 Wireless data storage Wireless storage devices include wireless flash memory devices, wireless SSD (solid-state drive) devices, game cards and other electronic devices. -- Beginning of inserted text The wireless storage devices may be used as a smart poster located in public spaces such as signage on a street or at a movie theater, wall boards at an airport or a railway station, guidance milepost including a map, shop information in a shopping mall. The devices can also be used as a portable device to store private information or large multimedia contents. In the use case of smart posters, a user can take any data file from the standalone storage device on a billboard to her/his mobile device by means of a touching action. In the use case of portable storage devices, the wireless connection is established as soon as a user places his/her storage device on the indicated area (or a reading pad) of a TV or a PC. The wireless storage device remains linked until the user takes the device away. In order to provide good user experience, the wireless storage devices should be capable of operating with limited power source. -- End of proposed change -- Submission Slide 3 Seok-jin Lee (ETRI) et al.

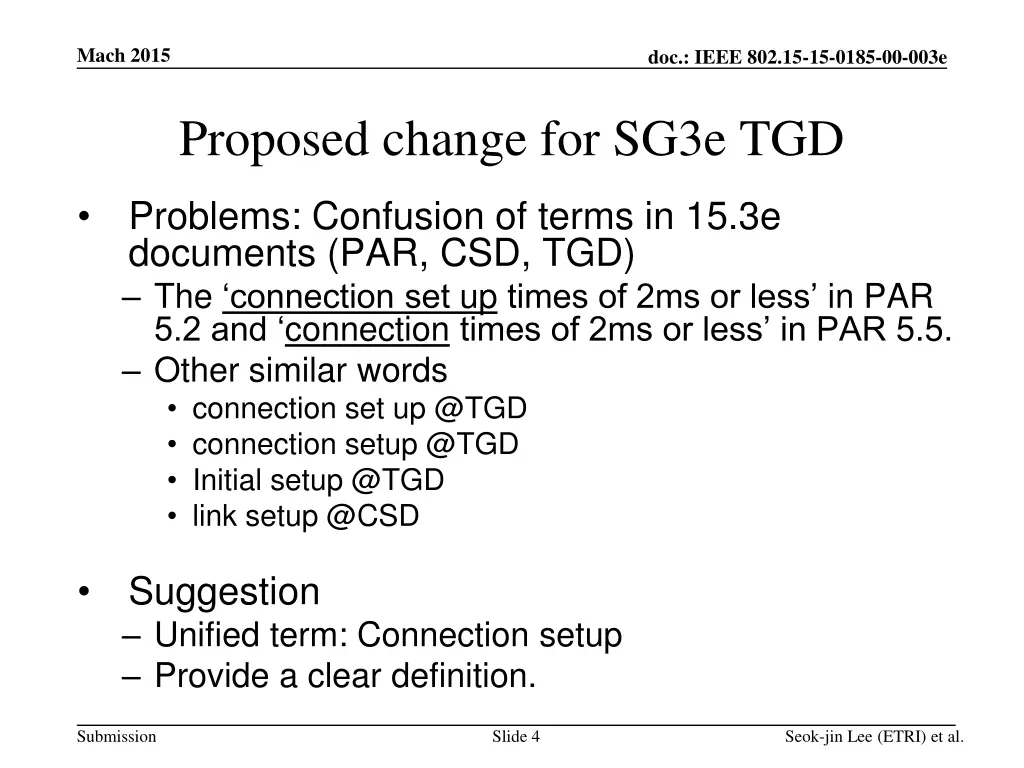

Mach 2015 doc.: IEEE 802.15-15-0185-00-003e Proposed change for SG3e TGD Problems: Confusion of terms in 15.3e documents (PAR, CSD, TGD) The connection set up times of 2ms or less in PAR 5.2 and connection times of 2ms or less in PAR 5.5. Other similar words connection set up @TGD connection setup @TGD Initial setup @TGD link setup @CSD Suggestion Unified term: Connection setup Provide a clear definition. Submission Slide 4 Seok-jin Lee (ETRI) et al.
