Protein Secretion Higher Biology

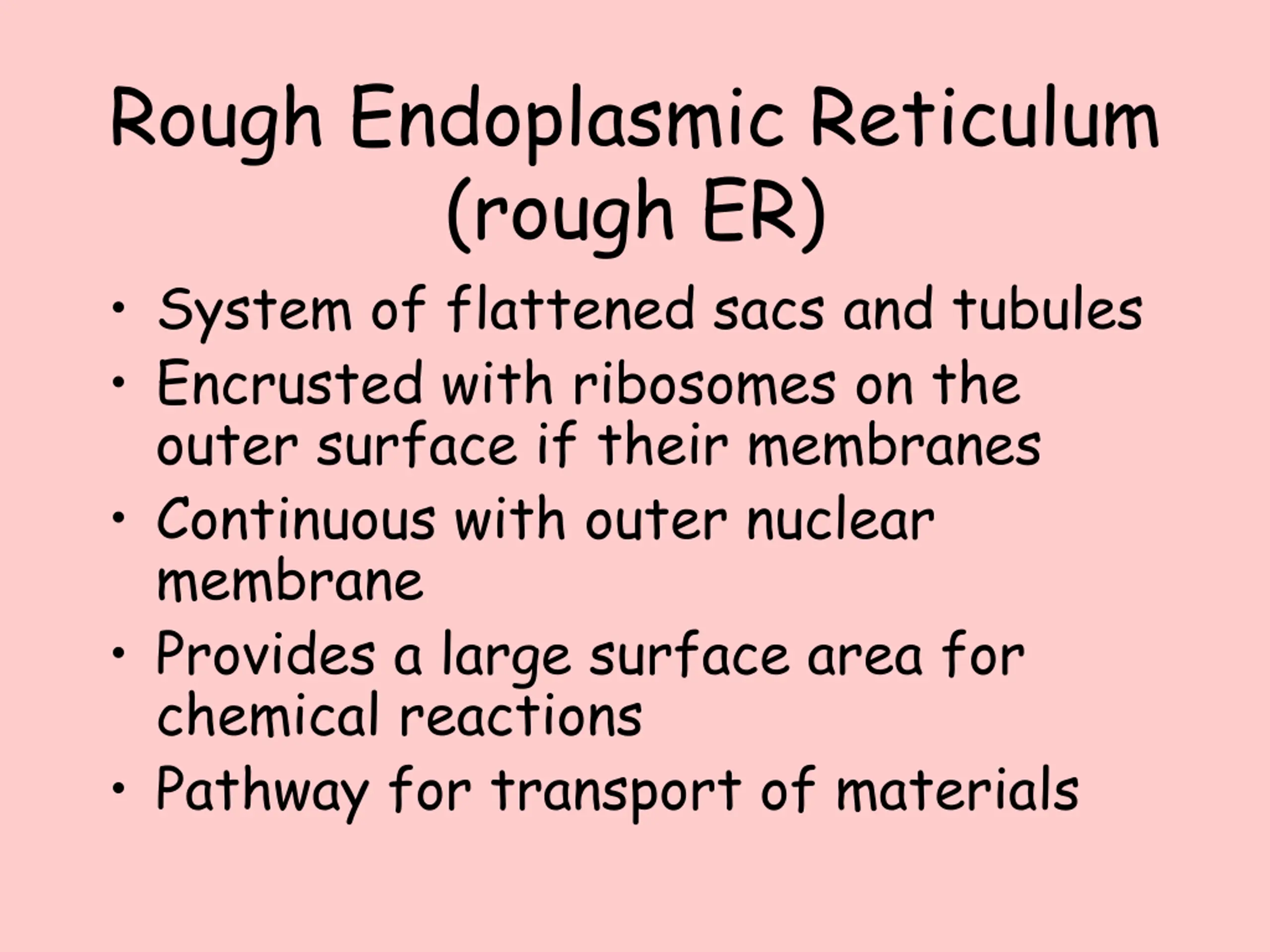

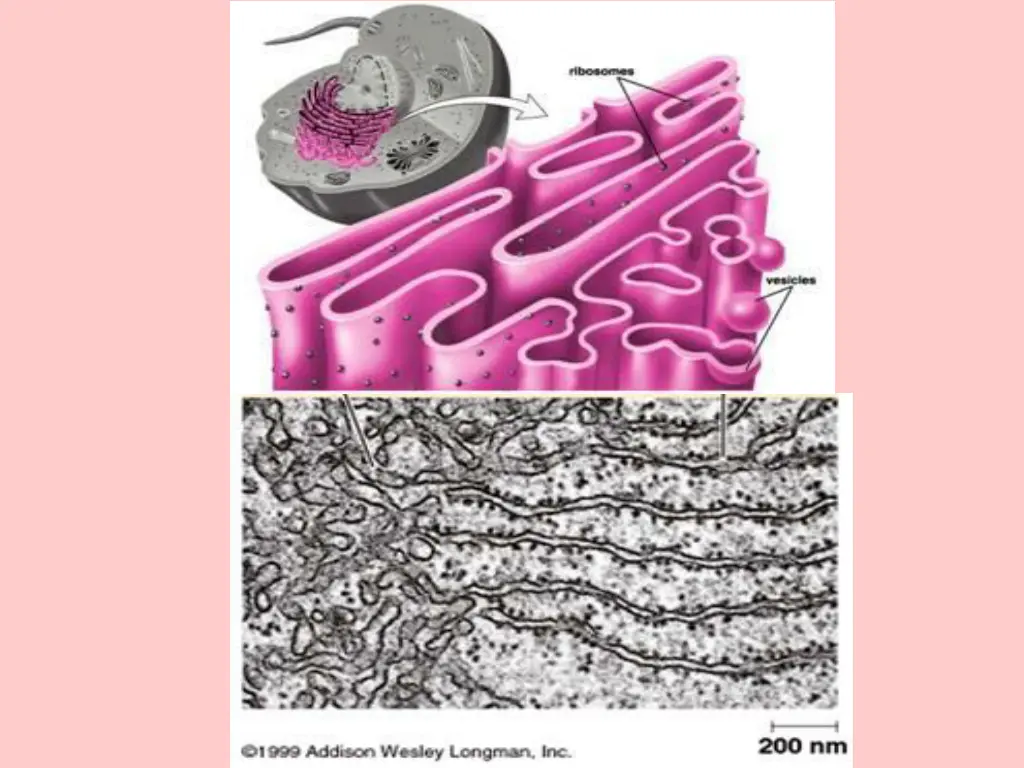

Rough Endoplasmic Reticulum (rough ER) System of flattened sacs and tubules Encrusted with ribosomes on the outer surface if their membranes Continuous with outer nuclear membrane Provides a large surface area for chemical reactions Pathway for transport of materials

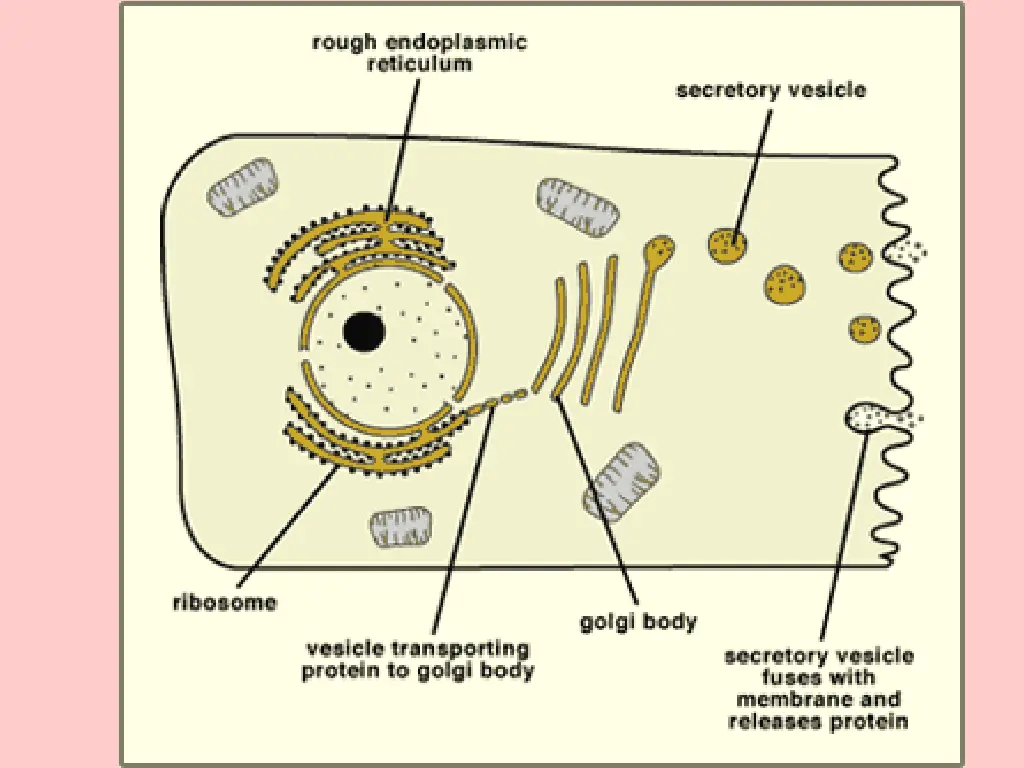

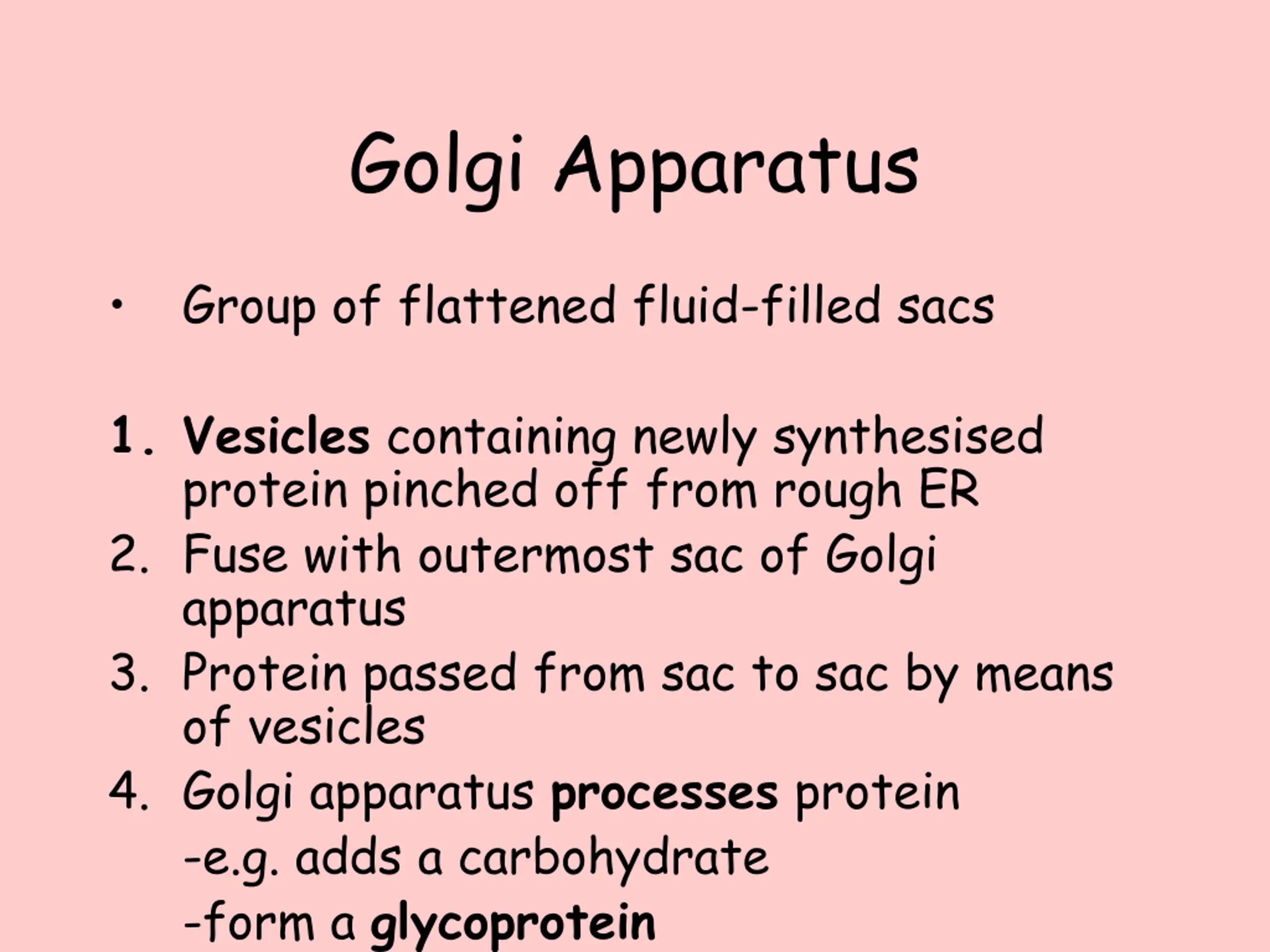

Golgi Apparatus Group of flattened fluid-filled sacs 1. Vesicles containing newly synthesised protein pinched off from rough ER 2. Fuse with outermost sac of Golgi apparatus 3. Protein passed from sac to sac by means of vesicles 4. Golgi apparatus processes protein -e.g. adds a carbohydrate -form a glycoprotein

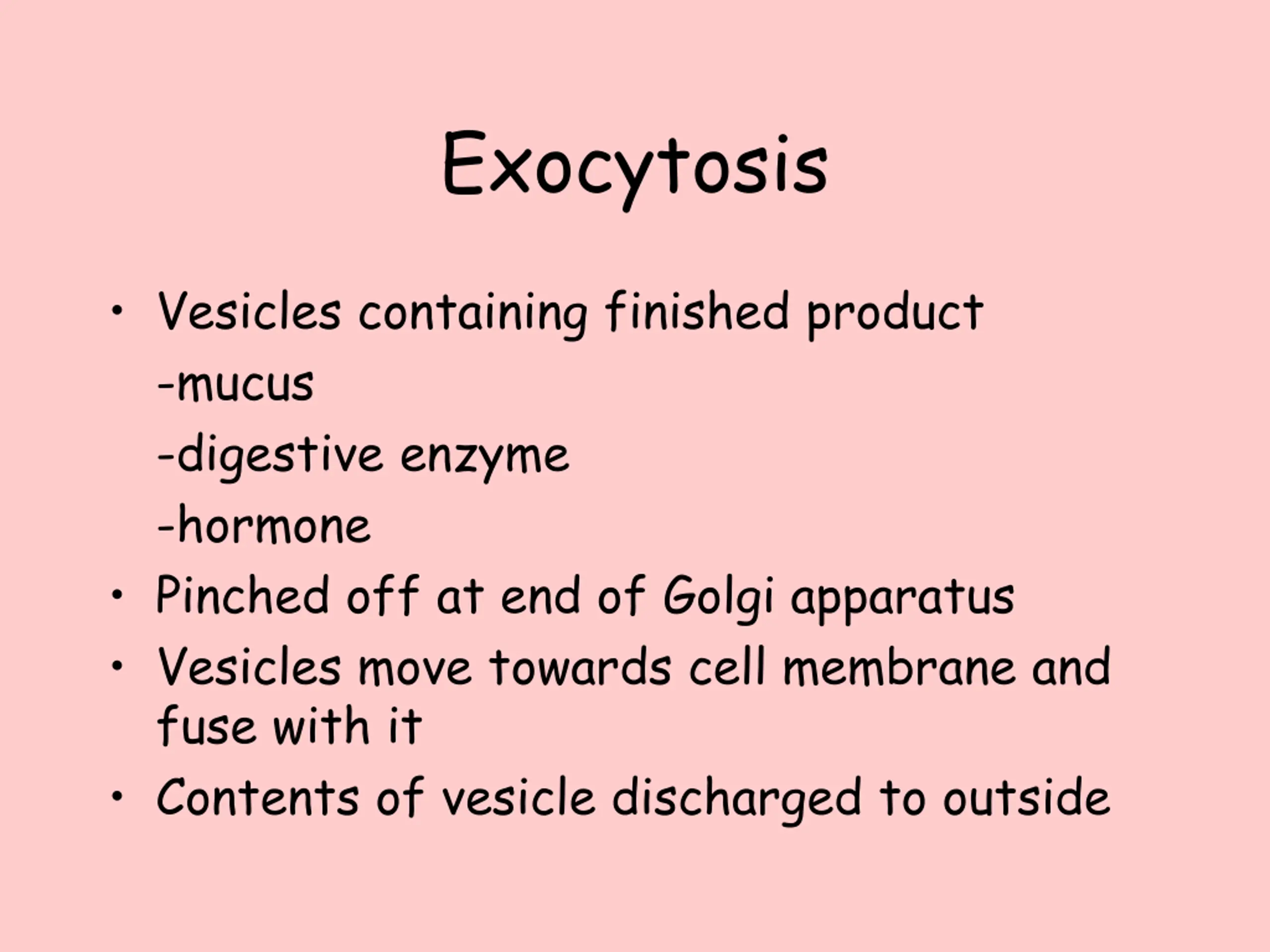

Exocytosis Vesicles containing finished product -mucus -digestive enzyme -hormone Pinched off at end of Golgi apparatus Vesicles move towards cell membrane and fuse with it Contents of vesicle discharged to outside

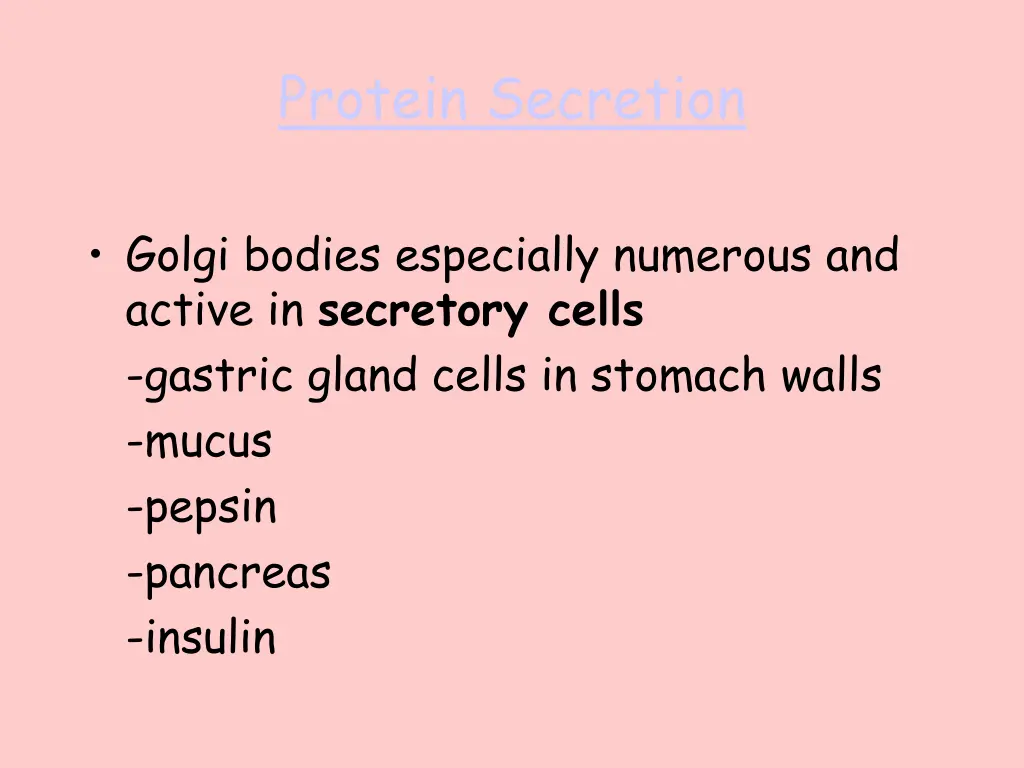

Protein Secretion Golgi bodies especially numerous and active in secretory cells -gastric gland cells in stomach walls -mucus -pepsin -pancreas -insulin

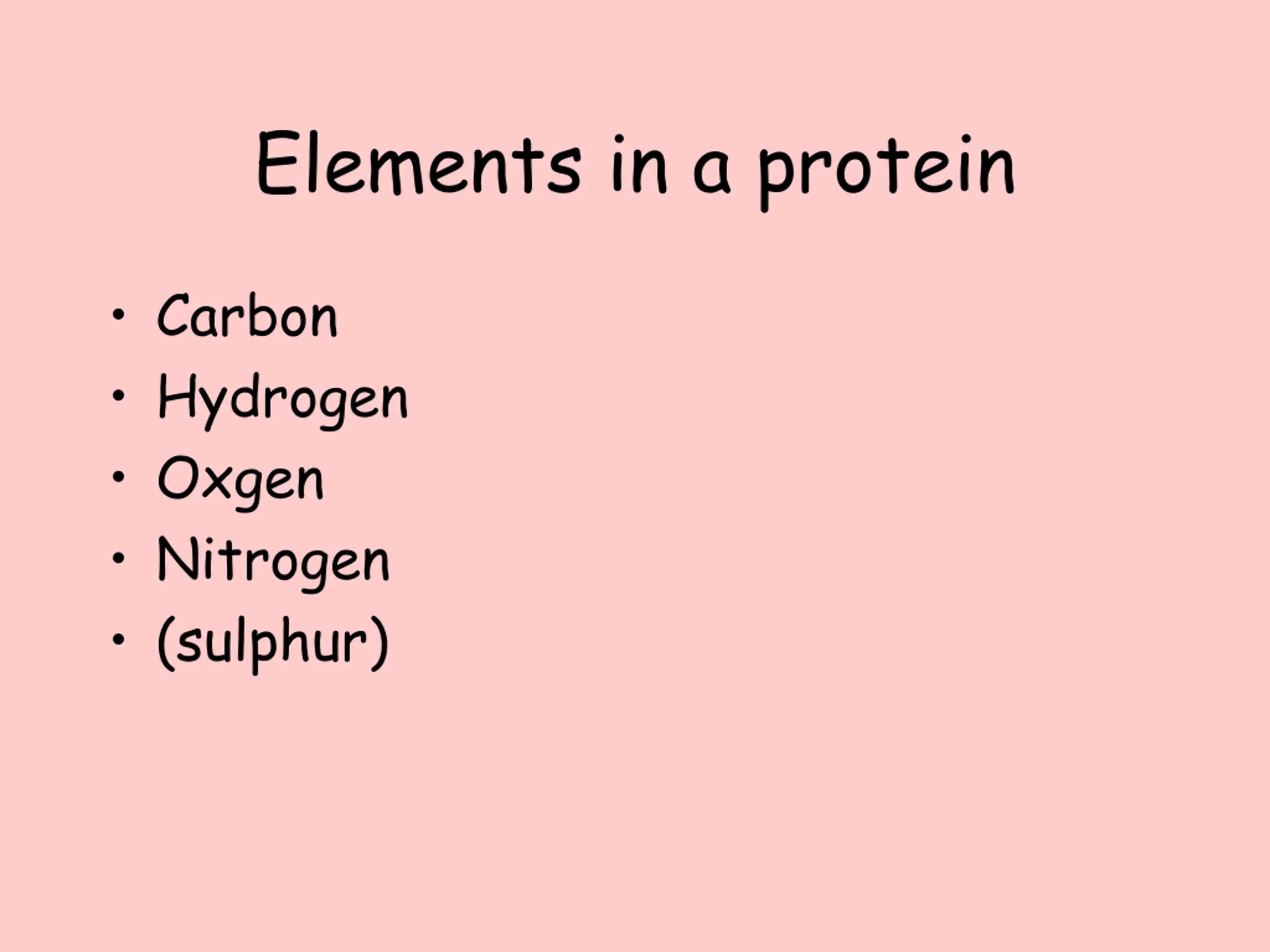

Elements in a protein Carbon Hydrogen Oxgen Nitrogen (sulphur)

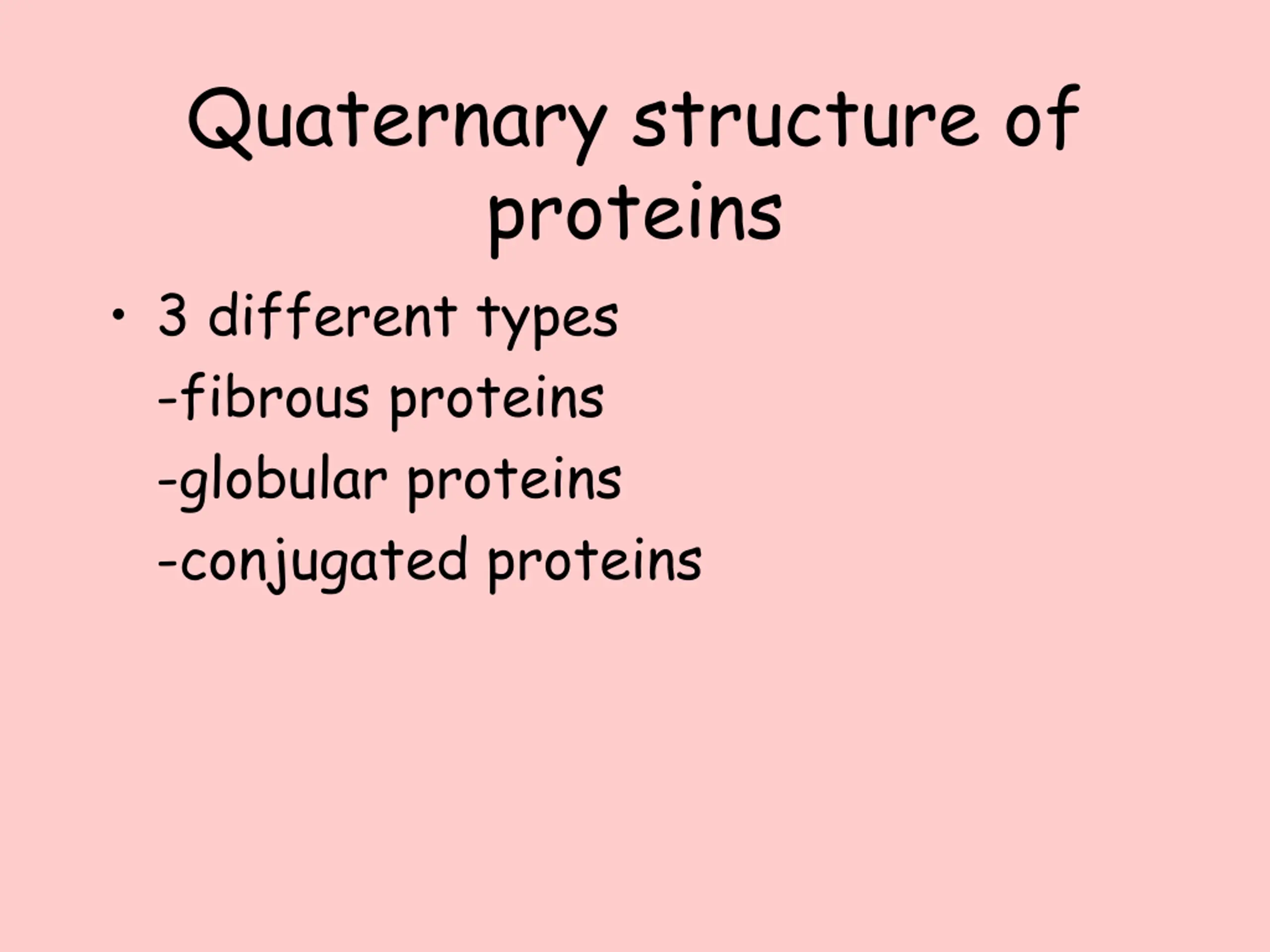

Quaternary structure of proteins 3 different types -fibrous proteins -globular proteins -conjugated proteins

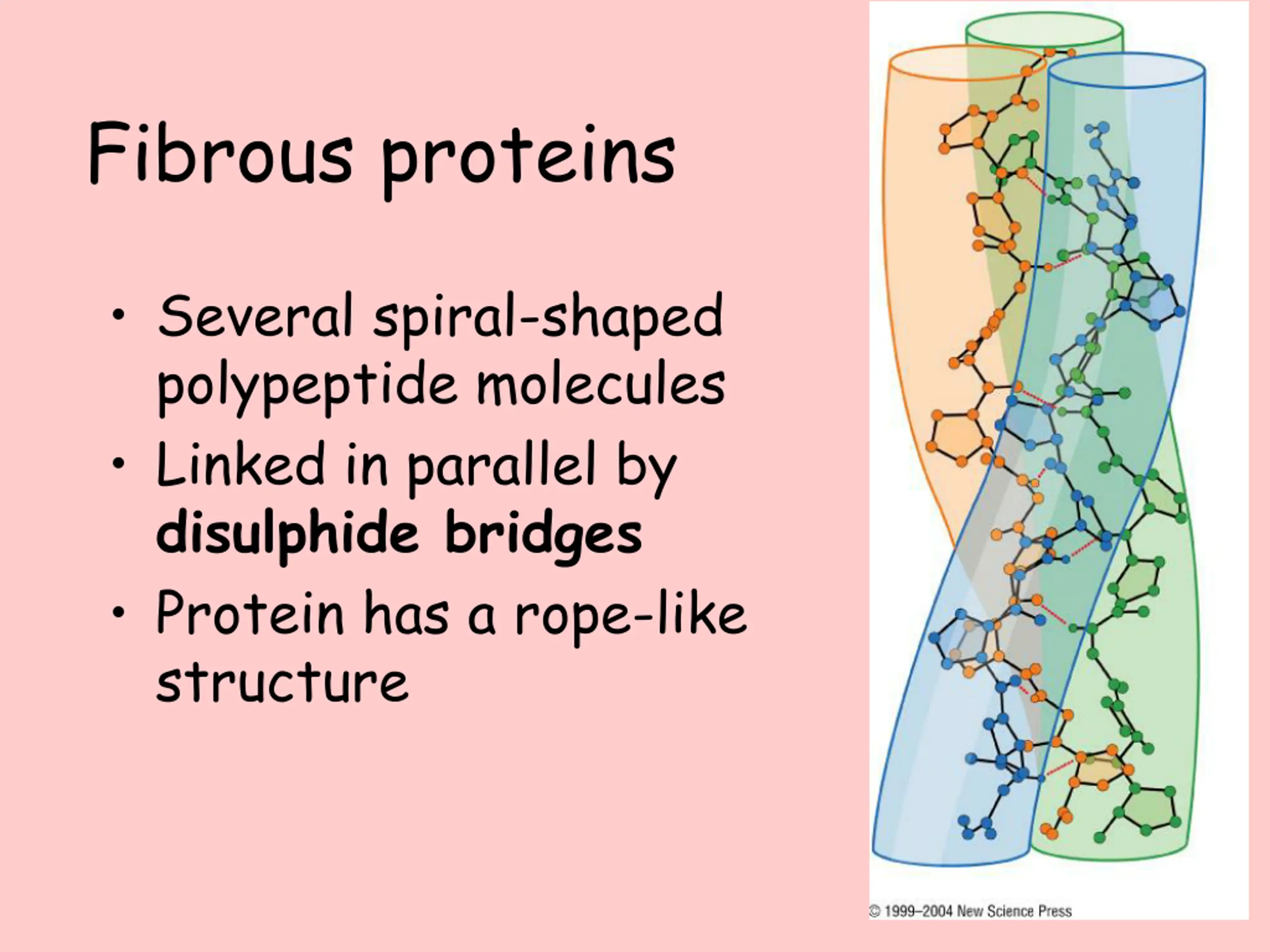

Fibrous proteins Several spiral-shaped polypeptide molecules Linked in parallel by disulphide bridges Protein has a rope-like structure

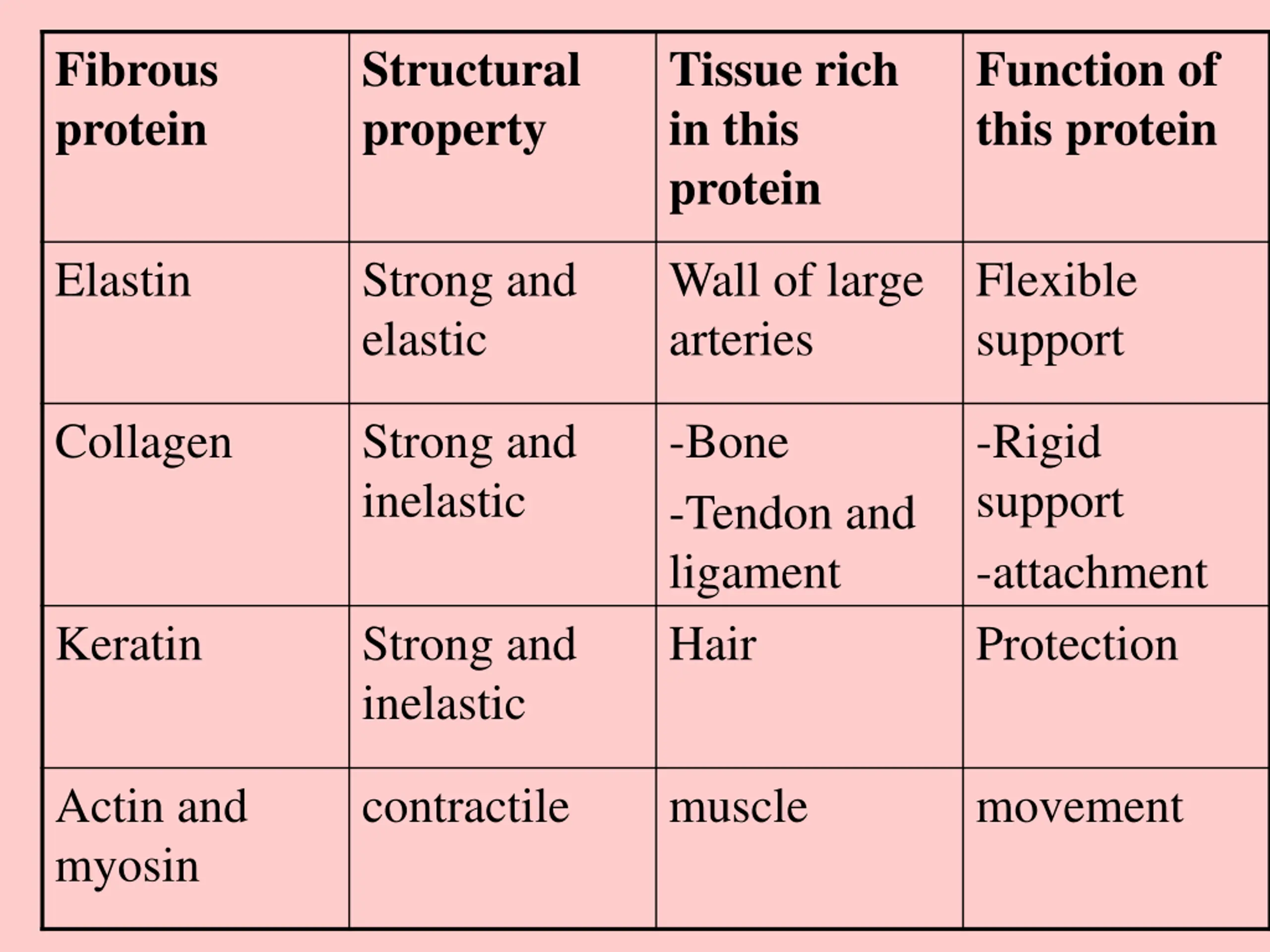

Fibrous protein Structural property Tissue rich in this protein Function of this protein Elastin Strong and elastic Wall of large arteries Flexible support Collagen Strong and inelastic -Bone -Tendon and ligament Hair -Rigid support -attachment Protection Keratin Strong and inelastic Actin and myosin contractile muscle movement

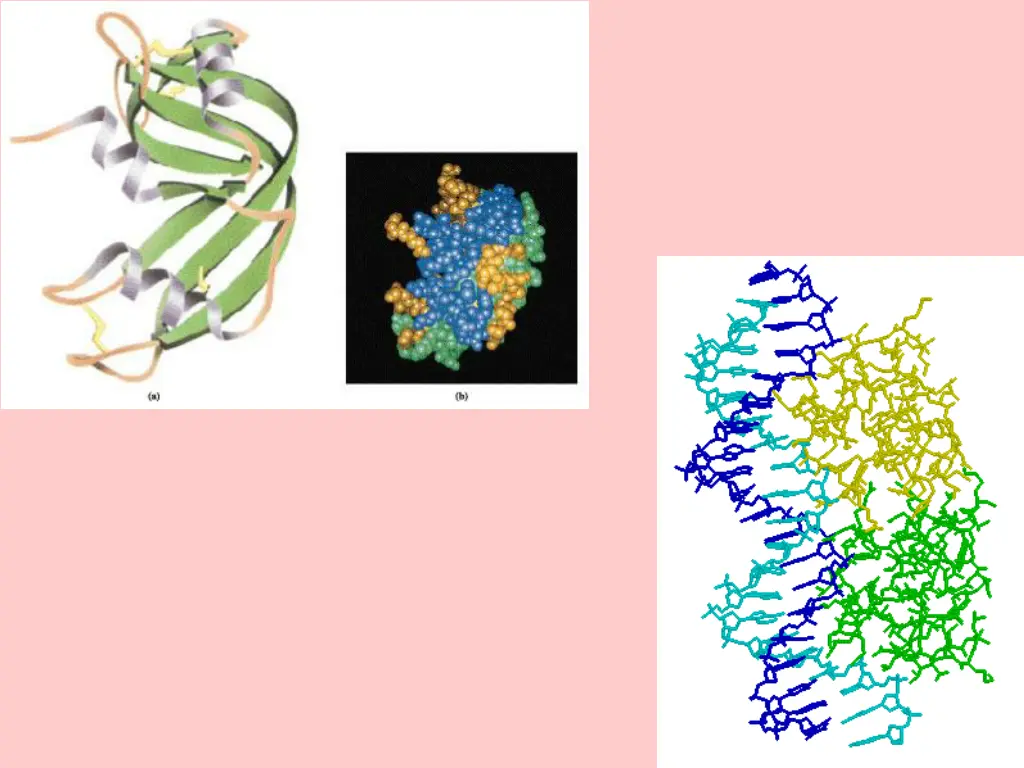

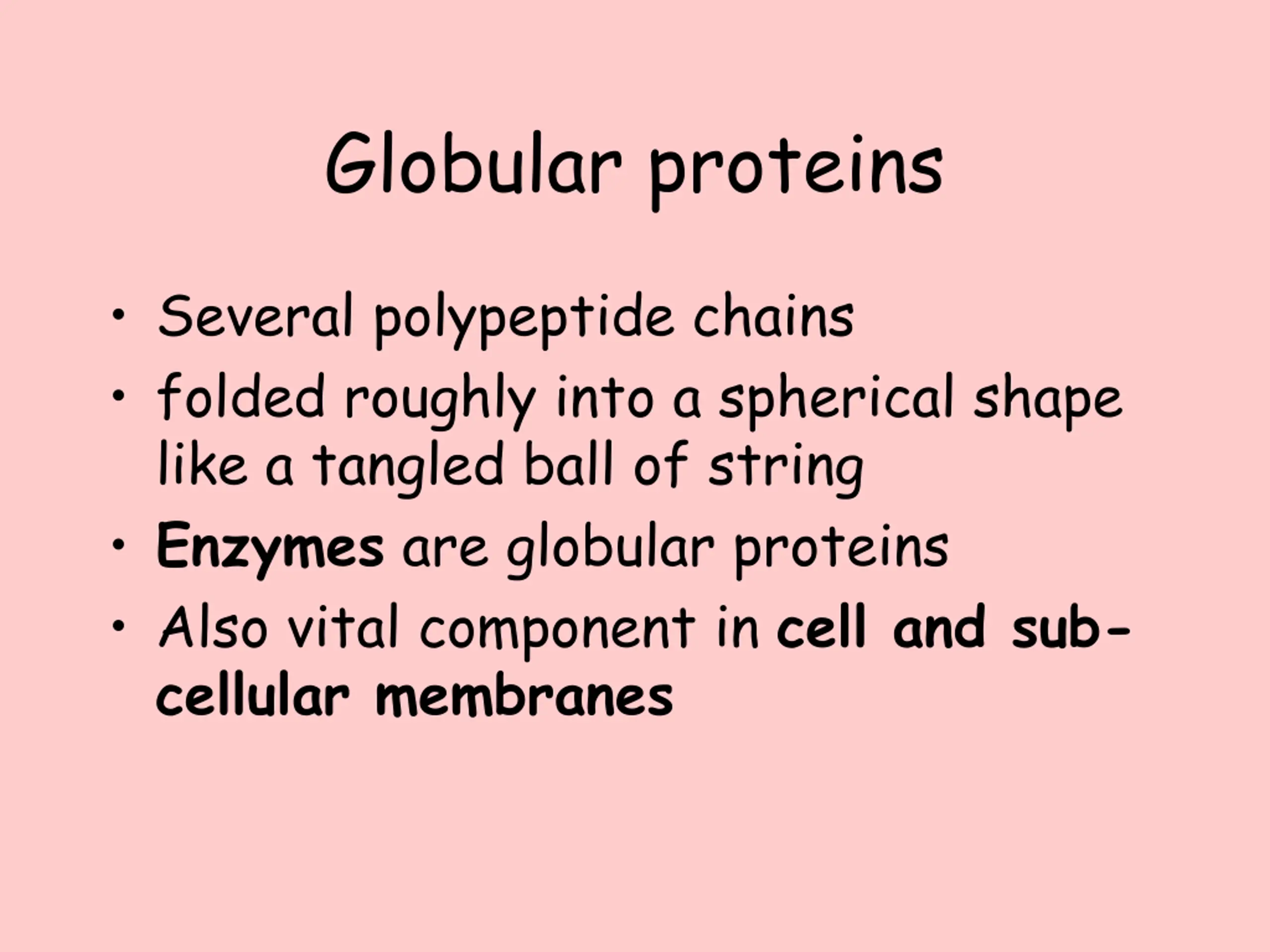

Globular proteins Several polypeptide chains folded roughly into a spherical shape like a tangled ball of string Enzymes are globular proteins Also vital component in cell and sub- cellular membranes

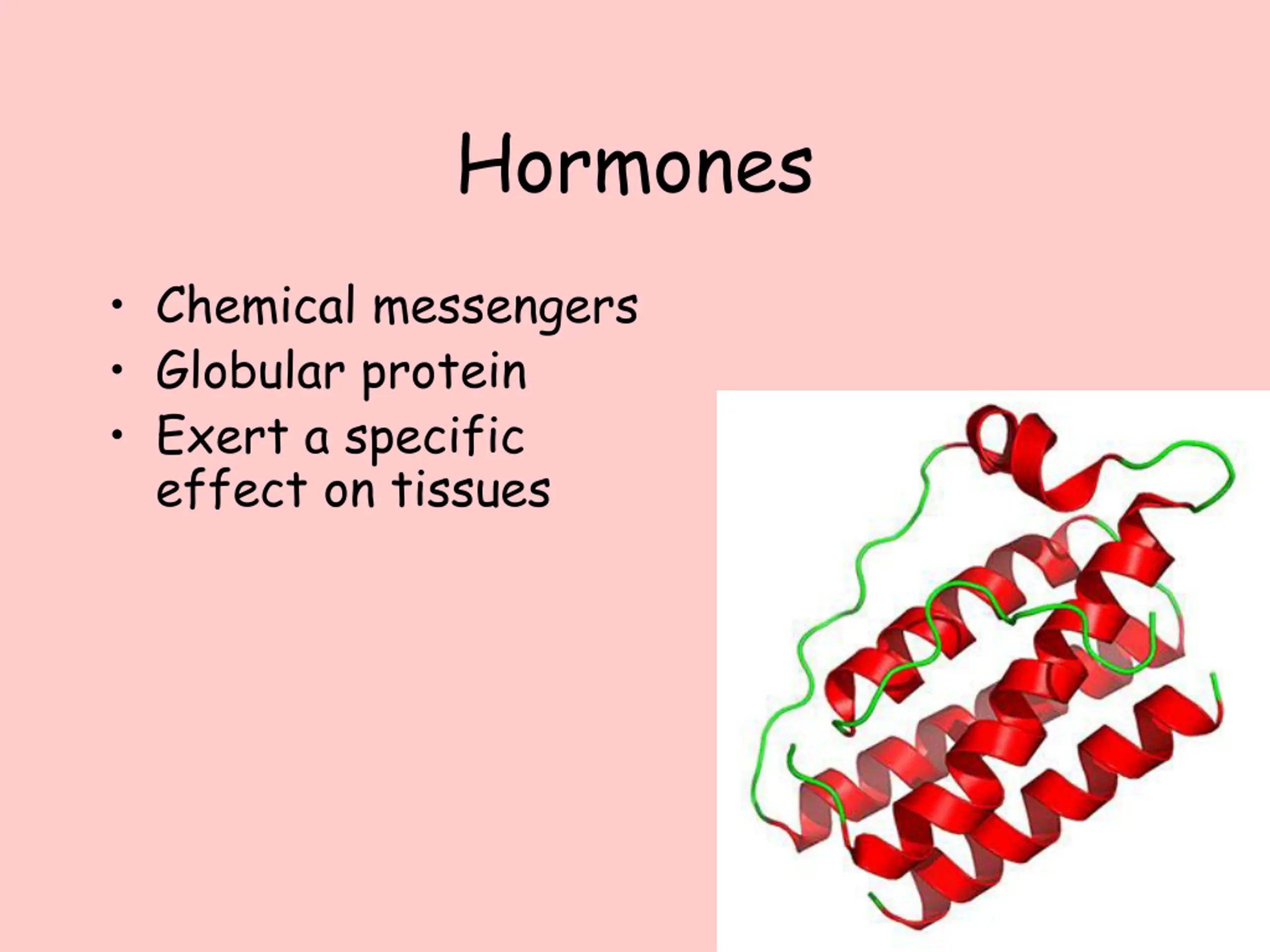

Hormones Chemical messengers Globular protein Exert a specific effect on tissues Picture of Appetite represing hormone

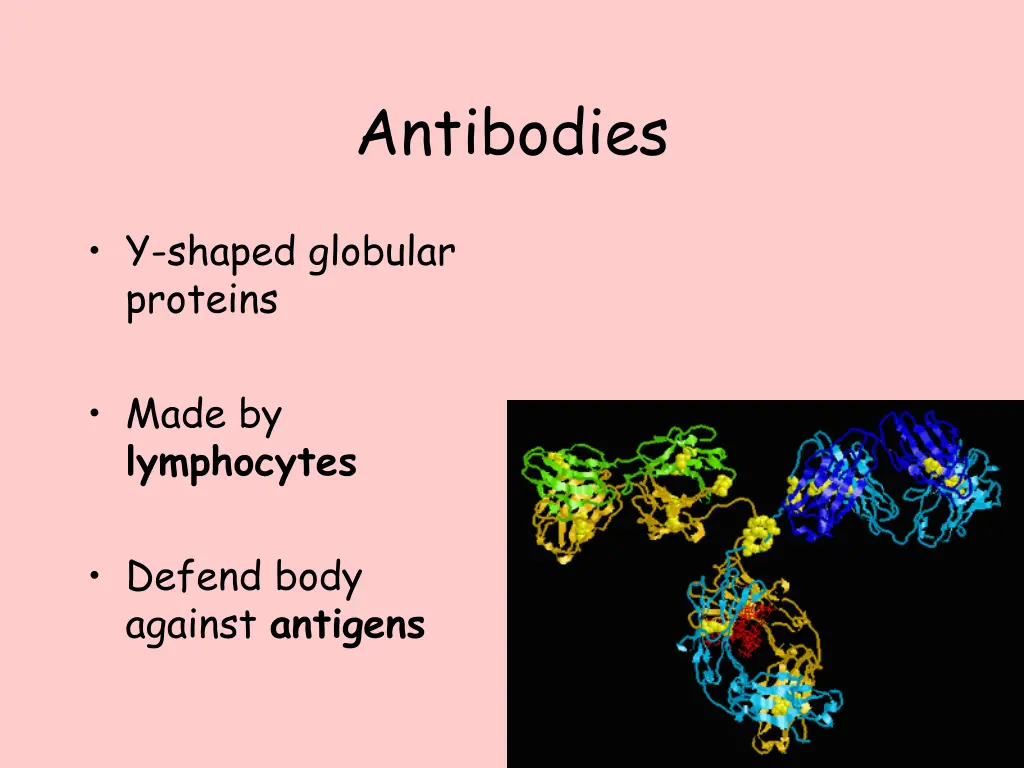

Antibodies Y-shaped globular proteins Made by lymphocytes Defend body against antigens

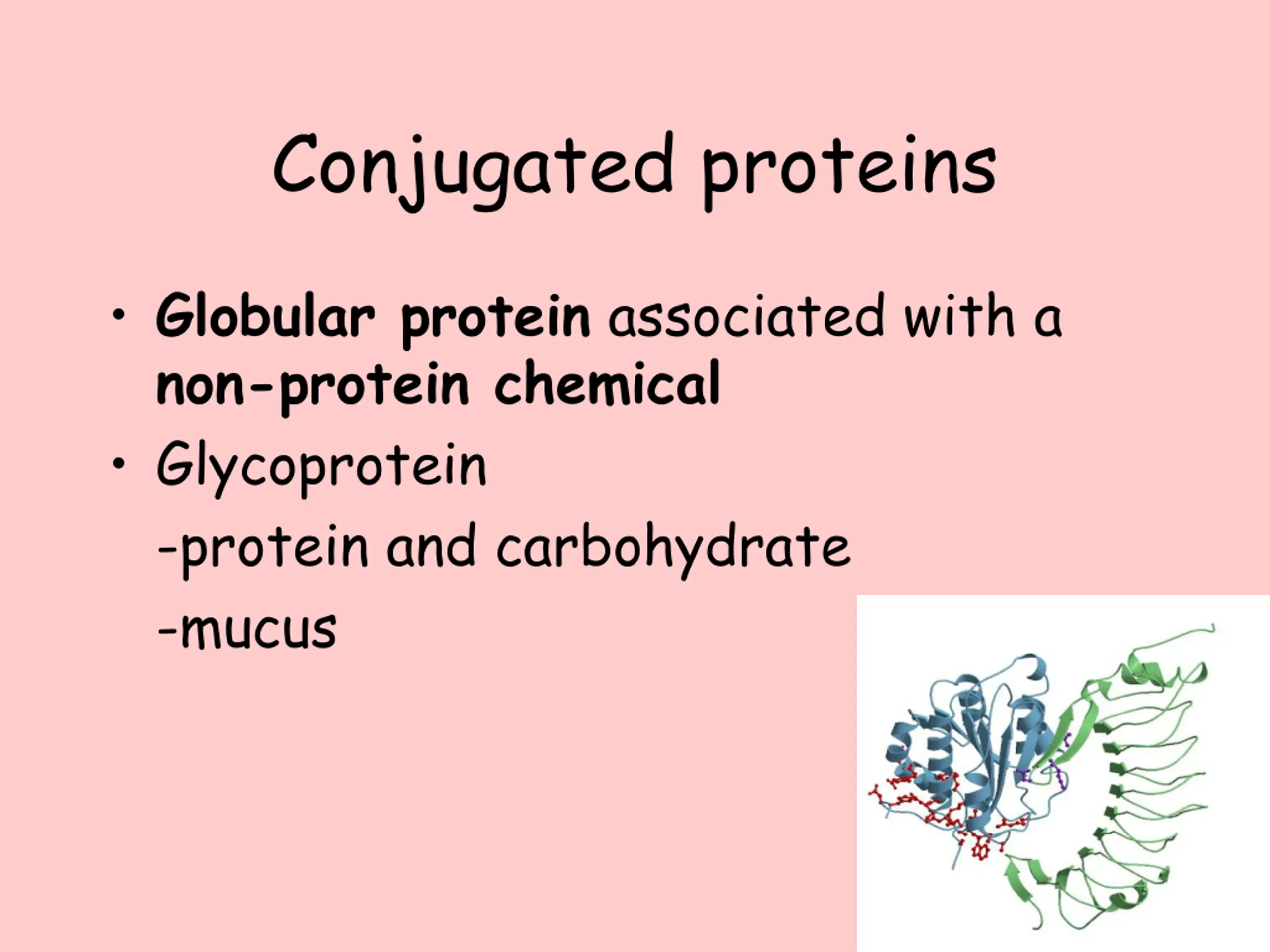

Conjugated proteins Globular protein associated with a non-protein chemical Glycoprotein -protein and carbohydrate -mucus

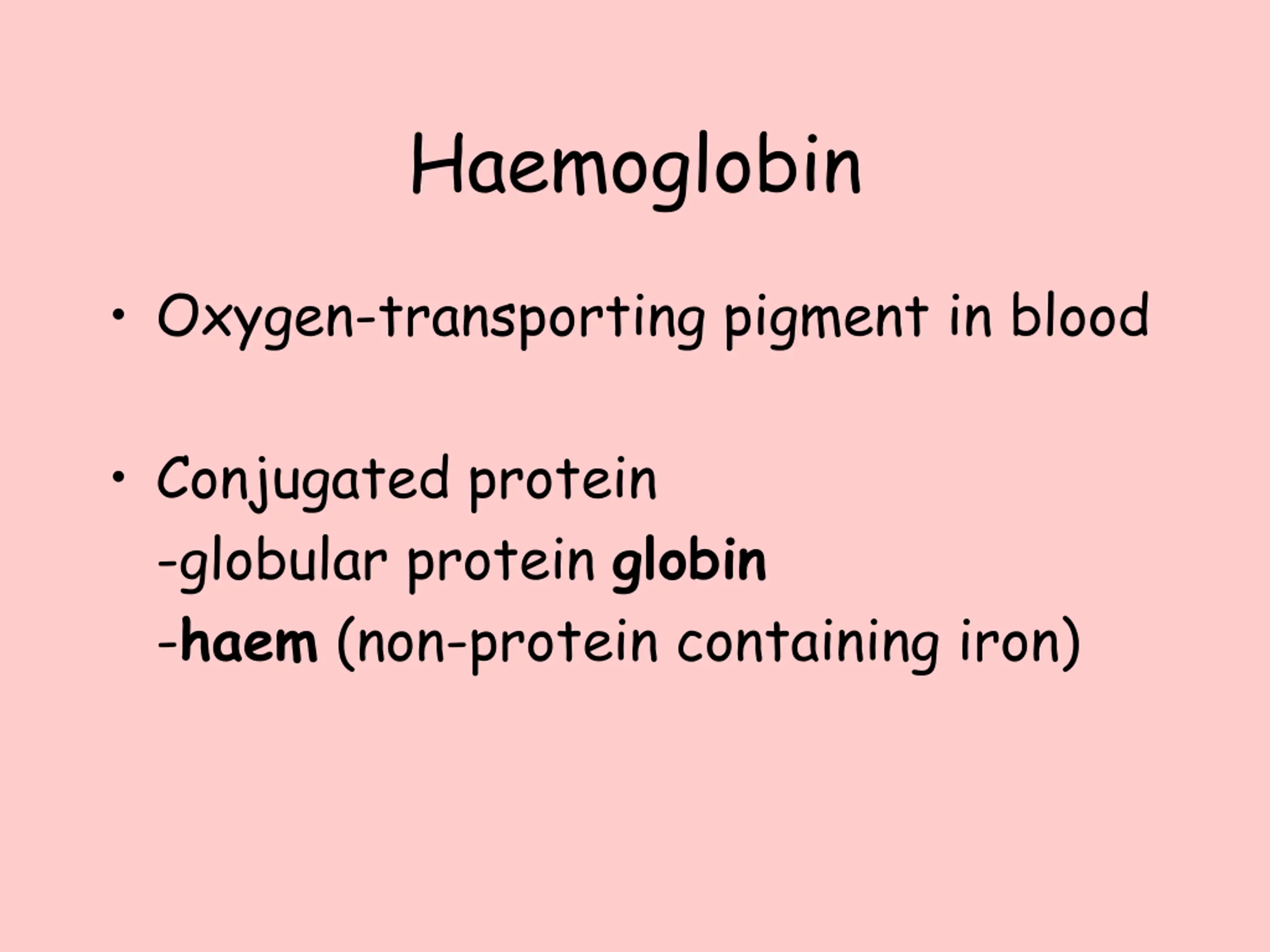

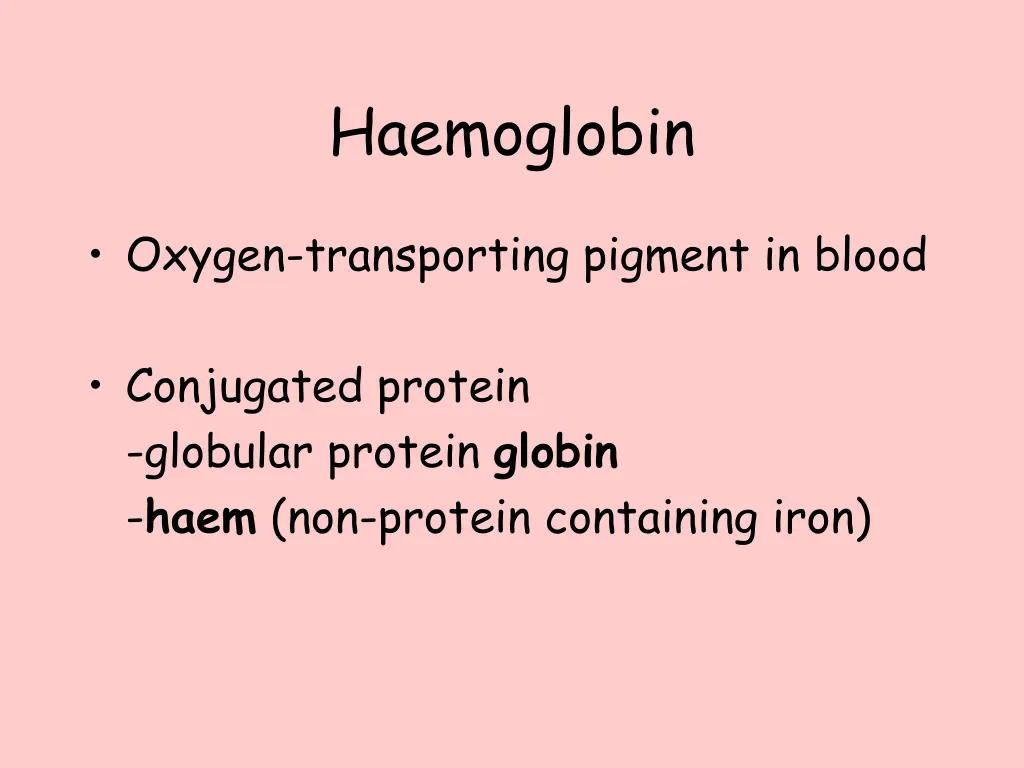

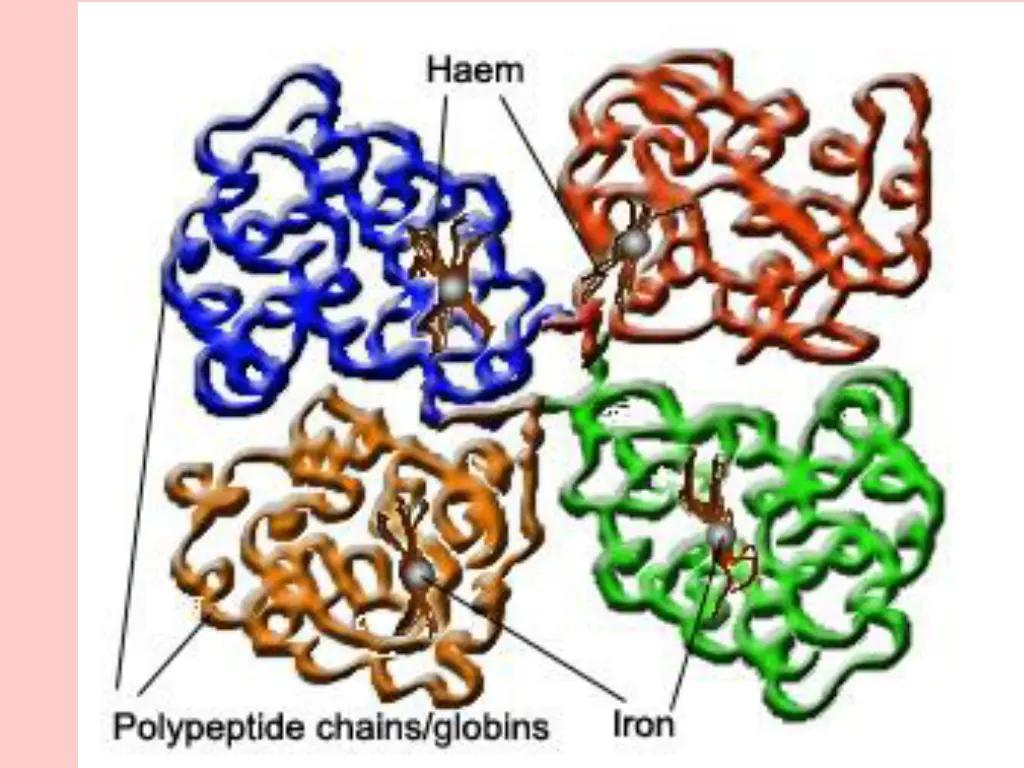

Haemoglobin Oxygen-transporting pigment in blood Conjugated protein -globular protein globin -haem (non-protein containing iron)
