Proton Source Tasks and Maintenance Overview
Gain insights into the detailed maintenance tasks carried out during the 2014 Proton Source Task Shutdown, including RFQ Injection Line adjustments, NTF Beam Line disassembly, Turbo Station replacements, and Booster maintenance activities. Explore images showcasing various repair stages and enhancements performed by the team.
Uploaded on | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

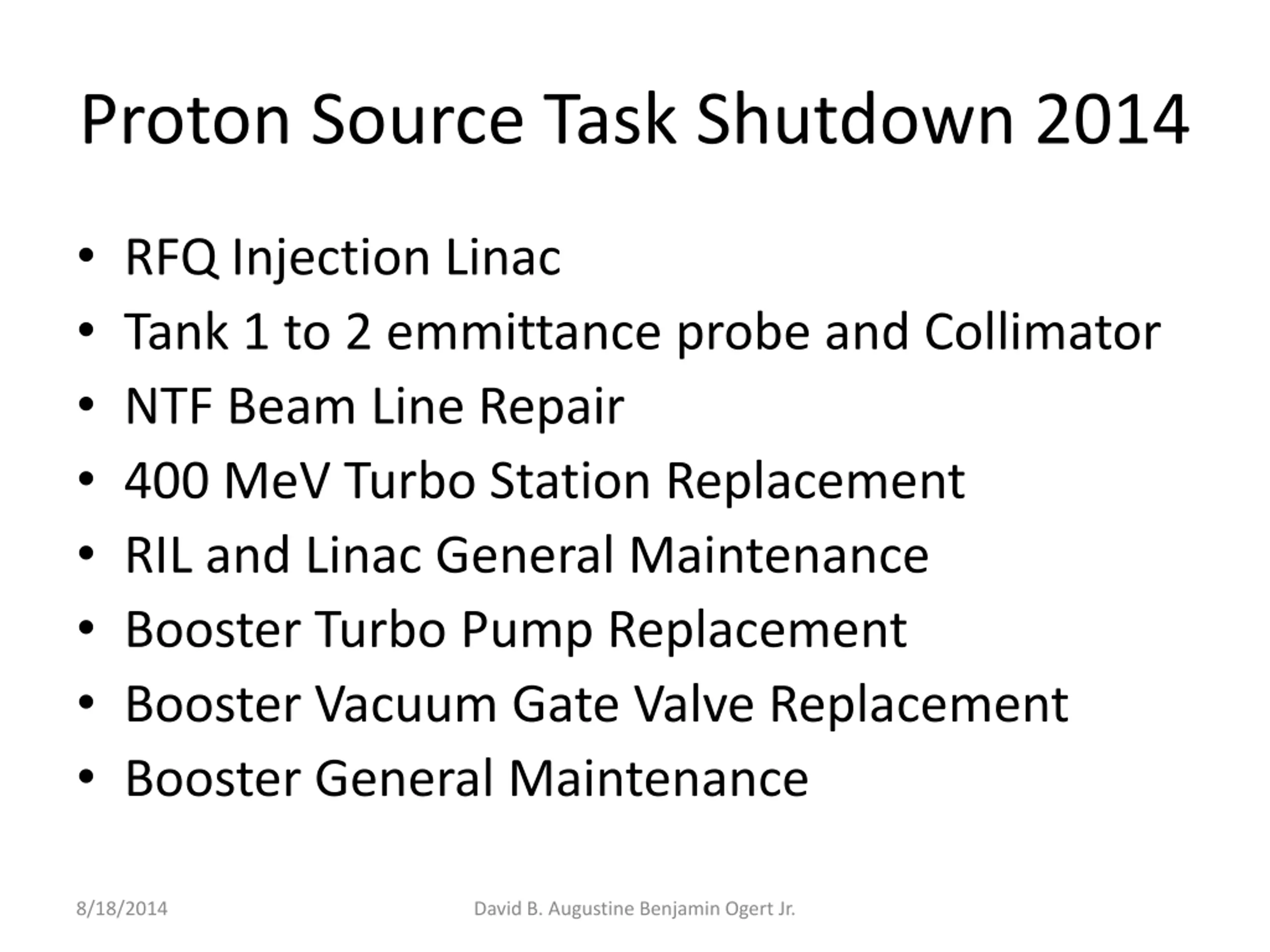

Proton Source Task Shutdown 2014 RFQ Injection Linac Tank 1 to 2 emmittance probe and Collimator NTF Beam Line Repair 400 MeV Turbo Station Replacement RIL and Linac General Maintenance Booster Turbo Pump Replacement Booster Vacuum Gate Valve Replacement Booster General Maintenance 8/18/2014 David B. Augustine Benjamin Ogert Jr.

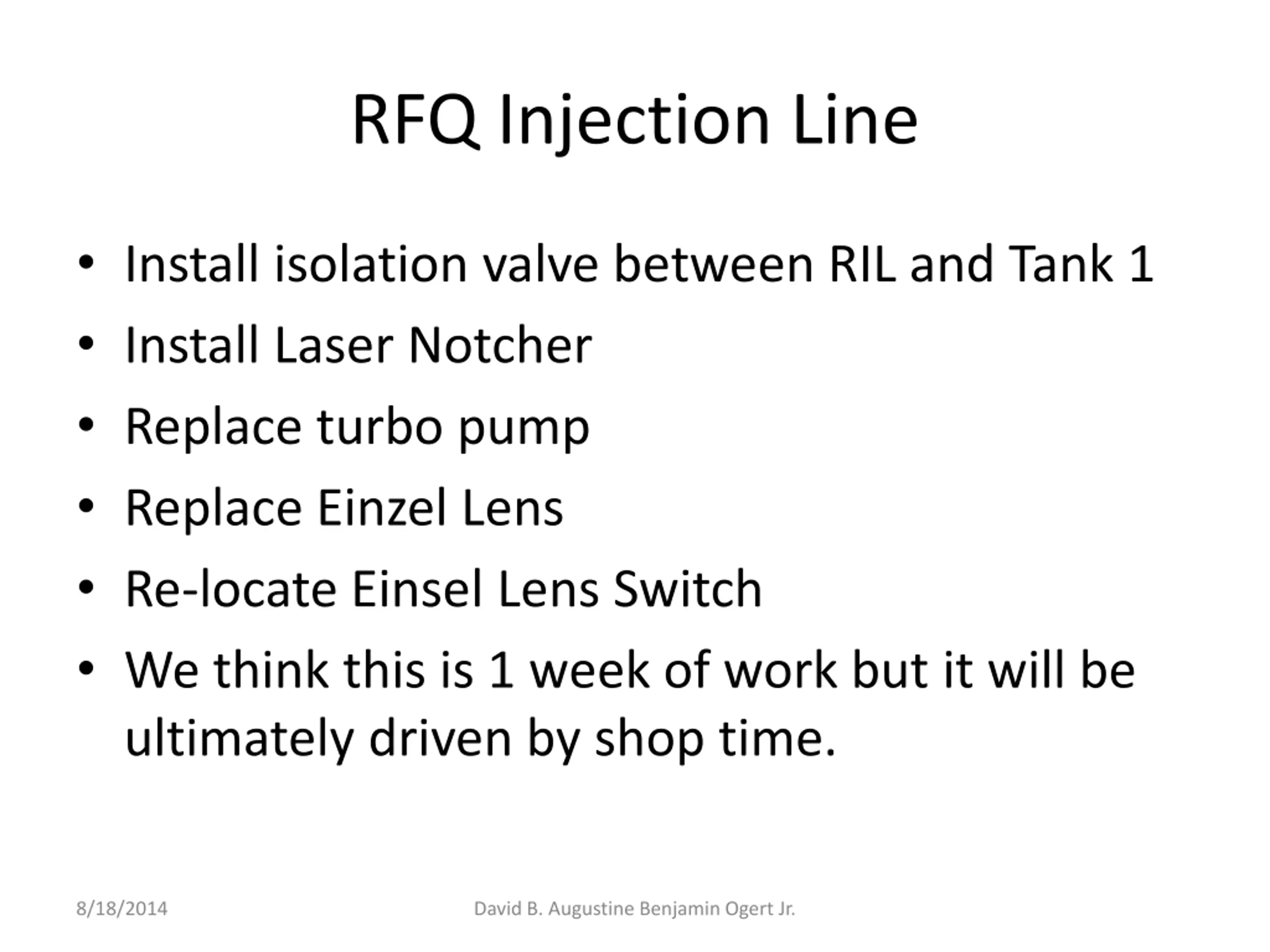

RFQ Injection Line Install isolation valve between RIL and Tank 1 Install Laser Notcher Replace turbo pump Replace Einzel Lens Re-locate Einsel Lens Switch We think this is 1 week of work but it will be ultimately driven by shop time. 8/18/2014 David B. Augustine Benjamin Ogert Jr.

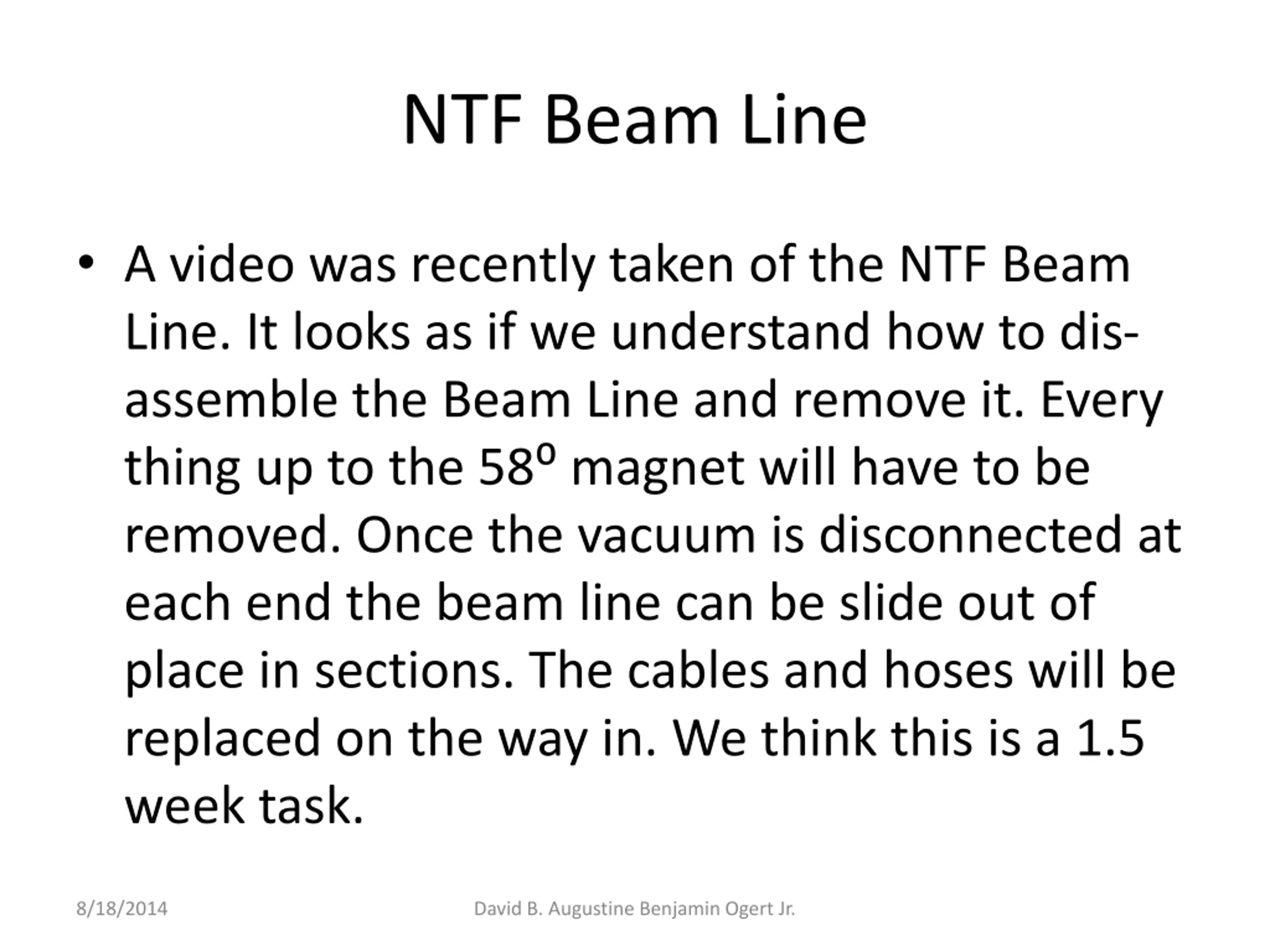

NTF Beam Line A video was recently taken of the NTF Beam Line. It looks as if we understand how to dis- assemble the Beam Line and remove it. Every thing up to the 58 magnet will have to be removed. Once the vacuum is disconnected at each end the beam line can be slide out of place in sections. The cables and hoses will be replaced on the way in. We think this is a 1.5 week task. 8/18/2014 David B. Augustine Benjamin Ogert Jr.

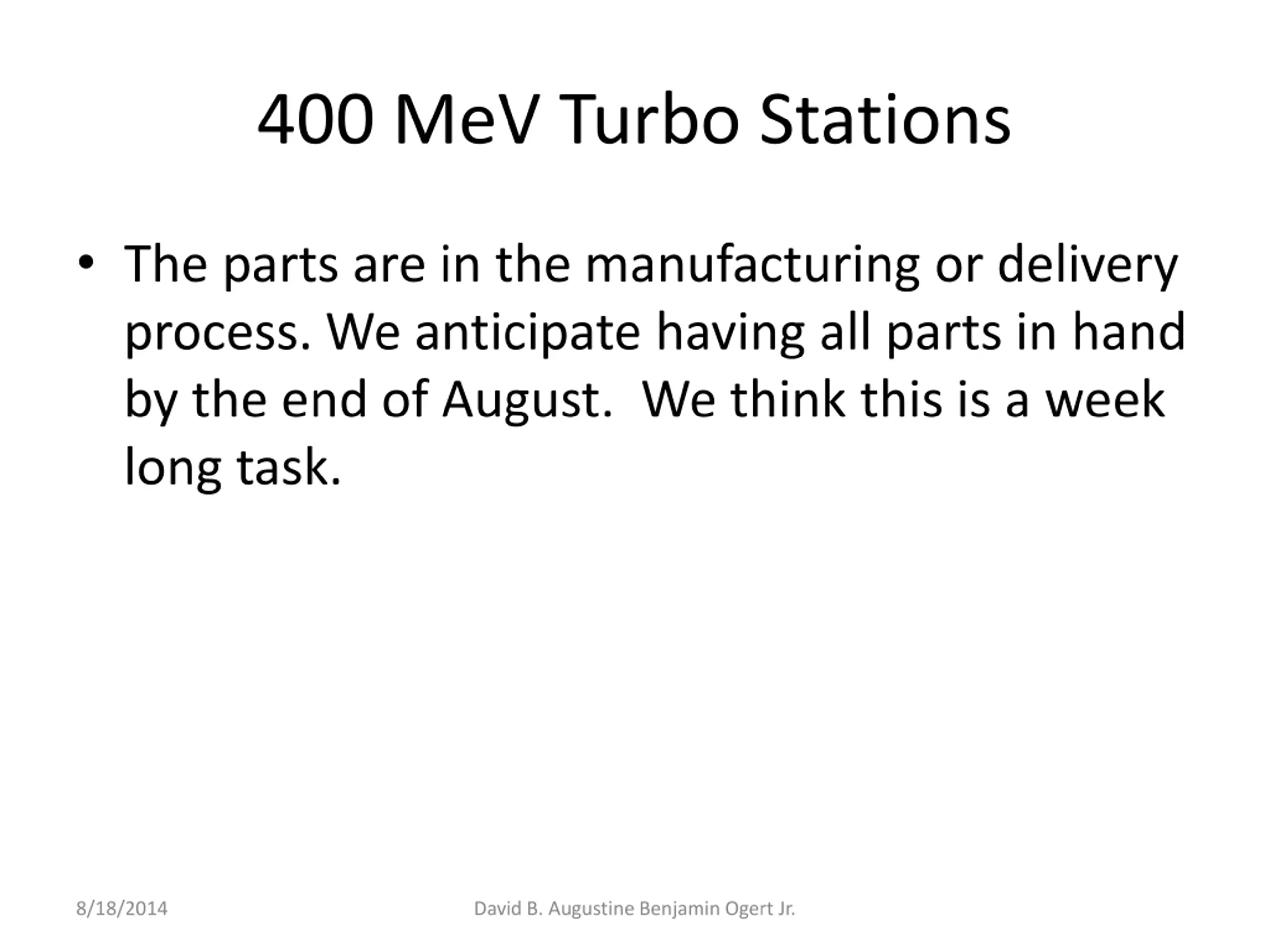

400 MeV Turbo Stations The parts are in the manufacturing or delivery process. We anticipate having all parts in hand by the end of August. We think this is a week long task. 8/18/2014 David B. Augustine Benjamin Ogert Jr.

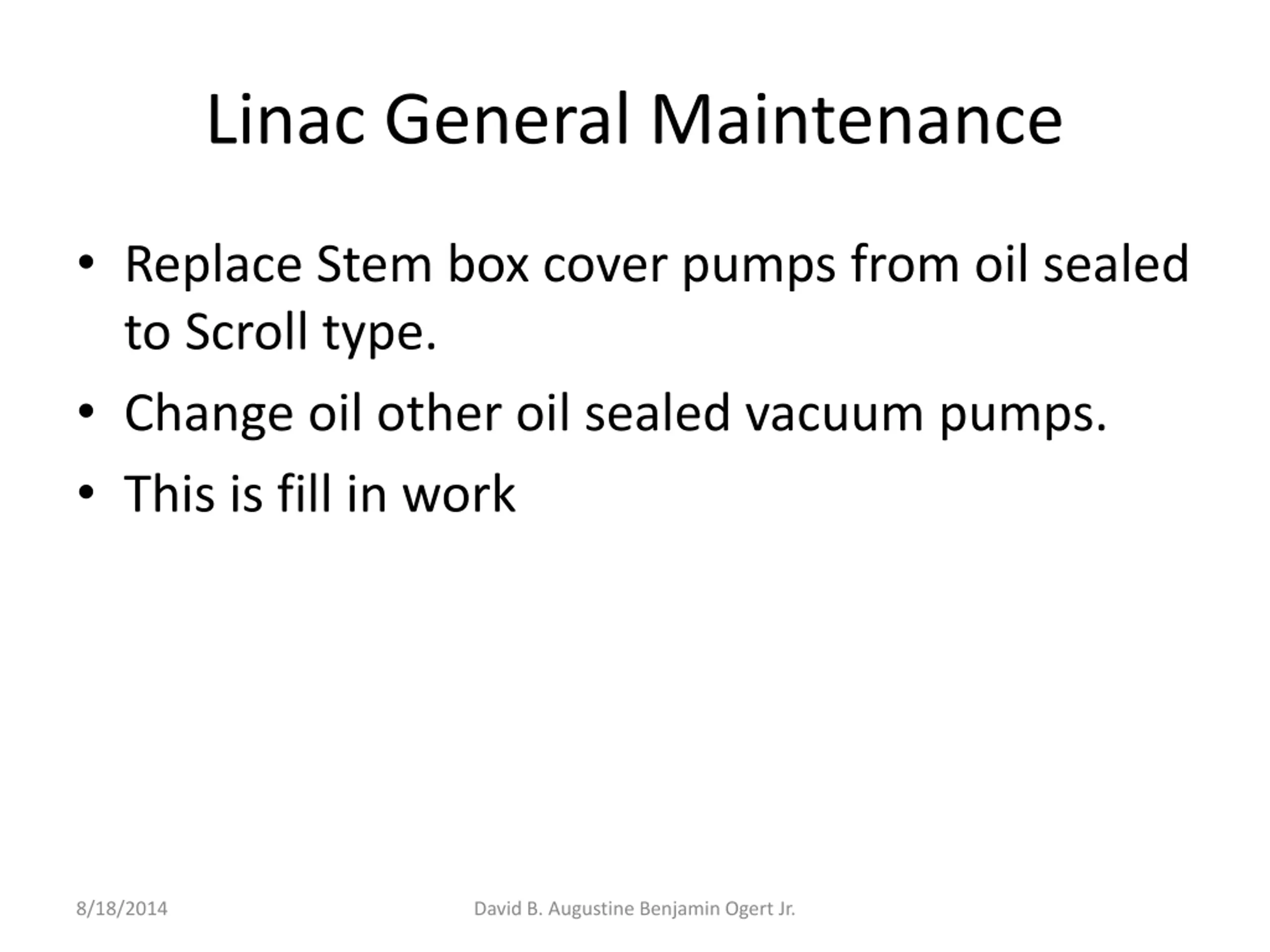

Linac General Maintenance Replace Stem box cover pumps from oil sealed to Scroll type. Change oil other oil sealed vacuum pumps. This is fill in work 8/18/2014 David B. Augustine Benjamin Ogert Jr.

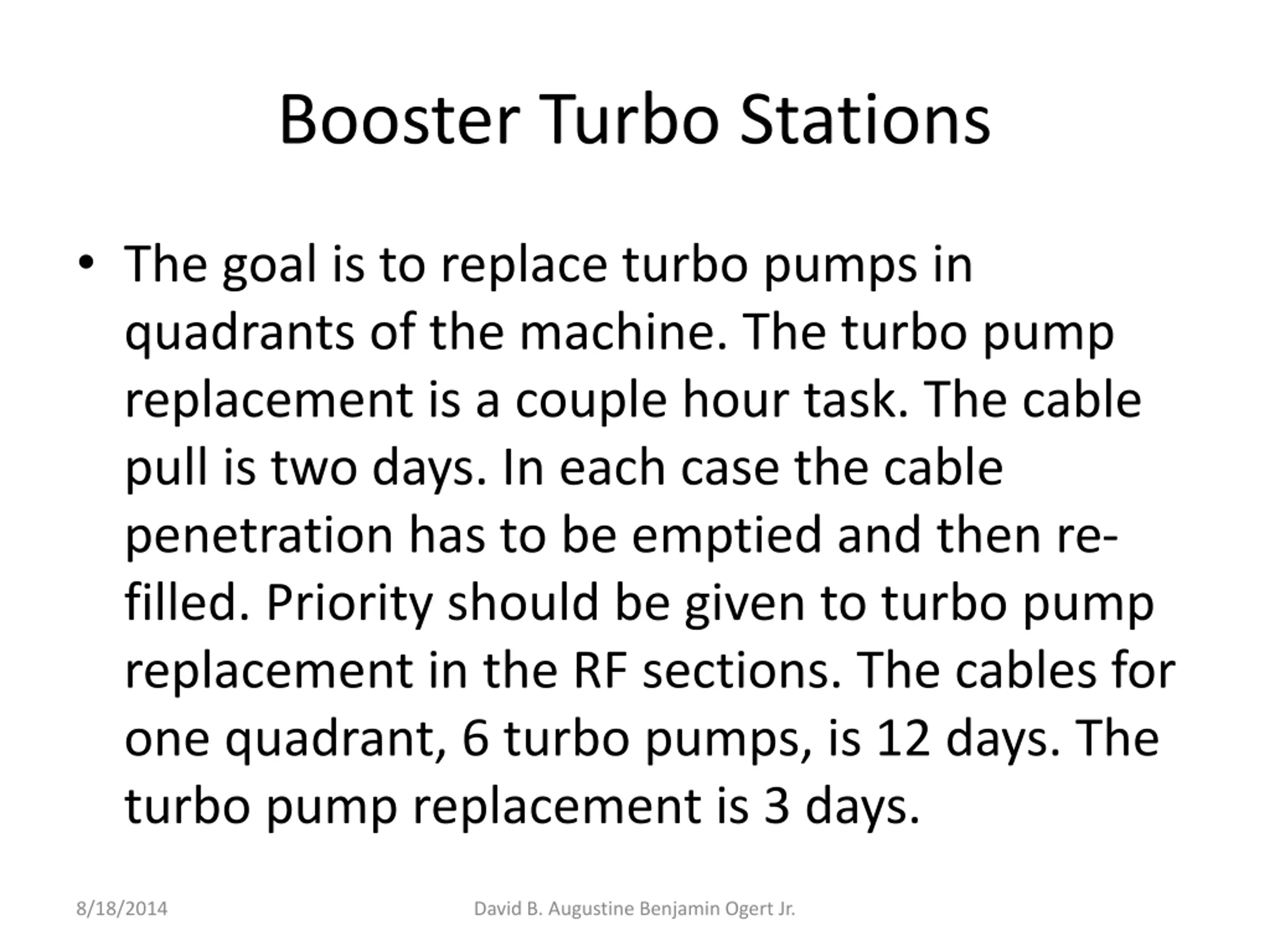

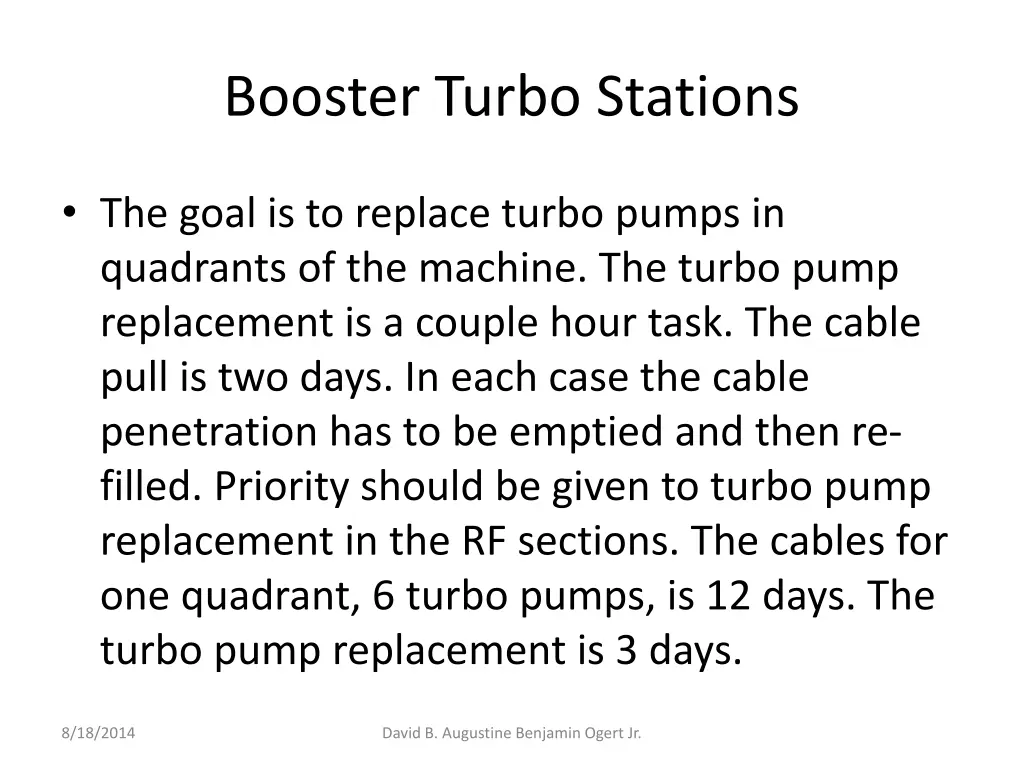

Booster Turbo Stations The goal is to replace turbo pumps in quadrants of the machine. The turbo pump replacement is a couple hour task. The cable pull is two days. In each case the cable penetration has to be emptied and then re- filled. Priority should be given to turbo pump replacement in the RF sections. The cables for one quadrant, 6 turbo pumps, is 12 days. The turbo pump replacement is 3 days. 8/18/2014 David B. Augustine Benjamin Ogert Jr.

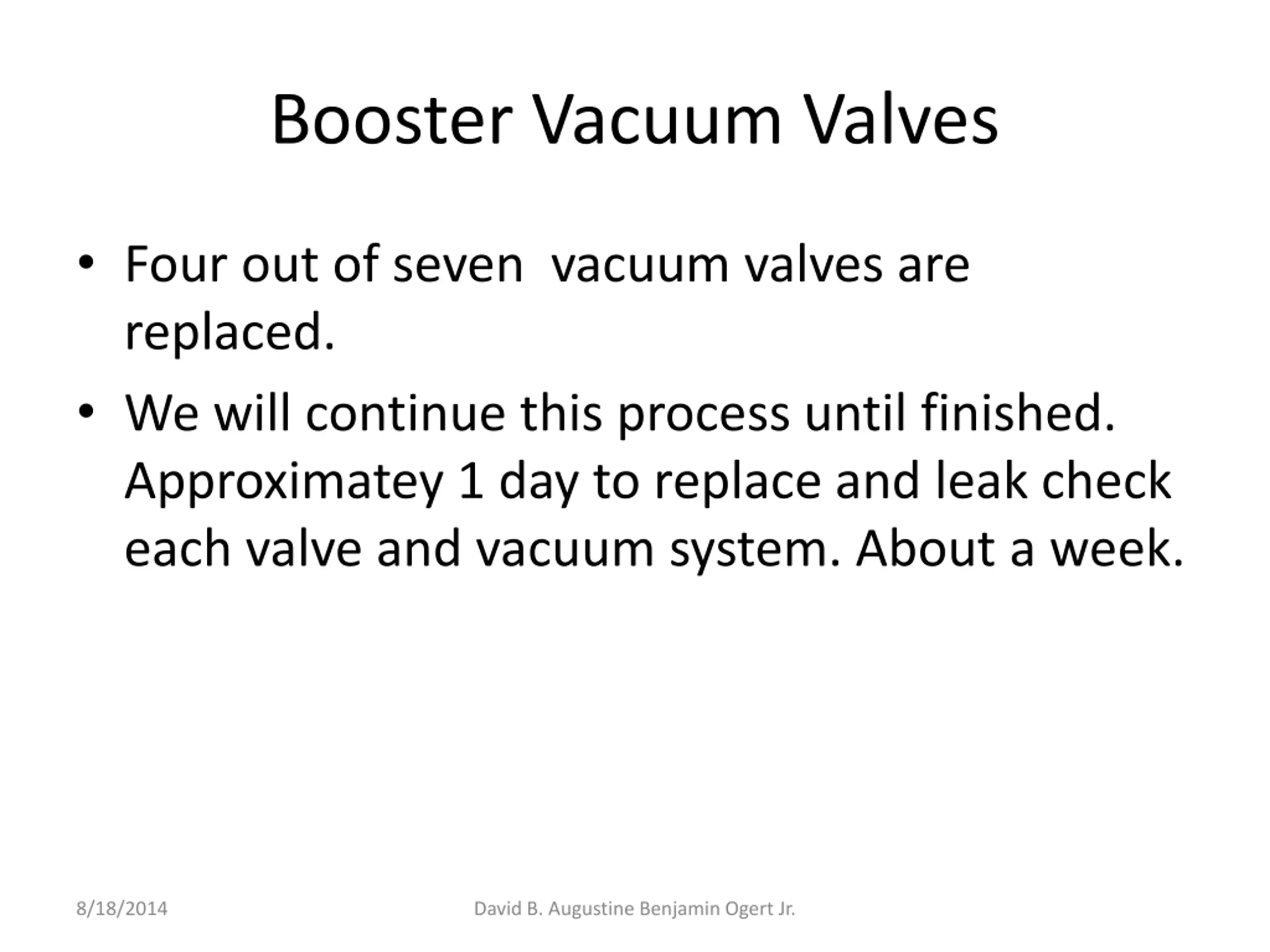

Booster Vacuum Valves Four out of seven vacuum valves are replaced. We will continue this process until finished. Approximatey 1 day to replace and leak check each valve and vacuum system. About a week. 8/18/2014 David B. Augustine Benjamin Ogert Jr.

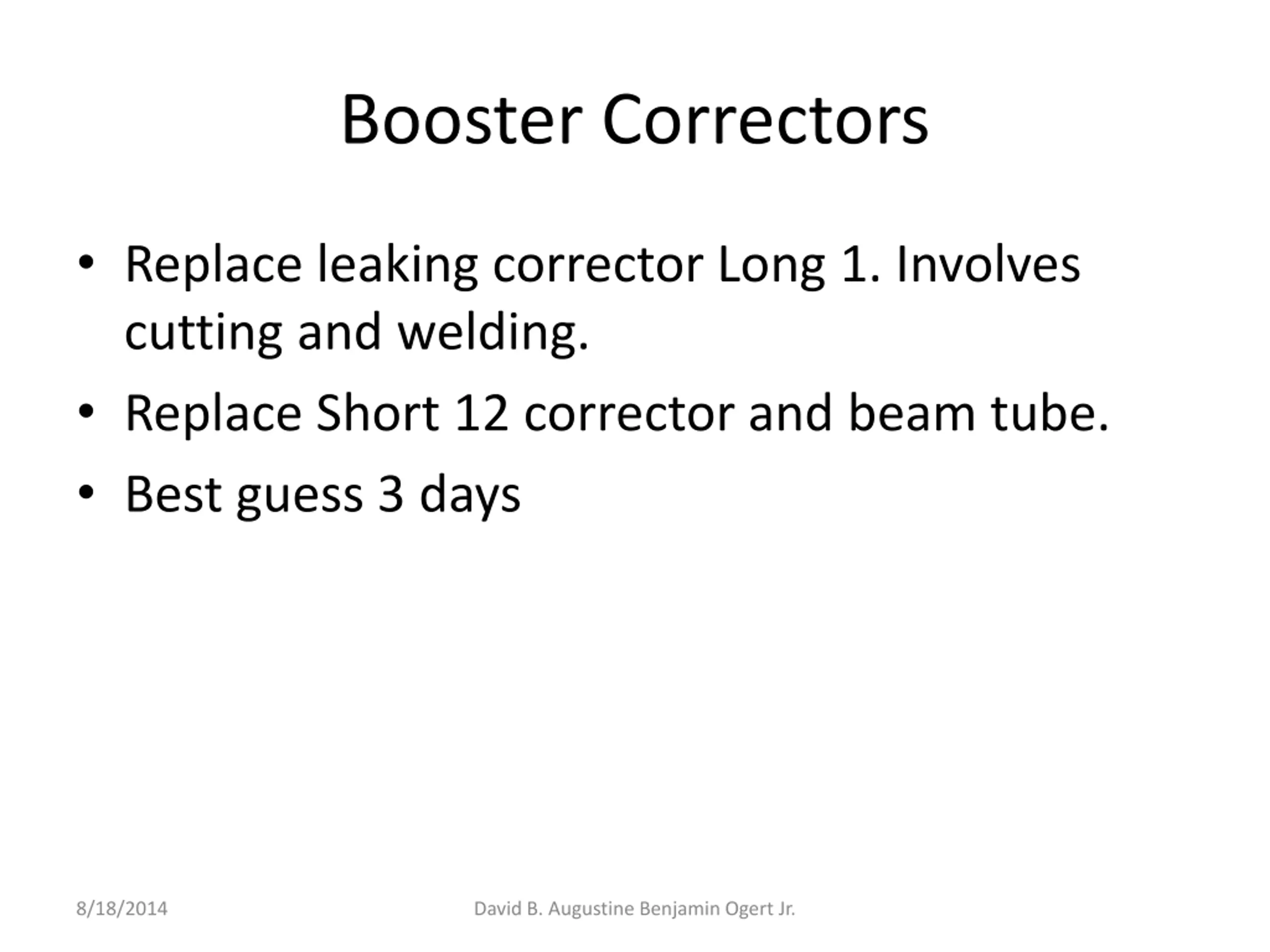

Booster Correctors Replace leaking corrector Long 1. Involves cutting and welding. Replace Short 12 corrector and beam tube. Best guess 3 days 8/18/2014 David B. Augustine Benjamin Ogert Jr.

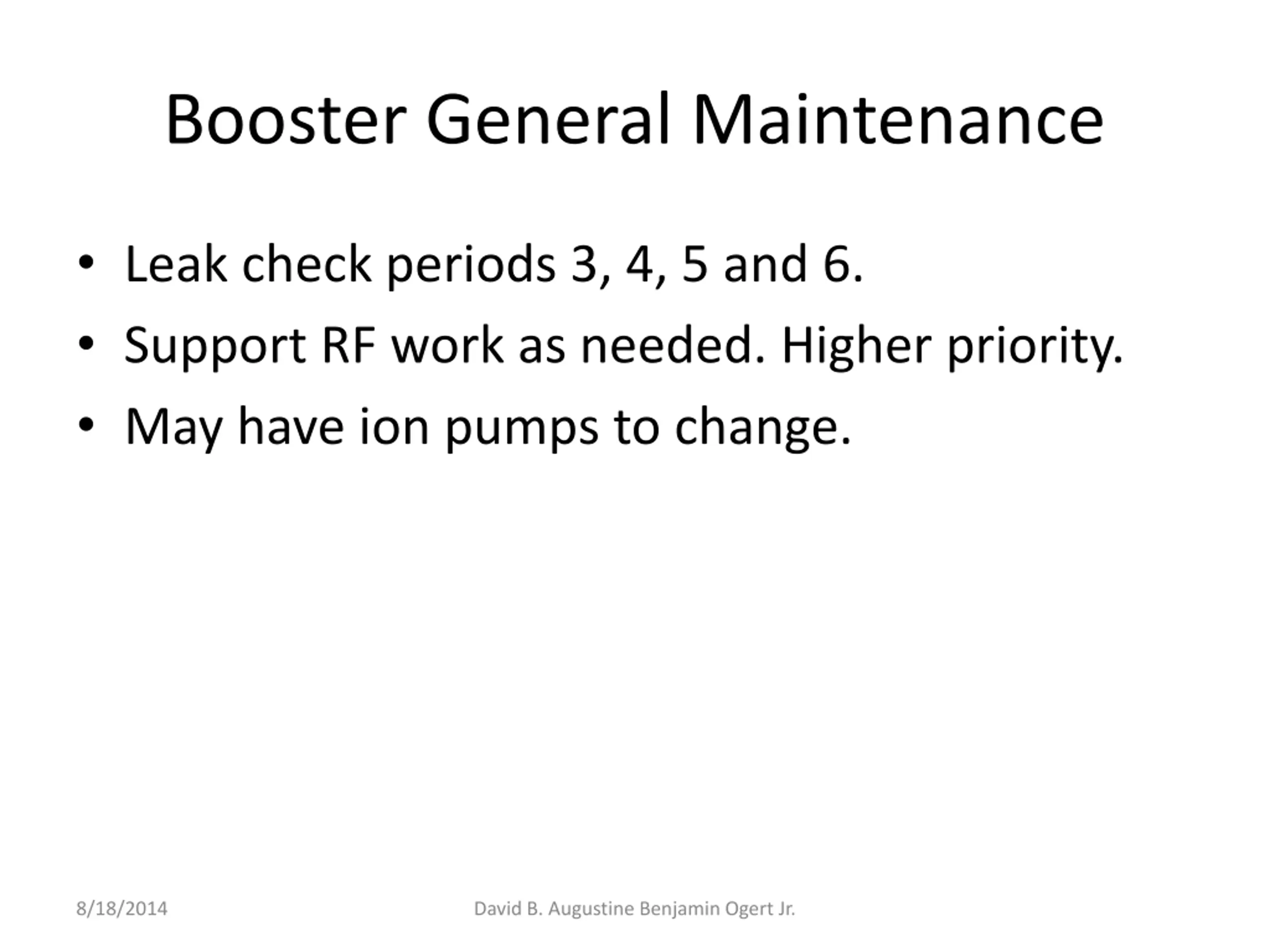

Booster General Maintenance Leak check periods 3, 4, 5 and 6. Support RF work as needed. Higher priority. May have ion pumps to change. 8/18/2014 David B. Augustine Benjamin Ogert Jr.

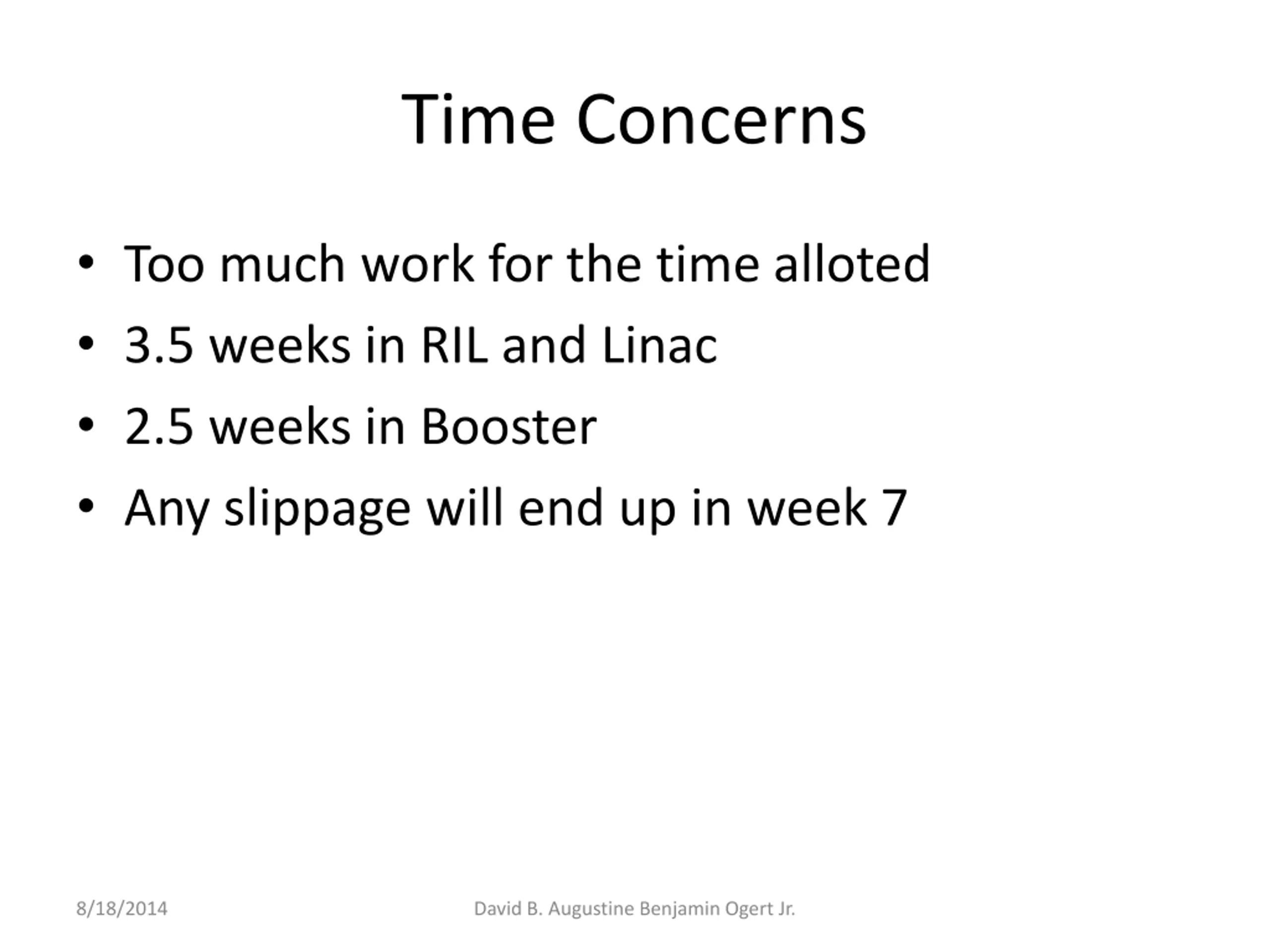

Time Concerns Too much work for the time alloted 3.5 weeks in RIL and Linac 2.5 weeks in Booster Any slippage will end up in week 7 8/18/2014 David B. Augustine Benjamin Ogert Jr.

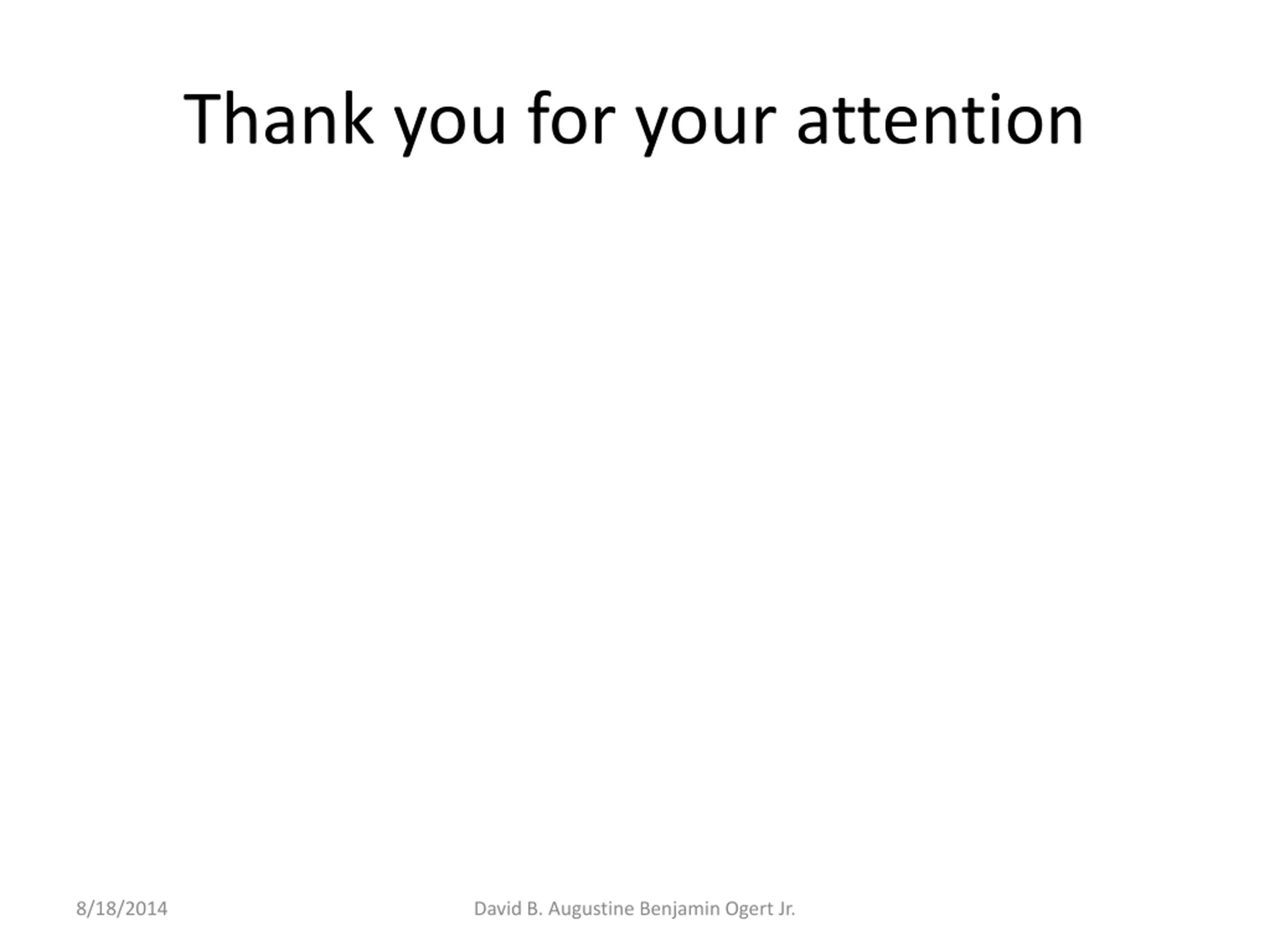

Thank you for your attention 8/18/2014 David B. Augustine Benjamin Ogert Jr.
