AdityaNori MSR India Stanford University Rahul Sharma

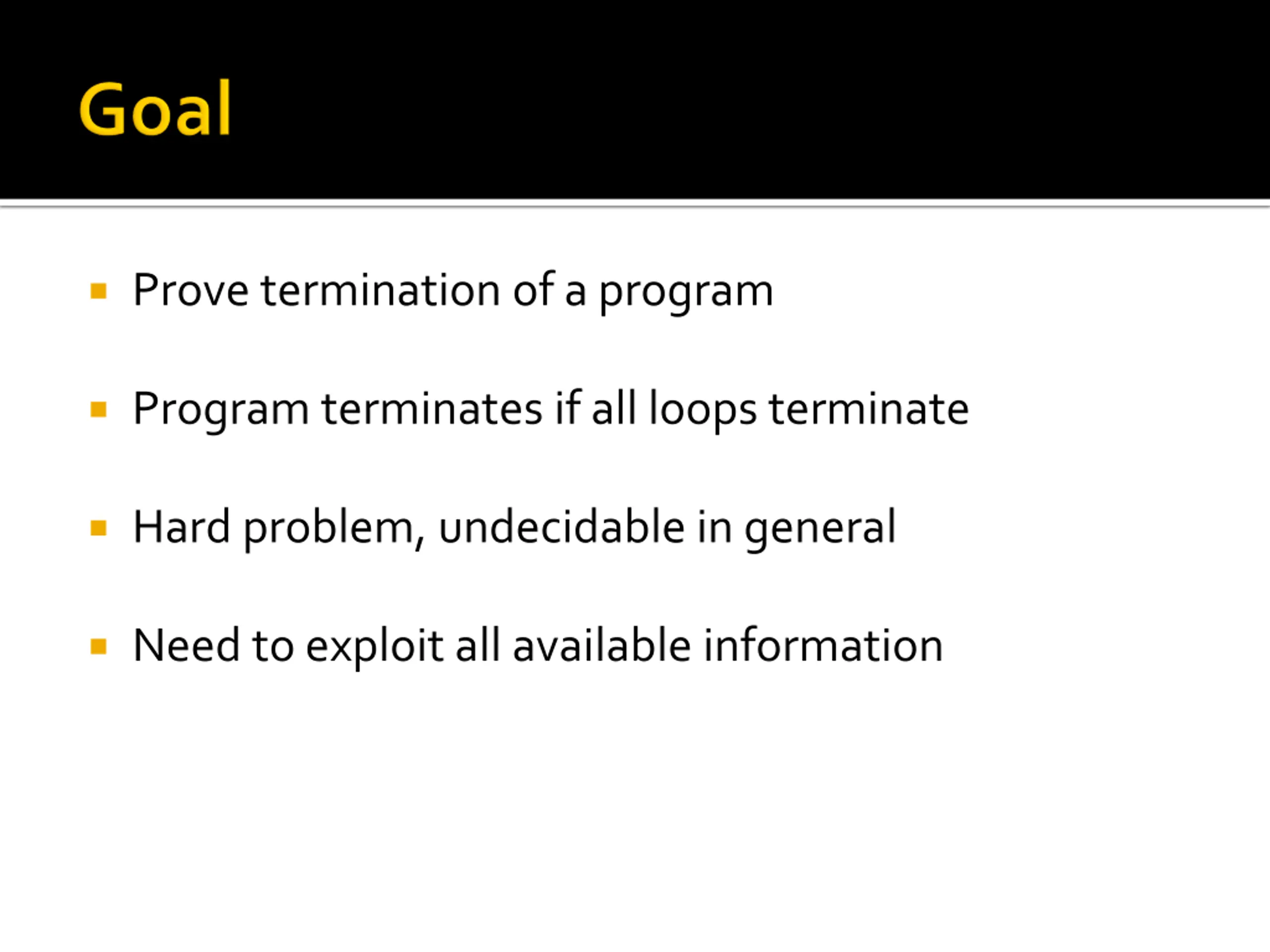

Prove termination of a program Program terminates if all loops terminate Hard problem, undecidable in general Need to exploit all available information

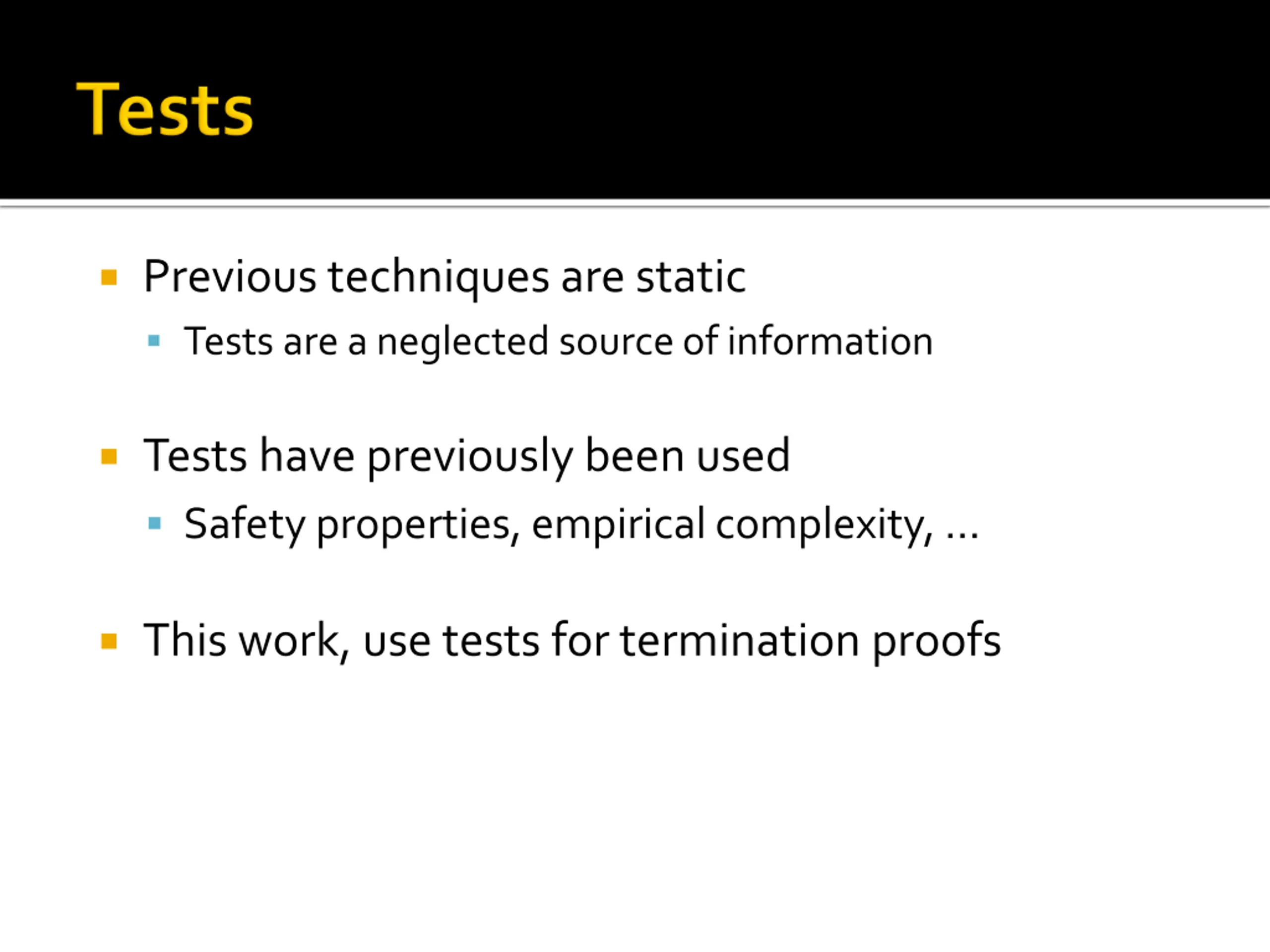

Previous techniques are static Tests are a neglected source of information Tests have previously been used Safety properties, empirical complexity, This work, use tests for termination proofs

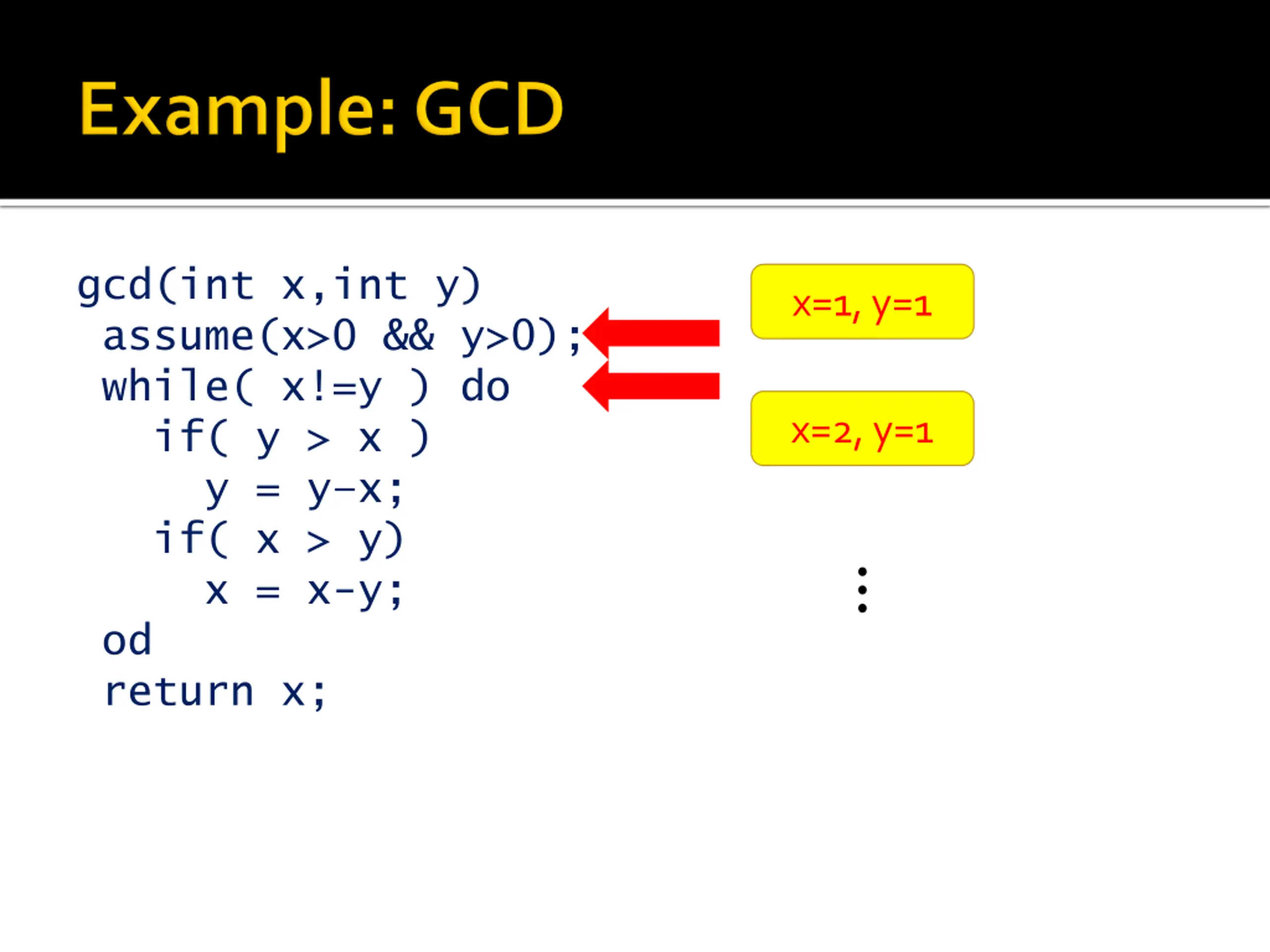

gcd(int x,int y) assume(x>0 && y>0); while( x!=y ) do if( y > x ) y = y x; if( x > y) x = x-y; od return x; x=1, y=1 x=2, y=1

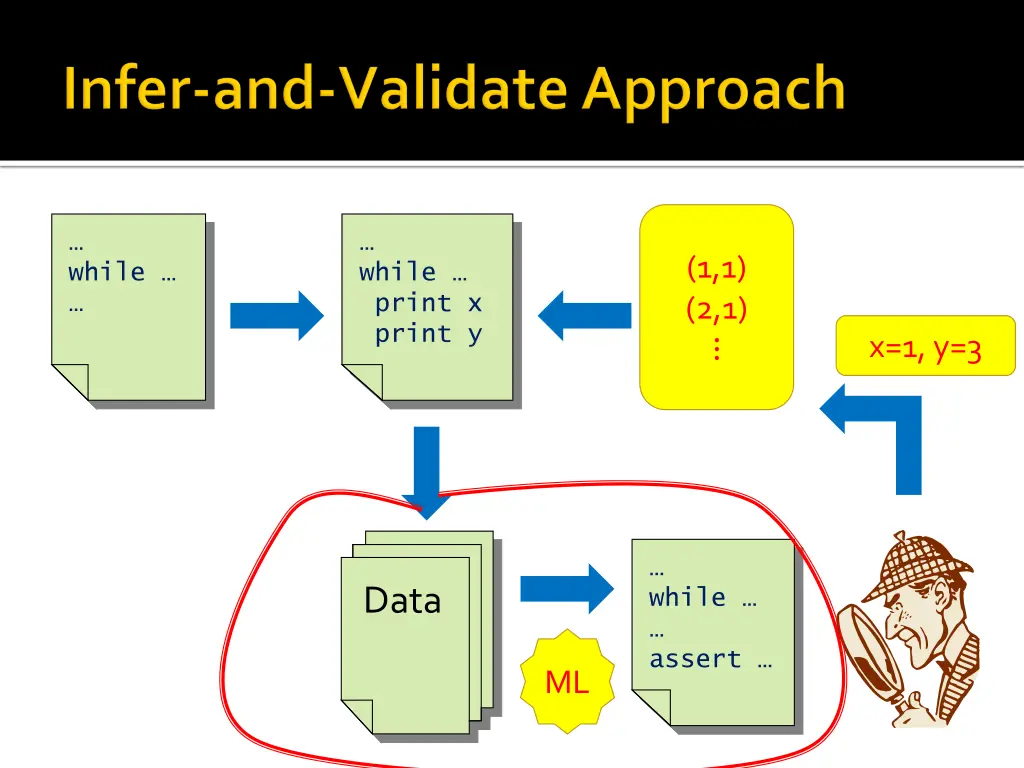

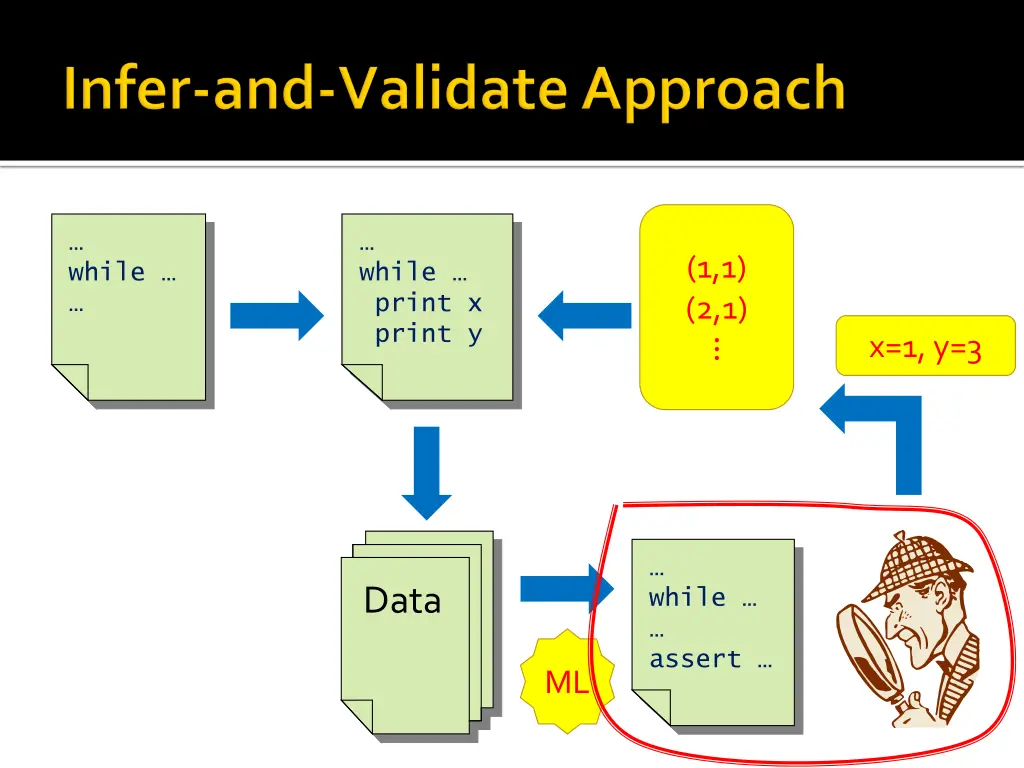

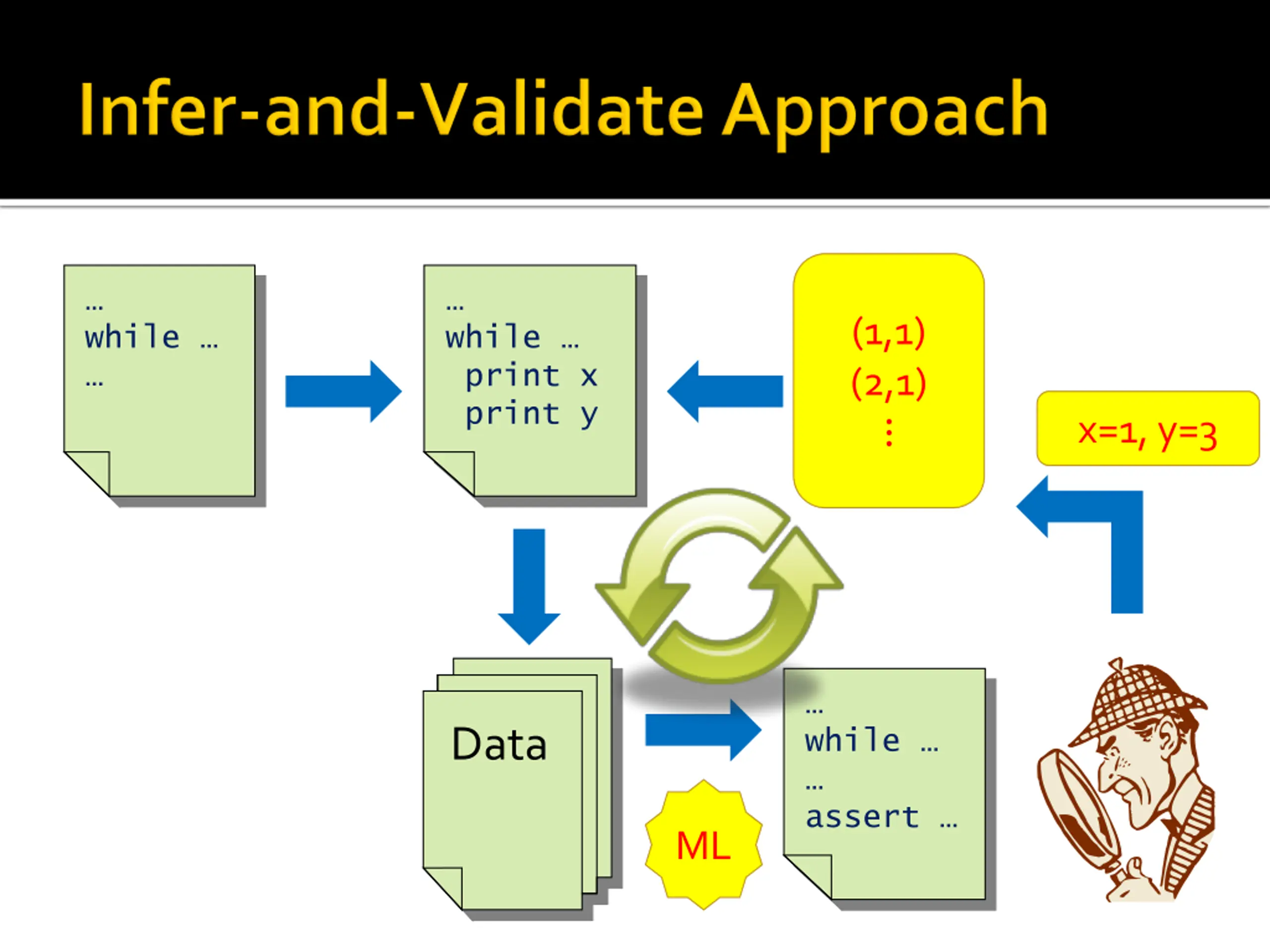

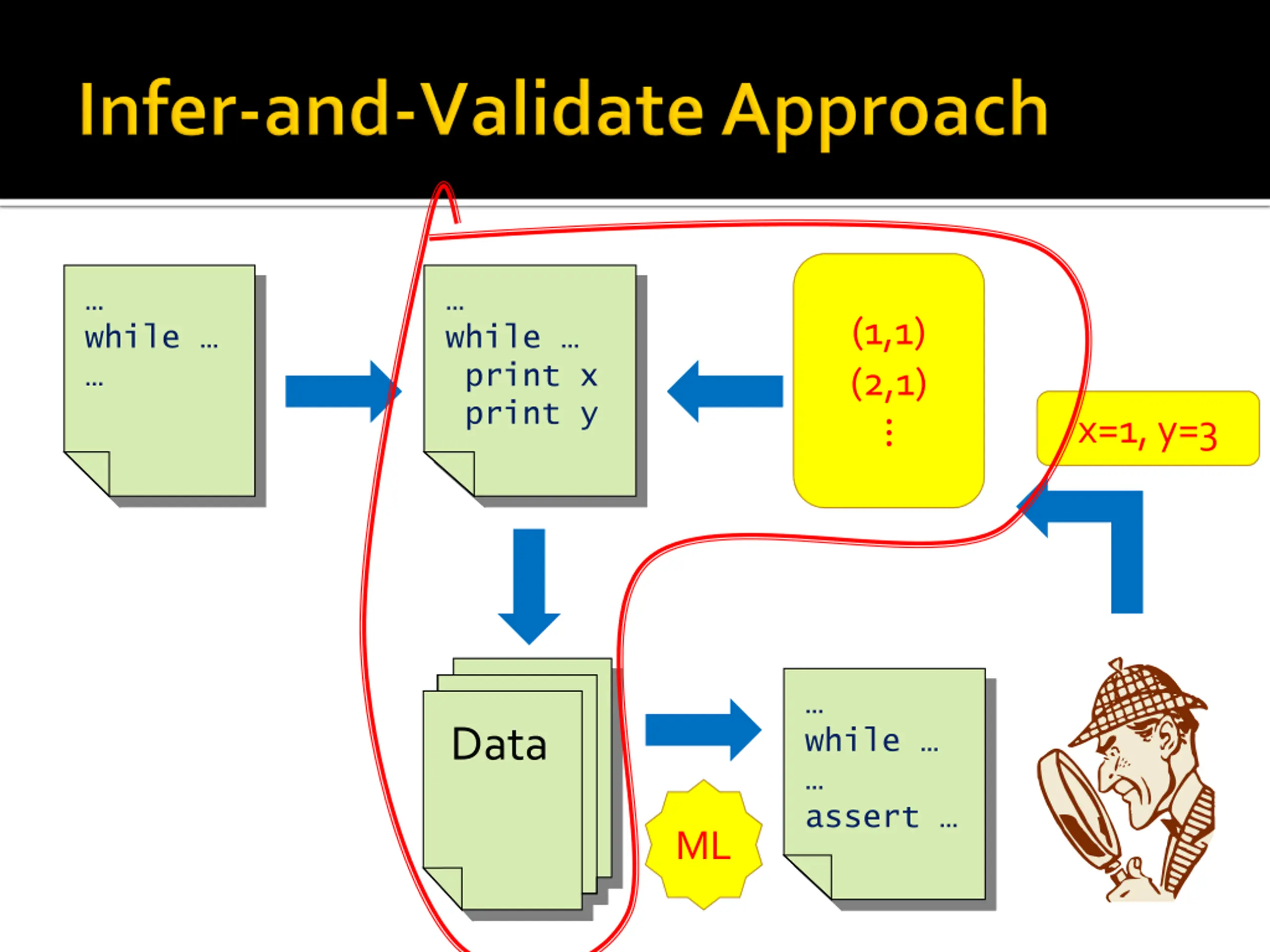

while while print x print y (1,1) (2,1) x=1, y=3 while assert Data ML
while while print x print y (1,1) (2,1) x=1, y=3 while assert Data ML

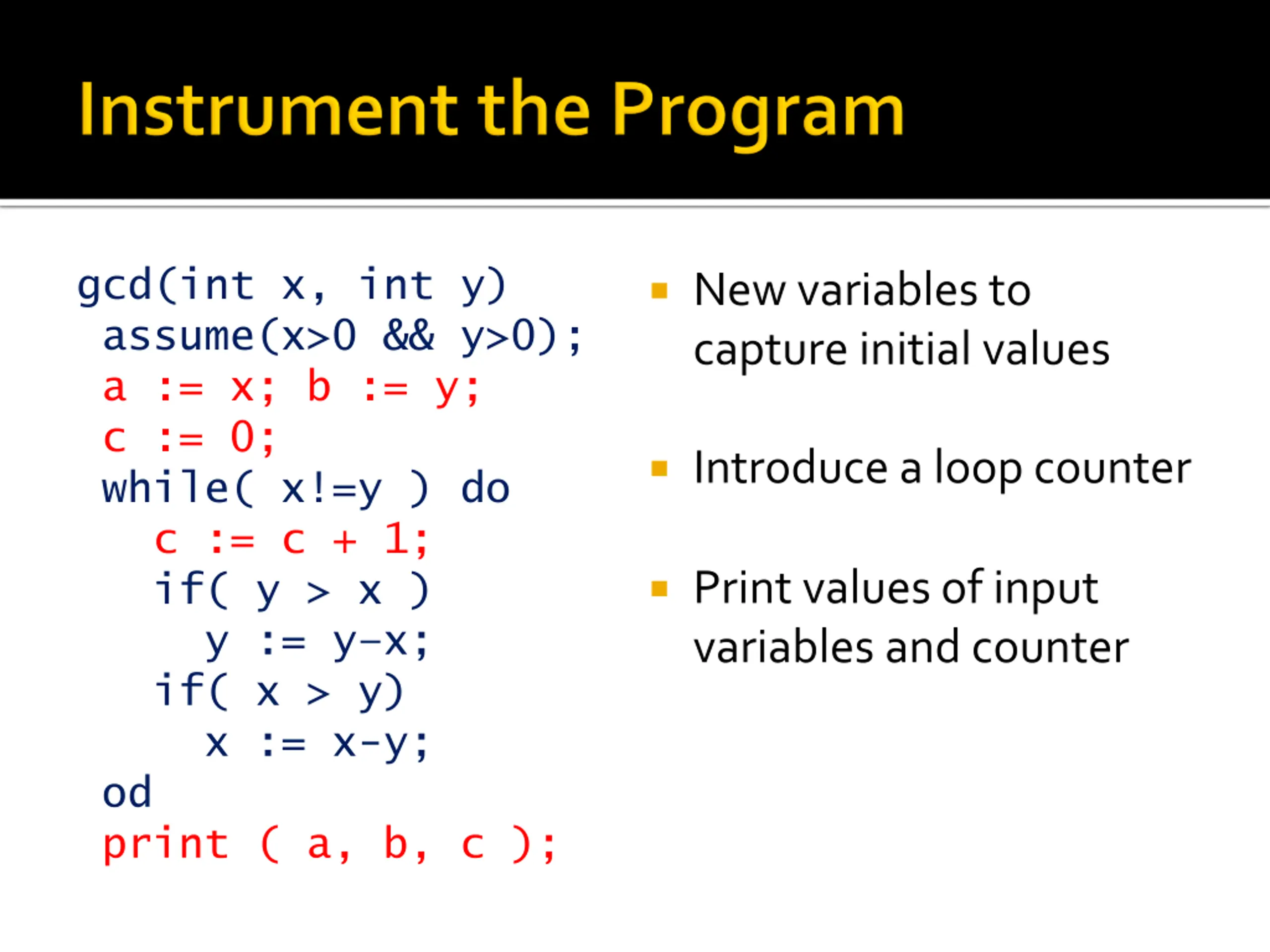

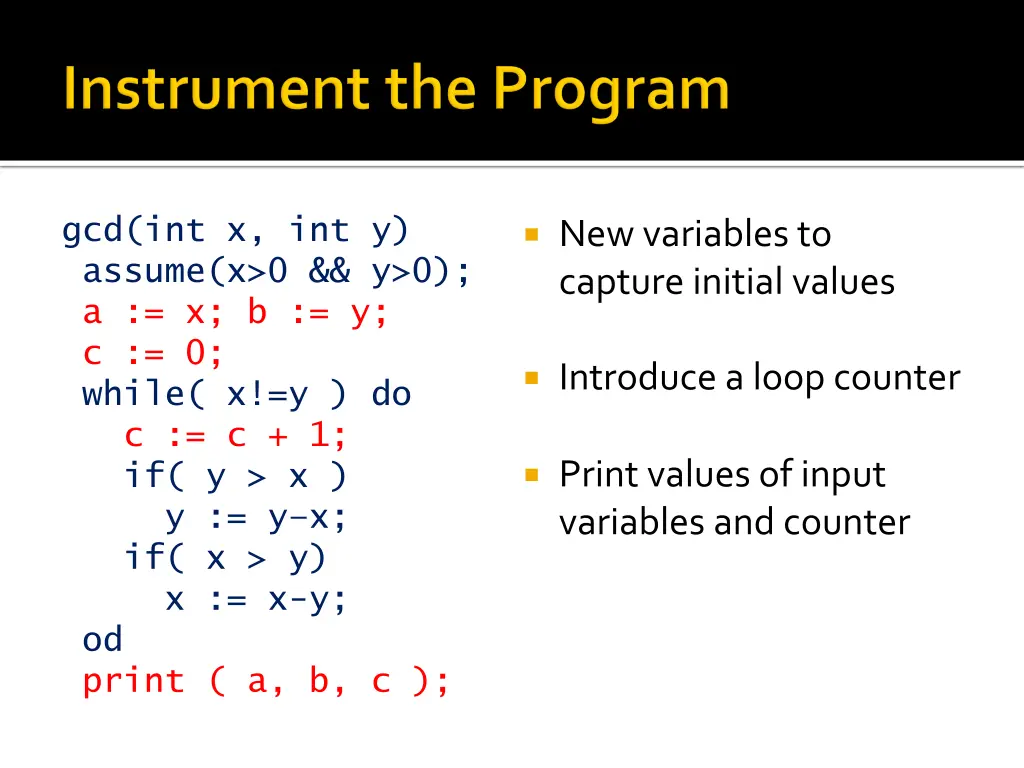

gcd(int x, int y) assume(x>0 && y>0); a := x; b := y; c := 0; while( x!=y ) do c := c + 1; if( y > x ) y := y x; if( x > y) x := x-y; od print ( a, b, c ); New variables to capture initial values Introduce a loop counter Print values of input variables and counter
while while print x print y (1,1) (2,1) x=1, y=3 while assert Data ML

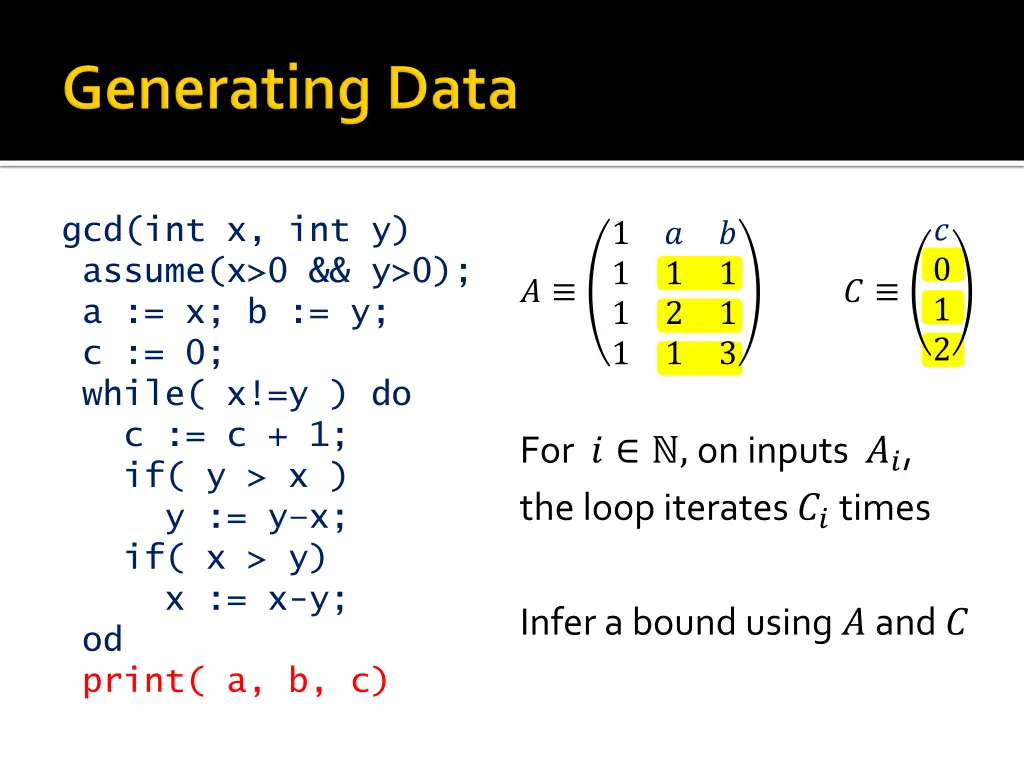

? 0 1 2 gcd(int x, int y) assume(x>0 && y>0); a := x; b := y; c := 0; while( x!=y ) do c := c + 1; if( y > x ) y := y x; if( x > y) x := x-y; od print( a, b, c) 1 1 1 1 ? 1 2 1 ? 1 1 3 ? ? For ? , on inputs ??, the loop iterates ?? times Infer a bound using ? and ?
while while print x print y (1,1) (2,1) x=1, y=3 while assert Data ML

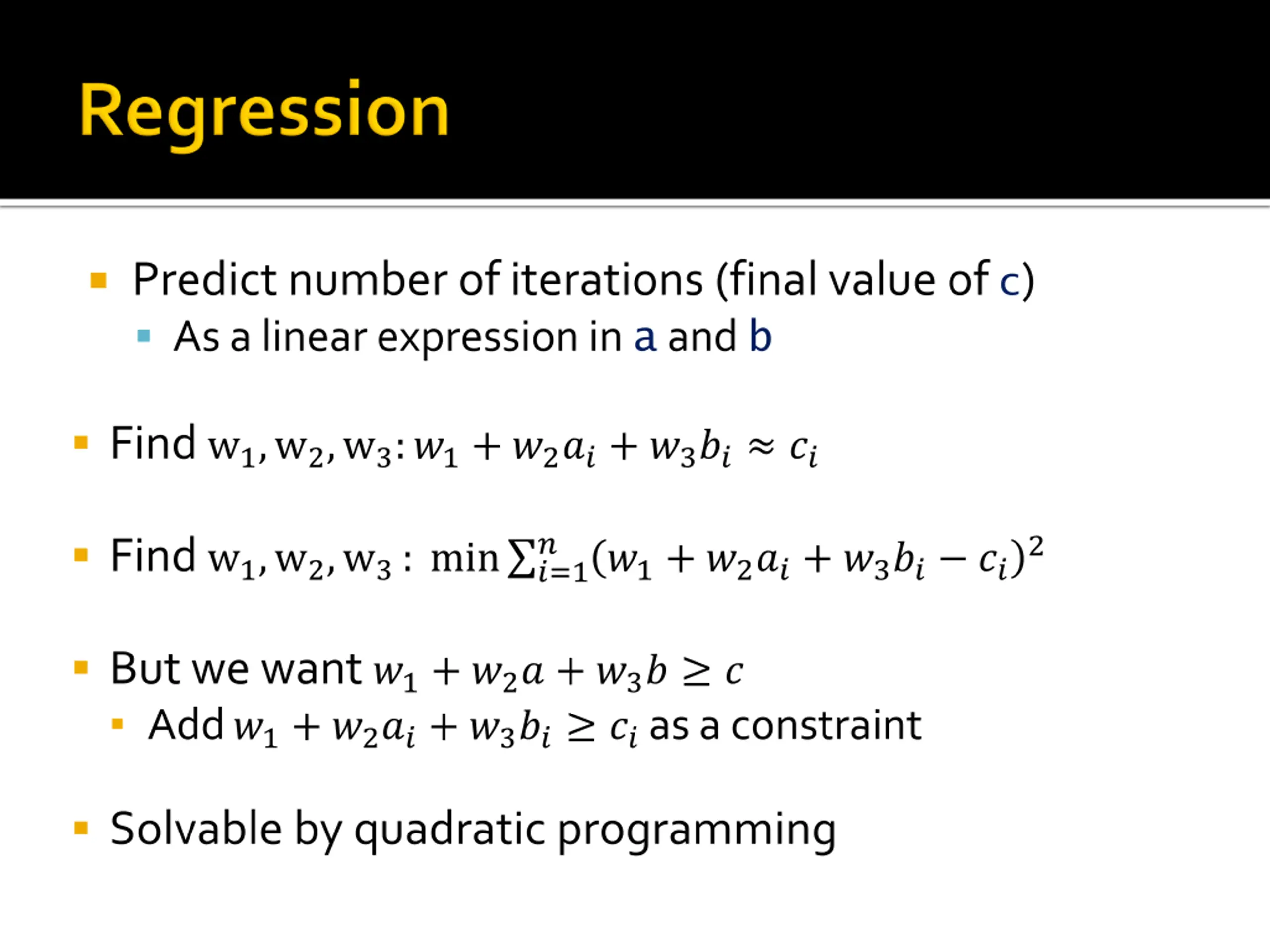

Predict number of iterations (final value ofc) As a linear expression in a and b Findw1,w2,w3:?1+ ?2??+ ?3?? ?? ? Findw1,w2,w3: min ?=1 2 ?1+ ?2??+ ?3?? ?? But we want?1+ ?2? + ?3? ? Add?1+ ?2??+ ?3?? ??as a constraint Solvable by quadratic programming

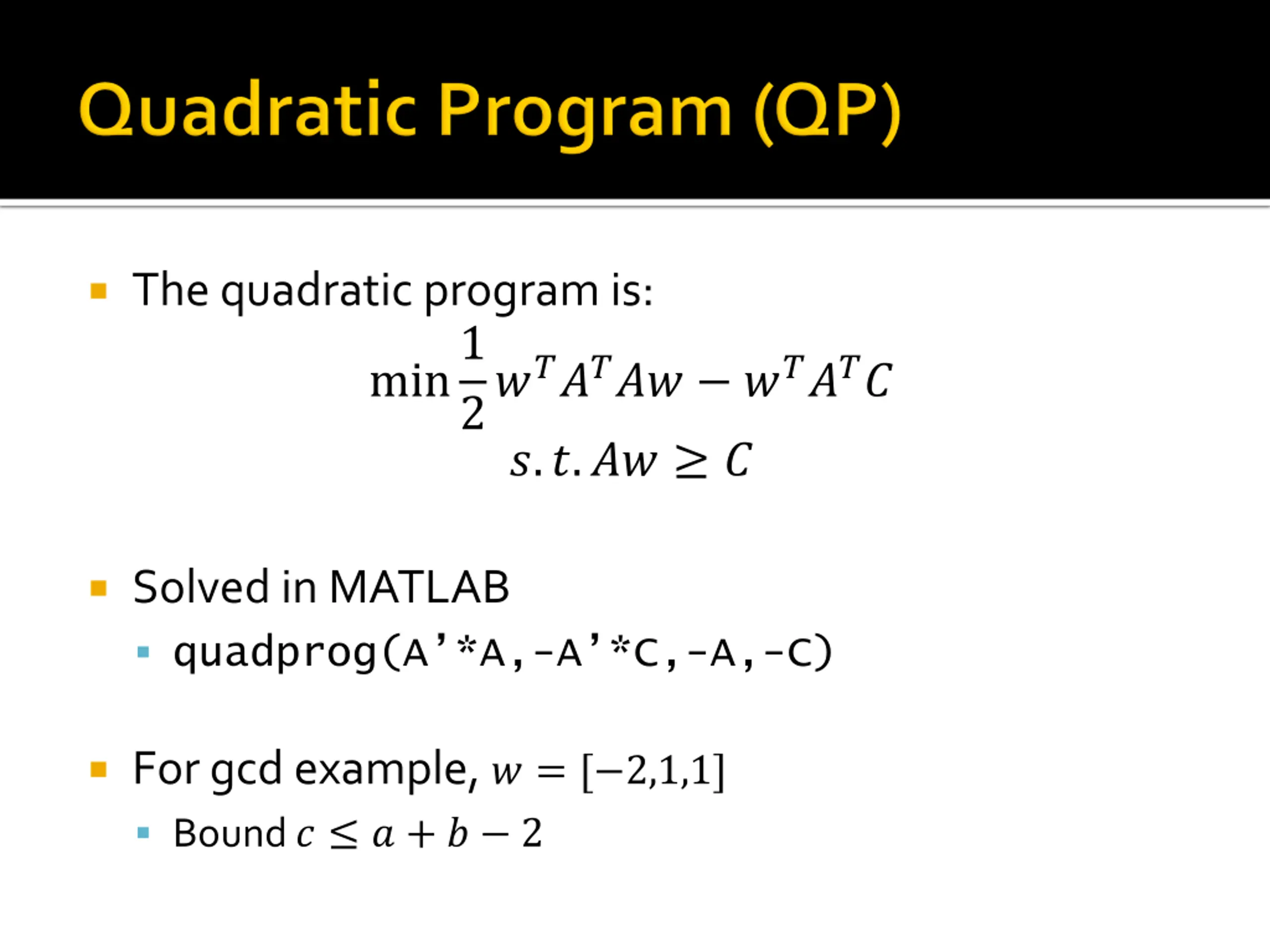

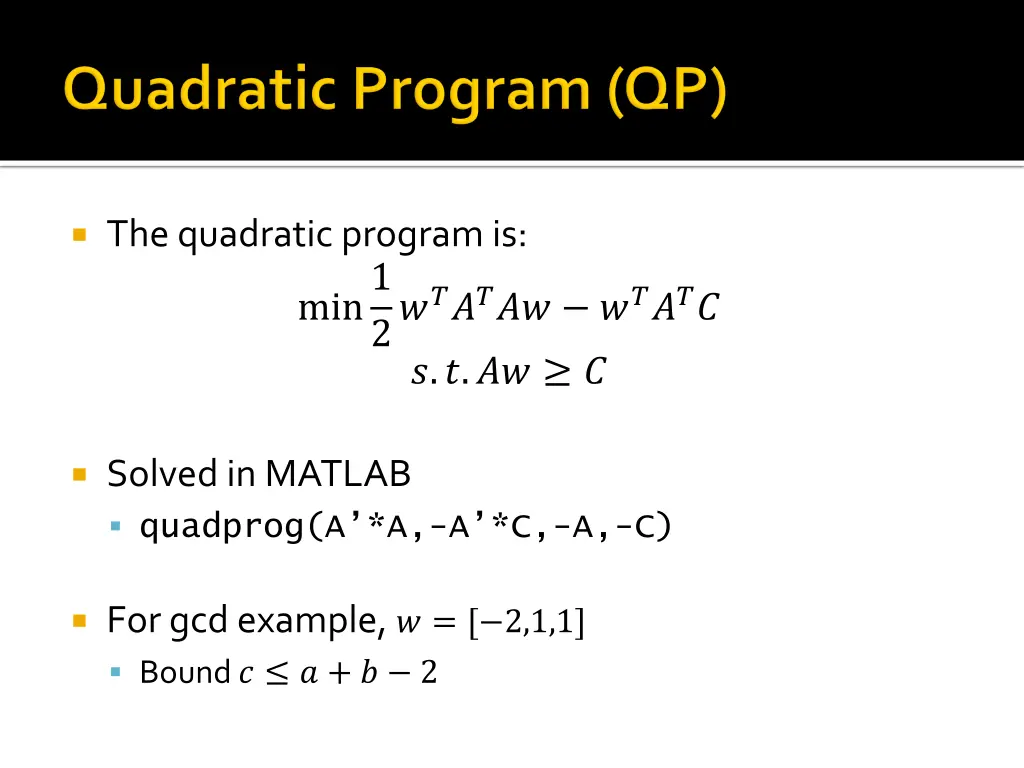

The quadratic program is: min1 2?????? ????? ?.?.?? ? Solved in MATLAB quadprog(A *A,-A *C,-A,-C) For gcd example, ? = [ 2,1,1] Bound ? ? + ? 2

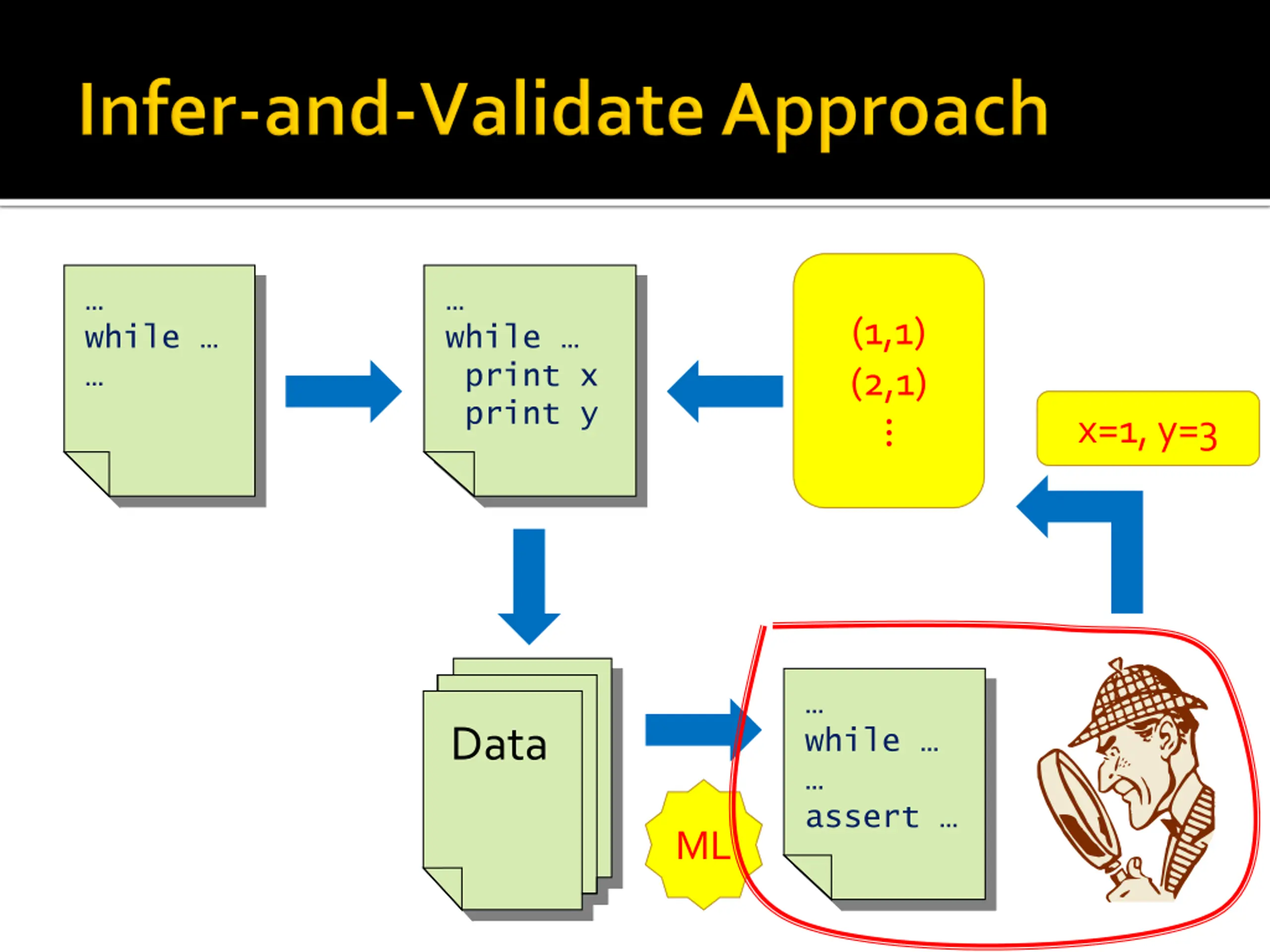

while while print x print y (1,1) (2,1) x=1, y=3 while assert Data ML

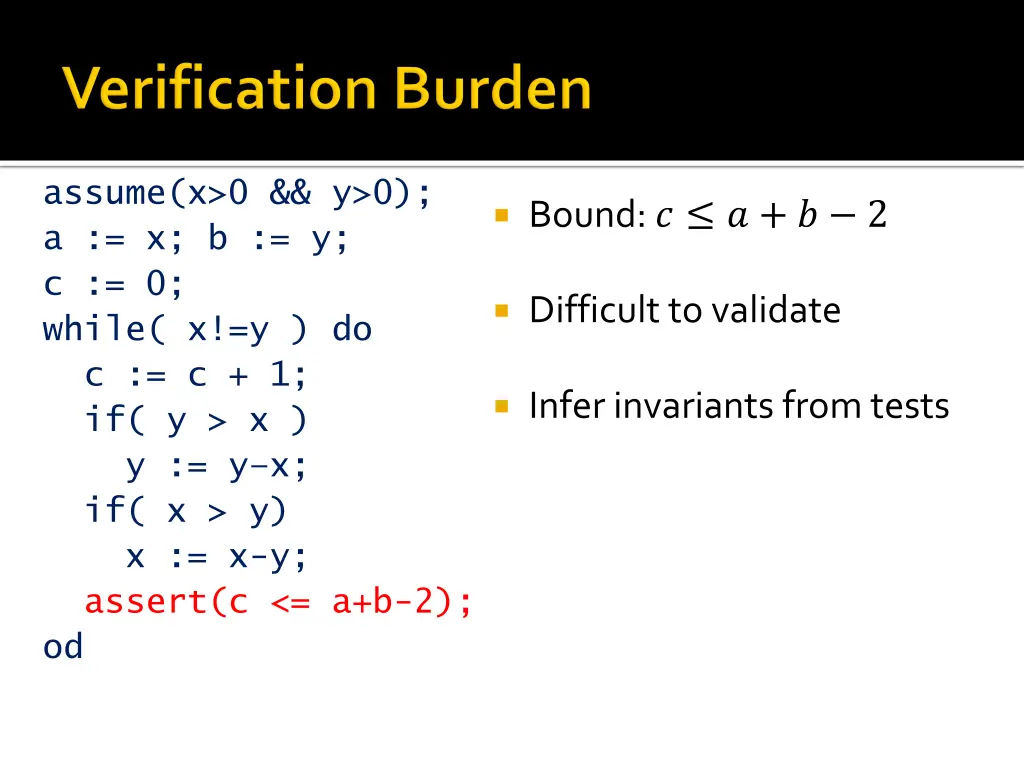

assume(x>0 && y>0); a := x; b := y; c := 0; while( x!=y ) do c := c + 1; if( y > x ) y := y x; if( x > y) x := x-y; assert(c <= a+b-2); od Bound: ? ? + ? 2 Difficult to validate Infer invariants from tests

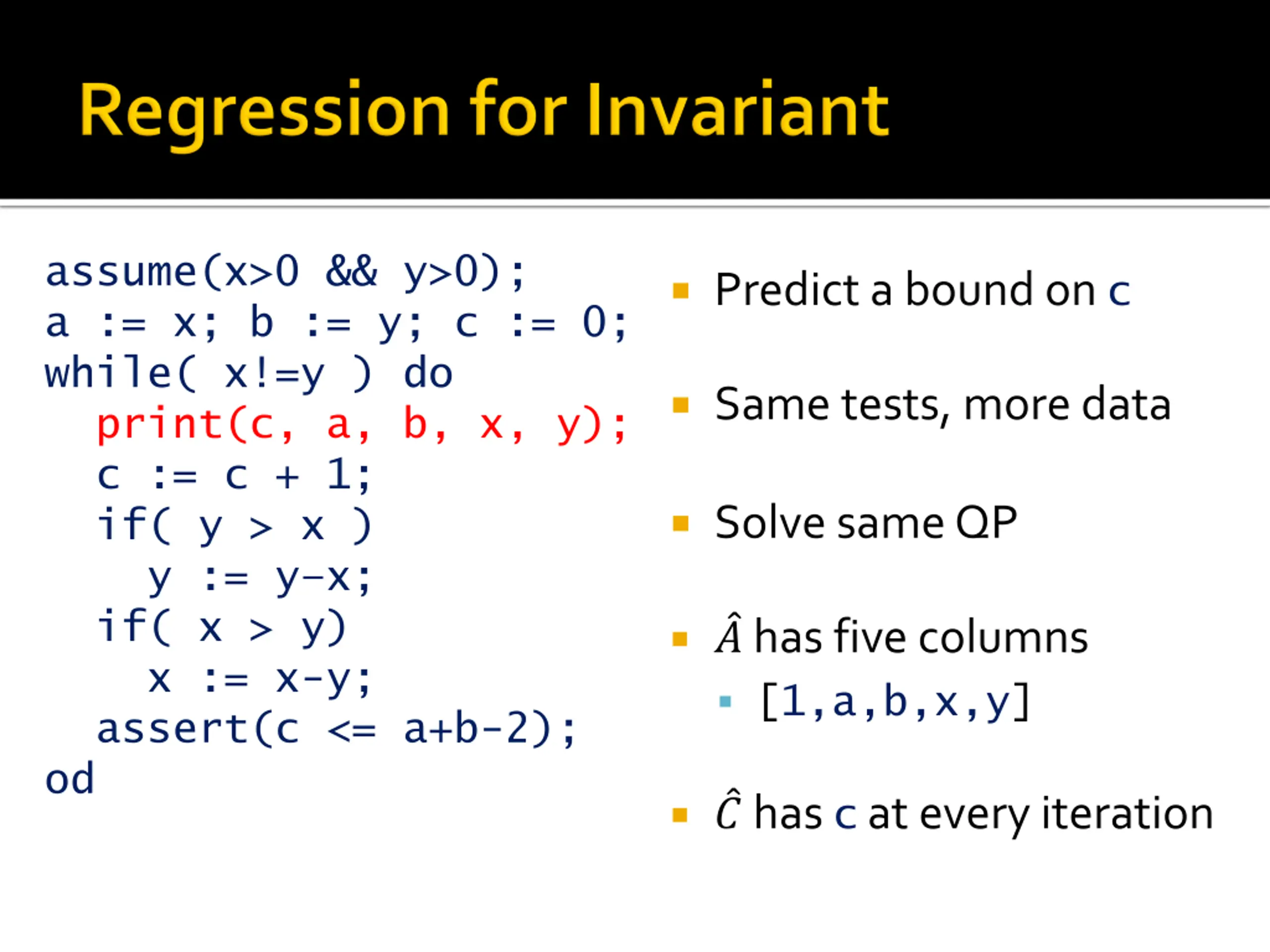

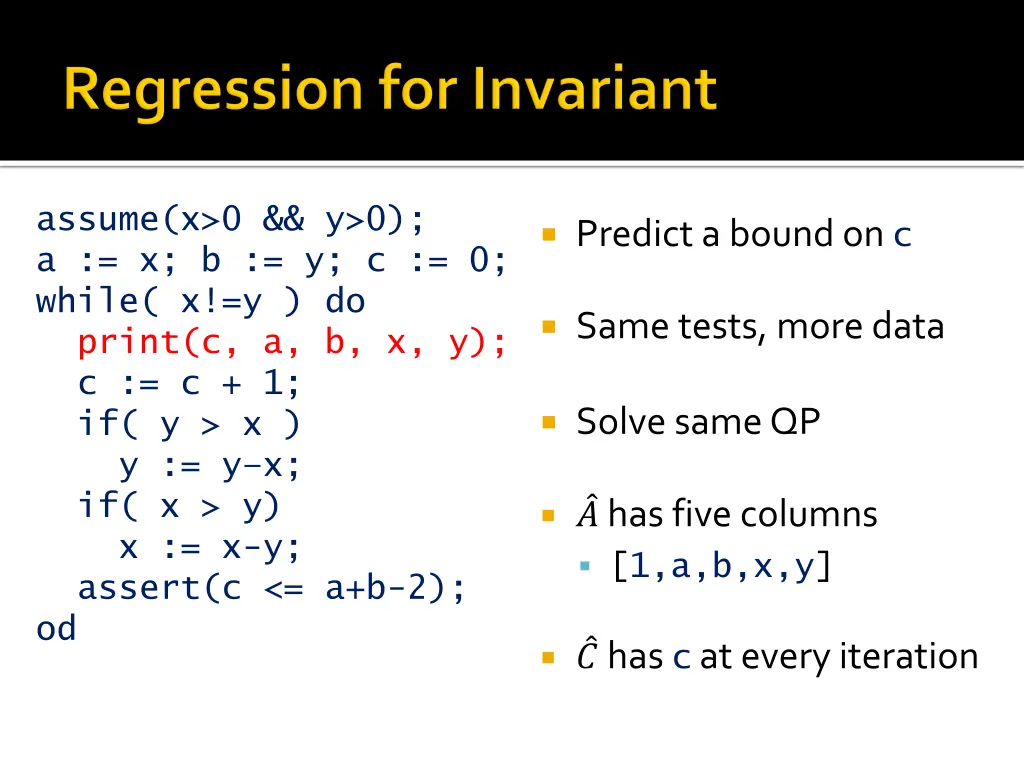

assume(x>0 && y>0); a := x; b := y; c := 0; while( x!=y ) do print(c, a, b, x, y); c := c + 1; if( y > x ) y := y x; if( x > y) x := x-y; assert(c <= a+b-2); od Predict a bound onc Same tests, more data Solve same QP ?has five columns [1,a,b,x,y] ?hascat every iteration

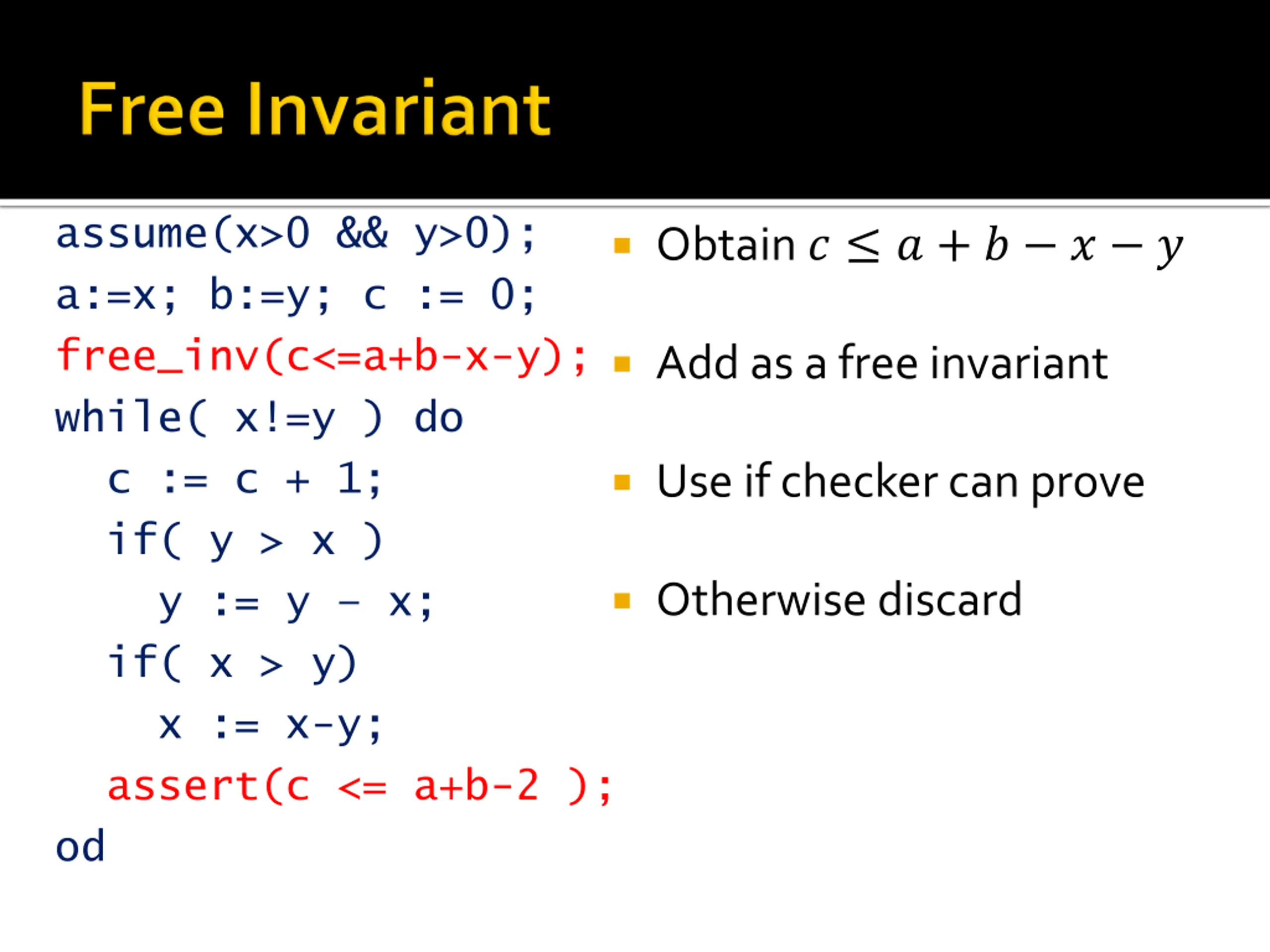

assume(x>0 && y>0); a:=x; b:=y; c := 0; free_inv(c<=a+b-x-y); while( x!=y ) do c := c + 1; if( y > x ) y := y x; if( x > y) x := x-y; assert(c <= a+b-2 ); od Obtain ? ? + ? ? ? Add as a free invariant Use if checker can prove Otherwise discard

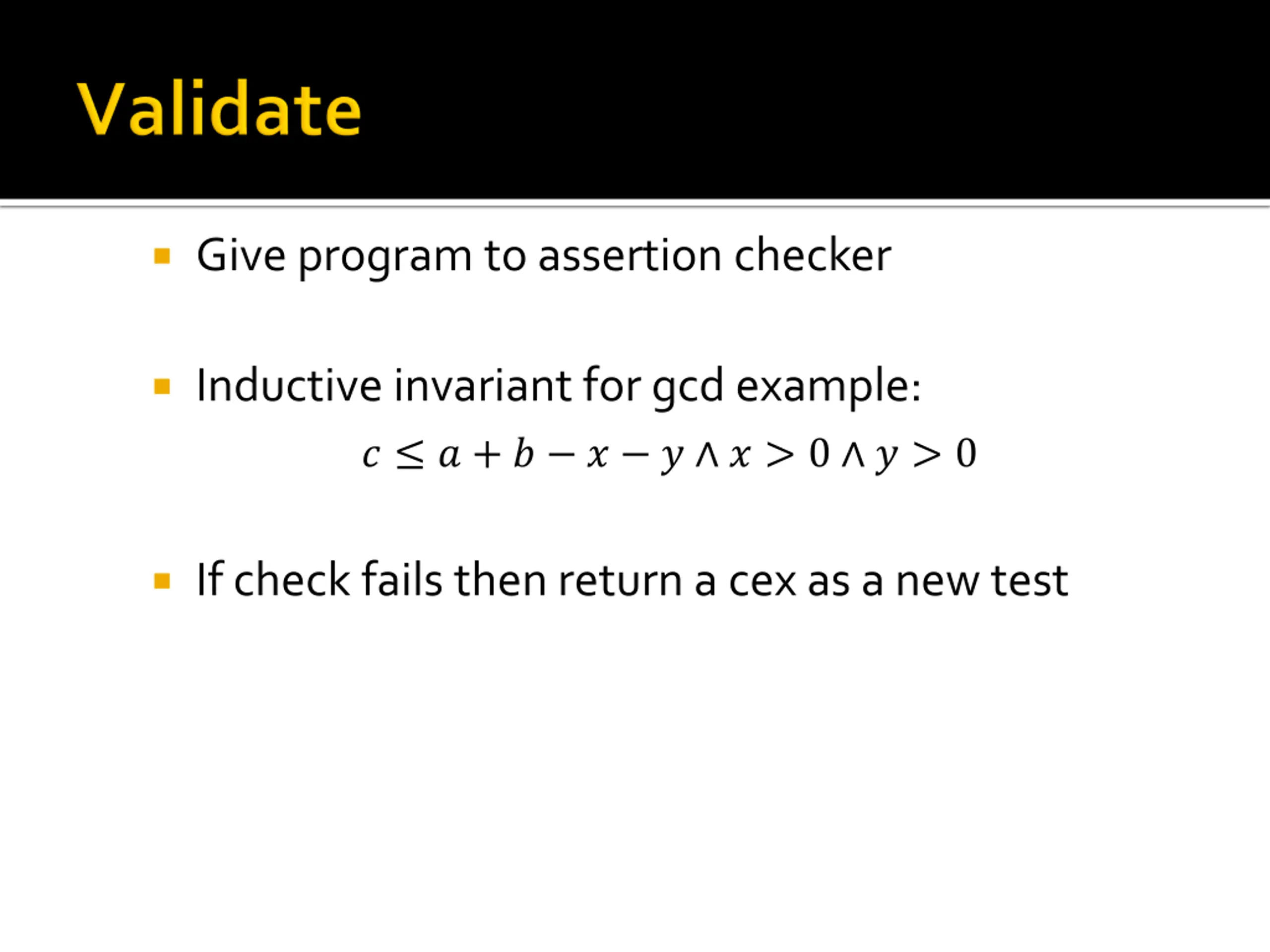

Give program to assertion checker Inductive invariant for gcd example: ? ? + ? ? ? ? > 0 ? > 0 If check fails then return a cex as a new test

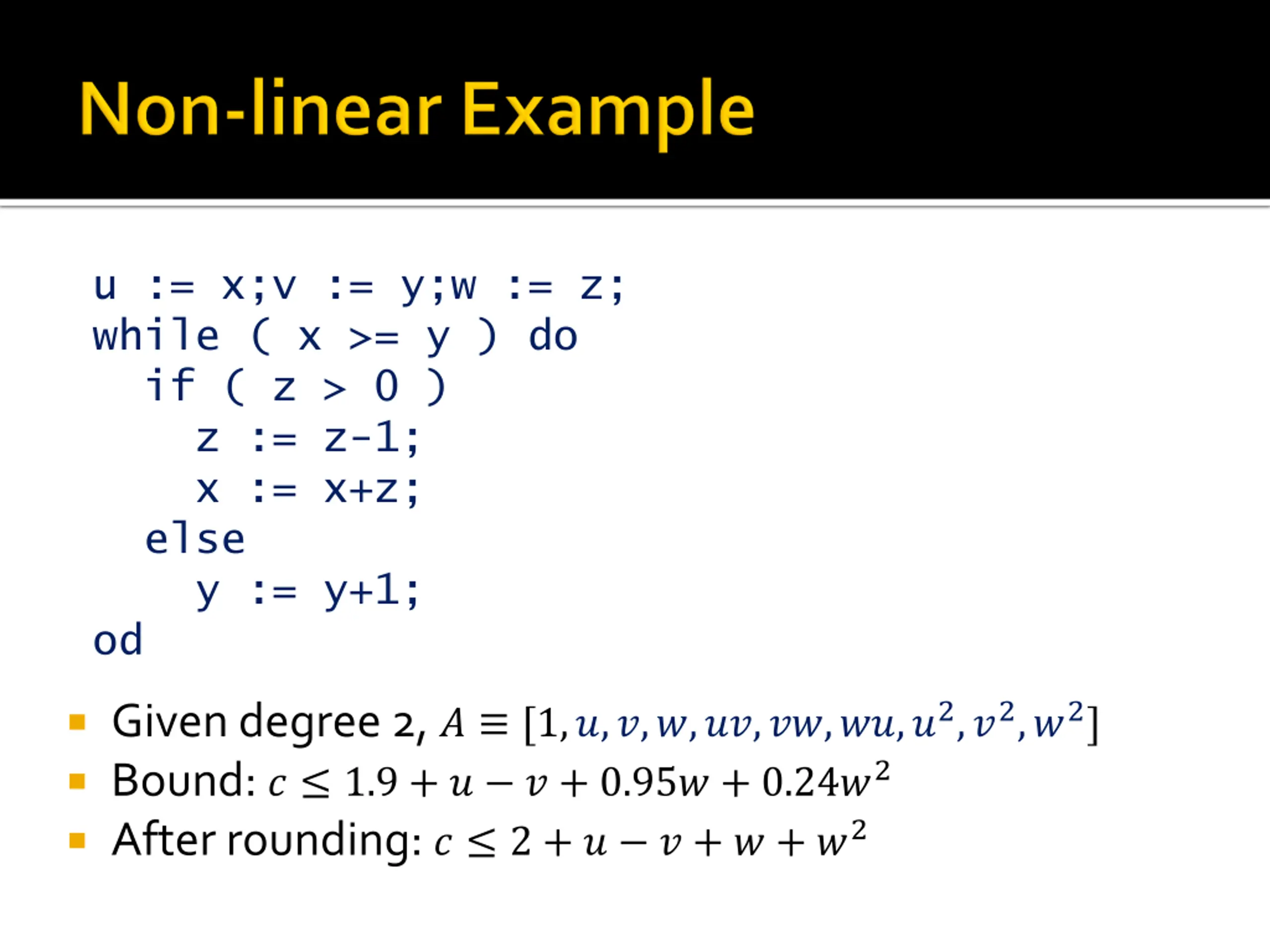

u := x;v := y;w := z; while ( x >= y ) do if ( z > 0 ) z := z-1; x := x+z; else y := y+1; od Given degree 2, ? [1,?,?,?,??,??,??,?2,?2,?2] Bound: ? 1.9 + ? ? + 0.95? + 0.24?2 After rounding: ? 2 + ? ? + ? + ?2

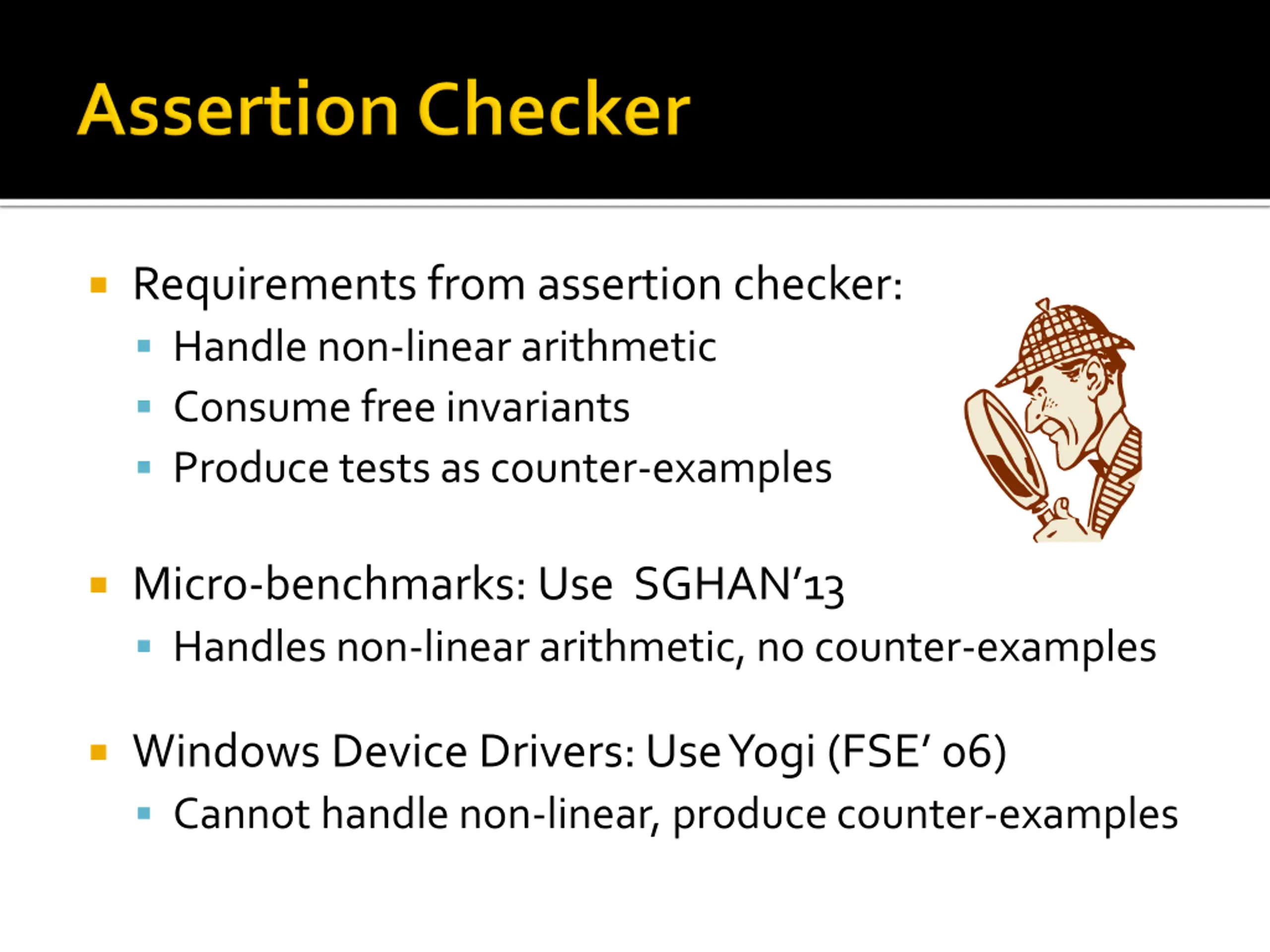

Requirements from assertion checker: Handle non-linear arithmetic Consume free invariants Produce tests as counter-examples Micro-benchmarks: Use SGHAN 13 Handles non-linear arithmetic, no counter-examples Windows Device Drivers: Use Yogi (FSE 06) Cannot handle non-linear, produce counter-examples

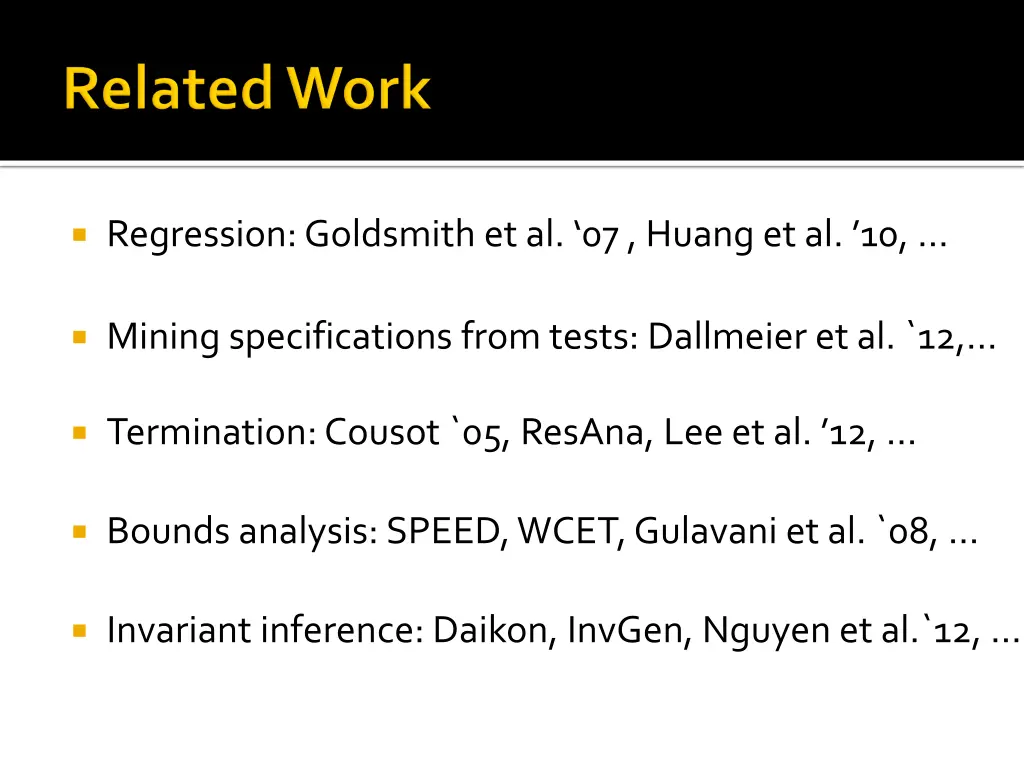

Regression: Goldsmith et al. 07 , Huang et al. 10, Mining specifications from tests: Dallmeier et al. `12, Termination: Cousot `05, ResAna, Lee et al. 12, Bounds analysis: SPEED, WCET, Gulavani et al. `08, Invariant inference: Daikon, InvGen, Nguyen et al.`12,

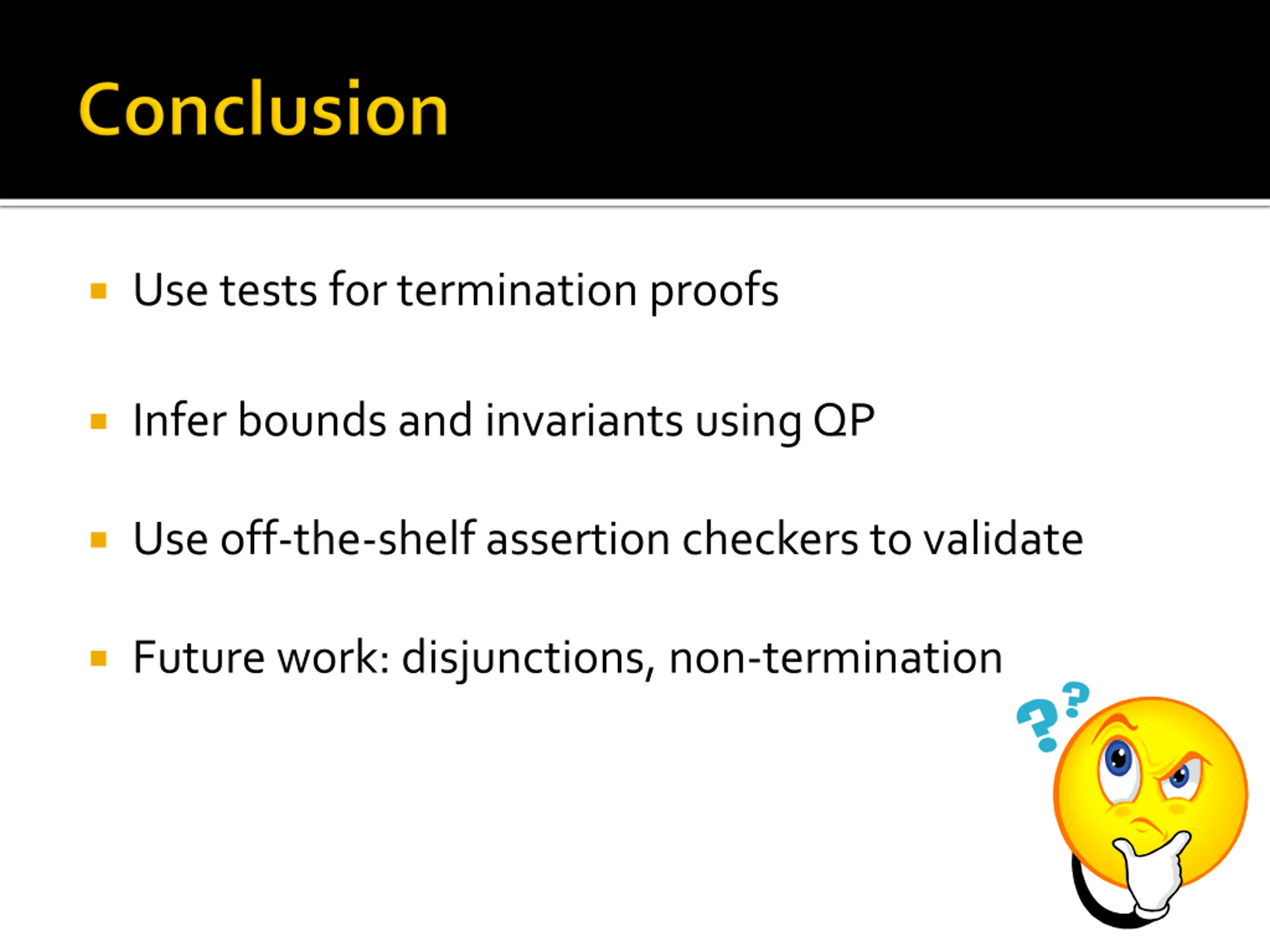

Use tests for termination proofs Infer bounds and invariants using QP Use off-the-shelf assertion checkers to validate Future work: disjunctions, non-termination

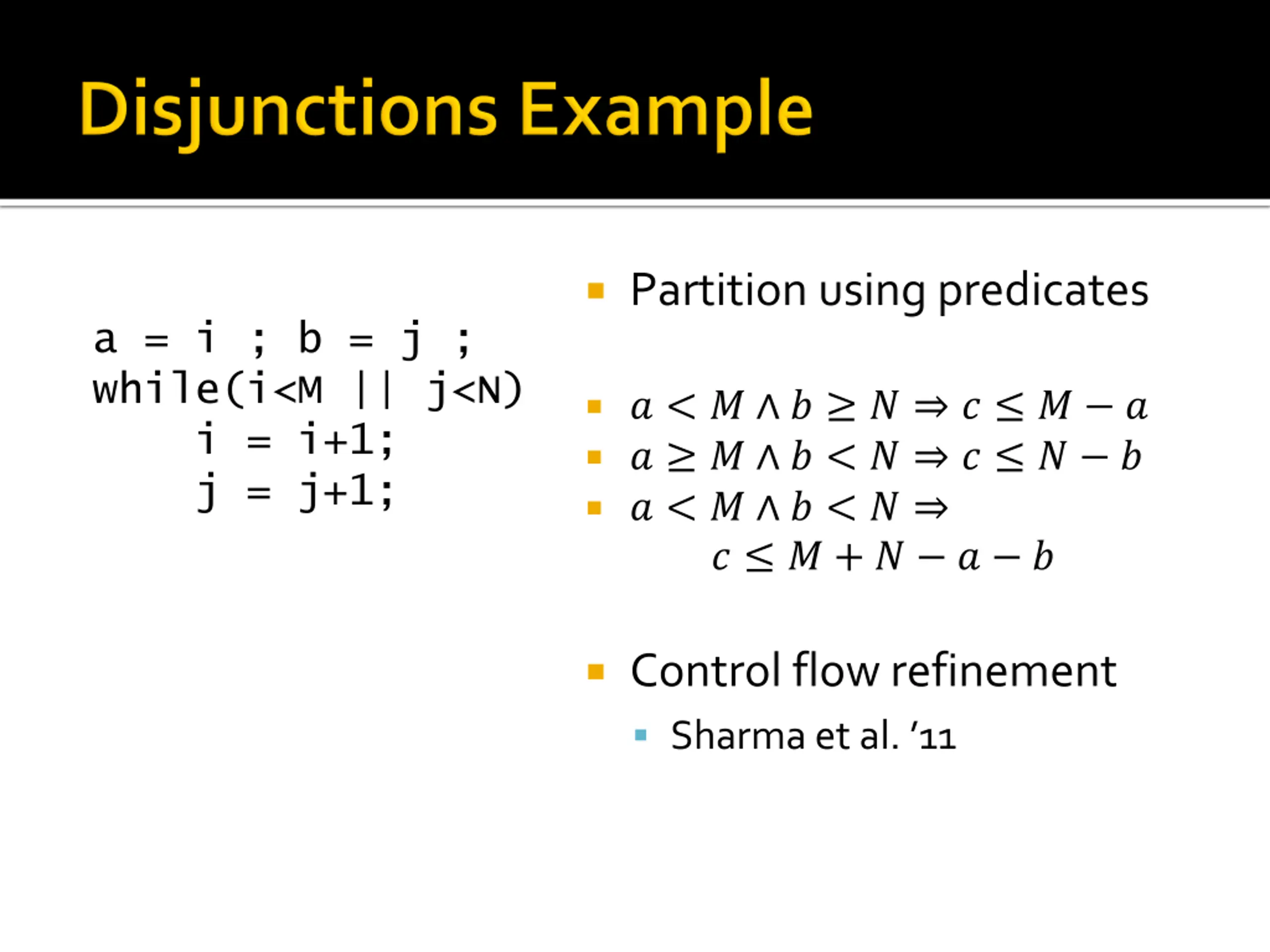

Partition using predicates a = i ; b = j ; while(i<M || j<N) i = i+1; j = j+1; ? < ? ? ? ? ? ? ? ? ? < ? ? ? ? ? < ? ? < ? ? ? + ? ? ? Control flow refinement Sharma et al. 11
