Proxy Pattern presented by Ting Lu & Xinfu Lu
Part 1 2 Problem ProblemContext Context

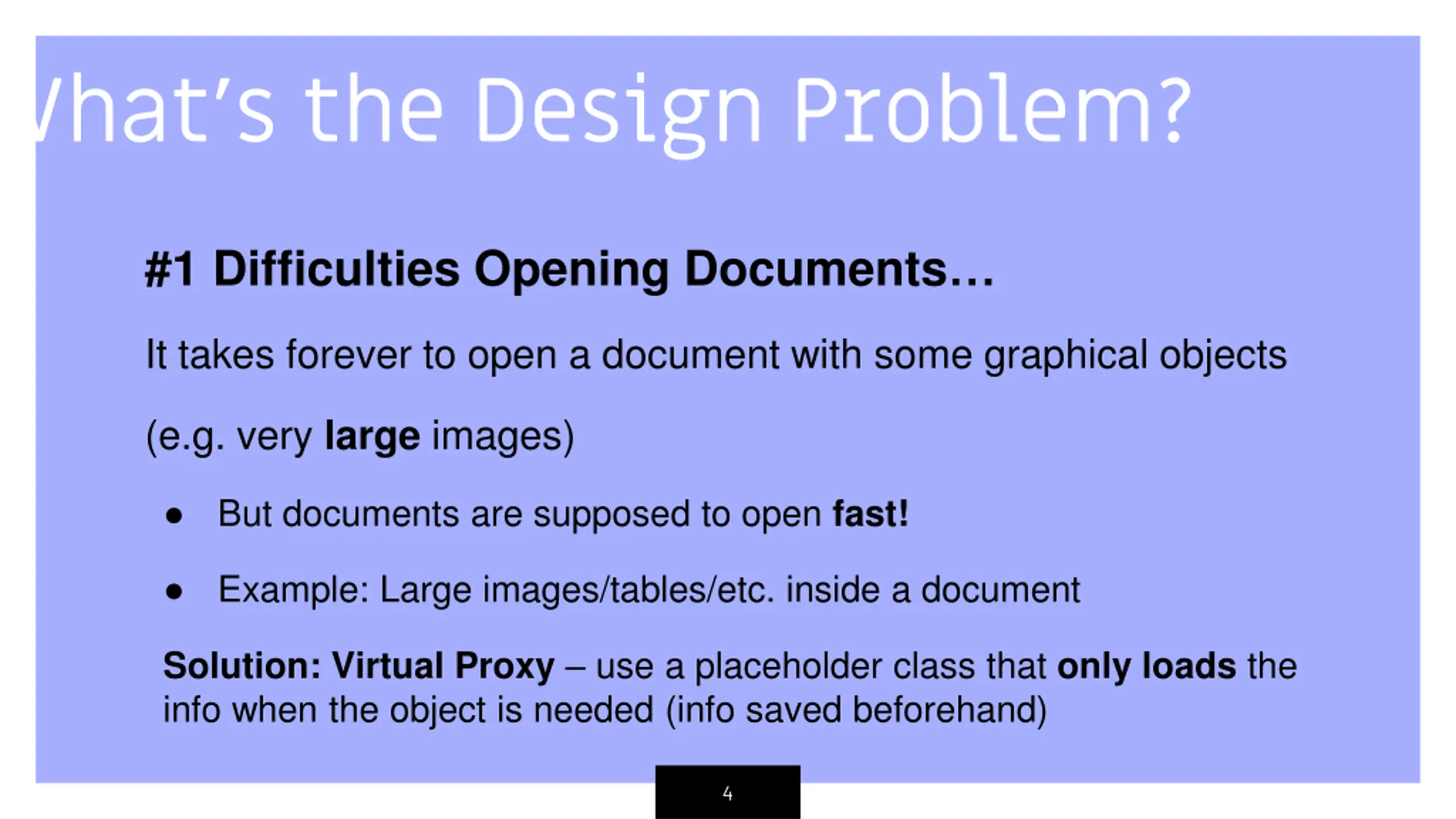

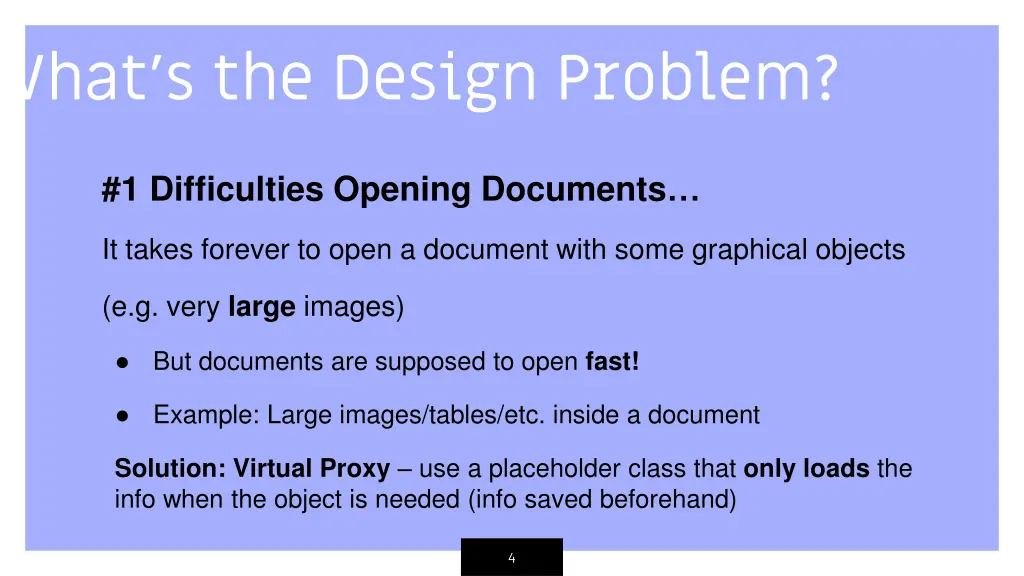

Whats the Design Problem? #1 Difficulties Opening Documents It takes forever to open a document with some graphical objects (e.g. very large images) But documents are supposed to open fast! Example: Large images/tables/etc. inside a document Solution: Virtual Proxy use a placeholder class that only loads the info when the object is needed (info saved beforehand) 4

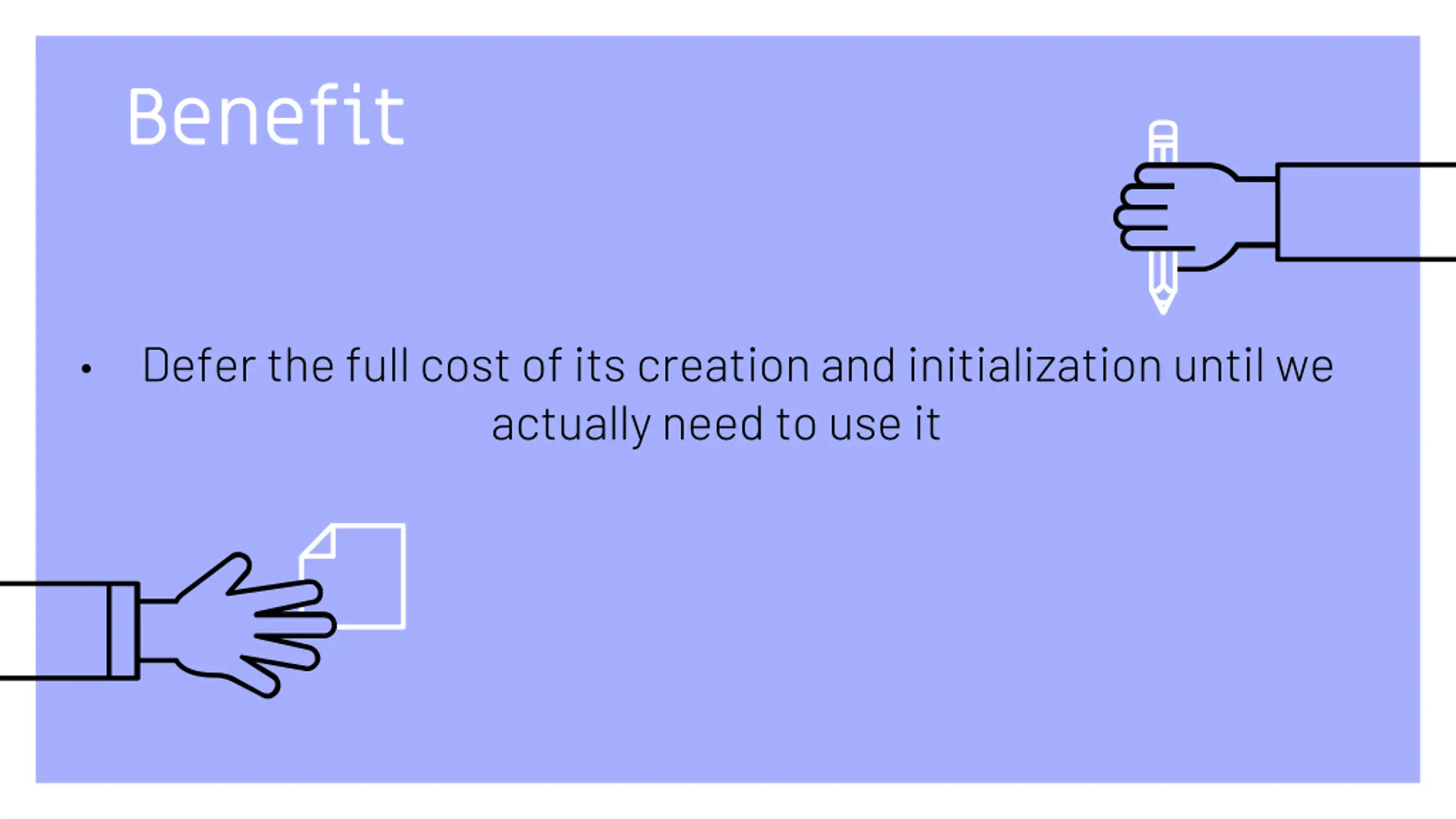

Benefit Defer the full cost of its creation and initialization until we actually need to use it
Suppose we just got the 2018 Mclaren 6
Then the kid nextdoor climbed onto the car 7

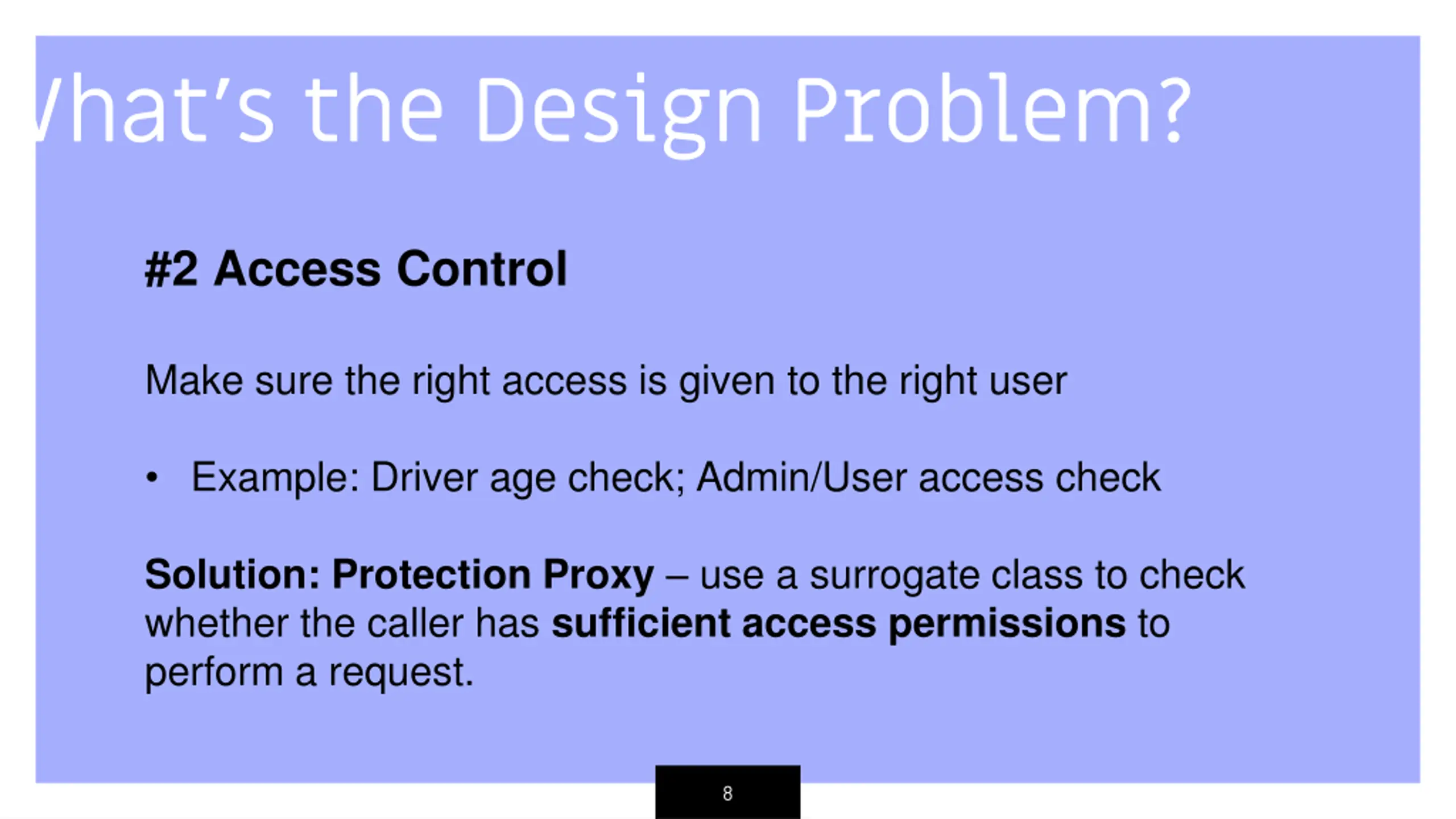

Whats the Design Problem? #2 Access Control Make sure the right access is given to the right user Example: Driver age check; Admin/User access check Solution: Protection Proxy use a surrogate class to check whether the caller has sufficient access permissions to perform a request. 8

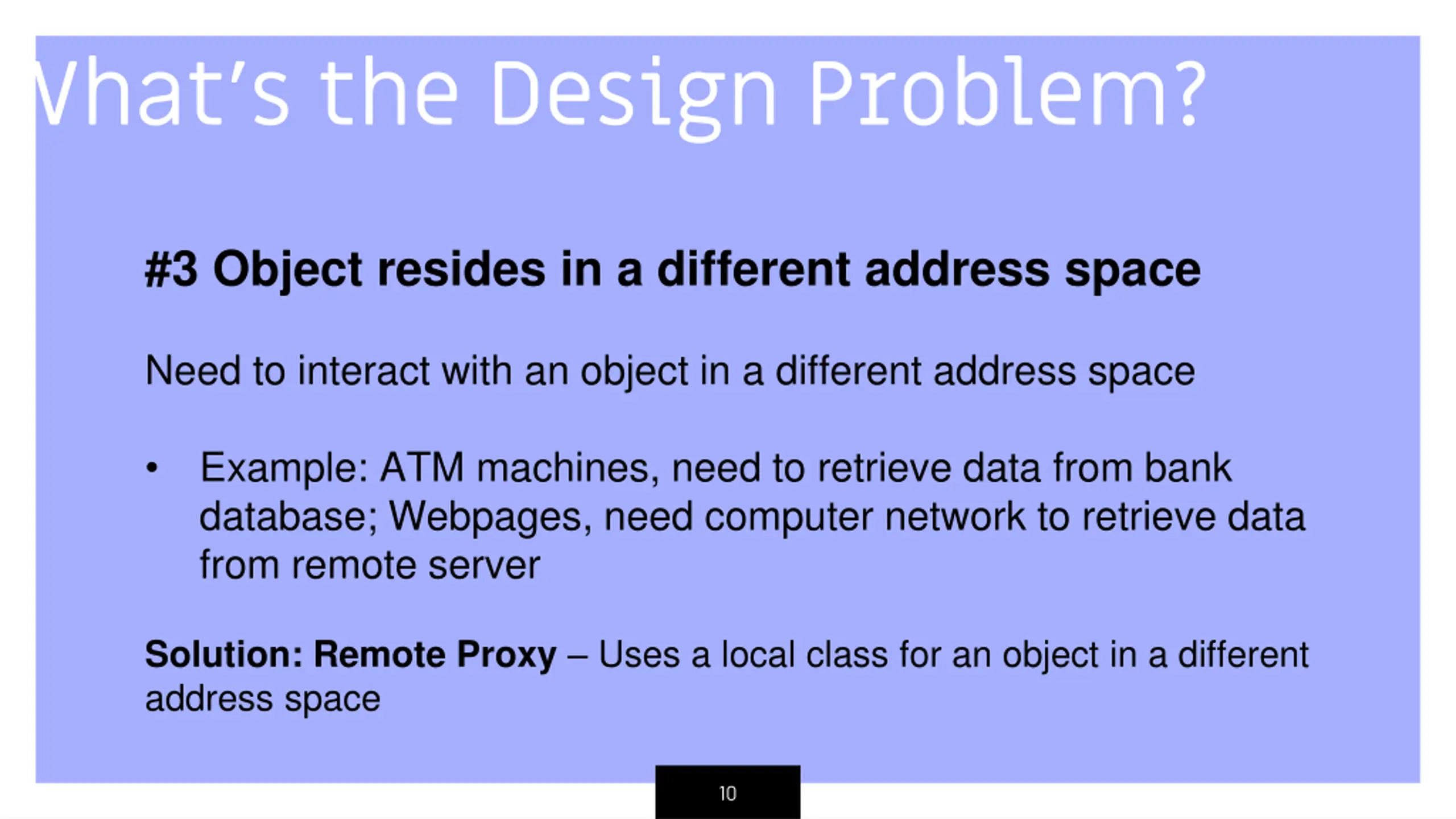

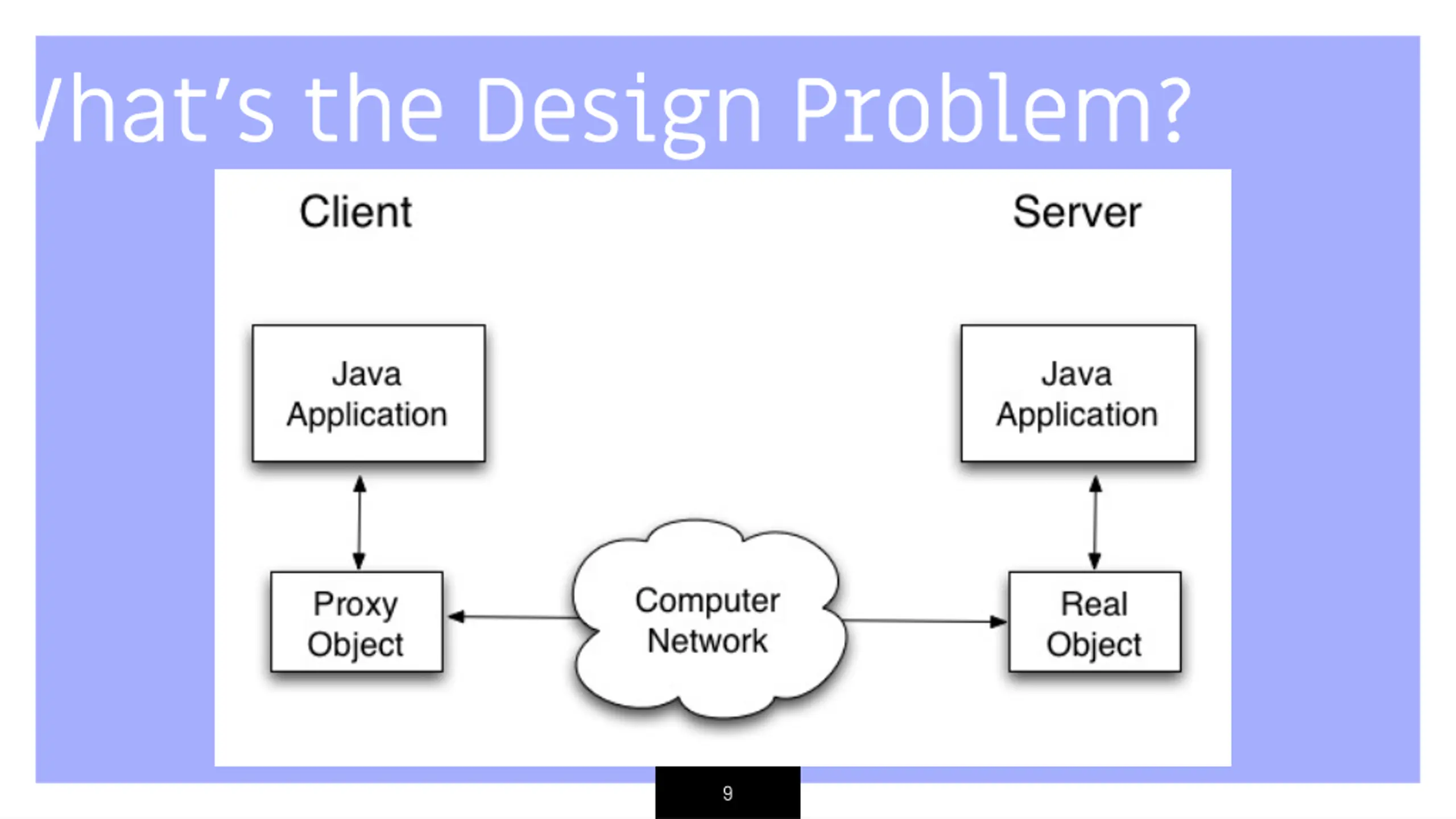

Whats the Design Problem? #3 Object resides in a different address space Need to interact with an object in a different address space Example: ATM machines, need to retrieve data from bank database; Webpages, need computer network to retrieve data from remote server Solution: Remote Proxy Uses a local class for an object in a different address space 10

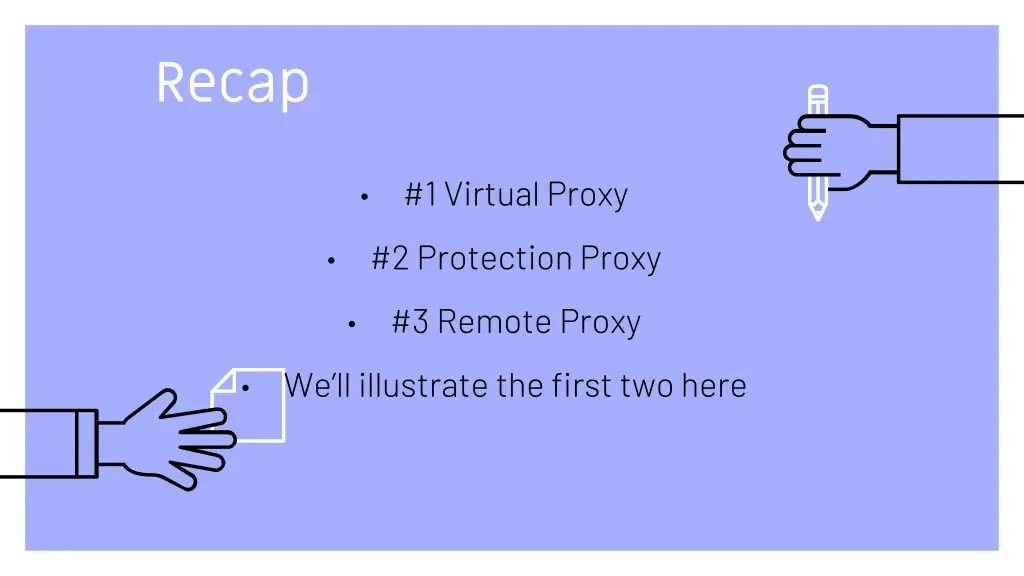

Recap #1 VirtualProxy #2 ProtectionProxy #3 Remote Proxy We llillustrate thefirst twohere
Part 2 12 Description Descriptionof of Example Example

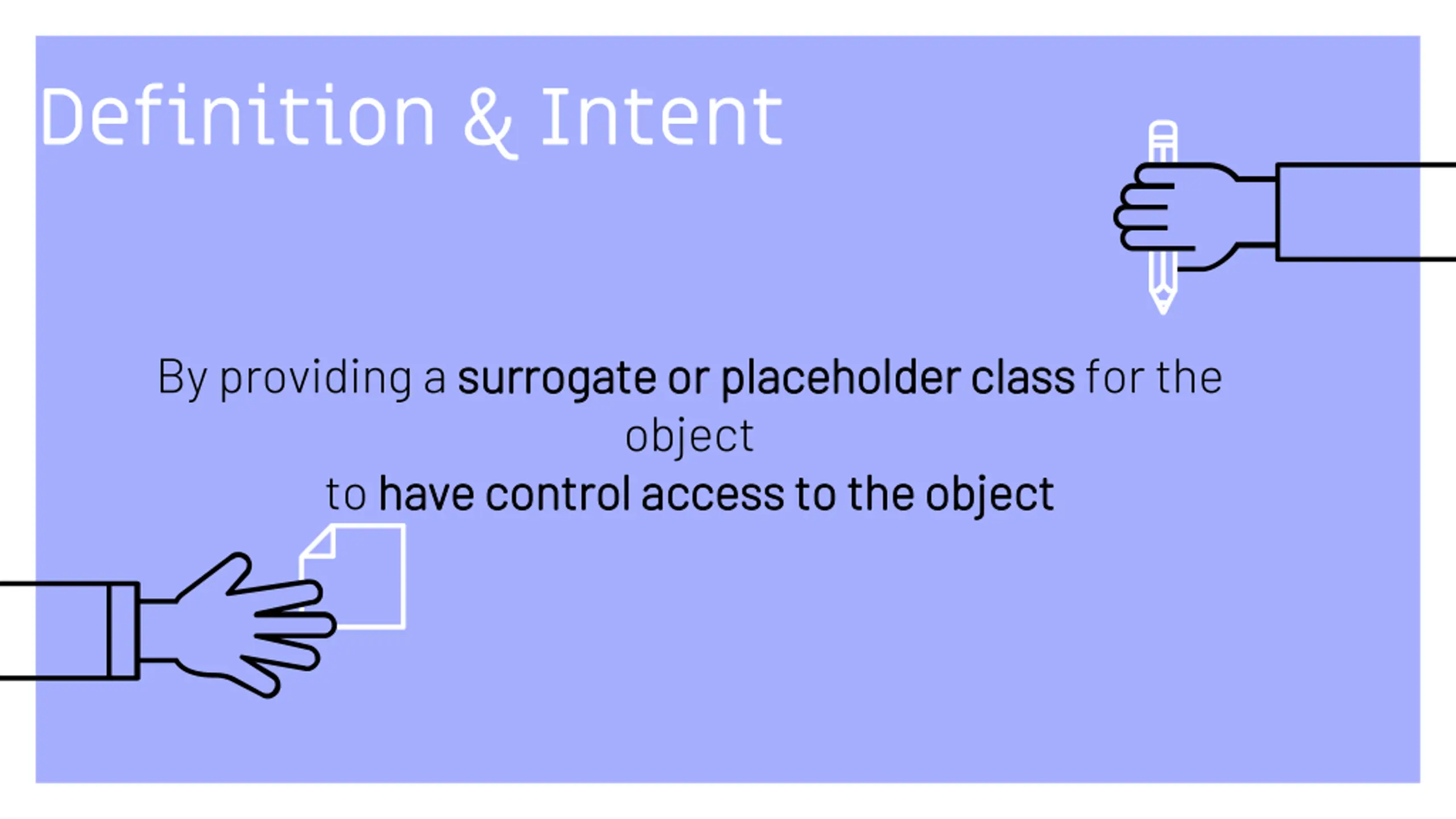

Definition & Intent Byprovidinga surrogate or placeholder surrogate or placeholder class classfor the object tohave havecontrol access to control access to the theobject object

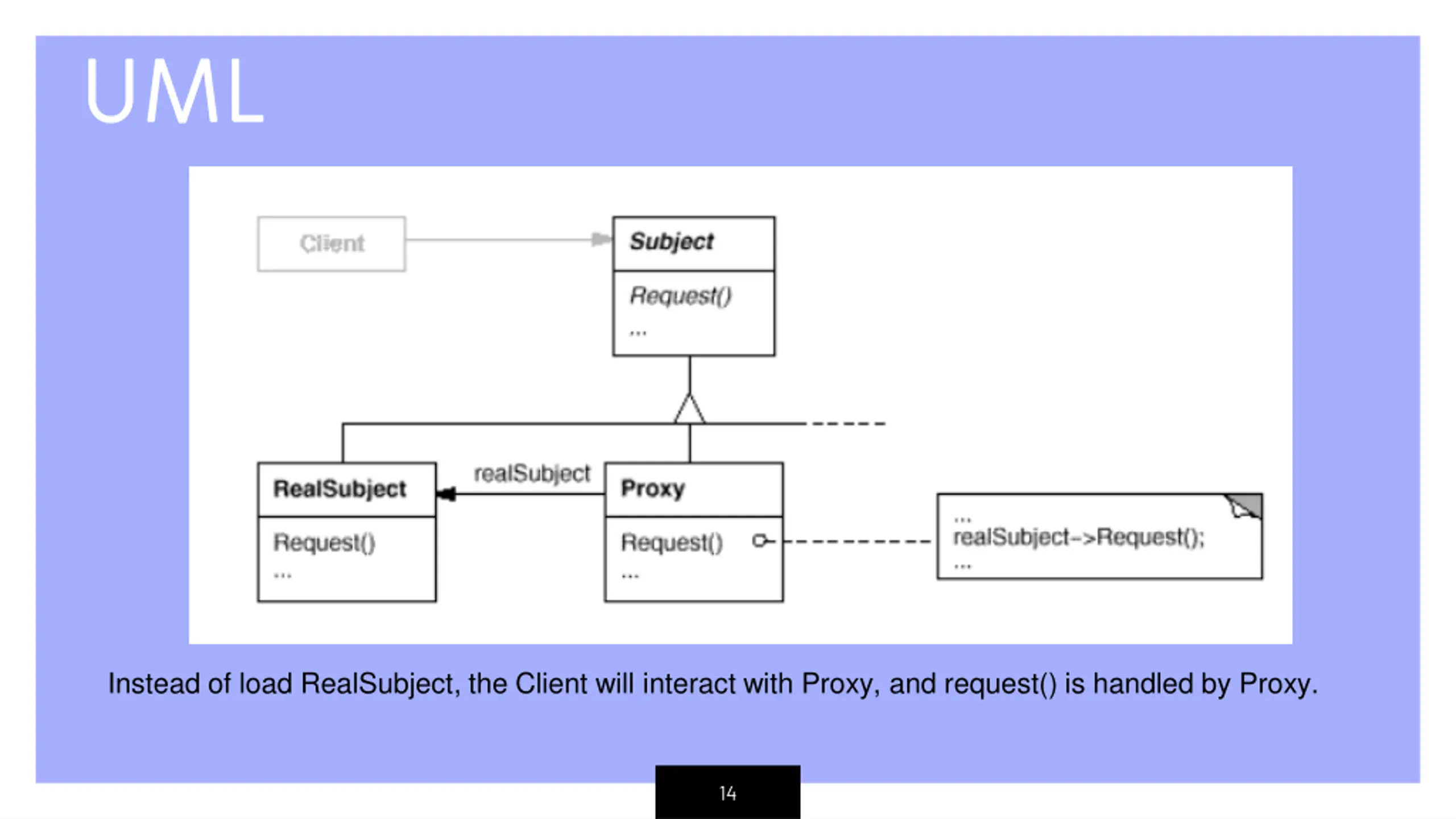

UML Instead of load RealSubject, the Client will interact with Proxy, and request() is handled by Proxy. 14

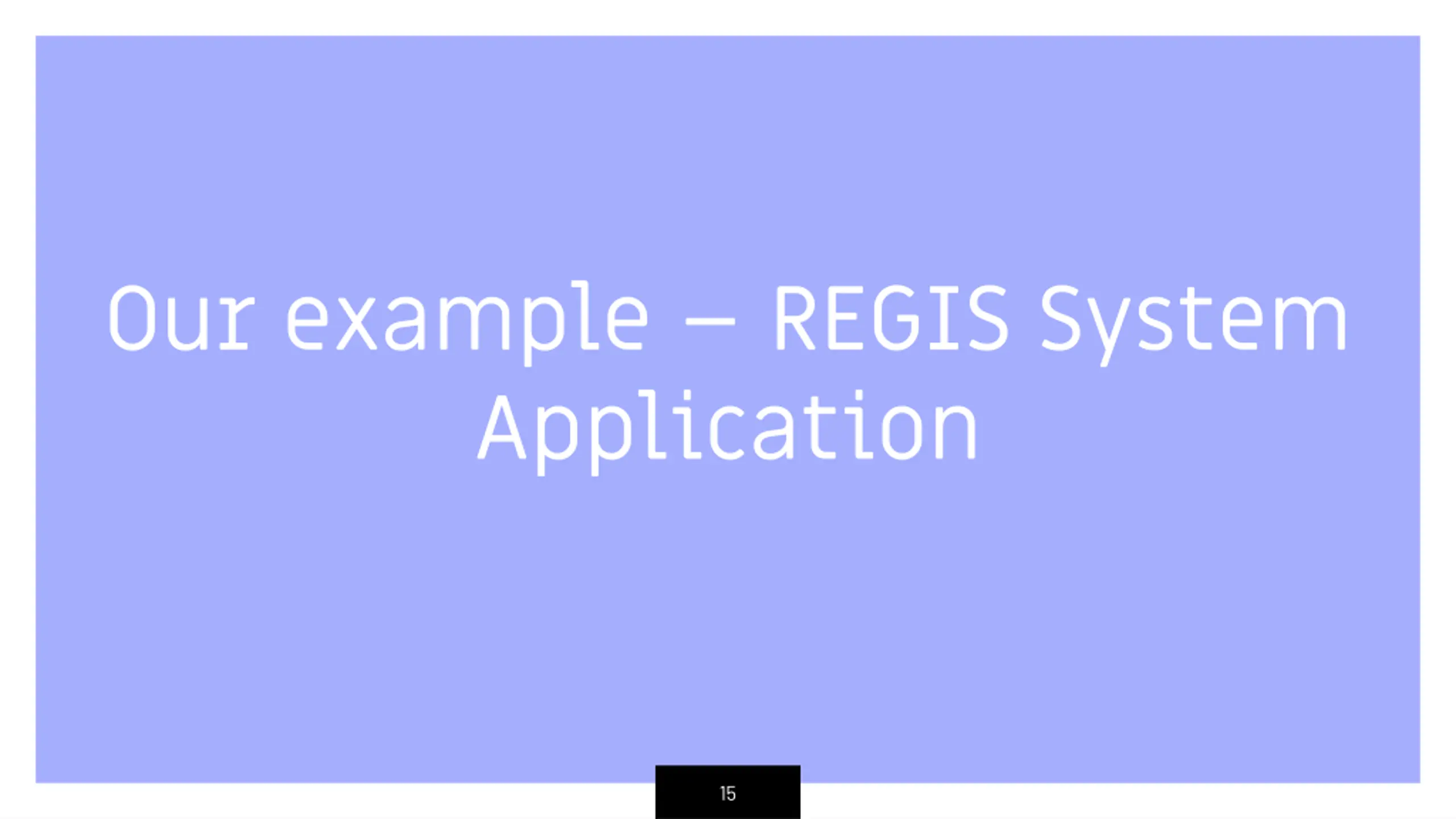

Our example REGIS System Application 15

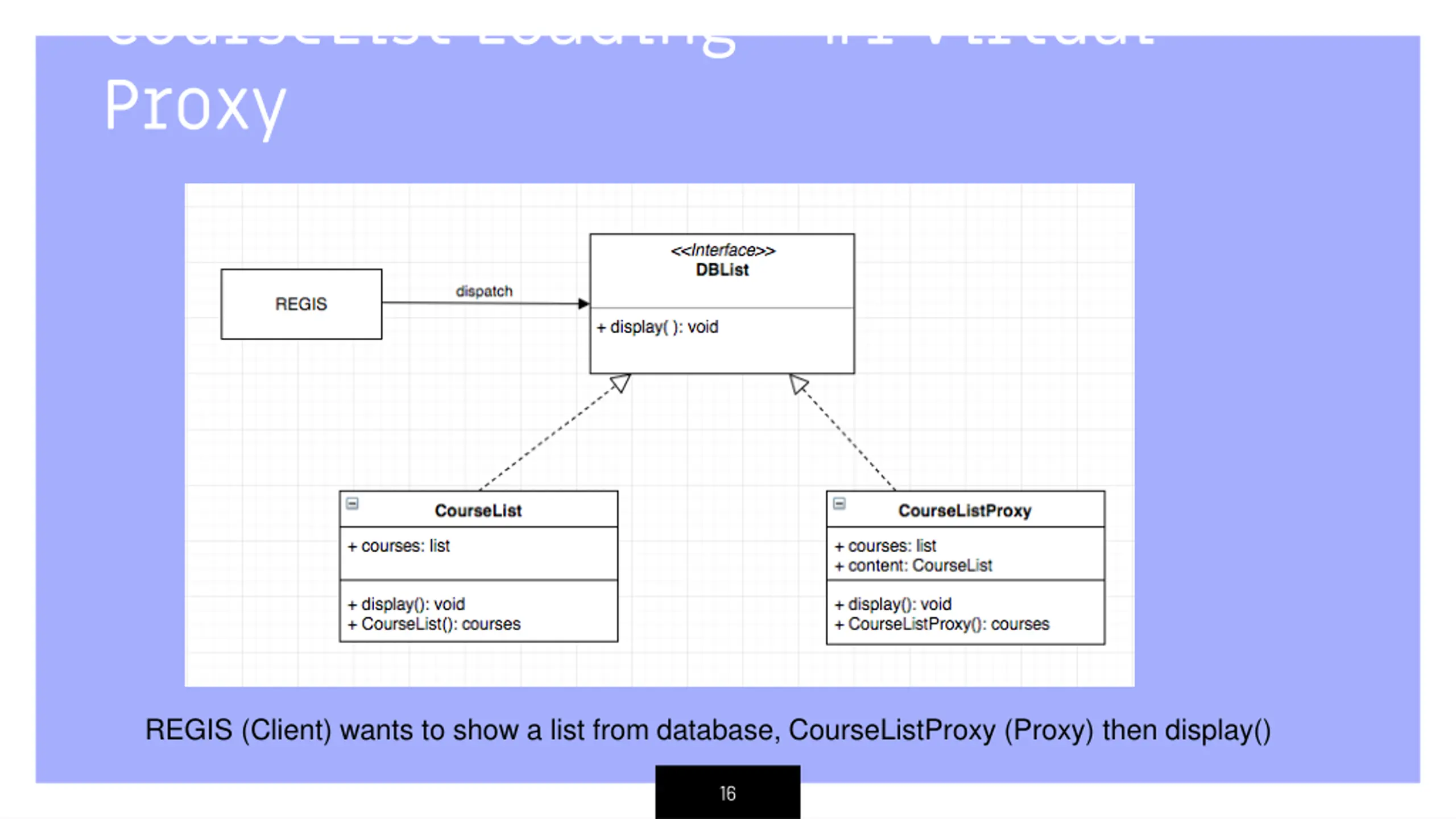

CourseList Loading - #1 Virtual Proxy REGIS (Client) wants to show a list from database, CourseListProxy (Proxy) then display() 16

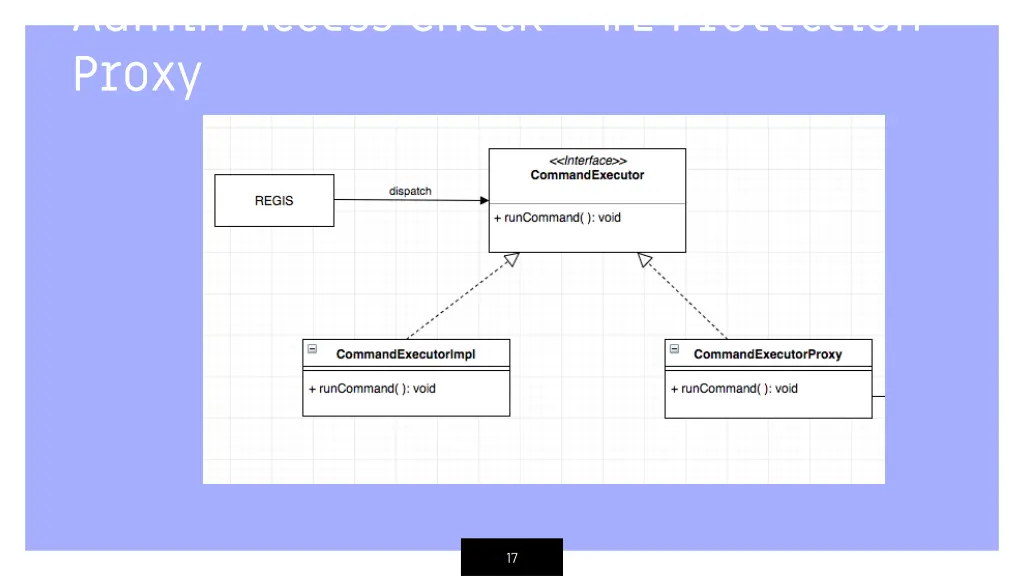

Admin Access Check - #2 Protection Proxy 17
Part 3 18 Implementation Implementation in inPython Python

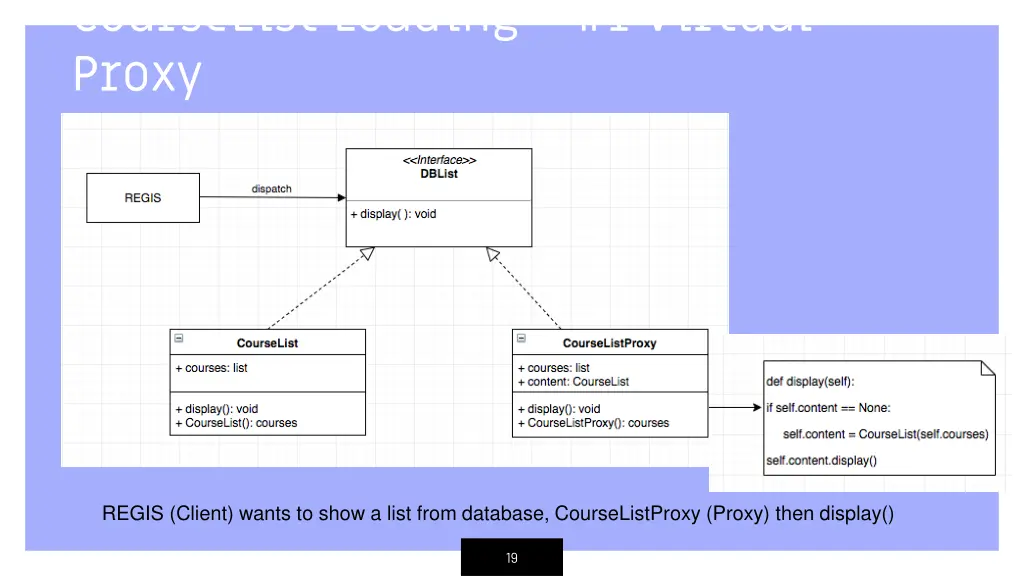

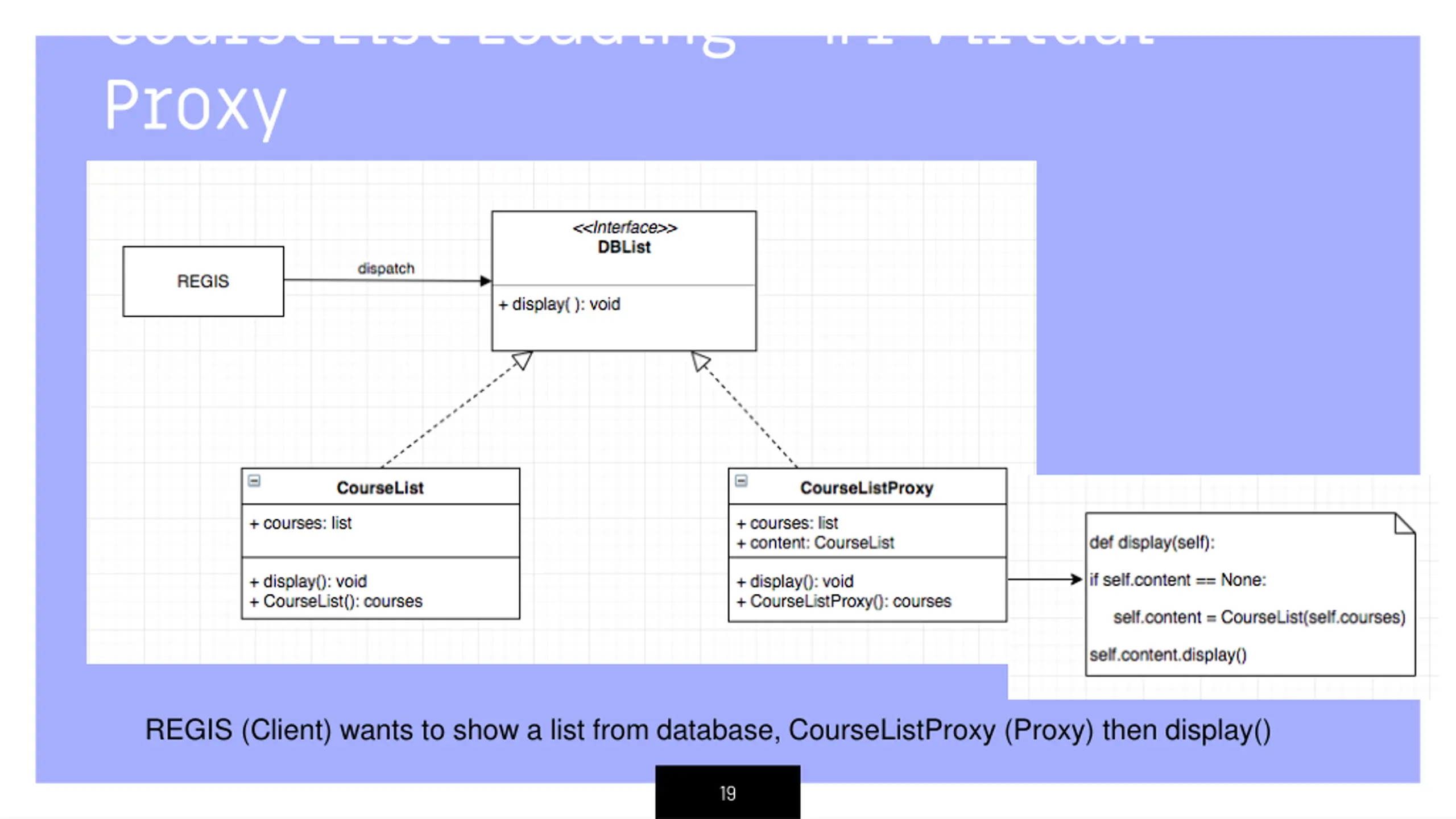

CourseList Loading - #1 Virtual Proxy REGIS (Client) wants to show a list from database, CourseListProxy (Proxy) then display() 19

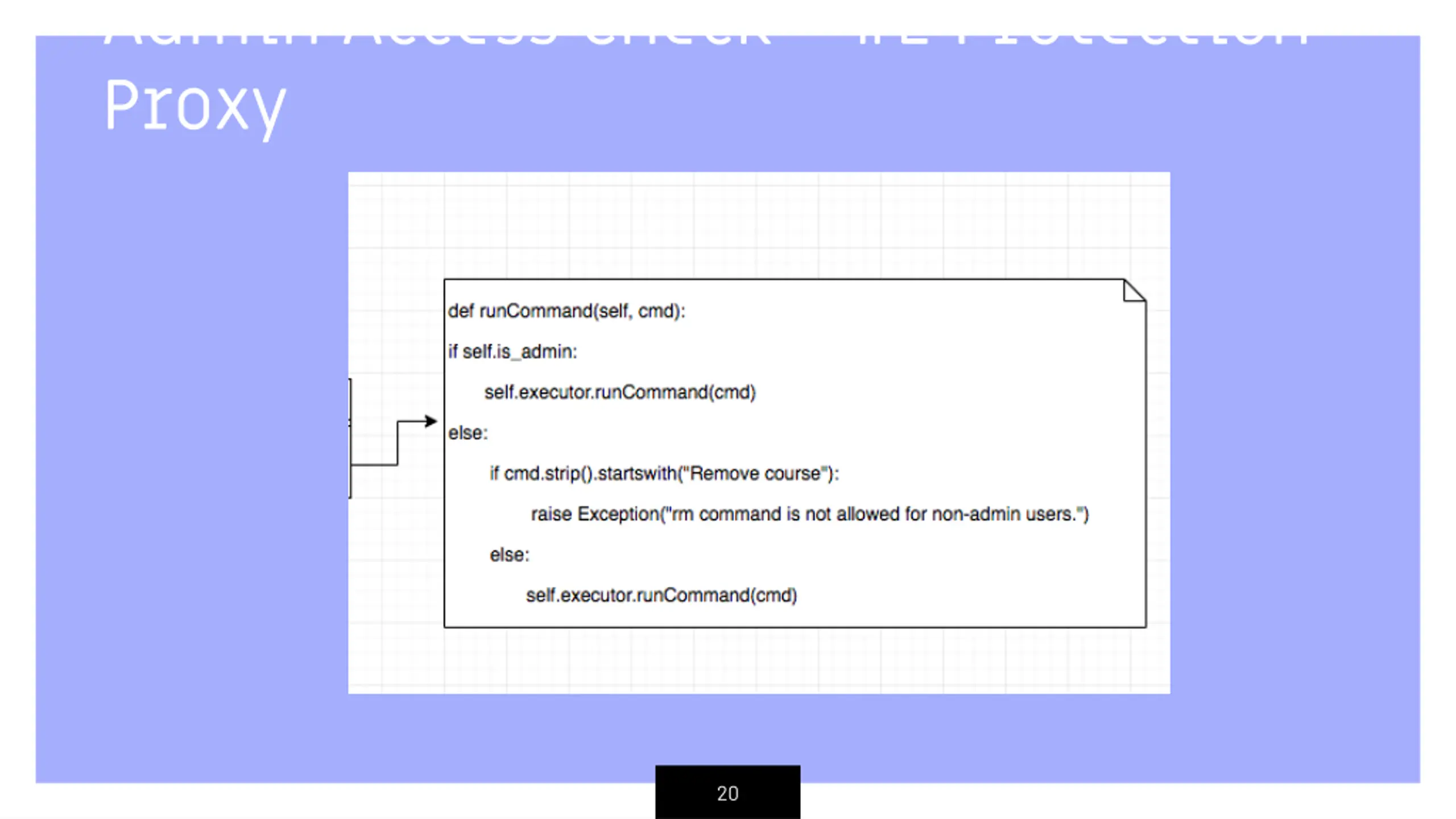

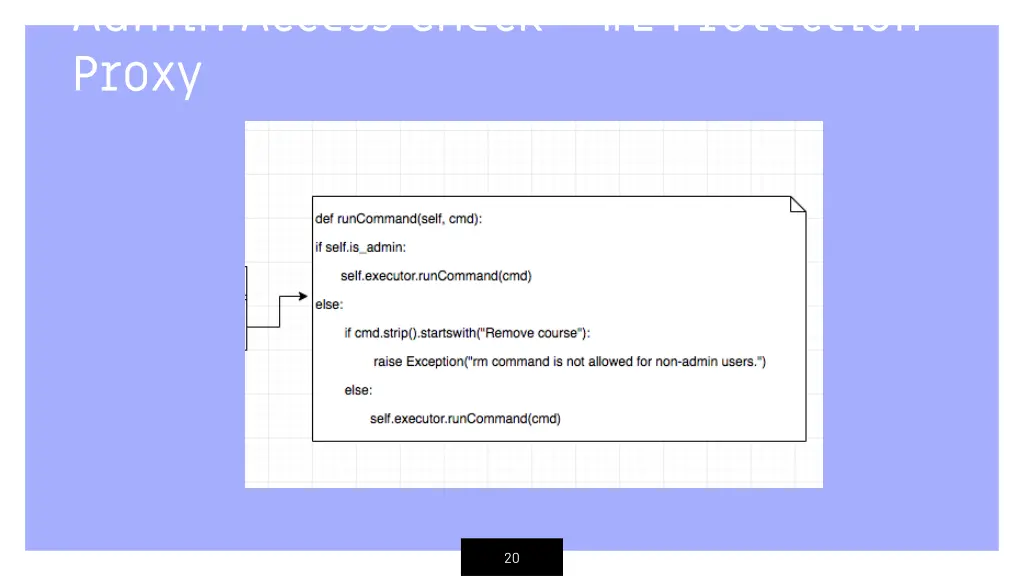

Admin Access Check - #2 Protection Proxy 20

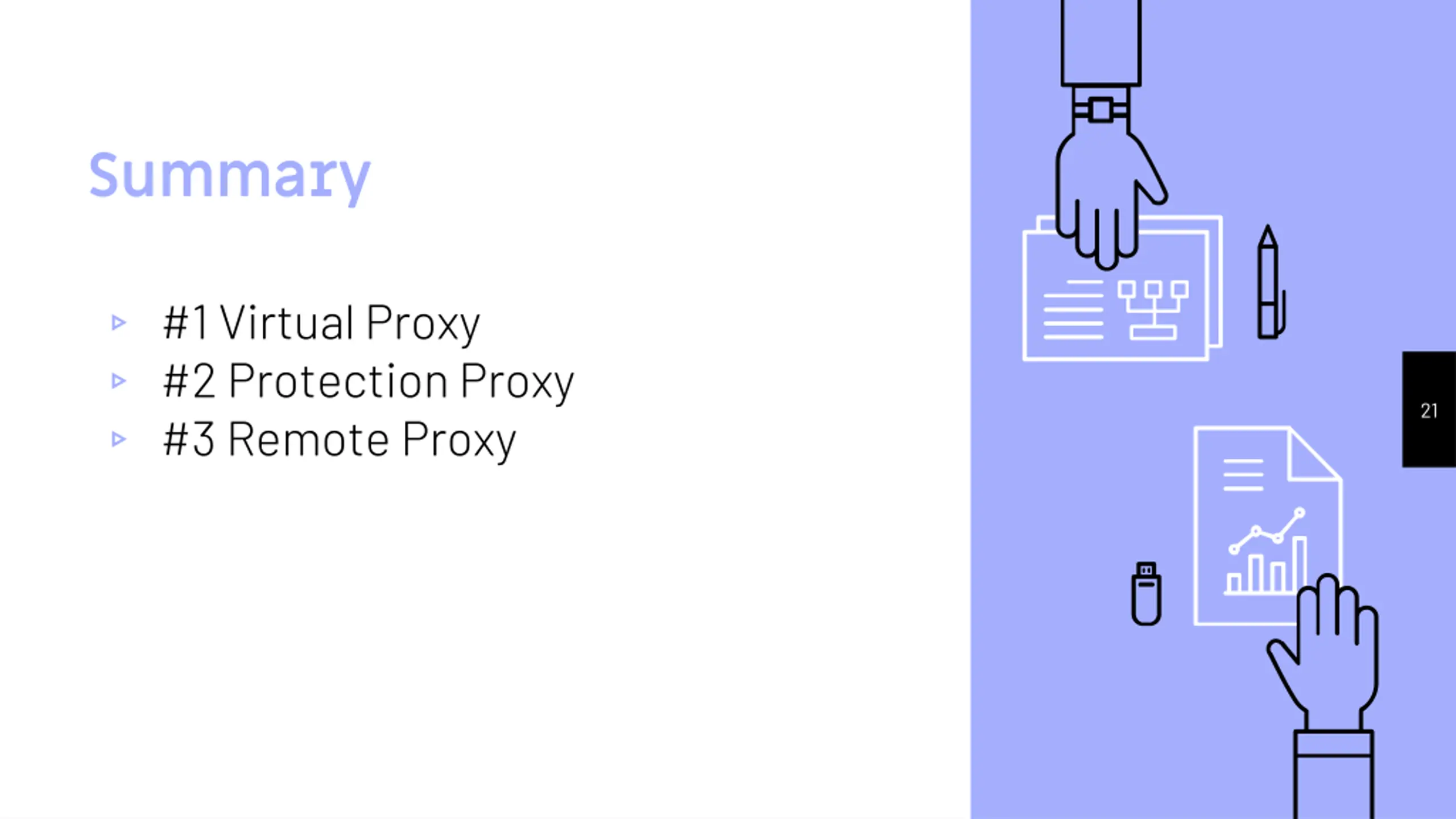

Summary #1 VirtualProxy #2ProtectionProxy #3 Remote Proxy 21
Proxy is applicable whenever there is a need for a more versatile or sophisticated versatile or sophisticated reference referenceto an object than a simple pointer a more 22
THANKS! Any questions? Any questions? 23
