? Intelligent Signal Processing Test Angelo Ciaramella

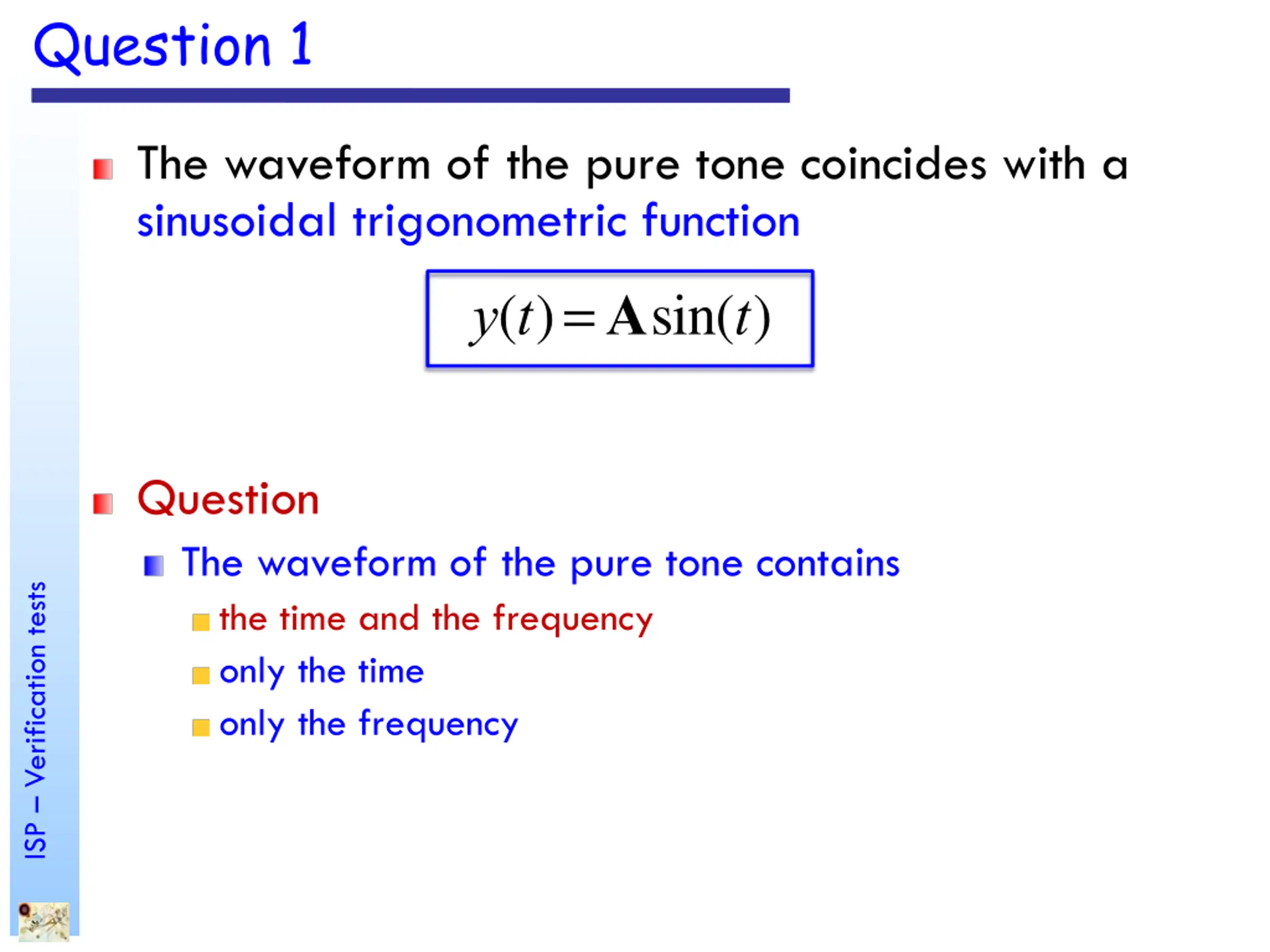

Question 1 The waveform of the pure tone coincides with a sinusoidal trigonometric function y(t)=Asin(t) Question The waveform of the pure tone contains the time and the frequency only the time only the frequency ISP Verification tests .

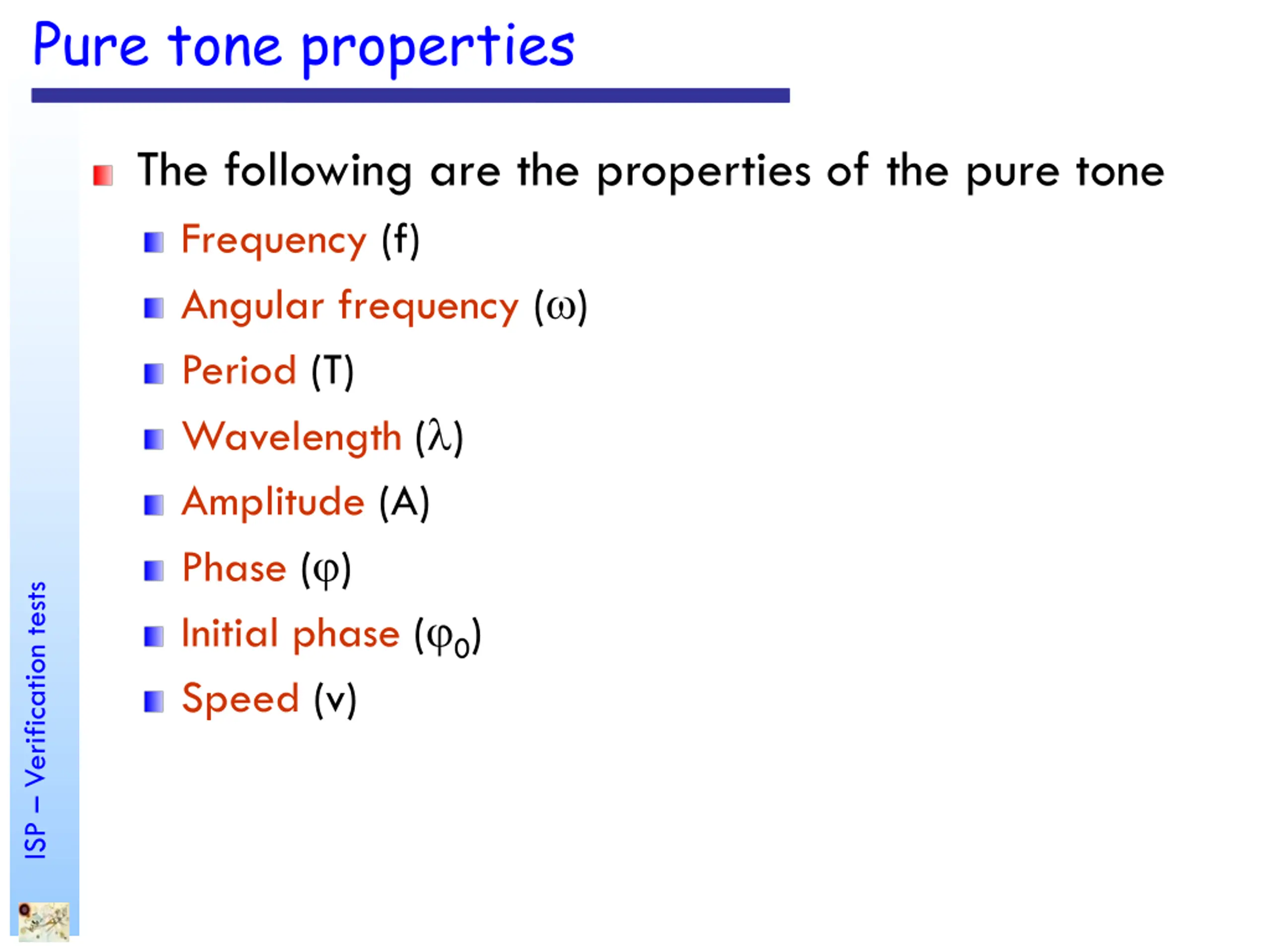

Pure tone properties The following are the properties of the pure tone Frequency (f) Angular frequency ( ) Period (T) Wavelength ( ) Amplitude (A) Phase ( ) Initial phase ( 0) Speed (v) ISP Verification tests

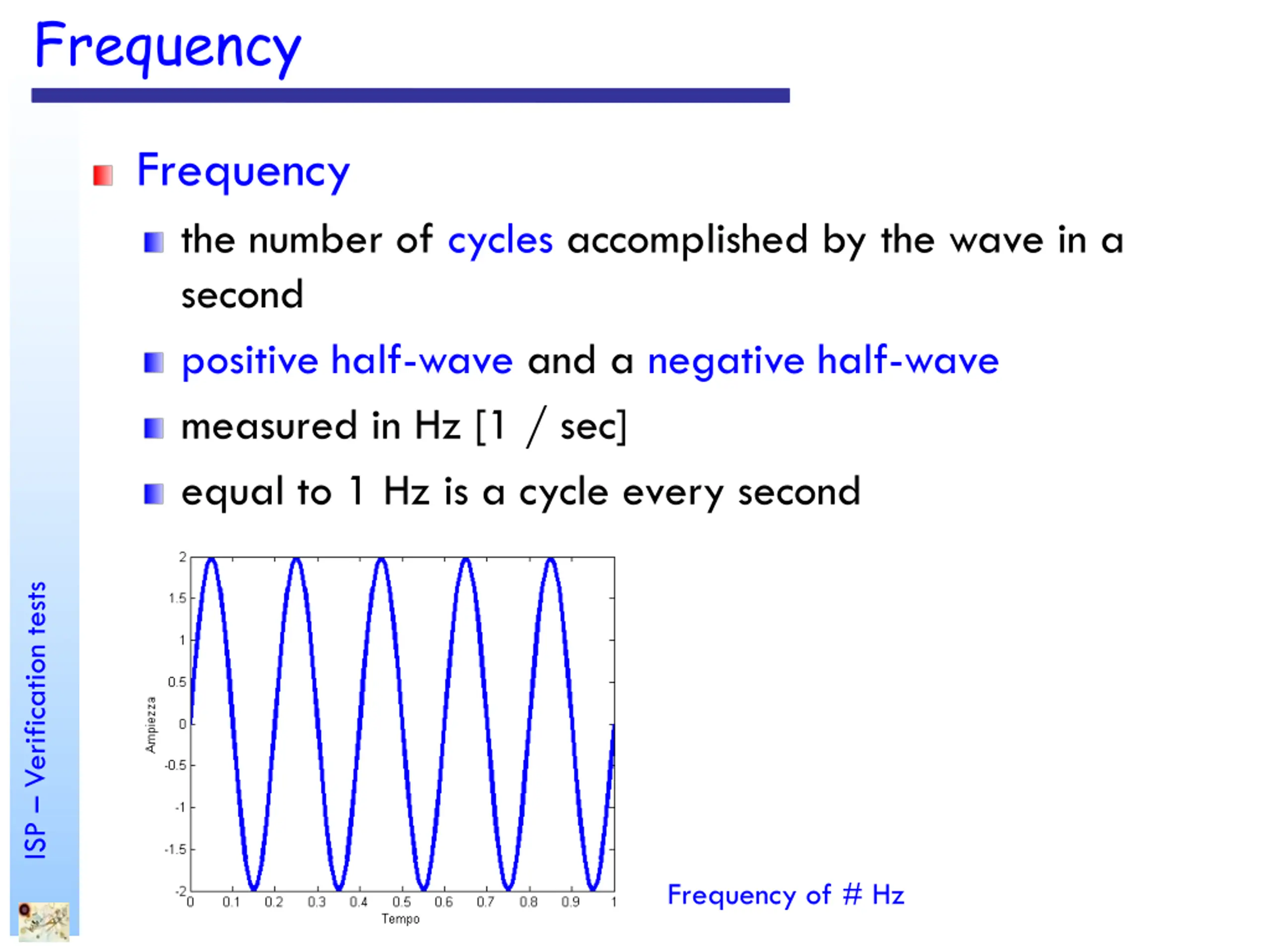

Frequency Frequency the number of cycles accomplished by the wave in a second positive half-wave and a negative half-wave measured in Hz [1 / sec] equal to 1 Hz is a cycle every second ISP Verification tests Frequency of # Hz

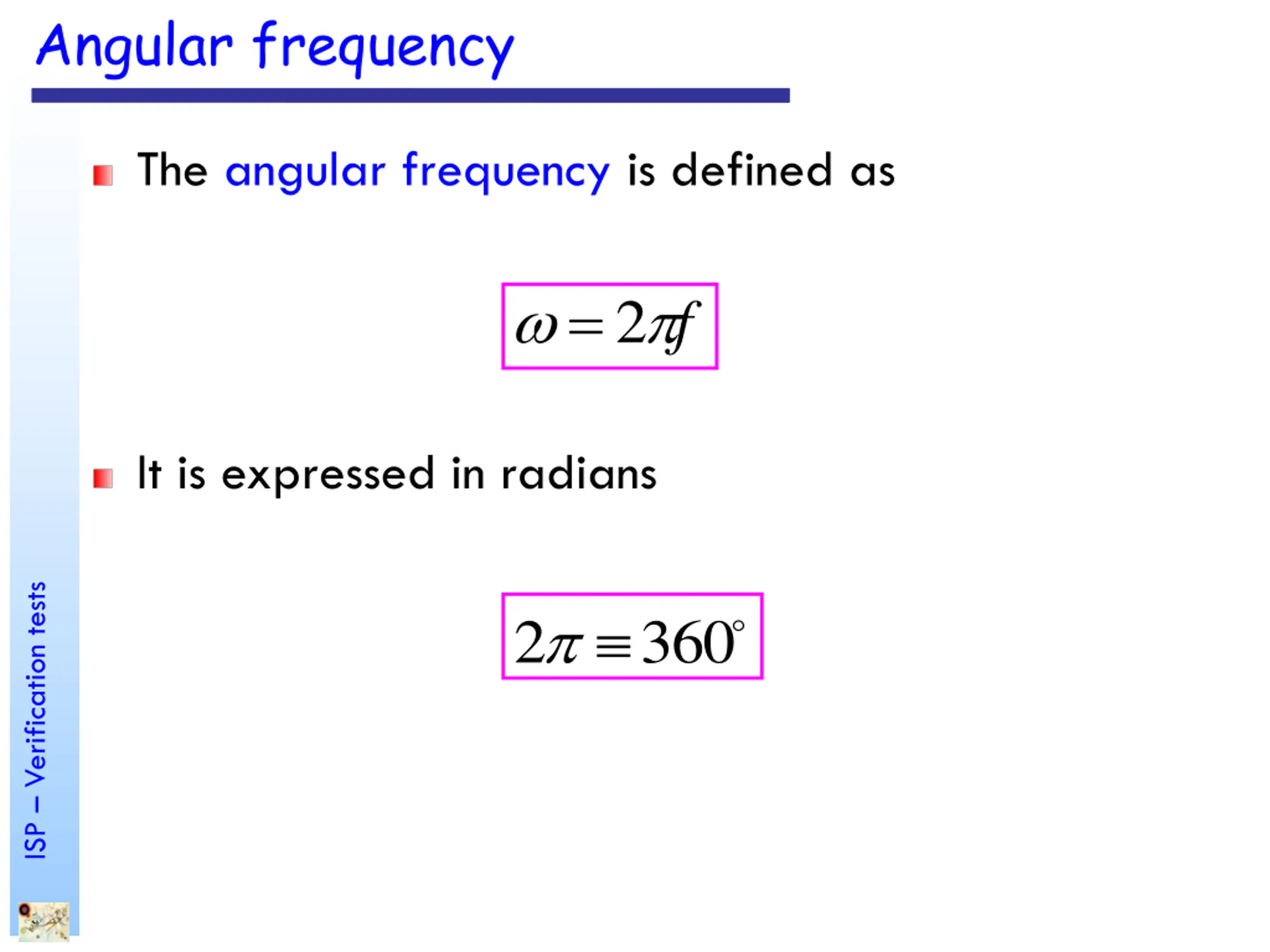

Angular frequency The angular frequency is defined as = f 2 It is expressed in radians ISP Verification tests 2 360

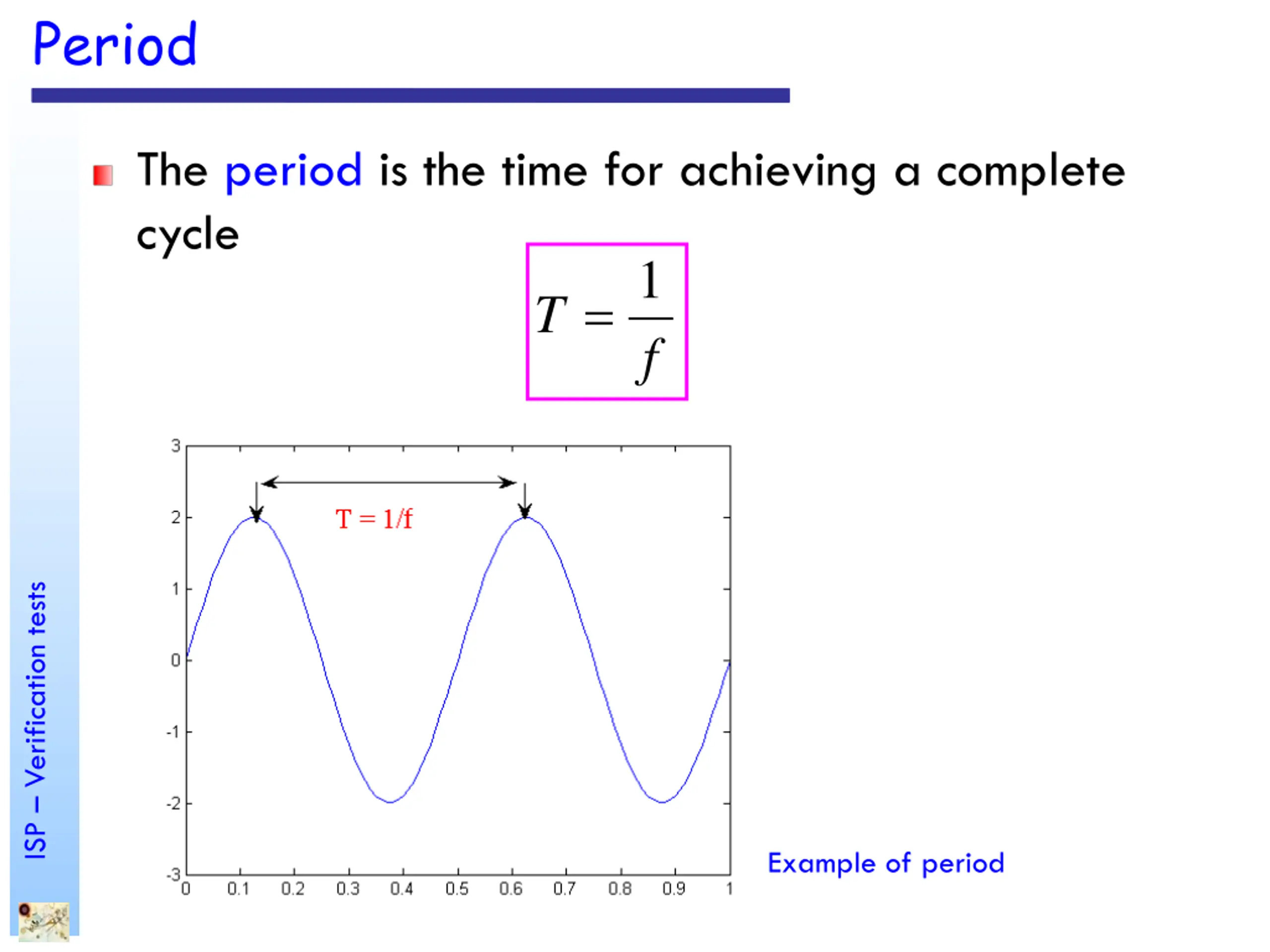

Period The period is the time for achieving a complete cycle T = 1 f ISP Verification tests Example of period

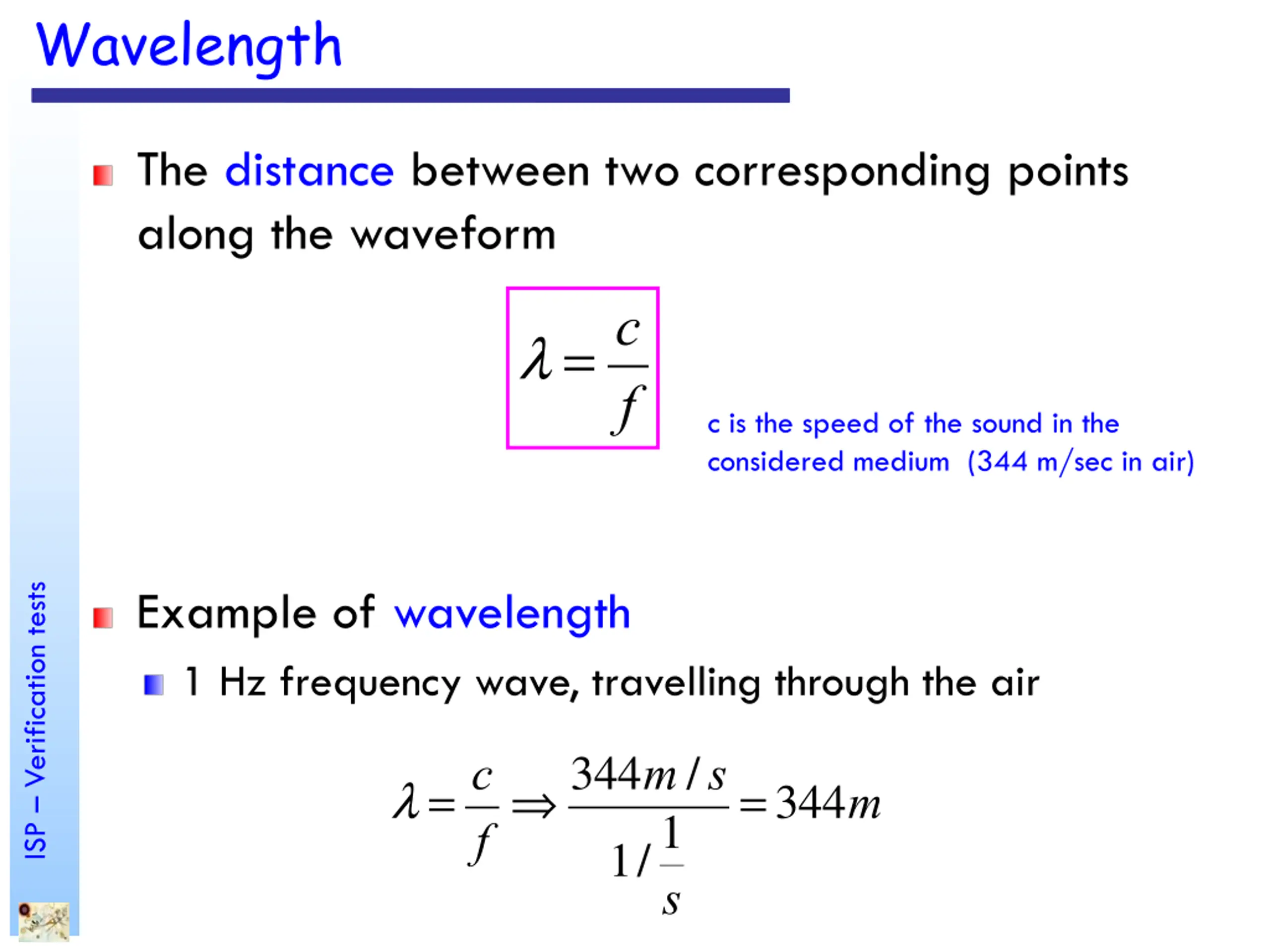

Wavelength The distance between two corresponding points along the waveform l =c f c is the speed of the sound in the considered medium (344 m/sec in air) ISP Verification tests Example of wavelength 1 Hz frequency wave, travelling through the air 344m/s 1/1 l =c =344m f s

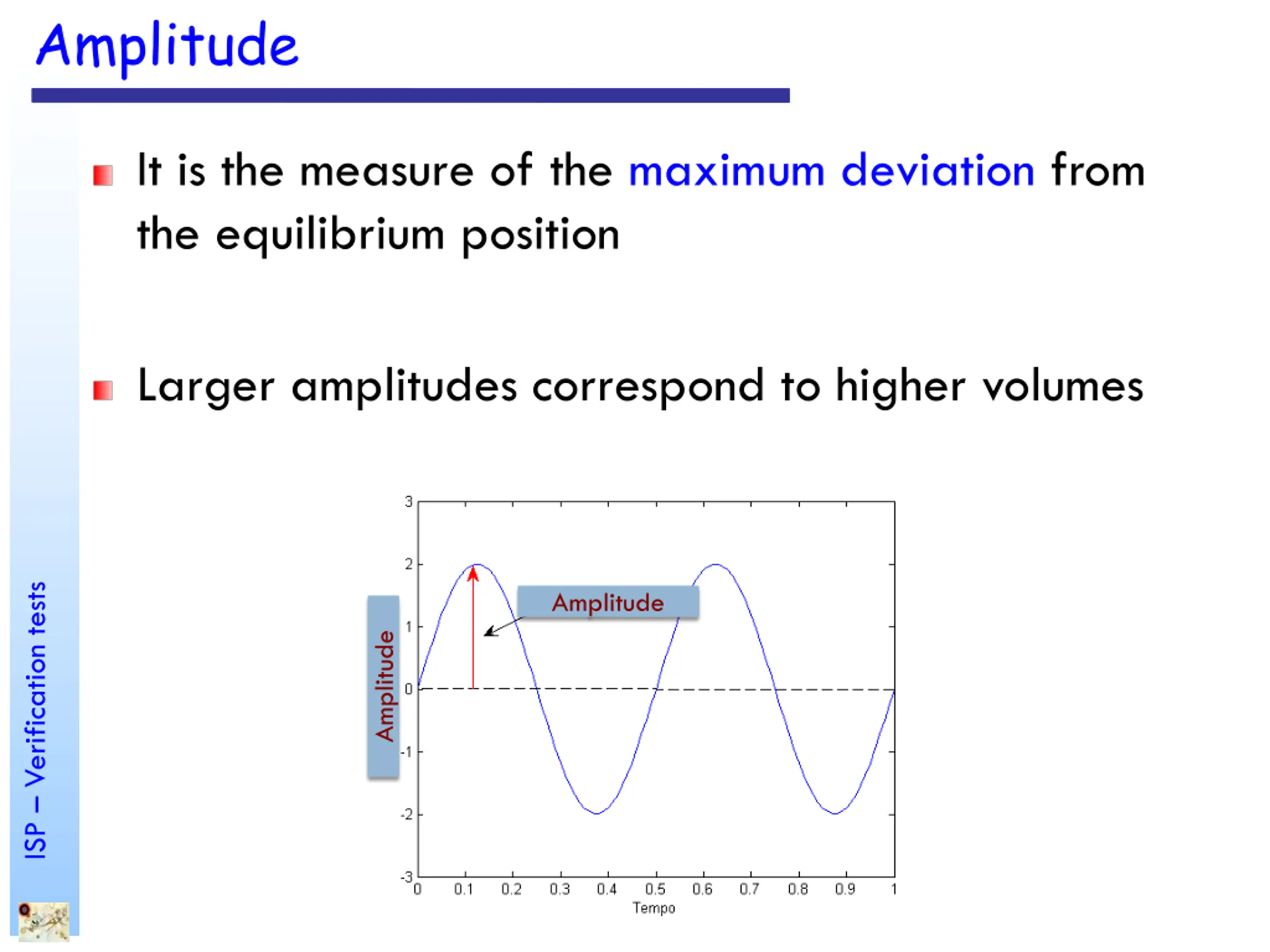

Amplitude It is the measure of the maximum deviation from the equilibrium position Larger amplitudes correspond to higher volumes ISP Verification tests Amplitude Amplitude

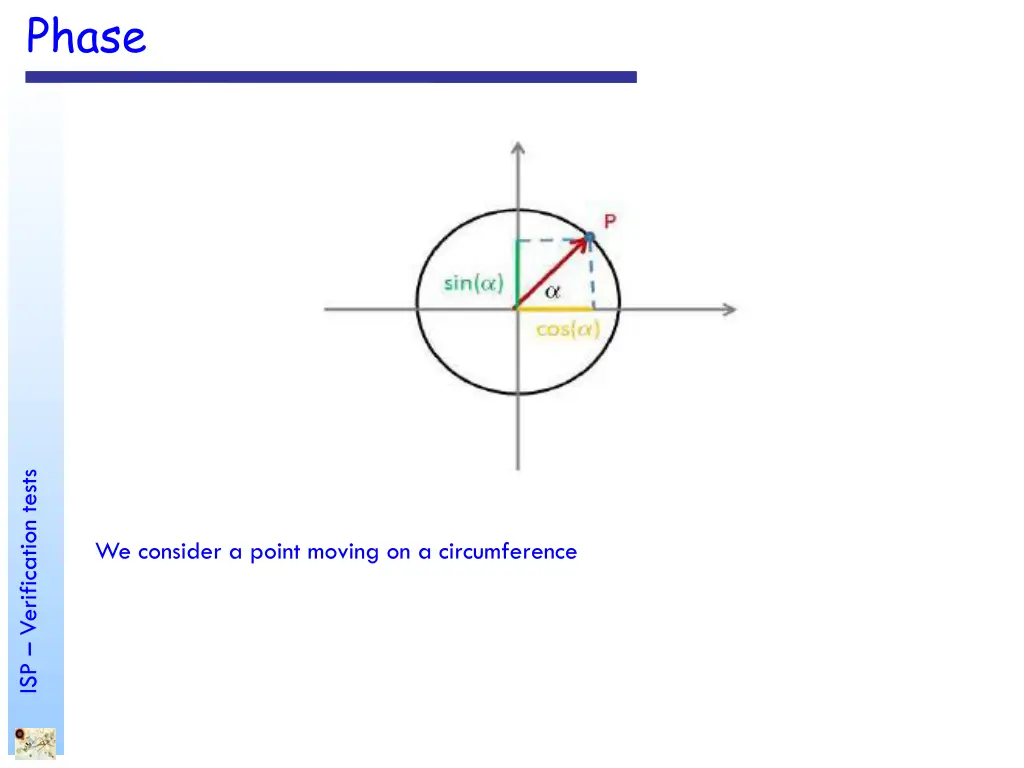

Phase ISP Verification tests We consider a point moving on a circumference

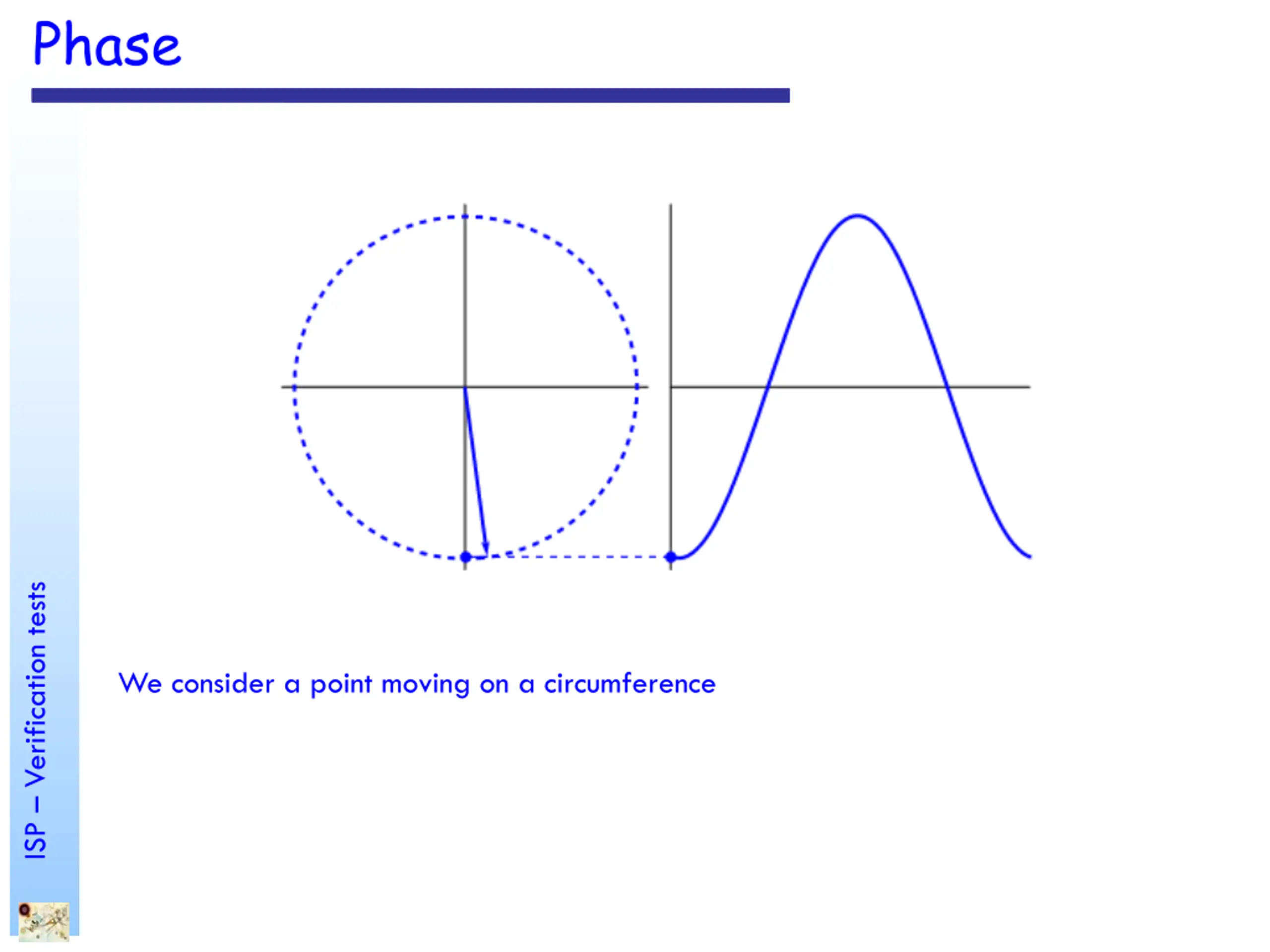

Phase ISP Verification tests We consider a point moving on a circumference

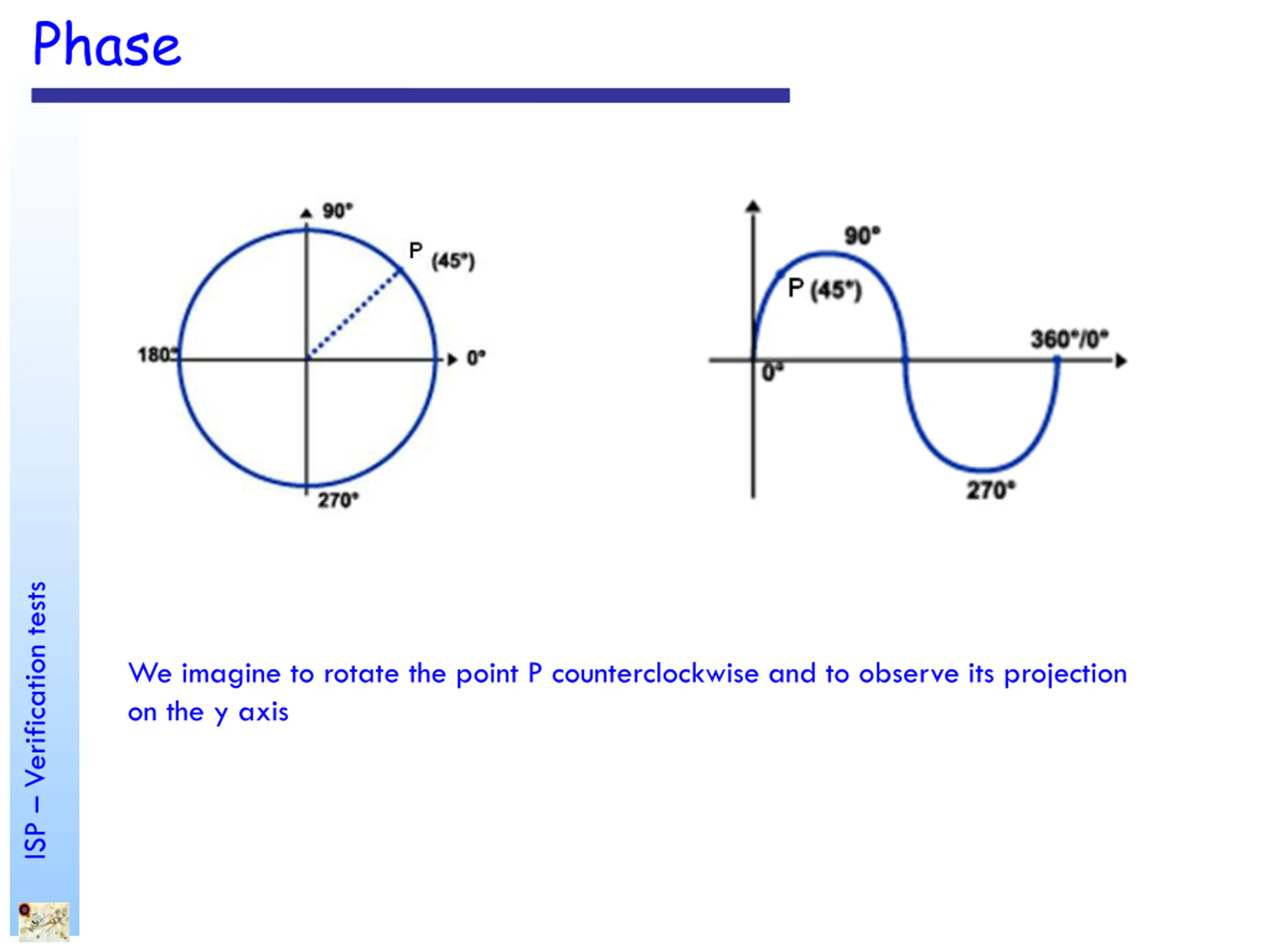

Phase ISP Verification tests We imagine to rotate the point P counterclockwise and to observe its projection on the y axis

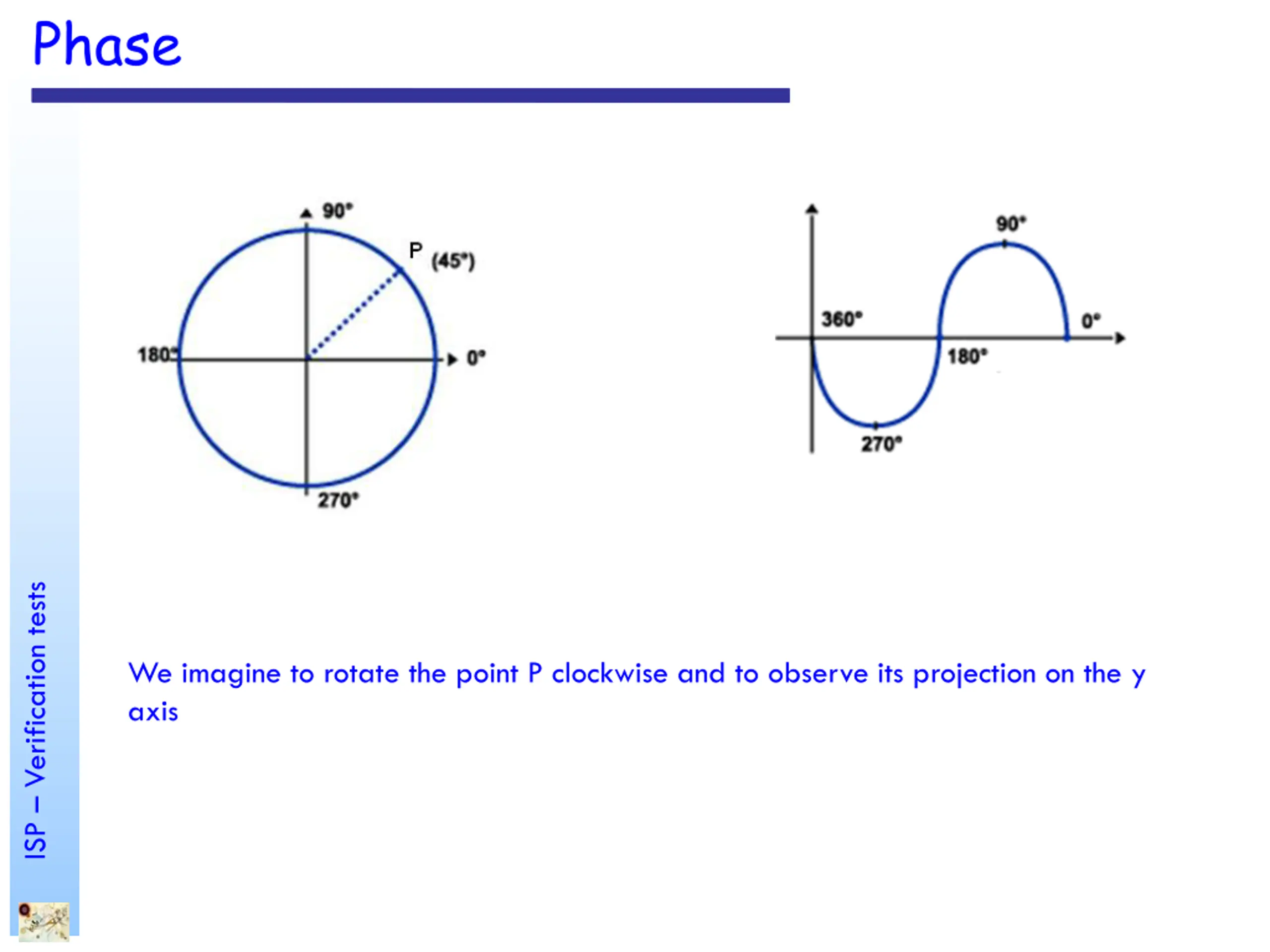

Phase ISP Verification tests We imagine to rotate the point P clockwise and to observe its projection on the y axis

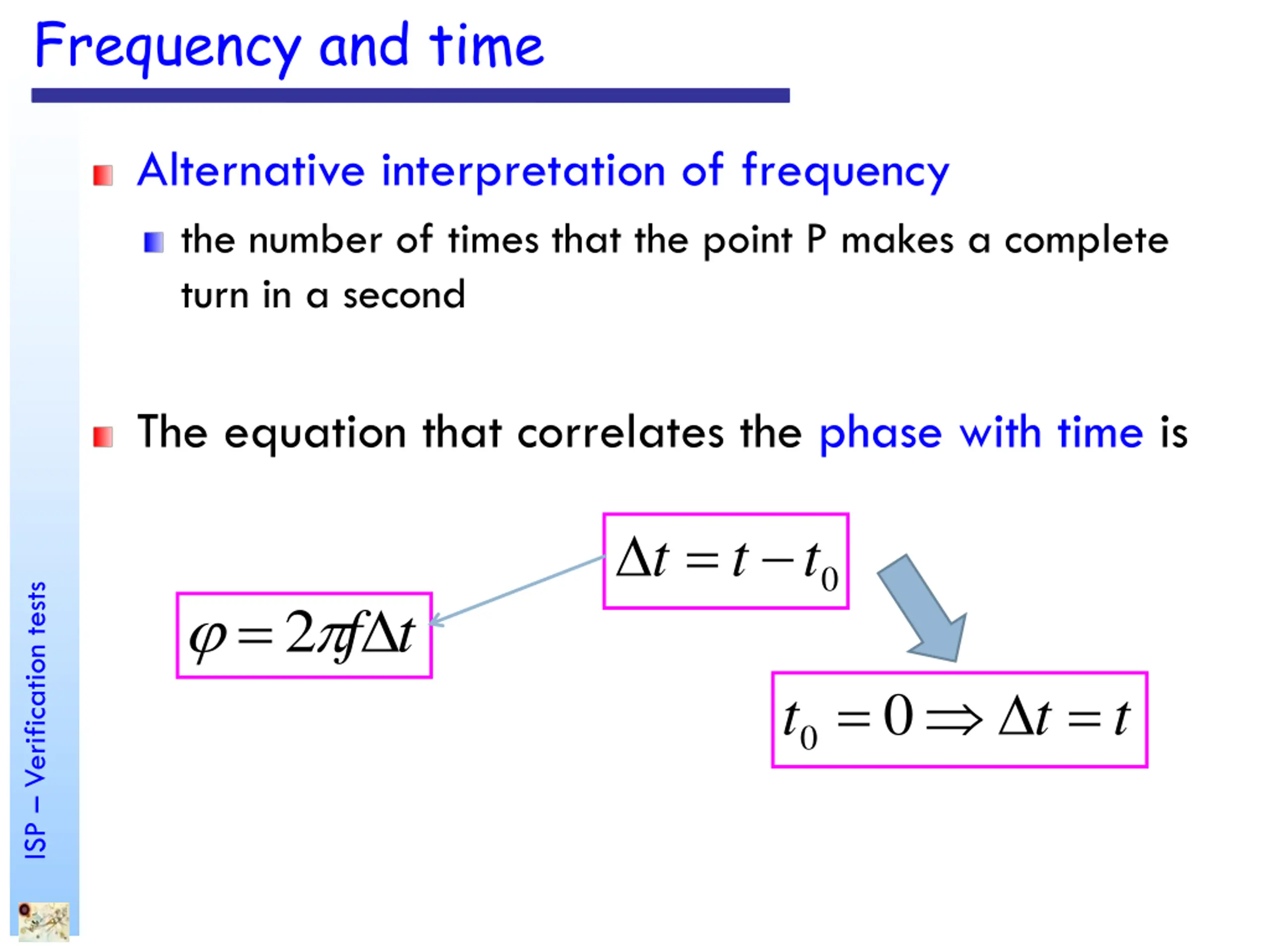

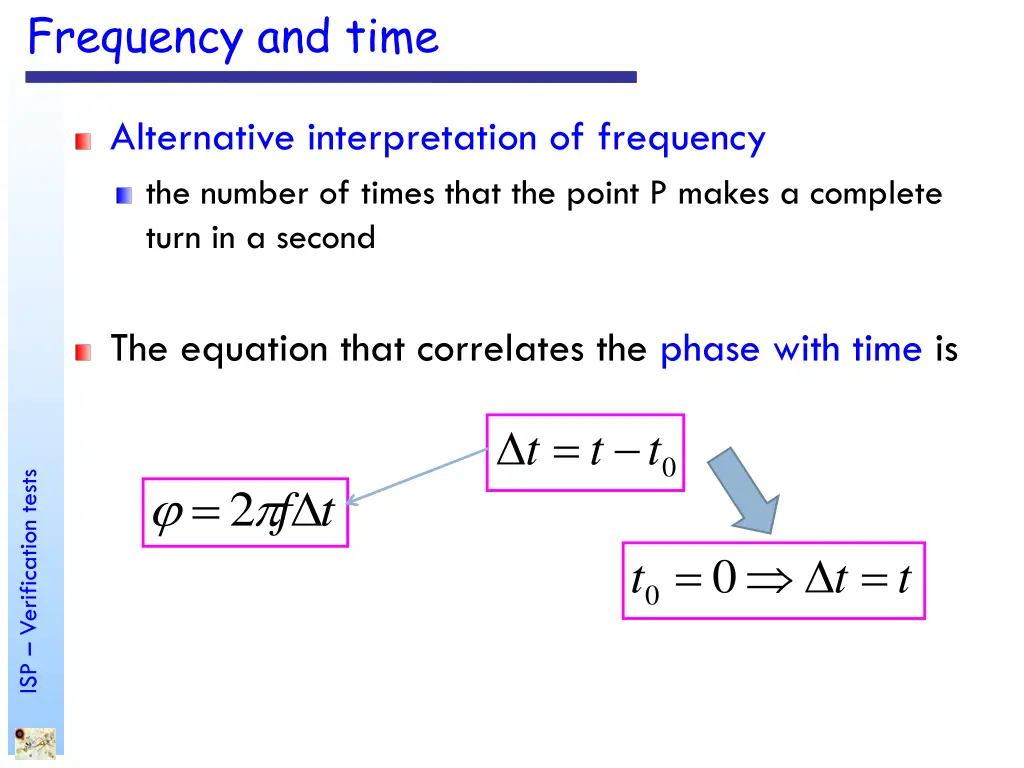

Frequency and time Alternative interpretation of frequency the number of times that the point P makes a complete turn in a second The equation that correlates the phase with time is = t t 0t ISP Verification tests = f 2 t = 0 = t t t 0

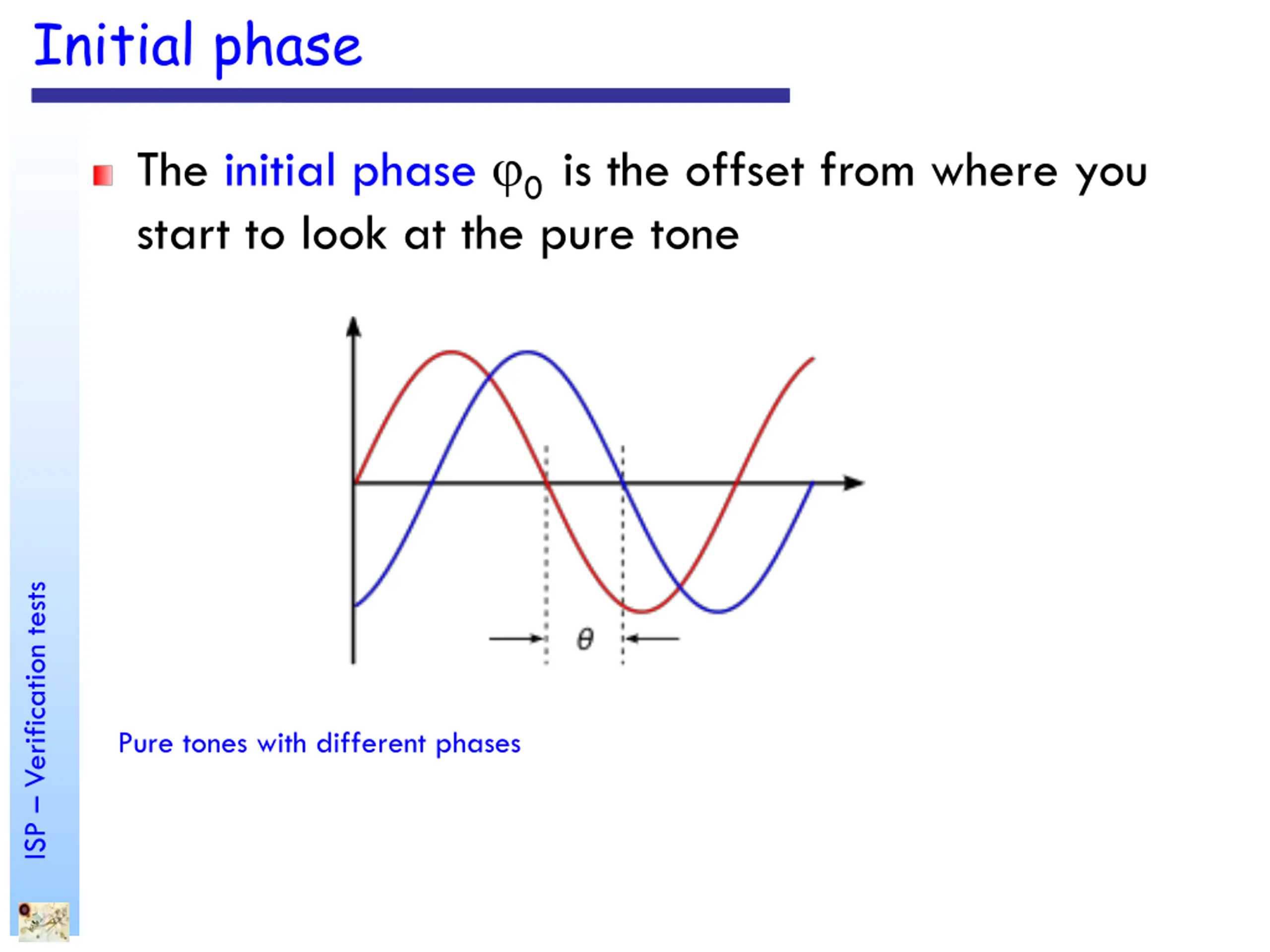

Initial phase The initial phase 0 is the offset from where you start to look at the pure tone ISP Verification tests Pure tones with different phases

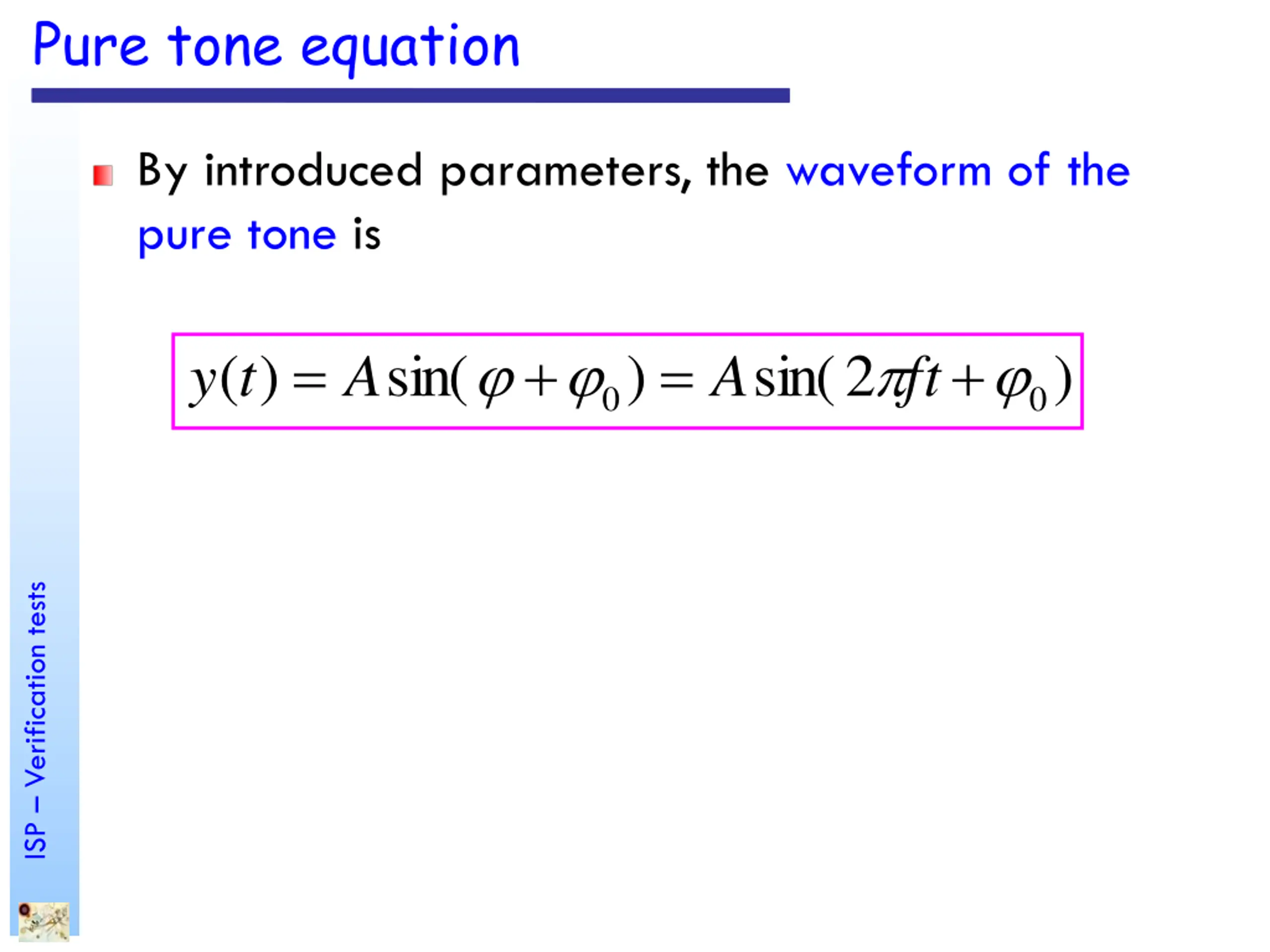

Pure tone equation By introduced parameters, the waveform of the pure tone is = + = + ( ) sin( ) sin( 2 ) y t A A ft 0 0 ISP Verification tests

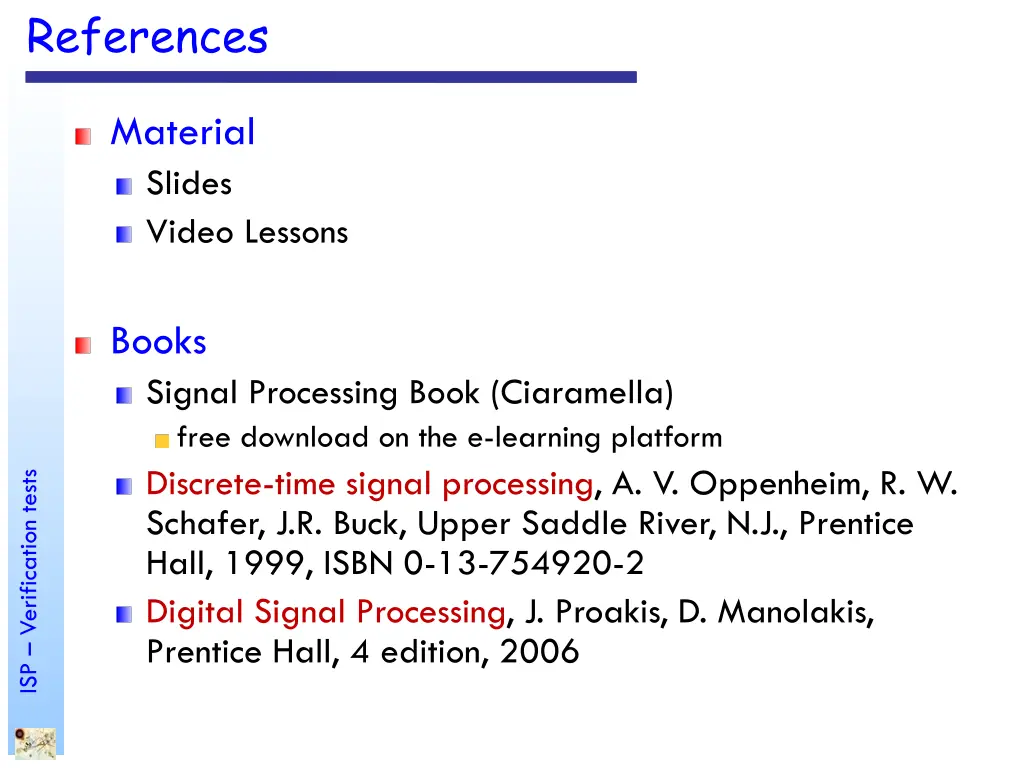

References Material Slides Video Lessons Books Signal Processing Book (Ciaramella) free download on the e-learning platform Discrete-time signal processing, A. V. Oppenheim, R. W. Schafer, J.R. Buck, Upper Saddle River, N.J., Prentice Hall, 1999, ISBN 0-13-754920-2 Digital Signal Processing, J. Proakis, D. Manolakis, Prentice Hall, 4 edition, 2006 ISP Verification tests
