Quadrilateral Interior Angles
Explore the concept of interior angles in a quadrilateral, learn how to calculate unknown angles, and understand the sum of interior angles in polygons. Discover methods to find angle values in quadrilaterals using geometry principles. Dive into visual explanations and practical examples for a comprehensive understanding.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

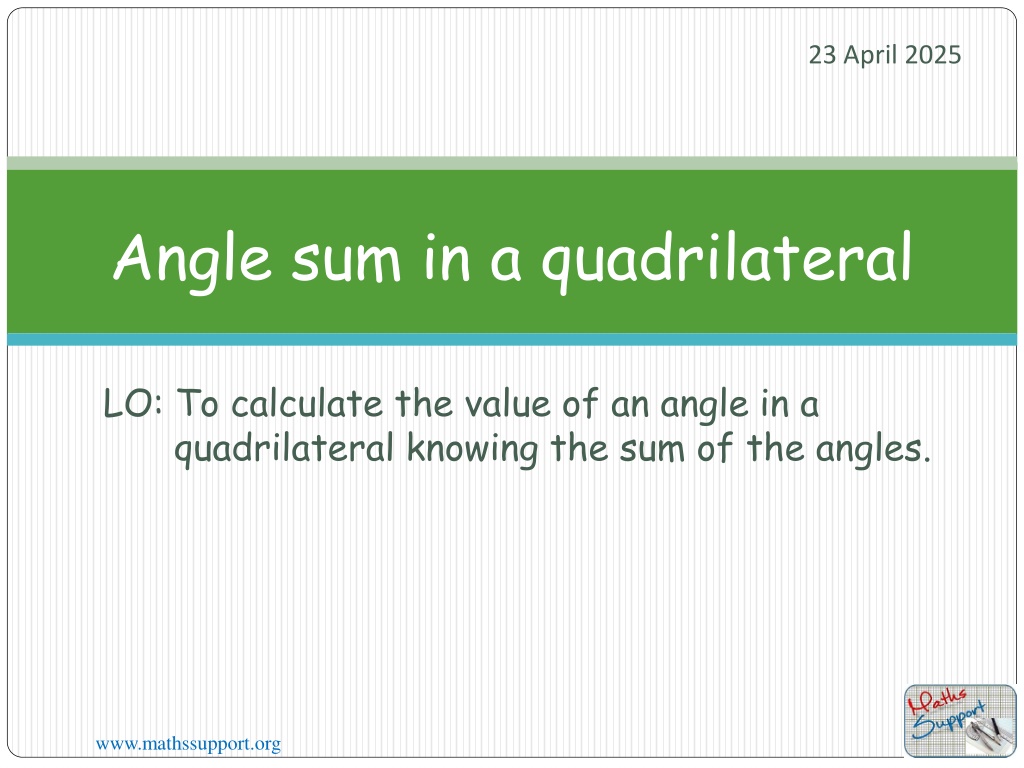

23 April 2025 Angle sum in a quadrilateral LO: To calculate the value of an angle in a quadrilateral knowing the sum of the angles. www.mathssupport.org

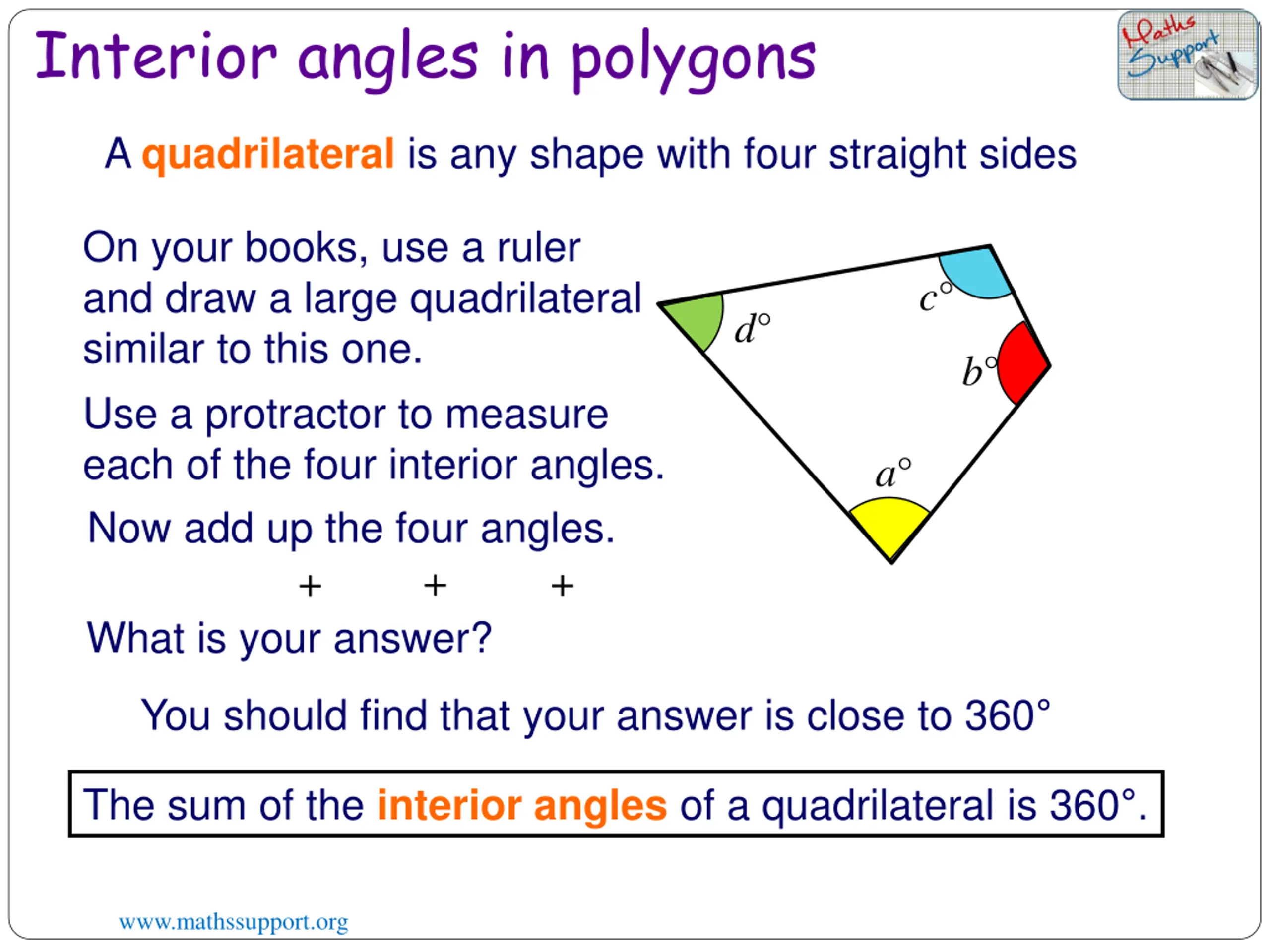

Interior angles in polygons A quadrilateral is any shape with four straight sides On your books, use a ruler and draw a large quadrilateral similar to this one. Use a protractor to measure each of the four interior angles. Now add up the four angles. + c d b a + + What is your answer? You should find that your answer is close to 360 The sum of the interior angles of a quadrilateral is 360 . www.mathssupport.org

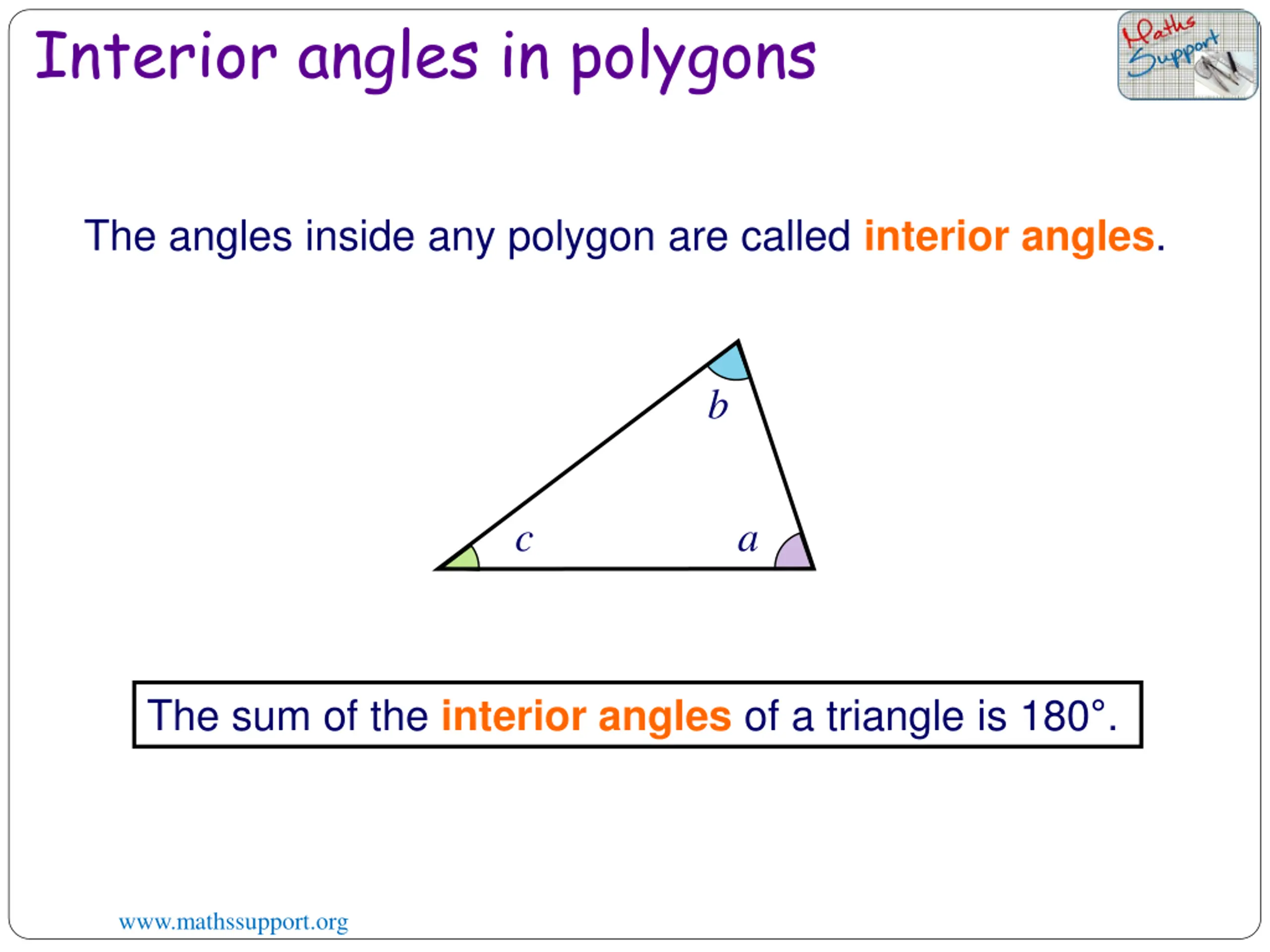

Interior angles in polygons The angles inside any polygon are called interior angles. b c a The sum of the interior angles of a triangle is 180 . www.mathssupport.org

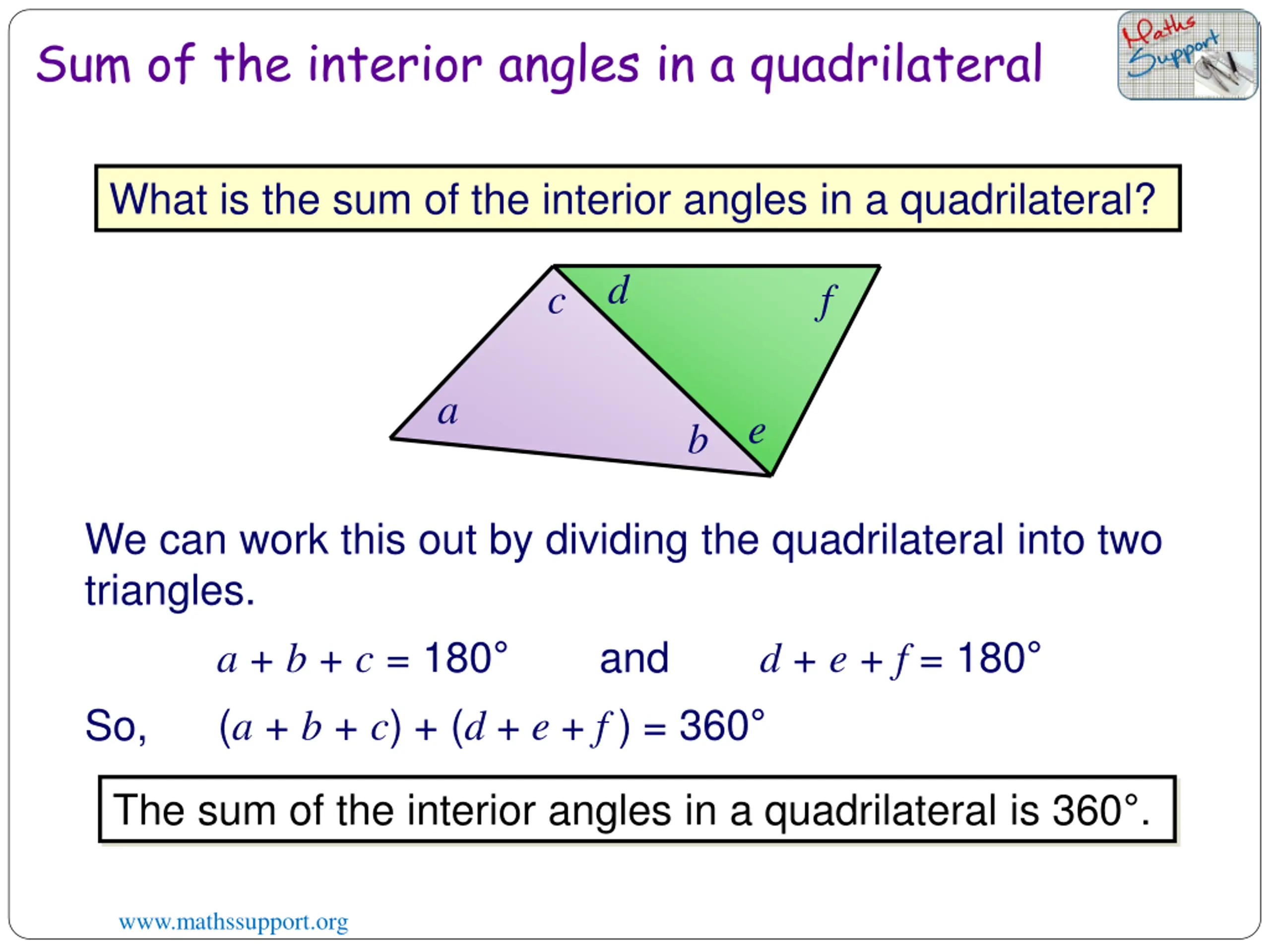

Sum of the interior angles in a quadrilateral What is the sum of the interior angles in a quadrilateral? d c f a e b We can work this out by dividing the quadrilateral into two triangles. a + b + c = 180 and So, (a + b + c)+ (d + e + f )= 360 d + e + f = 180 The sum of the interior angles in a quadrilateral is 360 . www.mathssupport.org

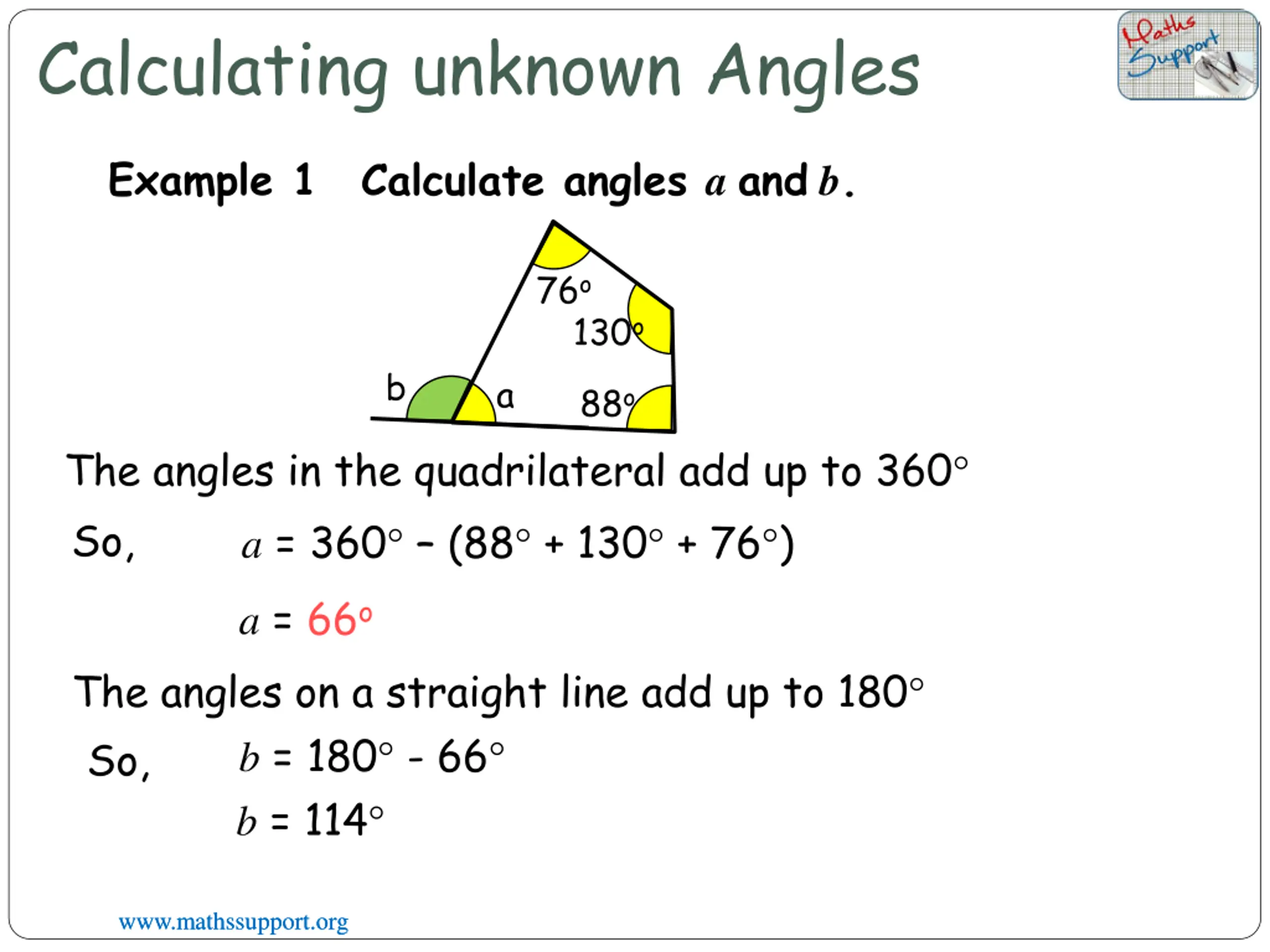

Calculating unknown Angles Example 1 Calculate angles a and b. 76o 130o b a 88o The angles in the quadrilateral add up to 360 So, a = 360 (88 + 130 + 76 ) a = 66o The angles on a straight line add up to 180 b = 180 - 66 b = 114 So, www.mathssupport.org www.mathssupport.org

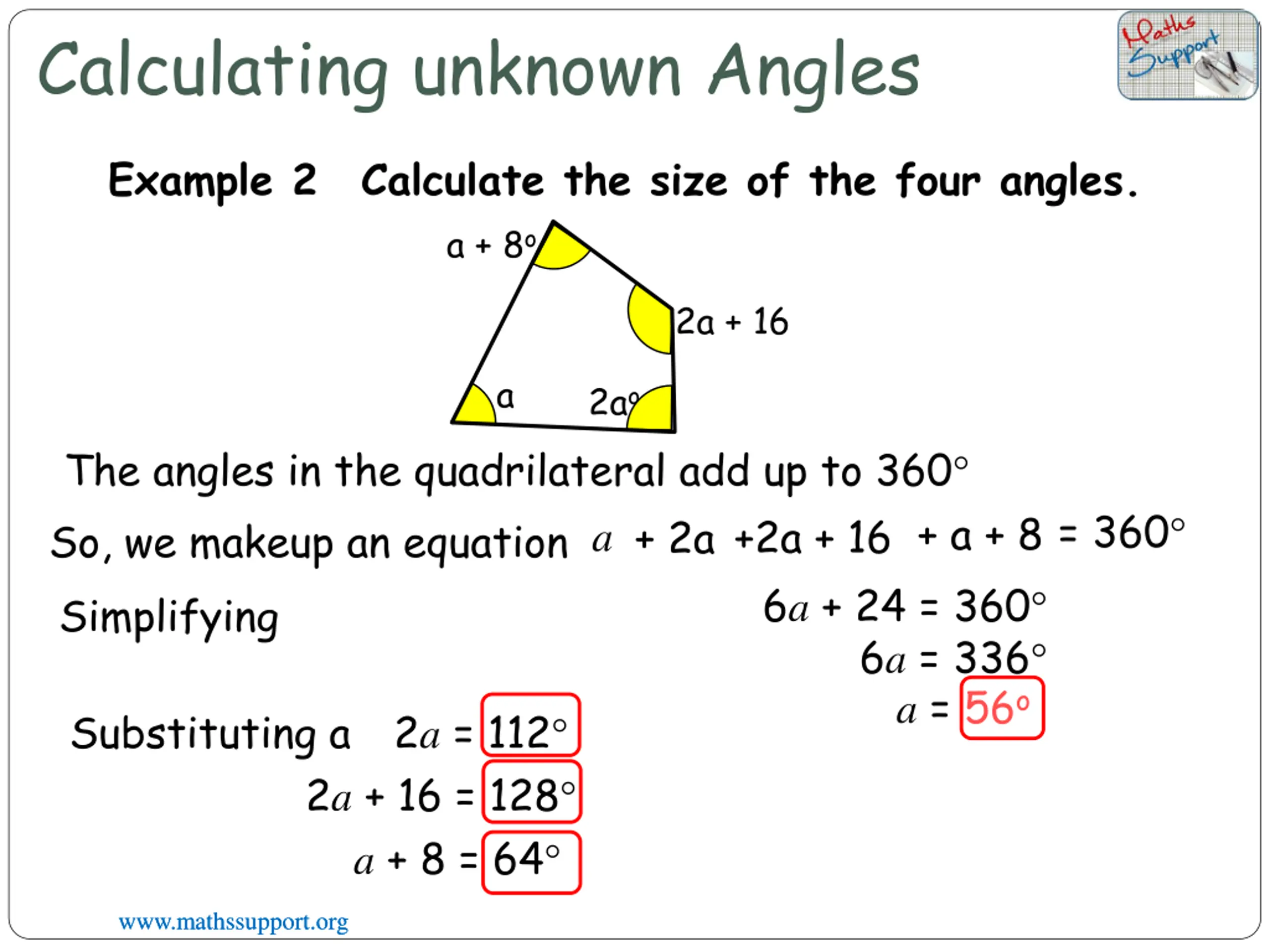

Calculating unknown Angles Example 2 Calculate the size of the four angles. a + 8o 2a + 16 a 2ao The angles in the quadrilateral add up to 360 So, we makeup an equation Simplifying + 2a +2a + 16 + a + 8 = 360 a 6a + 24 = 360 6a = 336 a = 56o 2a = 112 Substituting a 2a + 16 = 128 a + 8 = 64 www.mathssupport.org www.mathssupport.org
Thank you for using resources from A close up of a cage Description automatically generated For more resources visit our website https://www.mathssupport.org If you have a special request, drop us an email info@mathssupport.org Get 20% off in your next purchase from our website, just use this code when checkout: MSUPPORT_20 www.mathssupport.org
