Optimization of Quantum Circuits for Interaction Distance in Linear Nearest Neighbor Architectures Alireza Shafaei, Mehdi Saeedi, Massoud Pedram University of Southern California Department of Electrical Engineering http://atrak.usc.edu/ Supported by the IARPA Quantum Computer Science

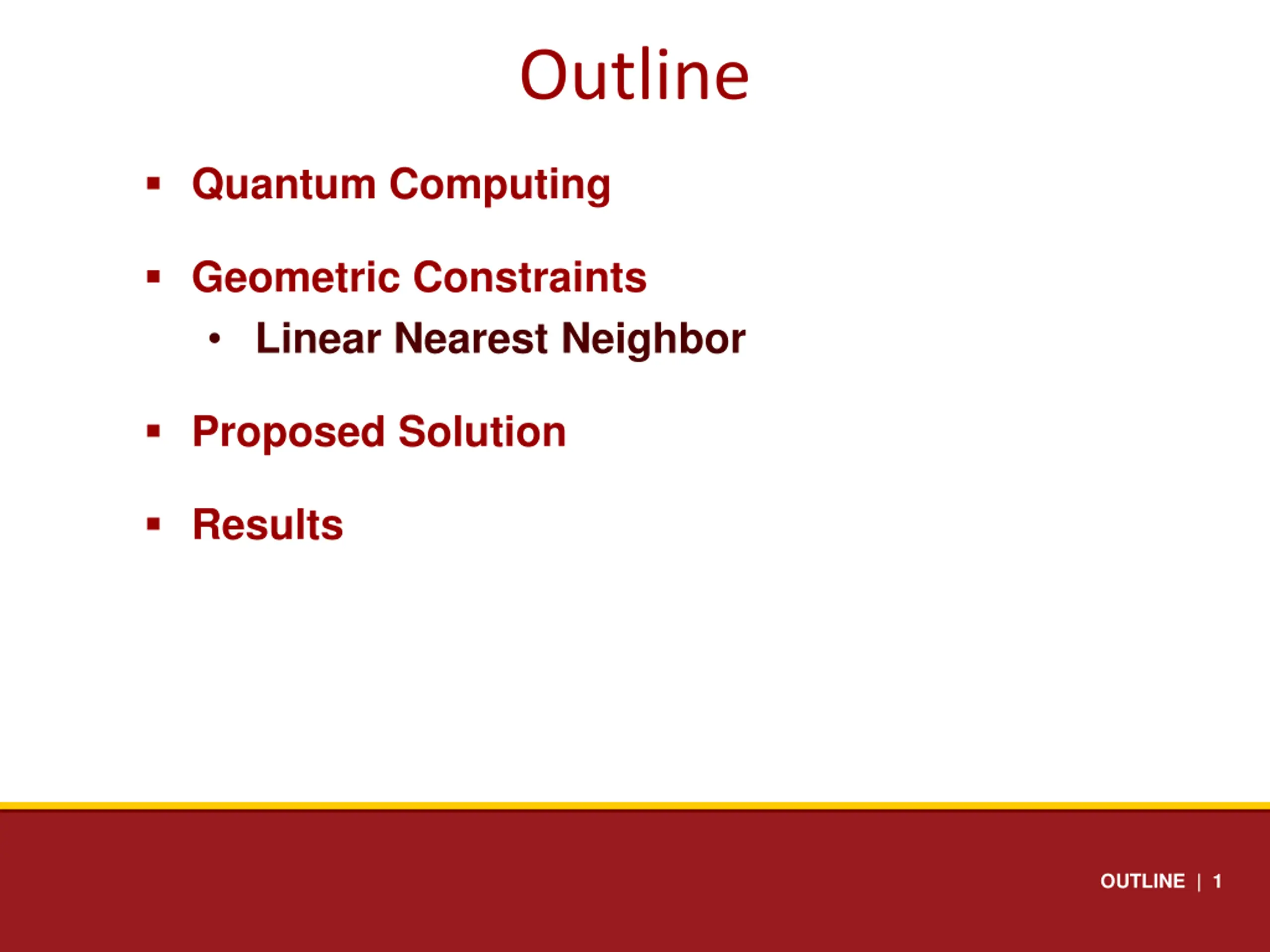

Outline Quantum Computing Geometric Constraints Linear Nearest Neighbor Proposed Solution Results OUTLINE | 1

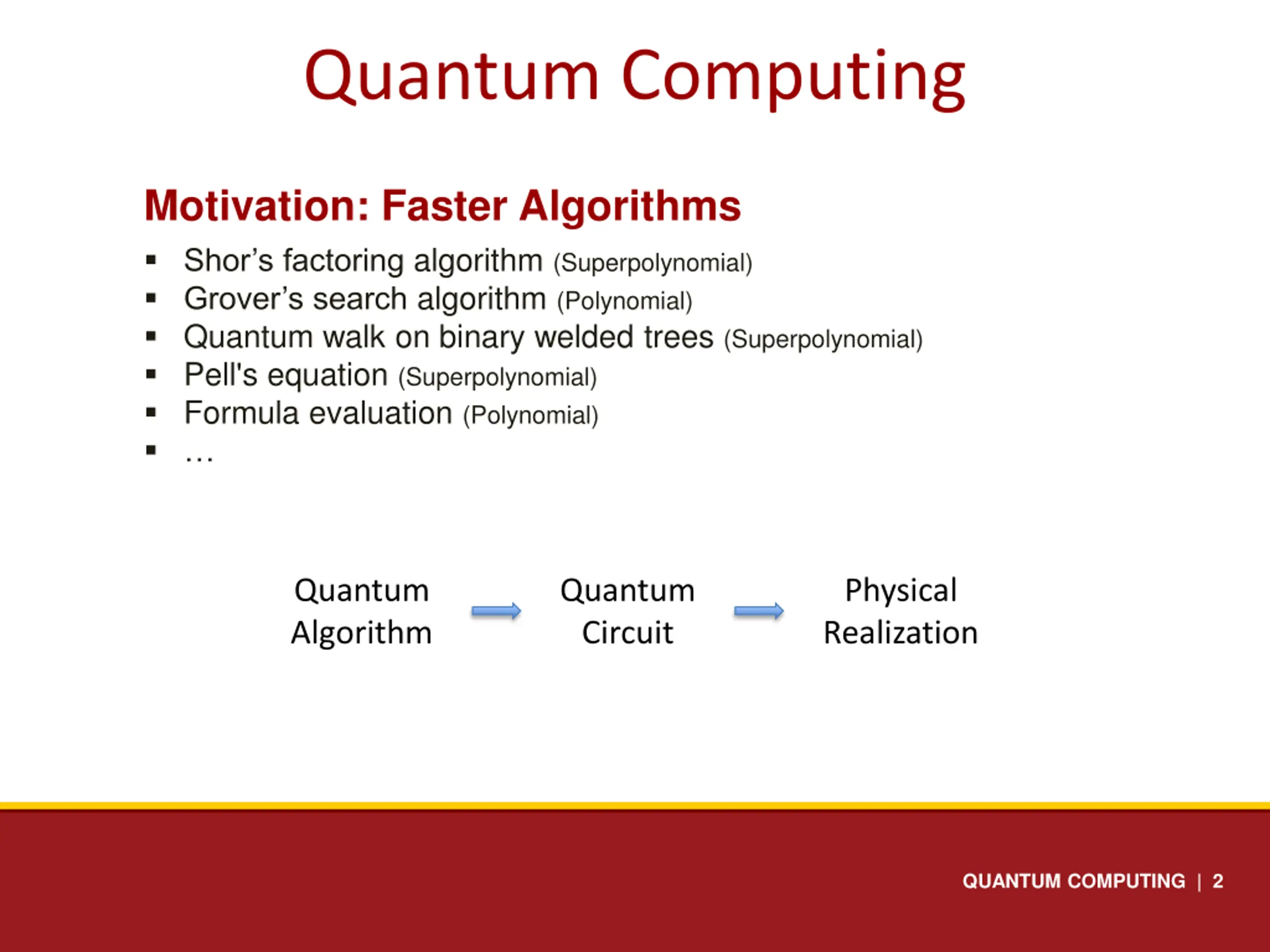

Quantum Computing Motivation: Faster Algorithms Shor s factoring algorithm (Superpolynomial) Grover s search algorithm (Polynomial) Quantum walk on binary welded trees (Superpolynomial) Pell's equation (Superpolynomial) Formula evaluation (Polynomial) Quantum Algorithm Quantum Circuit Physical Realization QUANTUM COMPUTING | 2

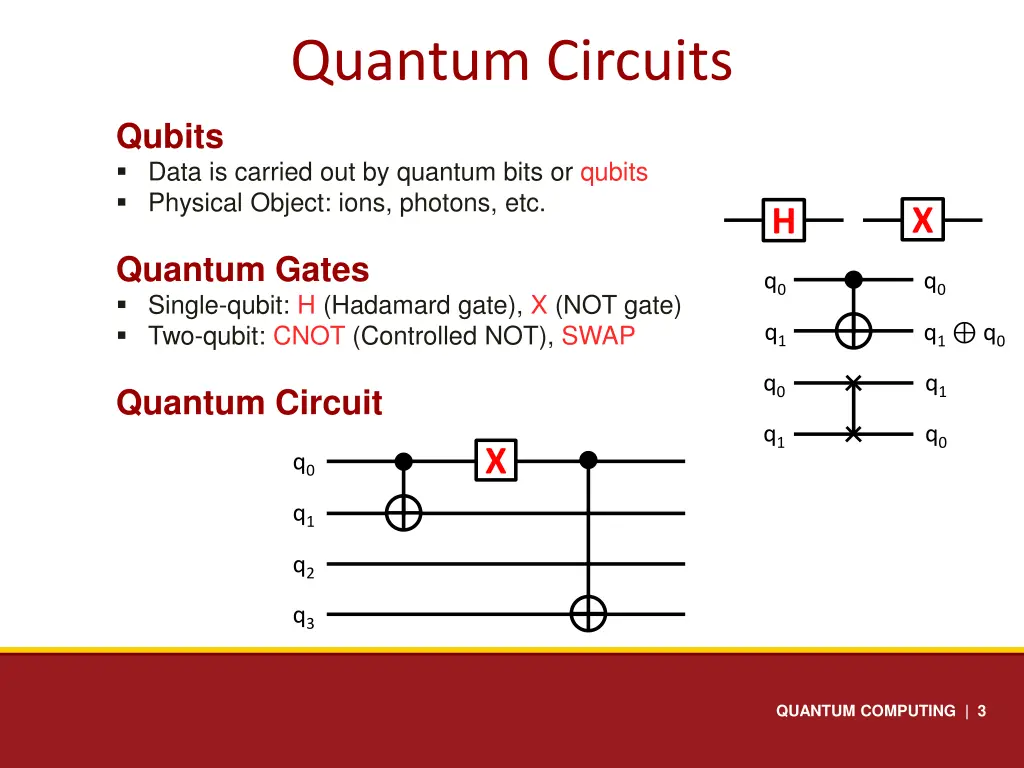

Quantum Circuits Qubits Data is carried out by quantum bits or qubits Physical Object: ions, photons, etc. X H Quantum Gates Single-qubit: H (Hadamard gate), X (NOT gate) Two-qubit: CNOT (Controlled NOT), SWAP q0 q0 q1 q0 q1 q0 q1 Quantum Circuit q1 q0 X q0 q1 q2 q3 QUANTUM COMPUTING | 3

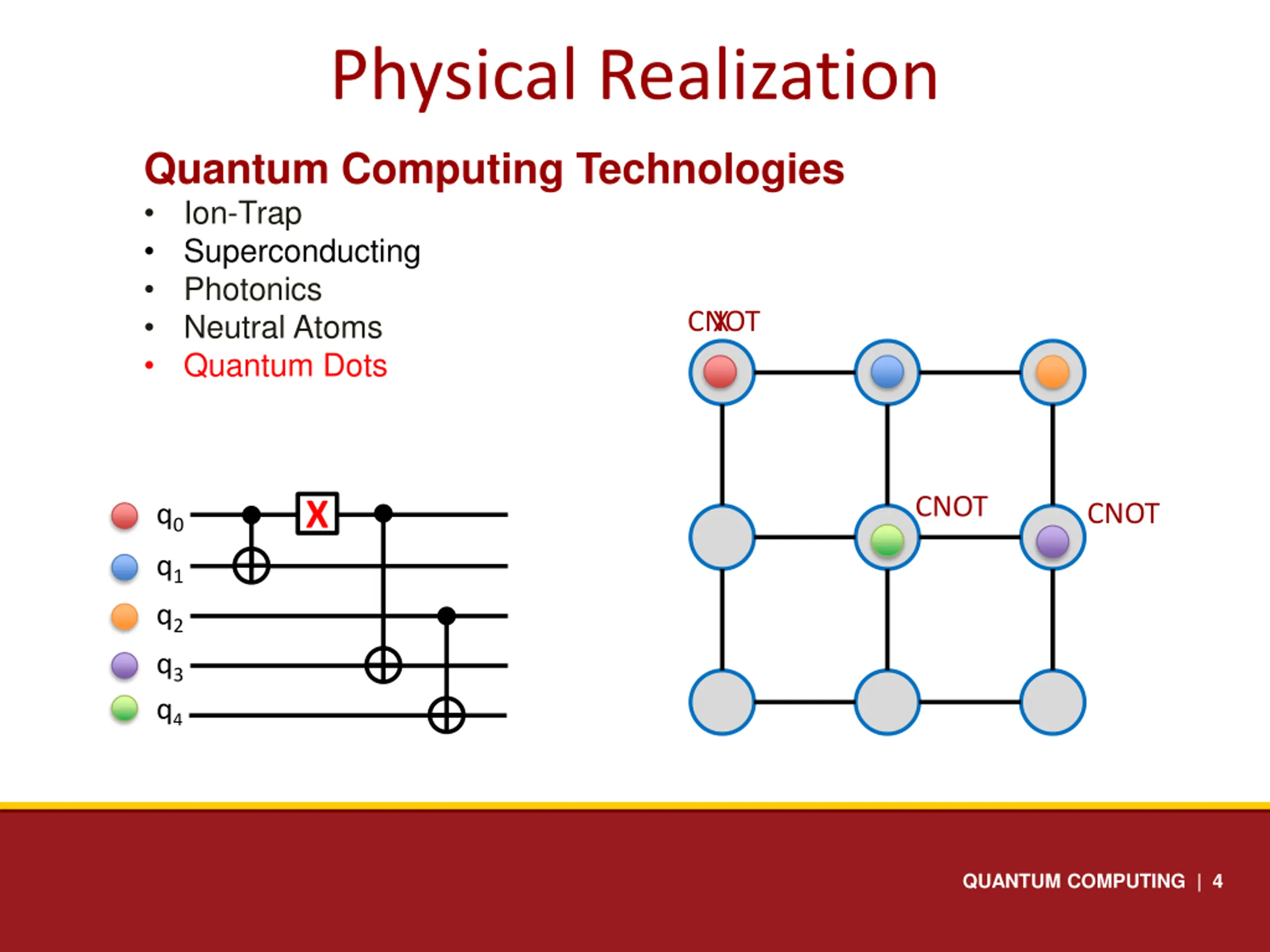

Physical Realization Quantum Computing Technologies Ion-Trap Superconducting Photonics Neutral Atoms Quantum Dots CNOT X CNOT X CNOT q0 q1 q2 q3 q4 QUANTUM COMPUTING | 4

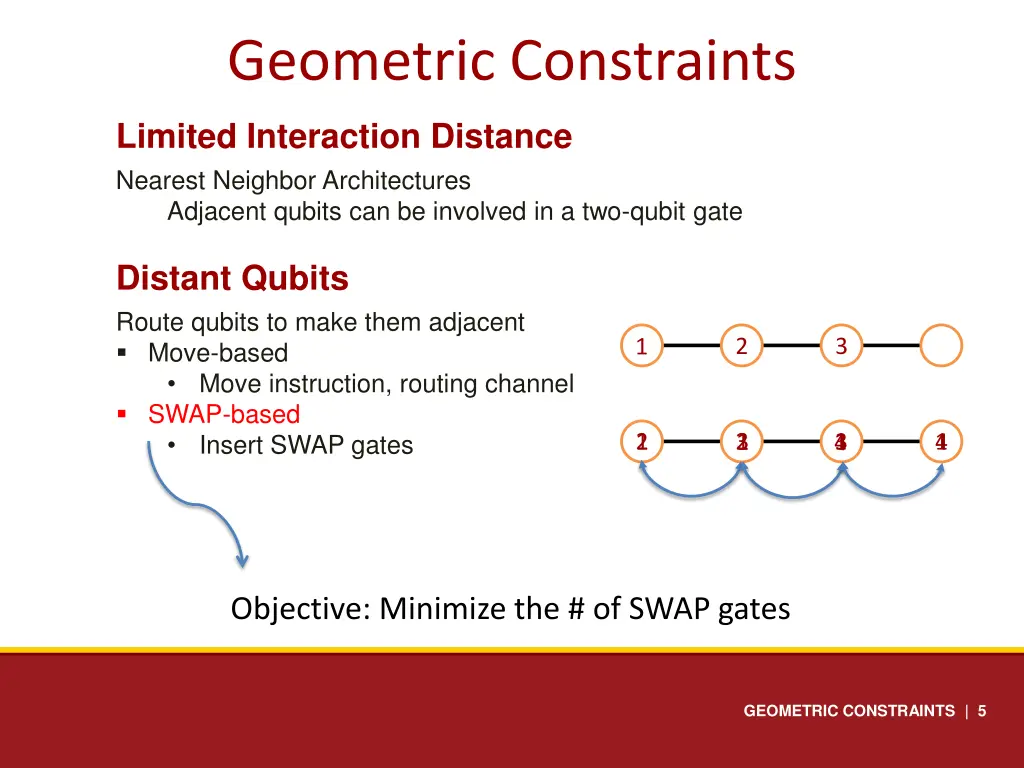

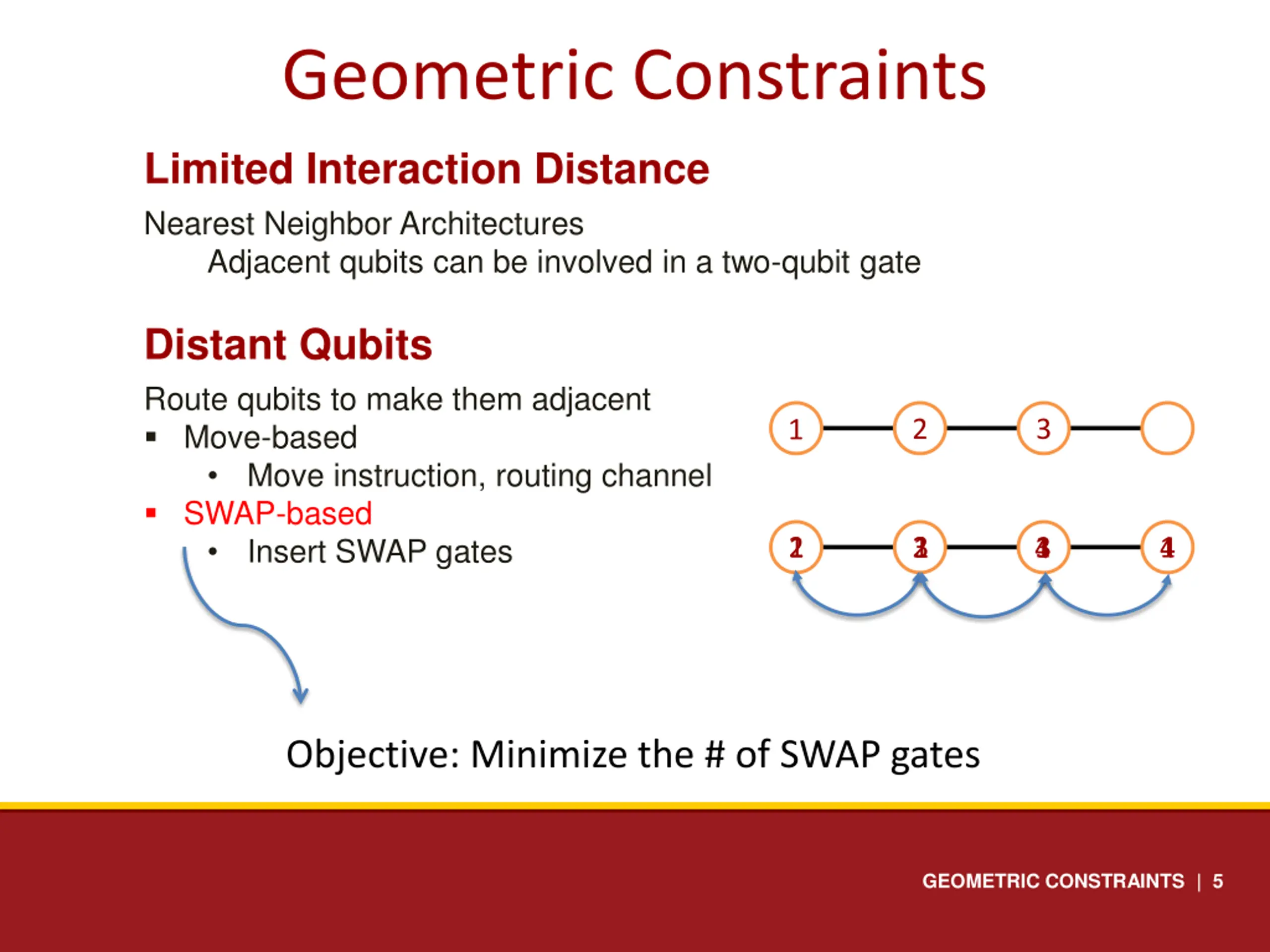

Geometric Constraints Limited Interaction Distance Nearest Neighbor Architectures Adjacent qubits can be involved in a two-qubit gate Distant Qubits Route qubits to make them adjacent Move-based Move instruction, routing channel SWAP-based Insert SWAP gates 2 3 1 1 2 3 1 2 3 1 4 4 1 Objective: Minimize the # of SWAP gates GEOMETRIC CONSTRAINTS | 5

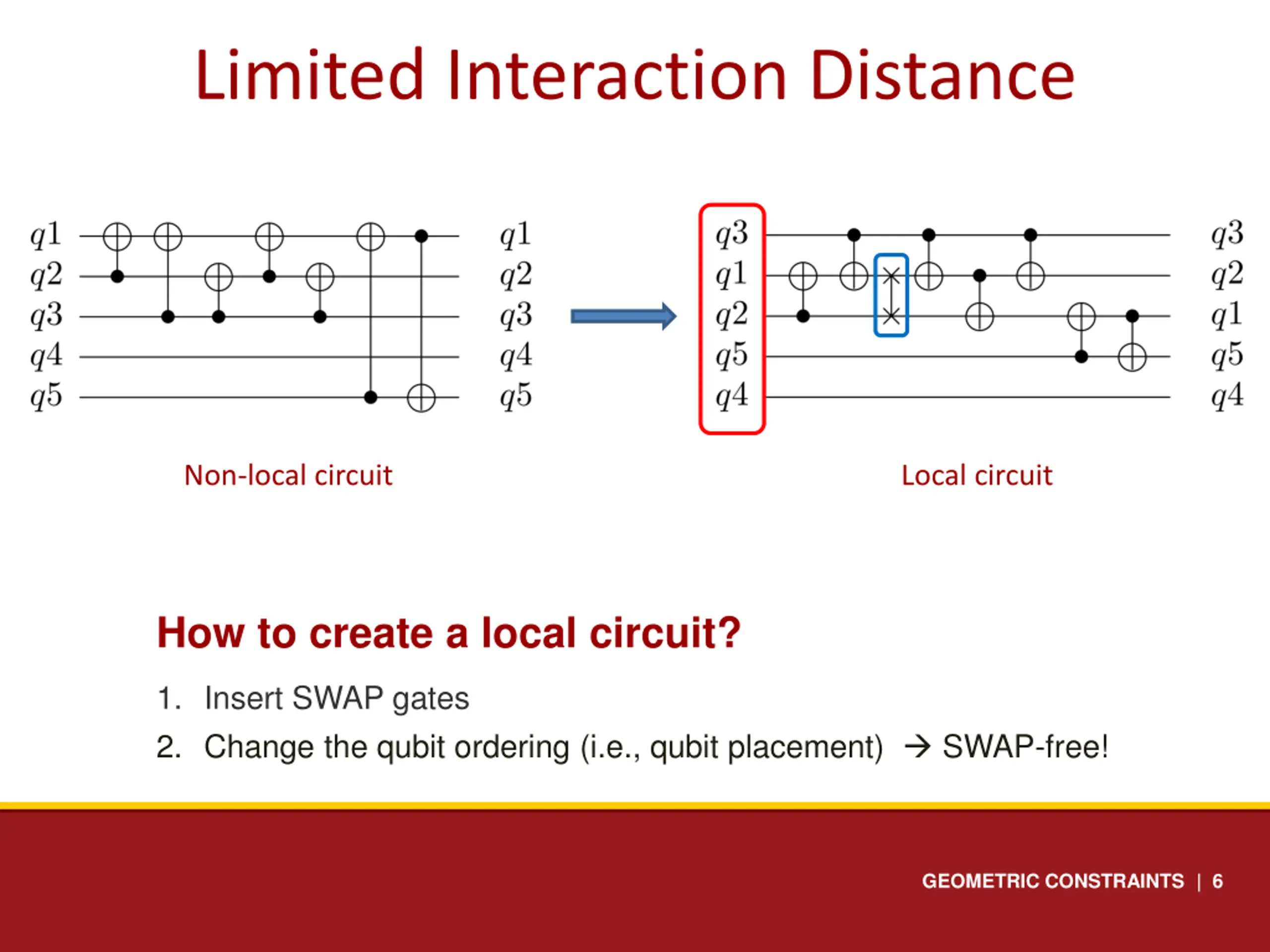

Limited Interaction Distance Non-local circuit Local circuit How to create a local circuit? 1. Insert SWAP gates 2. Change the qubit ordering (i.e., qubit placement) SWAP-free! GEOMETRIC CONSTRAINTS | 6

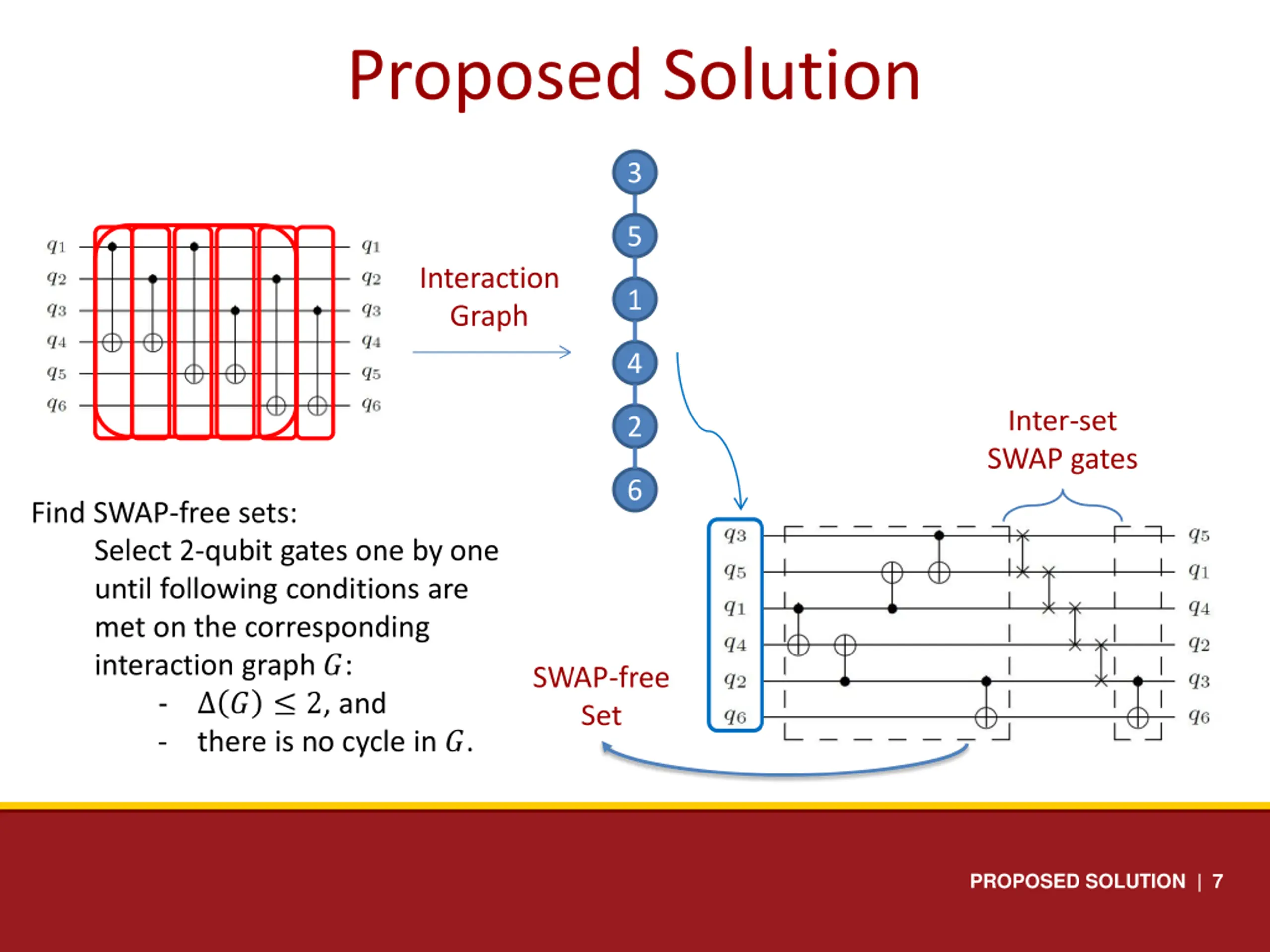

Proposed Solution 3 5 Interaction Graph 1 4 Inter-set SWAP gates 2 6 Find SWAP-free sets: Select 2-qubit gates one by one until following conditions are met on the corresponding interaction graph ?: - ? 2, and - there is no cycle in ?. SWAP-free Set PROPOSED SOLUTION | 7

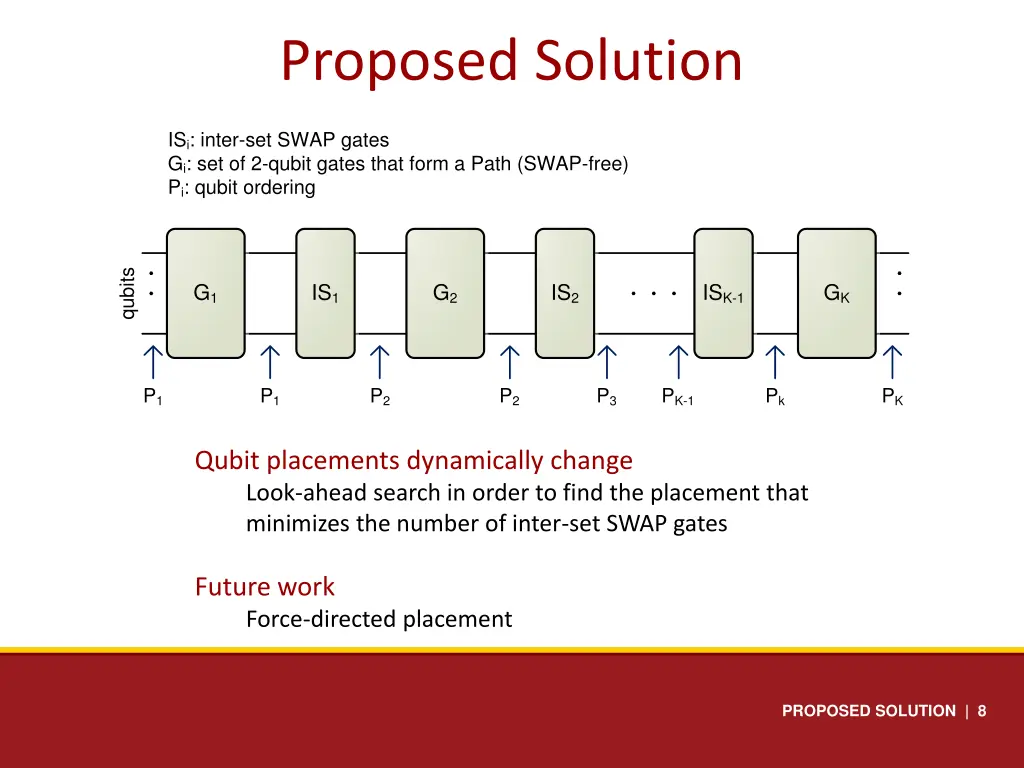

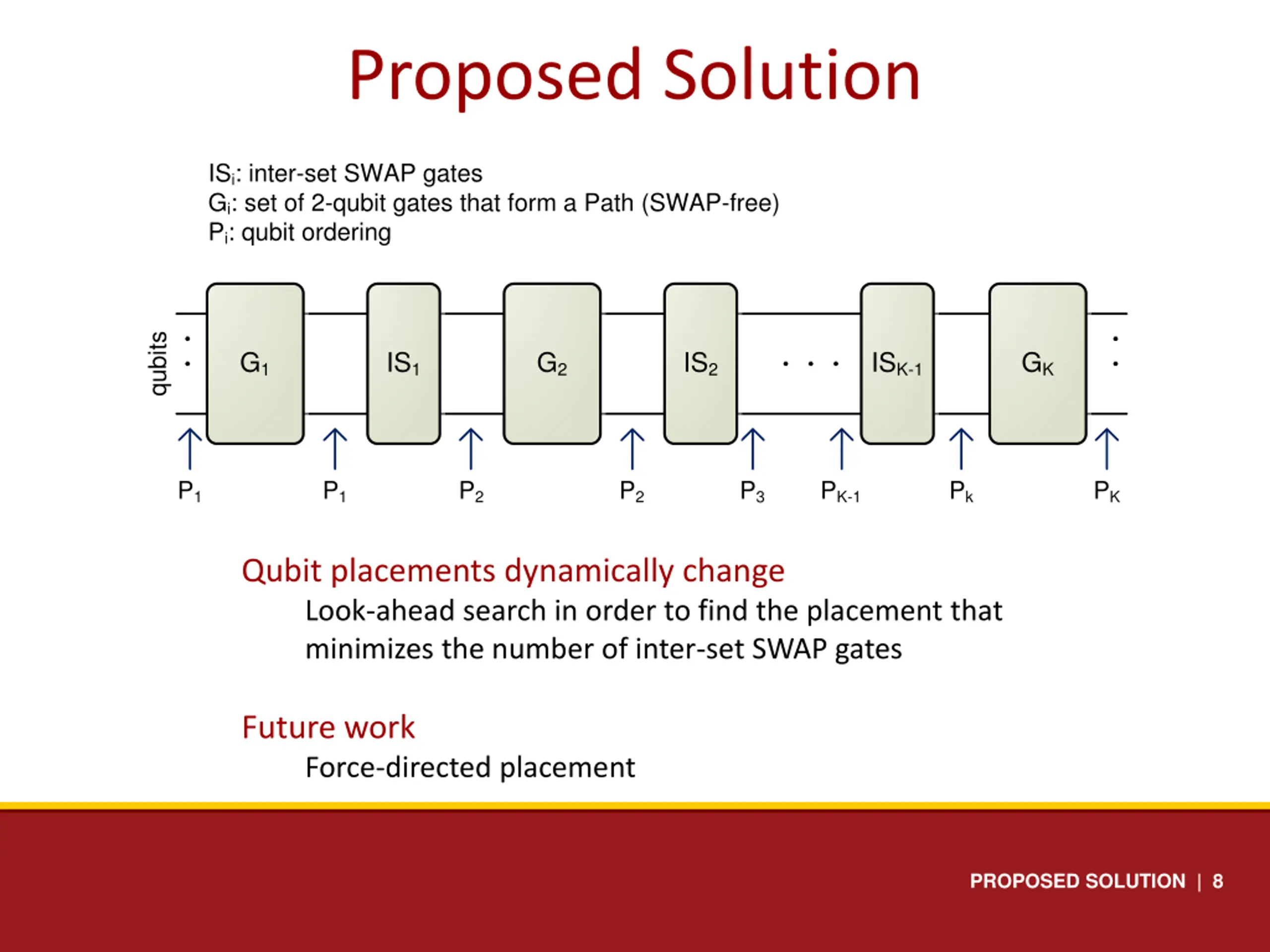

Proposed Solution ISi: inter-set SWAP gates Gi: set of 2-qubit gates that form a Path (SWAP-free) Pi: qubit ordering qubits G1 IS1 G2 IS2 ISK-1 GK P1 P1 P2 P2 P3 PK-1 Pk PK Qubit placements dynamically change Look-ahead search in order to find the placement that minimizes the number of inter-set SWAP gates Future work Force-directed placement PROPOSED SOLUTION | 8

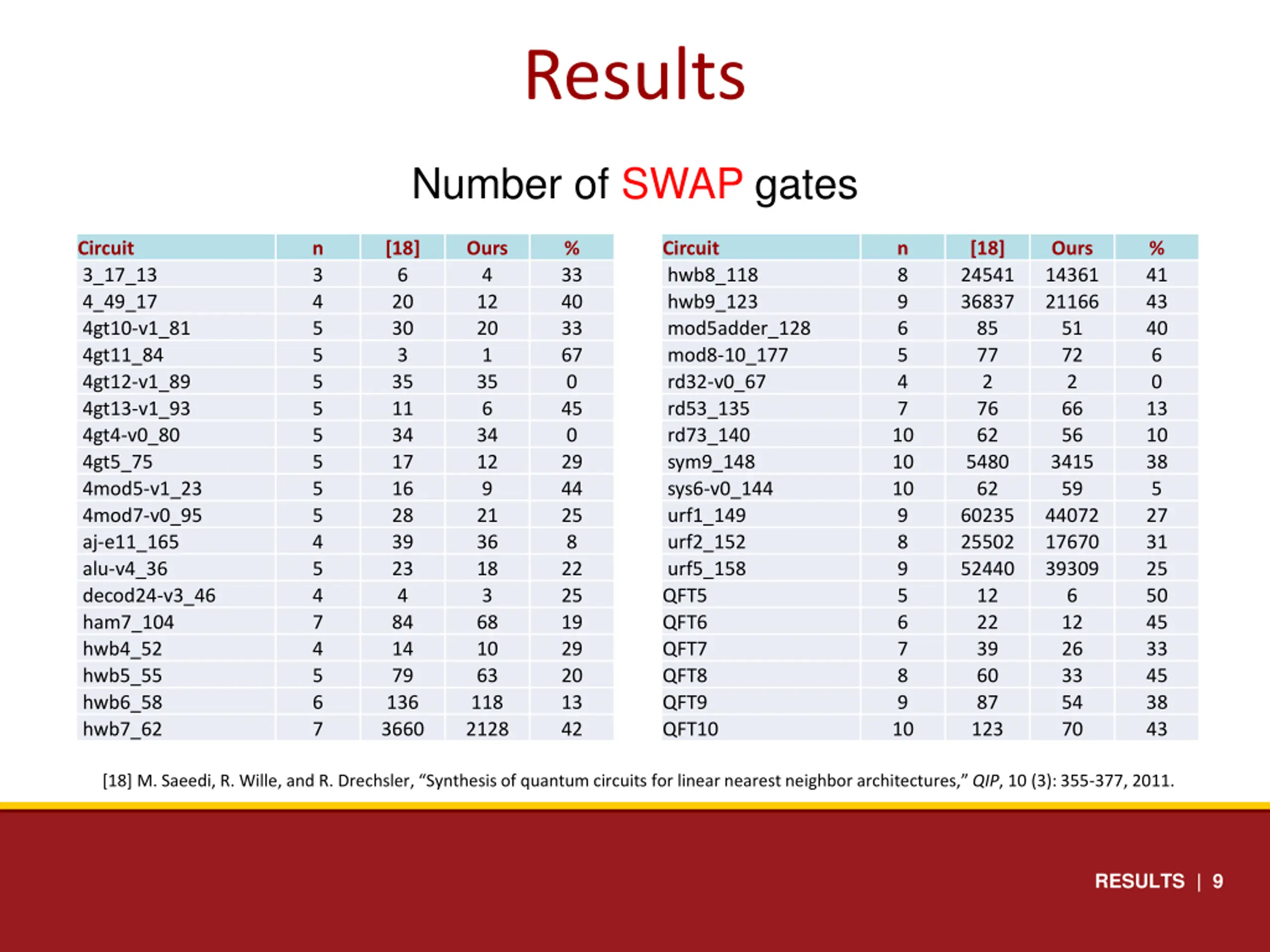

Results Number of SWAP gates Circuit 3_17_13 4_49_17 4gt10-v1_81 4gt11_84 4gt12-v1_89 4gt13-v1_93 4gt4-v0_80 4gt5_75 4mod5-v1_23 4mod7-v0_95 aj-e11_165 alu-v4_36 decod24-v3_46 ham7_104 hwb4_52 hwb5_55 hwb6_58 hwb7_62 n 3 4 5 5 5 5 5 5 5 5 4 5 4 7 4 5 6 7 [18] 6 20 30 3 35 11 34 17 16 28 39 23 4 84 14 79 136 3660 Ours 4 12 20 1 35 6 34 12 9 21 36 18 3 68 10 63 118 2128 % 33 40 33 67 0 45 0 29 44 25 8 22 25 19 29 20 13 42 Circuit hwb8_118 hwb9_123 mod5adder_128 mod8-10_177 rd32-v0_67 rd53_135 rd73_140 sym9_148 sys6-v0_144 urf1_149 urf2_152 urf5_158 QFT5 QFT6 QFT7 QFT8 QFT9 QFT10 n 8 9 6 5 4 7 10 10 10 9 8 9 5 6 7 8 9 10 [18] 24541 36837 85 77 2 76 62 5480 62 60235 25502 52440 12 22 39 60 87 123 Ours 14361 21166 51 72 2 66 56 3415 59 44072 17670 39309 6 12 26 33 54 70 % 41 43 40 6 0 13 10 38 5 27 31 25 50 45 33 45 38 43 [18] M. Saeedi, R. Wille, and R. Drechsler, Synthesis of quantum circuits for linear nearest neighbor architectures, QIP, 10 (3): 355-377, 2011. RESULTS | 9

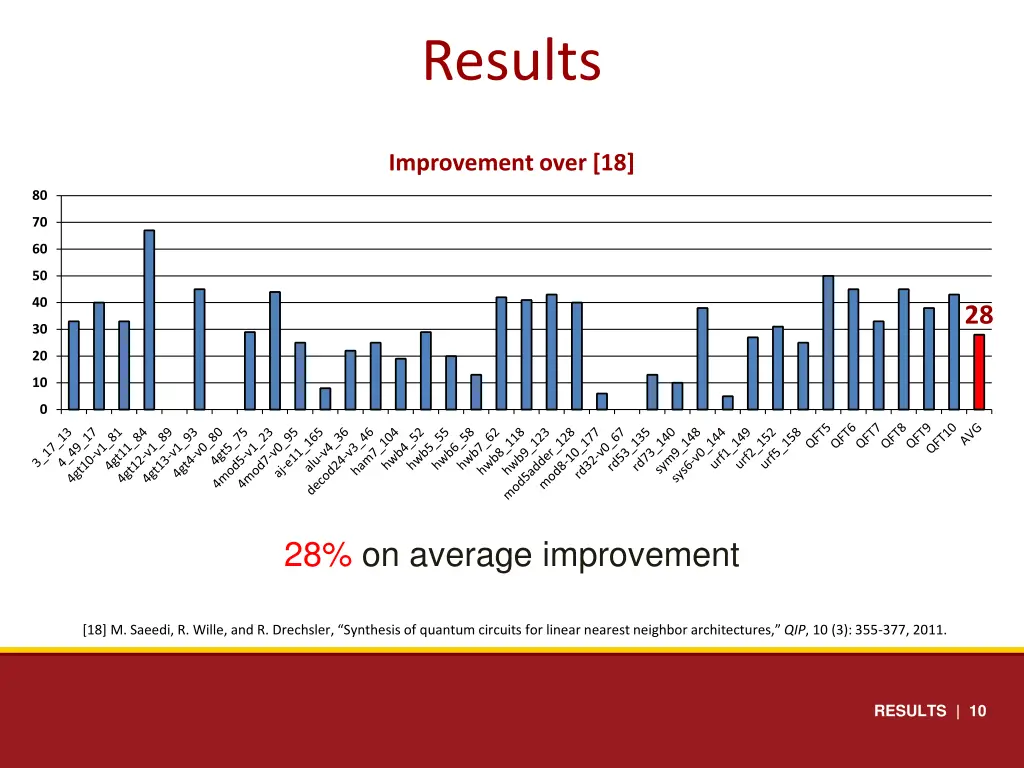

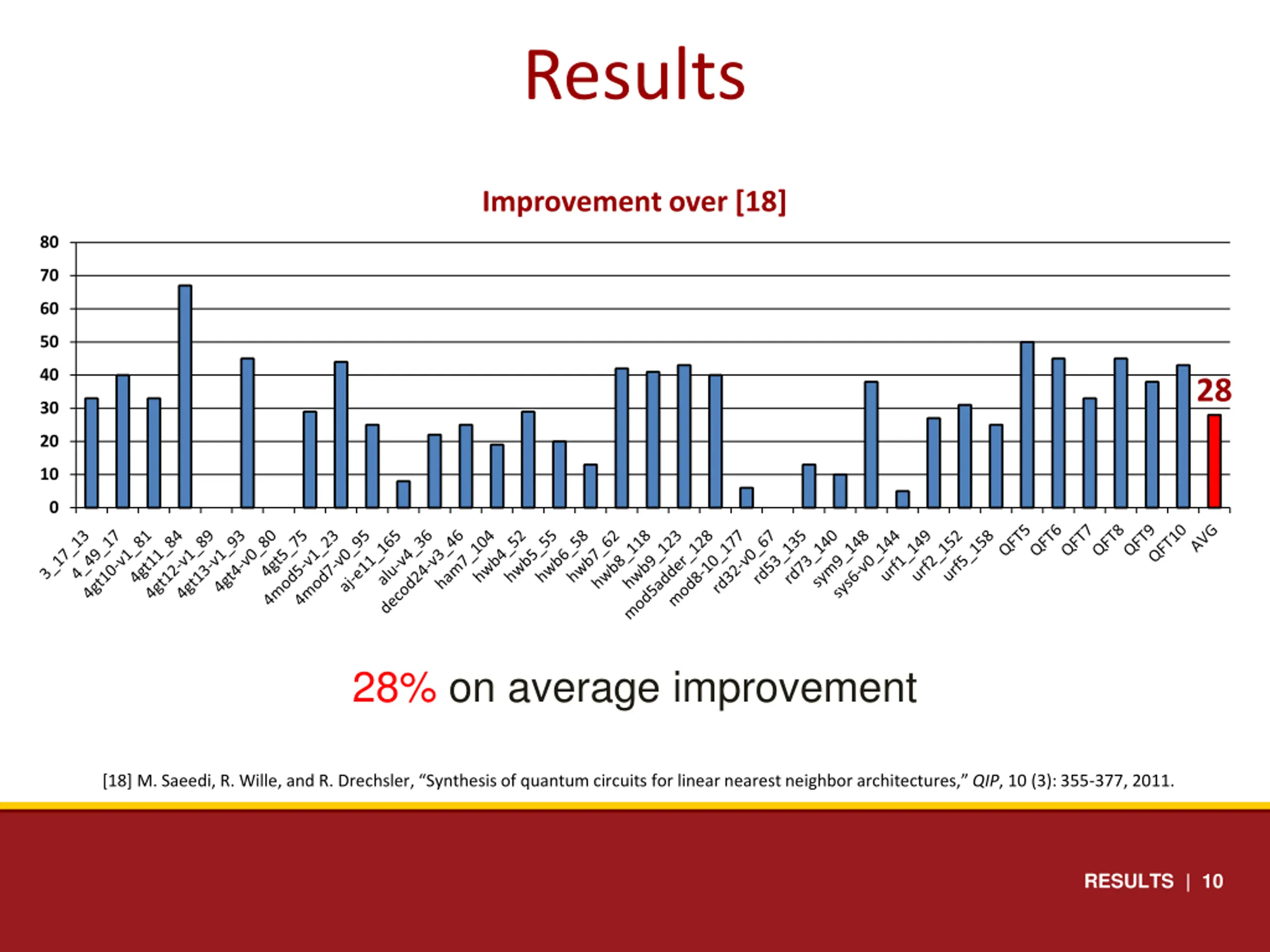

Results Improvement over [18] 80 70 60 50 40 28 30 20 10 0 28% on average improvement [18] M. Saeedi, R. Wille, and R. Drechsler, Synthesis of quantum circuits for linear nearest neighbor architectures, QIP, 10 (3): 355-377, 2011. RESULTS | 10
