INSTRAL: Discordance-Aware Phylogenetic Placement Using Quartet Scores Maryam Rabiee, Siavash Mirarab

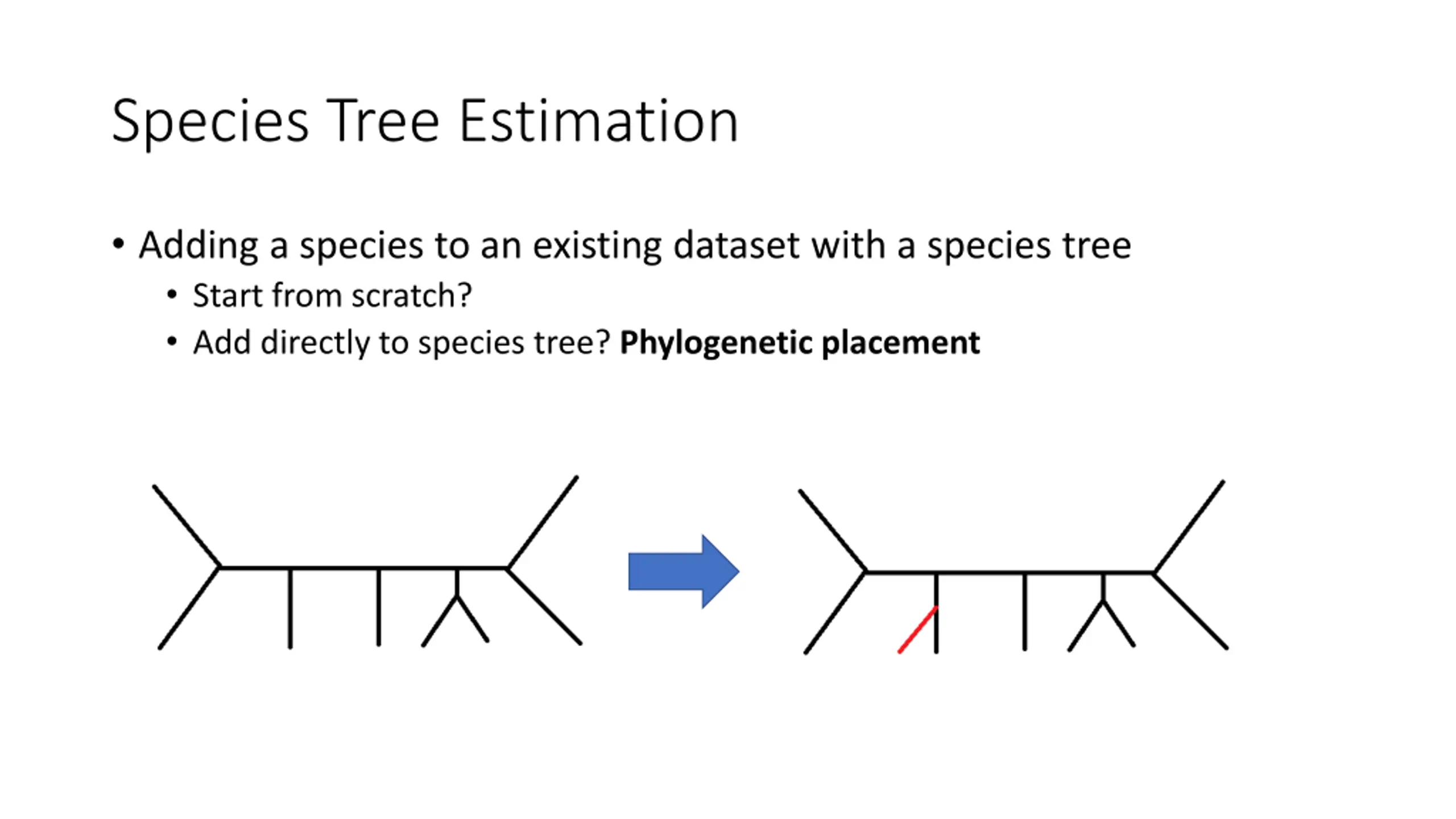

Species Tree Estimation Adding a species to an existing dataset with a species tree Start from scratch? Add directly to species tree? Phylogenetic placement

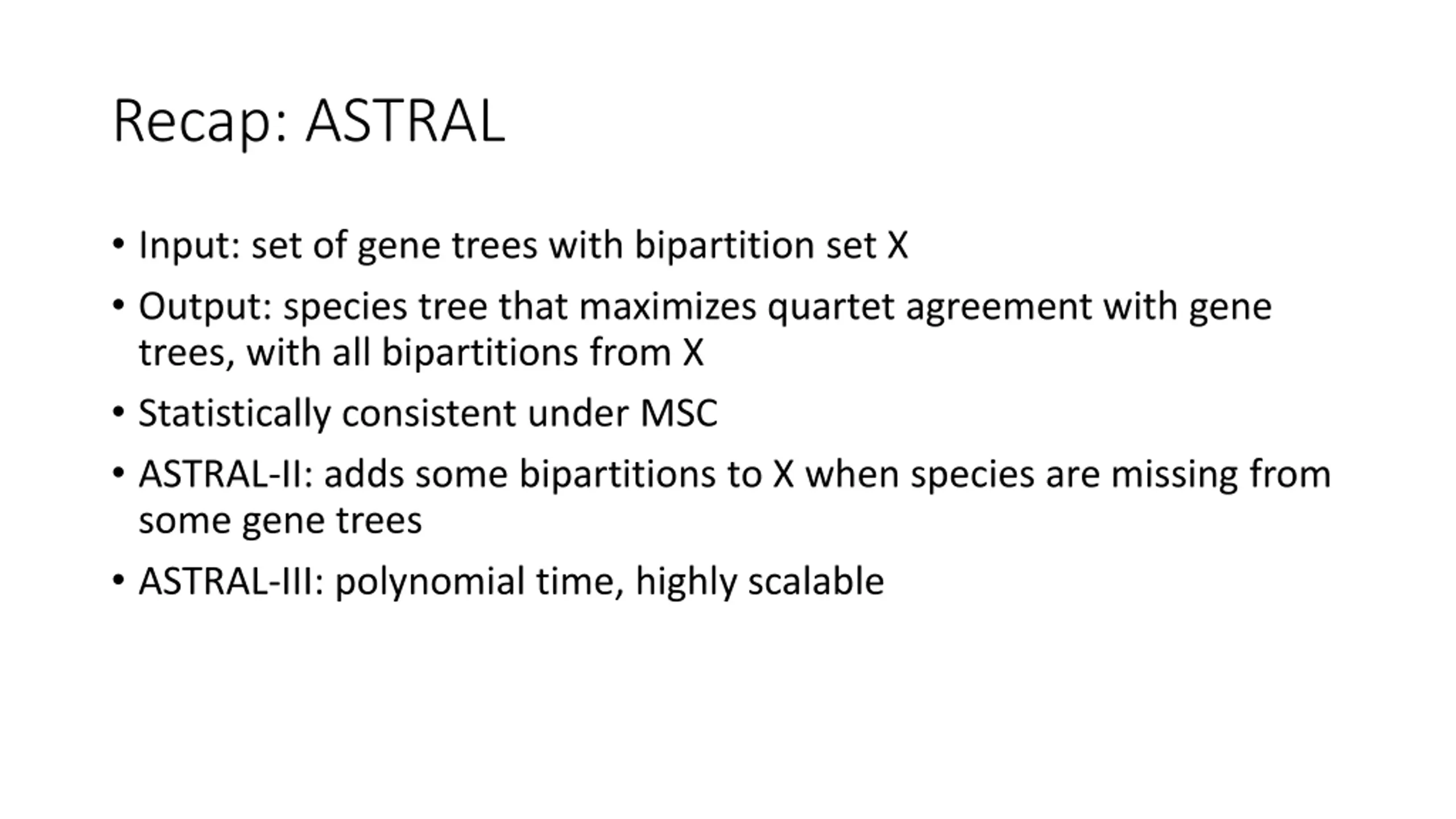

Recap: ASTRAL Input: set of gene trees with bipartition set X Output: species tree that maximizes quartet agreement with gene trees, with all bipartitions from X Statistically consistent under MSC ASTRAL-II: adds some bipartitions to X when species are missing from some gene trees ASTRAL-III: polynomial time, highly scalable

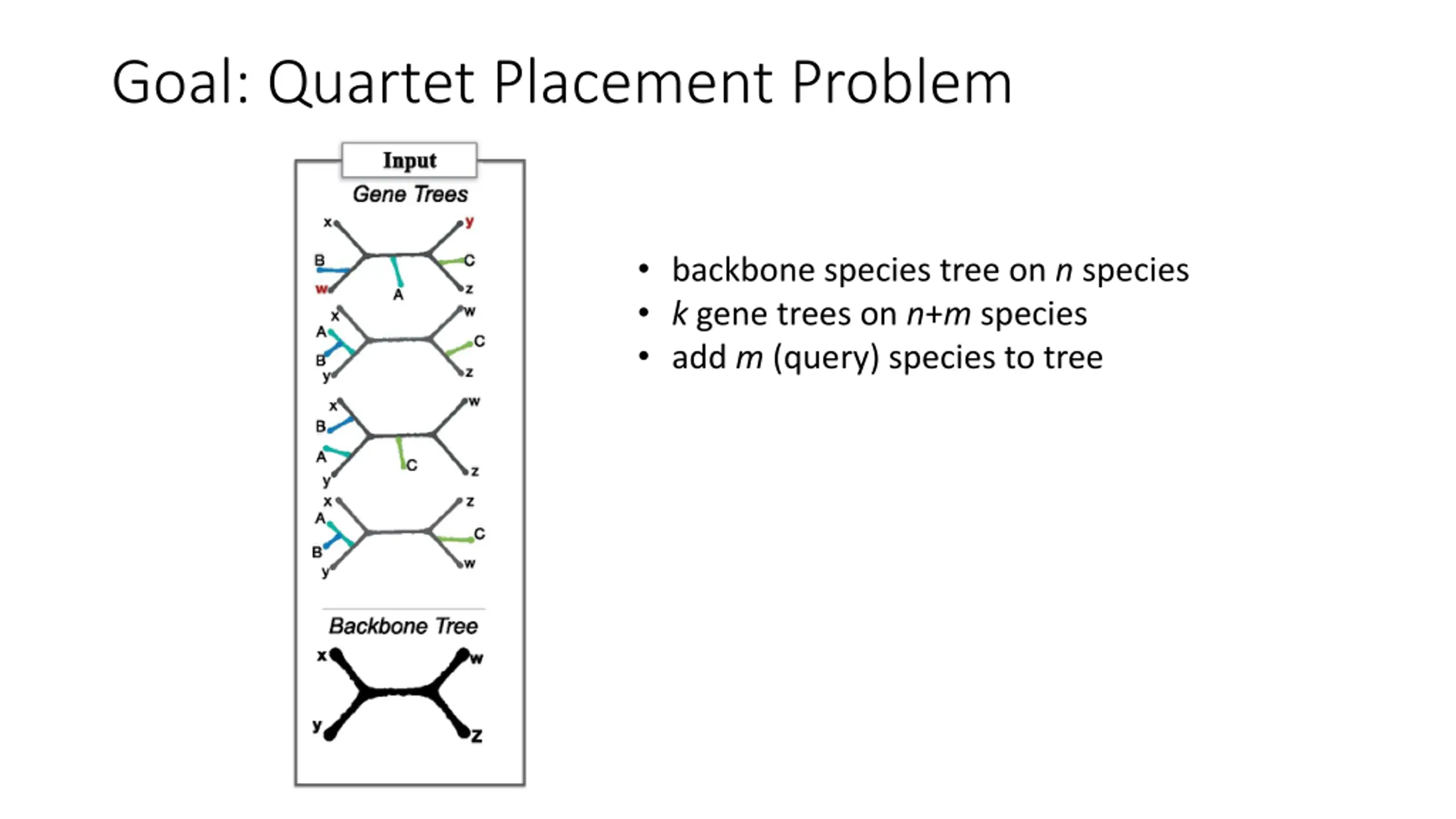

Goal: Quartet Placement Problem backbone species tree on n species k gene trees on n+m species add m (query) species to tree

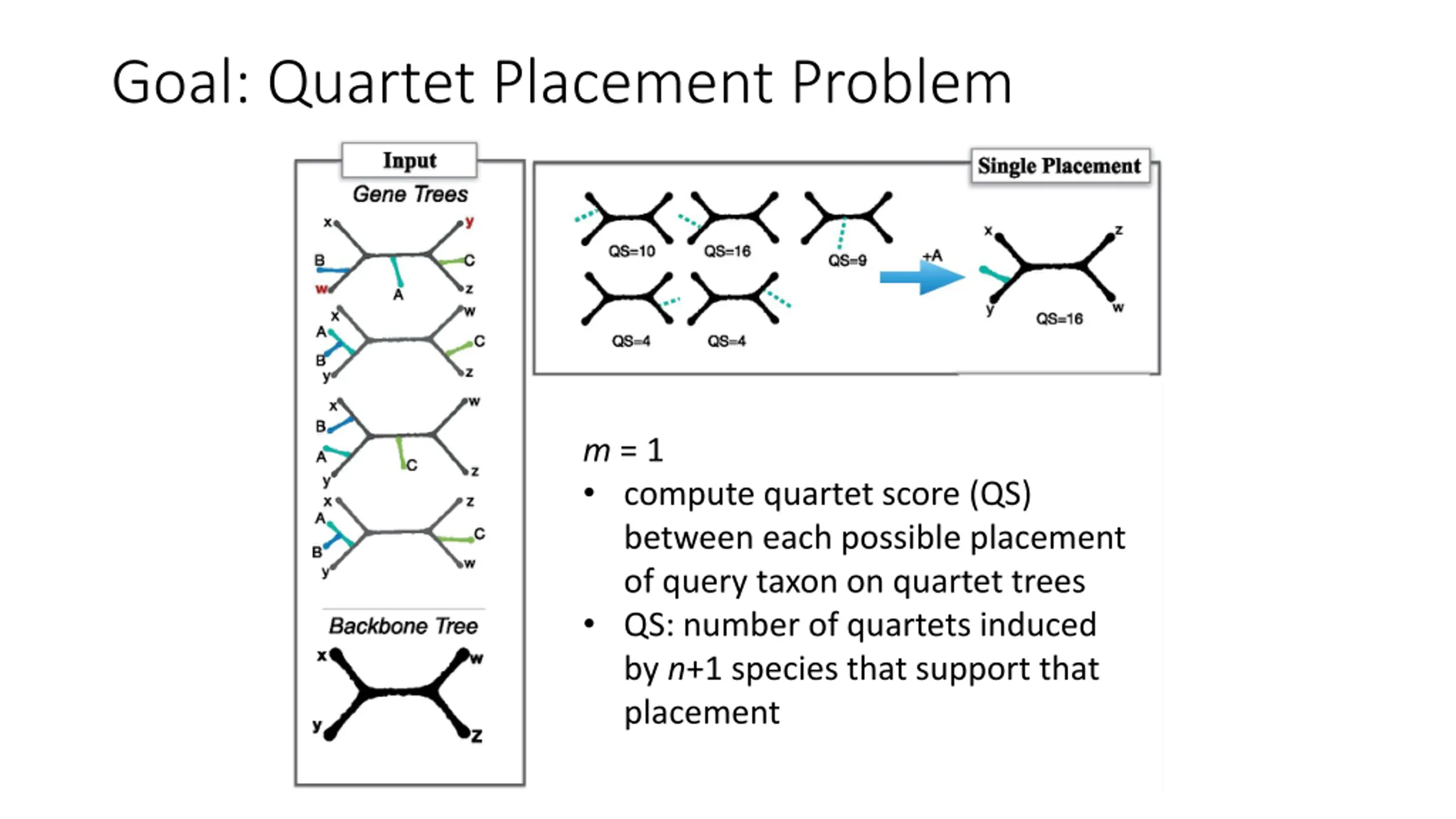

Goal: Quartet Placement Problem m = 1 compute quartet score (QS) between each possible placement of query taxon on quartet trees QS: number of quartets induced by n+1 species that support that placement

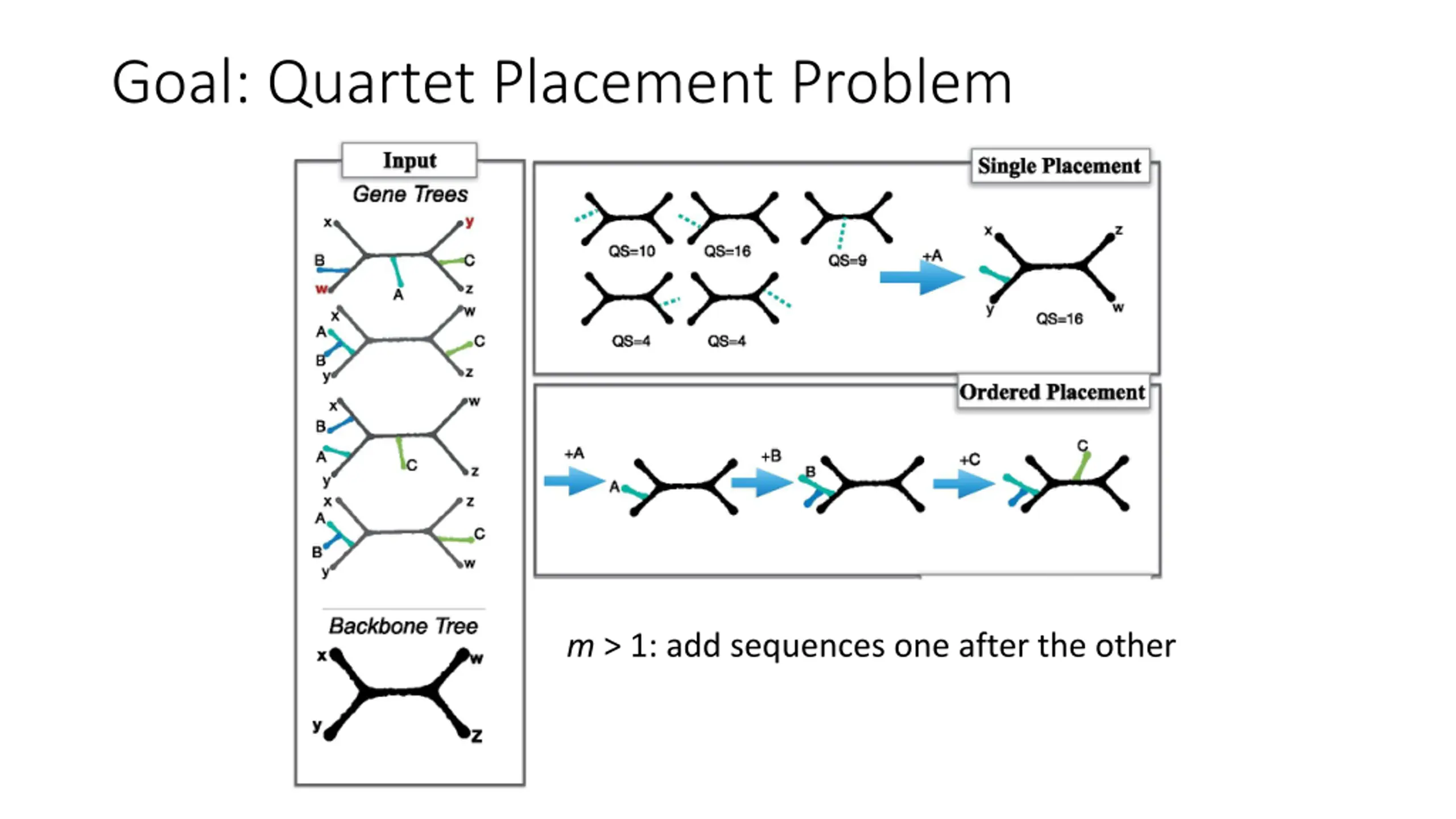

Goal: Quartet Placement Problem m > 1: add sequences one after the other

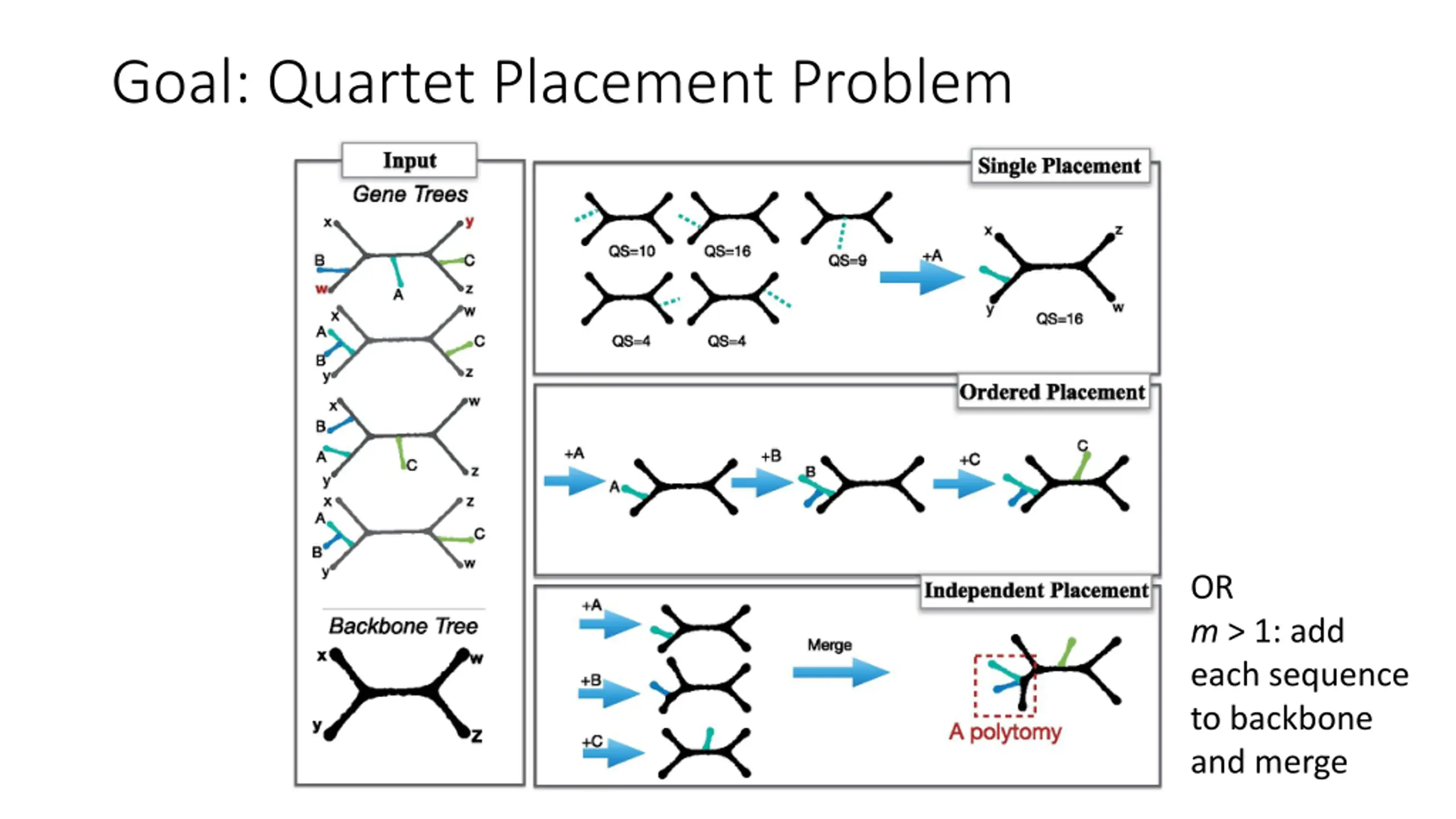

Goal: Quartet Placement Problem OR m > 1: add each sequence to backbone and merge

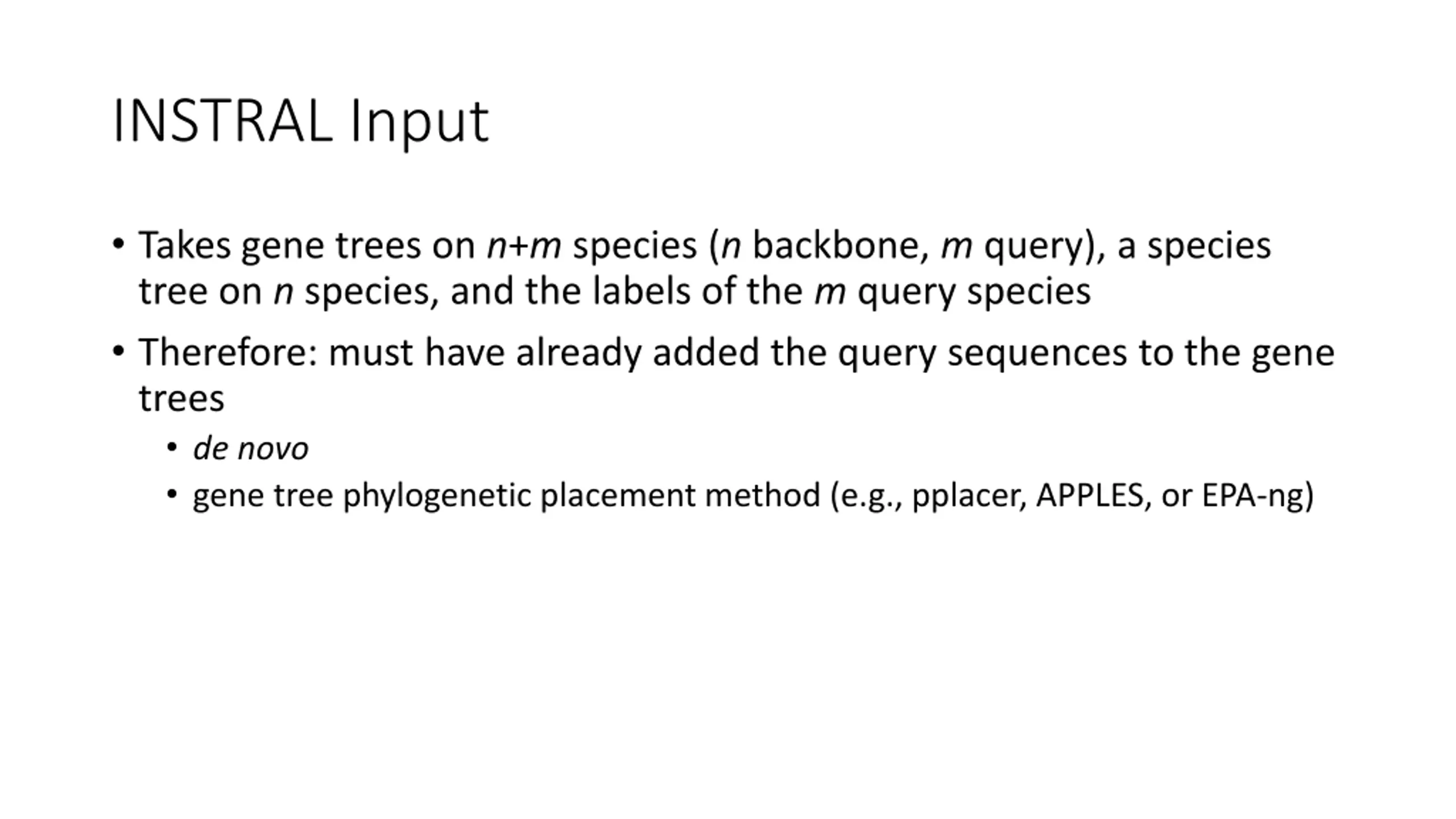

INSTRAL Input Takes gene trees on n+m species (n backbone, m query), a species tree on n species, and the labels of the m query species Therefore: must have already added the query sequences to the gene trees de novo gene tree phylogenetic placement method (e.g., pplacer, APPLES, or EPA-ng)

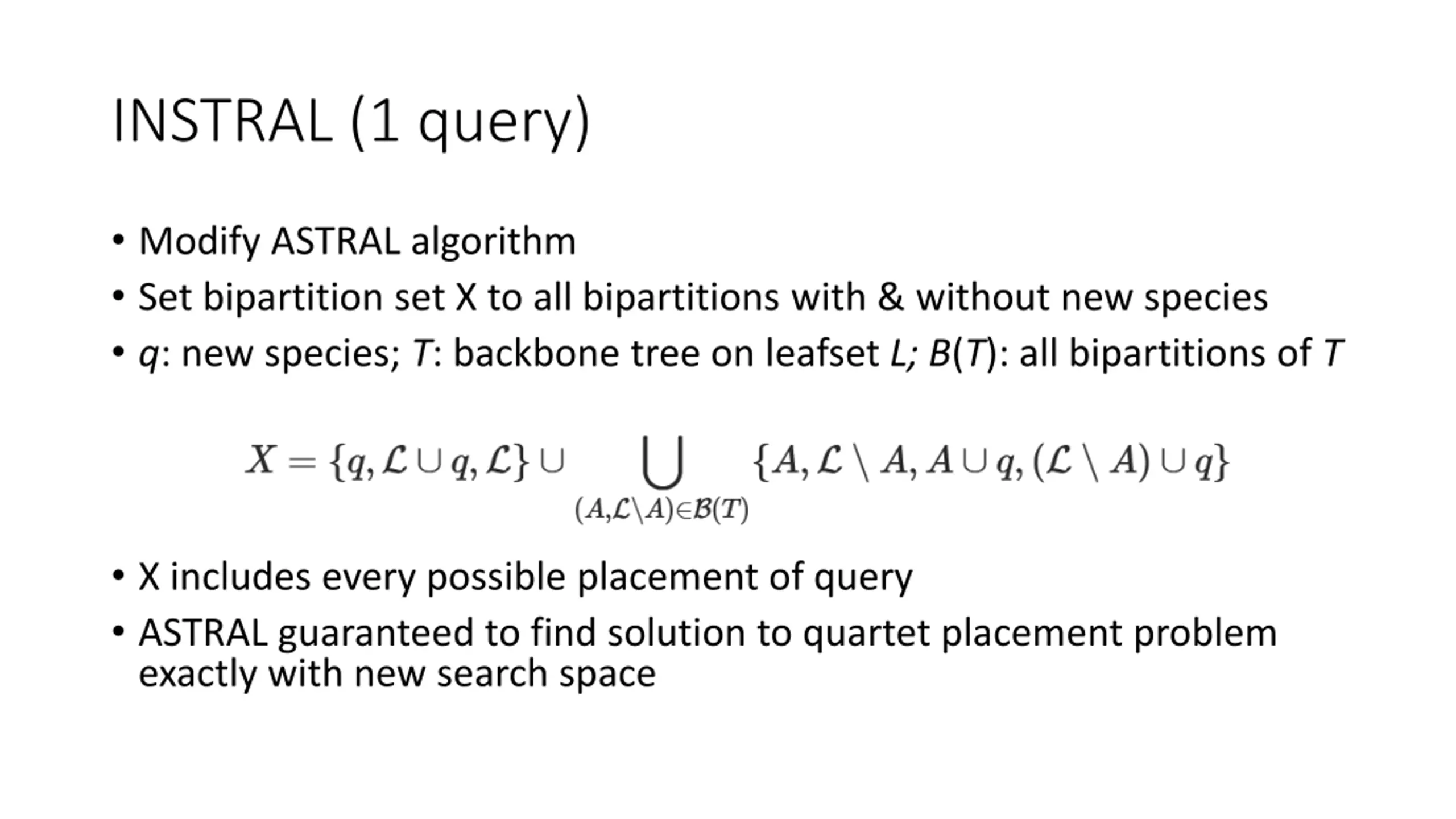

INSTRAL (1 query) Modify ASTRAL algorithm Set bipartition set X to all bipartitions with & without new species q: new species; T: backbone tree on leafset L; B(T): all bipartitions of T X includes every possible placement of query ASTRAL guaranteed to find solution to quartet placement problem exactly with new search space

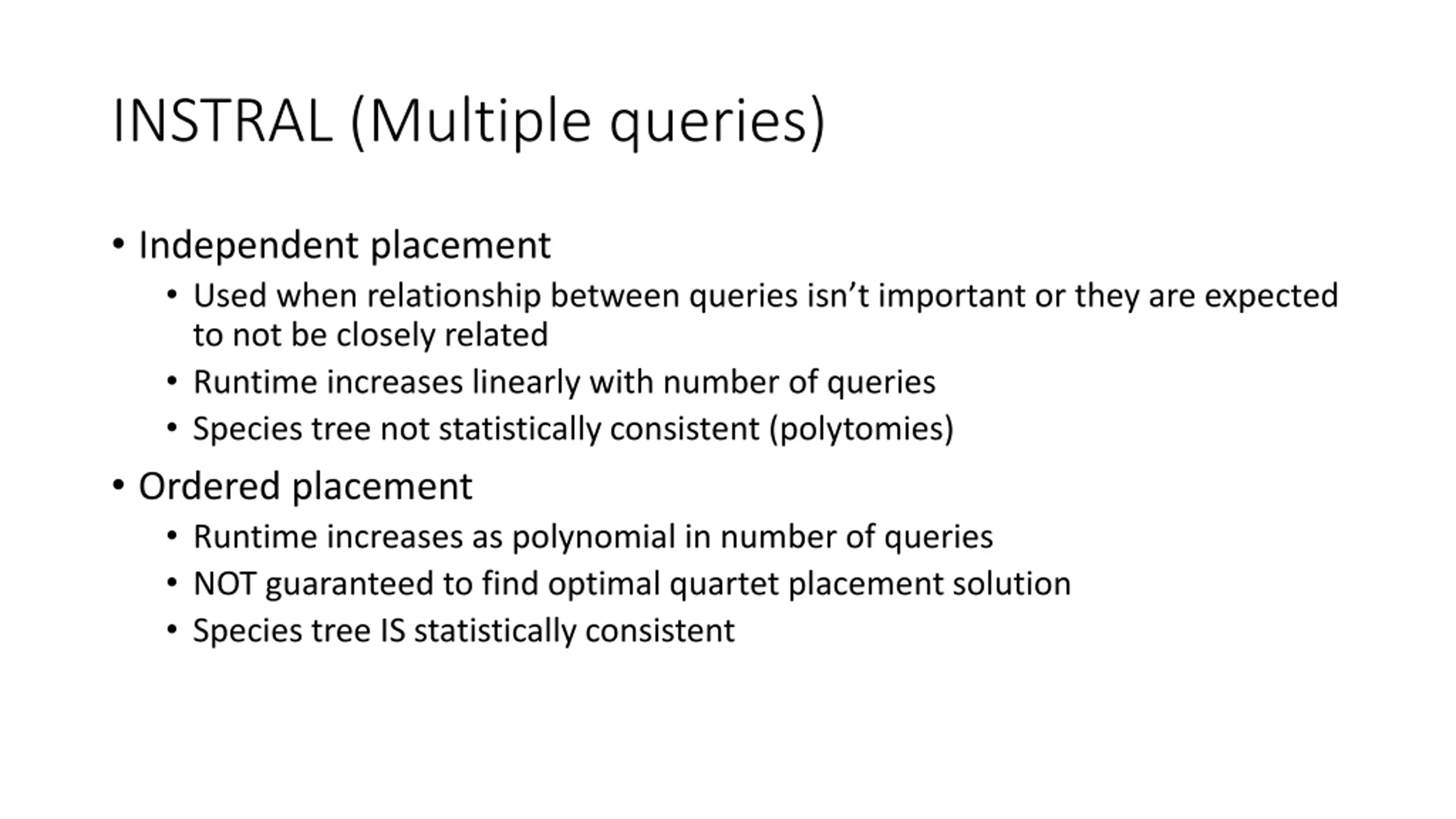

INSTRAL (Multiple queries) Independent placement Used when relationship between queries isn t important or they are expected to not be closely related Runtime increases linearly with number of queries Species tree not statistically consistent (polytomies) Ordered placement Runtime increases as polynomial in number of queries NOT guaranteed to find optimal quartet placement solution Species tree IS statistically consistent

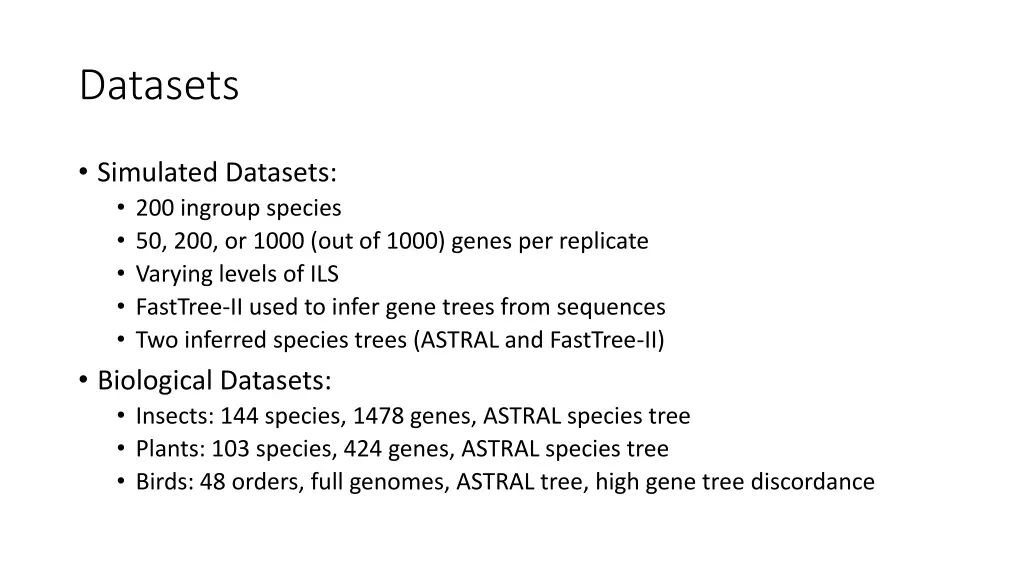

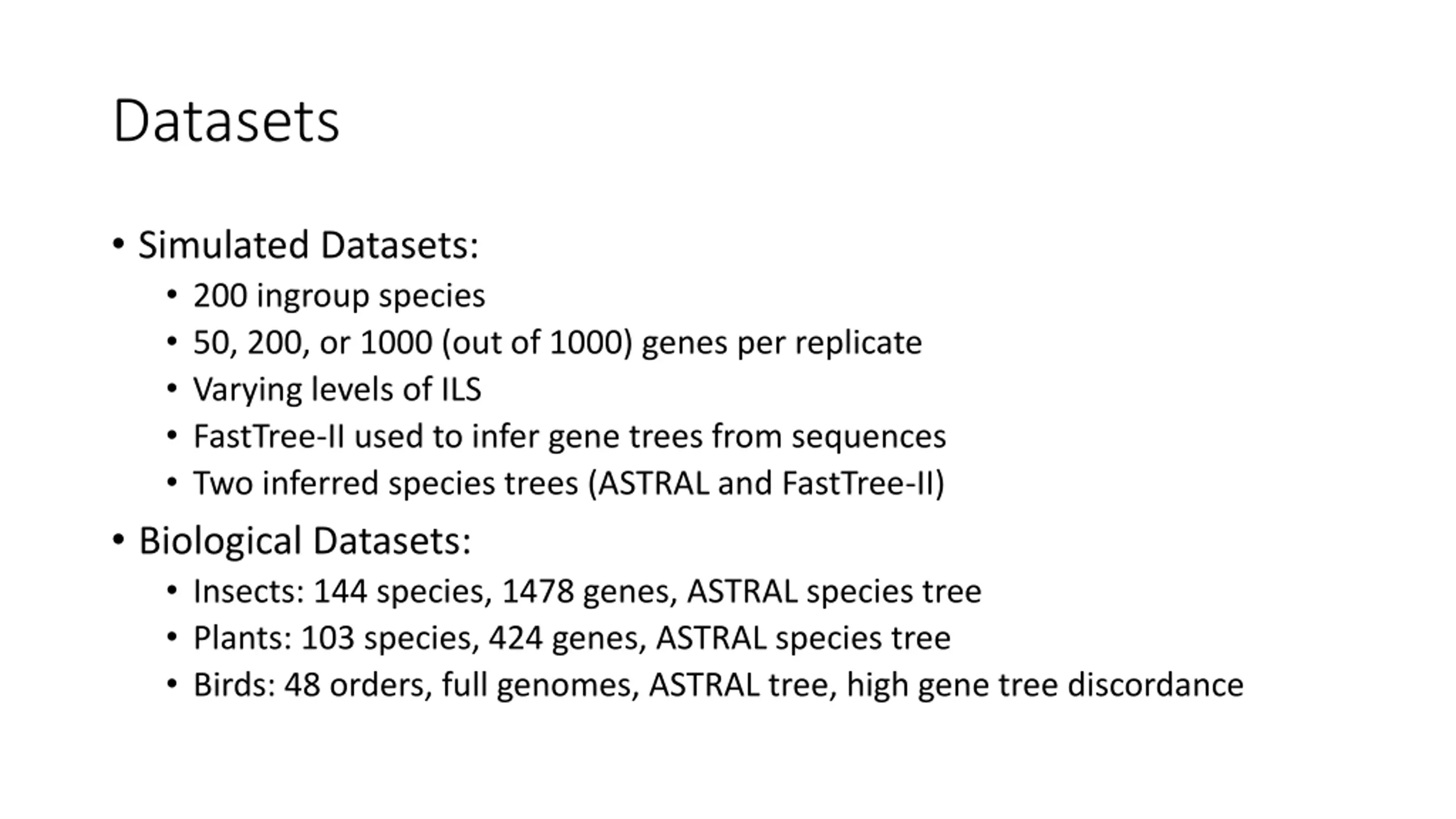

Datasets Simulated Datasets: 200 ingroup species 50, 200, or 1000 (out of 1000) genes per replicate Varying levels of ILS FastTree-II used to infer gene trees from sequences Two inferred species trees (ASTRAL and FastTree-II) Biological Datasets: Insects: 144 species, 1478 genes, ASTRAL species tree Plants: 103 species, 424 genes, ASTRAL species tree Birds: 48 orders, full genomes, ASTRAL tree, high gene tree discordance

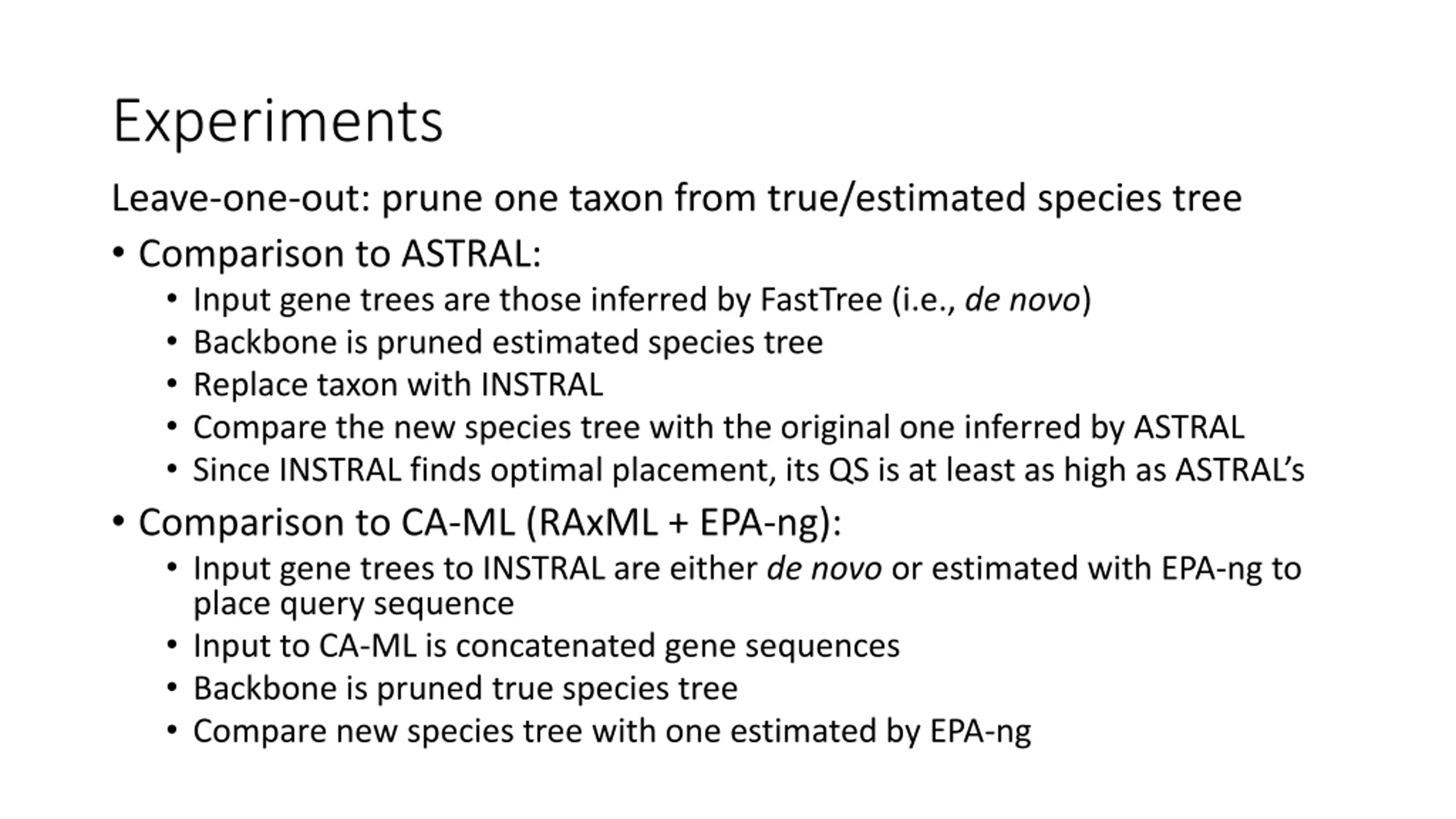

Experiments Leave-one-out: prune one taxon from true/estimated species tree Comparison to ASTRAL: Input gene trees are those inferred by FastTree (i.e., de novo) Backbone is pruned estimated species tree Replace taxon with INSTRAL Compare the new species tree with the original one inferred by ASTRAL Since INSTRAL finds optimal placement, its QS is at least as high as ASTRAL s Comparison to CA-ML (RAxML + EPA-ng): Input gene trees to INSTRAL are either de novo or estimated with EPA-ng to place query sequence Input to CA-ML is concatenated gene sequences Backbone is pruned true species tree Compare new species tree with one estimated by EPA-ng

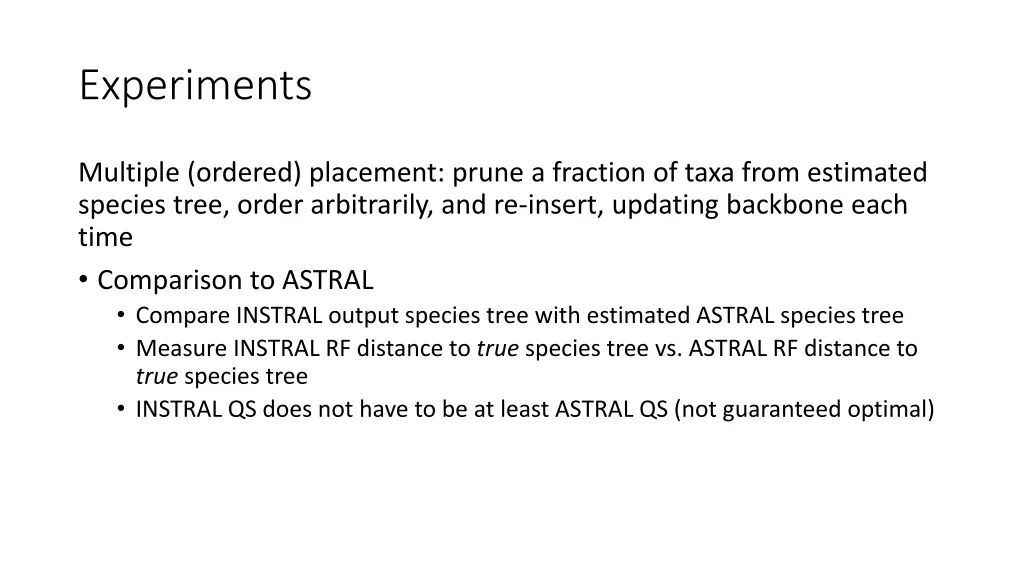

Experiments Multiple (ordered) placement: prune a fraction of taxa from estimated species tree, order arbitrarily, and re-insert, updating backbone each time Comparison to ASTRAL Compare INSTRAL output species tree with estimated ASTRAL species tree Measure INSTRAL RF distance to true species tree vs. ASTRAL RF distance to true species tree INSTRAL QS does not have to be at least ASTRAL QS (not guaranteed optimal)

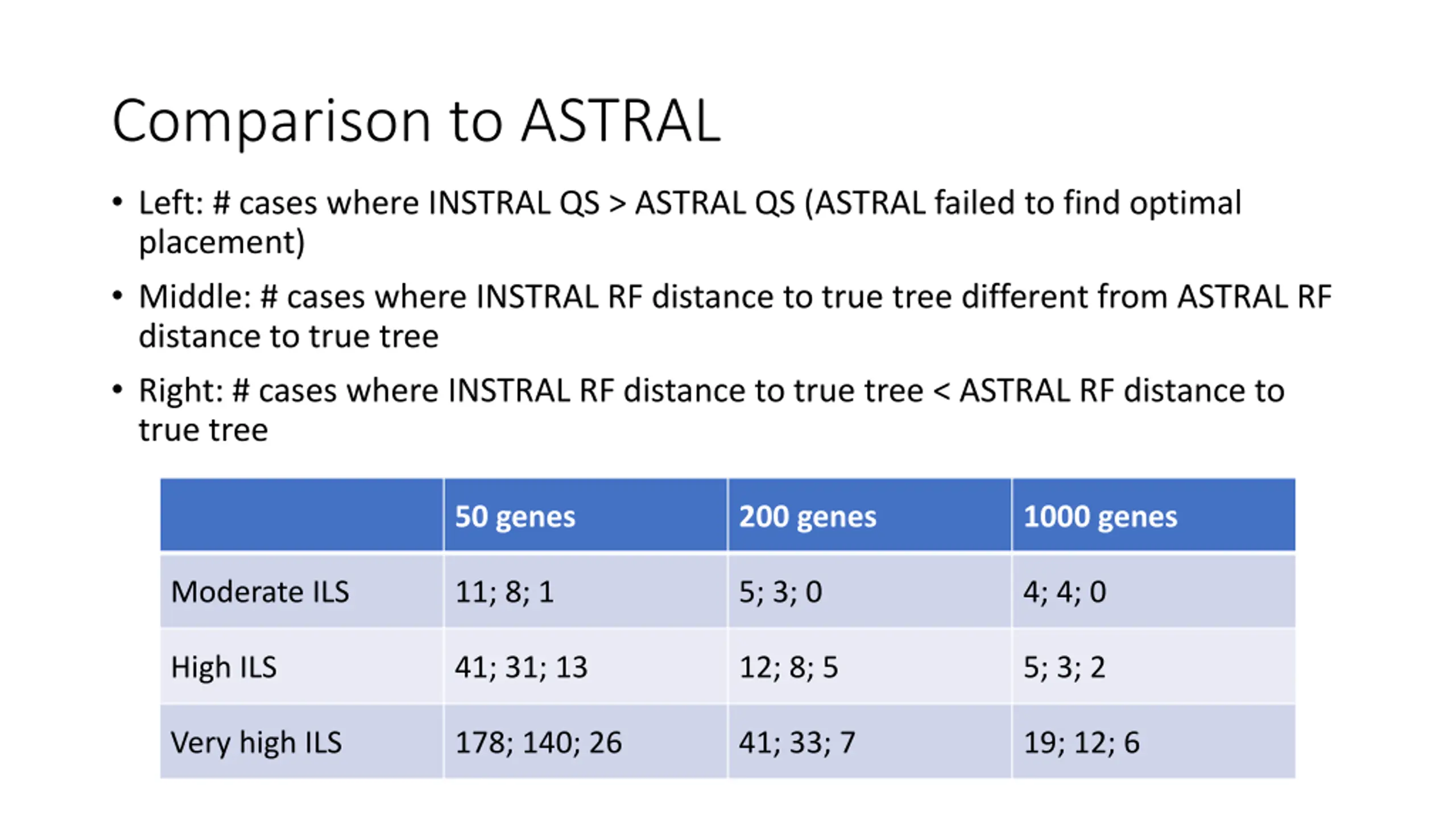

Comparison to ASTRAL Left: # cases where INSTRAL QS > ASTRAL QS (ASTRAL failed to find optimal placement) Middle: # cases where INSTRAL RF distance to true tree different from ASTRAL RF distance to true tree Right: # cases where INSTRAL RF distance to true tree < ASTRAL RF distance to true tree 50 genes 200 genes 1000 genes Moderate ILS 11; 8; 1 5; 3; 0 4; 4; 0 High ILS 41; 31; 13 12; 8; 5 5; 3; 2 Very high ILS 178; 140; 26 41; 33; 7 19; 12; 6

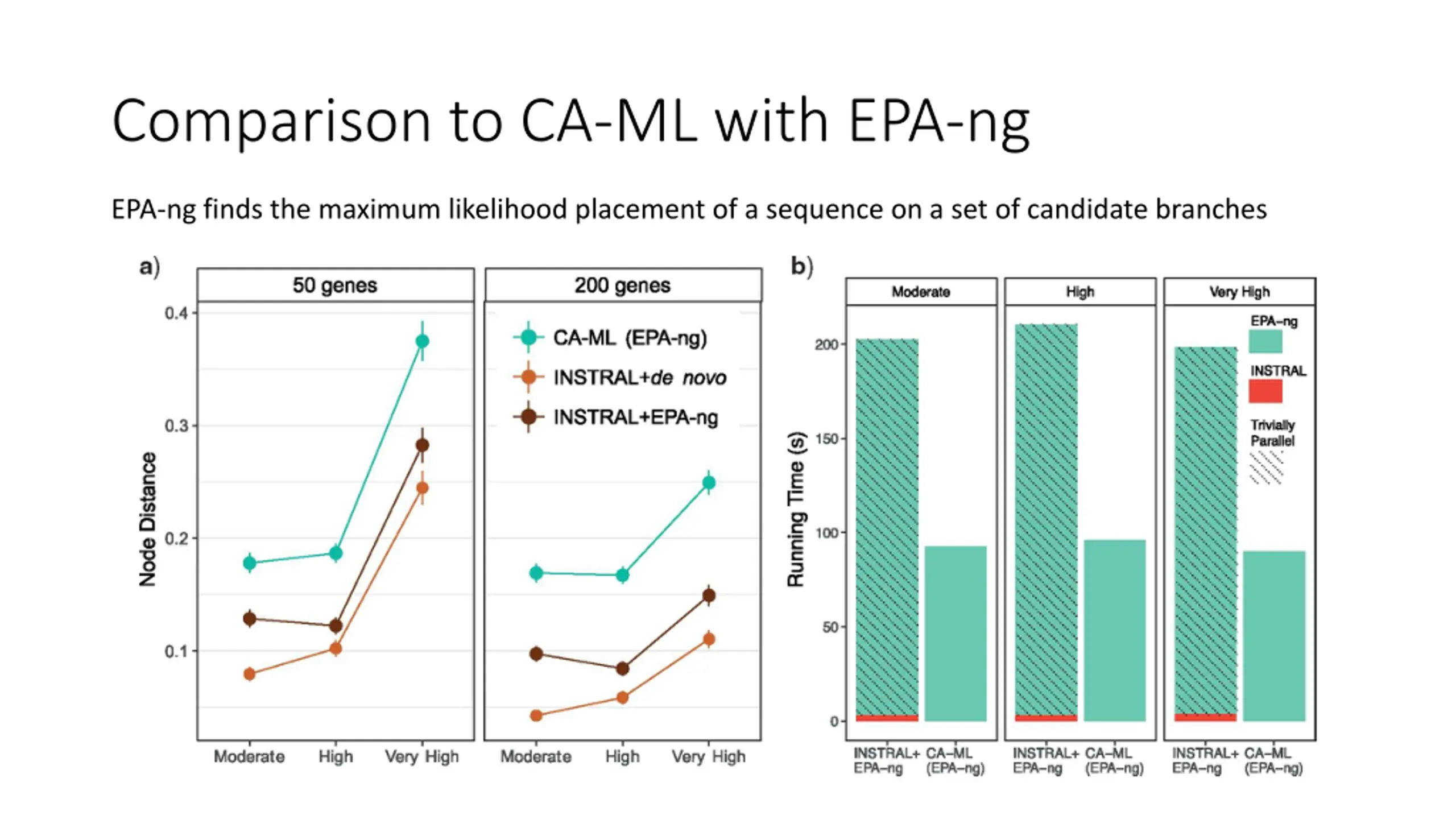

Comparison to CA-ML with EPA-ng EPA-ng finds the maximum likelihood placement of a sequence on a set of candidate branches

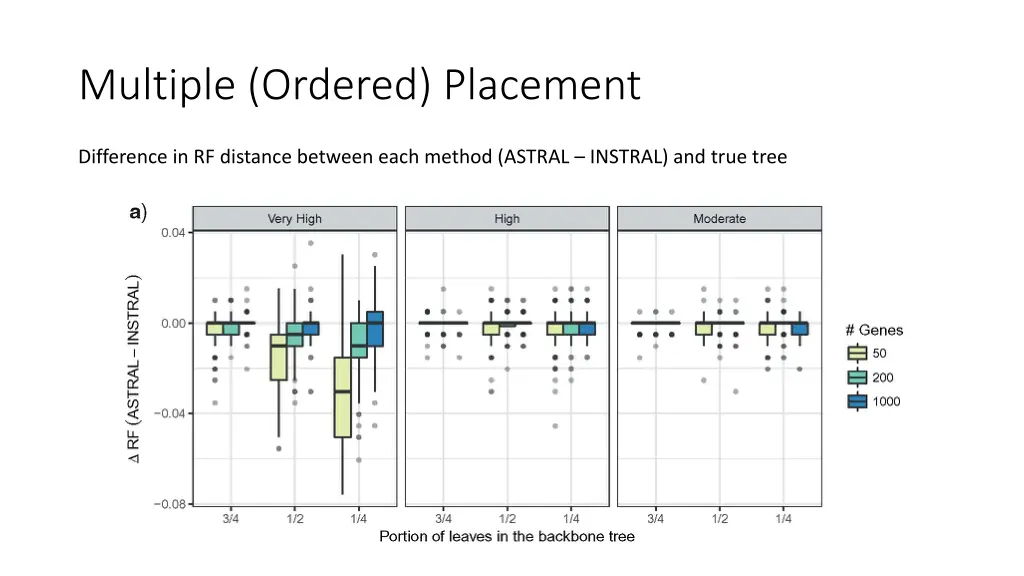

Multiple (Ordered) Placement Difference in RF distance between each method (ASTRAL INSTRAL) and true tree

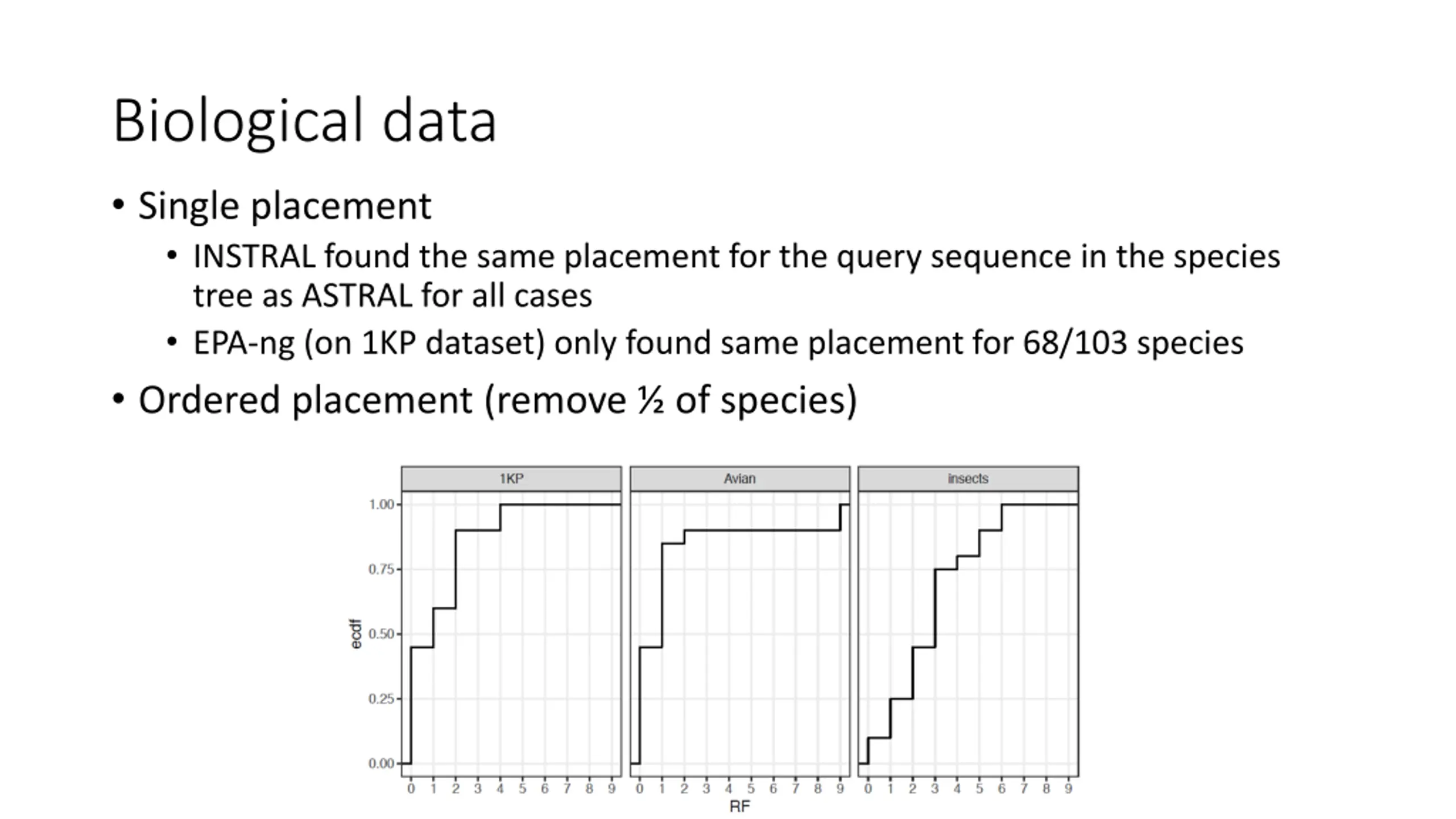

Biological data Single placement INSTRAL found the same placement for the query sequence in the species tree as ASTRAL for all cases EPA-ng (on 1KP dataset) only found same placement for 68/103 species Ordered placement (remove of species)

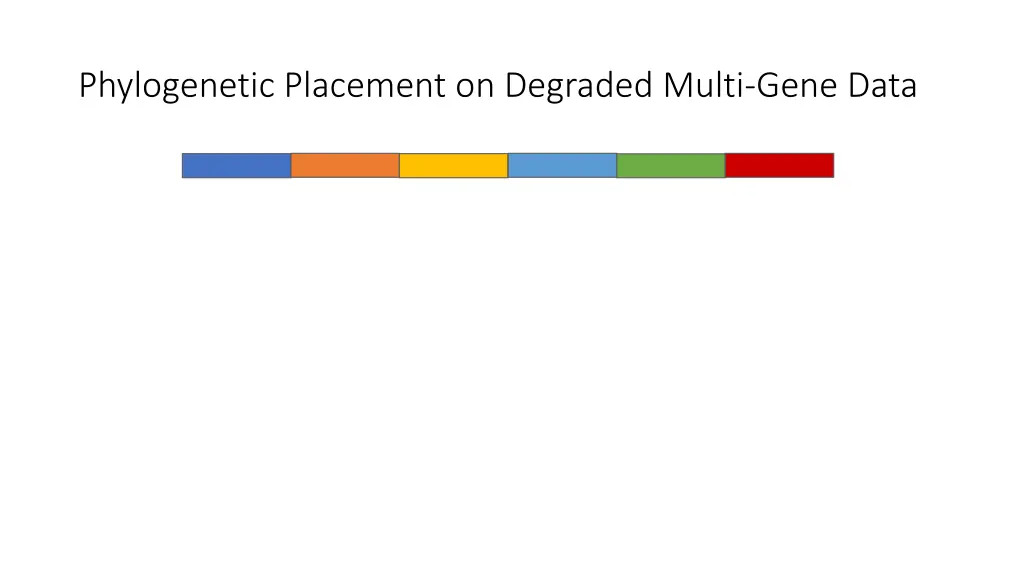

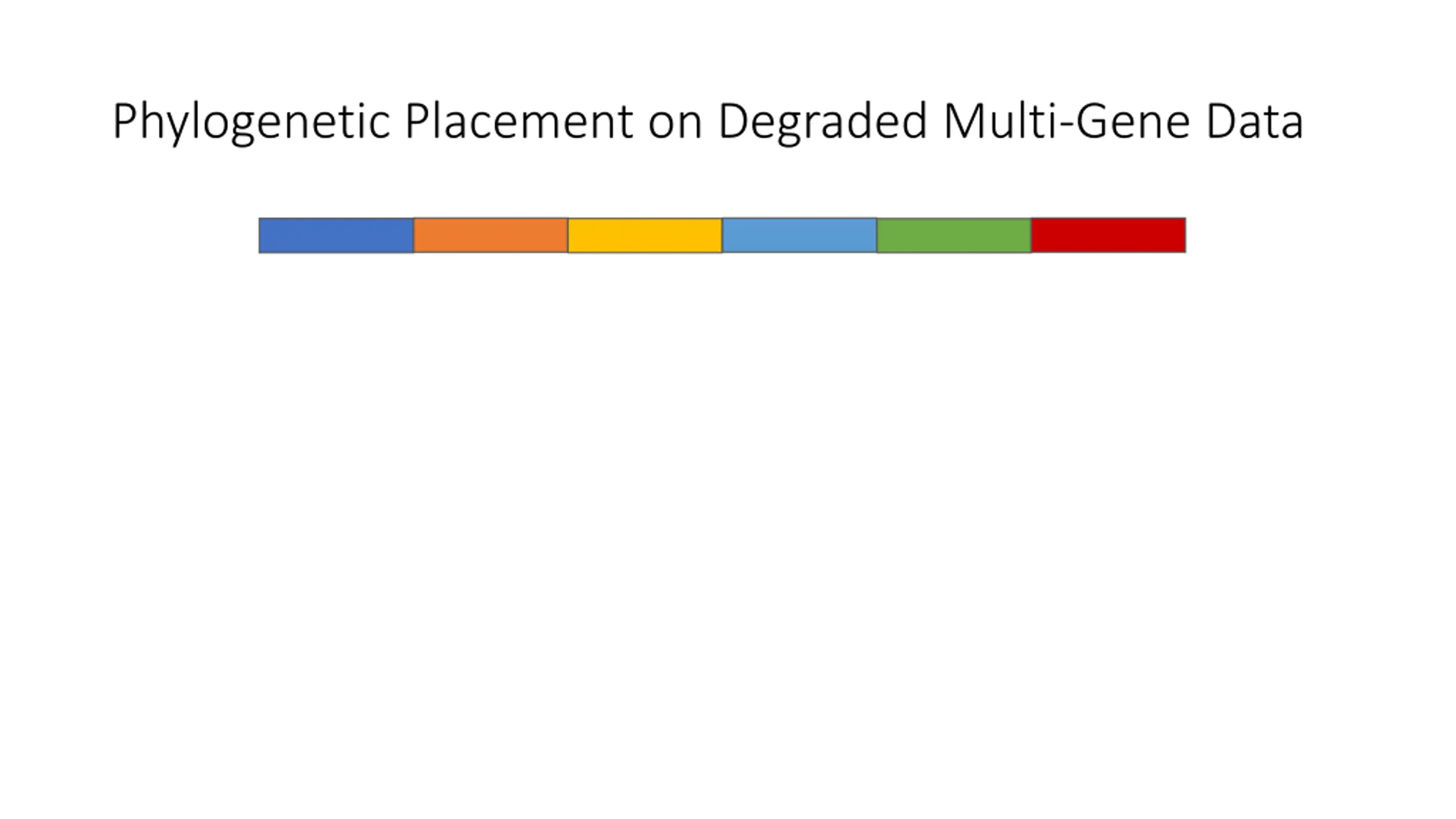

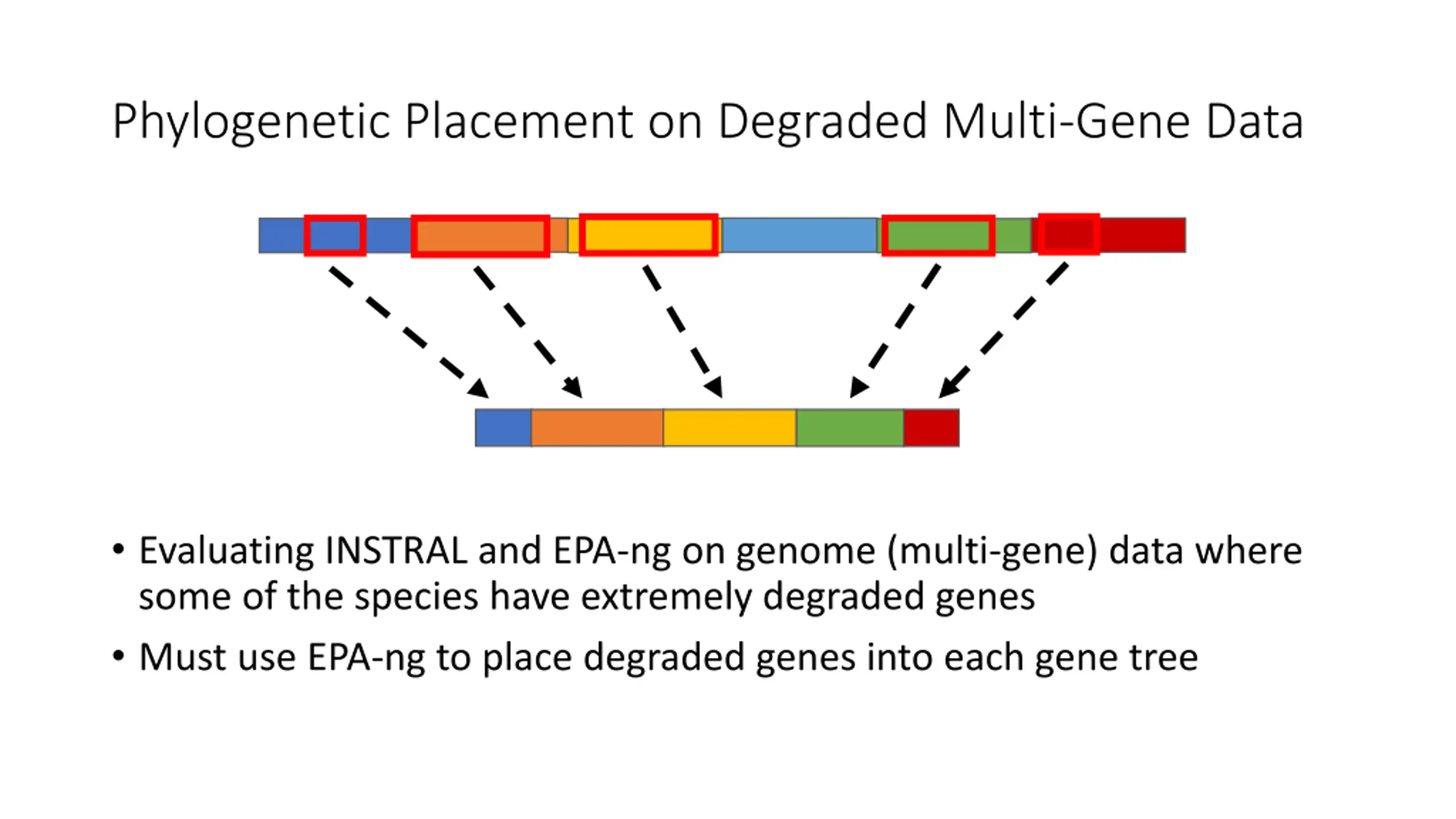

Phylogenetic Placement on Degraded Multi-Gene Data Evaluating INSTRAL and EPA-ng on genome (multi-gene) data where some of the species have extremely degraded genes Must use EPA-ng to place degraded genes into each gene tree
