R-L-C Circuit Voltages and Power Characteristics
Exploring the behavior of voltages across components in R-L-C circuits and discussing the relationship between voltage and current phases, as well as the concept of power in AC circuits. Additionally, the distinction in resonant frequencies between series and parallel R-L-C circuits is addressed.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

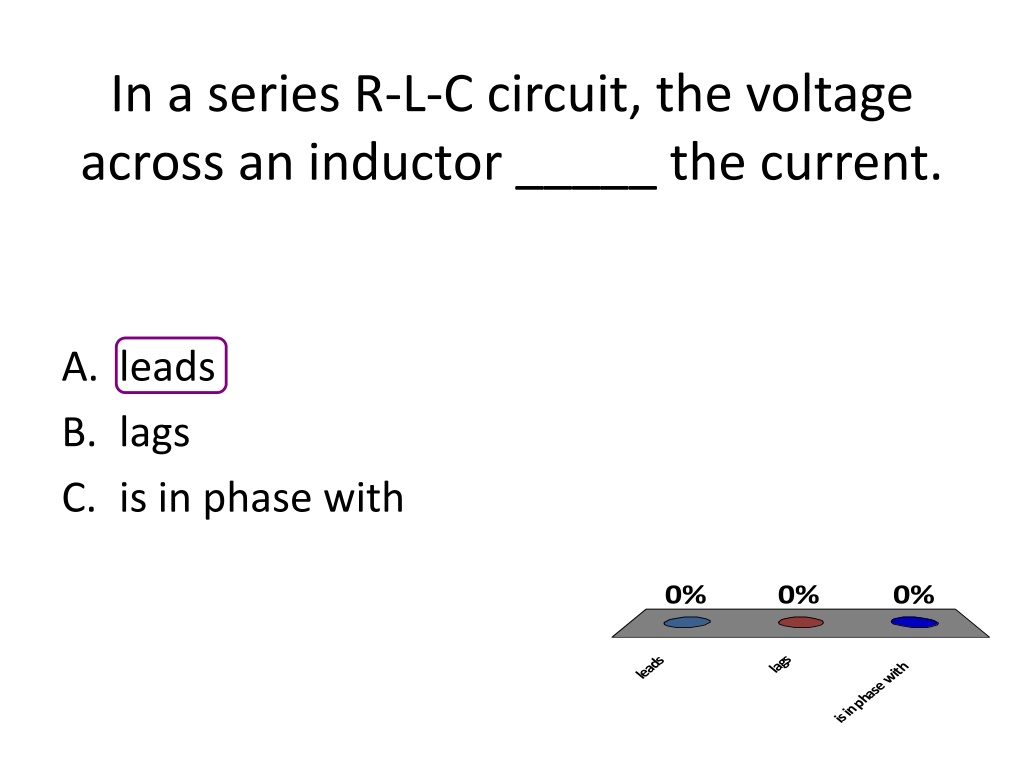

In a series R-L-C circuit, the voltage across an inductor _____ the current. A. leads B. lags C. is in phase with 0% 0% 0% lags leads is in phase with
In a series R-L-C circuit, the voltage across a capacitor _____ the current. A. leads B. lags C. is in phase with 0% 0% 0% lags leads is in phase with
In a series R-L-C circuit, the voltage across a resistor _____ the current. A. leads B. lags C. is in phase with 0% 0% 0% lags leads is in phase with
The maximum source voltage in a circuit _____ the current. A. leads B. lags C. is in phase with D. could be any of the above 0% 0% 0% 0% lags leads is in phase with could be any of the above
Power in an AC circuit is constant. A. True B. False 0% 0% True False
The resonant frequency is different for R-L-C series and parallel circuits. A. True B. False 0% 0% True False
