CSCE-411 Design and Analysis of Algorithms Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 9: RadixSort

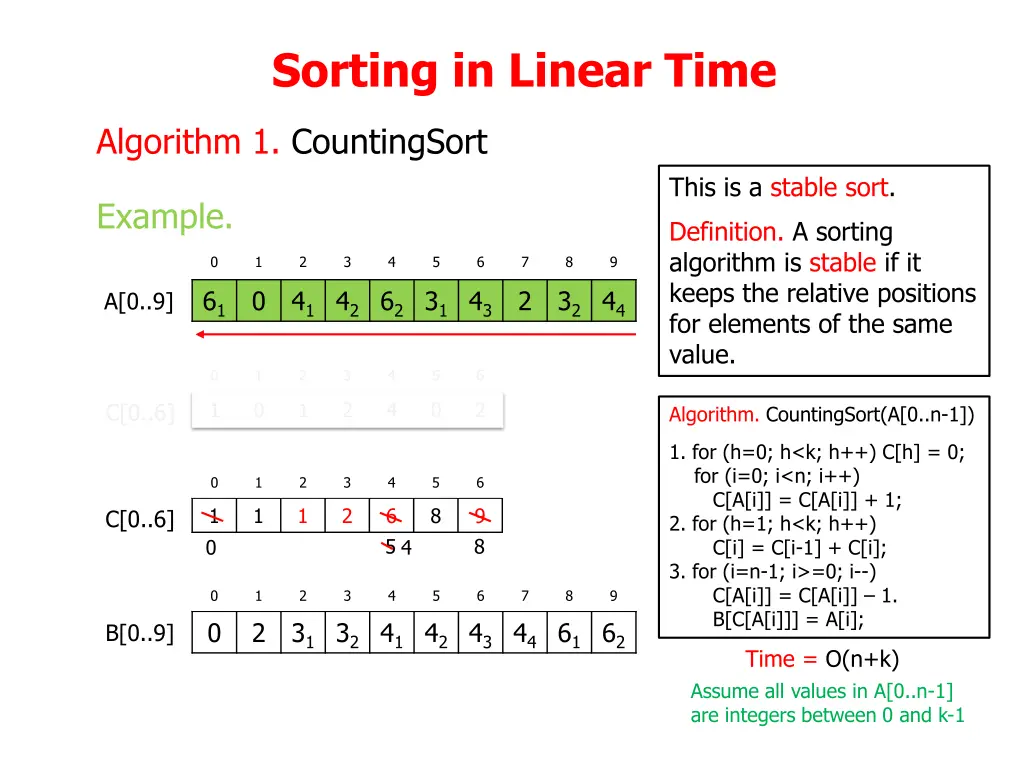

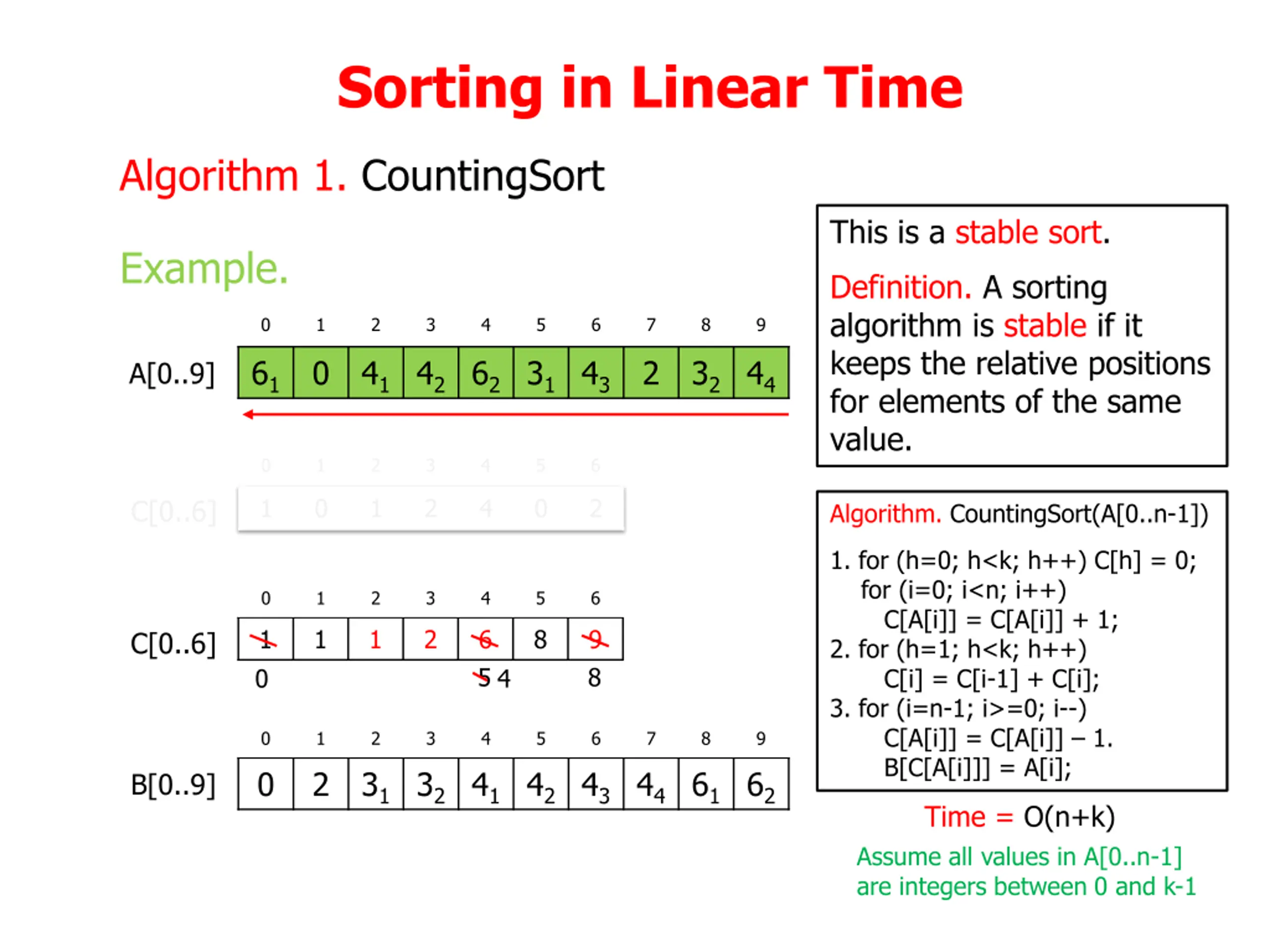

Sorting in Linear Time Algorithm 1. CountingSort This is a stable sort. Example. Definition. A sorting algorithm is stable if it keeps the relative positions for elements of the same value. 0 1 2 3 4 5 6 7 8 9 61 0 41 42 62 31 43 2 32 44 A[0..9] 0 1 2 3 4 5 6 1 0 1 2 4 0 2 C[0..6] Algorithm. CountingSort(A[0..n-1]) 1. for (h=0; h<k; h++) C[h] = 0; for (i=0; i<n; i++) C[A[i]] = C[A[i]] + 1; 2. for (h=1; h<k; h++) C[i] = C[i-1] + C[i]; 3. for (i=n-1; i>=0; i--) C[A[i]] = C[A[i]] 1. B[C[A[i]]] = A[i]; 0 1 2 3 4 5 6 1 0 1 1 2 6 5 4 8 9 8 C[0..6] 0 1 2 3 4 5 6 7 8 9 0 2 31 32 41 42 43 44 61 62 B[0..9] Time = O(n+k) Assume all values in A[0..n-1] are integers between 0 and k-1

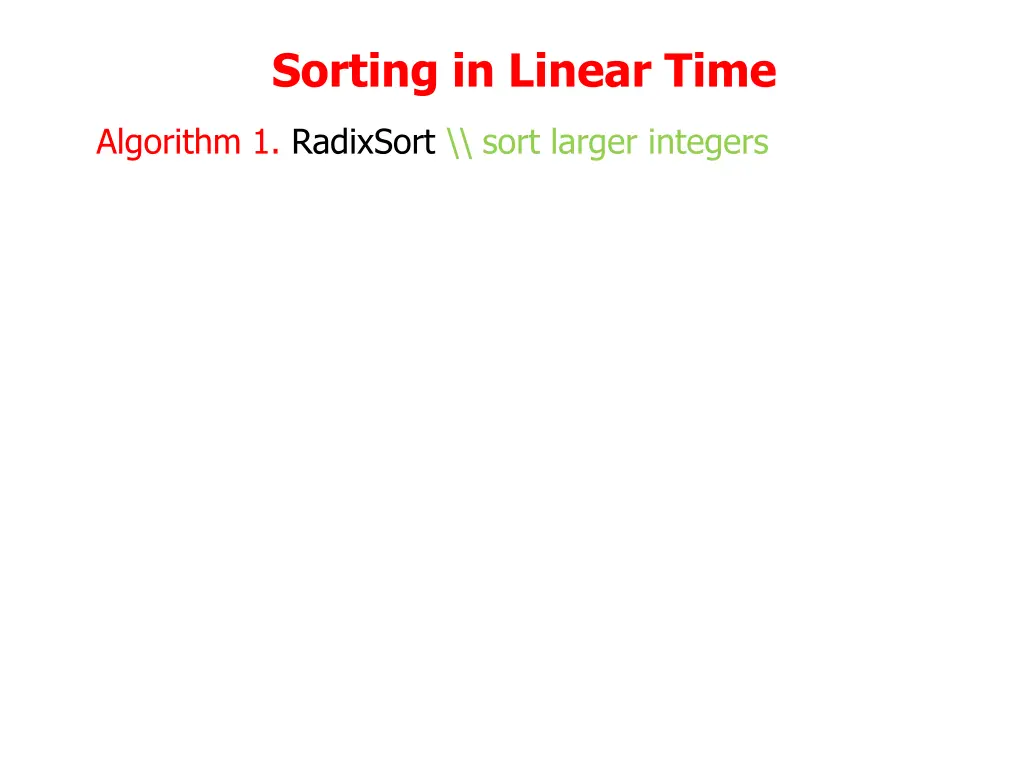

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers

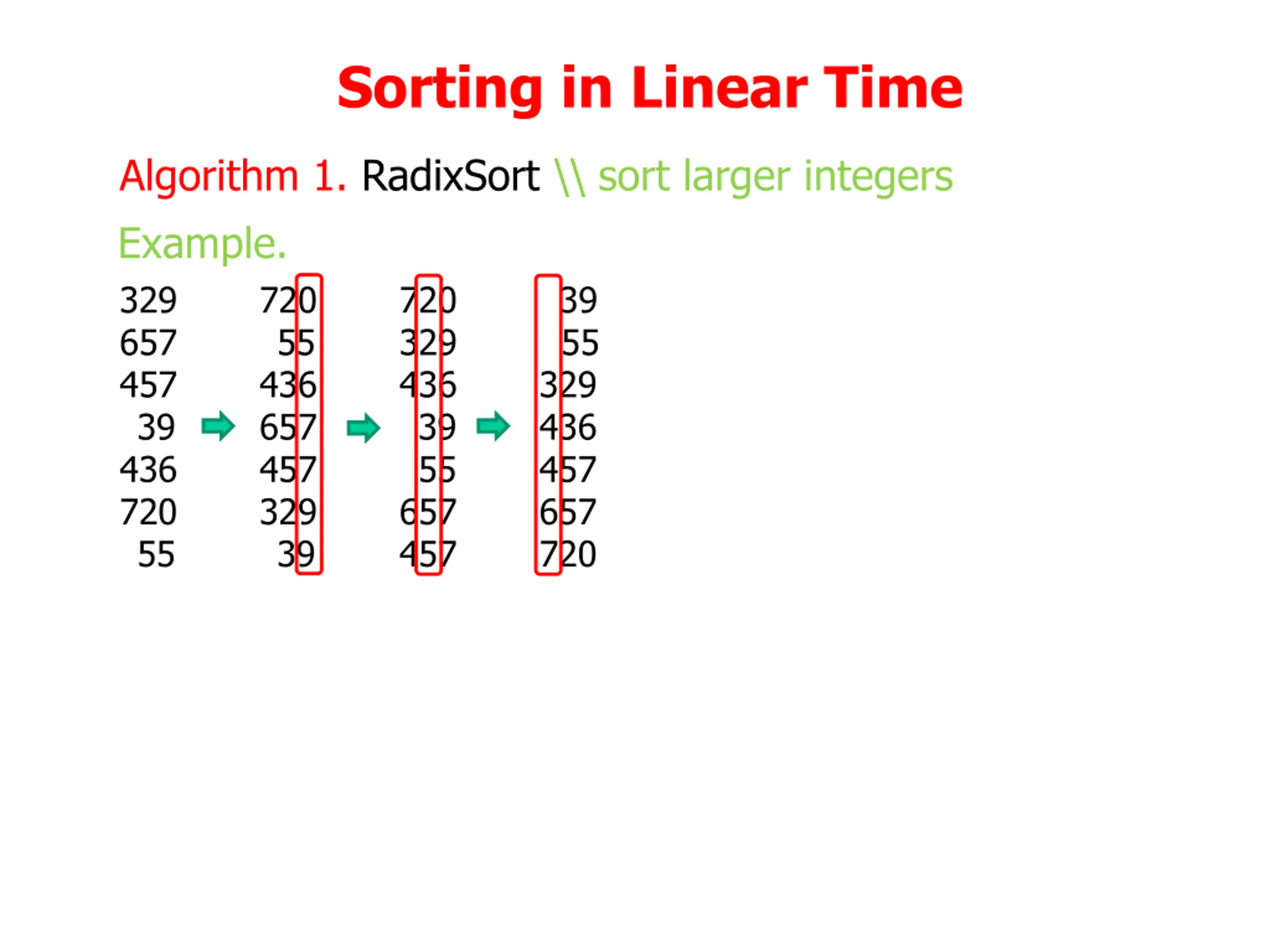

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 39 457 720 55 436 657 457 329 720 329 436 39 55 657 39 55 329 436 457 657 720

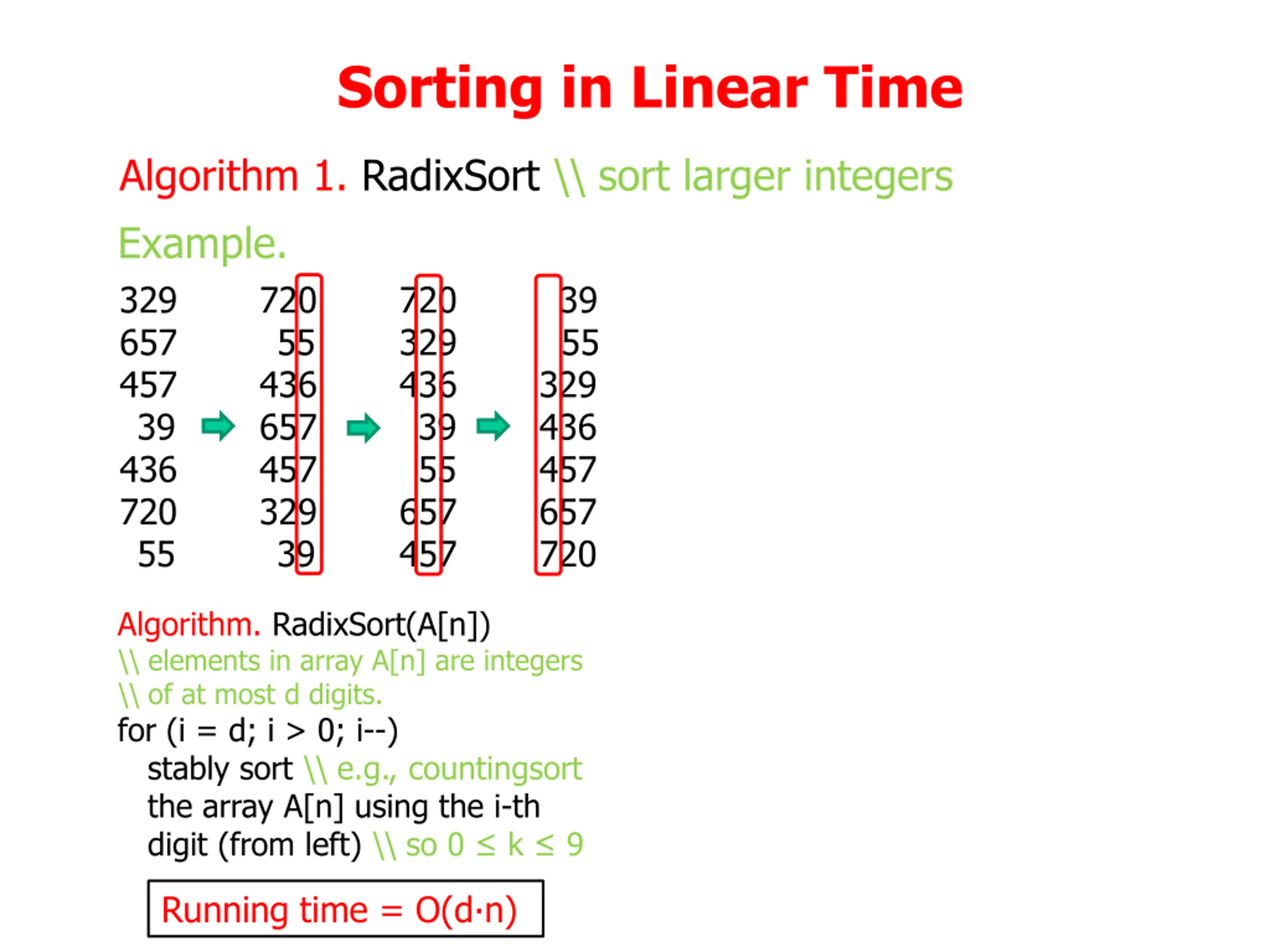

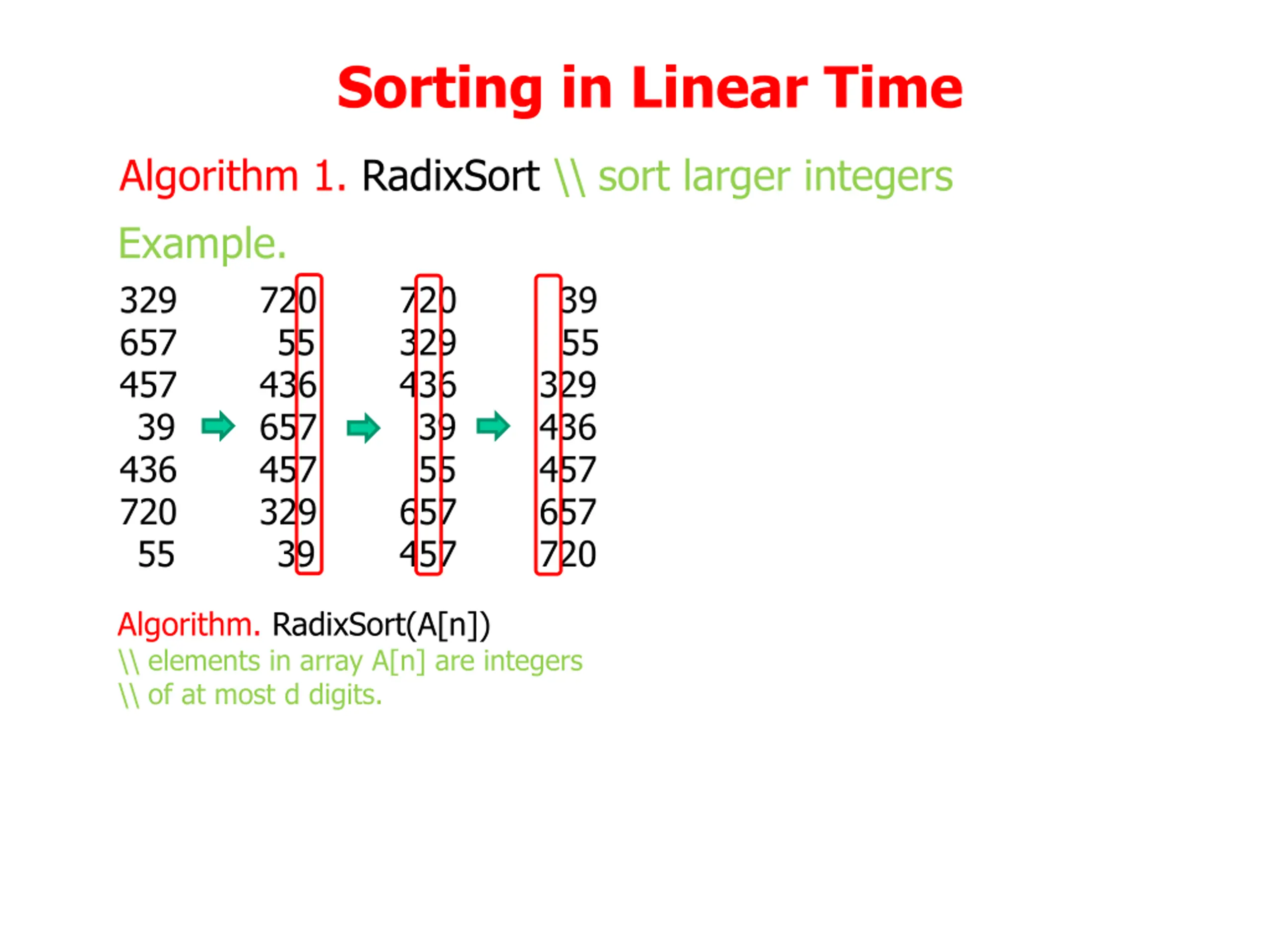

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits.

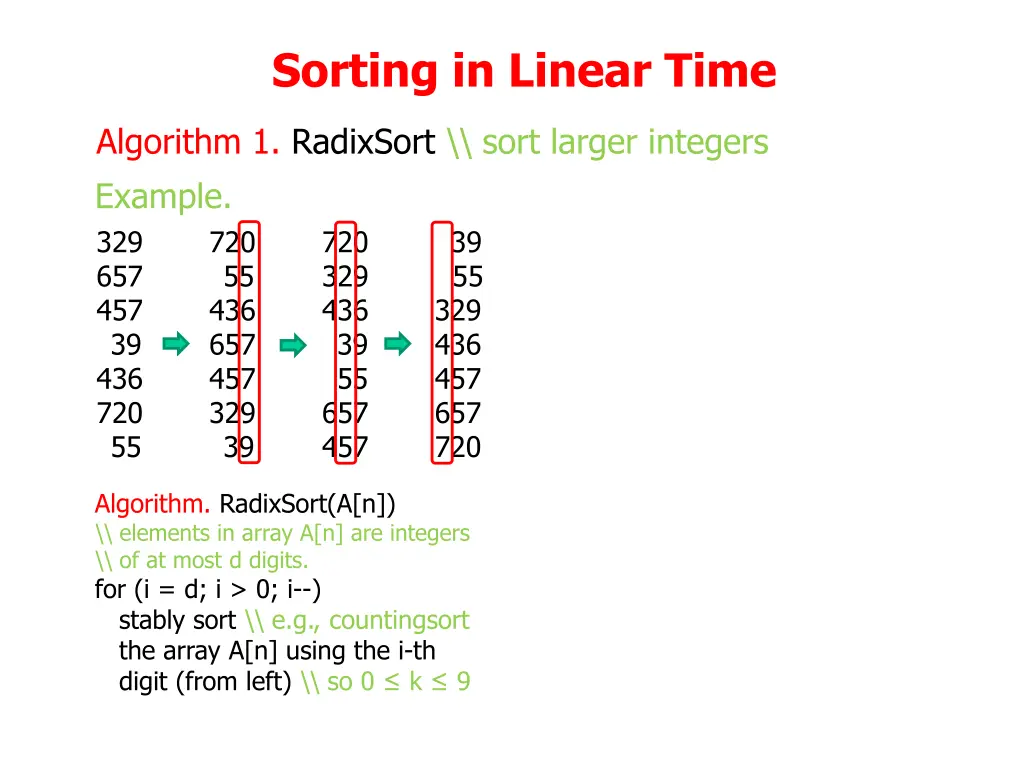

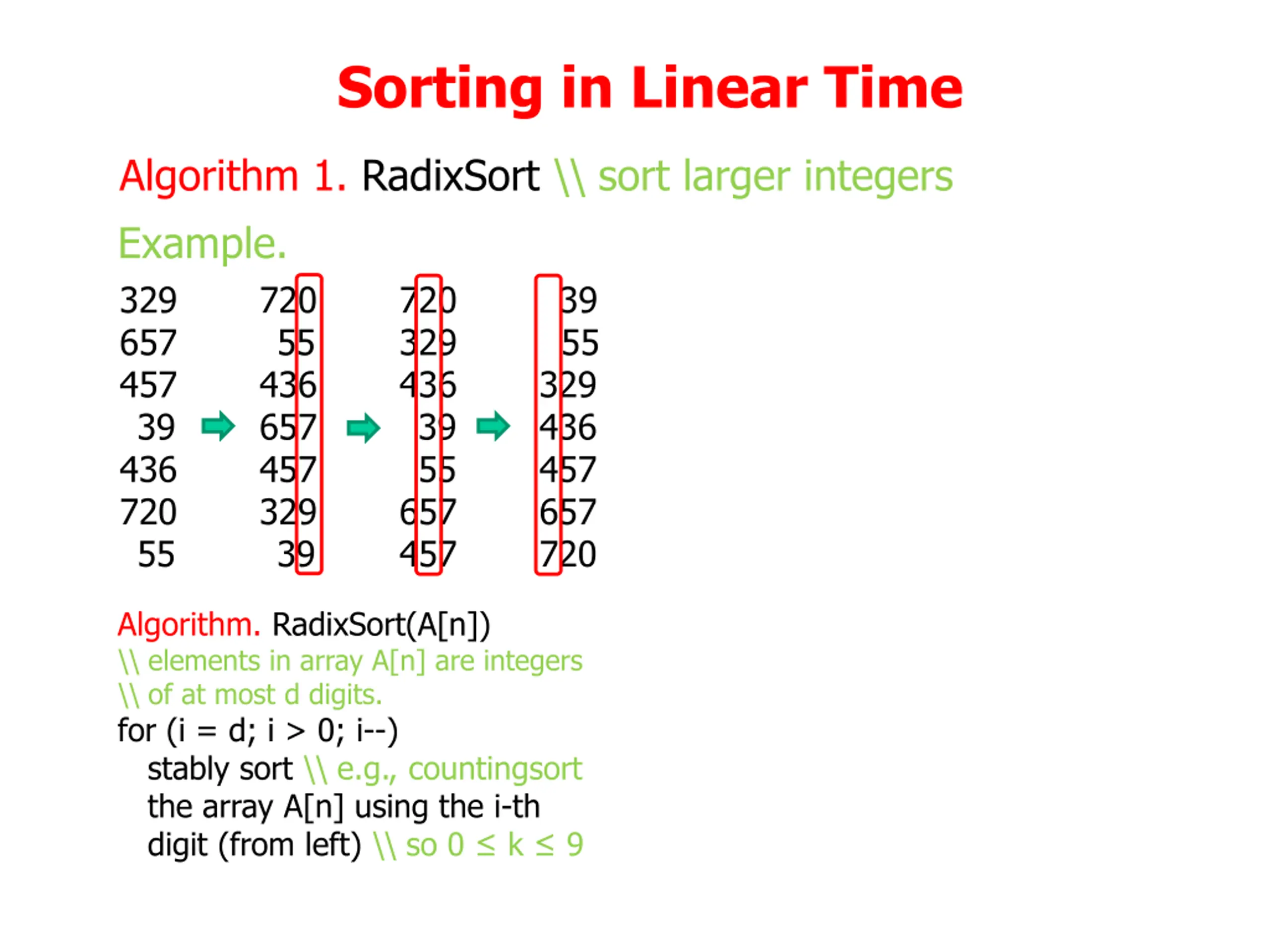

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9

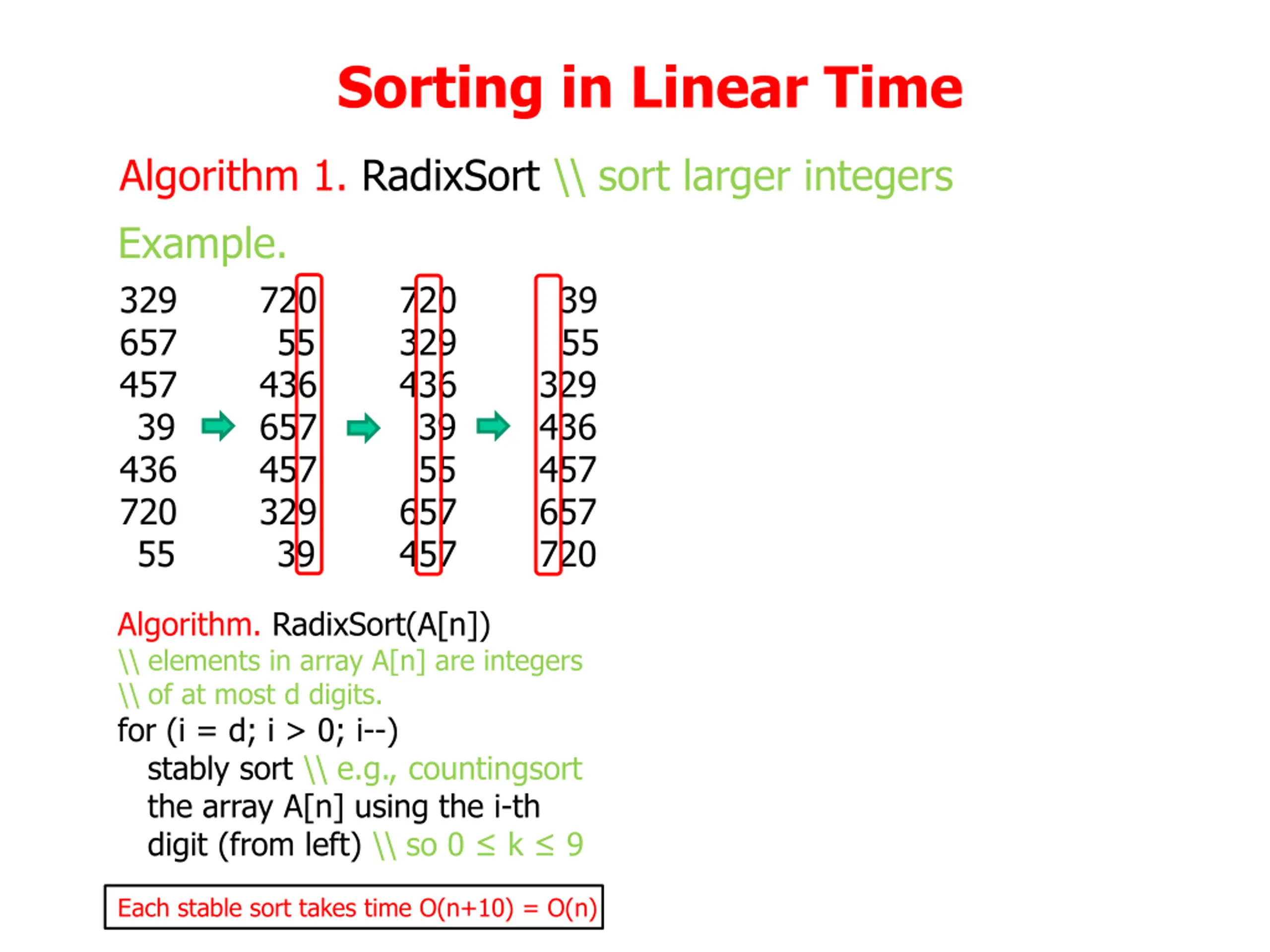

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 Each stable sort takes time O(n+10) = O(n)
Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 Running time = O(d n)

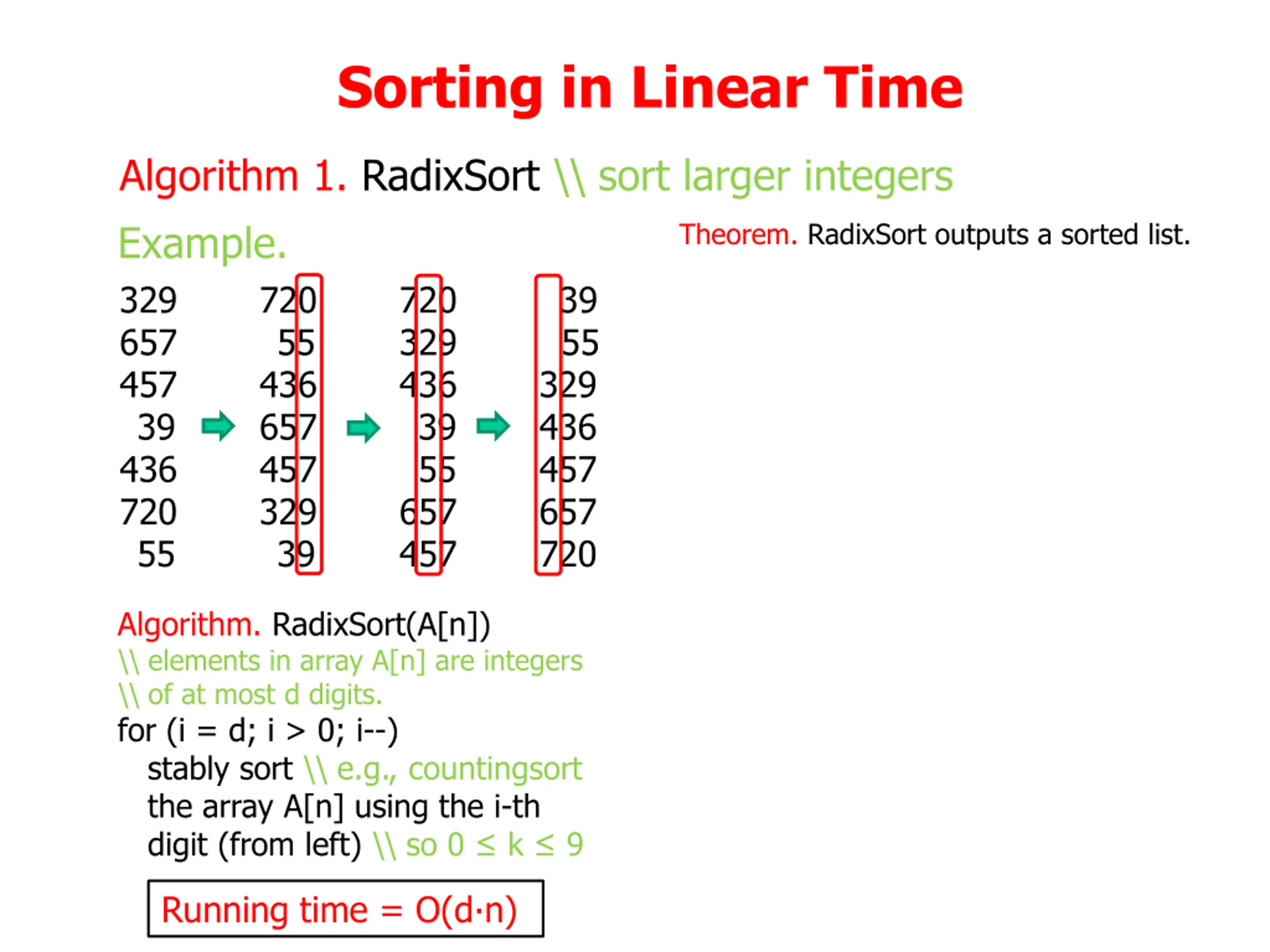

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 Theorem. RadixSort outputs a sorted list. 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 Running time = O(d n)

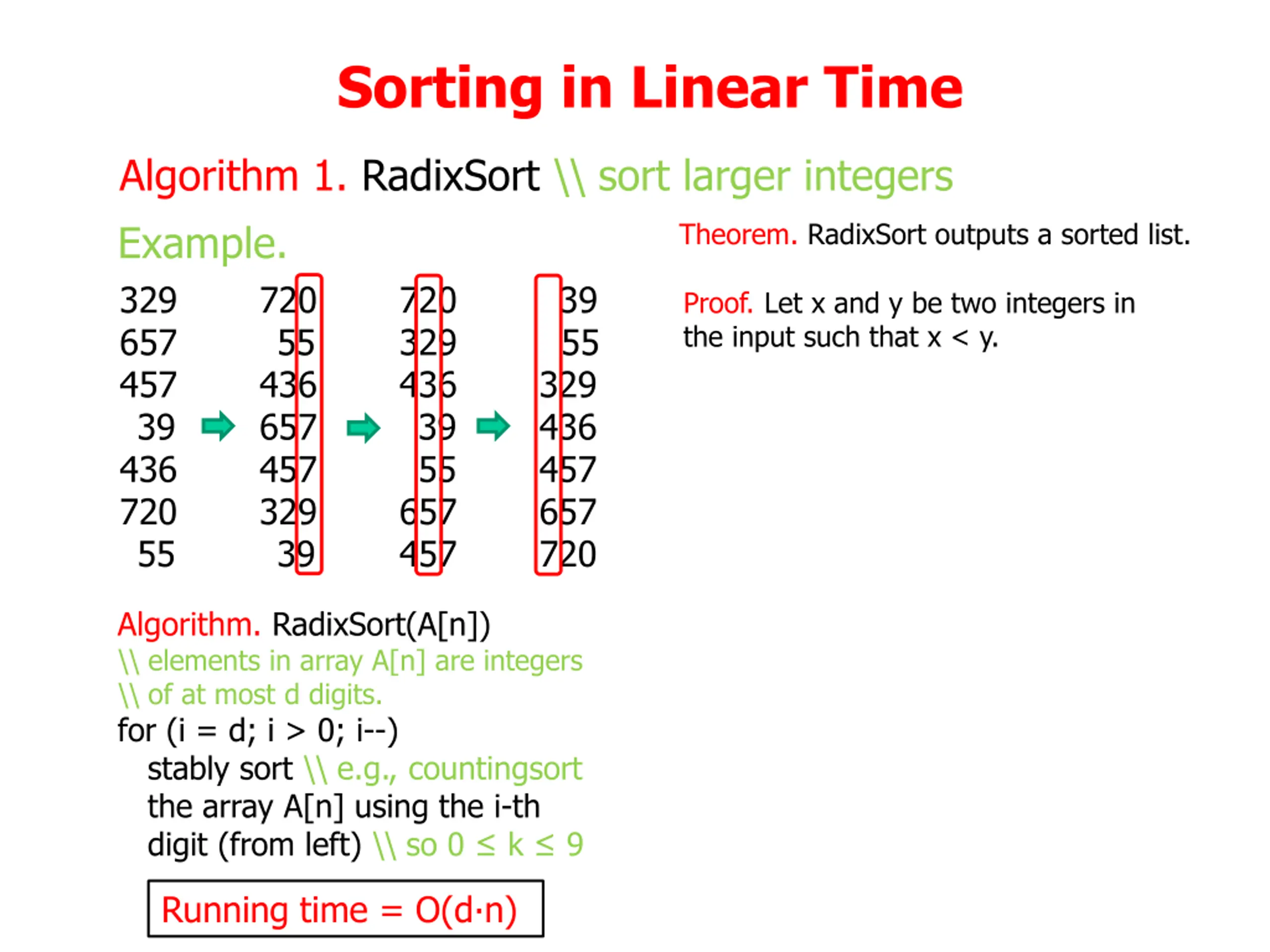

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 Theorem. RadixSort outputs a sorted list. 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 Proof. Let x and y be two integers in the input such that x < y. 55 329 436 457 657 720 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 Running time = O(d n)

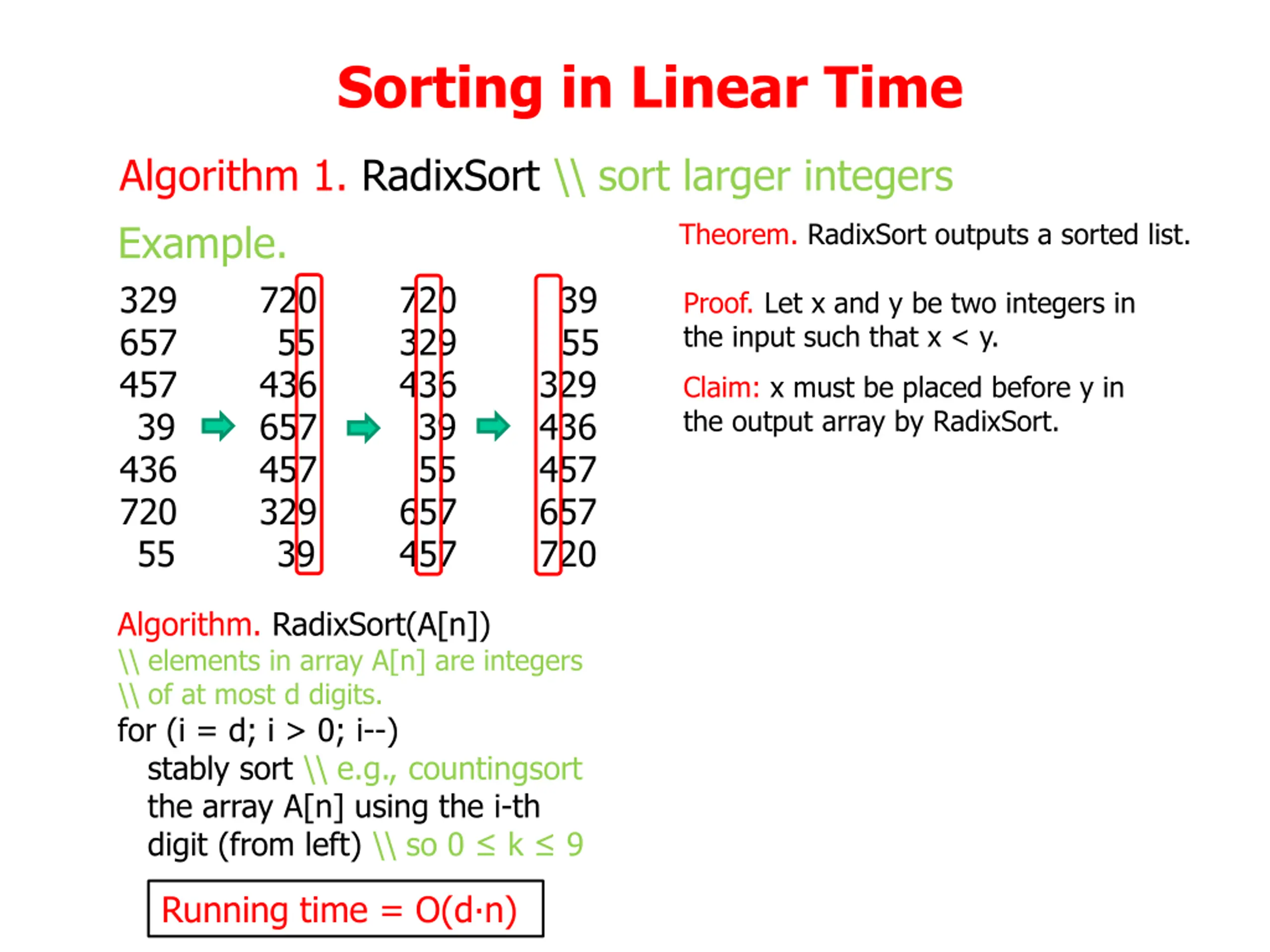

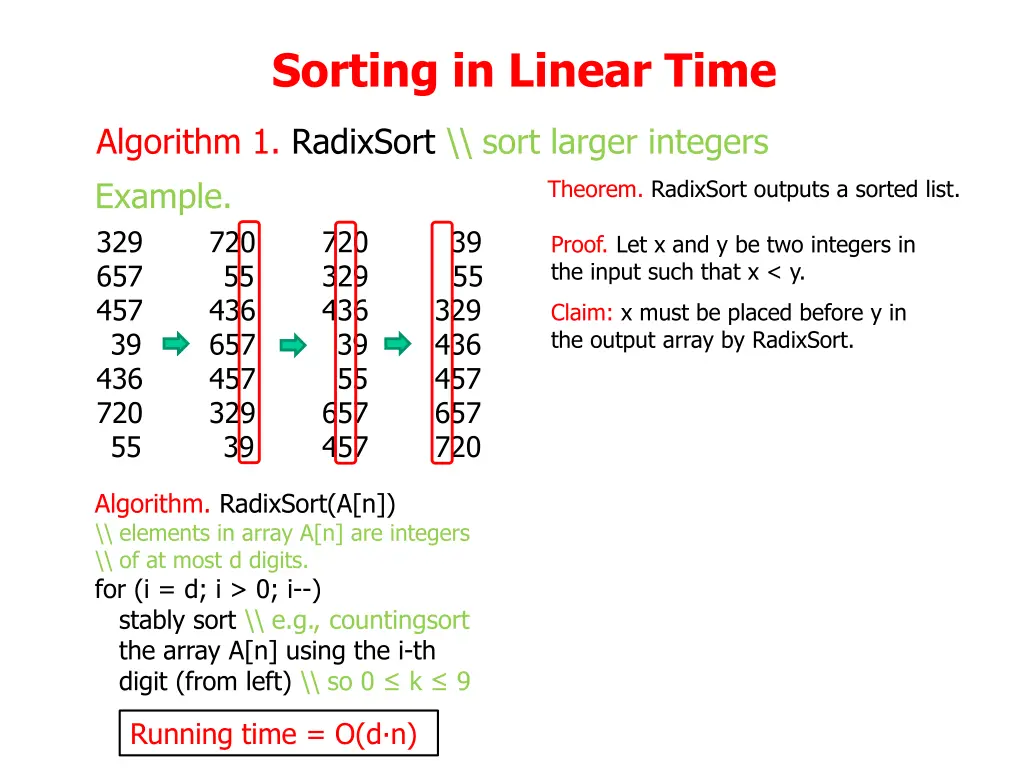

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 Theorem. RadixSort outputs a sorted list. 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 Proof. Let x and y be two integers in the input such that x < y. 55 329 436 457 657 720 Claim: x must be placed before y in the output array by RadixSort. Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 Running time = O(d n)

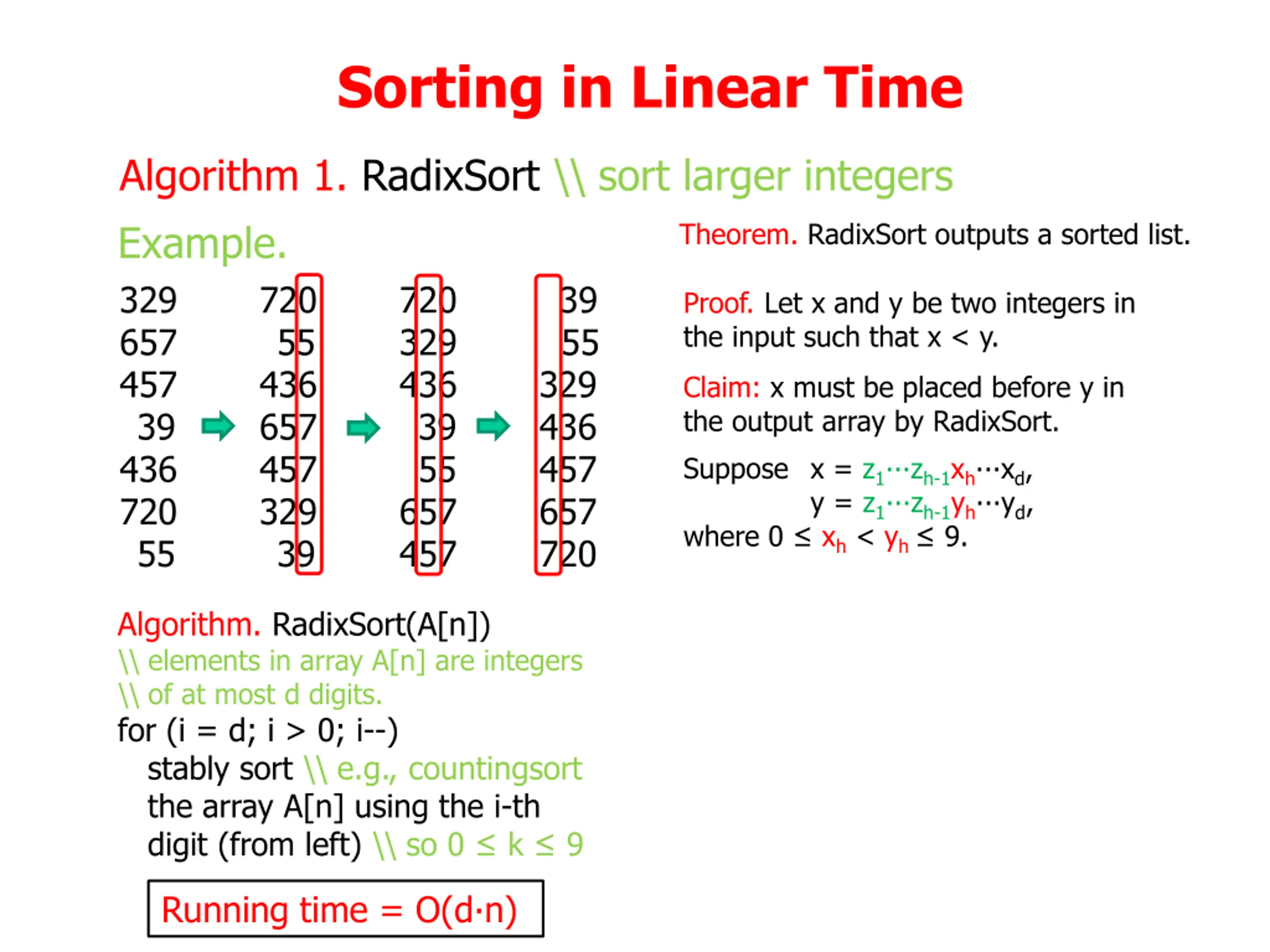

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 Theorem. RadixSort outputs a sorted list. 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 Proof. Let x and y be two integers in the input such that x < y. 55 329 436 457 657 720 Claim: x must be placed before y in the output array by RadixSort. Suppose x = z1 zh-1xh xd, y = z1 zh-1yh yd, where 0 xh < yh 9. Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 Running time = O(d n)

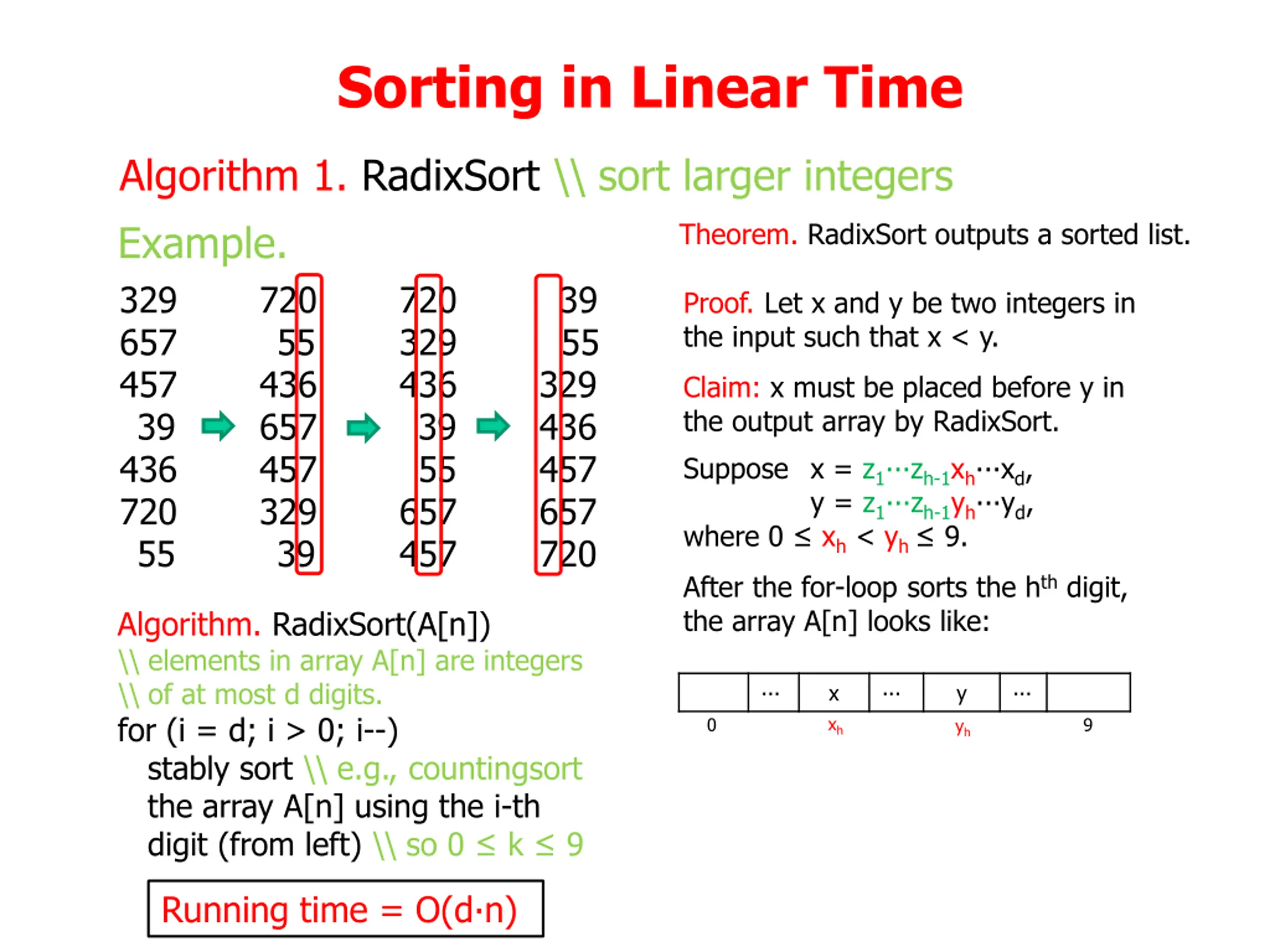

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 Theorem. RadixSort outputs a sorted list. 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 Proof. Let x and y be two integers in the input such that x < y. 55 329 436 457 657 720 Claim: x must be placed before y in the output array by RadixSort. Suppose x = z1 zh-1xh xd, y = z1 zh-1yh yd, where 0 xh < yh 9. After the for-loop sorts the hth digit, the array A[n] looks like: Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 x xh y 0 9 yh Running time = O(d n)

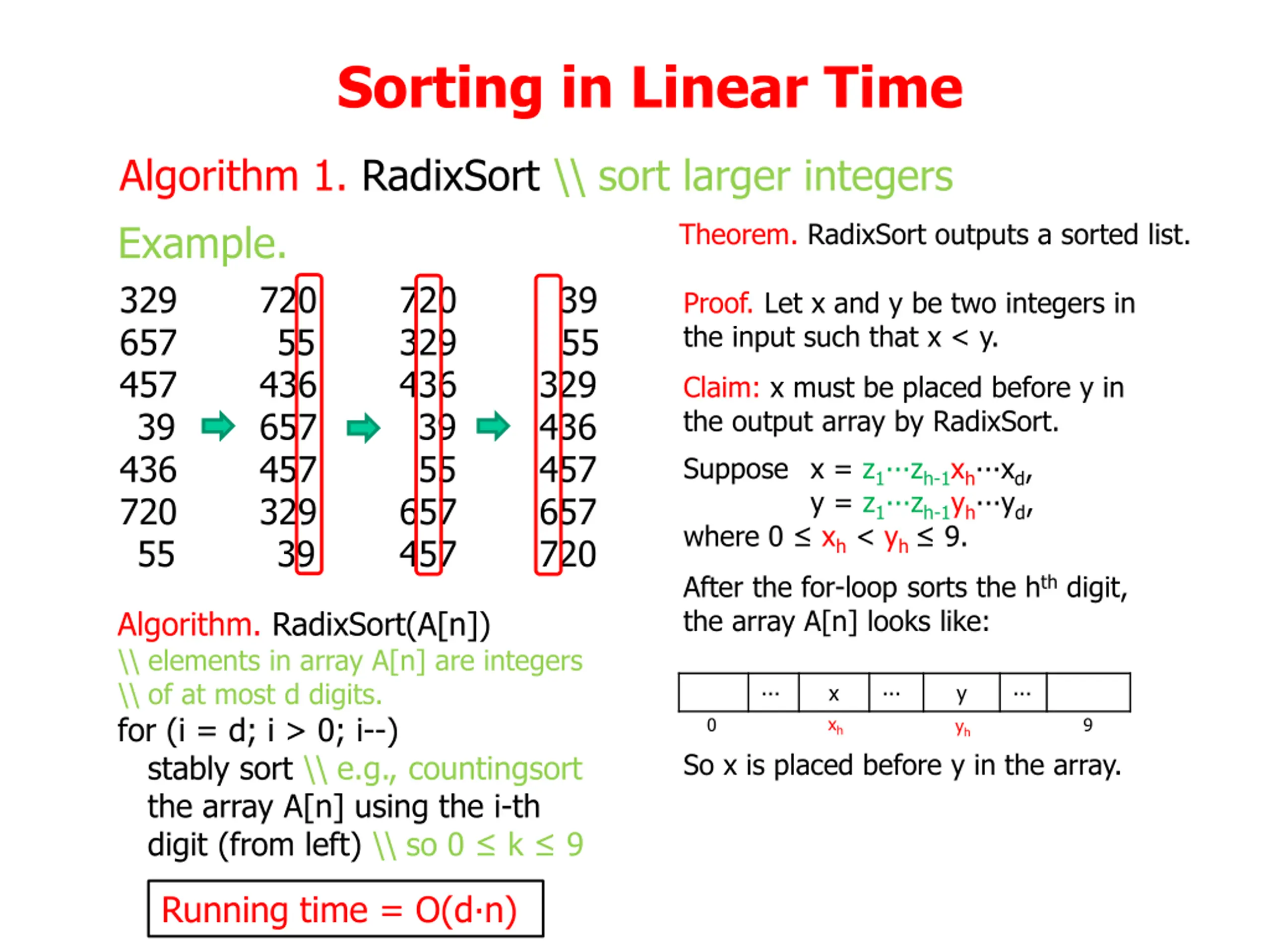

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 Theorem. RadixSort outputs a sorted list. 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 Proof. Let x and y be two integers in the input such that x < y. 55 329 436 457 657 720 Claim: x must be placed before y in the output array by RadixSort. Suppose x = z1 zh-1xh xd, y = z1 zh-1yh yd, where 0 xh < yh 9. After the for-loop sorts the hth digit, the array A[n] looks like: Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 x xh y 0 9 yh So x is placed before y in the array. Running time = O(d n)

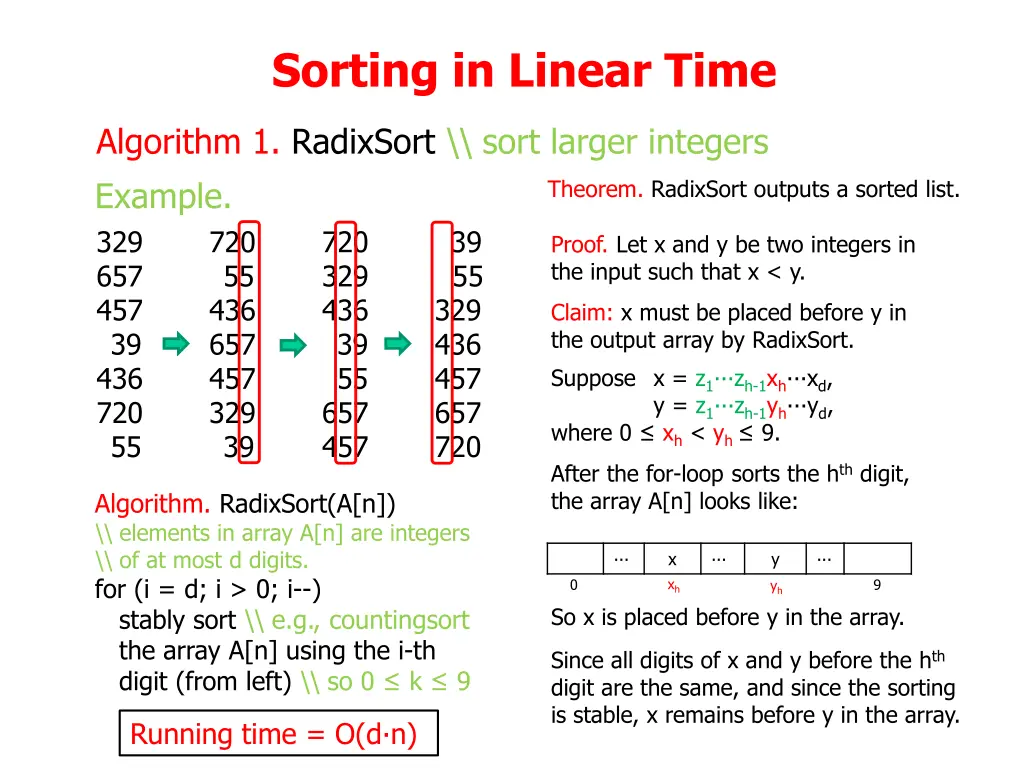

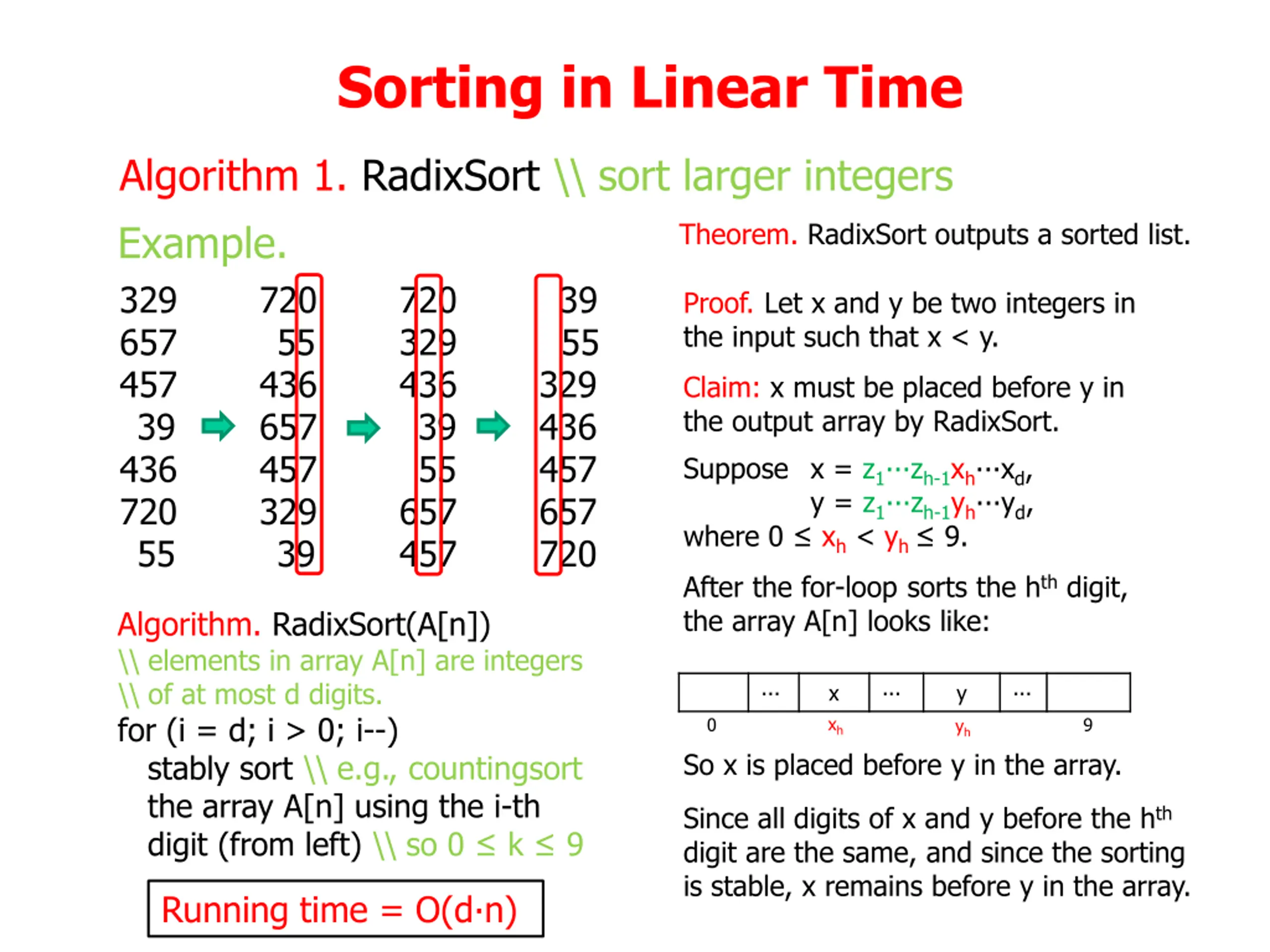

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Example. 329 657 457 39 436 720 55 Theorem. RadixSort outputs a sorted list. 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 Proof. Let x and y be two integers in the input such that x < y. 55 329 436 457 657 720 Claim: x must be placed before y in the output array by RadixSort. Suppose x = z1 zh-1xh xd, y = z1 zh-1yh yd, where 0 xh < yh 9. After the for-loop sorts the hth digit, the array A[n] looks like: Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 x xh y 0 9 yh So x is placed before y in the array. Since all digits of x and y before the hth digit are the same, and since the sorting is stable, x remains before y in the array. Running time = O(d n)

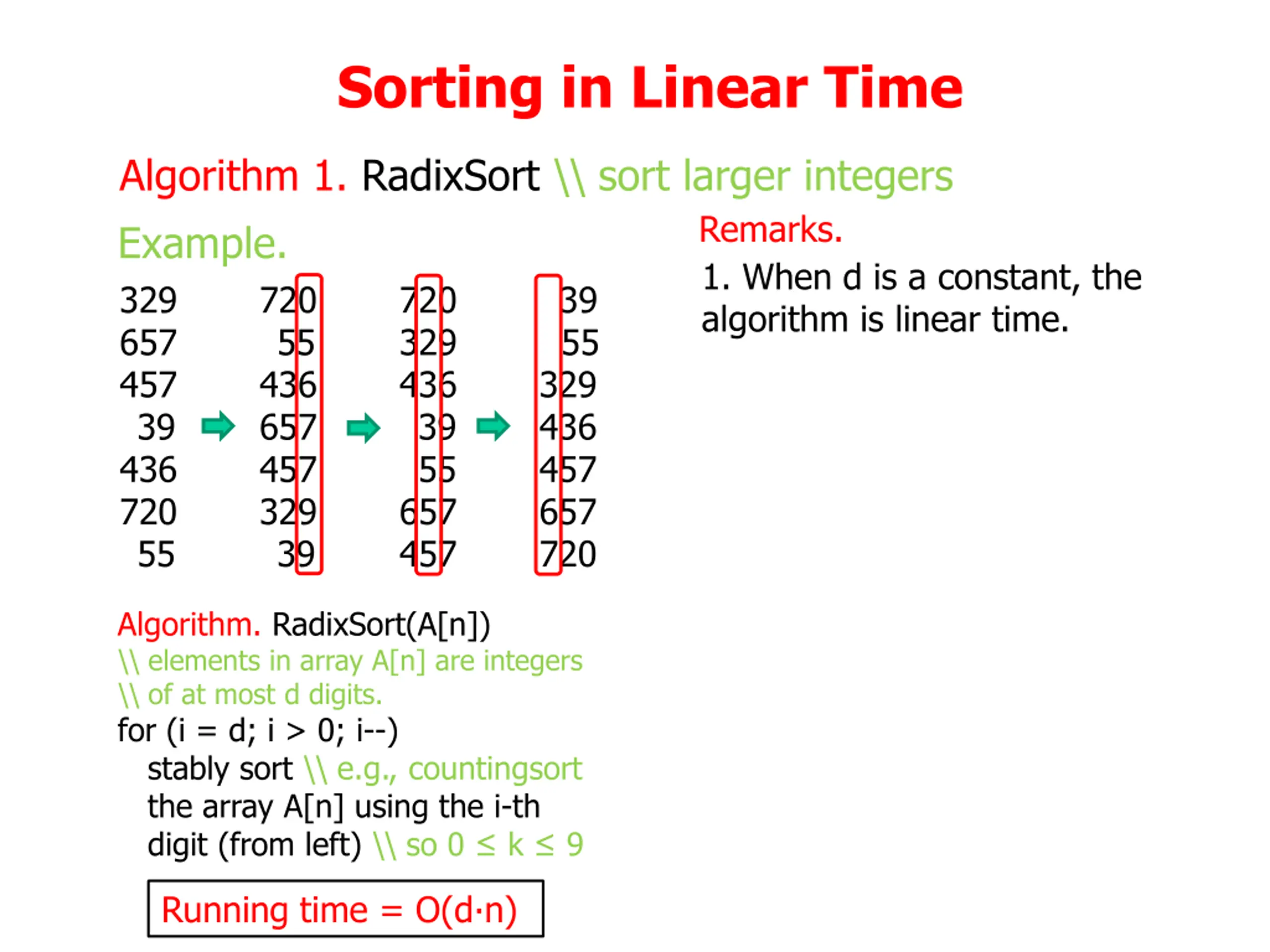

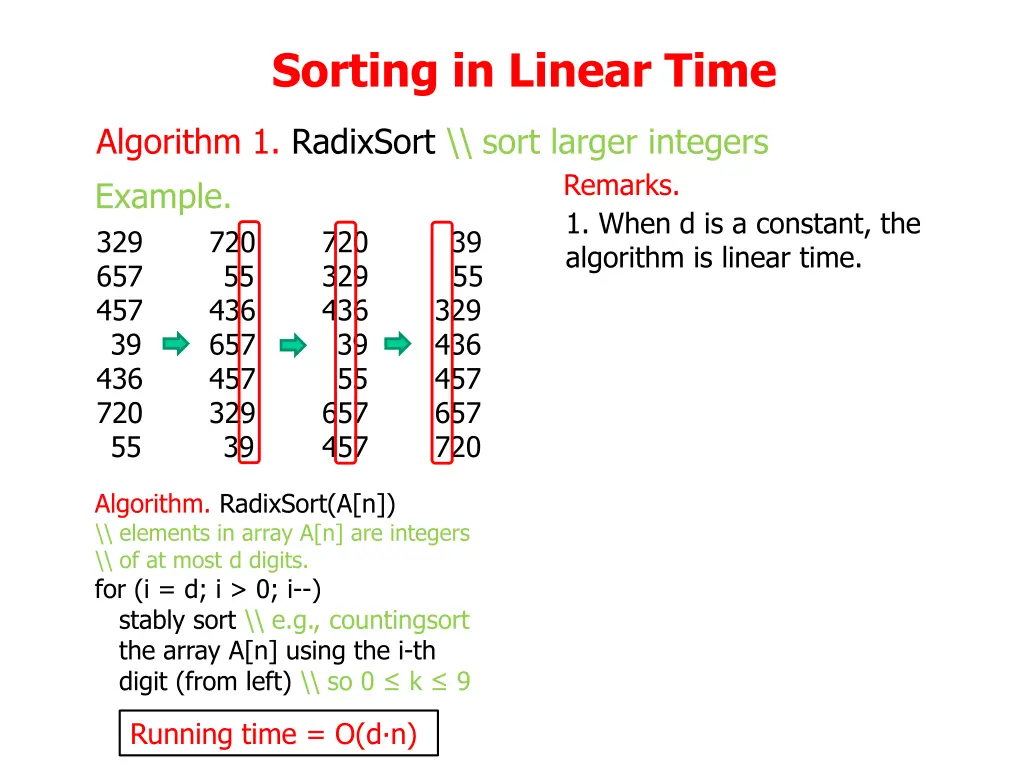

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Remarks. 1. When d is a constant, the algorithm is linear time. Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from left) \\ so 0 k 9 Running time = O(d n)

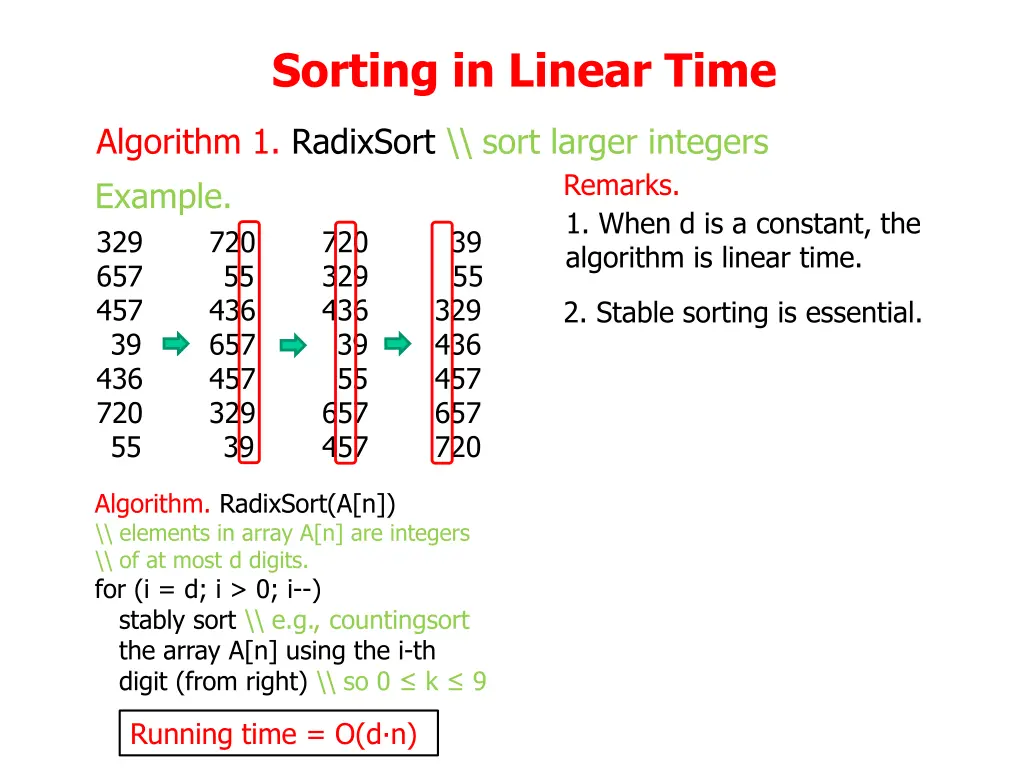

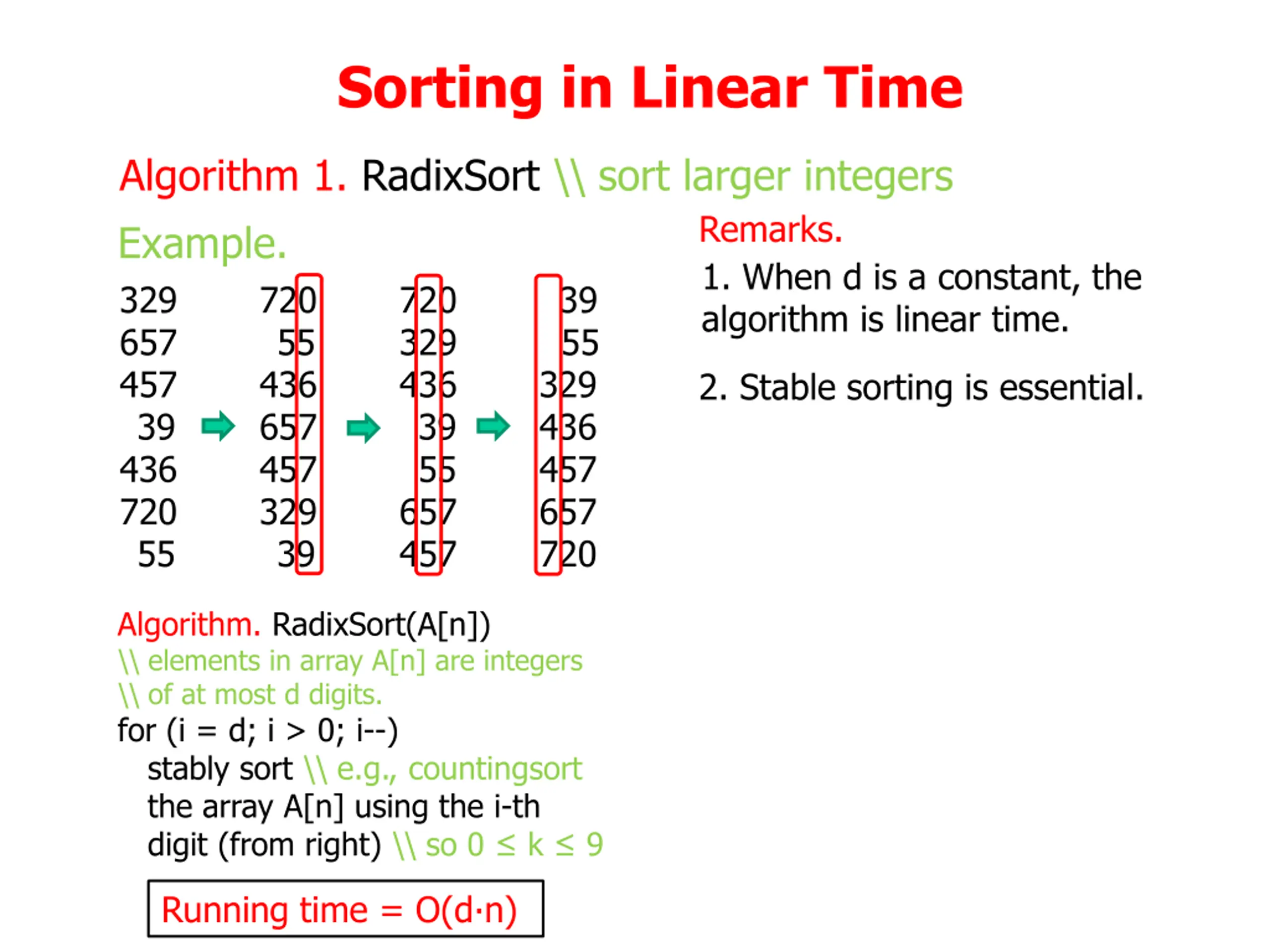

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Remarks. 1. When d is a constant, the algorithm is linear time. Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 2. Stable sorting is essential. Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from right) \\ so 0 k 9 Running time = O(d n)

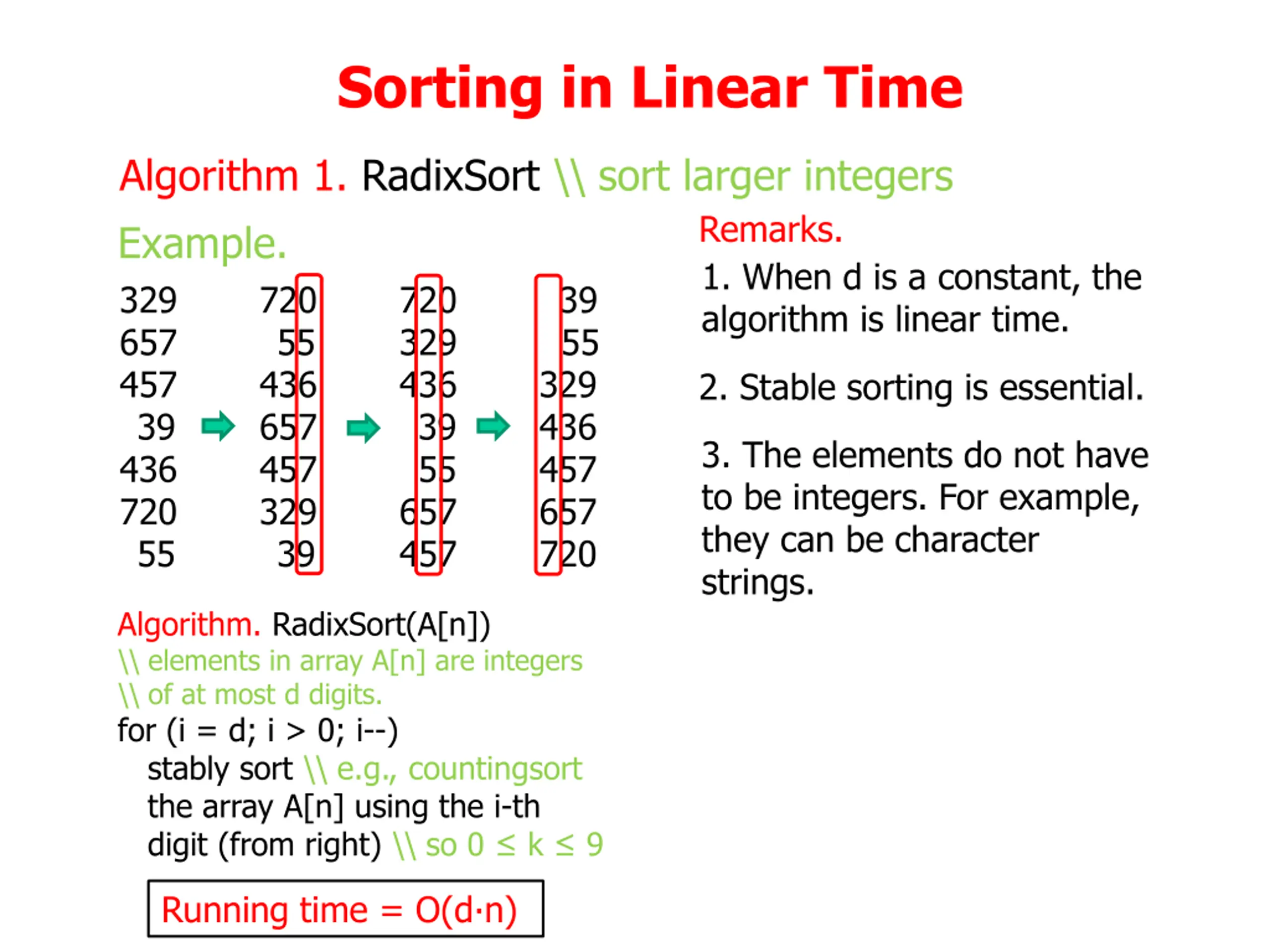

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Remarks. 1. When d is a constant, the algorithm is linear time. Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 2. Stable sorting is essential. 3. The elements do not have to be integers. For example, they can be character strings. Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from right) \\ so 0 k 9 Running time = O(d n)

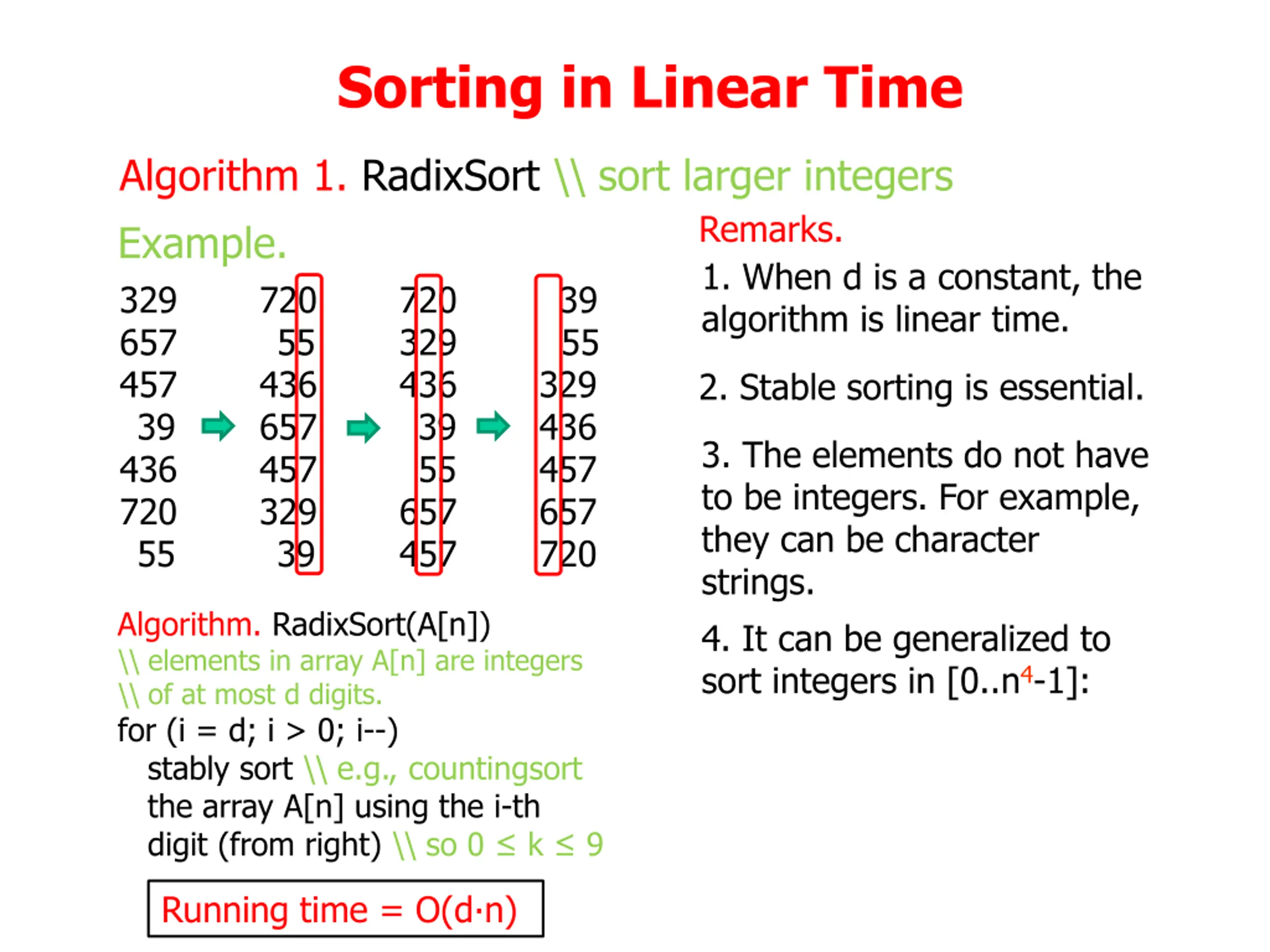

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Remarks. 1. When d is a constant, the algorithm is linear time. Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 2. Stable sorting is essential. 3. The elements do not have to be integers. For example, they can be character strings. 4. It can be generalized to sort integers in [0..n4-1]: Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from right) \\ so 0 k 9 Running time = O(d n)

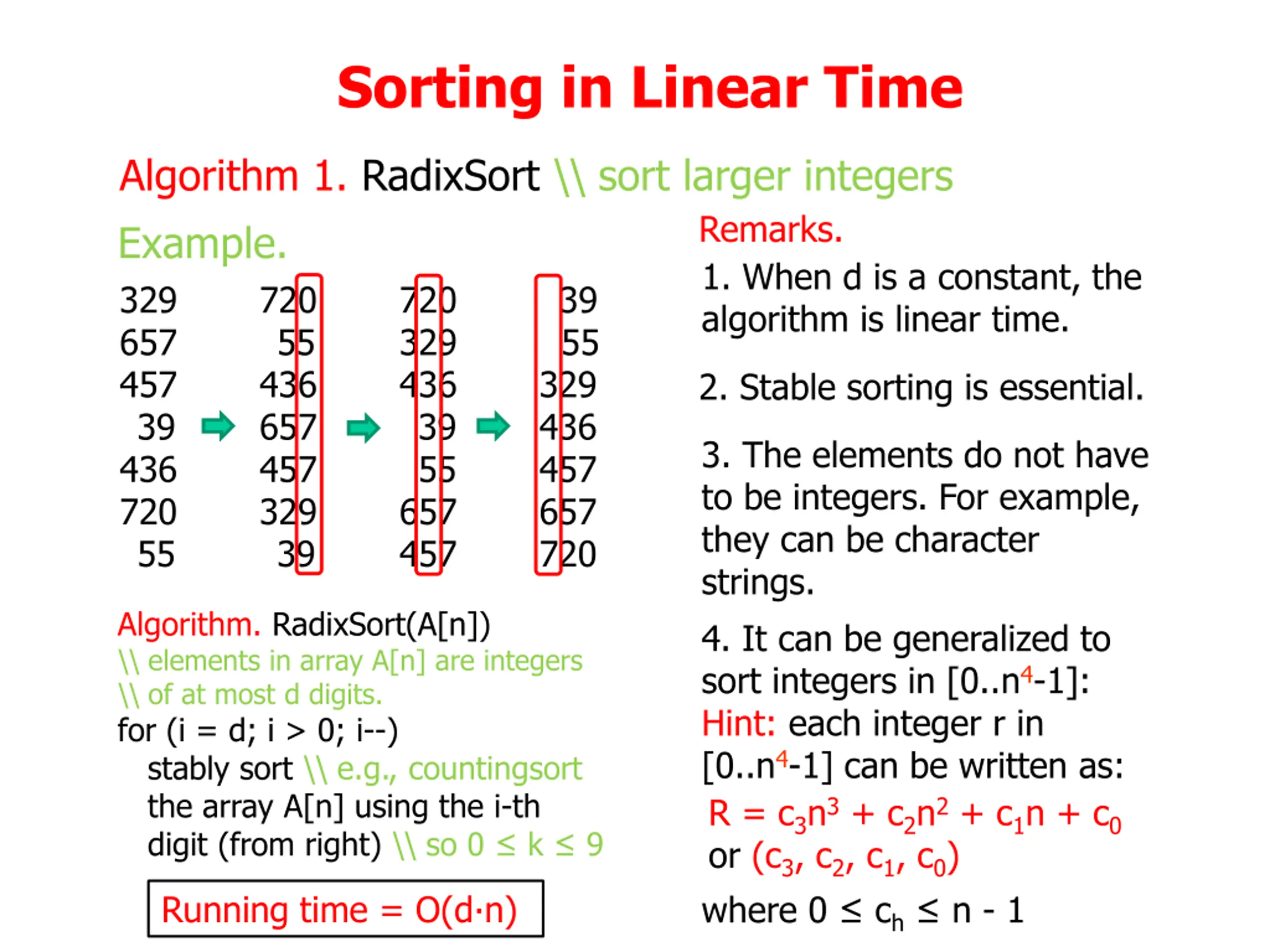

Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Remarks. 1. When d is a constant, the algorithm is linear time. Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 2. Stable sorting is essential. 3. The elements do not have to be integers. For example, they can be character strings. 4. It can be generalized to sort integers in [0..n4-1]: Hint: each integer r in [0..n4-1] can be written as: R = c3n3 + c2n2 + c1n + c0 or (c3, c2, c1, c0) where 0 ch n - 1 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from right) \\ so 0 k 9 Running time = O(d n)
