Raw water intake
Water intake systems play a crucial role in water treatment processes. Common types include floating intakes, submerged intakes, and tower intakes. Factors like water quality, depth, velocity, proximity to treatment plants, and environmental impact are key in site selection. Screening units remove suspended matter, with coarse screens having vertical bars spaced with clear openings, and fine screens used to prevent damage to equipment. Microstrainers are employed to remove plankton and algae from impounded water.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

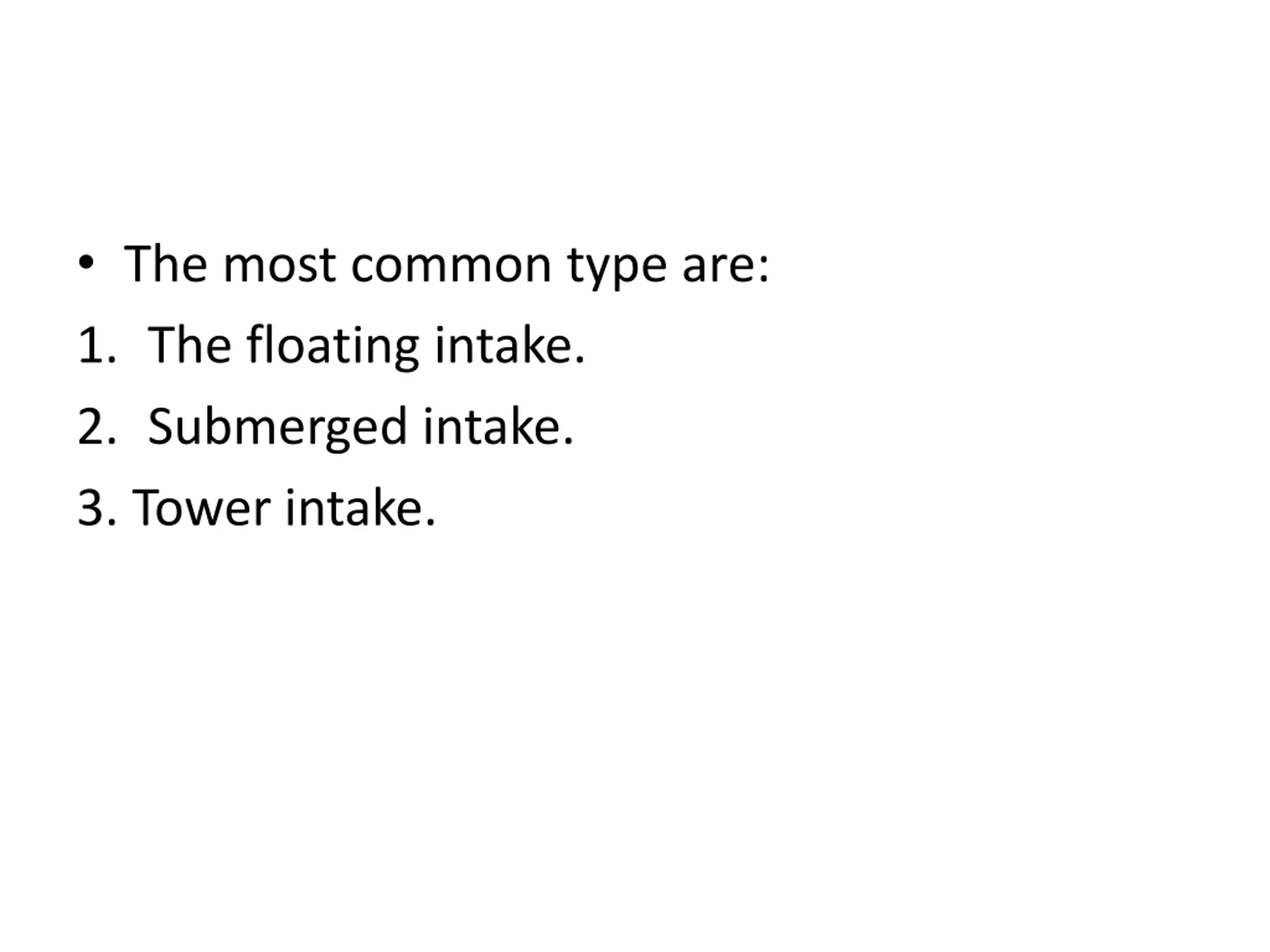

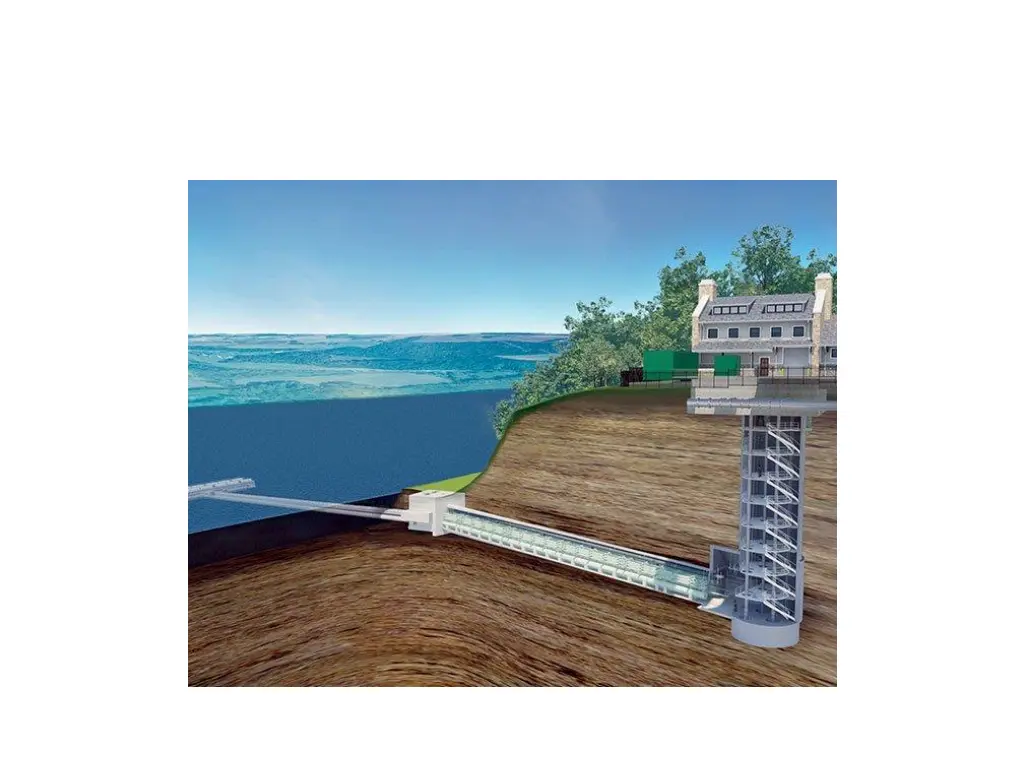

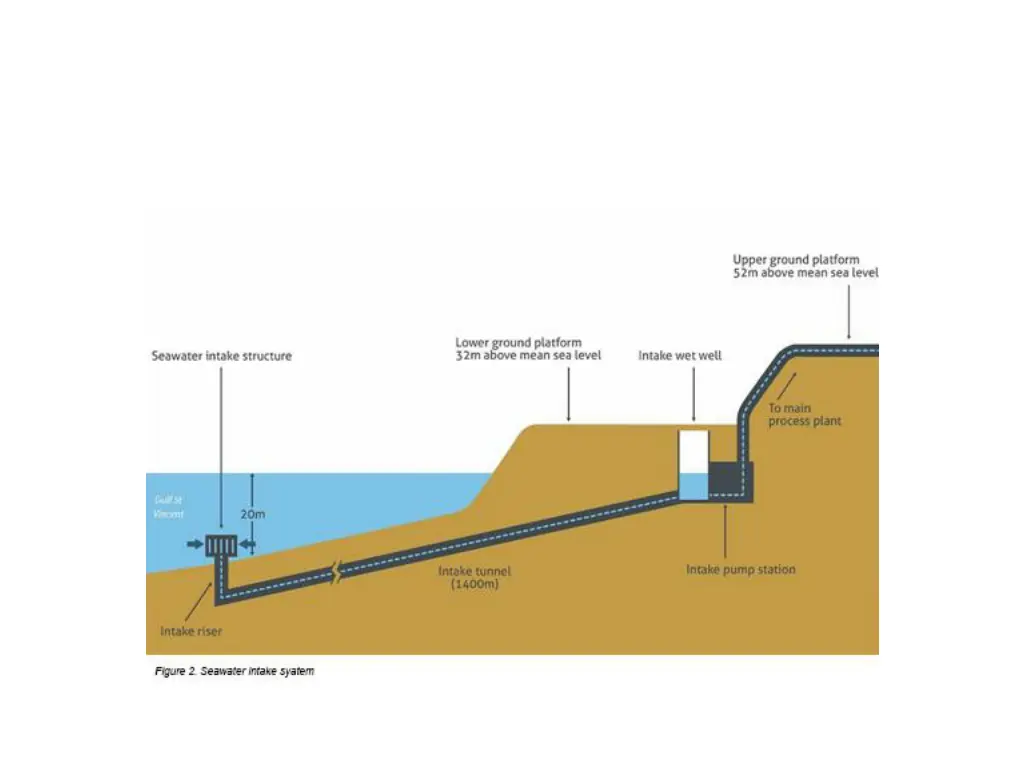

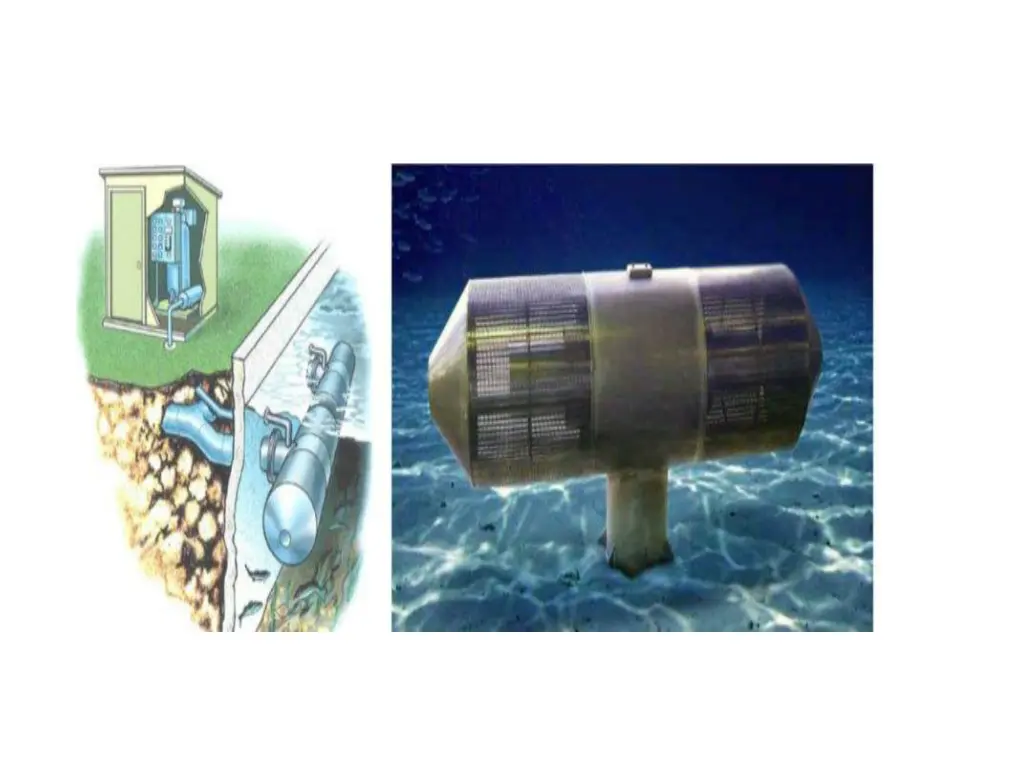

The most common type are: 1. The floating intake. 2. Submerged intake. 3. Tower intake.

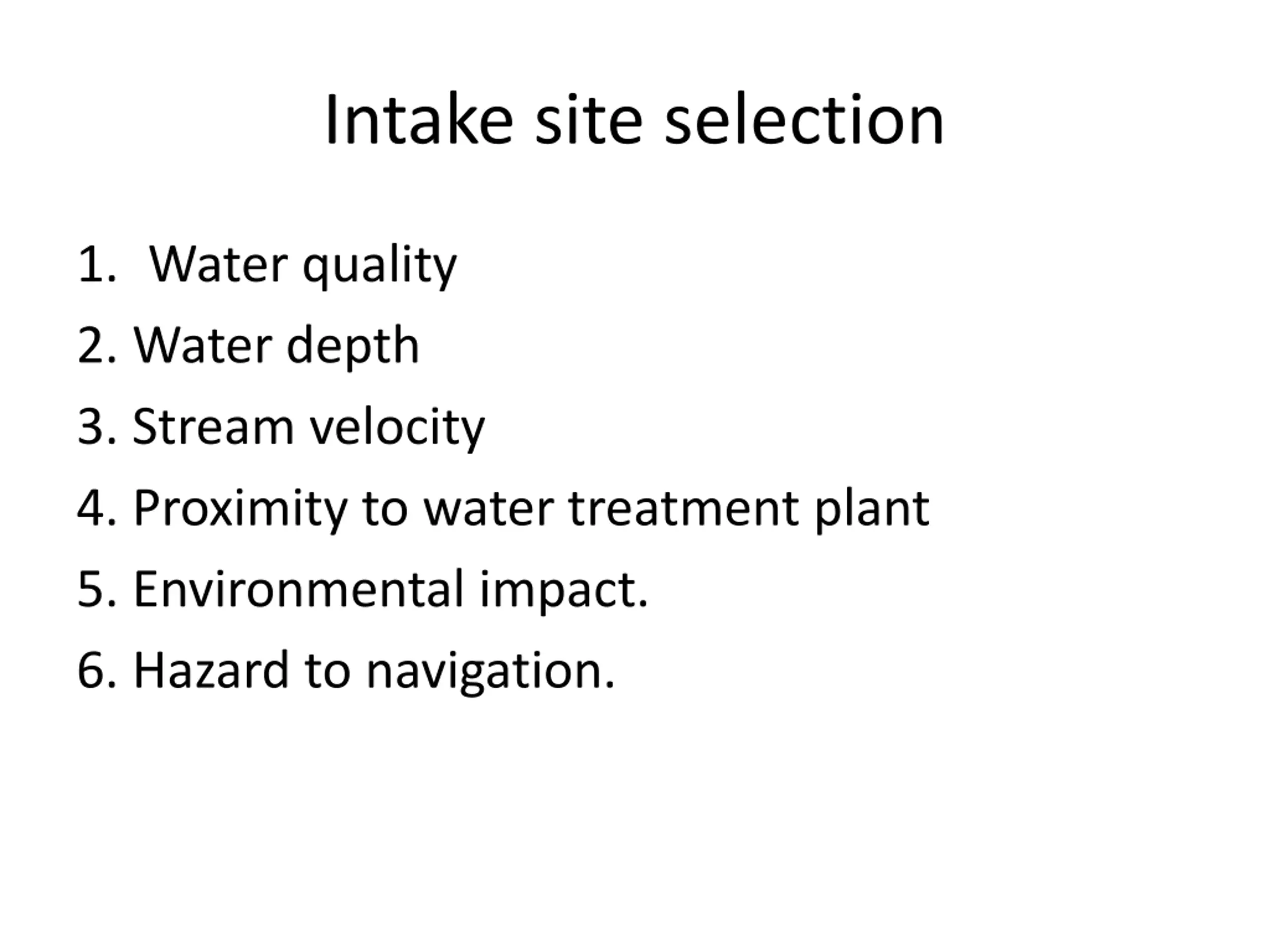

Intake site selection 1. Water quality 2. Water depth 3. Stream velocity 4. Proximity to water treatment plant 5. Environmental impact. 6. Hazard to navigation.

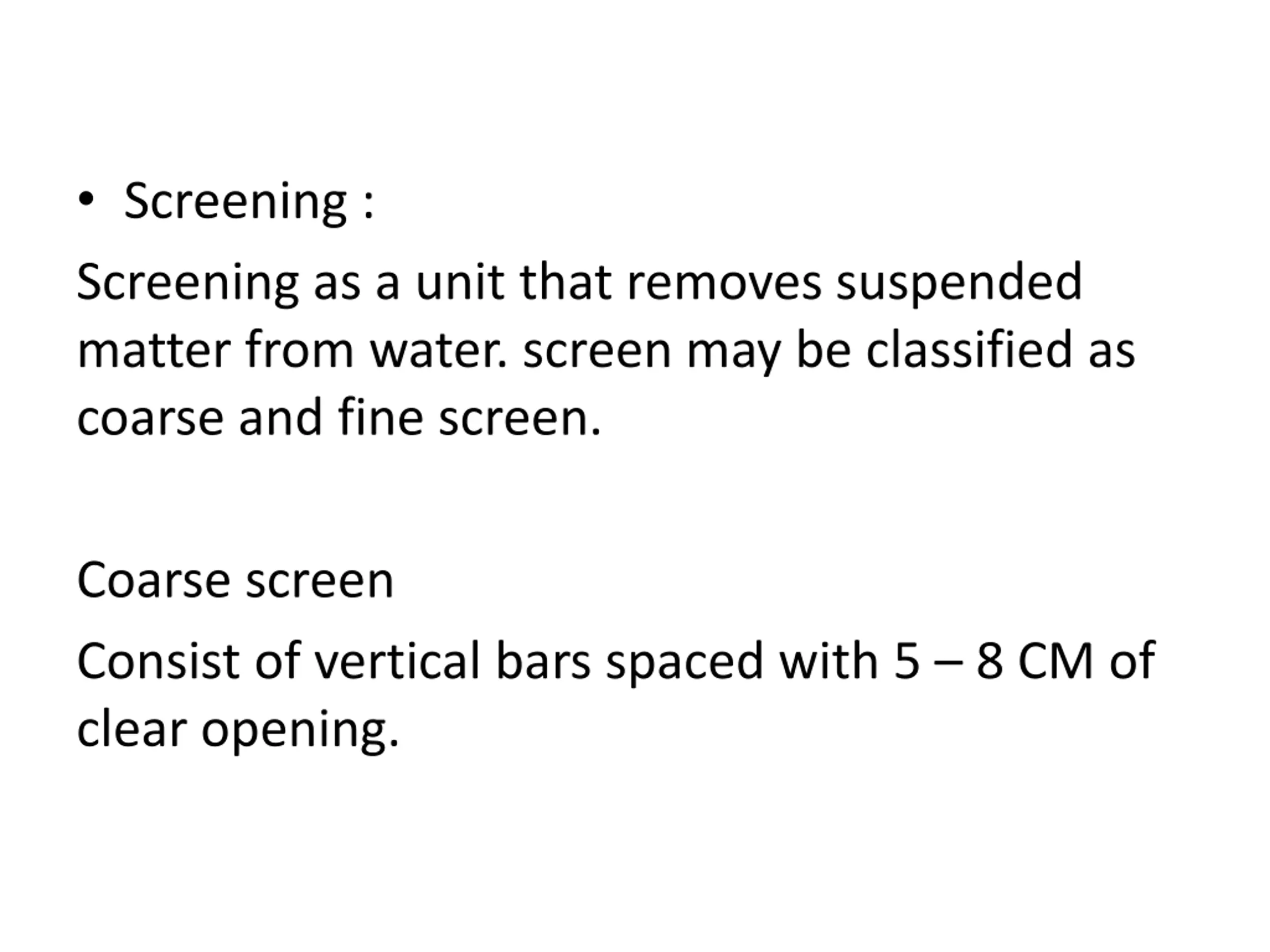

Screening : Screening as a unit that removes suspended matter from water. screen may be classified as coarse and fine screen. Coarse screen Consist of vertical bars spaced with 5 8 CM of clear opening.

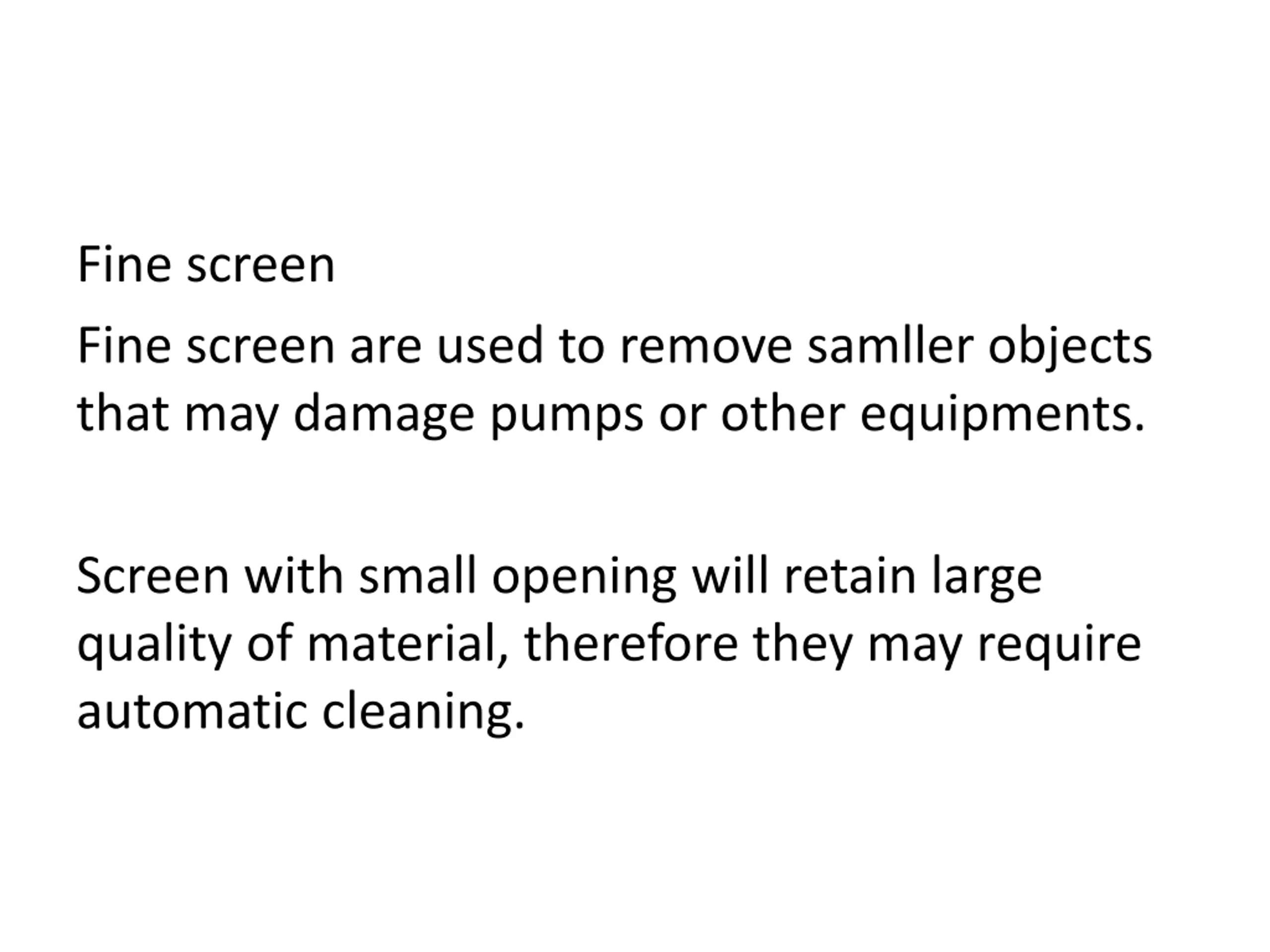

Fine screen Fine screen are used to remove samller objects that may damage pumps or other equipments. Screen with small opening will retain large quality of material, therefore they may require automatic cleaning.

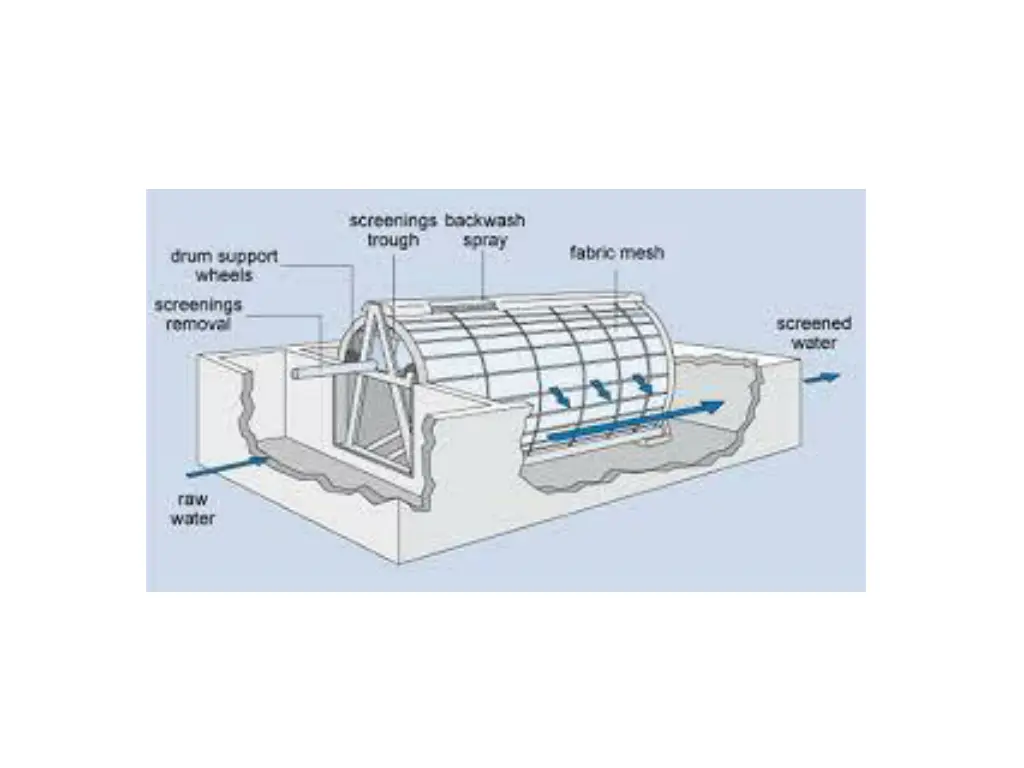

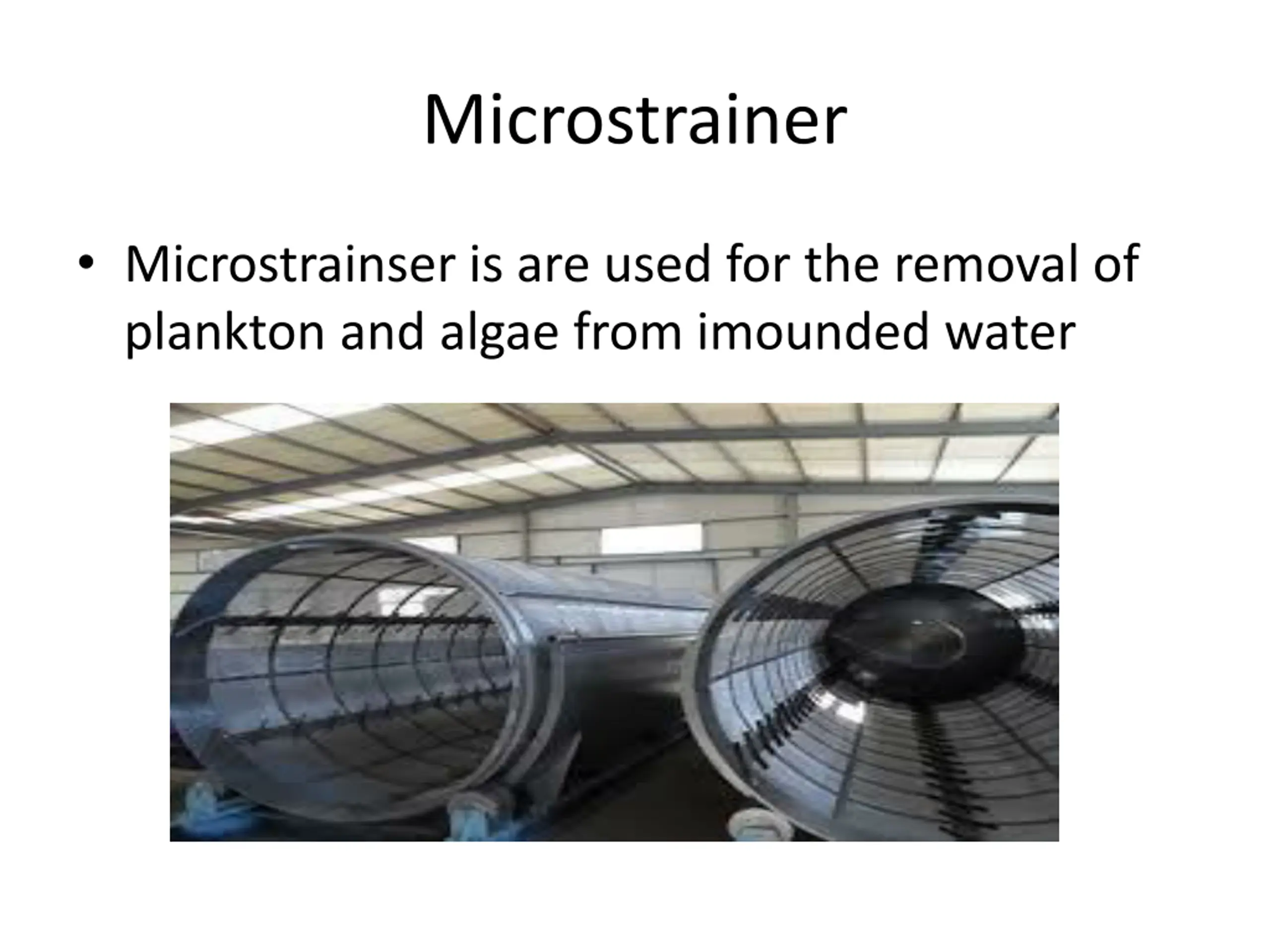

Microstrainer Microstrainser is are used for the removal of plankton and algae from imounded water
