Real-Time Stream Processing CMSC 491 Hadoop-Based Distributed Computing Spring 2016 Adam Shook

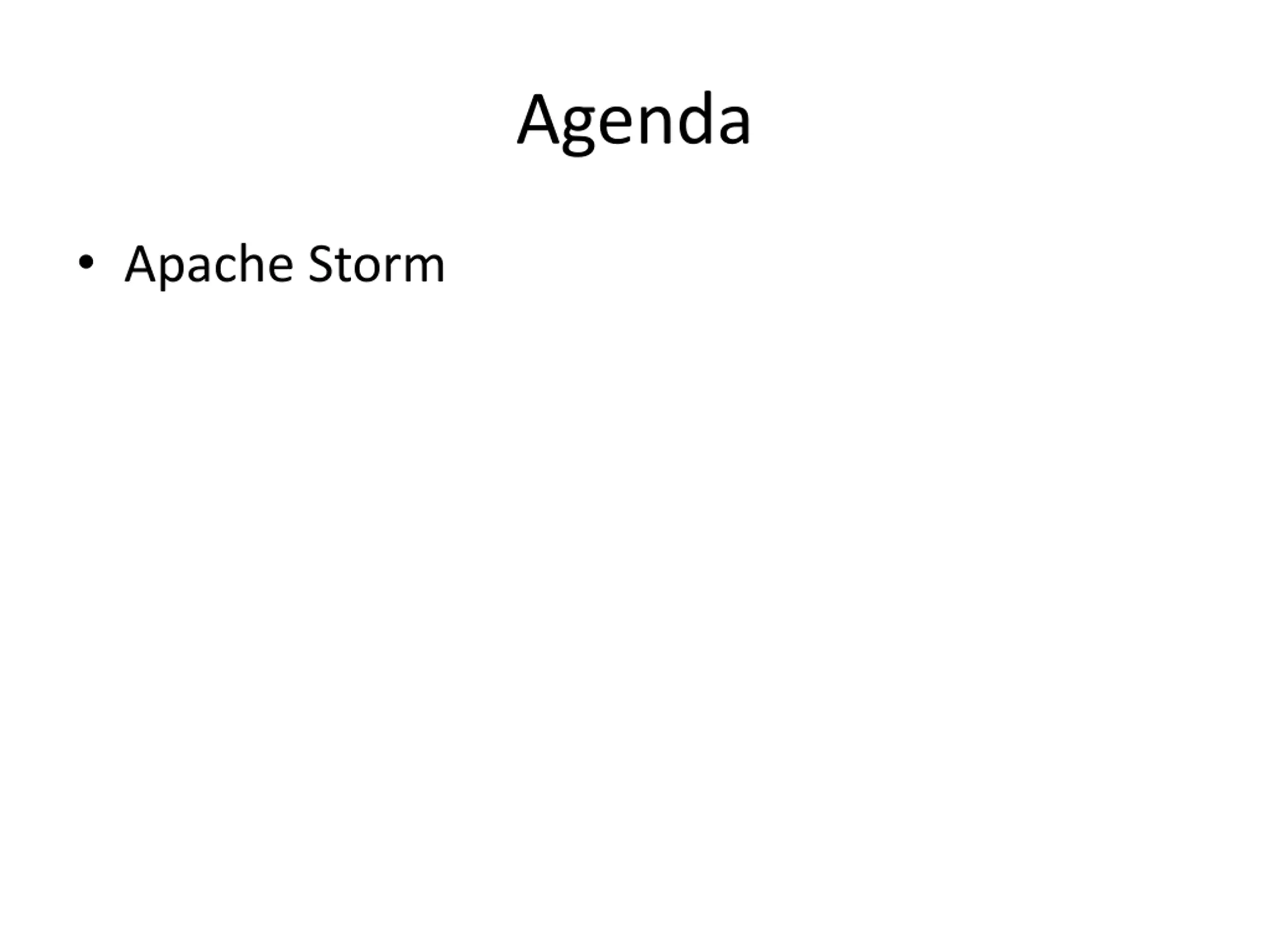

Agenda Apache Storm

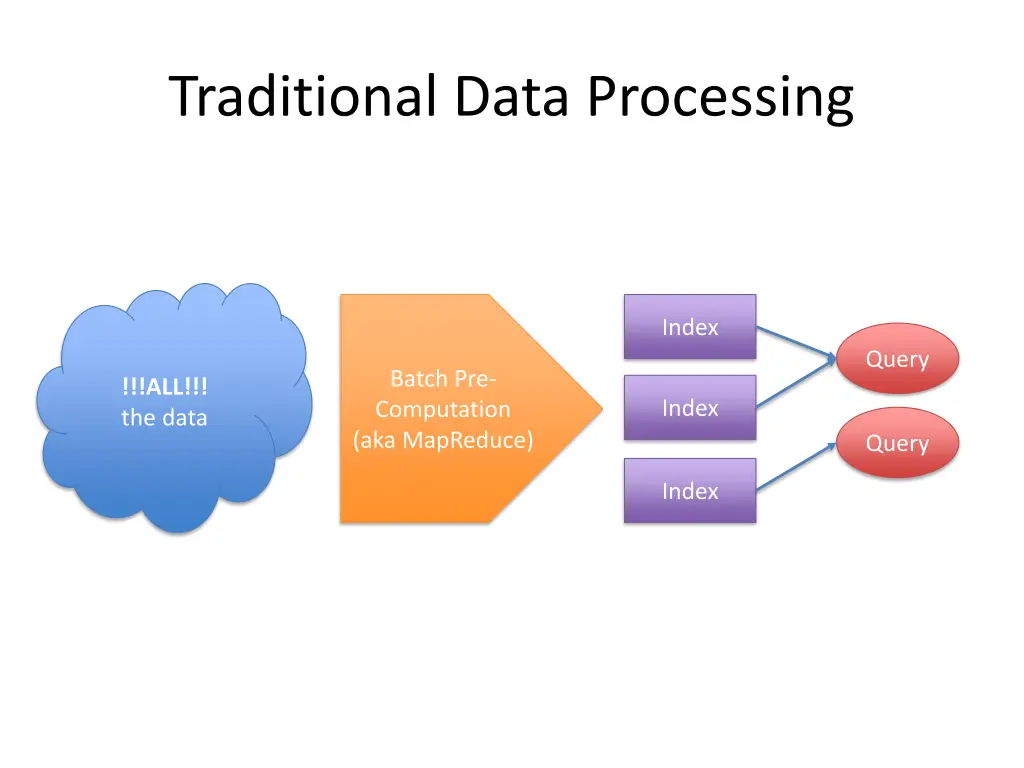

Traditional Data Processing Index Query Batch Pre- Computation (aka MapReduce) !!!ALL!!! the data Index Query Index

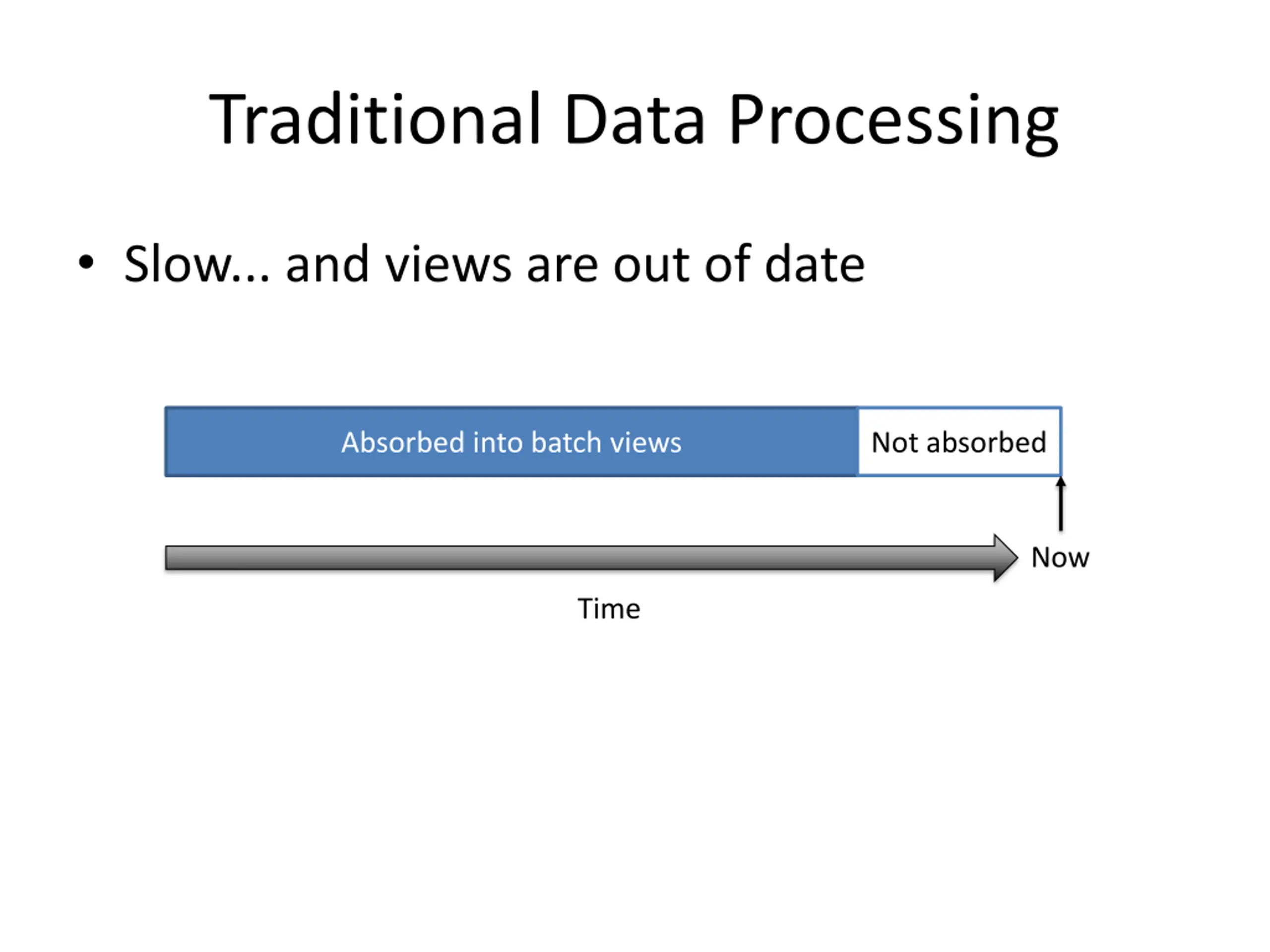

Traditional Data Processing Slow... and views are out of date Absorbed into batch views Not absorbed Now Time

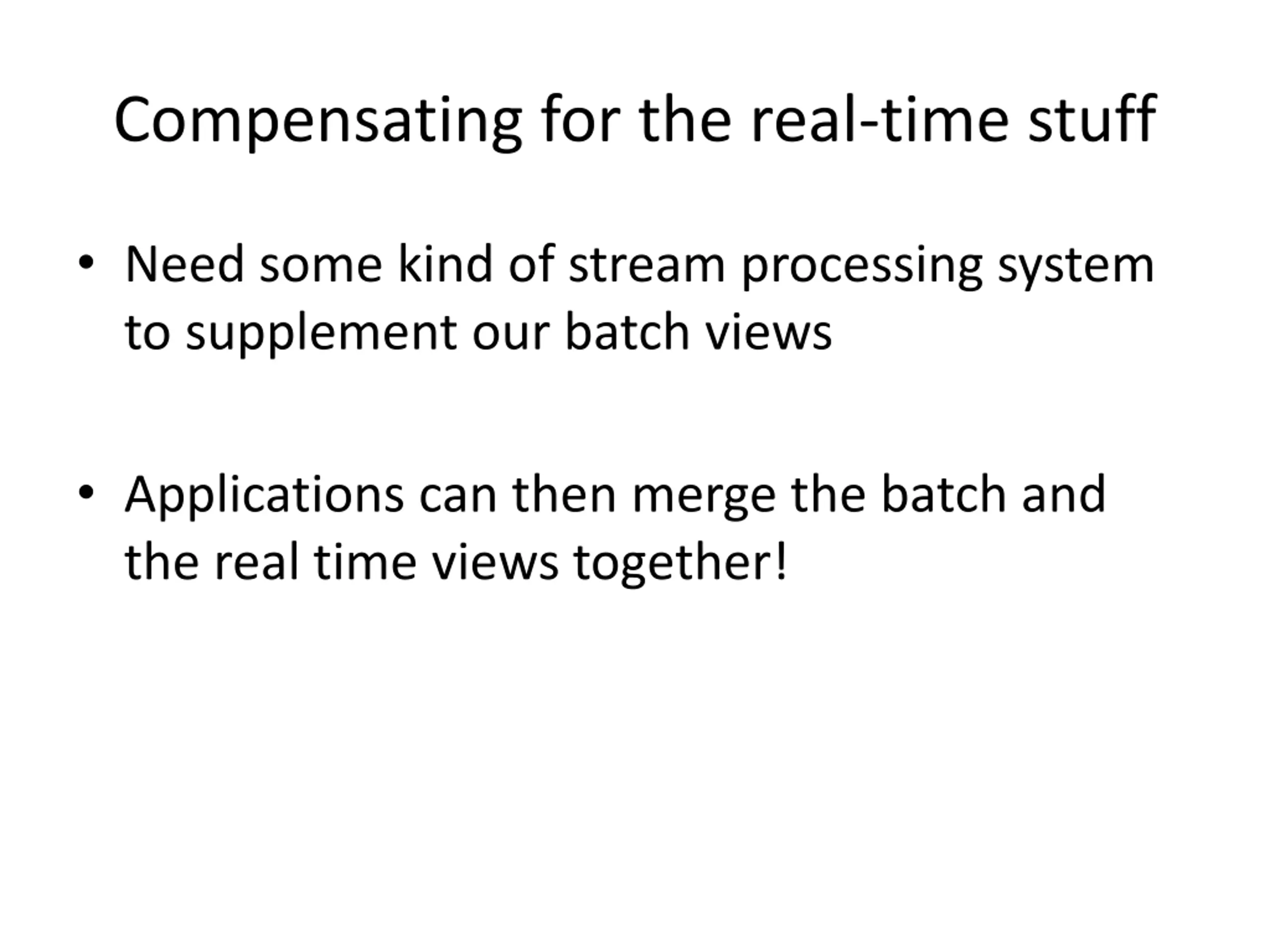

Compensating for the real-time stuff Need some kind of stream processing system to supplement our batch views Applications can then merge the batch and the real time views together!

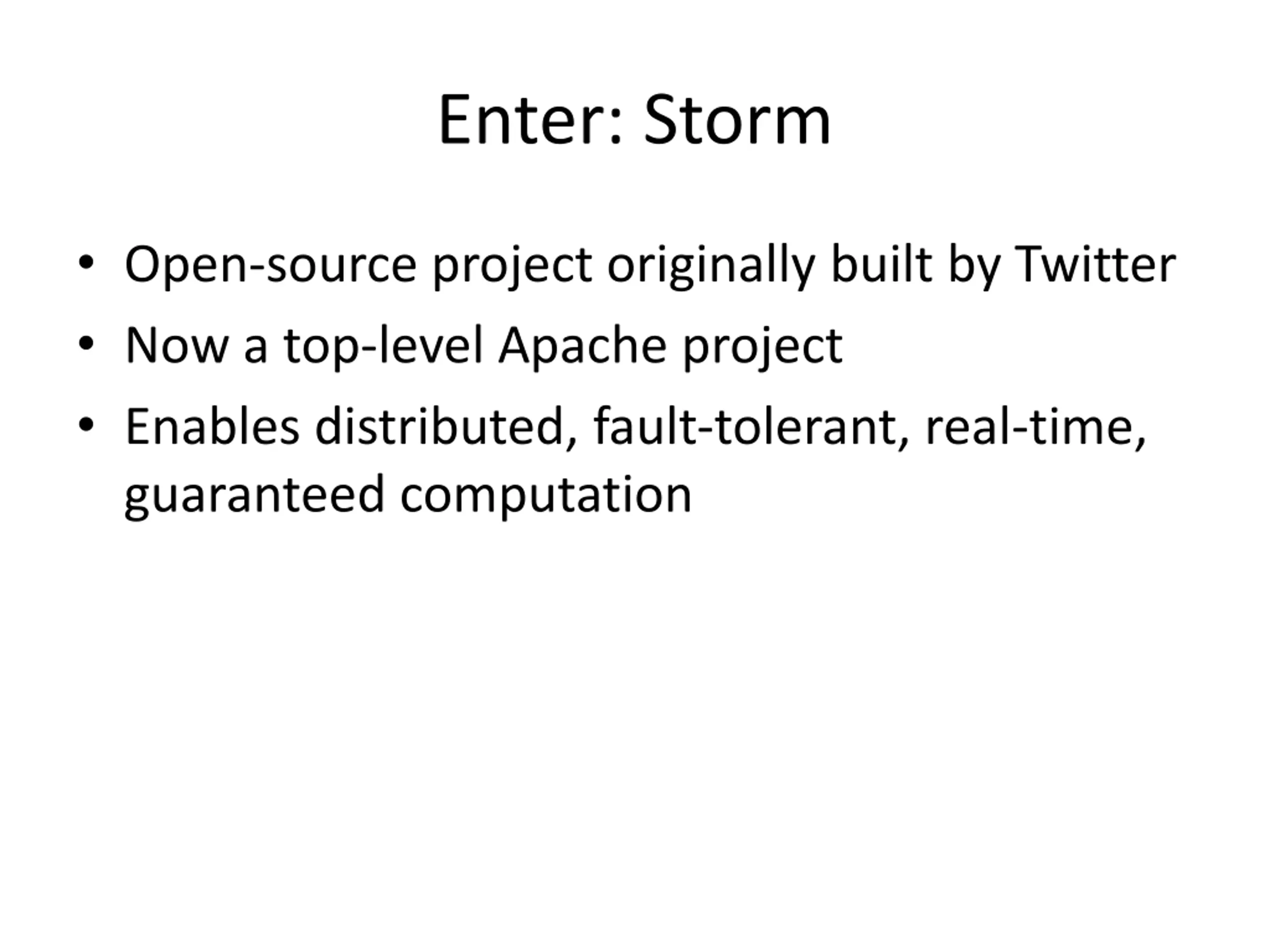

Enter: Storm Open-source project originally built by Twitter Now a top-level Apache project Enables distributed, fault-tolerant, real-time, guaranteed computation

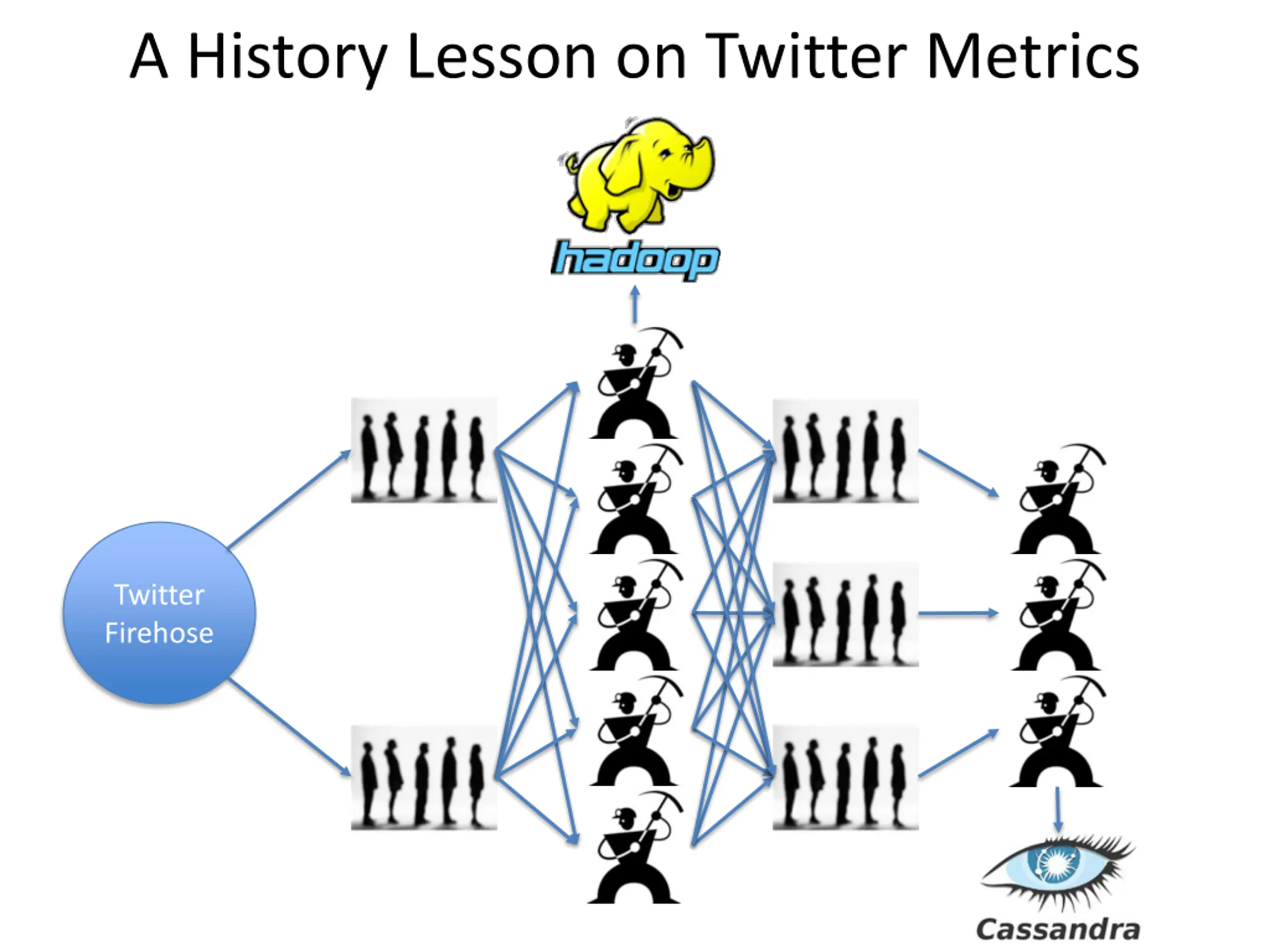

A History Lesson on Twitter Metrics Twitter Firehose

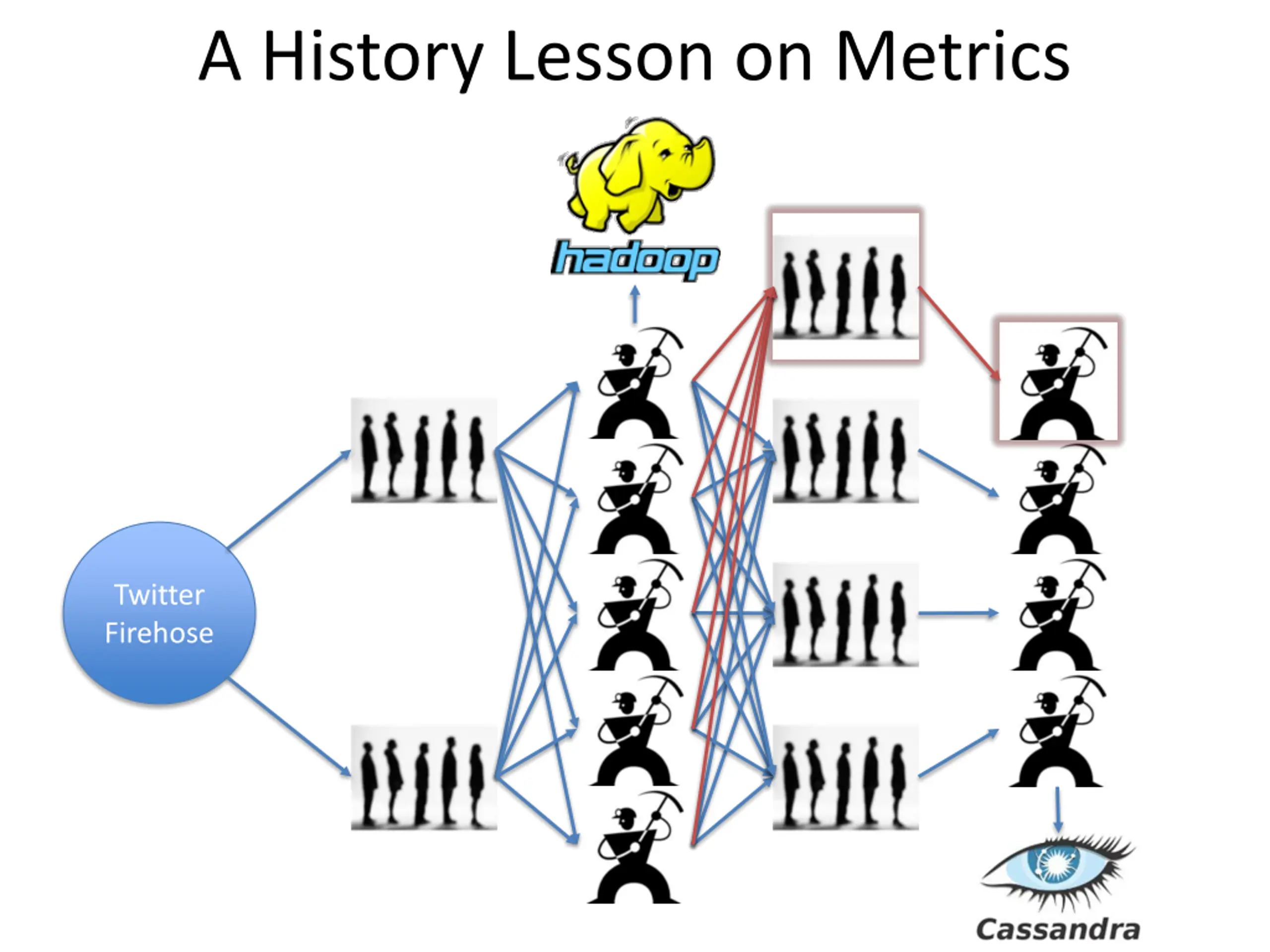

A History Lesson on Metrics Twitter Firehose

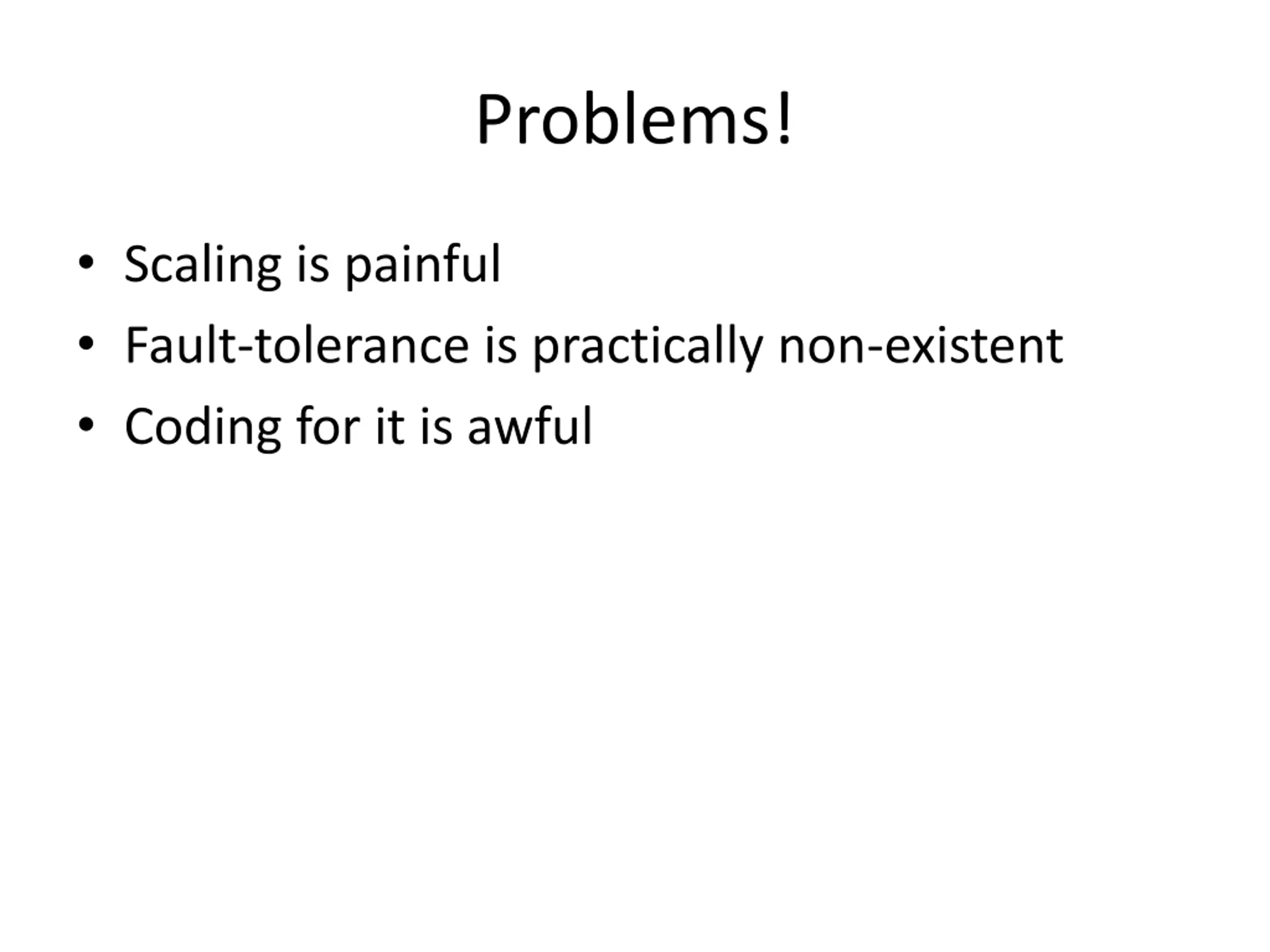

Problems! Scaling is painful Fault-tolerance is practically non-existent Coding for it is awful

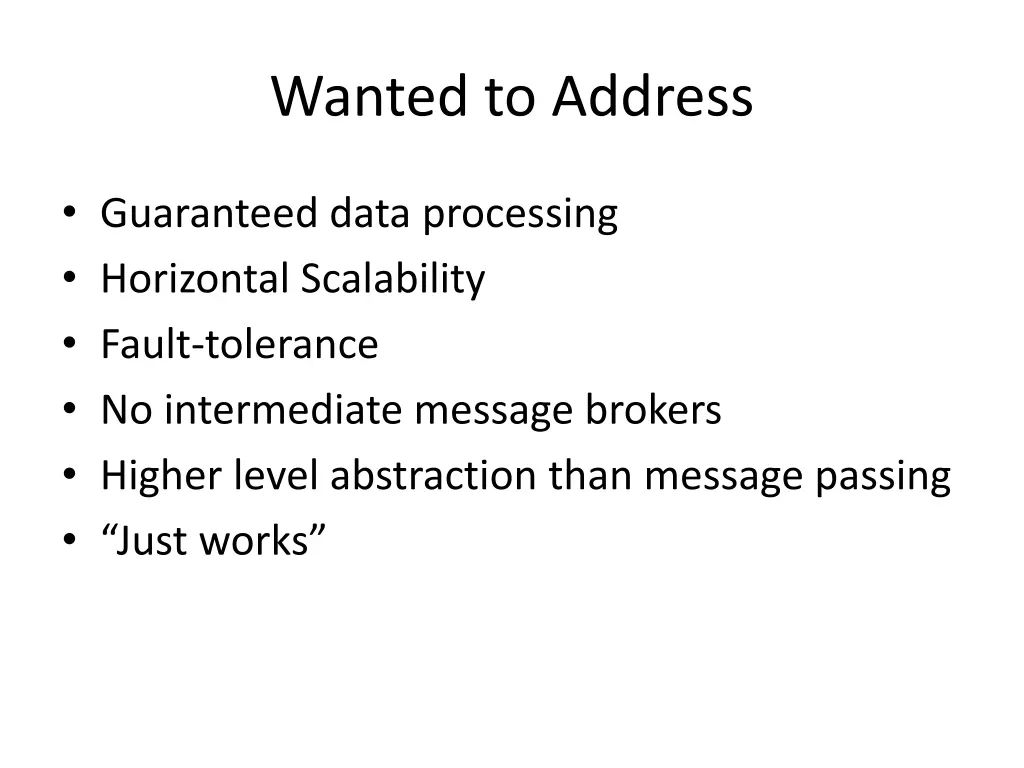

Wanted to Address Guaranteed data processing Horizontal Scalability Fault-tolerance No intermediate message brokers Higher level abstraction than message passing Just works

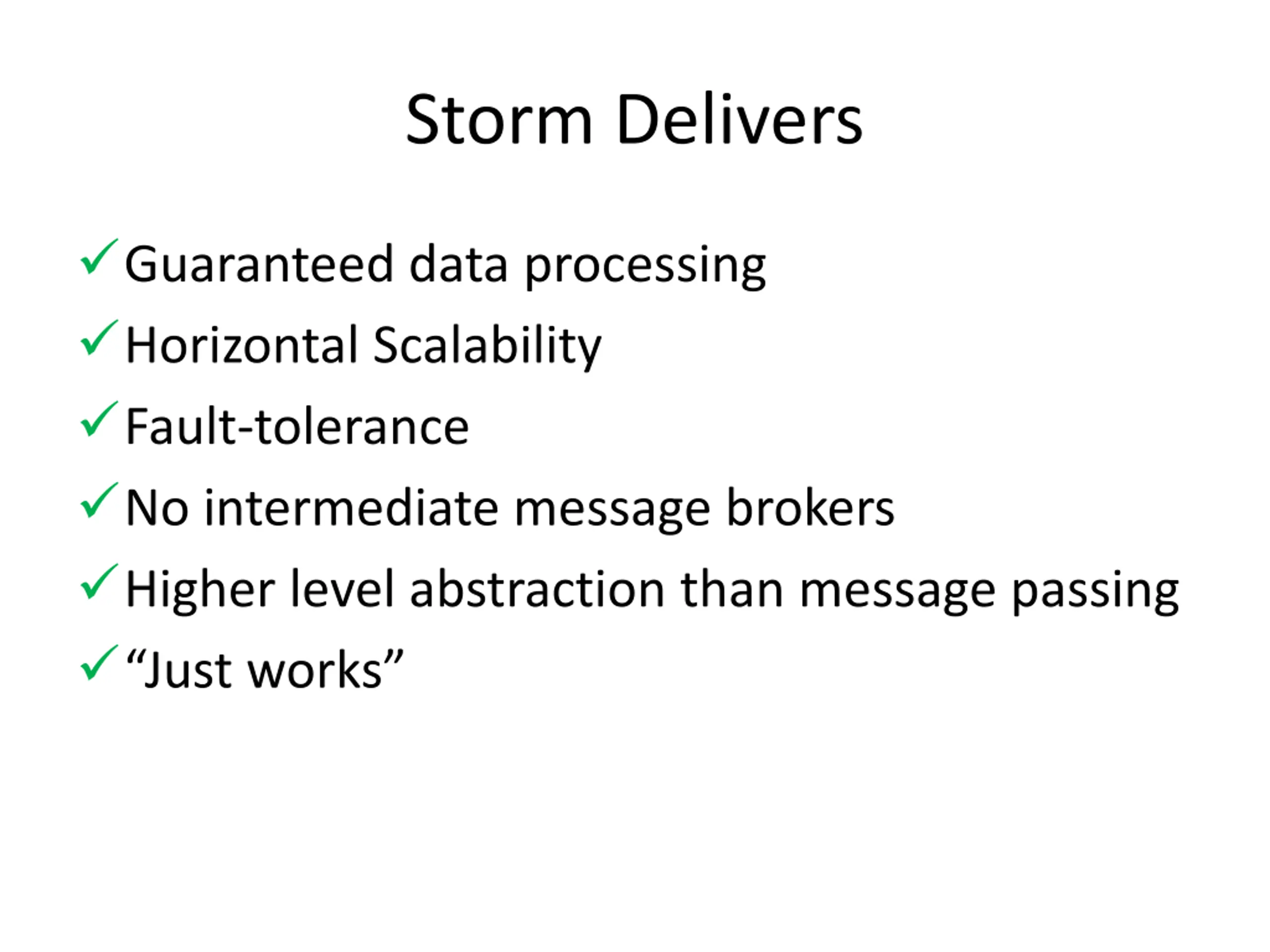

Storm Delivers Guaranteed data processing Horizontal Scalability Fault-tolerance No intermediate message brokers Higher level abstraction than message passing Just works

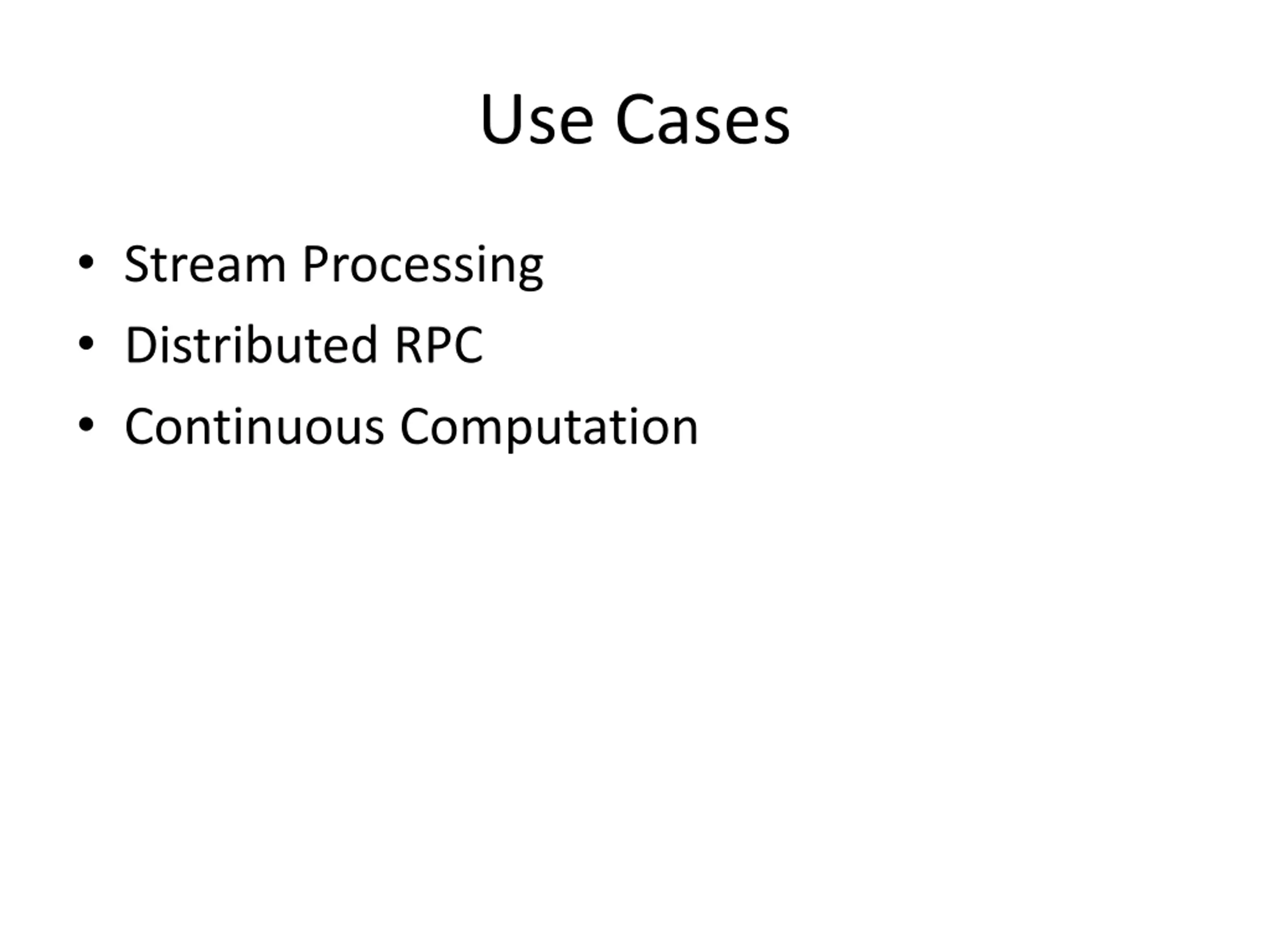

Use Cases Stream Processing Distributed RPC Continuous Computation

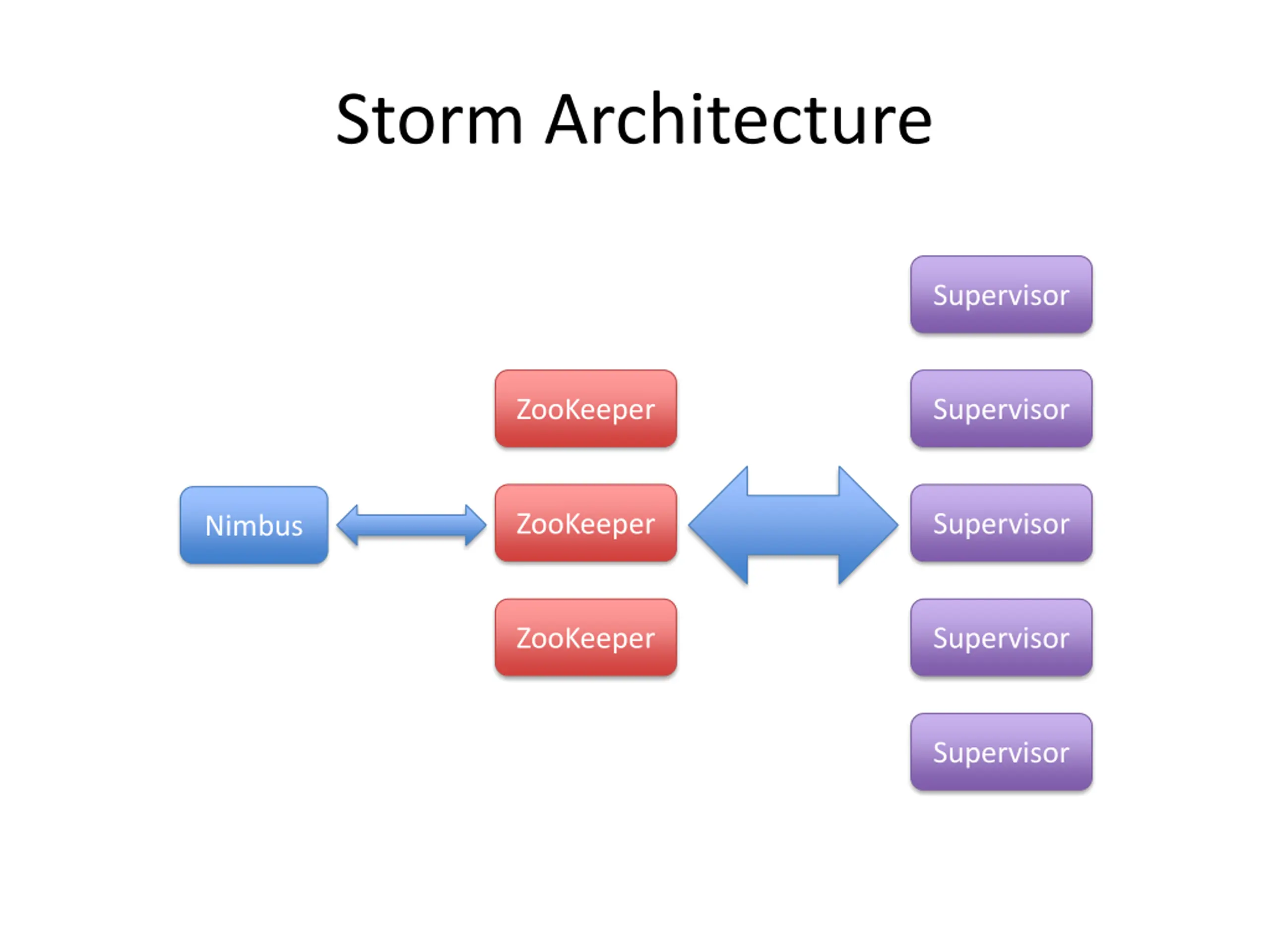

Storm Architecture Supervisor ZooKeeper Supervisor ZooKeeper Supervisor Nimbus ZooKeeper Supervisor Supervisor

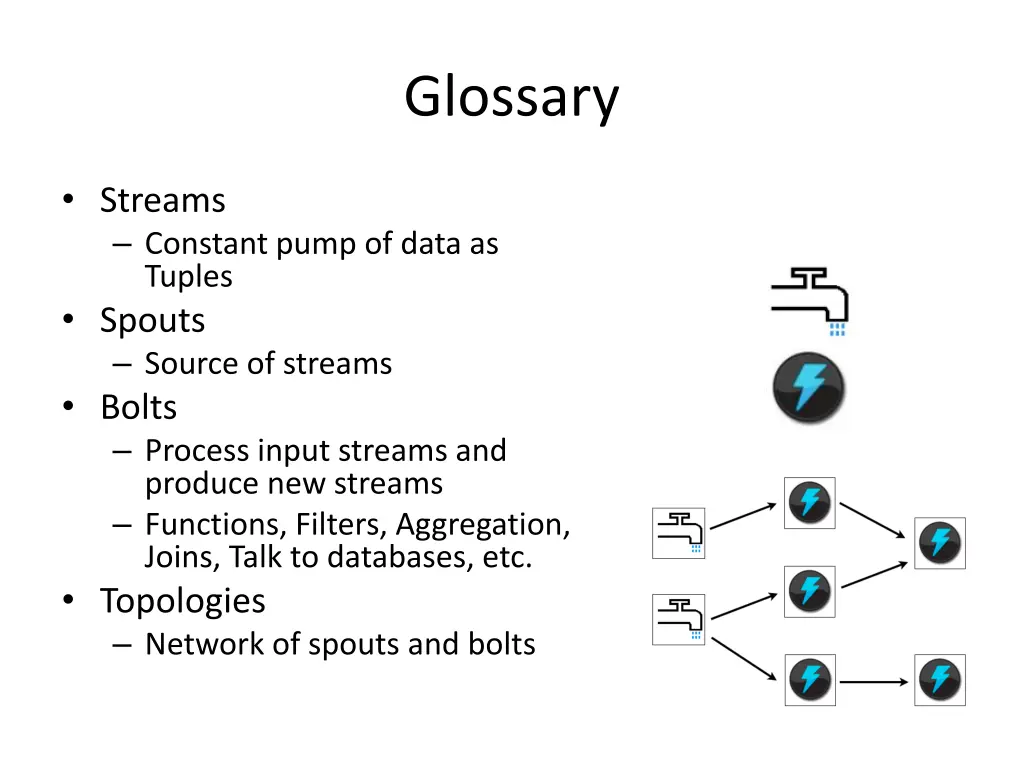

Glossary Streams Constant pump of data as Tuples Spouts Source of streams Bolts Process input streams and produce new streams Functions, Filters, Aggregation, Joins, Talk to databases, etc. Topologies Network of spouts and bolts

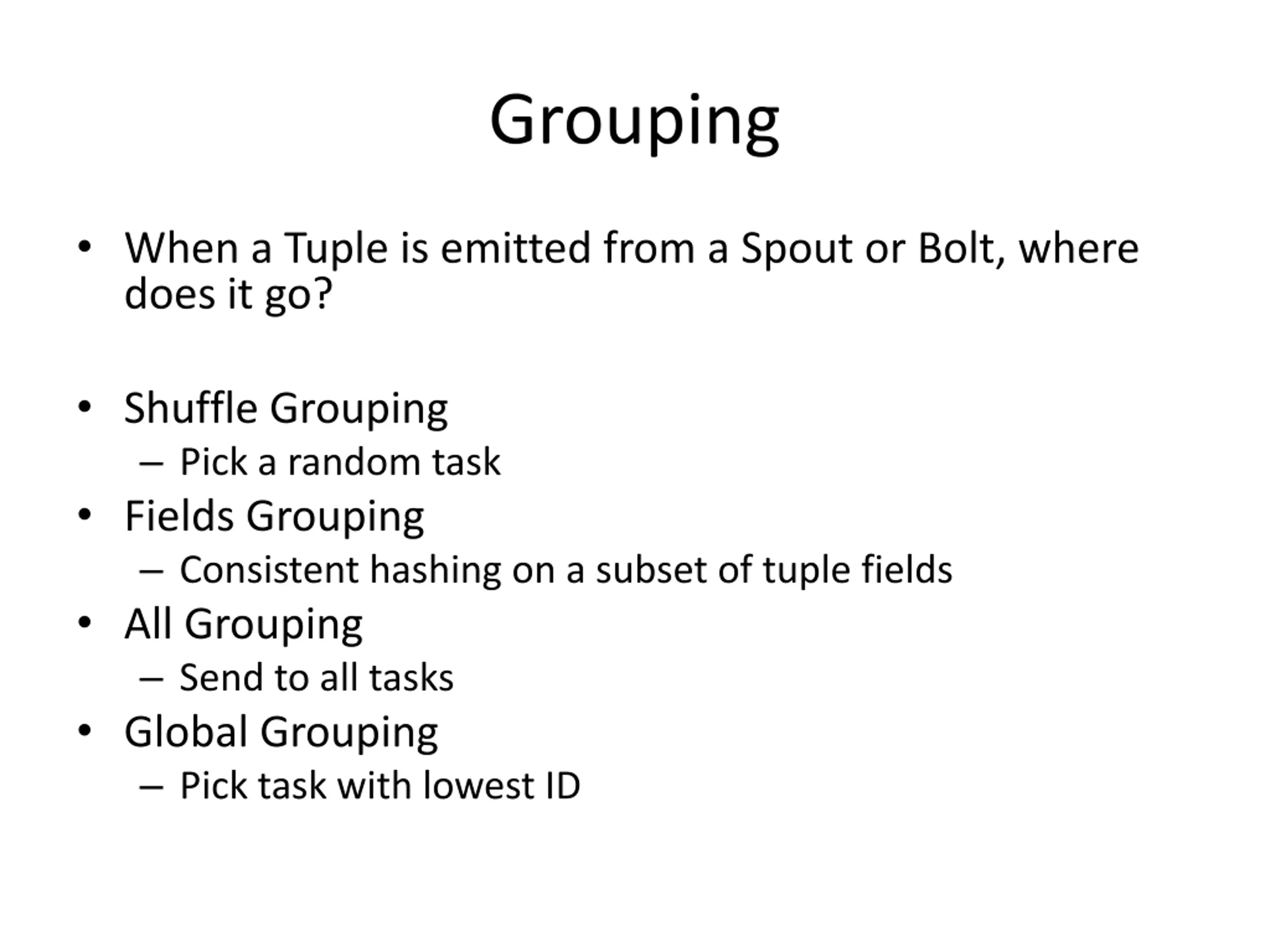

Grouping When a Tuple is emitted from a Spout or Bolt, where does it go? Shuffle Grouping Pick a random task Fields Grouping Consistent hashing on a subset of tuple fields All Grouping Send to all tasks Global Grouping Pick task with lowest ID

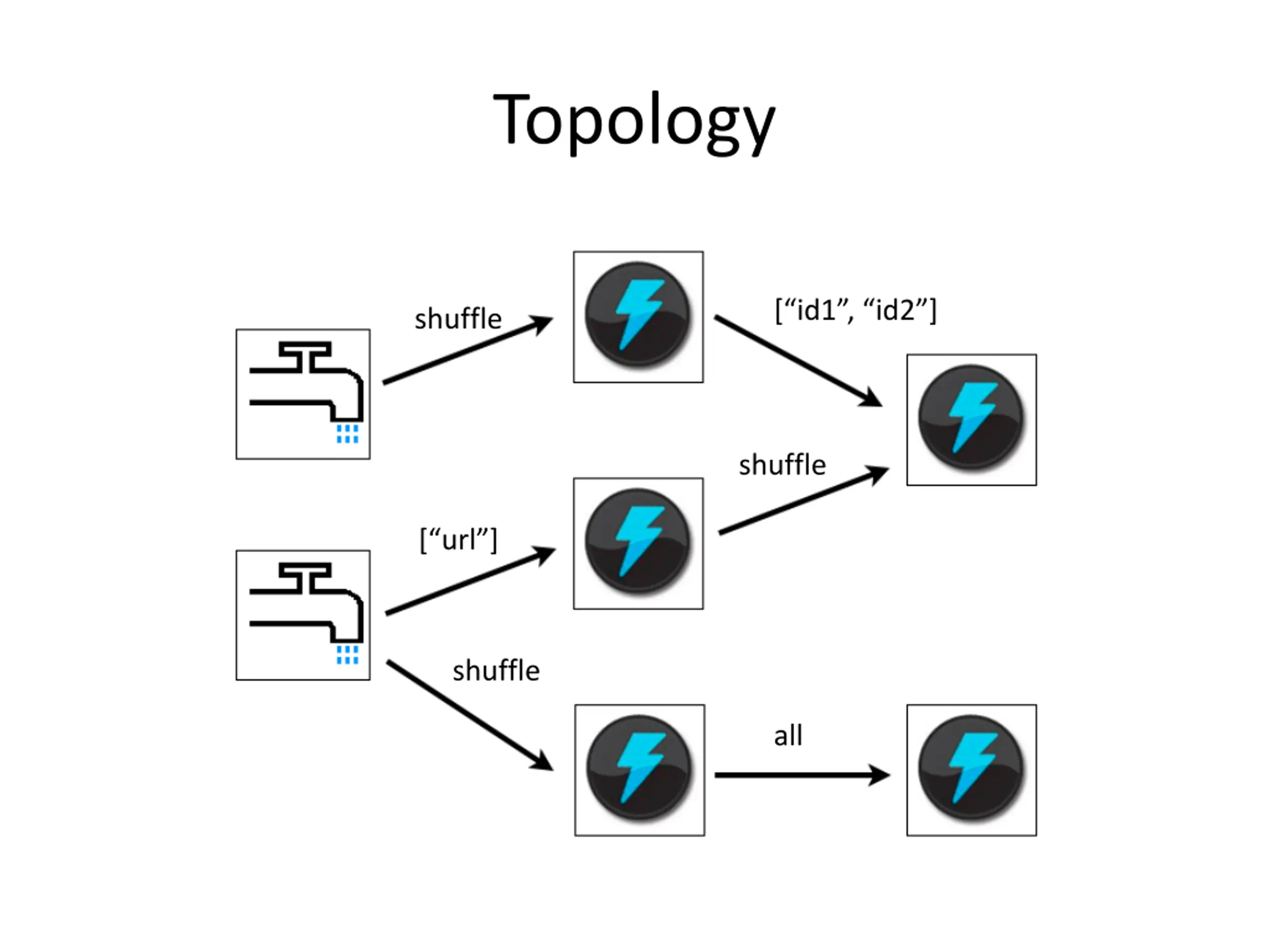

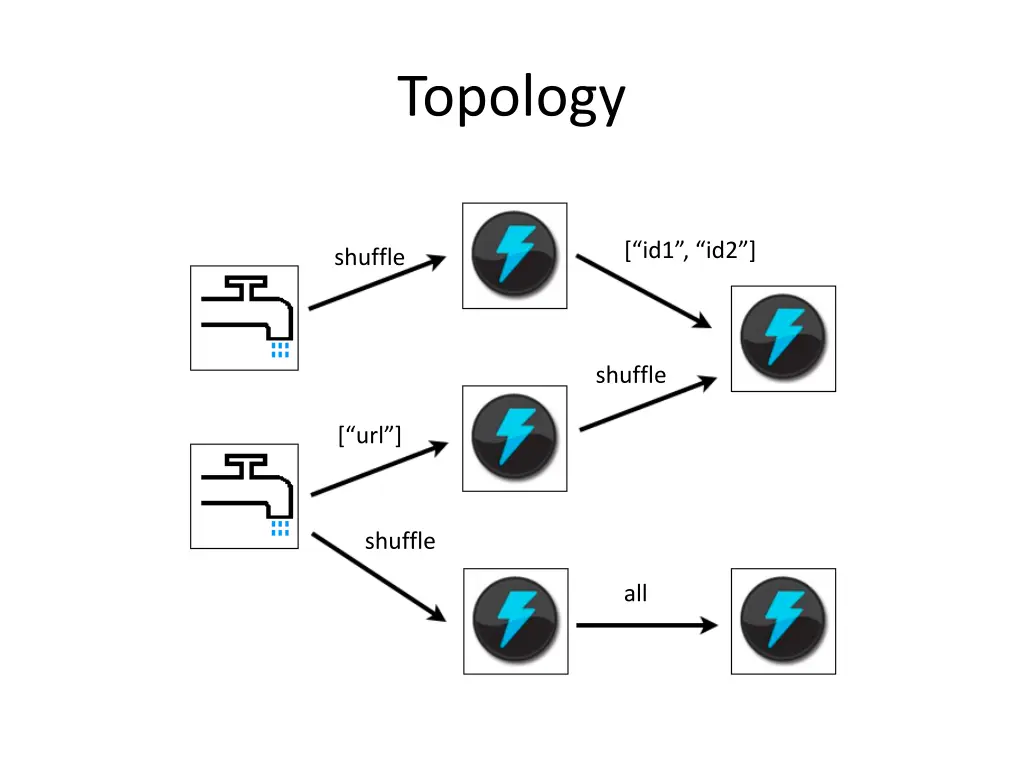

Topology [ id1 , id2 ] shuffle shuffle [ url ] shuffle all

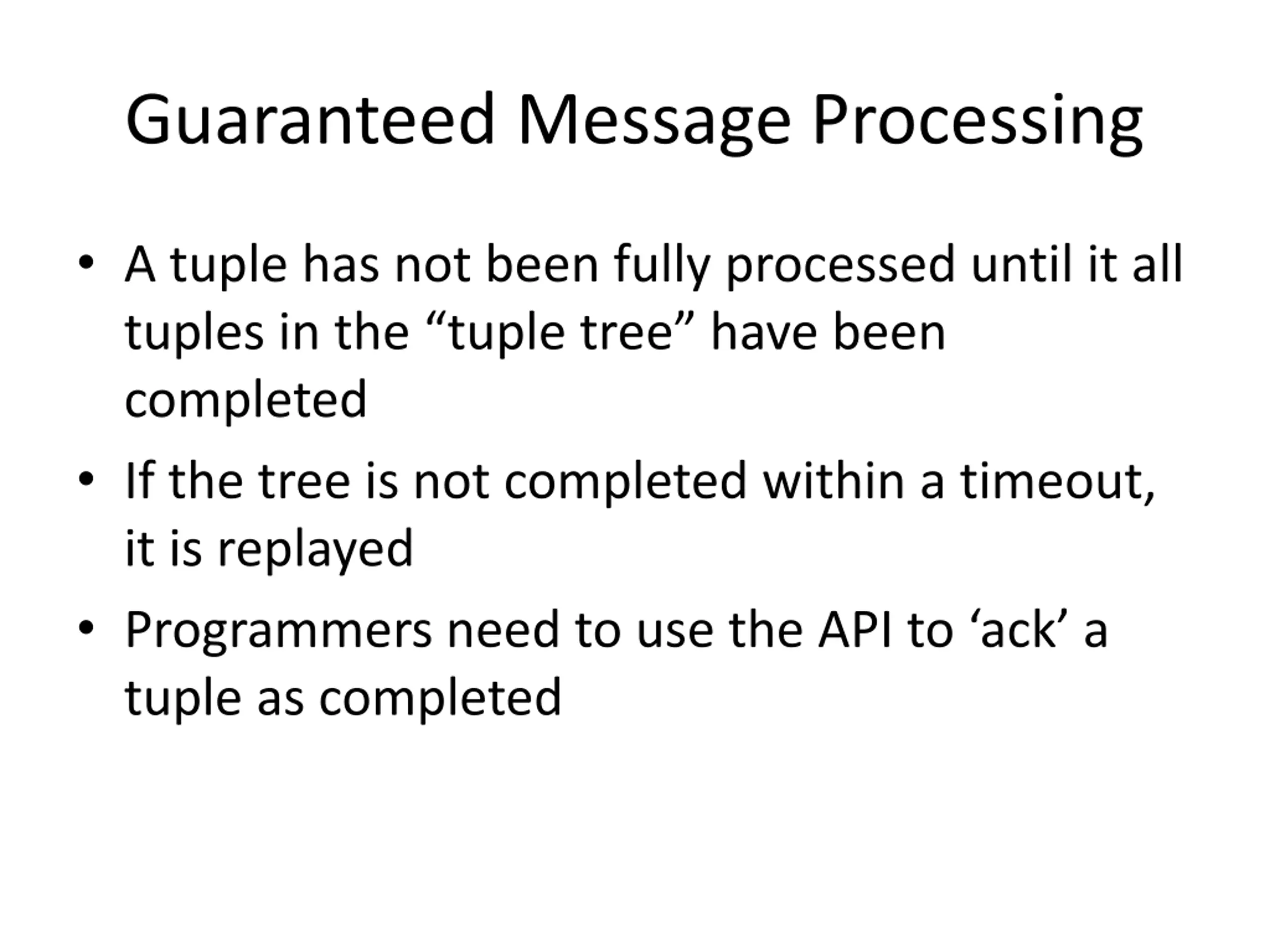

Guaranteed Message Processing A tuple has not been fully processed until it all tuples in the tuple tree have been completed If the tree is not completed within a timeout, it is replayed Programmers need to use the API to ack a tuple as completed

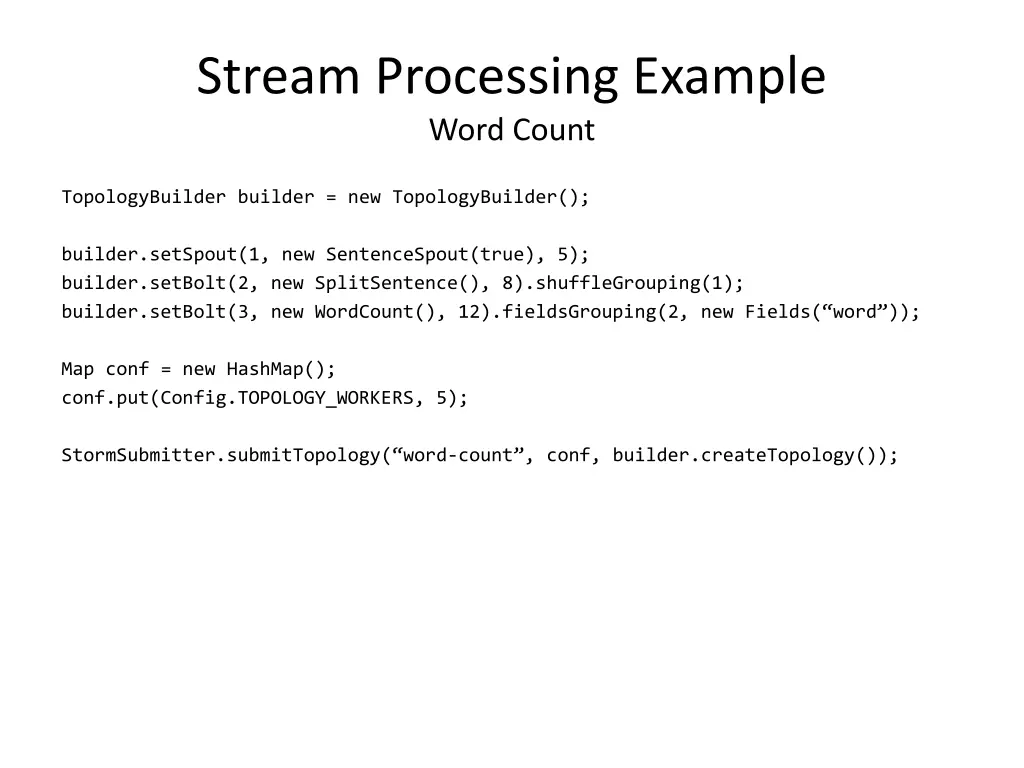

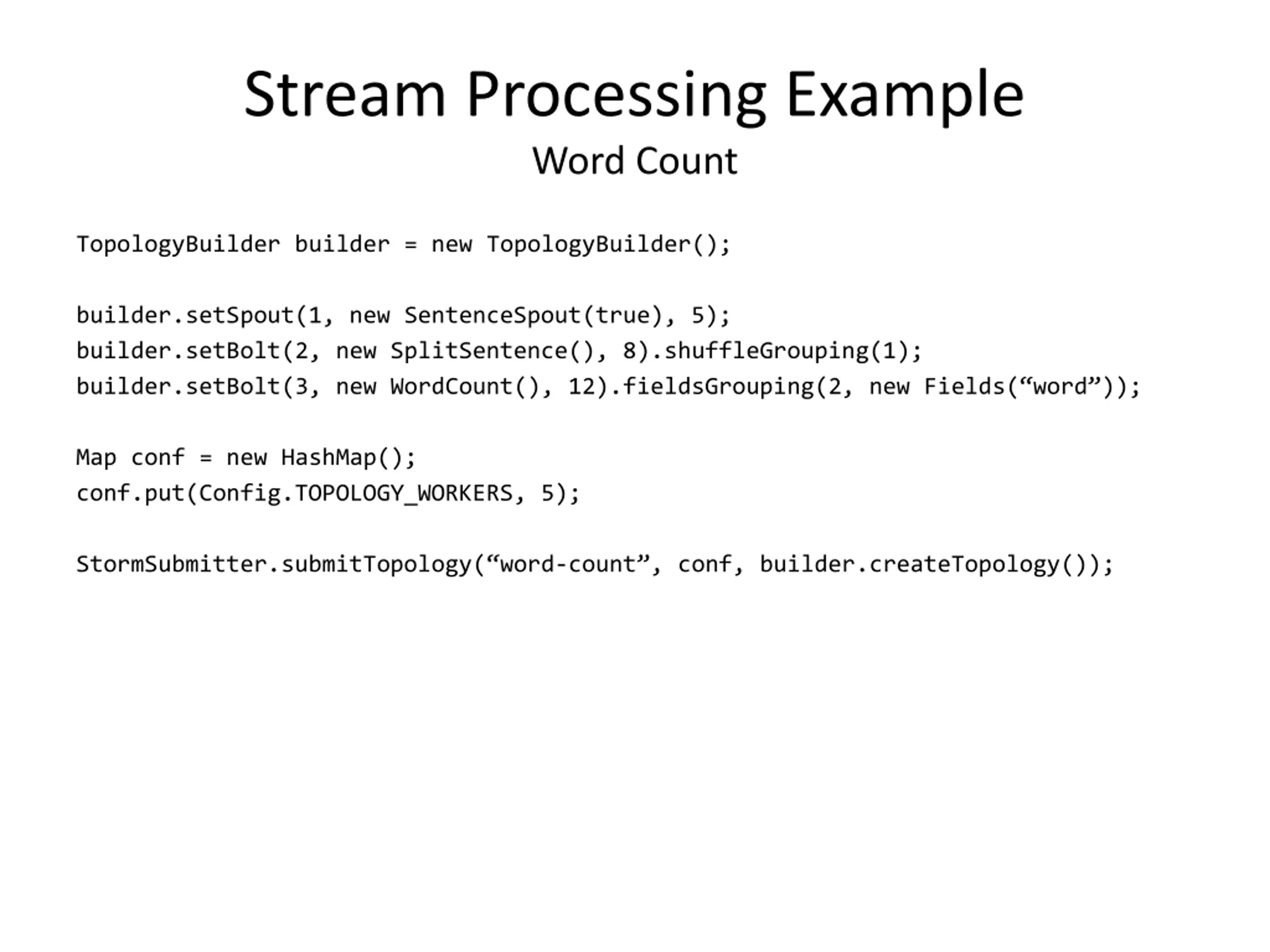

Stream Processing Example Word Count TopologyBuilder builder = new TopologyBuilder(); builder.setSpout(1, new SentenceSpout(true), 5); builder.setBolt(2, new SplitSentence(), 8).shuffleGrouping(1); builder.setBolt(3, new WordCount(), 12).fieldsGrouping(2, new Fields( word )); Map conf = new HashMap(); conf.put(Config.TOPOLOGY_WORKERS, 5); StormSubmitter.submitTopology( word-count , conf, builder.createTopology());

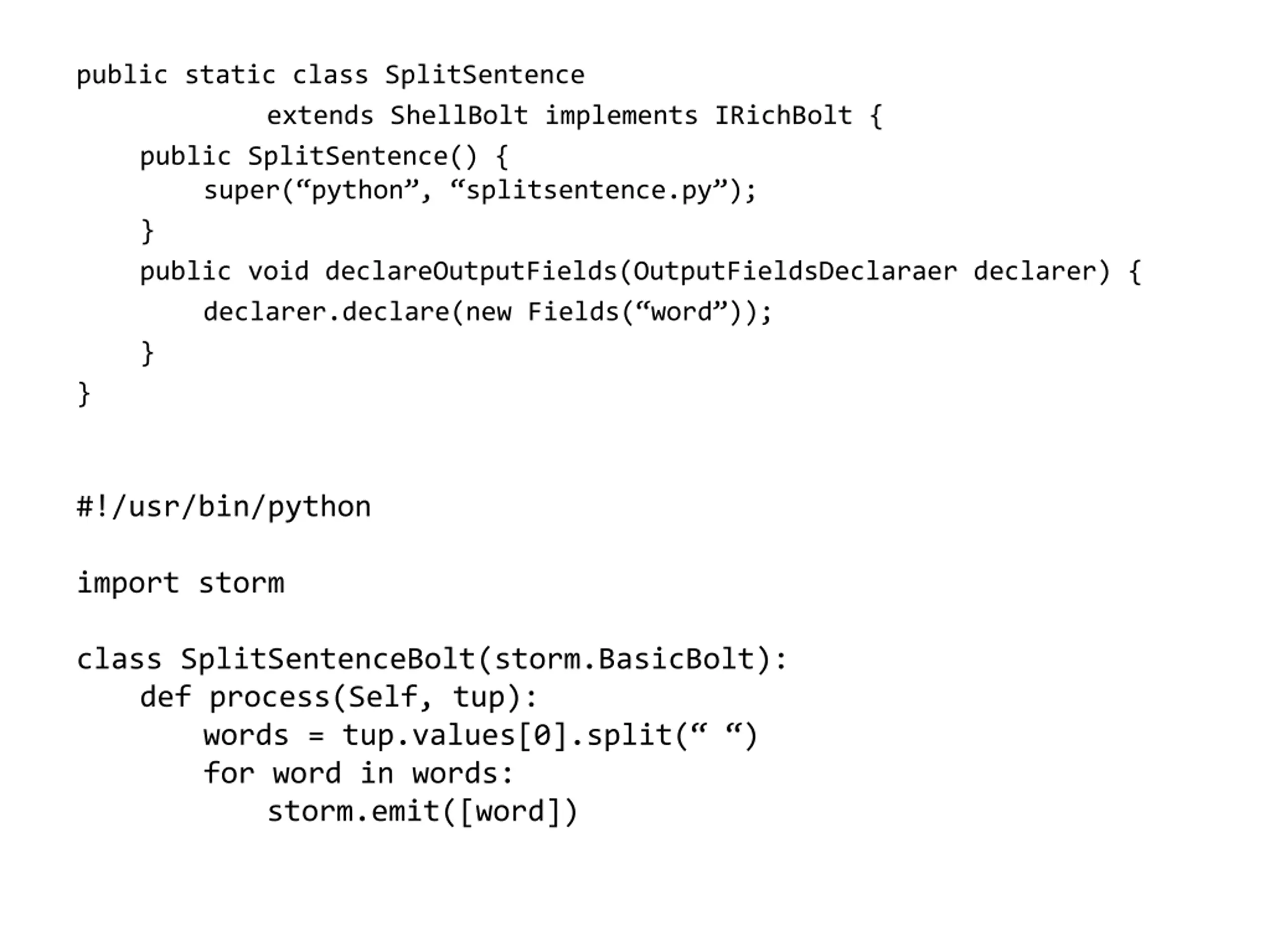

public static class SplitSentence extends ShellBolt implements IRichBolt { public SplitSentence() { super( python , splitsentence.py ); } public void declareOutputFields(OutputFieldsDeclaraer declarer) { declarer.declare(new Fields( word )); } } #!/usr/bin/python import storm class SplitSentenceBolt(storm.BasicBolt): def process(Self, tup): words = tup.values[0].split( ) for word in words: storm.emit([word])

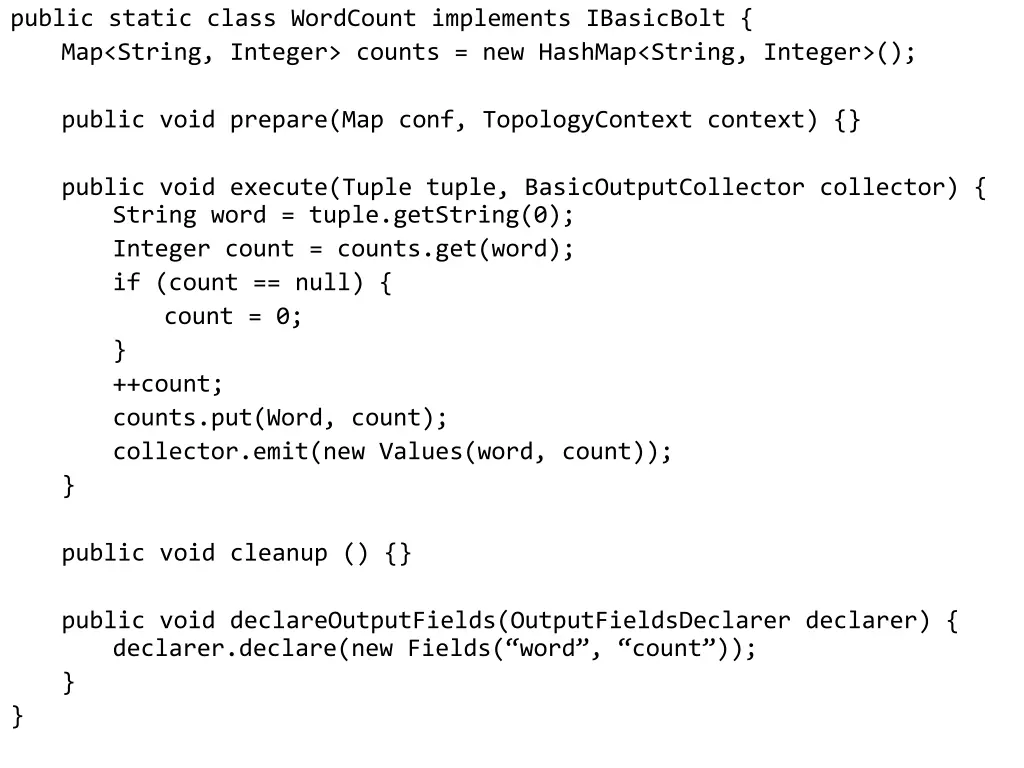

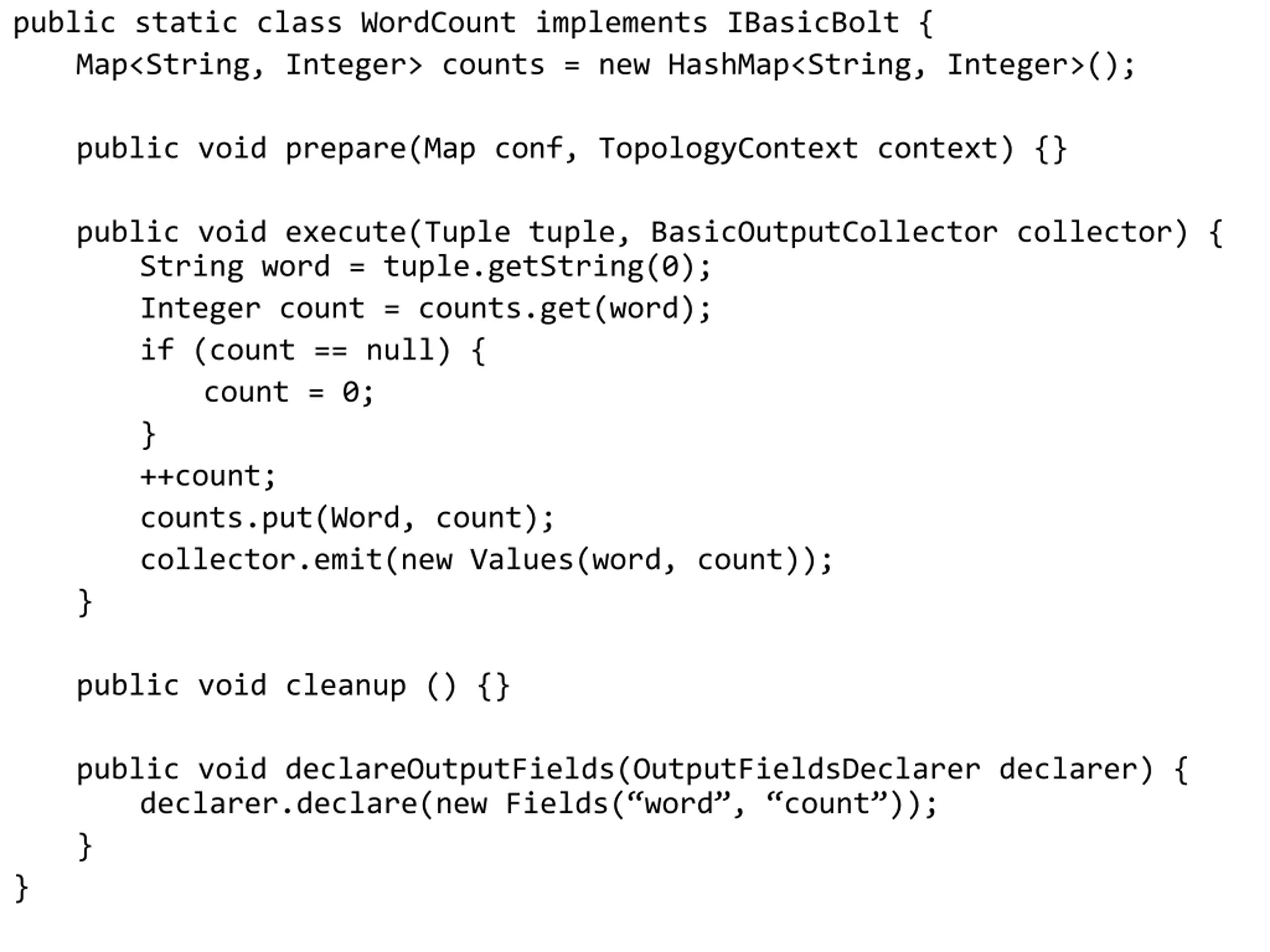

public static class WordCount implements IBasicBolt { Map<String, Integer> counts = new HashMap<String, Integer>(); public void prepare(Map conf, TopologyContext context) {} public void execute(Tuple tuple, BasicOutputCollector collector) { String word = tuple.getString(0); Integer count = counts.get(word); if (count == null) { count = 0; } ++count; counts.put(Word, count); collector.emit(new Values(word, count)); } public void cleanup () {} } public void declareOutputFields(OutputFieldsDeclarer declarer) { declarer.declare(new Fields( word , count )); }

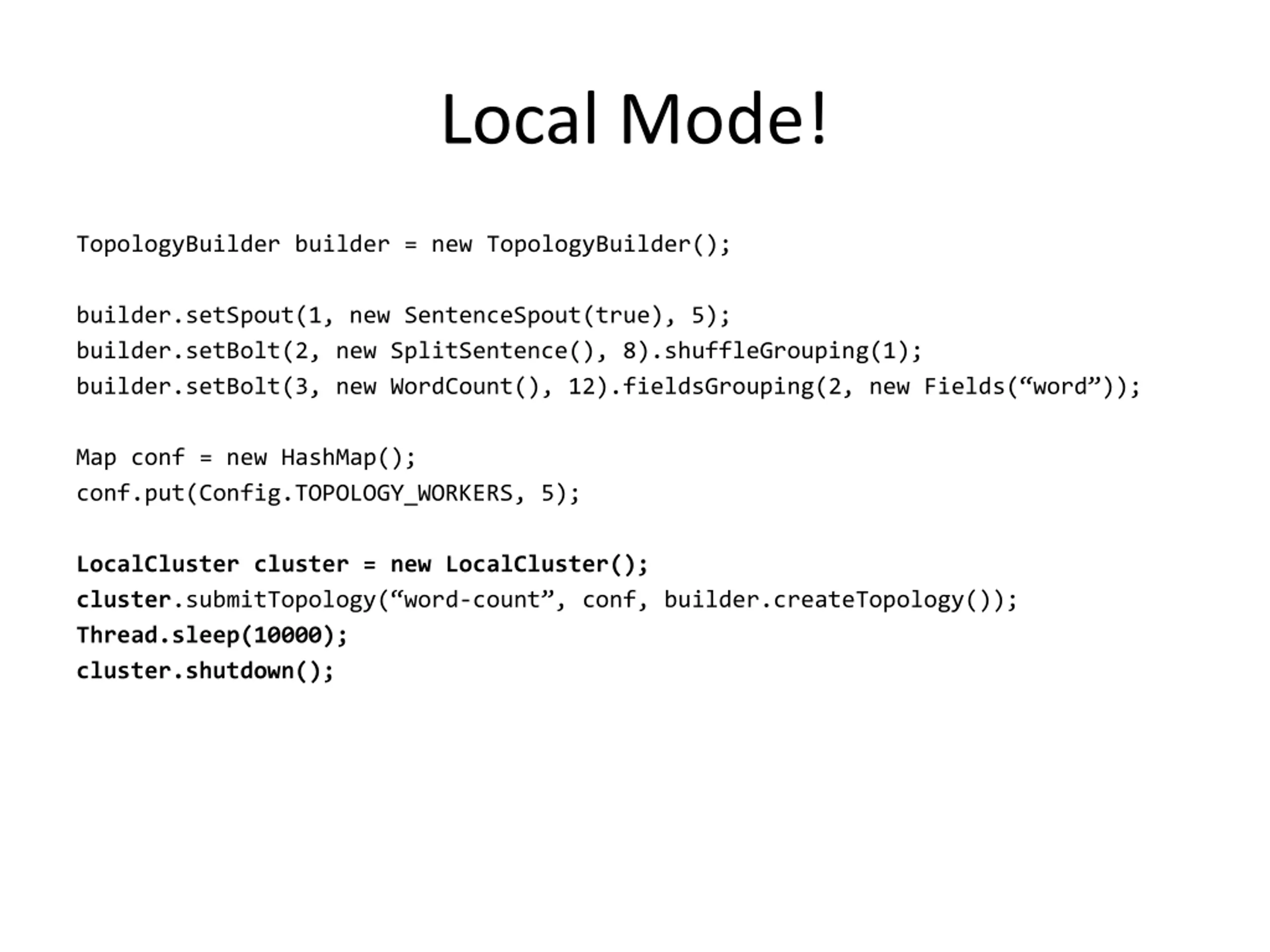

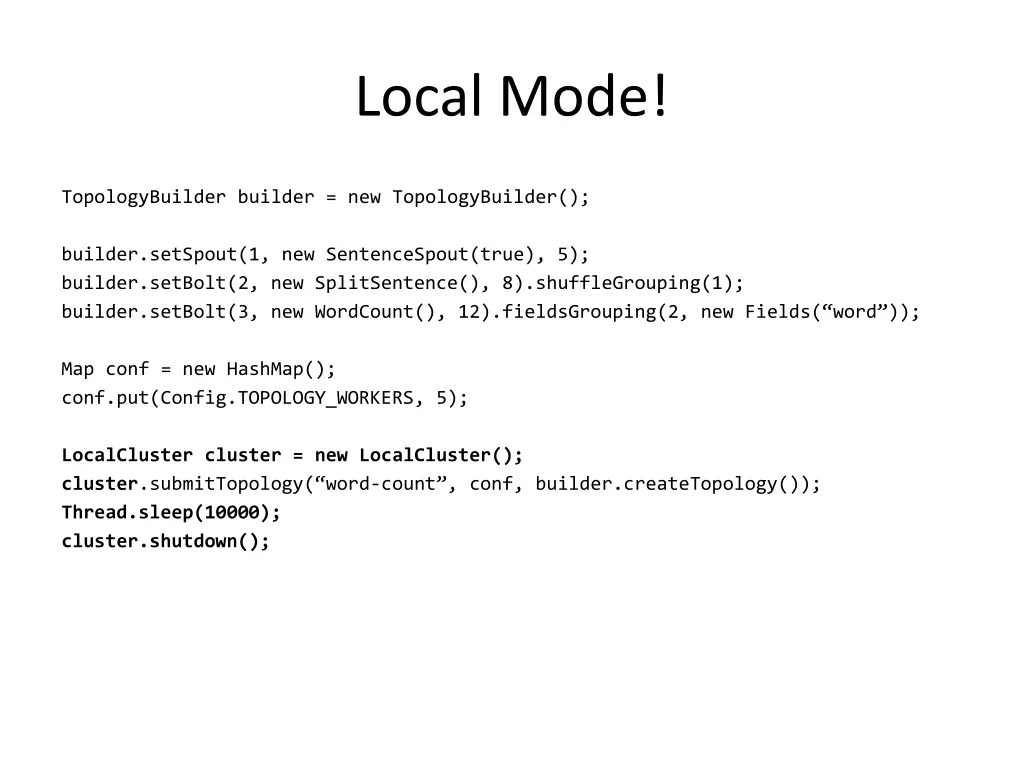

Local Mode! TopologyBuilder builder = new TopologyBuilder(); builder.setSpout(1, new SentenceSpout(true), 5); builder.setBolt(2, new SplitSentence(), 8).shuffleGrouping(1); builder.setBolt(3, new WordCount(), 12).fieldsGrouping(2, new Fields( word )); Map conf = new HashMap(); conf.put(Config.TOPOLOGY_WORKERS, 5); LocalCluster cluster = new LocalCluster(); cluster.submitTopology( word-count , conf, builder.createTopology()); Thread.sleep(10000); cluster.shutdown();

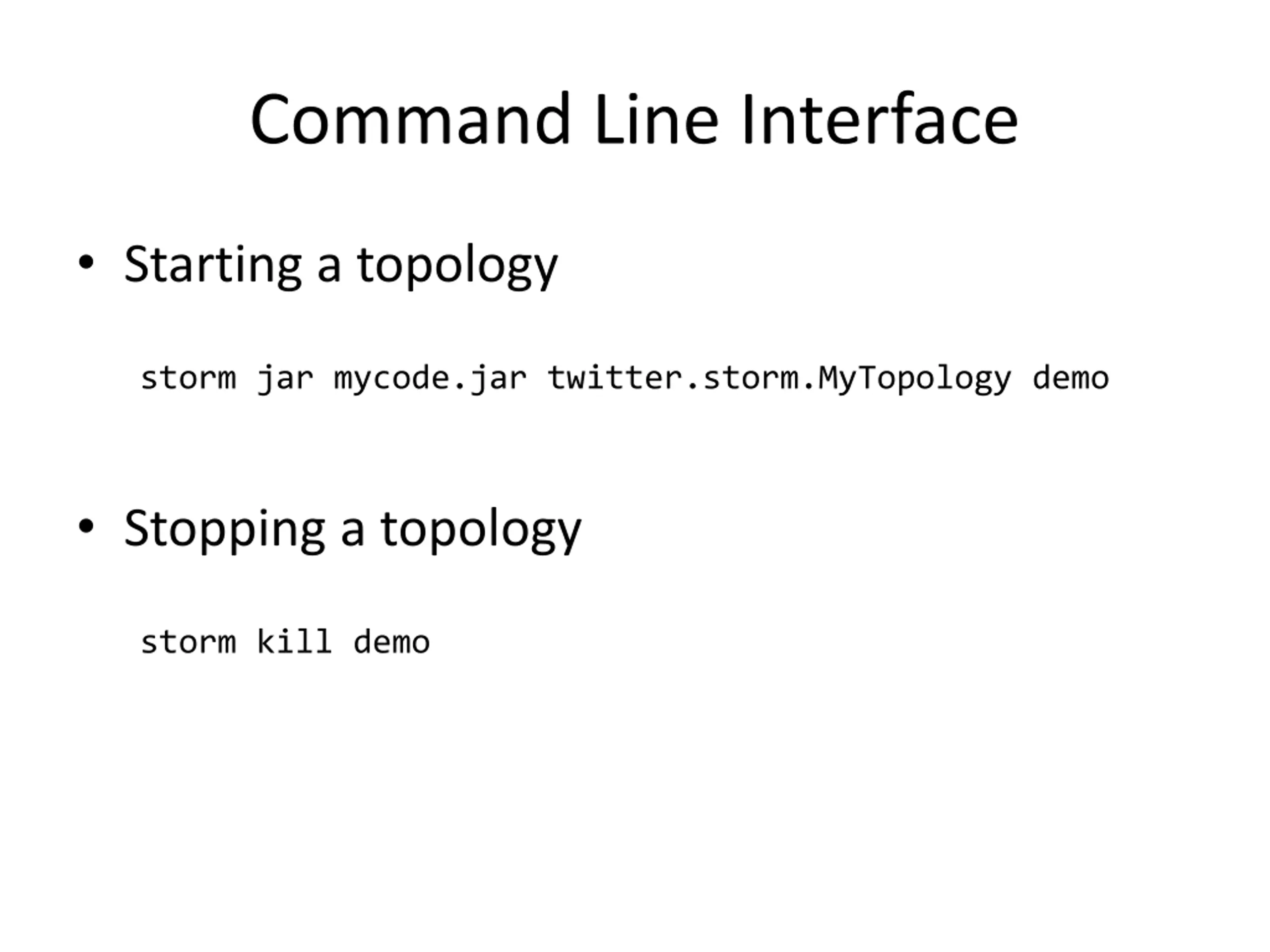

Command Line Interface Starting a topology storm jar mycode.jar twitter.storm.MyTopology demo Stopping a topology storm kill demo

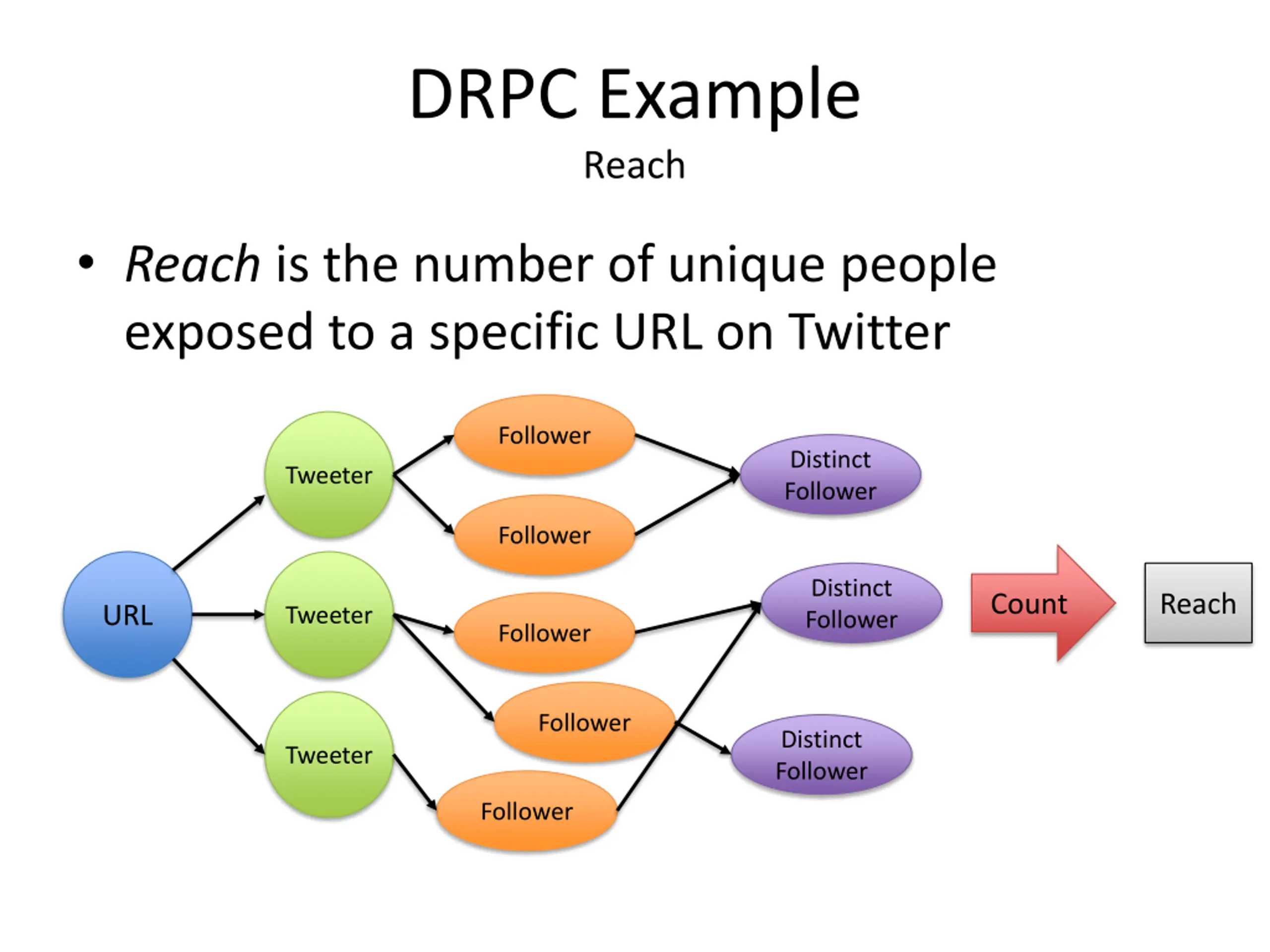

DRPC Example Reach Reach is the number of unique people exposed to a specific URL on Twitter Follower Distinct Follower Tweeter Follower Distinct Follower Count Reach URL Tweeter Follower Follower Distinct Follower Tweeter Follower

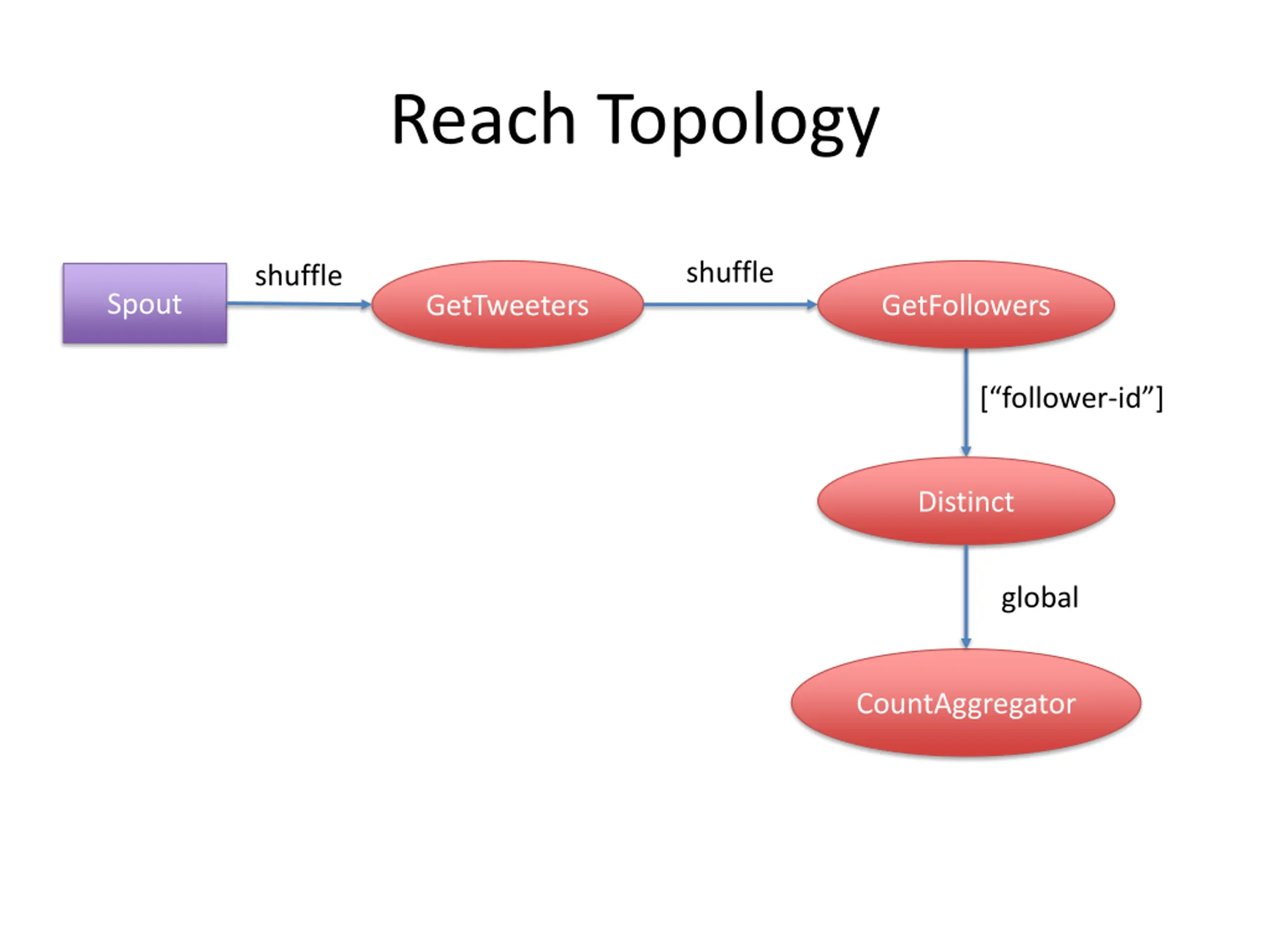

Reach Topology shuffle shuffle Spout GetTweeters GetFollowers [ follower-id ] Distinct global CountAggregator

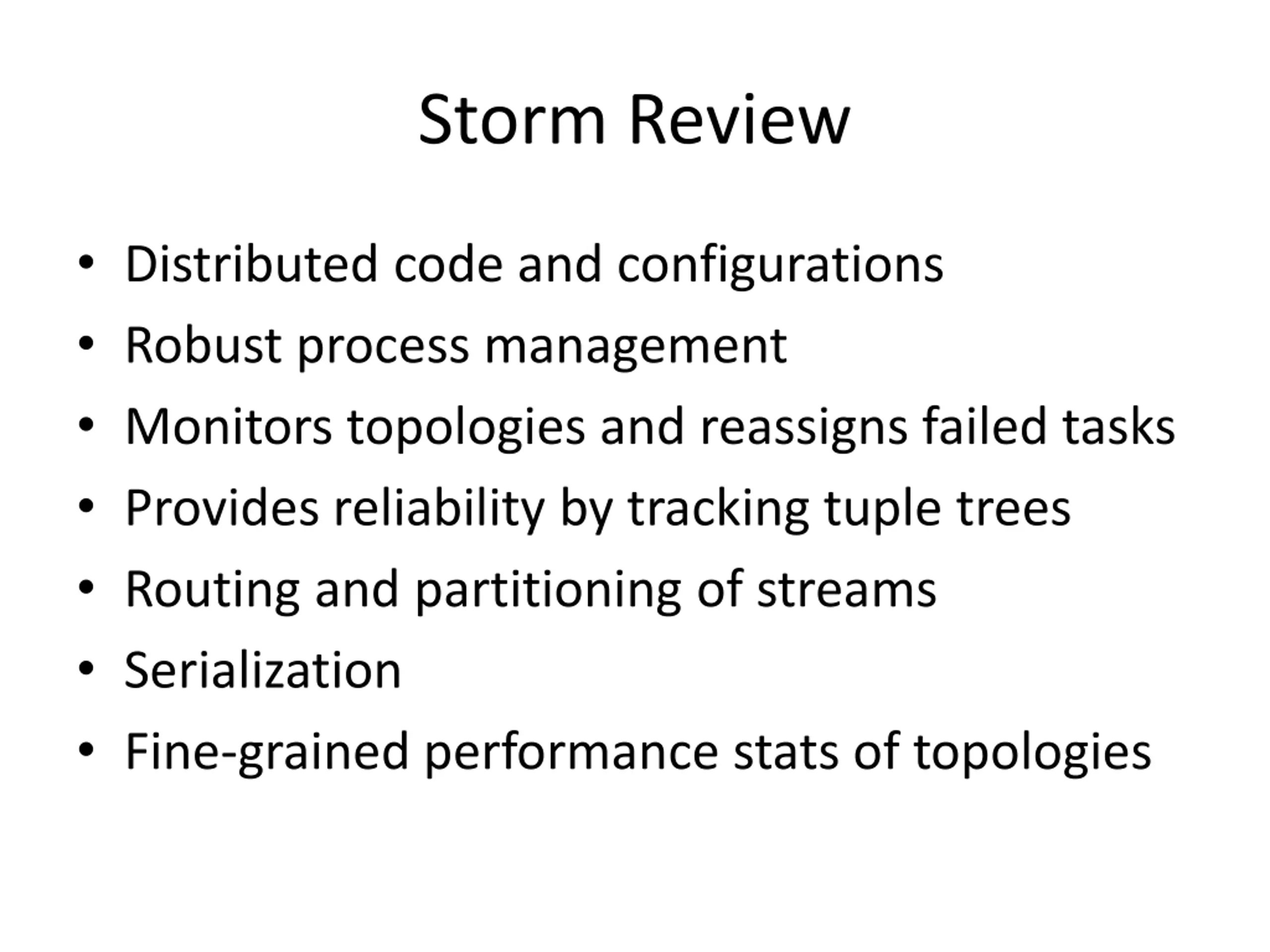

Storm Review Distributed code and configurations Robust process management Monitors topologies and reassigns failed tasks Provides reliability by tracking tuple trees Routing and partitioning of streams Serialization Fine-grained performance stats of topologies
References http://storm.incubator.apache.org/ http://www.slideshare.net/nathanmarz/storm- distributed-and-faulttolerant-realtime- computation http://www.slideshare.net/Hadoop_Summit/real time-analytics-with-storm http://spark.apache.org http://www.cs.berkeley.edu/~matei/papers/2012 /nsdi_spark.pdf
